WAVE V2

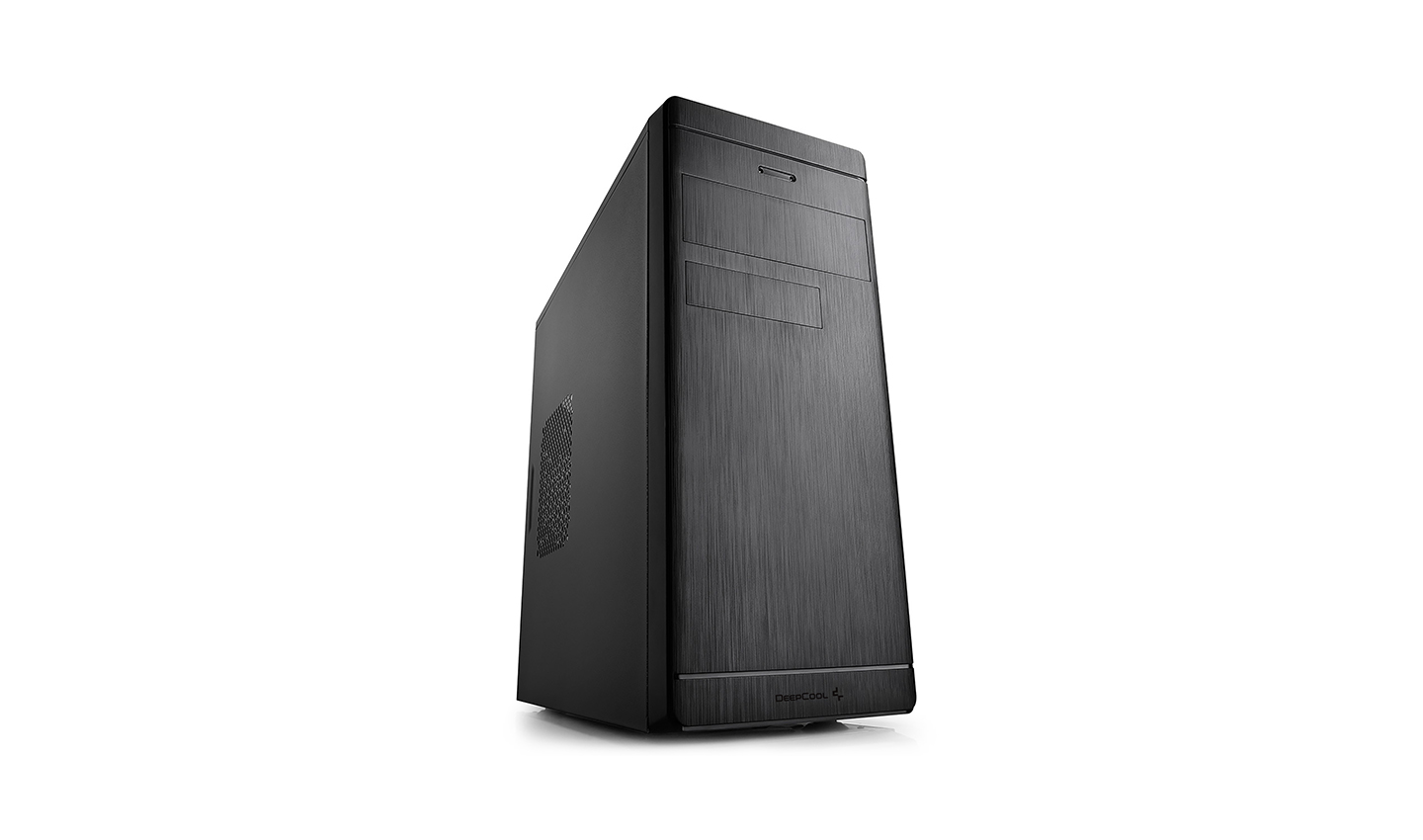

WAVE V2 is a Micro ATX case designed with maximum compatibility in mind. Small size (390 x 175 x 350 mm) makes WAVE V2 the ideal choice for gamers or DIY enthusiasts who are looking for computer cases that actually fits in their limited space. Unique surface treatment provides an elegant and minimalist visual.

COLOR

black

MODEL

WAVE V2

Micro ATX Computer Case with Simple

Space Contracted Design

Classical Small Case Management

Unique surface treatment provides an elegant and minimalist visual.

Case dimensions of 390 x 175 x 350 mm.

Support VGA card installation up to 340 mm length.

Good Heat Ventilation Performance

Optimized Airflow Design & Cooling System

1x 120 mm fan mounting ports on the front panel.

120 mm and 90 mm mounting ports at the front / rear panel.

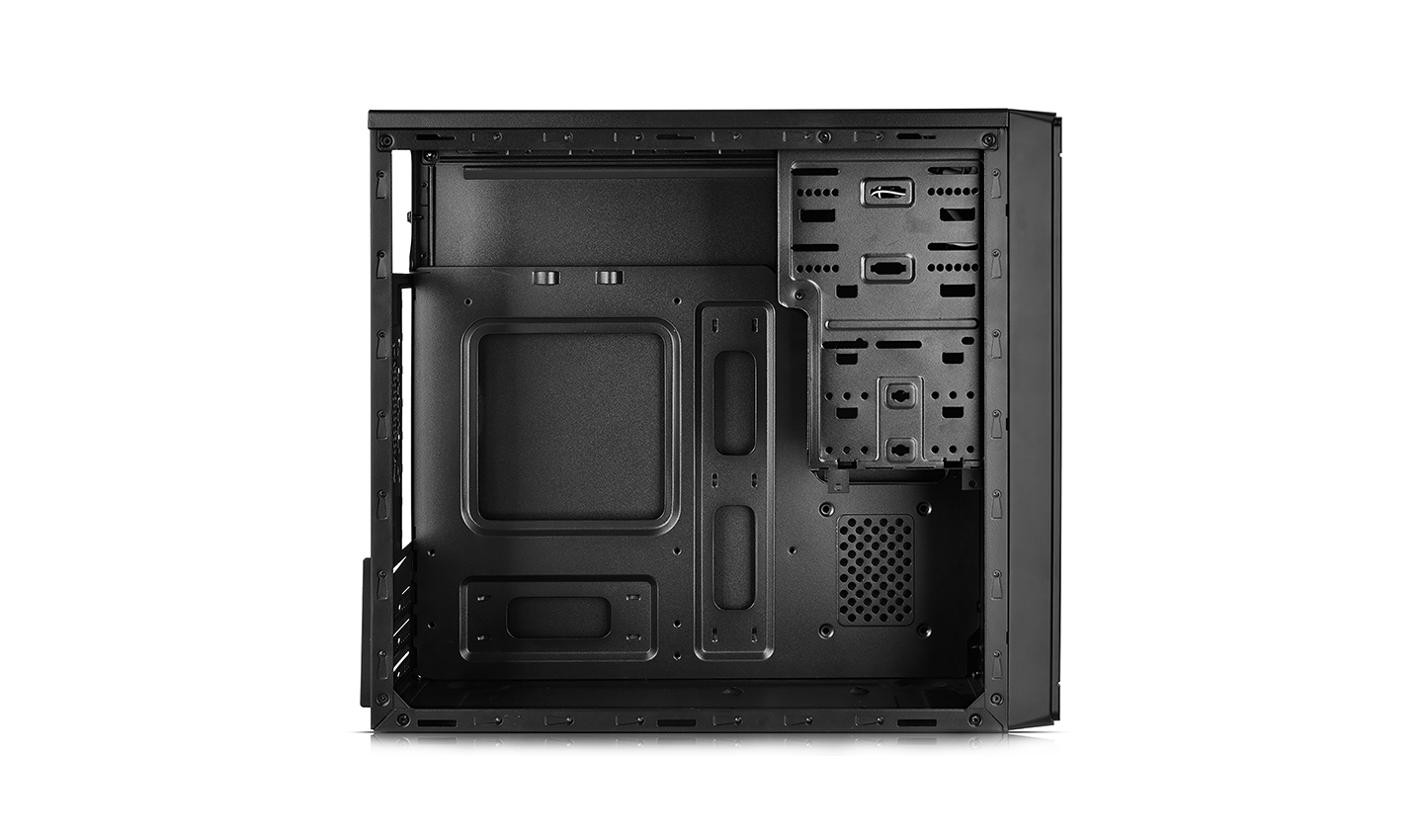

Enhanced cable management to achieve orderly interiors.

Details:

Attachable 5.25-inch and 3.5-inch drive bay covers

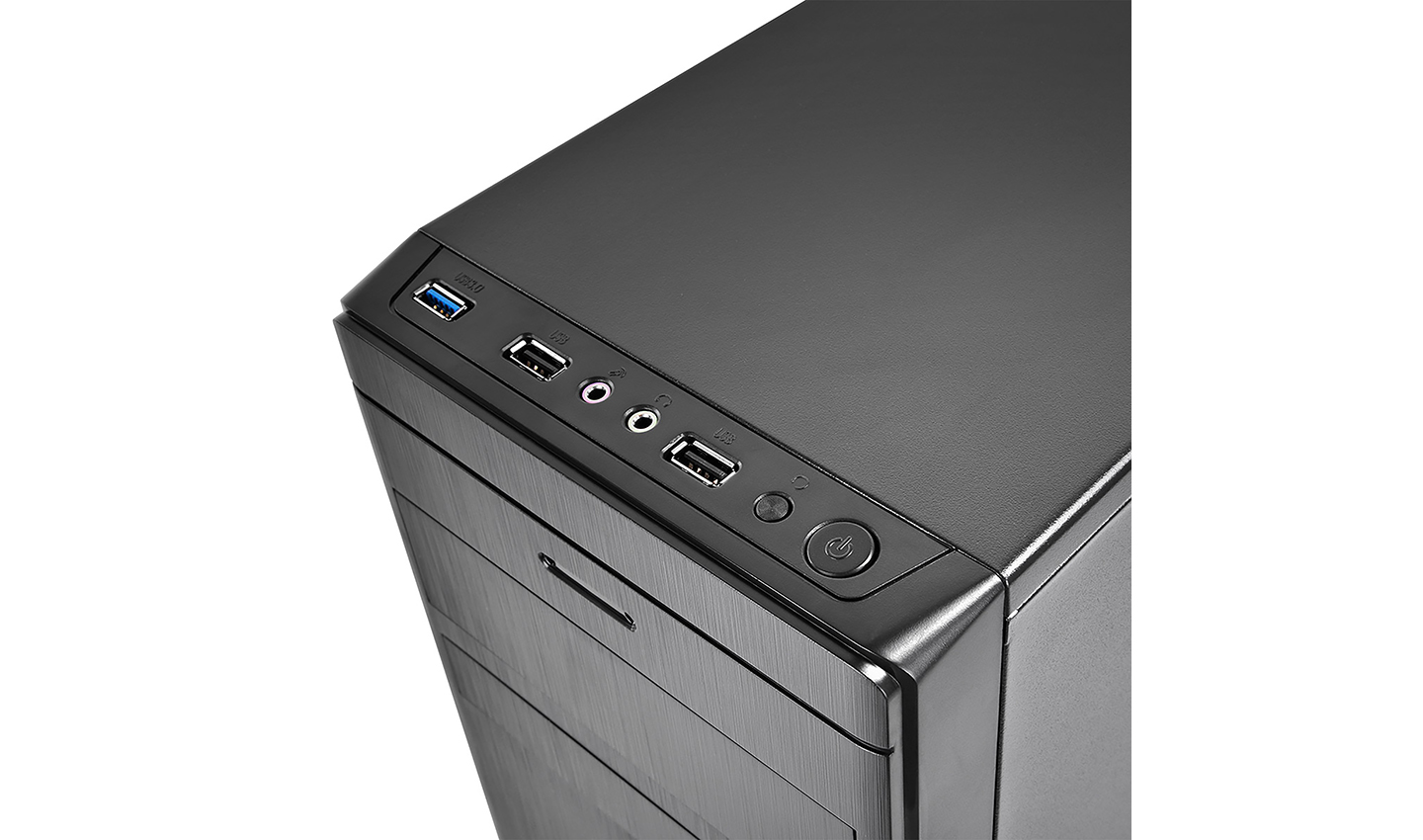

1x USB 3.0 + 2x USB 2.0 ports.

Technical Spec

Product Dimensions	390175350mm(L×W×H)
Net Weight	2.89Kg
Materials	ABS+SPCC
Motherboard Support	Mini-ITX / Micro-ATX
Front I/O Ports	USB3.0×1、USB2.0×2、Audio×1、Mic×1
Expansion Slots	4 Slots
Pre-Installed Fans	Rear: 1×120mm
Fan Support	Front: 1×120mm Side: 120mm Rear: 1×90mm
Radiator Support	Front: 120mm
CPU Cooler Height Limit	140mm
GPU Length Limit	340mm
Power Supply Type	ATX PS2 (maximum length: 150mm)
EAN	6933412713050
P/N	DP-MATX-DPWAVE2
