MACUBE 550

Modern Full-Tower

MODERN & CONCISE

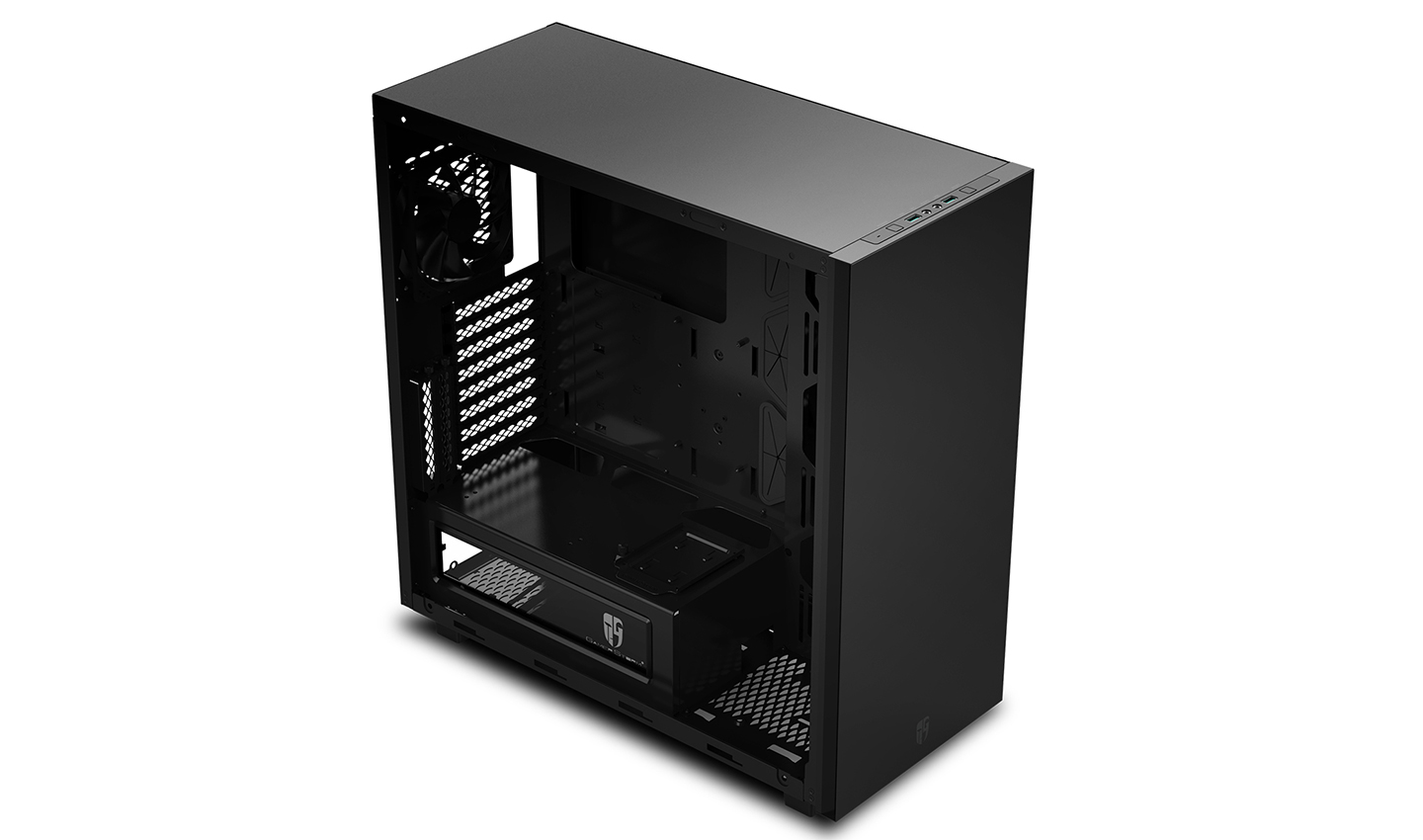

MACUBE 550 is designed to present a modern and concise look. Novel functional designs like hidden air inlets and a magnetic glass panel help eliminate the unnecessary and keeps everything simple.

UNCONVENTIONAL SIDE PANELS

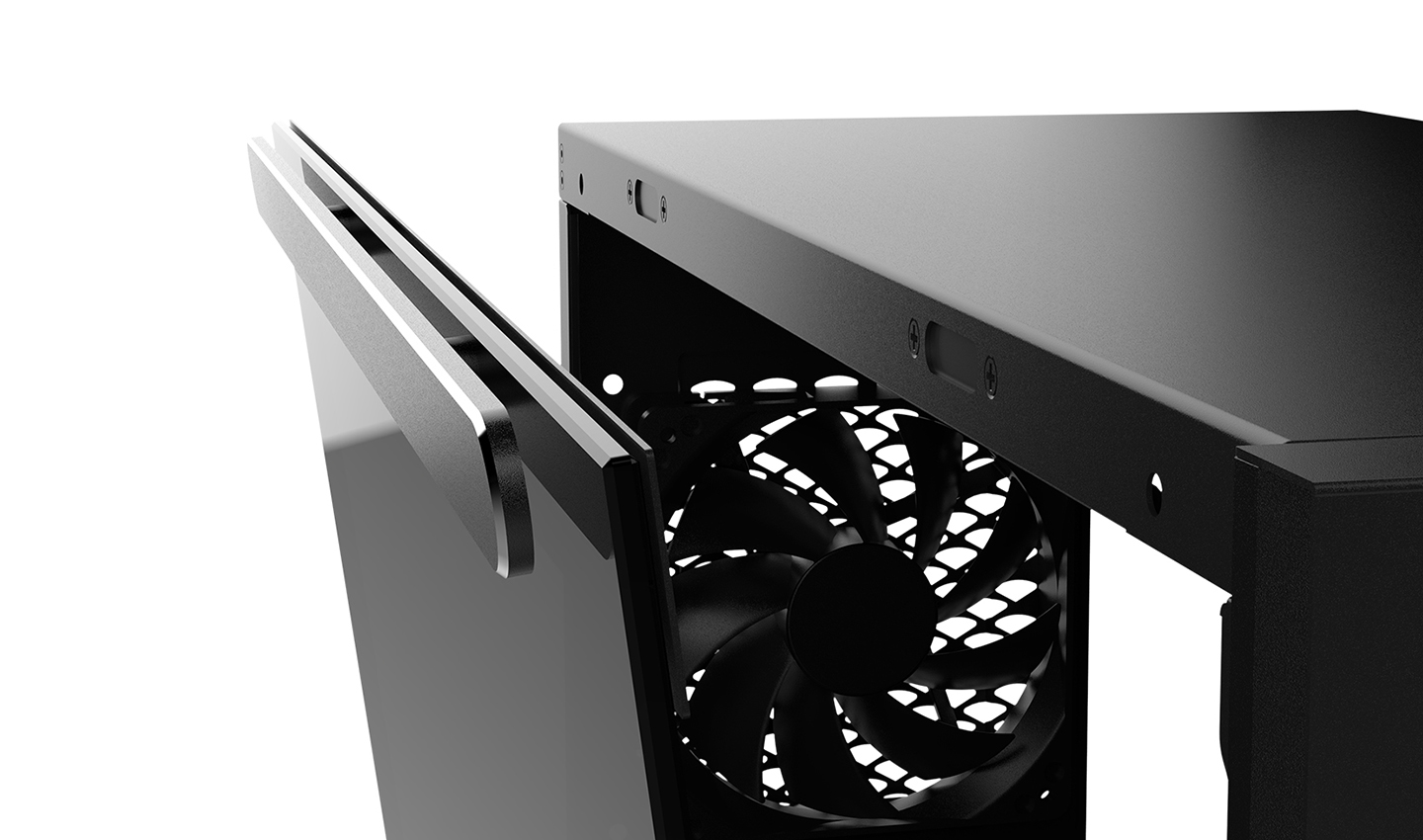

With its diamond-machined edge, the anodized aluminum bar is fixed across the tempered glass panel to elevate aesthetic value and provide convenience.

UNCONVENTIONAL SIDE PANELS

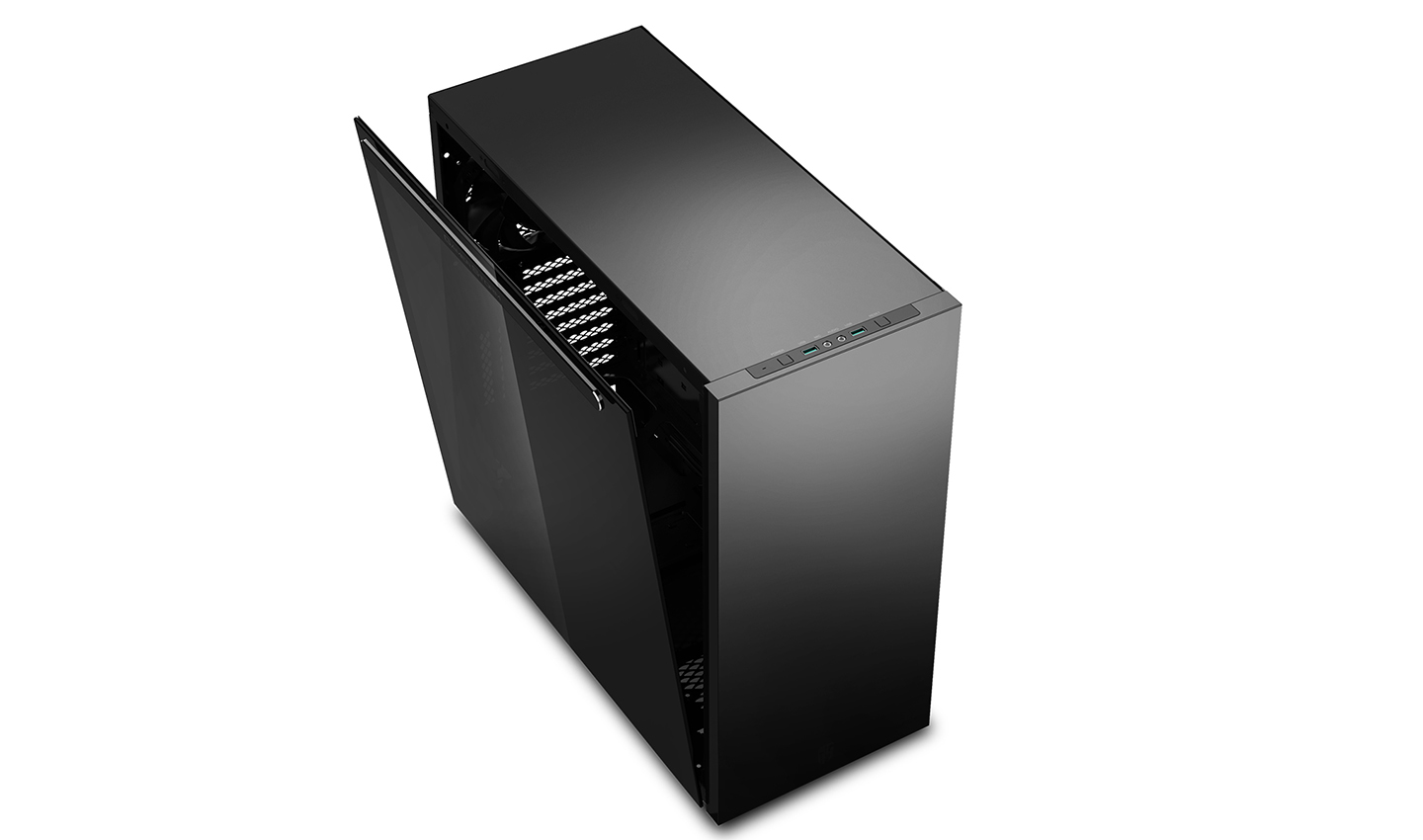

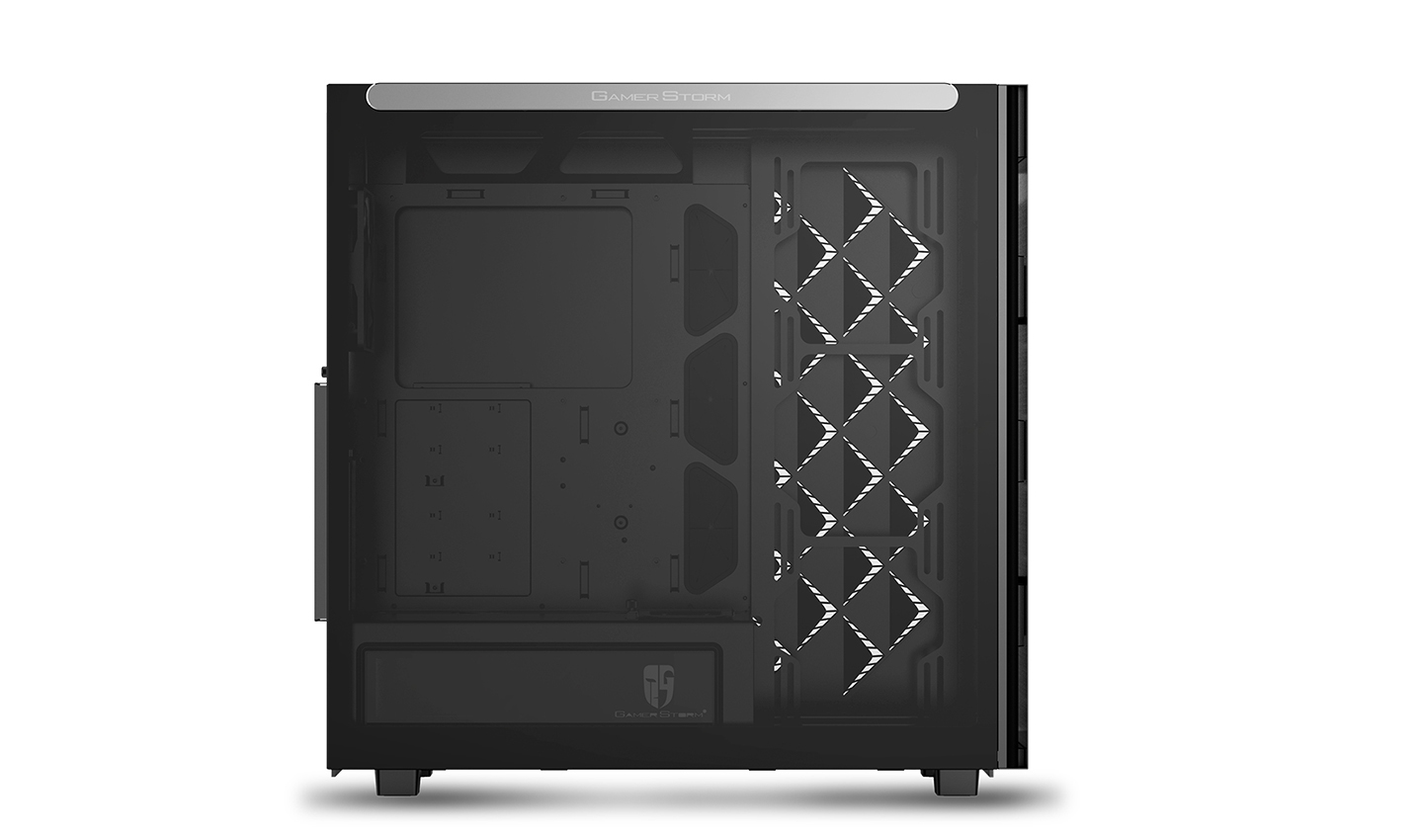

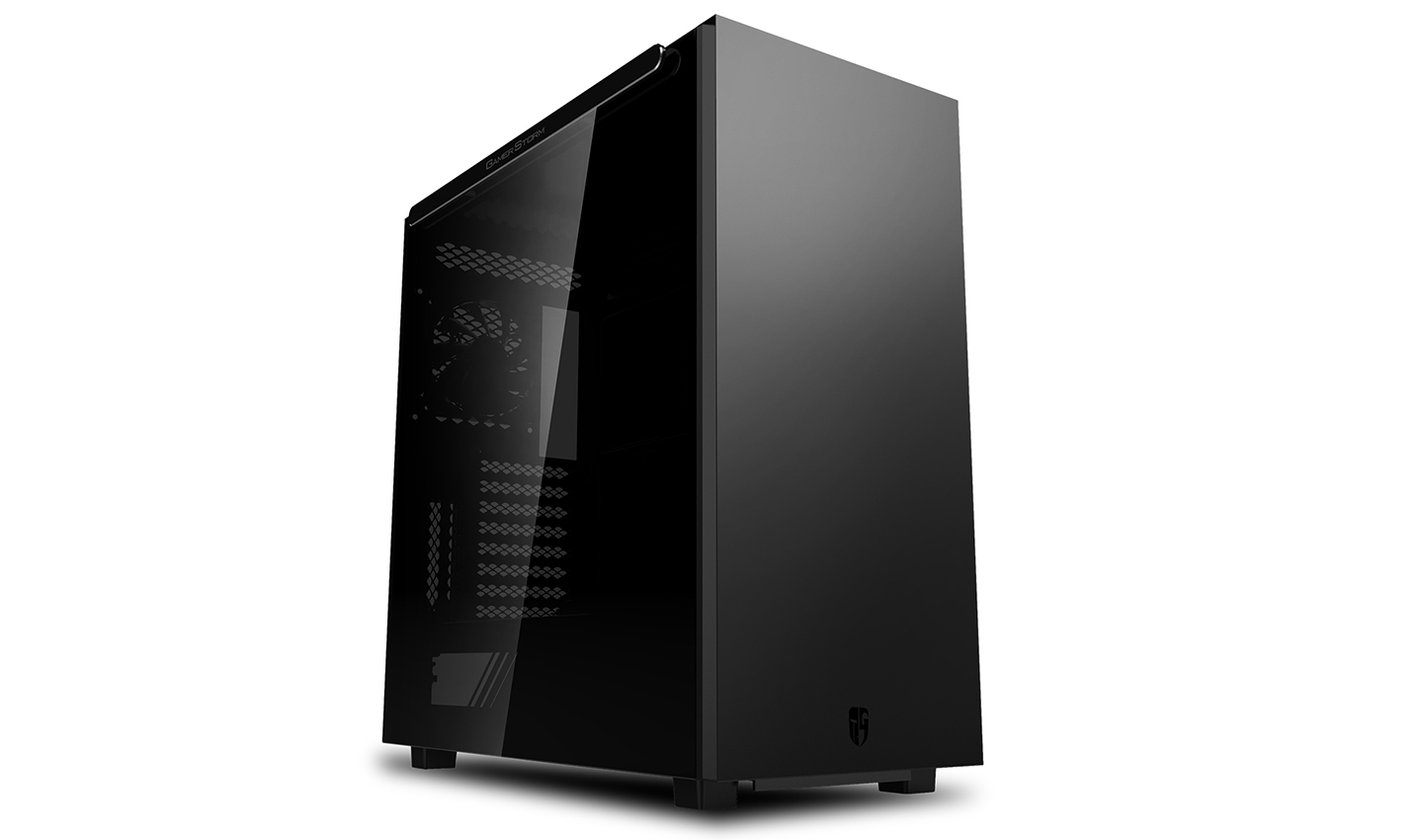

Left side panel is made of gray transparent tempered glass, mounted by permanent magnetic material that provides up to 24.5N of attraction force (approximately the gravity of 2.5Kg).

Up to 24.5N of Attraction Force

UNCONVENTIONAL SIDE PANELS

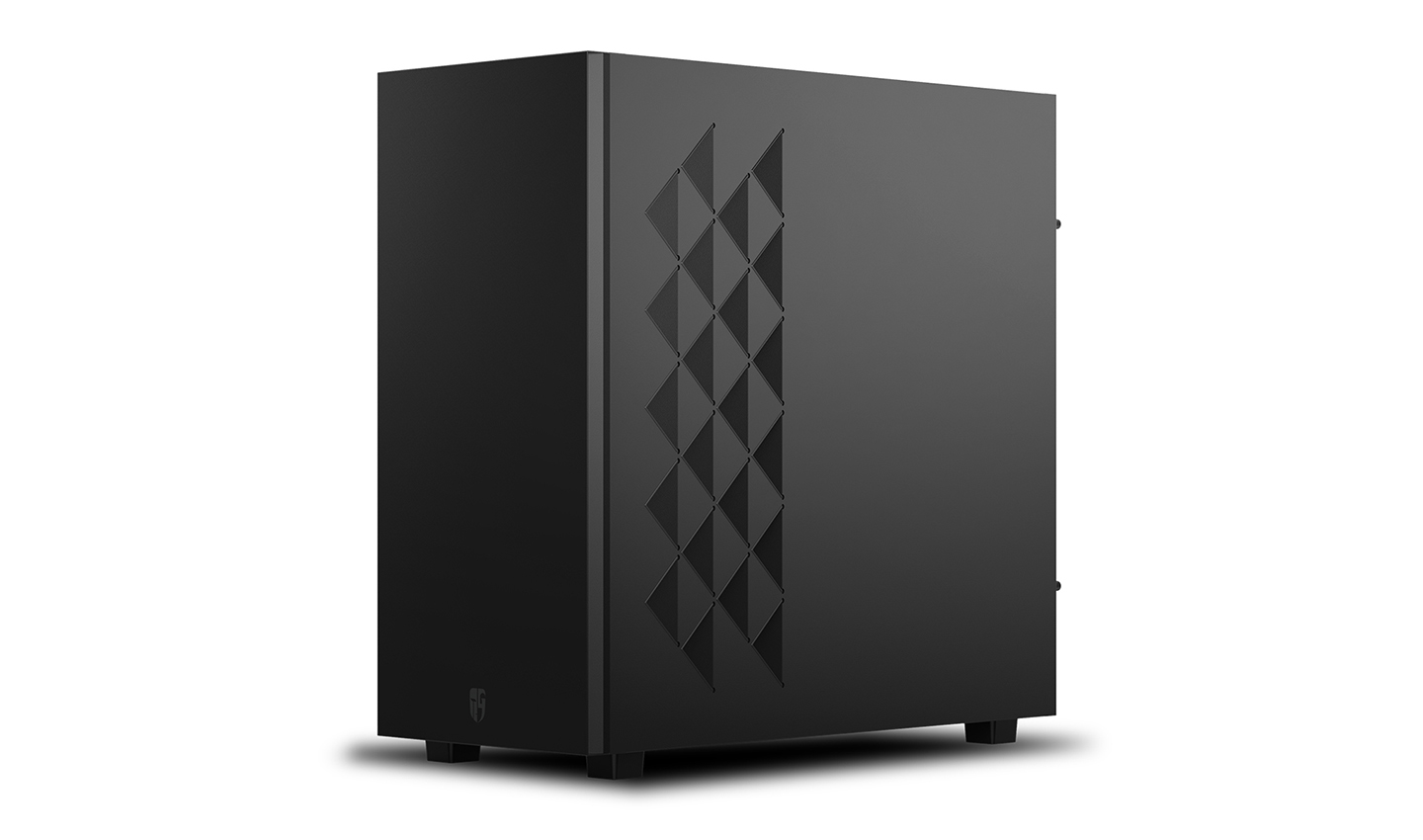

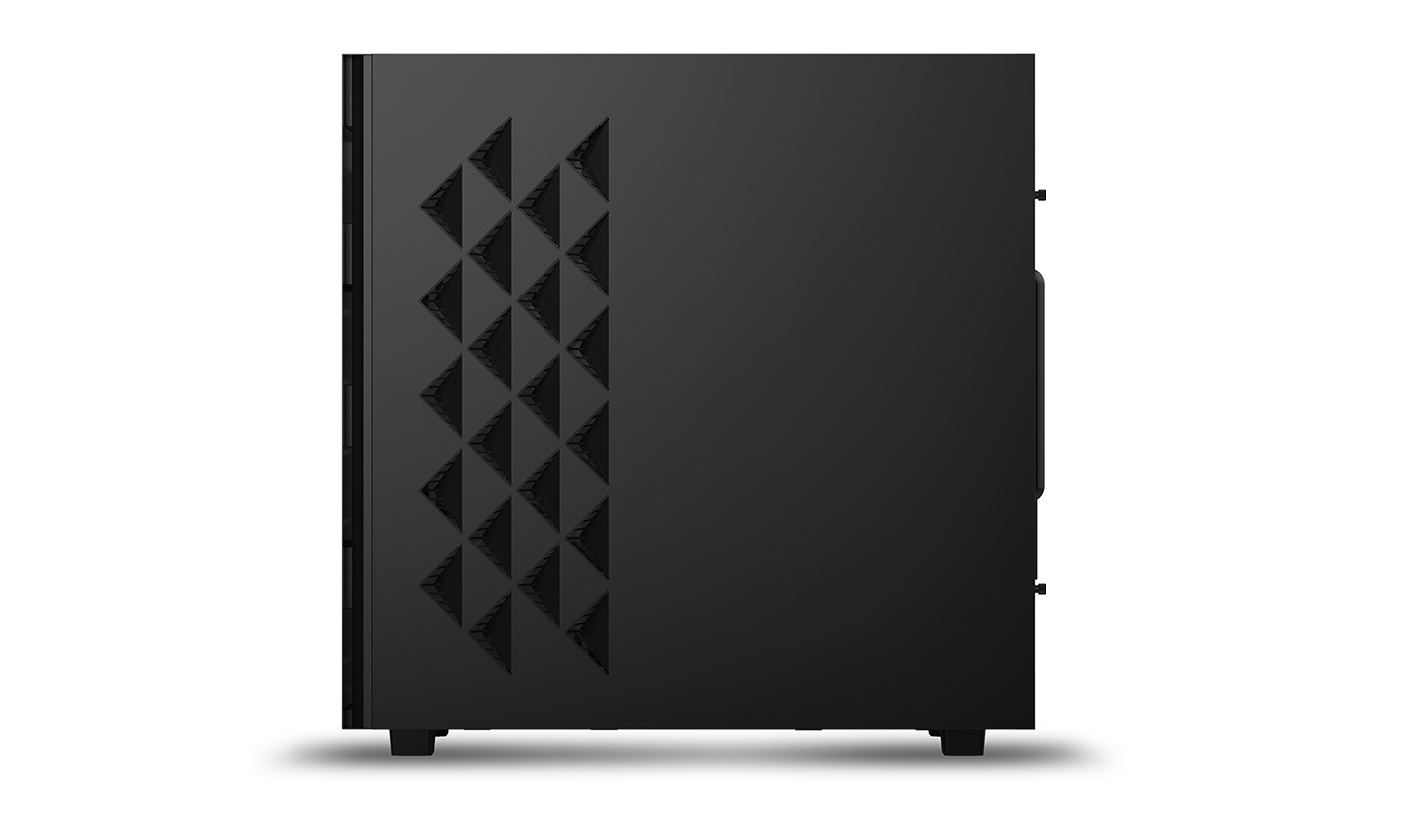

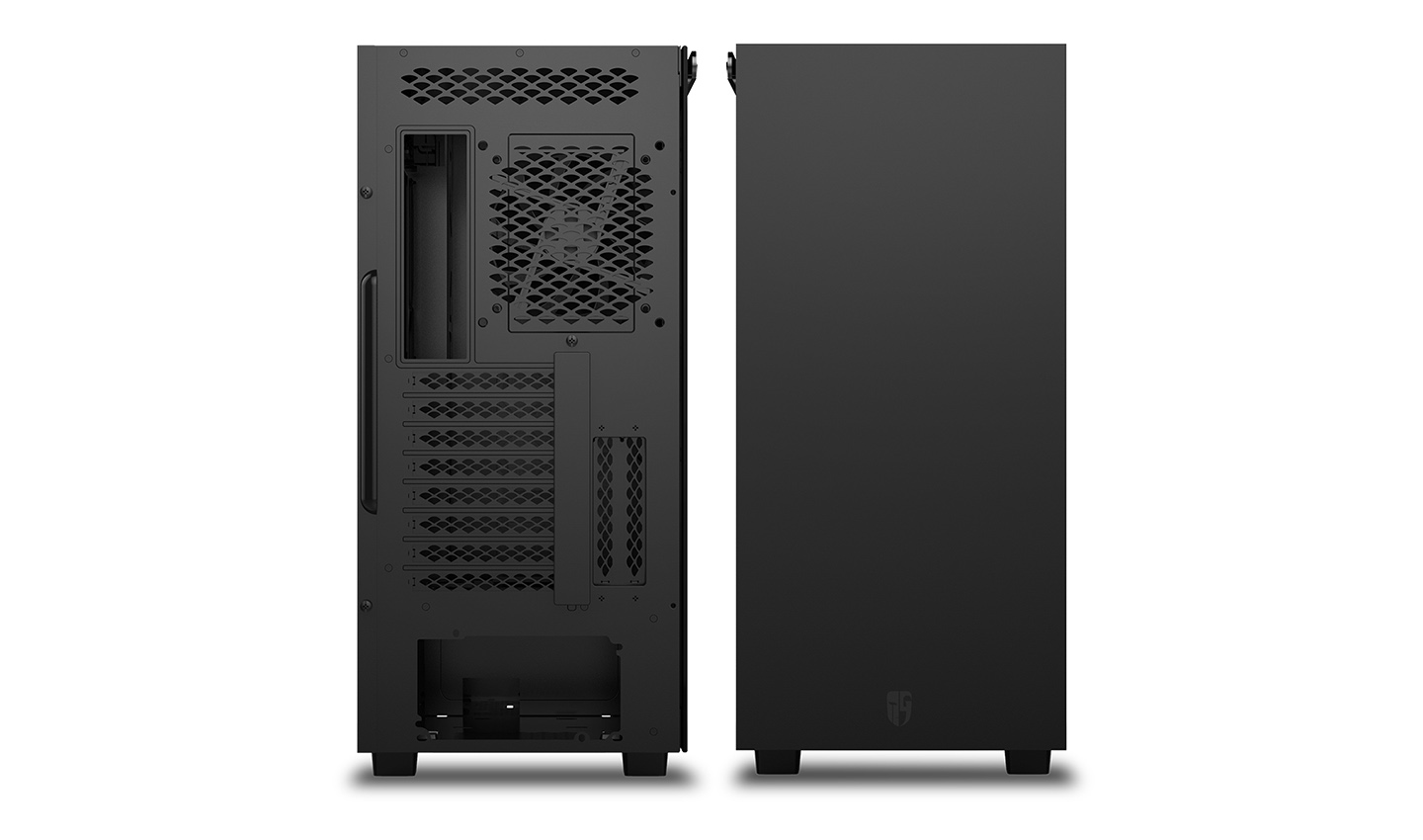

A unique ventilation hole array is integrated in the right side panel. The dragon-scale design adds the lingering charm of mysticism.

DEFORMATION & CORROSION RESISTANT

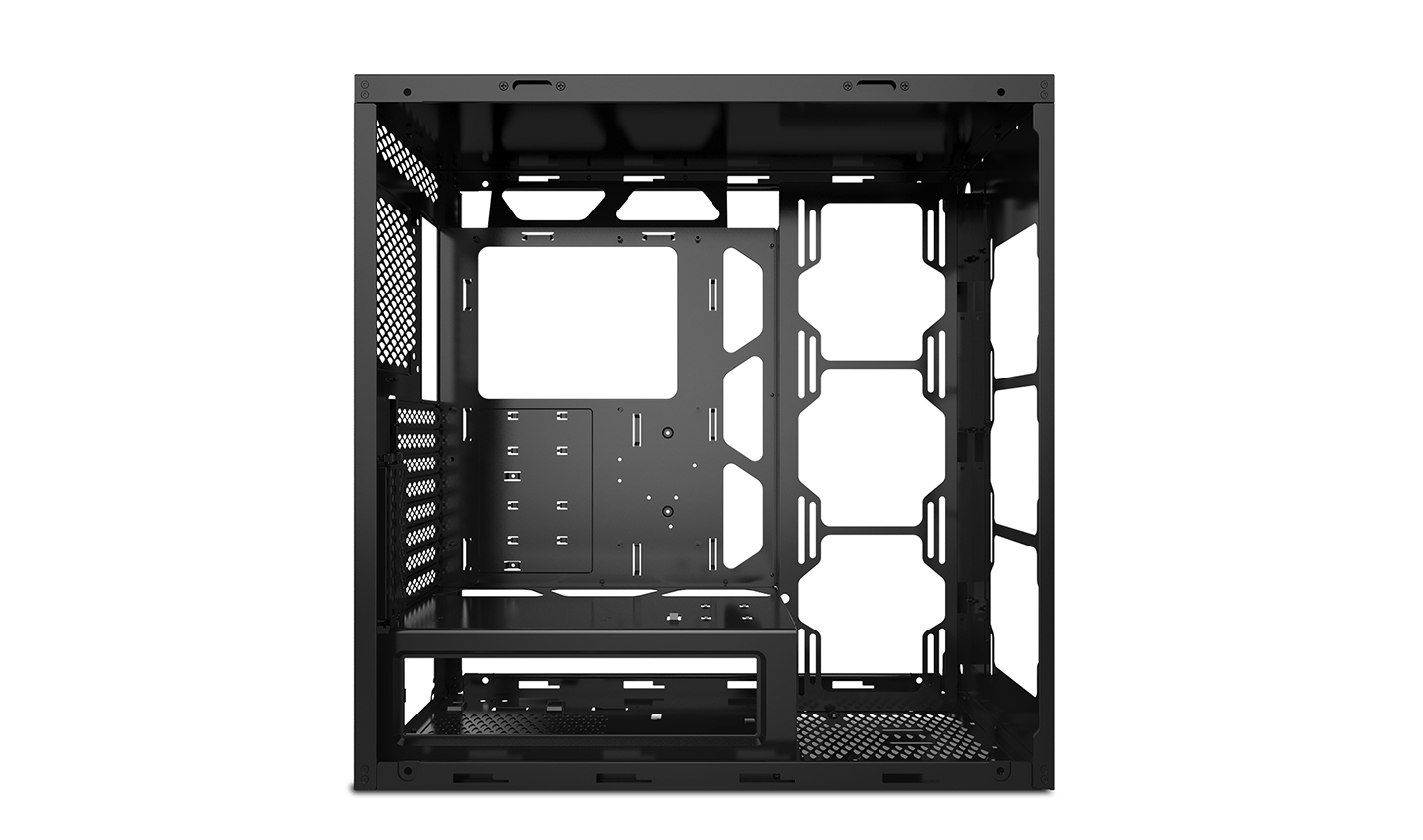

The whole structure of MACUBE 550 is built with 0.8mm SGCC (hot dip galvanized steel) material. Compared to the commonly used SPCC (Steel Plate Cold Rolled), SGCC is more sturdy, tenacious and corrosion resistant.

Corrosion Resistant

SGCC

SPCC

PREMIUM TEXTURE

All metal plates in the case are covered by matte coating through an electrostatic spraying process. In addition, Logos are concealed on the front panel and the hand bar. The combination of these two features bestow this case with a physical and metaphysical premium feeling.

FLEXIBLE AIR PATH

Dual air intake channels are hidden on both sides of the front panel. With the 6mm wide, low damping design, the intake channels provide abundant air flow for your system to breathe.

FLEXIBLE AIR PATH

Dual air intake channels are hidden on both sides of the front panel. With the 6mm wide, low damping design, the intake channels provide abundant air flow for your system to breathe.

CASE DIMENSIONS

526mm×241mm×520mm(L×W×H)

FAN SUPPORT / RADIATOR SUPPORT

When serving as an exhaust (for liquid cooler), the scale array provides the shortest and most efficient air path.
When serving as an intake, the scale array, together with the front intake can strengthen air pressure and speed, thereby significantly enhancing the cooling performance.

Front

Rear

Side

FAN SUPPORT / RADIATOR SUPPORT

Mini-ITX / Mico-ATX / ATX（305mm*276mm max）
GPU Length：310mm horizontal，420mm vertical

OTHER HIGHLIGHTS

Supports GPU vertical installation (separately sold accessory)
OTHER HIGHLIGHTS

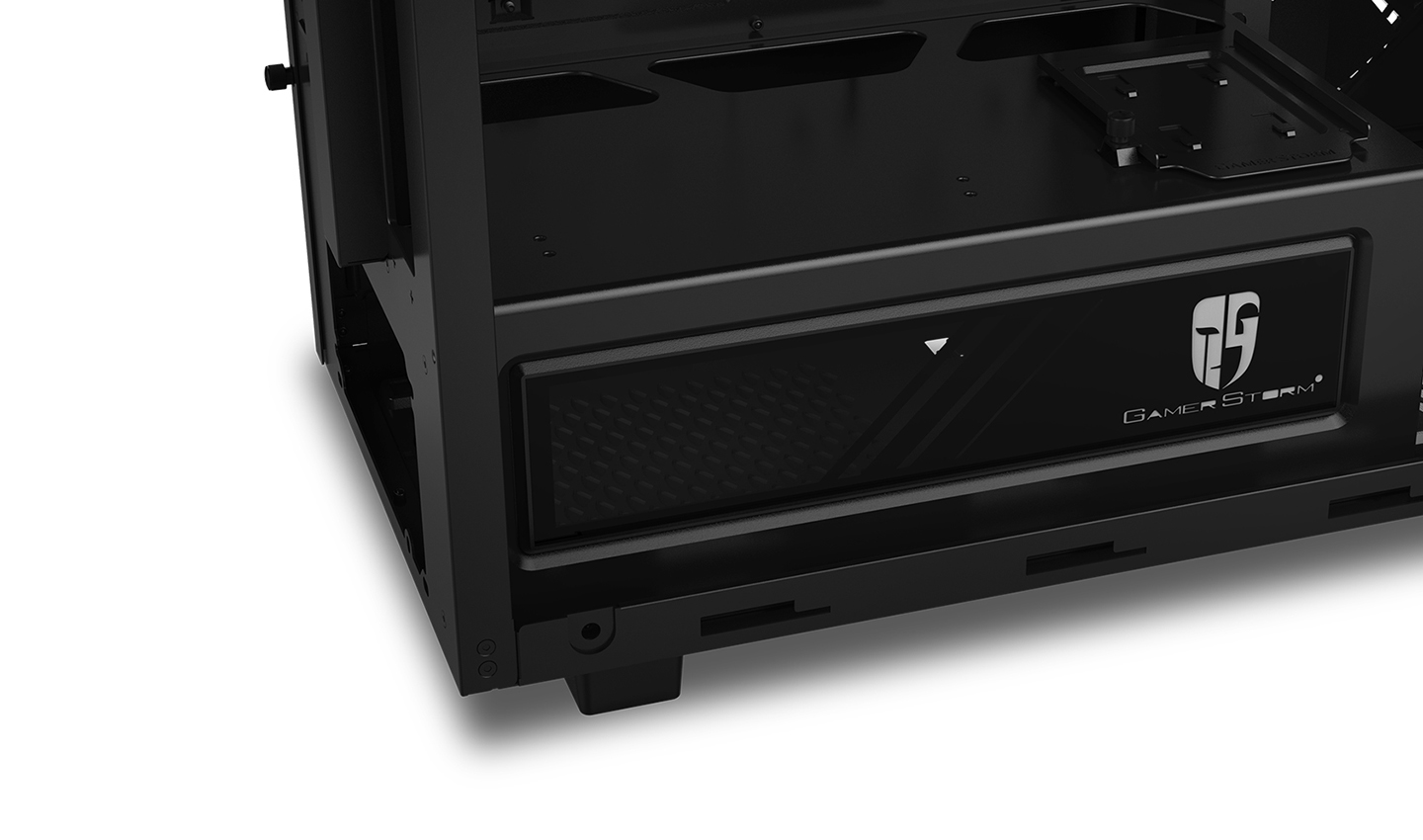

Glass side panel of PSU shroud is ready to present your fancy power supply.
OTHER HIGHLIGHTS

25mm cable management room makes life easier.
OTHER HIGHLIGHTS

2 HDD holders are included, each of which can hold 2 x 3.5-inch hard drives. The holders can be installed on all 120mm fan slots within the case.
OTHER HIGHLIGHTS

Dust filters attached at the front and bottom of the case. The 2 bottom filters are easy to pull out and wash.
OTHER HIGHLIGHTS

A 120mm black fan is included at the rear of the case.

Technical Spec

Motherboards	Mini-ITX/Micro-ATX/ATX（MAX 305*276mm）
Materials	ABS+SGCC+Tempered Glass+Aluminum Plate
Product Dimensions	526mm×241mm×520mm(L×W×H)
Carton Dimensions	625mm335mm609mm
Net Weight	12.2Kg
Gross Weight	14.8Kg
5.25' Drive Bays	0
3.5' Drive Bays	4
2.5' Drive Bays	3

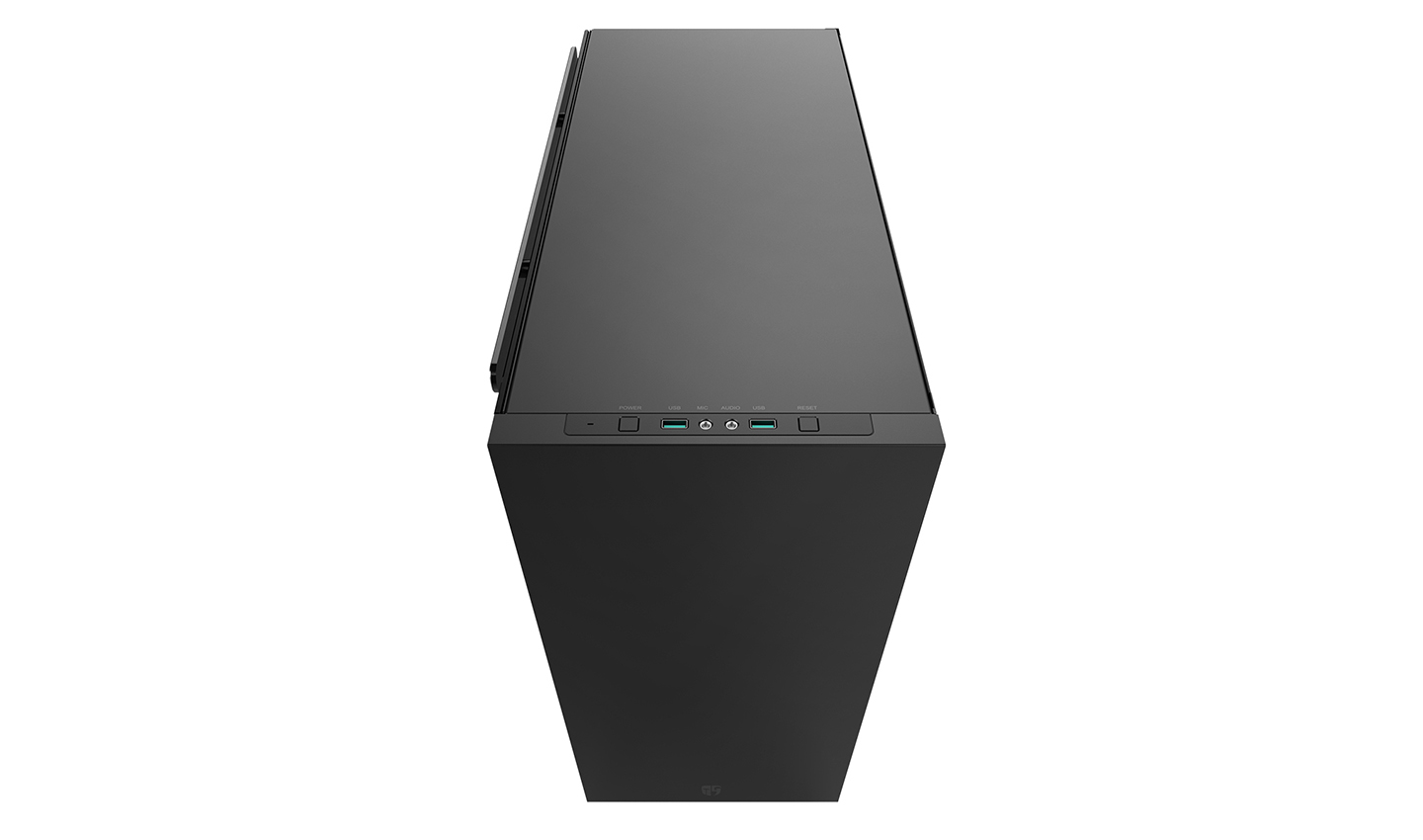

I/O Panel	2×USB3.0/Audio×1/Mic×1
Expansion Slots	8+2 Slots
Cooling Fans Support	Pre-installed: Rear: 1×120mm DC fan; Optional: Front: 3×120mm; Side: 3x120mm/3x140mm
Power Supply Type	ATX PS2 (maximum length: 170mm)
CPU Cooler Height Limit	186mm
CPU Cooler Compatibility	Front: 120/240/360mm; Side: 120/140/240/280/360mm ; Rear: 120/140mm
Graphic Card Clearance	310mm Horizontal/420mm Vertical
Cable Management	25mm clearance
EAN	6933412713838
P/N	GS-ATX-MACUBE550-BKG0P
