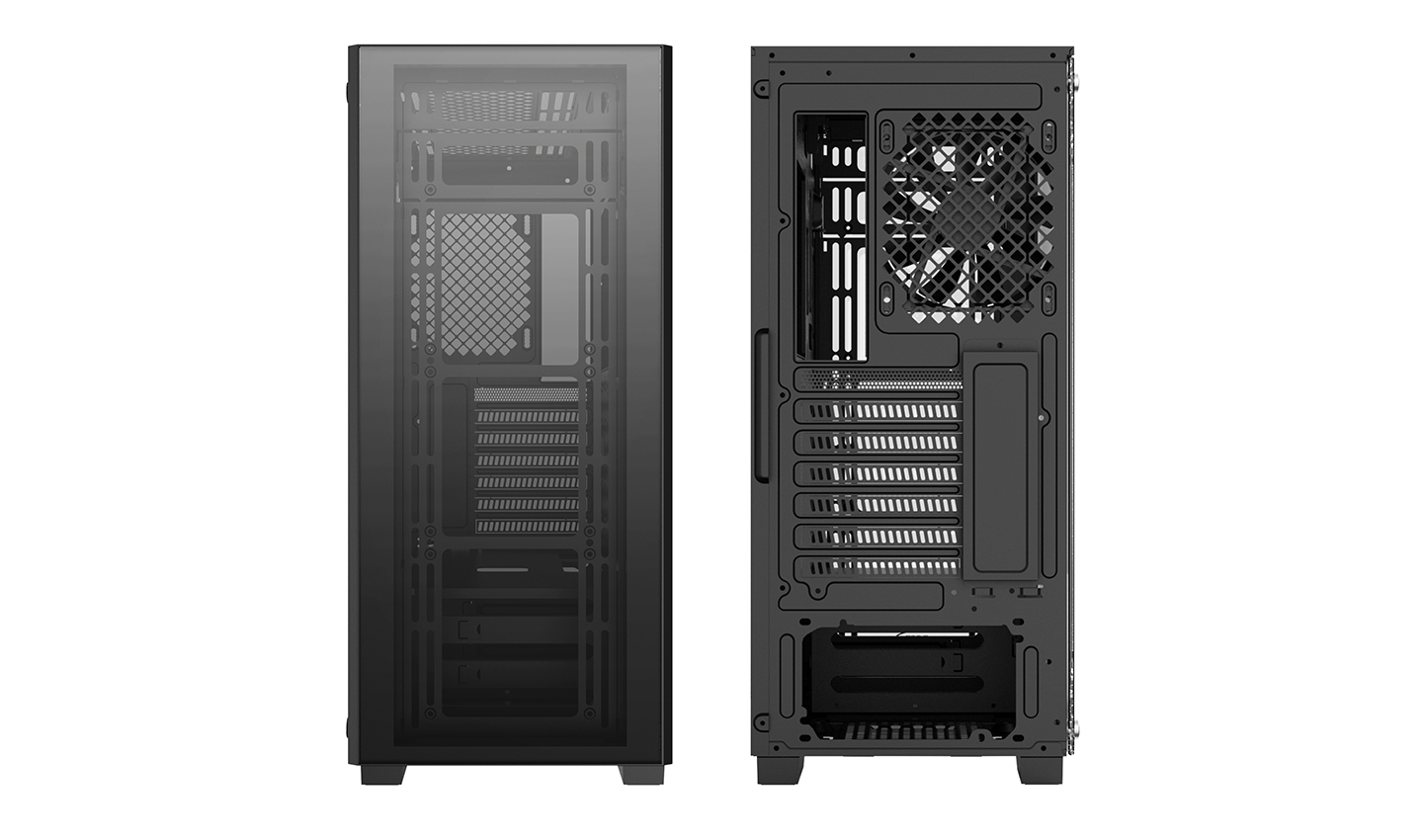

MATREXX 50 ADD-RGB 4F
As a mid-tower case, the Matrexx 50 ADD-RGB 4F offers abundant space that supports up to an E-ATX motherboard and has optimized airflow keeps your components cool.
COLOR
black
MODEL
MATREXX 50 ADD-RGB 4F
The clear choice
Description
As a mid-tower case, MATREXX 50 ADD-RGB 4F is endowed with abundant space that supports up to E-ATX motherboard. With two large air intakes and an air exhaust, optimized airflow is guaranteed to keep your components cool. MATREXX 50 ADD-RGB 4F provides you with great building and using experiences

For DeepCool devices

For other brand devices

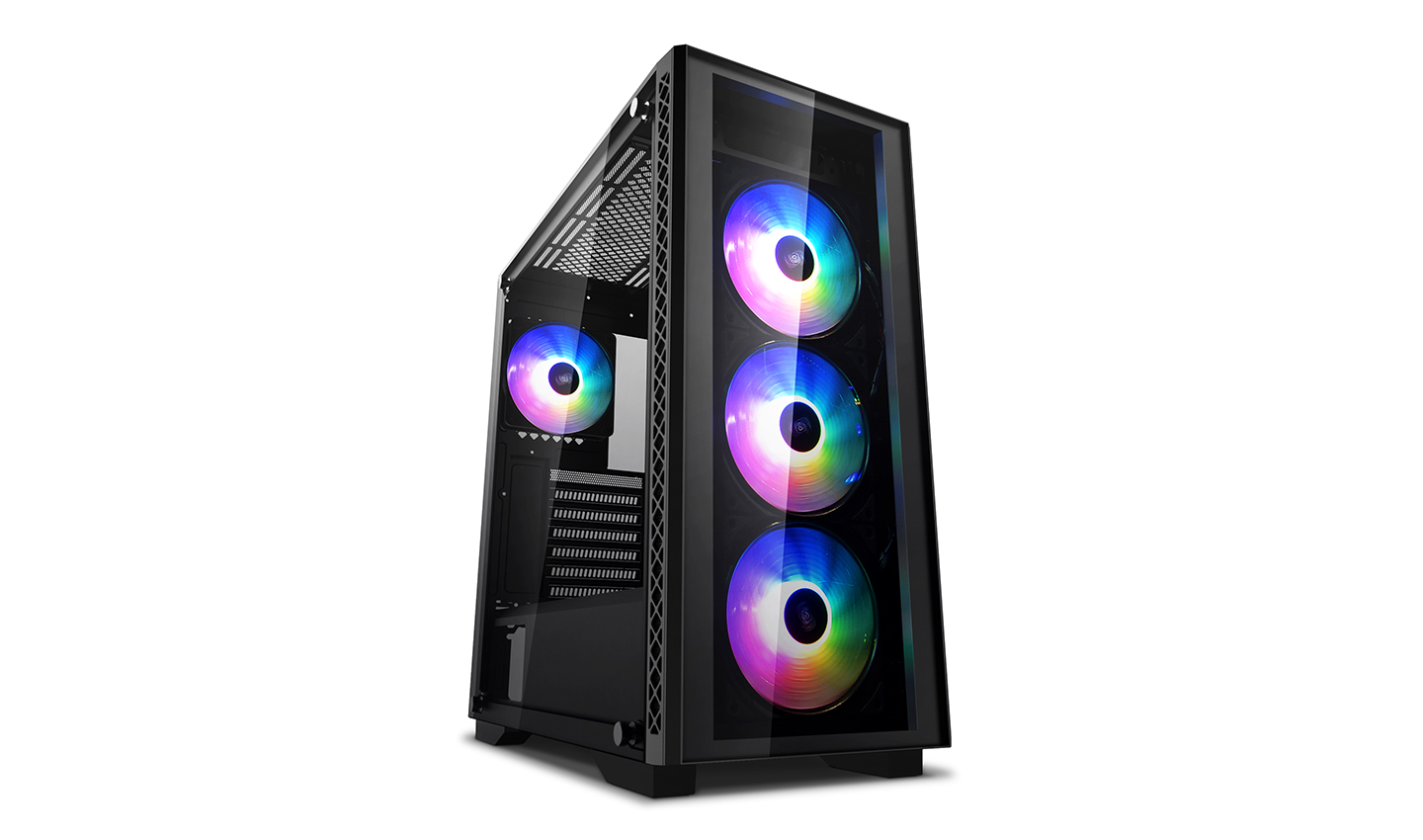

Vivid Illumination
A built-in RGB lighting system is easily controlled manually or via software with additional connectors to sync with compatible components
Vivid Illumination
A built-in RGB lighting system is easily controlled manually or via software with additional connectors to sync with compatible components

For DeepCool devices

For other brand devices
Massive Cooling Compatibility

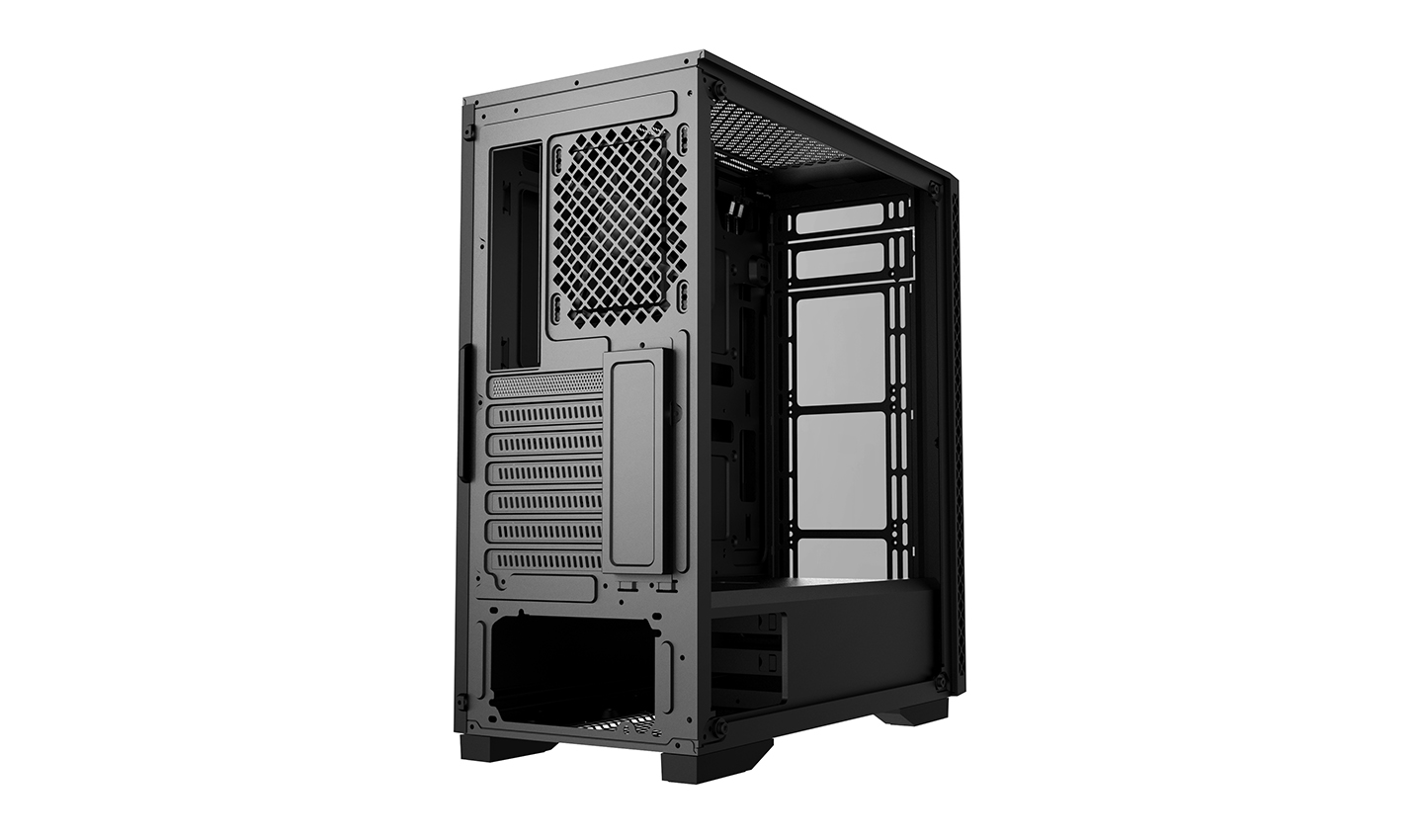

Optimized airflow is guaranteed with two large air intakes in two sides of the front panel, and an air exhaust in the back and on the top, to keep your components cool

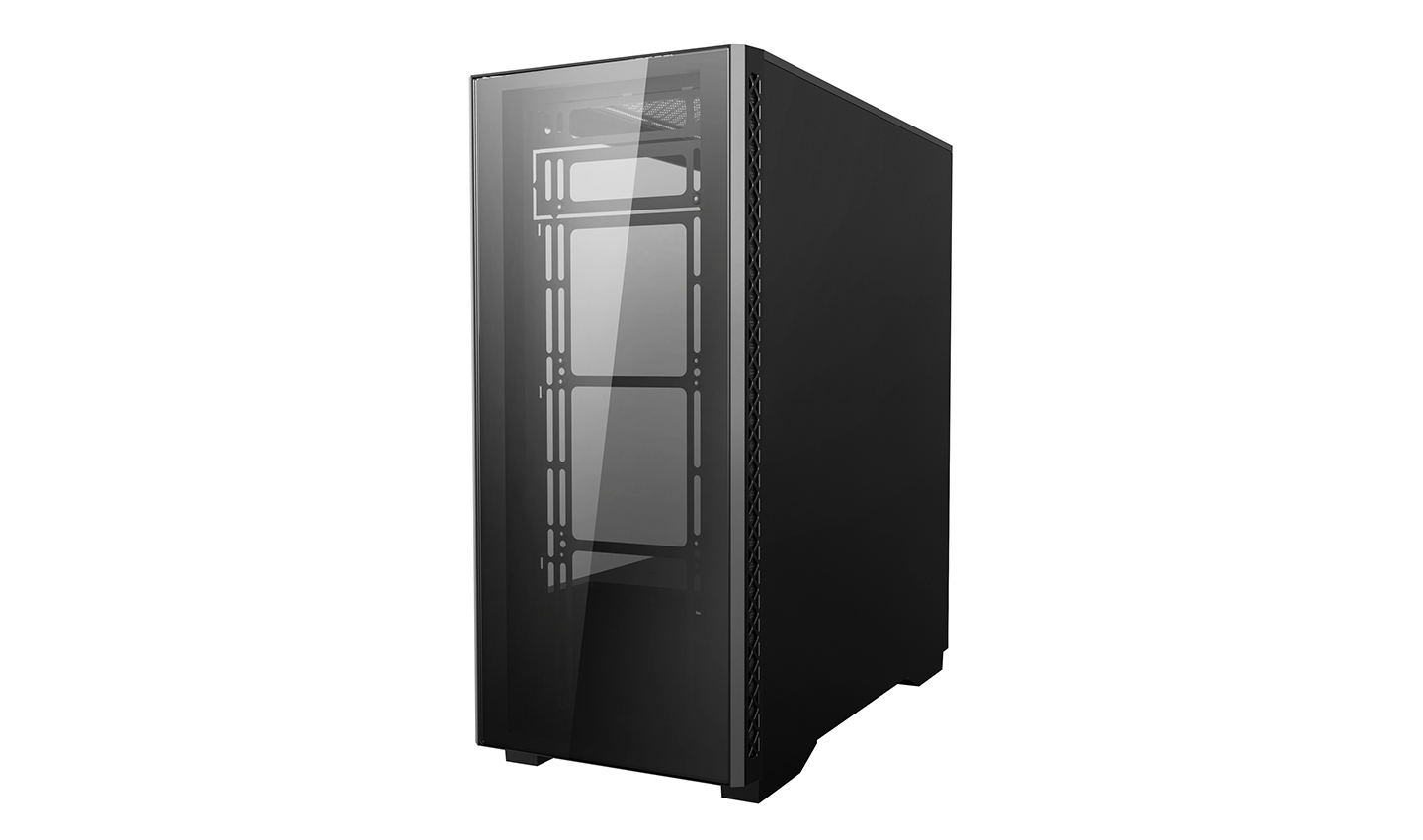

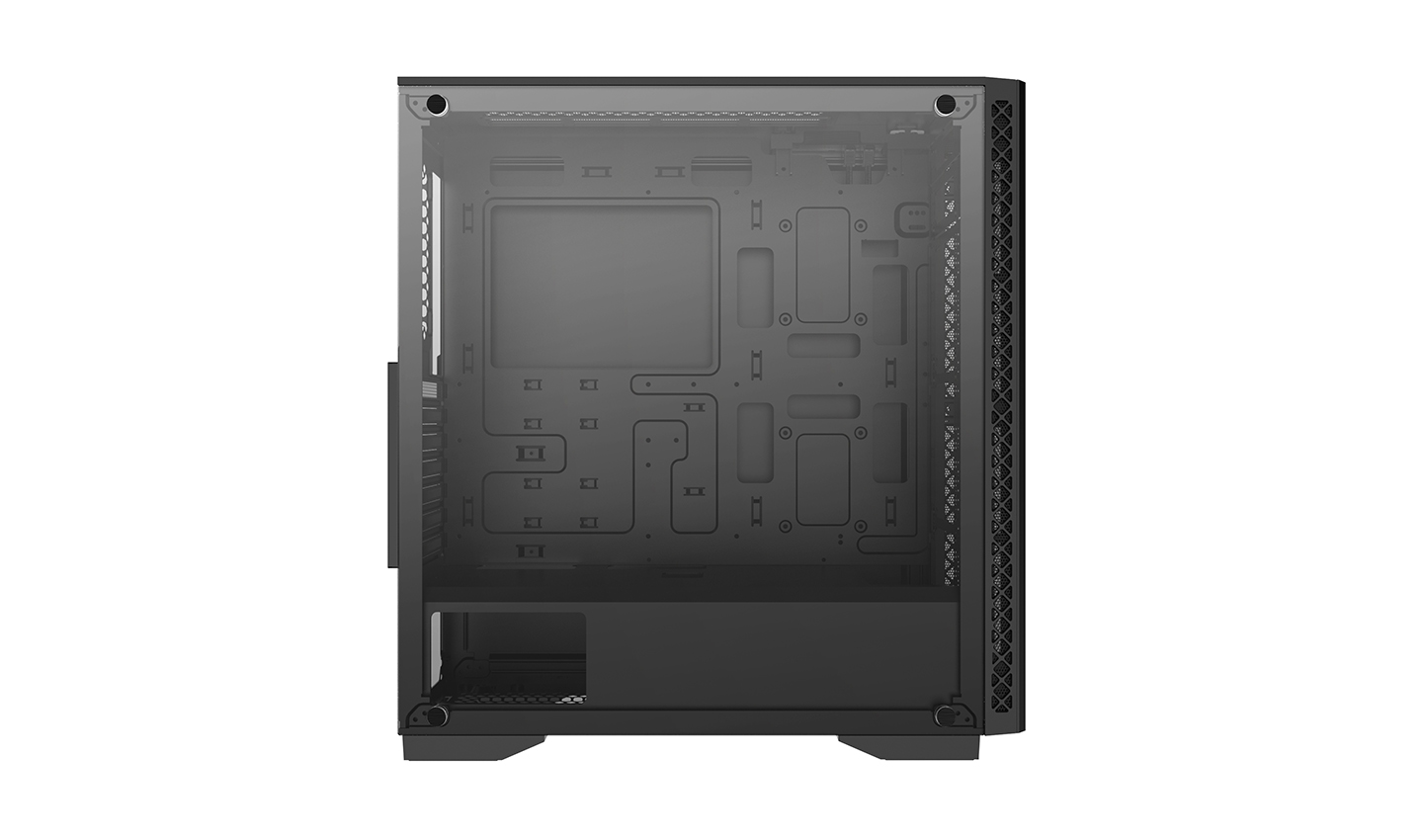

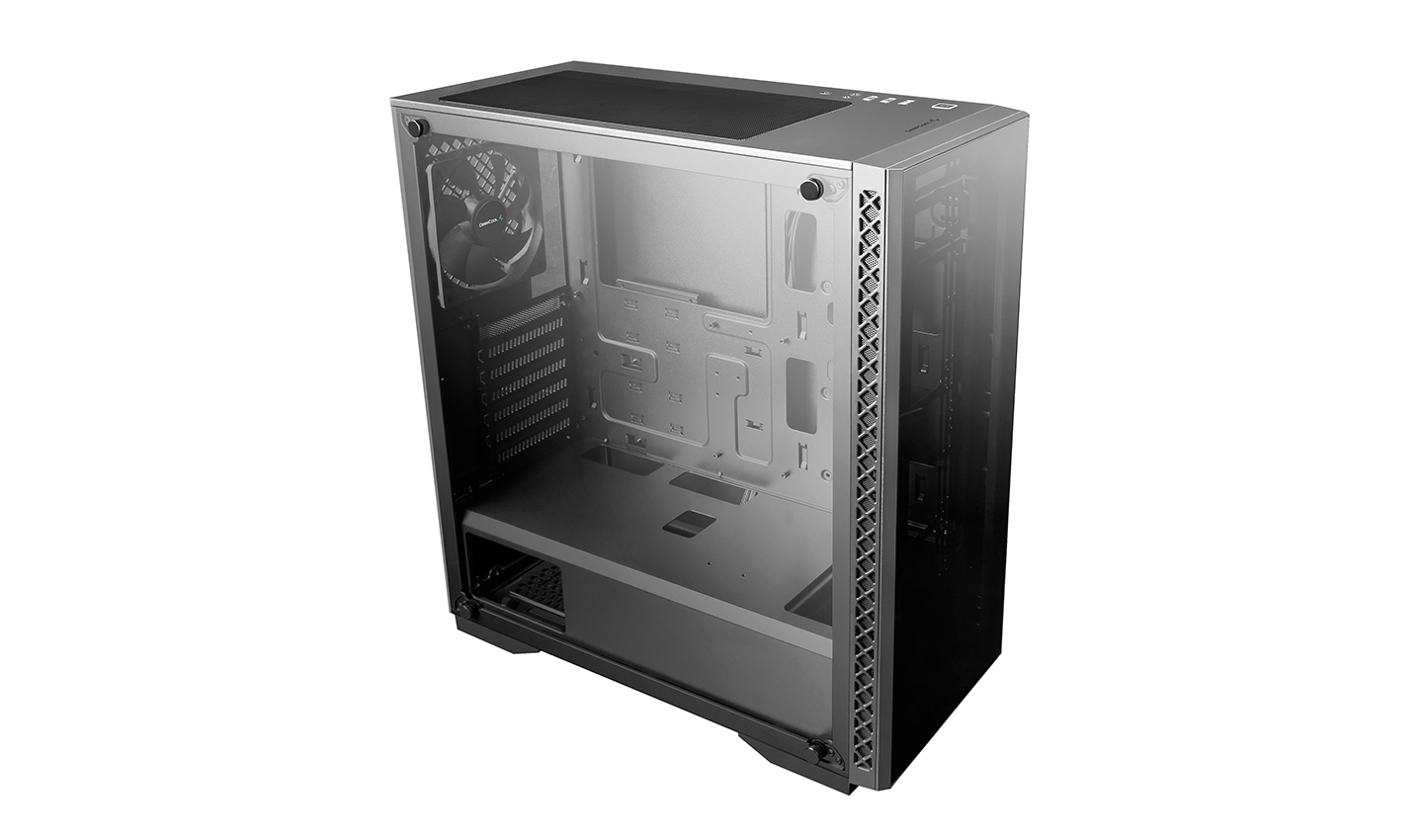

Dual 4mm Tempered Glass
Full-sized 4mm thickness, tempered glass side panel, and a front panel give the case a unique look to perfectly show off your inner structure
Radiator Support

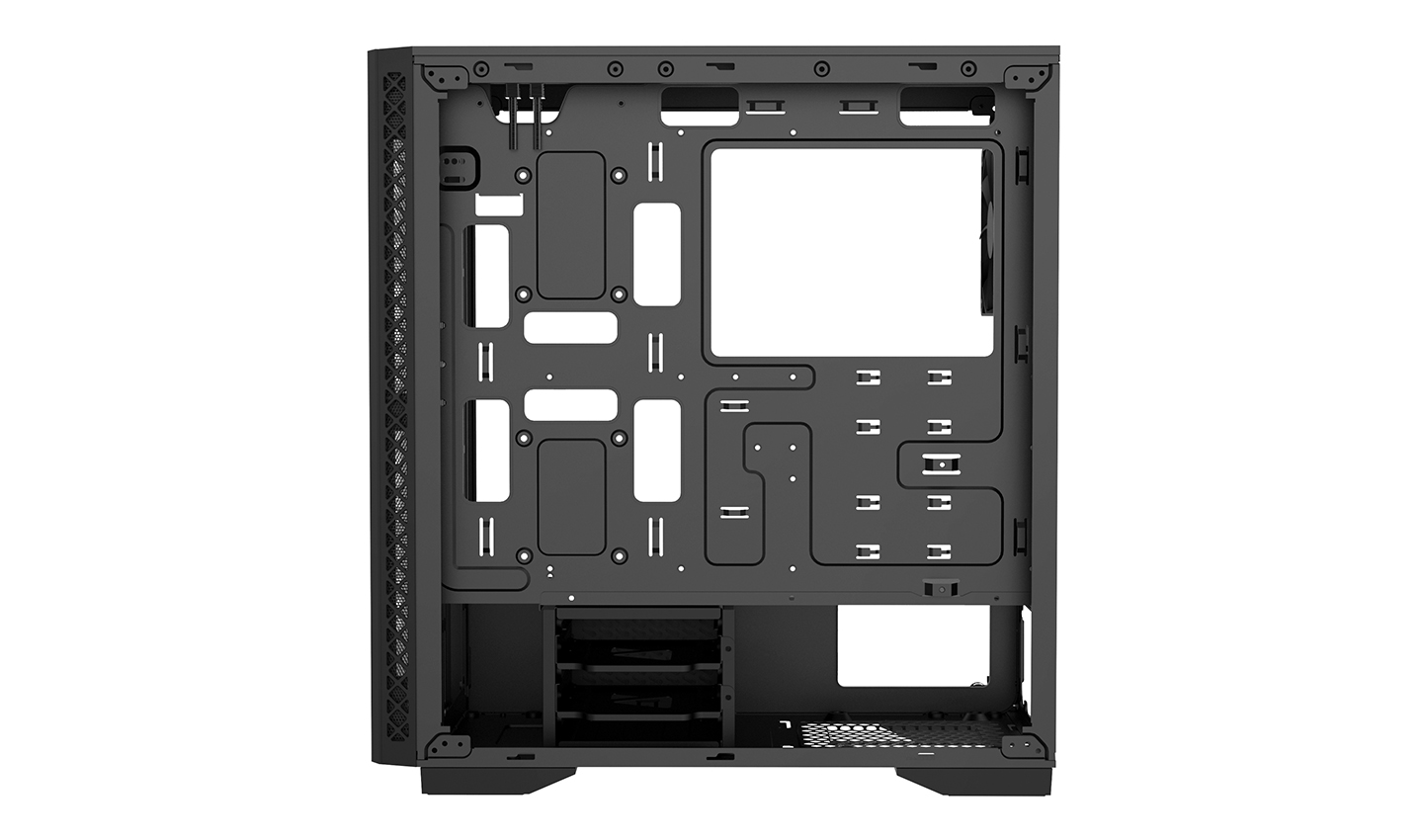

Easy Cable Management
Cable managing is now easy with a 210mm wide tower compartment (24mm clearance)
PSU Shroud Added
MATREXX 50 ADD-RGB 4F is equipped with a PSU shroud to keep the cables and the system neat and tidy
Supporting 160mm (max) CPU cooler height
Supporting 370mm (max) graphics card installation
Power Supply: ATX PS2 (Maximum length: 170mm)

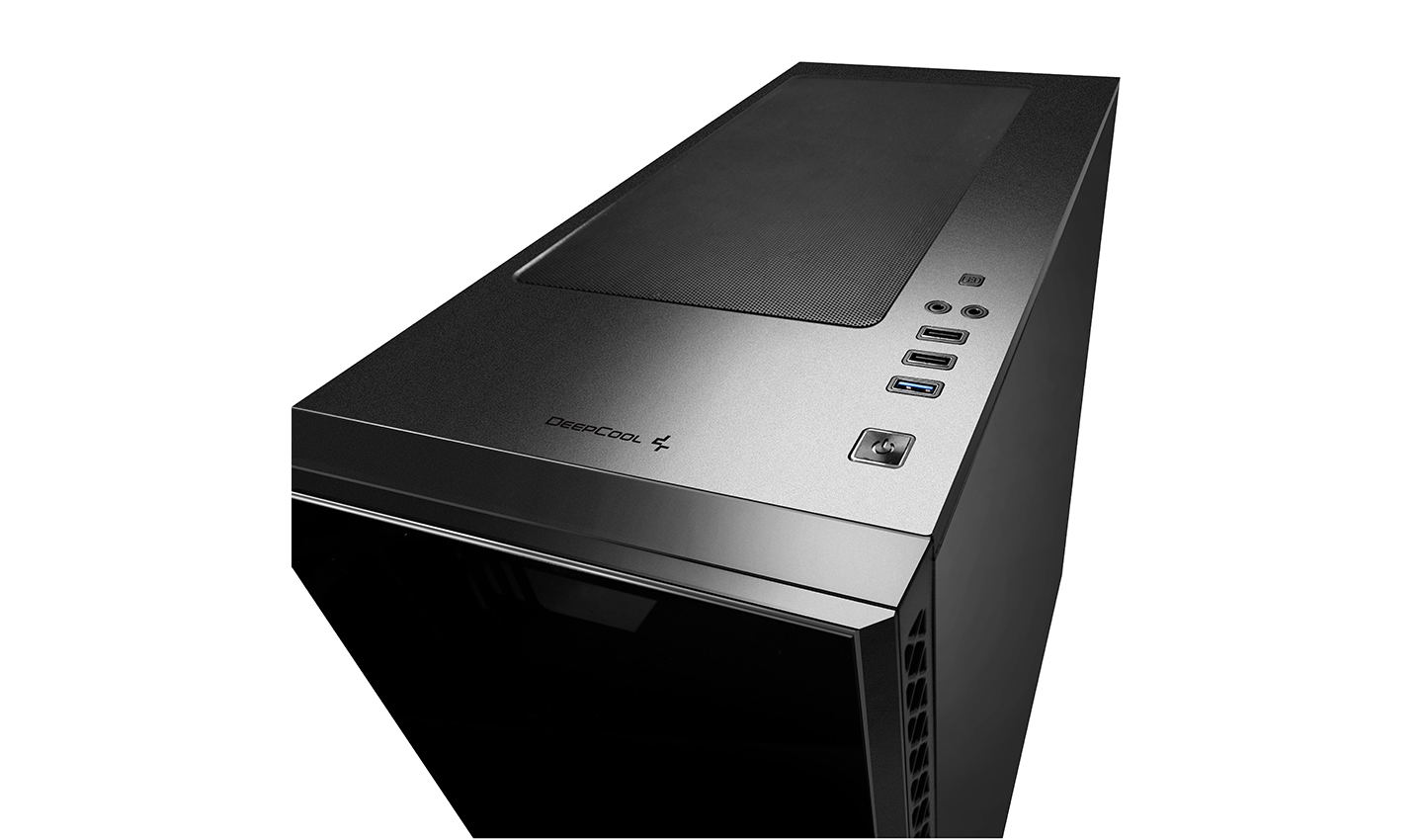

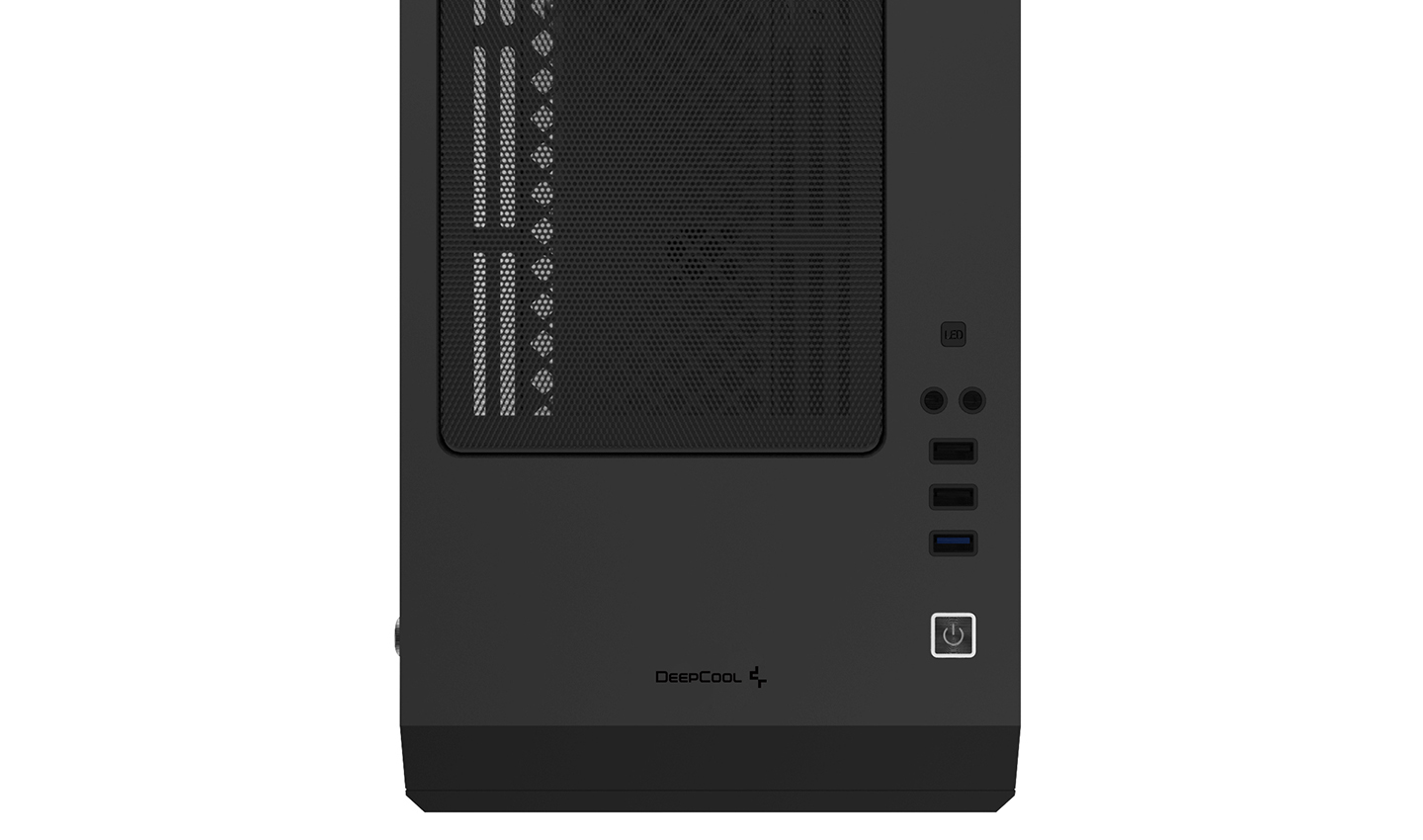

1×USB3.0/2×USB2.0/1xAudio/1xMic
4*2.5'' SSD slots and 2* 3.5'' HDD cages
Magnetic dust-proof net on top, dust-filter in the front and bottom
Technical Spec
Motherboard Mini-ITX/Micro-ATX/ATX/E-ATX
Case Type Middle Tower
Materials ABS+SPCC+Tempered Glass
Product Dimensions 442X210X479mm
Carton Dimensions 515X275X510mm
Net Weight 7.4Kg
Gross Weight 8.5Kg
5.25' Drive Bays 0
3.5' Drive Bays 2
External 3.5'' Drive Bays 0
2.5' Drive Bays 4
I/O Ports USB2.0×2、USB3.0×1、Audio×1、Mic×1
Expansion Slots 7 Slots
Power Supply Type ATX PS2 (maximum length: 170mm)
Cable Management 24mm clearance
CPU Cooler Height Limit 160 mm
VGA Length Limit 370mm Horizontal, 340mm Vertical
Cooling Fans Support Optional: Front:140mm×3/120mm×3; Top:140mm×2/120mm×2 Pre-installed:Front:3×120mm A-RGB fan; Rear:120mm x1 A-RGB fan
Liquid Cooler Support Front:120/140/240/280/360mm;Top:120/140/240mm; Rear:120mm
EAN 6933412714040
P/N DP-ATX-MATREXX50-AR-4F-NE
Product Dimension
Download
MATREXX 50 ADD-RGB 4F Manual.pdf
