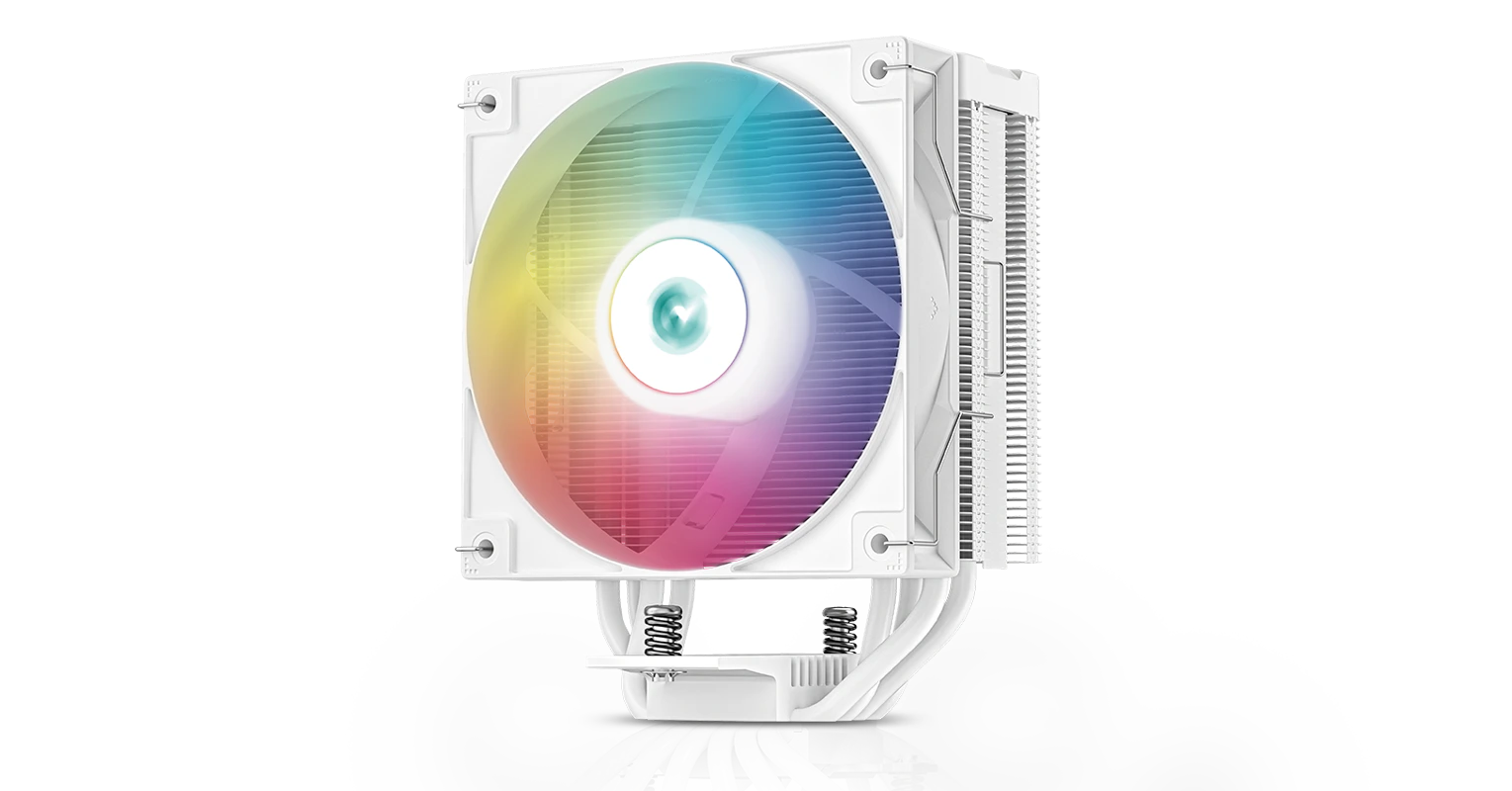

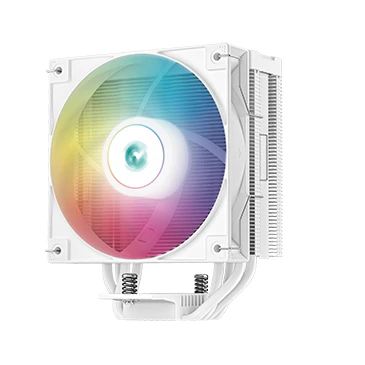

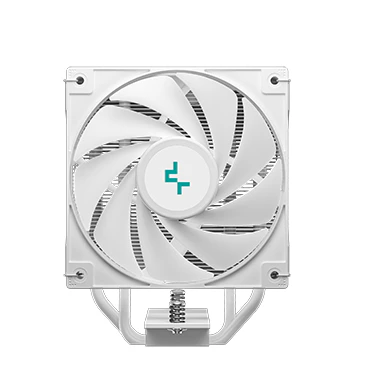

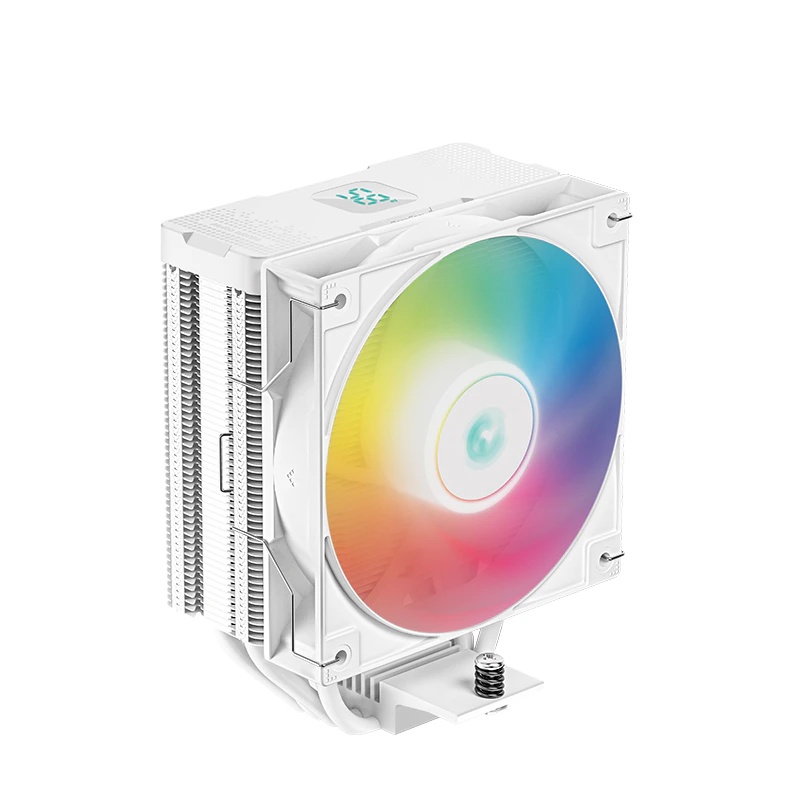

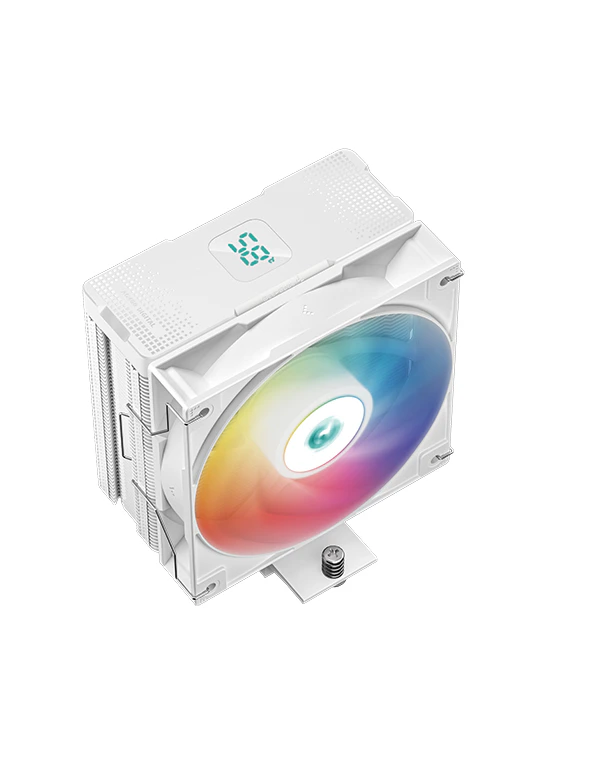

AG400 DIGITAL WH ARGB
The era of digital air coolers has arrived, and DeepCool wants to popularize it. Everything you loved about the AG400 WH ARGB, but with a sleek low-profile status display.
MODEL
AG400 DIGITAL WH ARGB
WELCOME TO THE DIGITAL ERA

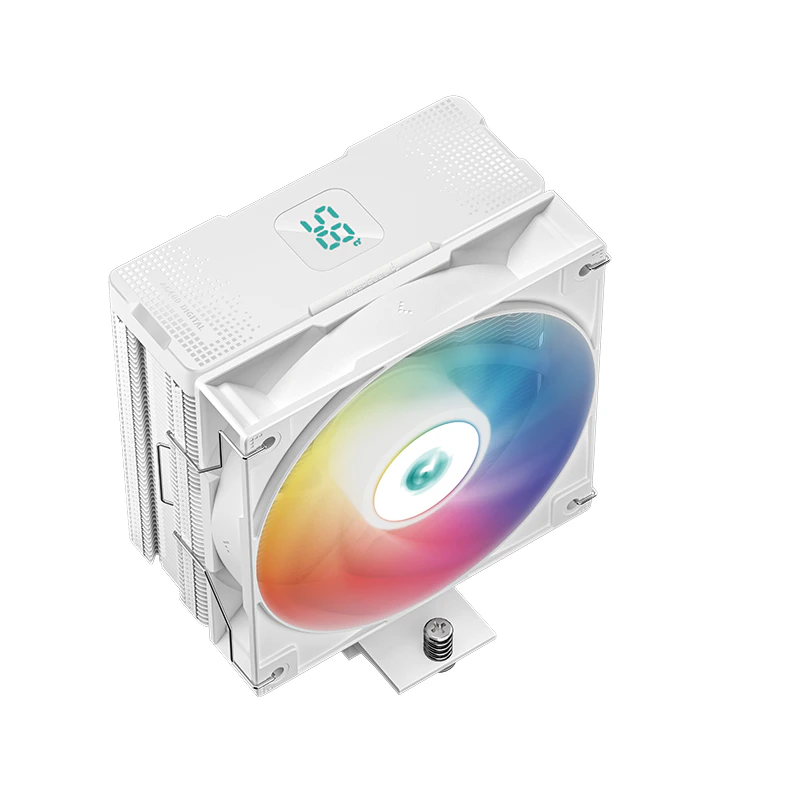

REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the Celsius and usage of your system's CPU in real time, and with a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
℃
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
INSISTENCE OF COST PERFORMANCE

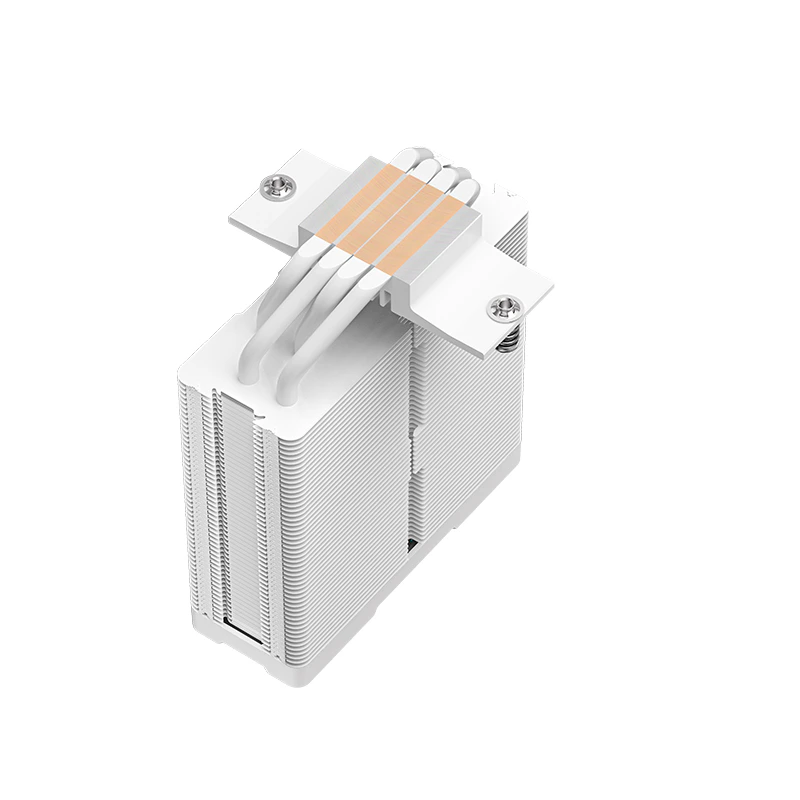

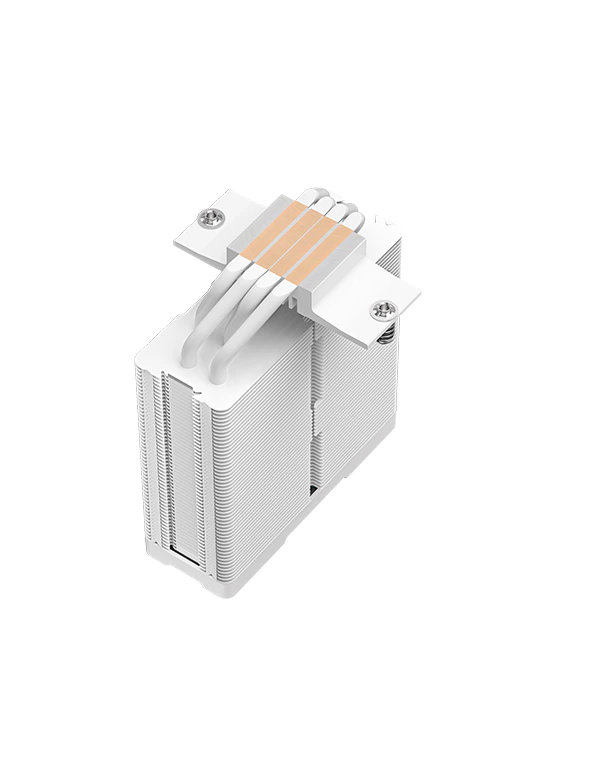

Built with the same premium quality materials, featuring four advanced copper heat pipes, a heatpipes direct touch coldplate, a dense of white coated matrix tower heat sink, and one silent hydro bearing fan, it produces a powerful winning formula for high-performance cooling and provides a digital feature for gamers.
COOL, QUIET,
AND POWERFUL AND ARGB!

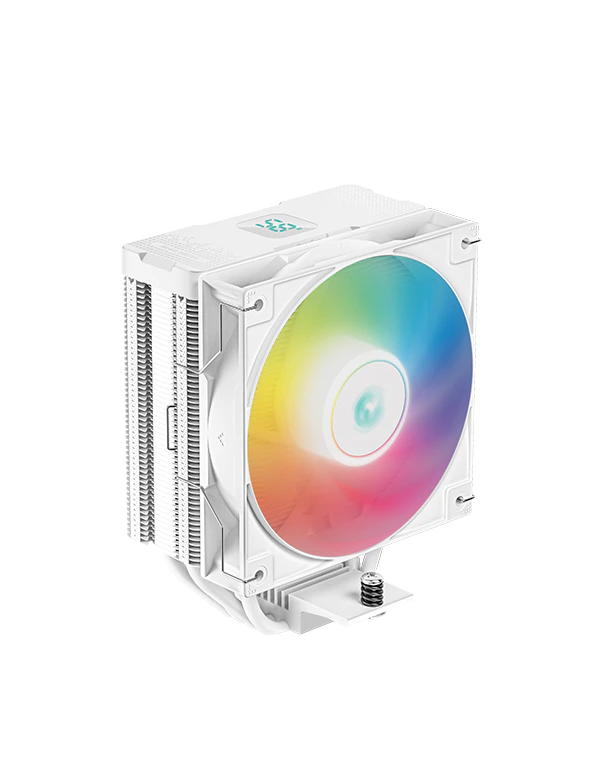

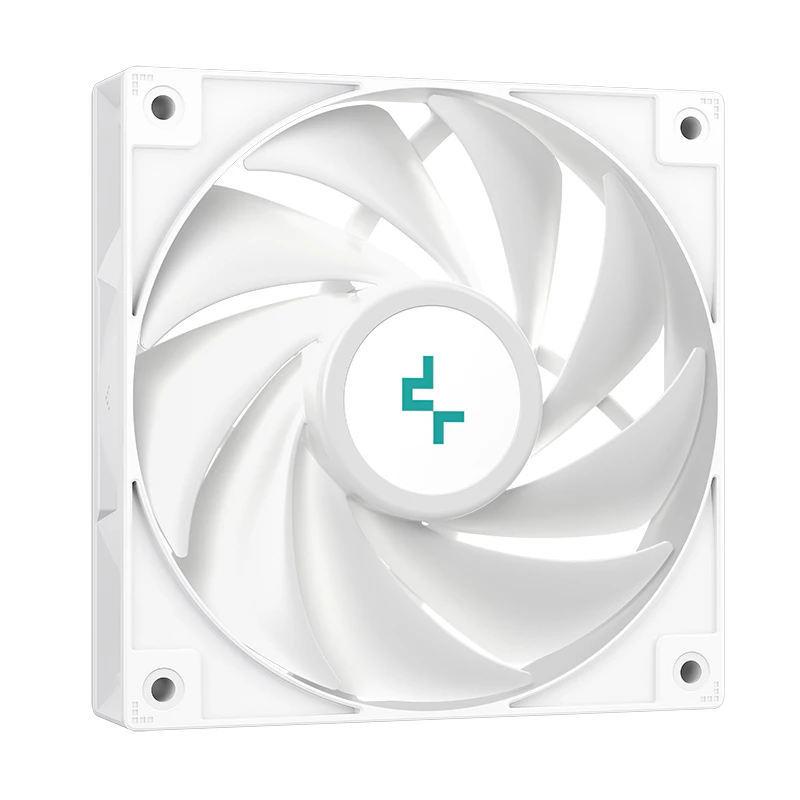

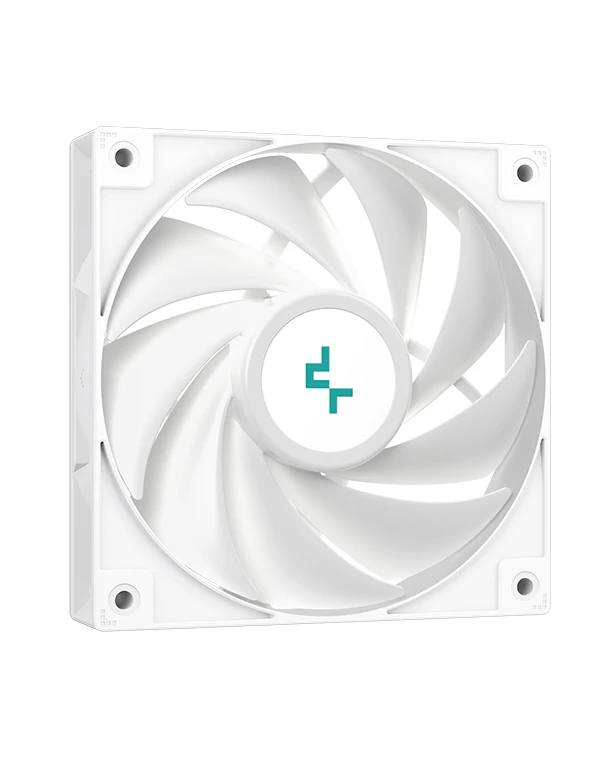

A powerful ARGB PWM fan with superior Hydro bearings offers low noise operation without losing cooling output for a perfect balance.
≤31.6 dBA
500-2100 RPM
75.89 CFM

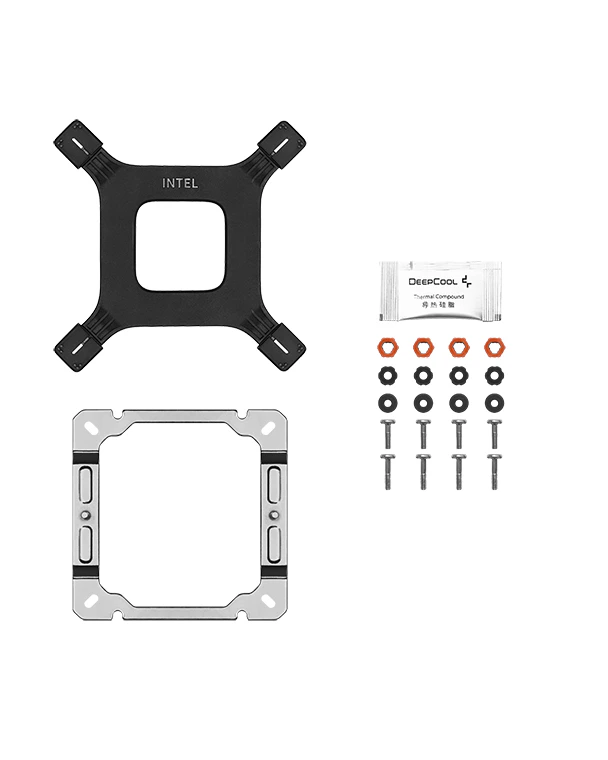

SIMPLE AND SECURE INSTALLATION

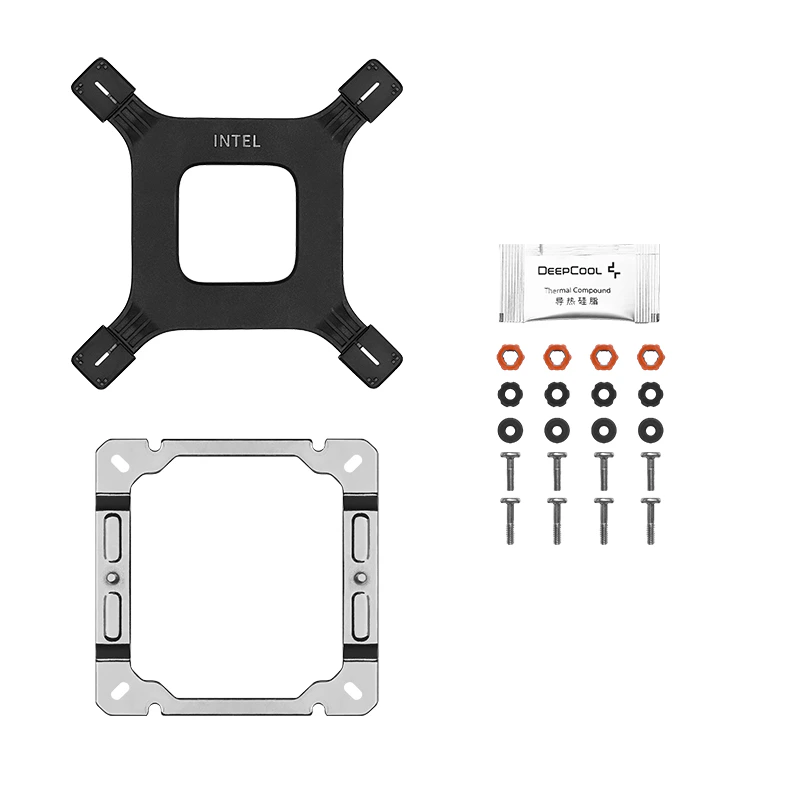

The all-metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions125×92×152.7 mm(L×W×H)
Heatsink Dimensions120×92×150 mm(L×W×H)
Net Weight636 g
HeatpipeØ6 mm×4 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~2100 RPM±10%
Fan Airflow75.89 CFM
Fan Air Pressure2.53 mmAq
Fan Noise≤31.6 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.17 A
Fan Power Consumption2.04 W
LED TypeAddressable RGB LED
LED Connector9-pin USB 2.0 and 3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption1.6 W
EAN6933412728610
P/NR-AG400-WHADMN-G-1
Download
AG400 DIGITAL WH ARGB Manual.pdf
Download
Download
DeepCool-DIGITAL Setup
Download
