AG500

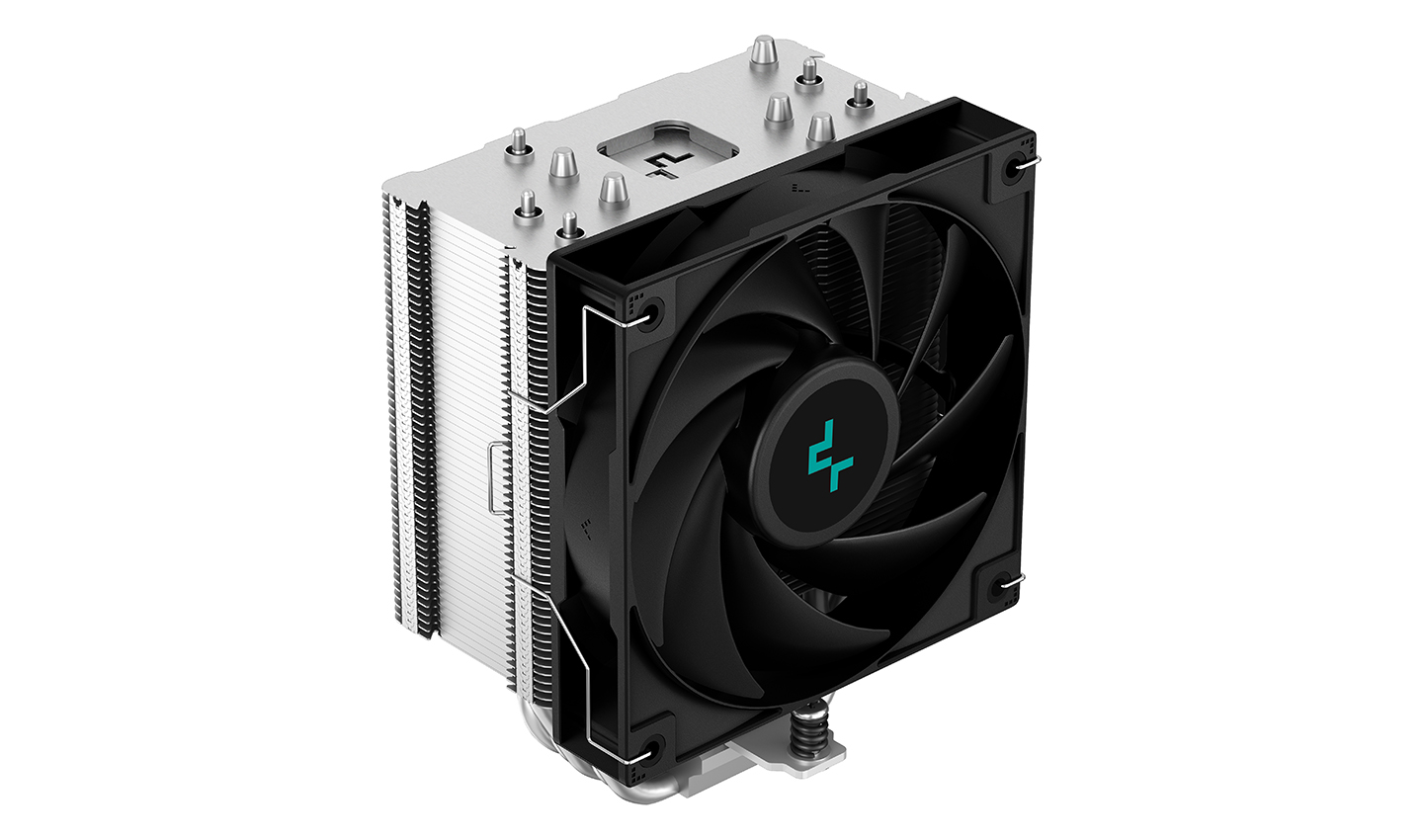

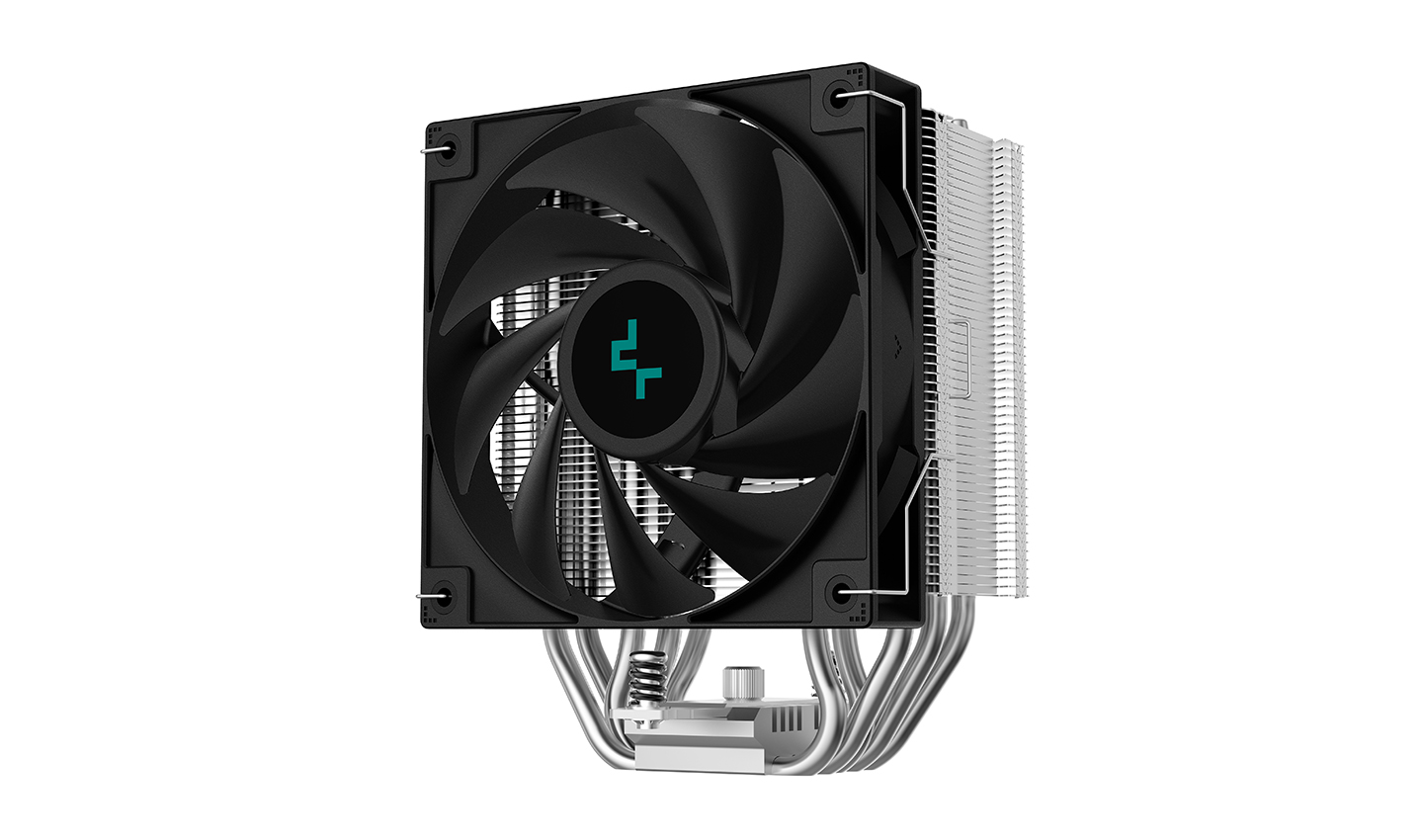

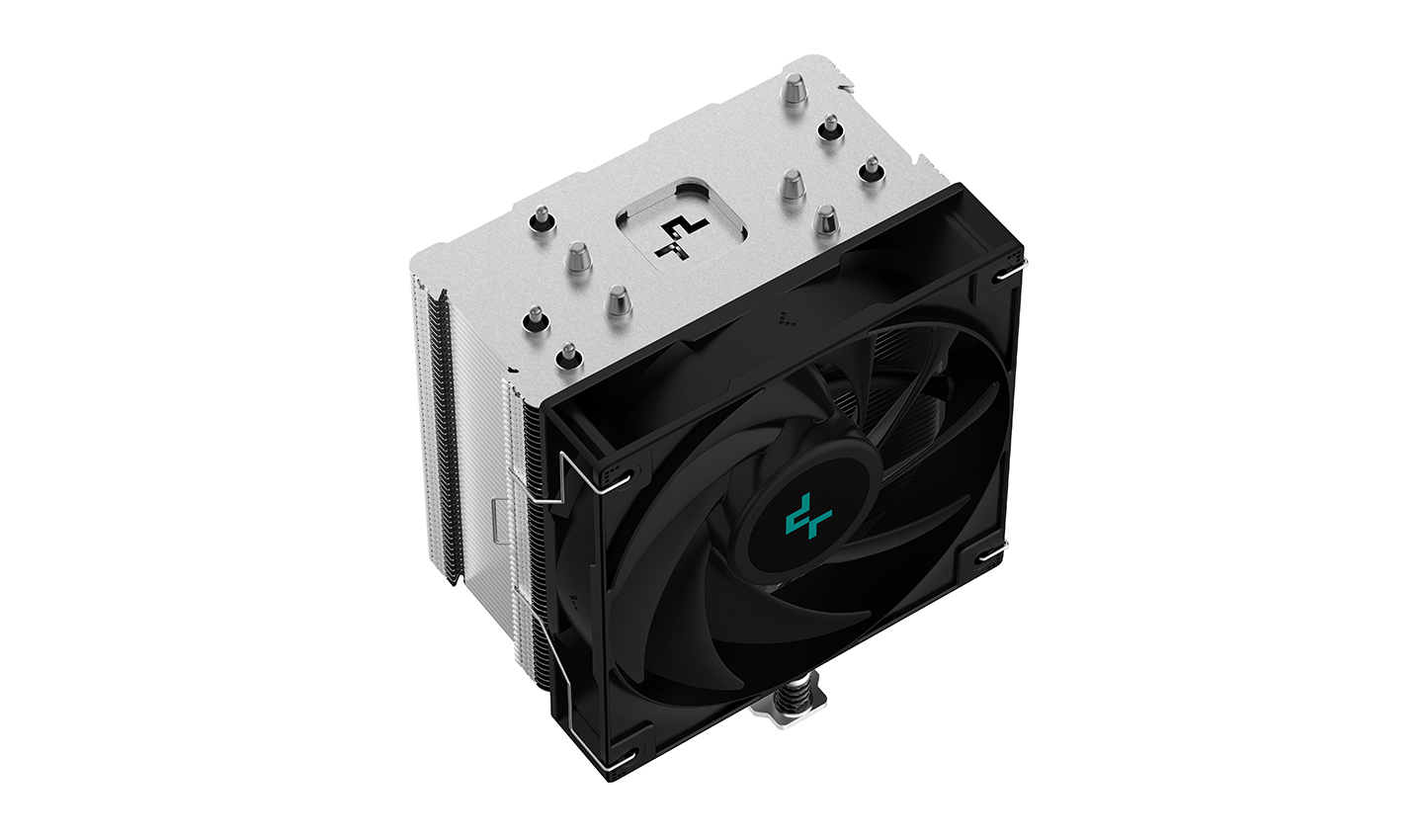

The DeepCool AG500 is a compact single-tower CPU cooler focused on high performance efficiency boasting five direct-contact copper heat pipes packed in a dense heat sink tower for optimal heat dissipation and paired with a fine-tuned 120mm PWM fan for powerful cooling.
MODEL
GAMMAXX SERIES
AG500
Performance CPU Cooler
Stellar Thermal Conductivity
Supercharge your cooling capacity and efficiently lower your CPU system temperature with 240W of heat dissipation performance to keep up with the latest generation. Built for 4K gaming and other demanding processing workloads to get the most of your CPU while keeping cool.

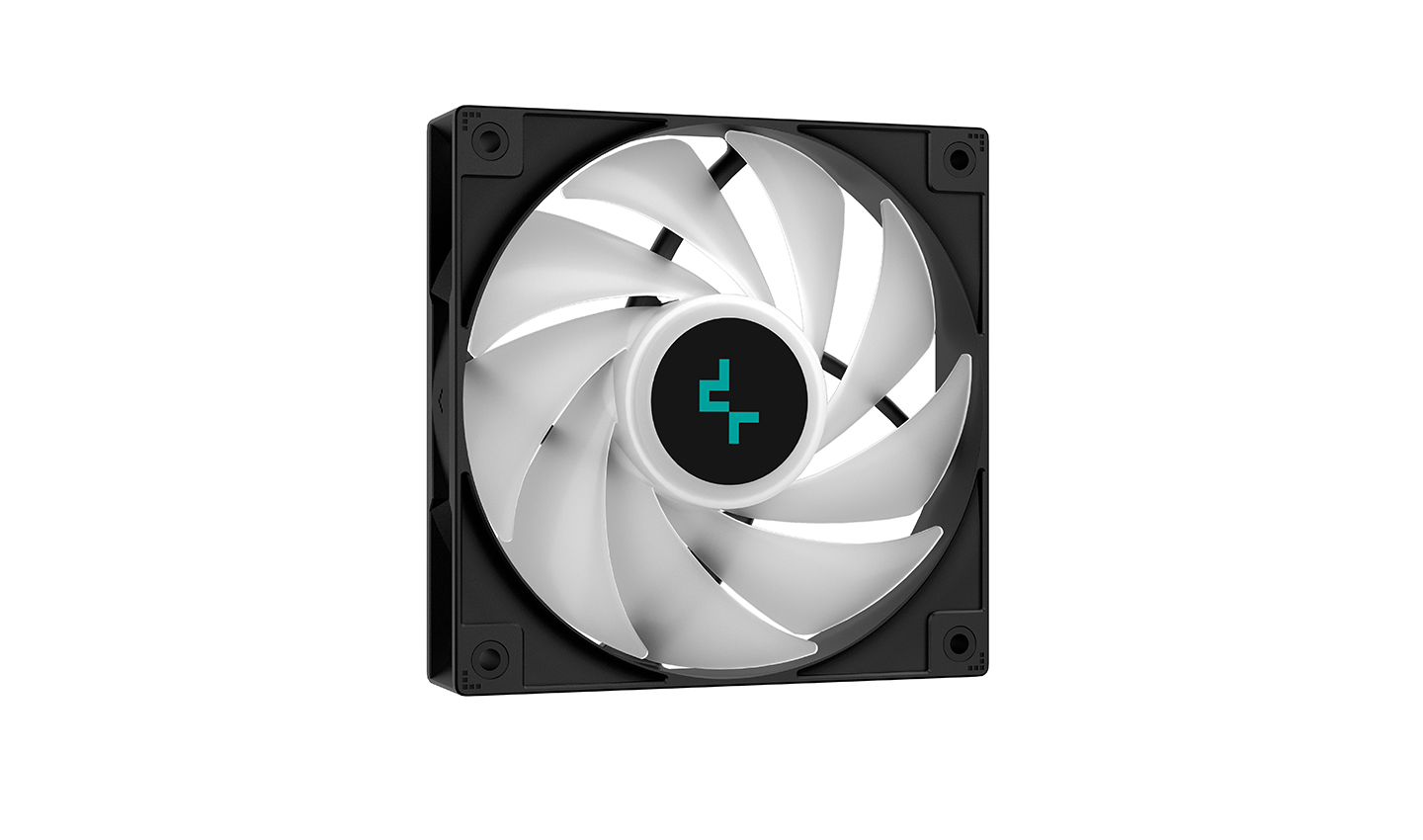

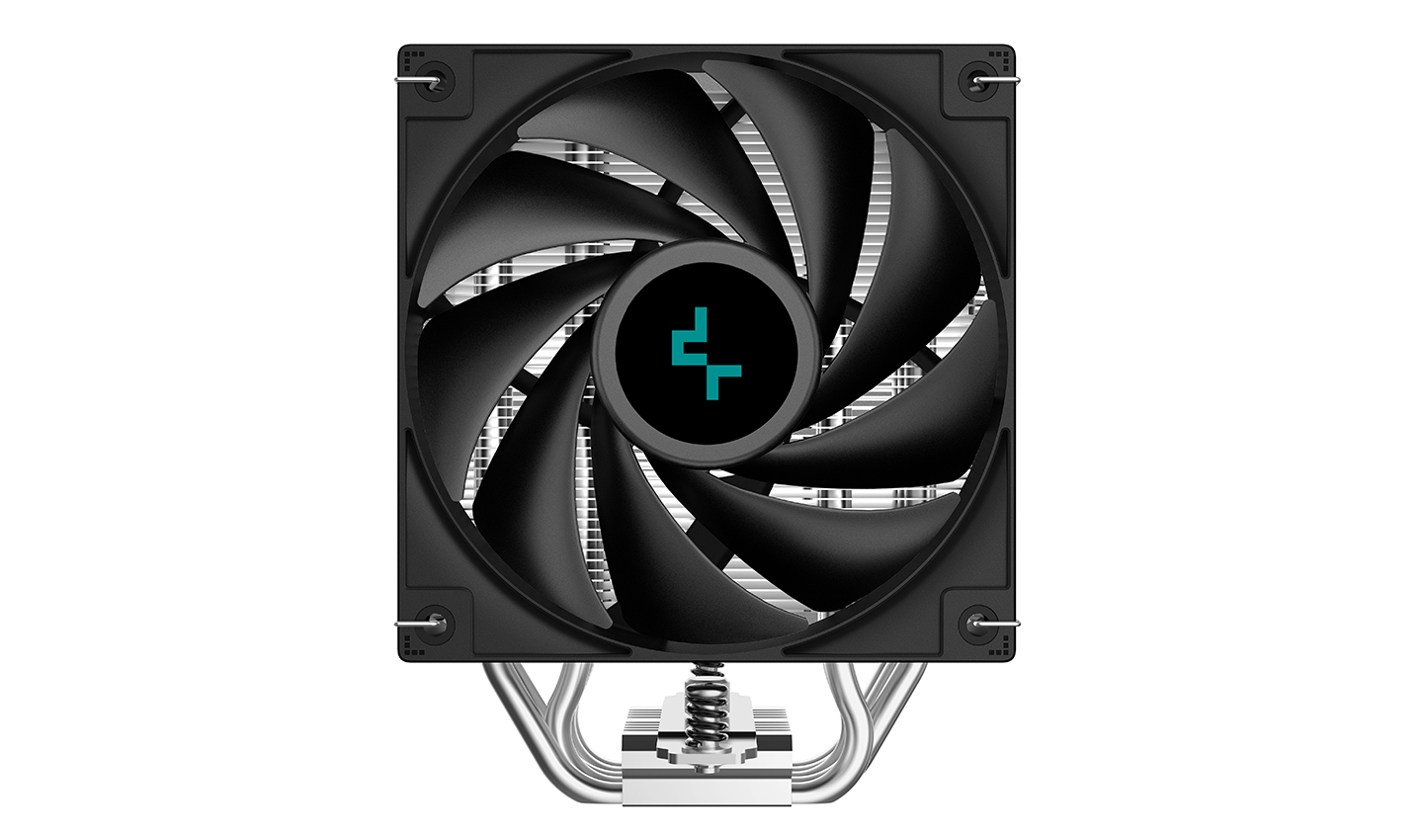

High Efficiency Fan
Get the best of both worlds with a fine-tuned 120mm PWM fan designed for optimal balance in top performance under load to silent efficiency when idle. Highly effective with strong static pressure for rapid heat transfer throughout the heat sink.
300-1850 RPM
≤29.4 dB(A)
67.88 CFM
Prime Compatibility

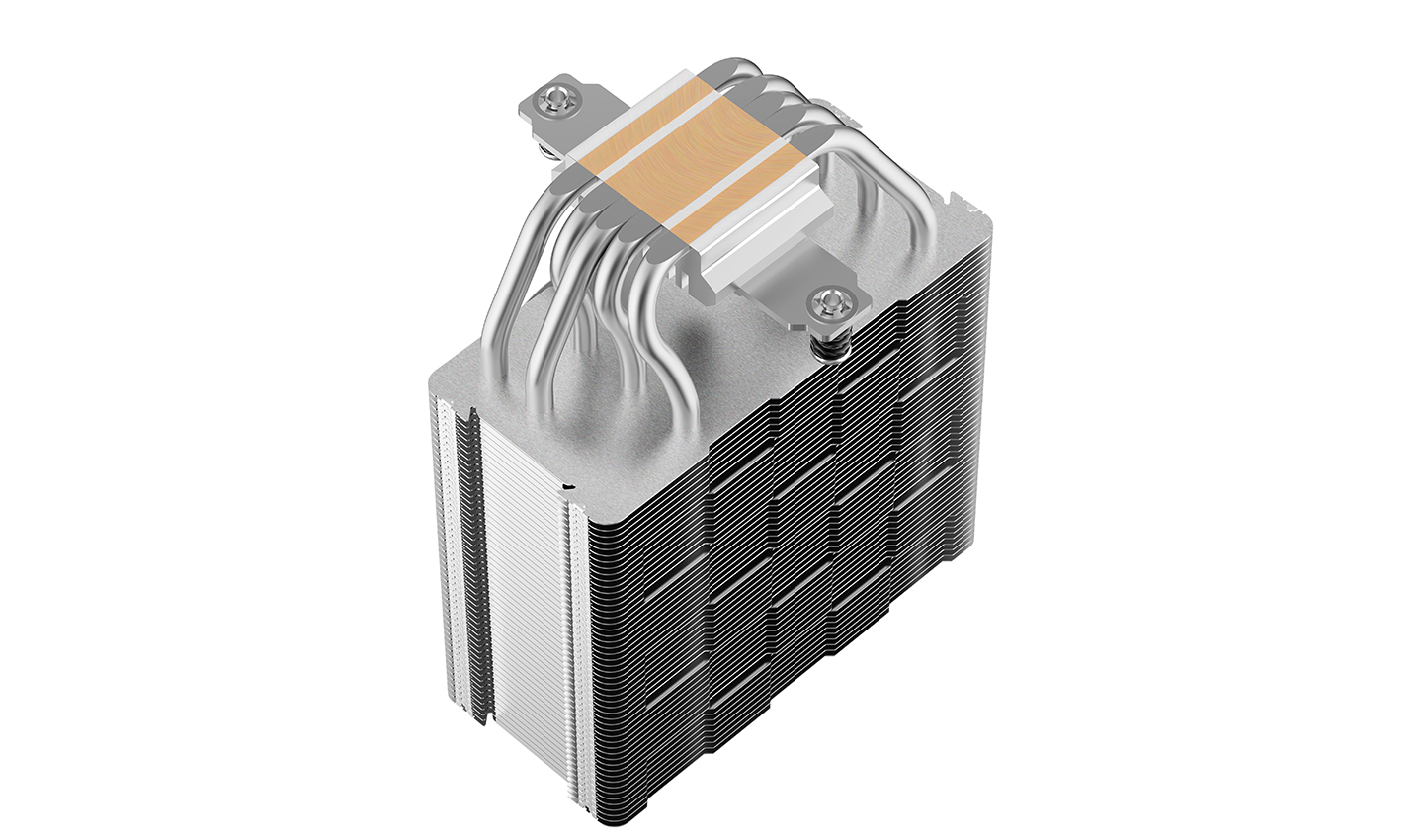

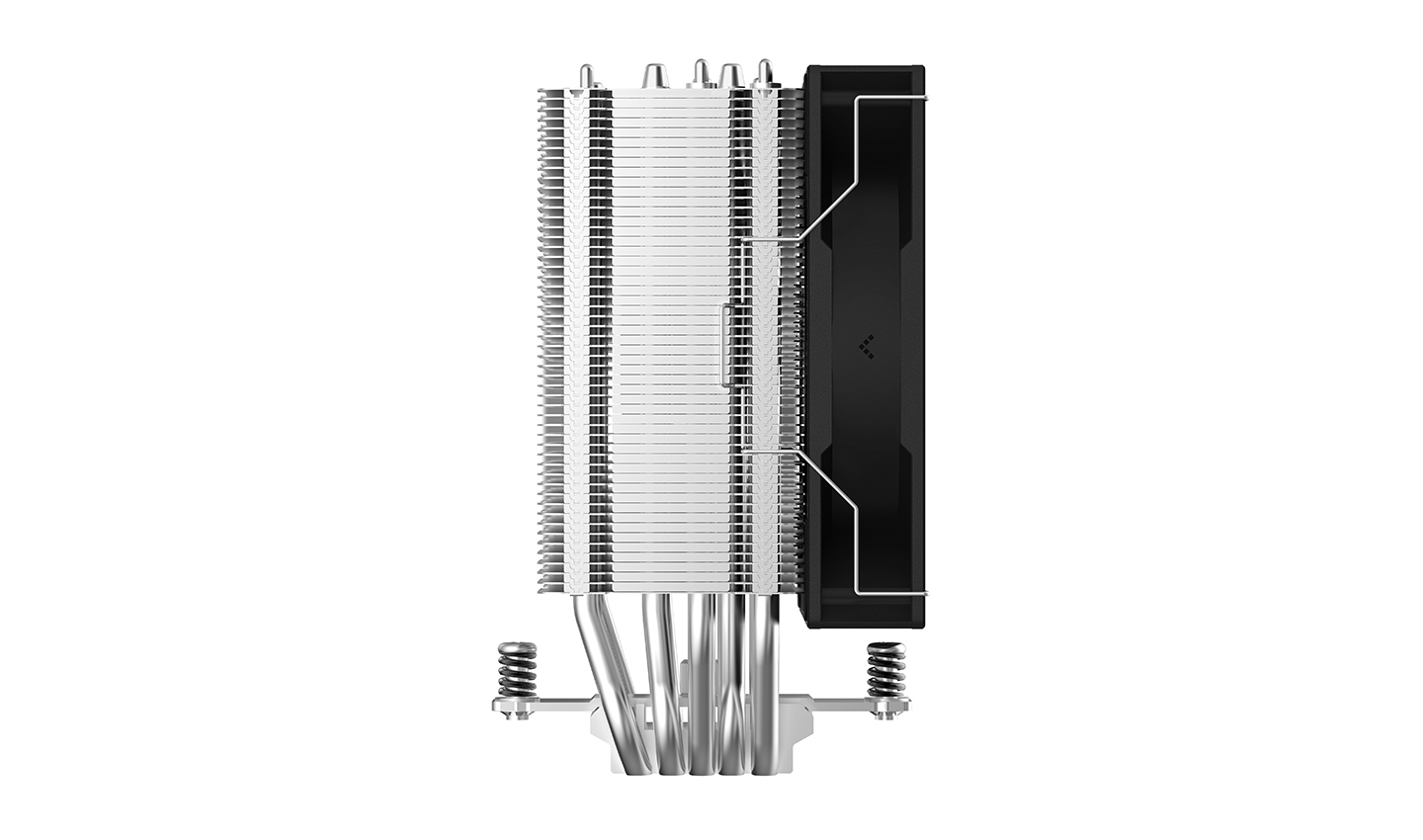

Designed with offset heat pipes to accomodate the larger heat sink depth for better component compatibility. This allows more space for tall heat spreaders and an unobstructed view of all your RAM slots.

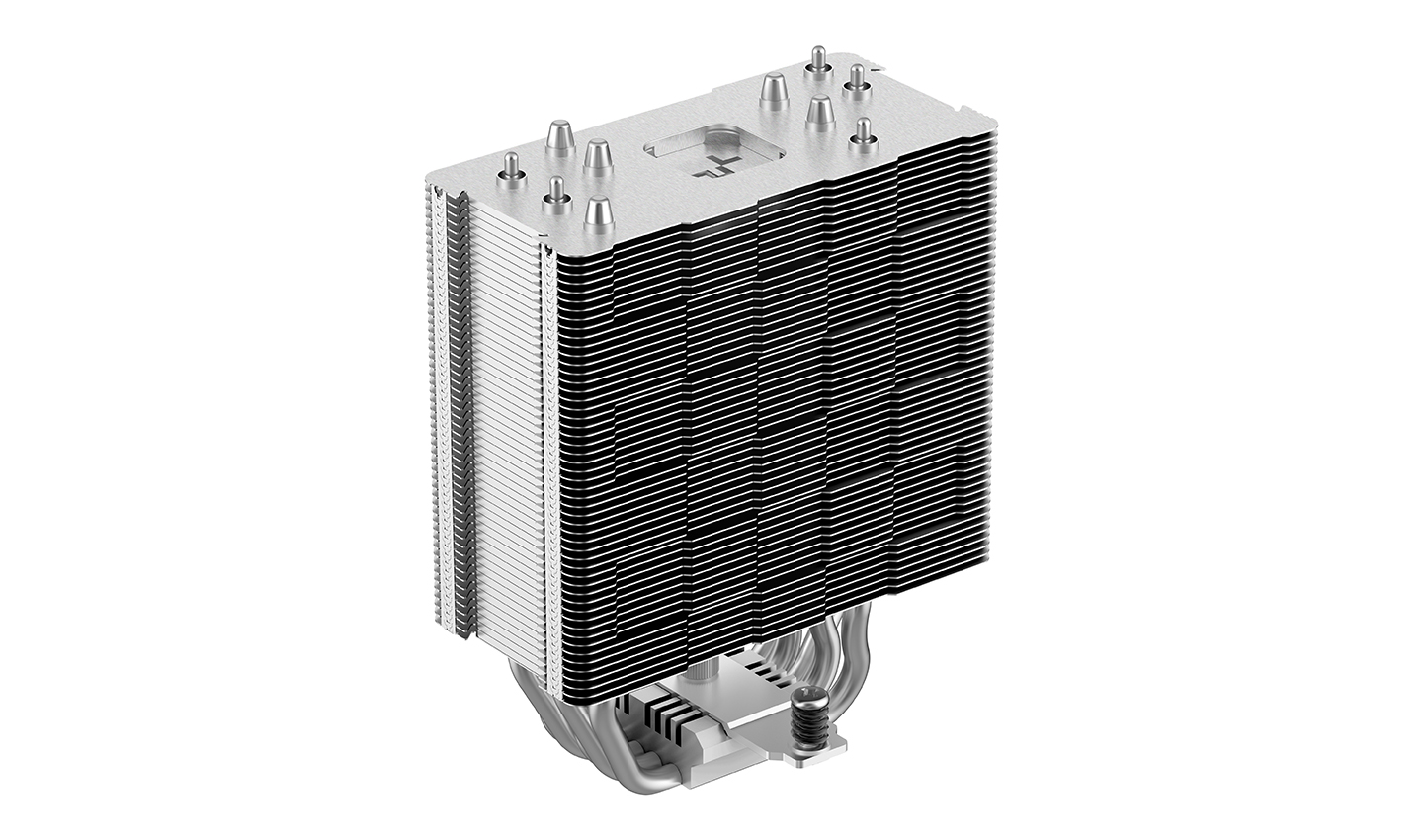

Matrix Fins Array
High-quality aluminum fins on the heat sink are densely stacked for ideal heat dissipation and also features a unique "checkerboard" design aesthetic.
Simple and Secure
The included mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure. The offset design of the heat pipes ensures that the cooler can be installed with the fan already attached.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions125×95×155 mm
Heatsink Dimensions120×93×150 mm
Net Weight861 g
HeatpipeØ6 mm×5 pcs
Fan Dimensions120×120×25 mm
Fan Speed300~1850 RPM±10%
Fan Airflow67.88 CFM
Fan Air Pressure2.04 mmAq
Fan Noise≤29.4 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.14 A
Fan Power Consumption1.68 W
EAN6933412727859
P/NR-AG500-BKNNMN-G
Product Dimension
Download
AG500 Manual.pdf
