AK500 DIGITAL WH
The era of digital air coolers has arrived, and DeepCool is proud to introduce the AK500 DIGITAL WH. Everything you loved about the original AK500 WH, but with a sleek magnetic status display and ARGB LED strips.
MODEL
AK500 DIGITAL WH
WELCOME TO THE DIGITAL ERA

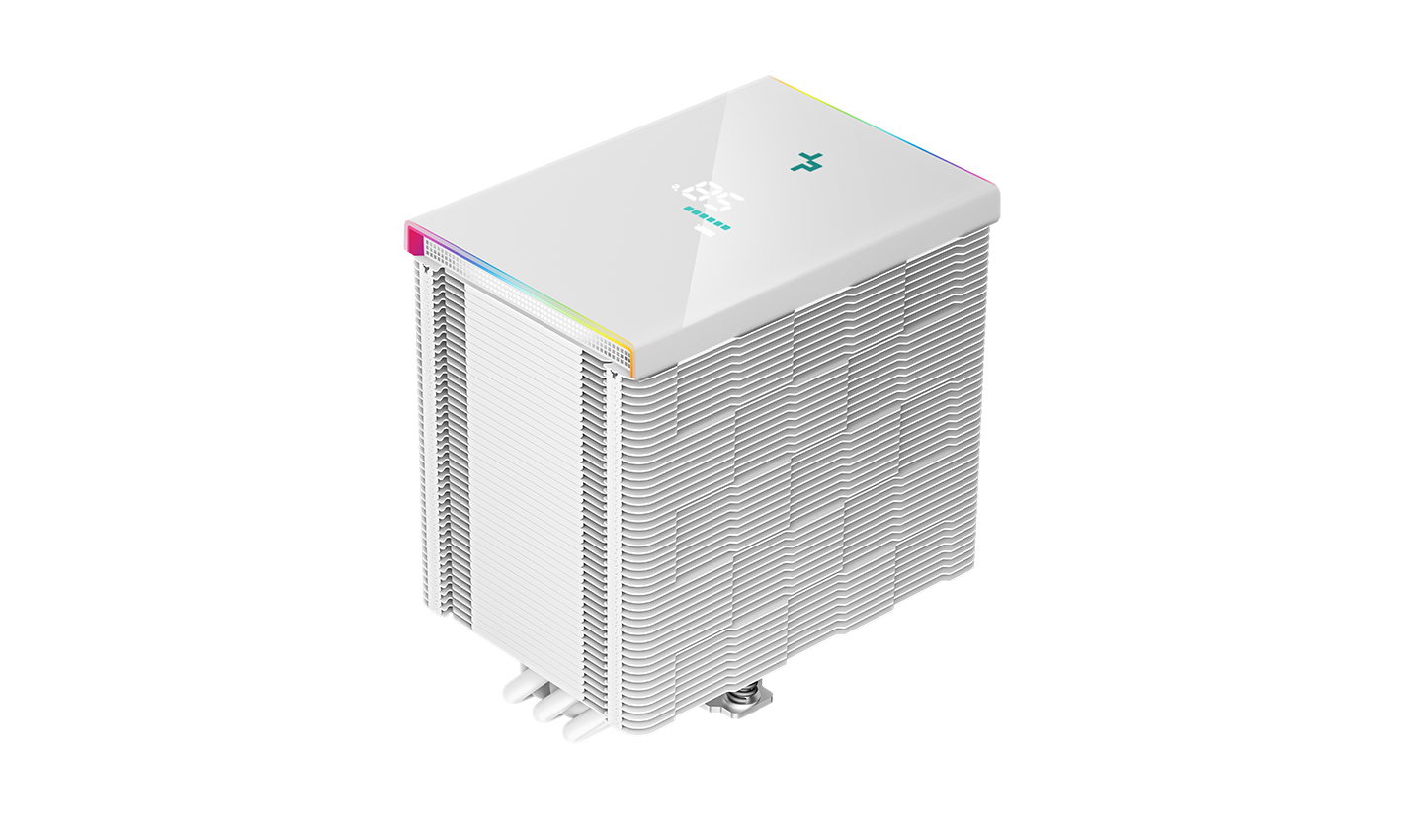

REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
℃
℉
Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
PROVEN AK WH DESIGN

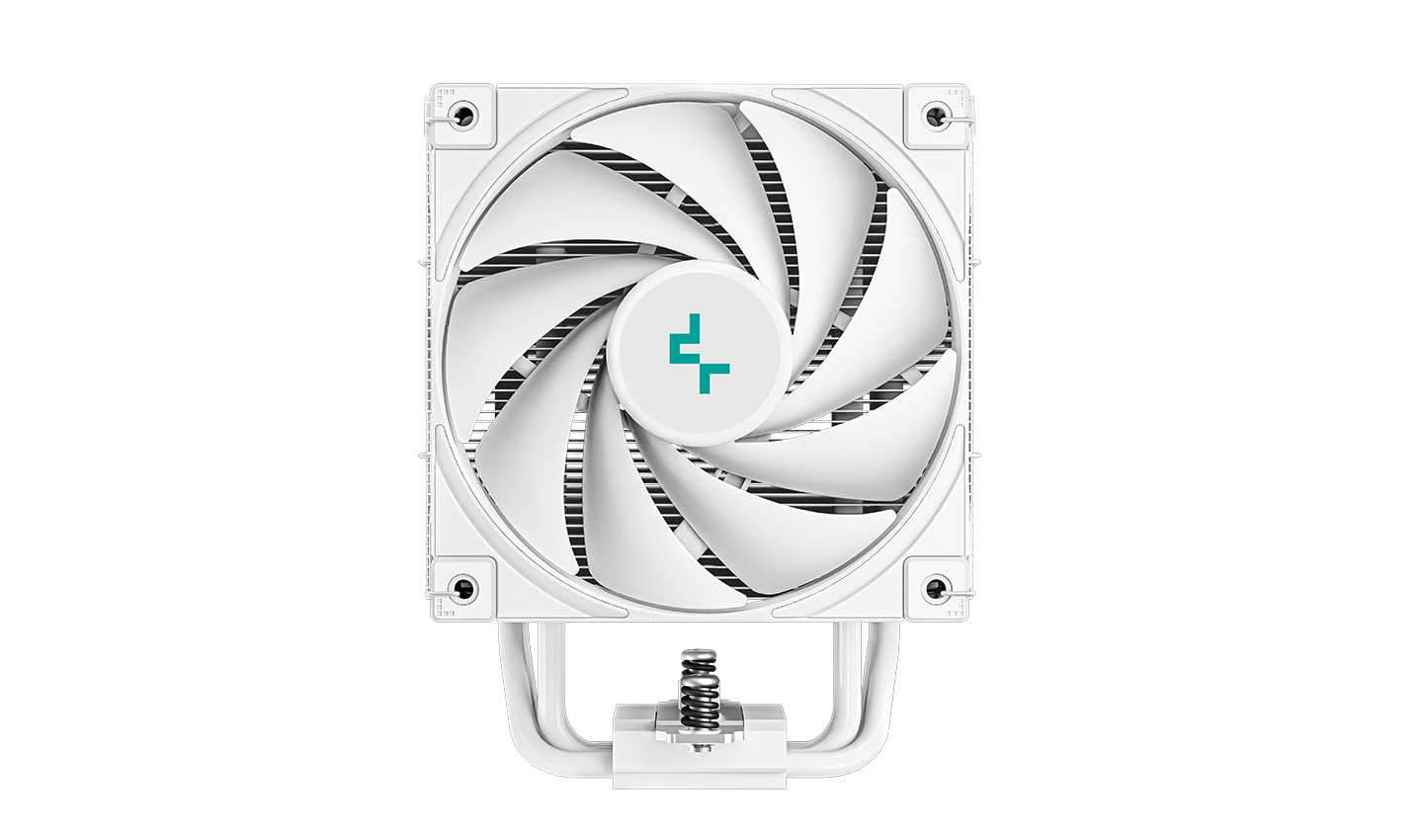

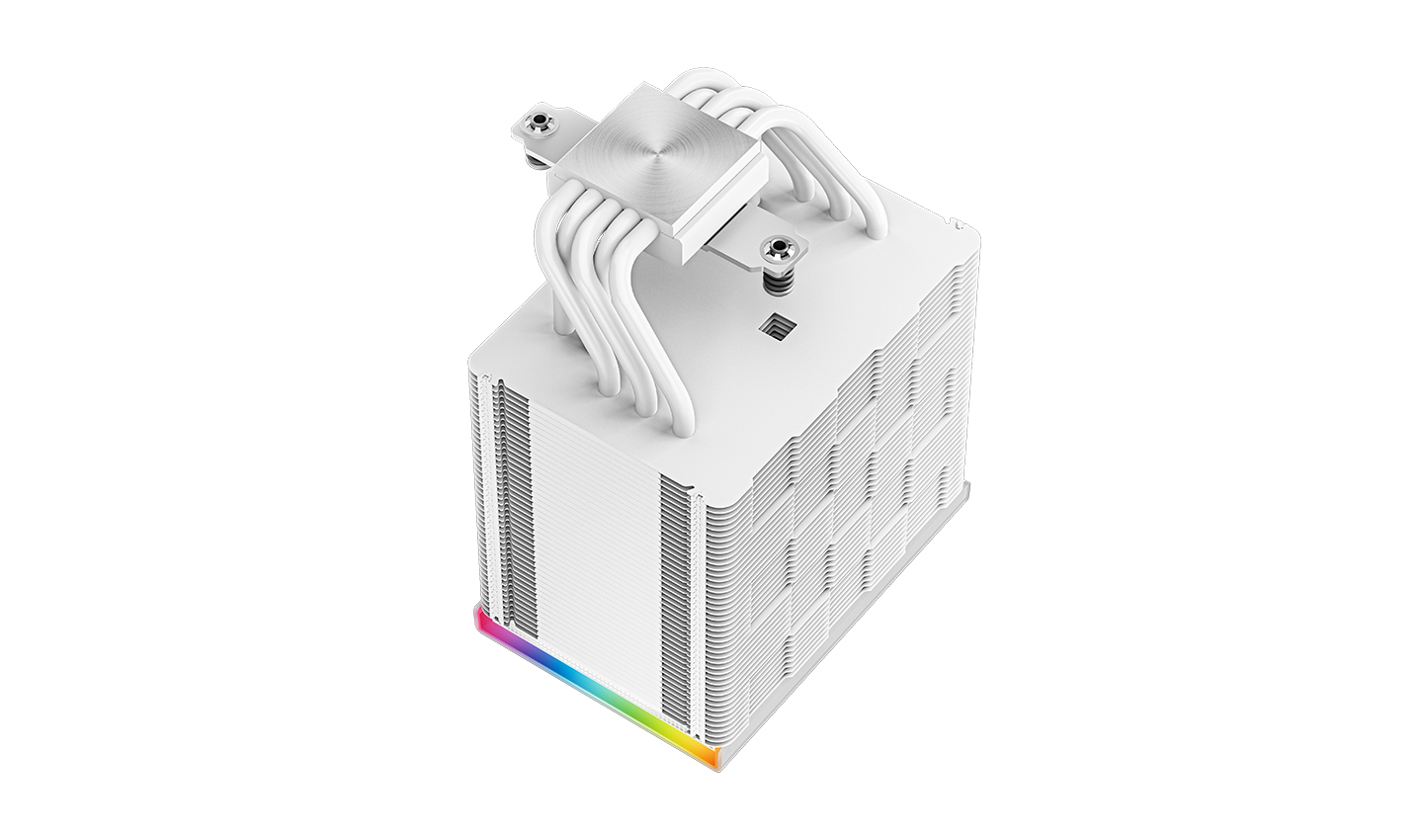

An all-white variant of our highly compatible AK500 CPU cooler featuring an offset direct touch, a five heat pipe wide tower layout, a unique white matrix fin design, and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.
STELLAR COOLING
The exceptional cooling performance of the AK500 DIGITAL WH on modern CPUs makes it the perfect choice for mainstream systems needing impressive price-performance ratio in a compact size.
COOL, QUIET, AND POWERFUL

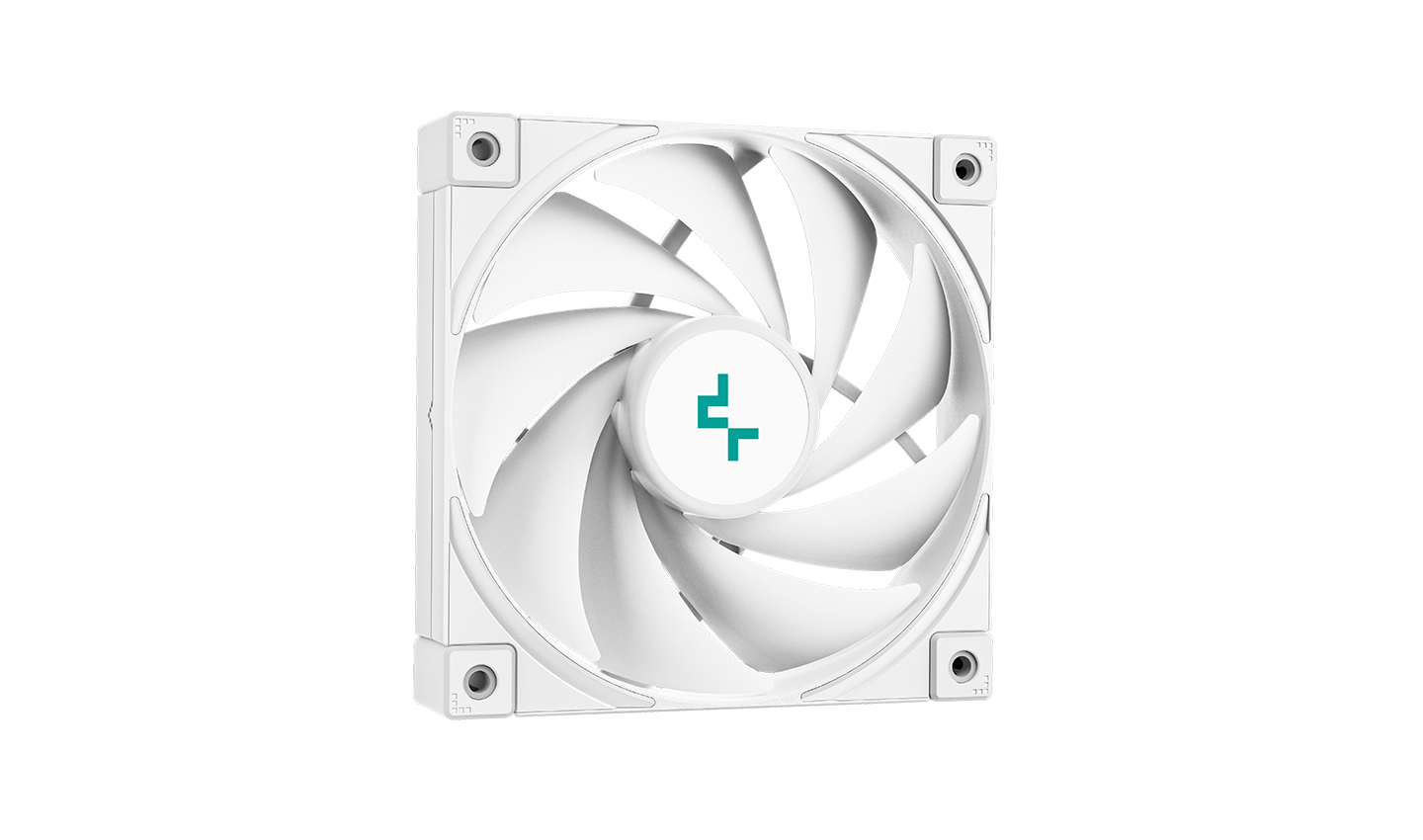

Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.
PREMIUM DRAM COMPATIBILITY

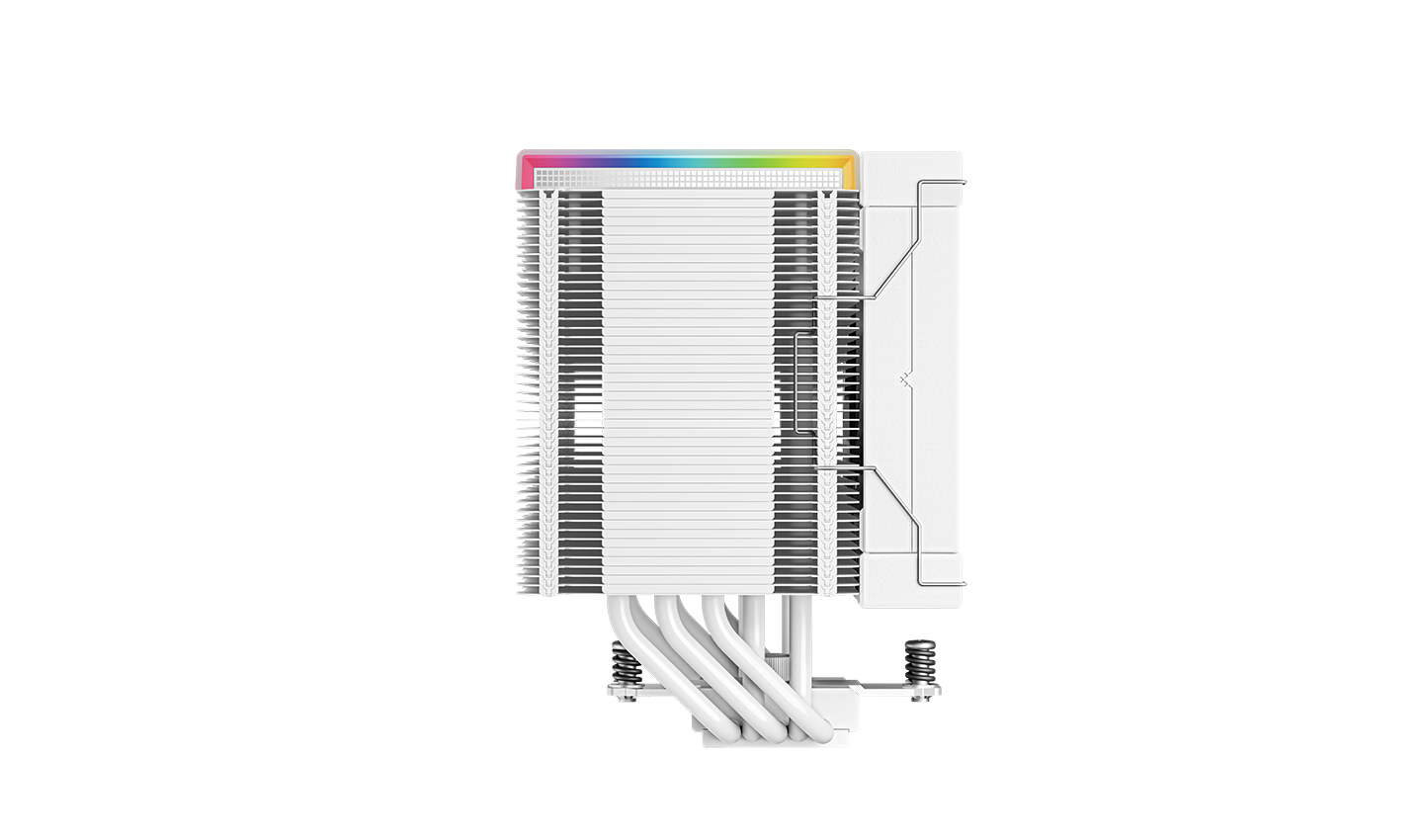

The angled offset heat pipe design offers clear access to your DIMM slots for better compatibility with tall heat spreaders and also shows off any RGB lighting. For quad-channel motherboards, the rear slots have a clearance of 45mm.
SIMPLE AND SECURE INSTALLATION

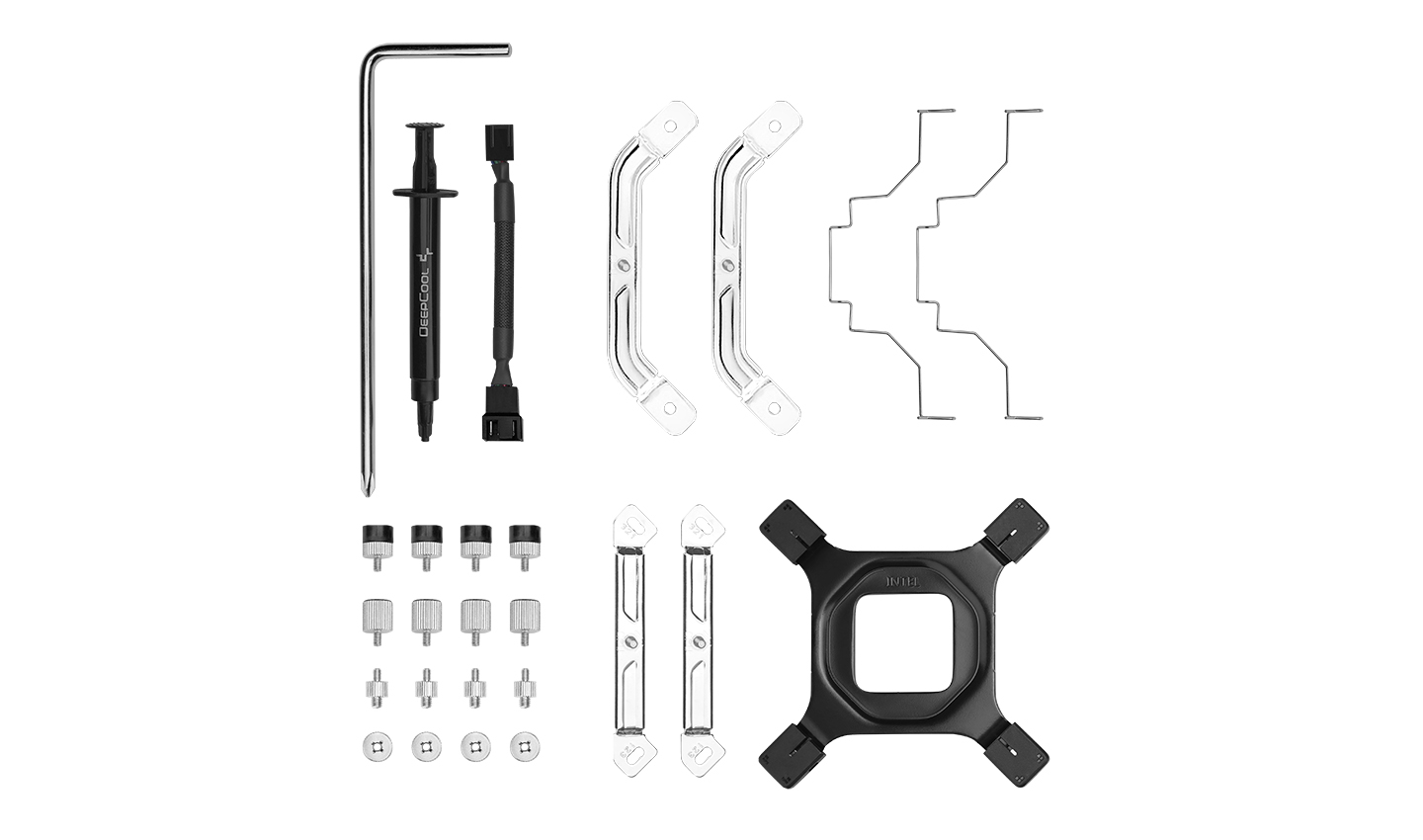

The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions127×117×160 mm(L×W×H)
Heatsink Dimensions127×92×156 mm(L×W×H)
Net Weight1291 g
HeatpipeØ6 mm×5 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~1850 RPM±10%
Fan Airflow68.99 CFM
Fan Air Pressure2.19 mmAq
Fan Noise≤28 dB(A)
Fan Speed (with LSP)500~1550 RPM±10%
Fan Airflow (with LSP)52.24 CFM
Fan Air Pressure (with LSP)1.2 mmAq
Fan Noise (with LSP)≤25.9 dB(A)
Fan Connector4-pin PWM
Bearing TypeFluid Dynamic Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.12 A
Fan Power Consumption1.44 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage5 VDC
LED Power Consumption4.5 W
EAN6933412728276
P/NR-AK500-WHADMN-G
Download
AK500 DIGITAL WH Manual.pdf
Download
Download
DeepCool-DIGITAL Setup
Download
