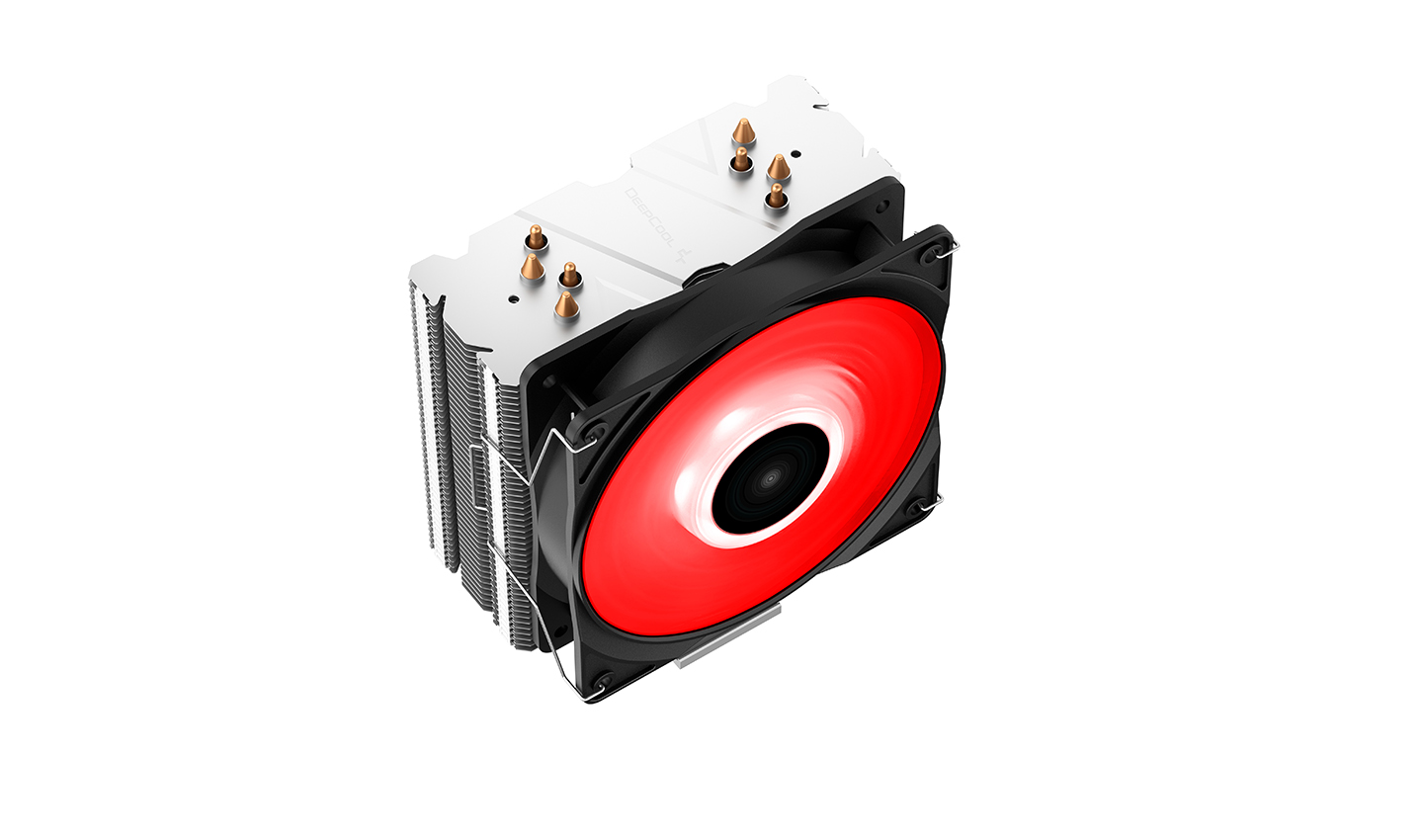

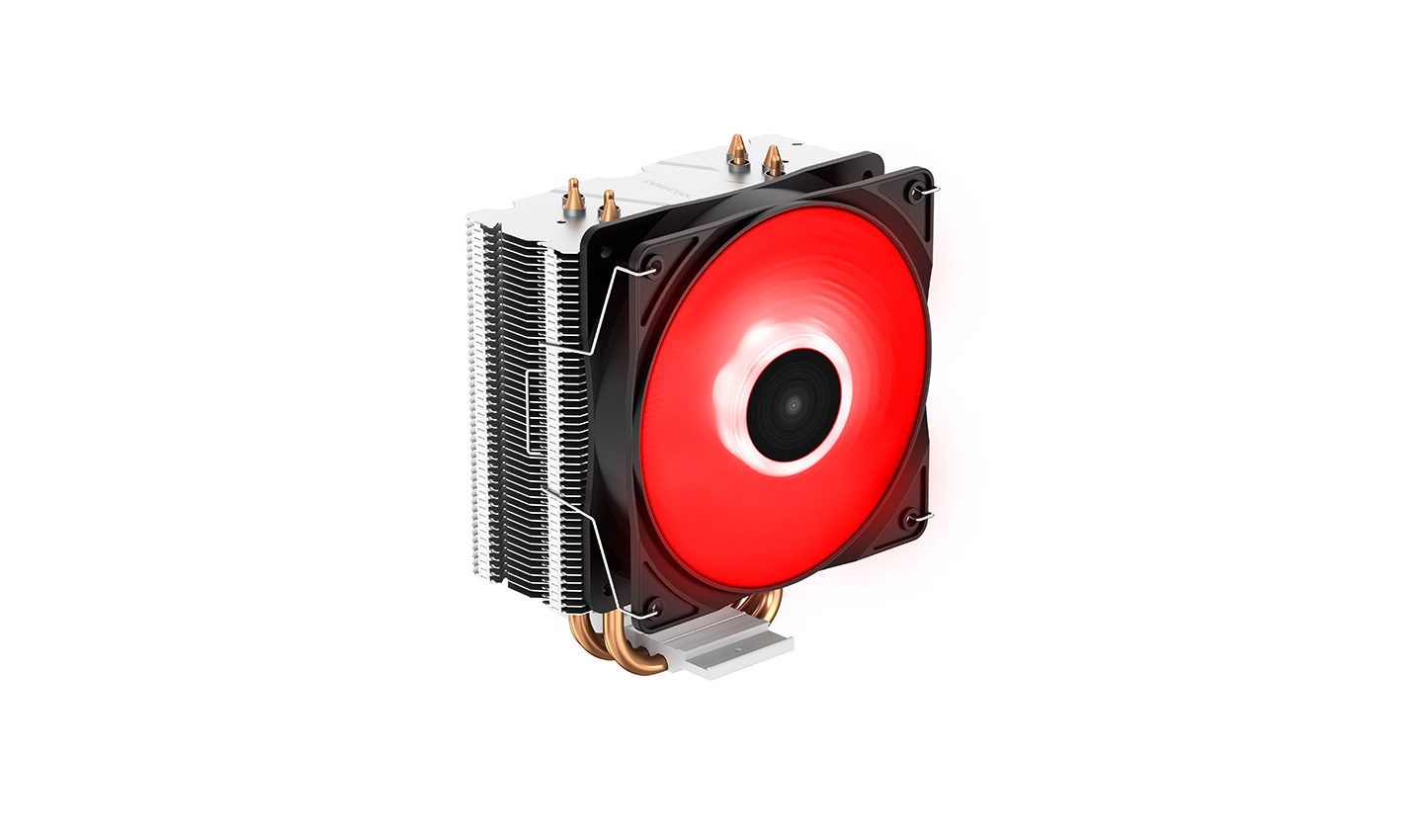

GAMMAXX 400 V2(Red)

Legendary Cooling

GAMMAXX 400 V2(Red) is a new model of the legendary GAMMAXX 400 series. With an upgraded 120mm fan with red LED, 4 high-efficiency heat pipes and the heat-resistant mounting kit, GAMMAXX 400 V2(Red) is apt to provide better and safer cooling performance (TDP 180W).

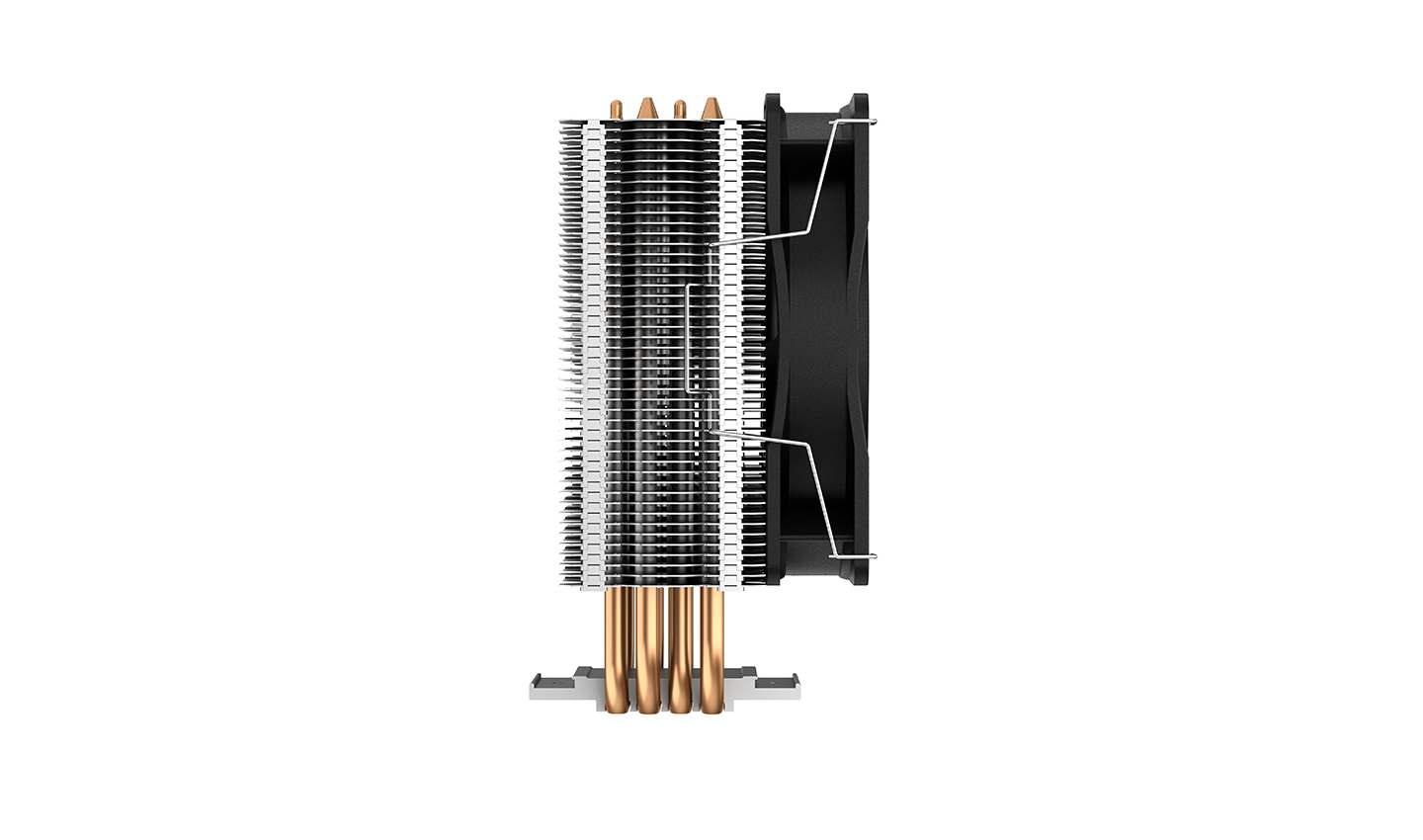

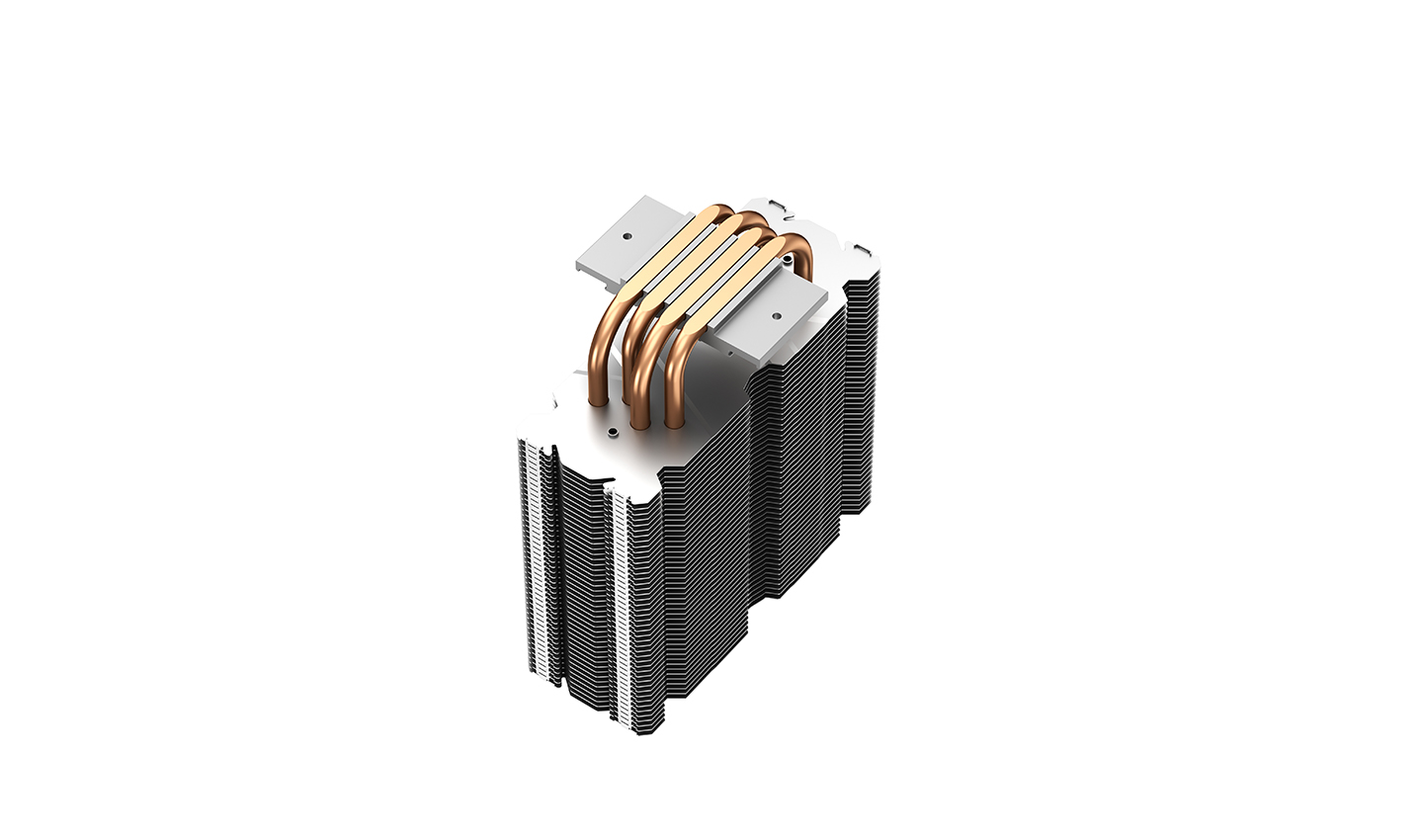

UPGRADED HEAT PIPES

4 Copper heat pipes help dissipate CPU heat with high efficiency.

UPGRADED HEAT PIPES

4 Copper heat pipes help dissipate CPU heat with high efficiency.

LOW NOISE

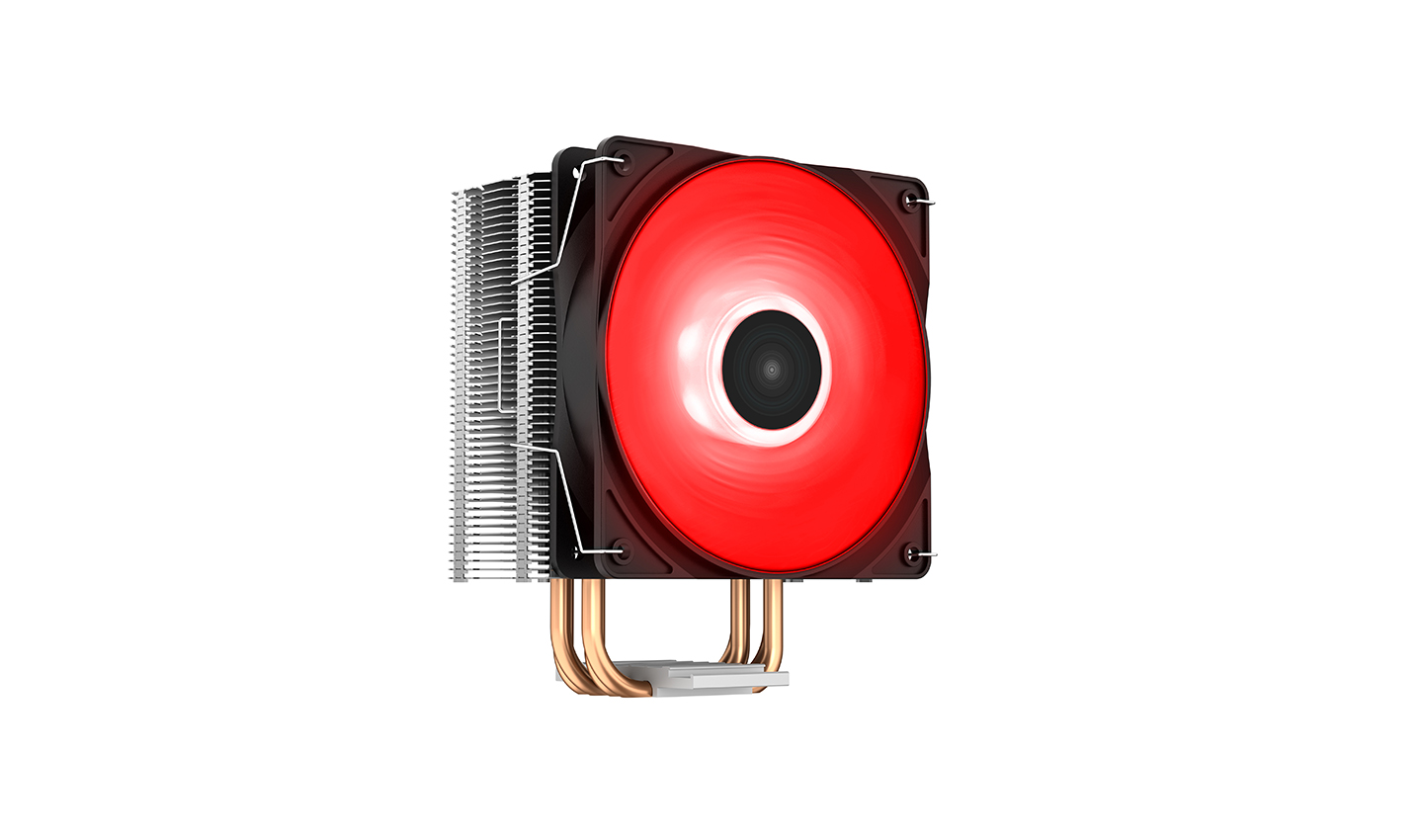

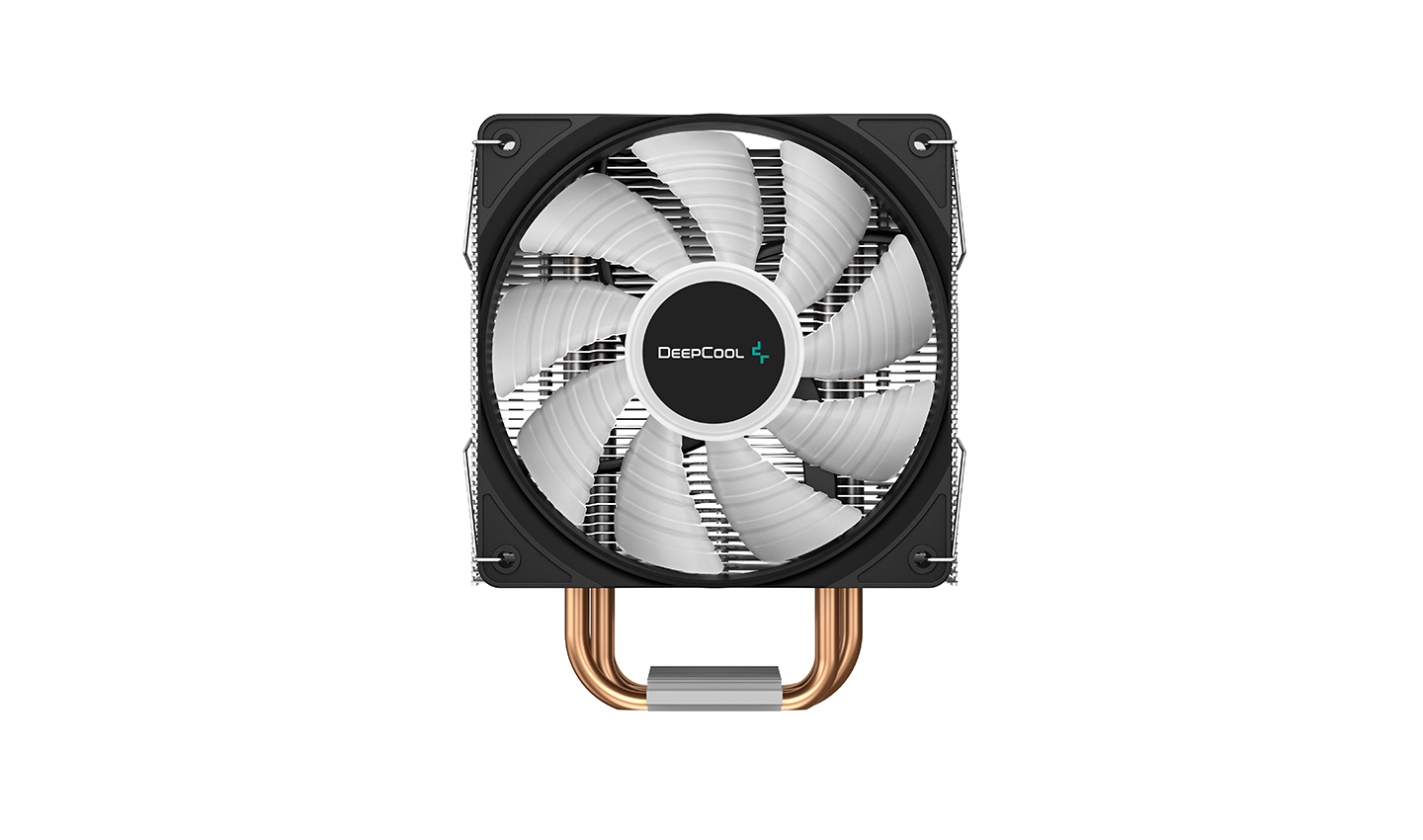

The 120mm Red LED PWM fan is finely tuned to maintain perfect noise-performance balance.

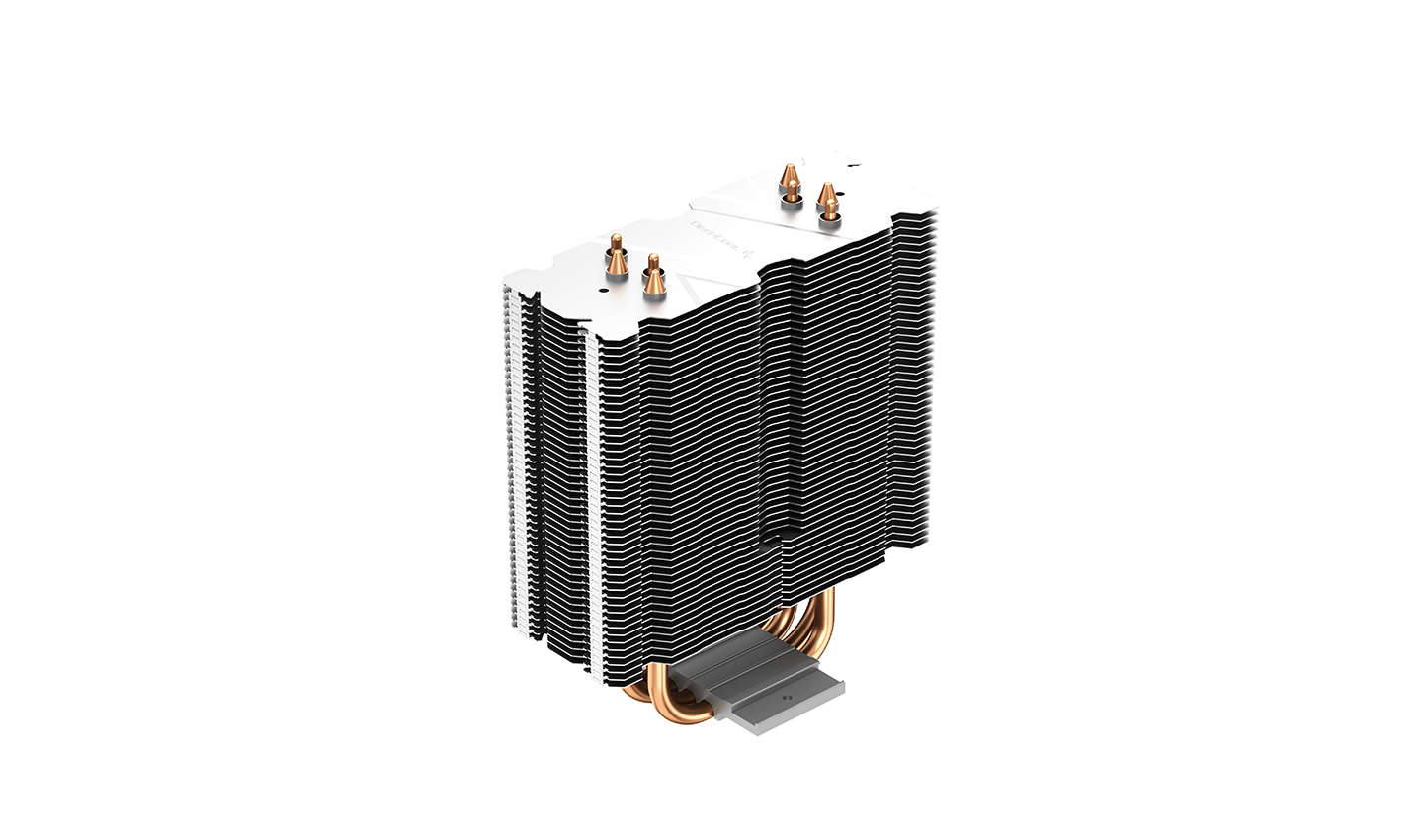

ABSORB AND DISSIPATE

Direct-touch heat pipes absorb CPU heat more efficiently with the larger heat sink surface area.

EASY TO INSTALL

The brand-new mounting kit makes GAMMAXX 400 V2 easier to install.

RAM Interference Free

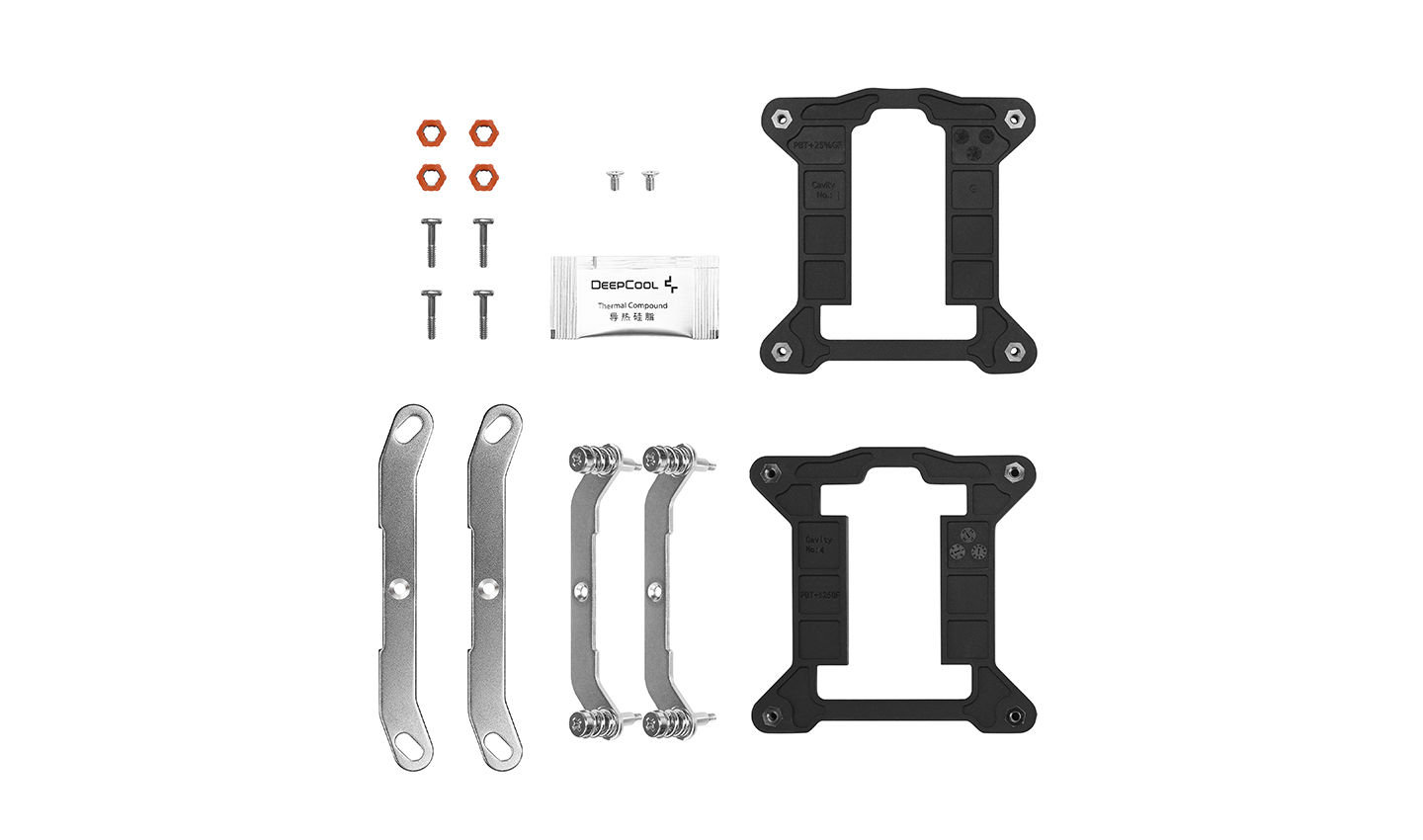

Brand New Mounting Kit

Multi-directional Installation

Bright and Well-balanced Light

Application For

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Product Dimensions	129×77×155 mm(L×W×H)
Heatsink Dimensions	127×50×155 mm(L×W×H)
Net Weight	606 g
Heatpipe	Ø6 mm×4 pcs
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	500~1650 RPM±10%
Fan Airflow	64.5 CFM
Fan Air Pressure	2.1 mmAq
Fan Noise	≤27.8 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.18 A
Fan Power Consumption	2.16W
LED Type	Red LED
EAN	6933412726821
P/N	DP-MCH4-GMX400V2-RD

Product Dimension

Download

GAMMAXX 400 V2(Red) Manual.pdf
