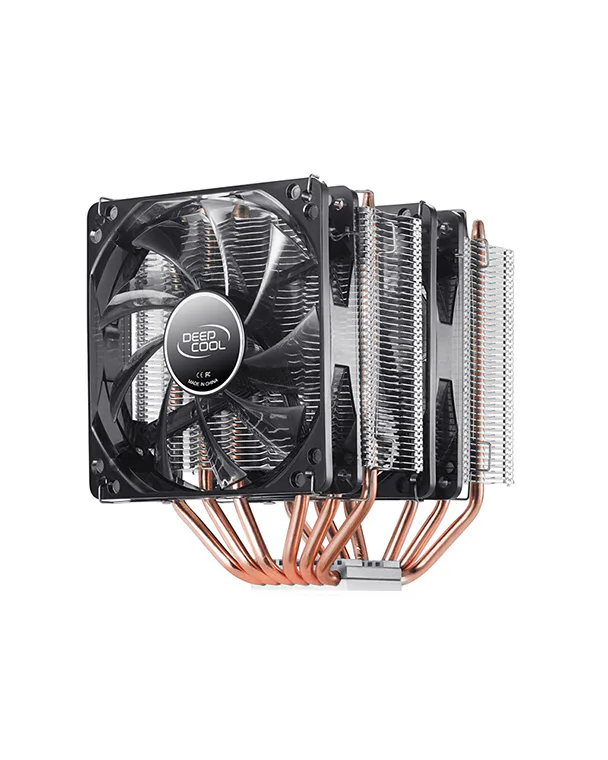

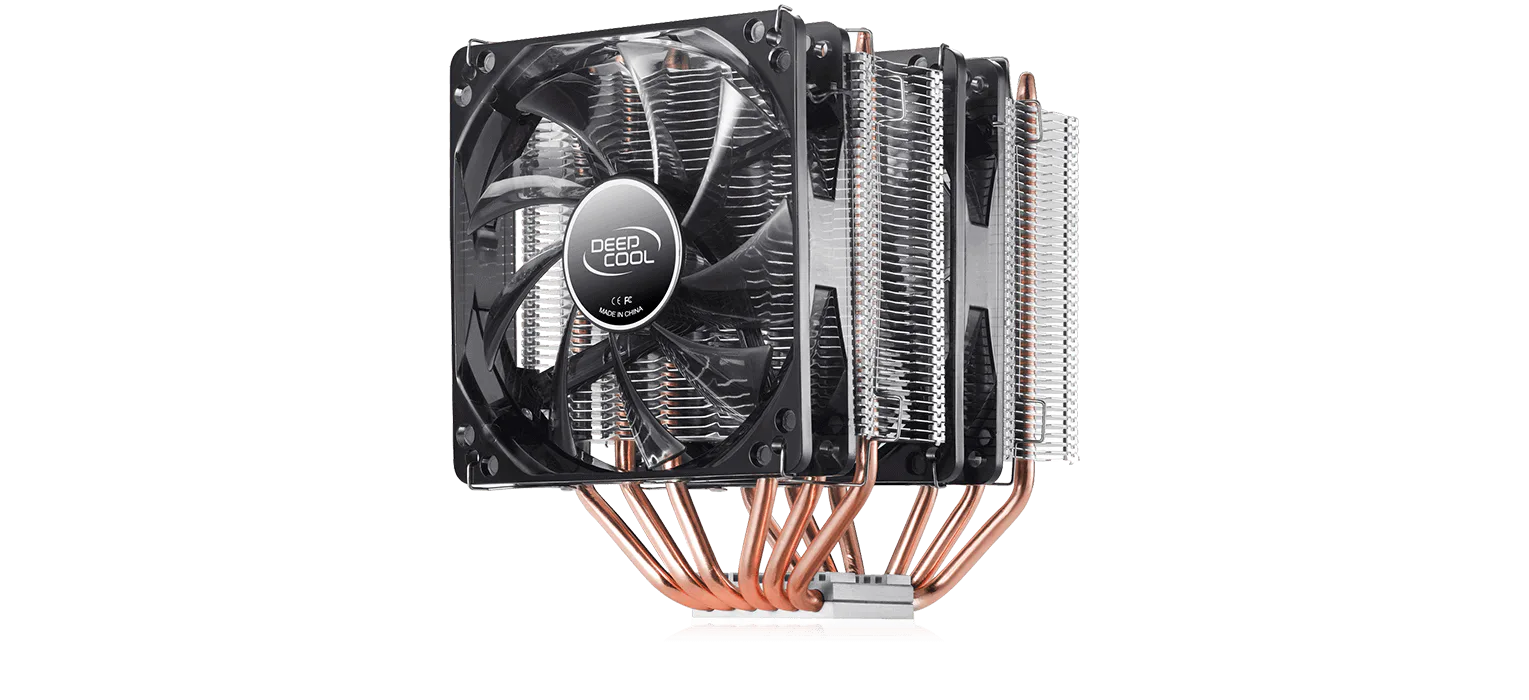

NEPTWIN V2

Big cooling

Description

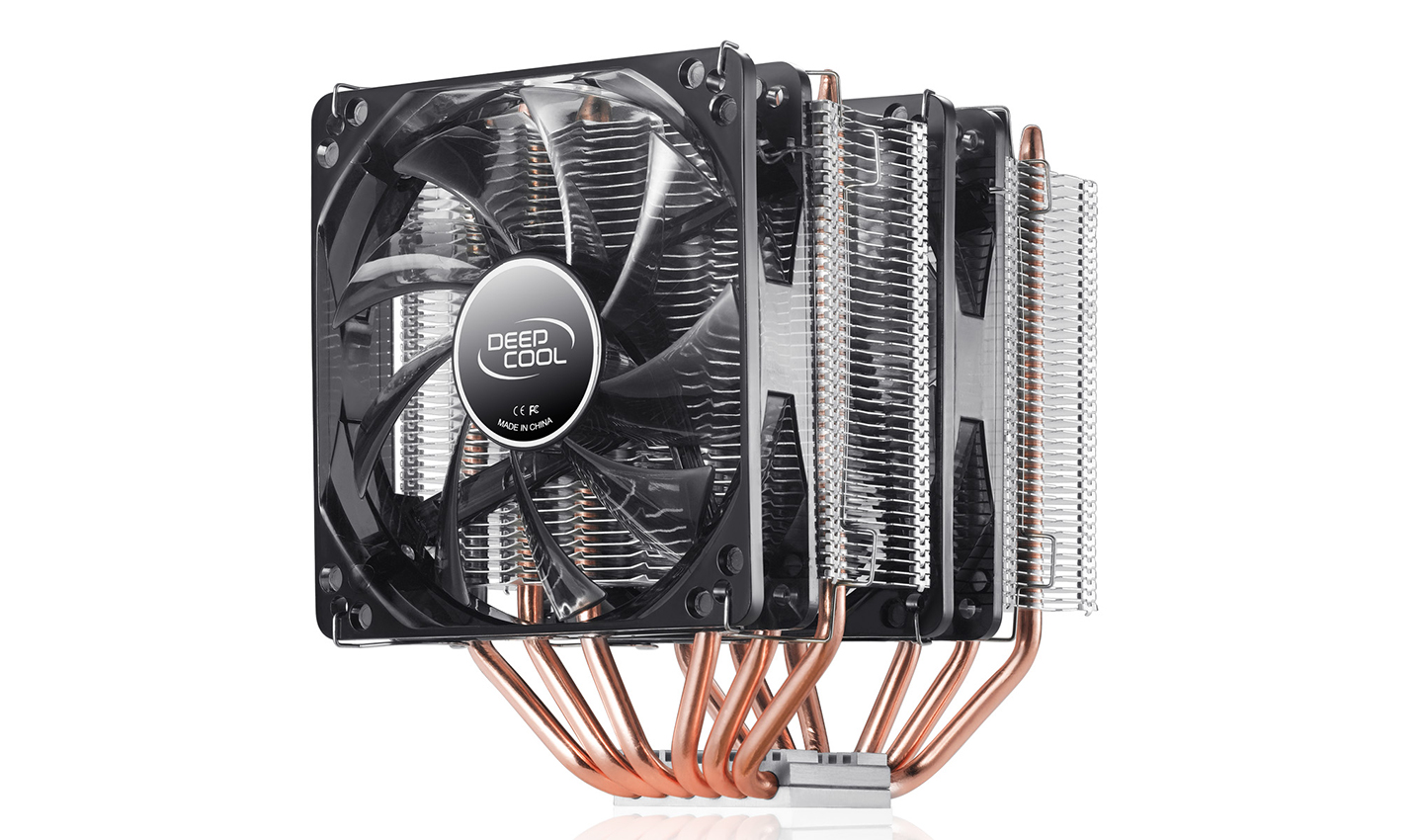

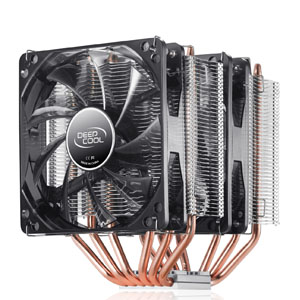

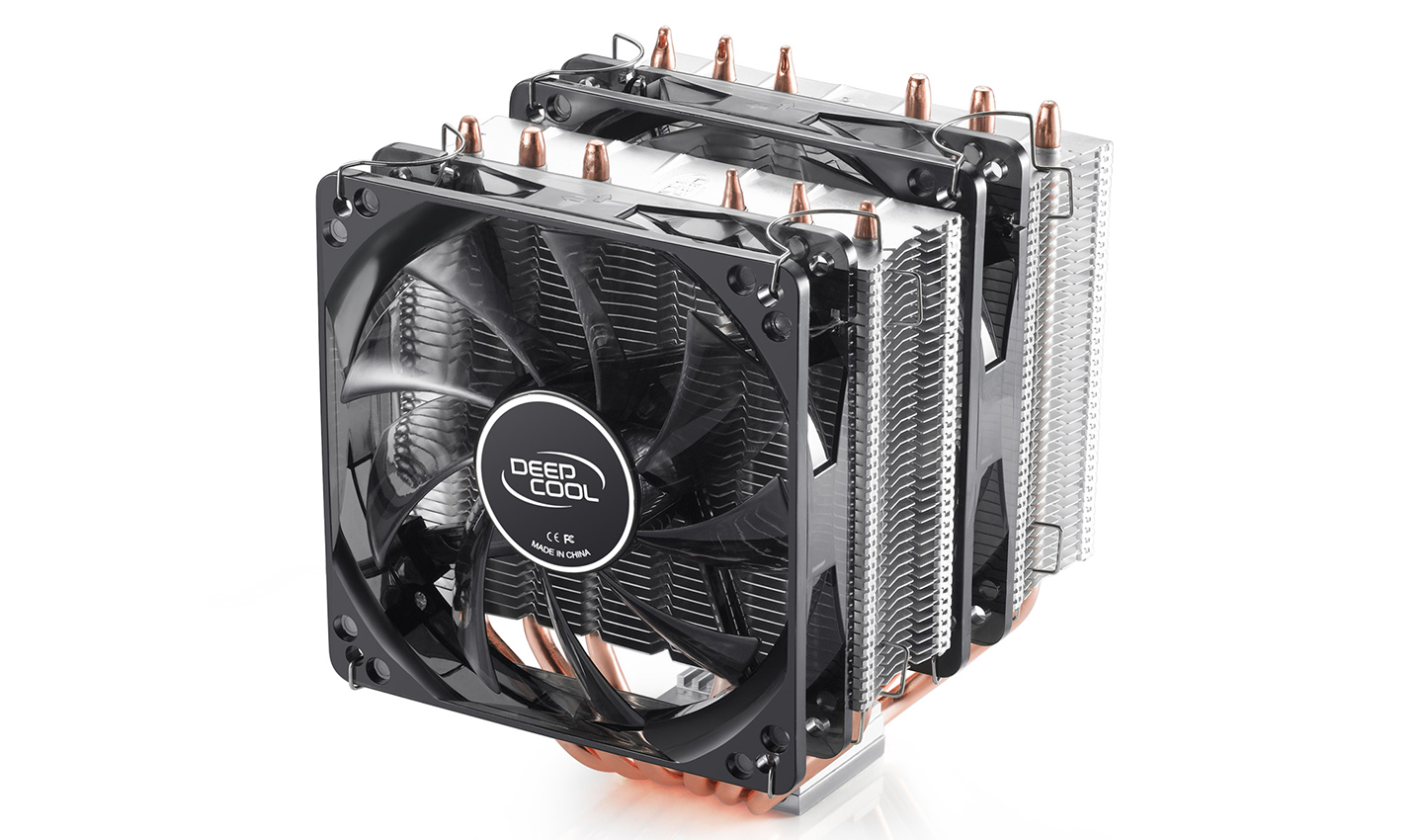

NEPTWIN V2 is a specialized 6-heatpipe CPU Cooler. NEPTWIN is the first CPU cooler designed to support multiple PWM fan speed control. Plus-sized twin-tower aluminum fins and highly polished, reflective copper base make NEPTWIN one of the best CPU coolers and an excellent thermal solution for gaming environments.

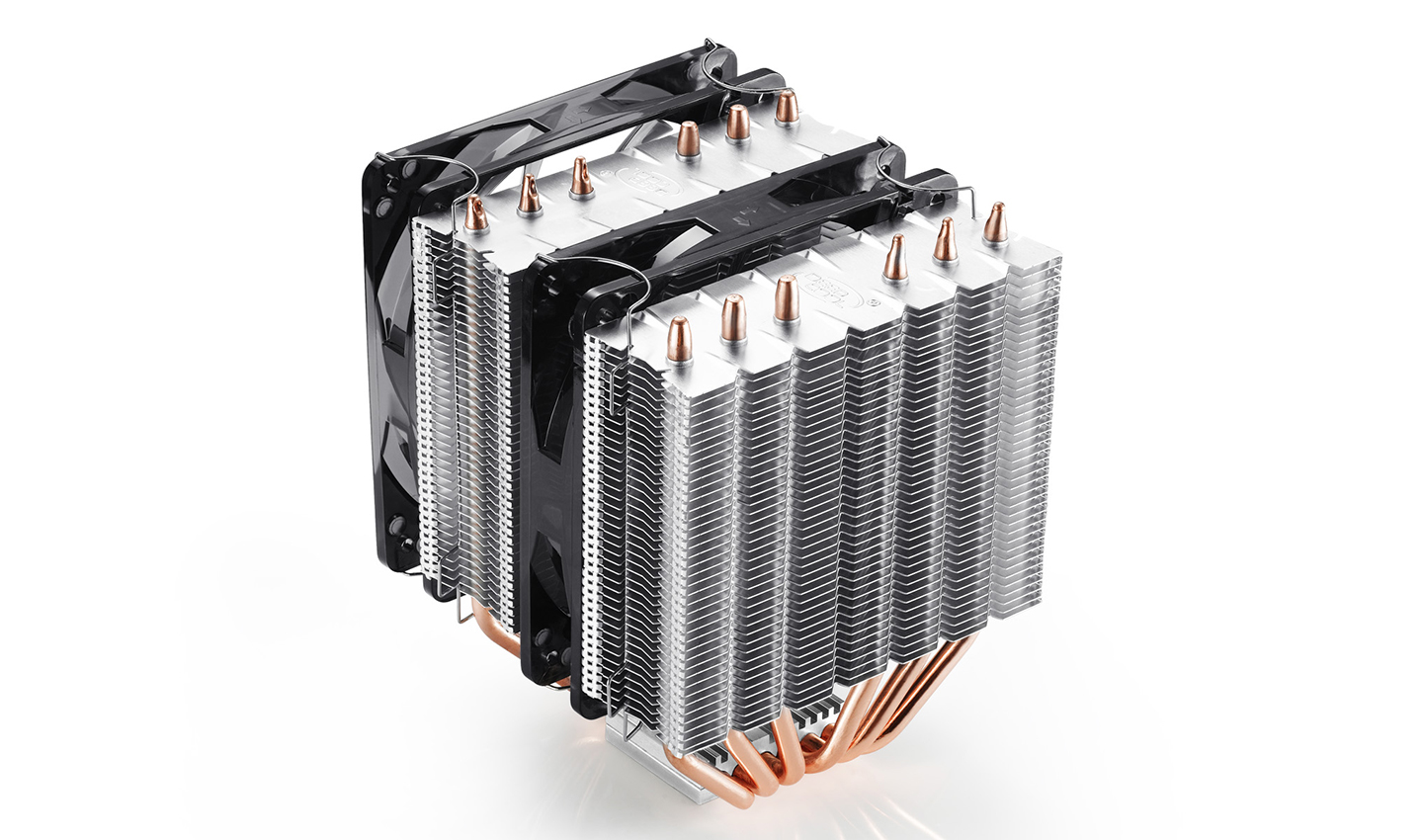

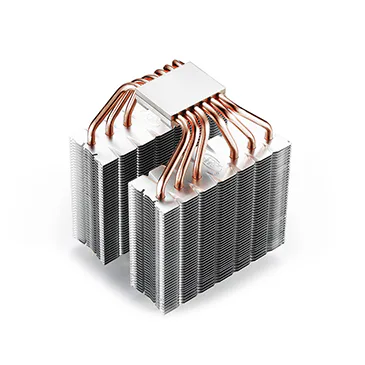

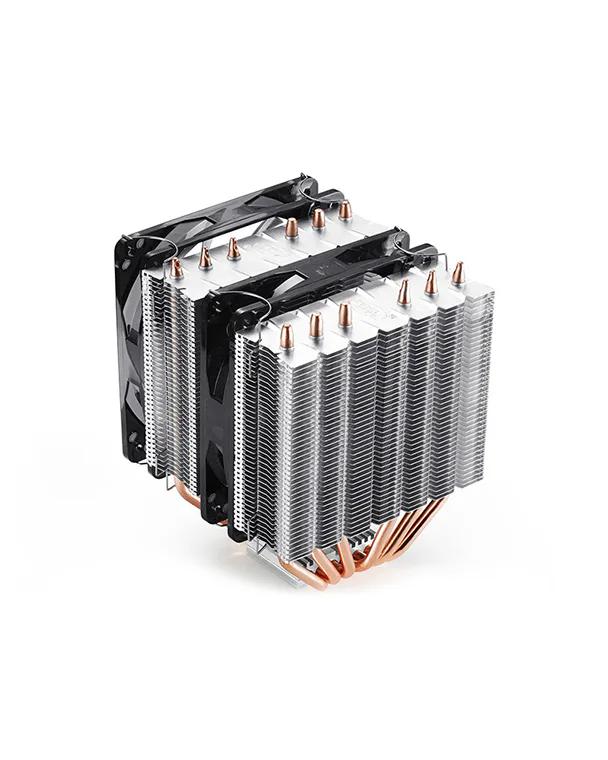

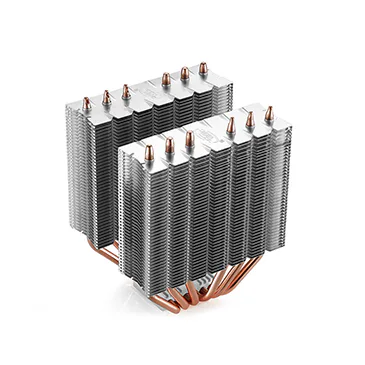

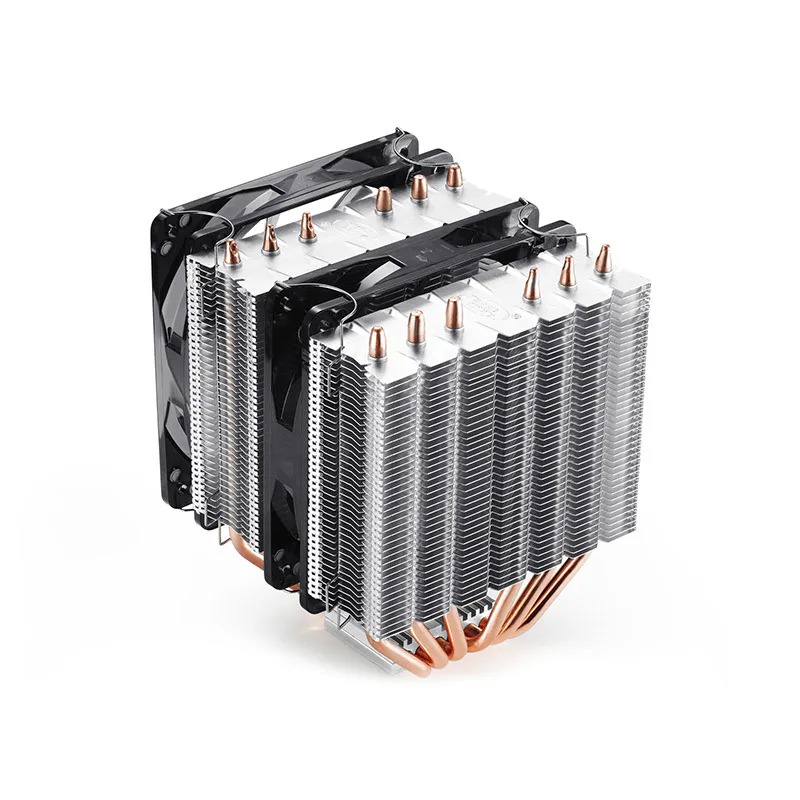

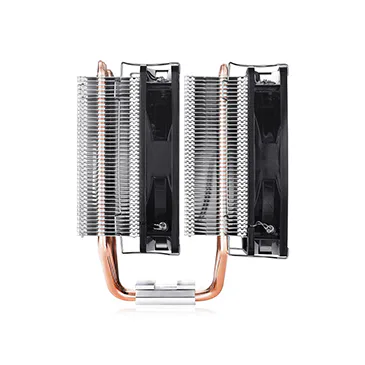

Effective cooling performance

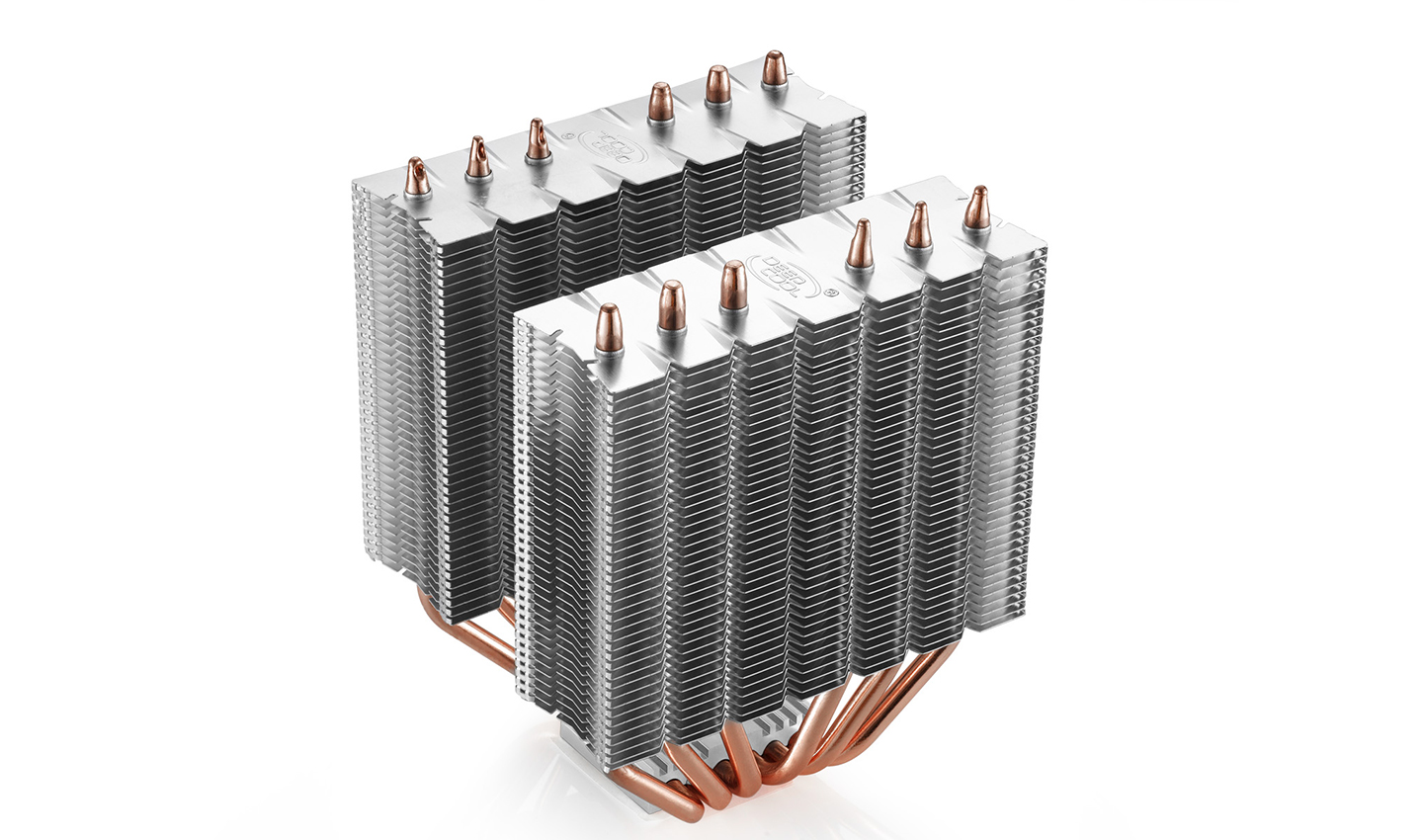

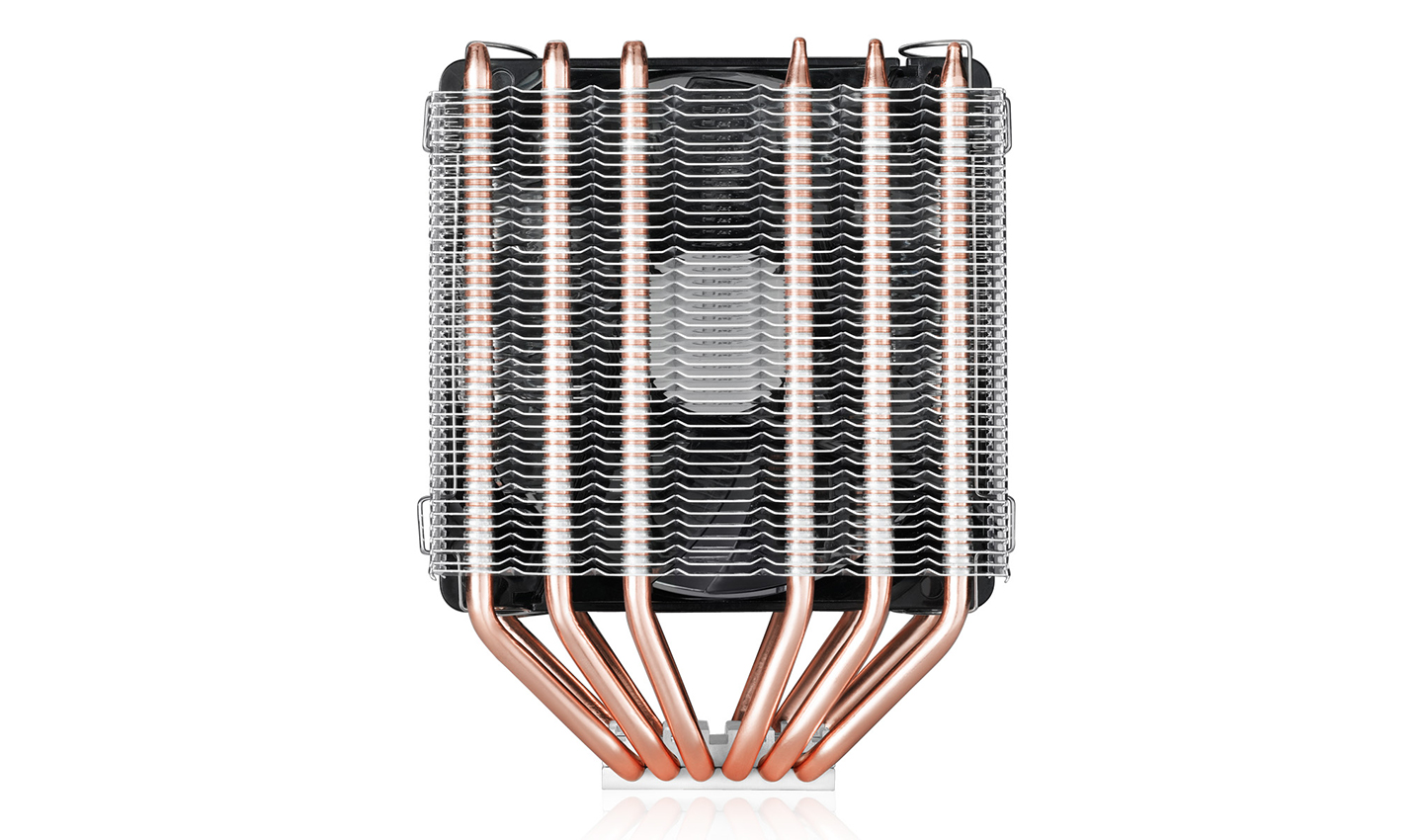

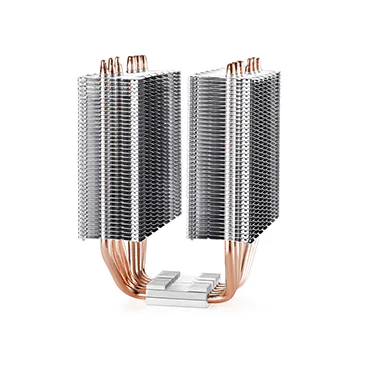

6 U-shaped sintered metal powder heatpipes rapidly conduct heat from the CPU to prevent overheating. Twin-tower heatsinks add superb cooling performance.

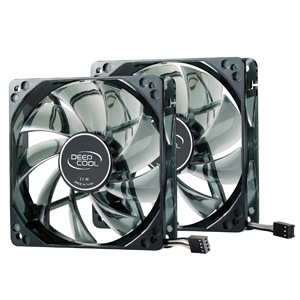

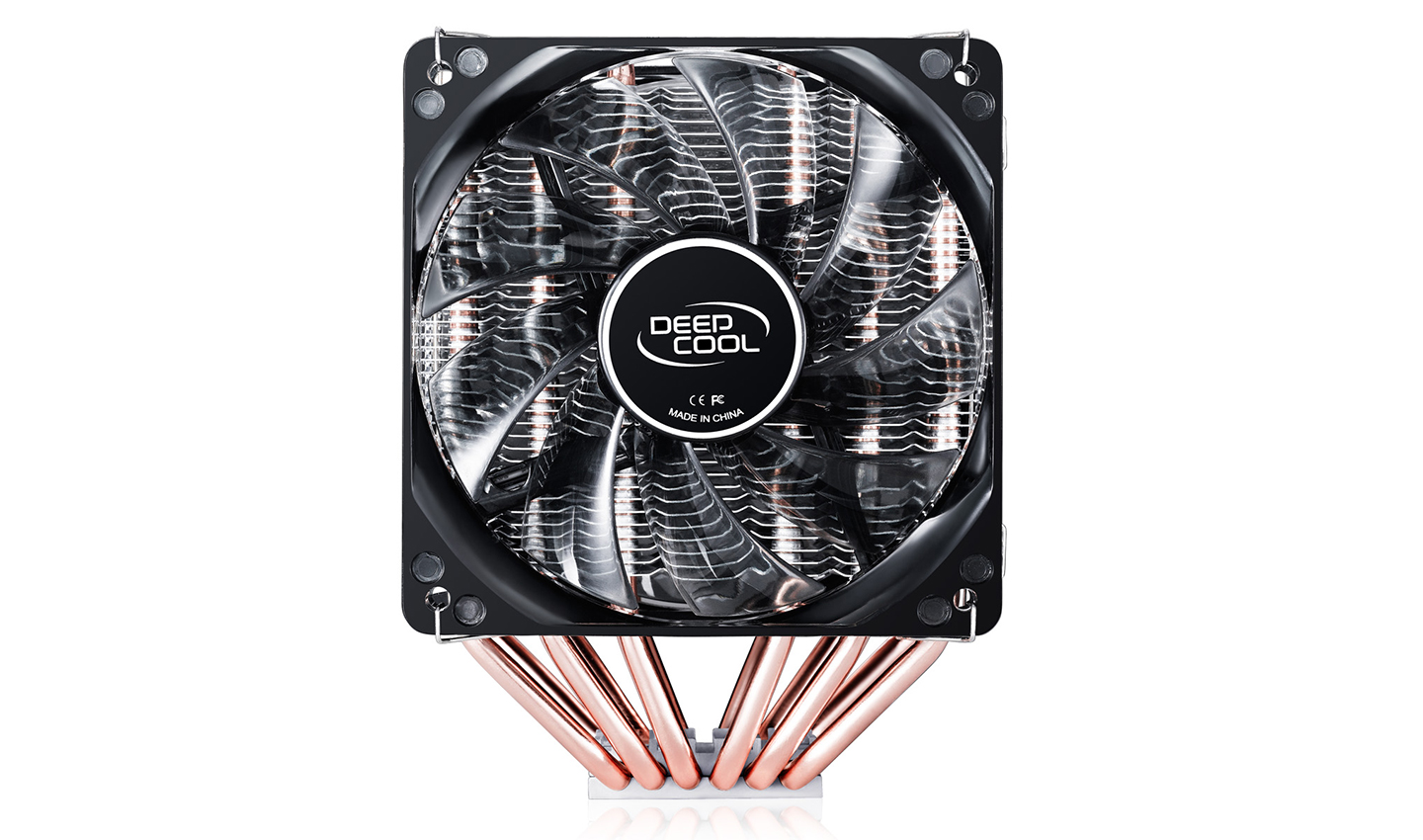

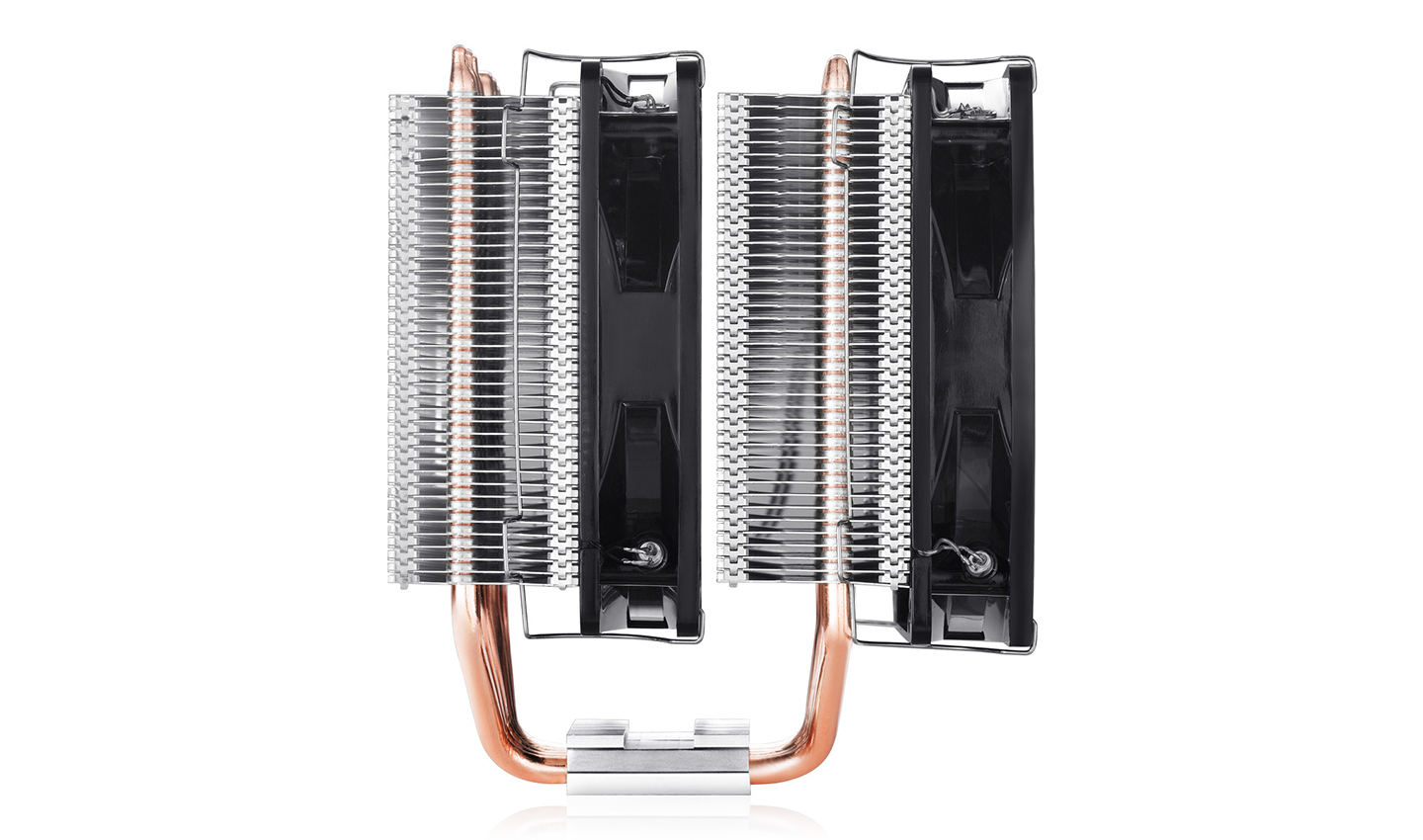

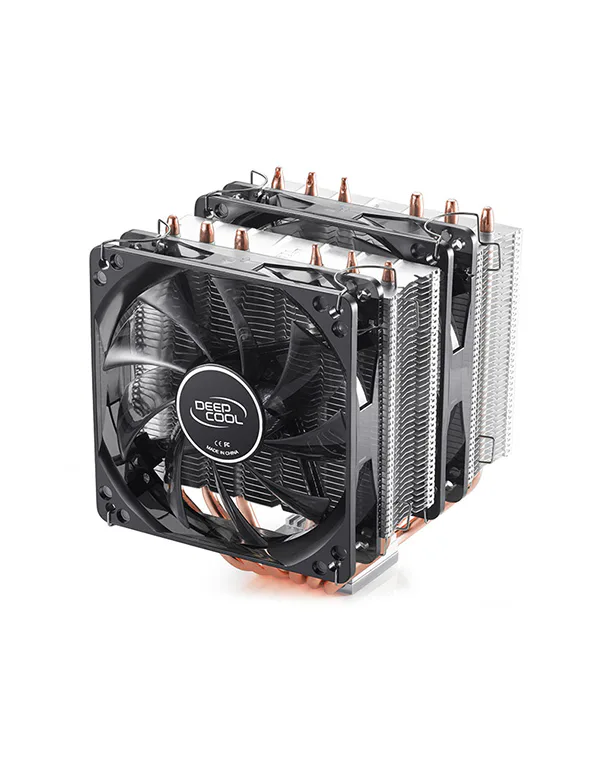

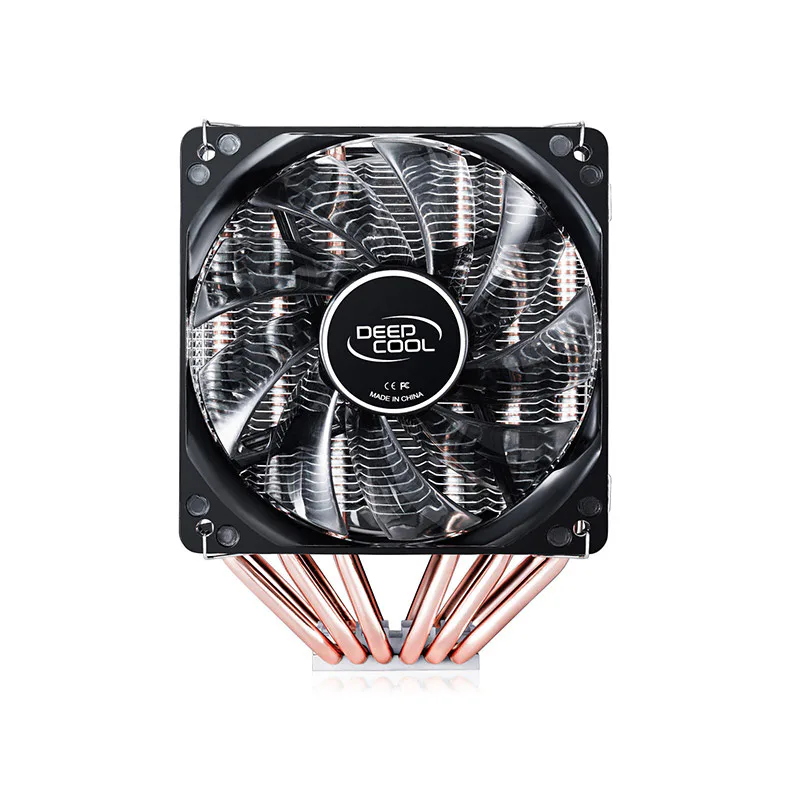

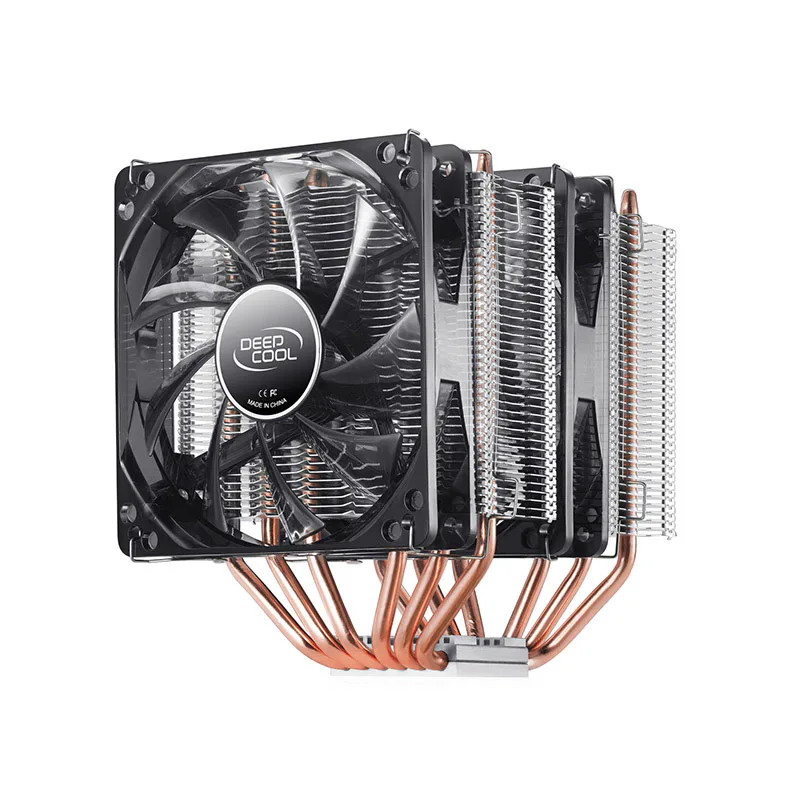

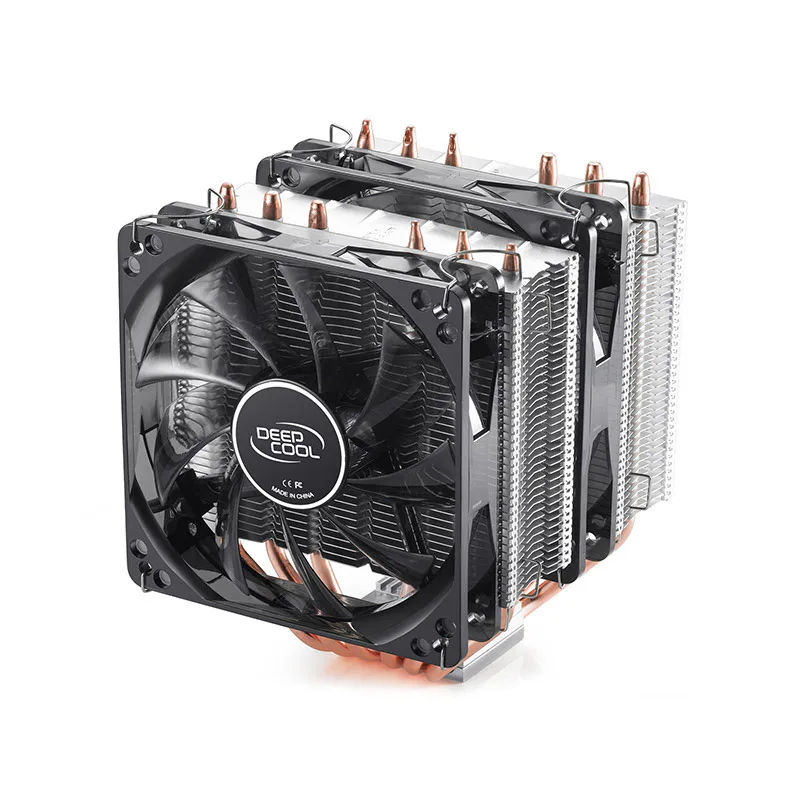

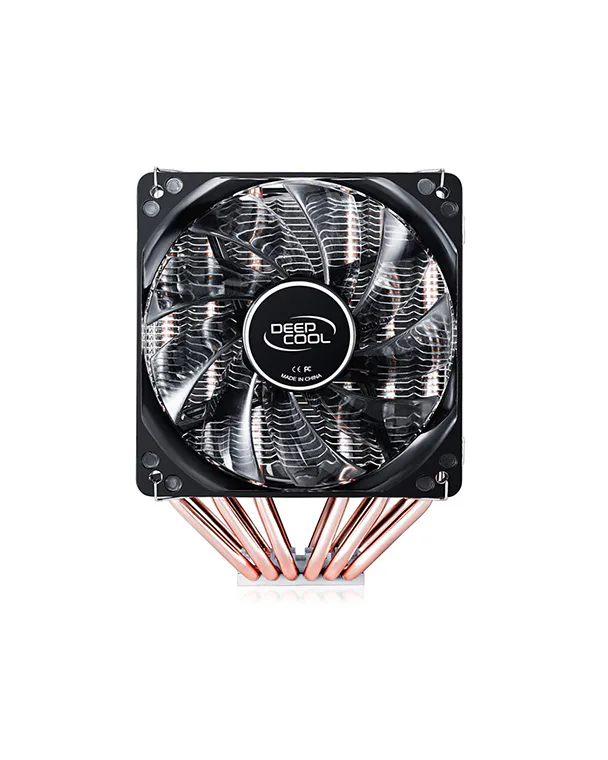

Dual 120mm Blue LED PWM fans

Two super silent 120mm blue LED fans provide strong airflow, one of which is PWM-capable for a balance between high performance and reduced noise.

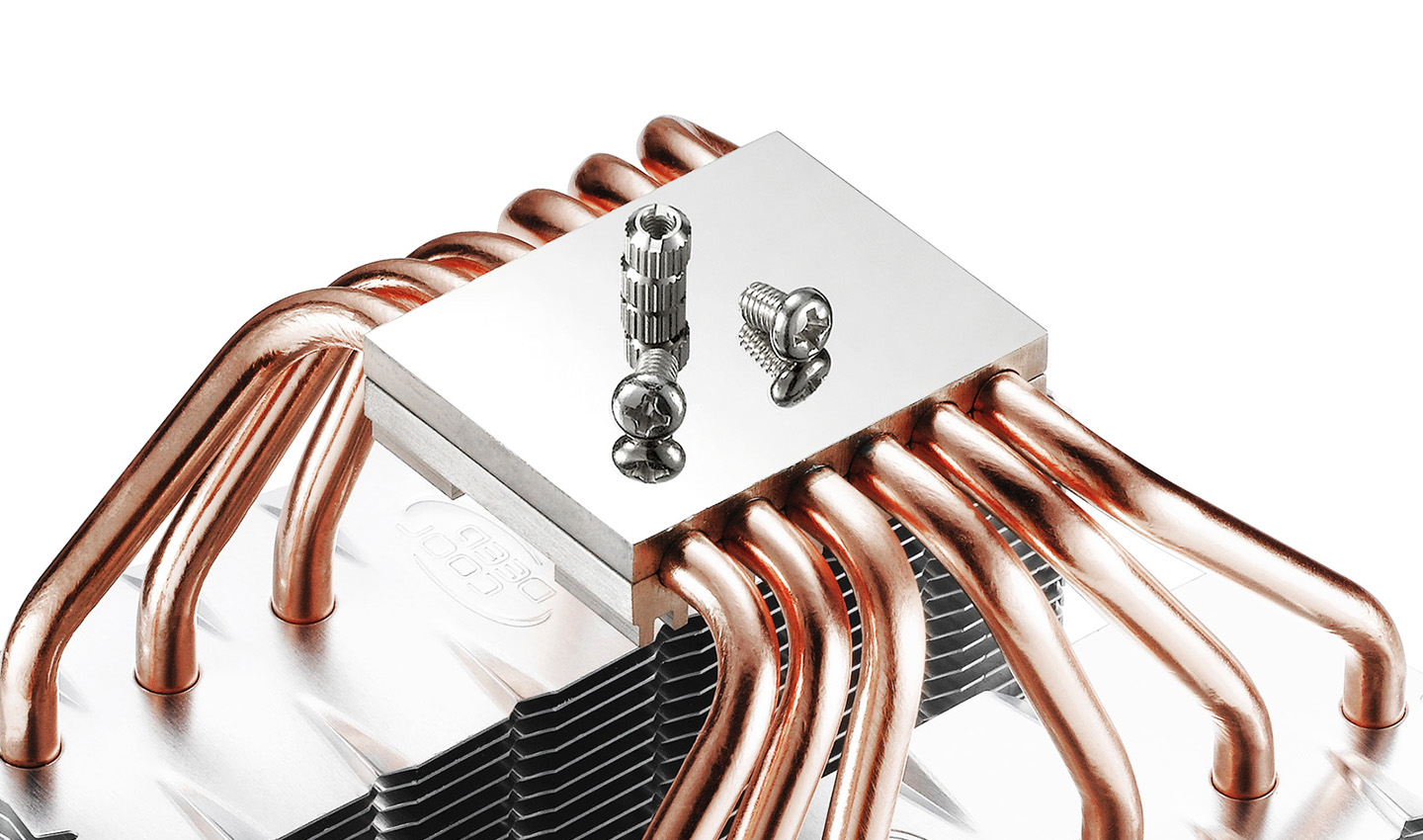

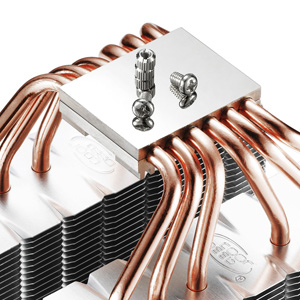

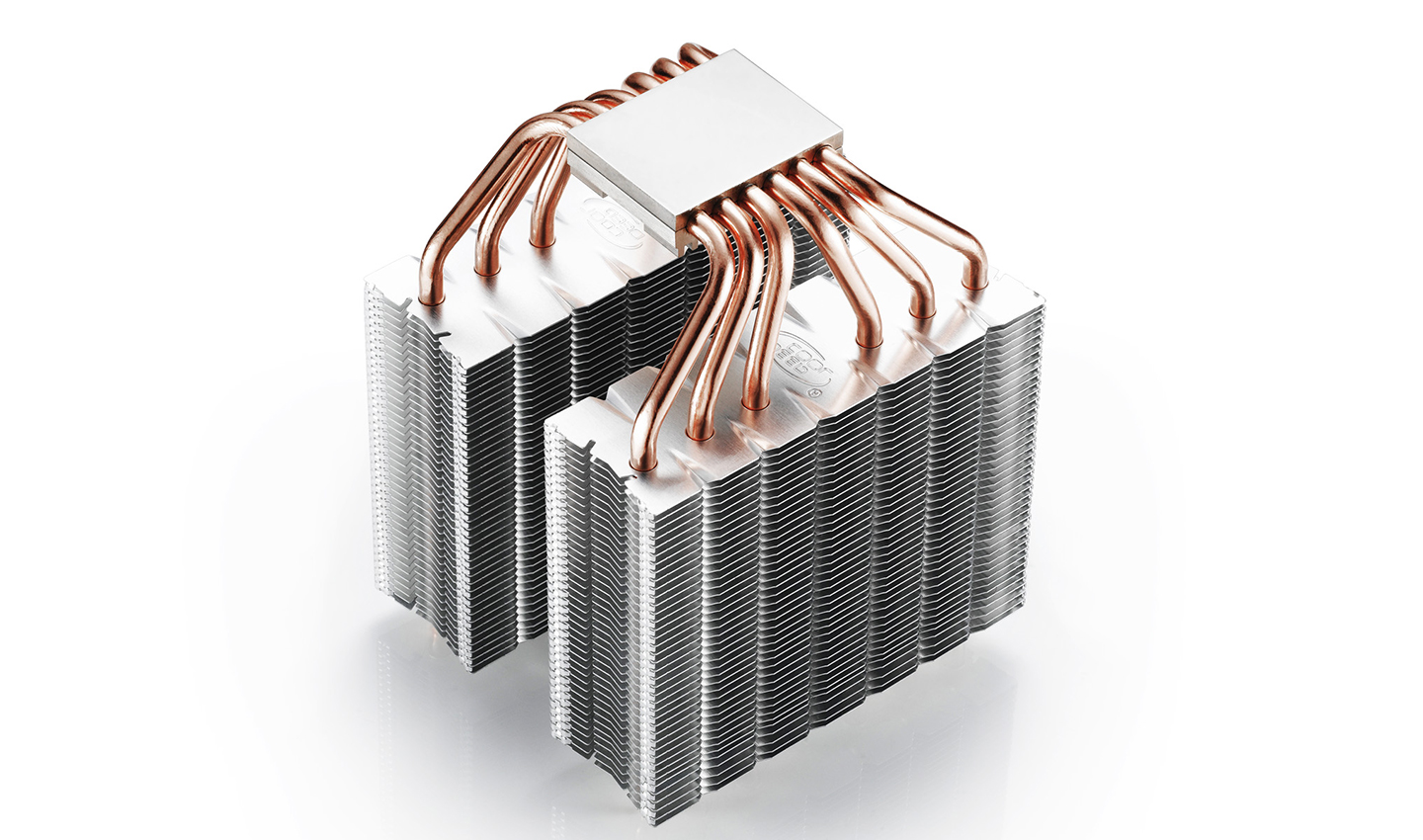

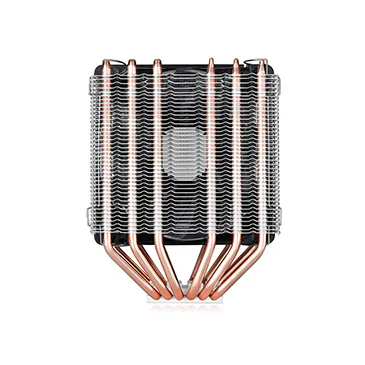

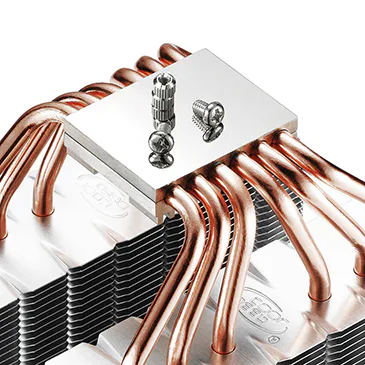

Well-polished copper base

The copper base is firmly soldered to the heatpipes for enhanced heat conduction from the processor.

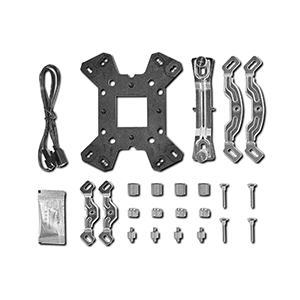

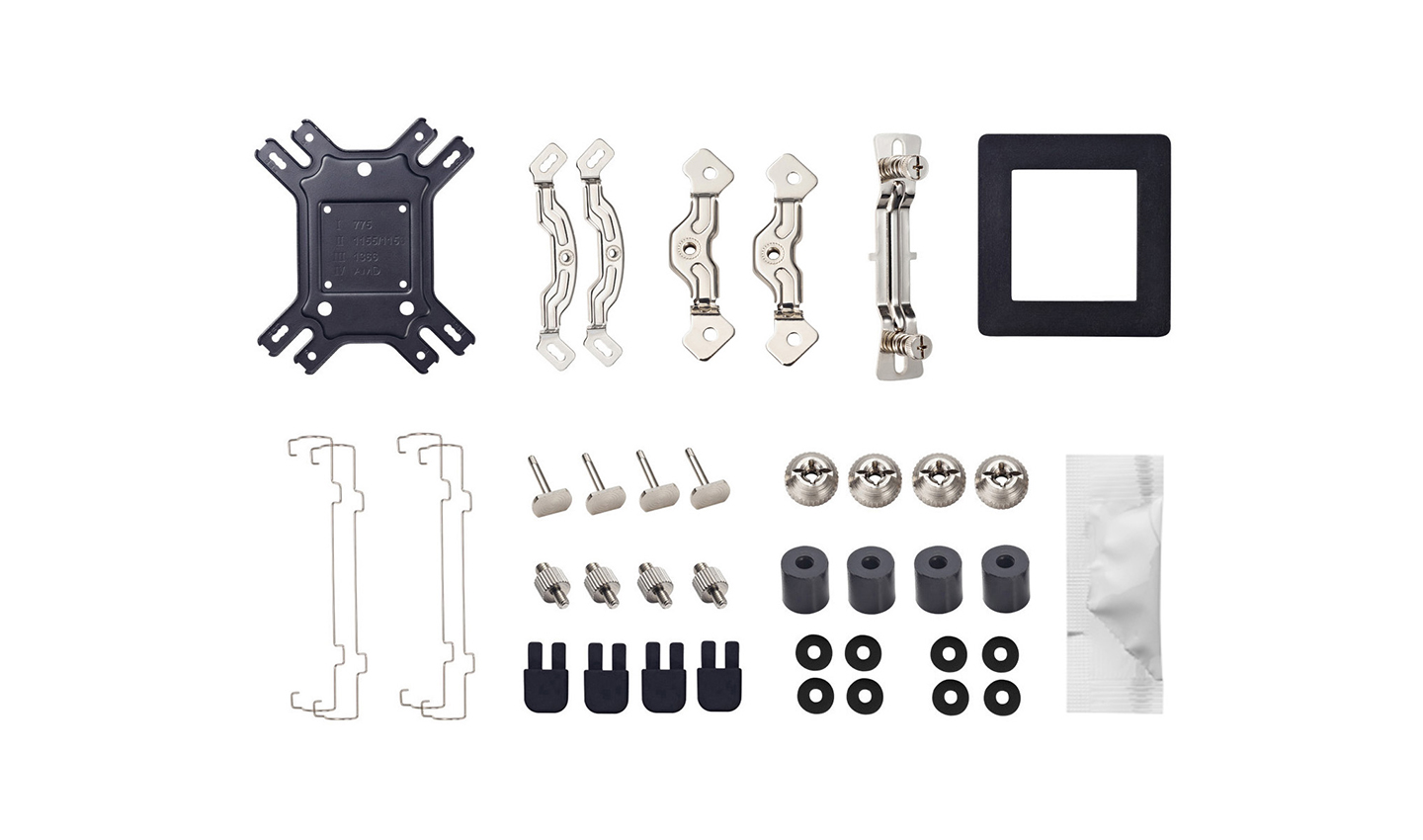

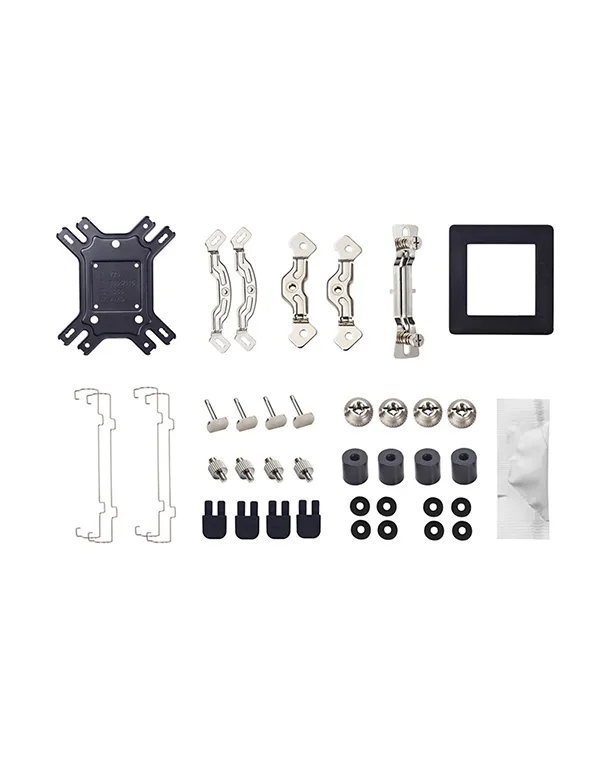

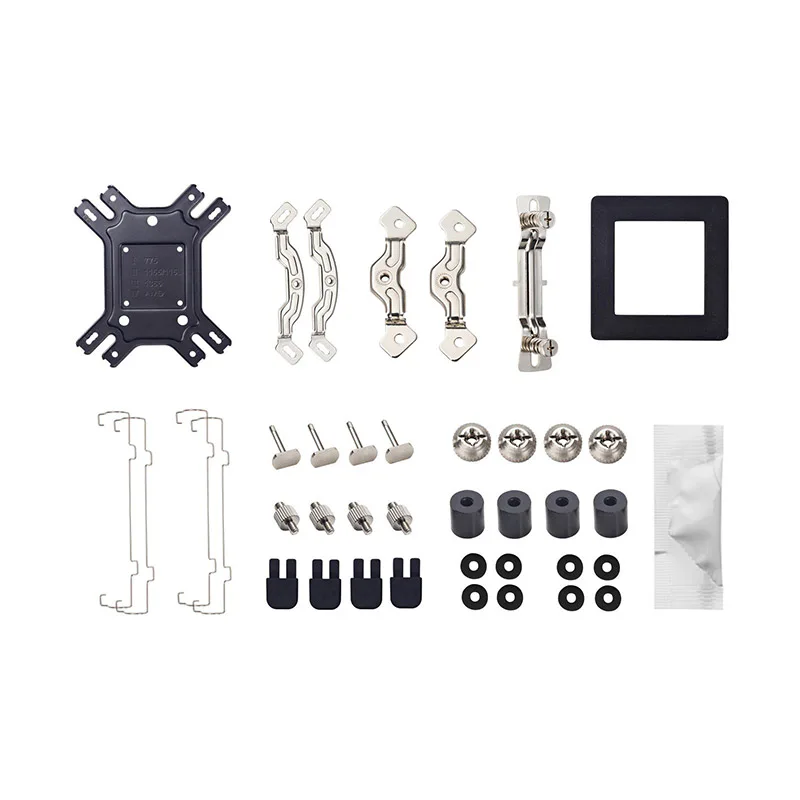

Universal Socket Compatibility

Equipped with multiple mounting clips to support Intel LGA20XX/1366/115X/775 and AMD AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1.

Application For

Intel

LGA20XX/LGA1366/LGA1200/1151/1150/1155/LGA775

AMD

AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1

Technical Spec

Product Dimensions	126X134X158 mm(L×W×H)
Heatsink Dimensions	120X108X158 mm(L×W×H)
Net Weight	1000 g
Heatpipe	Ø6 mm×6 pcs
Fan Dimensions	120X120X25 mm(L×W×H)
Fan Speed	900~1500 RPM±10% \| 1300 PWM±10%
Fan Airflow	74.34 CFM \| 65.16 CFM
Fan Air Pressure	1.53 mmAq \| 1.18 mmAq
Fan Noise	≤30 dB(A) \| ≤26.1 dB(A)
Fan Connector	4-pin PWM \| 3-pin
Bearing Type	Hydro Bearing
Fan Rated Voltage	12VDC
Fan Rated Current	0.19 A \| 0.2 A
Fan Power Consumption	2.28 W \| 2.4 W
LED Type	Blue LED
EAN	6933412726166
P/N	DP-MCH6-NT-NTAM4

Product Dimension

Download

NEPTWIN V2 Manual.pdf
