MF120S

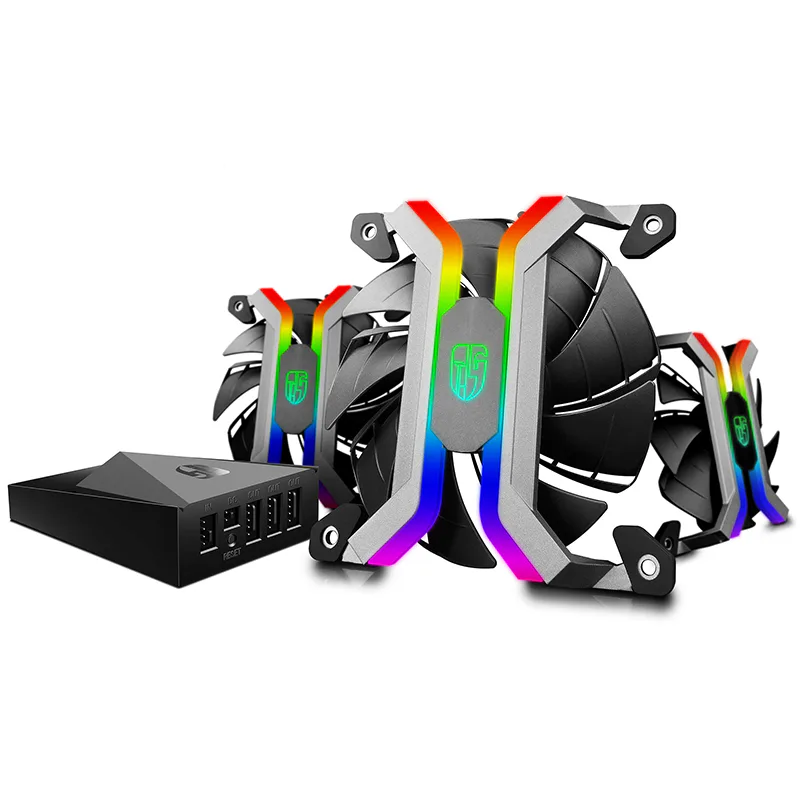

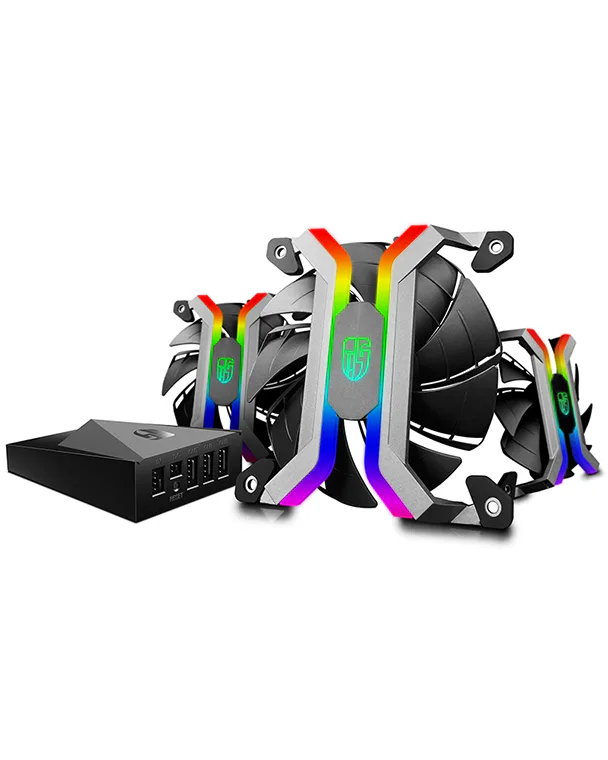

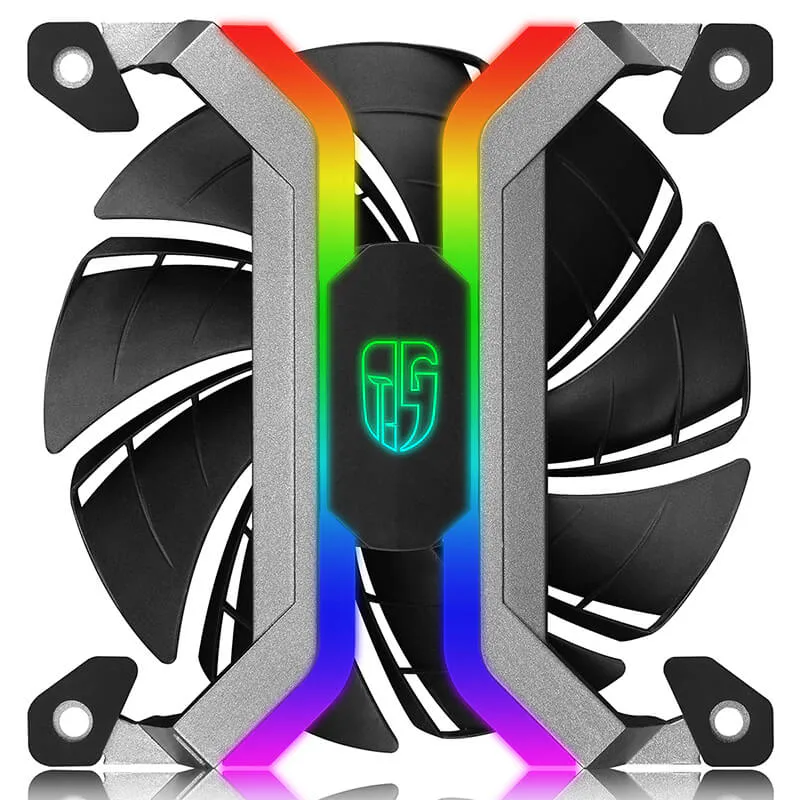

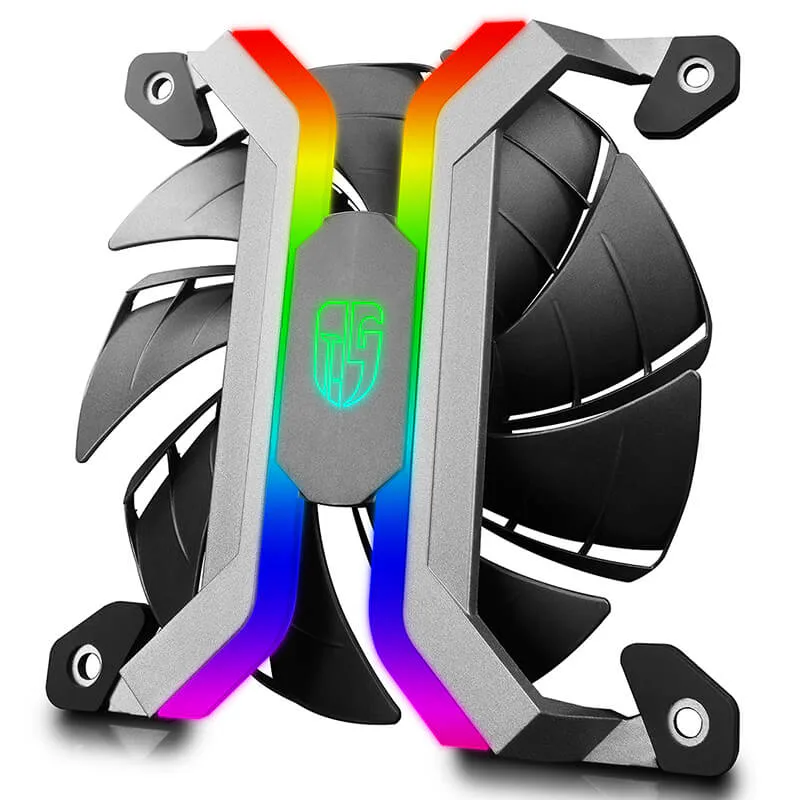

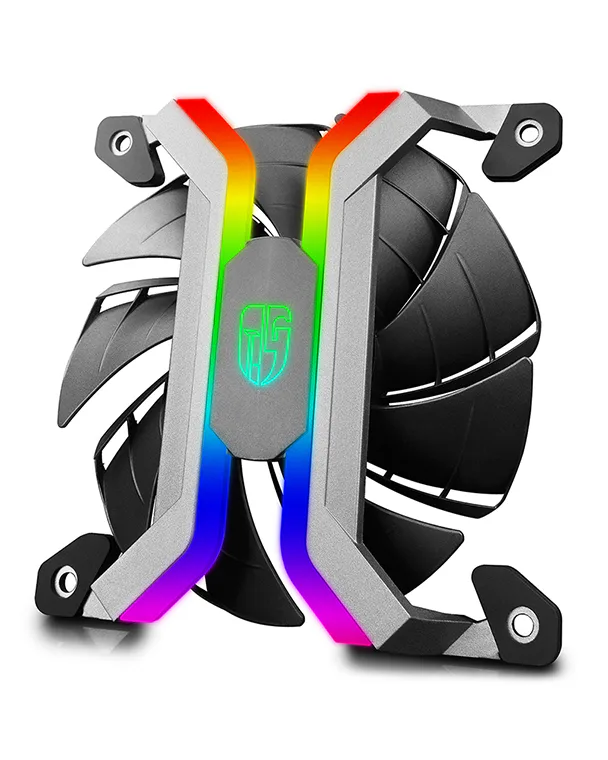

The DeepCool MF120S features a unique frameless aluminum design and remarkable A-RGB lighting for a one-of-a-kind look.
COLOR
black
MODEL
MF120S
Sleek Frameless A-RGB
Description
MF120S is a PC case fan capable of powerful heat dissipation. Its unique frameless design together with its double-layered positive pressure fans can deliver maximum airflow with zero hindrance. Meanwhile, the 16.7M true color Addressable RGB light system of MF120S can present in 36 interchangeable lighting modes, and is controllable through both the included controller and specified motherboard. At last, a 5-port RGB hub is included to make your RGB syncing easier than ever!

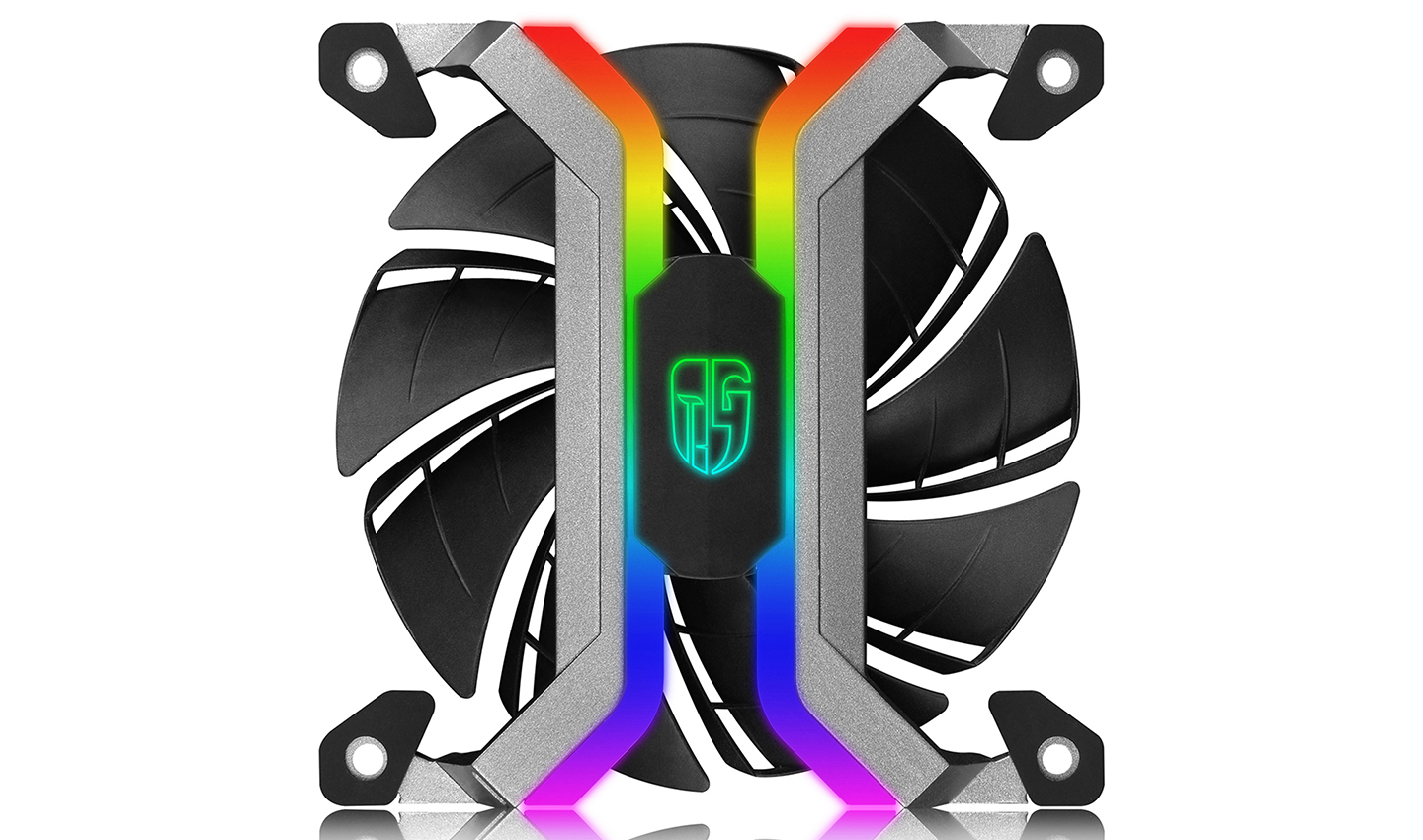

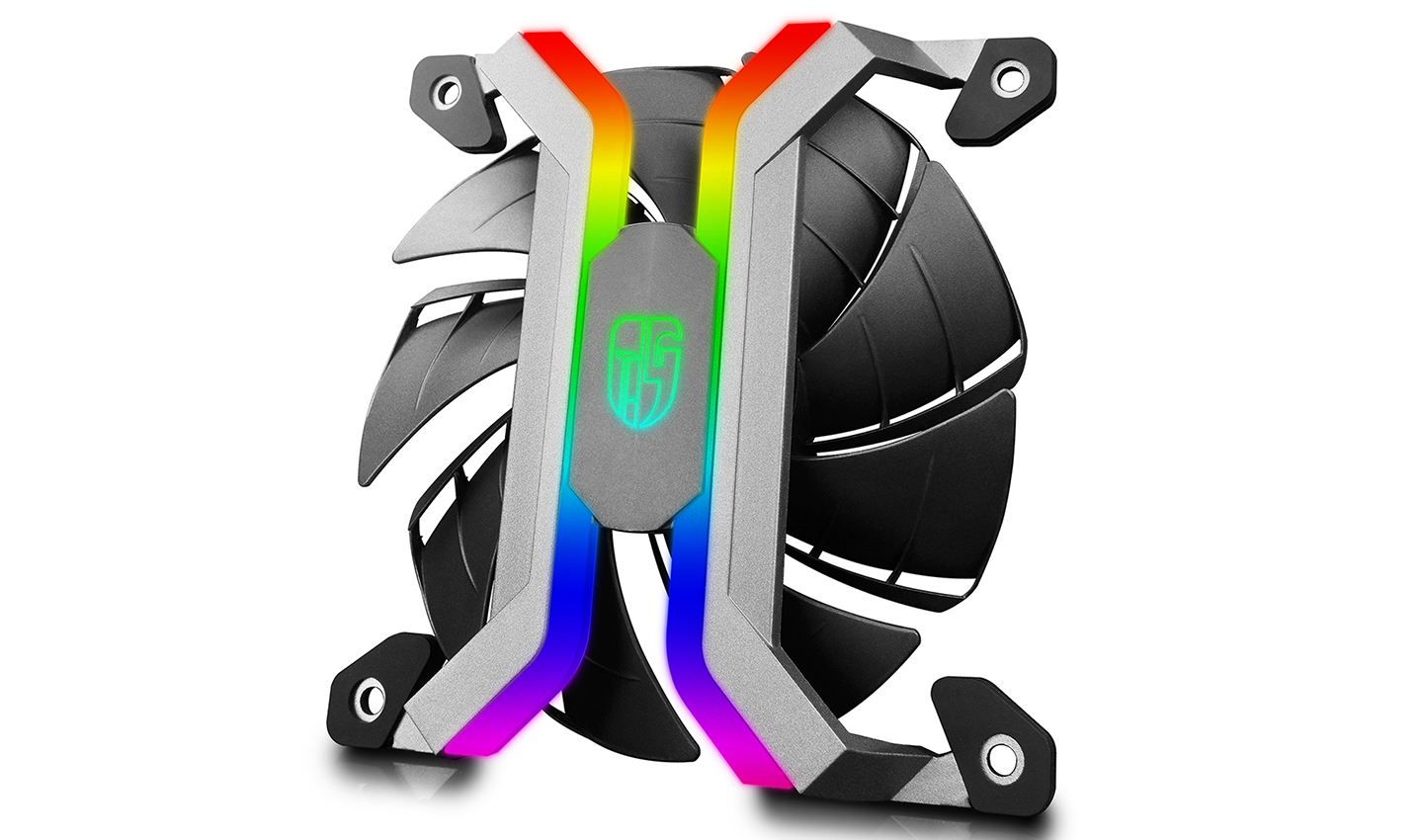

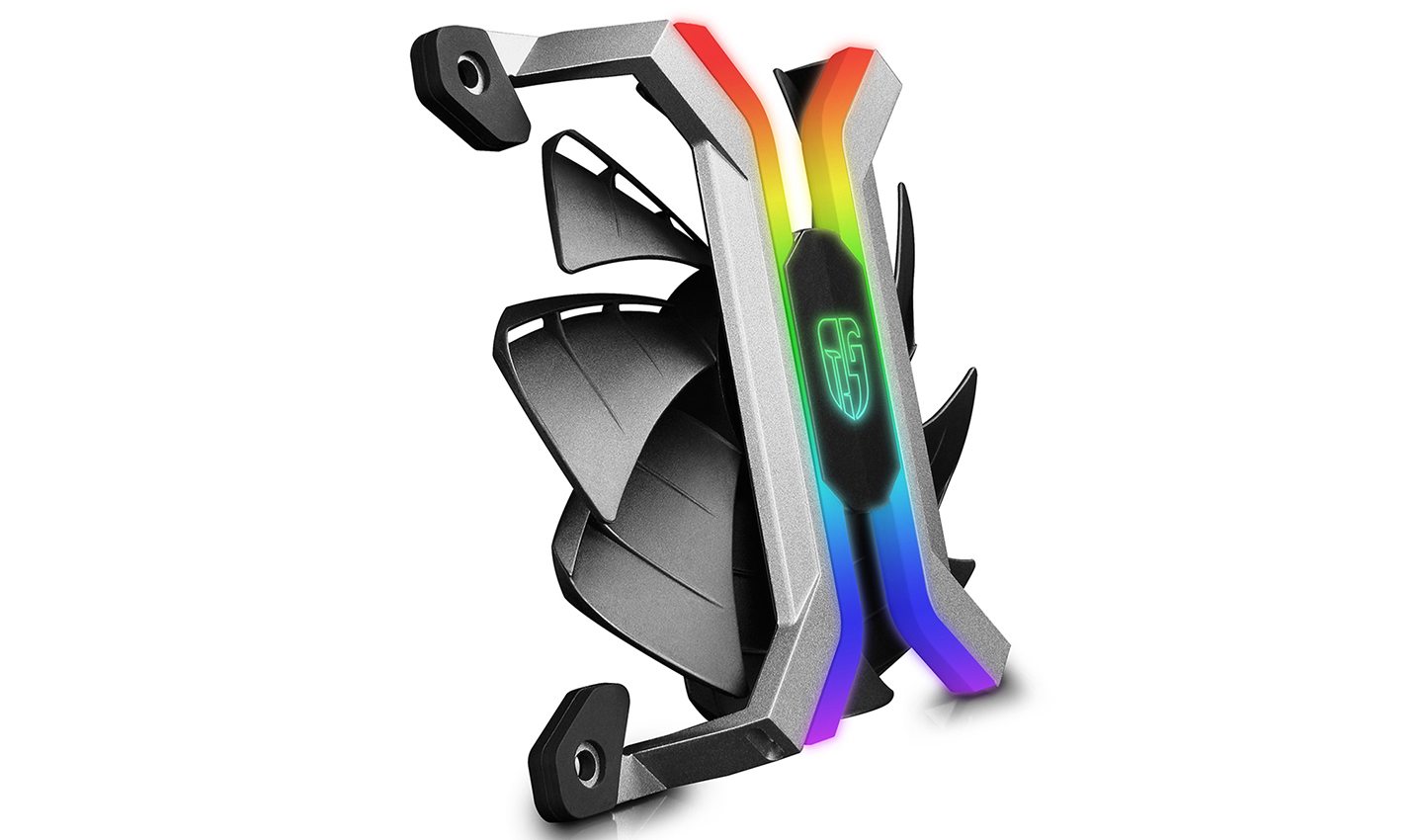

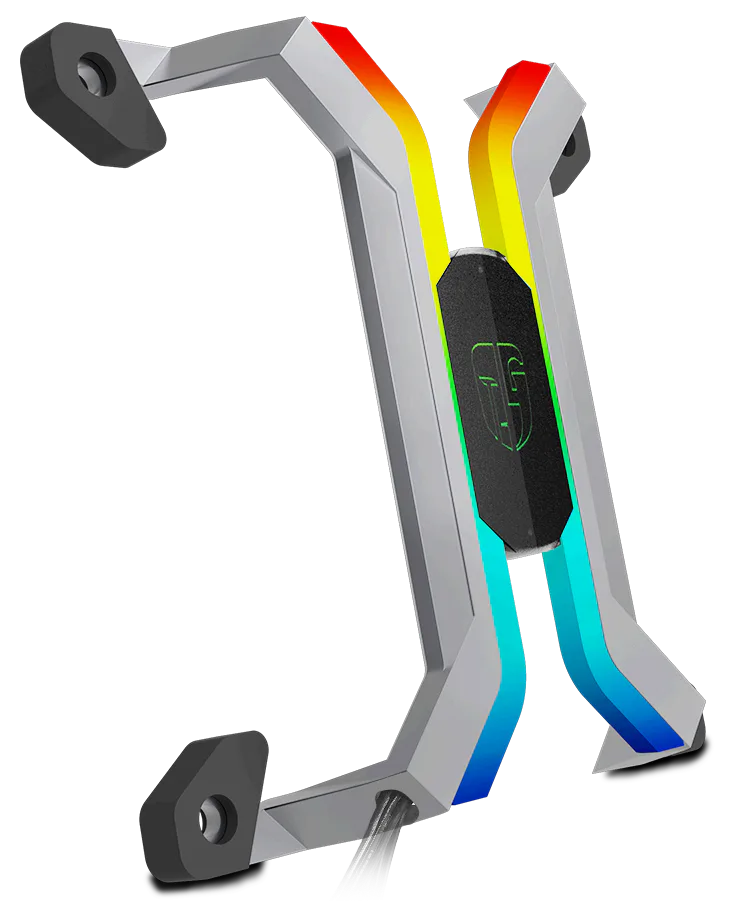

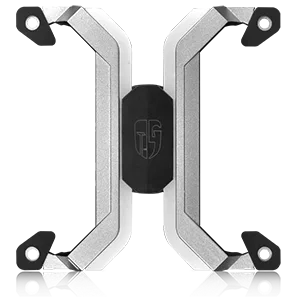

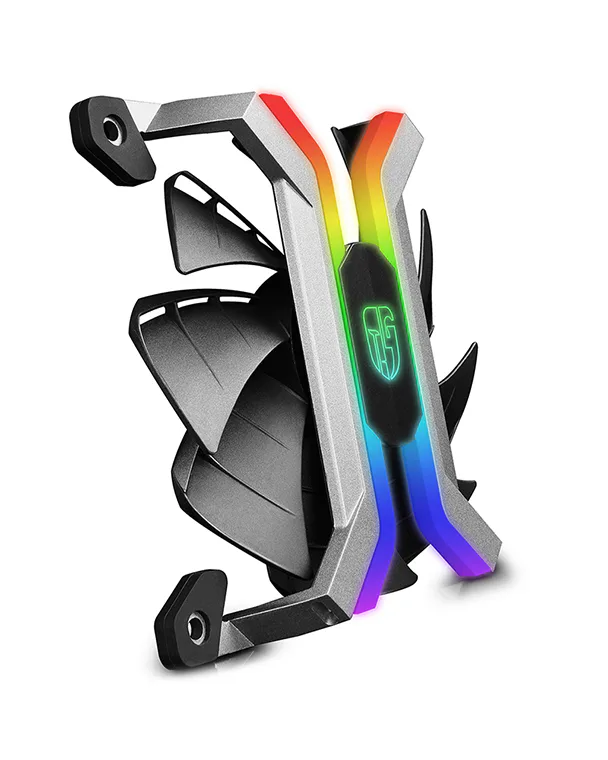

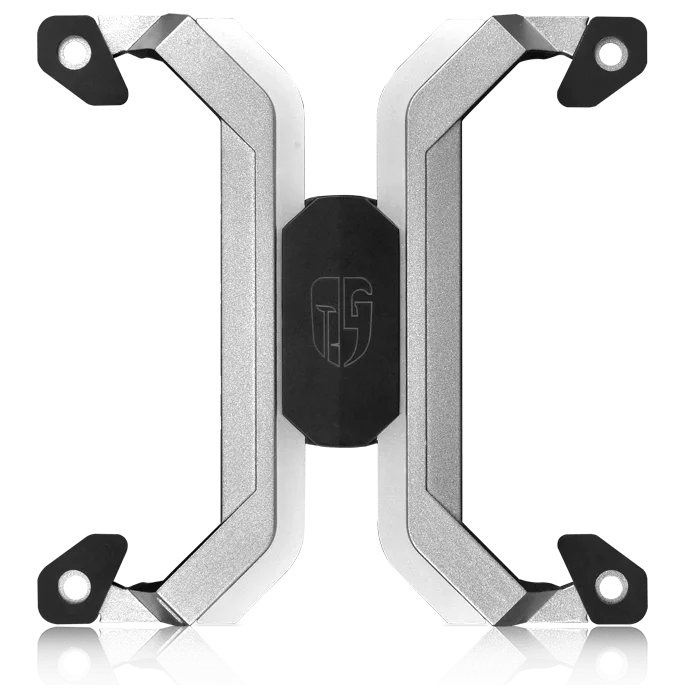

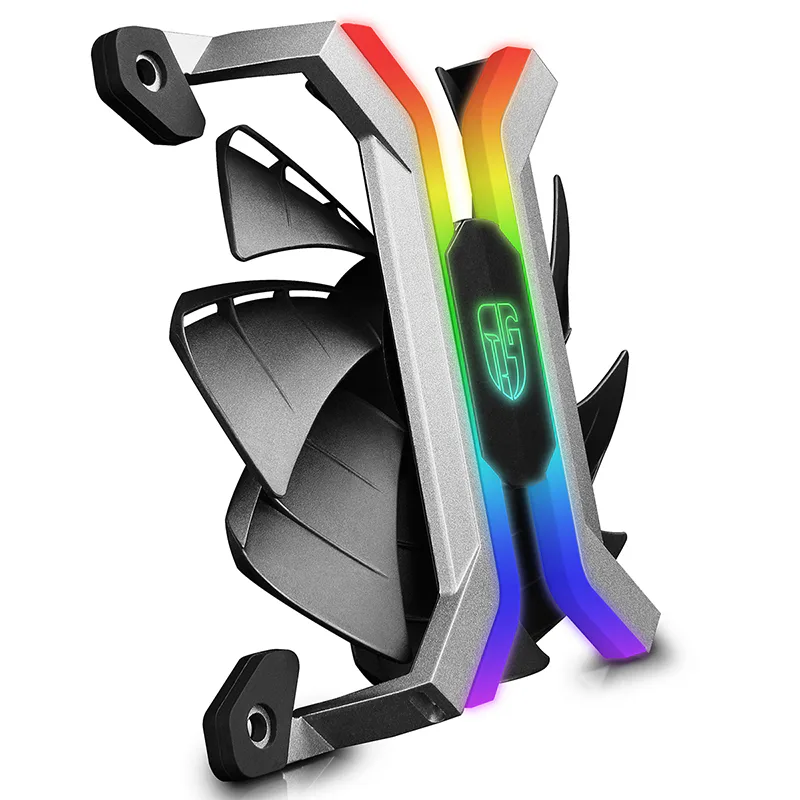

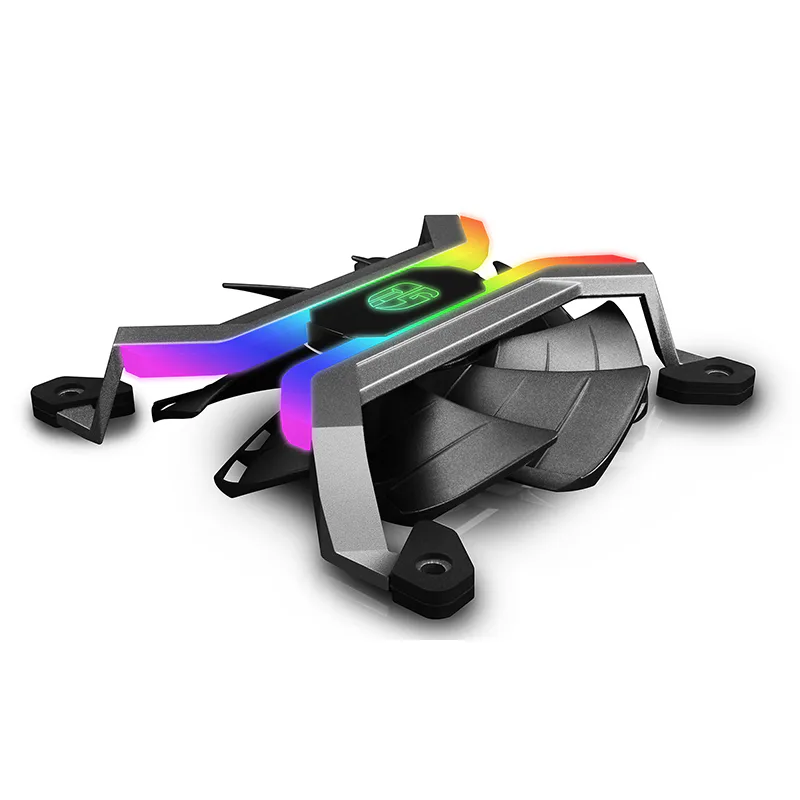

Unique frameless design features a seamless all-in one skeleton frame made with 100% aluminum alloy

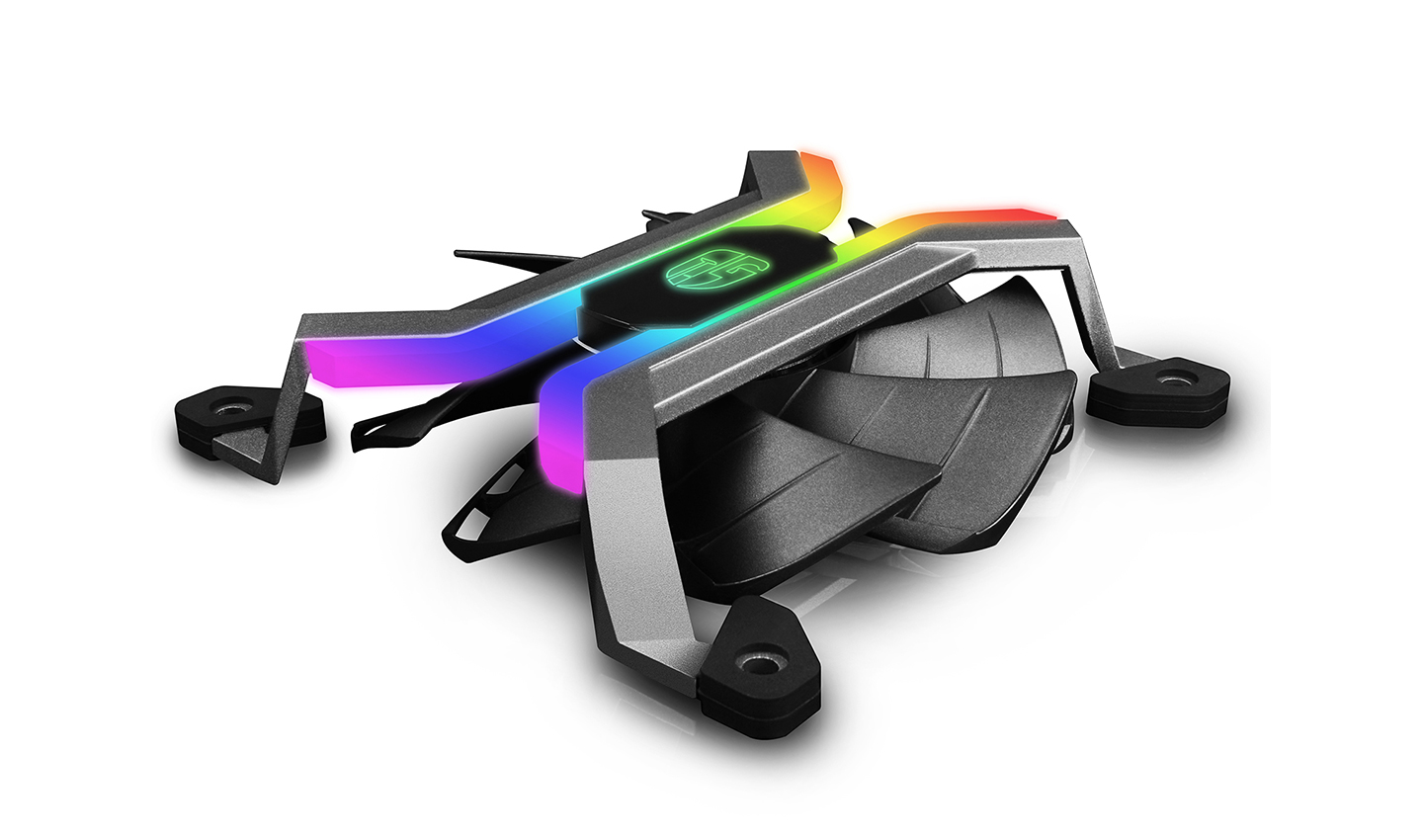

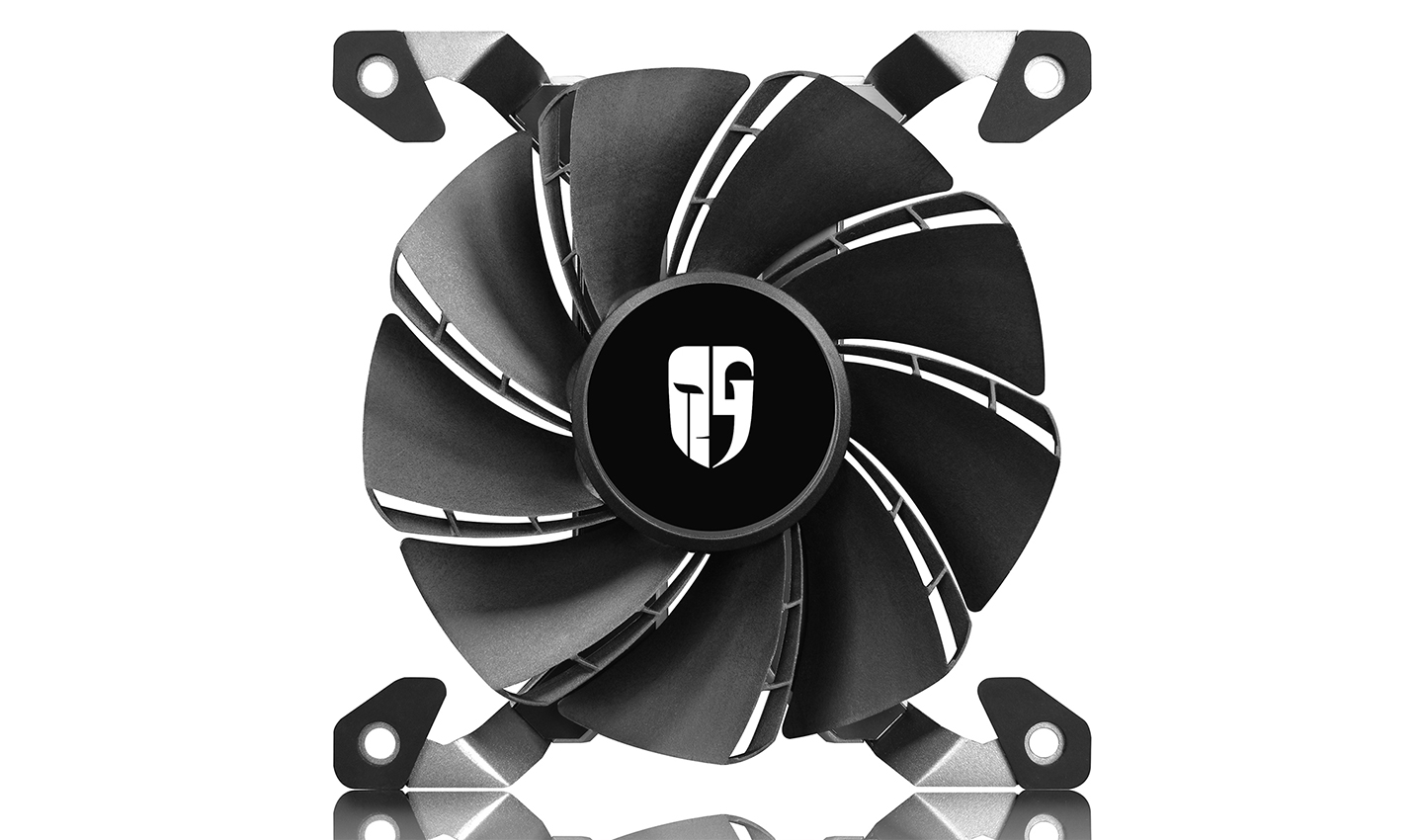

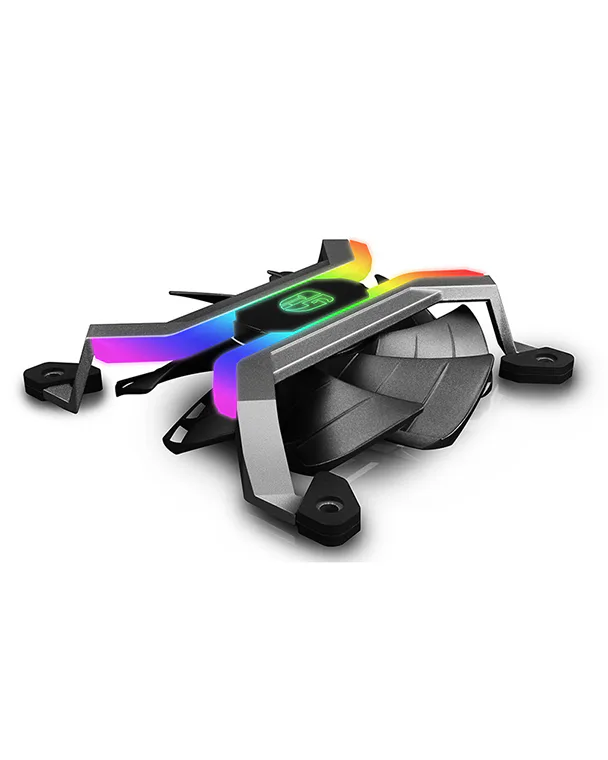

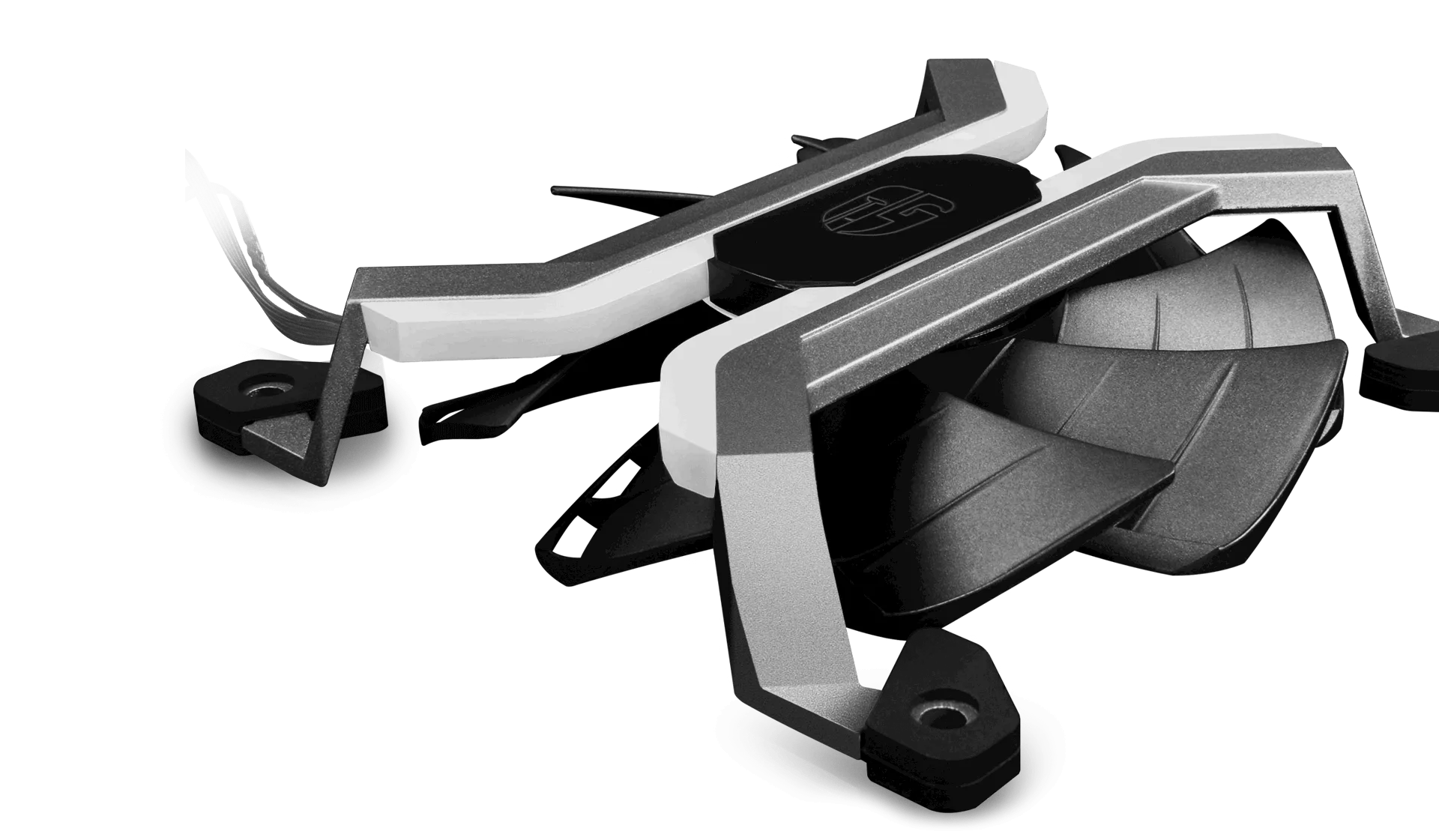

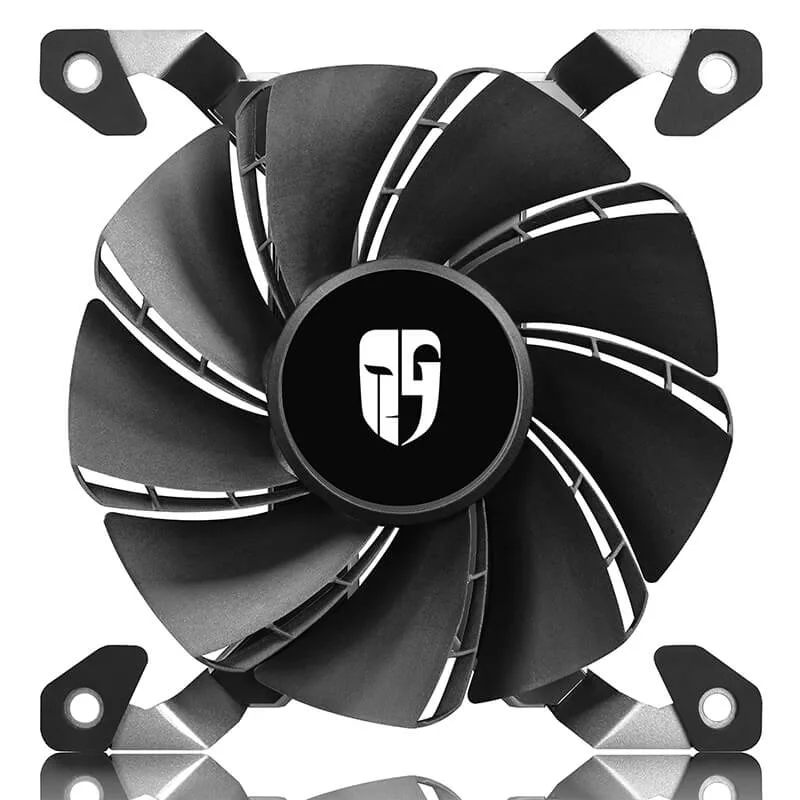

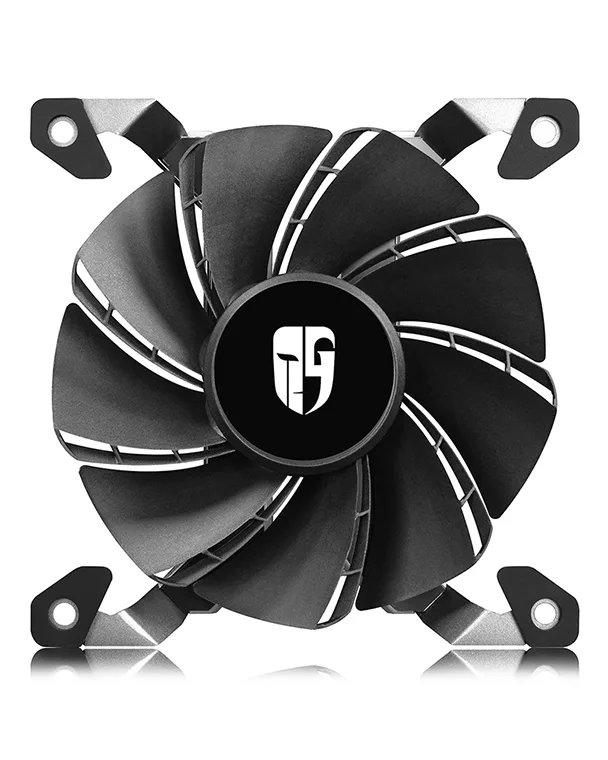

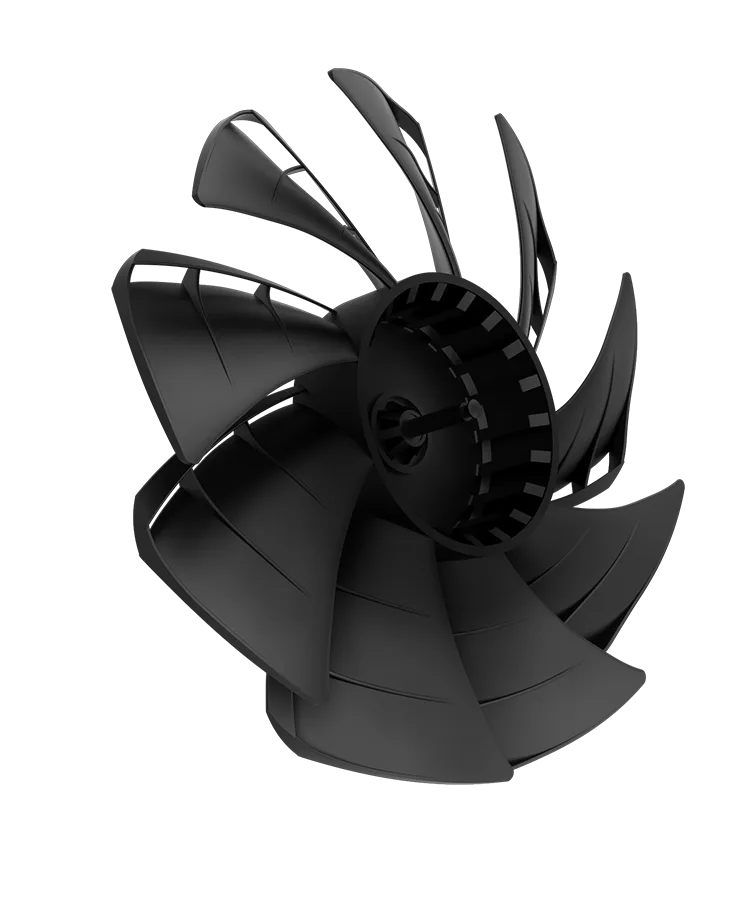

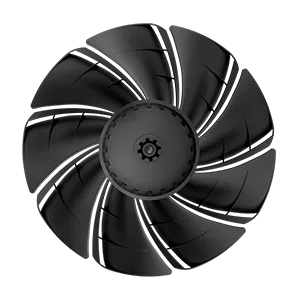

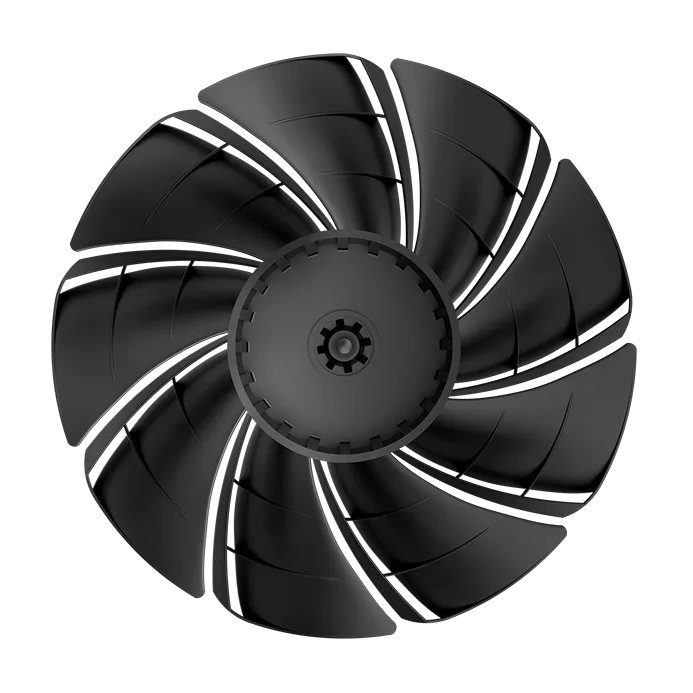

Two layer blower blades designed for maximum efficiency and the suspended fan mounting offers a better unrestricted airflow

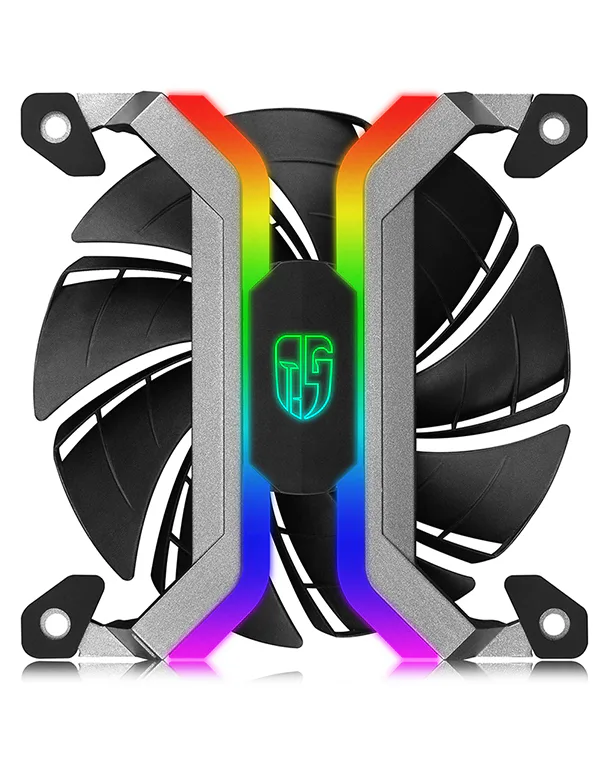

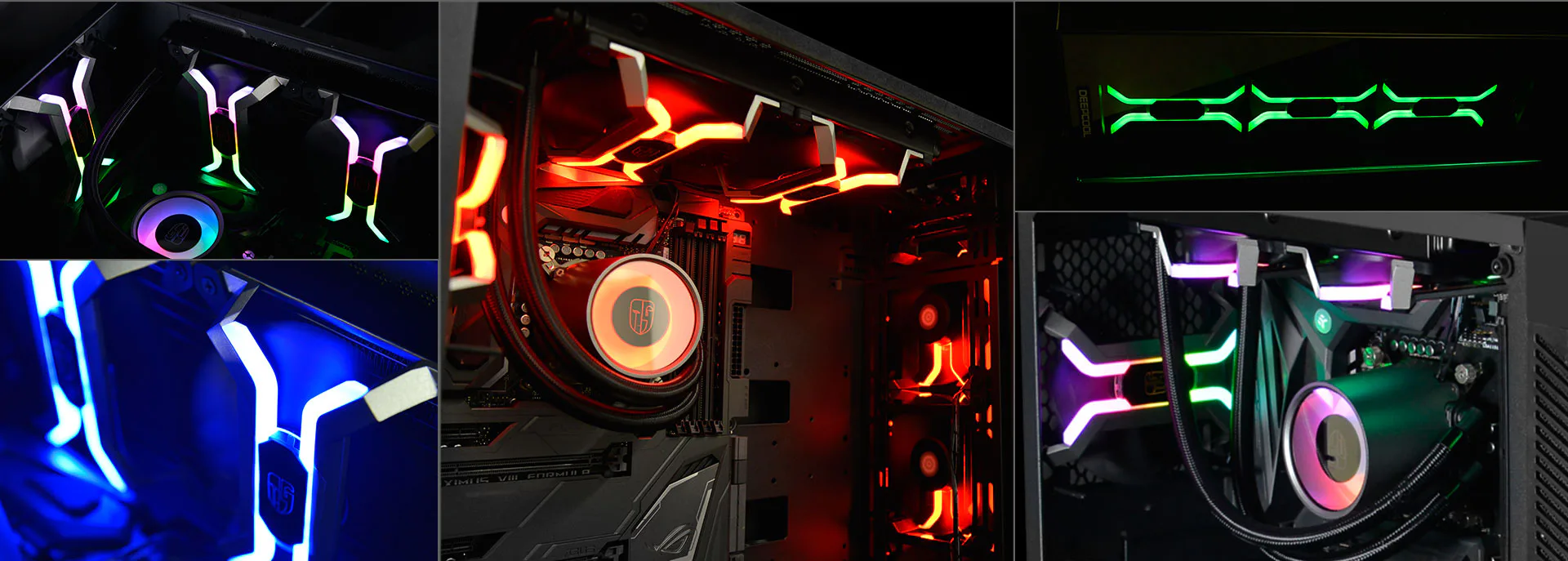

The Addressable RGB lighting system of MF120S is based on 16.7M true color LEDs.Derived from 5 general lighting effects (dynamic, static, breathing, comet, and fashion collision), the system can present in 36 interchangeable lighting modes

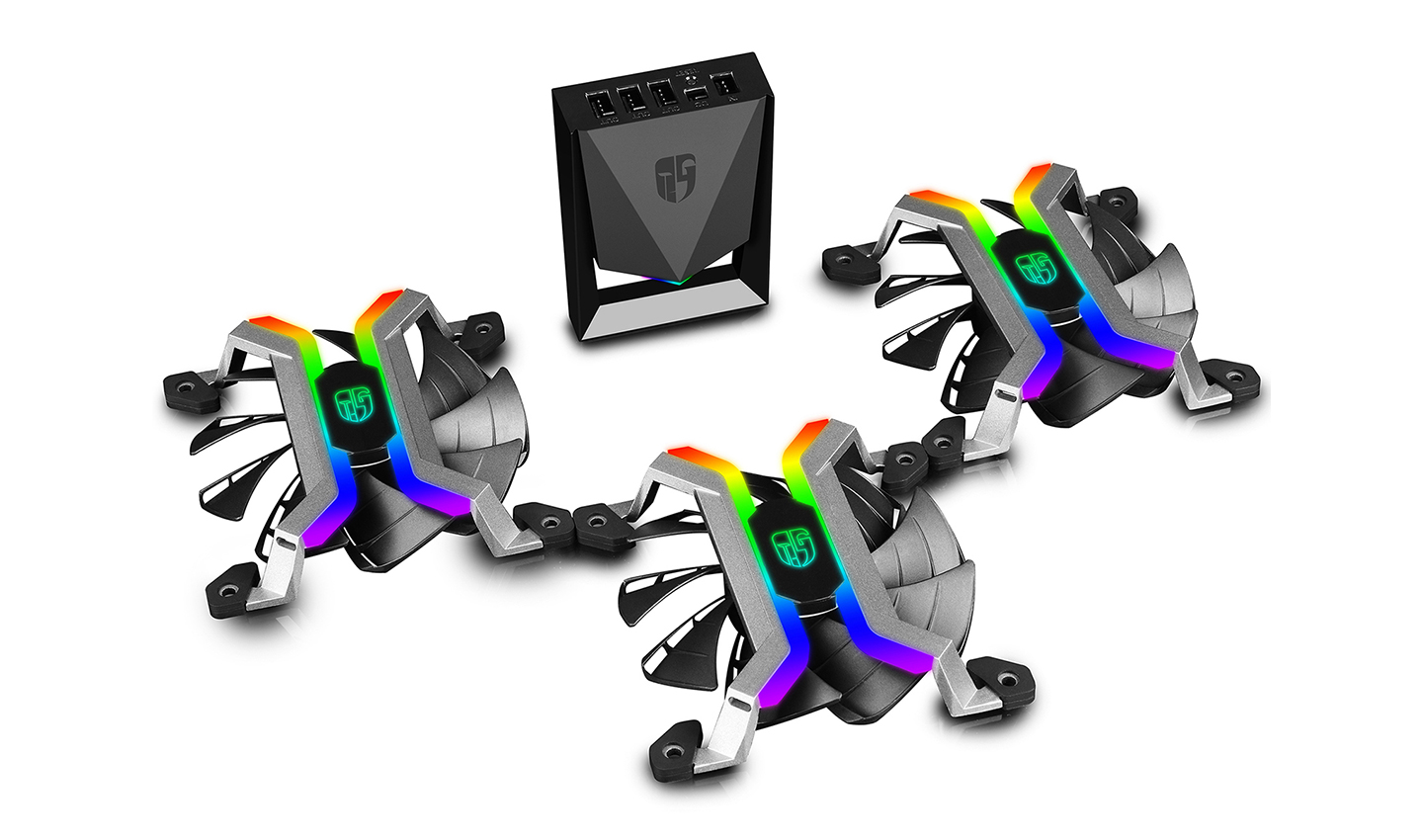

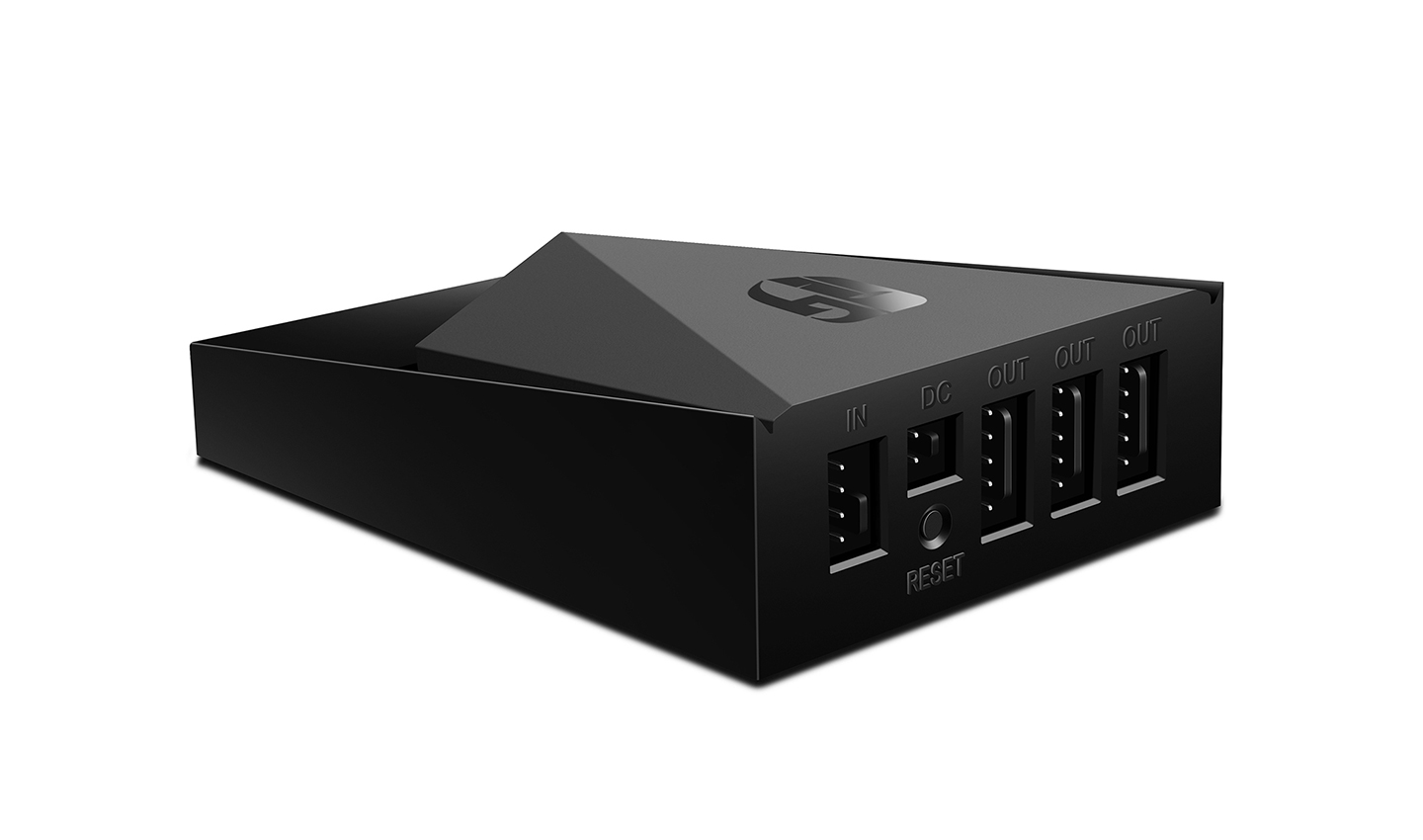

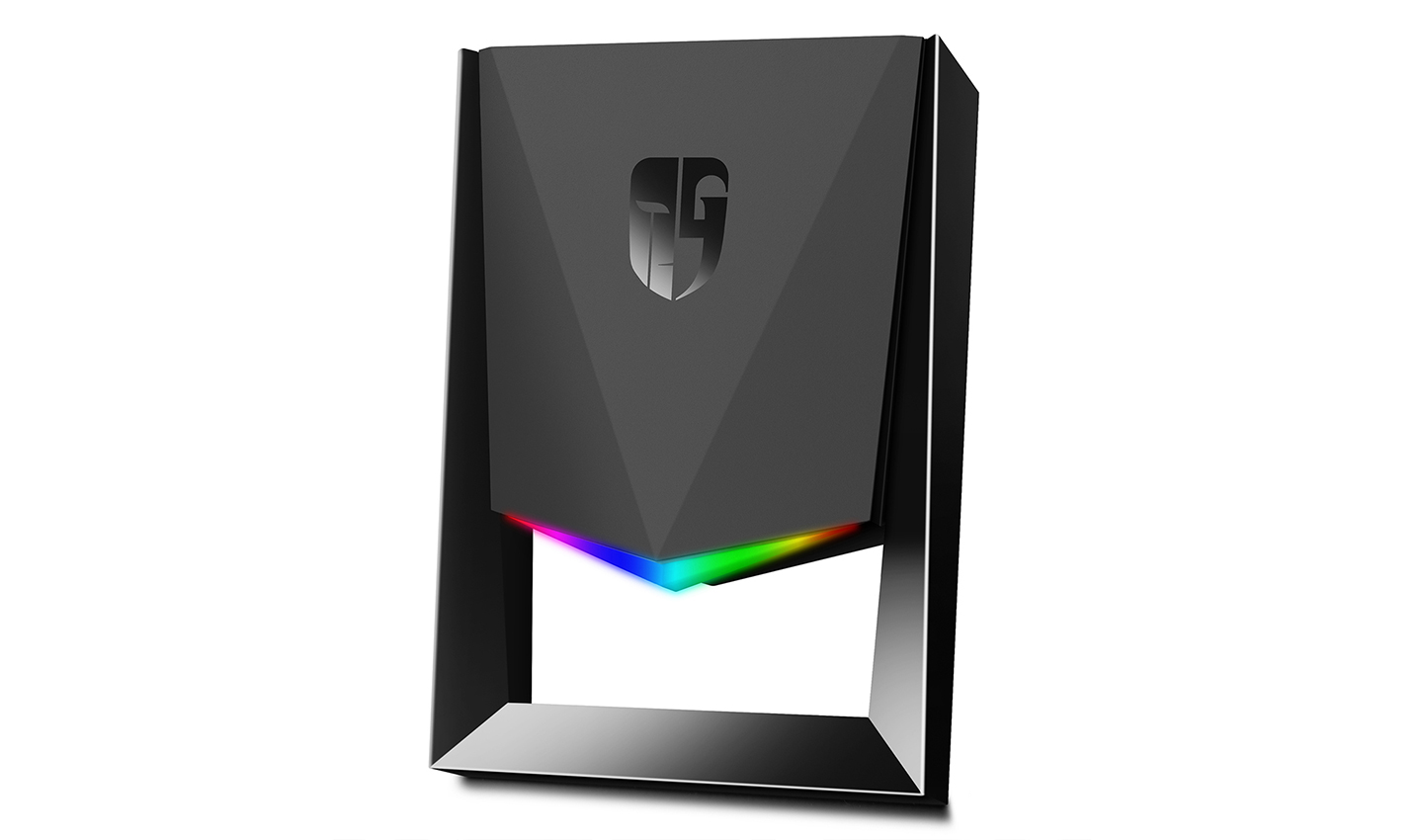

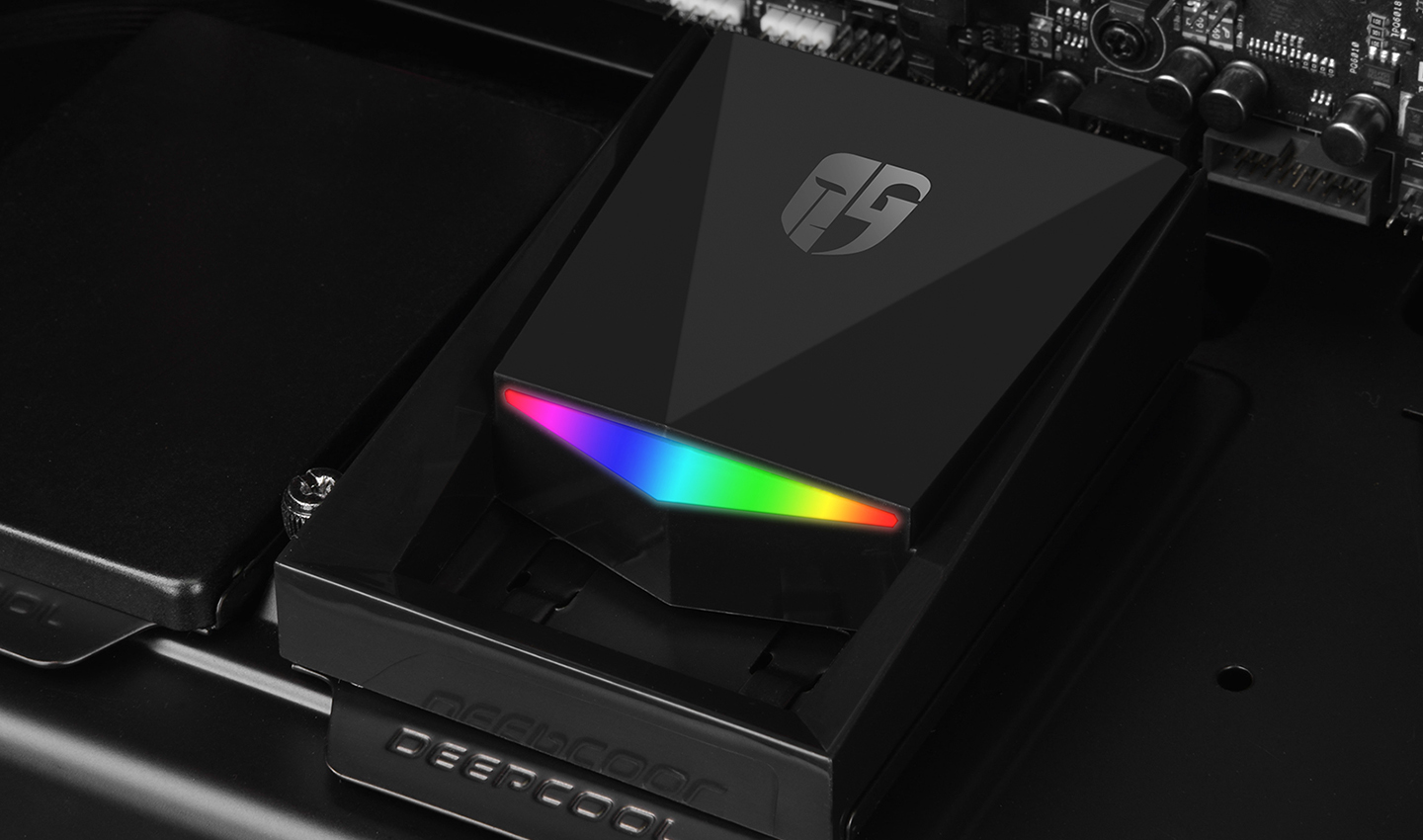

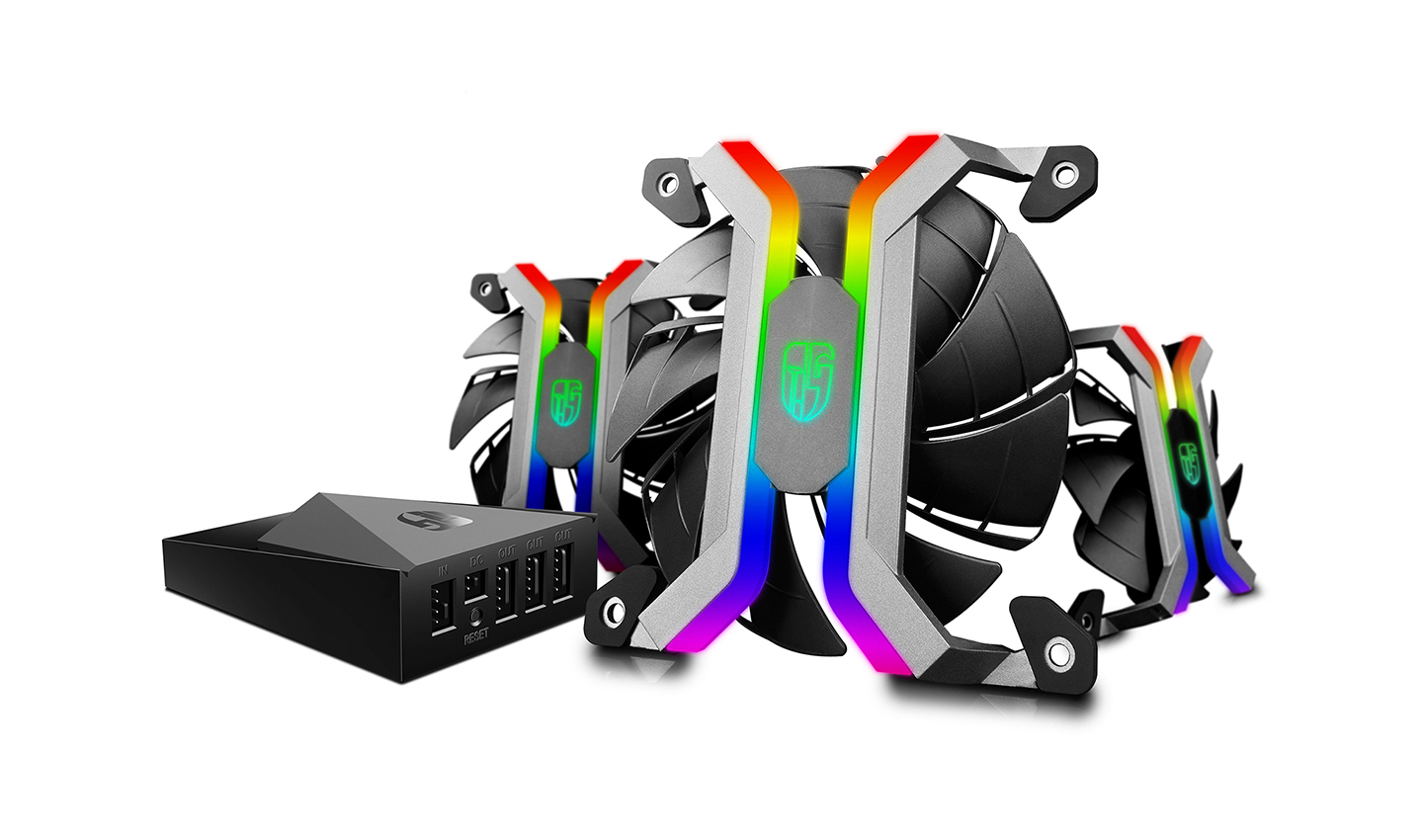

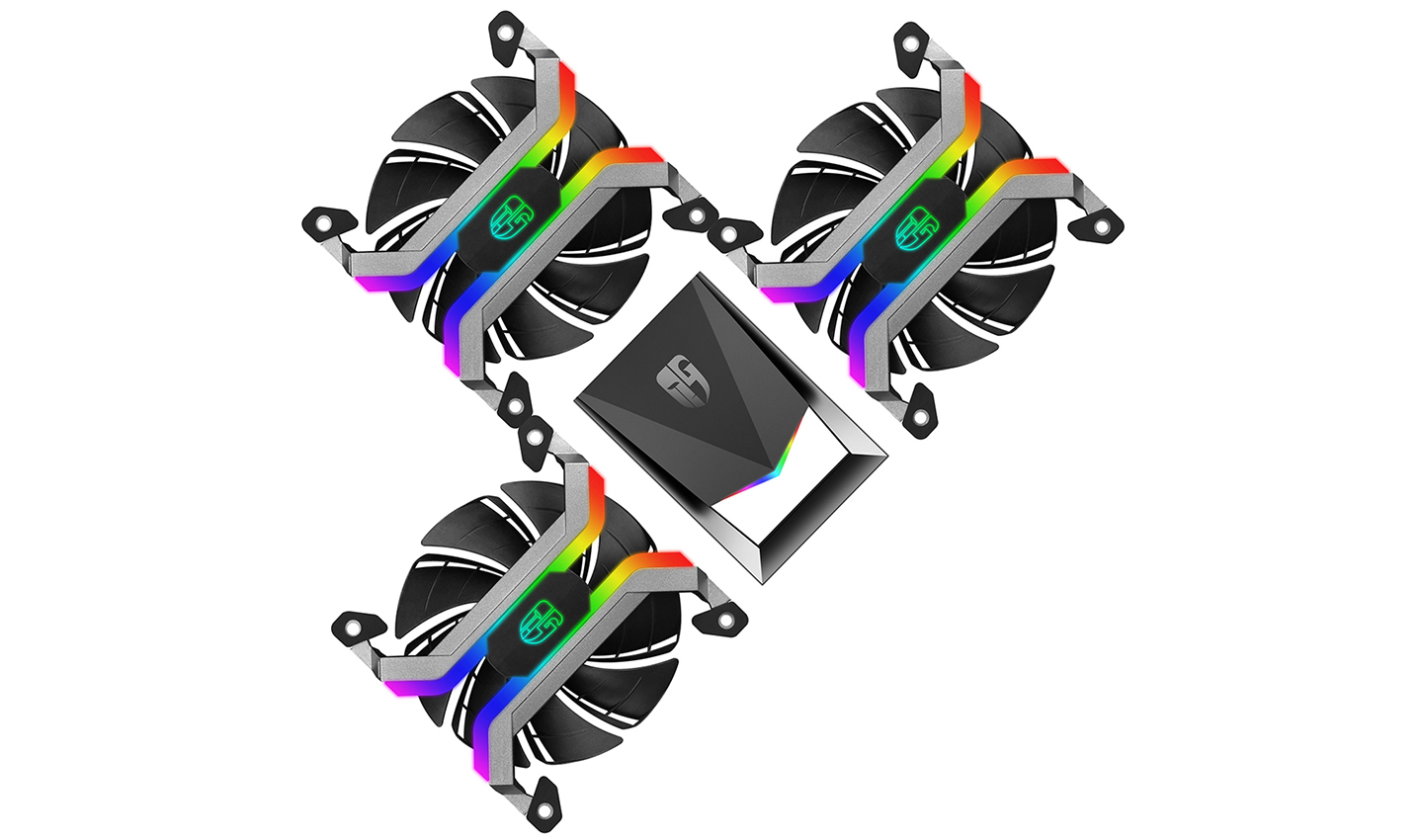

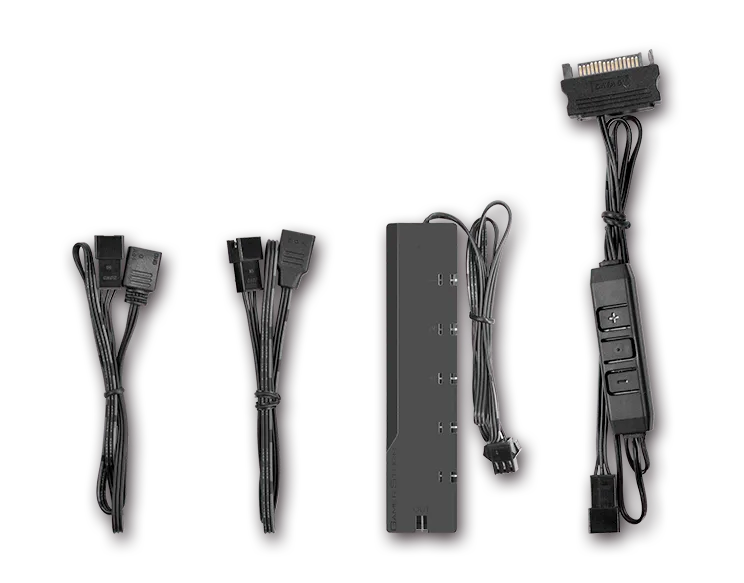

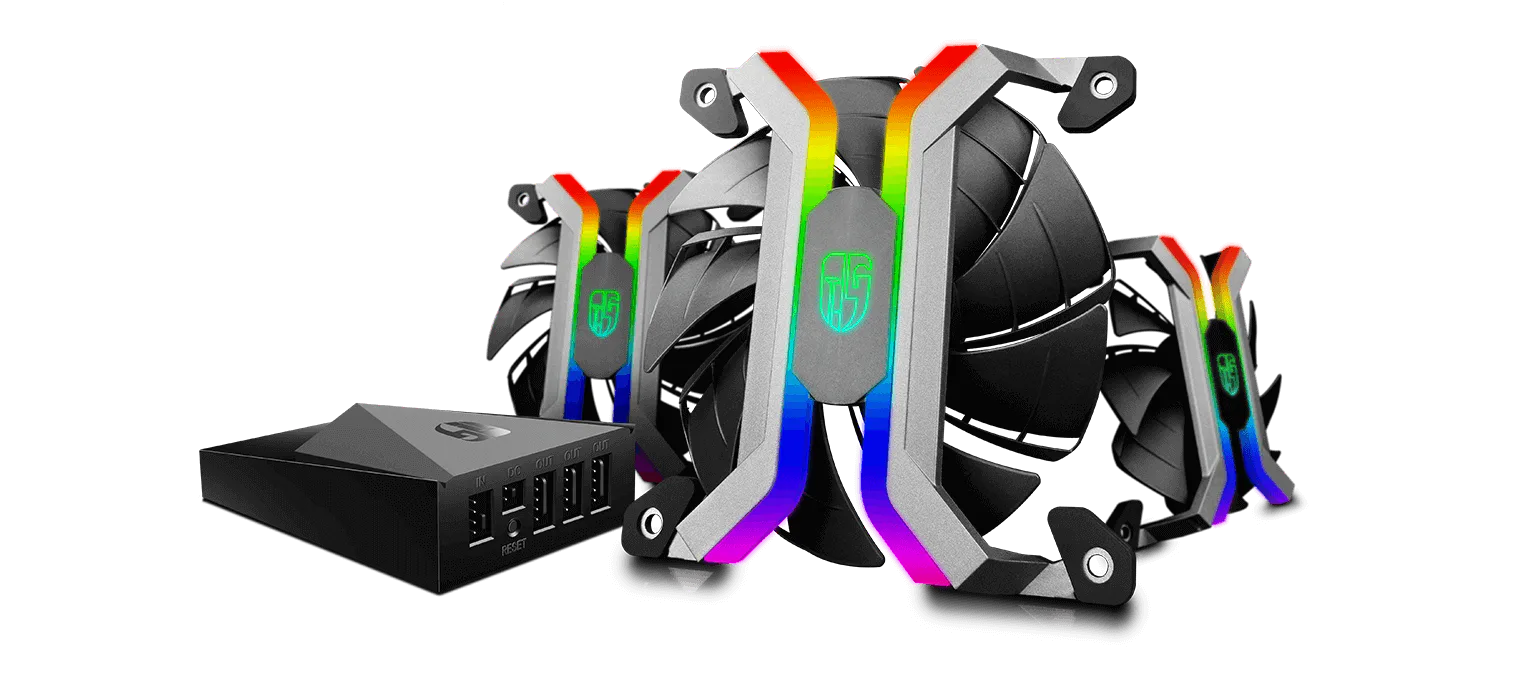

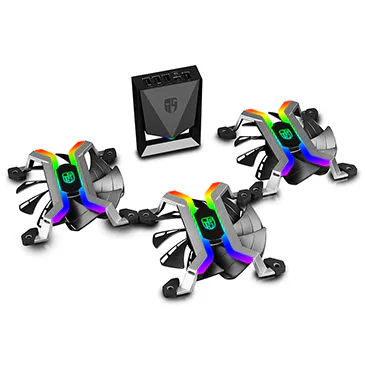

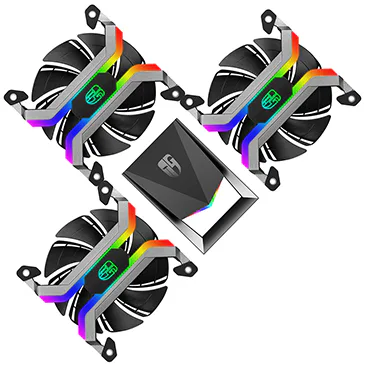

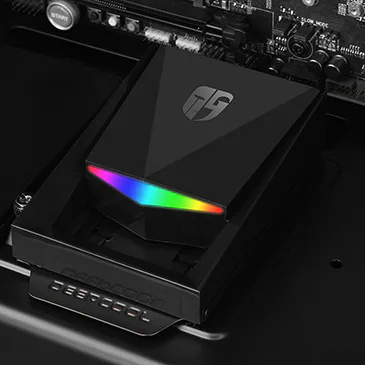

Either through the SYNC control of the specified motherboard* or included controller, you can modify the lighting effects as you wish. Meanwhile, a brand new 5-port RGB hub is included in MF120S, syncing your RGB parts is now easier than ever!

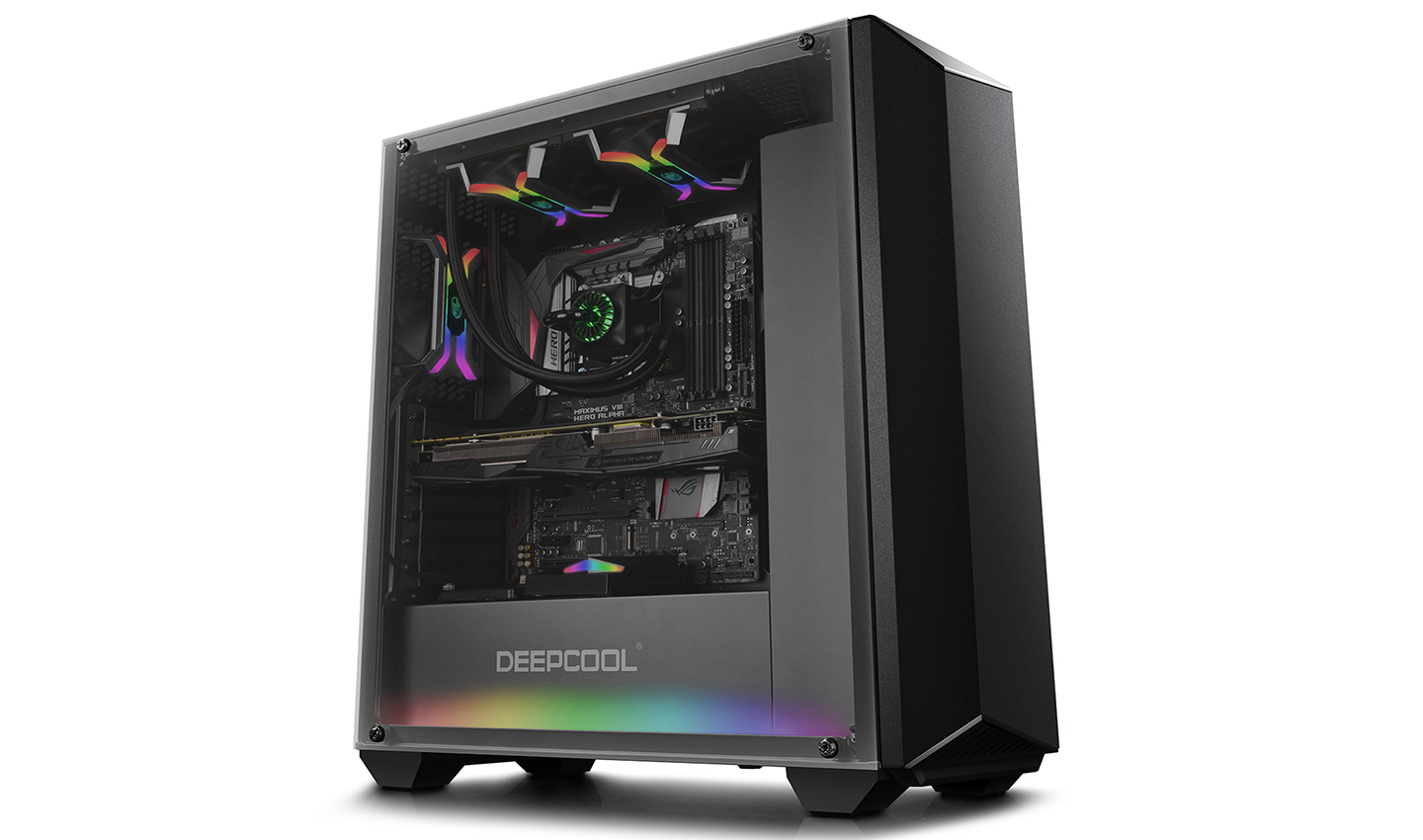

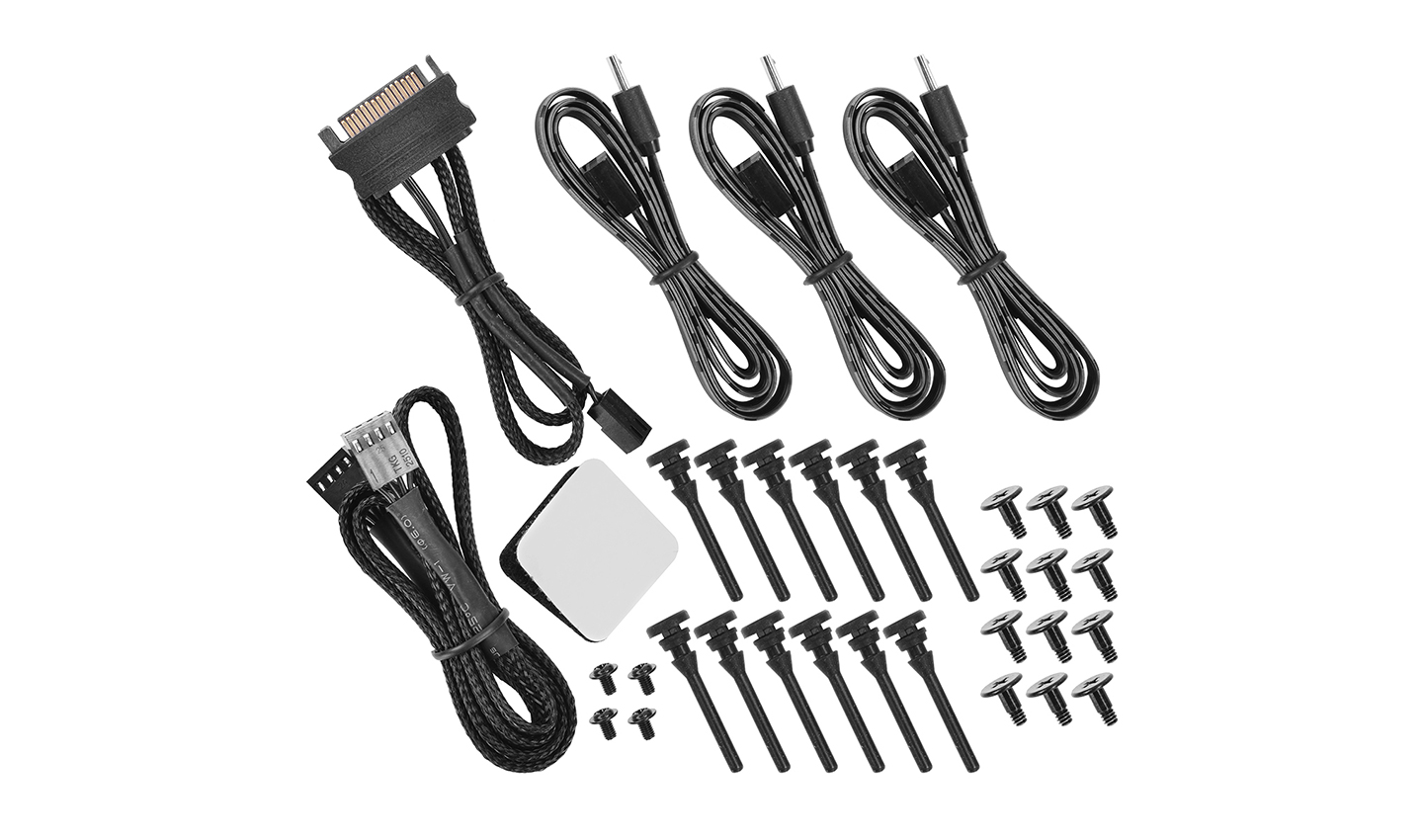

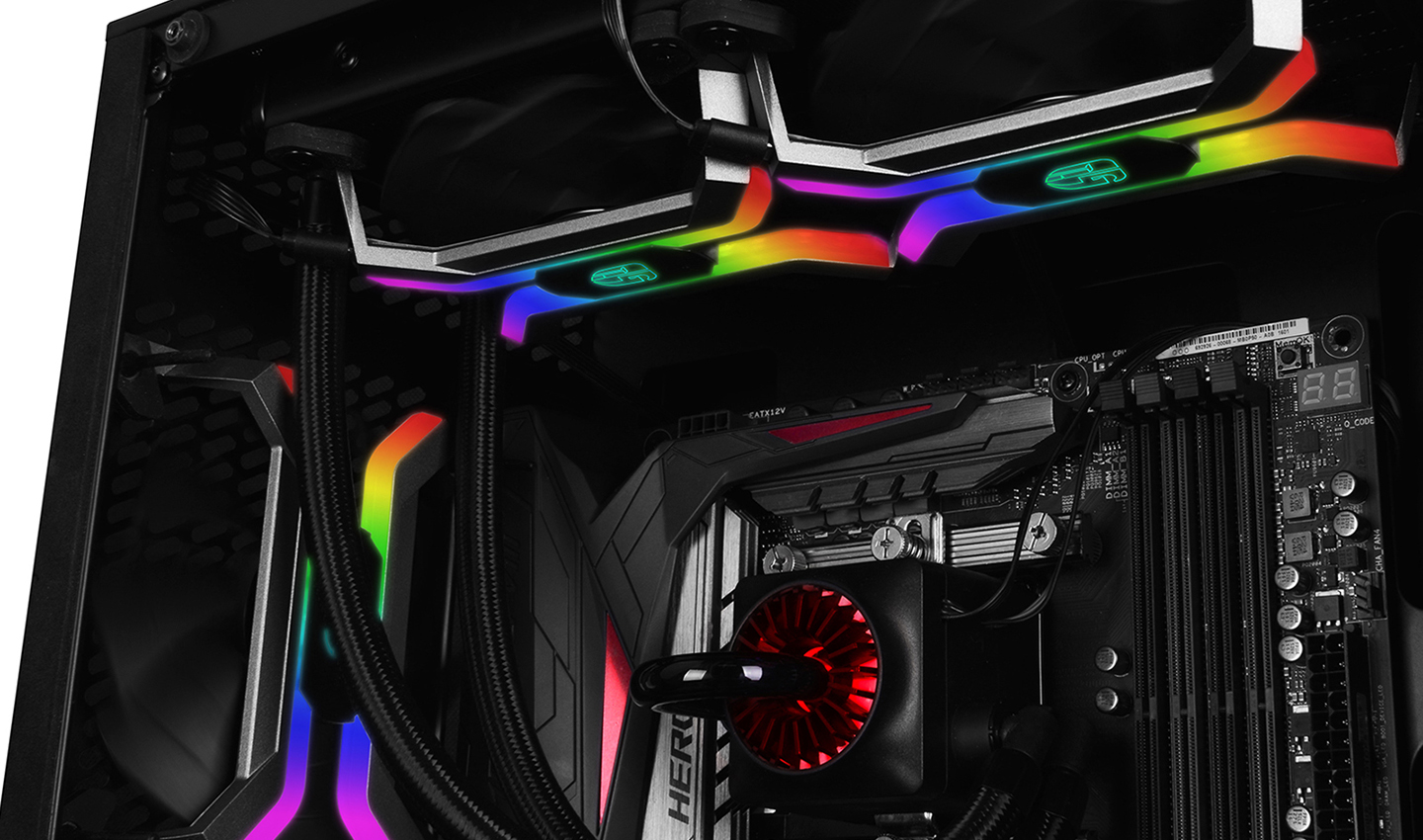

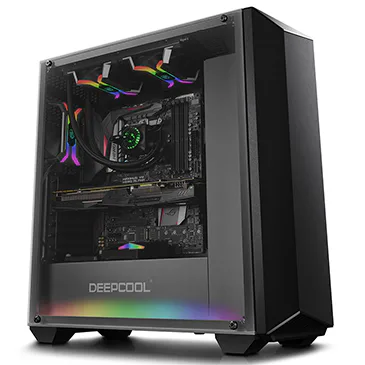

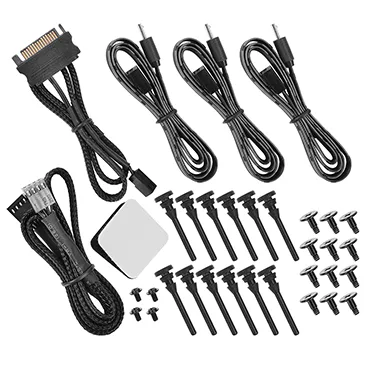

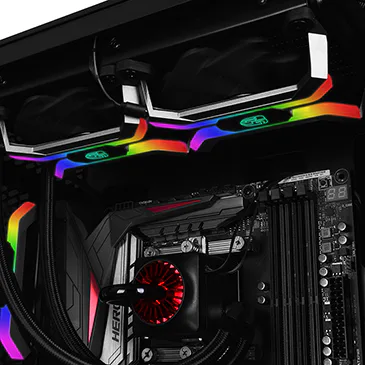

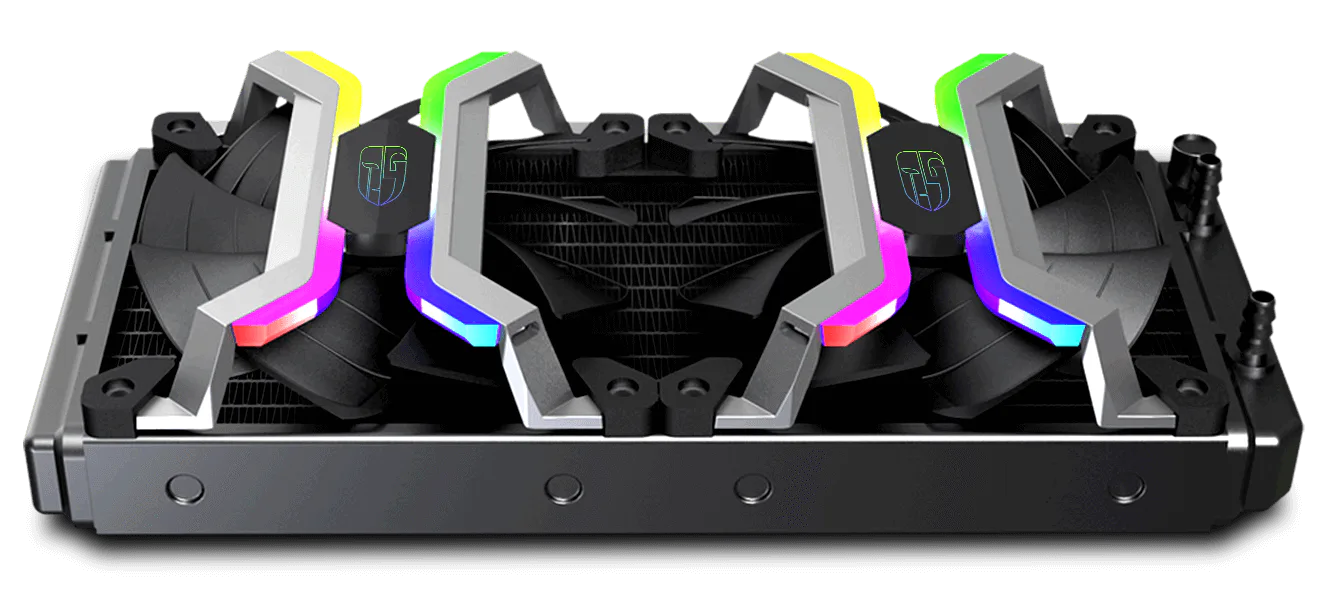

PWM control ready. With LSP function and 2 sets of included screws, MF 120S can perfectly serve as both case fan and radiator fan.
Technical Spec
Fan Dimensions120×120×26 mm(L×W×H)
Net Weight 478 g
Fan Speed 500~2000 RPM±10%
Fan Airflow 45.4 CFM
Fan Air Pressure 1.67 mmAq
Fan Noise ≤33.4 dB(A)
Fan Speed (with LSP) 400~1500 RPM±10%
Fan Airflow (with LSP) 37.1 CFM
Fan Air Pressure (with LSP) 0.79 mmAq
Fan Noise (with LSP) ≤26 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.17 A
Fan Power Consumption 2 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Rated Current 0.76 A
LED Power Consumption 3.8 W
EAN 6933412710363
P/N DPGS-FMF120S-M-3P
Product Dimension
