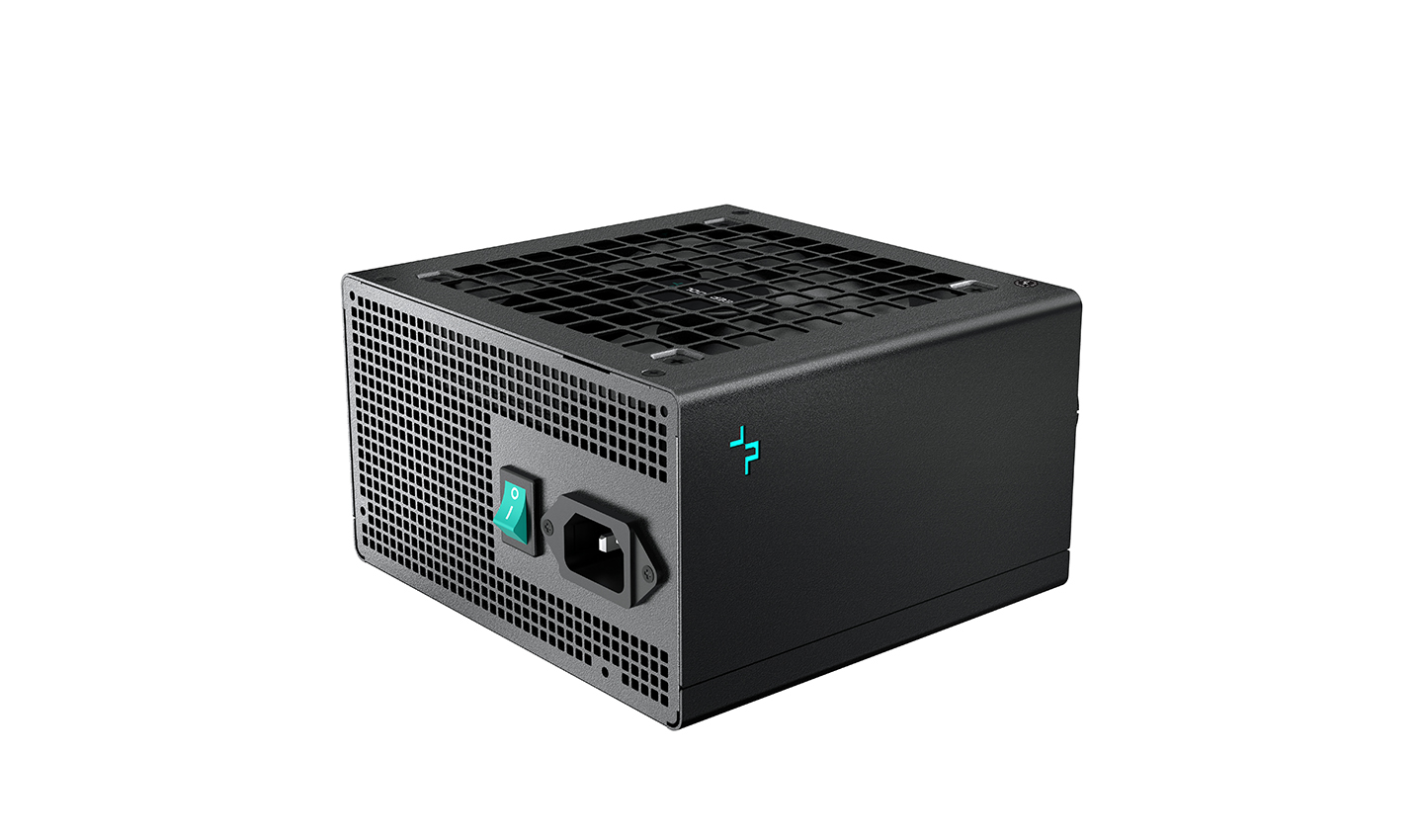

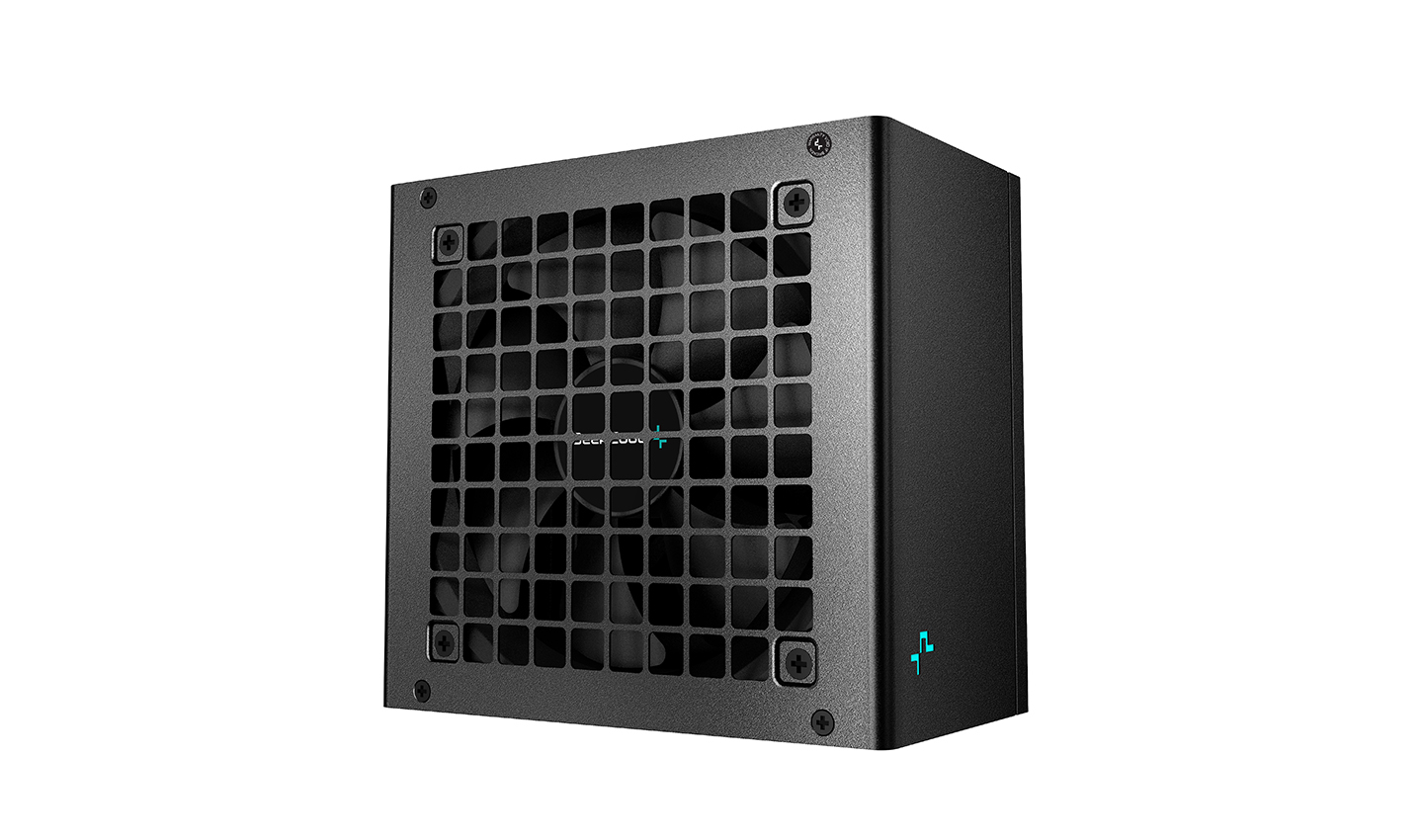

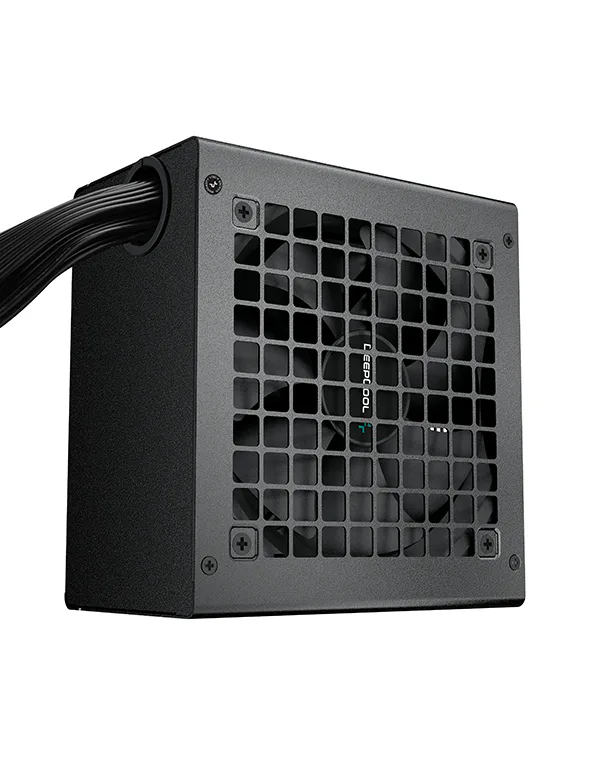

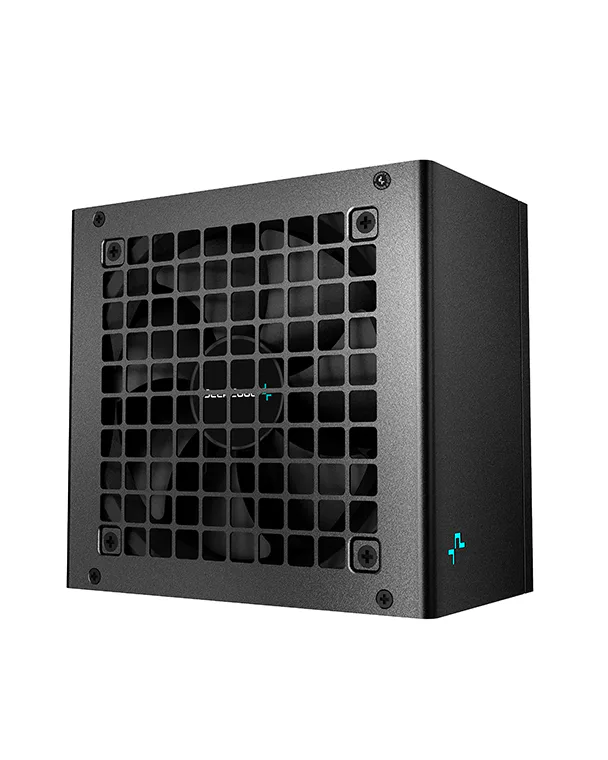

PK700D
The DeepCool PK-D series power supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance.
COLOR
black
MODEL
PK700D
80 PLUS Bronze Power Supply
PK700D
The DeepCool PK-D series power supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance.
Beautiful in Bronze
The PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.

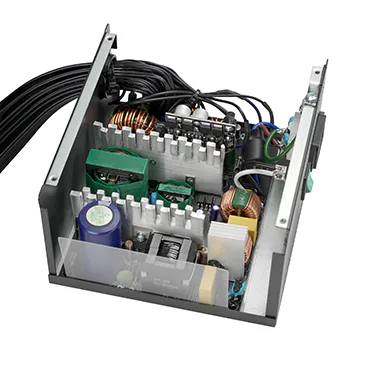

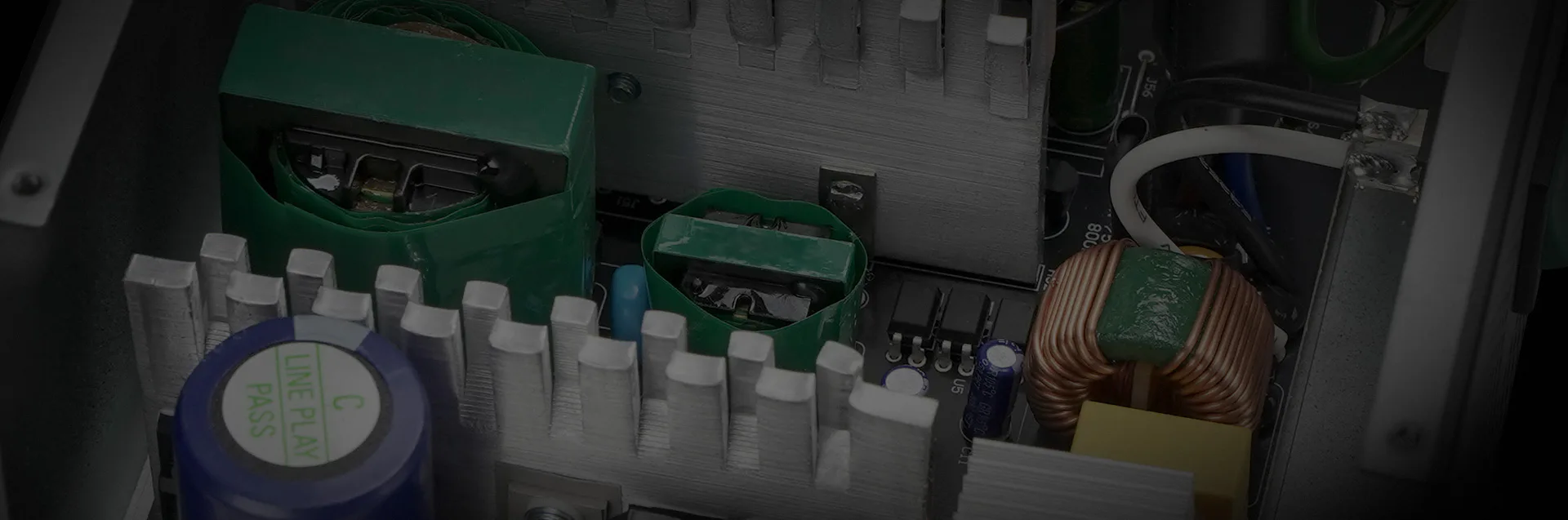

DC-DC Conversion
A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.
Tough and Durable
Designed to operate effortlessly in high temperatures up to 40°C and high altitudes up to 5000m while providing continuous stable power output.
ErP Lot 6 Compliant
Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.

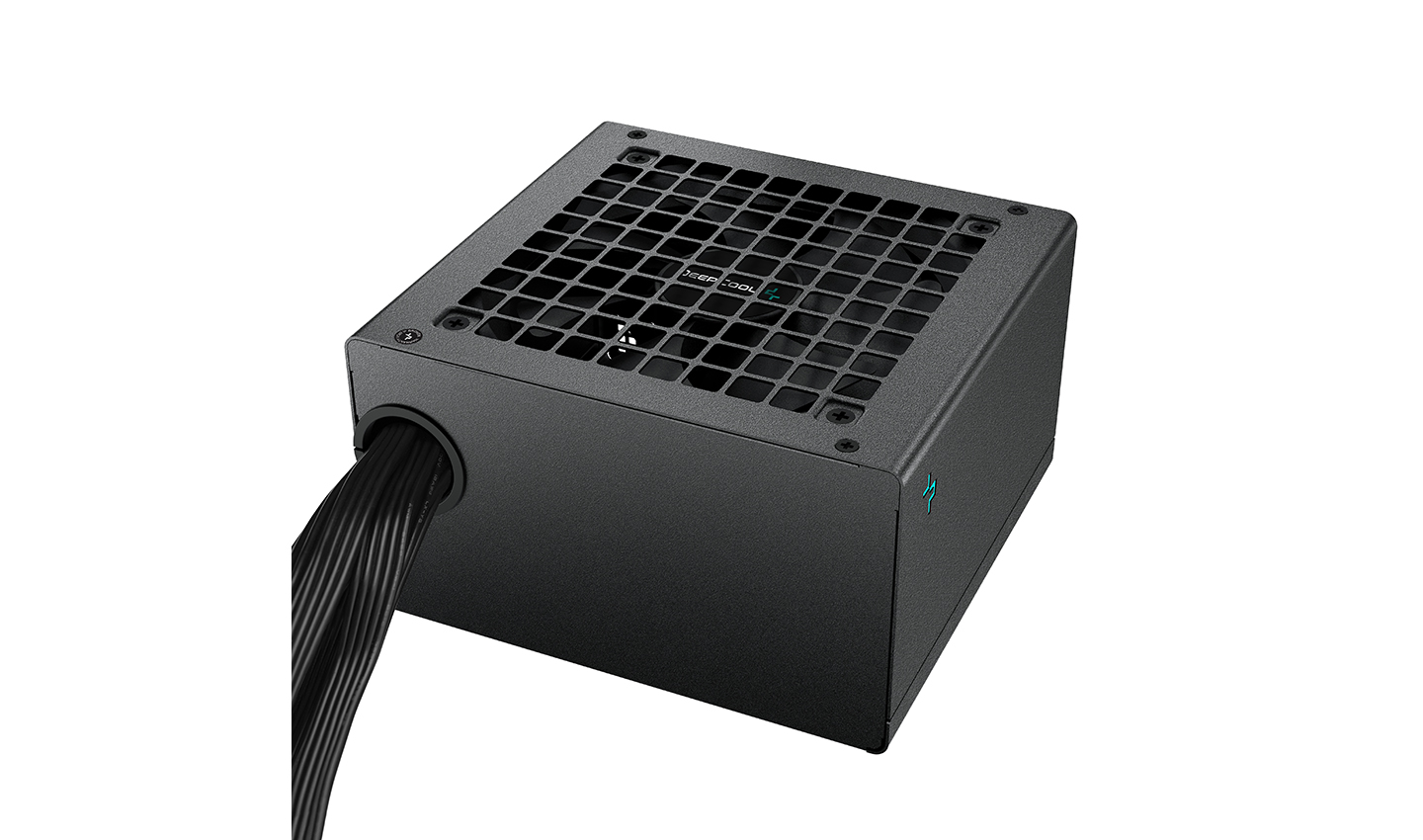

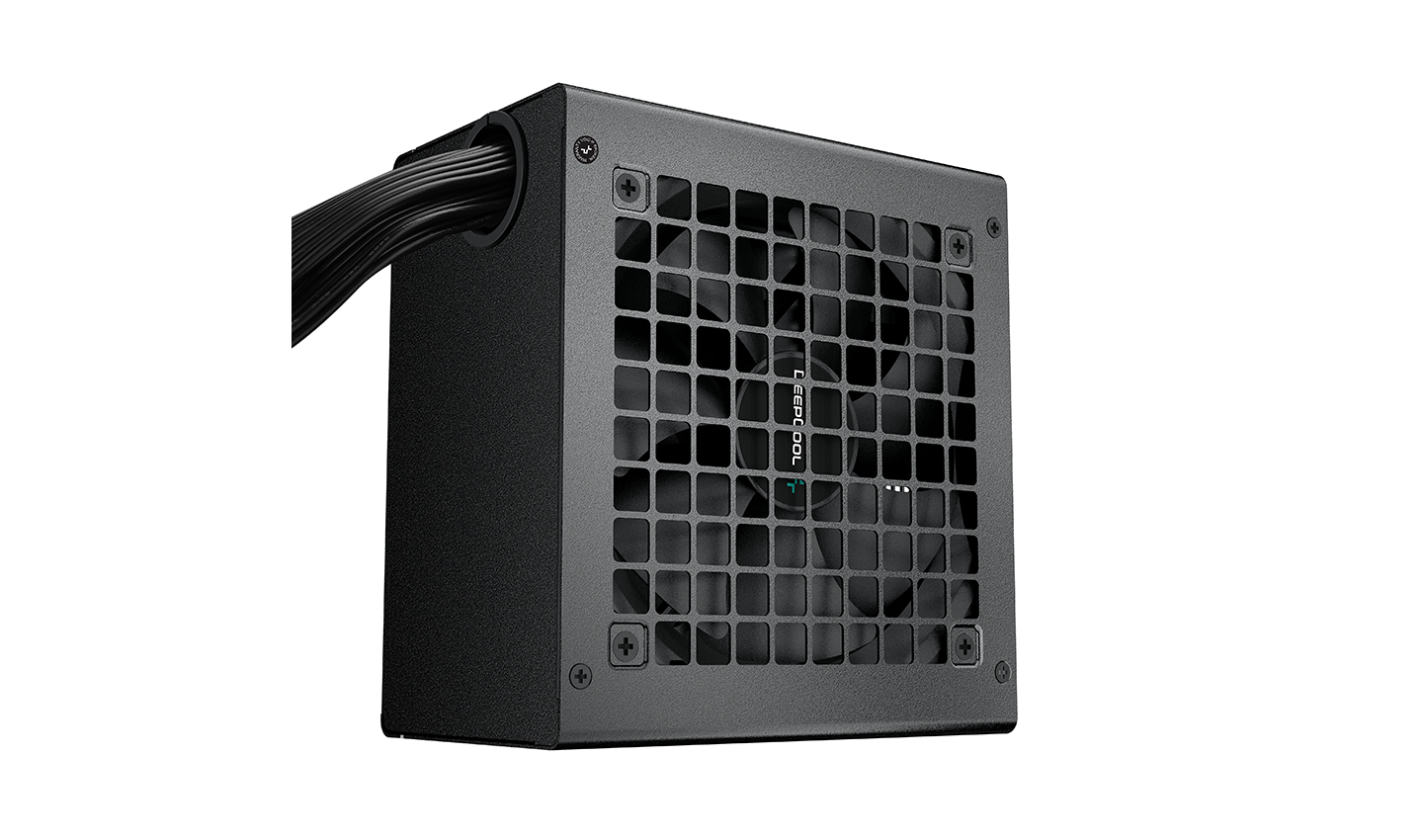

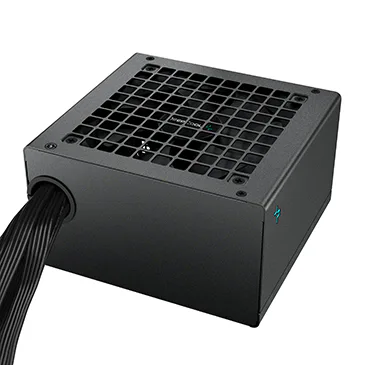

Stealth Black
Black direct power cables help blend in with other components.
Main Power Connector 24 (20+4)Pin x1
X1
EPS 12V Connector 8 (4+4)Pin x2
X1
PCI-E (6+2)Pin x2
X2
SATA x3
X1
SATA x4
X1

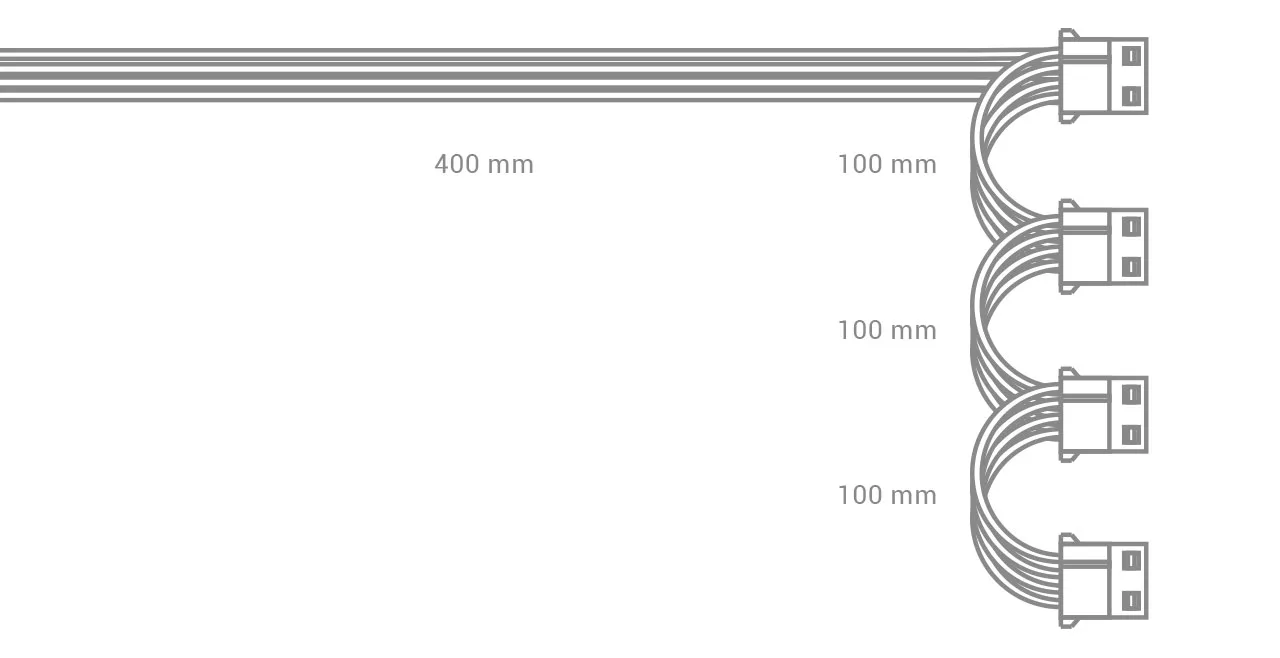

4Pin Peripheral x4
X1
Technical Spec
Type ATX12V V2.4
Product Dimensions 150×140×86mm (W x L x H)
80PLUS Certifications Bronze

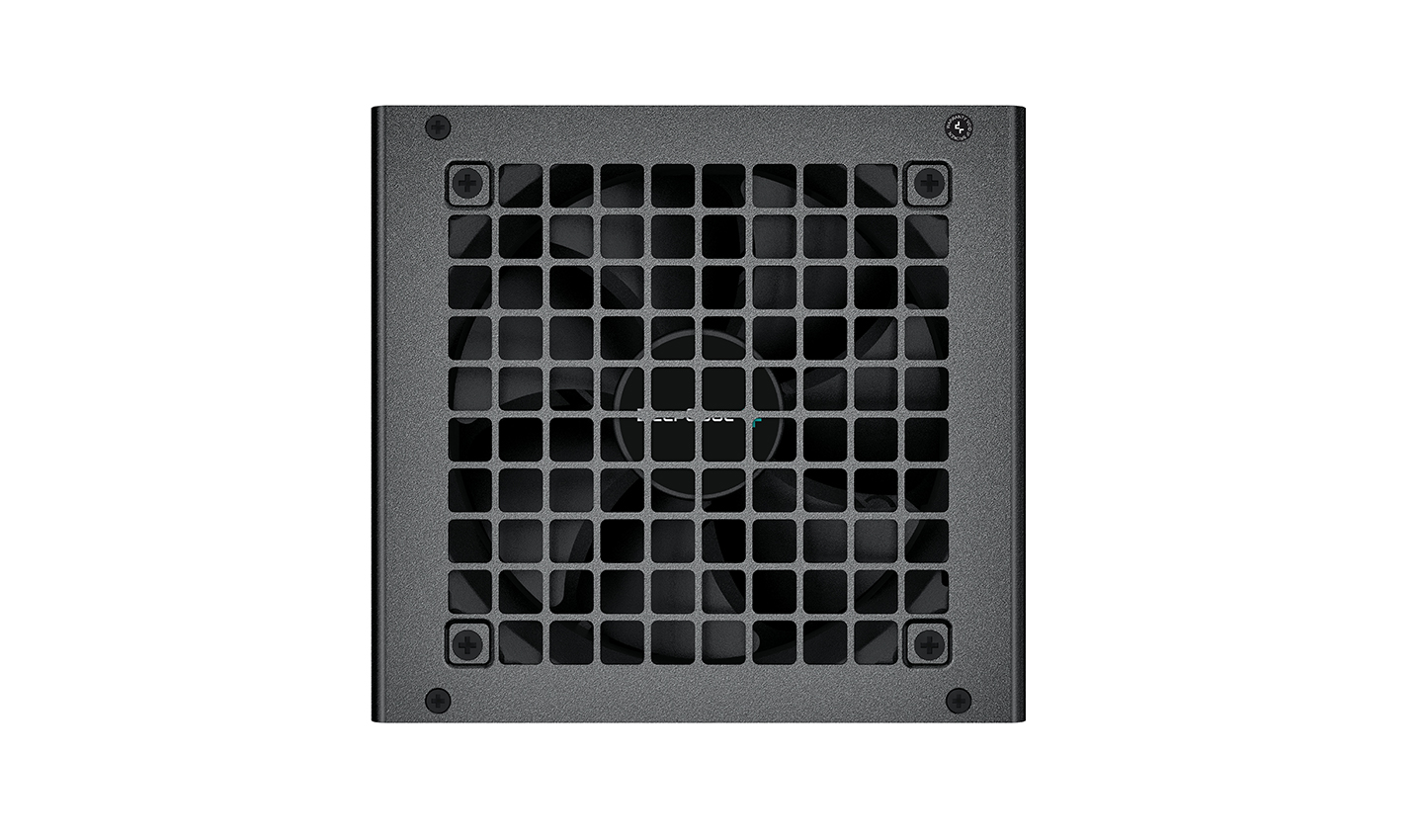

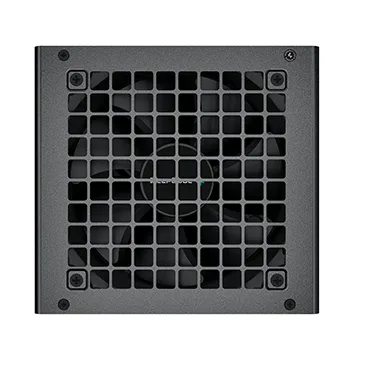

Fan Size 120mm
Fan Bearing Hypro Bearing

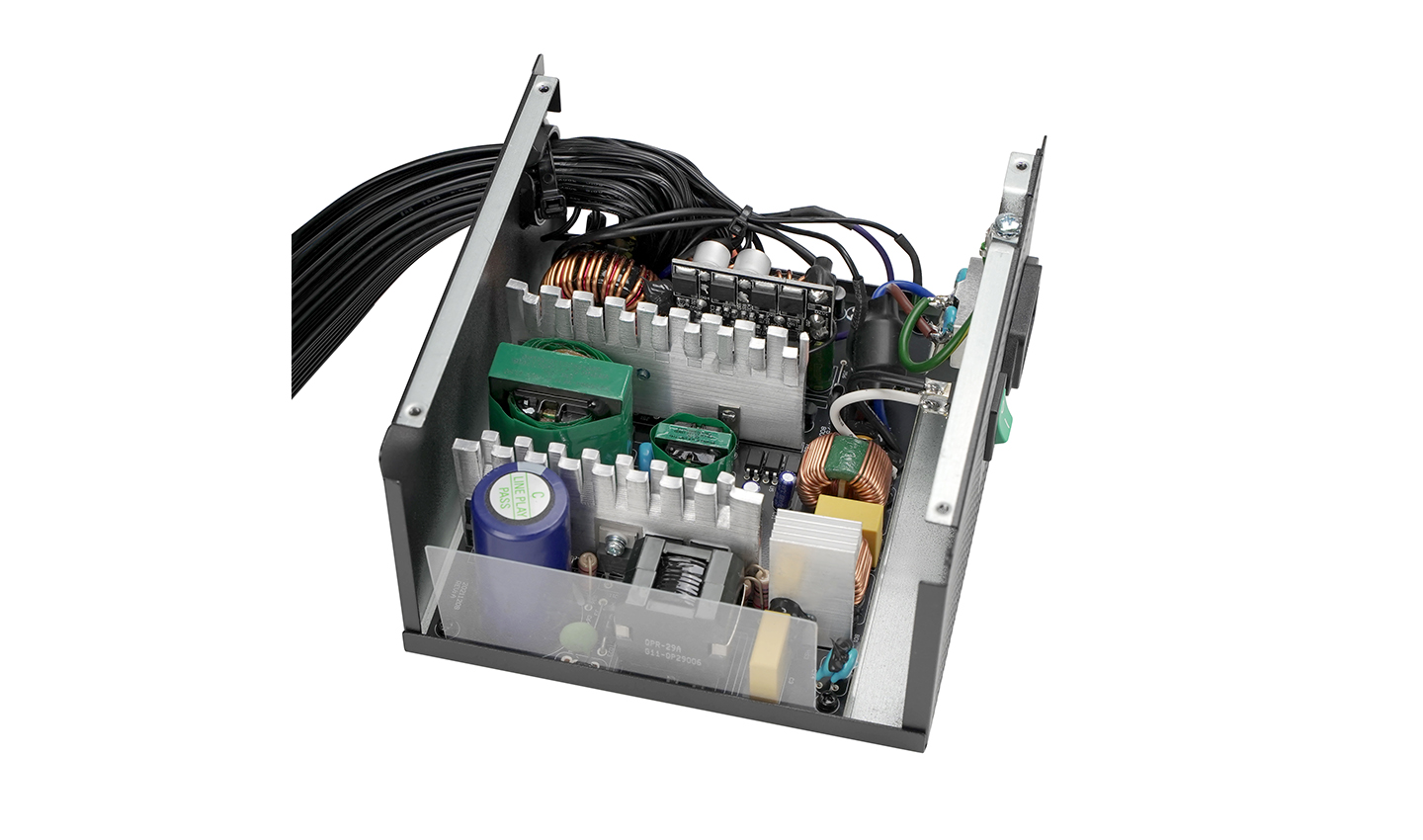

Topology Active PFC+DC to DC
Capacitors Taiwan capacitor
Power Good Signal 100-150ms
Hold Up Time ≥16ms(80% Load)
Efficiency ≥85% Under Typical Load(50% Loading)
Protection SCP,OPP,OTP,OVP,OCP,UVP
Operation Temperature 0 - 40 °C
Regulatory CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS/KC
Erp Regulation ErP 2013
MTBF 100,000 Hours
EAN P/N 6933412715252 R-PK700D-FA0B-CN
6933412715269 R-PK700D-FA0B-AU
6933412715276 R-PK700D-FA0B-EU
6933412715283 R-PK700D-FA0B-JP
6933412715290 R-PK700D-FA0B-UK
6933412715306 R-PK700D-FA0B-US
6933412715313 R-PK700D-FA0B-AR
6933412715320 R-PK700D-FA0B-BR
6933412715337 R-PK700D-FA0B-WO
6933412715344 R-PK700D-FA0B-BP
