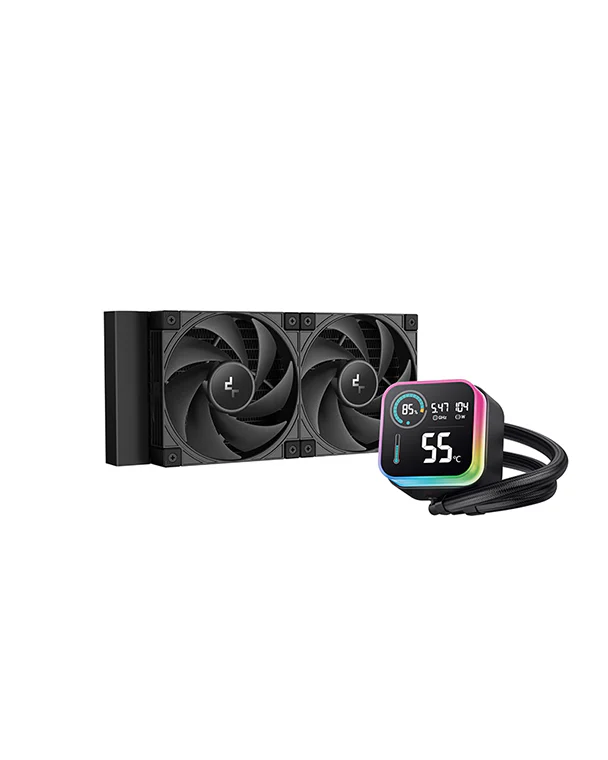

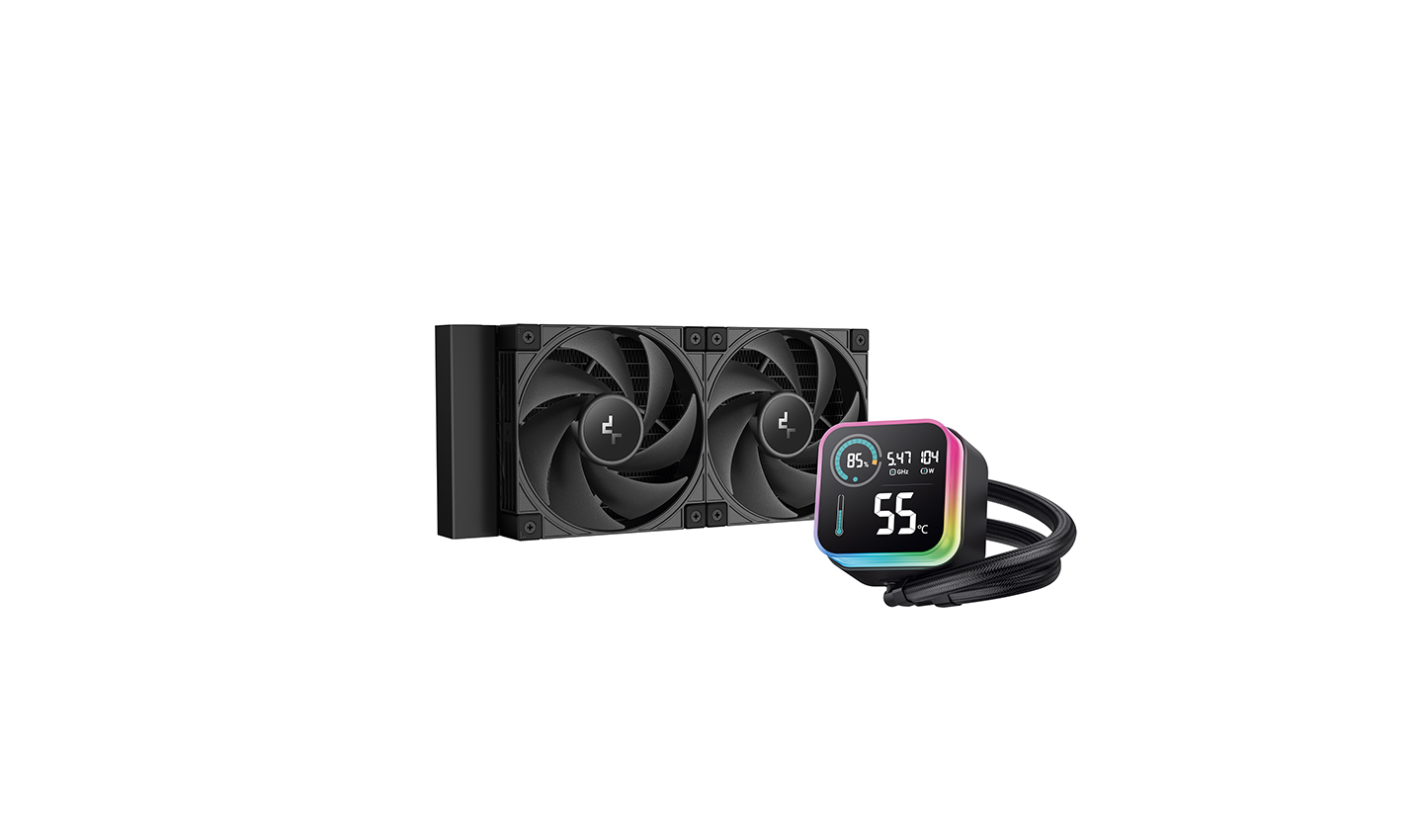

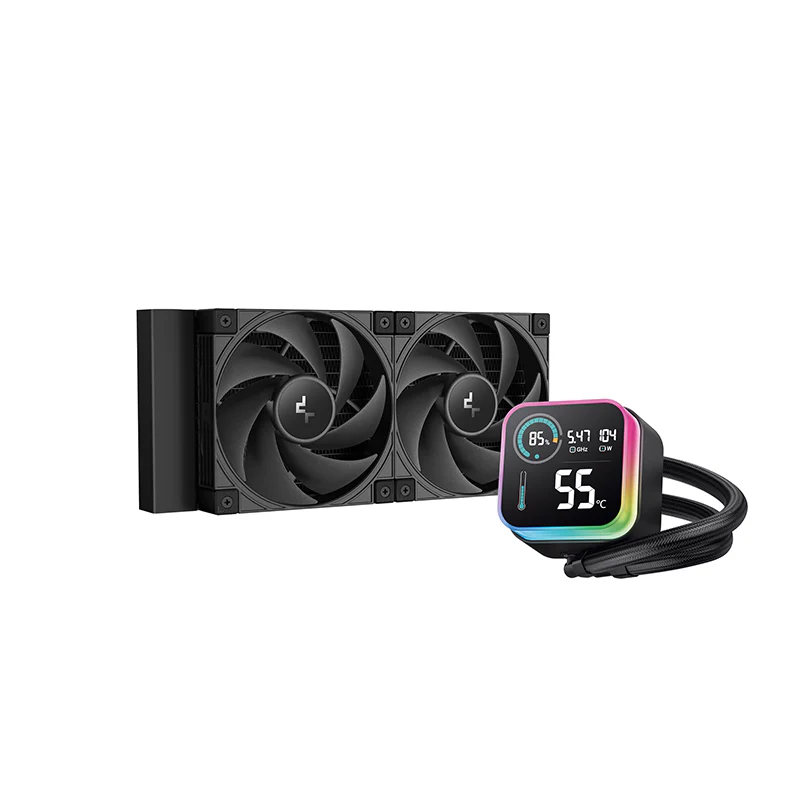

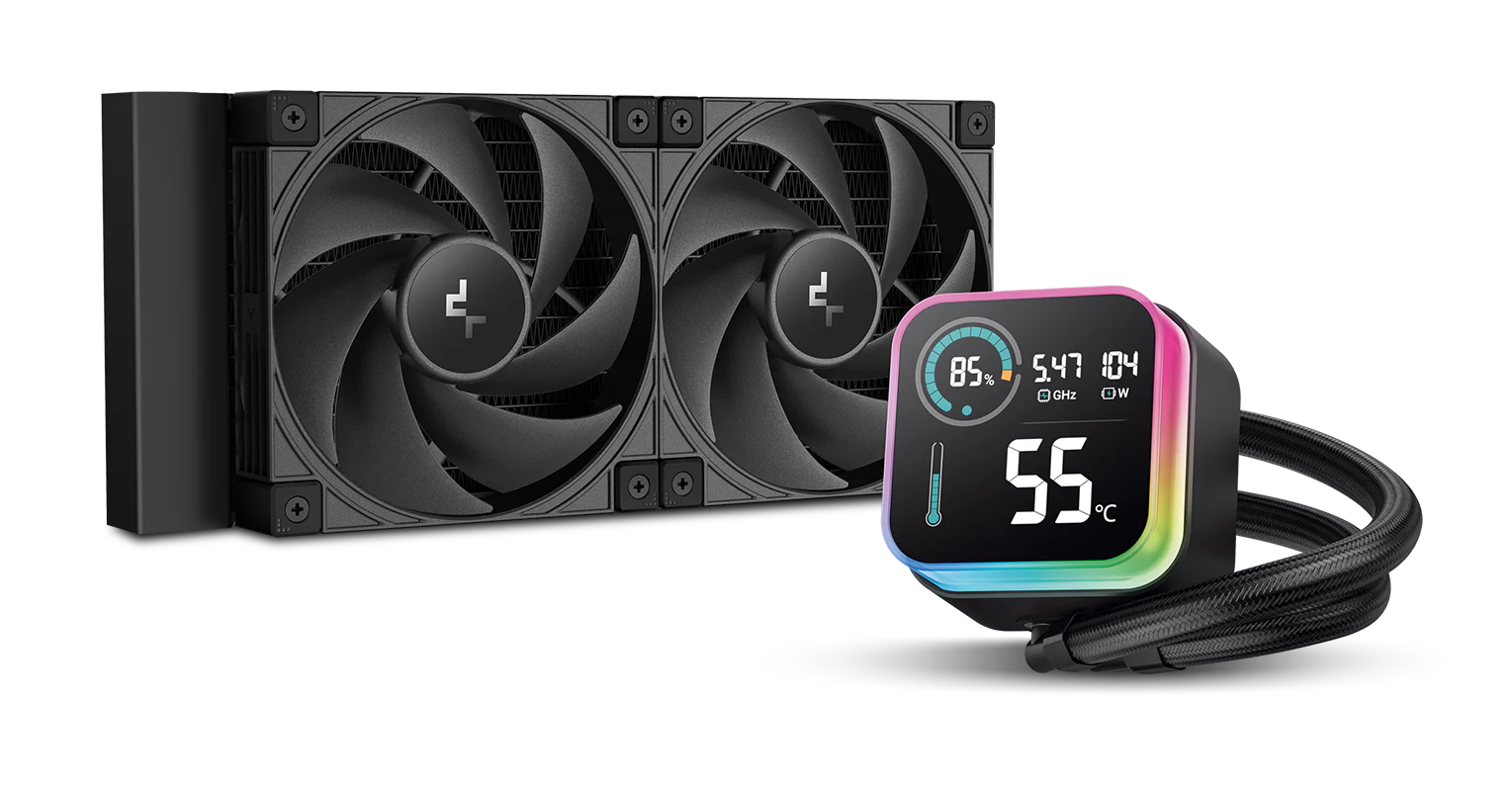

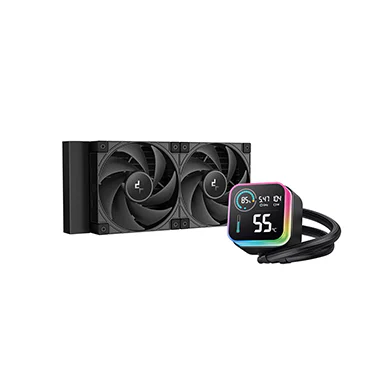

LQ240 ULTRA

SEGMENT LCD SCREEN ERA

COOL AND QUIET

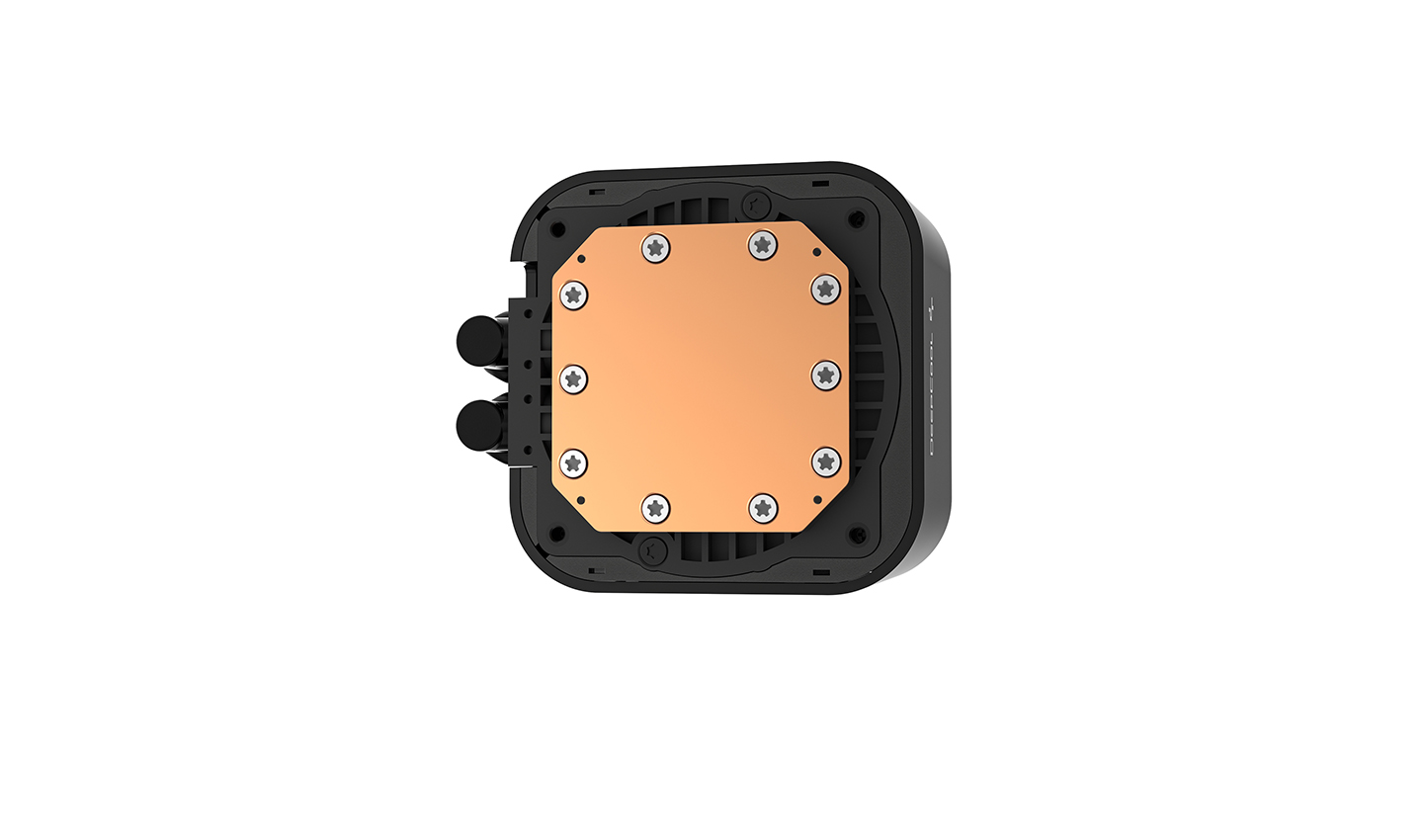

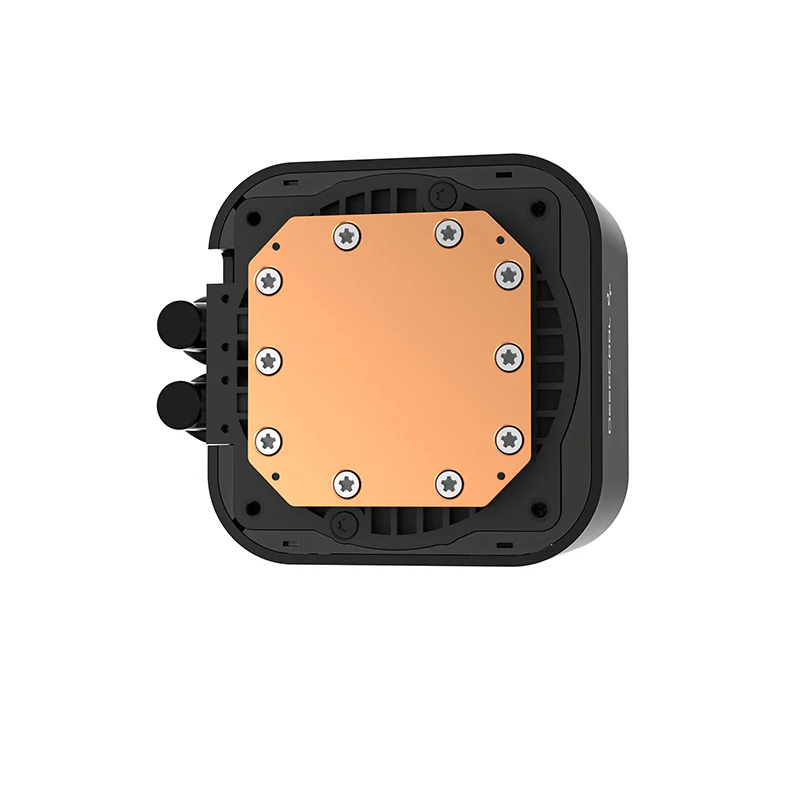

The LQ240 ULTRA is equipped with an advanced water pump designed for efficient and quiet performance. Powered by a 3-phase, 6-slot, 4-pole motor with FOC (Field Oriented Control), it operates at speeds ranging from 2500 to 3400 RPM.

With intelligent PWM control via a 4-PIN cable, you can easily adjust the pump speed to meet your cooling needs.

DeepCreative: THE CONTROL CENTER

Bring all of the great features of the LQ ULTRA coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have Halo ARGB accents synced to your motherboard's ARGB controller or use the thermal color warning system. The software will get rolling updates, so expect expanding features in the near future.

CPU Usage + Multi Color Circular Status Panel

CPU Frequency GHz

CPU TDP Wattage

CPU Temperature Status with Color Indicator in ℃/℉

℃

℉

*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

LET IT ROTATE

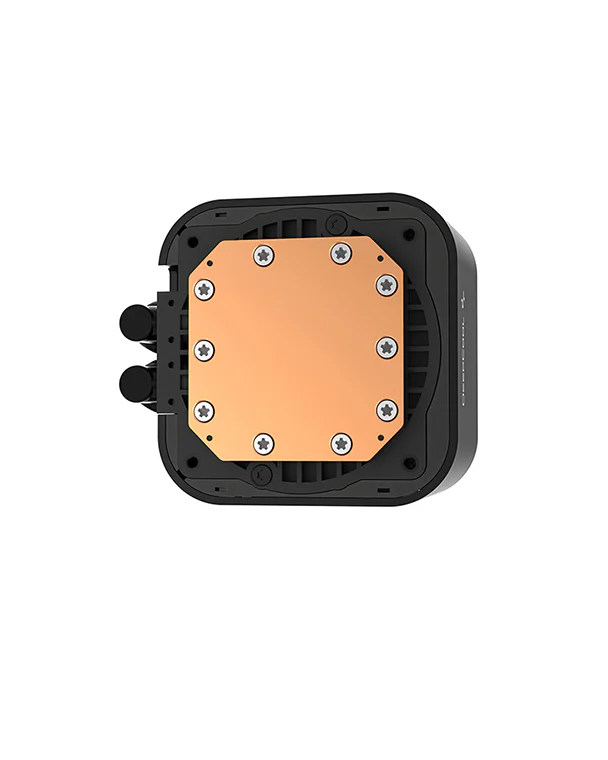

The magnetic pump cover allows quick, tool-free detachment with 360° rotation for perfect alignment in any build. Its precision-engineered pogo pin contact ensures secure and reliable connection, redefining convenience in liquid cooling.

EFFICIENCY AT ITS FINEST

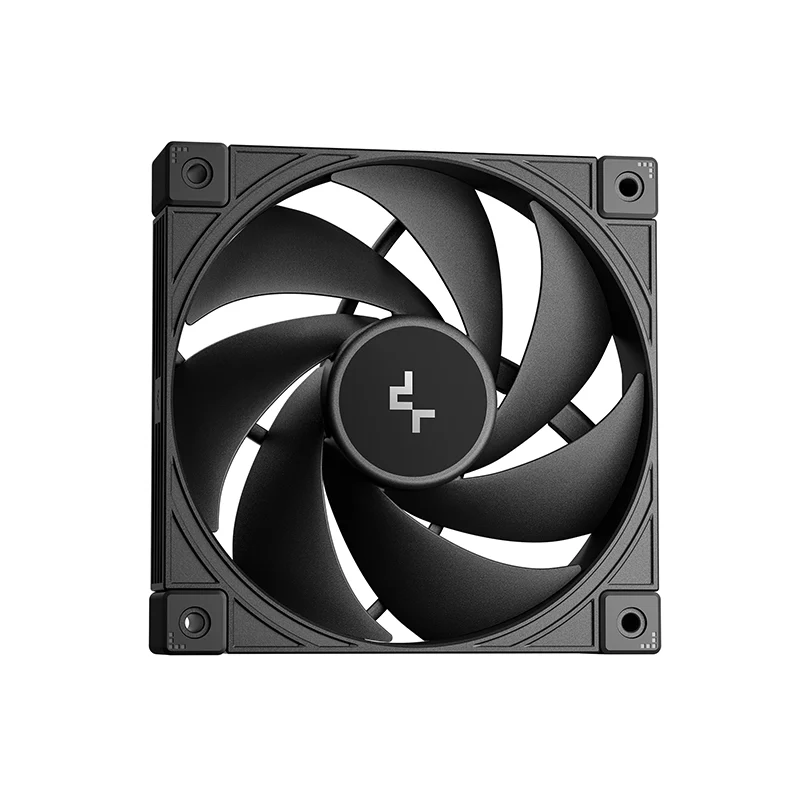

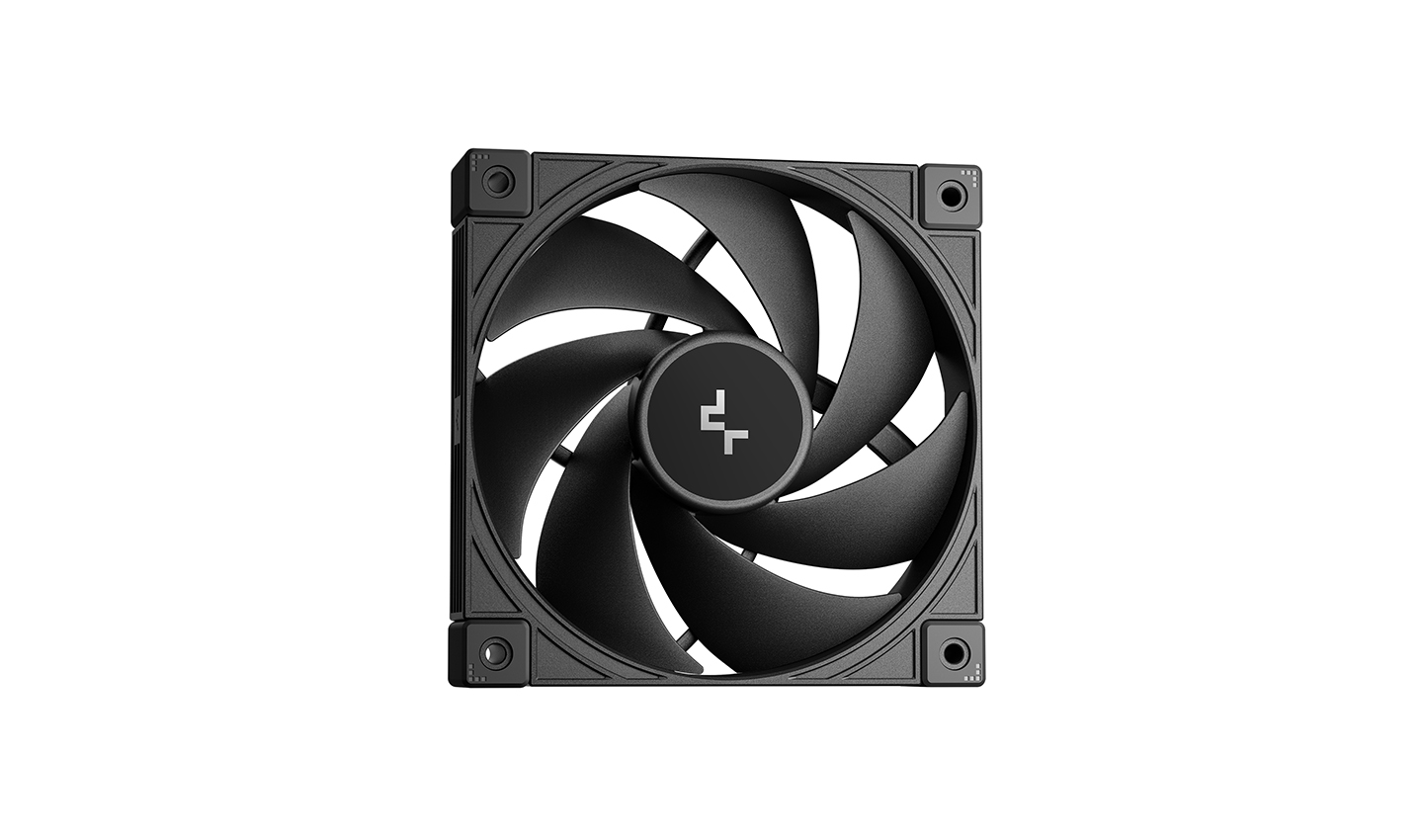

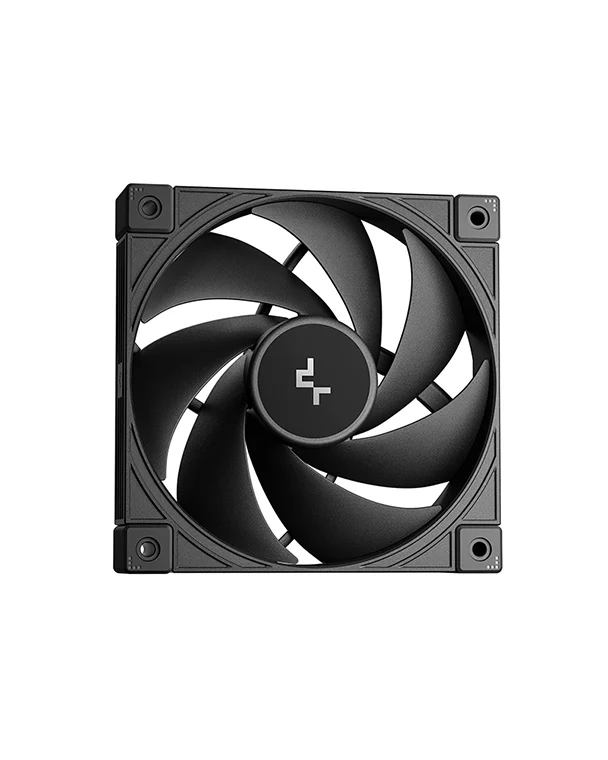

The included all-black fans feature DeepCool's exclusive narrow blade neck design, combining a refined look with optimized airflow. The sturdy frame and Fluid Dynamic Bearings offer stable and long-term reliability.

500~2500 RPM ±10%

Fan Speed

73.41 CFM

Airflow

4.69 mmAq

Static Pressure

≤35.63 dB(A)

Fan Noise

ANTI-LEAK TECHNOLOGY

Incorporating DeepCool's patented Anti-Leak Technology, this system is designed to enhance the longevity and reliability of the AIO. The internal valve actively regulates pressure, releasing excess pressure when it surpasses atmospheric levels. This innovative feature not only extends the lifespan of the AIO but also significantly reduces the risk of leaks.

SIMPLIFIED INSTALLATION

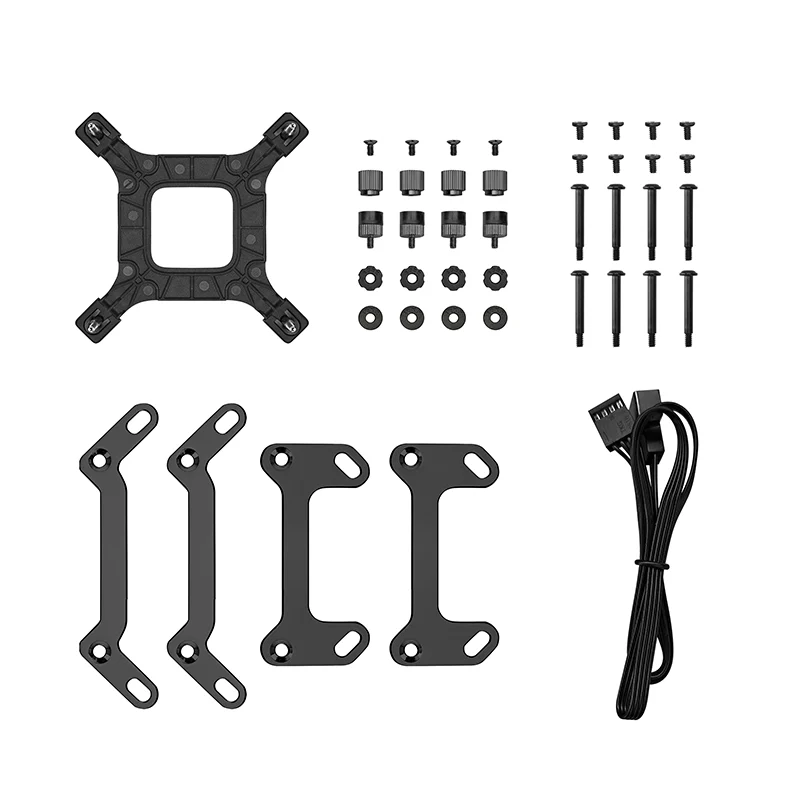

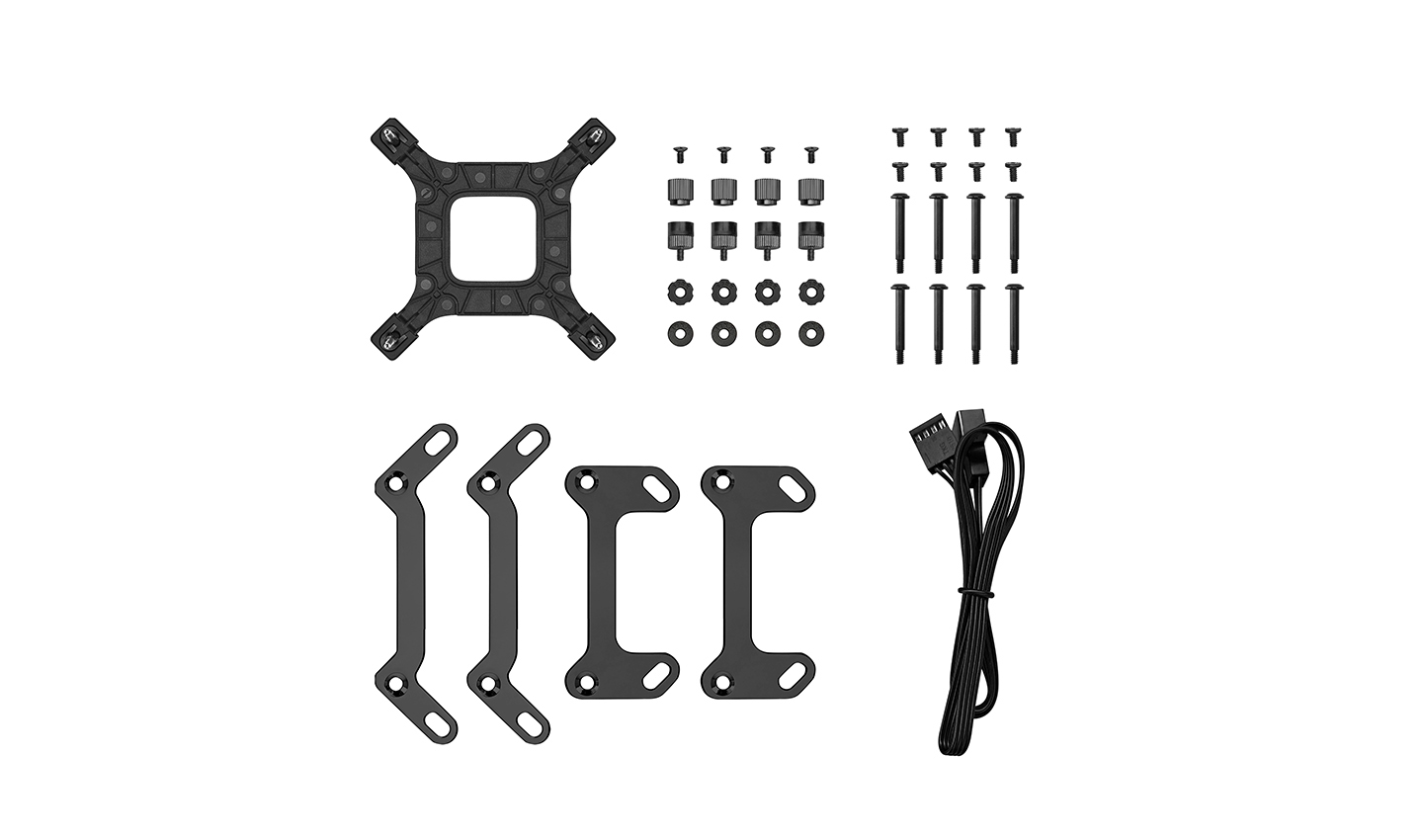

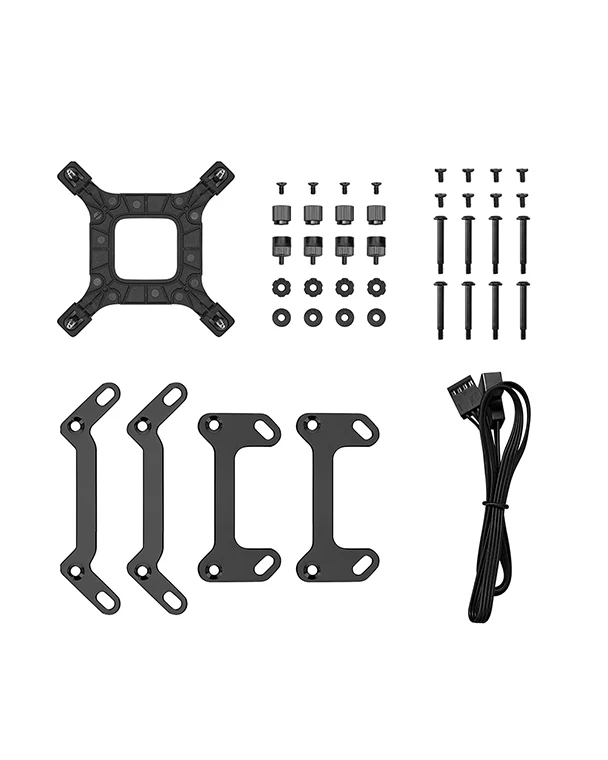

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LQ240 ULTRA to the latest mainstream CPUs is included in the box, so you are ready to go.

Intel LGA1851/1700/1200/1151/1150/1155
AMD AM5/AM4

Application For

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Net Weight	1530 g

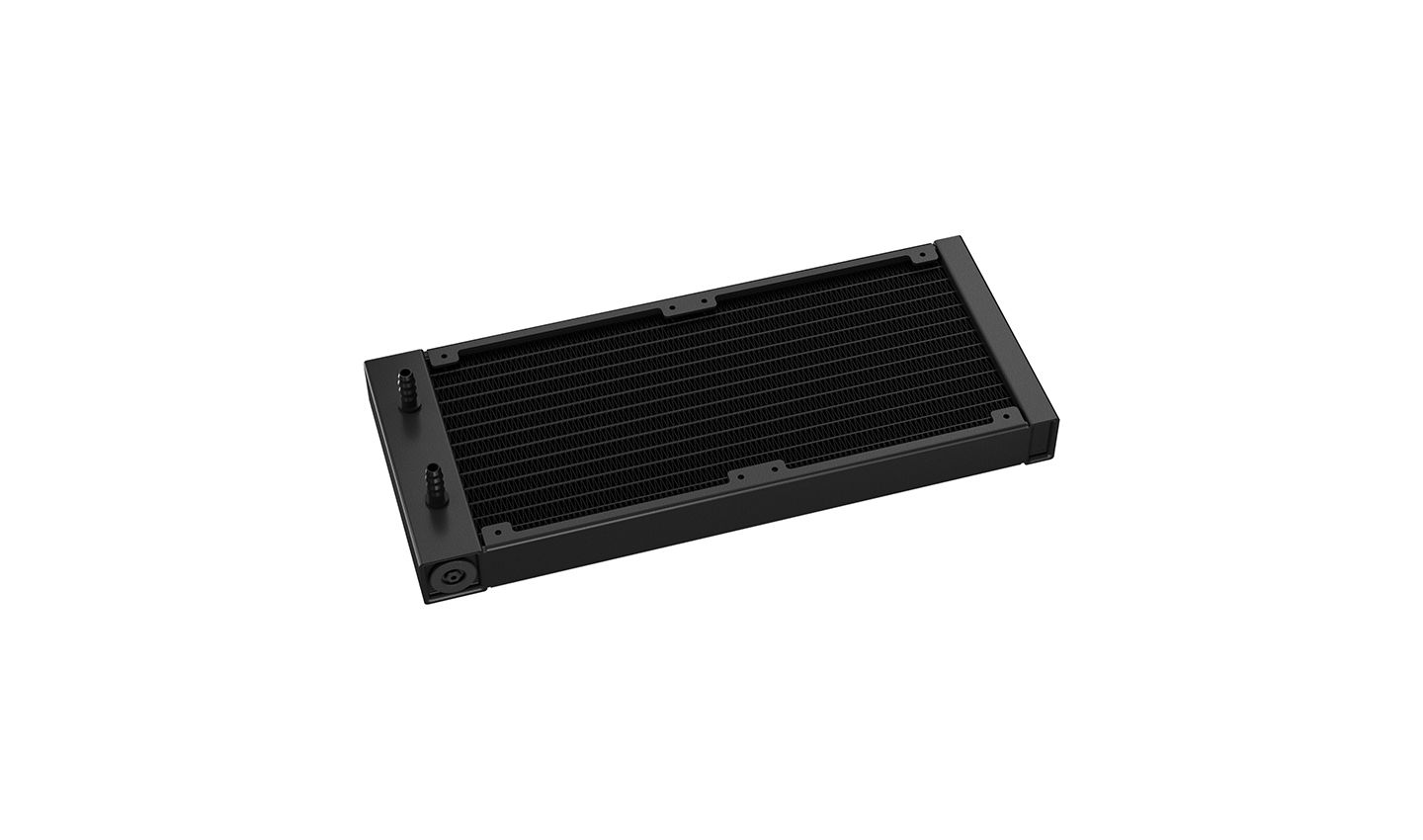

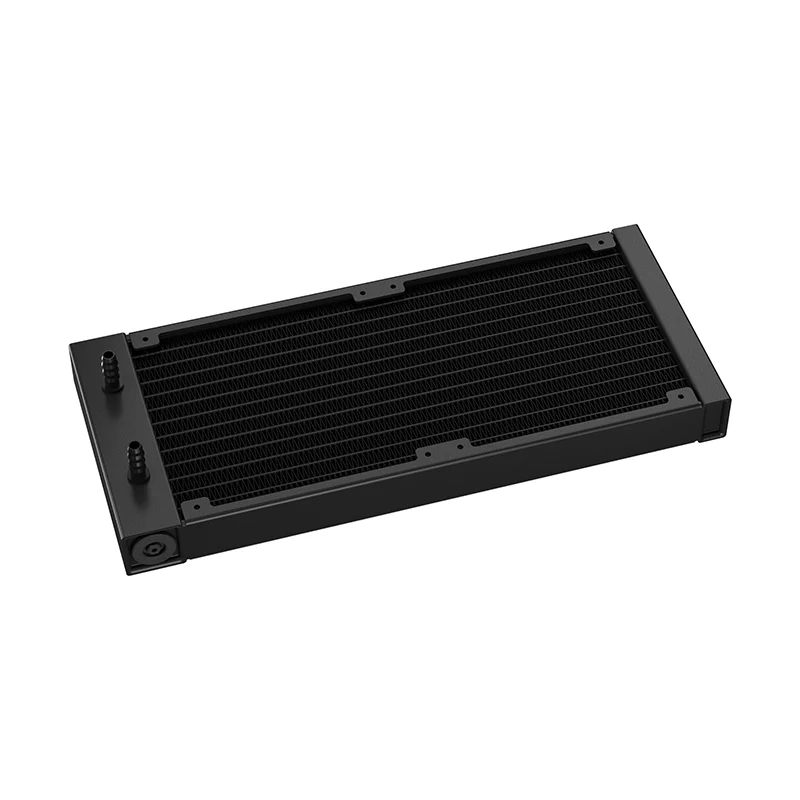

Radiator Dimensions	282×120×27 mm(L×W×H)

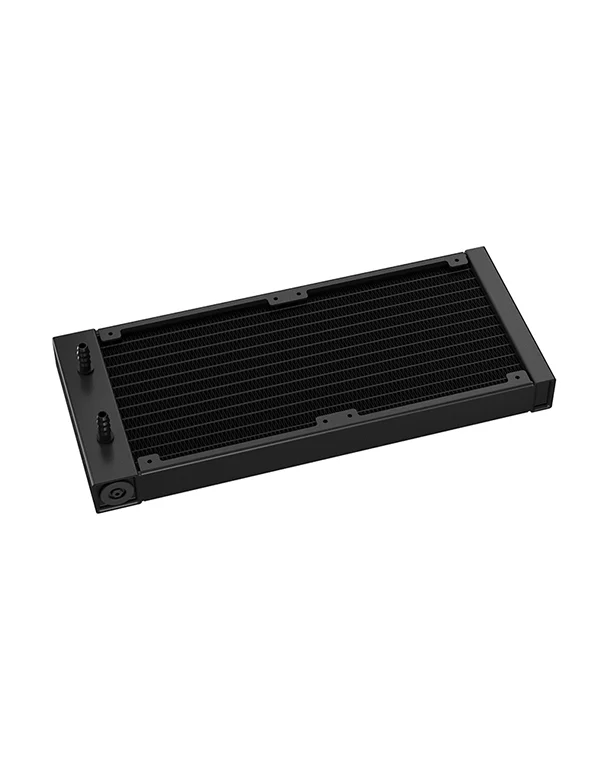

Radiator Material	Aluminum
Tube length	410 mm
Pump Dimensions	89×76×64 mm(L×W×H)
Pump Speed	2500～3400 RPM±10%
Pump Connector	4-pin PWM
Pump Rated Voltage	12 VDC
Pump Rated Current	0.29 A
Pump Power Consumption	3.48 W
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	500~2500 RPM±10% 0 rpm<5 % PWM
Fan Airflow	73.41 CFM
Fan Air Pressure	4.69 mmAq
Fan Noise	≤35.63 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Fluid Dynamic Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.3 A
Fan Power Consumption	3.6 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	2.4 W（PUMP）
Display Type	LED Digital Display
Display Module Rated Voltage	5 VDC
Display Module Rated Current	0.08 A±10%
Display Module Power Consumption	0.4 W
Display Area	53.9x49.15 mm
EAN	6933412729365
P/N	R-LQ240-BKLSMWP-G-U
