Low-Speed Adapter
The DeepCool Low-Speed Adapter is designed for 4-pin PWM fans and help reduce rotational speed and overall noise output for sound sensitive situations.
COLOR
black
MODEL

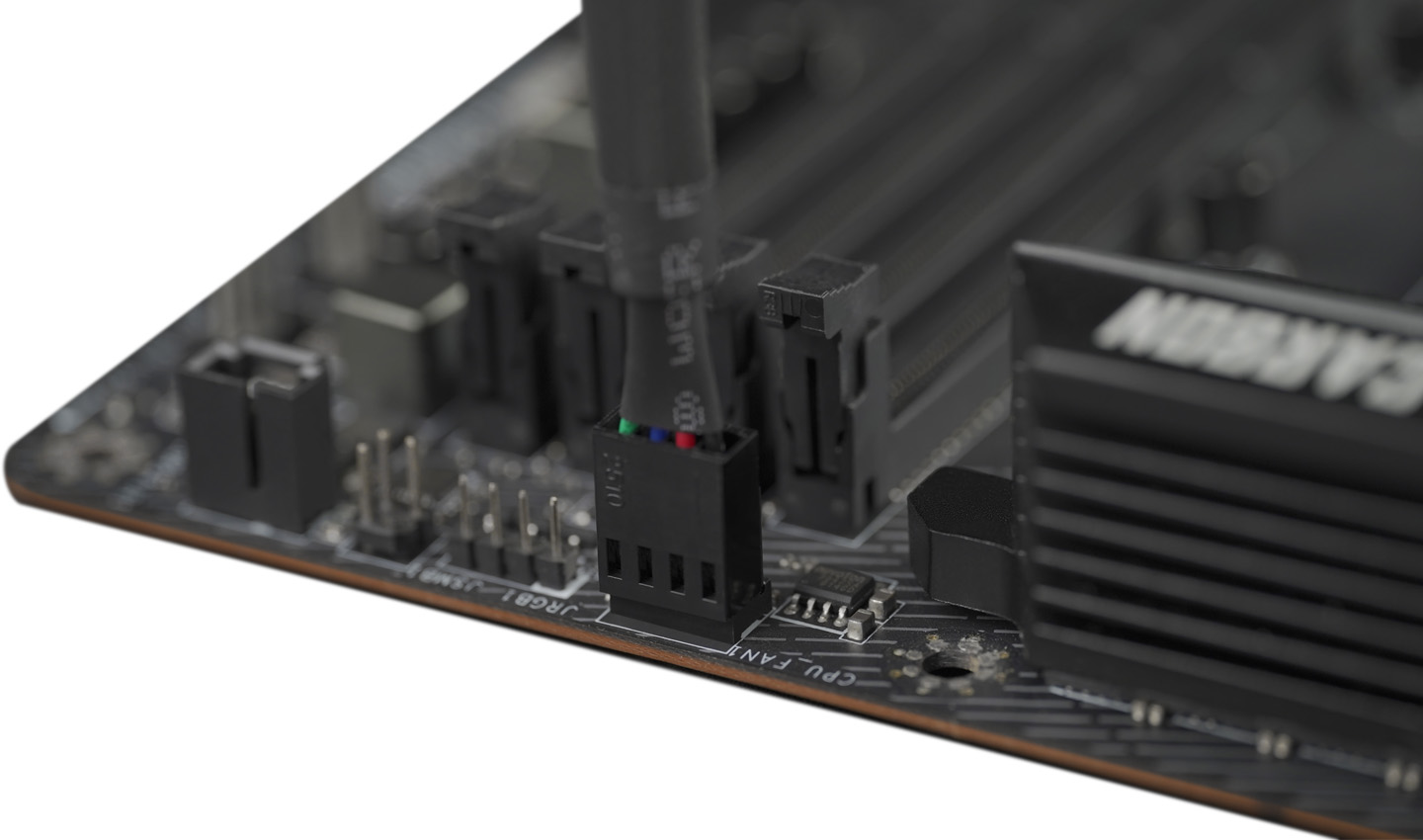

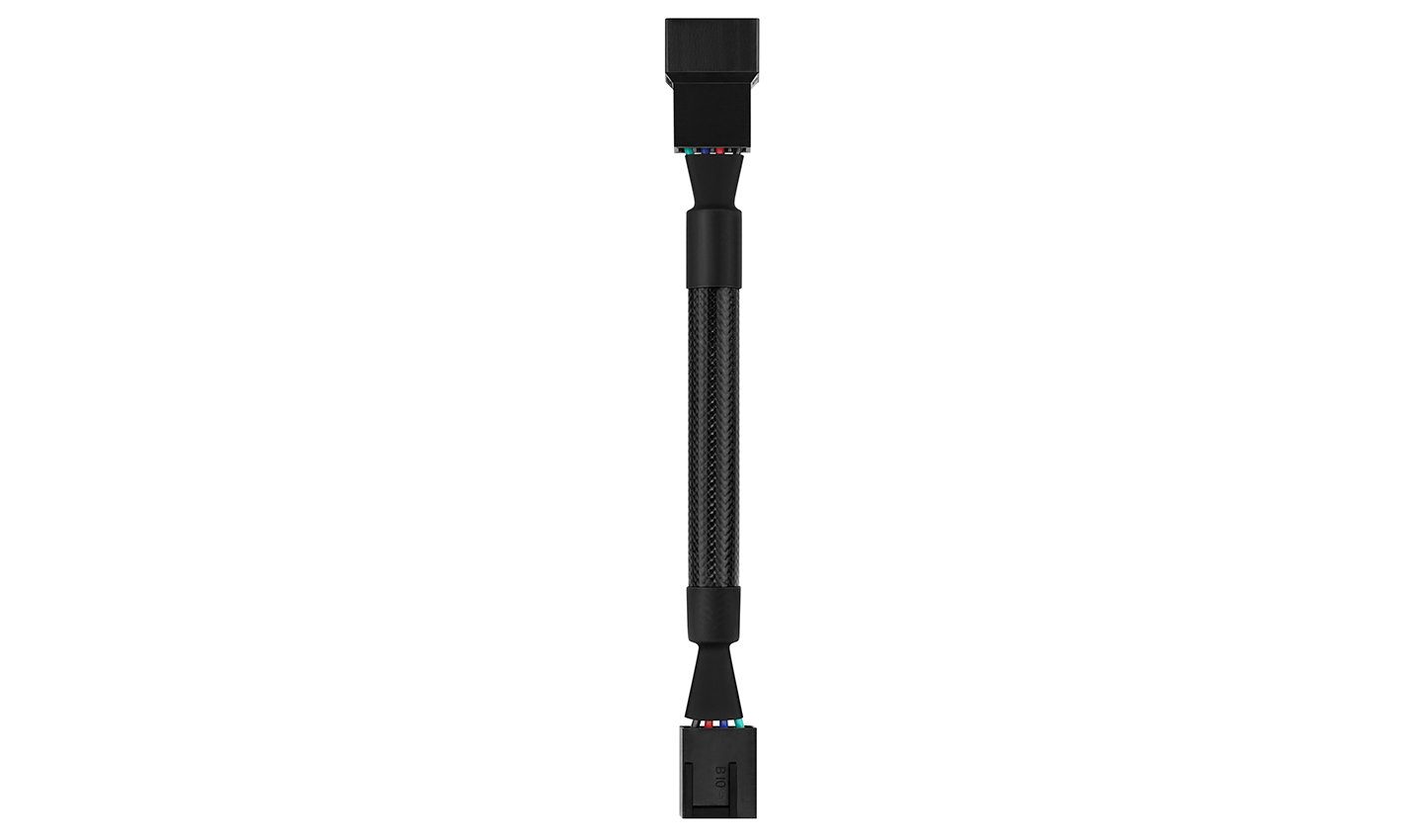

Minimize noise in your setup with DeepCool Low-Speed Adapter for 4-pin PWM fans. The adapter connects between your selected fan and an appropriate fan header to reduce voltage resulting in lower RPM and improved noise performance. Ability to adjust fan speeds through the PWM signals are enabled. The included adapter cable comes fully sleeved for a premium feel and better protection.
Data from DeepCool
ModelBefore adapting (MAX) RPM±10%After adapting (MAX) RPM±10%Noise level (before use)Noise level (after use)
AG4002000160035.128.2
AG6201850155033.326
AG5001850155033.326
AK400185015503326
AK6201850155032.726
LT Series2250160032.928.2
LE Series2250160032.928.2
Note: Never use a single low-noise adapter to connect multiple fans; one adapter can only work with one fan.
To avoid voiding product warranty, do not use on any third party fan unless it is an approved and supported fan by DeepCool. Low noise adapter should never be used on fans with power draw of more than 6W.
Technical Spec
Product Dimension114mm
Net Weight4.5g
Port Type4-pin PWM
Length of HUB Strip Cable82mm
Rated Voltage12 VDC
Rated Current0.5 A
Power Consumption6 W
EAN6933412710653
P/NR-LSP-FAN
Download
Low-Speed Adapter Manual.pdf
