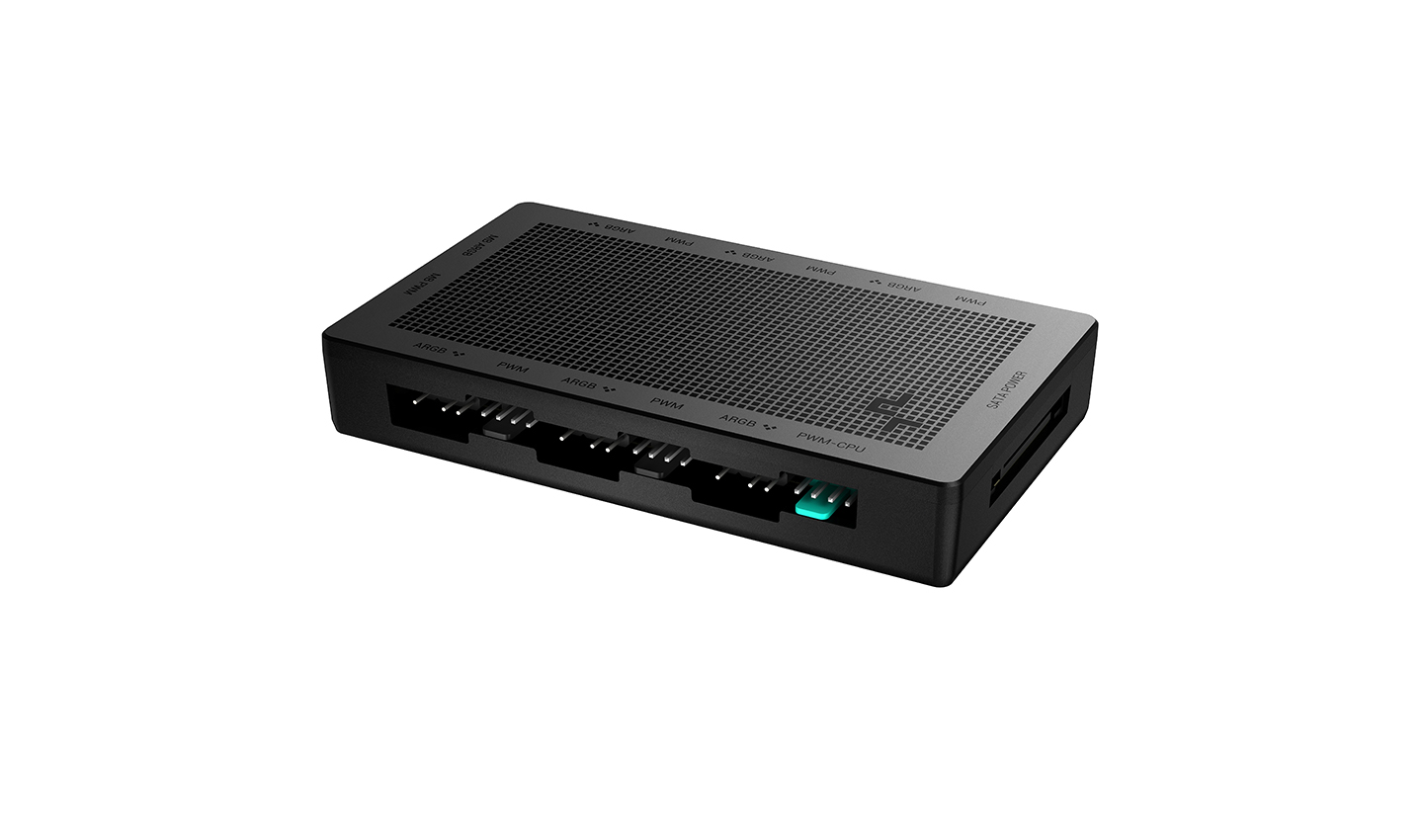

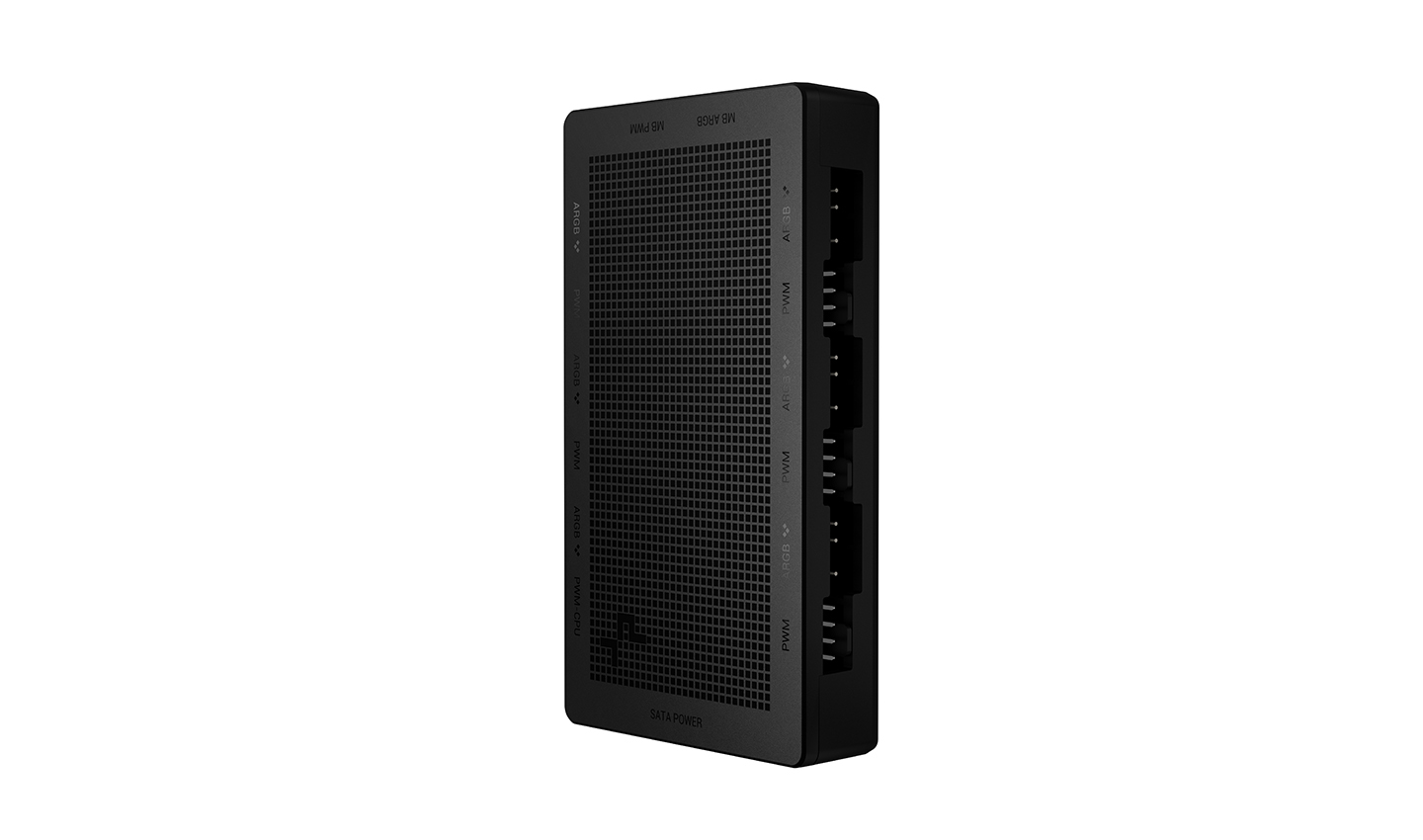

SC790
The DeepCool SC790 2-in-1 PWM & RGB hub provides fan and lighting control for up to 6 total PWM ARGB fans simultaneously while occupying minimal headers on a motherboard.
COLOR
black
MODEL
SC790
2-in-1 PWM & RGB Hub
The DeepCool SC790 2-in-1 PWM & RGB hub provides fan and lighting control for up to 6 total PWM ARGB fans simultaneously while occupying minimal headers on a motherboard.
PWM & ARGB Splitter Hub
The SC790 connects to a 3-pin 5V ARGB header and 4-pin PWM header on a motherboard and extends their signal to connect up to 6 PWM ARGB fans for total synchronization. The included SATA interface ensures stable continuous power for all connected devices.
The compact and sturdy case is also magnetic, allowing it to be conveniently tucked away behind the motherboard tray or positioned anywhere else.
Supports ASUS Aura, GIGABYTE Fusion, MSI Mystic Light, and ASRock Polychrome.
*This product is NOT compatible with 12V 4-Pin RGB devices.
Technical Spec
Product Dimension102×60×17 mm
Net Weight69g
Port TypeARGB-3Pin & PWM-4 Pin
Fan Ports6 Ports x 4Pin PWM
Length of Fan Connector cable24AWG 500 mm
Fan Rated Voltage12V DC
Fan Rated Current2.0A(1Port) / Total 4.5A(6Ports)
RGB Ports6 Ports x 3Pin Addressable RGB
Length of ARGB Connector cable24 AWG 538mm (Asus Asrock MSI) +50mm (Gigabyte)
RGB Rated Voltage5V DC
RGB Safety Current2.0A(1Port) / Total 4.5A(6Ports)
Power ConnectorSATA Power
Power Safety Current4.5A Max
Mounting MethodMagnetic
Product ColorBlack
EAN6933412796480
P/NR-SC790-BKNSNN-G
