UH-04 - DeepCool

UH-04

Expand The Possibilities

THE ACCESSORY YOU DIDN'T KNOW YOU NEEDED

The UH-04 is DeepCool's solution to the increasing number of devices that require a USB 2.0 header to function while motherboard onboard support dwindles.

EXPAND WHAT YOU HAVE

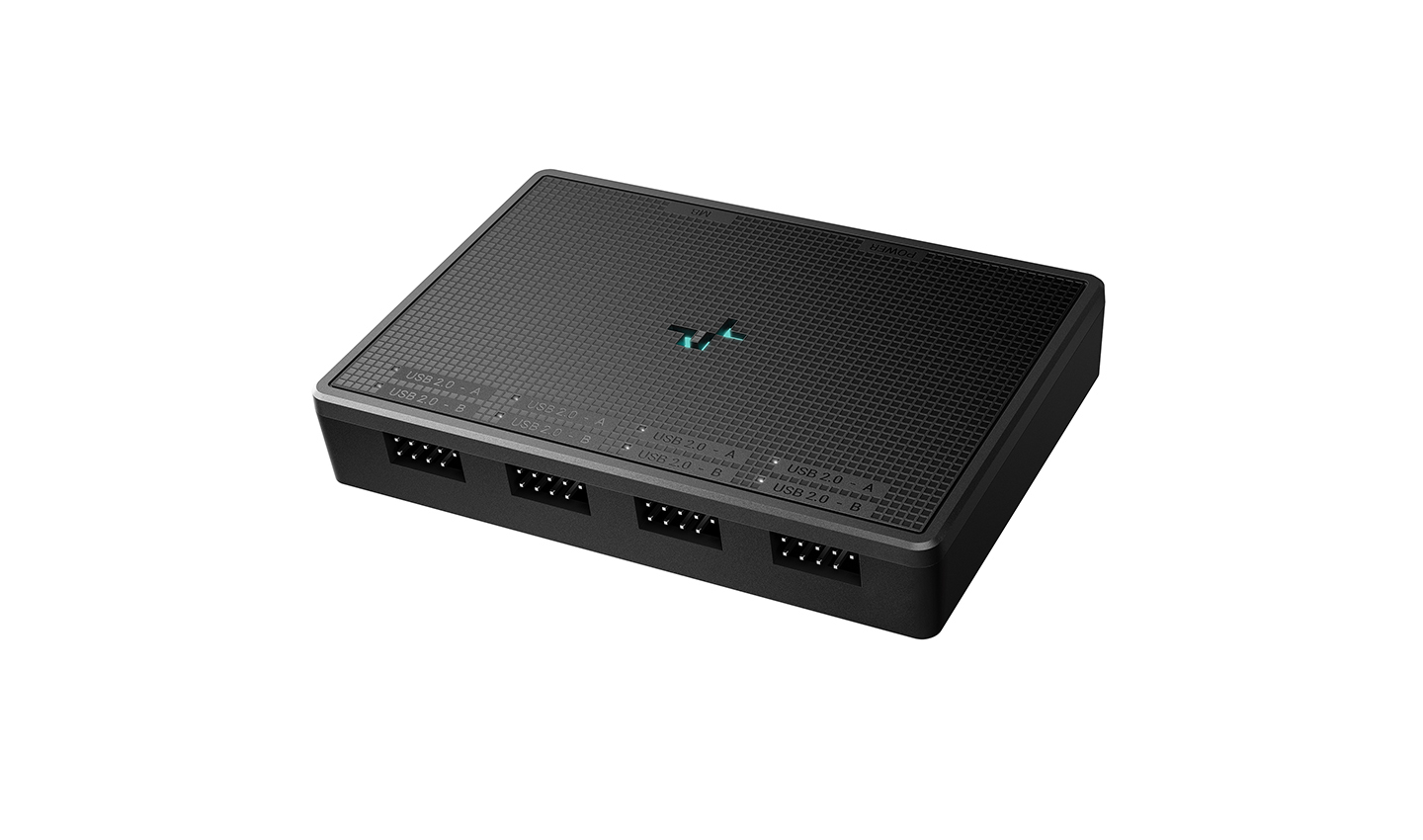

Turns a single USB 2.0 9-pin header into four fully functional headers. Expand your build to include a combination of our digital coolers and digital cases, and still have the ability to add in other accessories!

KEEPING IT CLEAN

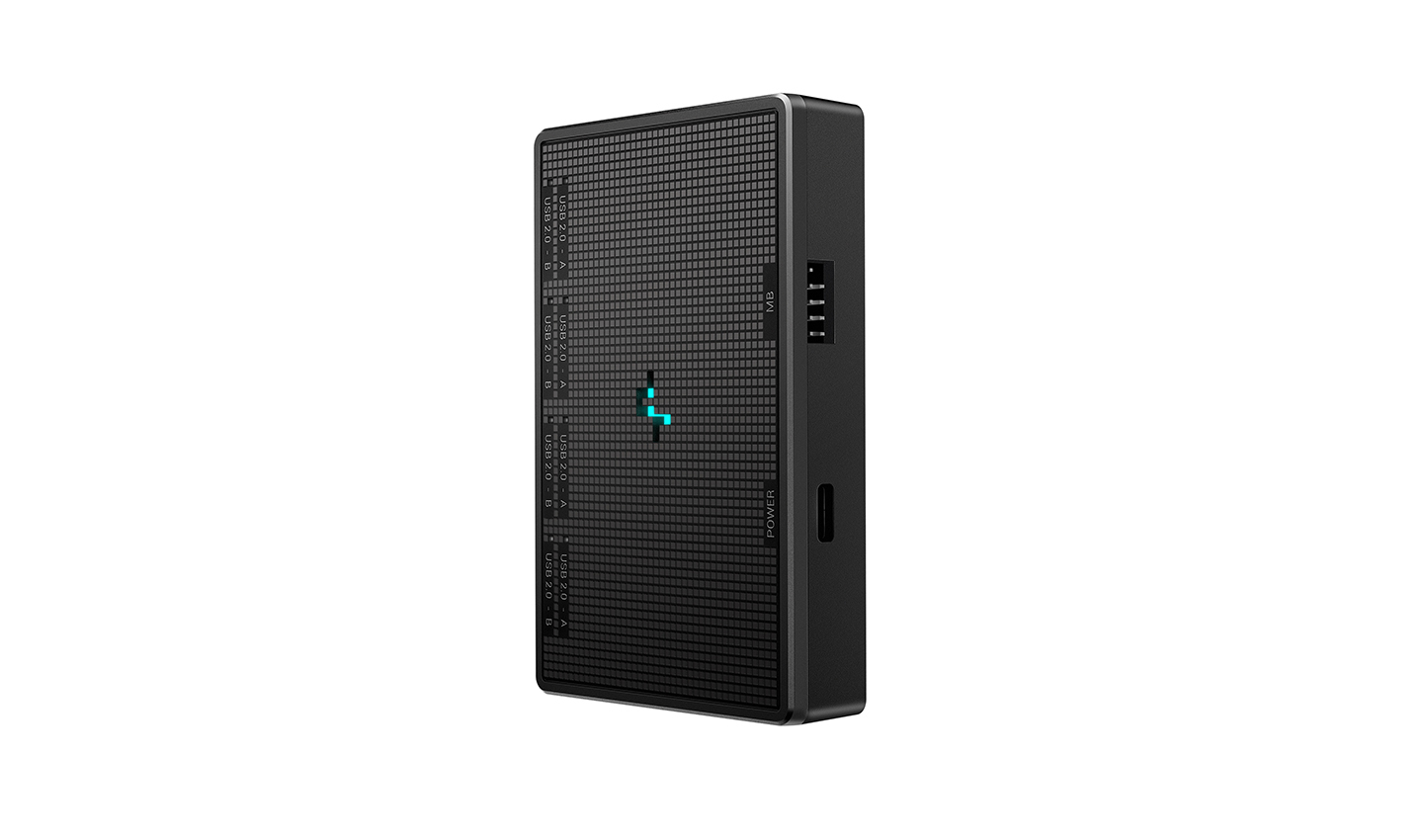

Easily manage the power to the UH-04 with the SATA to 90° USB Type-C power cable.

Type-C

SATA

9Pin Port

UNIVERSAL MOUNTING

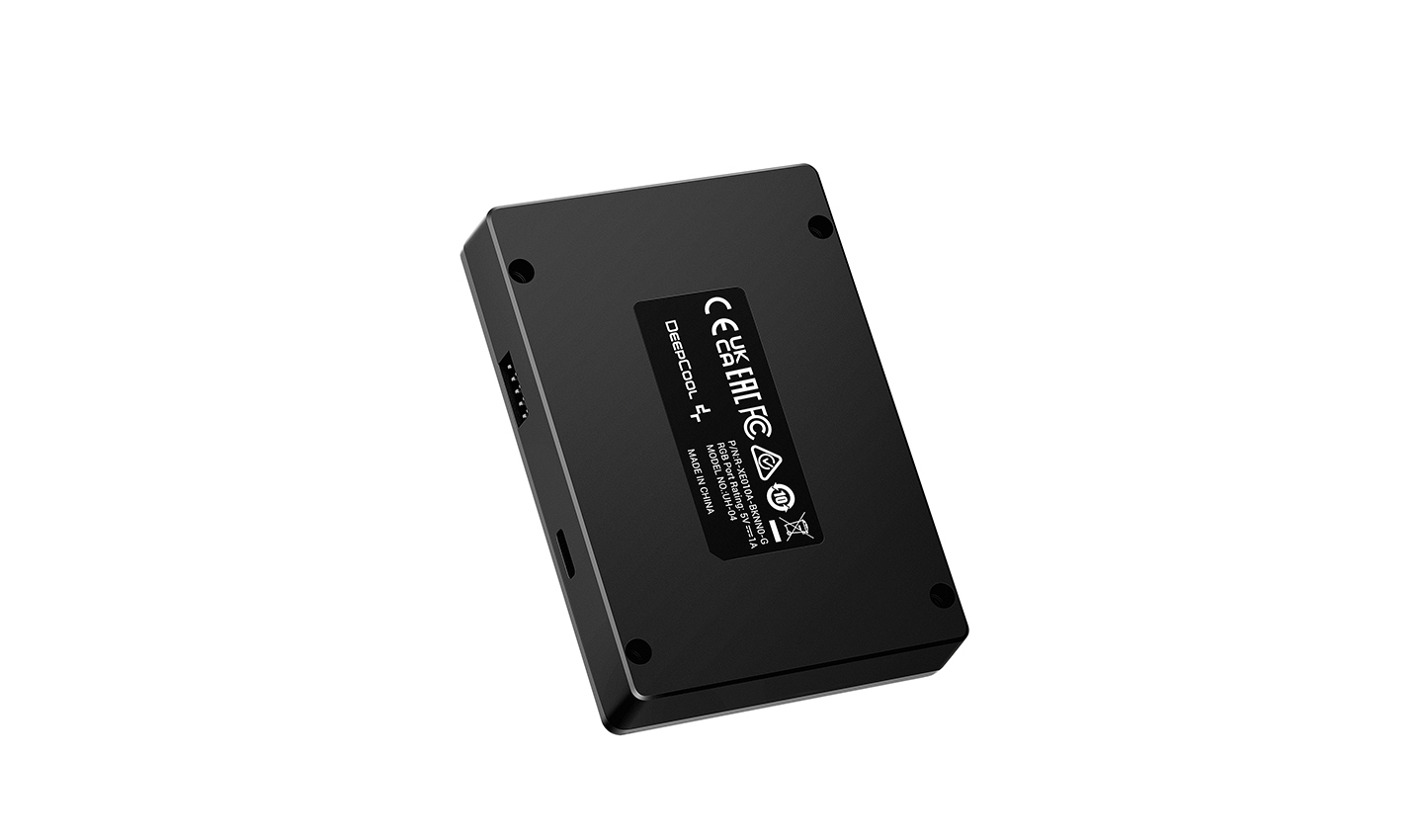

The installation of the UH-04 couldn't be any easier with the multiple methods of attachment. The UH-04 is magnetized, so you can stick it anywhere there is an opening, or you can mount the hub into an area designated for a 2.5" SSD drive with included M3 screws.

Technical Spec

Product Dimension	101 x 70 x 18 mm(L×W×H)
Type of Data Port	USB2.0-9PIN×1
Type of Power Port	USB Type-C×1
Extension Port	USB2.0-9PIN×4
Mounting Method	Magnet & Screw Fixation
EAN	6933412796824
P/N	R-XE010A-BKNN0-G

Download

UH-04 Manual.pdf
