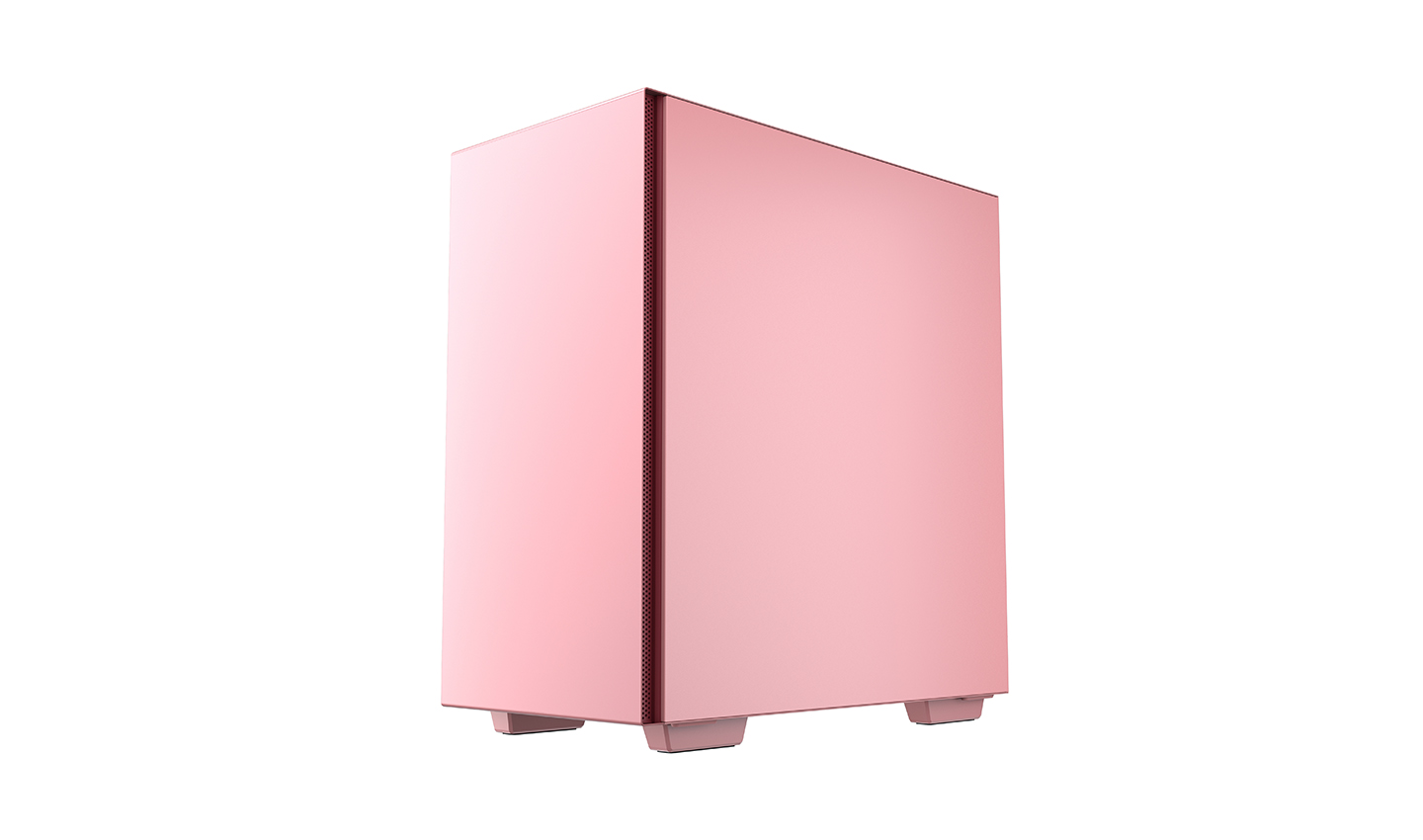

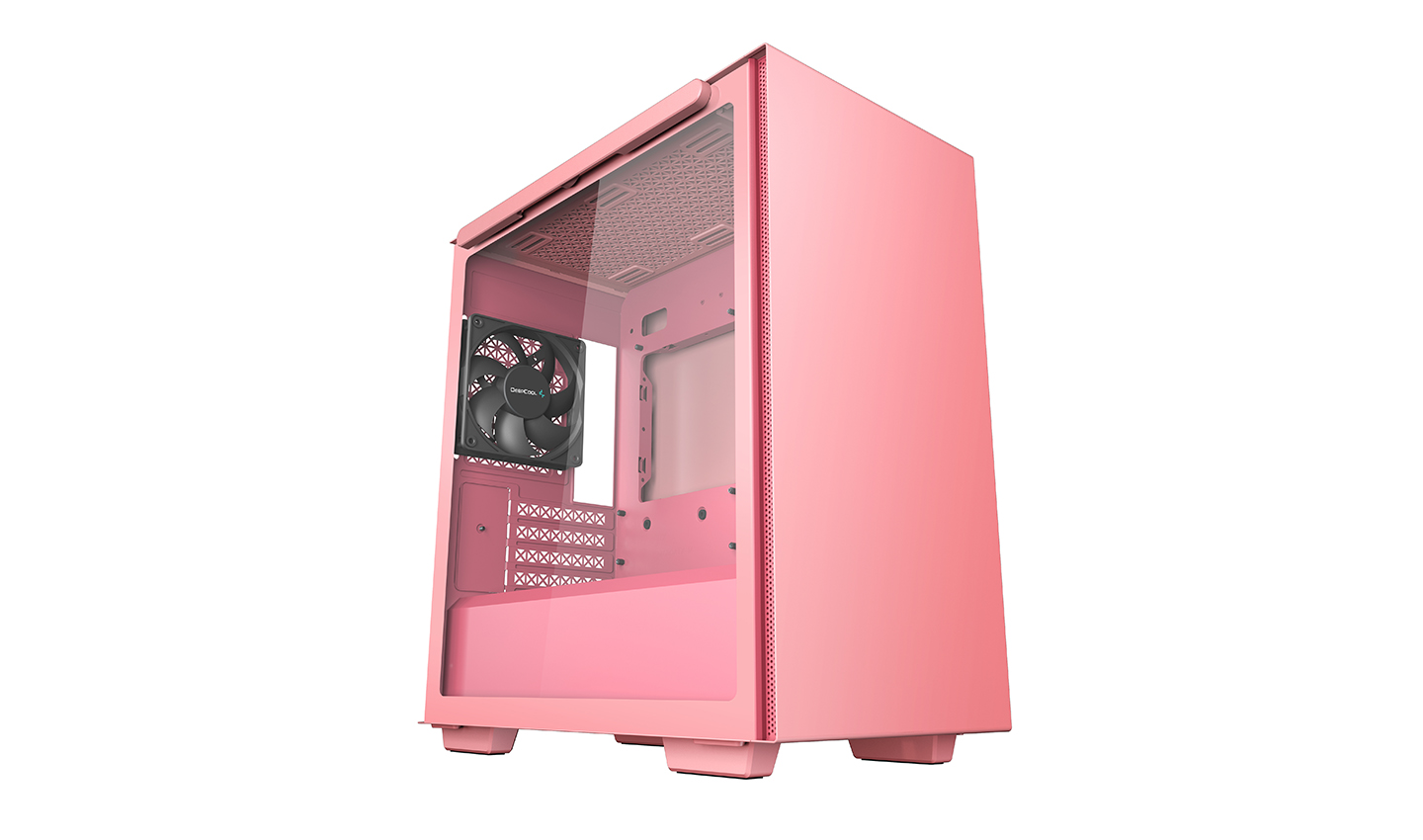

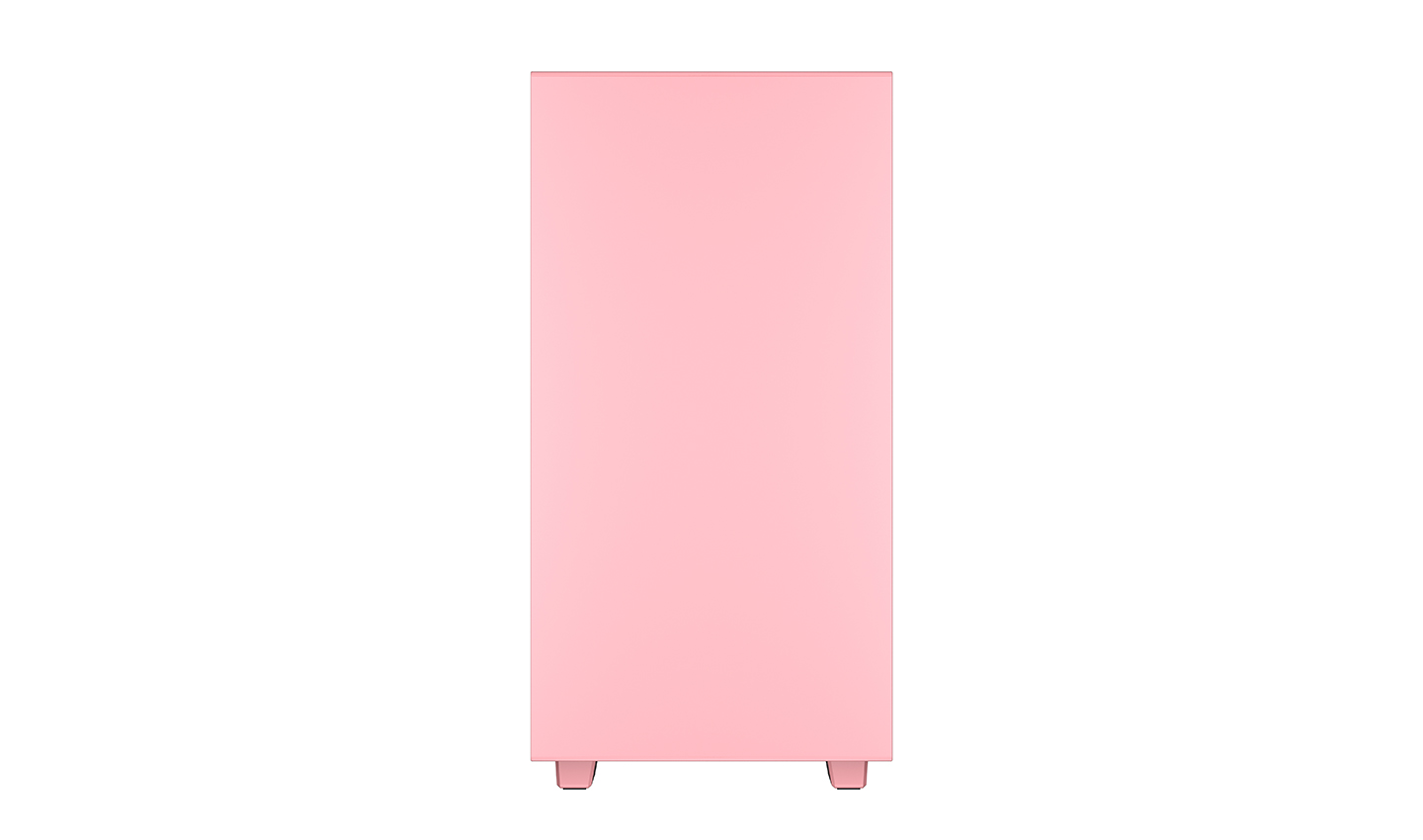

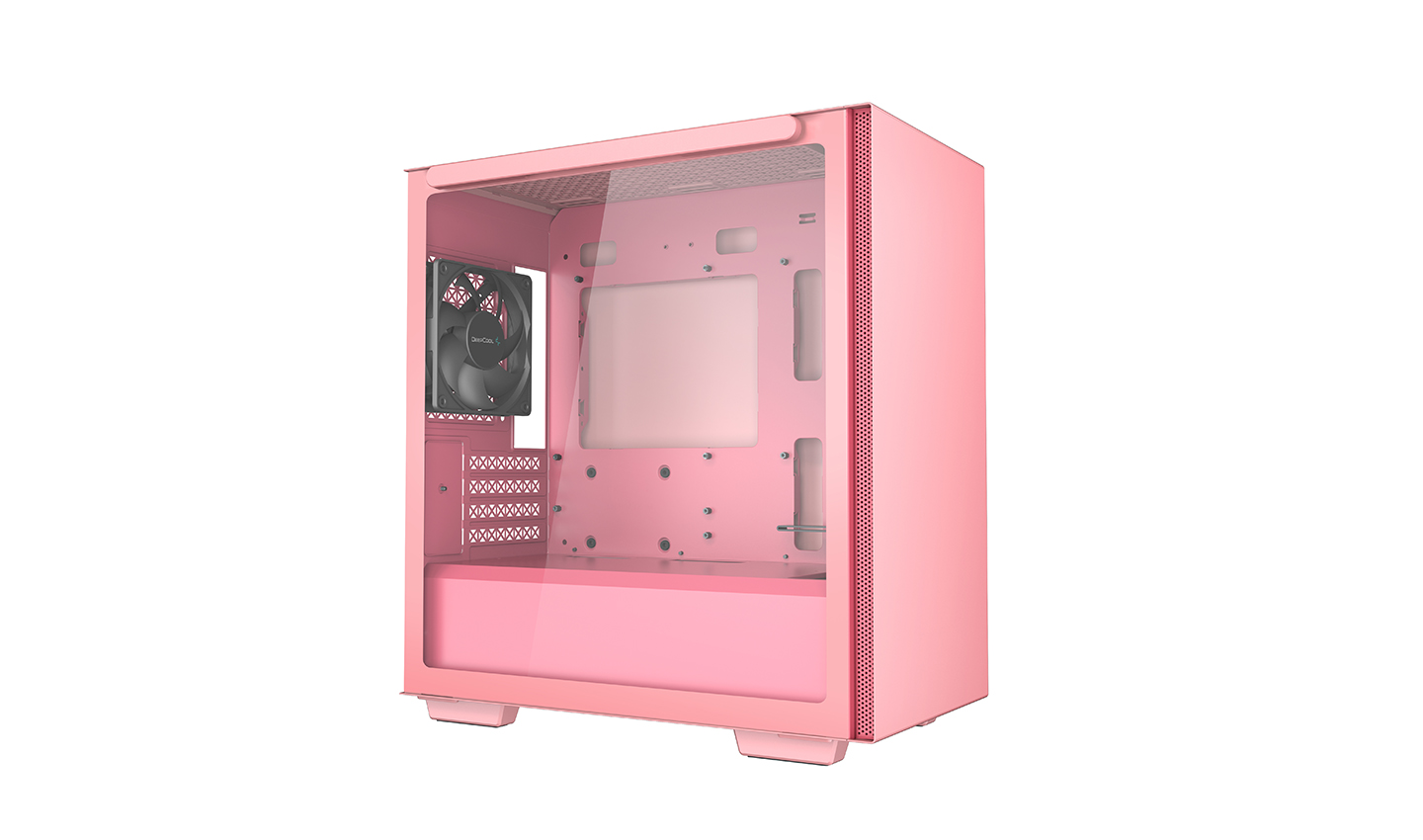

MACUBE 110 PKRD

Clean and compact

Refined minimalism

Keeping the best details of the MACUBE line and condensed for a smaller form factor makes for a nice and tidy build.

Maximum cooling, tiny footprint

Install up to six 120mm or four 140mm cooling fans, and support radiators up to 280mm on top and in front for high performance cooling.

Skip the liquid with a massive 165mm clearance that fits top-of-the-line air coolers such as our ASSASSIN III.

CPU Cooler Clearance
Fan Support
Radiator Support
Motherboard/GPU
CPU Cooler Clearance
Fan Support

Maximum cooling,
tiny footprint

Install up to six 120mm or four 140mm cooling fans, and support radiators up to 280mm on top and in front for high performance cooling.

Skip the liquid with a massive 165mm clearance that fits top-of-the-line air coolers such as our ASSASSIN III.

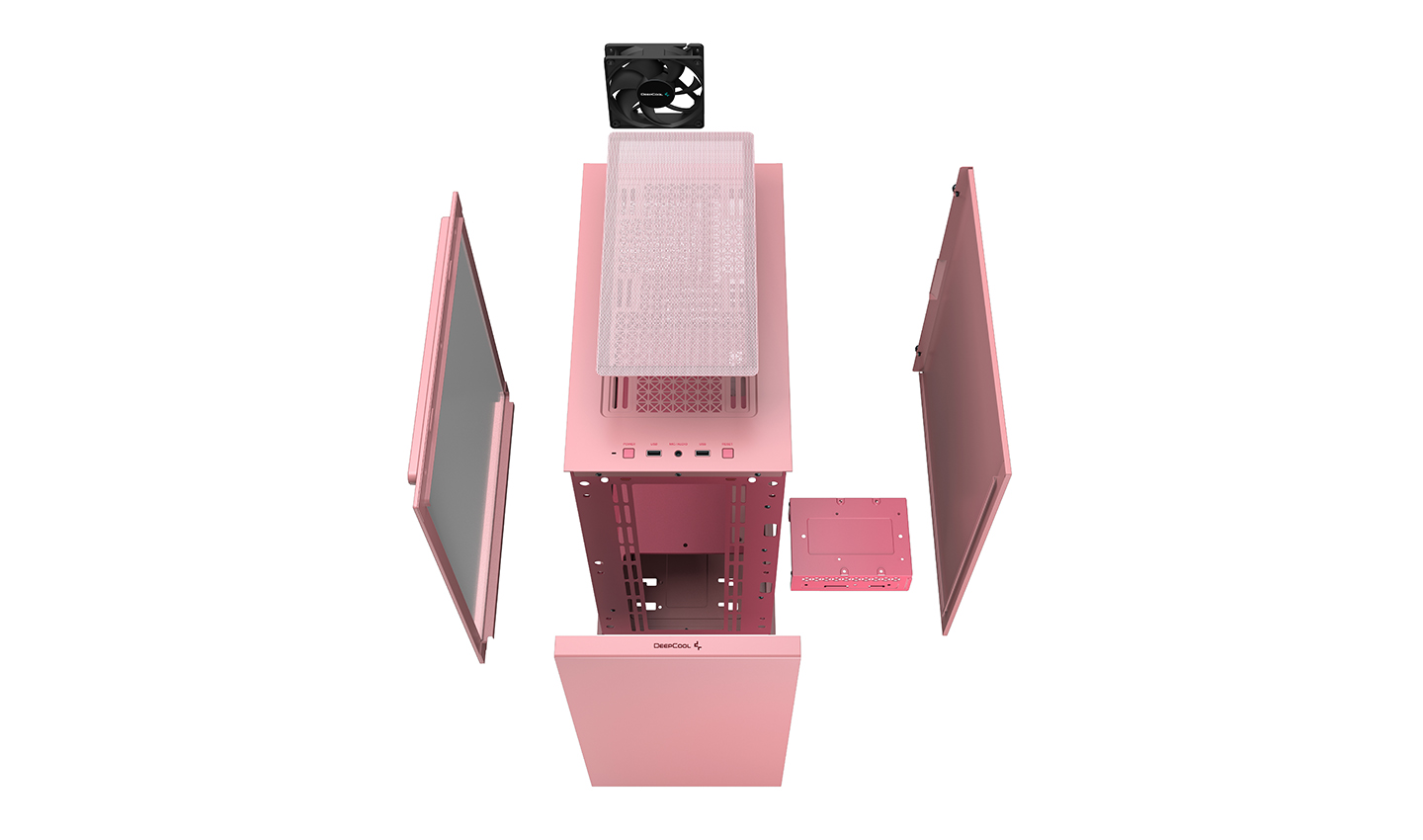

Removable drive cage

Get additional clearance to support a longer PSU or a larger radiator by moving the HDD cage.

Removable
drive
cage

Get additional clearance to support a longer PSU or a larger radiator by moving the HDD cage.

Clearly sensible

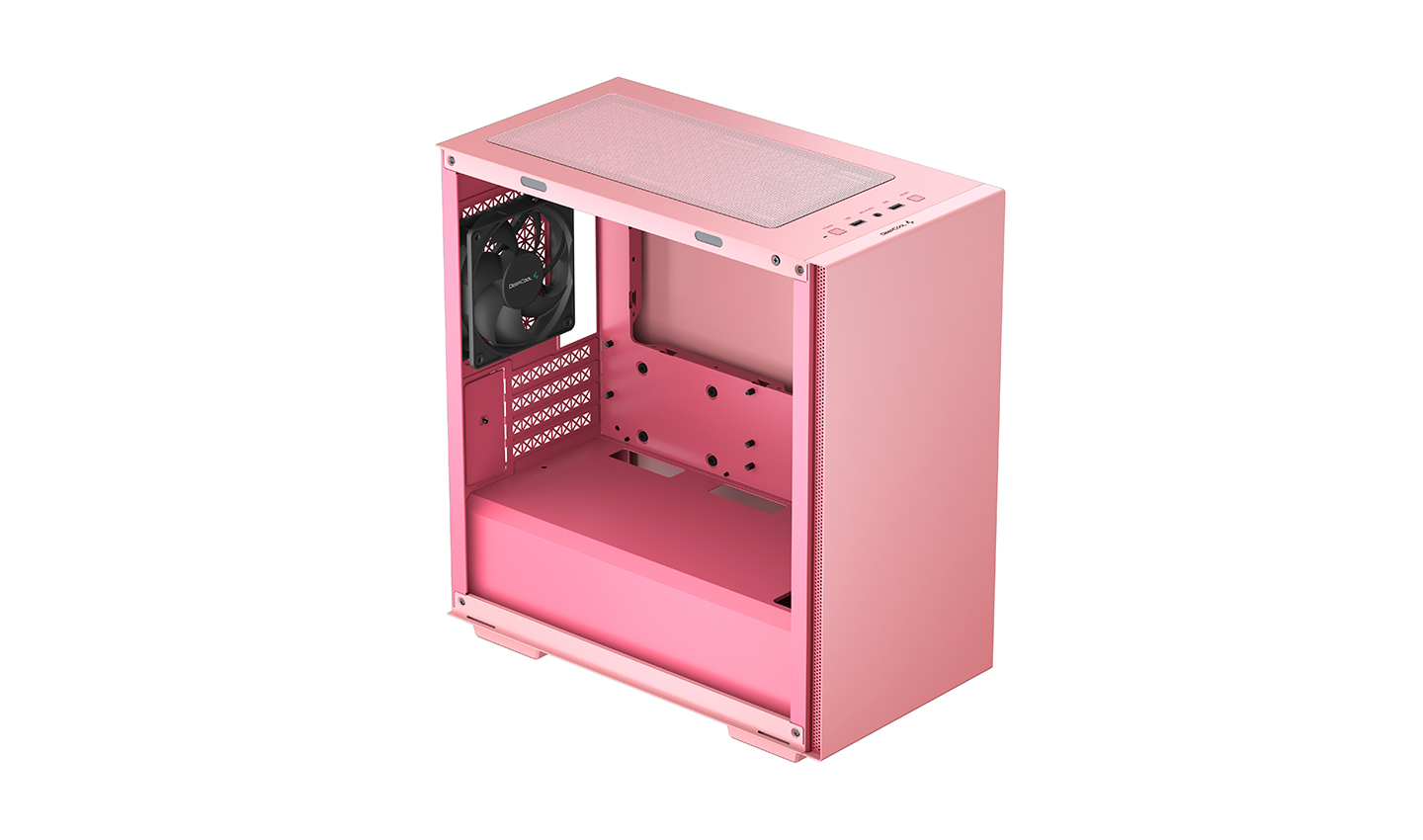

Featuring our popular magnetic tempered glass side panel, an adjustable GPU holder and a push-pin SSD holder for tool-less accessibility makes this case a clear choice for convenience.

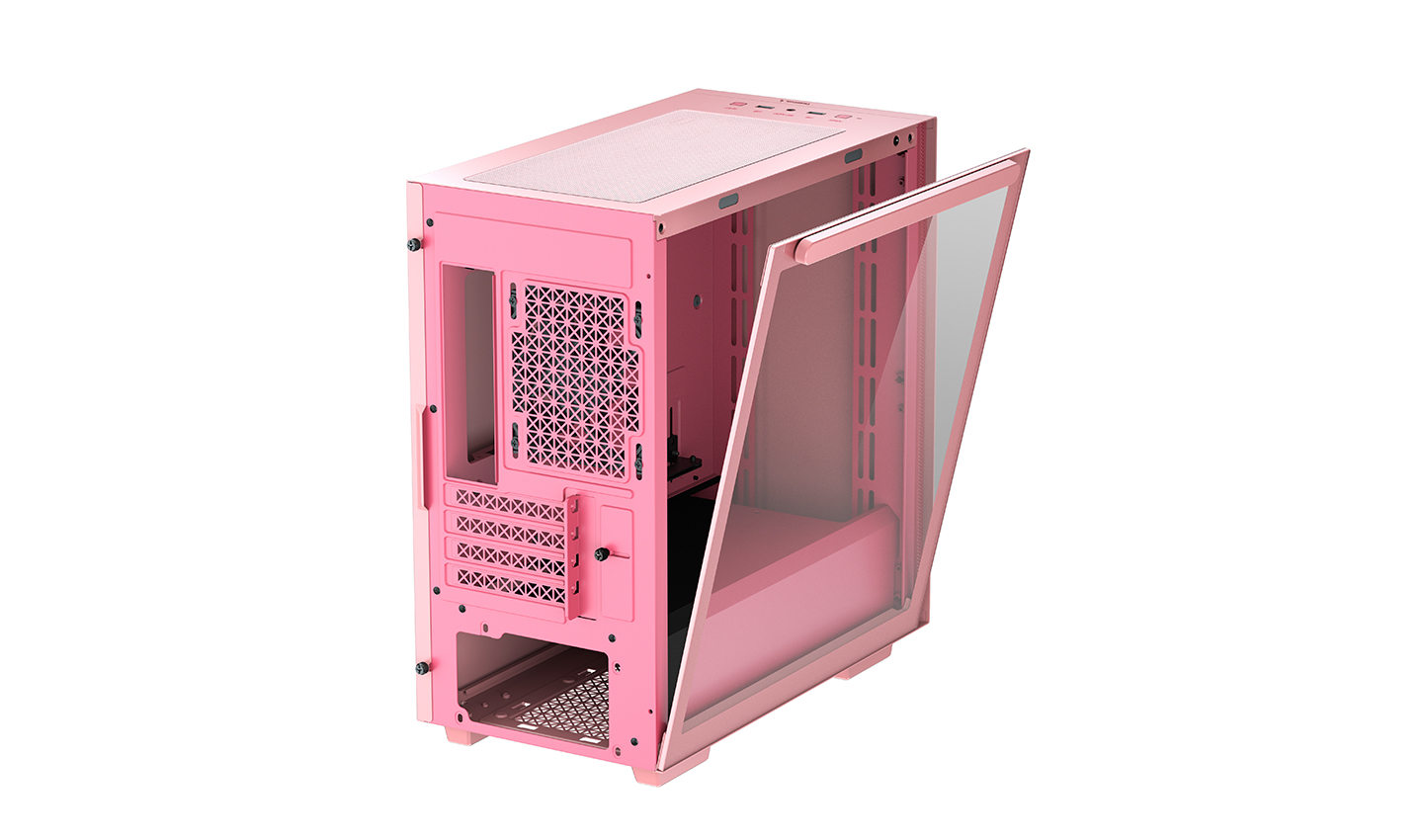

Magnetic side panel

Adjustable GPU holder

Push-pin SSD holder

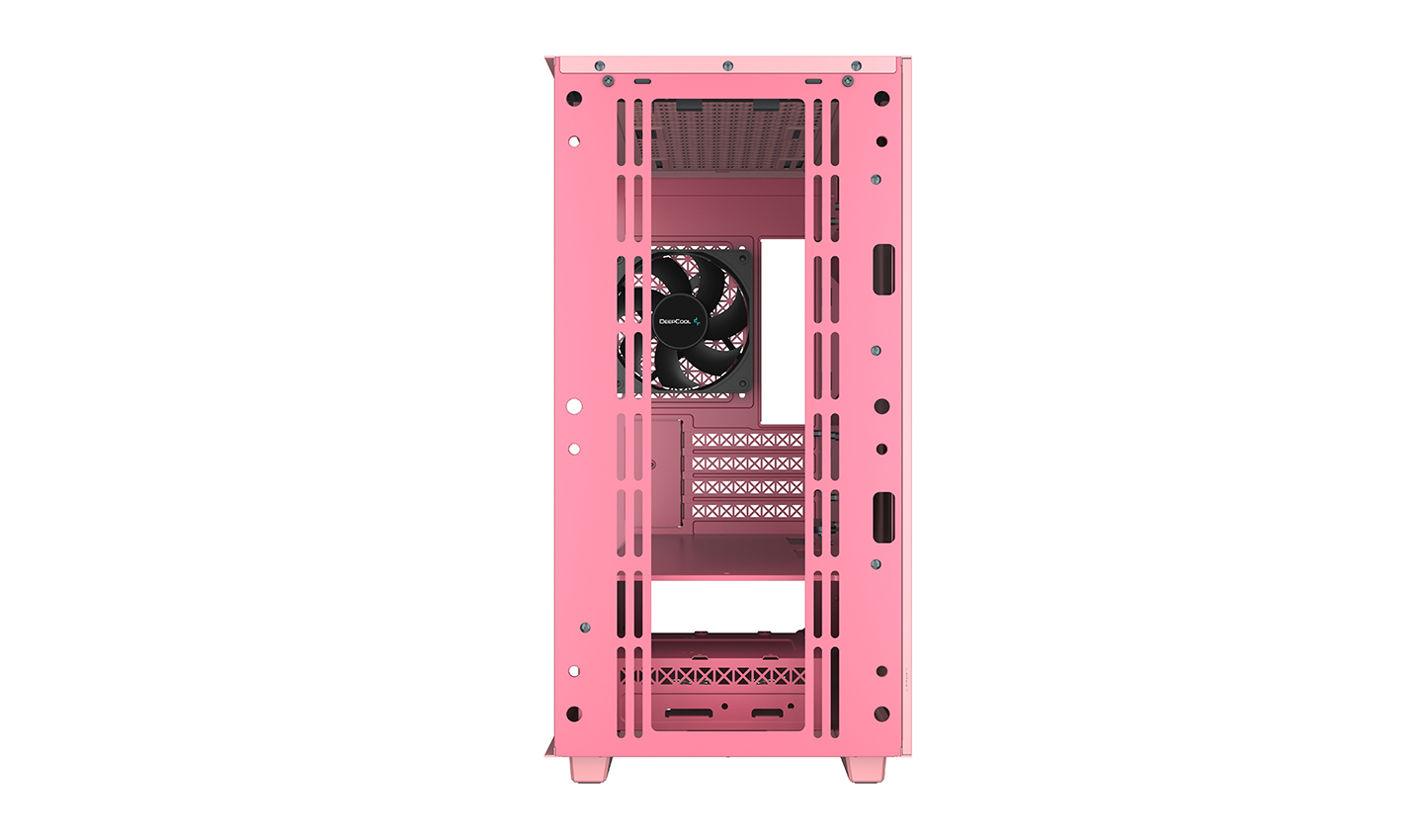

Ventilated
throughout

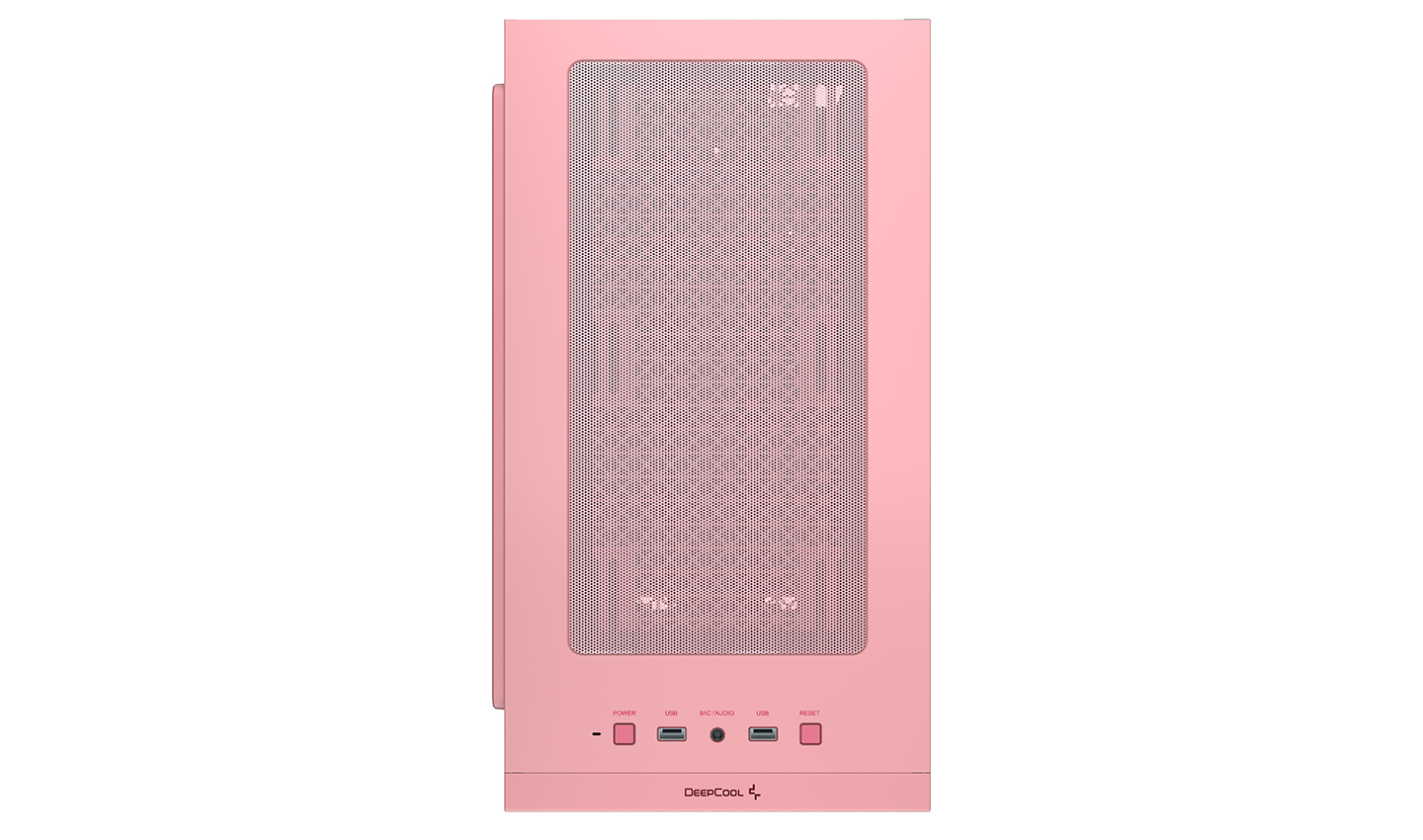

Direct airflow to reach all your components with ventilation channels in front, top and through the PSU shroud.

Technical Spec

Product Dimensions	400mm×225mm×431mm(L×W×H)
Carton Dimensions	470mm×288mm×470mm(L×W×H)
Net Weight	6.2KG
Gross weight	7.3KG
Colors	Pink
Materials	ABS+SPCC+Tempered Glass
3.5" Drive Bays	2
2.5" Drive Bays	2
External 3.5'' Drive Bays	0
5.25" Drive Bays	0
Power Supply Type	ATX PS2 （maximum length: 160mm）

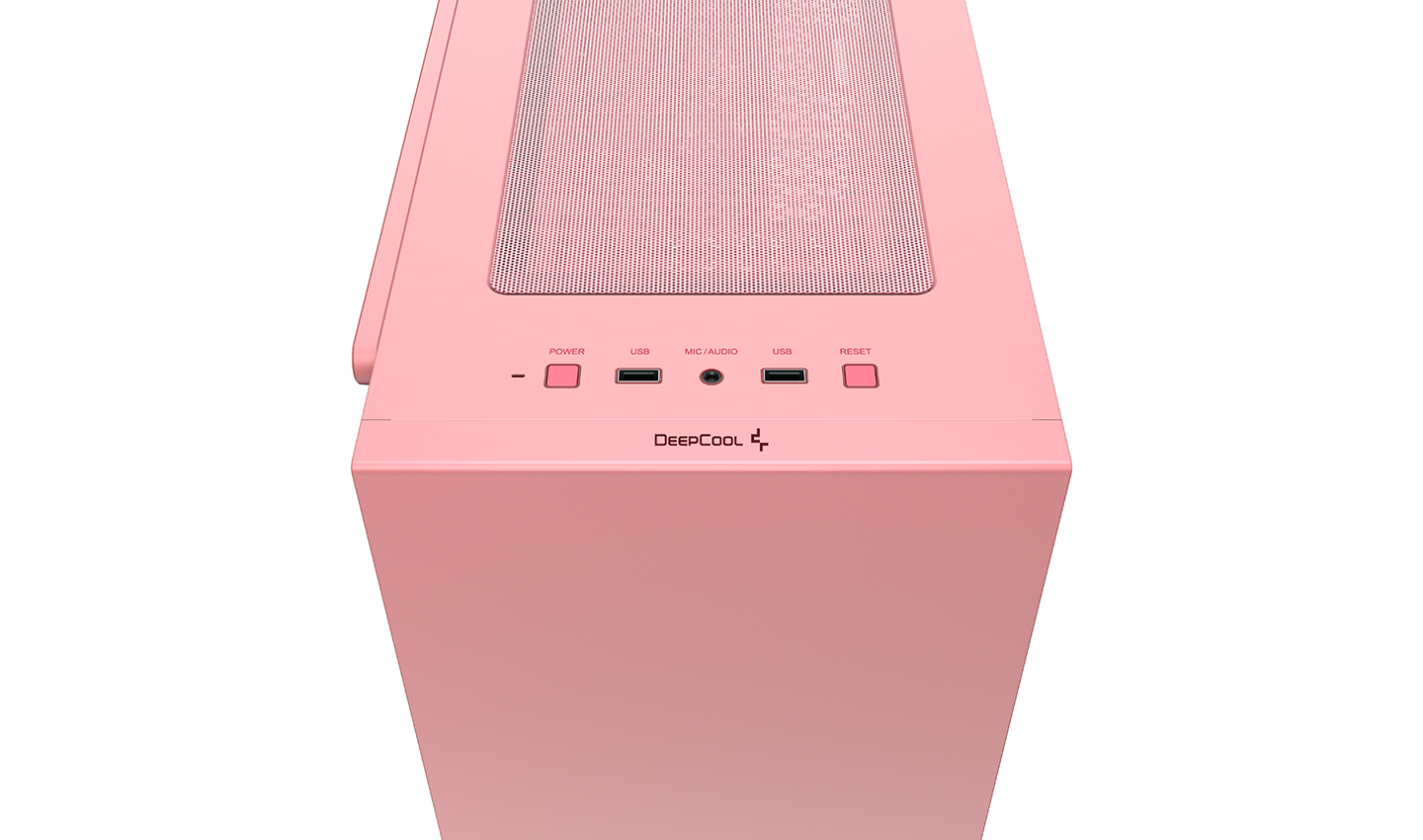

I/O Ports	USB3.0×2、Audio×1
Expansion Slots	4 Slots
Cooling Fans Compatibility	Pre-installed: Rear: 1×120mm DC fan; Optional: Front: 120mm×3/140mm×2， Top: 120mm×2/140mm×2
Liquid Cooler Compatibility	Front: 120/140/240/280; TOP: 120/140/240/280 Rear: 120；
CPU Cooler Height Limit	165mm
VGA Length Limit	320mm
Cable Management	20mm clearance
EAN Code	6933412714620
PN Code	R-MACUBE110-PRNGM1N-A-1

Product Dimension

Download

MACUBE 110 PKRD Manual.pdf
