SMARTER LED

Small Matters Too

Description

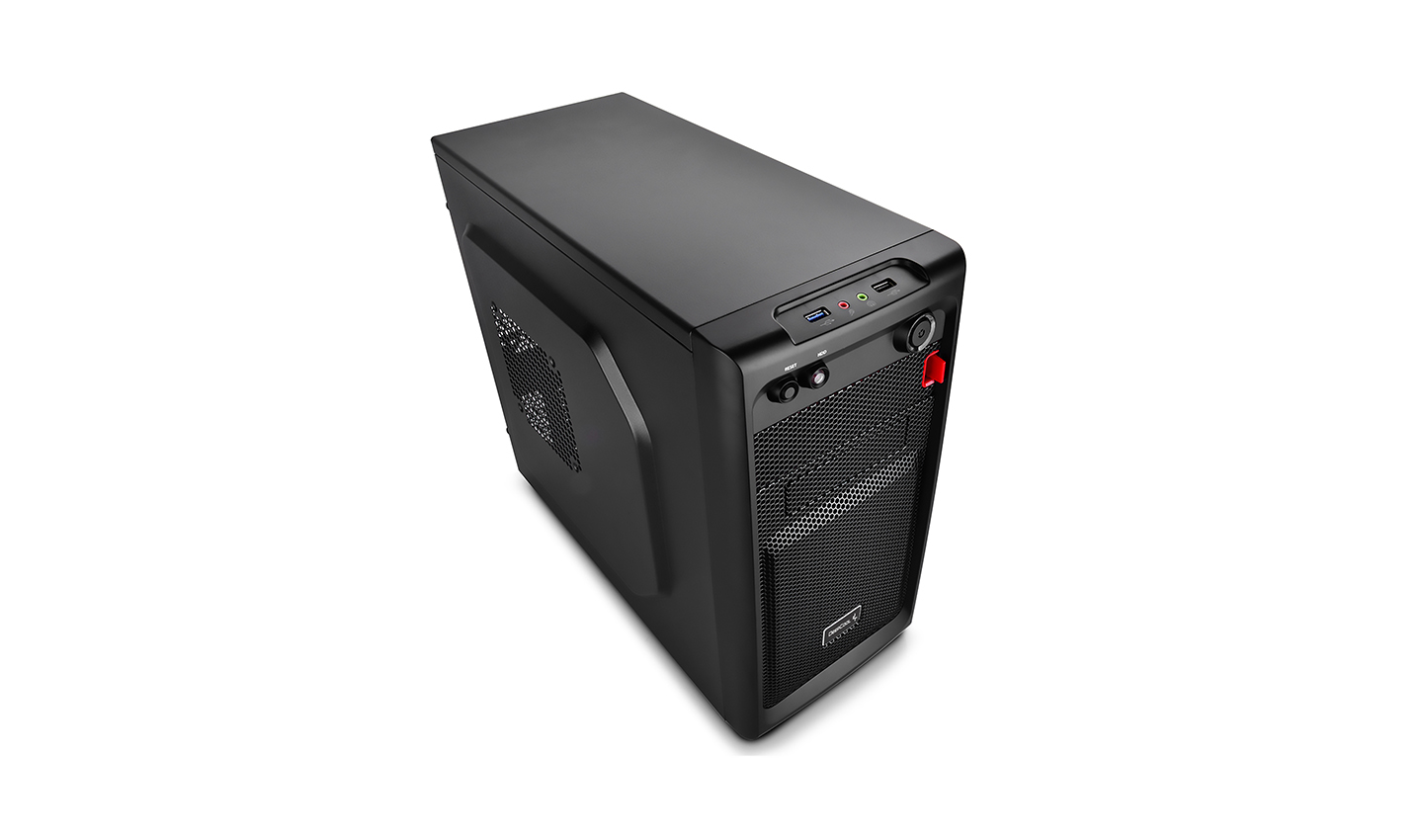

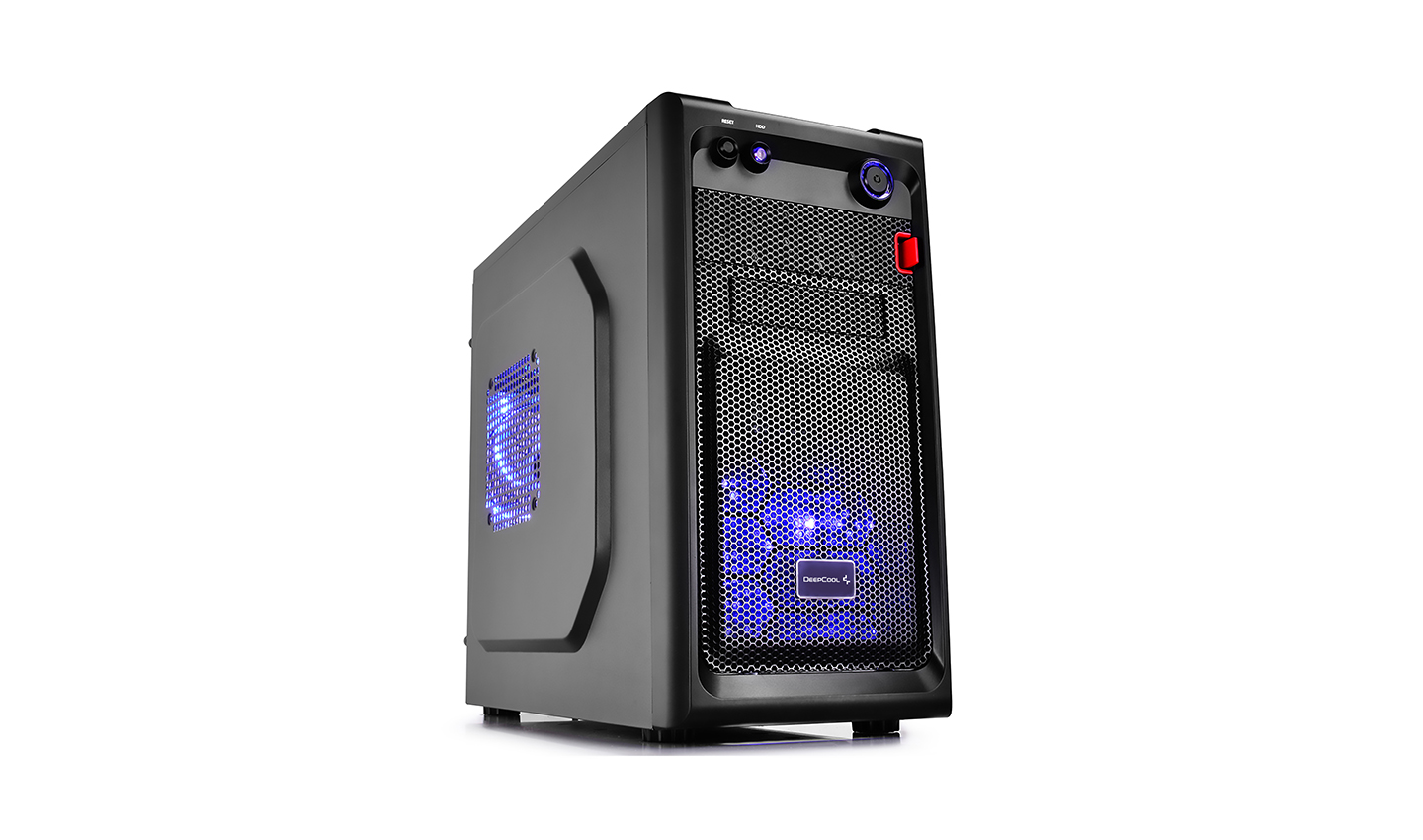

The SMARTER series a Micro ATX/ Mini ITX computer case designed to maximize compatibility. Small size (420 x 201 x 365 mm) makes SMARTER the ideal choice for gamers or DIY enthusiasts who are looking for computer cases that actually fits in their limited space. SMARTER is the ultimate easy-to-build computer case.

Space Saving Design

Classical Small Case Management

Specialized Micro ATX/ Mini-ATX Design.

Case dimensions of 420 x 201 x 365 mm.

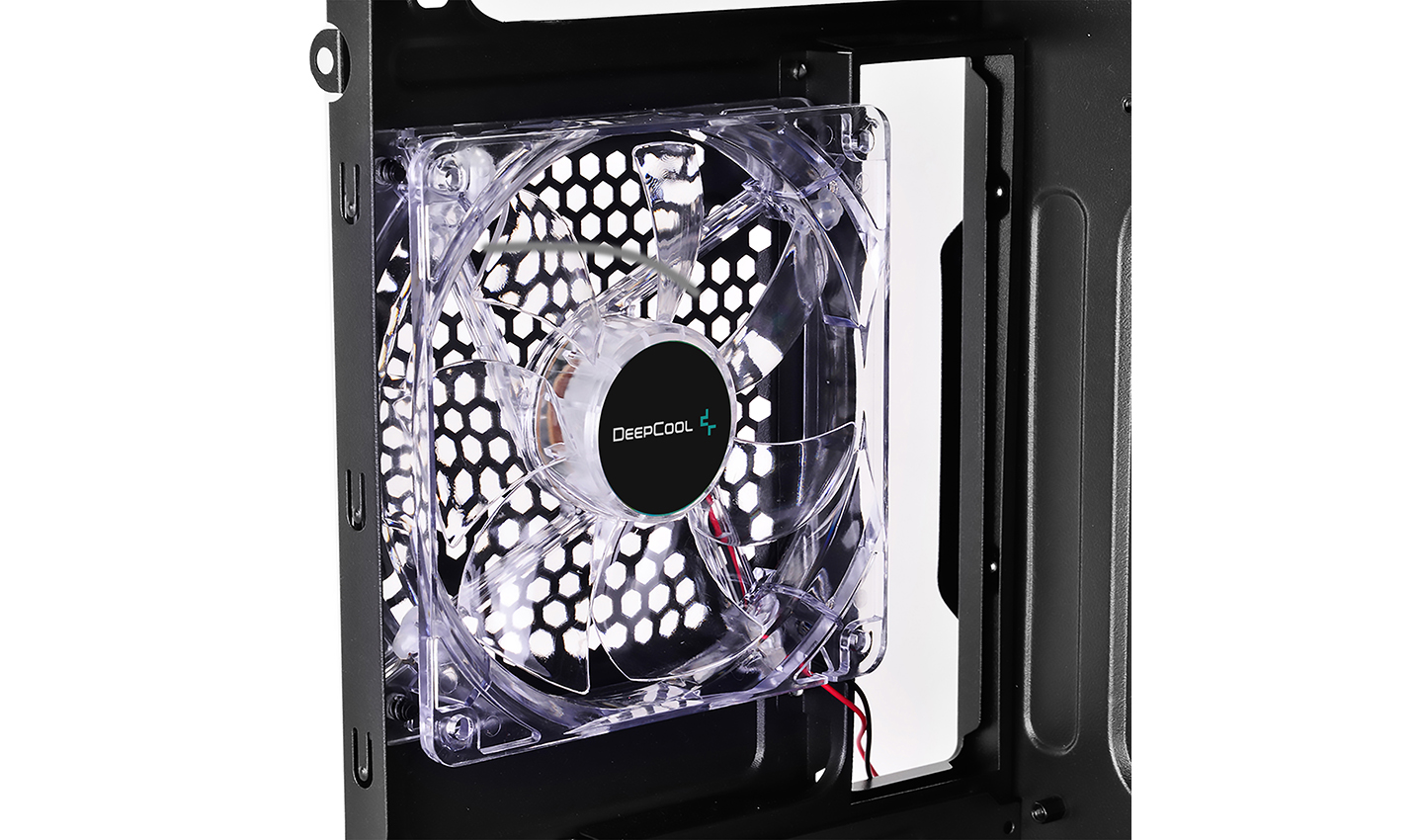

2 pre-installed blue LED fan (front and rear panels).

Great compatibility with VGA card and CPU cooler.

Good Heat Ventilation Performance

Refined Minimalism

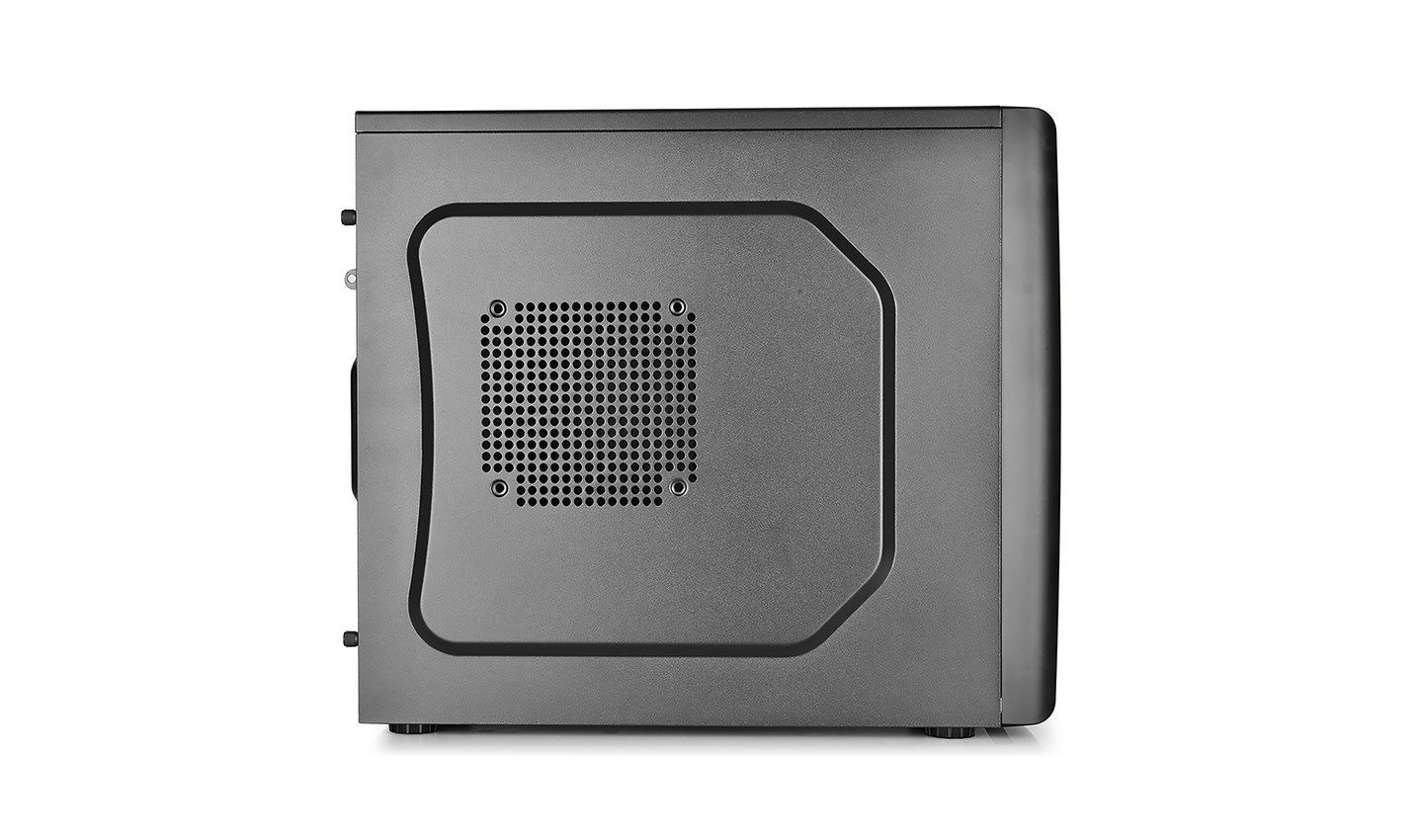

1 x 120 mm fan mounting holes on the side panel.

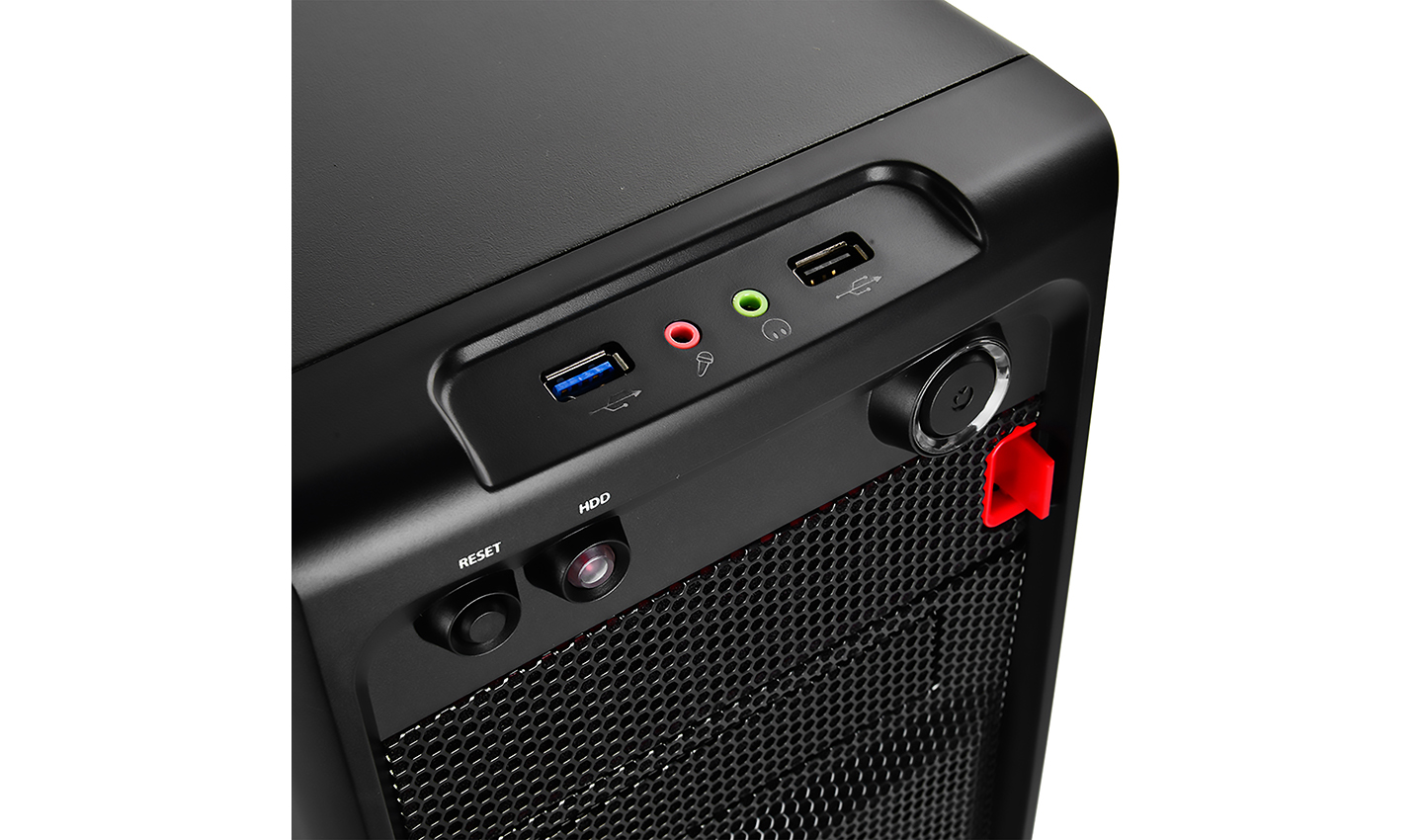

USB ports, plugholes, and switches furnished at the top-panel for easy operations.

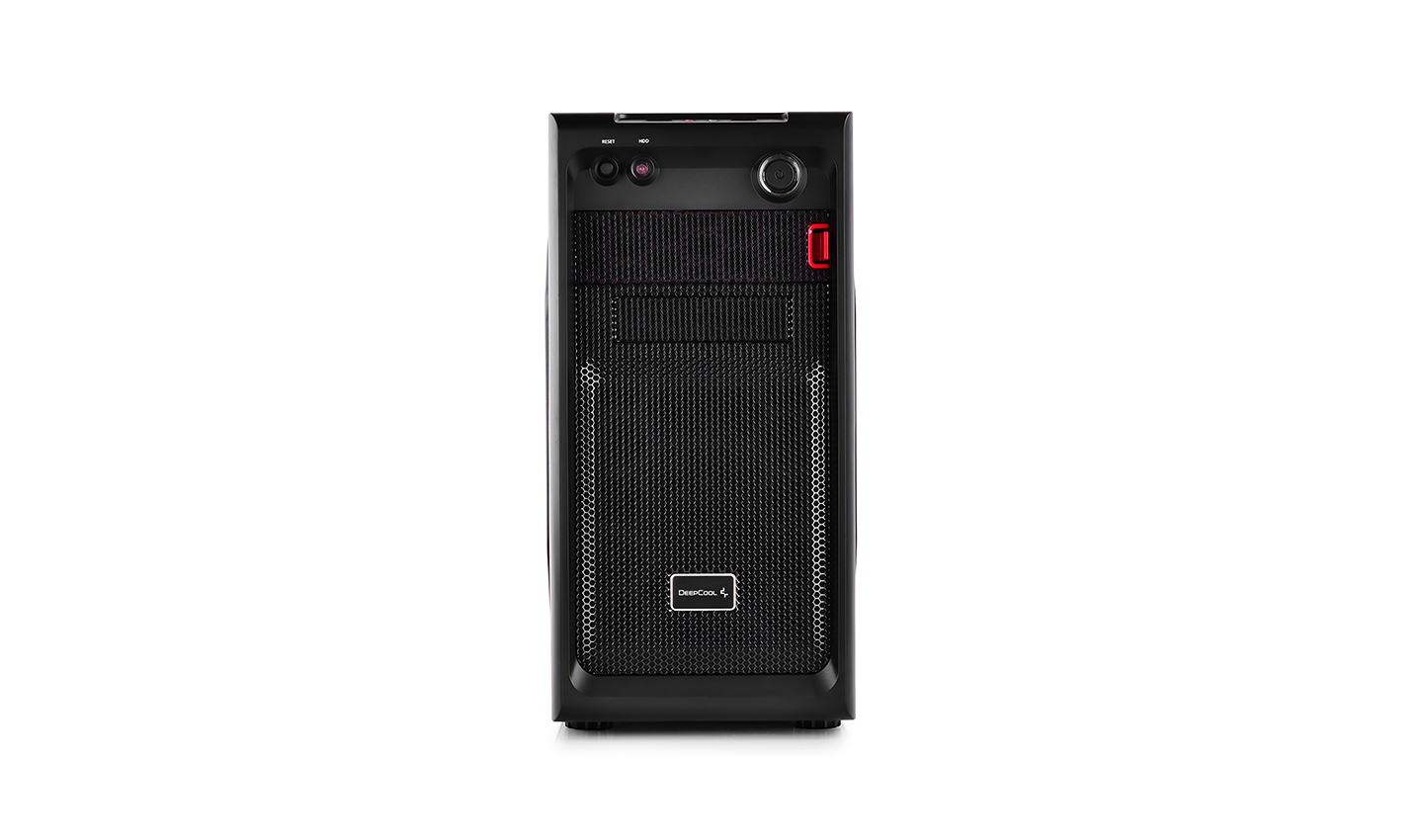

Front Panel Ventilation

Fully-integrated dust filter in the inner panel.

Detachable 5.25-inch and 3.5-inch drive bay covers.

120 mm, 90 mm, and 80 mm mounting holes on the front panel.

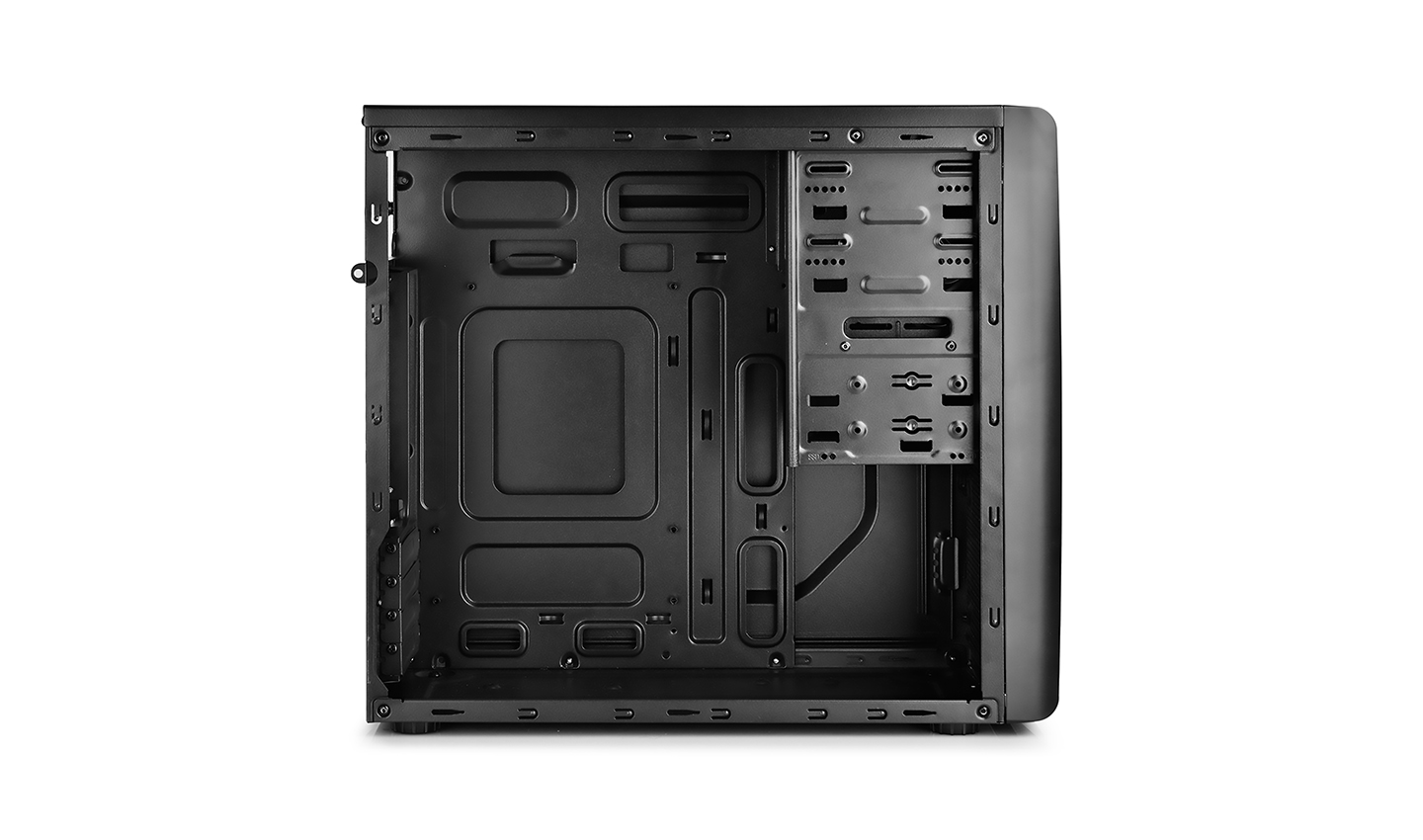

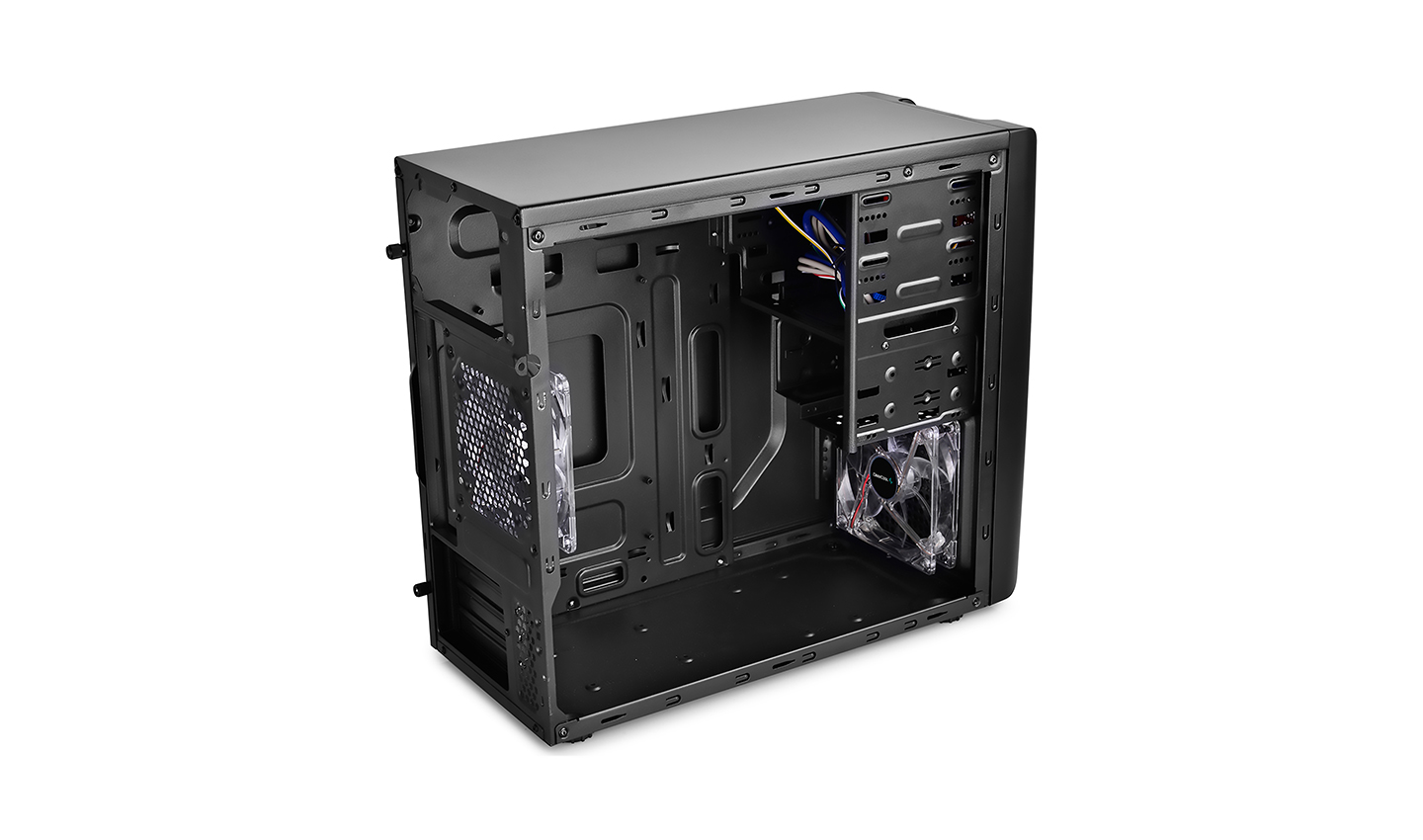

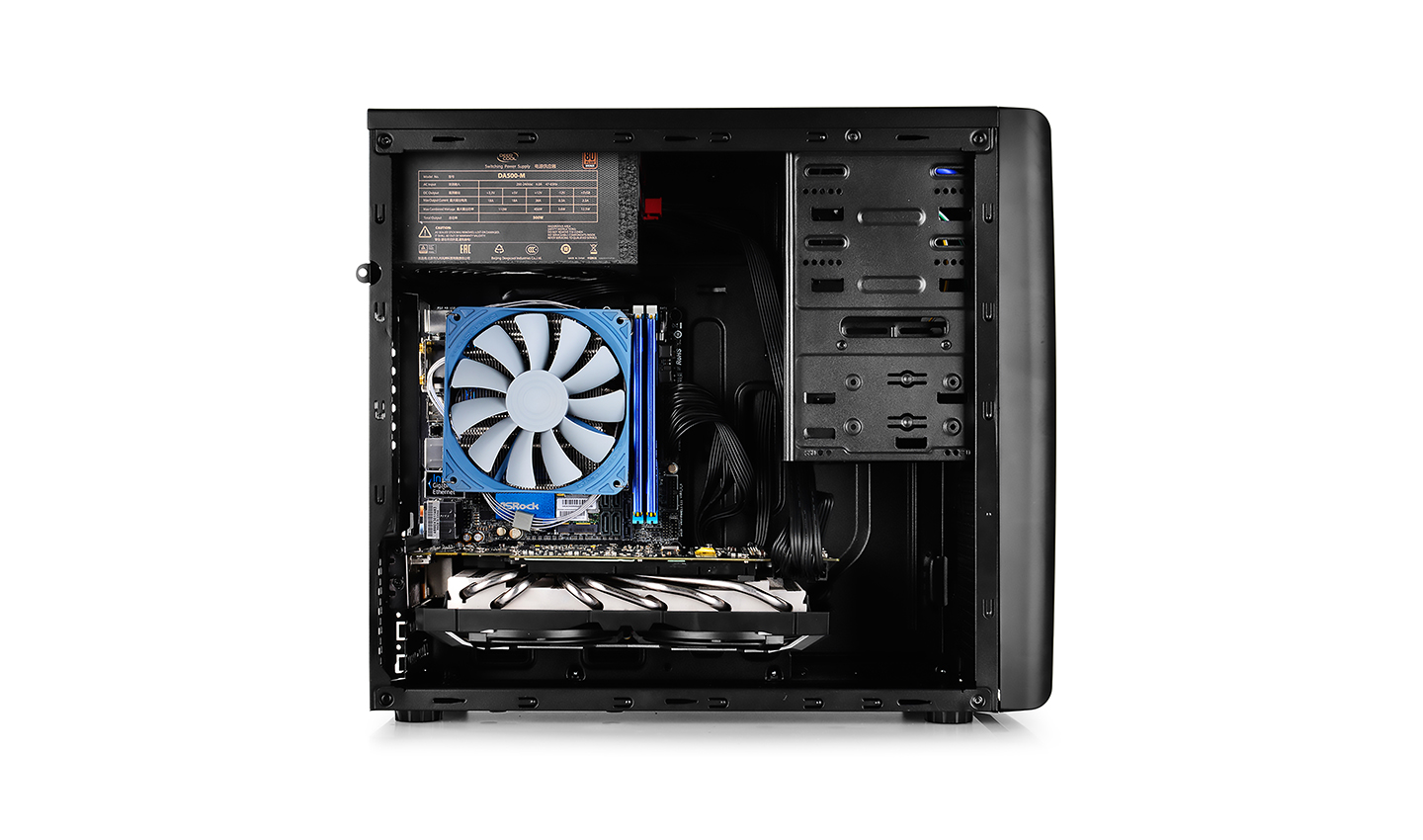

Space Capacity Management Design

Effective Space Management

Upper panel-mounted PSU.

Elevated floor designs enhance intake airflow dynamics and cooling performance of the PSU fan.

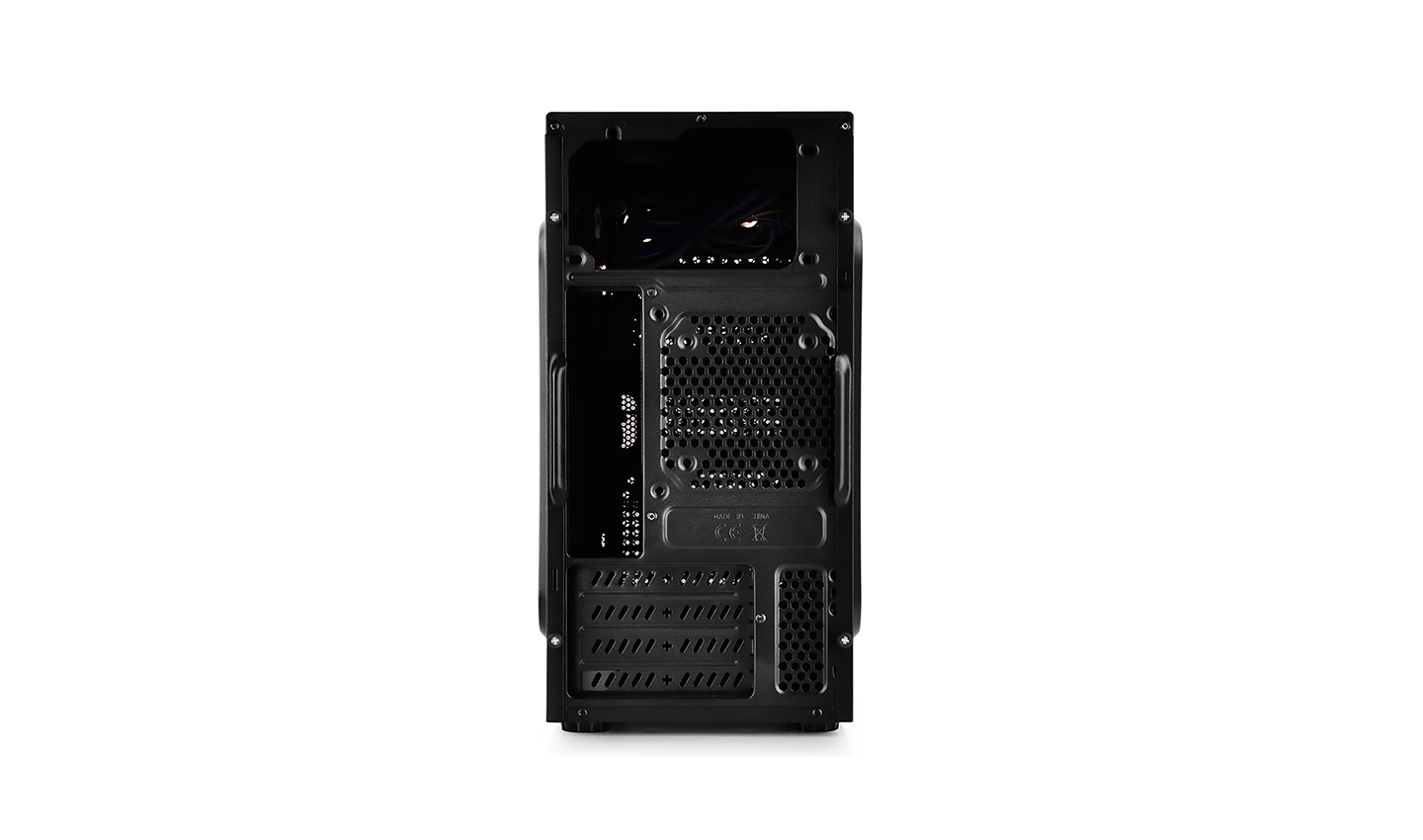

120 mm and 80 mm mounting holes on rear panel.

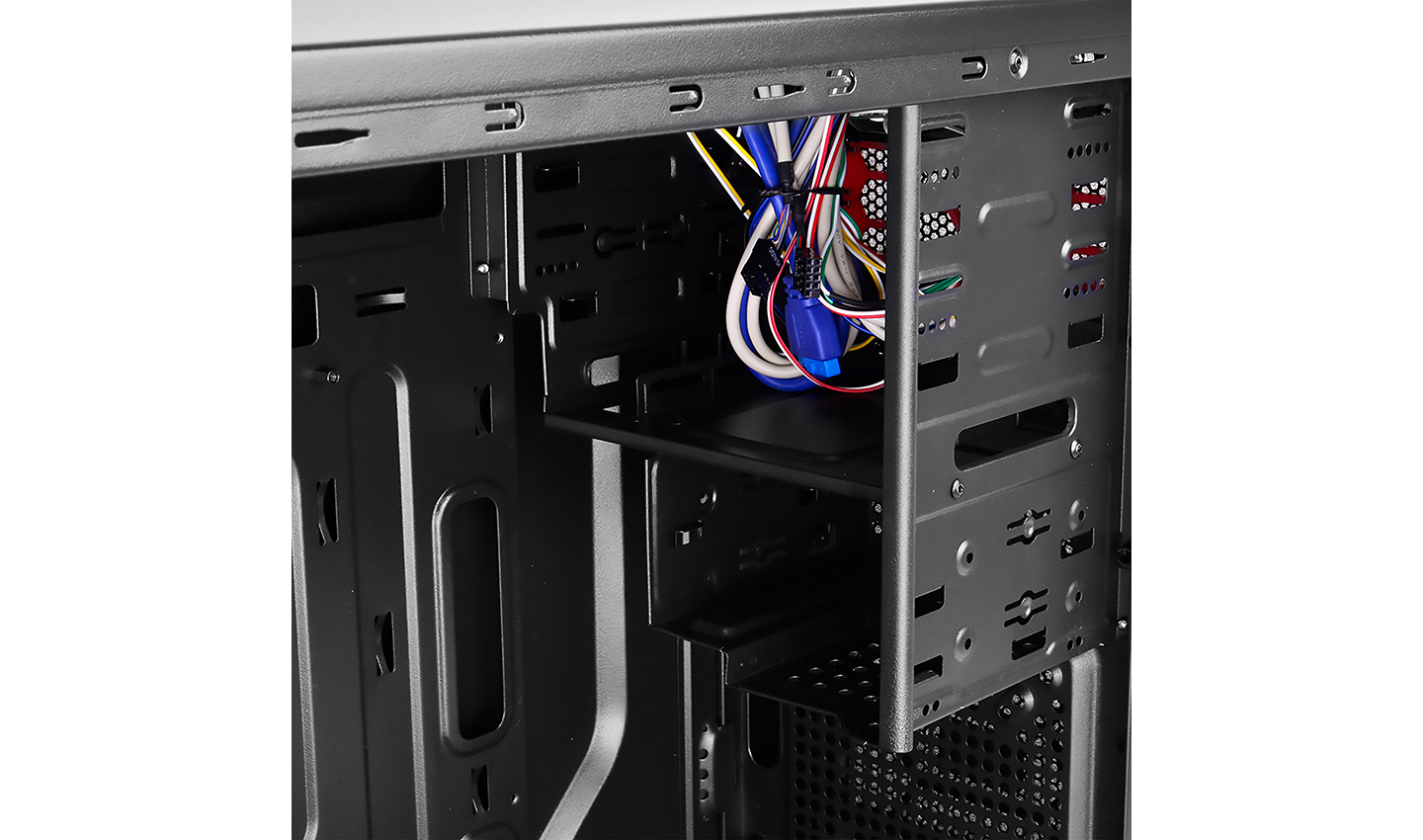

Backplate Cable Installation

Multiple channels for superb cable management.

Technical Spec

Motherboards	MICRO ATX/MINI-ITX
Materials	SPCC+PLASTIC (ABS) (Panel thickness: 0.5mm)
Dimension (L×W×H)	420201365mm
Net Weight	3.65kg
5.25" Drive Bays	1 (External)
3.5" Drive Bays	3 (1 external, 2 internal )
2.5" Drive Bays	1 (internal)
I/O Panel	1×USB3.0/1×USB2.0/Audio×1/Mic×1

Expansion Slots	4
Cooling Fans	Included: Rear: 1×120mm LED fan; Front: 1×120mm LED fan; Optional: side: 1×120mm.
Power Supply Type	ATX PS2
CPU Cooler Compatibility	166mm height /Liquid Cooler: 120mm at front/rear
VGA Compatibility	320mm
EAN	6933412712633
P/N	DP-MATX-SMTRLED
