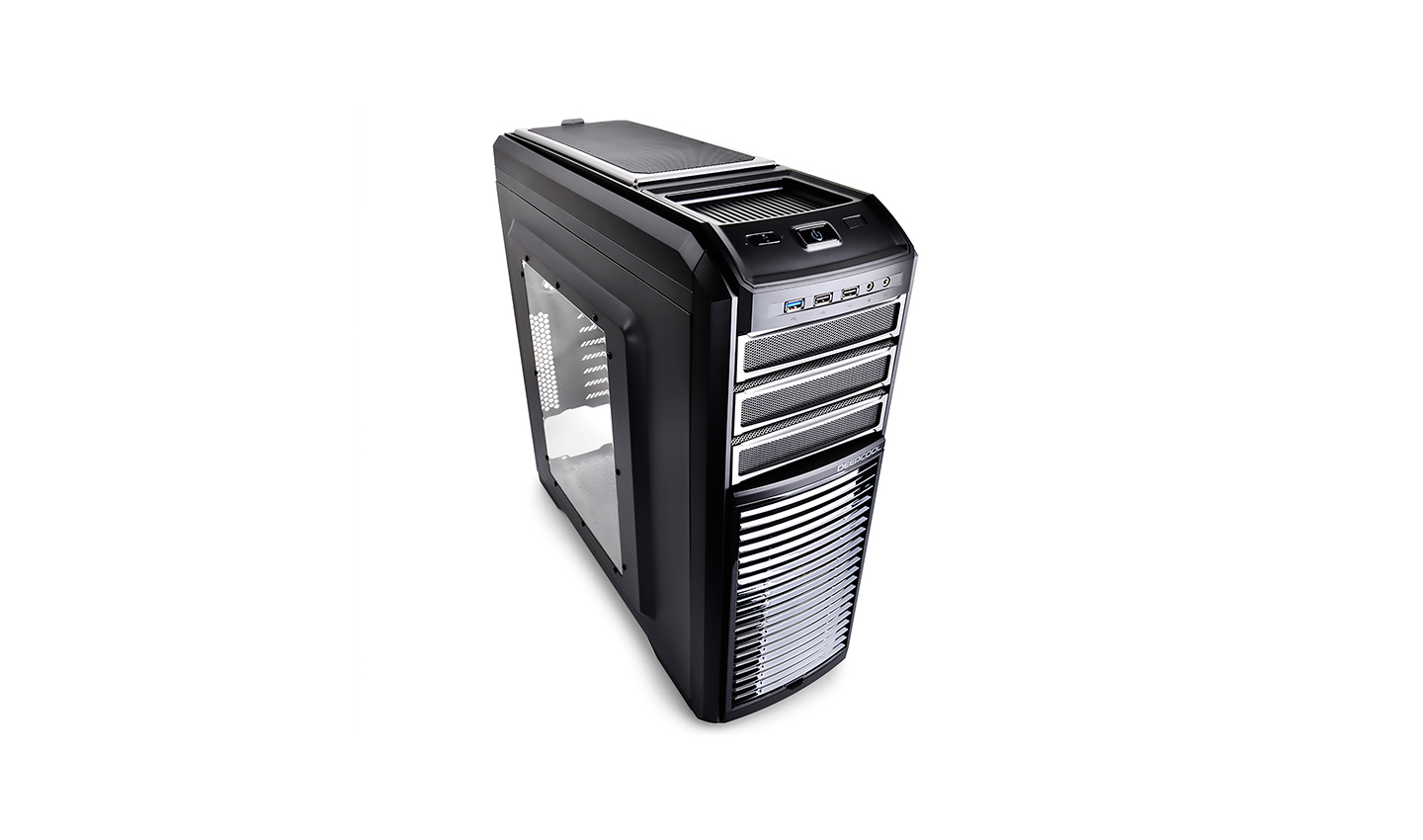

KENDOMEN

High cooling performance mid-tower case with 5 default fans and fan speed controller.

Description

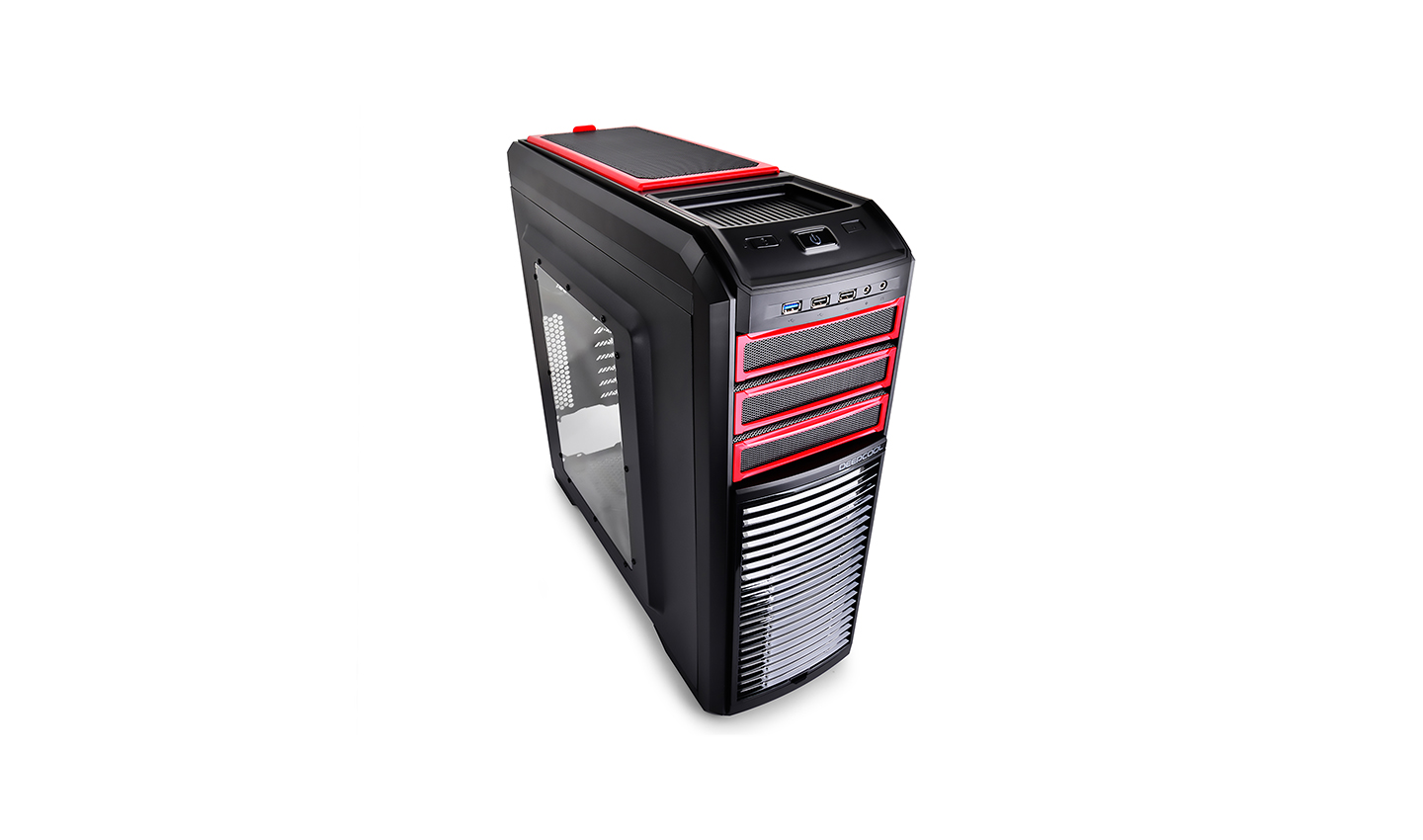

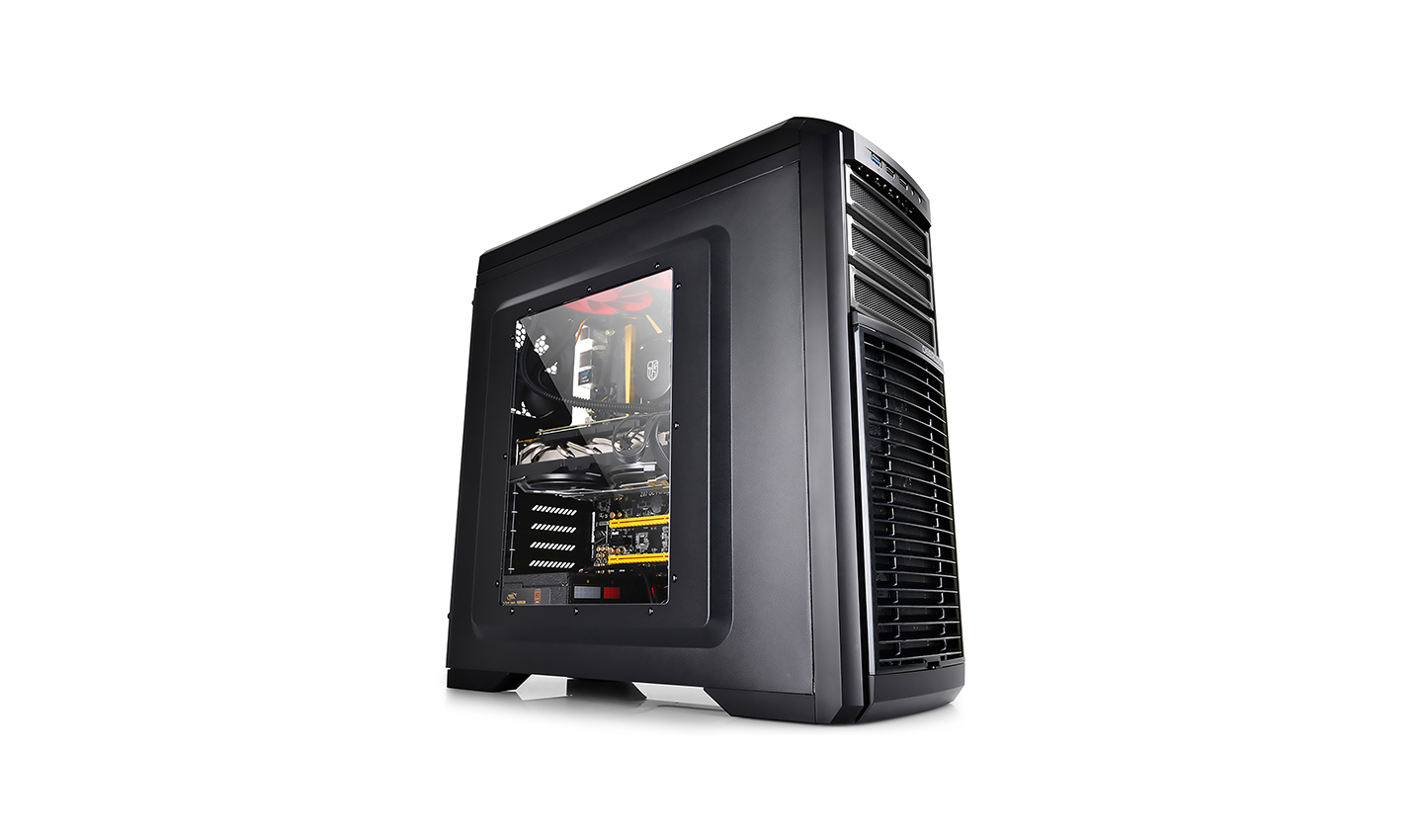

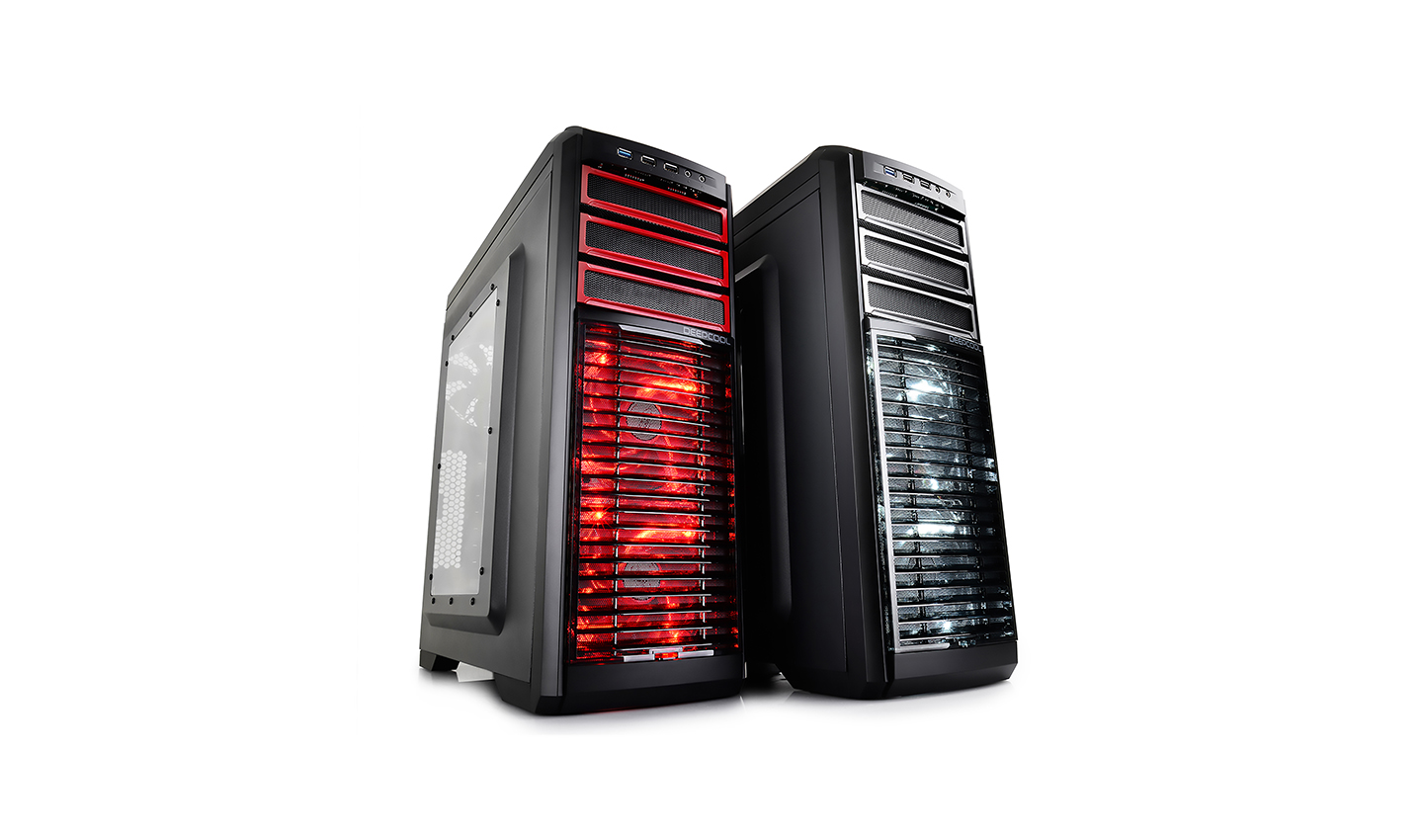

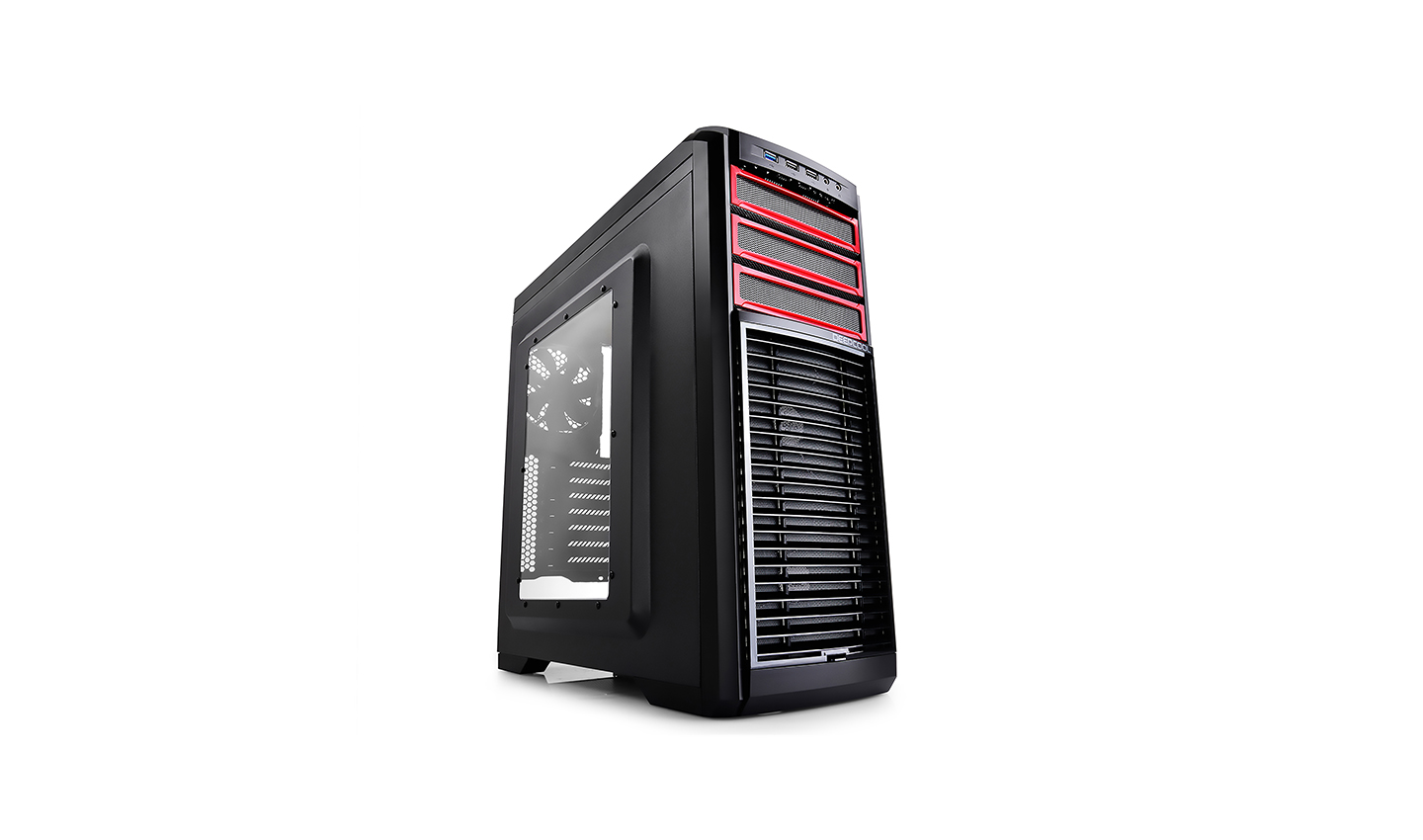

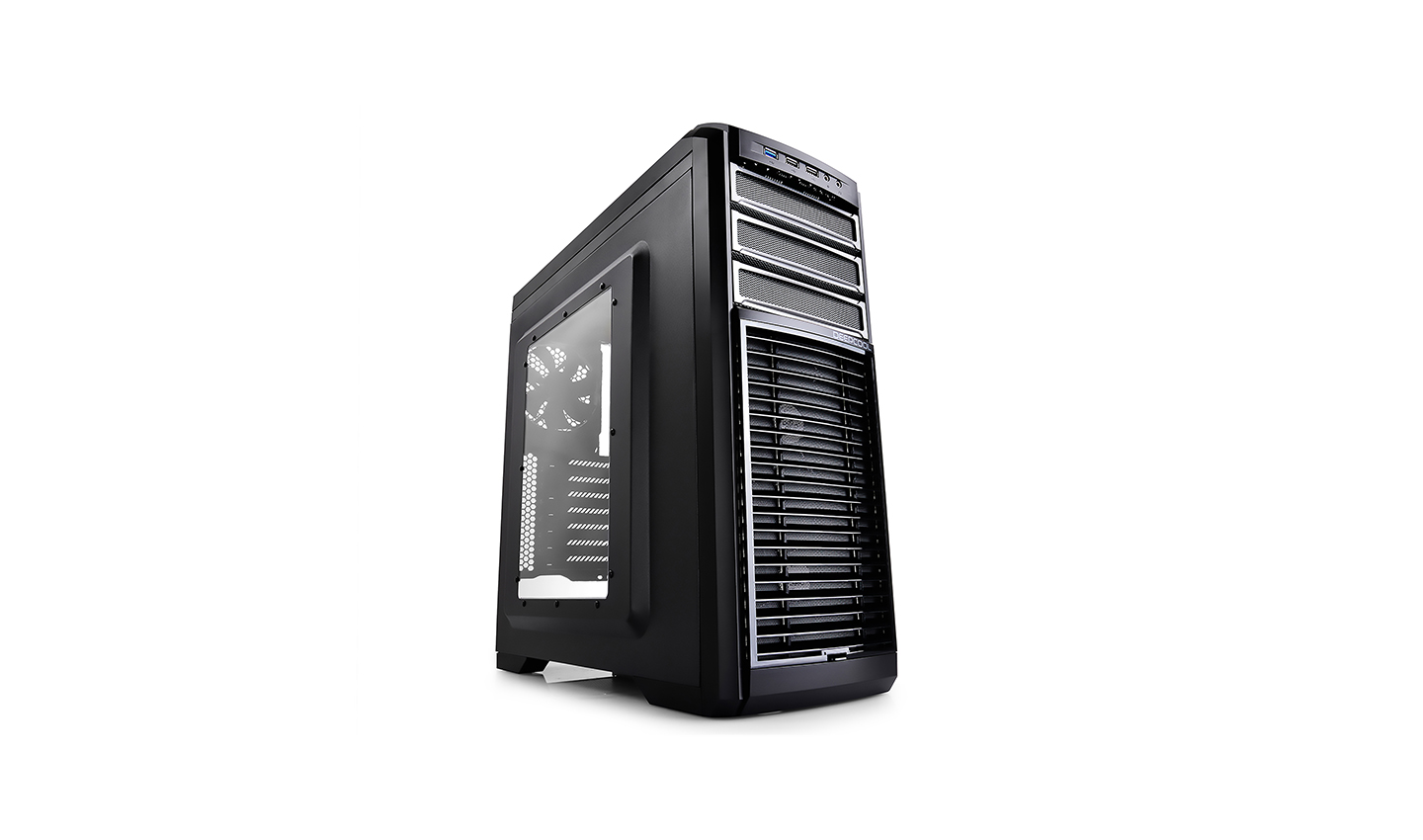

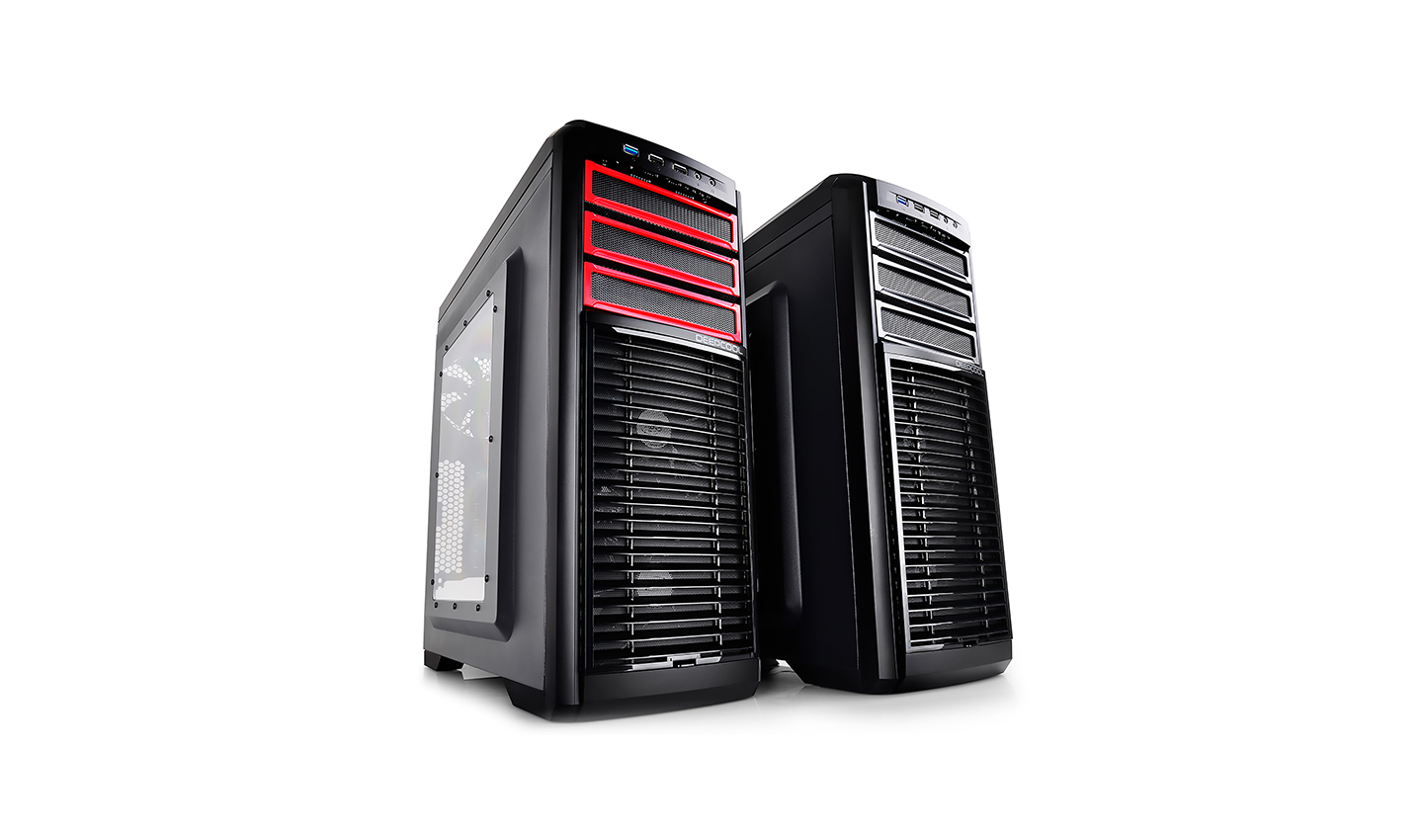

KENDOMEN is an ATX PC case capable of accommodating ATX, Micro ATX and Mini ITX motherboards. Classic exteriors and compact interiors. The case features excellent cooling performance, simple installation, superior expandability and easy future maintenance.

Excellent Cooling Performance

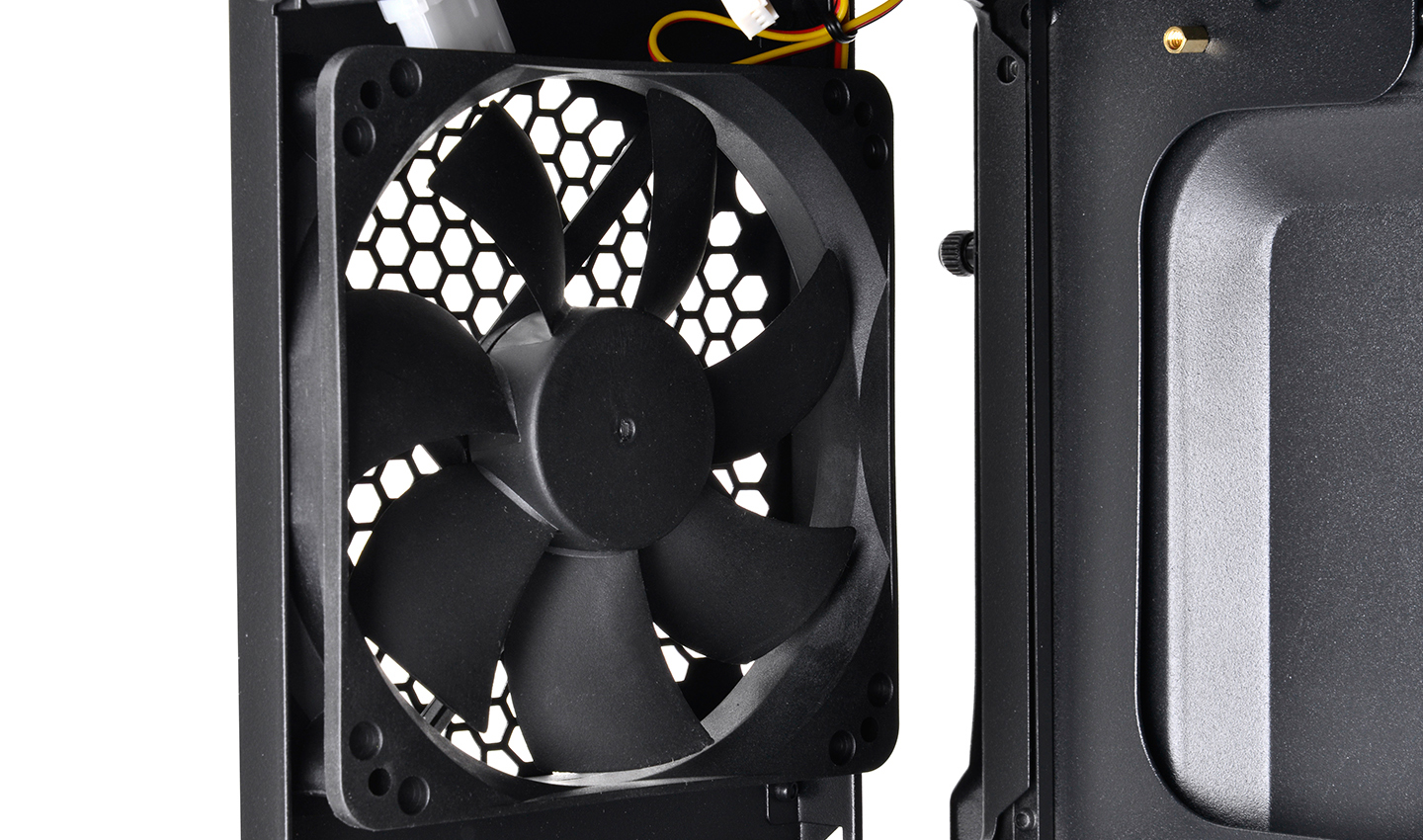

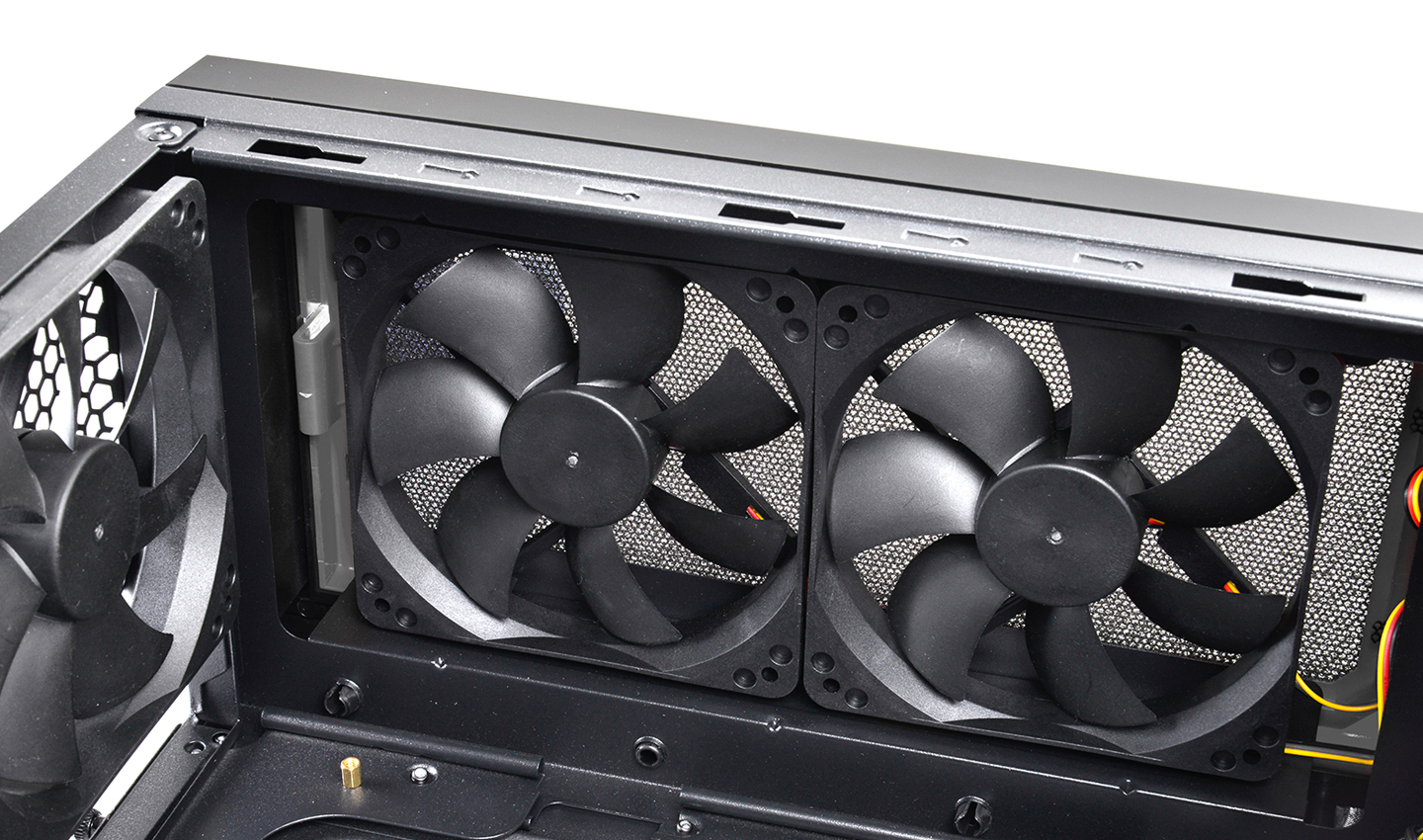

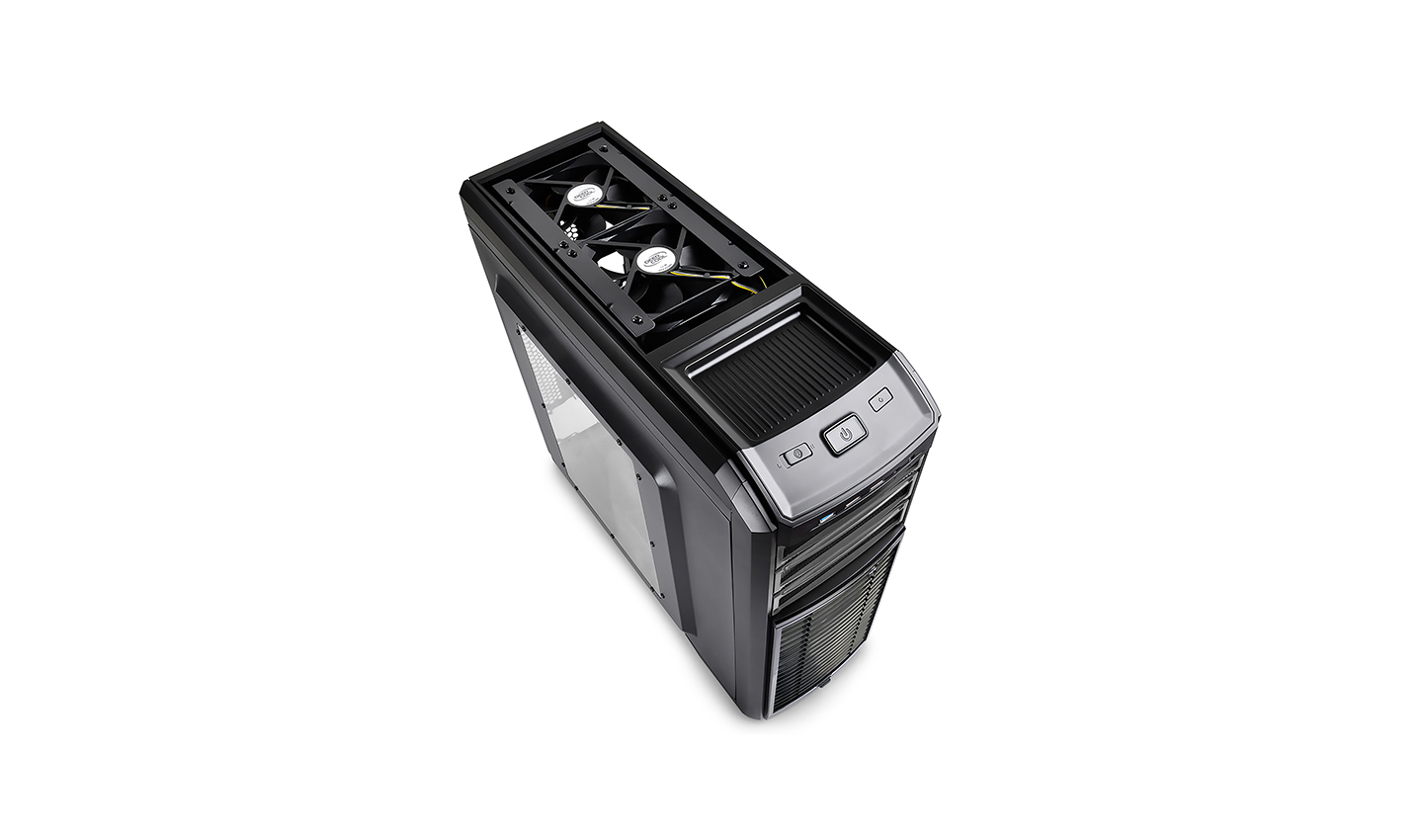

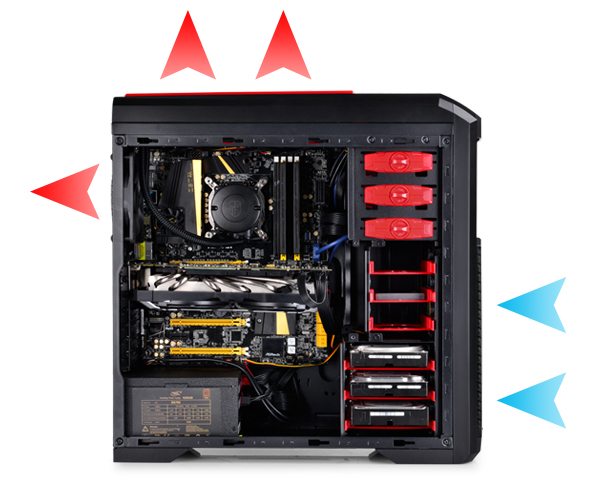

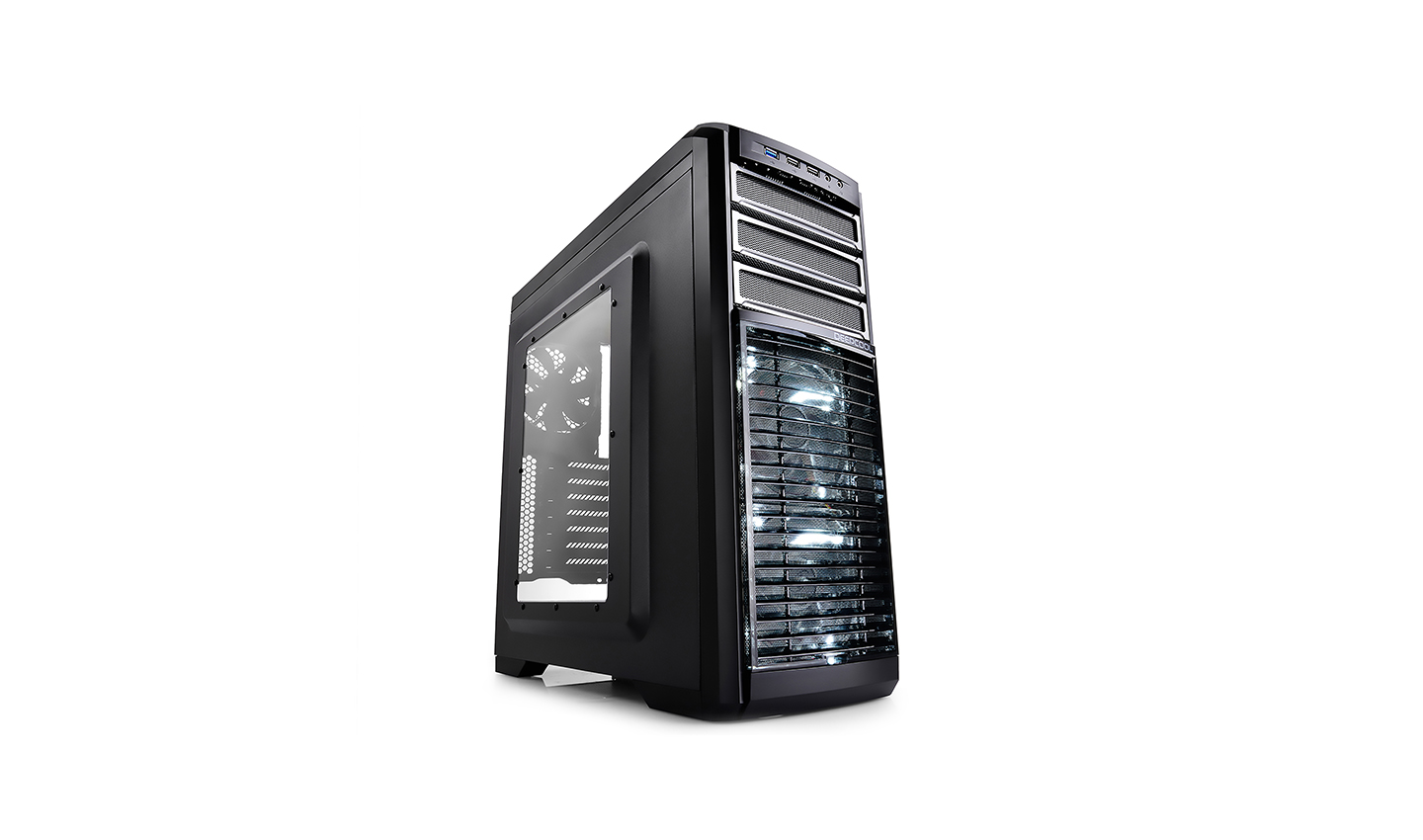

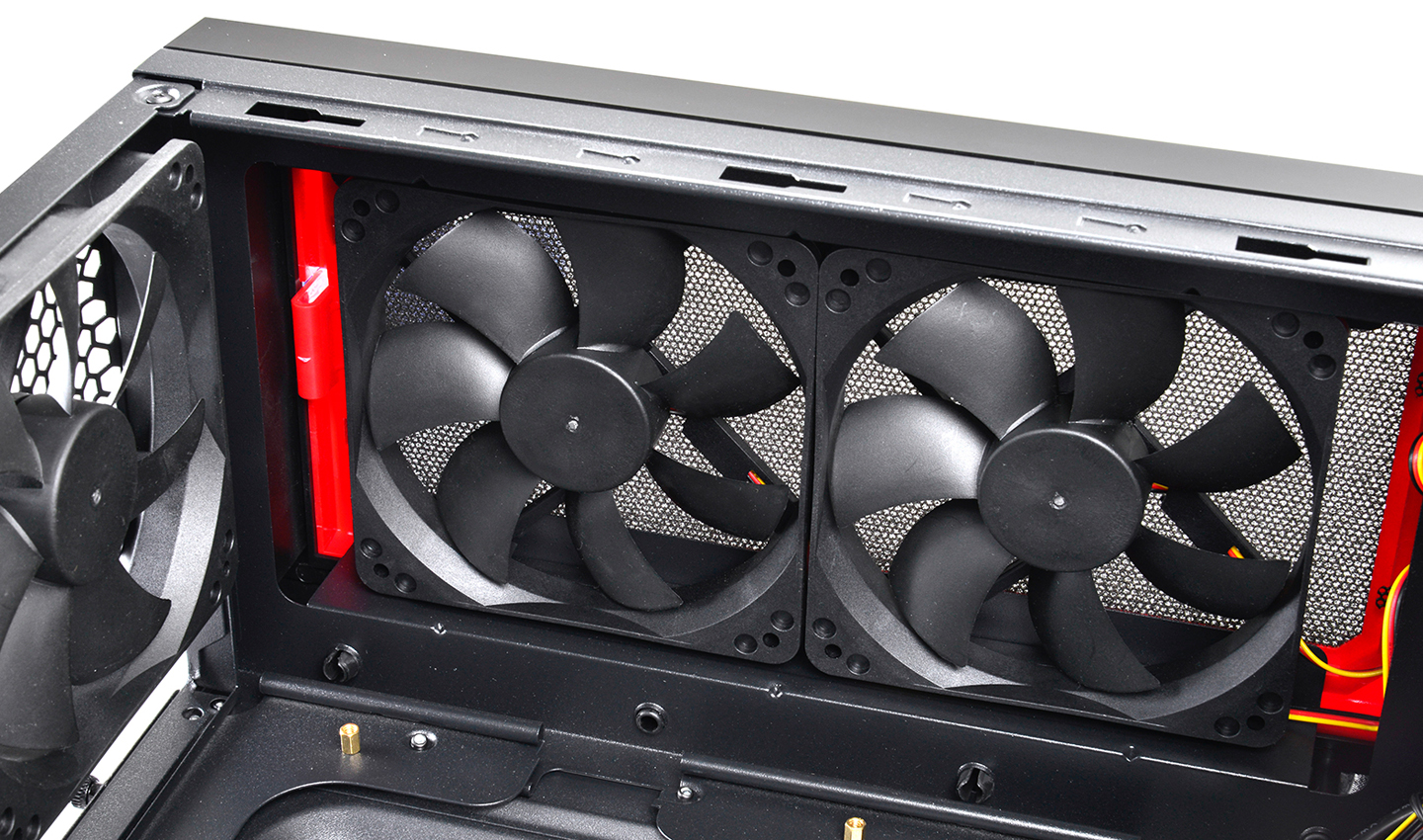

The KENDOMEN comes with 2 front-mounted LED intake fans, 2 top-mounted exhaust fans (supports liquid cooler instead), and 1 rear-mounted fan. 5 pre-installed fans deliver clean and powerful airflow, allowing builders to skip the fans go directly to the system itself, saving cost and time required to build their prized rig. The fan-speed adjustment switch ensures impressive performance while maintaining low noise.

Easy Installation

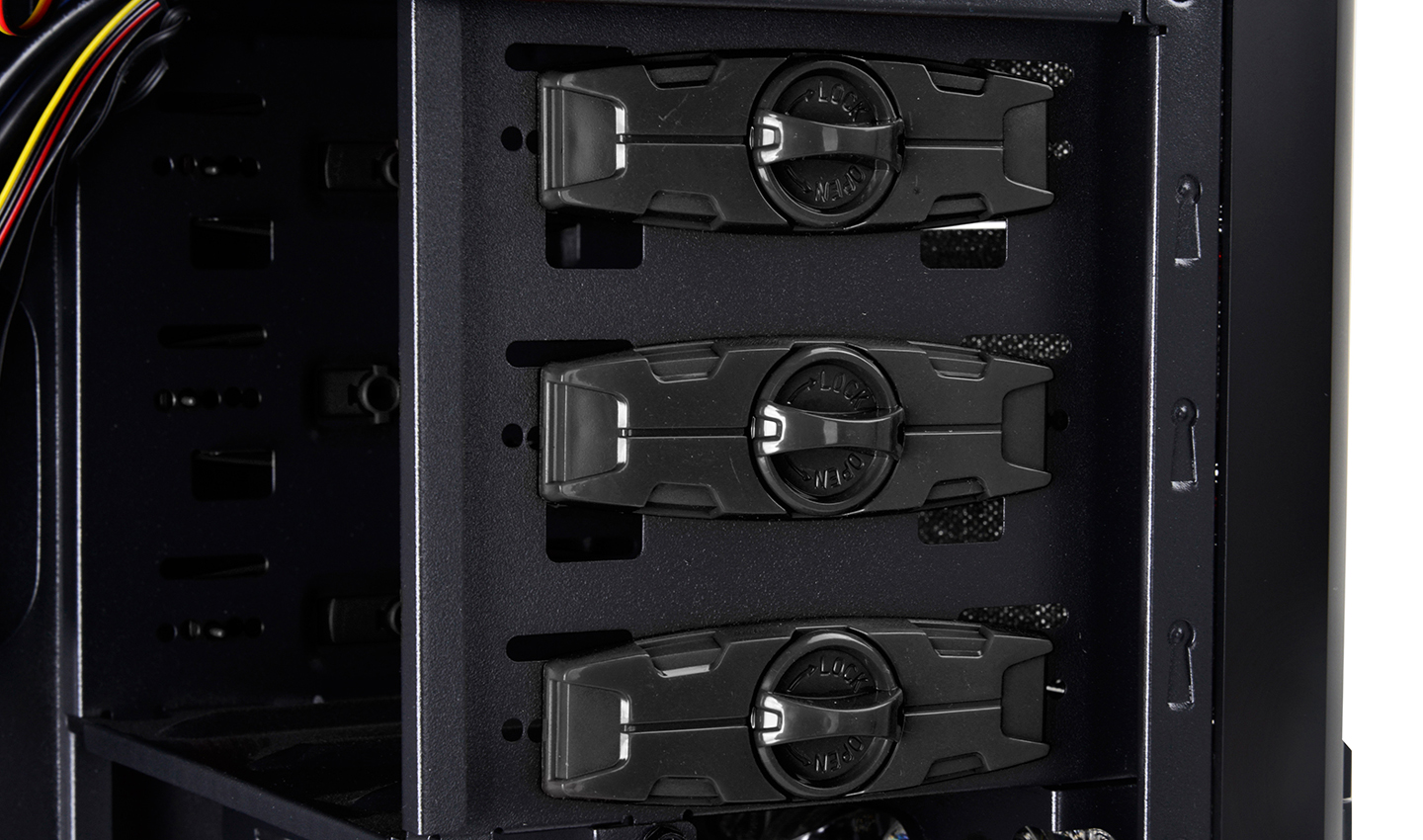

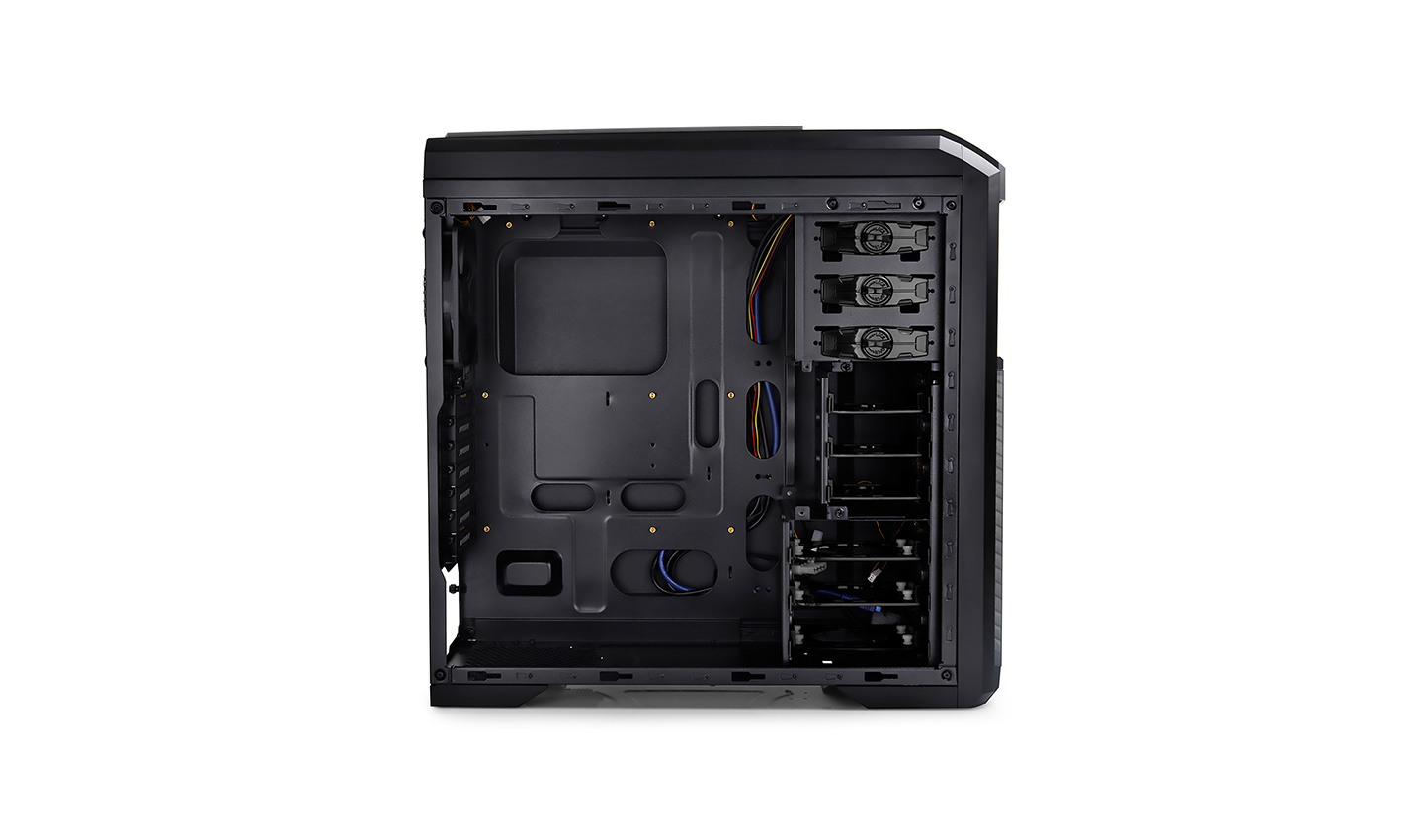

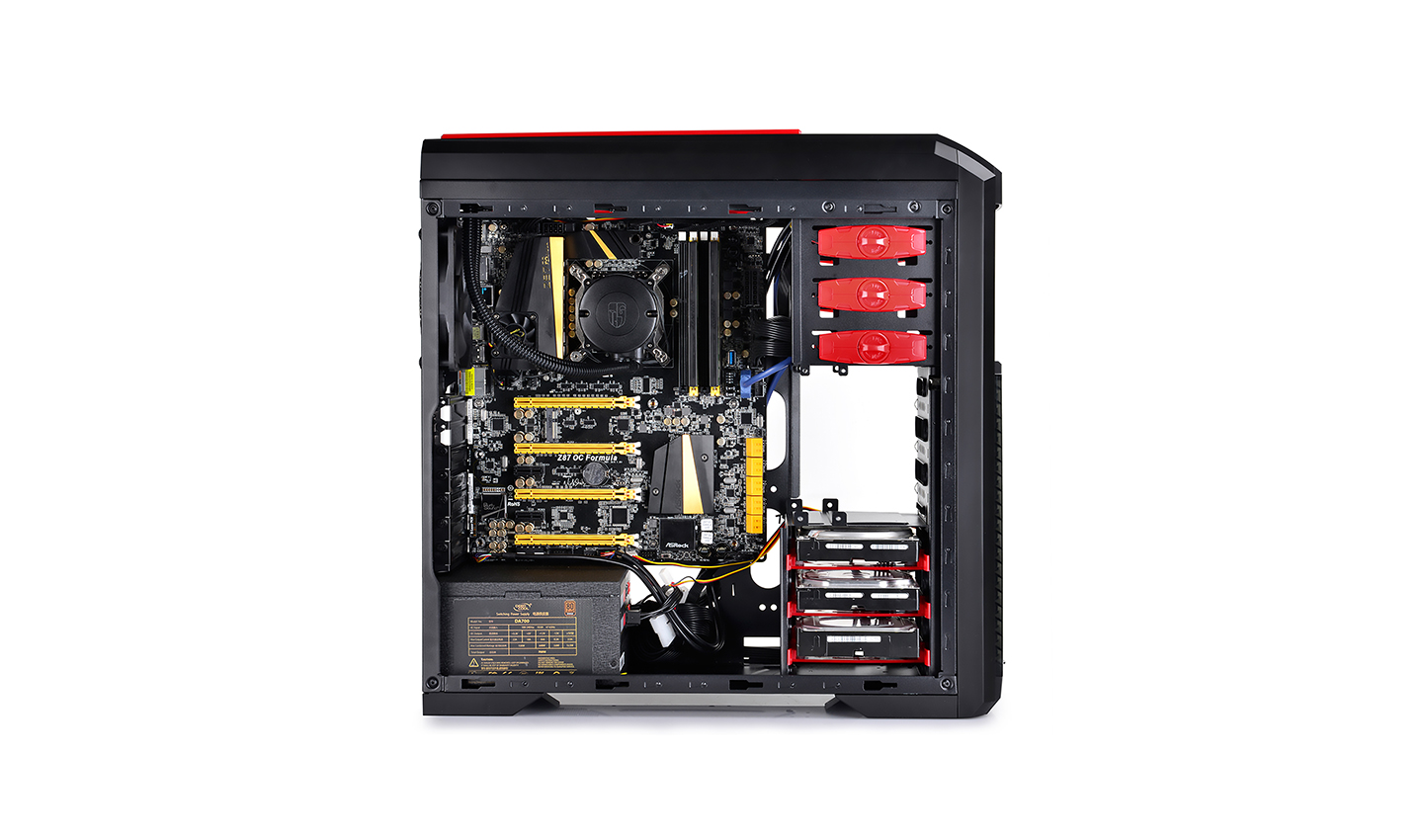

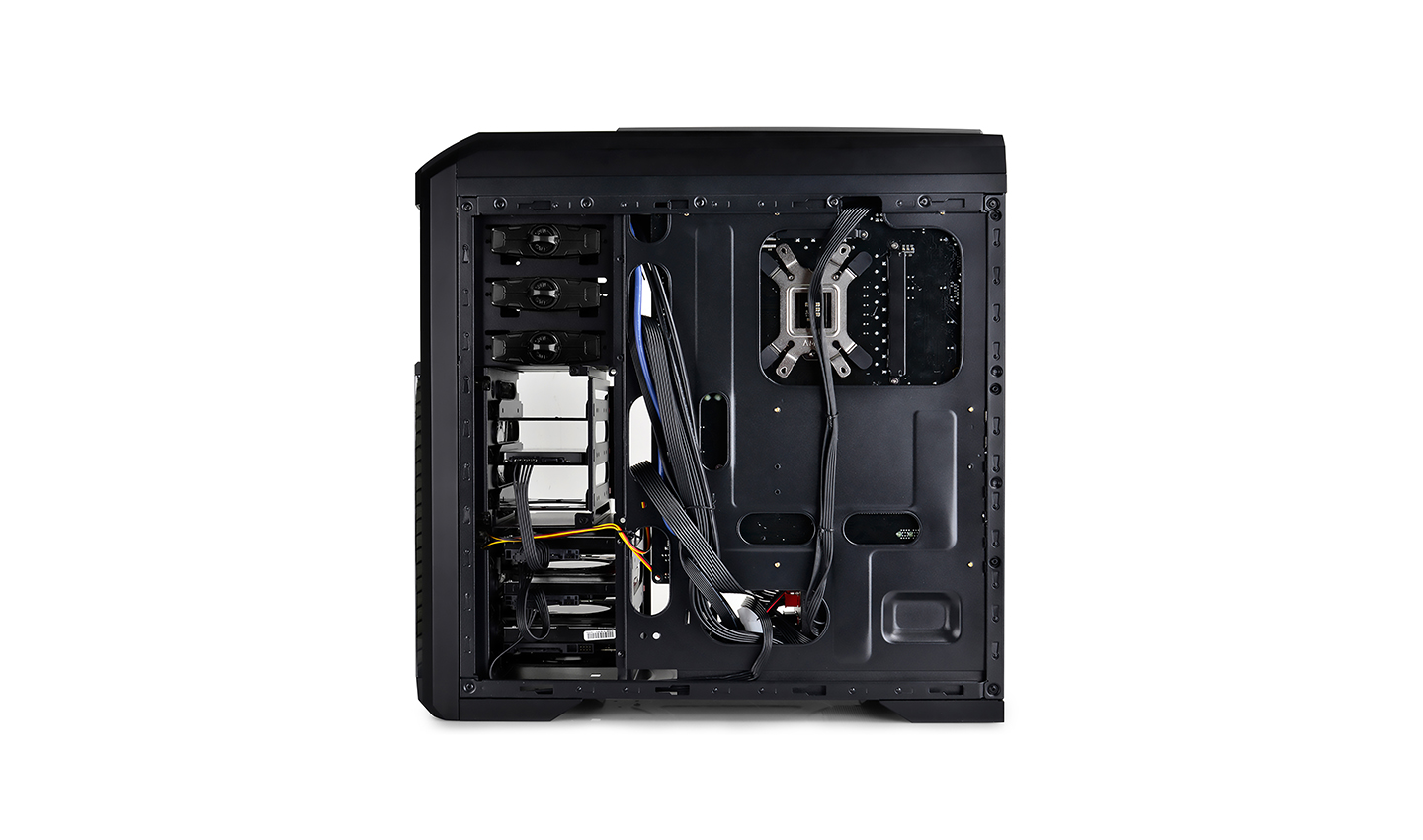

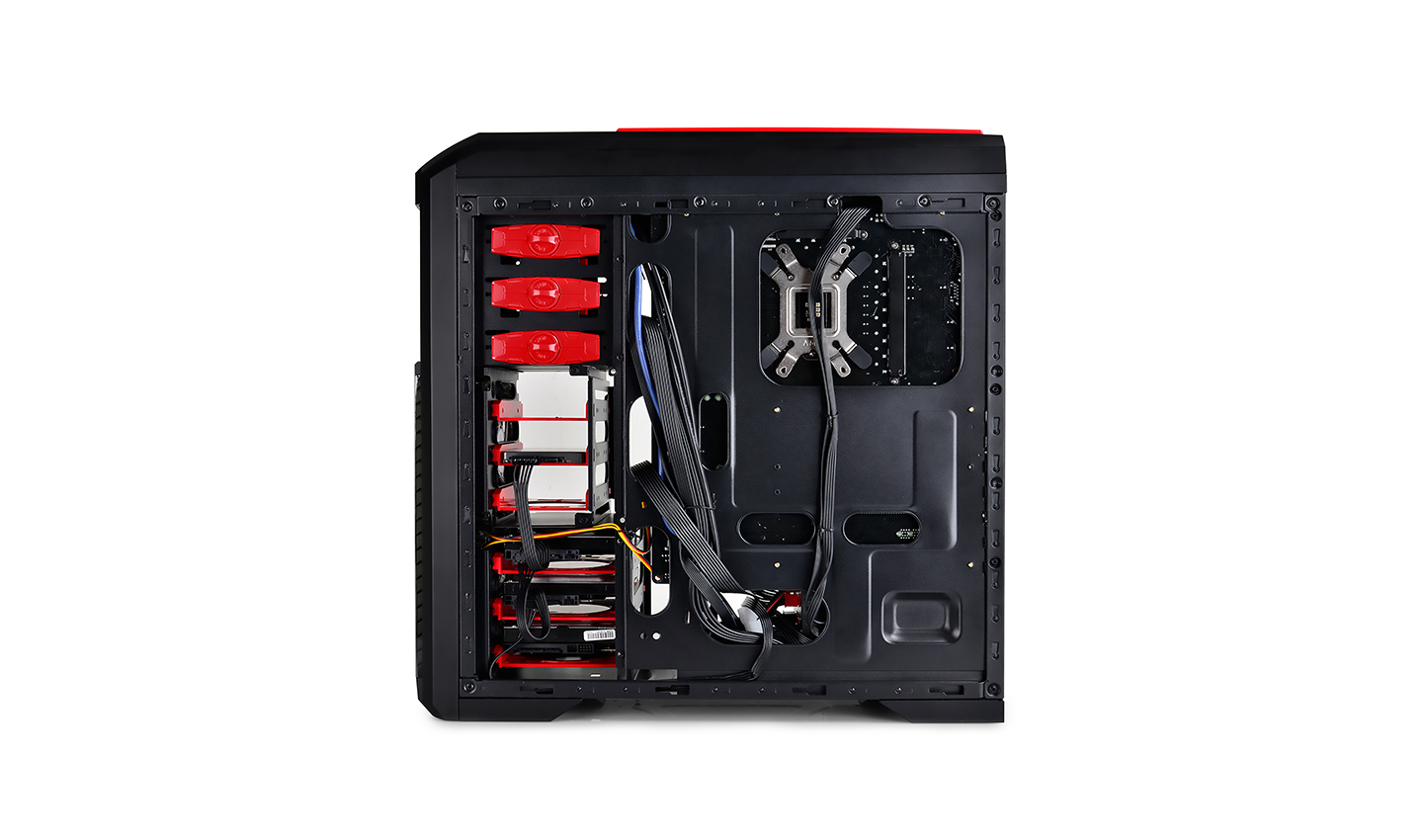

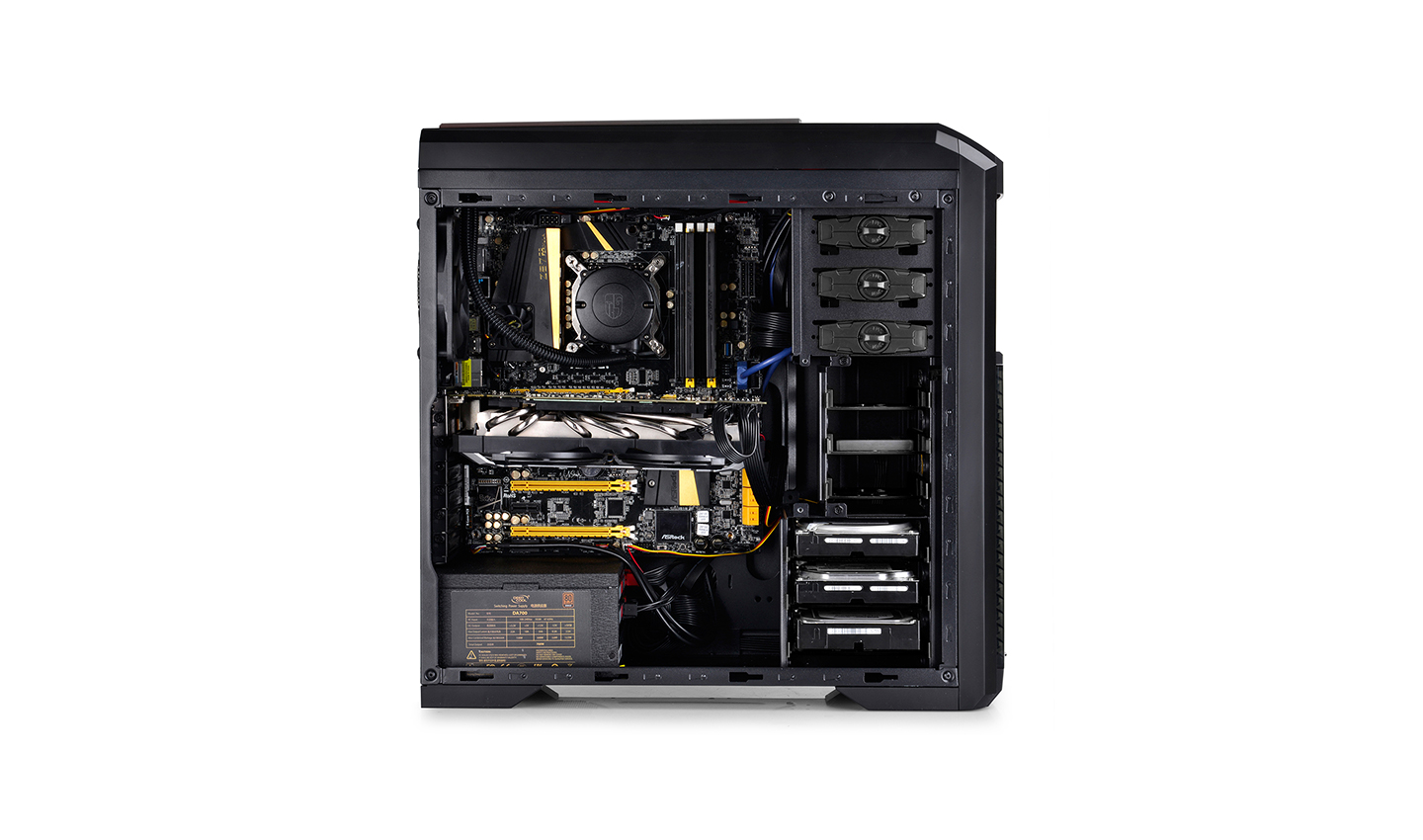

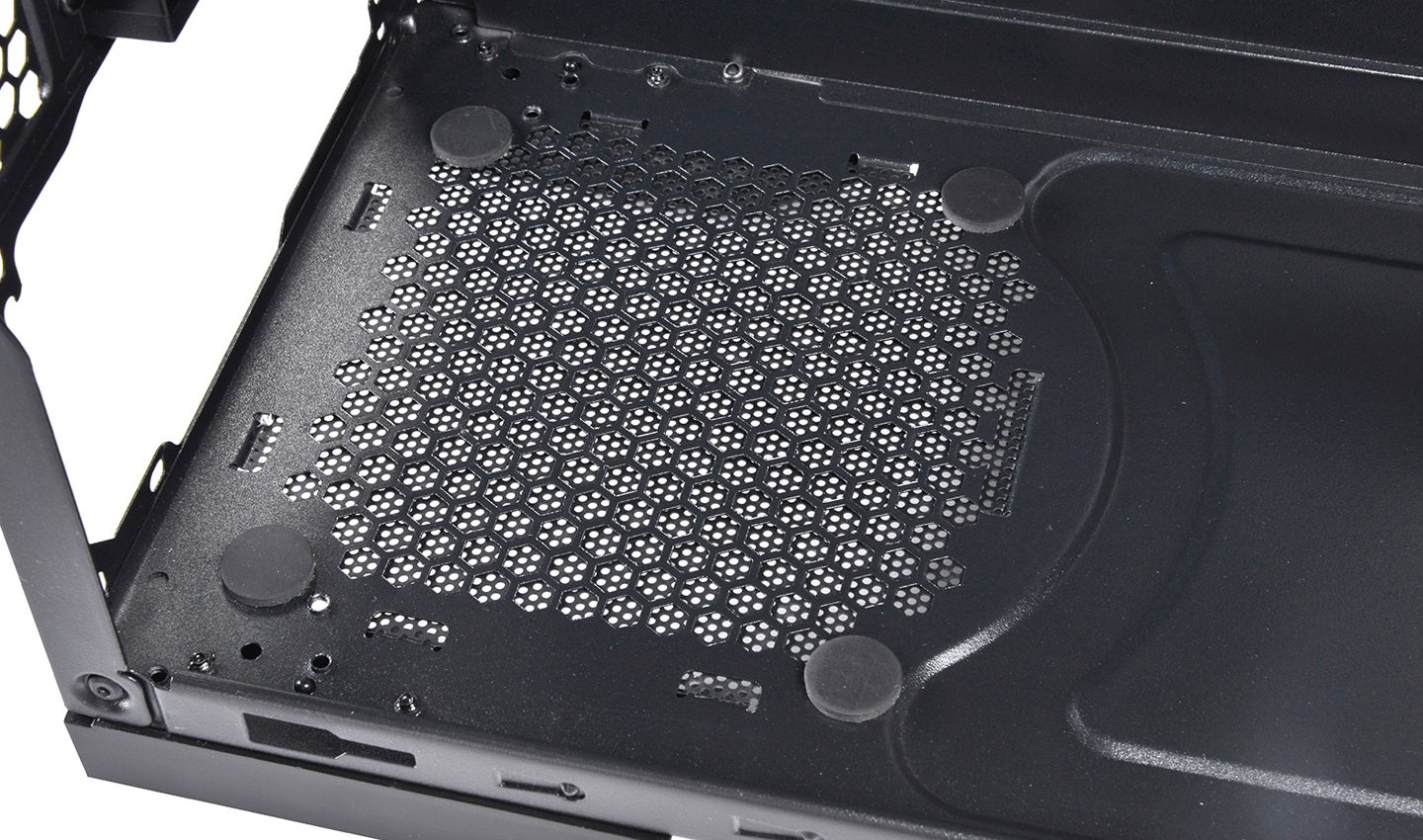

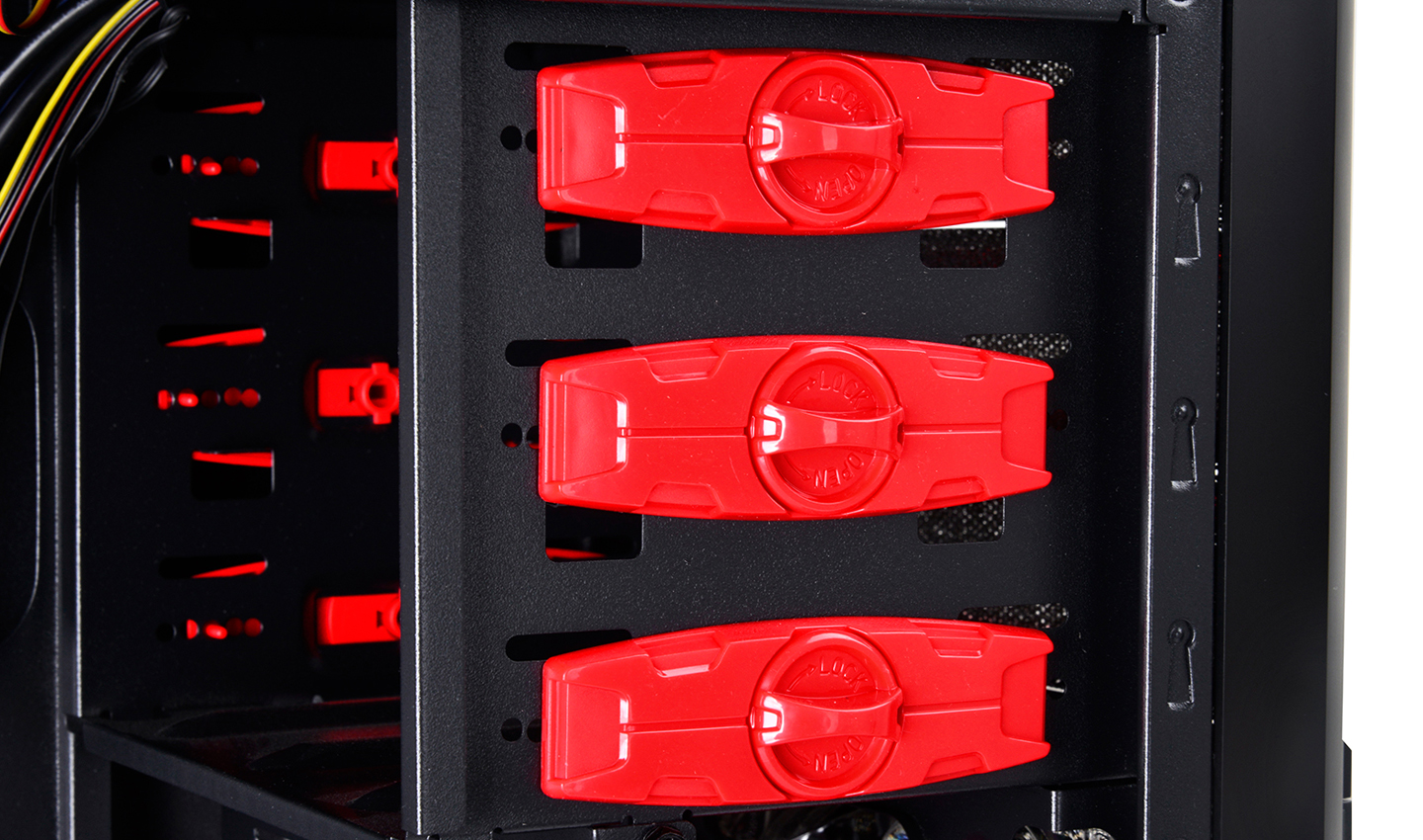

The case features multiple designs that simplify the building process. These designs include: motherboard platform; wide cutout behind the motherboard tray (to accommodate back plate mounted CPU cooler); tool-free ODD/HDD installation; and 15 mm openings for excellent management.

Superior Expandability

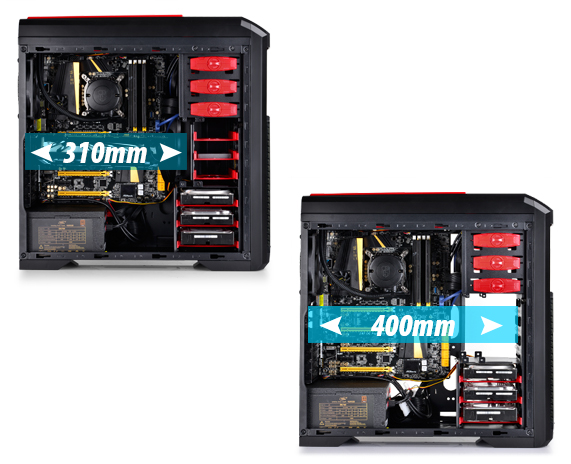

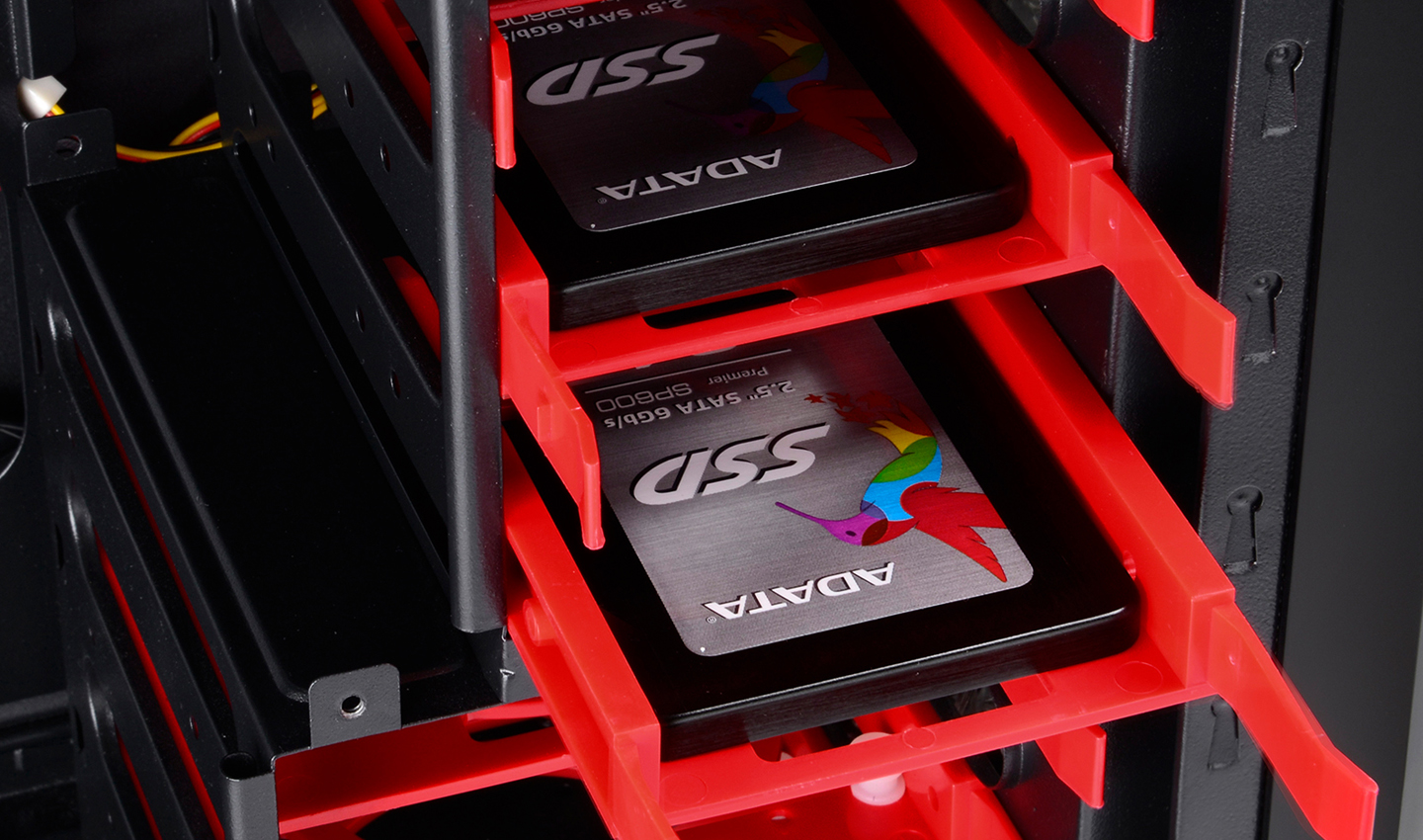

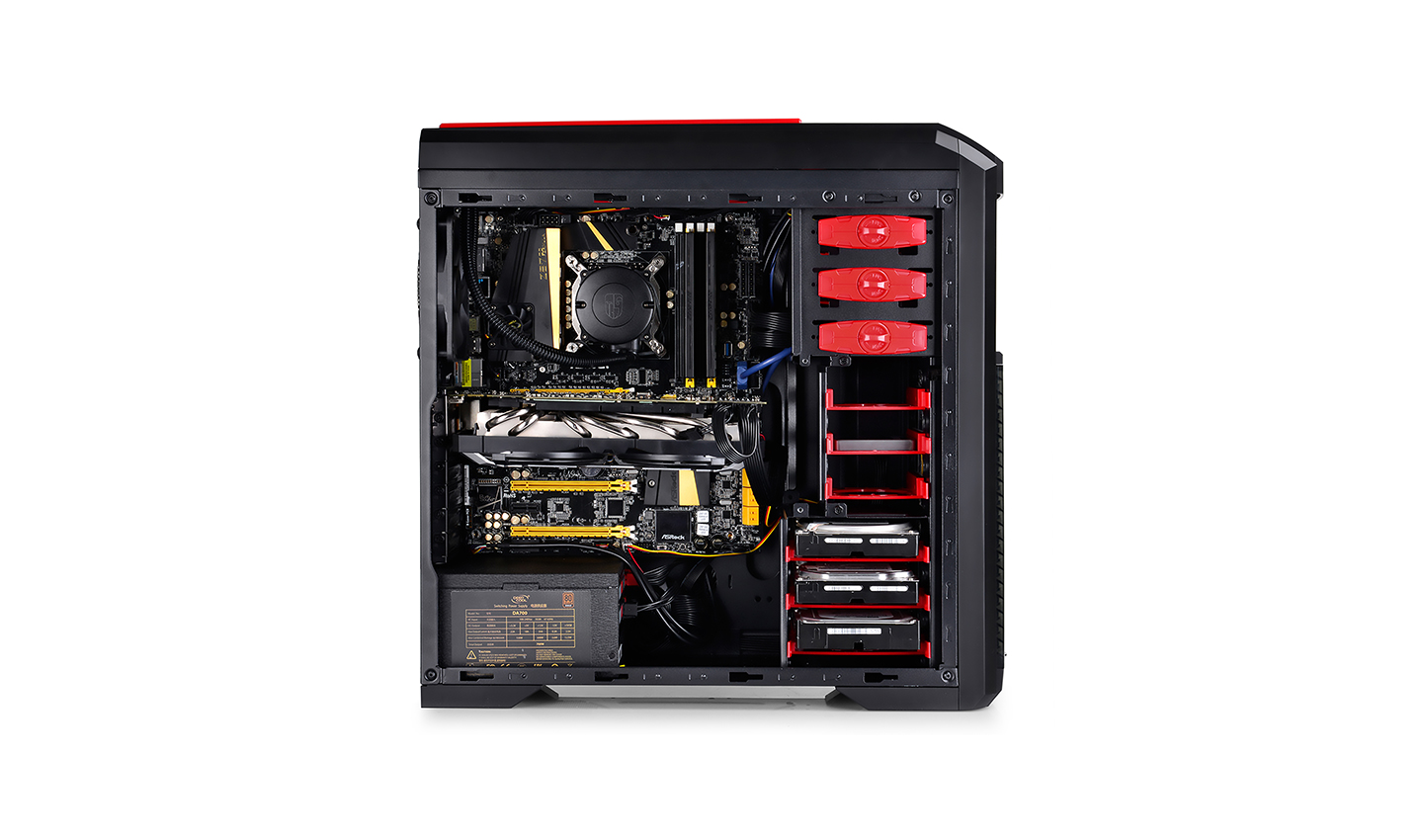

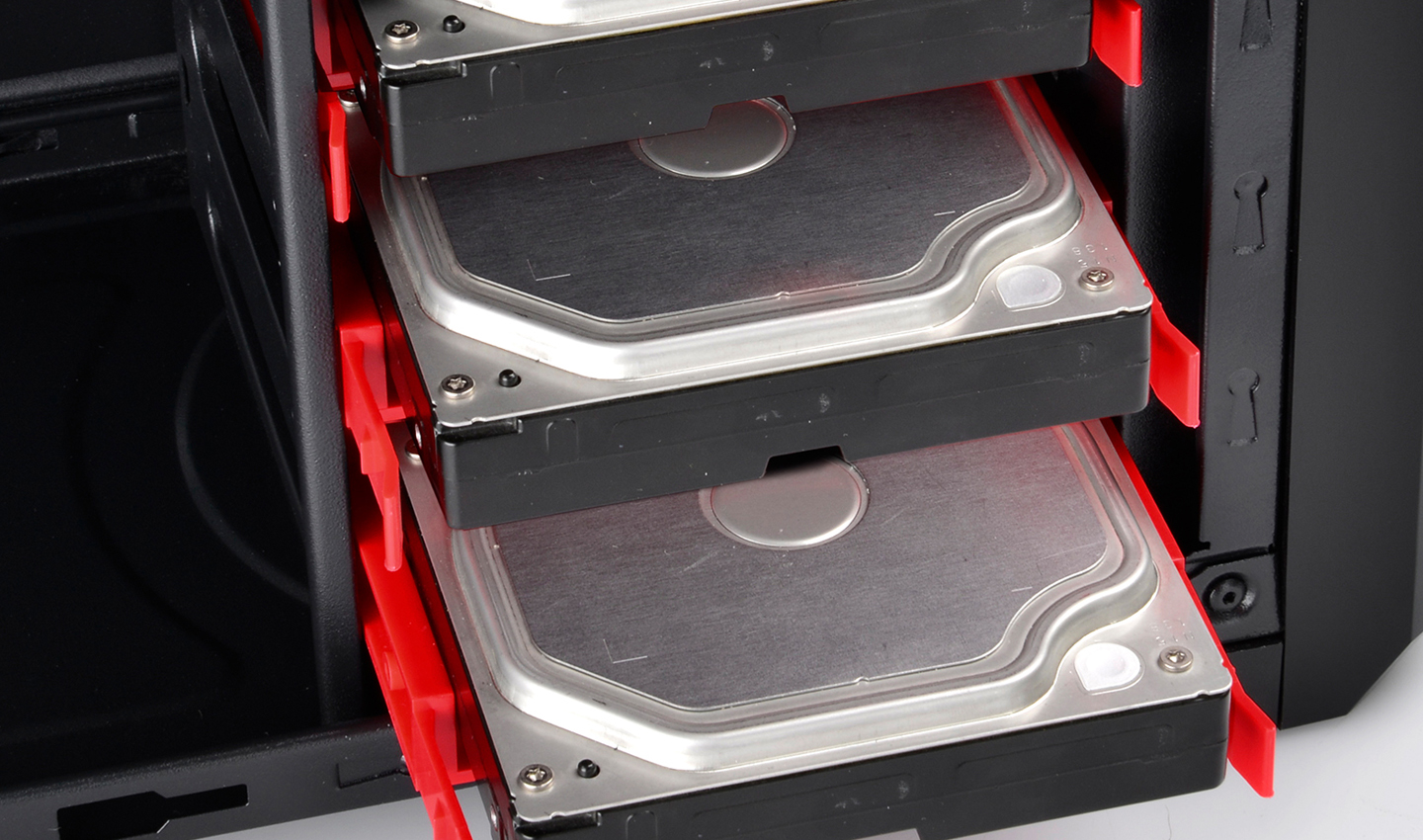

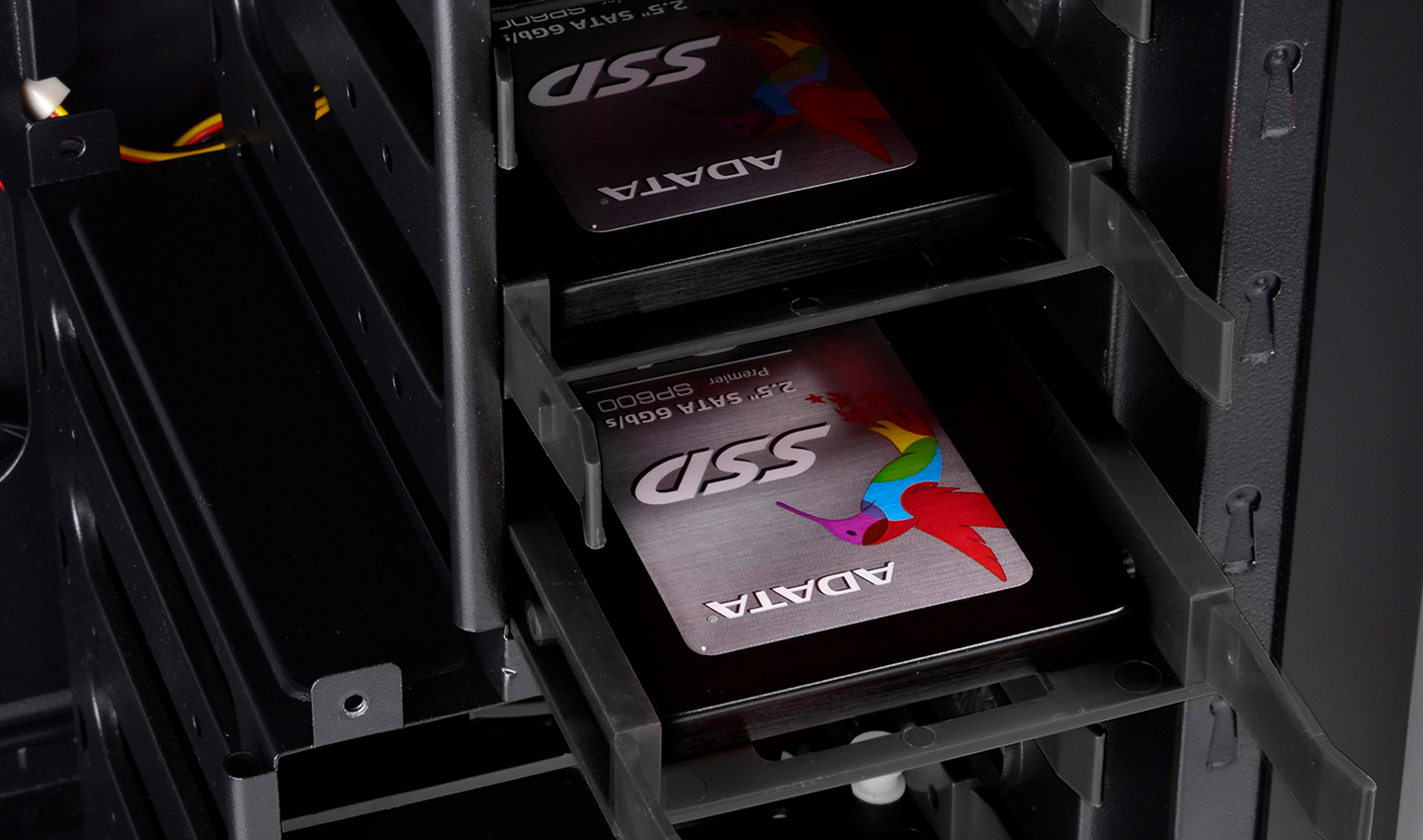

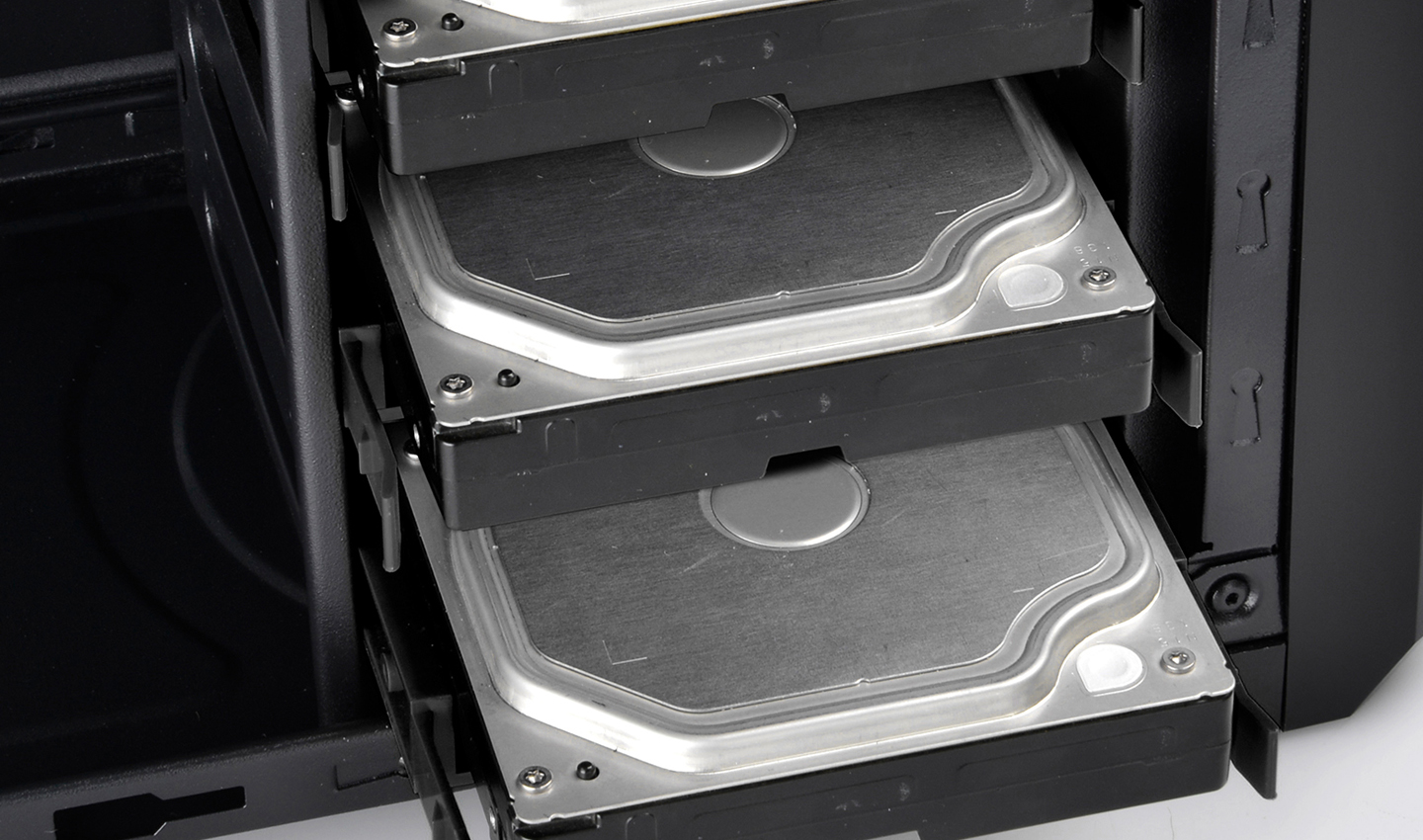

KENDOMEN offers plenty of space for expanded storage, including: 3x 5.25-inch bays, 3x 3.5-inch bays (also compatible with 2.5-inch SSD/HDD), and 3x 2.5-inch drive bays. Removing the 2.5-inch drive cage allows the installation of a 15.7-inch or 400 mm-long graphic card while providing 7 expansion slots, making KENDOMEN the best chassis for the most enthusiastic builder.

Easy Future Maintaining

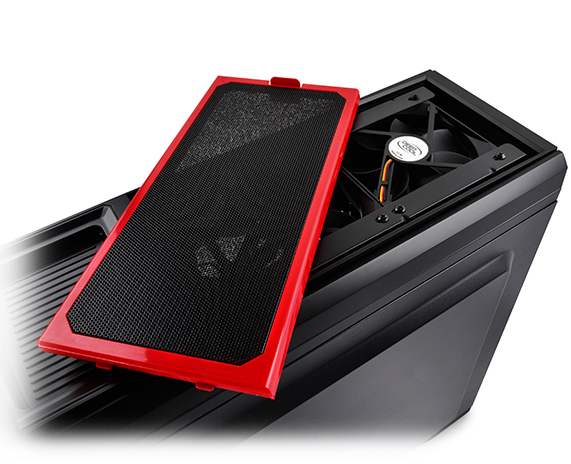

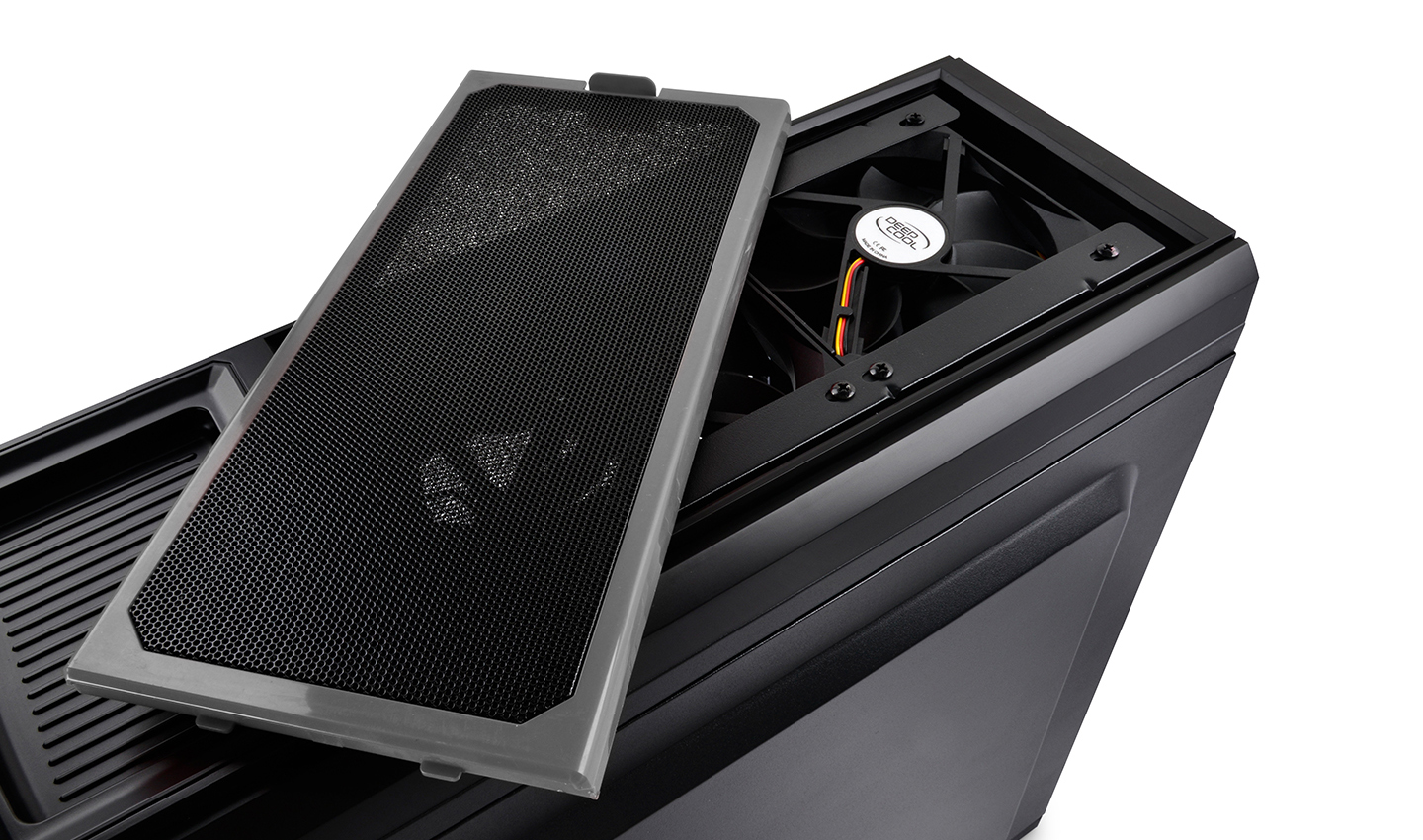

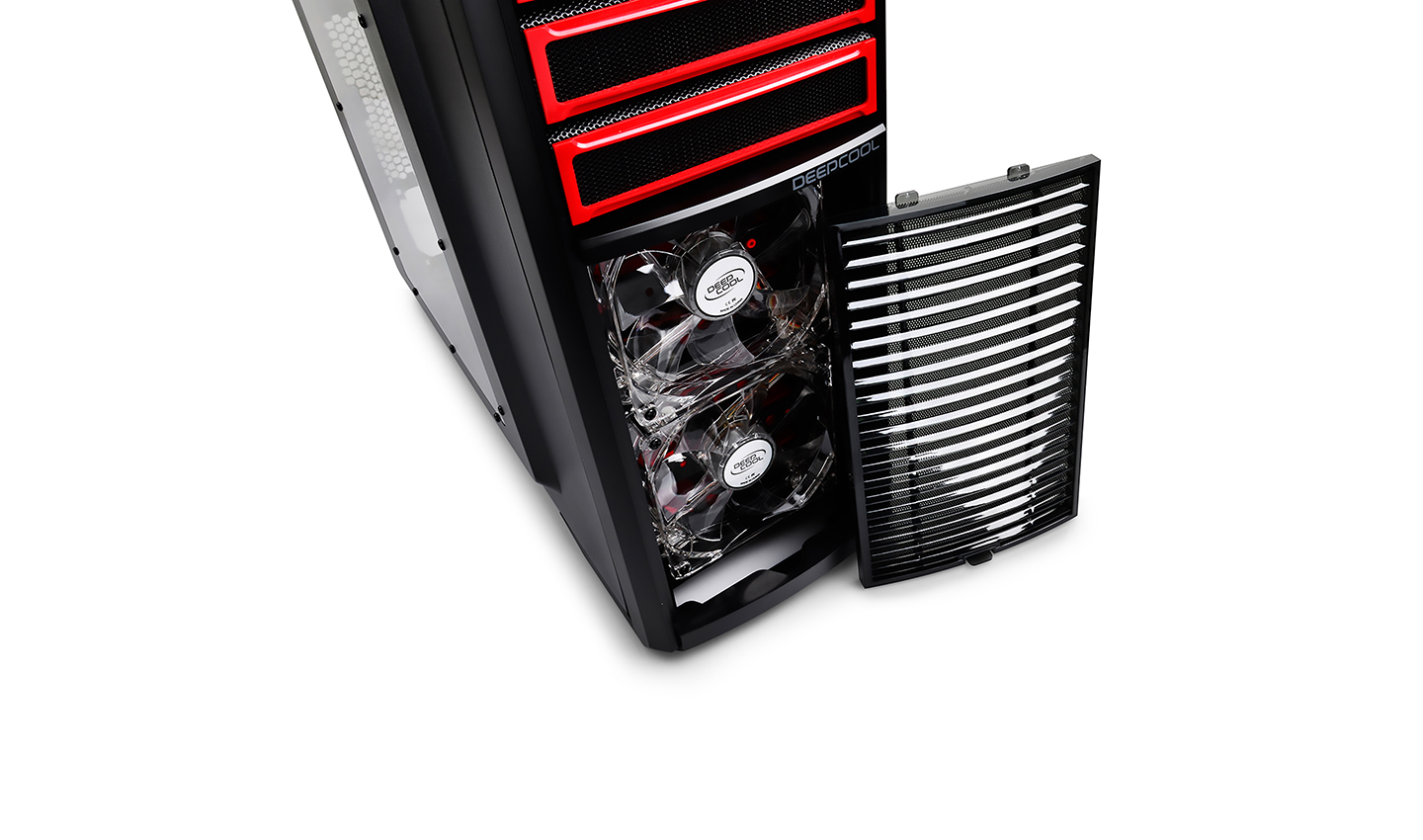

The top, front and bottom panels of KENDOMEN are equipped with filters that protect against dust and dirt. Easy removal design for the top and front panels make cleaning so much easier.

Connection and Control

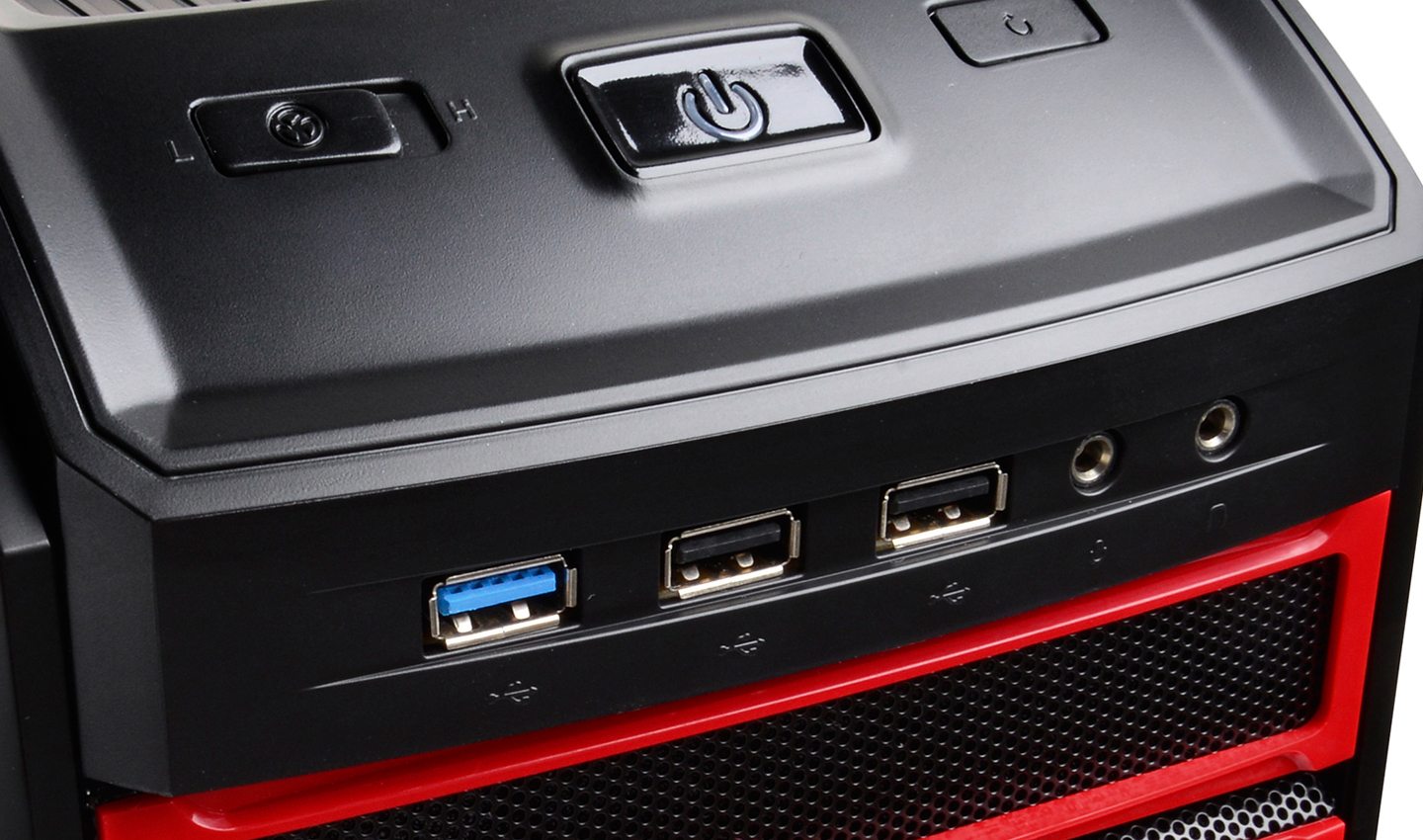

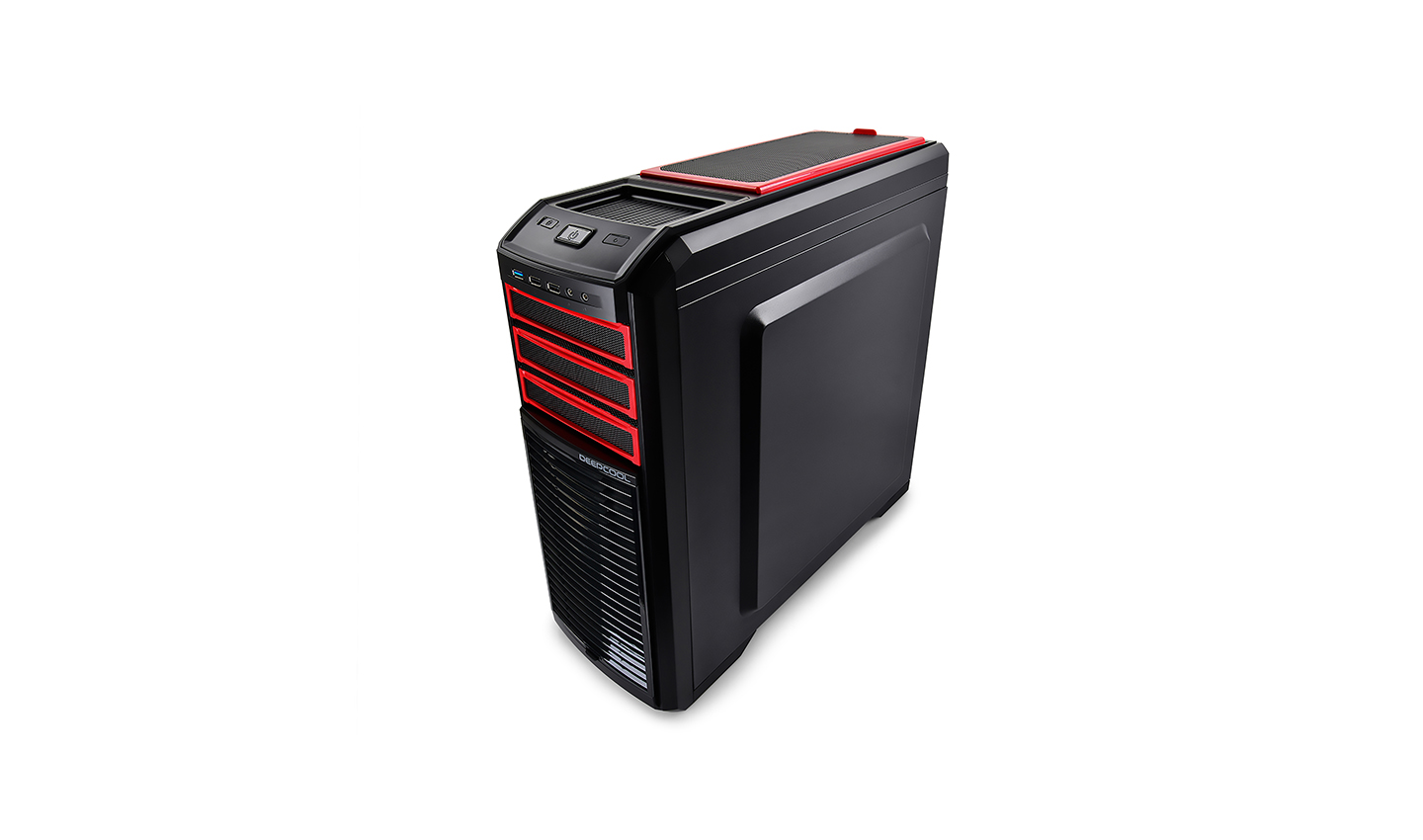

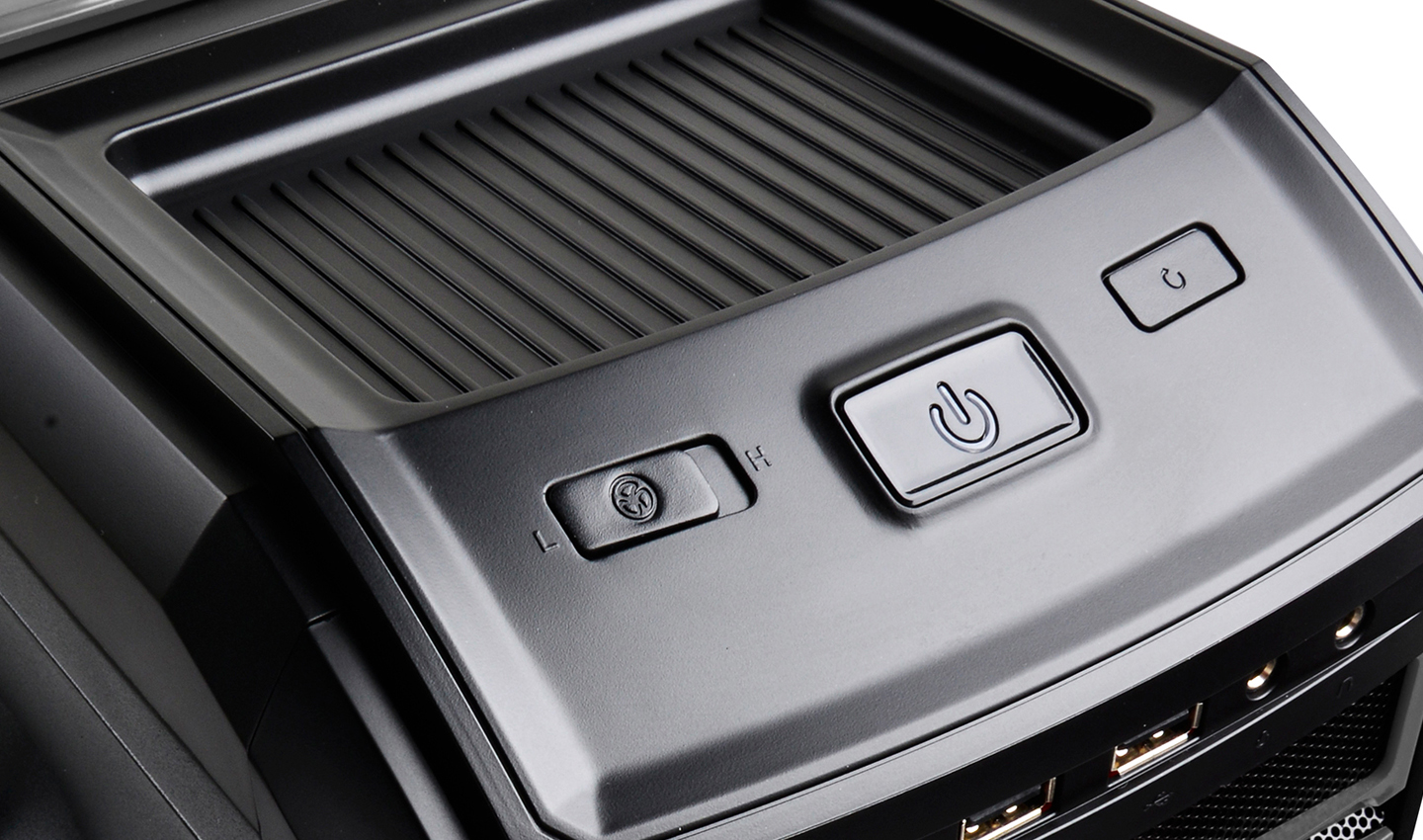

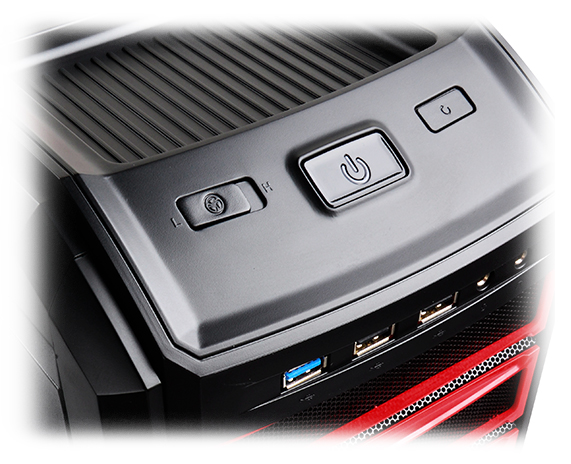

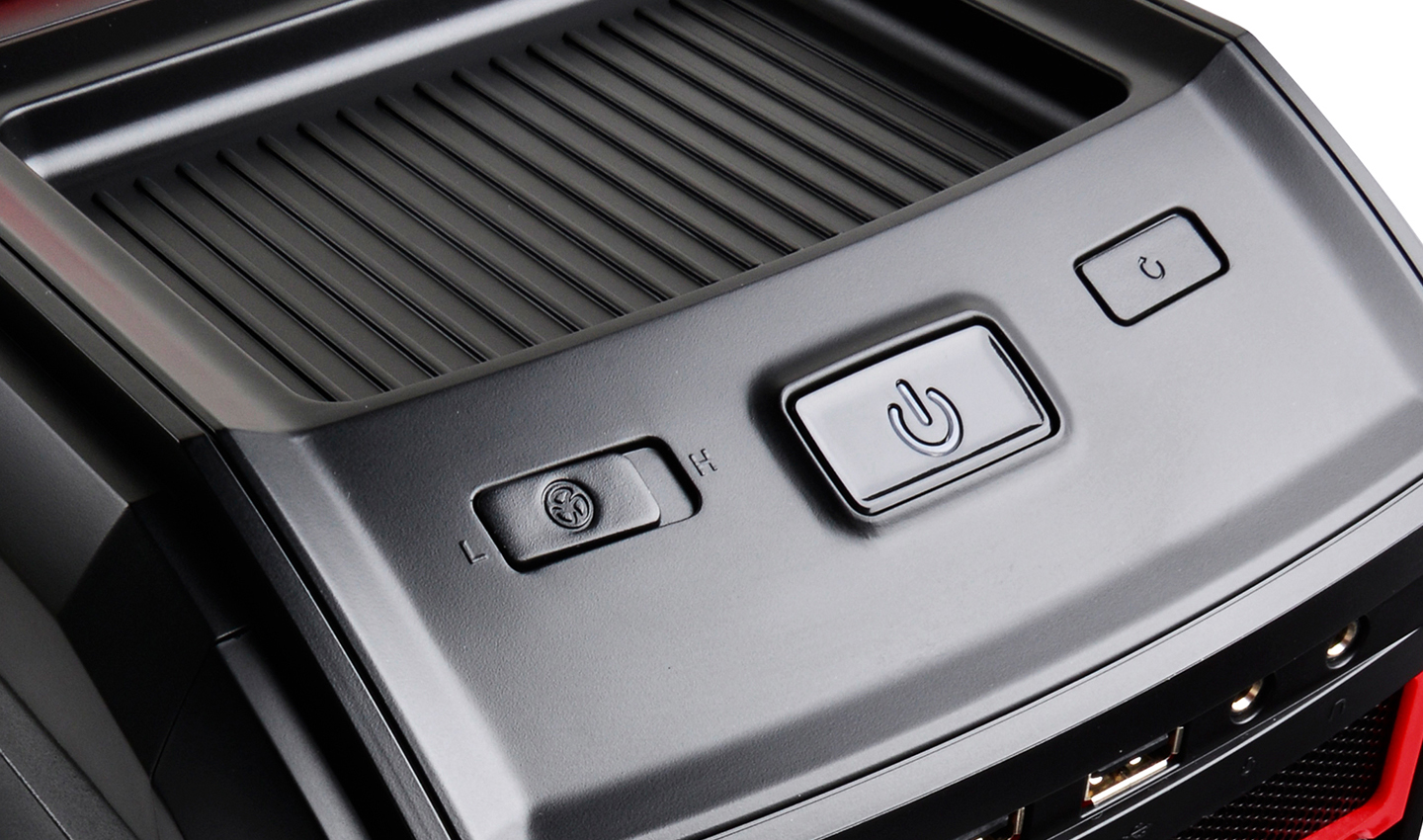

The control platform and I/O ports of KENDOMEN are located at an easily accessible top portion of the front panel. Fan speed controller allows easy management of noise level and cooling performance. USB 3.0 ports offer rapid data exchange between different devices.

Technical Spec

Motherboards	ATX/MICRO ATX/MINI-ITX
Materials	SECC+PLASTIC (ABS)(Panel thickness: 0.7mm)
Dimension (LxWxH)	491200486mm
Net Weight	5.76kg
Gross Weight	6.66kg
5.25" Drive Bays	3 (all tool-free installation)
3.5" Drive Bays	3 (all tool-free installation)
2.5" Drive Bays	3 (tool-free)+ 3 (Switchable from 3.5")
I/O Panel	1×USB3.0/2×USB2.0/Audio(HD)×1/Mic×1
Expansion Slots	7

Cooling Fans	Pre-installed: Rear: 1×120mm fan; Front: 2×120mm LED fan; Top: 2×120mm fan
Power Supply Type	ATX PS2
CPU Cooler Compatibility	160mm height/Liquid Cooler: 120/240mm at top, 120mm at rear
VGA Compatibility	310mm
Package dimension	L530mmW250mmH550mm
EAN (RD)	6933412712701
P/N (RD)	DP-CCATX-KDM5FBKRD
EAN(TI)	6933412712695
P/N(TI)	DP-CCATX-KDM5FBKTI

Product Dimension

Download

KENDOMEN Manual.pdf
