CC560 MESH V2

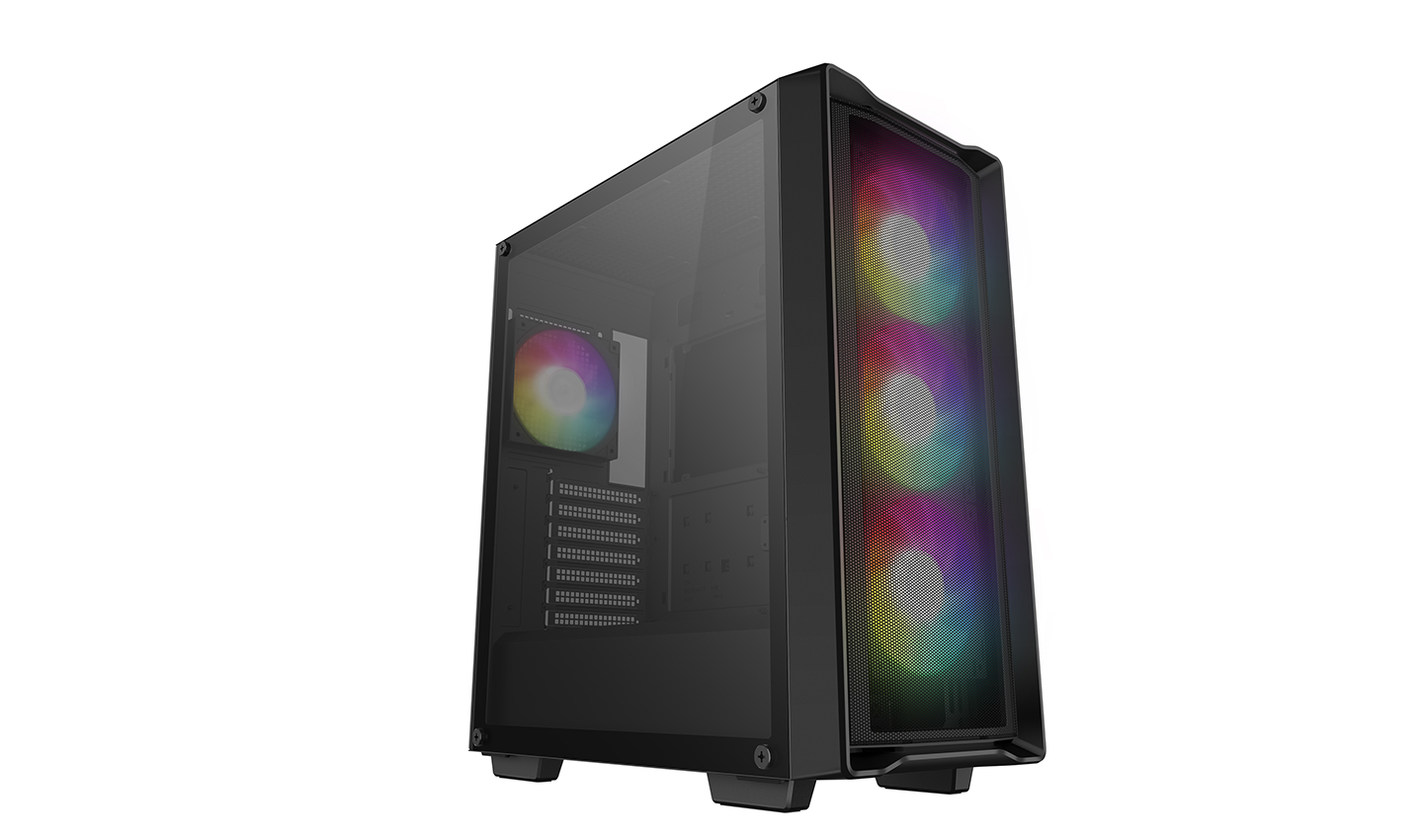

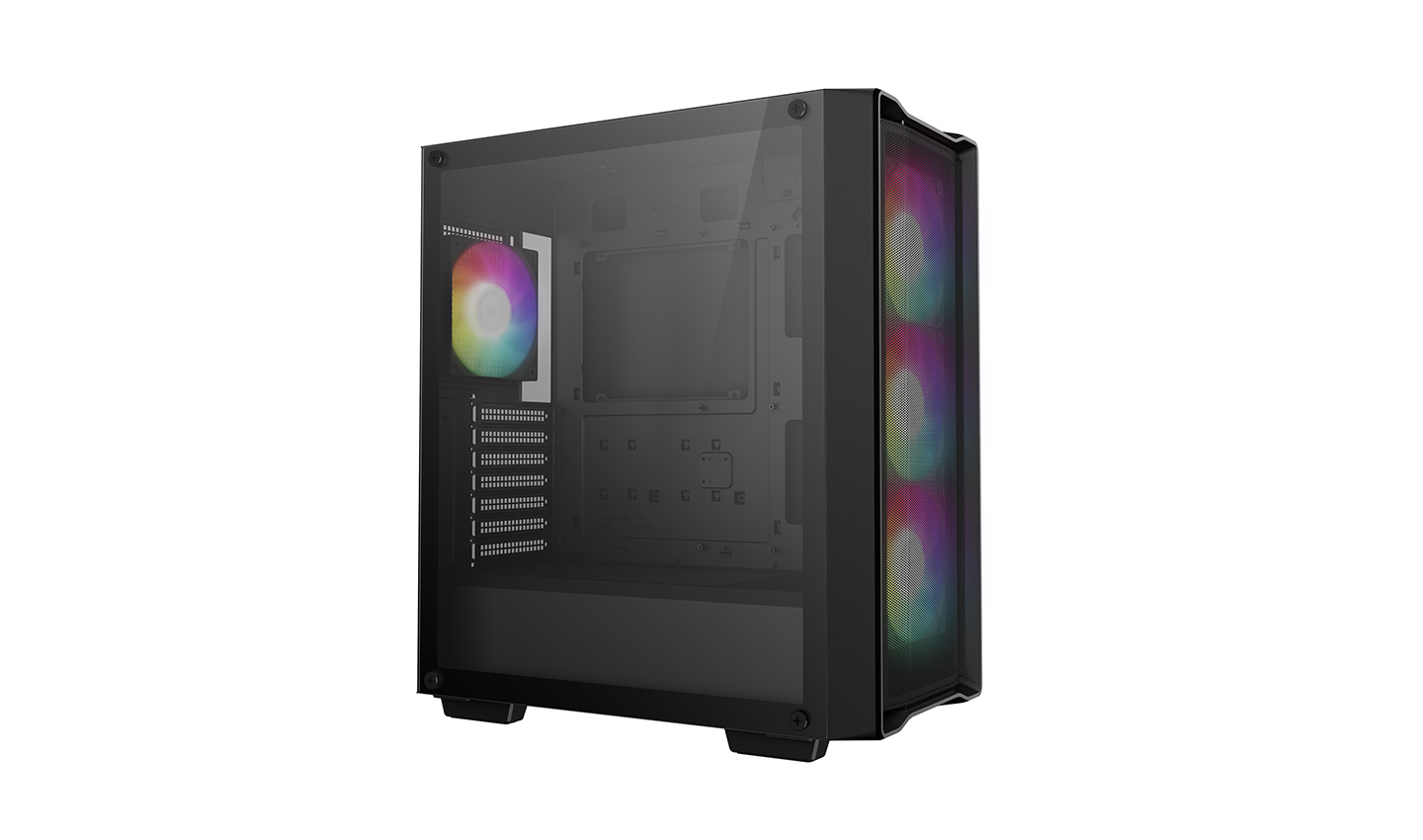

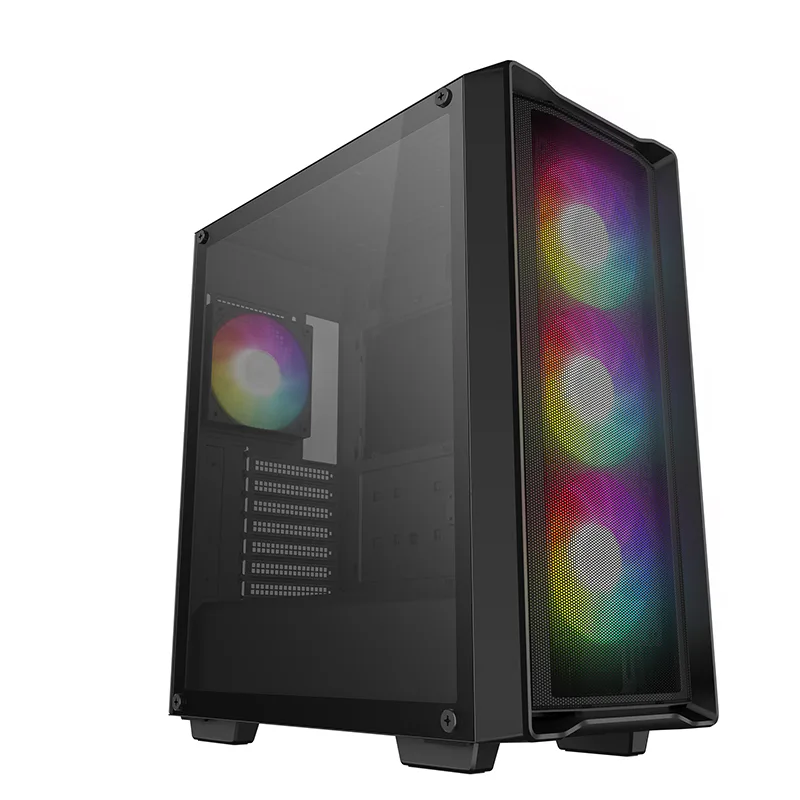

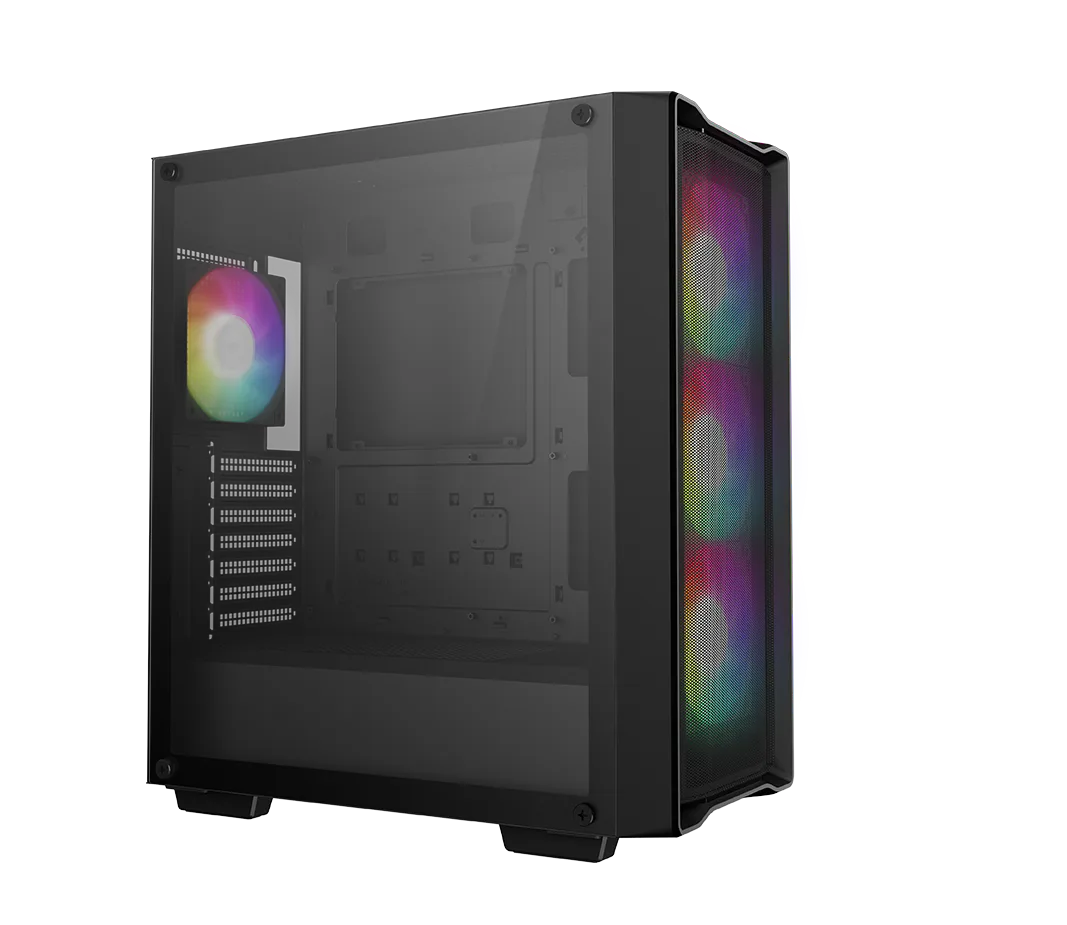

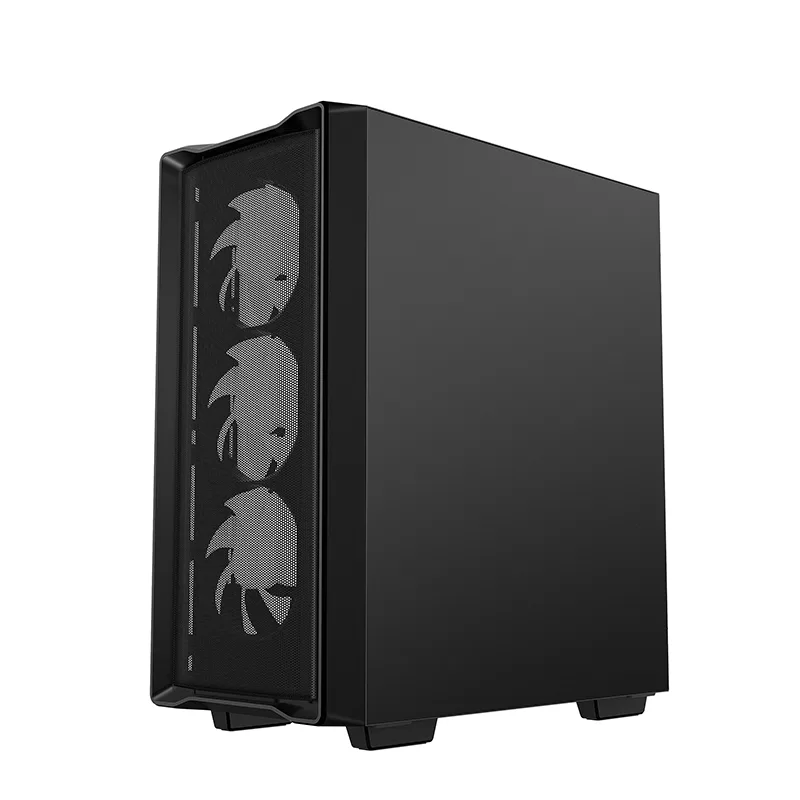

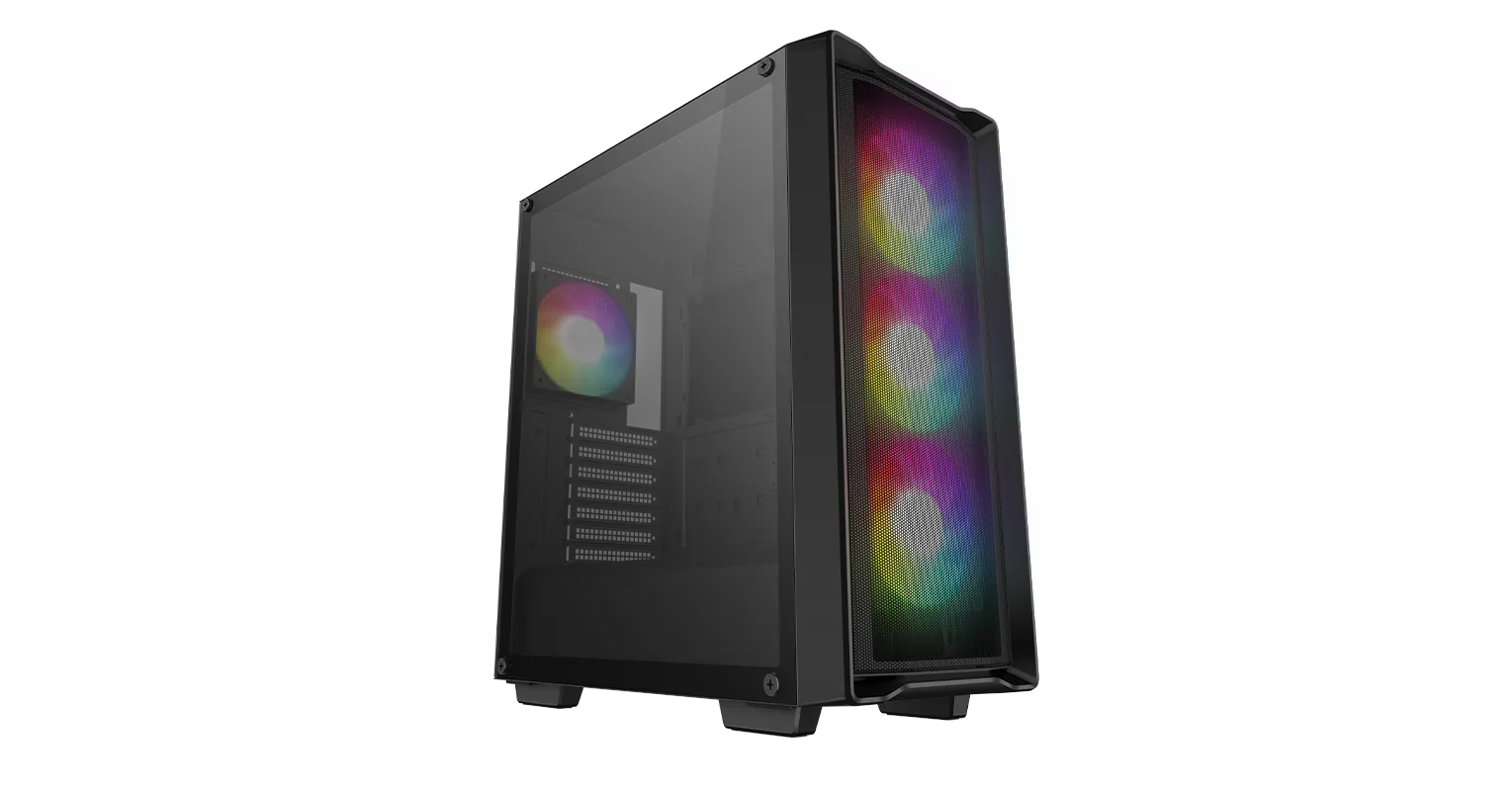

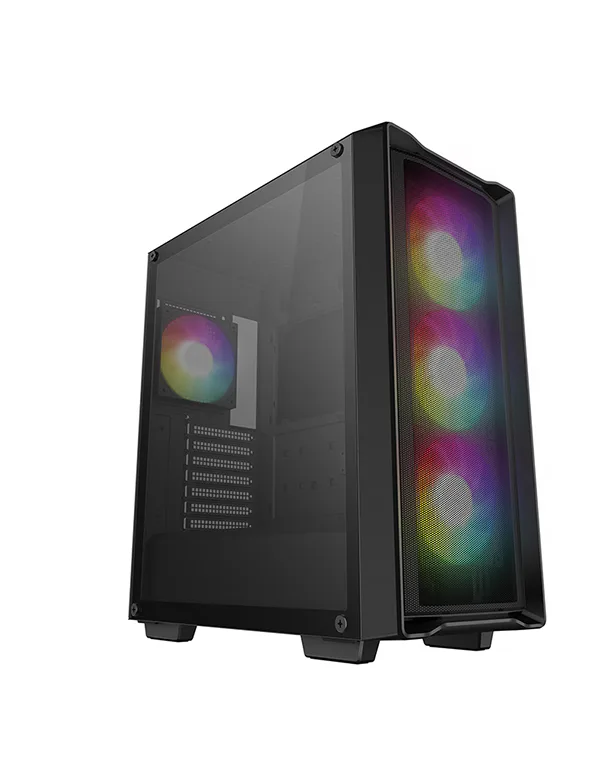

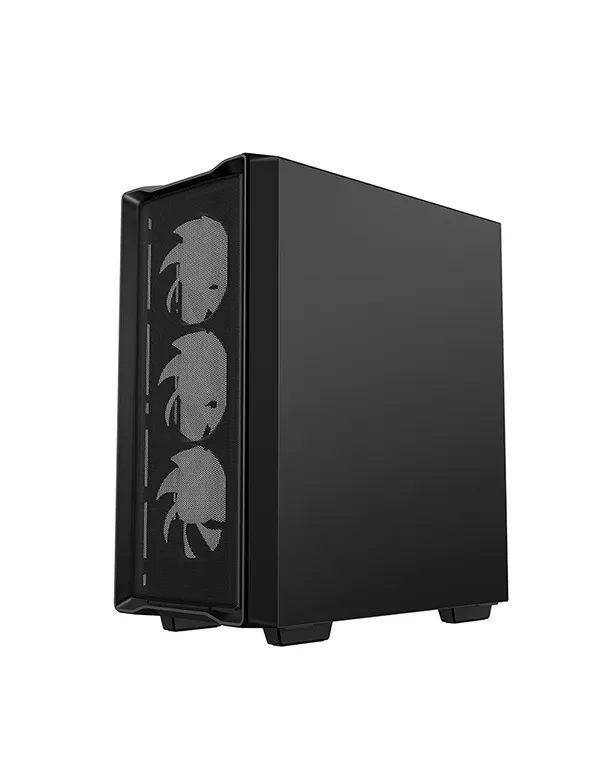

The DeepCool CC560 MESH V2 mid-tower case offers great value with spacious component compatibility, a full-sized tempered glass window, a fine mesh front panel, and a total of four pre-installed ARGB fans that get any build started right. The V2 model builds upon the success of the previous generation and raises the bar.
COLOR
black
MODEL
CC560 MESH V2
REFINED MESH AIRFLOW CASE
UNRESTRICTED AIRFLOW

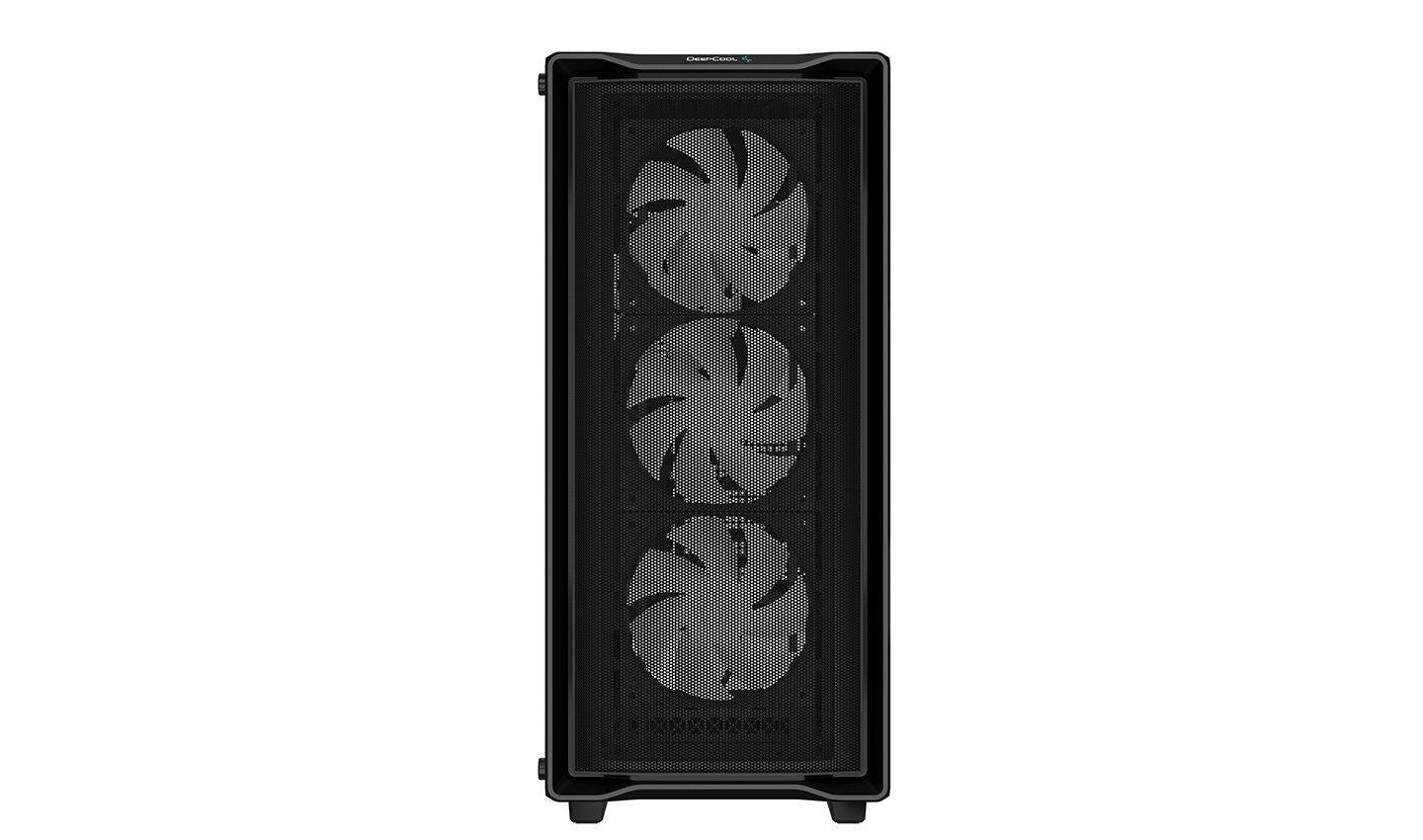

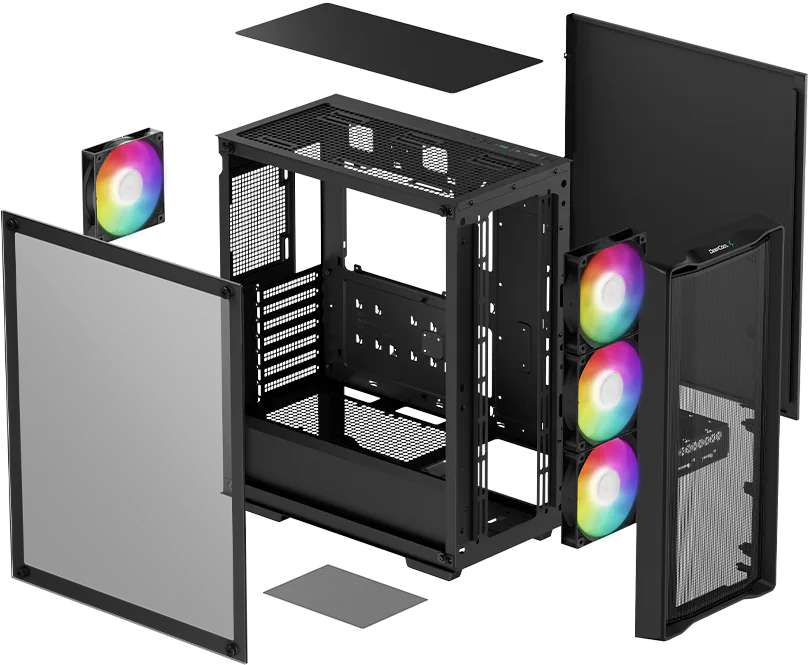

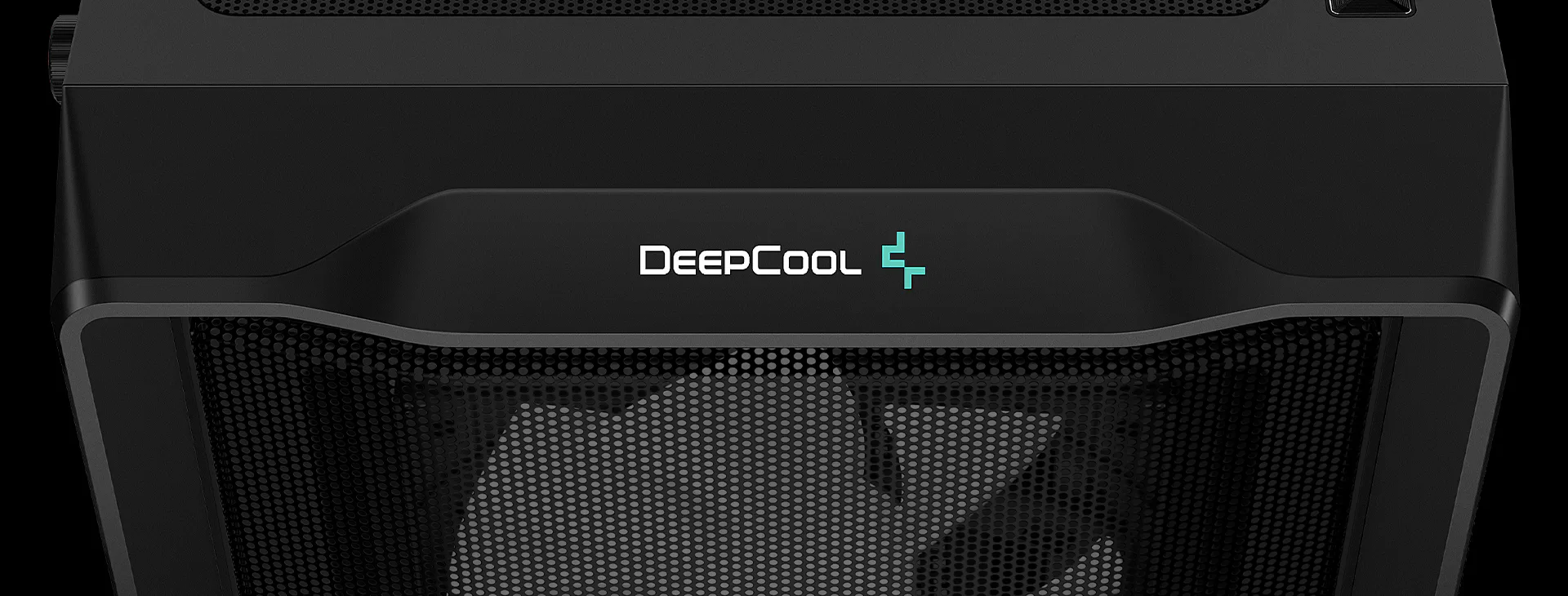

Well ventilated throughout the entire chassis, the CC560 MESH V2 upgrades the front panel to a new free-flowing fine mesh, has support for fans on the PSU shroud, and has a large mesh top panel to ensure fresh air is circulating.
PRIMED AND READY

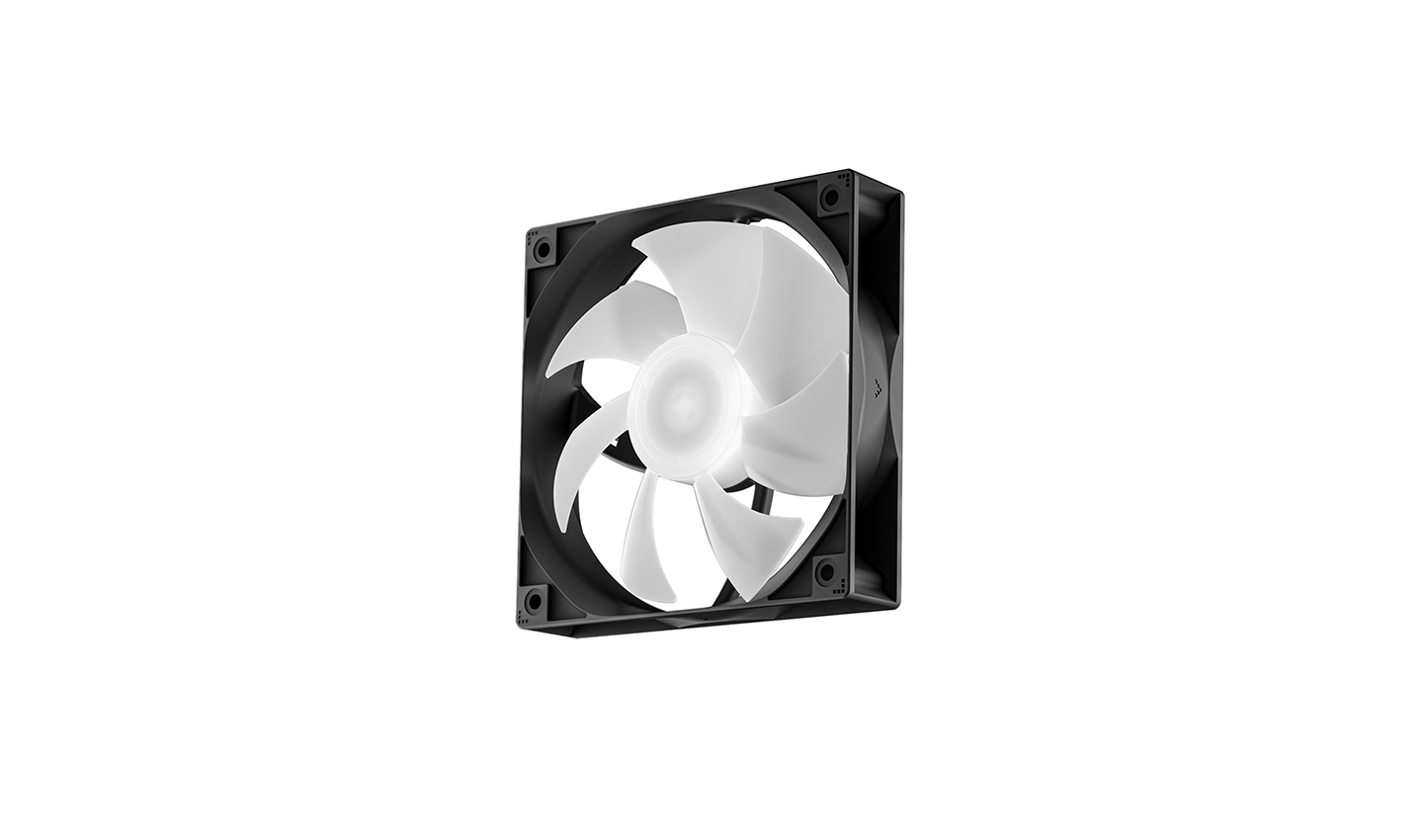

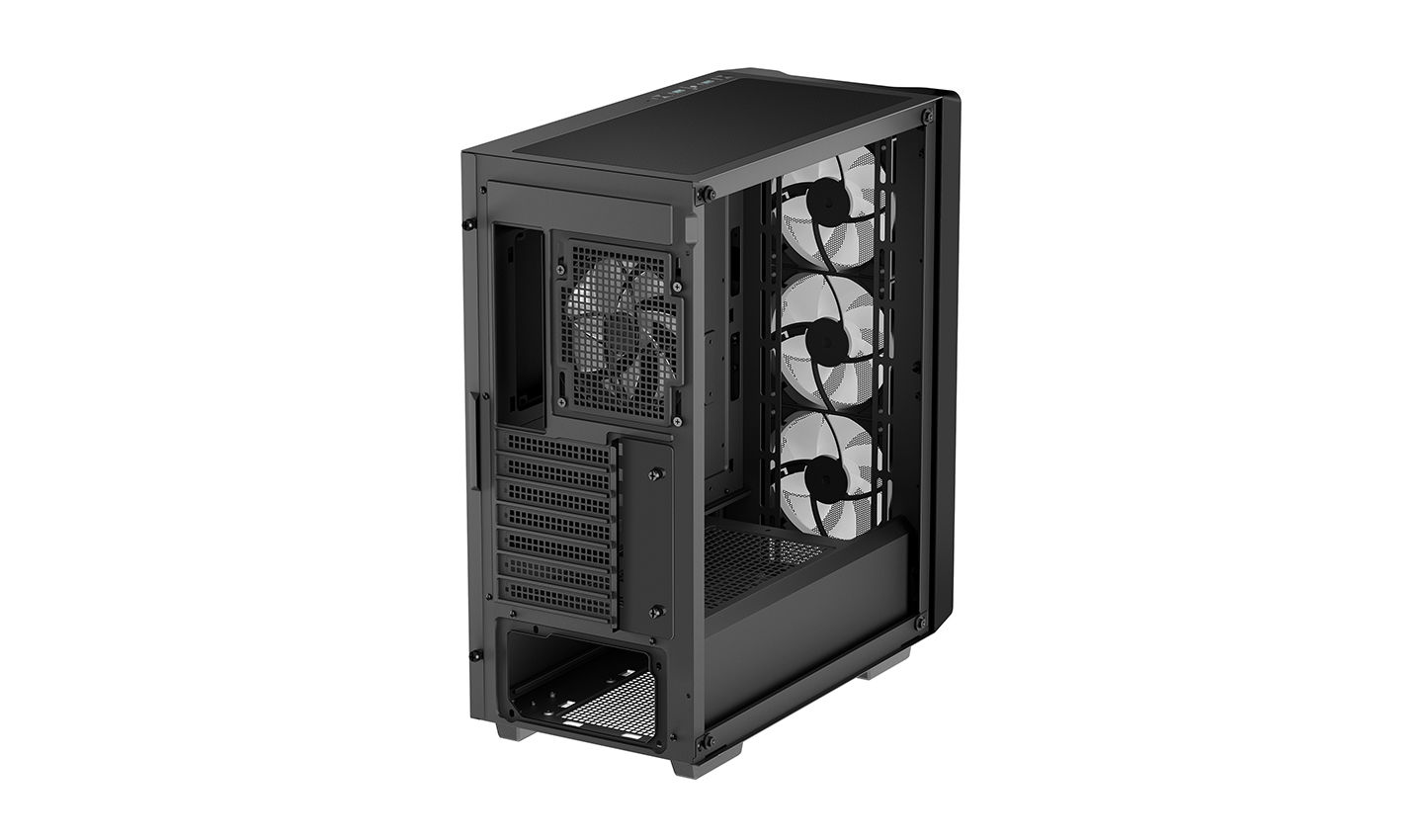

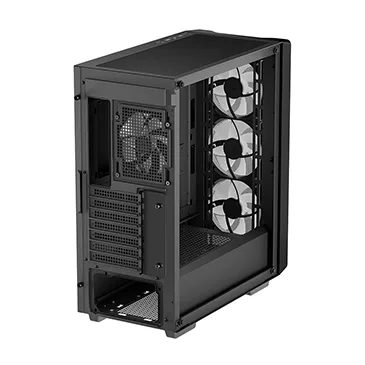

Four pre-installed ARGB fans deliver big airflow performance, ensuring any system build receives top-notch cooling capacity.
WIDE COOLING SUPPORT
There is enough space to support high-performance AIO liquid coolers, with room for a 360mm radiator in front or 280mm on top. Cooling fan support for up to 8x120mm or 5x140mm fans. The PSU shroud can now support two 120mm fans, providing an extra breath of fresh air to your power-hungry GPU!
Radiators
Front: 120/140/240/280/360mm
Top: 120/140/240/280mm
Rear: 120mm
Fans
Front: 3×120 (3 pre-installed) / 3×140mm
Top: 2×120 / 2×140mm
Rear: 1×120mm (preinstalled)
PSU Shroud: 2×120mm
COMPATIBILITY

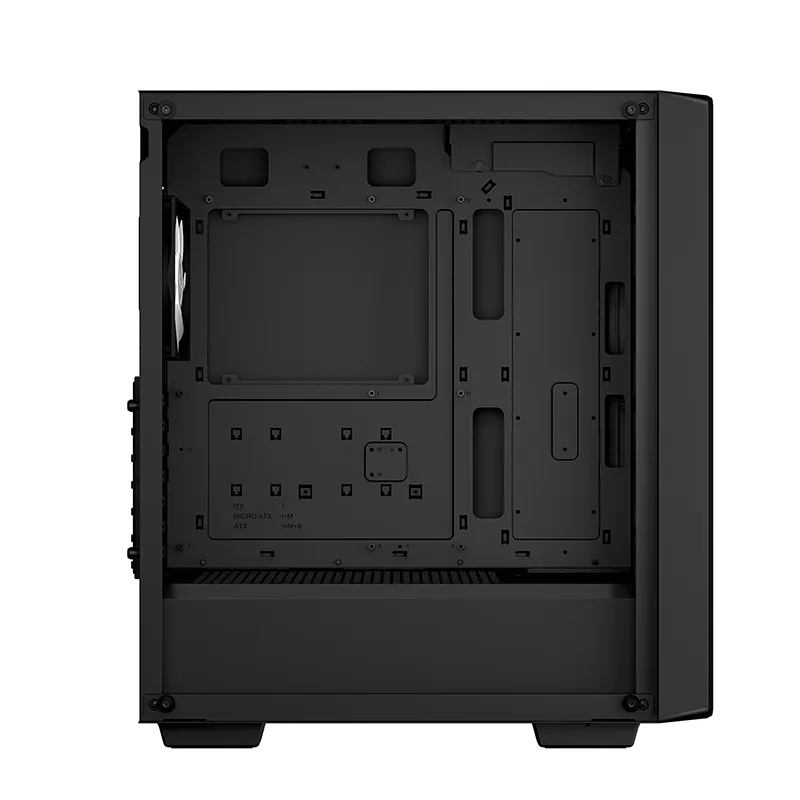

With the ability to support up to ATX motherboards, 165mm tall CPU coolers, 370mm GPUs, and 170mm PSUs; the CC560 MESH V2 can be configured with a wide range of high end components.
STORAGE SOLUTIONS

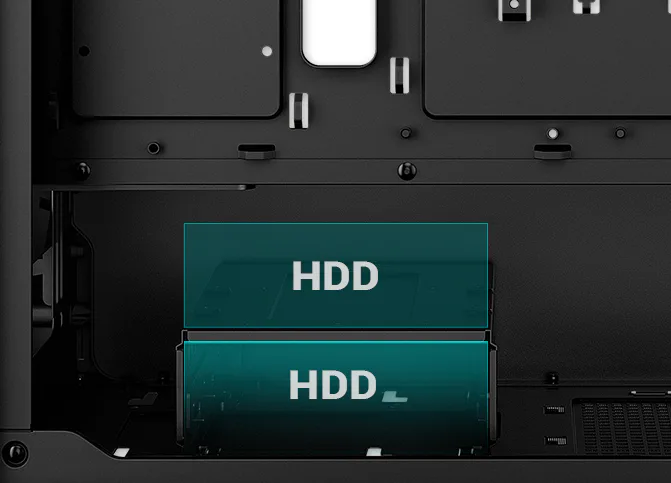

Support for 2x 2.5” SSDs and 2x 3.5” HDDs. One of the HDD bays can be utilized for a third 2.5"" drive if the need arises.

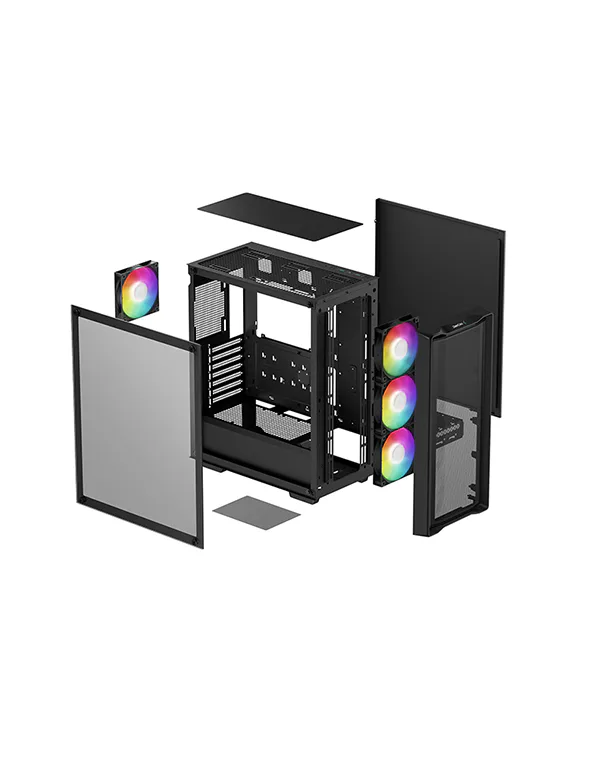

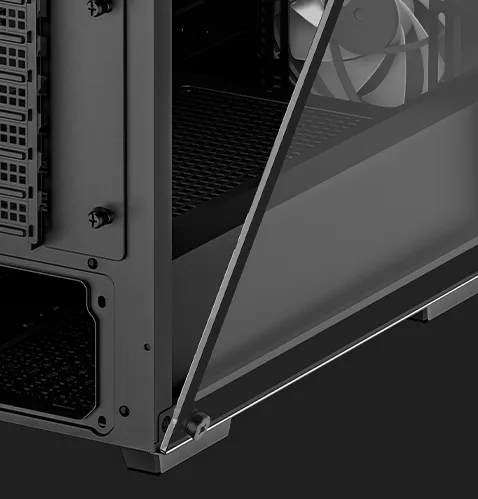

REINFORCED AND CONVENIENT

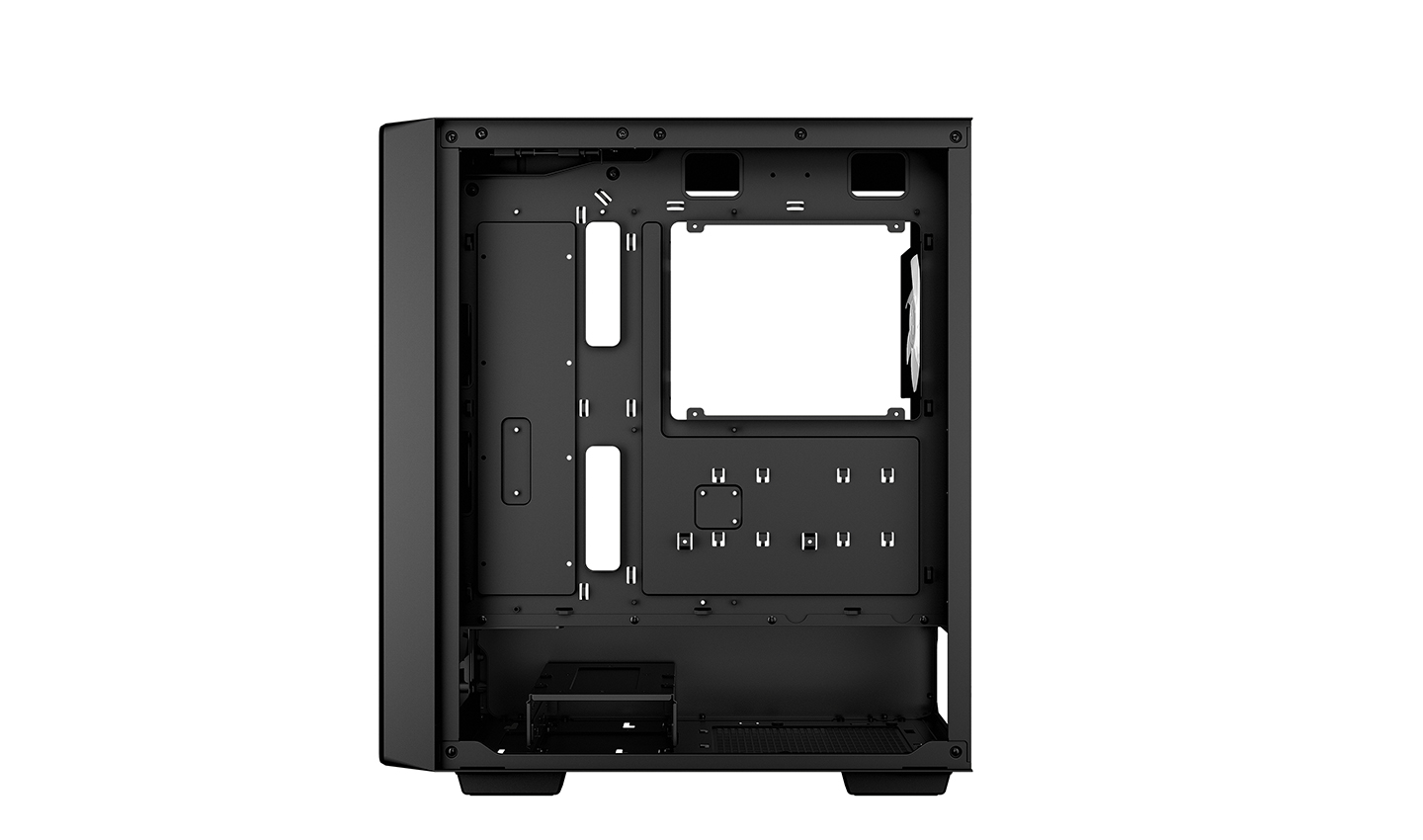

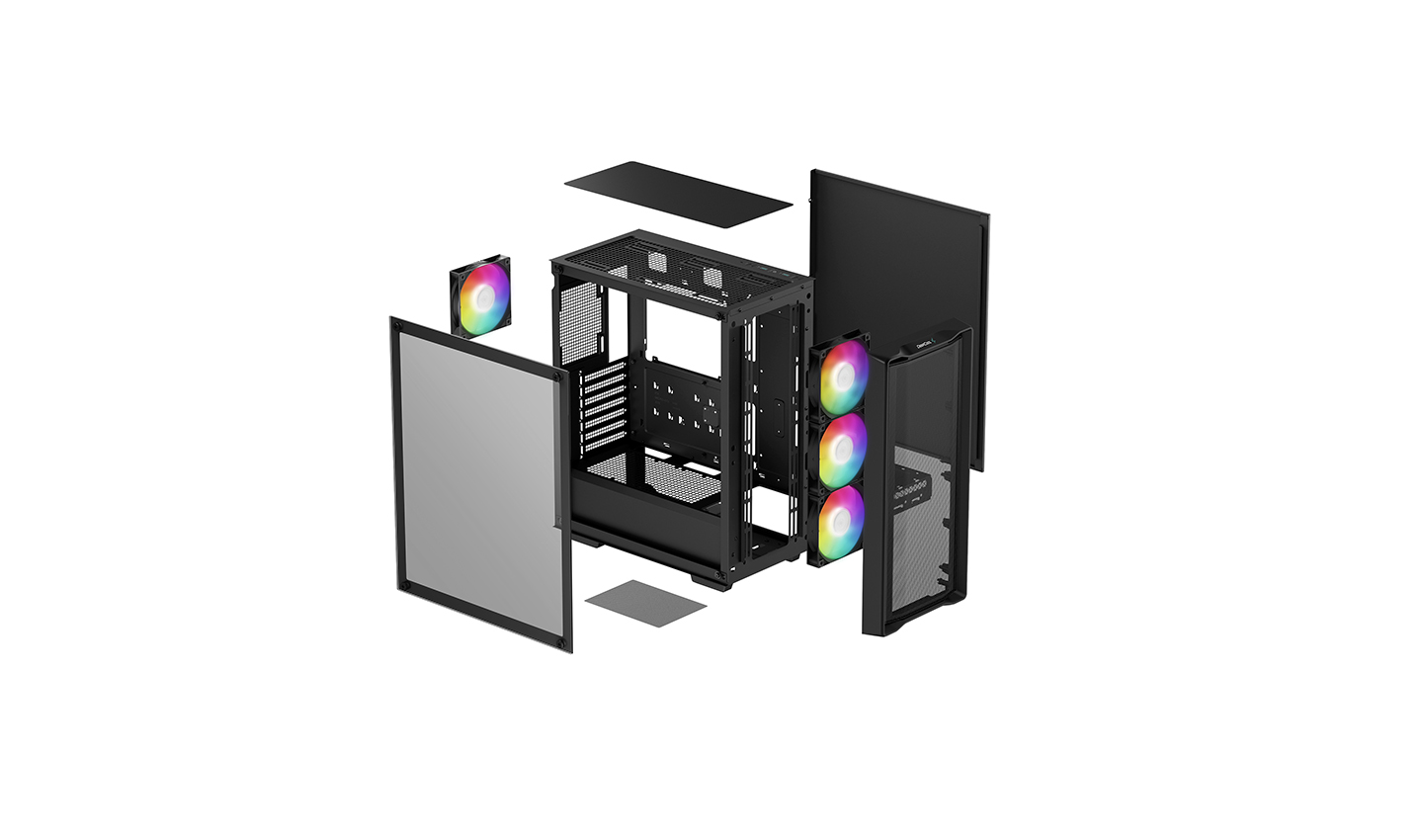

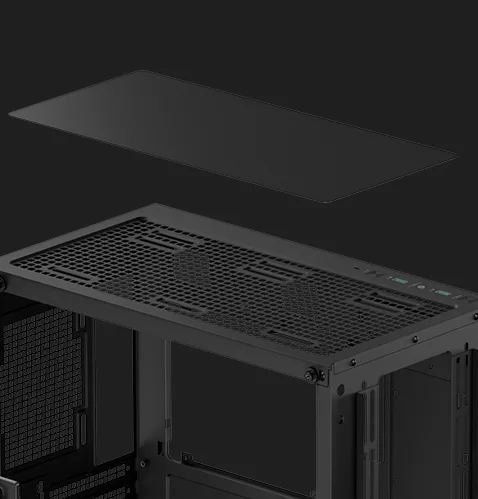

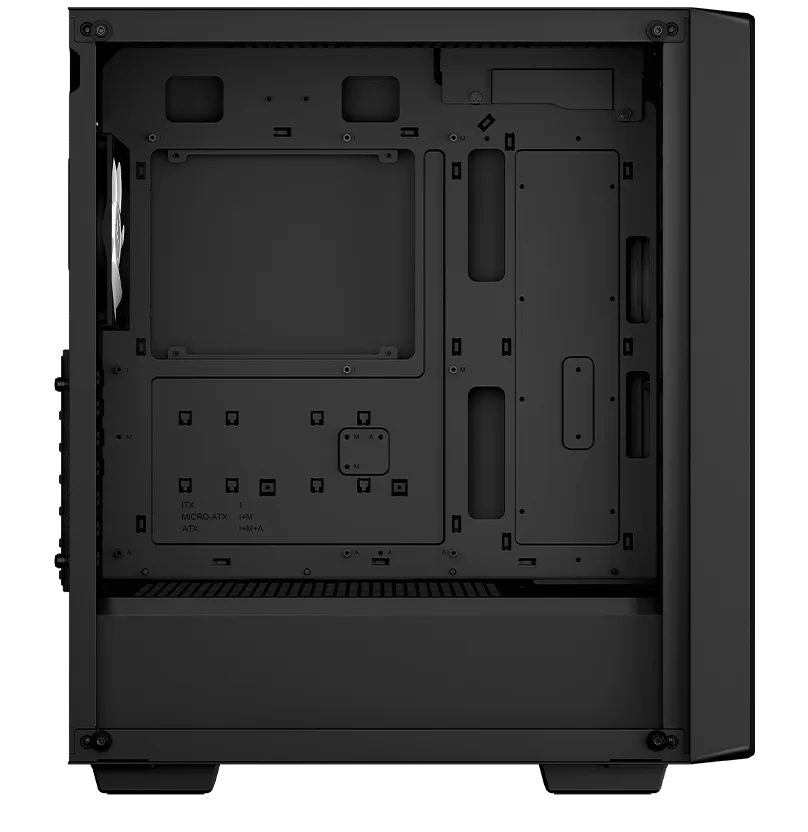

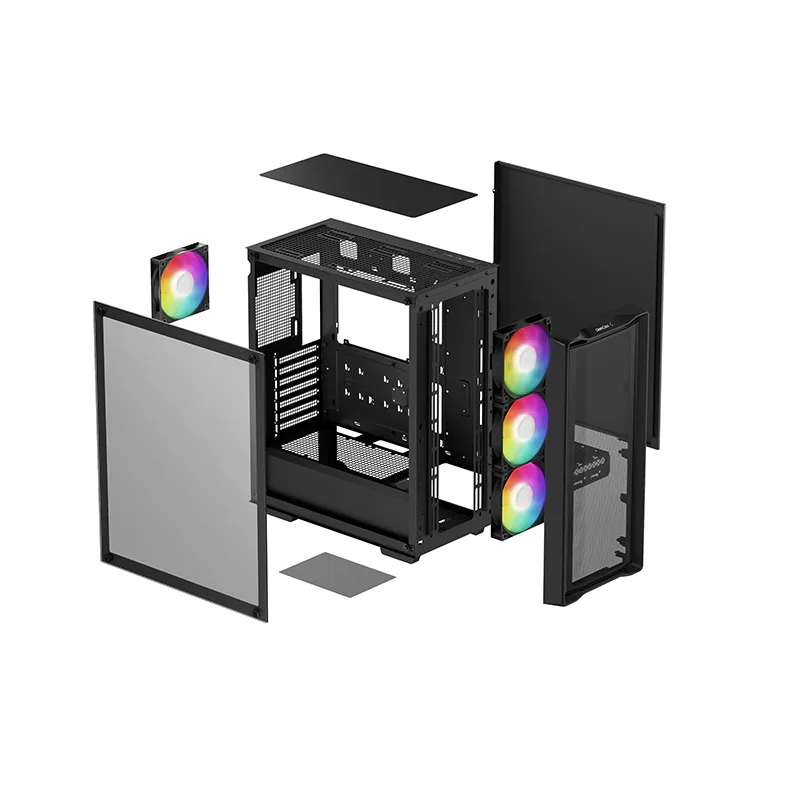

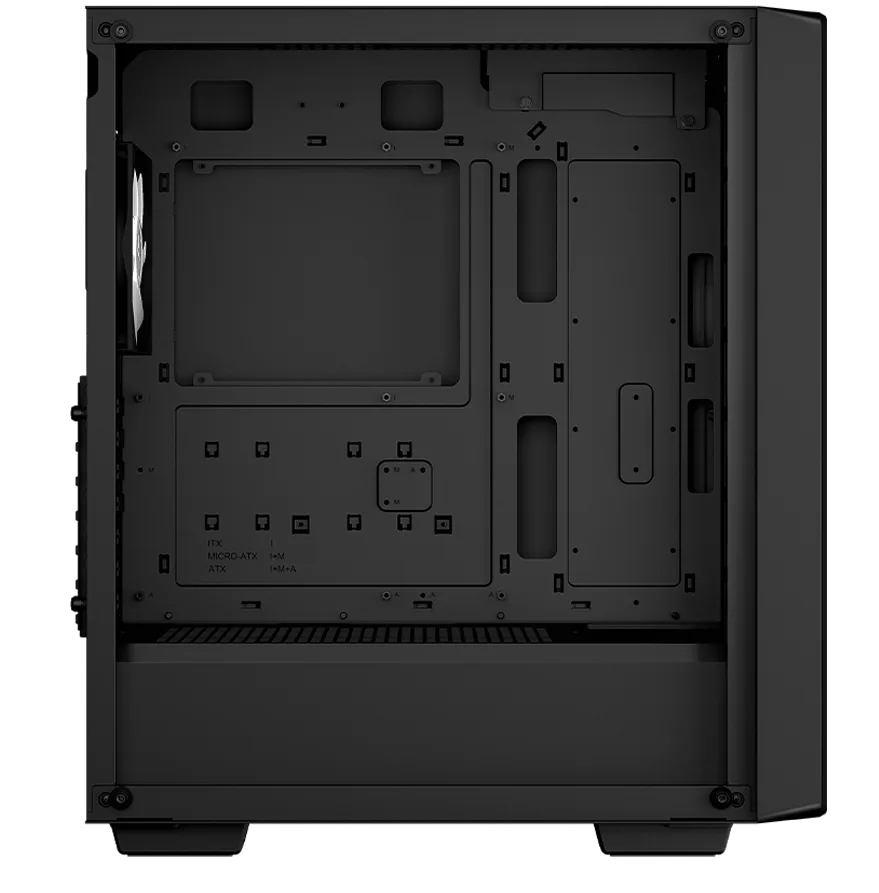

The chassis and side glass panel have been upgraded and reinforced for extra durability, and the magnetic top dust filter makes cleaning a breeze. The 20mm of cable management space behind the motherboard tray provides adequate space to arrange all your wires.

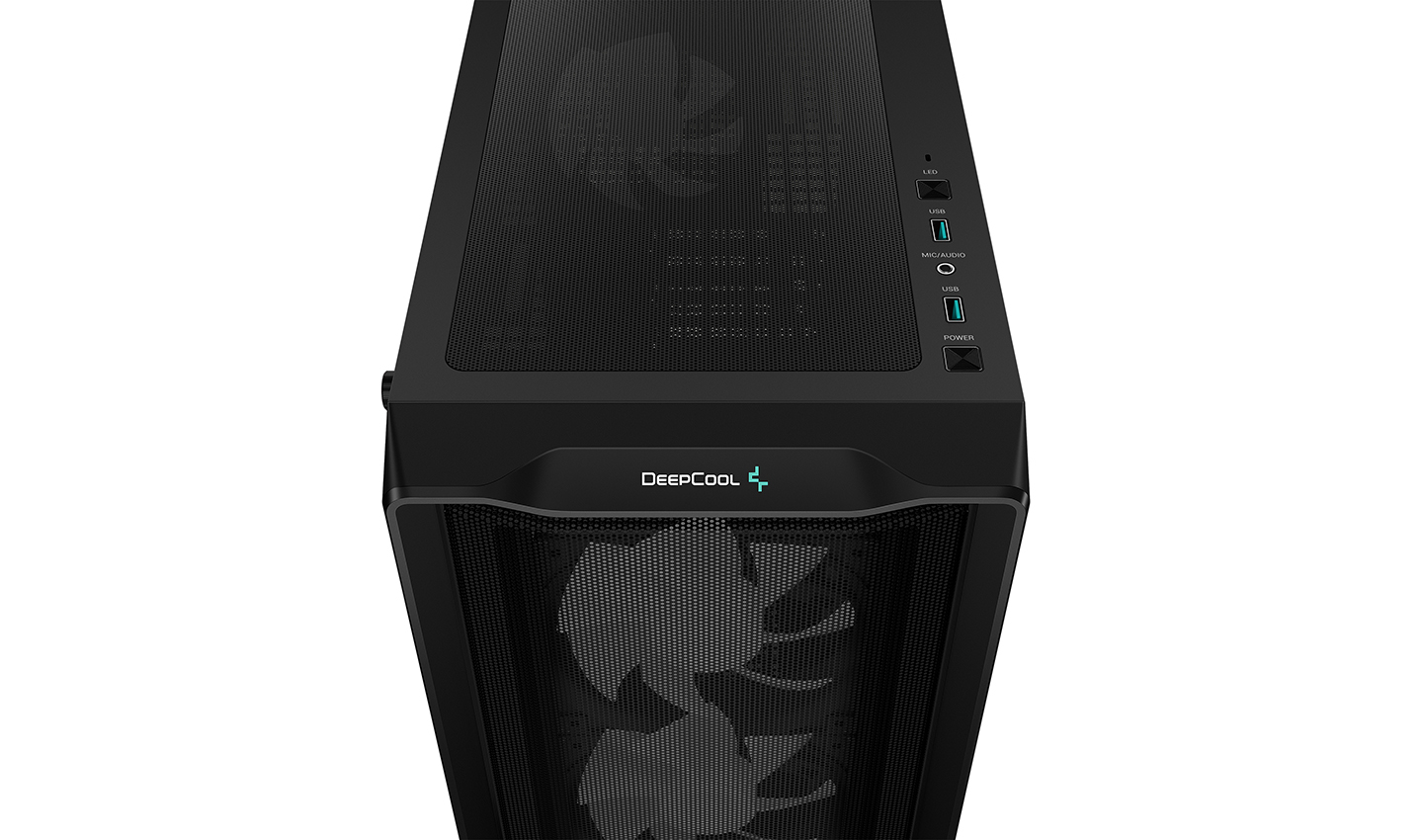

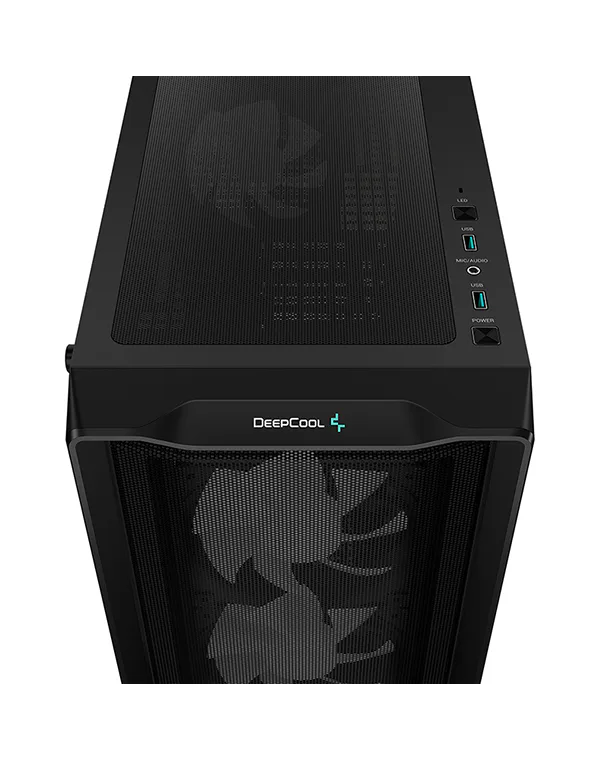

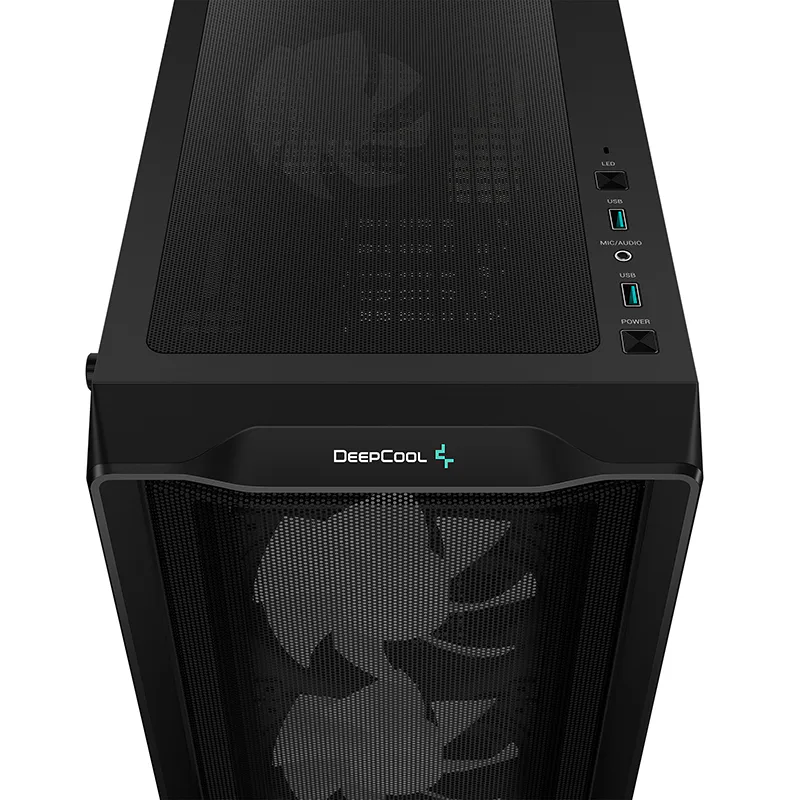

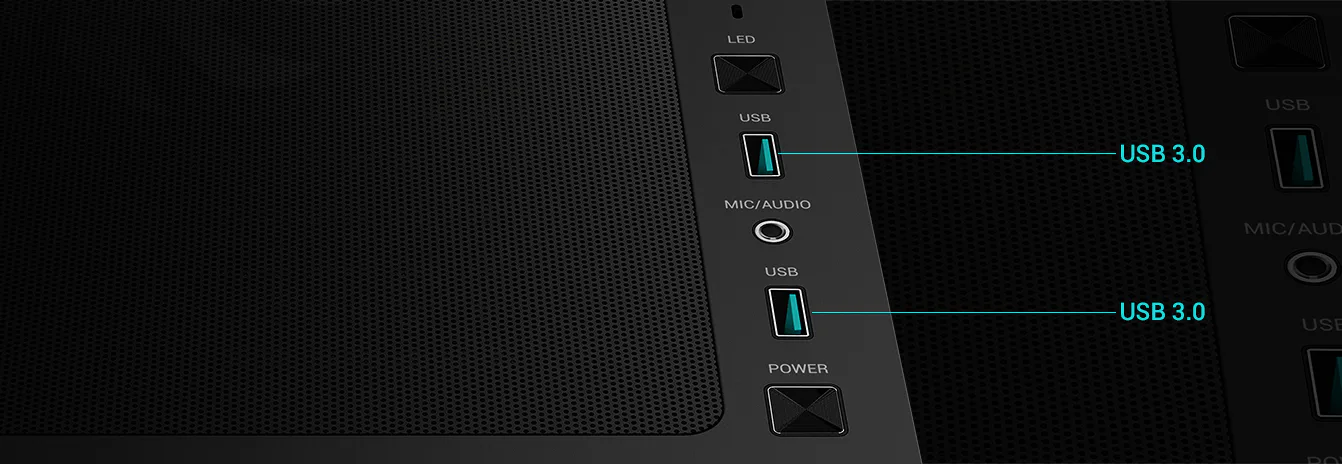

TOP I/O PANEL
Features two easily accessible USB 3.0 ports and a combo audio jack.
Technical Spec
Product Dimensions432×215×483mm(L×W×H)
Net Weight5.7Kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportMini-ITX / Micro-ATX / ATX
Front I/O PortsUSB3.0×2、Audio×1
3.5" Drive Bays2
2.5" Drive Bays2+1
Expansion Slots7Slots
Pre-Installed FansFront: 3×120mm ARGB
Rear: 1×120mm ARGB
Fan SupportFront: 3x120mm/3×140mm
Top: 2×120mm/2x140mm
Rear: 1×120mm
PSU Shrouded: 2×120mm
Radiator SupportFront: 120/140/240/280/360mm
Top: 120/140/240/280mm
Rear: 120mm
CPU Cooler Height Limit165mm
GPU Length Limit370mm
Power Supply TypeATX PS2（maximum length: 170mm）
EAN6933412774181
P/NR-CC560-BKAMA4-G-2
