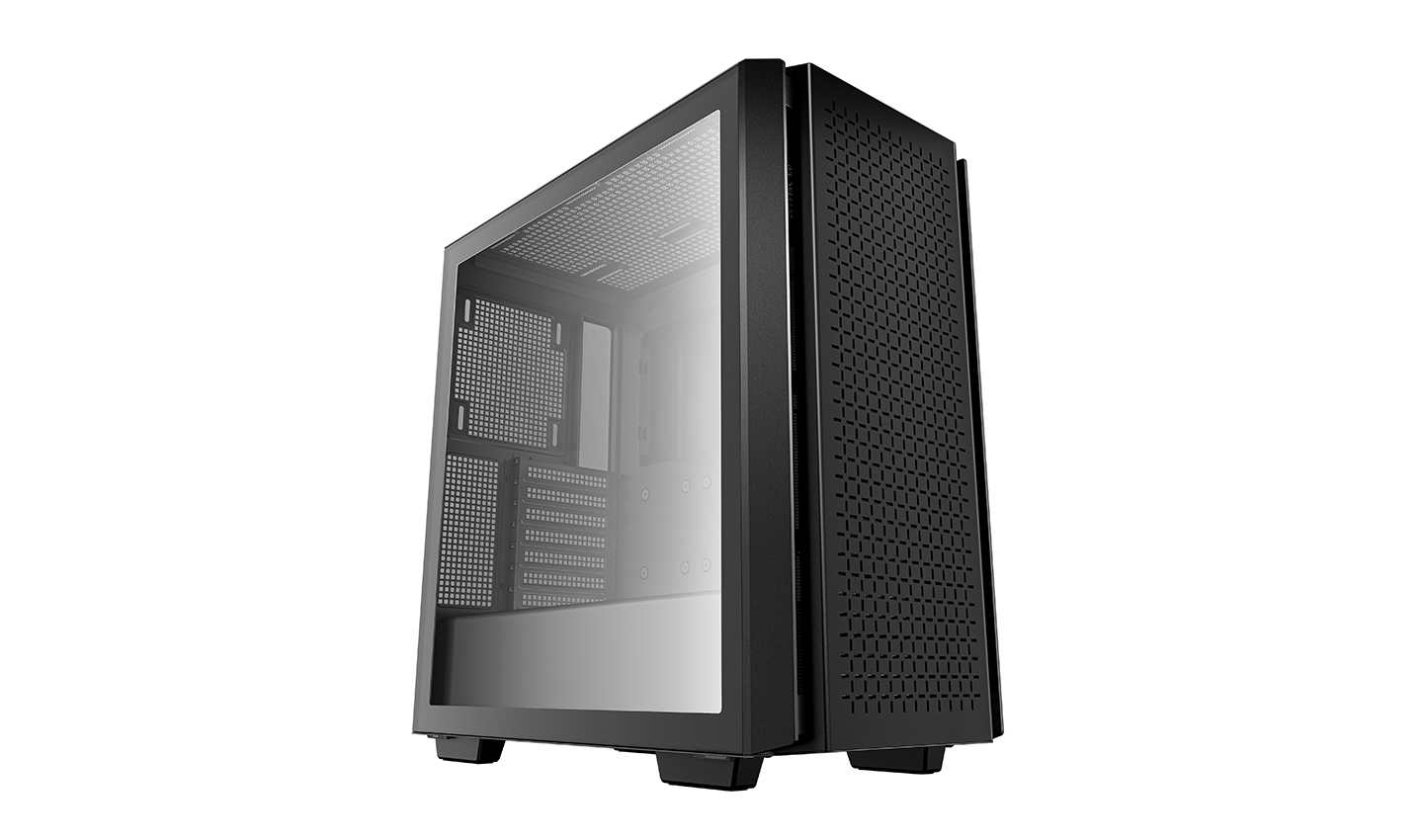

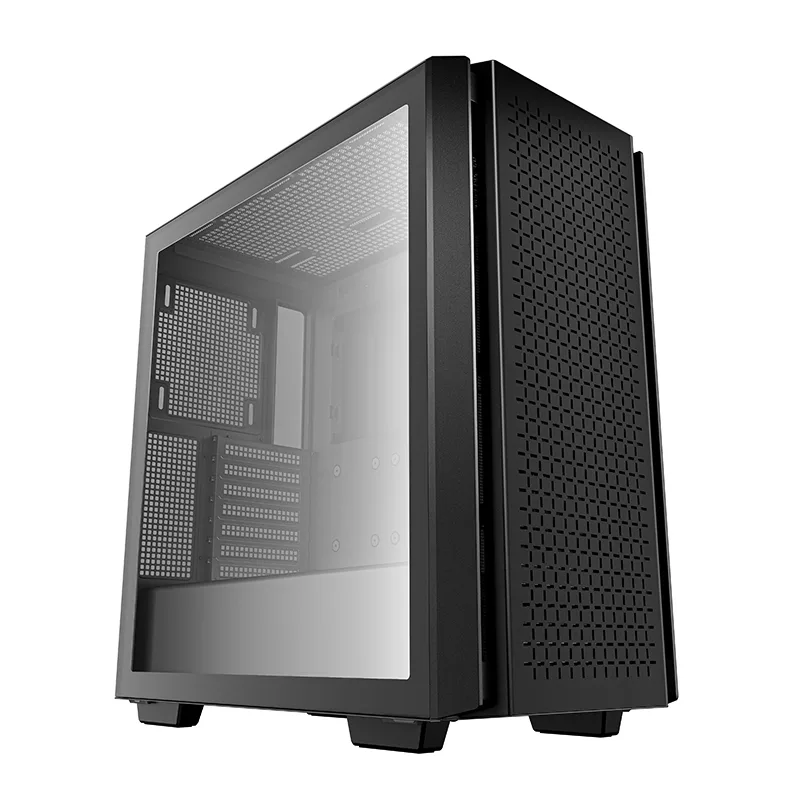

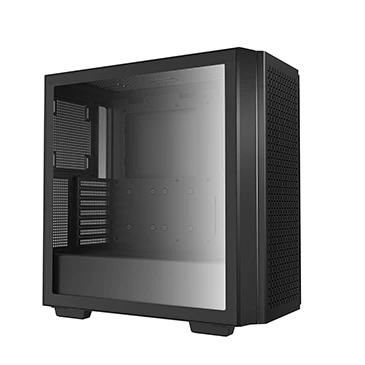

CG560 Limited

Airflow Focused

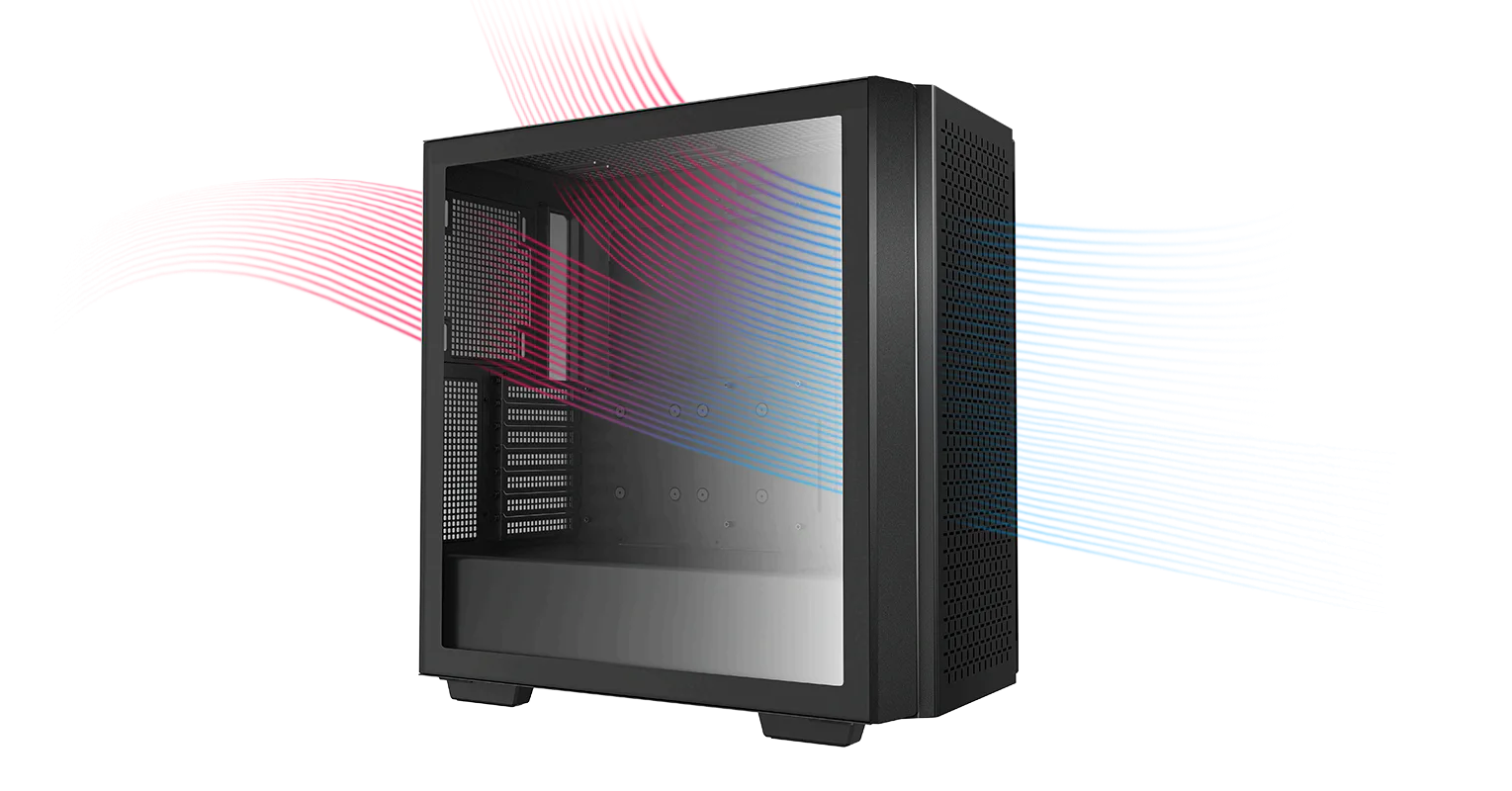

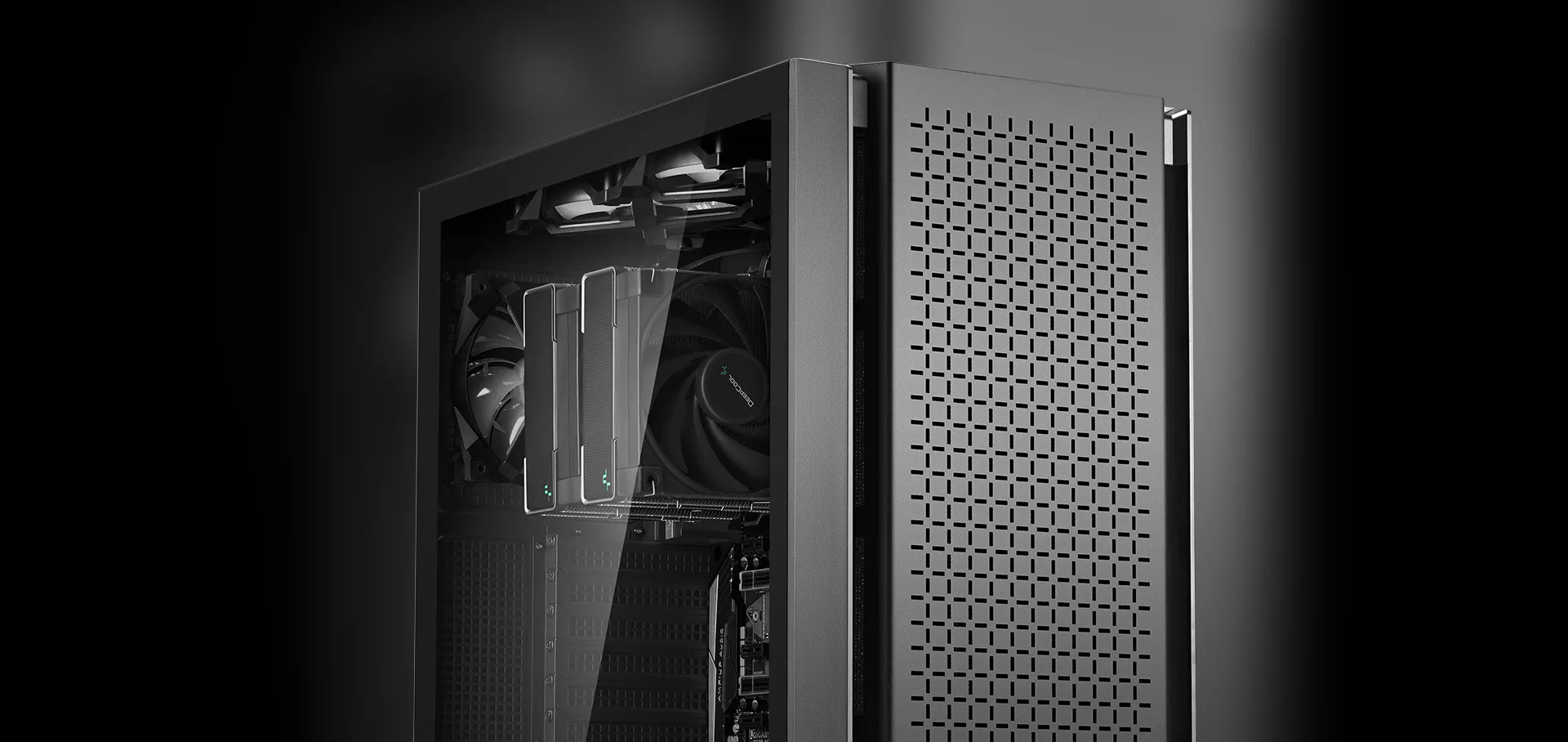

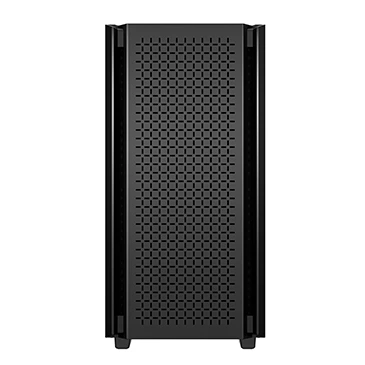

Accelerated Airflow

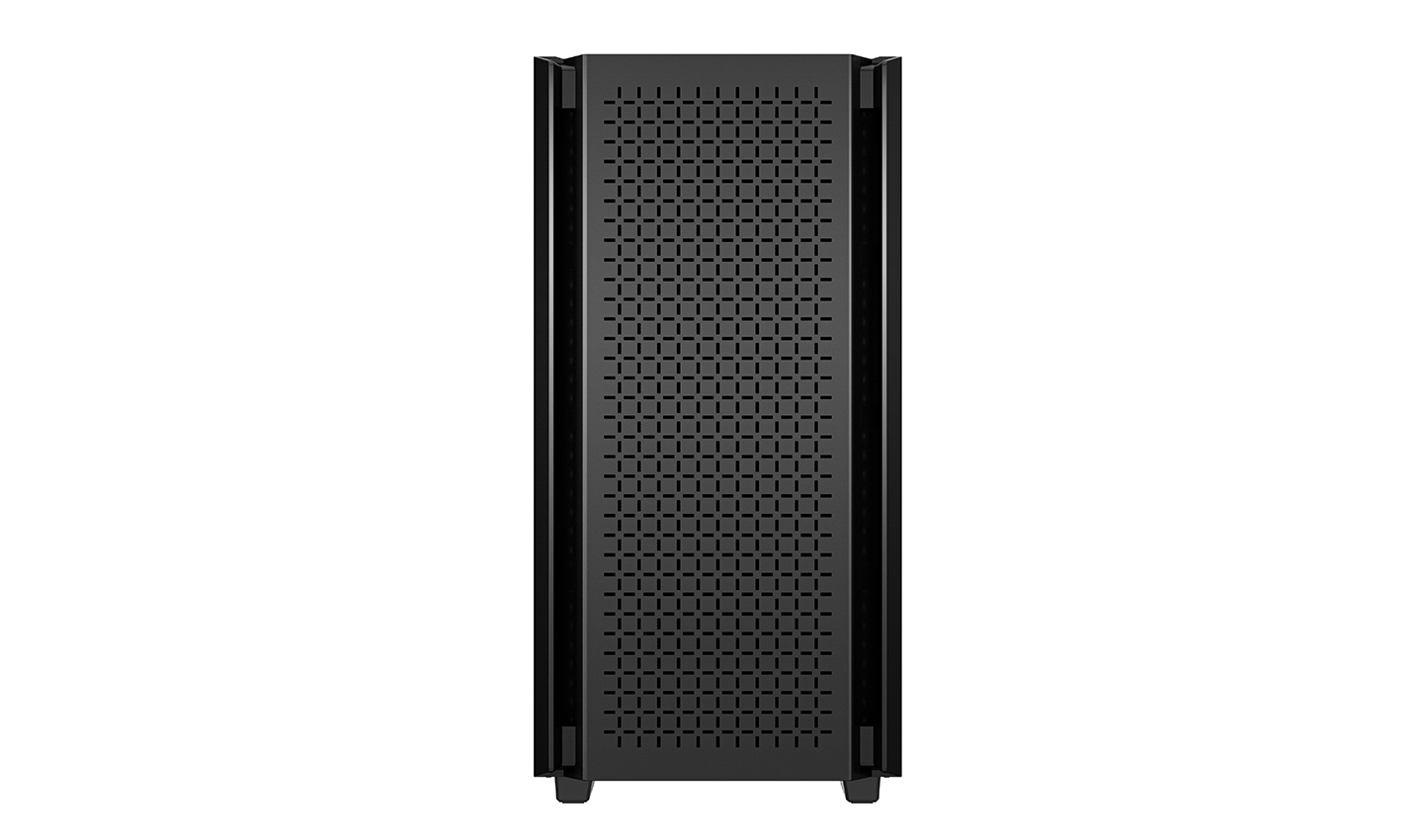

Keep your components cool with increased air intake through an optimized front panel for maximum ventilation.

Expansive Cooling Capacity

Get big cooling potential with support up to 6x 120mm or 5x 140mm case fans, and multiple radiator configurations for 360mm installed in front and 280mm up top.

6 120mm

5 140mm

CASE FANS

1 360mm

2 280mm

2 240mm

3 140mm

3 120mm

RADIATOR

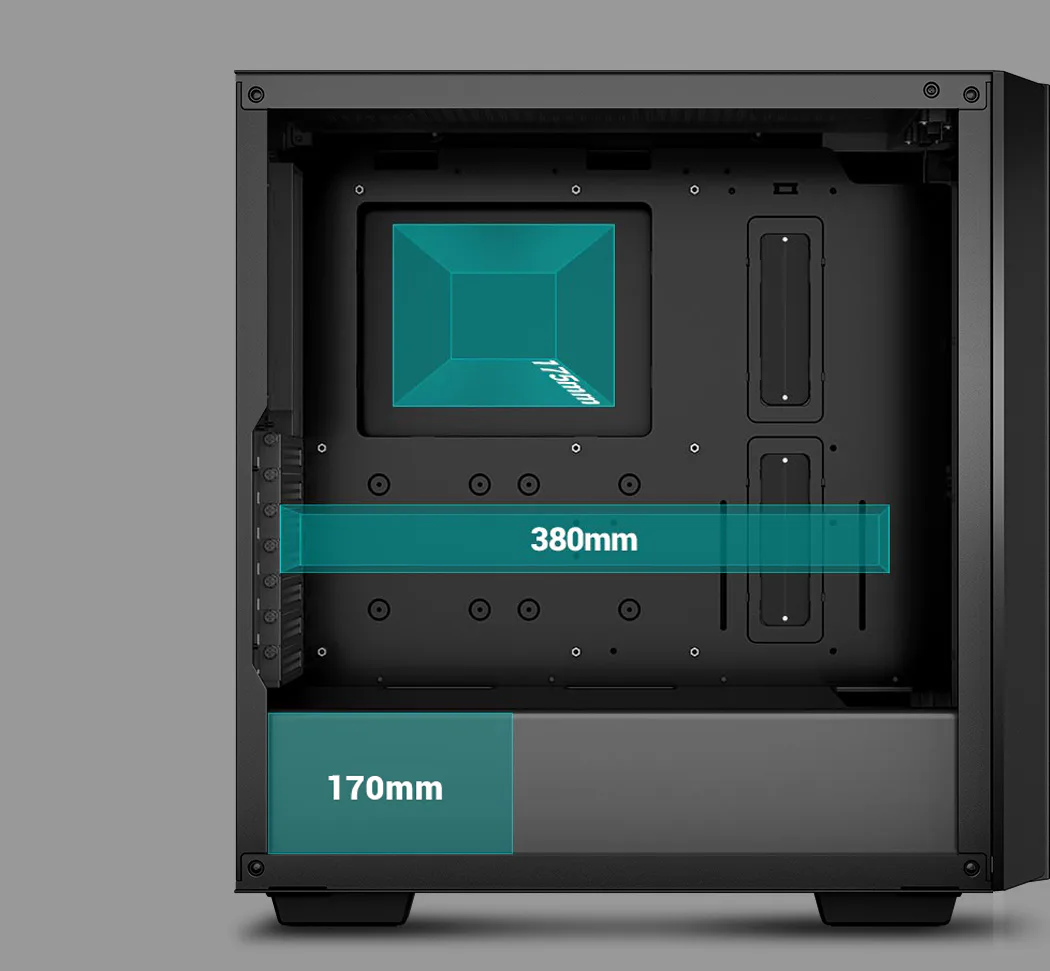

Compatibility

- Max CPU Cooler Height: 175mm

- Max GPU Length: 380mm

- Max PSU Length: 170mm

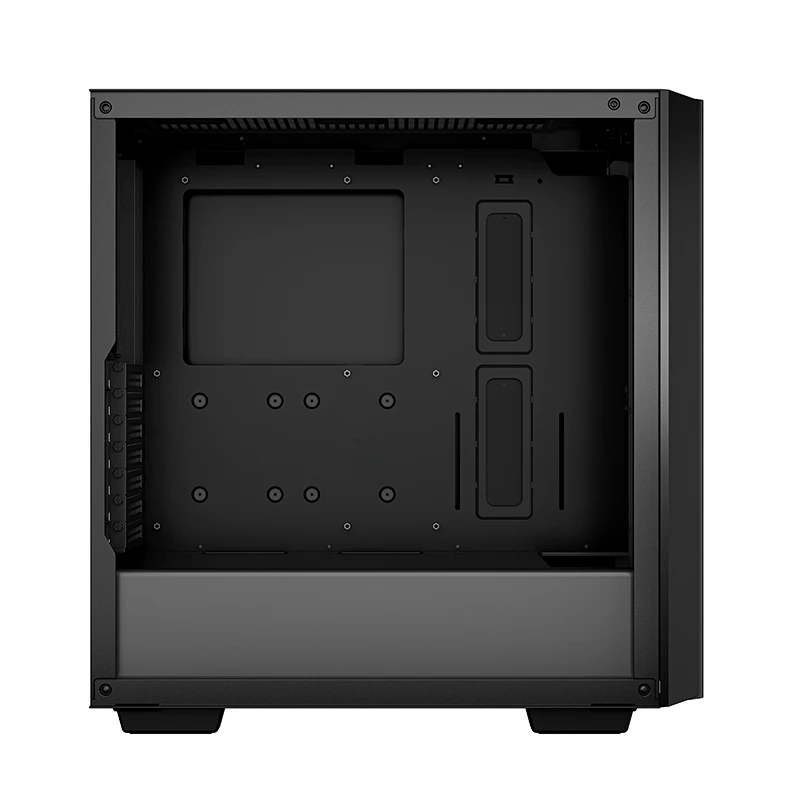

Complete Storage

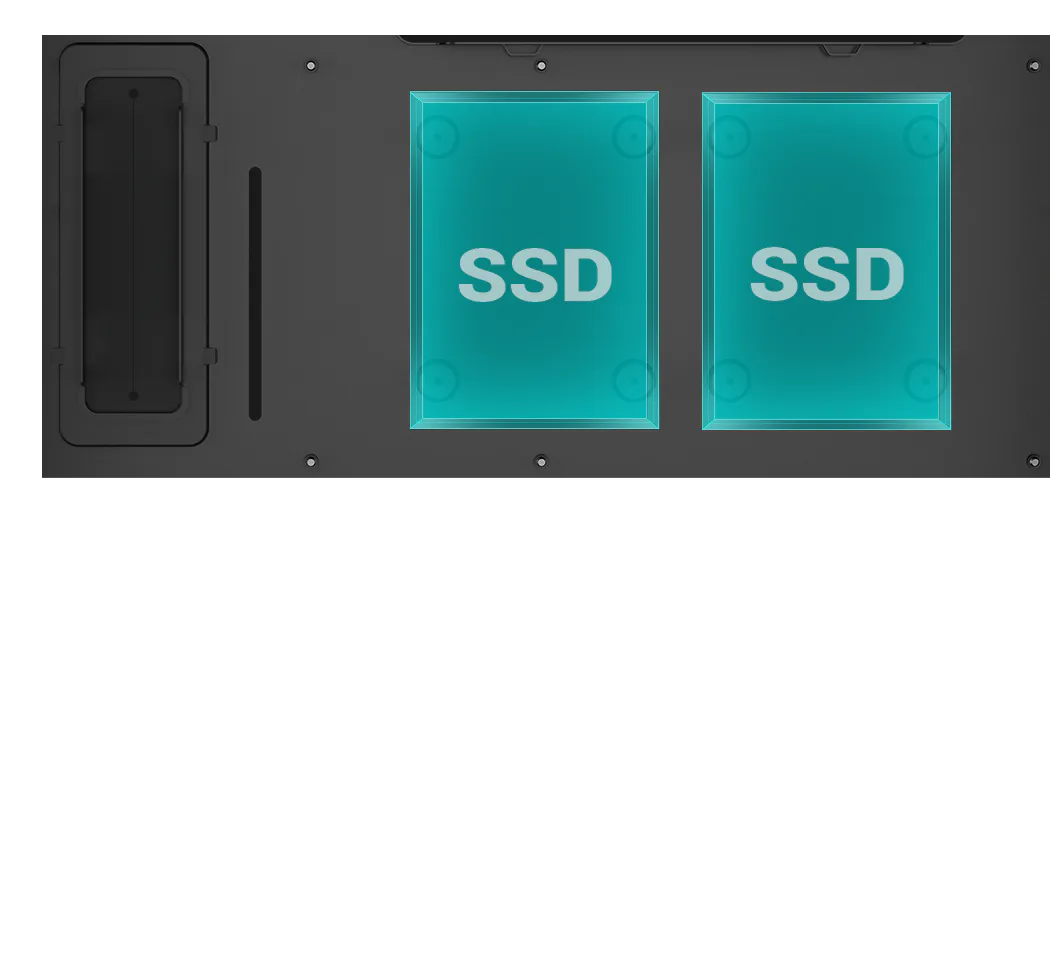

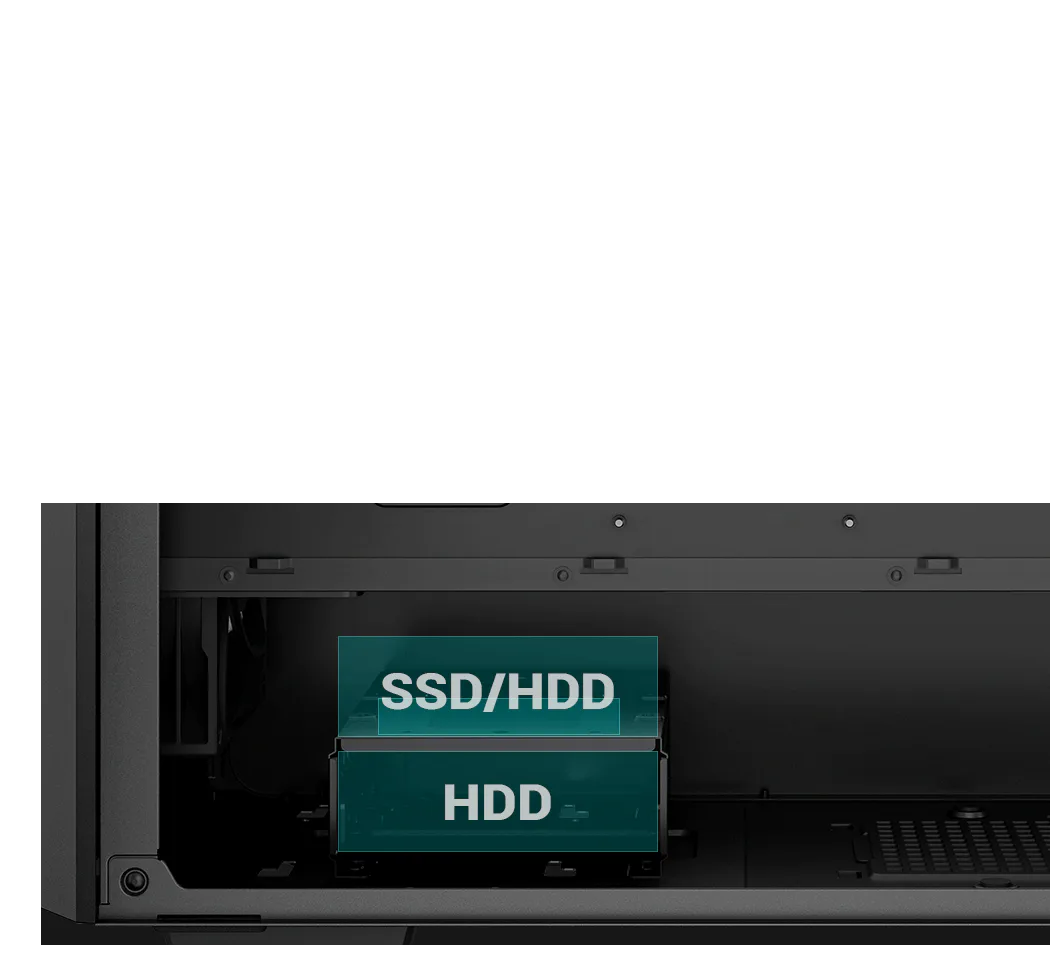

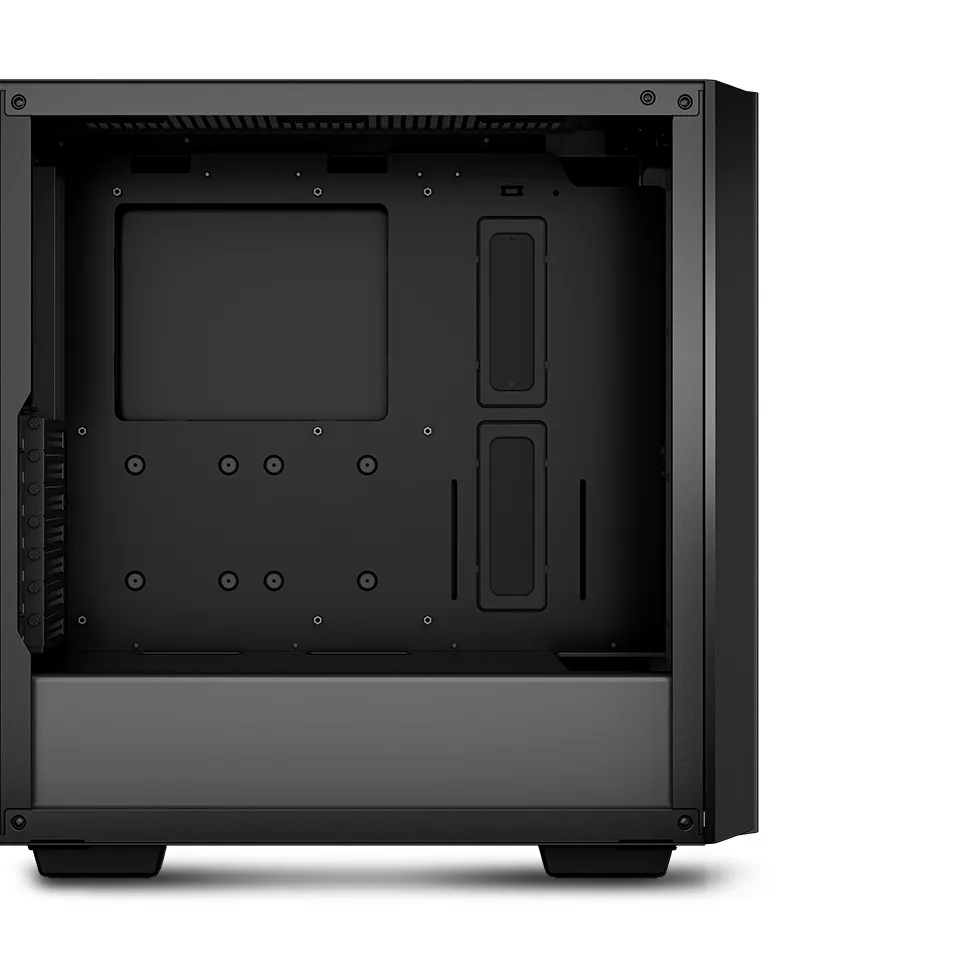

Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud for ample storage discreetly tucked away.

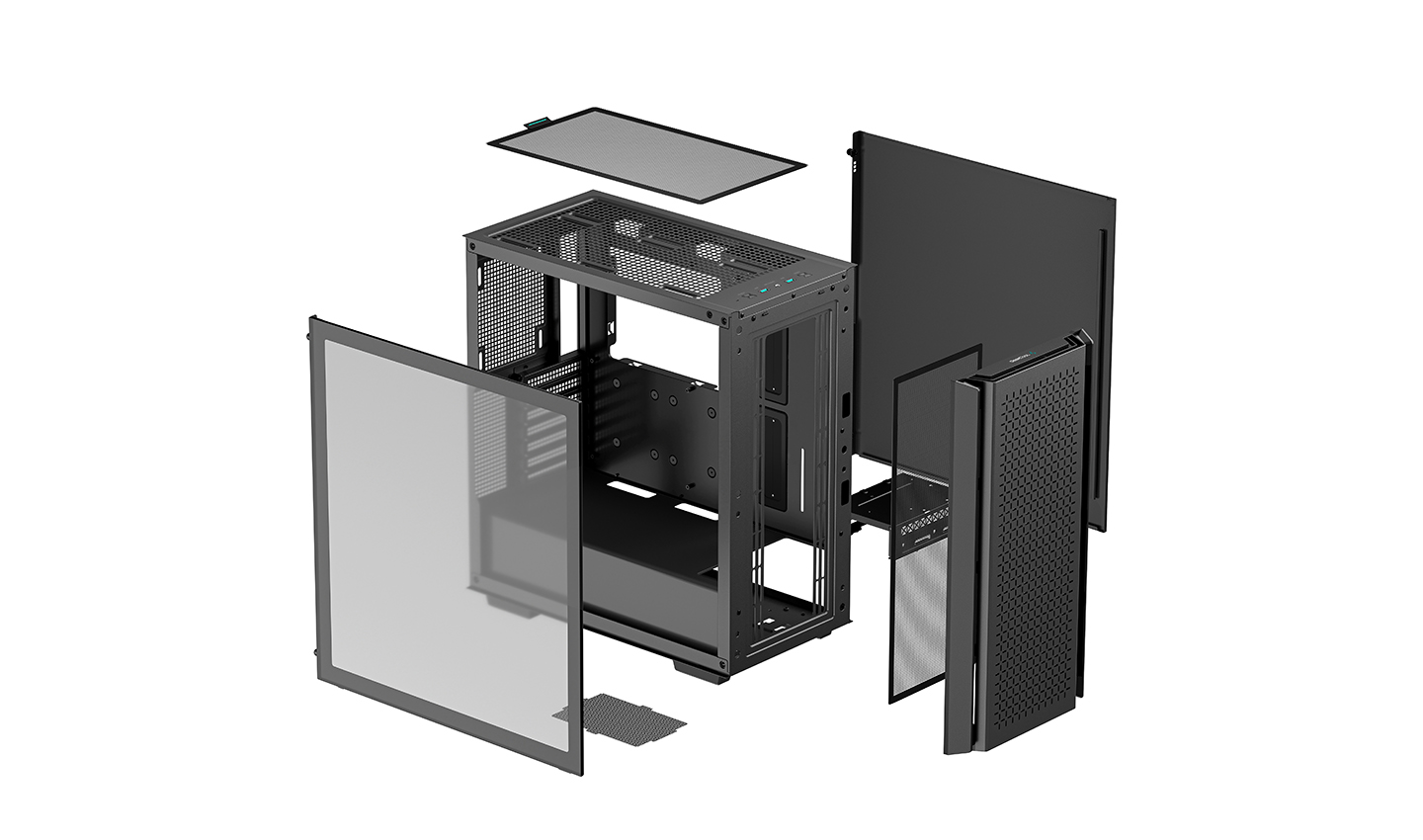

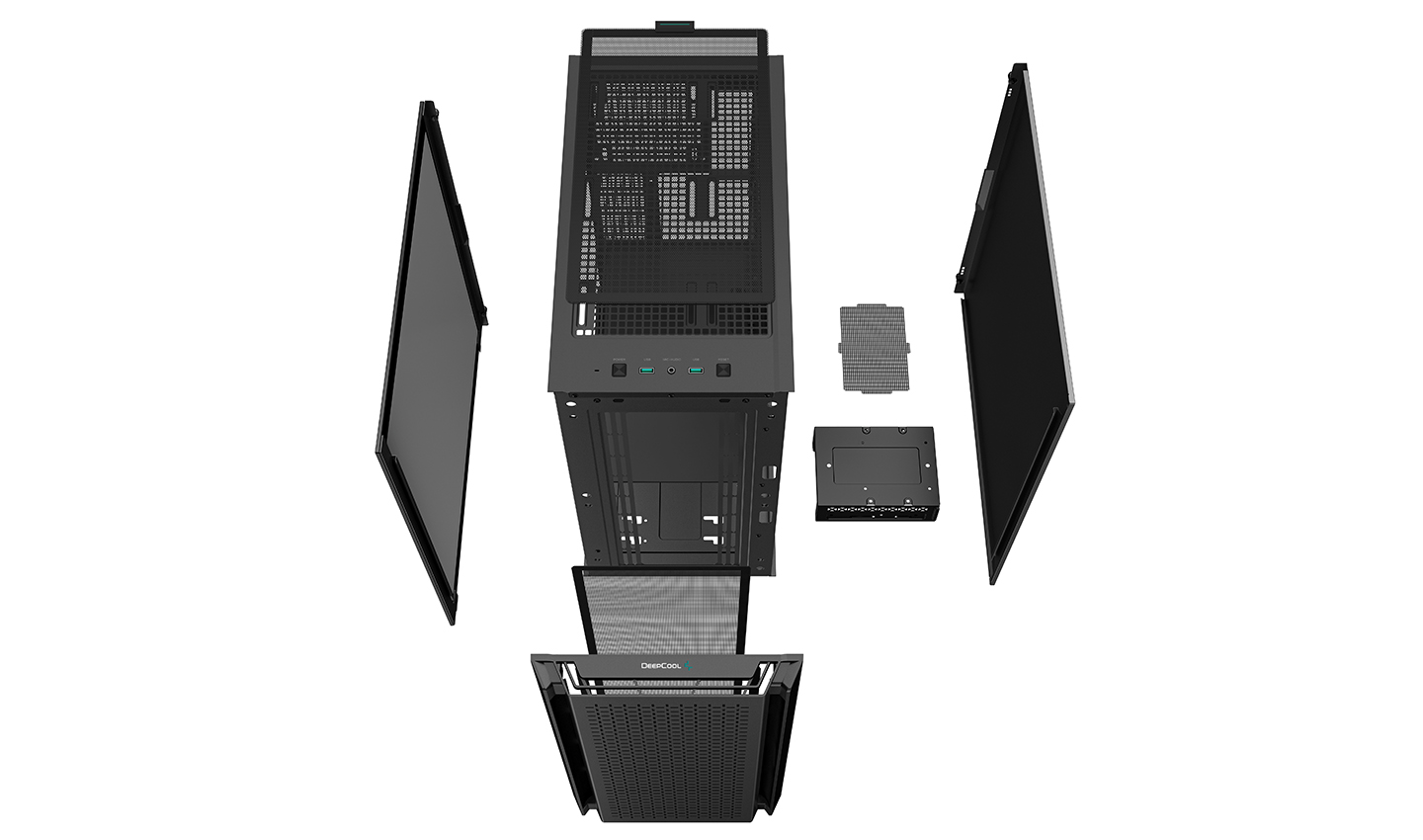

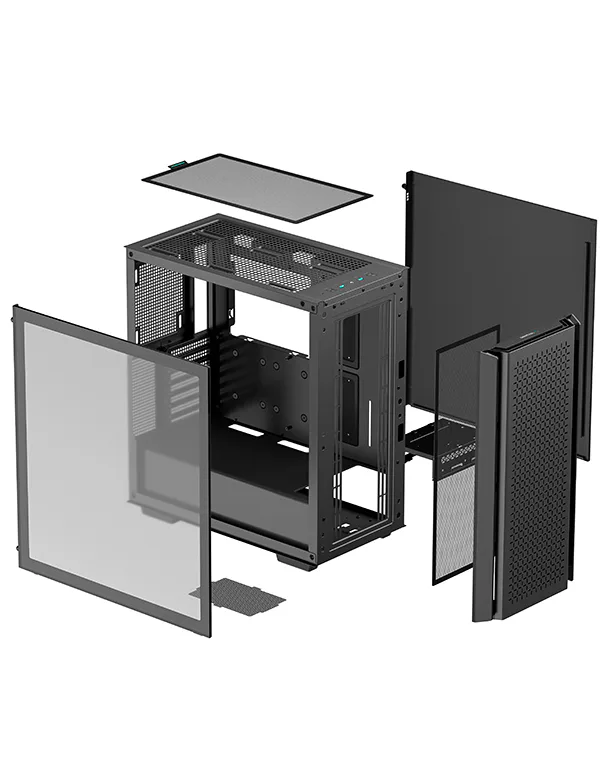

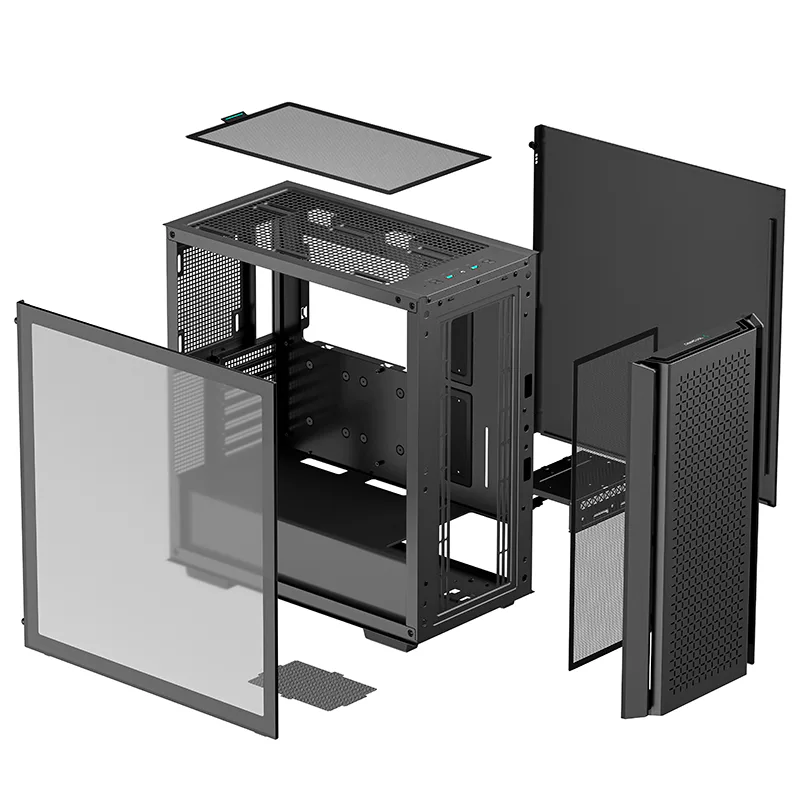

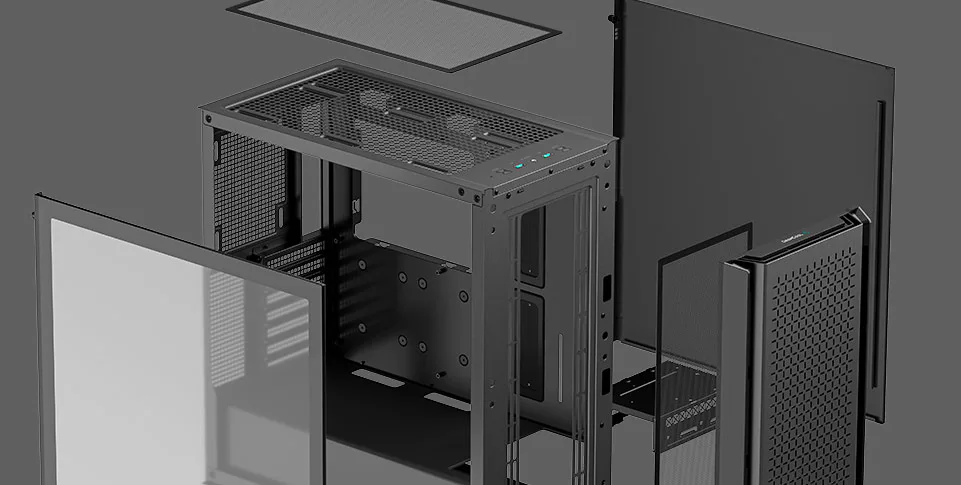

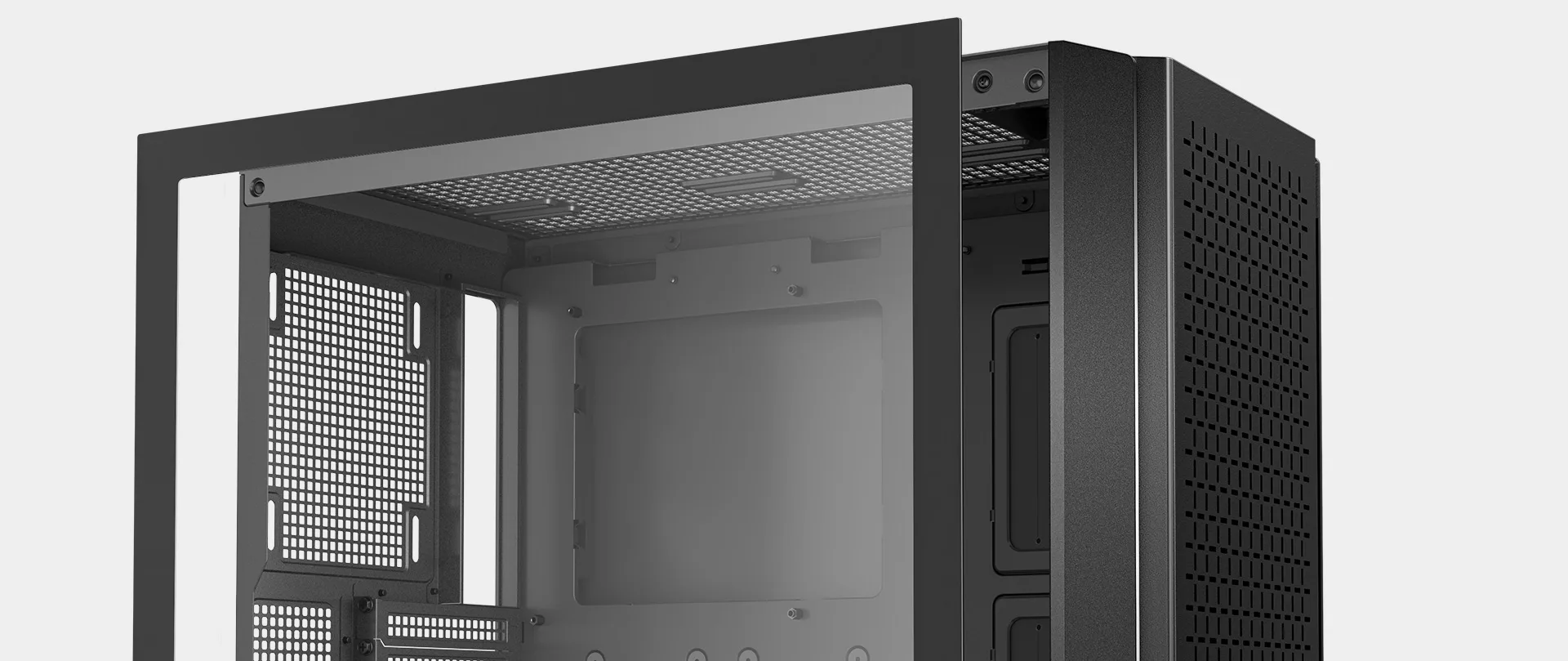

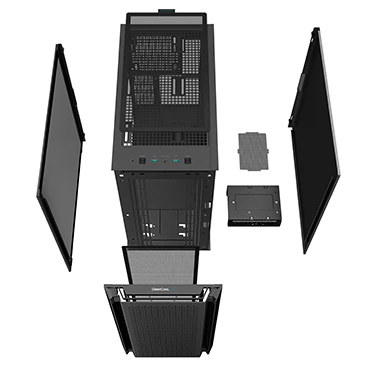

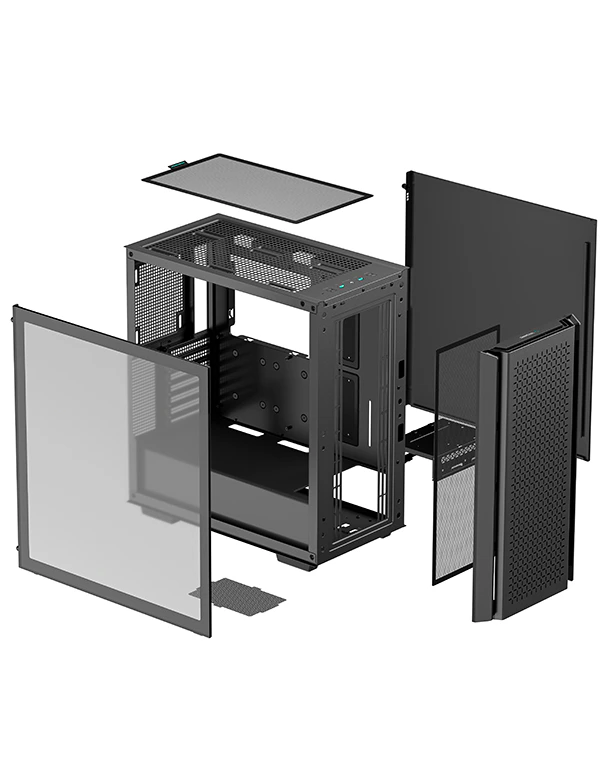

Easy Access Side Panels

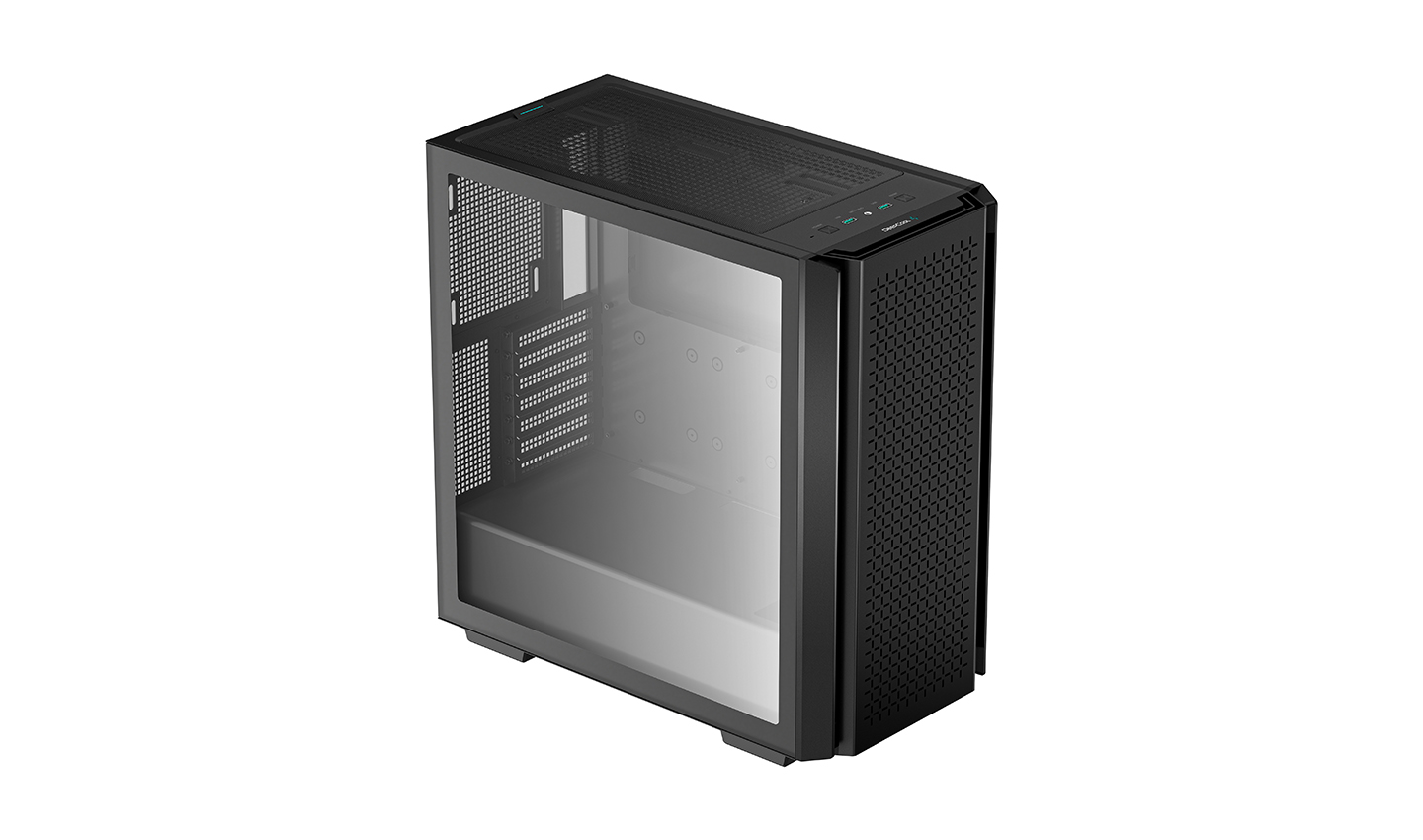

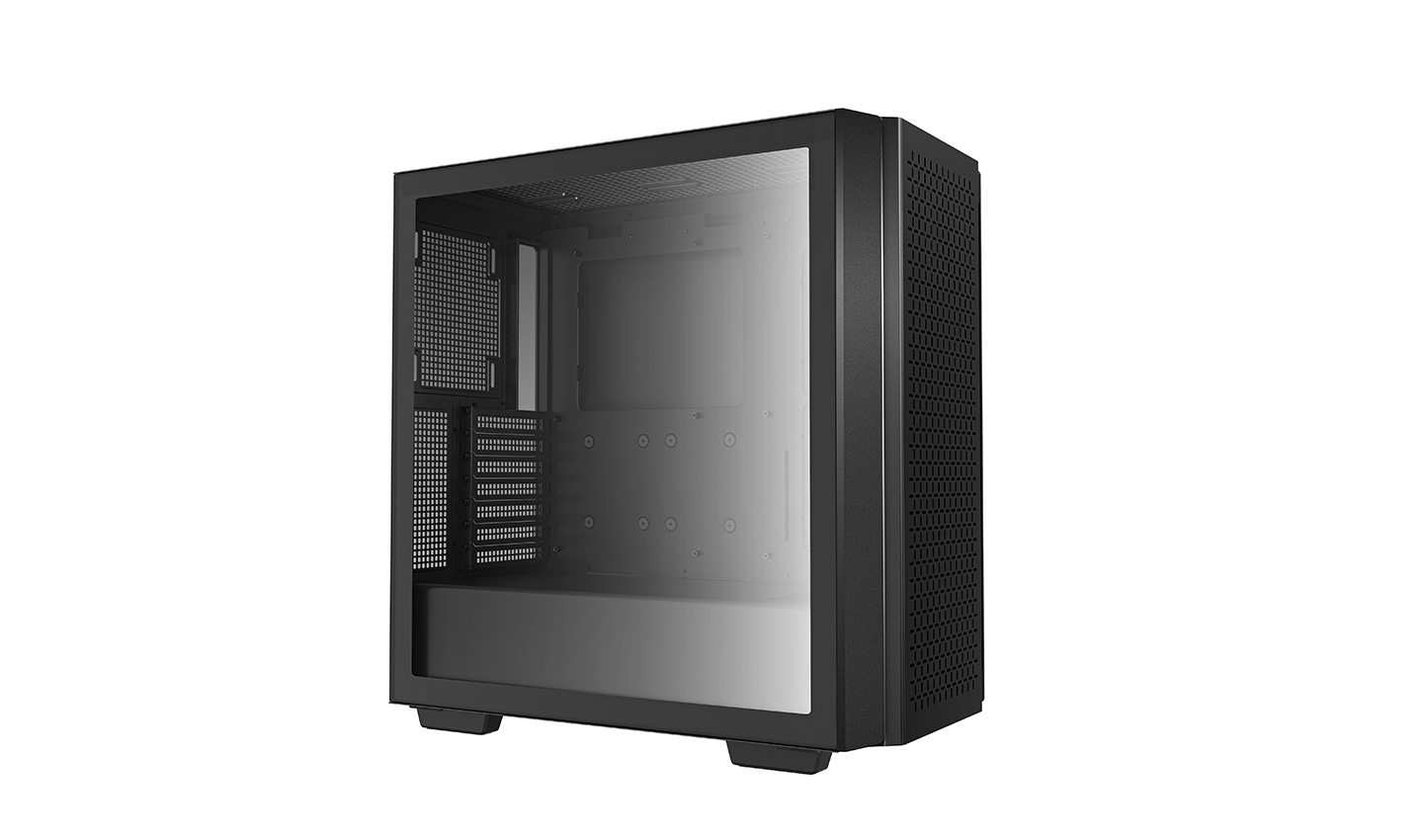

Quickly get to your internal components with simple slide and latch side panels and a solid tempered glass window to highlight your system.

Clean and Tidy

Easy-to-clean magnetic dust filters.

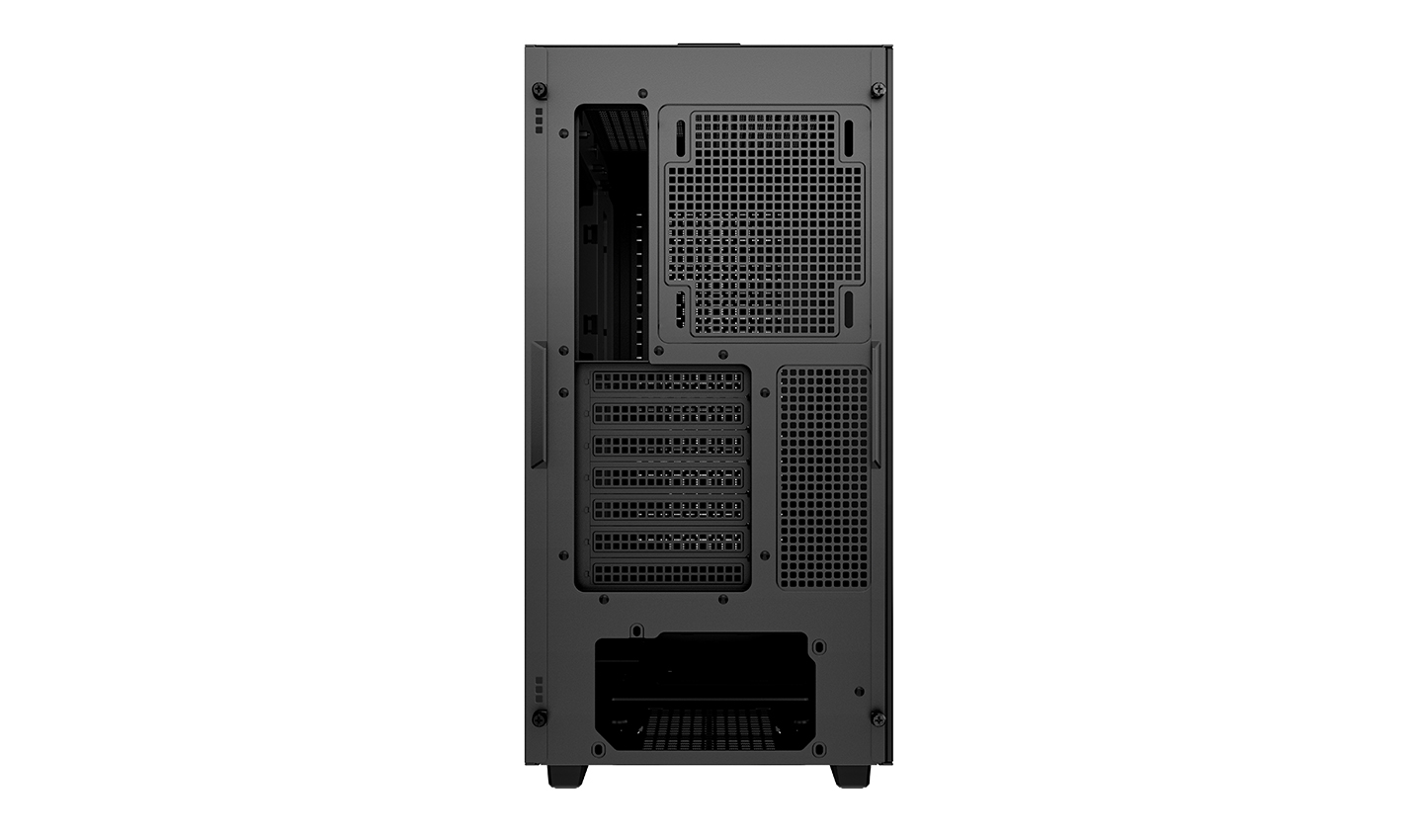

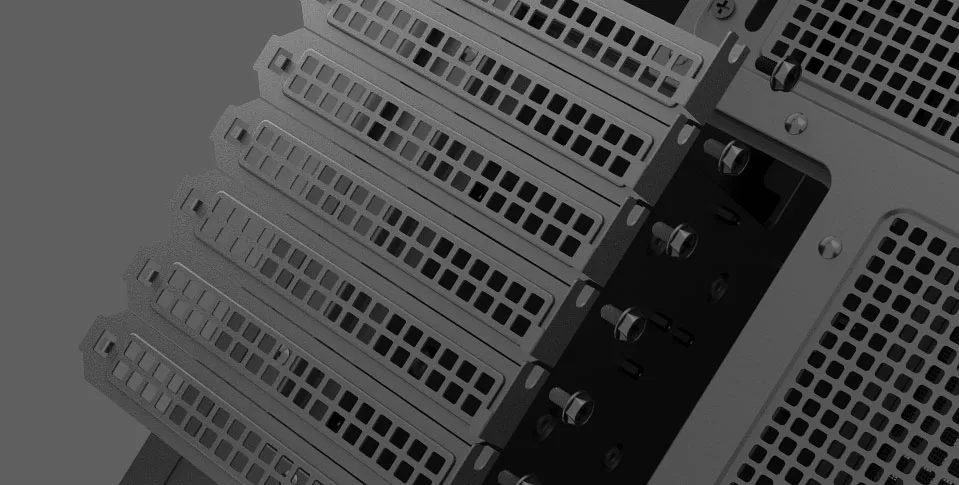

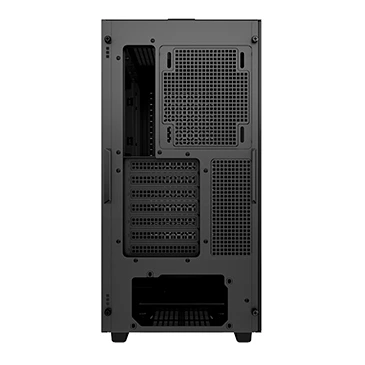

Independent PCIe Slot Baffles

Remove and reuse for simpler setup.

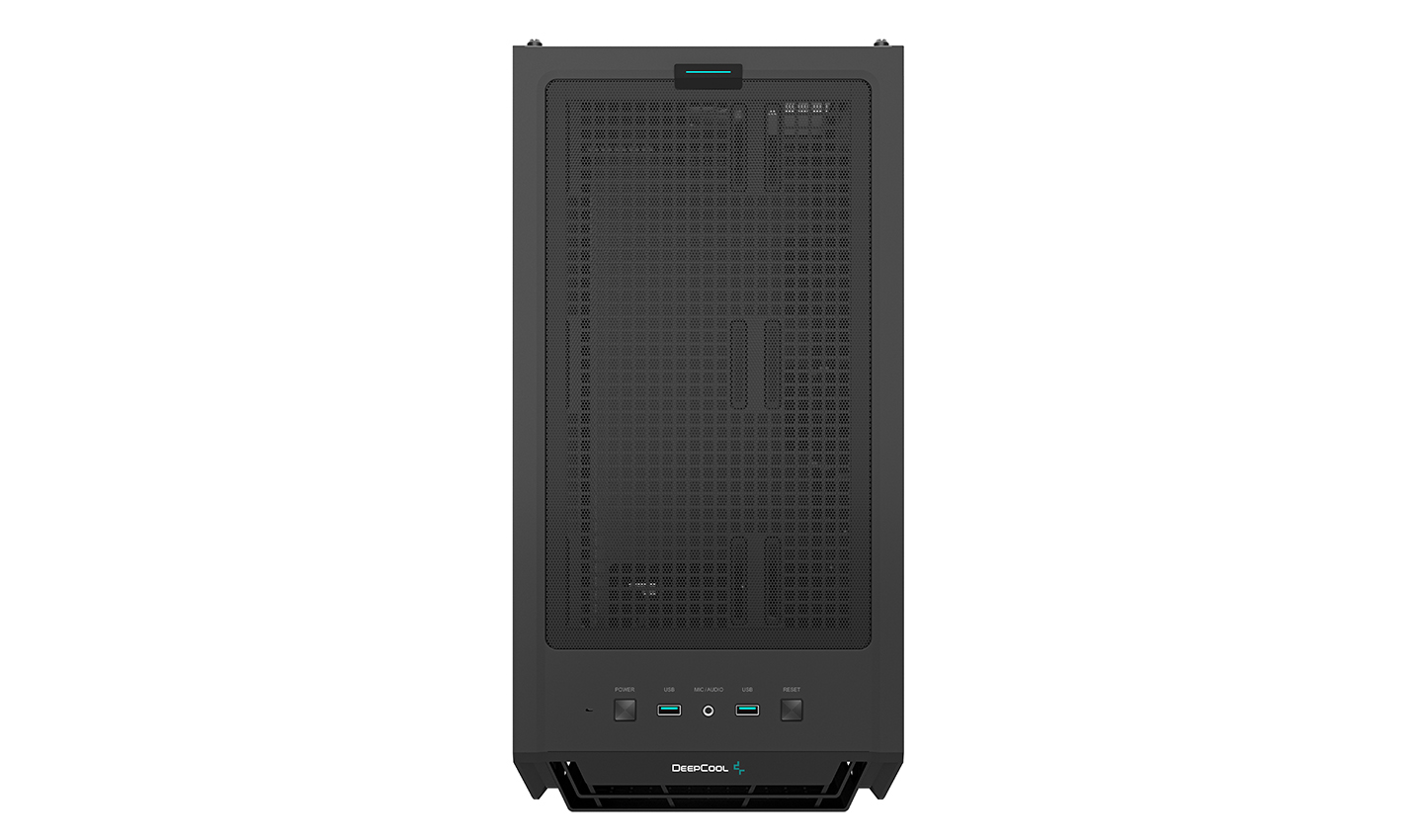

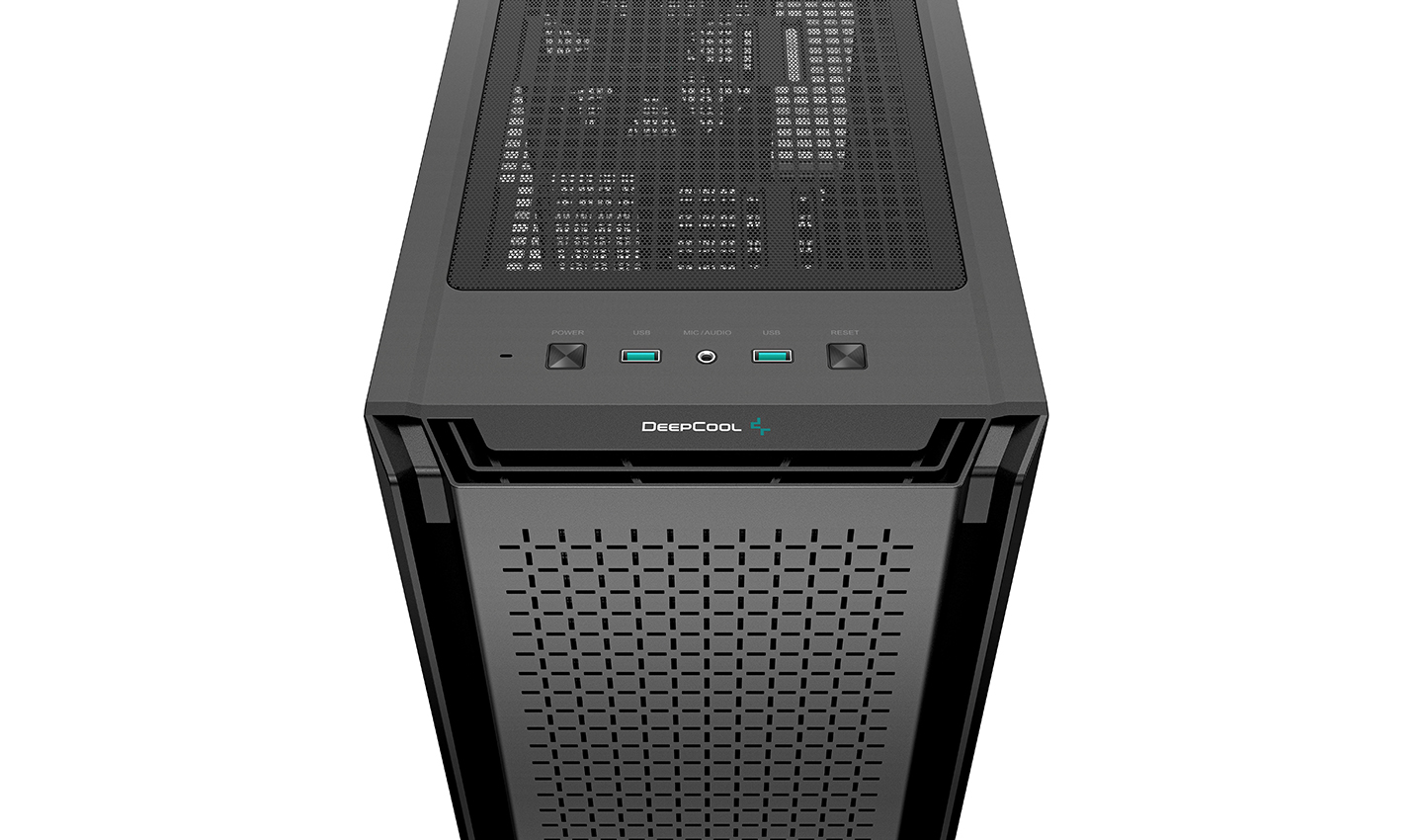

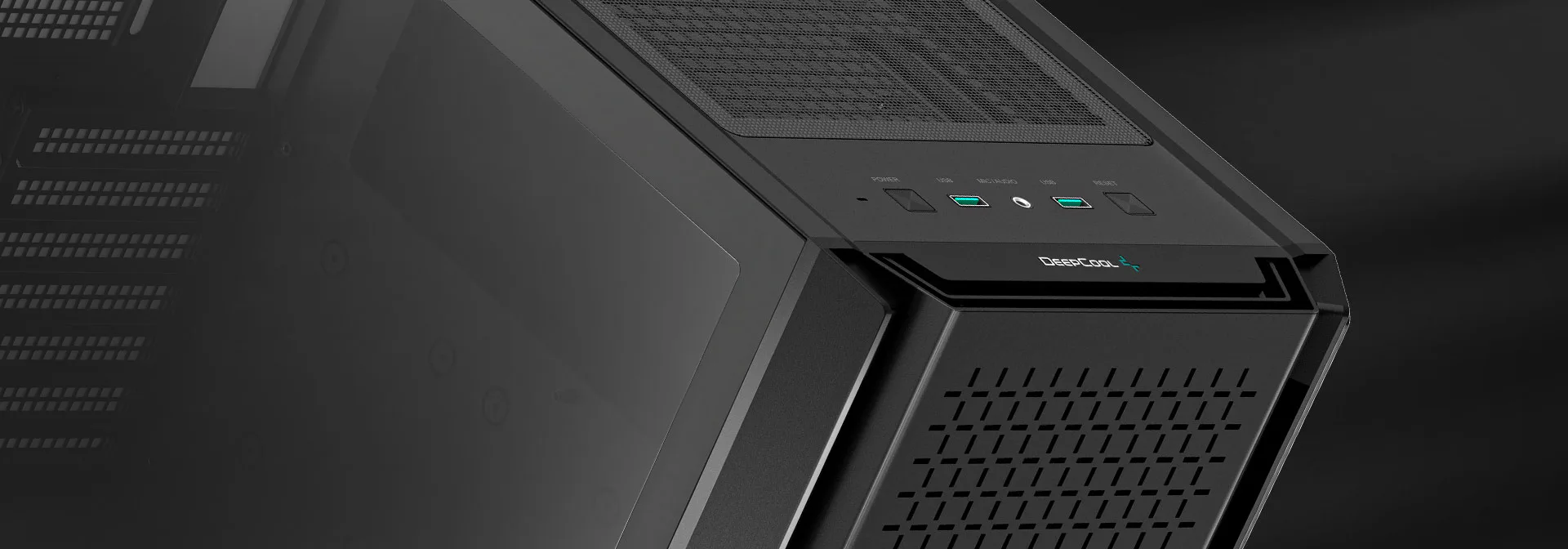

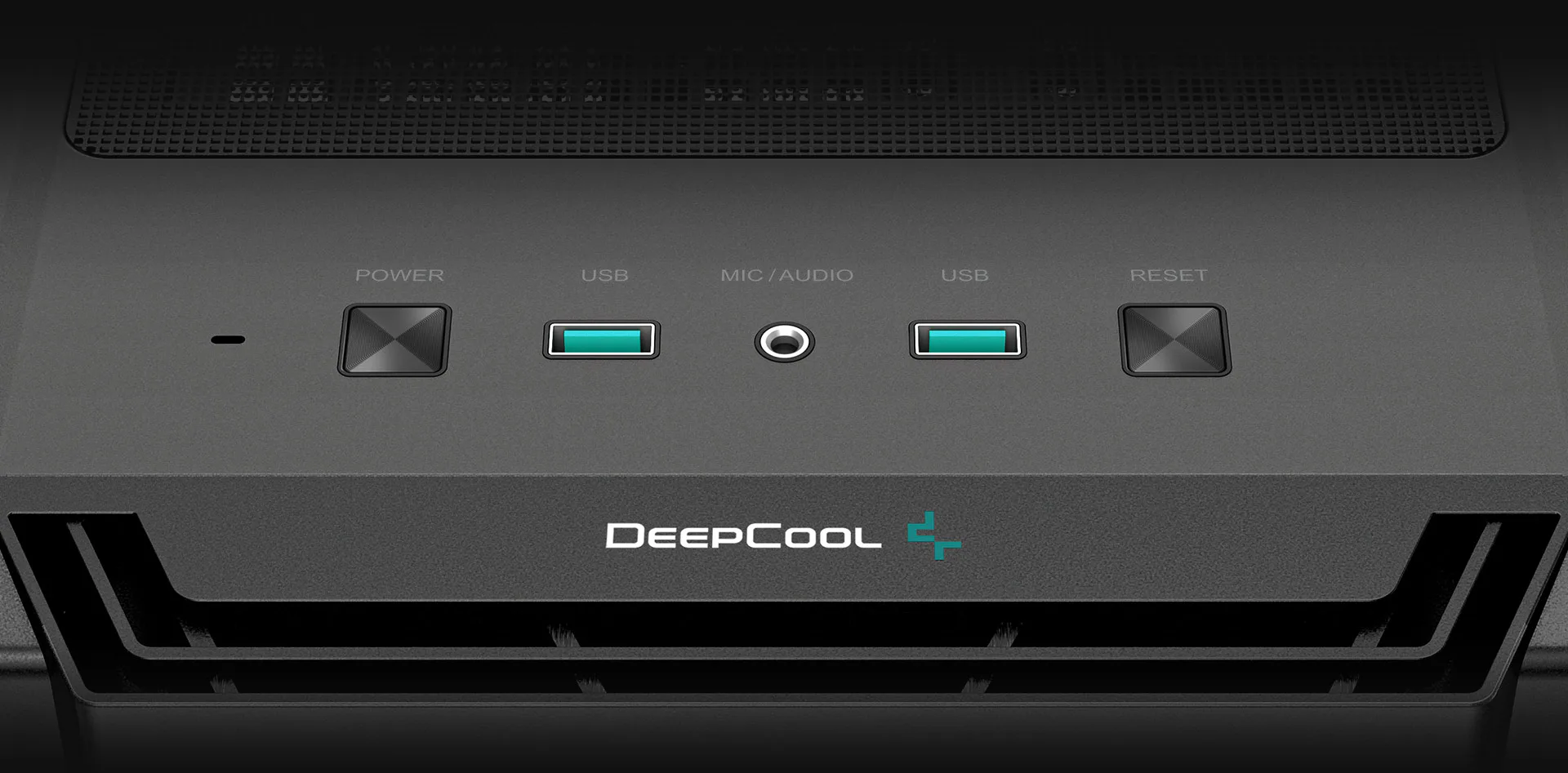

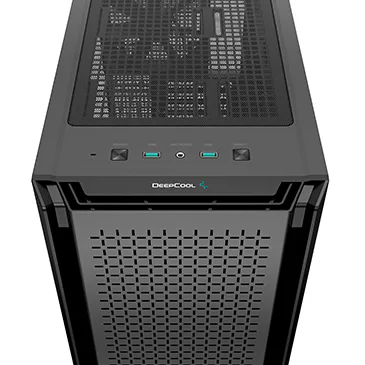

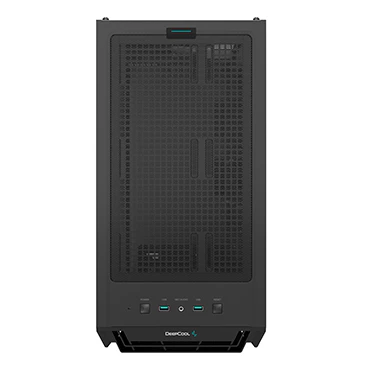

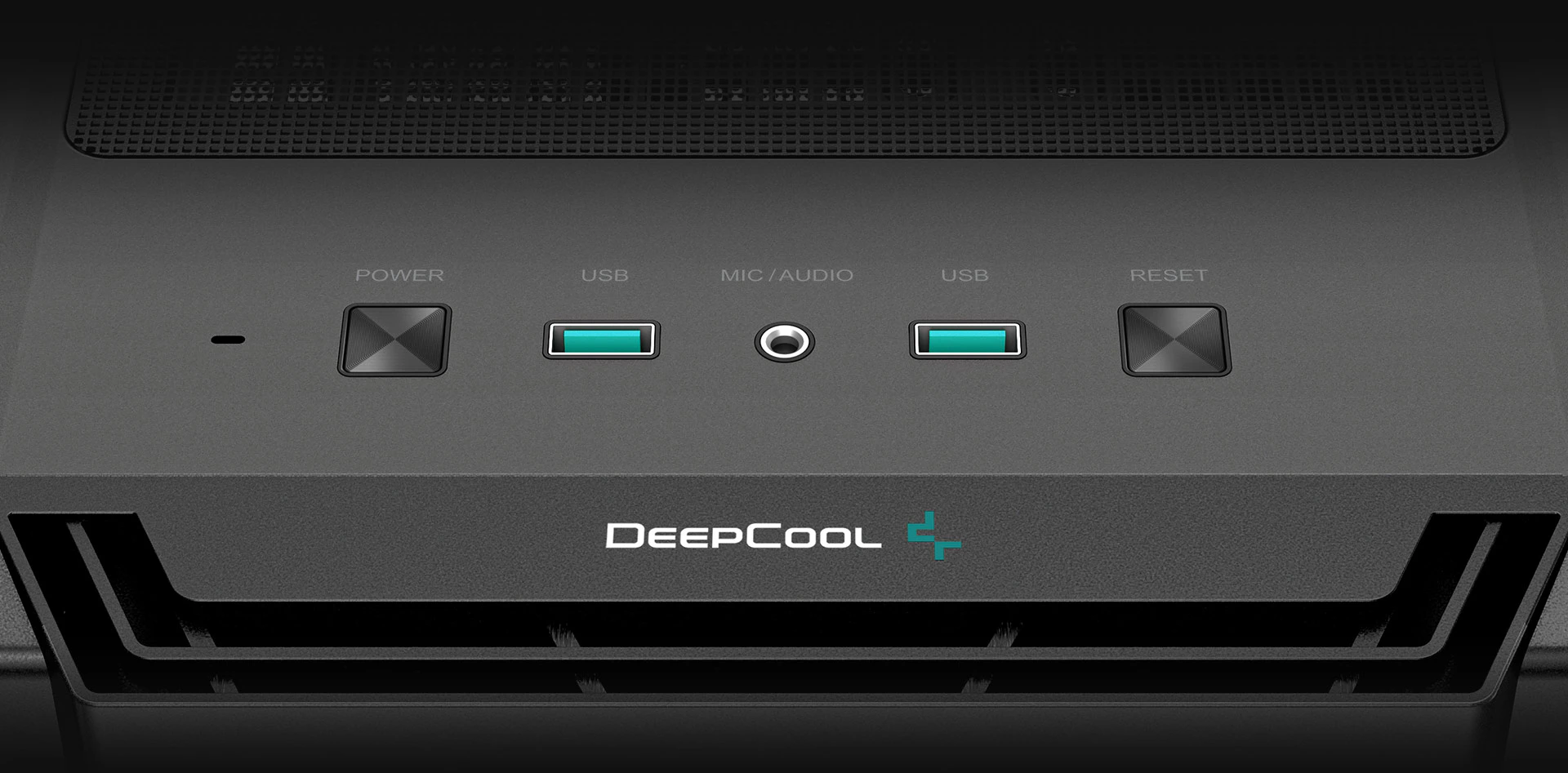

Front I/O Panel

Includes two USB 3.0 ports, a combination audio/mic jack, reset and power buttons.

Front I/O Panel

Includes two USB 3.0 ports, a combination audio/mic jack, reset and power buttons.

Technical Spec

Product Dimensions	452×230×470mm(L×W×H)
Net Weight	6.5Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	Mini-ITX / Micro-ATX / ATX / E-ATX
Front I/O Ports	USB3.0×2、Audio×1
3.5' Drive Bays	2
2.5' Drive Bays	2+1
Expansion Slots	7 Slots
Pre-Installed Fans	None
Fan Support	Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120 / 1×140mm
Radiator Support	Front: 120/140/240/280/360mm Top: 120/140/240/280mm Rear: 120/140mm
CPU Cooler Height Limit	175mm
GPU Length Limit	380mm
Power Supply Type	ATX PS2 (maximum length: 170mm)
EAN Code	6933412714781
PN Code	R-CG560-BKNAE0-C-1

Product Dimension

Download

CG560 Limited Manual.pdf
