CG580
The CG580 is a picturesque single-chamber panoramic case that was built to accommodate the most commonly used components available while showing them off in style. With support for 360mm radiators and numerous fan configurations, the CG580 is also extremely functional. No fans are included, so the case is fully primed to accept your favorite cooling fans.
COLOR
black
MODEL
CG580
PRETTY AS A PICTURE
SCENIC VIEW

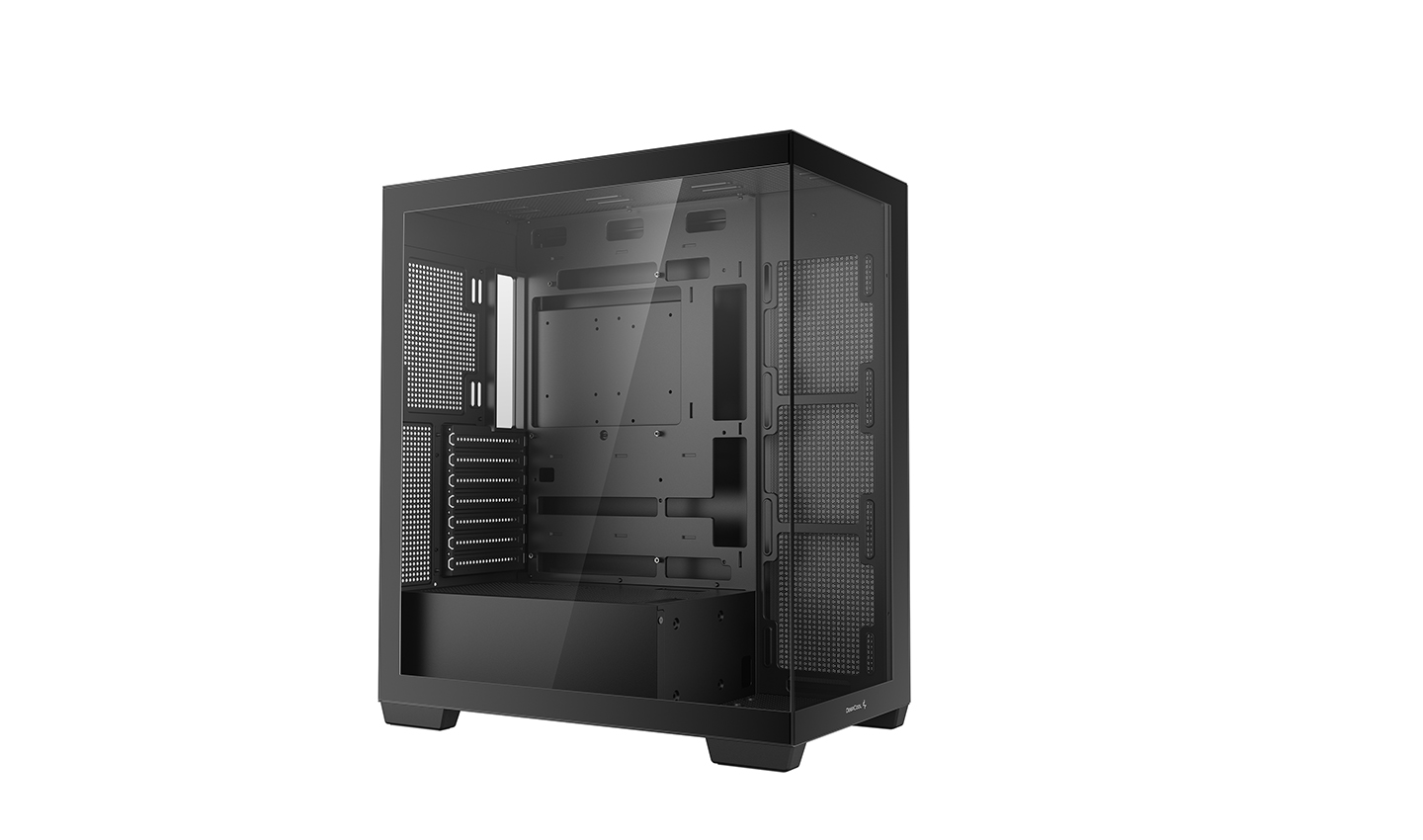

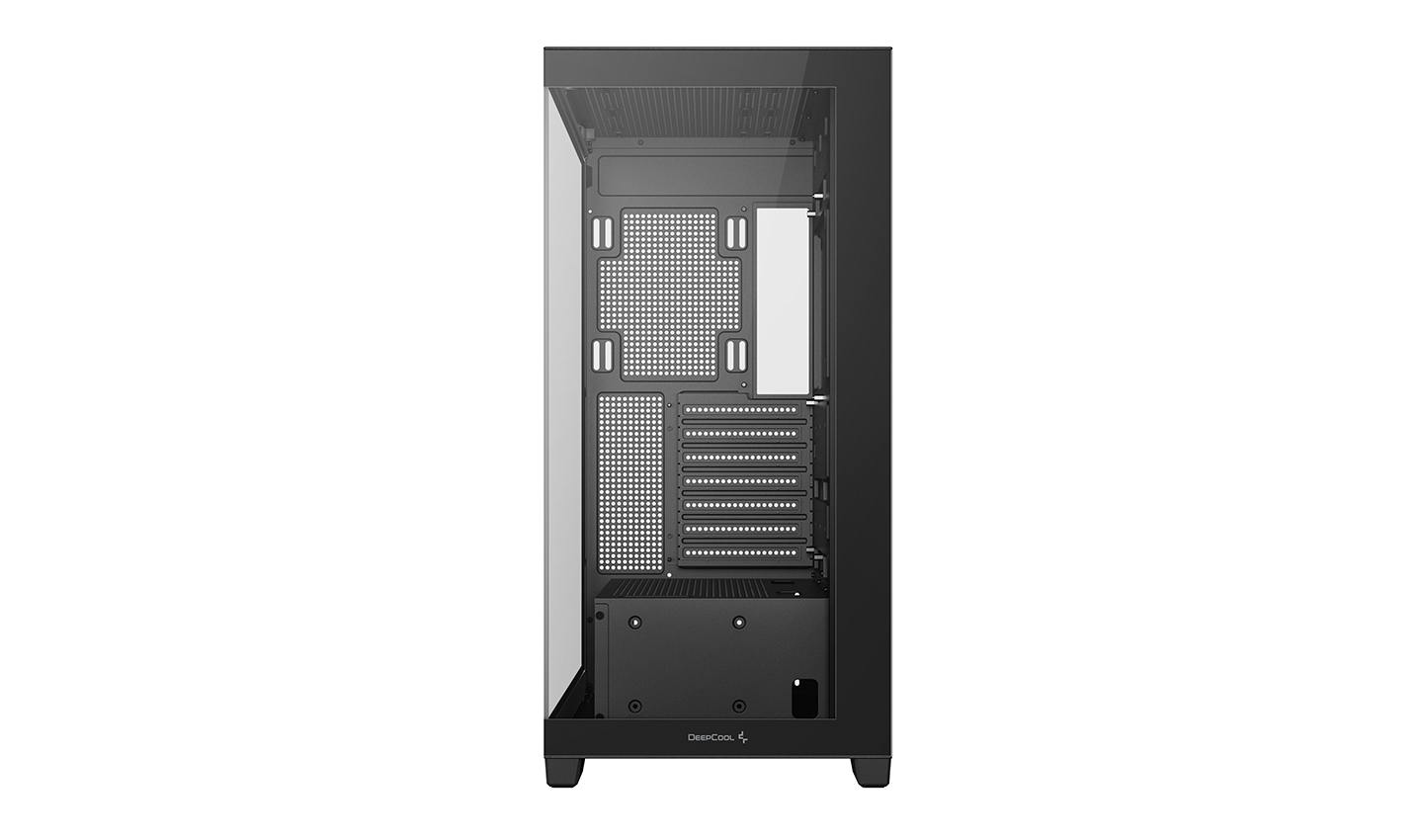

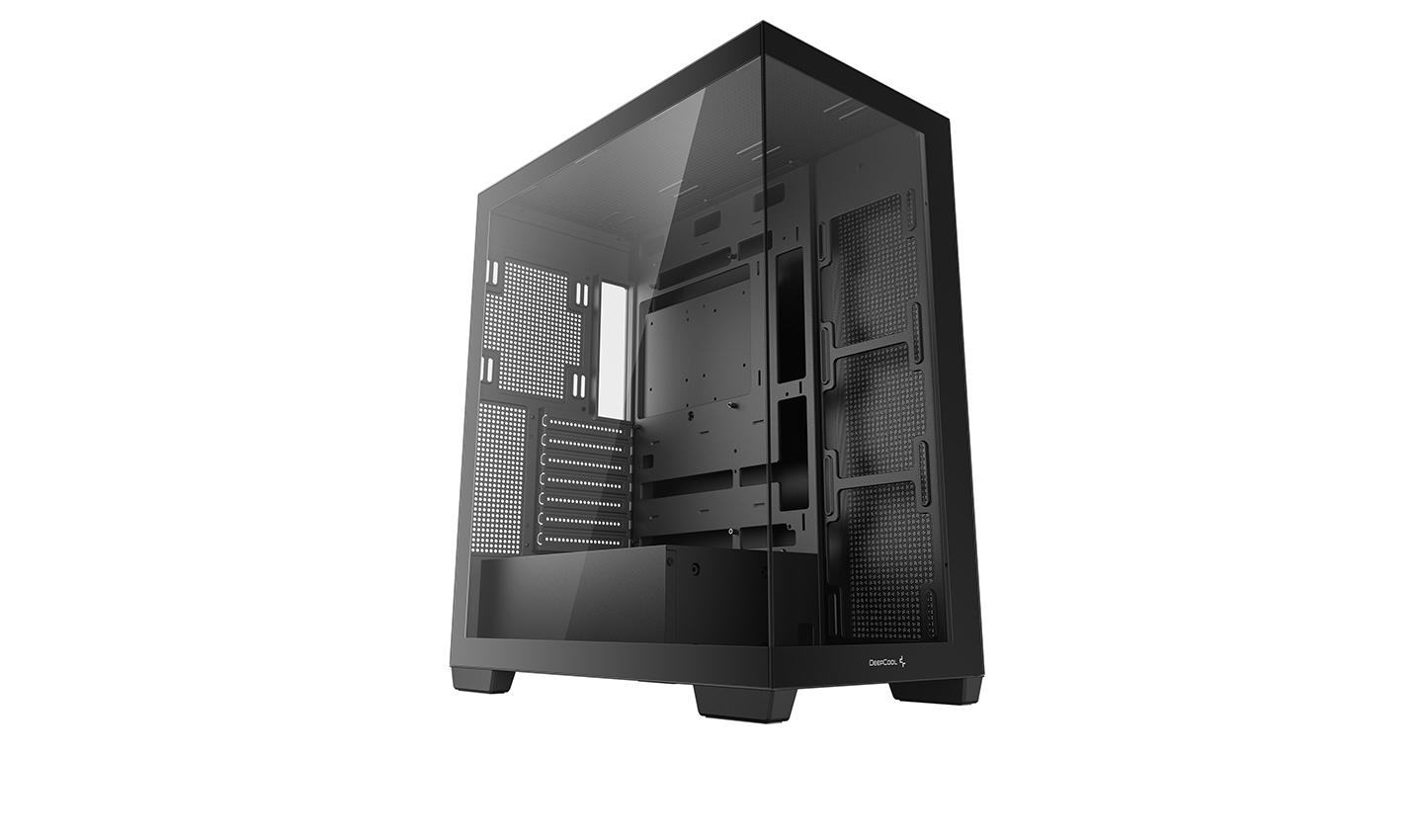

The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build.
KEEPING IT CLEAN

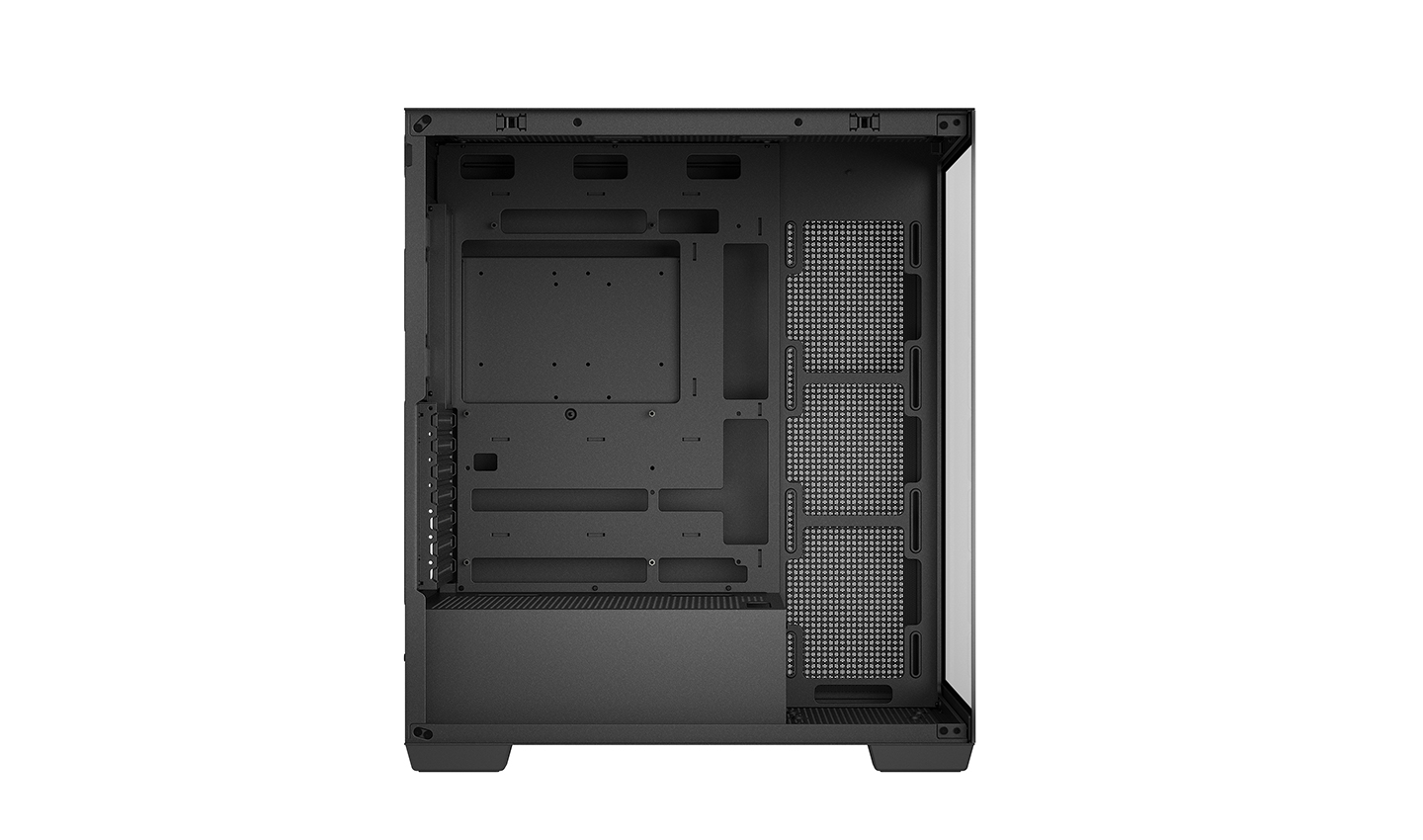

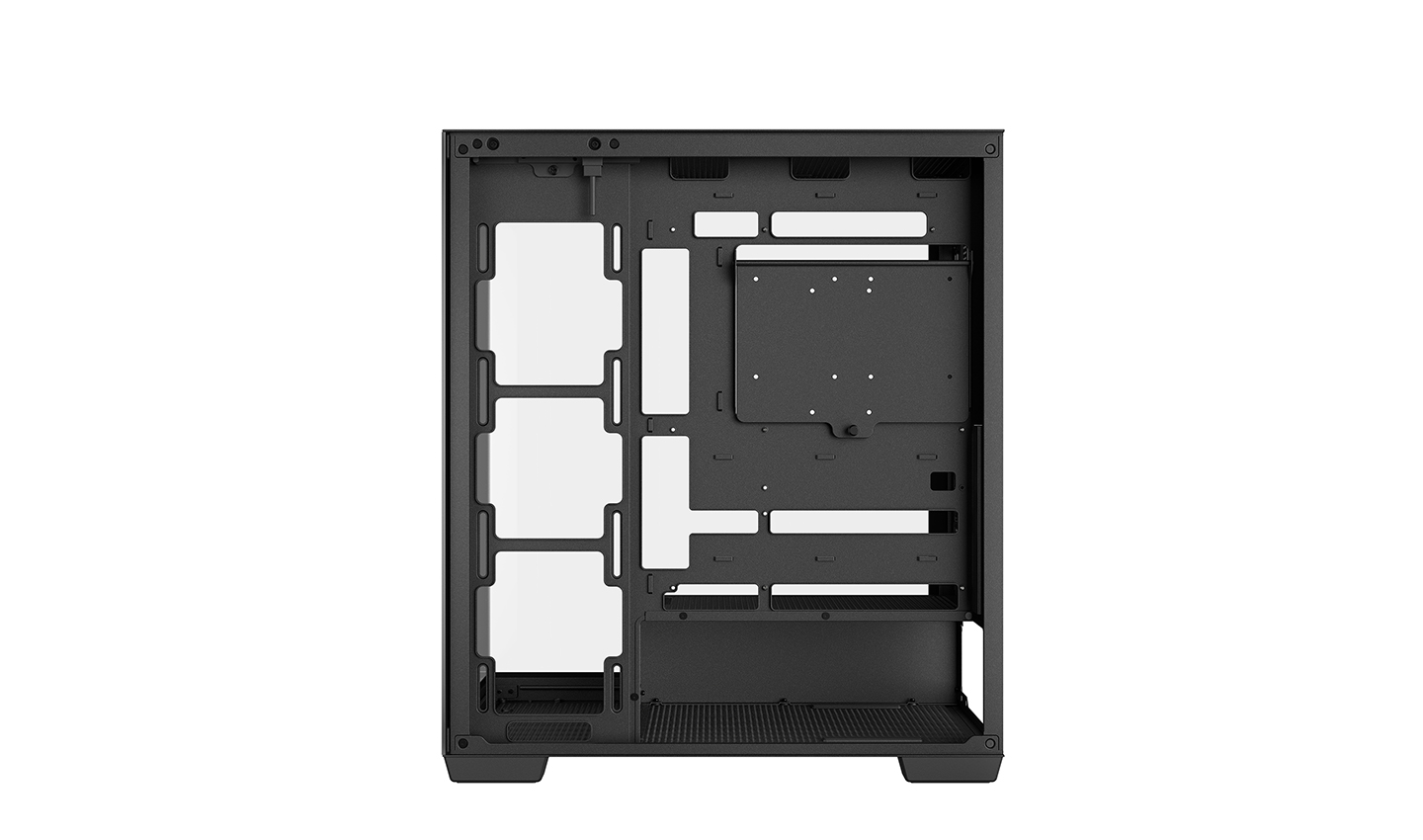

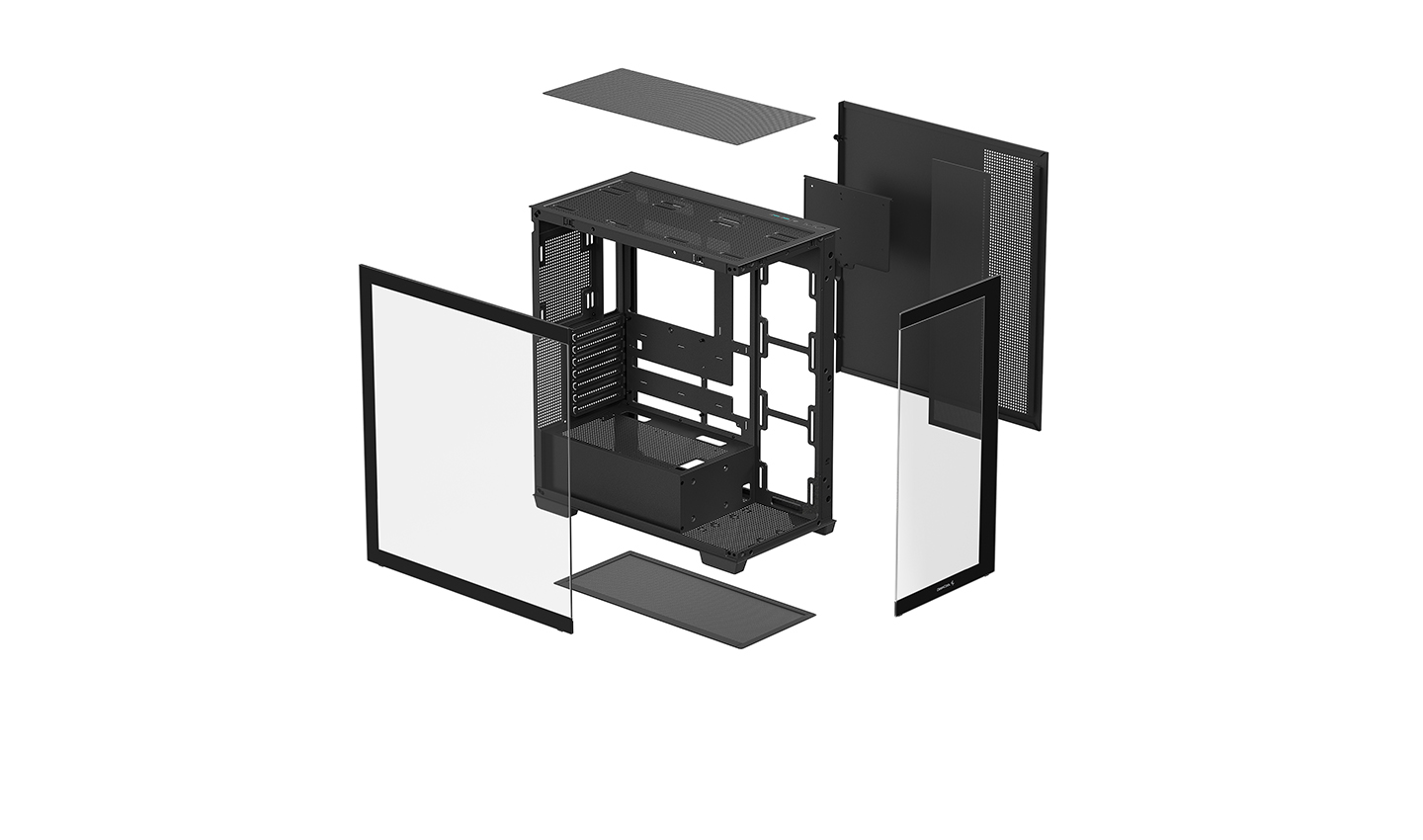

The internal single chamber layout optimizes the available space with 33mm of cable management space, while the motherboard tray supports motherboards with back connectors from ASUS and MSI; as a result, your system will look more steamlined and cleaner than ever before.
THE SUPPORT
YOU NEED
Designed to support up to ATX motherboards, 360mm radiators at the top and side, 410mm long GPUs (limited to 262mm if a radiator and fan set are mounted on the side), 210mm PSUs, 176mm tall air coolers, and up to 9 120mm fans, the CG580 can be configured in a wide array of combinations for your modern hardware needs. The bottom position can support either a 120mm fan or a 3.5"" HDD drive.
Radiators:
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Rear: 120/140mm
Fans:
Top: 3x120mm/2x140mm
Side: 3x120mm
Rear: 1x120mm/1x140mm
Bottom: 1x120mm
PSU Shroud: 2x120mm
  • ATX
  • COOLER
  • GPU
  • PSU
  • RADIATORS
  • FANS(120)
  • FANS(140)
  • HDD
QUALITY OF LIFE FEATURES

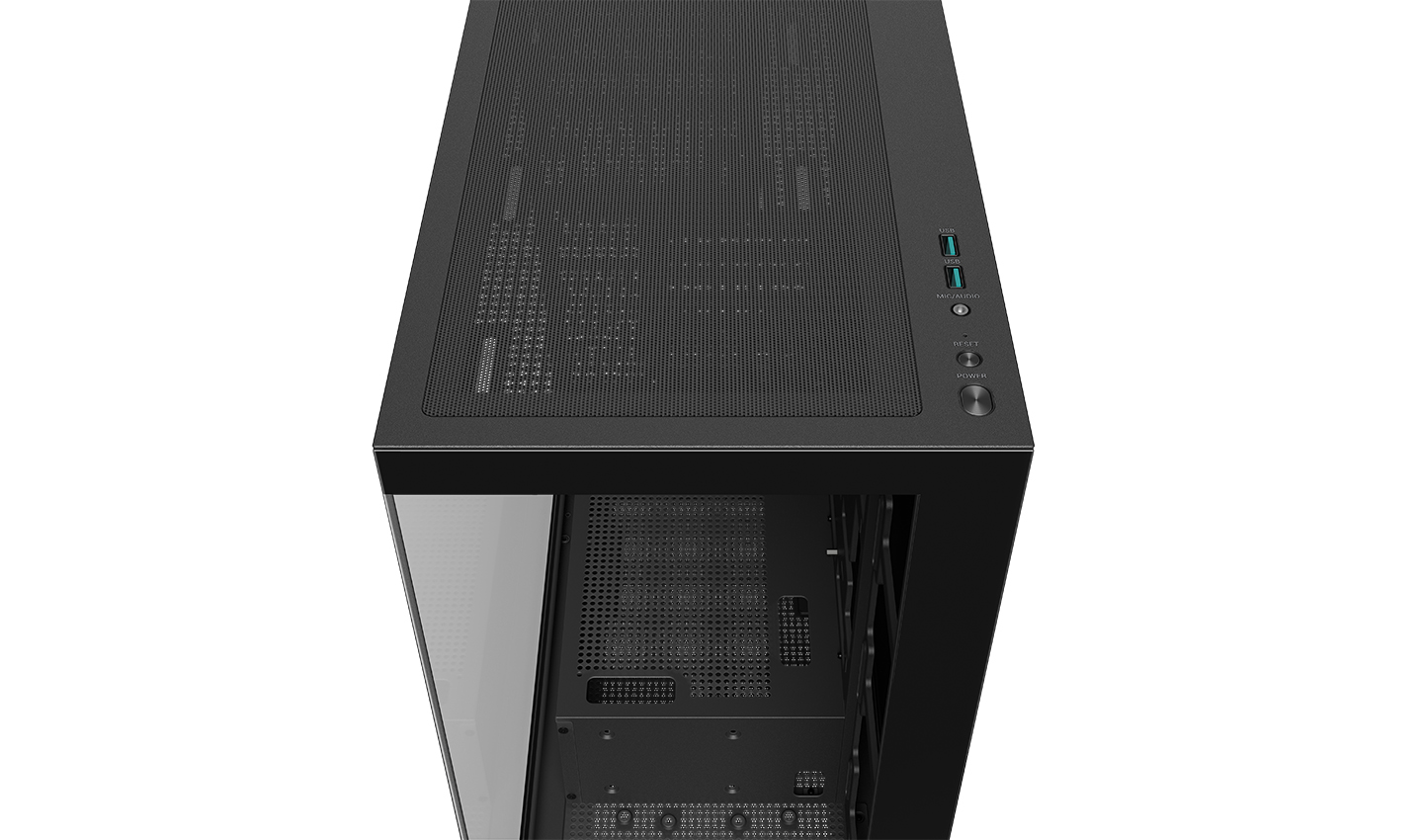

With two USB 3.0 ports and a hybrid audio port that can be accessed from the top I/O panel, connecting temporary devices is a breeze. The magnetic top filter keeps dust out of your system and makes cleaning a little easier.
Technical Spec
Product Dimensions437×235×501mm(L×W×H)
Net Weight7.9Kg
MaterialsABS+SGCC+Tempered Glass
Motherboard SupportITX/Micro-ATX/ATX
ATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O PortsUSB3.0×2、Audio×1、Power、Reset
3.5" Drive Bays2
2.5" Drive Bays2+1
Expansion Slots7Slots
Pre-Installed FansNone
Fan SupportFront: NA
Top: 3×120mm/2x140mm
Side: 3x120mm
Rear: 1×120mm/1x140mm
Bottom: 1×120mm（3.5 HDD/120FAN :Choose one of two）
PSU Shrouded: 2×120mm
Radiator SupportFront: NA
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Rear: 120/140mm
CPU Cooler Height Limit176mm
GPU Length Limit410mm
(limited to 262mm if a 360mm radiator and fan set are mounted on the side)
Power Supply TypeATX PS2（maximum length: 210mm）
EAN6933412774112
P/NR-CG580-BKNDA0-G-1
Download
CG580 Manual.pdf
