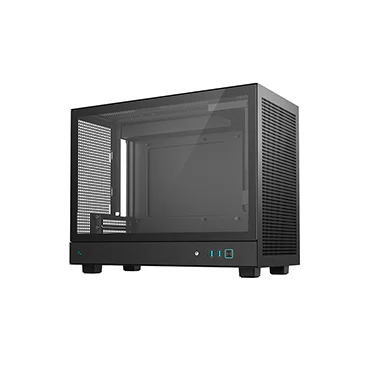

CH160 PLUS

COMPACT EVOLVED

BUILT TO BREATH

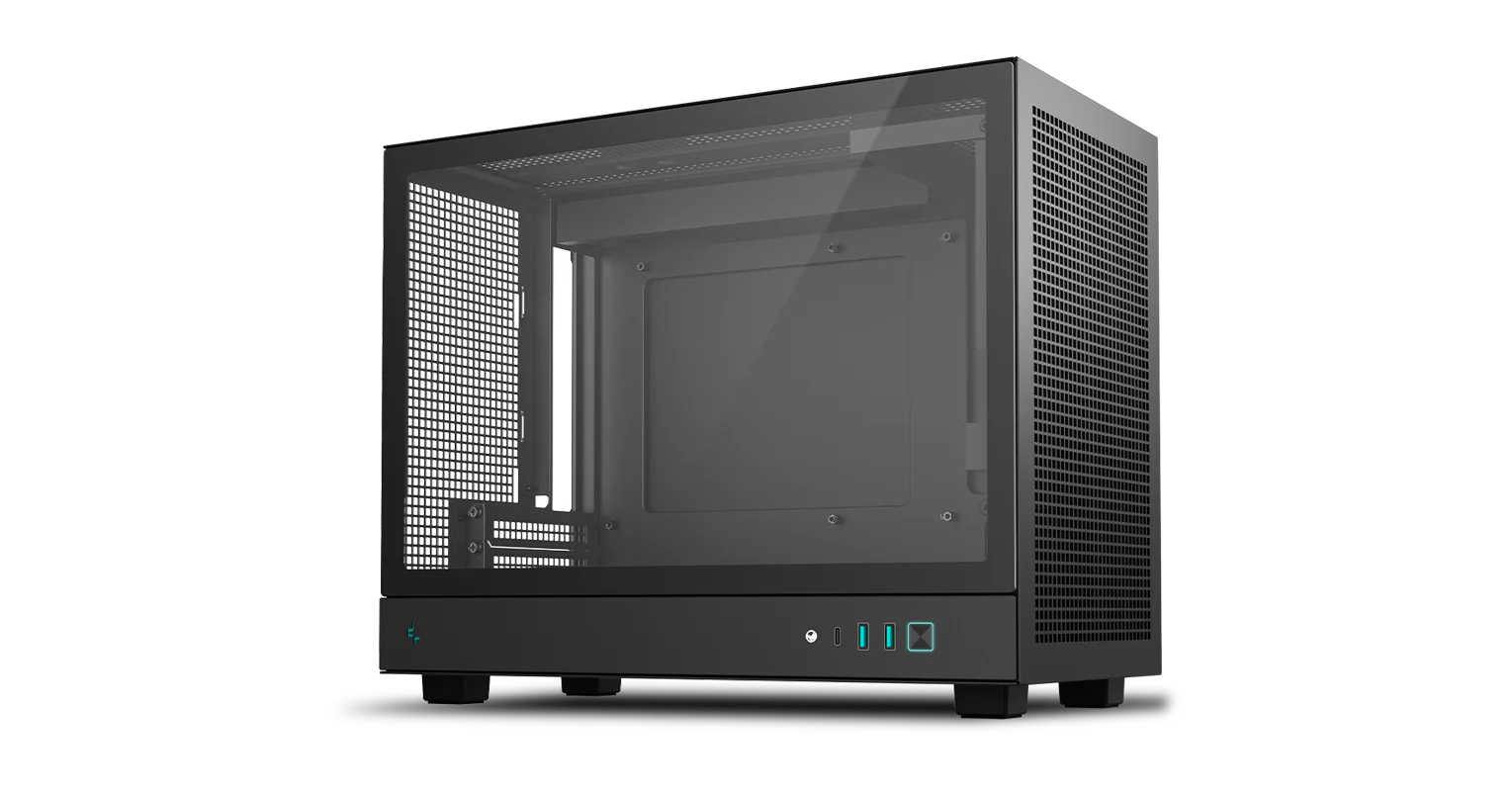

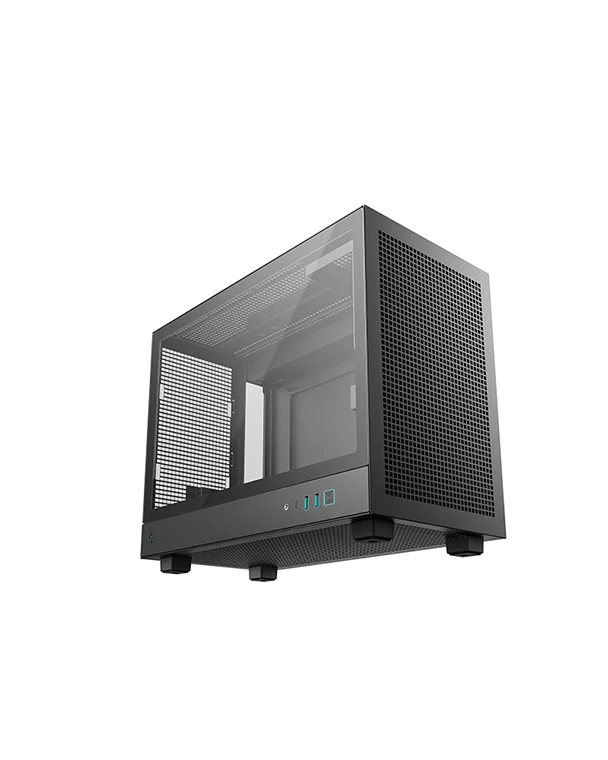

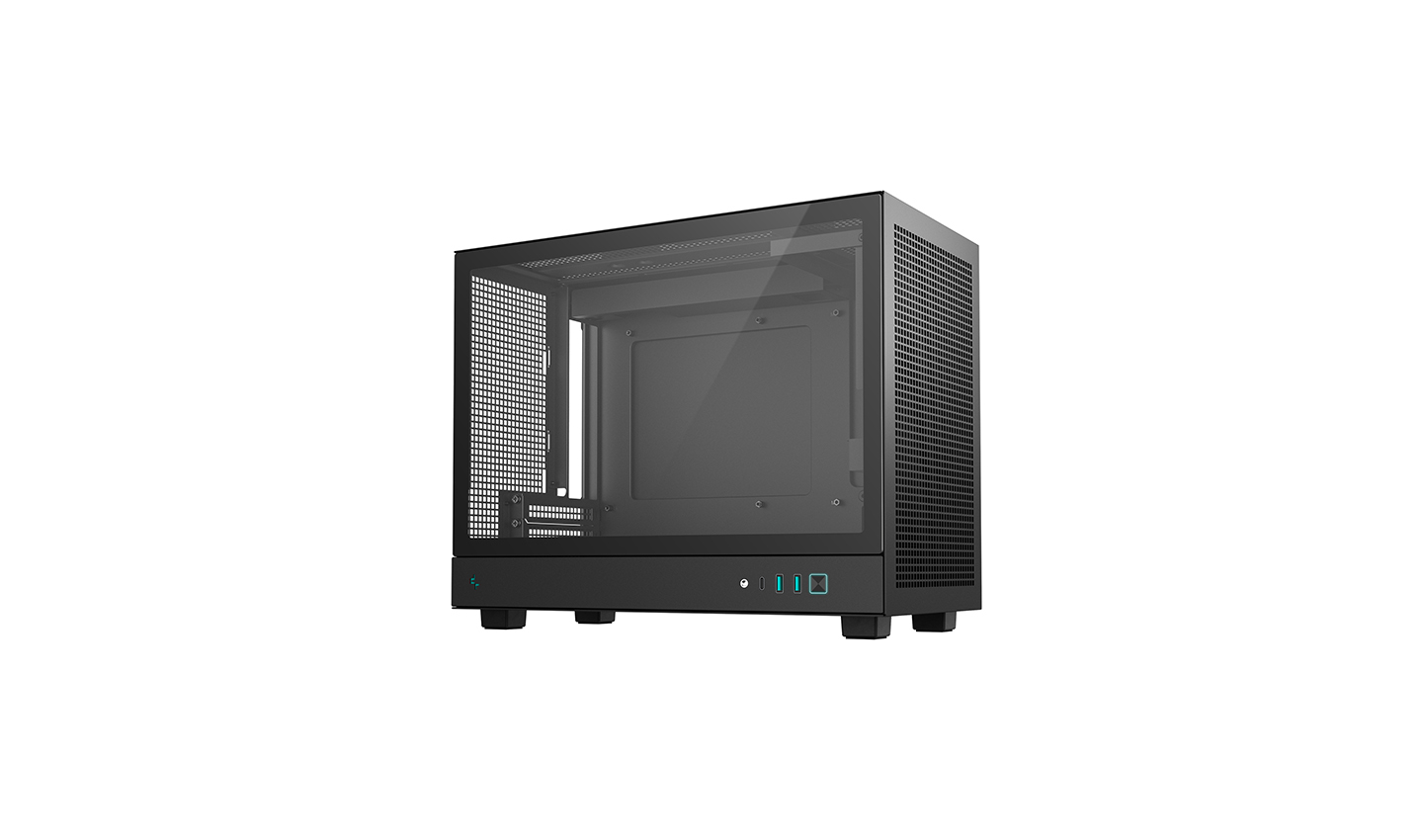

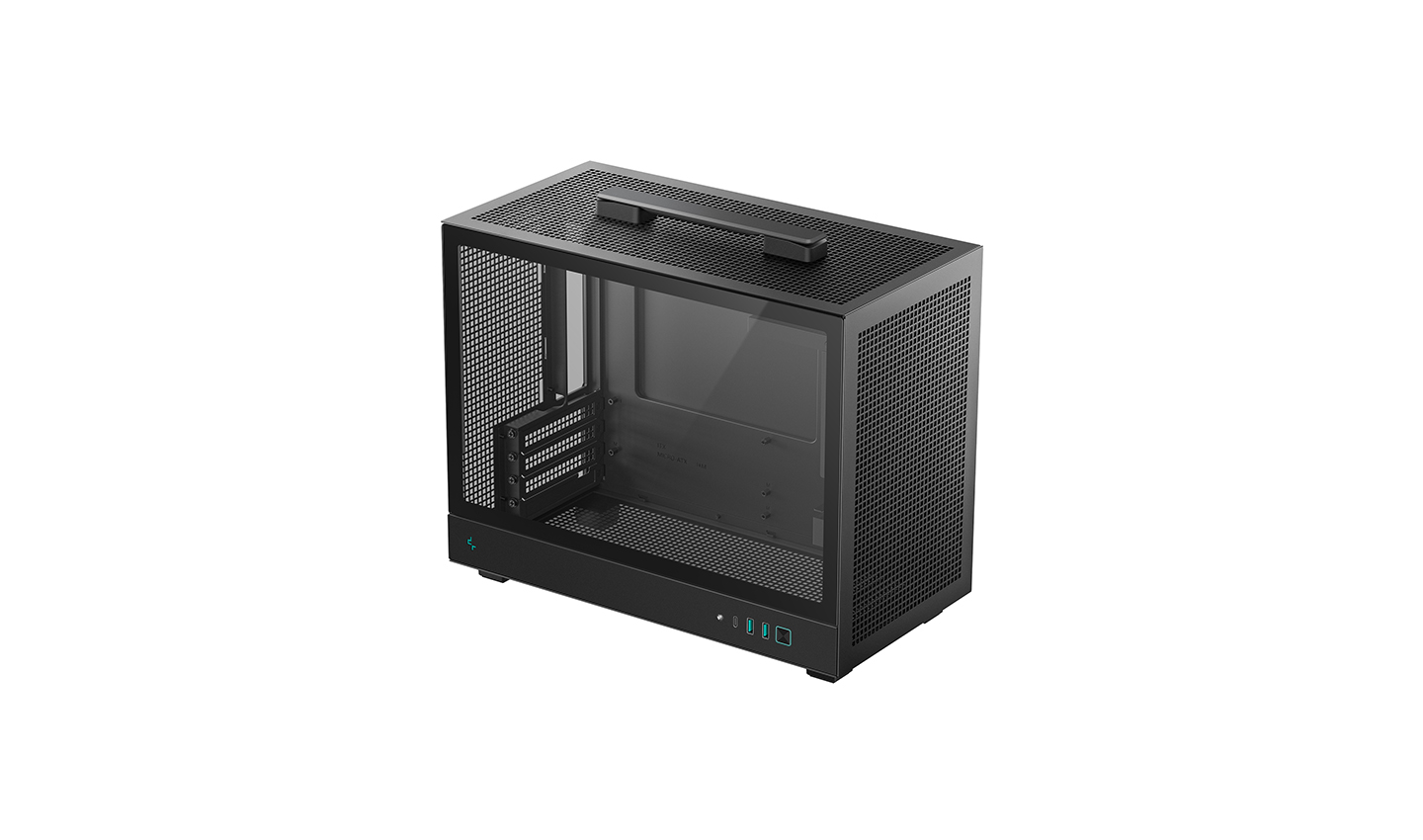

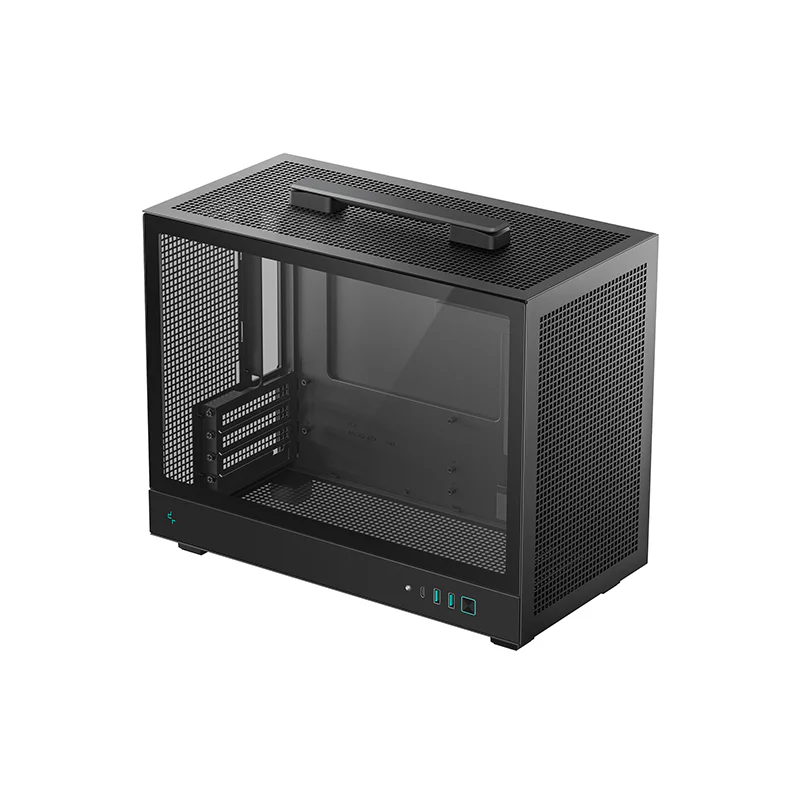

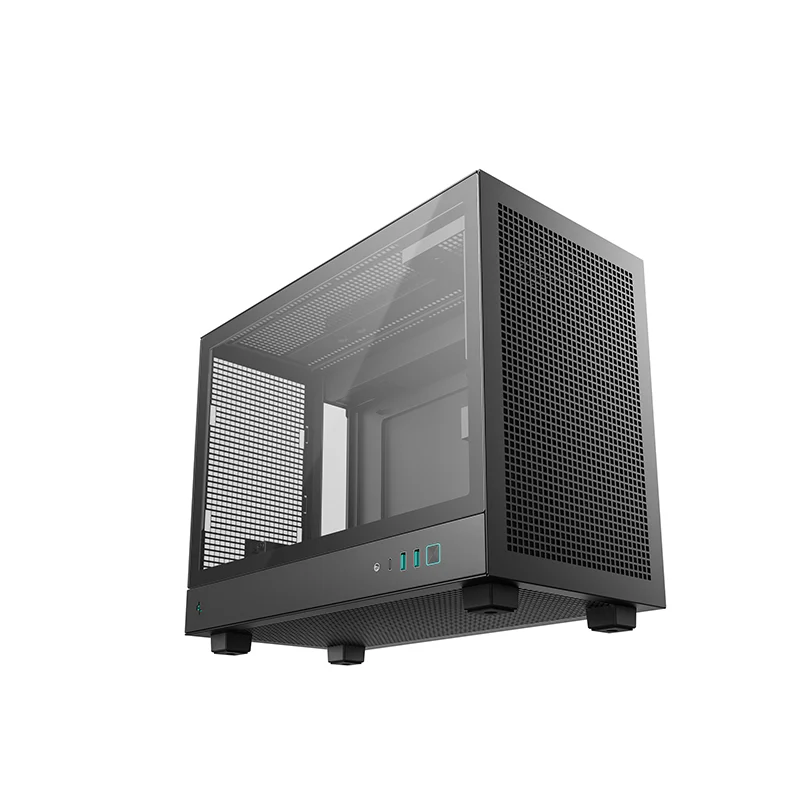

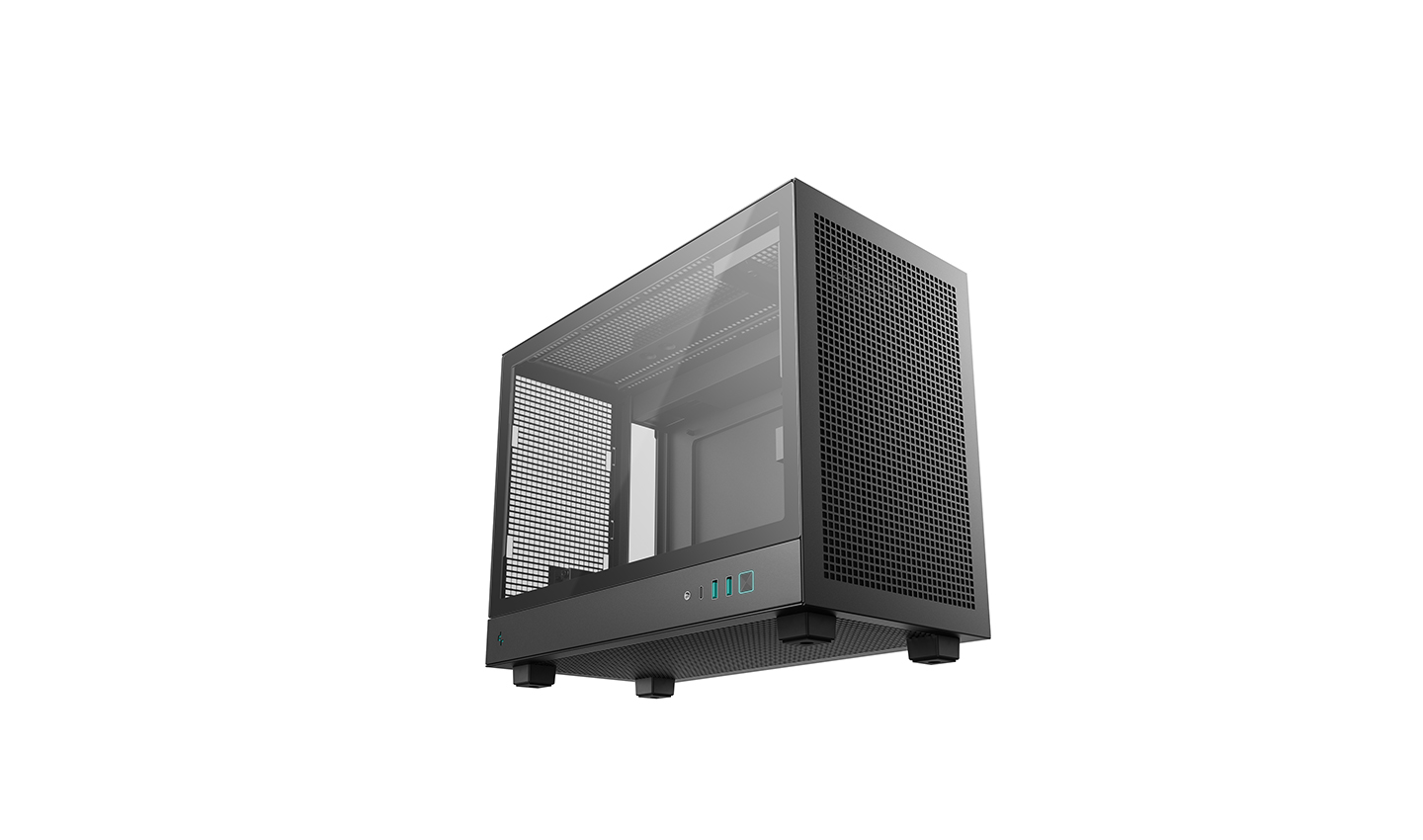

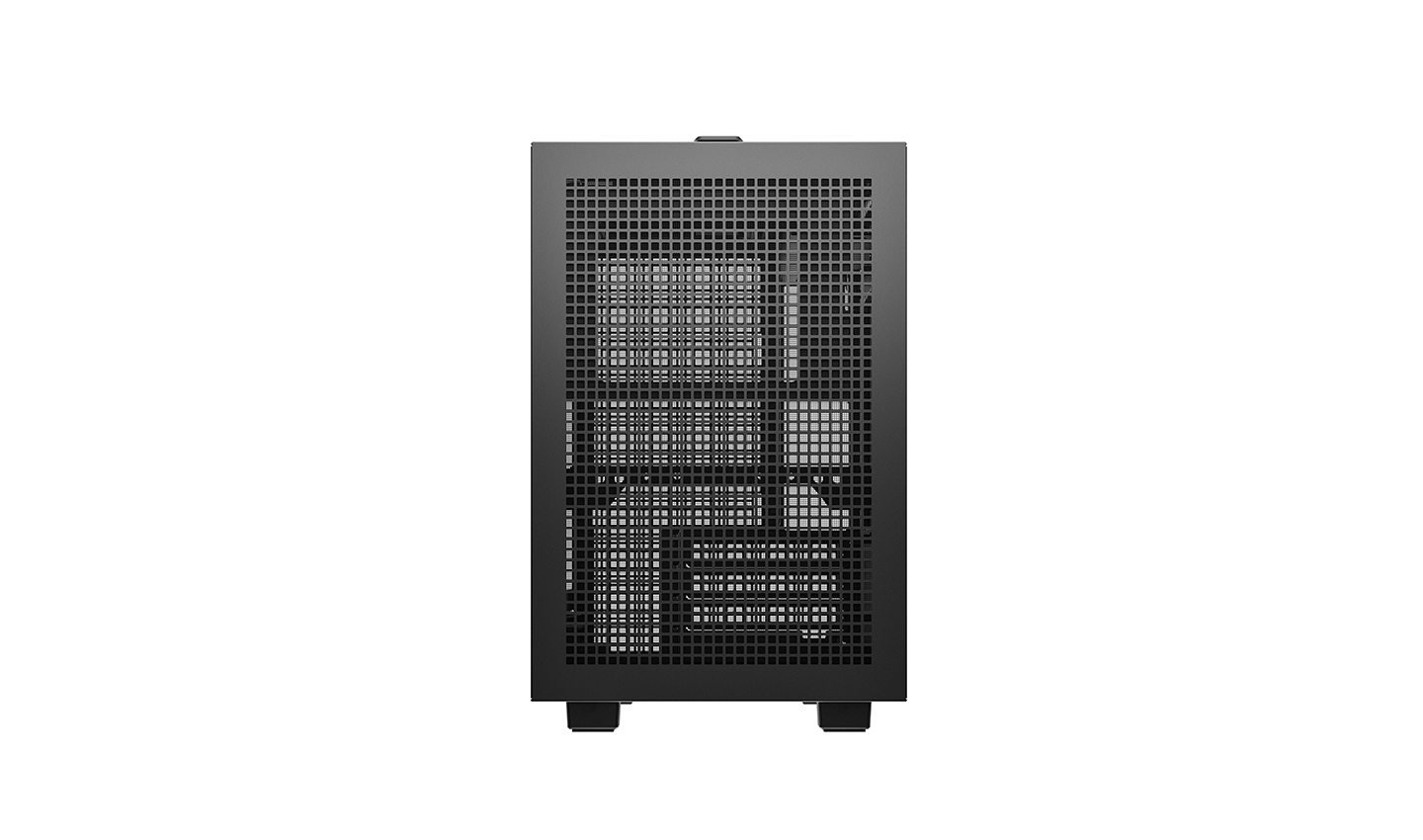

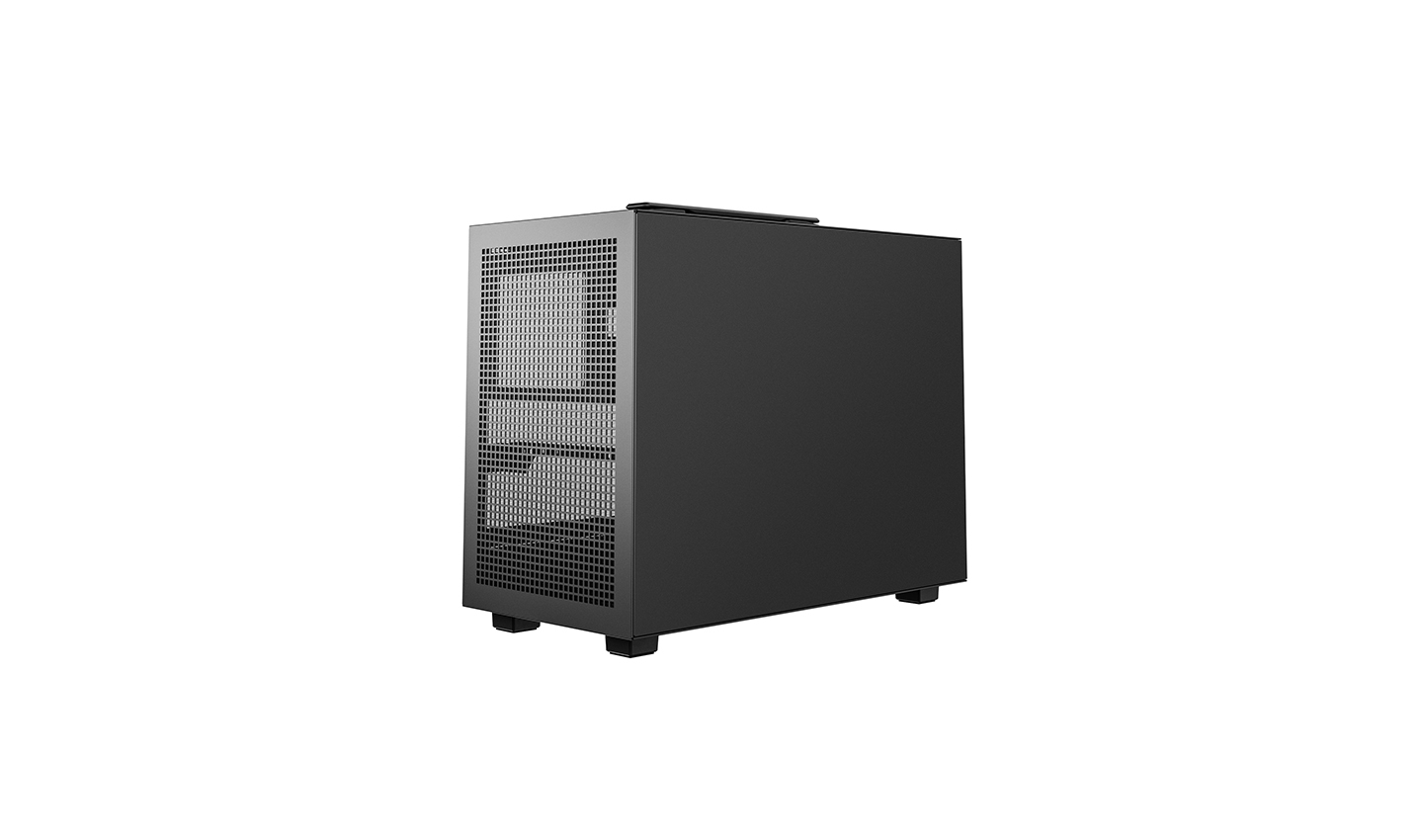

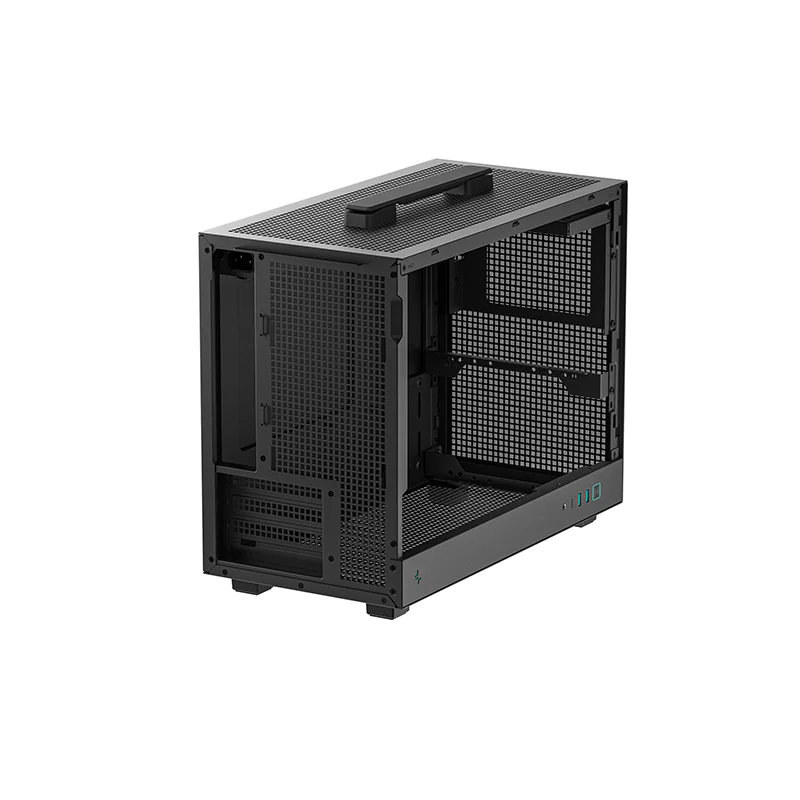

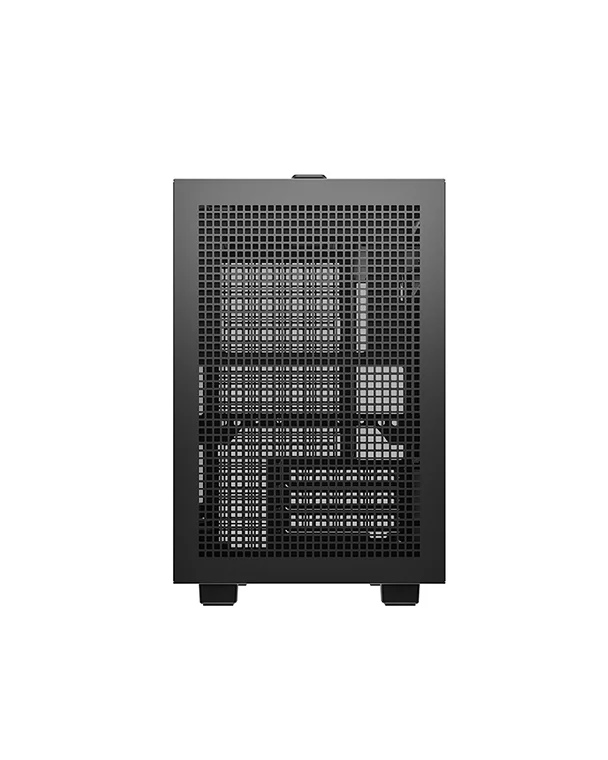

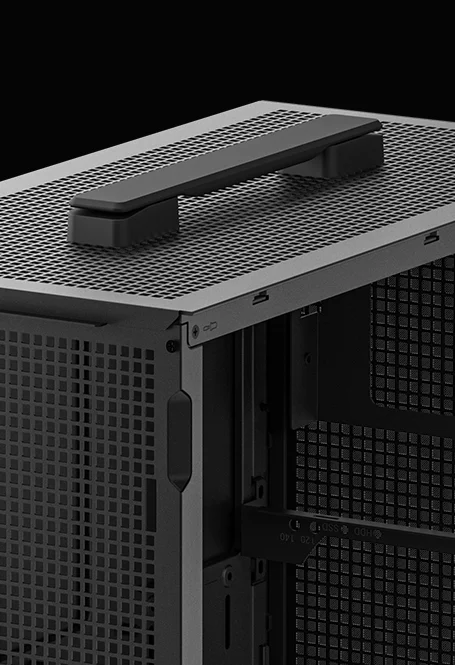

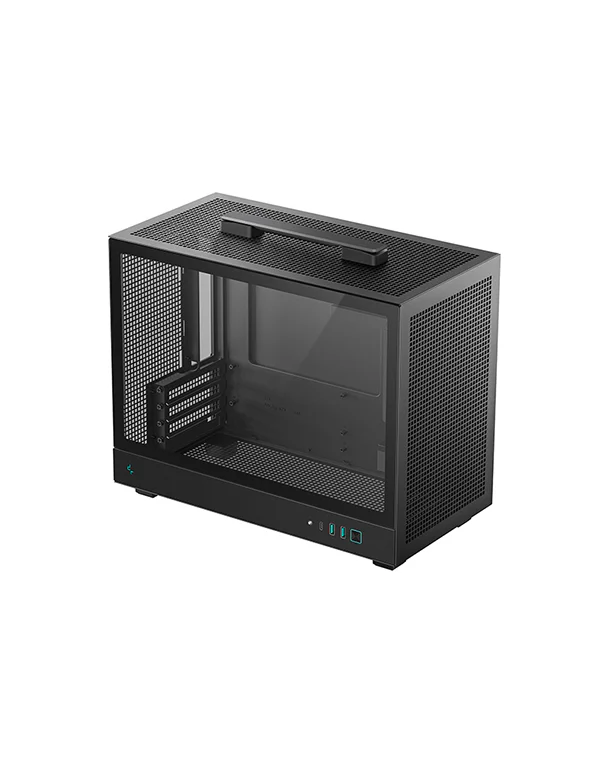

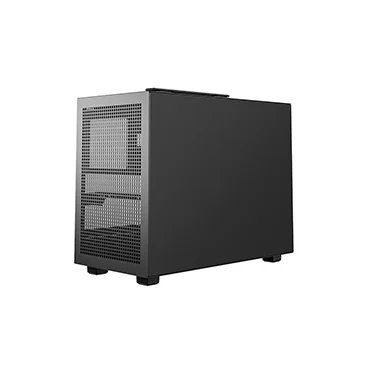

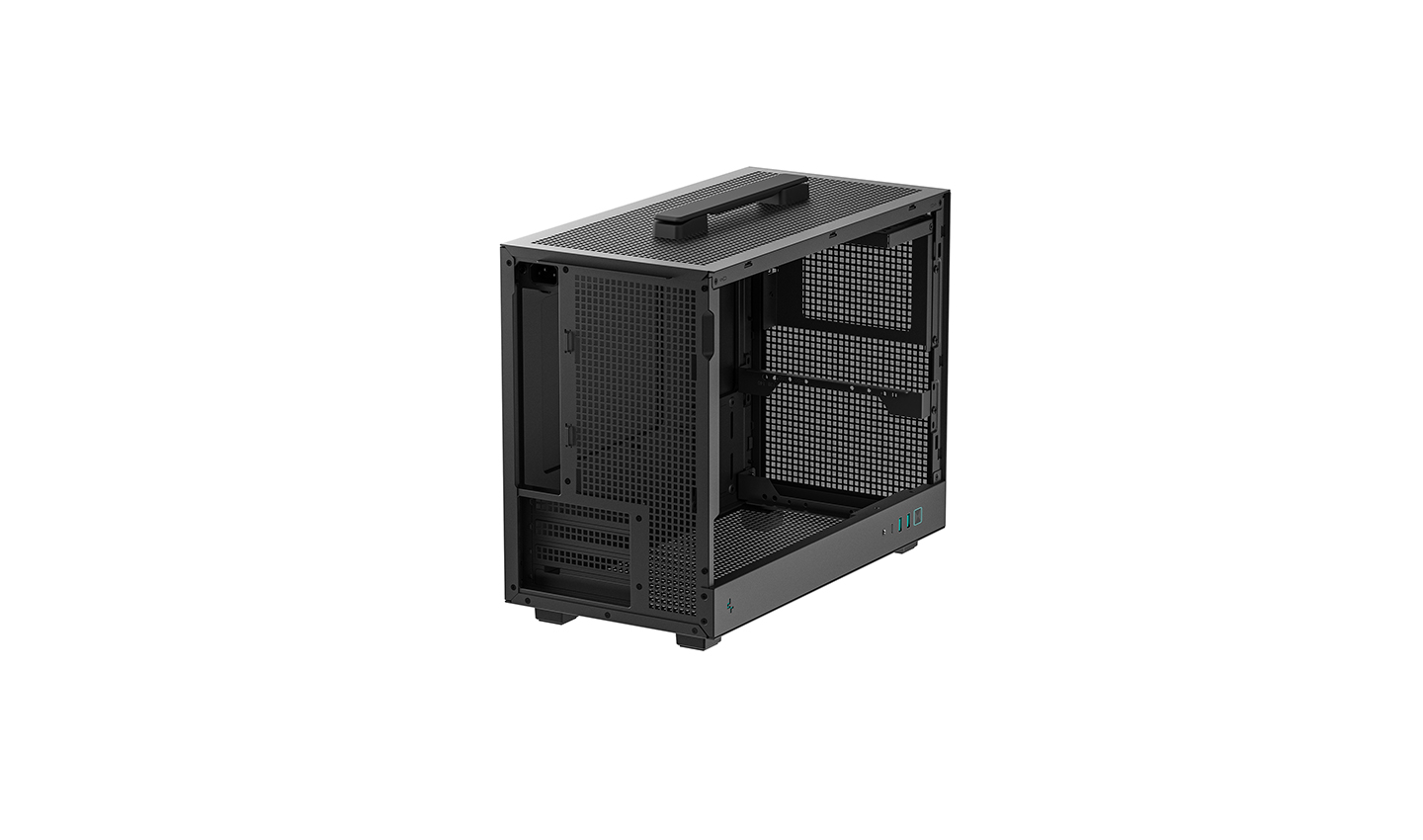

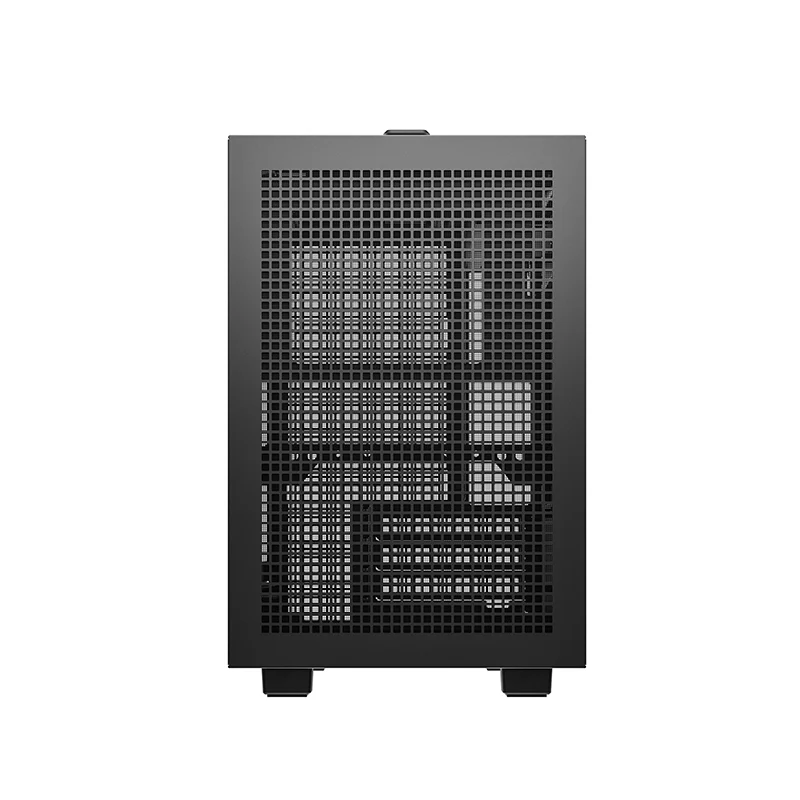

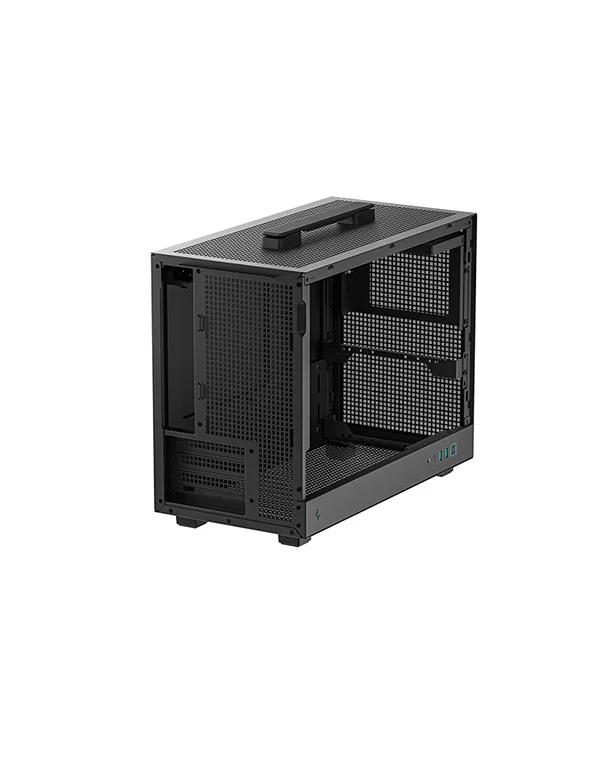

Mesh panels wrap the CH160 PLUS to boost airflow in a size-conscious design. The integrated top handle makes it easy to move and reposition whenever you need.

NOW WITH LIQUID COOLING!

Liquid cooling is now part of the experience, with support for up to a 240mm radiator on top.

Radiators:

Front: NA
Top: 120/240mm
Bottom: NA
Rear: 120mm

Fans:

Front: 1×120mm / 1×140mm (with SFX PSU)
Top: 2×120mm
Rear: 1×120mm

CPU Cooler:

164mm

BUILT TO FIT MORE

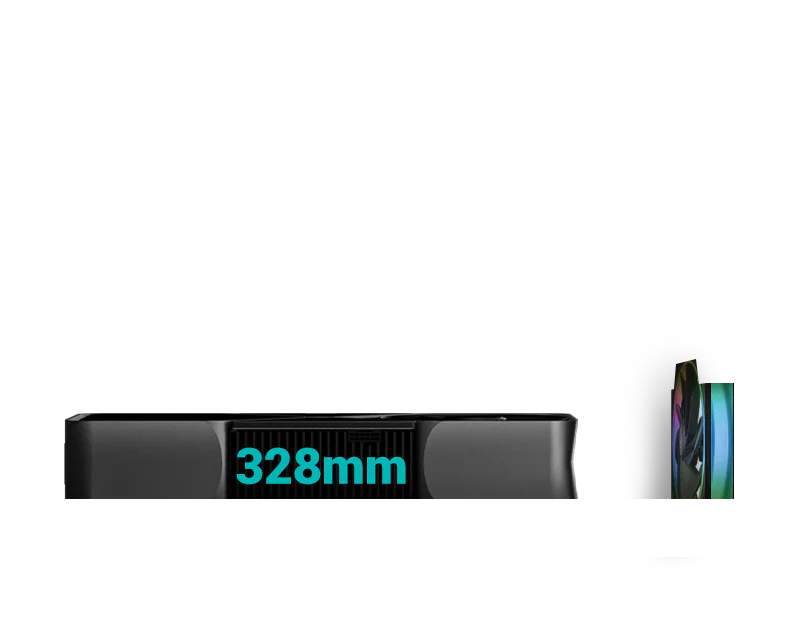

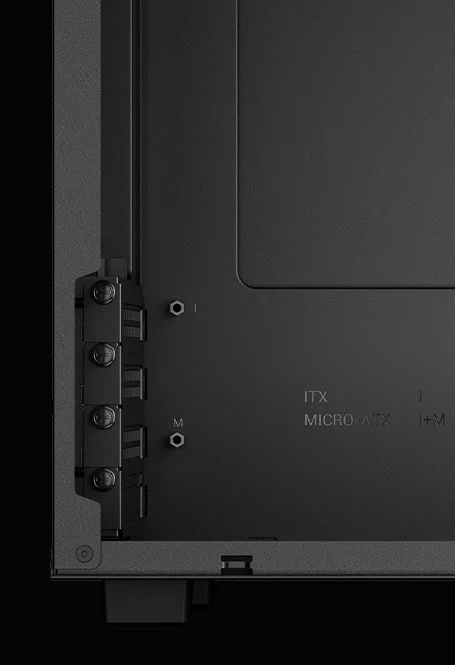

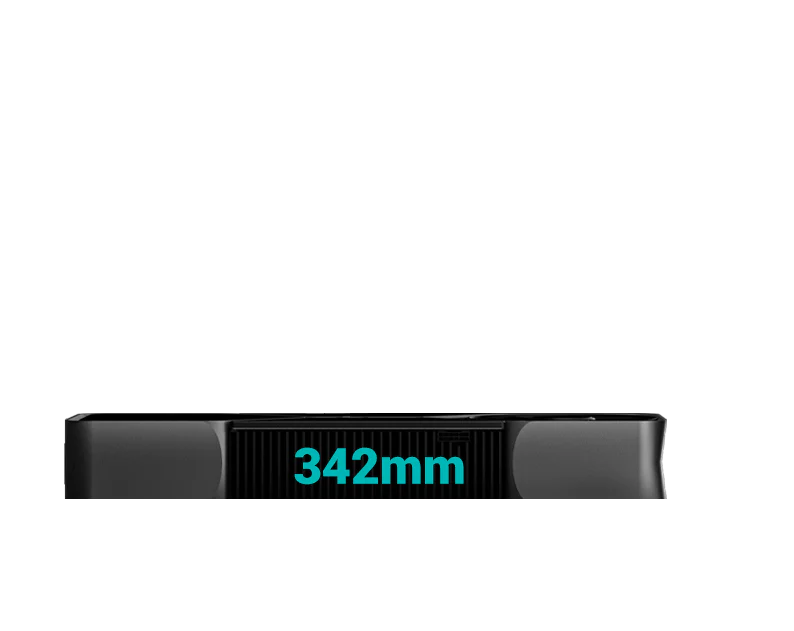

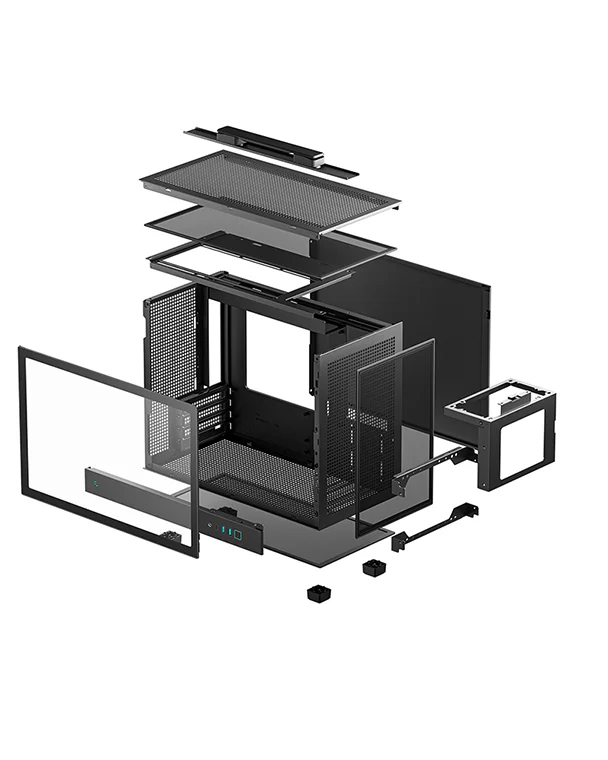

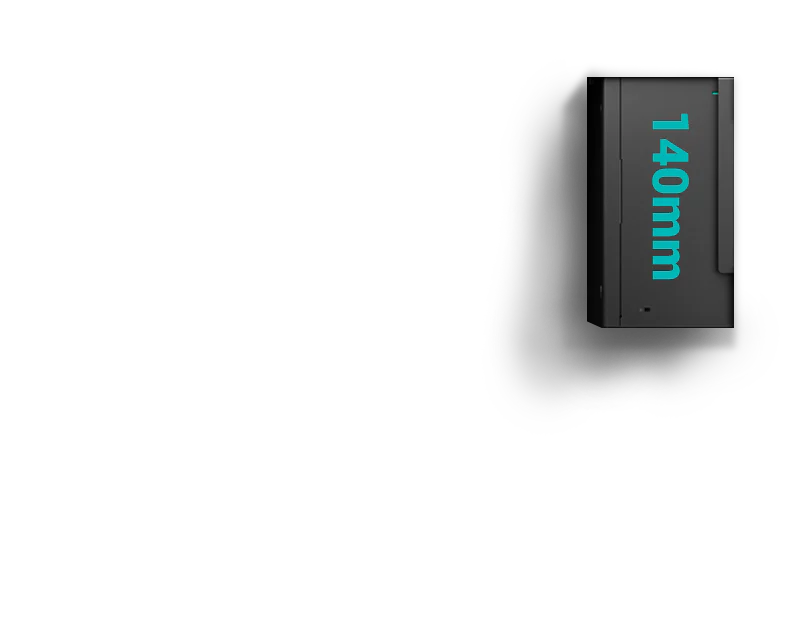

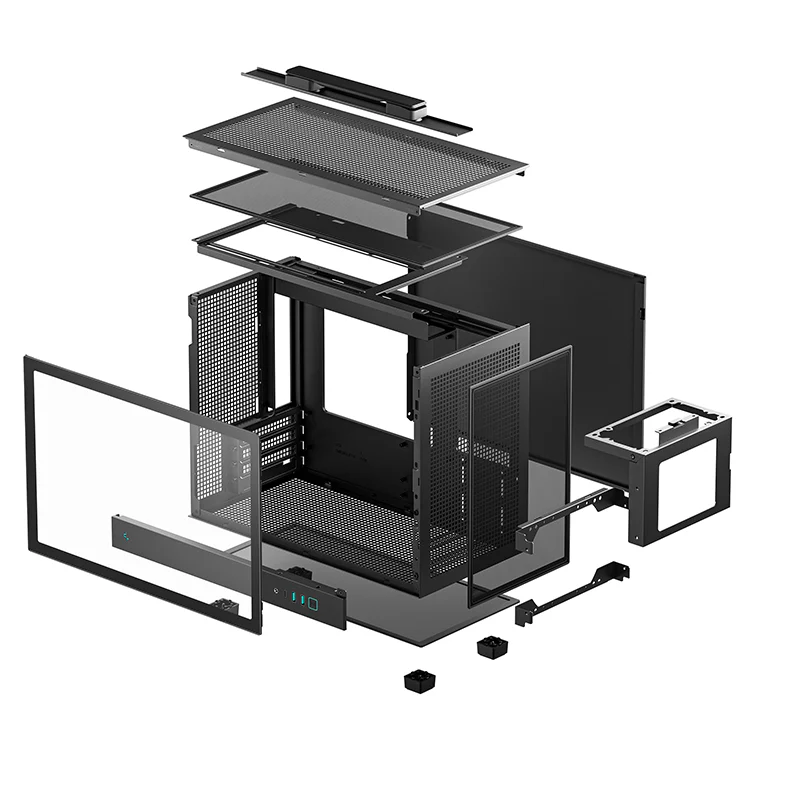

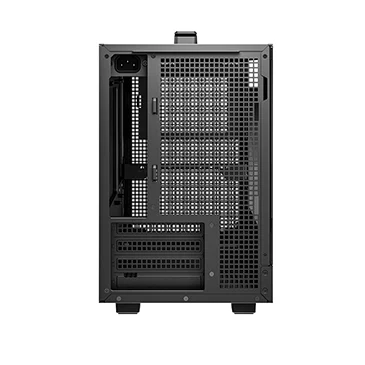

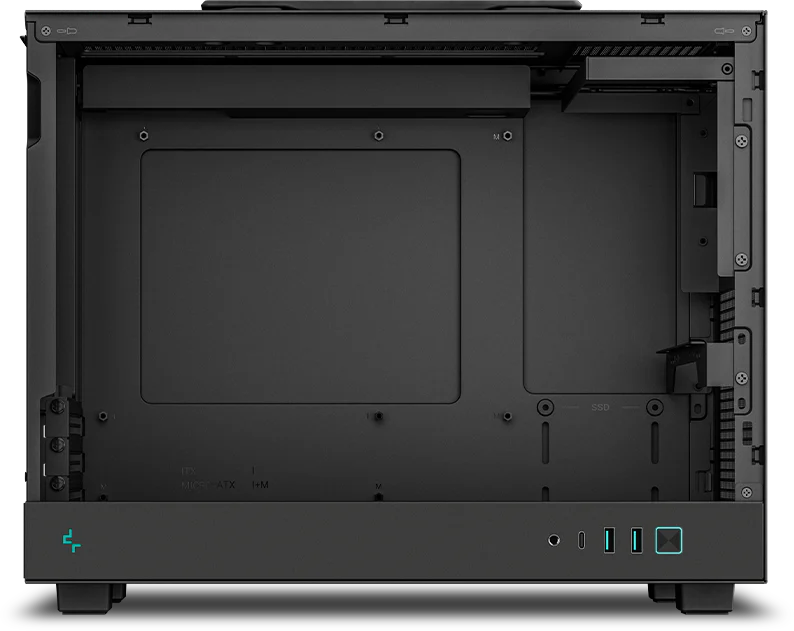

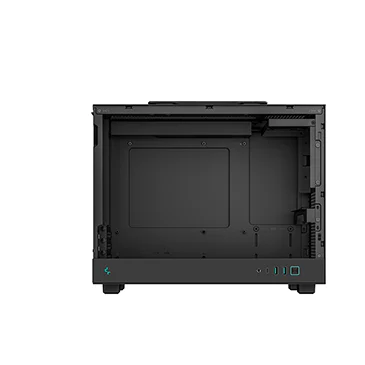

With minimal growth in size, it expands compatibility with support for Micro-ATX motherboards, GPUs up to 342mm (328mm with front fan installed), and full-sized ATX PSUs up to 140mm. A fourth expansion slot opens the door to more powerful builds.

CUSTOMIZE WITH PURPOSE

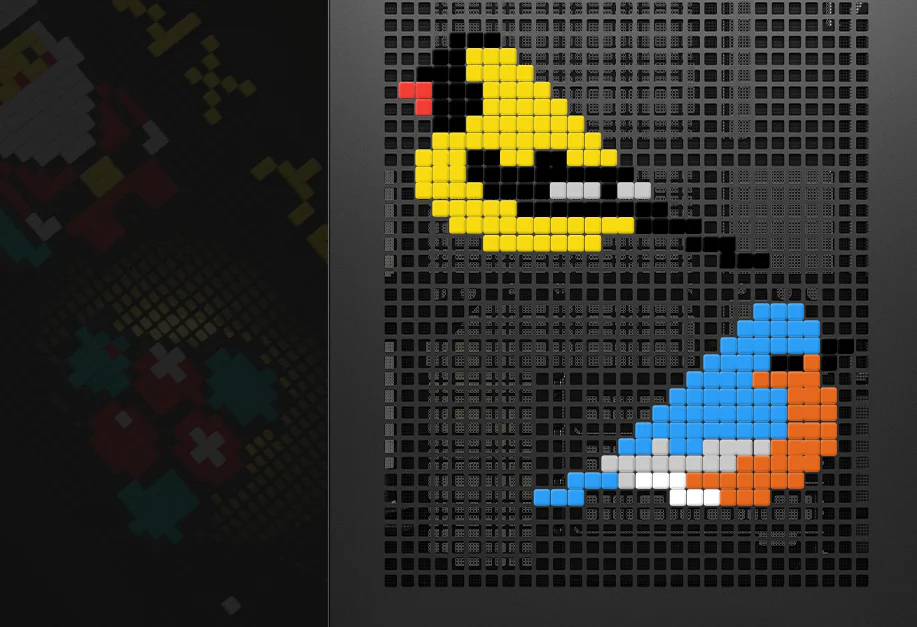

Personalize with DeepCool accessories like the HB-01 headset holder and PIXEL decorative bits to give your build a unique touch.

HB-01

Learn More

PIXEL Series

Learn More

CONVENIENCE IN EVERY DETAIL

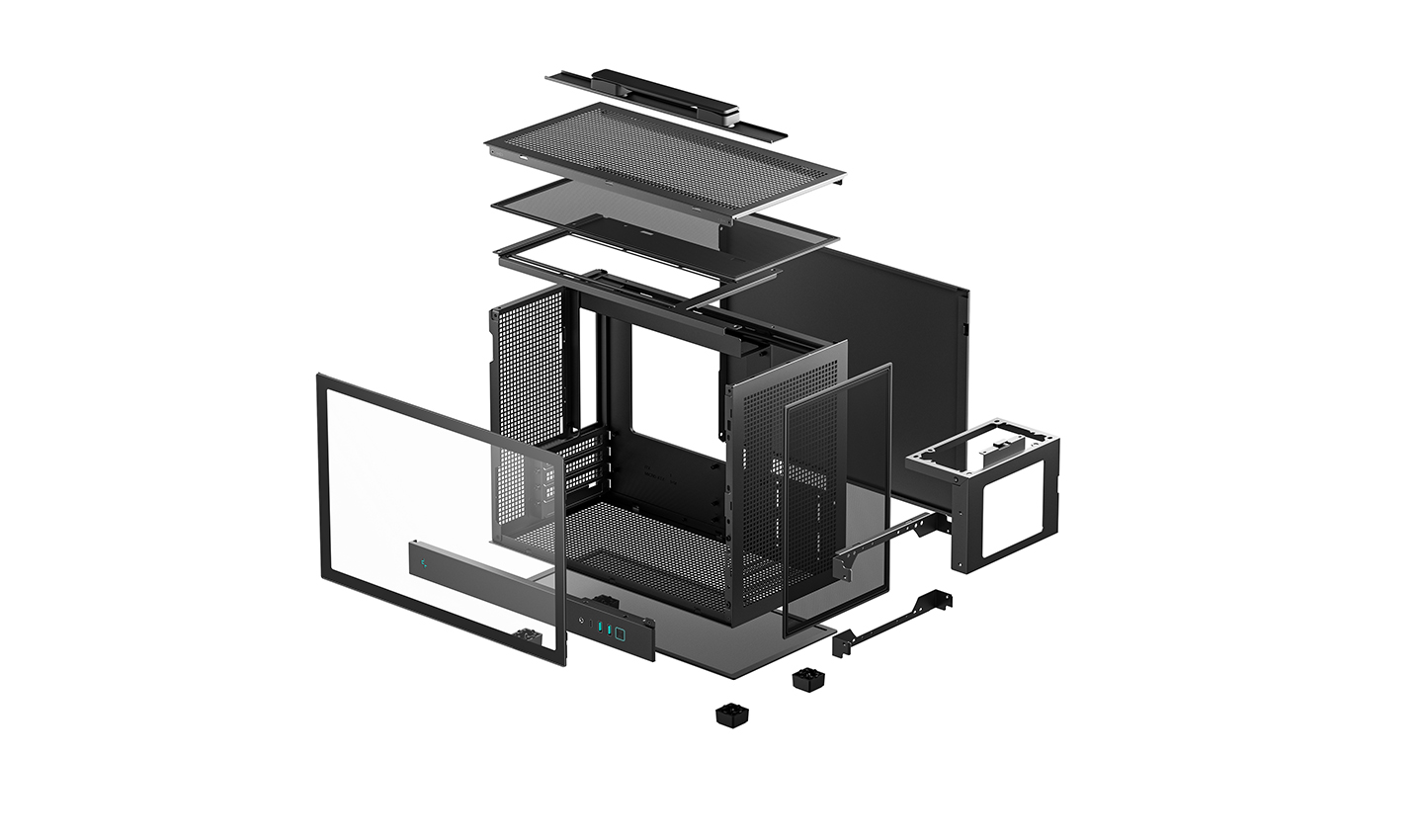

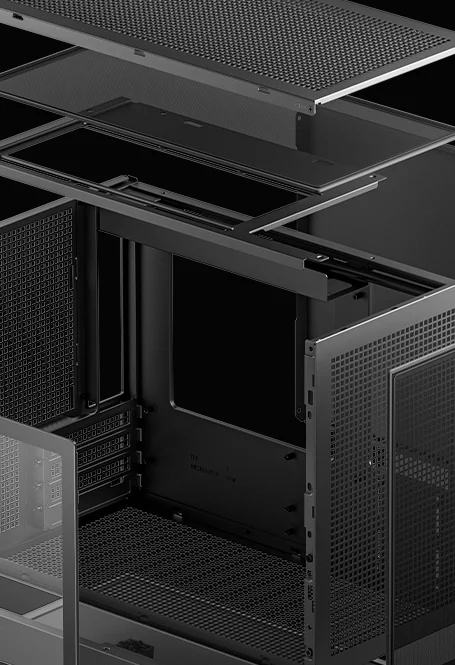

Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on three sides keep maintenance simple and your build clean.

Technical Spec

Product Dimensions	375mm195mm323.5mm(L×W×H)
Net Weight	4.2Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	Mini-ITX / Micro-ATX
Front I/O Ports	USB3.0×2、Gen2 Type-C x1、Audio/Mic×1
3.5" Drive Bays	1
2.5" Drive Bays	1+1
Expansion Slots	4Slots
Pre-Installed Fans	None
Fan Support	Front:1×120mm/1×140mm（With SFX PSU） Top:2×120mm Rear: 1×120mm
Radiator Support	Front: NA Top:120/240mm Bottom: NA Rear:120mm
CPU Cooler Height Limit	164mm
GPU Length Limit	342mm
Power Supply Type	ATX PS2（maximum length: 140mm)/SFX/SFX-L
EAN	6933412765356
P/N	R-CH160-BKNGM0-G

Download

CH160 PLUS Manual.pdf
