CH160 WH

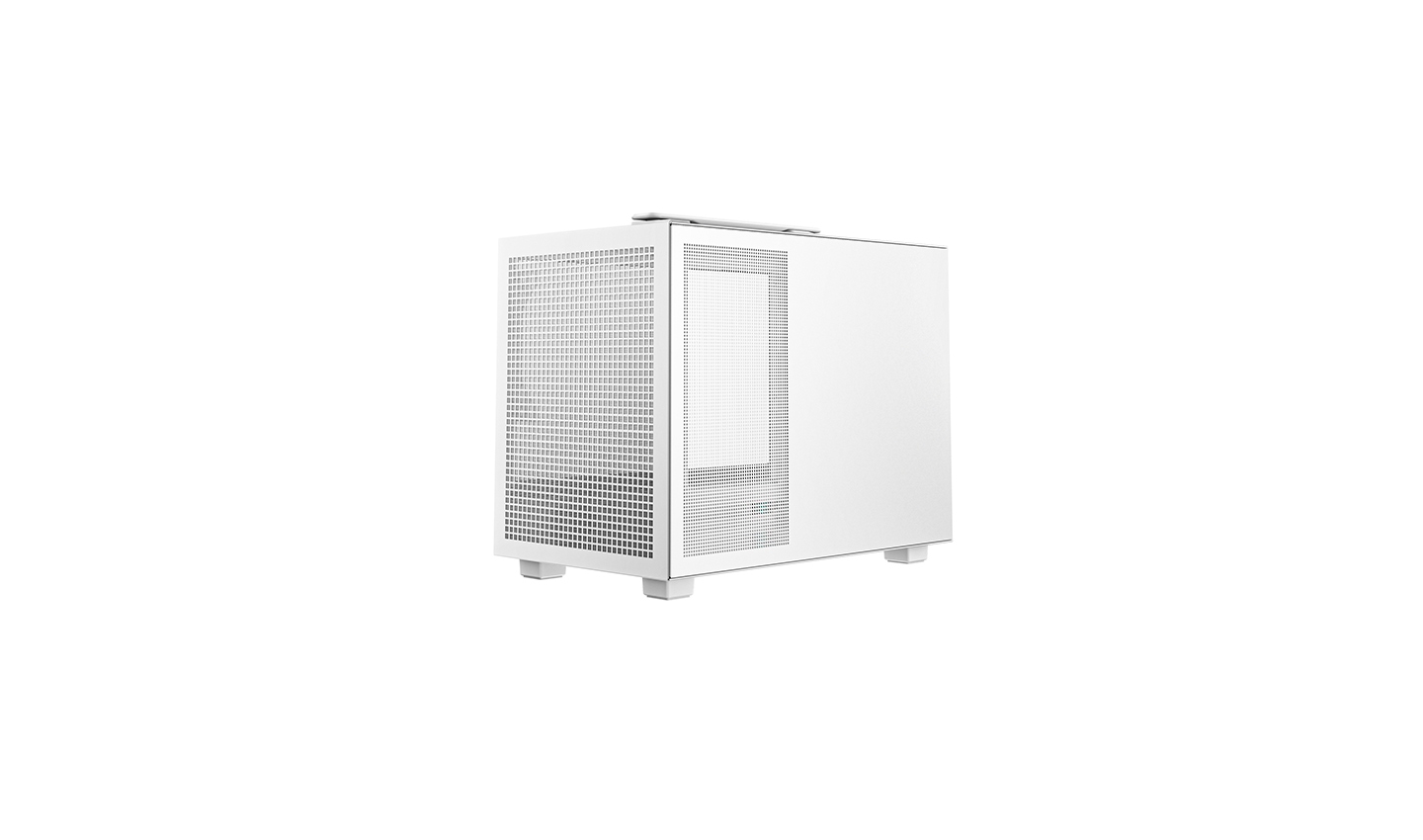

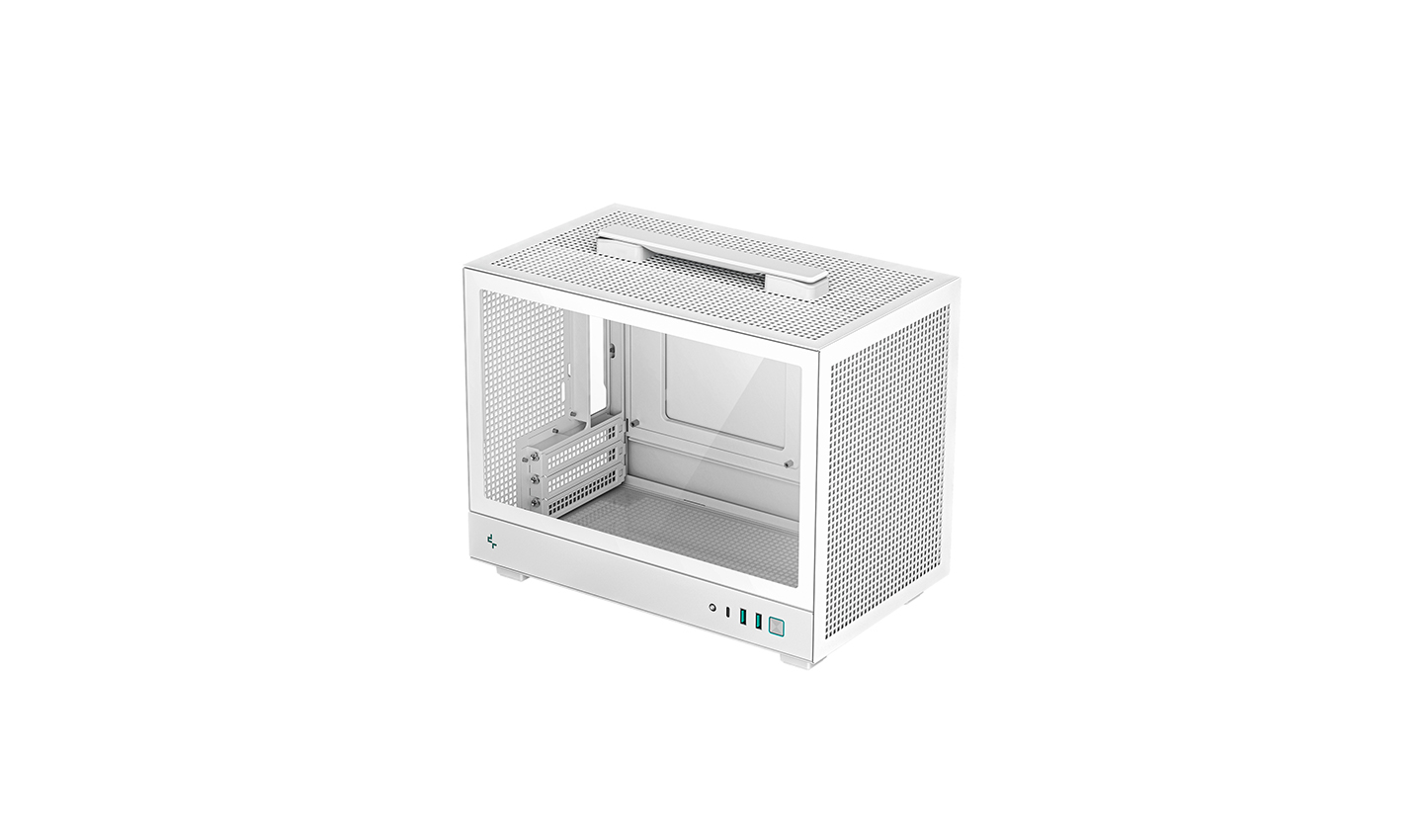

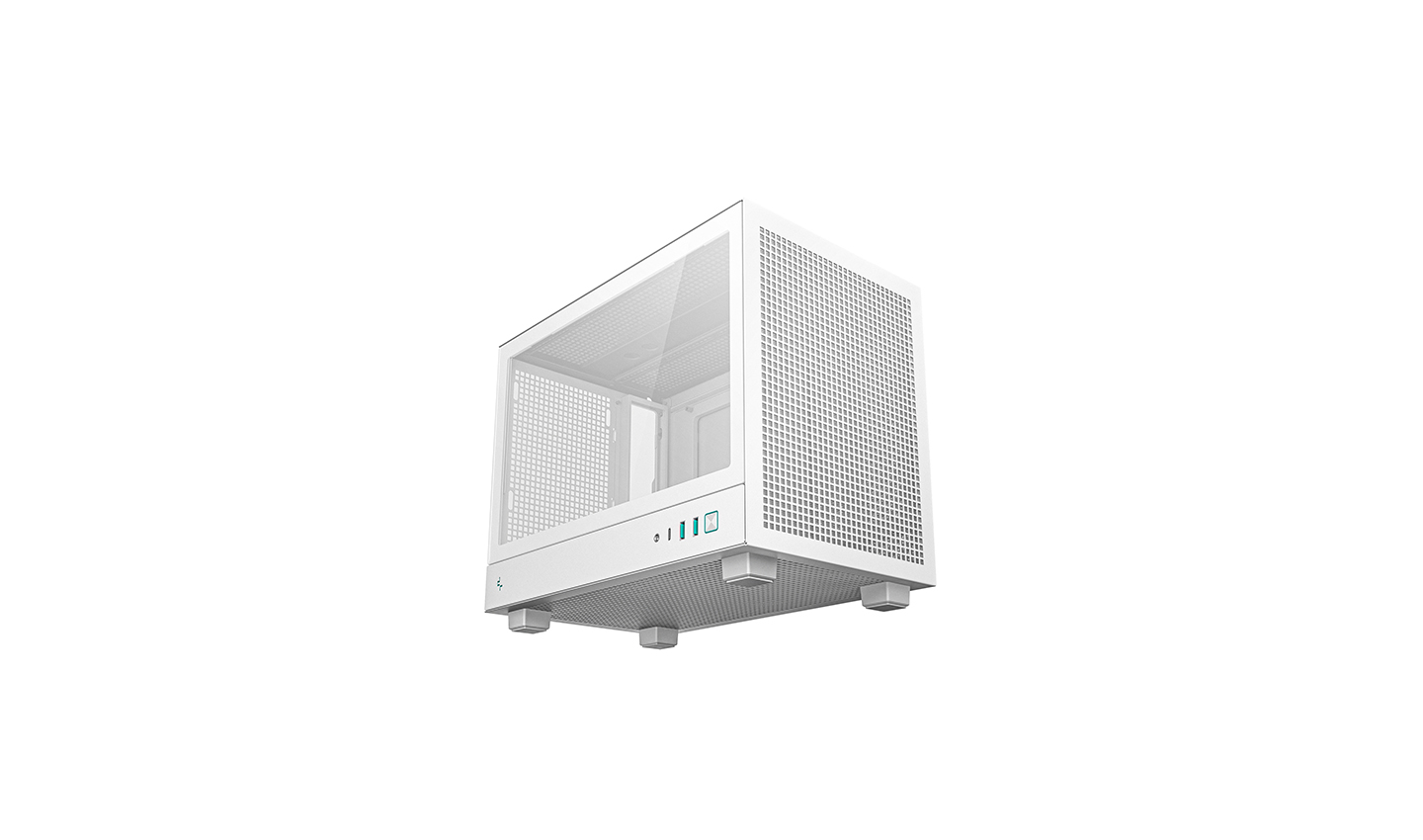

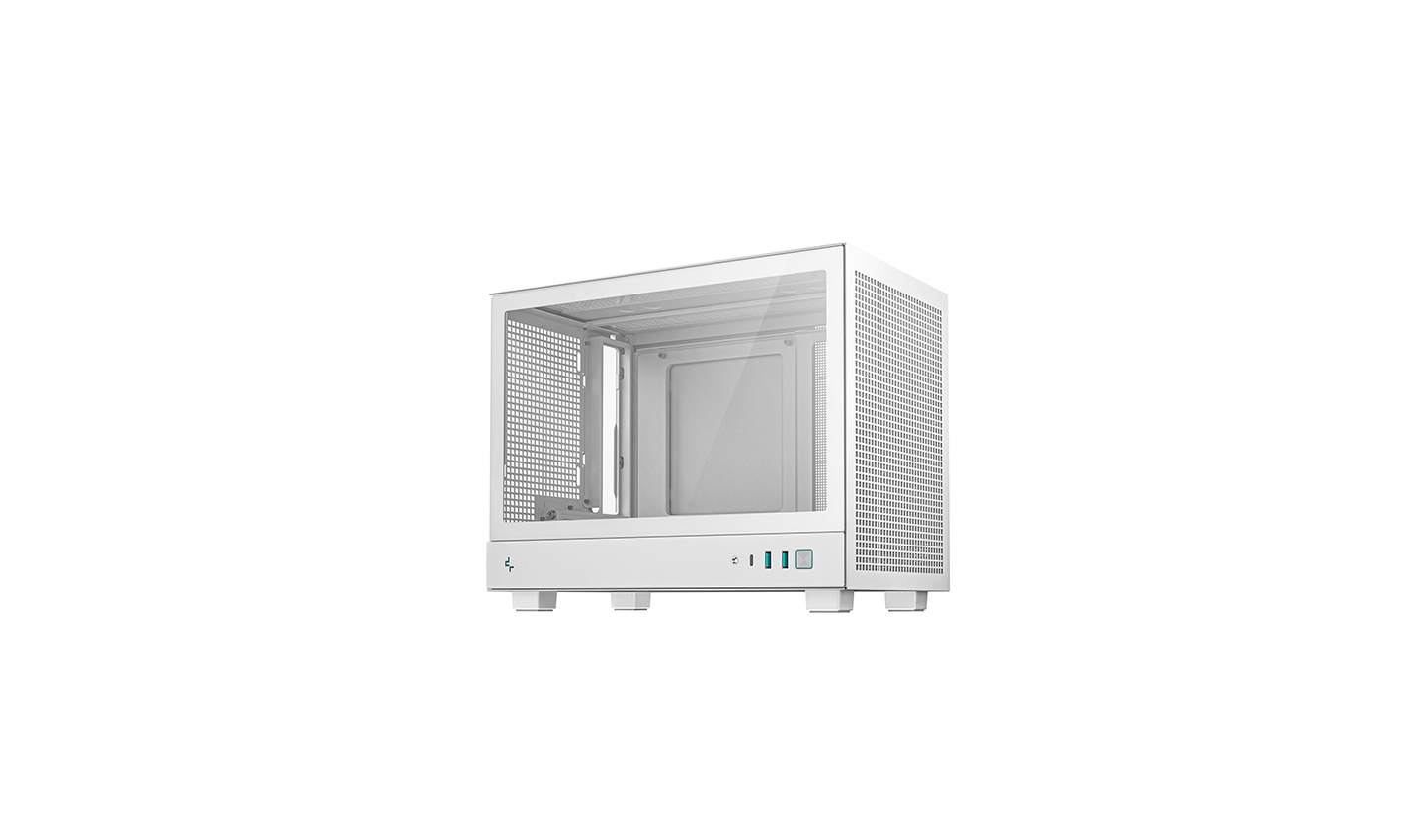

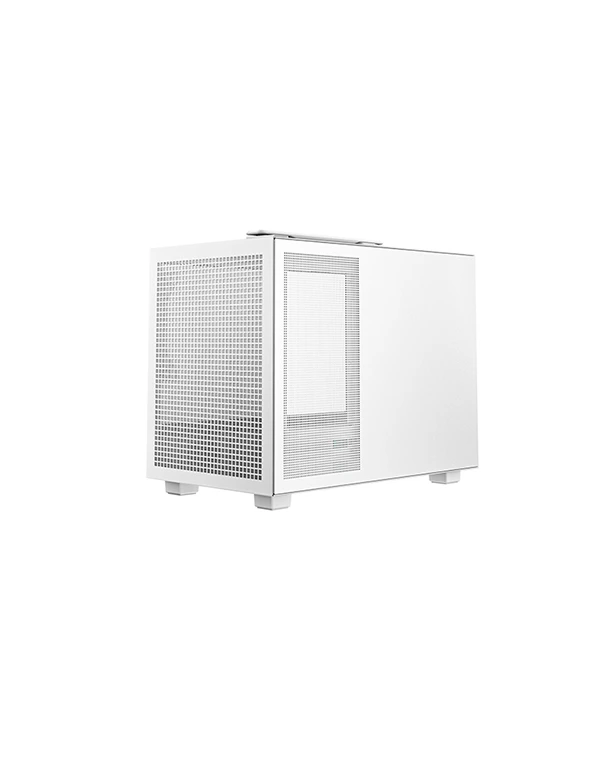

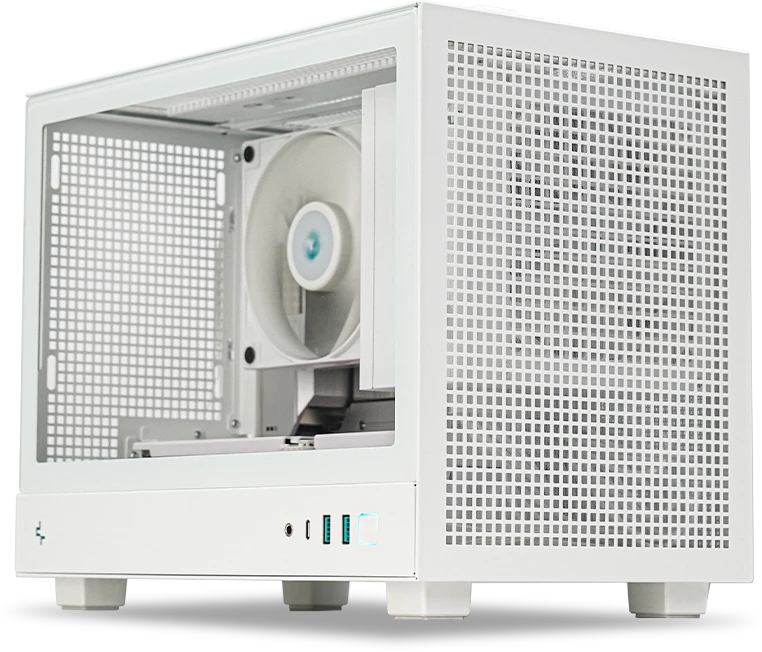

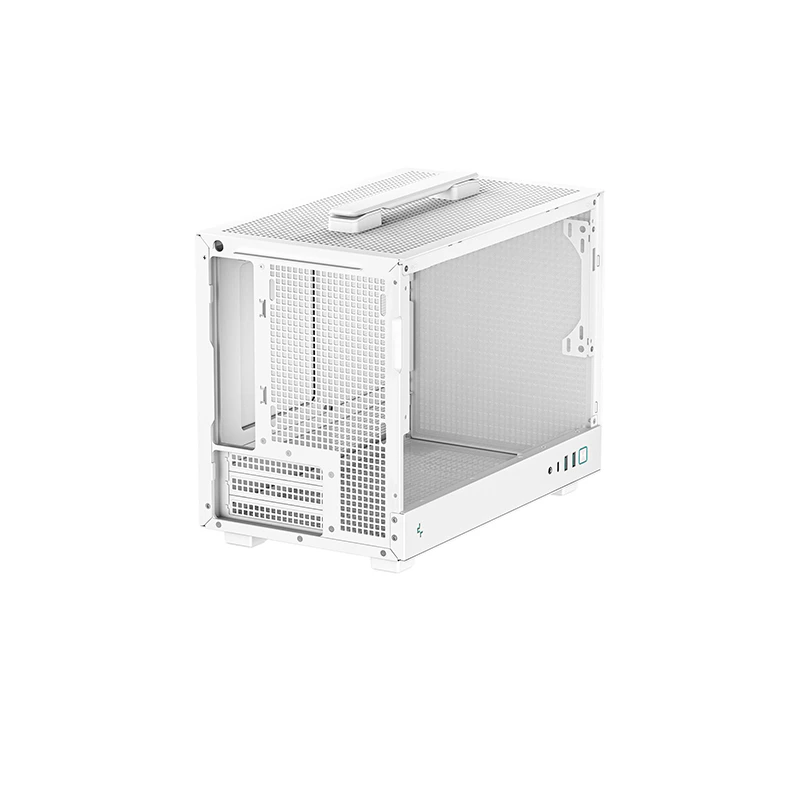

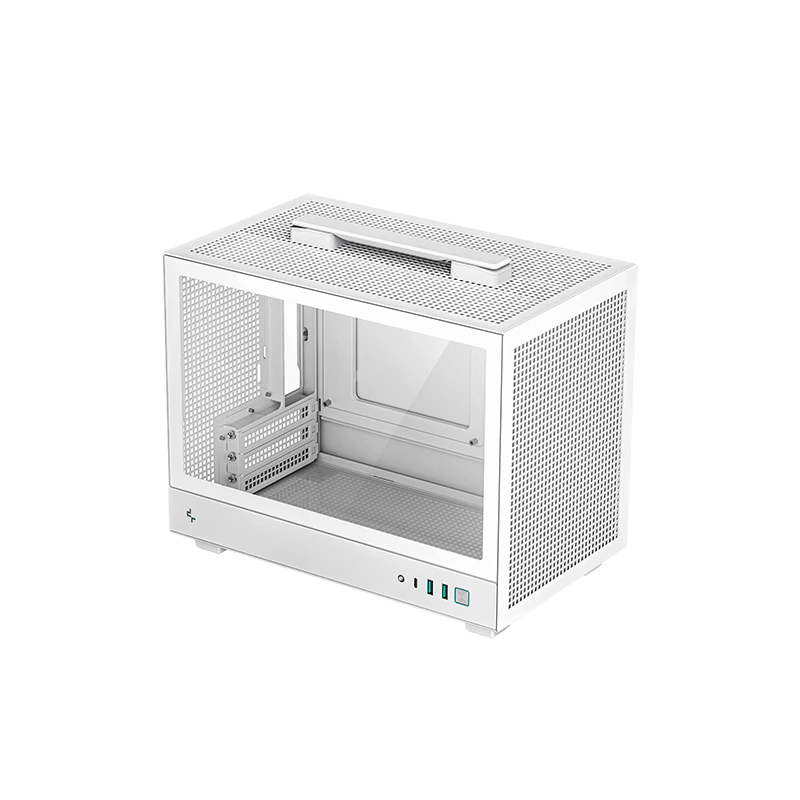

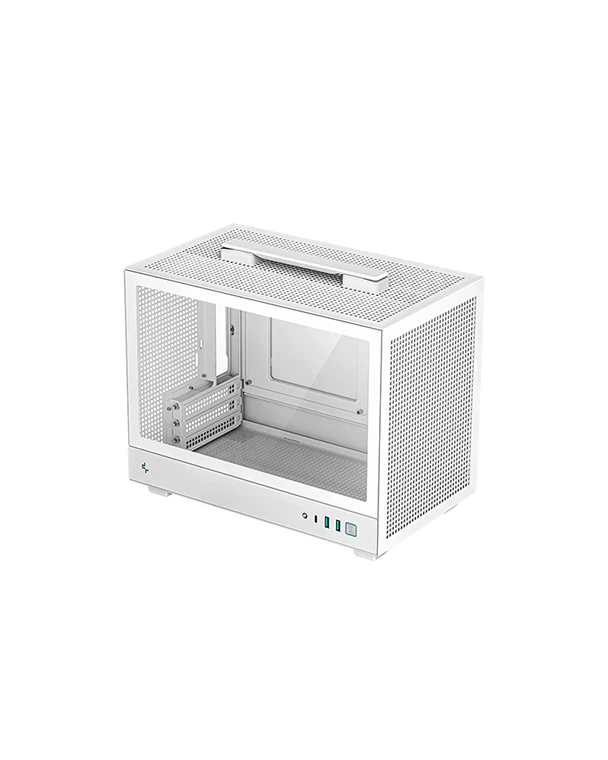

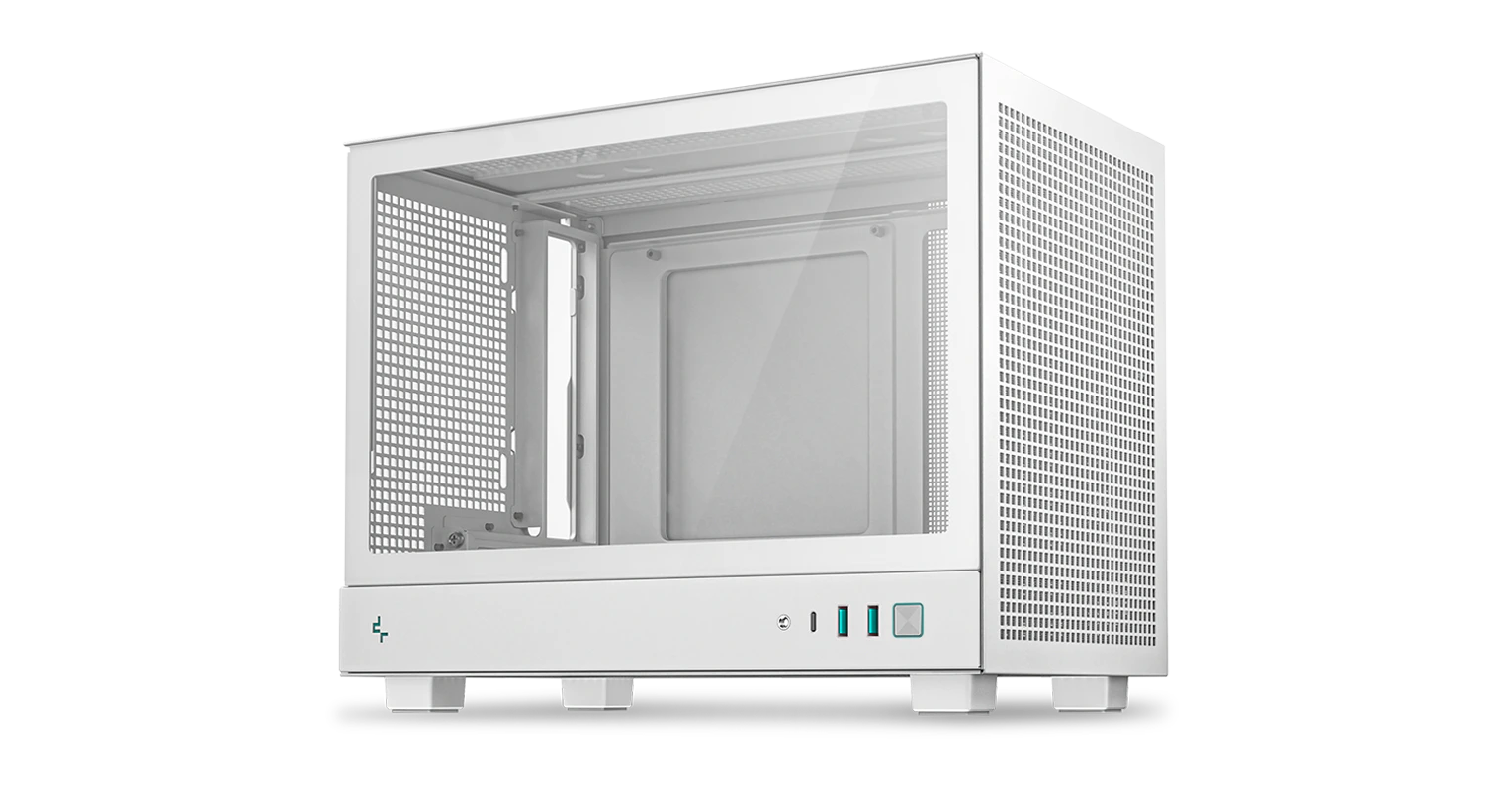

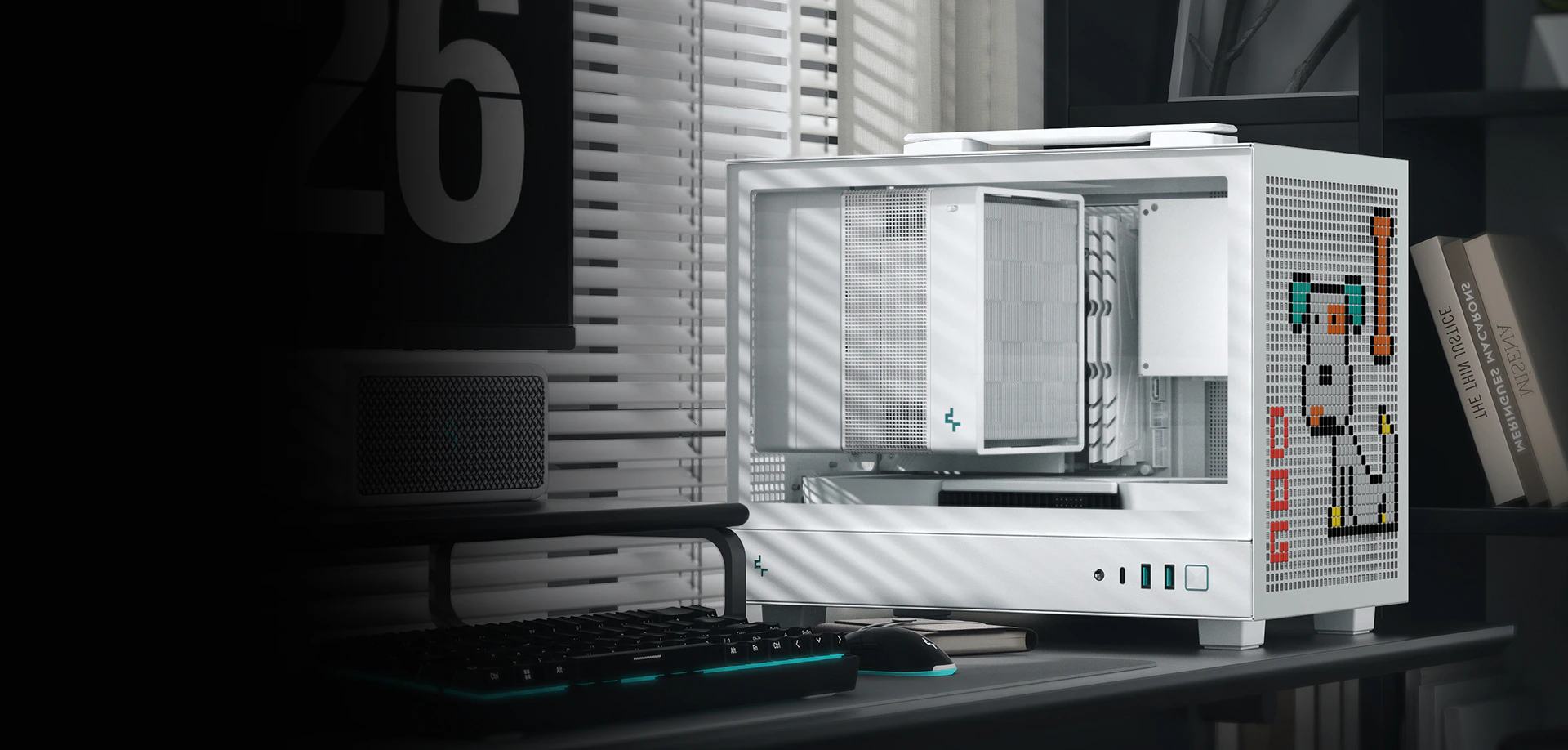

The CH160 WH is an ultra-portable mini-ITX case that has all the hallmarks of a high-airflow DeepCool case but in a small footprint. The internal layout provides a lot of flexibility for drives and PSU options.
COLOR
white
MODEL
CH160 WH

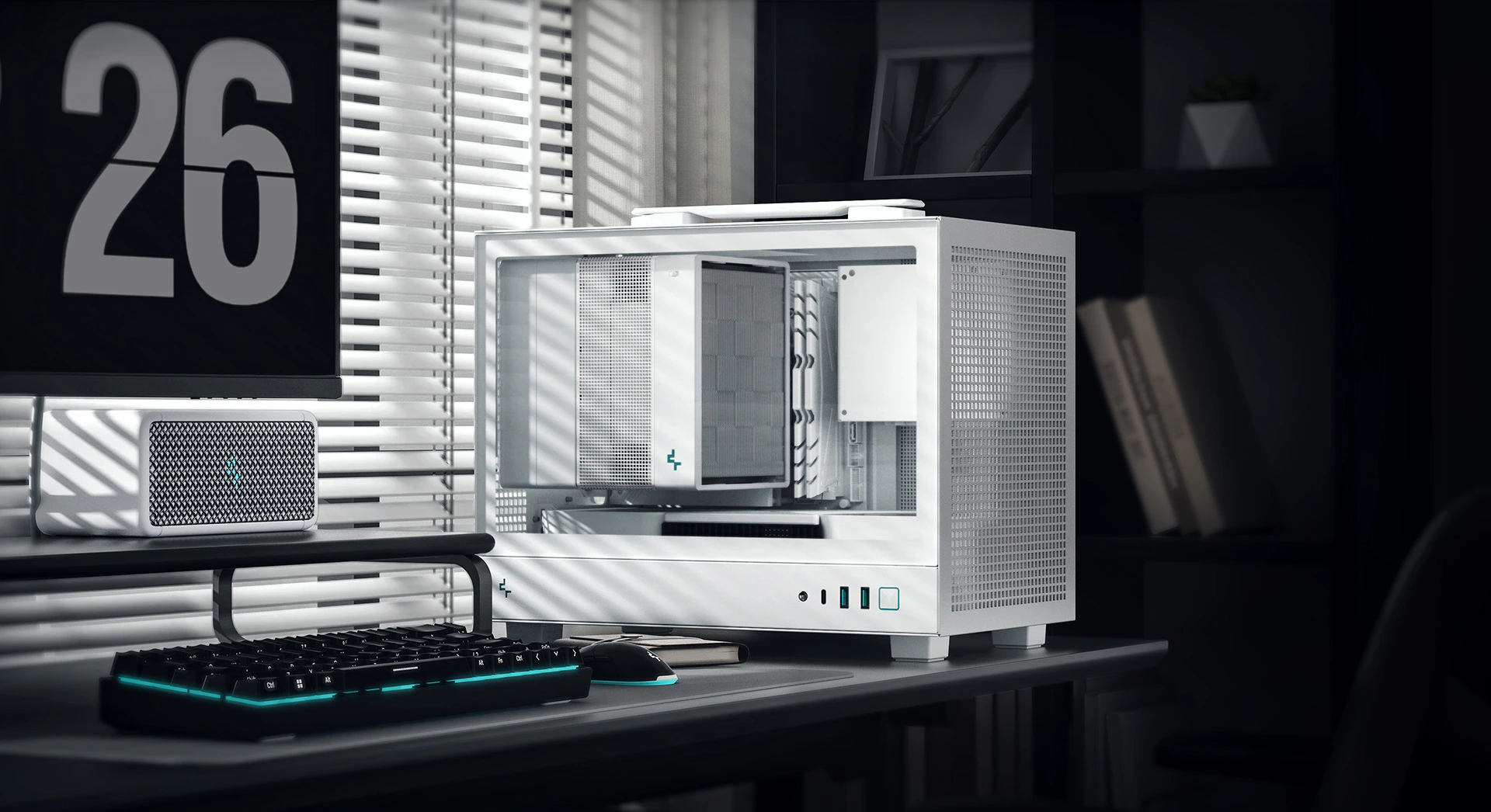

Ultimate Portability And Style

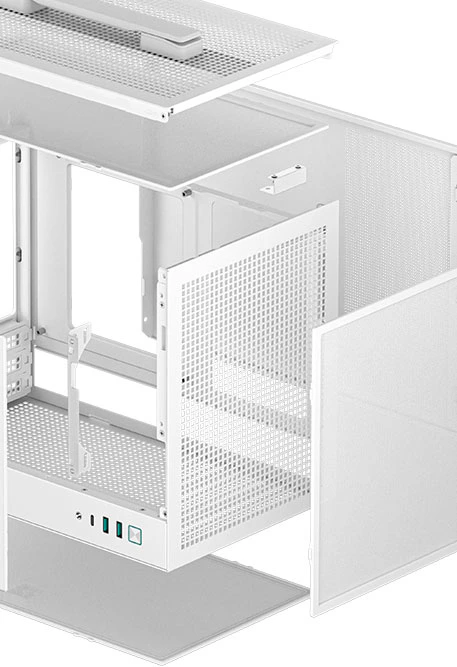

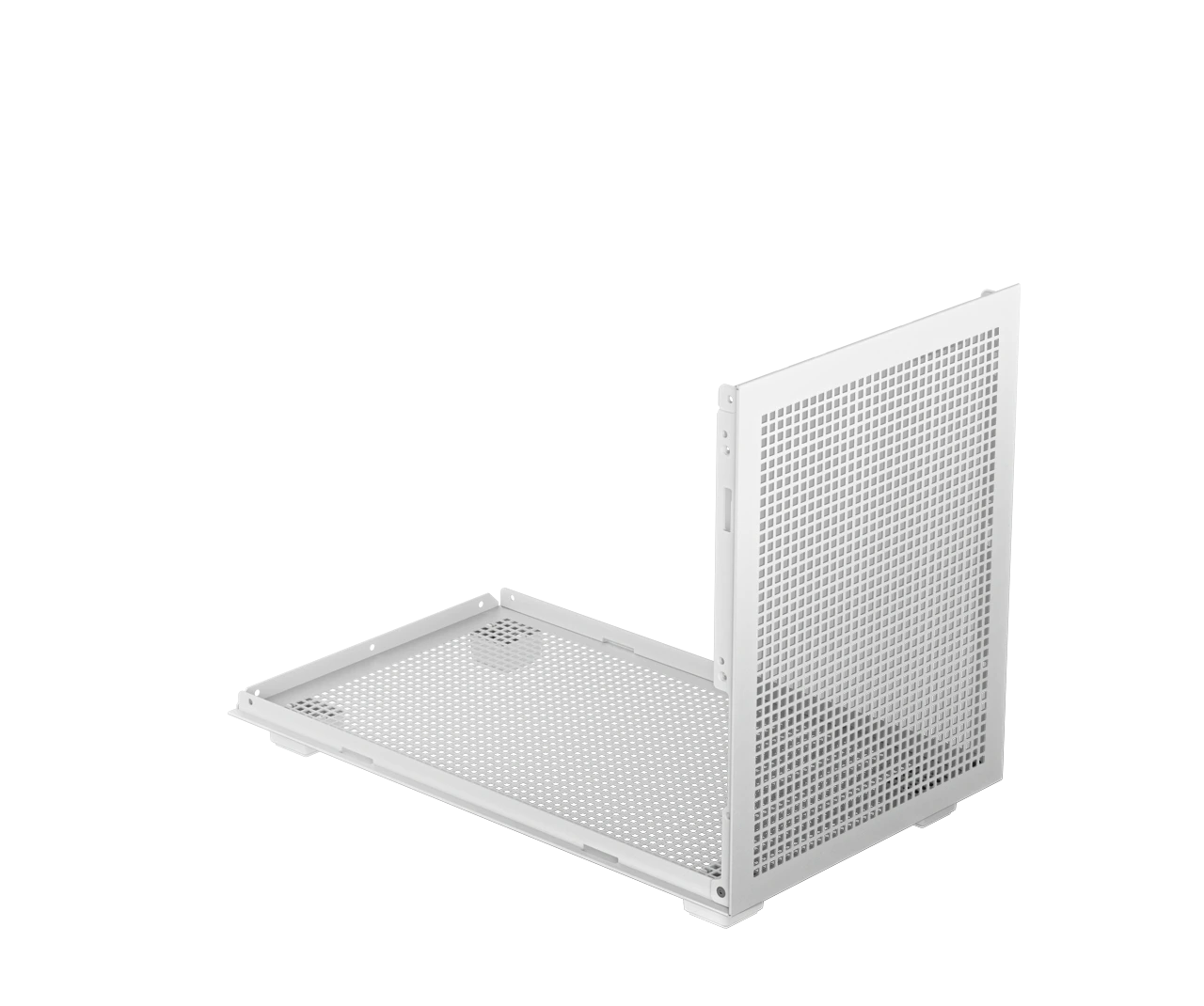

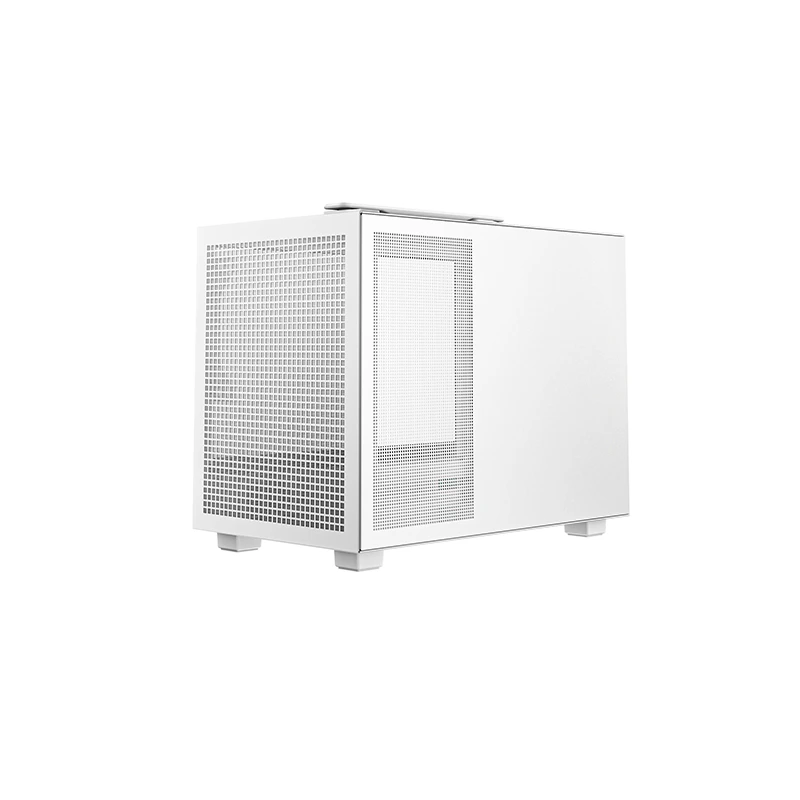

HIGH AIRFLOW PANELS

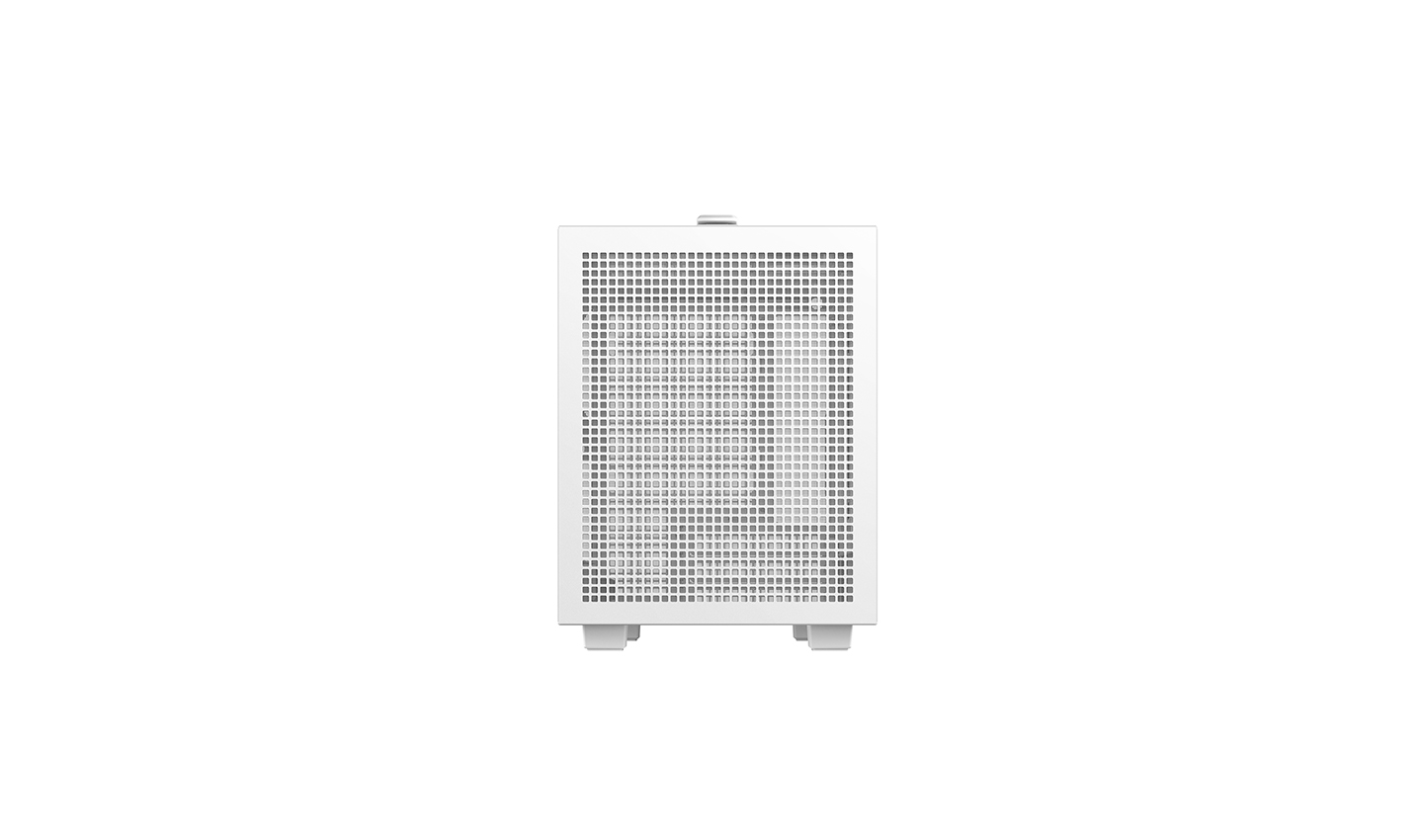

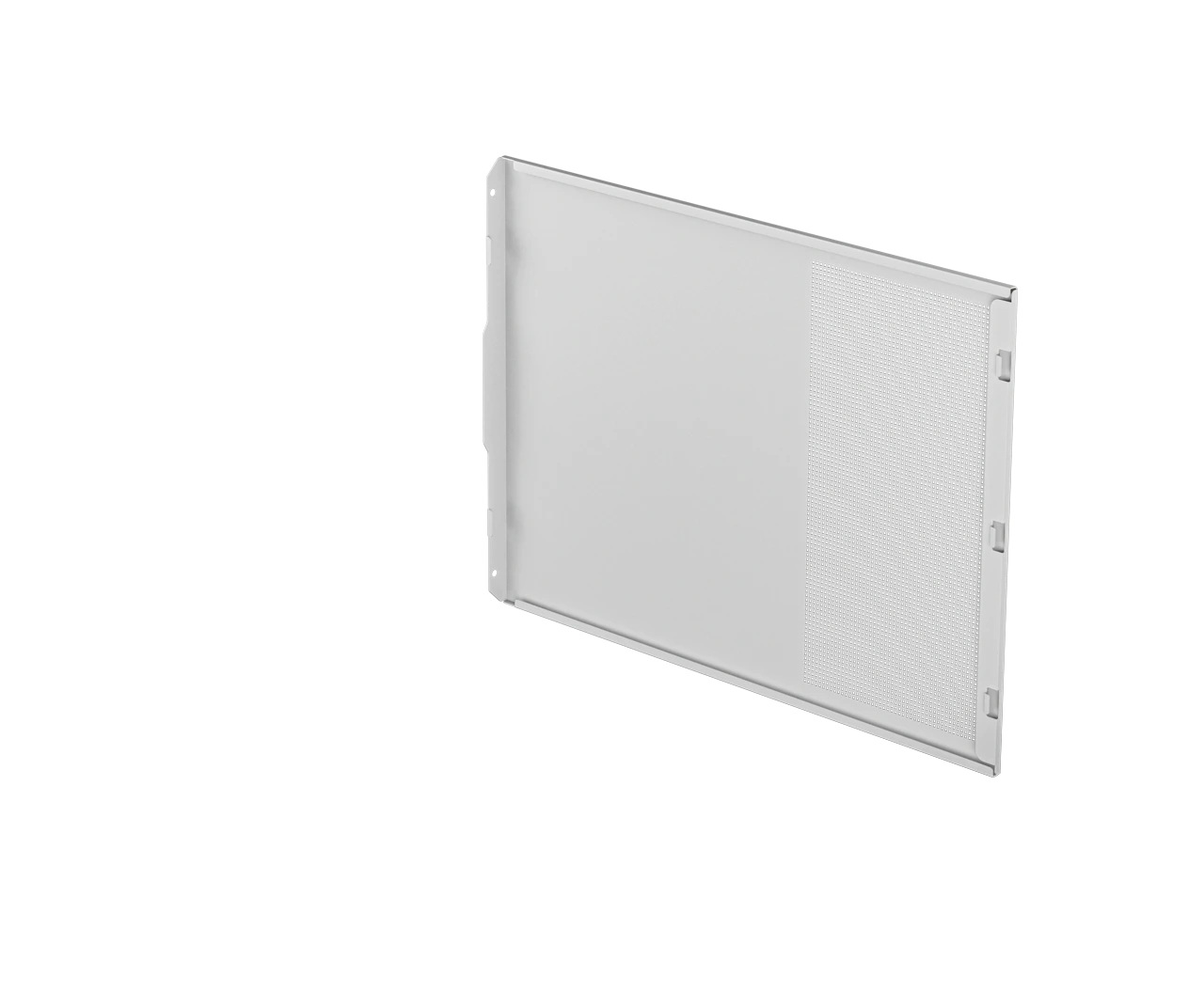

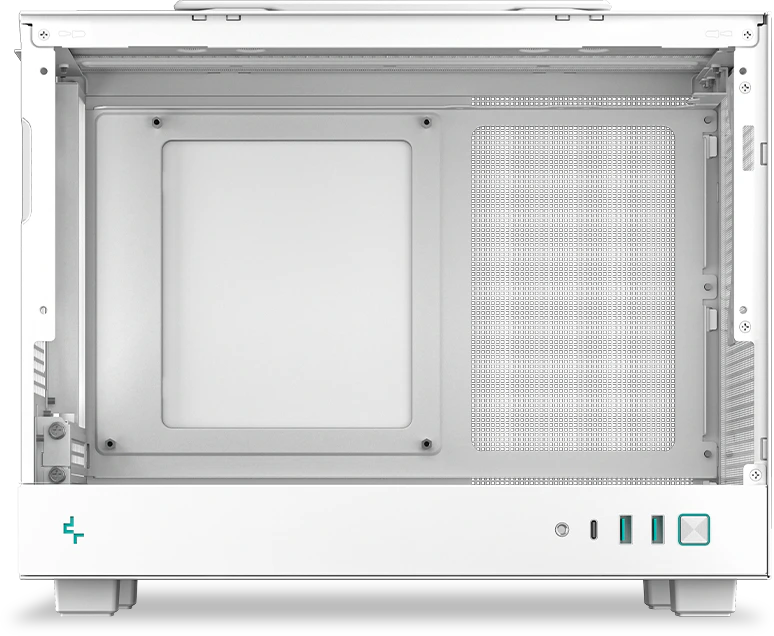

Mesh panels surround the CH160 WH from numerous sides and create a high-airflow, small-form-factor case like no other.
FULL SIZED AIR COOLING!

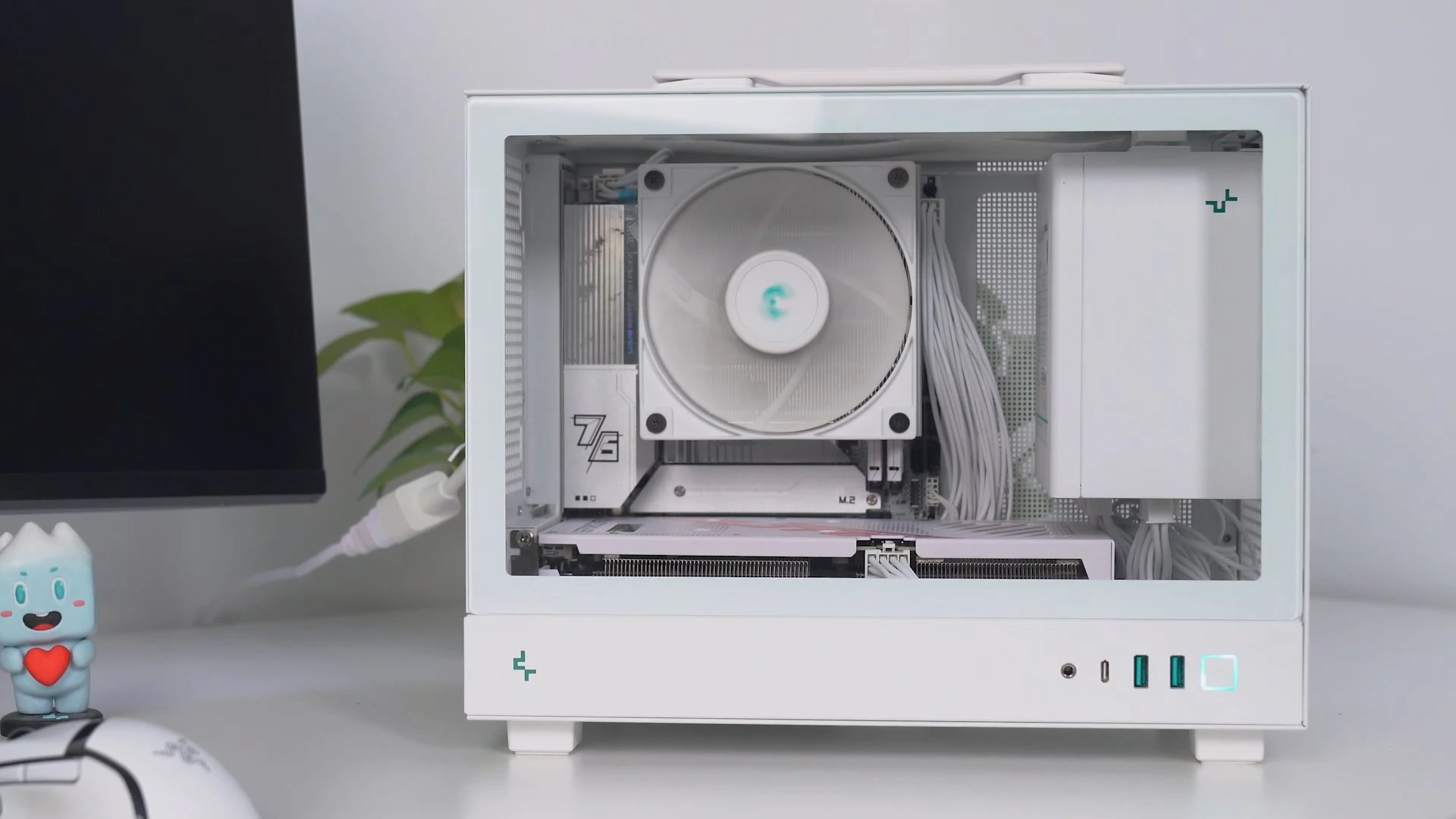

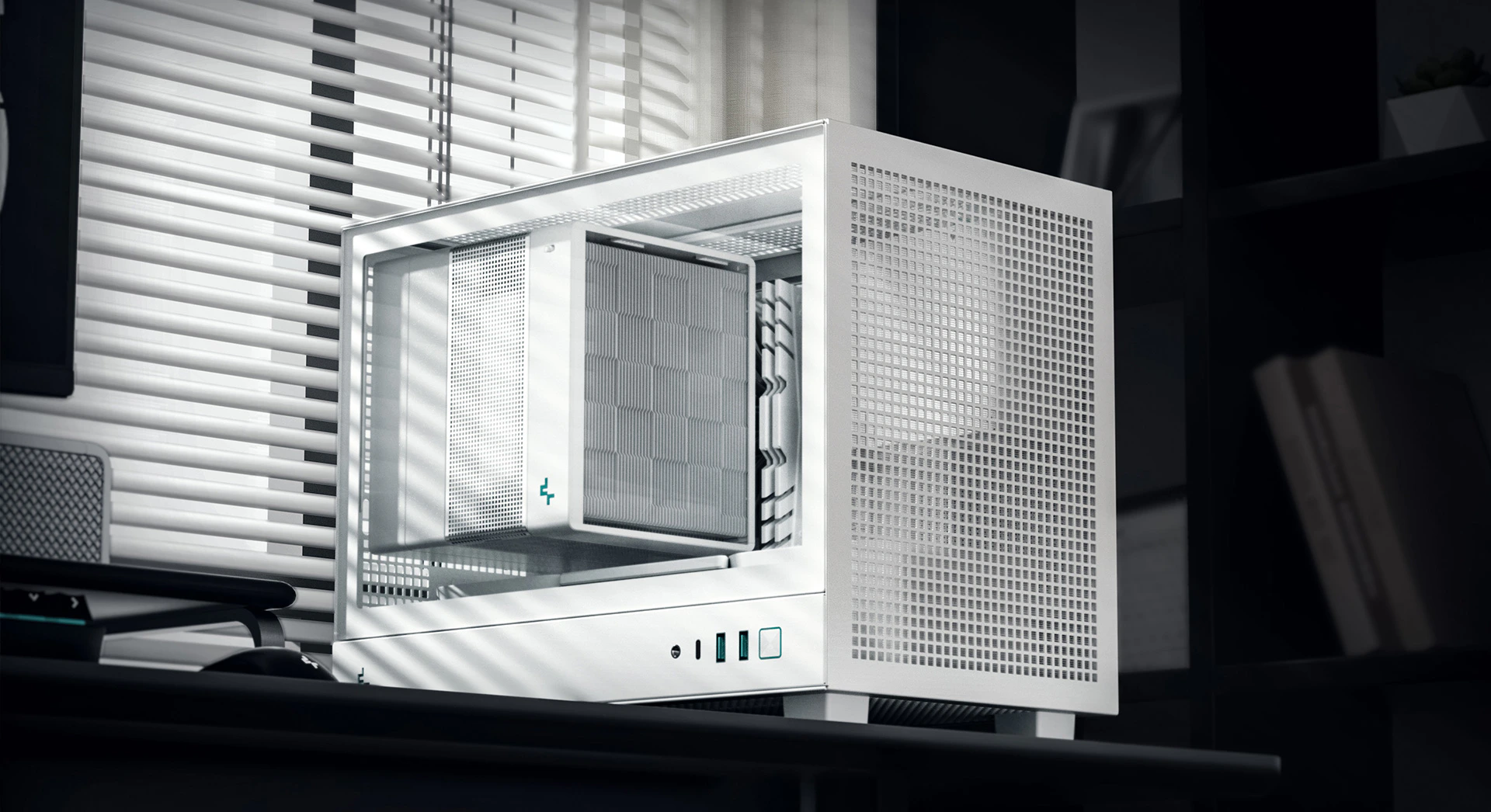

Lack of air cooler support in small mini-ITX cases is a thing of the past. The CH160 WH can support giant air coolers up to 172mm in height!
NO ADDED GPU LATENCY!

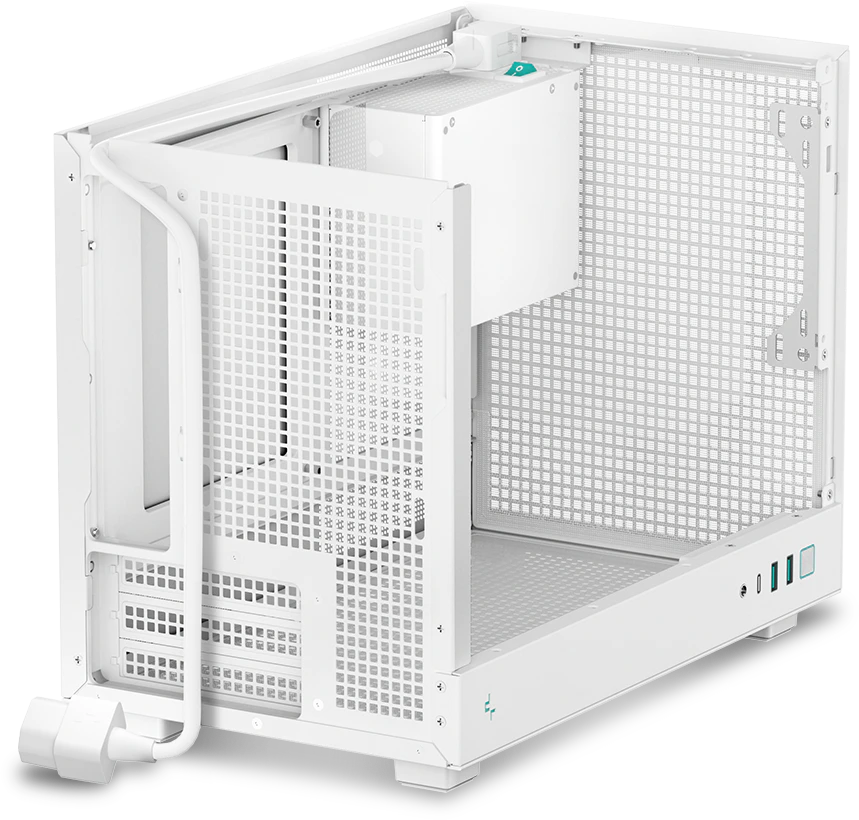

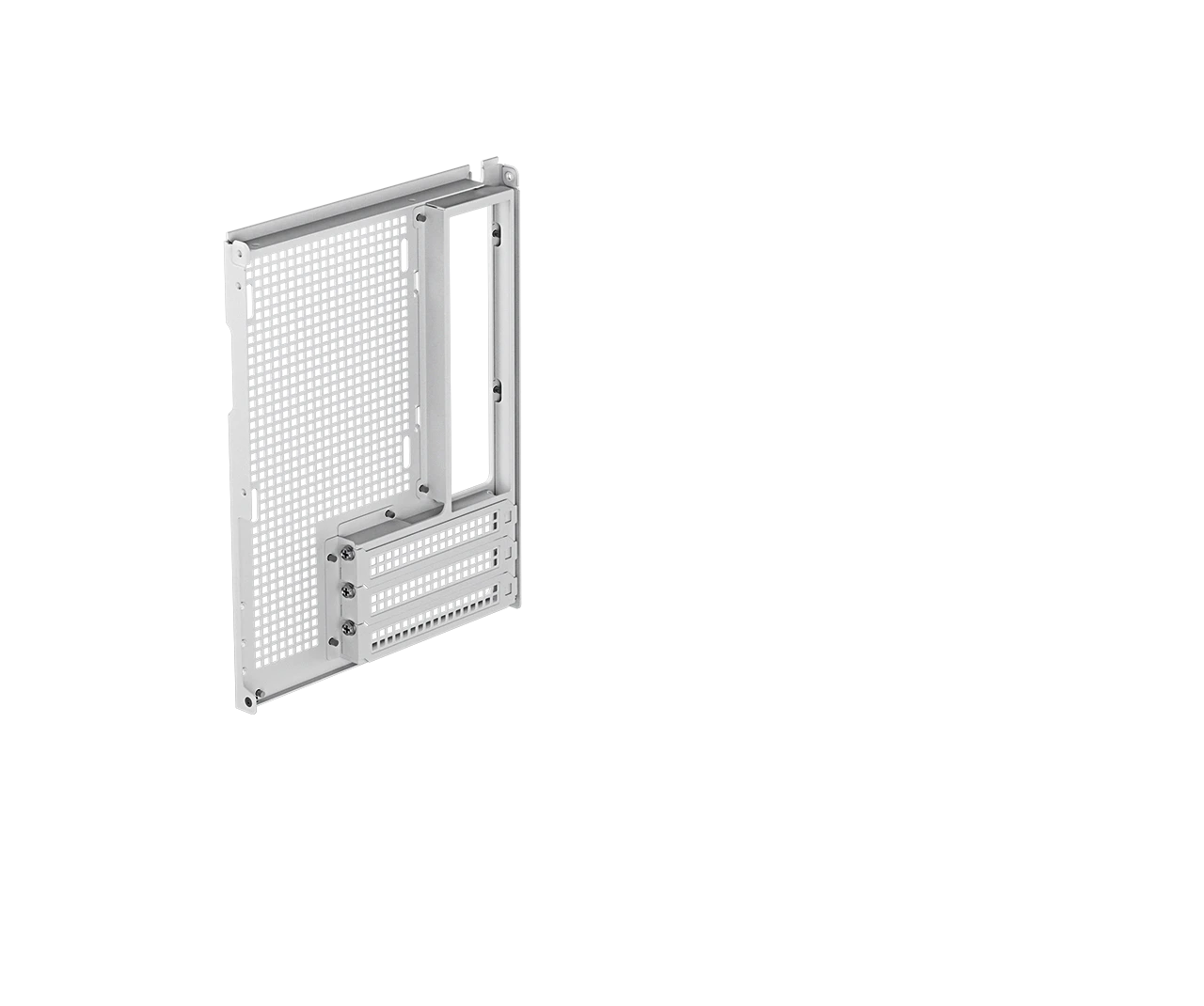

Designed to accommodate most 3-slot dual-fan GPUs that are shorter than 305mm in length and can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!
Ultimate Portability And Style

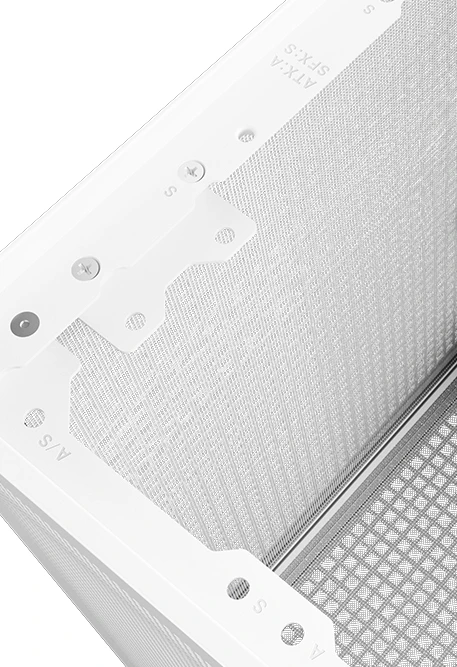

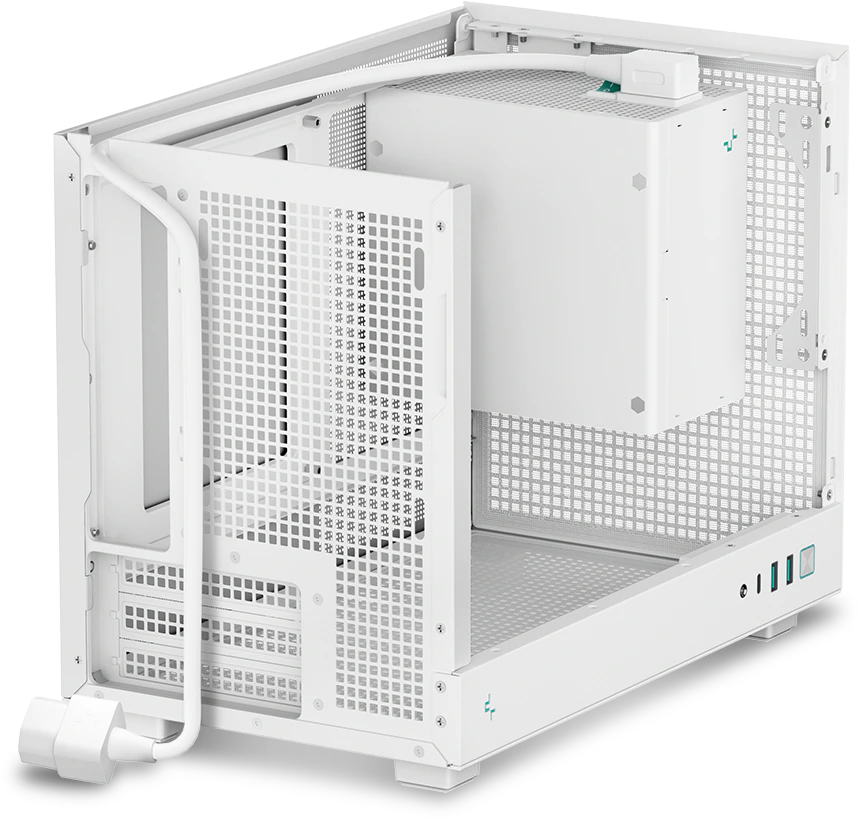

FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH160 WH can support any of them up to 140mm.
ATX
SFX

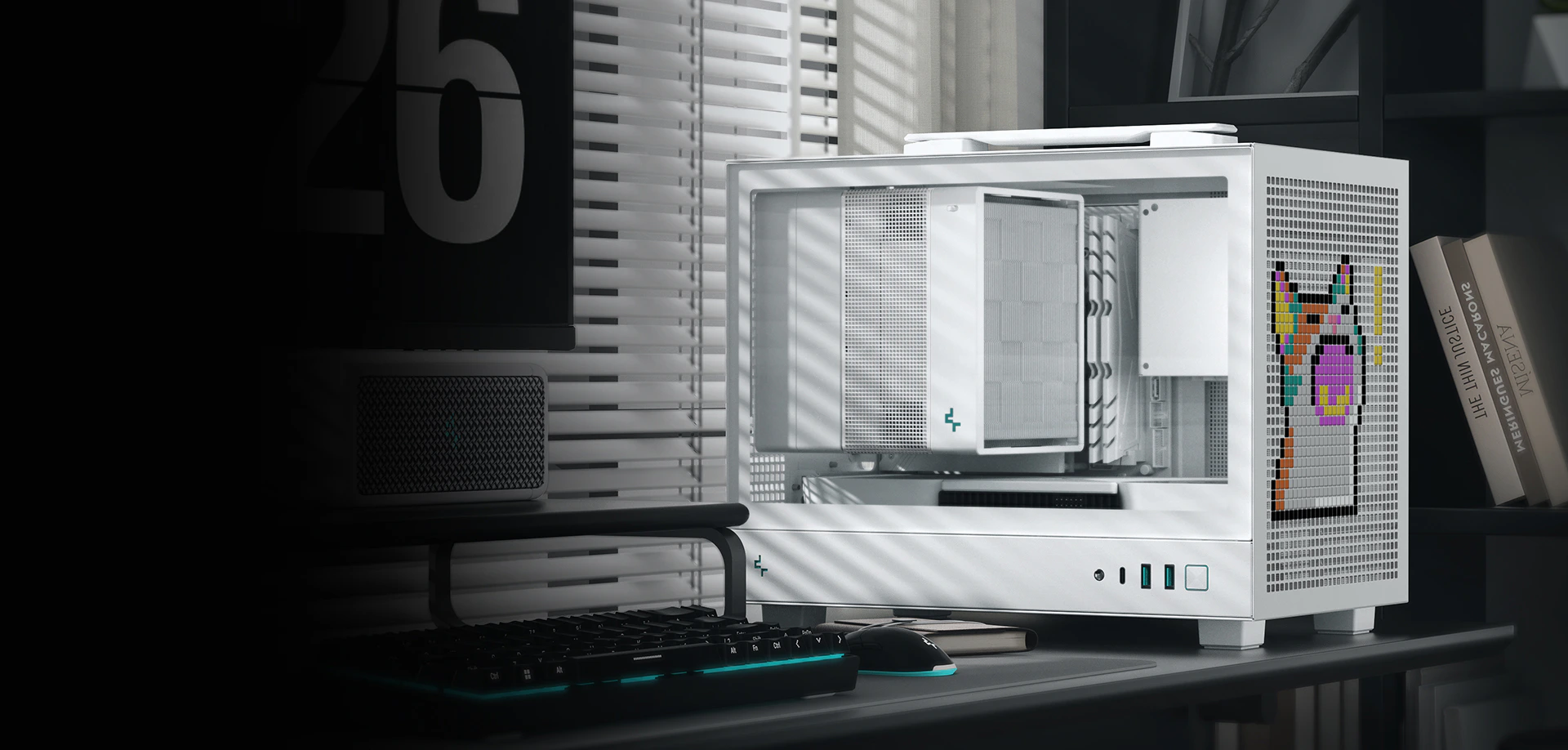

Create on PlXEL canvas
DeepCool PIXEL bits are colorful rubber pieces offered to add creativity and playfulness to the case panels for customized designs, currently compatible with CH series and MORPHEUS cases.
Let out your inner designer and create with PIXEL bits on DeepCool PC cases.
Start Your Creation Here

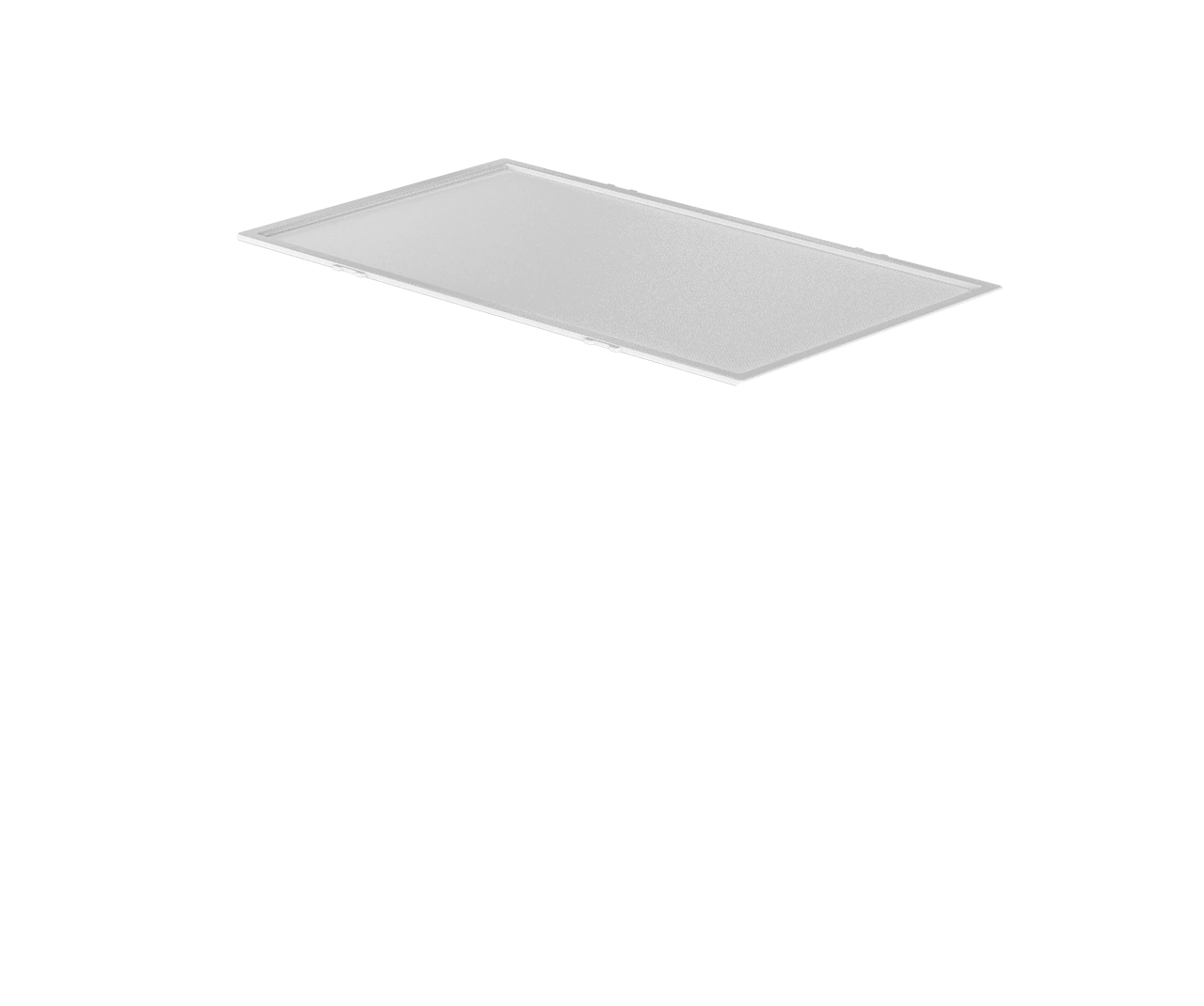

QUALITY OF LIFE IMPROVEMENTS

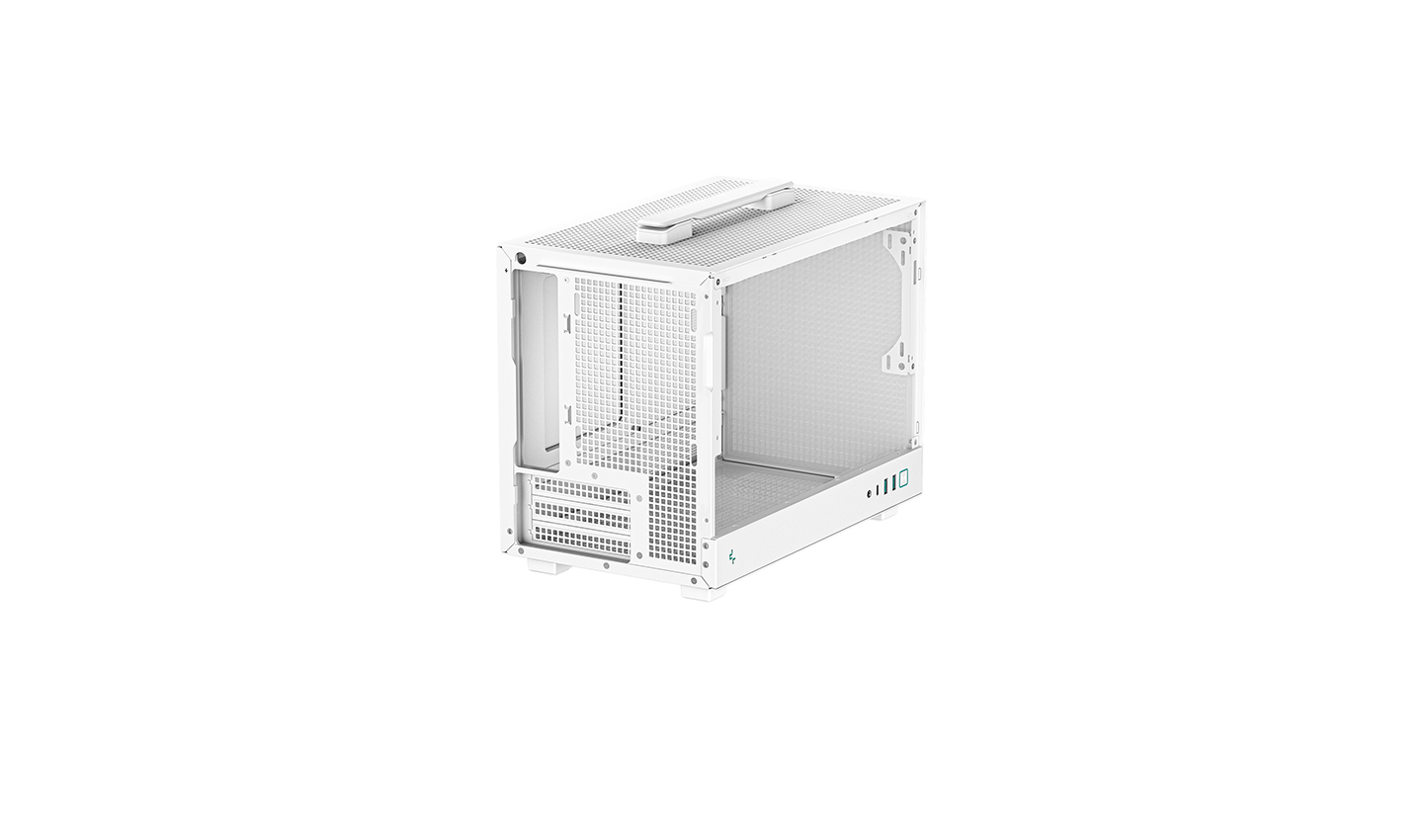

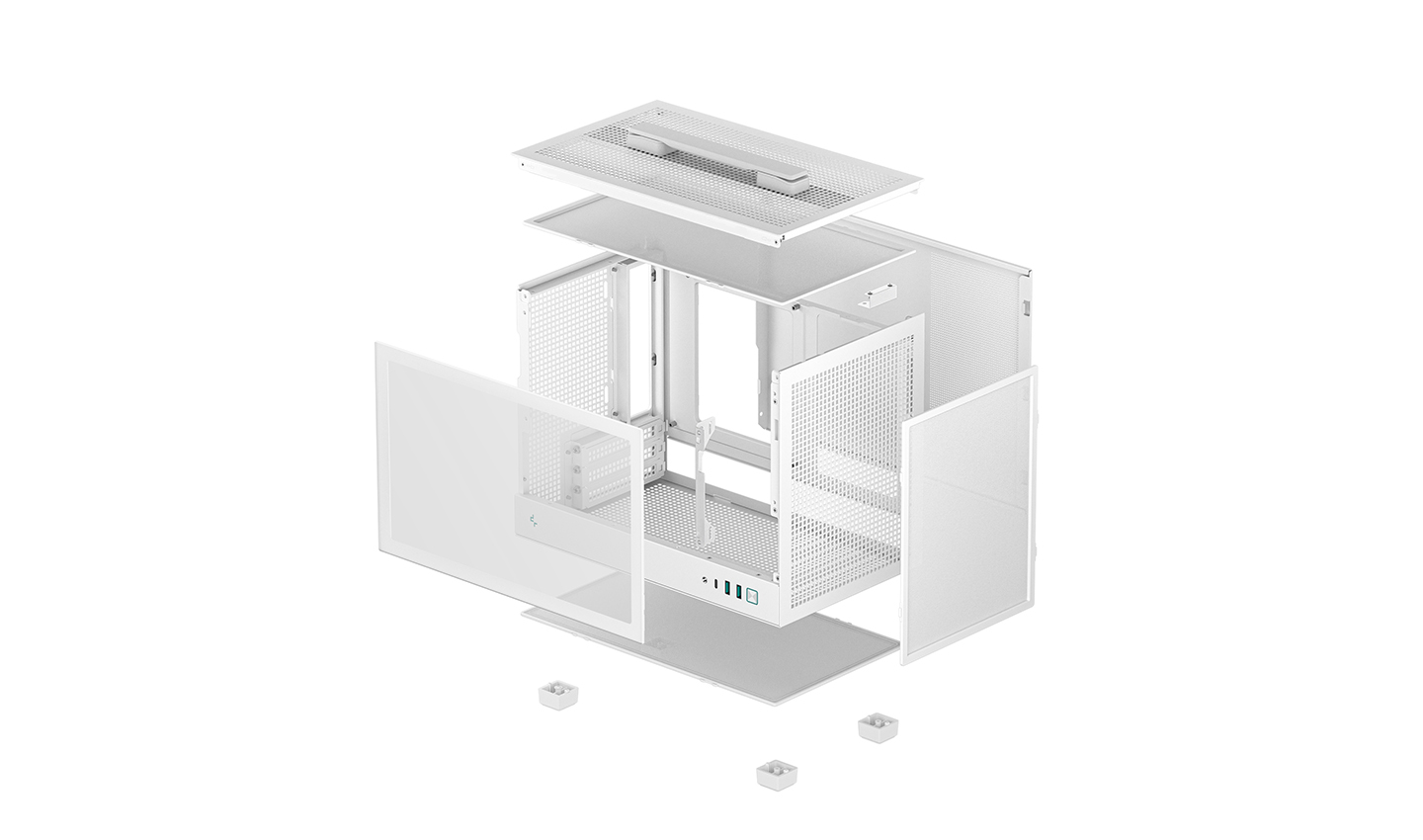

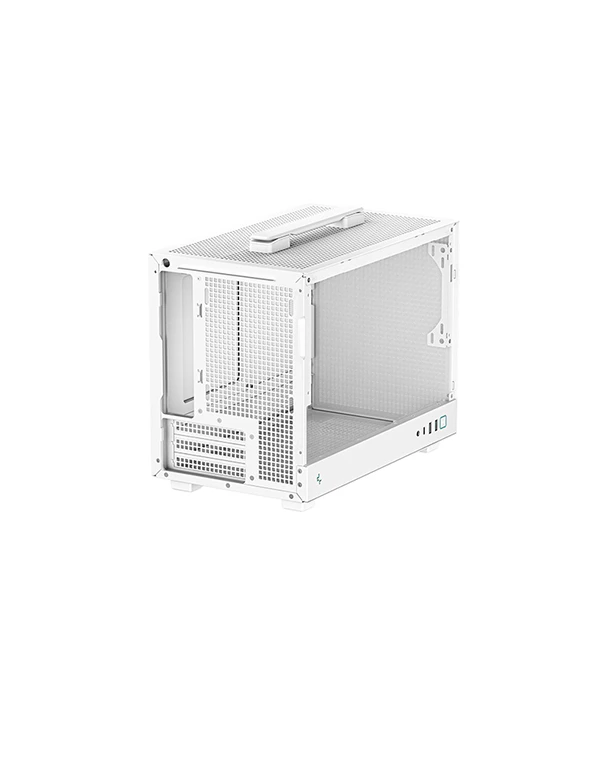

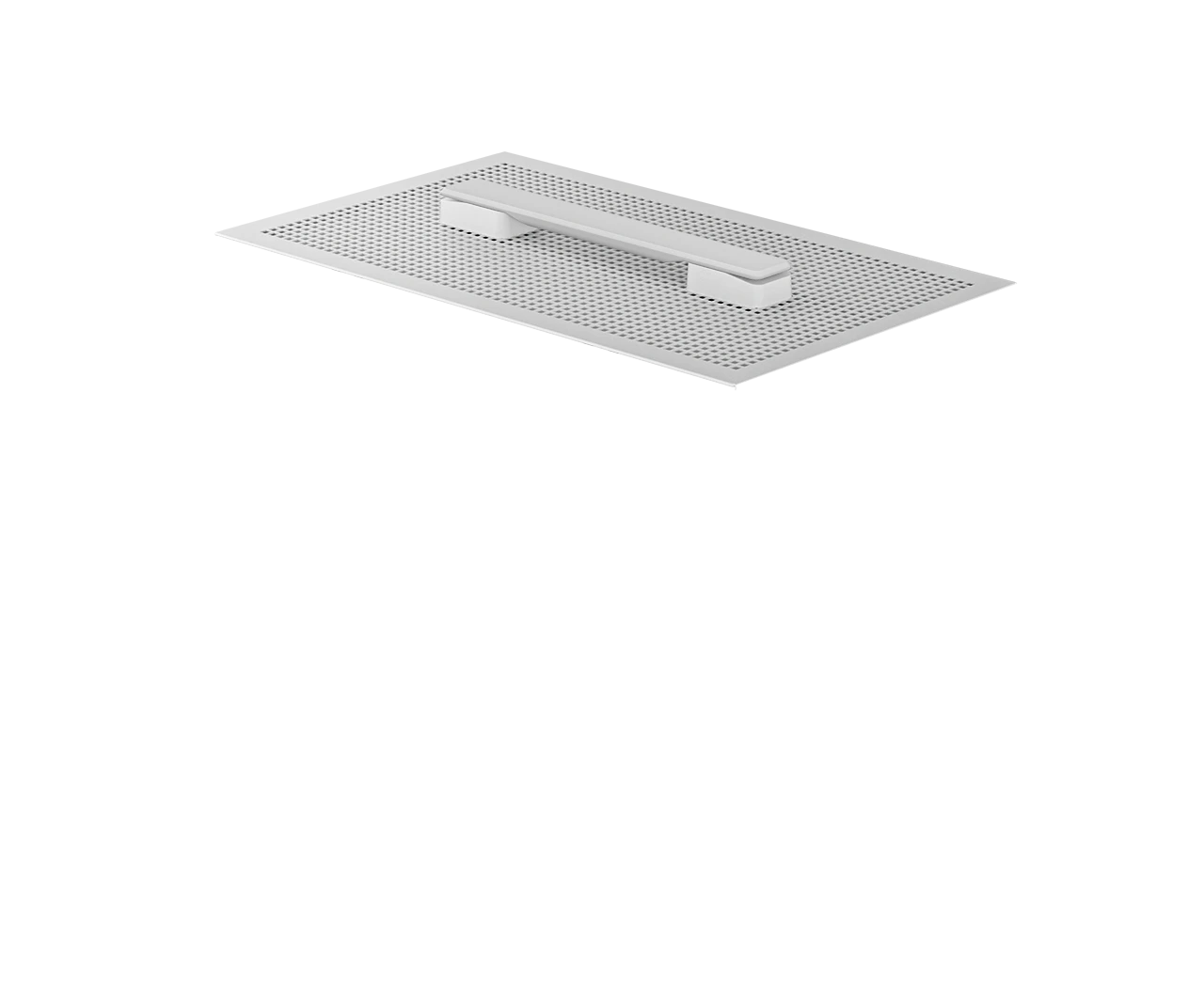

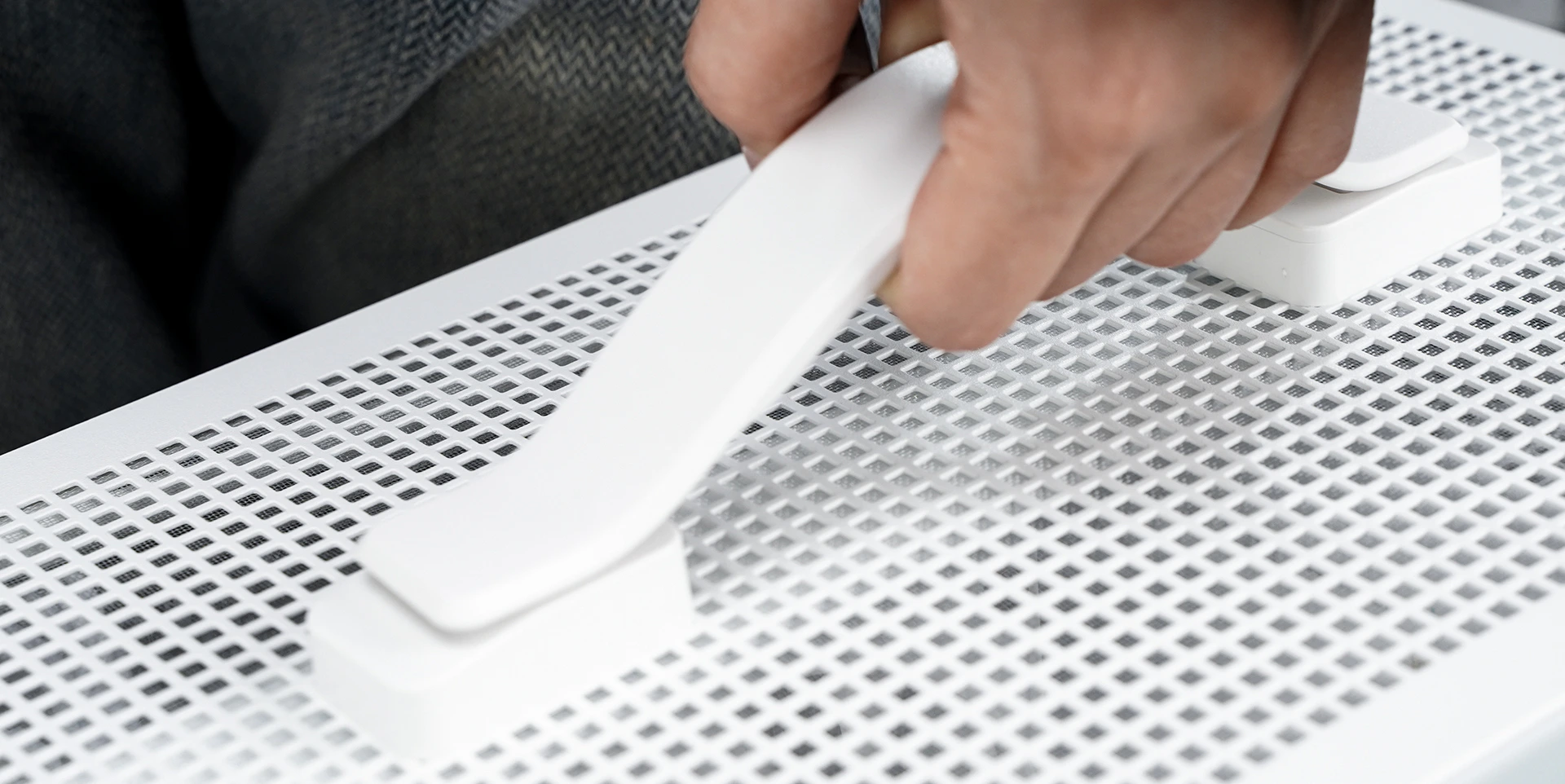

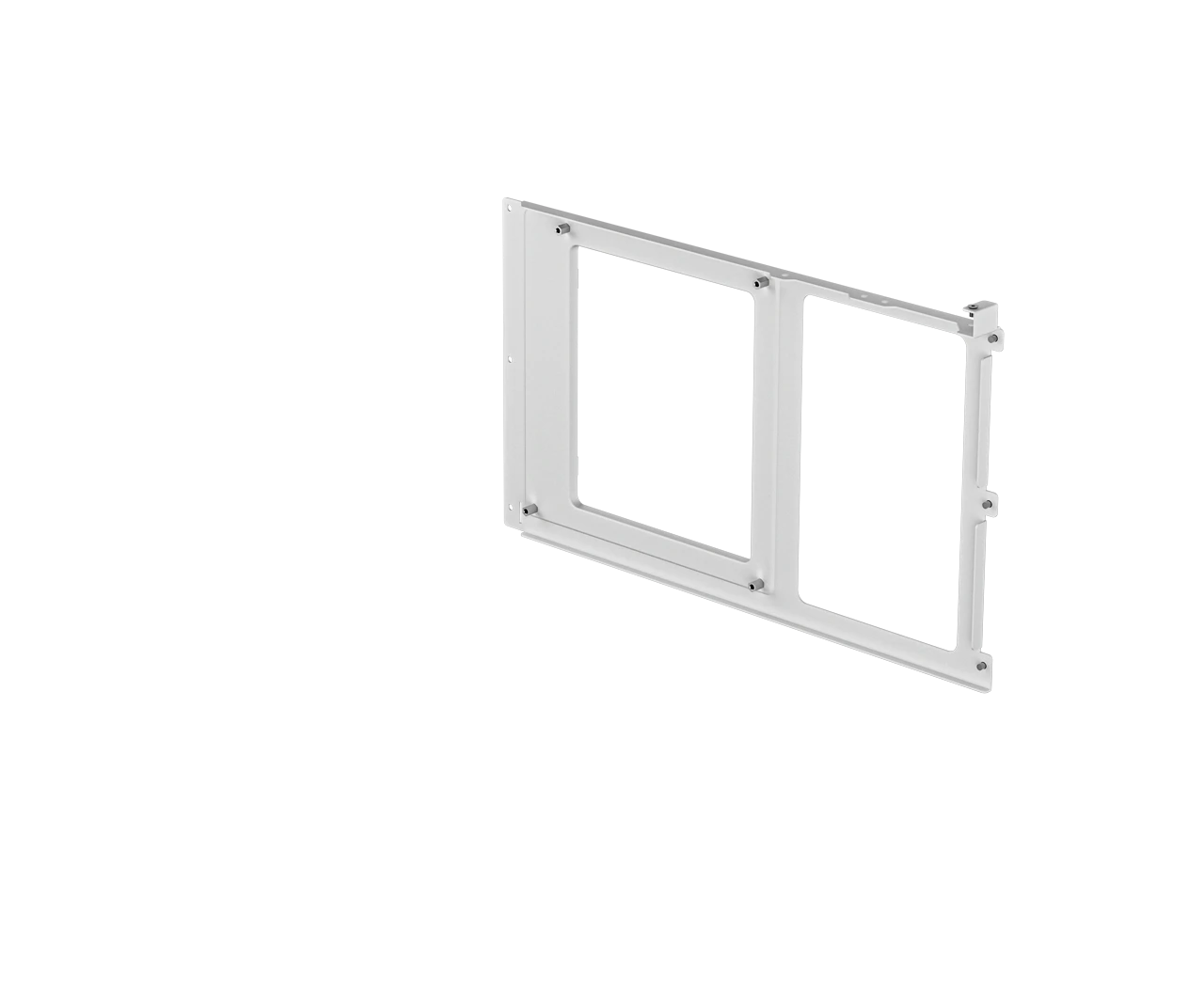

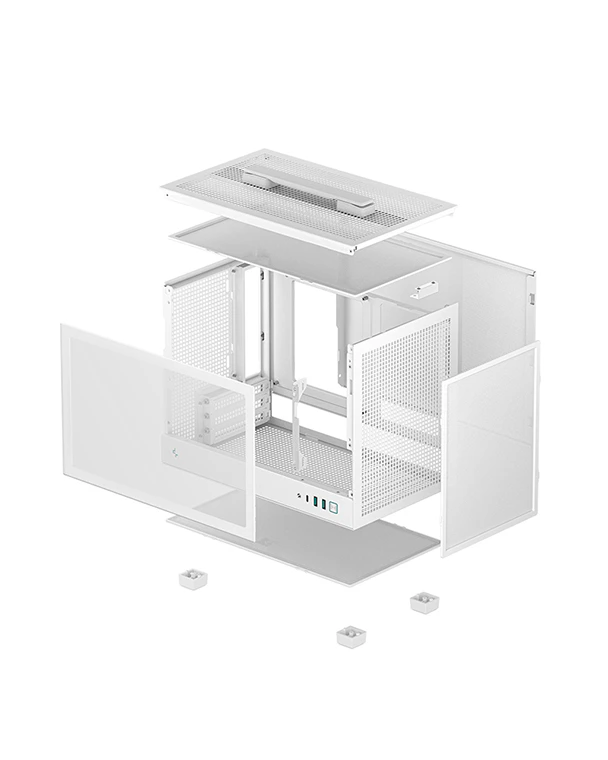

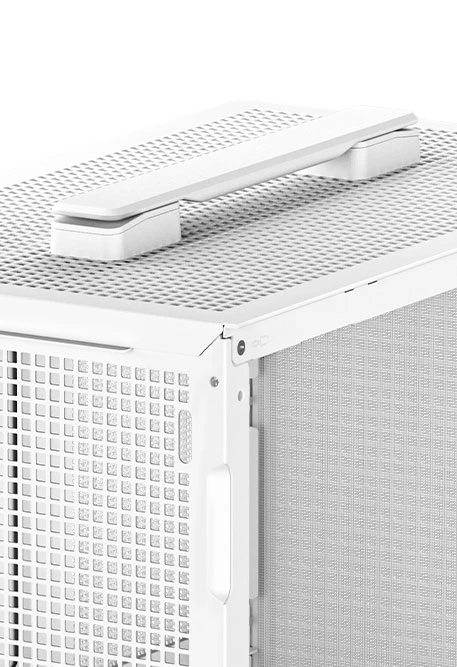

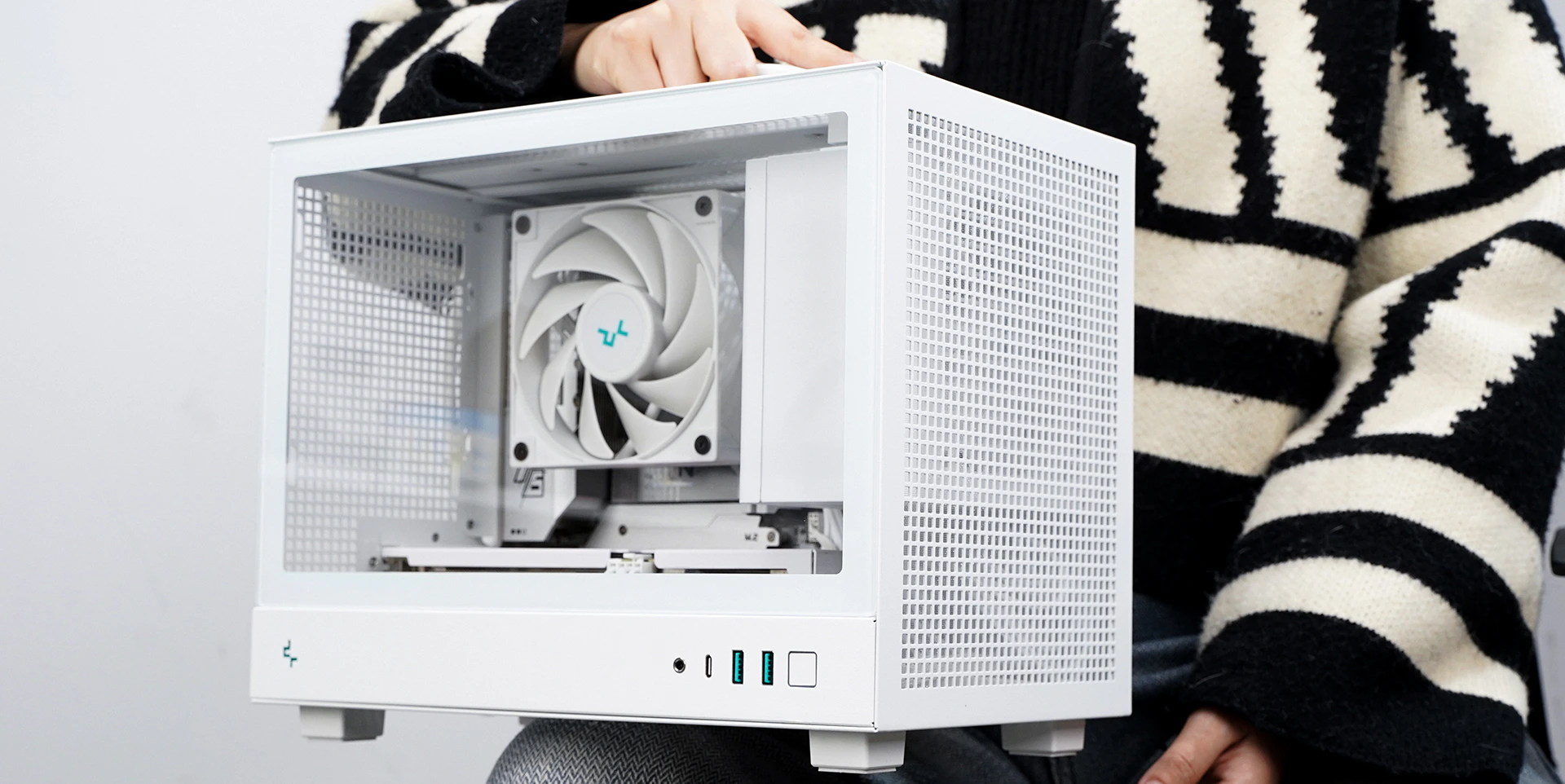

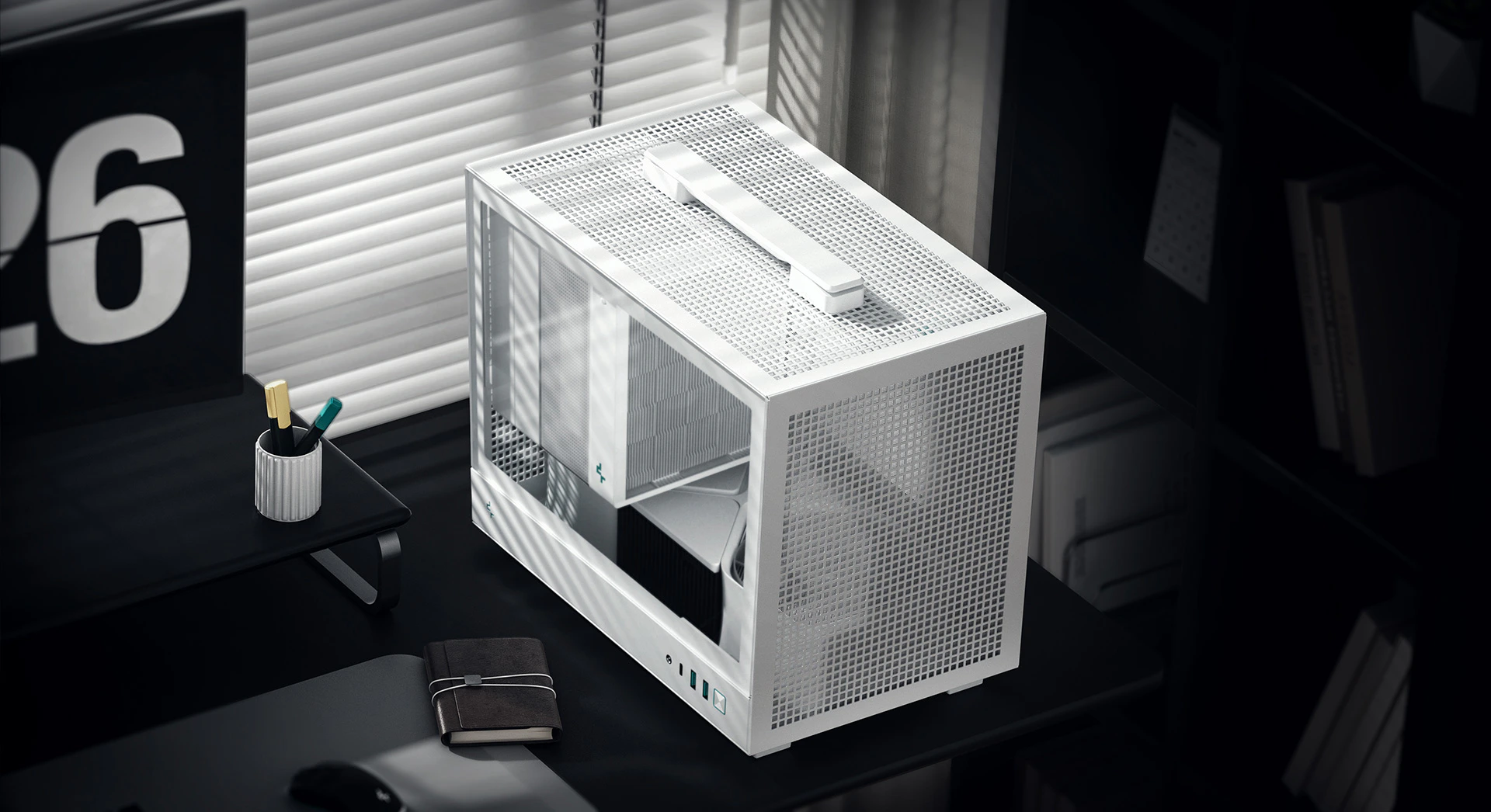

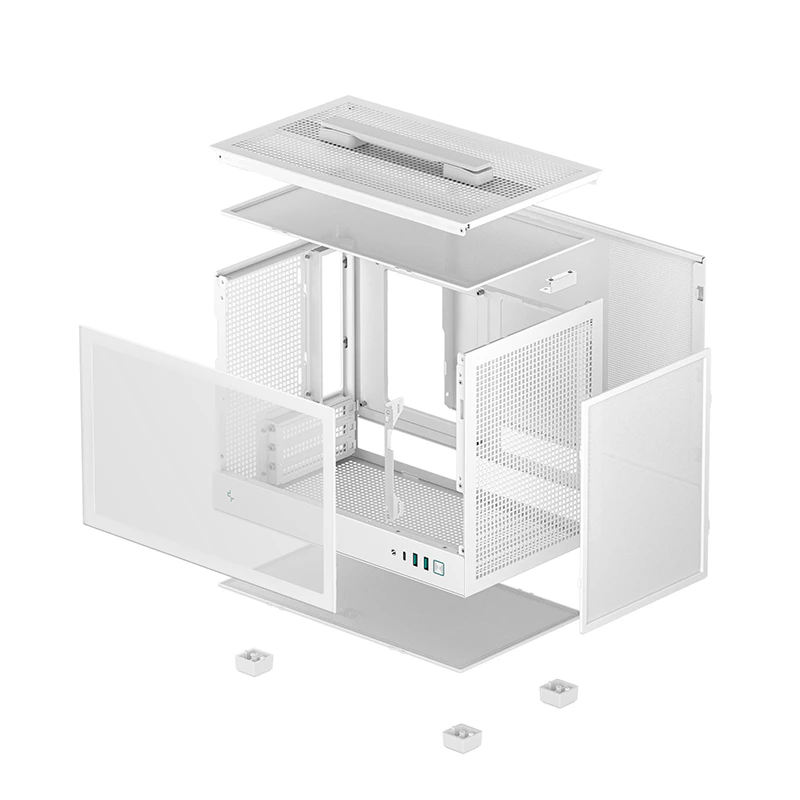

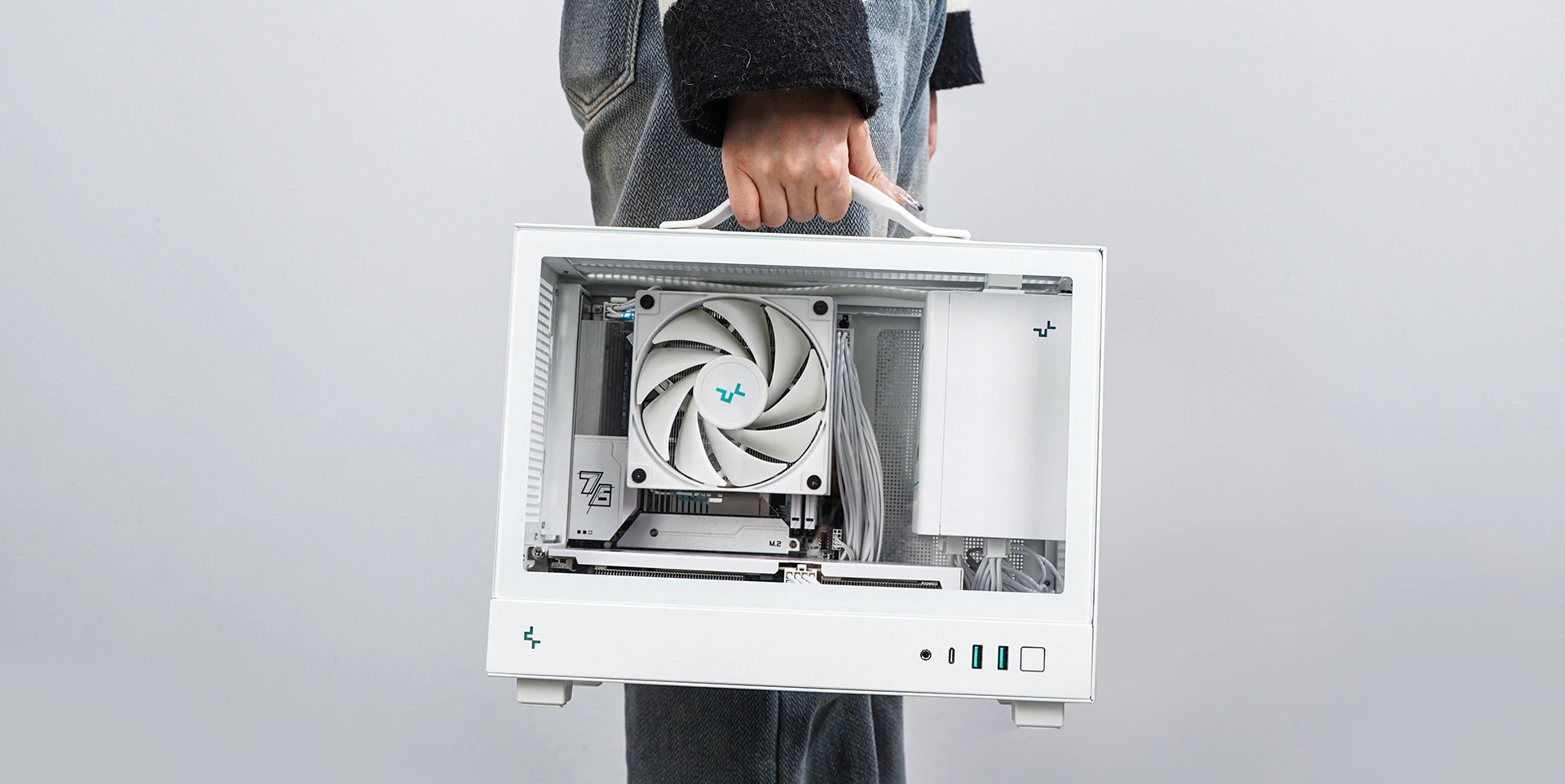

Equipped with options such as removable fan brackets, where the front fan bracket can be utilized to support both an SSD and an HDD drive; three removable dust filters for ease of cleaning; a nice and sturdy carrying handle; two USB 3.0, a Gen2 Type-C, and a hybrid audio port, the CH160 WH makes everything a little easier.
Recommended
compatible components list:
PC building enthusiast:
B650I + ITX GPU(length limit 230mm) + AK500 Series + PQ-M Series
Overclocker:
B760I + RTX 4070/NVIDIA GeForce RTX 4090(length limit 305mm) + AK620 Series + SFX PSU
Technical Spec
Product Dimensions336×200×283.5mm(L×W×H)
Net Weight3.3Kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportMini-ITX

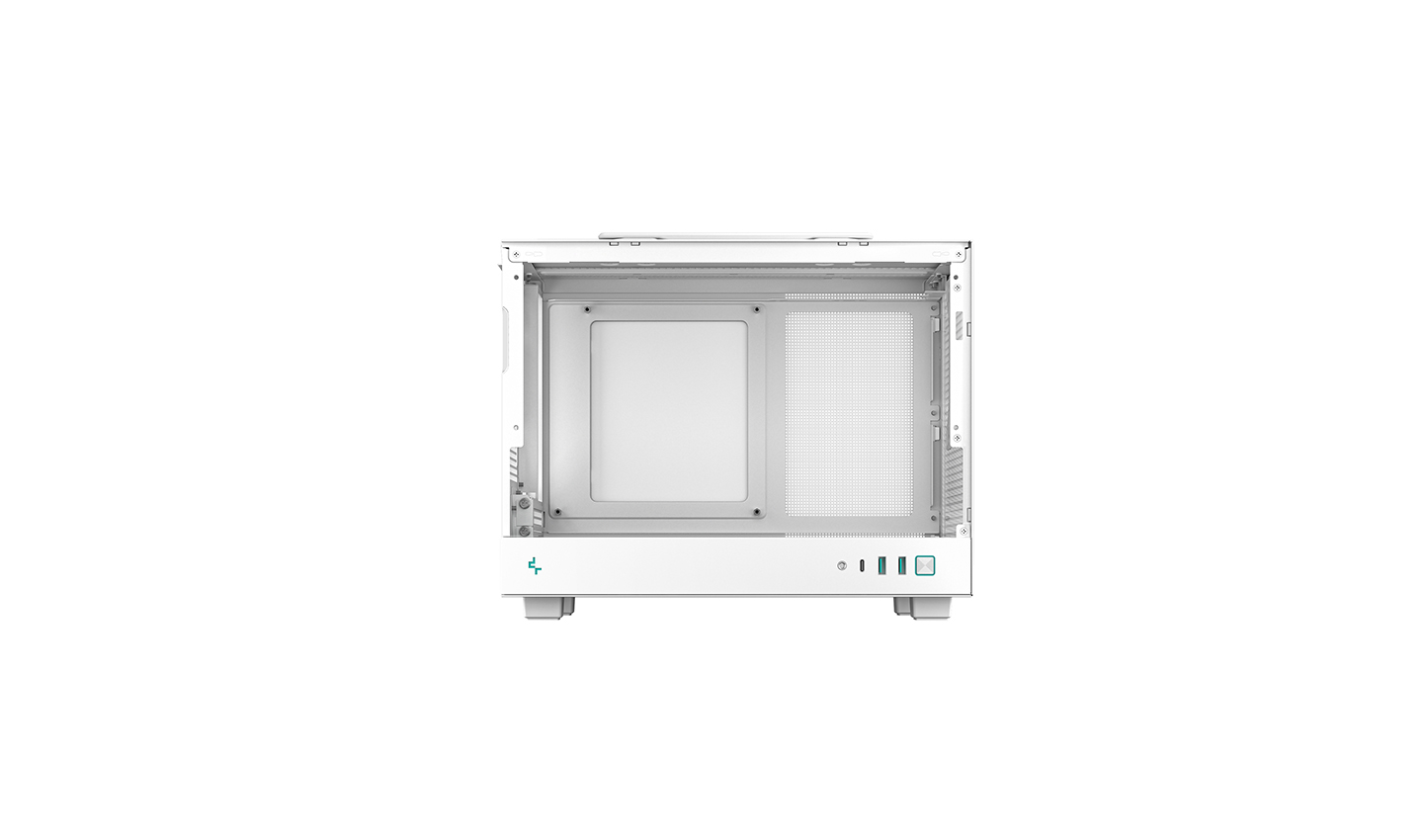

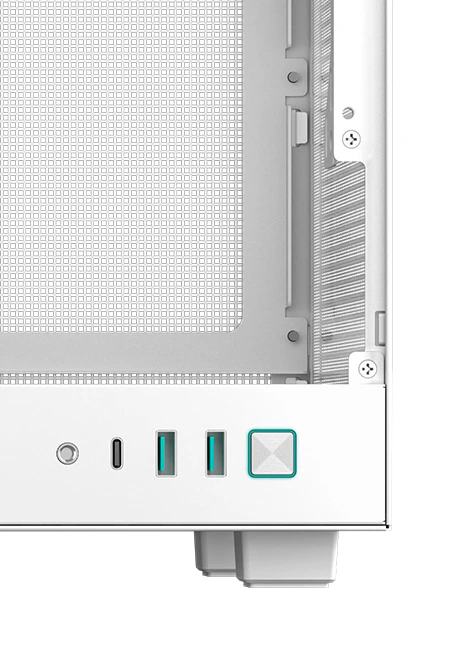

Front I/O PortsUSB3.0×2、Audio×1、Gen2 Type-C×1
3.5" Drive Bays1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
2.5" Drive Bays1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）

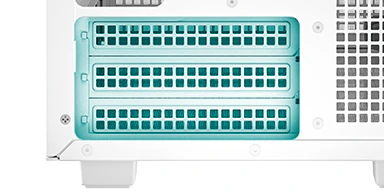

Expansion Slots3 Slots
Pre-Installed FansNone
Fan SupportFront: 1×120 mm（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
Top: 2×120mm
Rear: 1×120mm
Radiator SupportNone
CPU Cooler Height Limit172mm
GPU Size LimitLength: SFX/SFX-L: 305mm / ATX: 230mm
Height: 138mm
Width: 65mm (3 Slots)
Power Supply TypeATX PS2（maximum length: 140mm）/ SFX / SFX-L
EAN6933412774440
P/NR-CH160-WHNGI0-G-1
Download
CH160 WH Manual.pdf
