CH170 DIGITAL

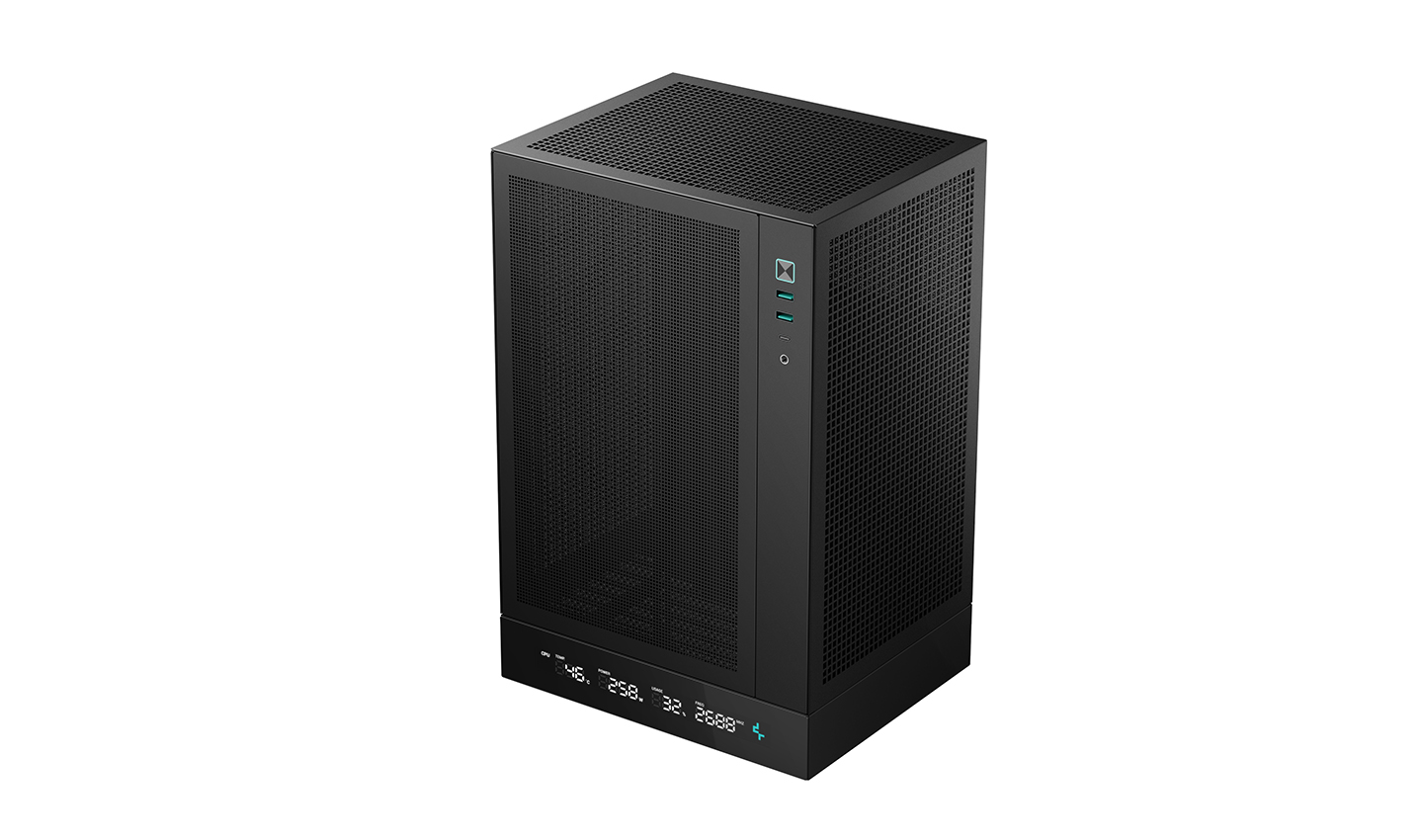

The CH170 DIGITAL is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for coolers and PSU options.
COLOR
black
MODEL
CH170 DIGITAL
The Tiny Tower of Power
HIGH AIRFLOW PANELS

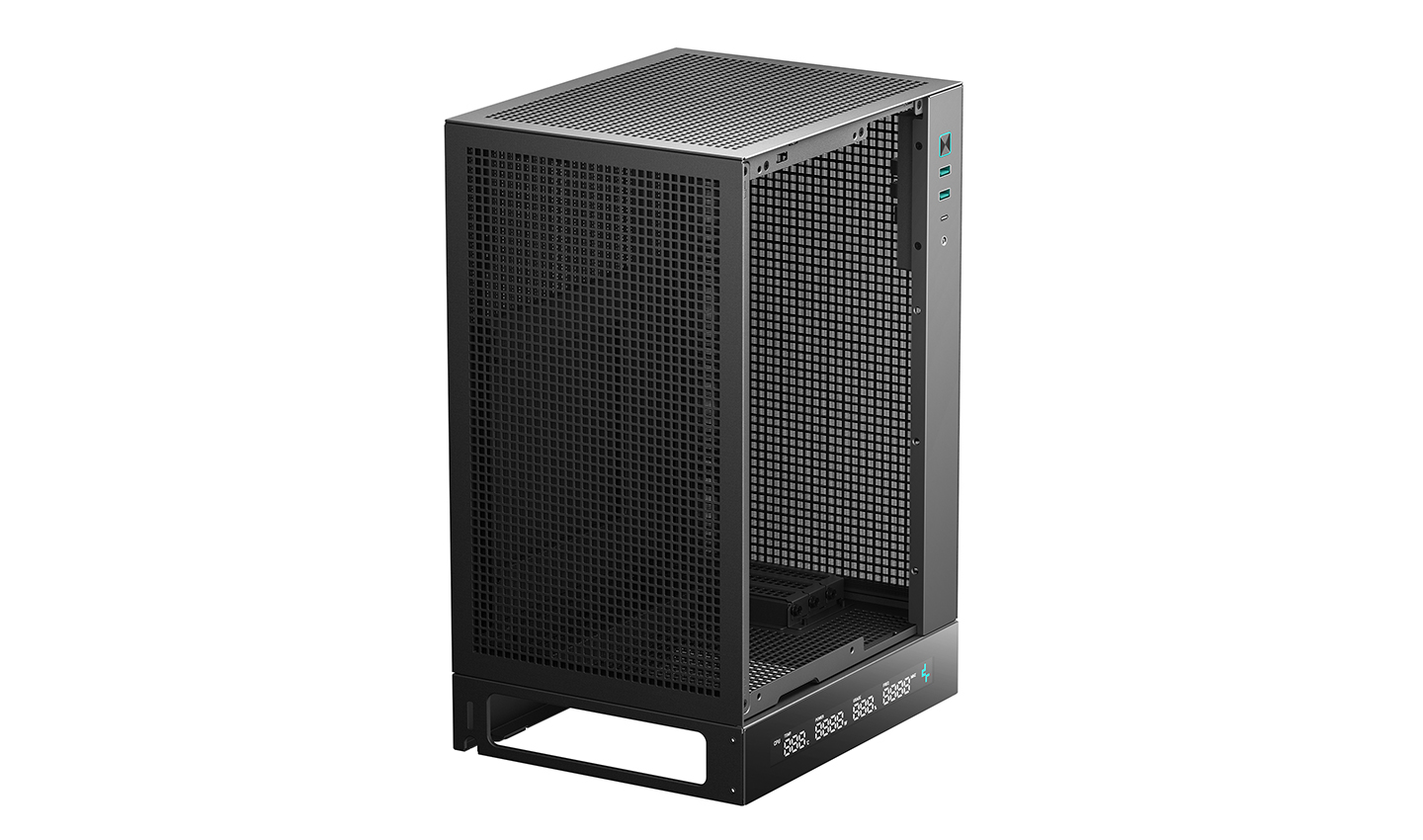

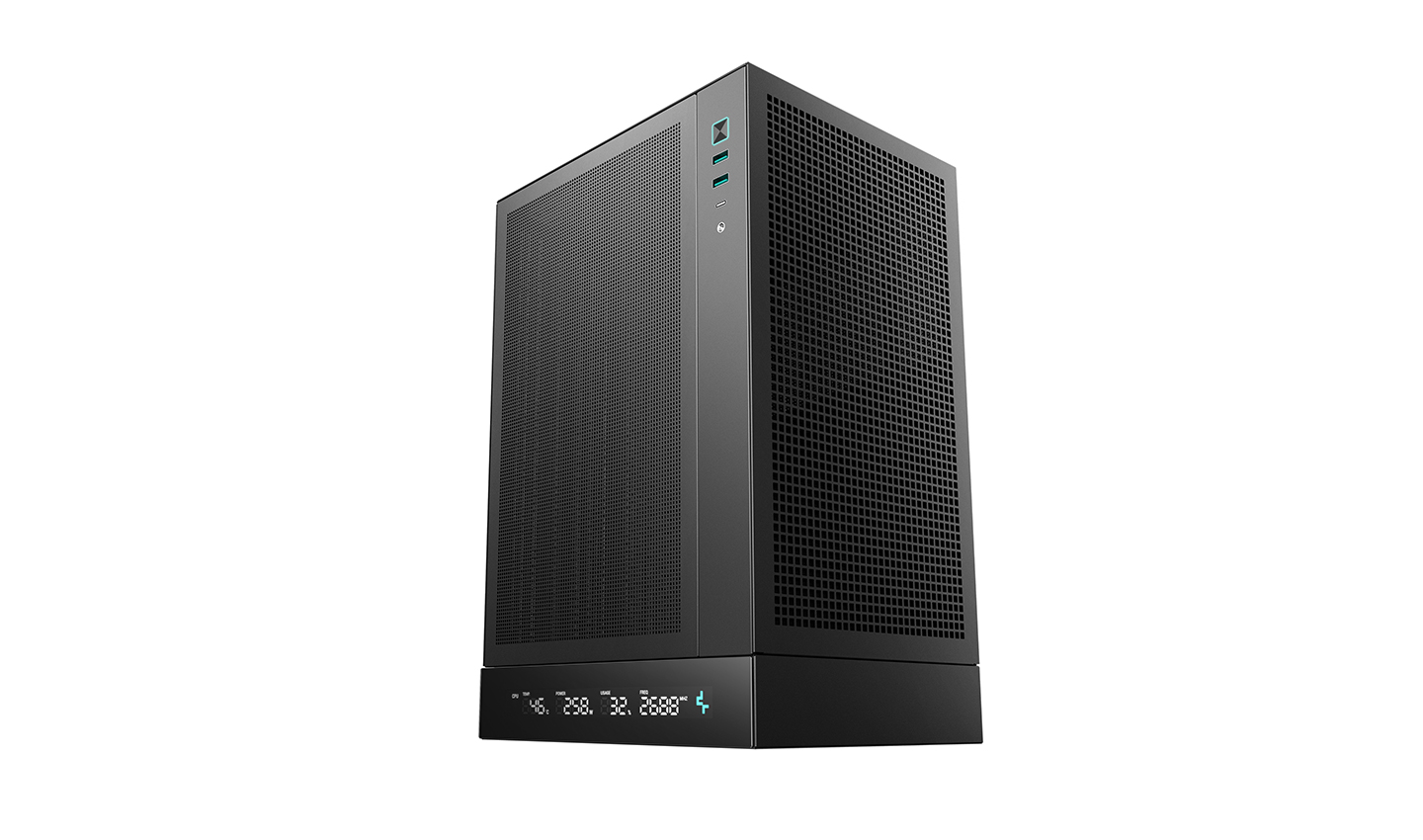

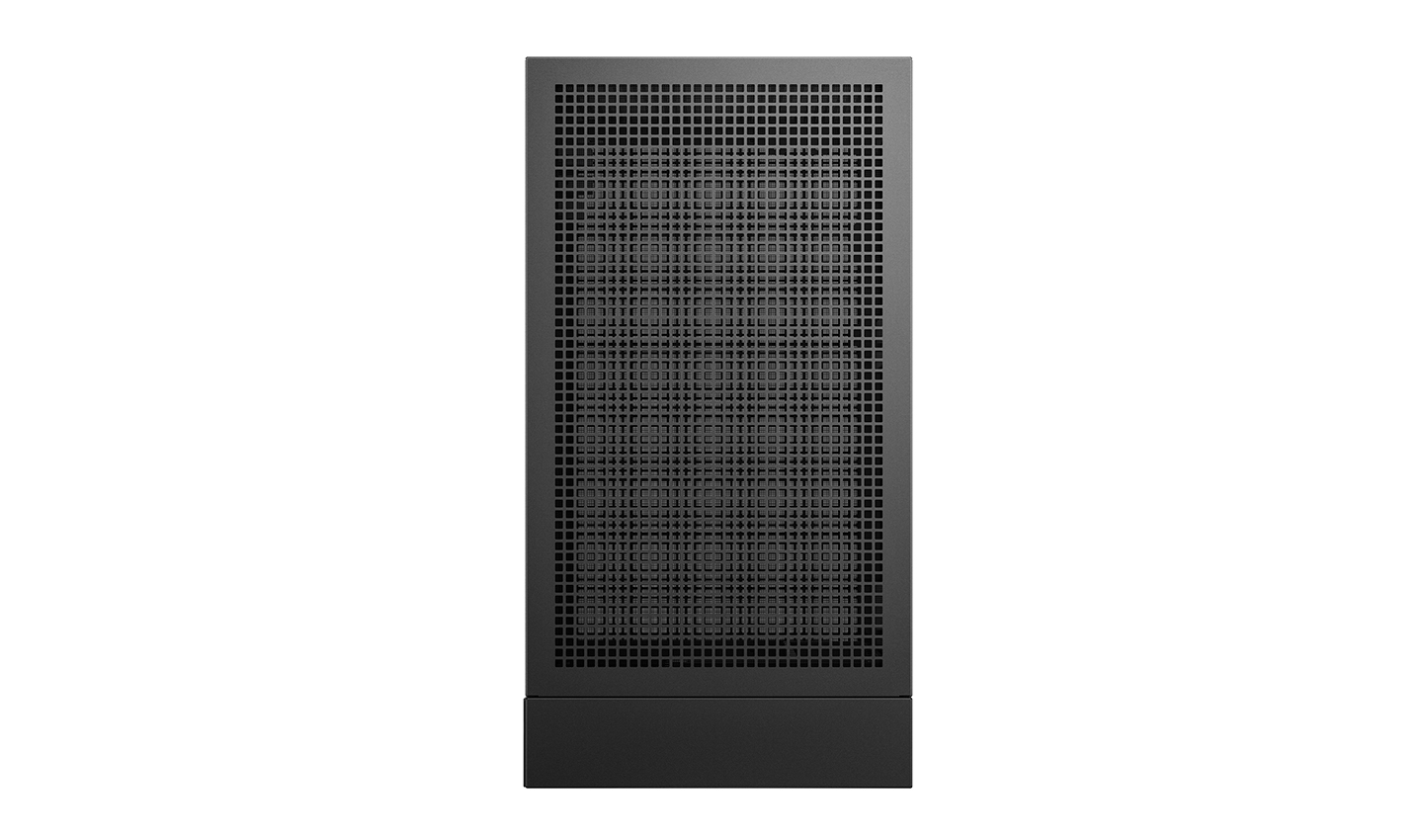

Mesh panels surround the CH170 DIGITAL from every side and create a high-airflow, small-form-factor case like no other.
MULTIPLE DATA POINT DISPLAY

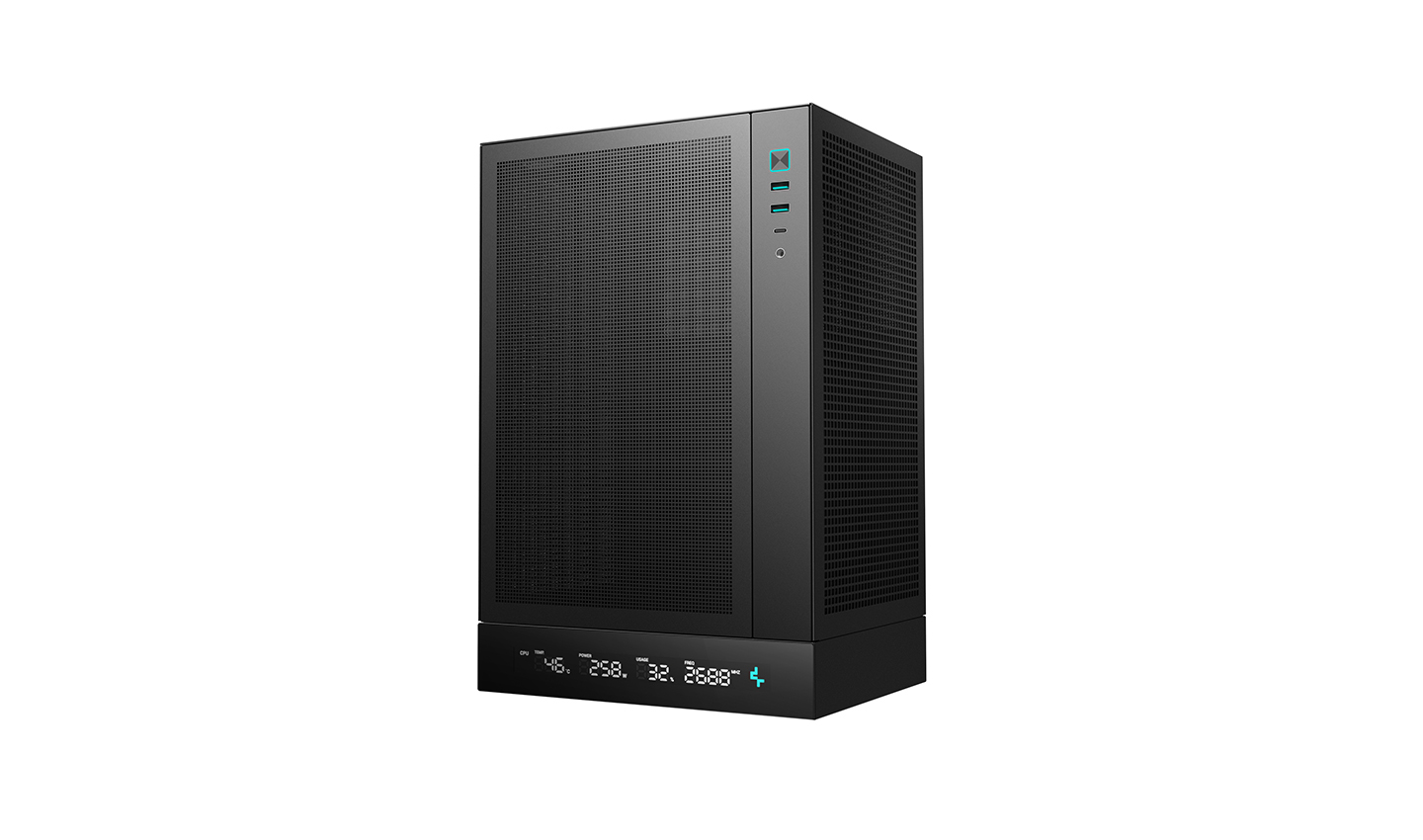

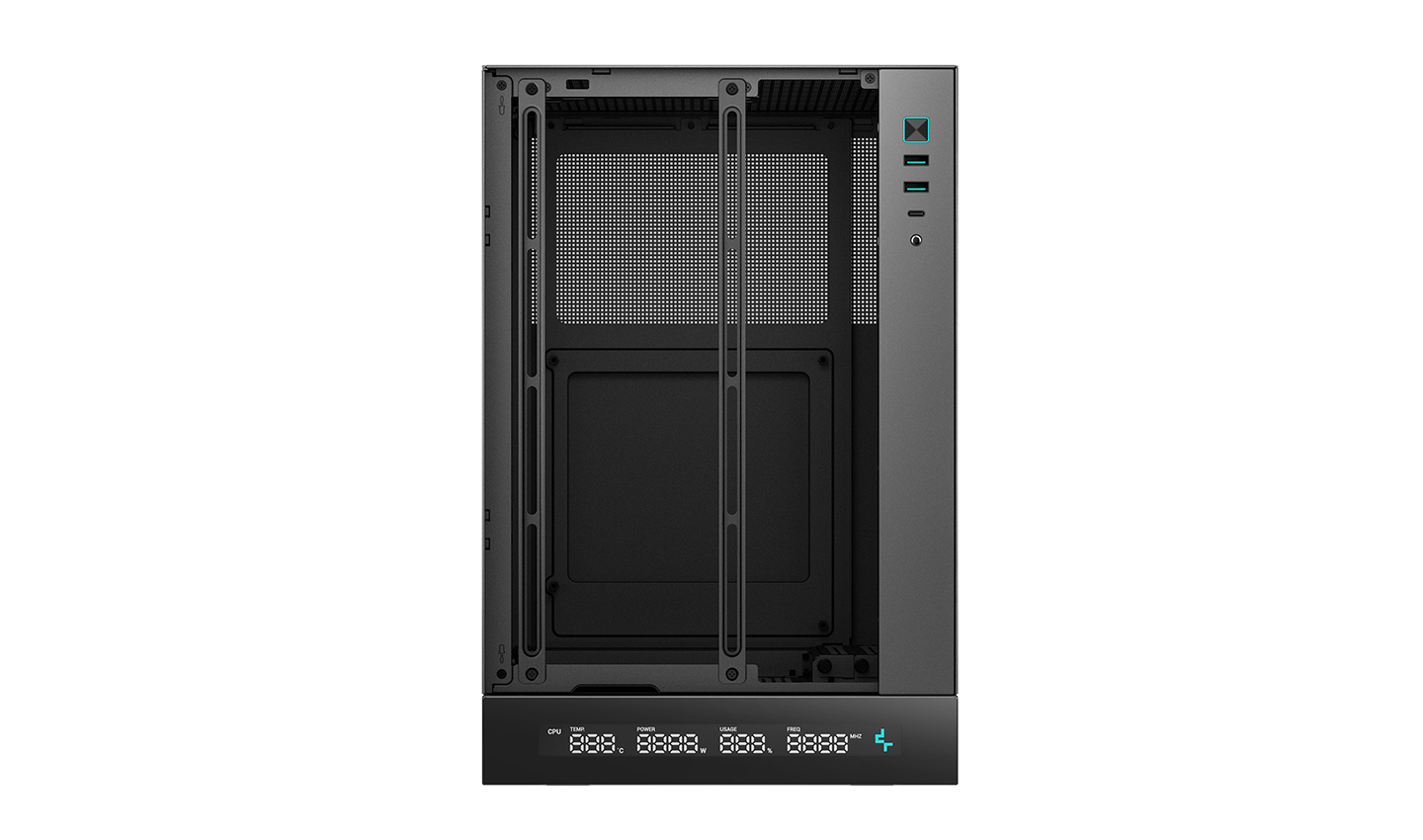

The CH170 DIGITAL has a digital base that displays four vital points of data at the same time. The display can focus on CPU, GPU, and PSU information at any given point in time. It can scroll through all aspects at a timed interval.
CPU
Temperature
Power Consumption
Usage
Frequency (or Fan Speed)
GPU
Temperature
Power Consumption
Usage
Frequency
PSU
Temperature
Power Consumption
Usage
Fan Speed
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
FULL SIZED AIR COOLING!
Lack of air cooler support in small mITX cases is a thing of the past. The CH170 DIGITAL can support giant air coolers up to 172mm in height!
OR GO LIQUID

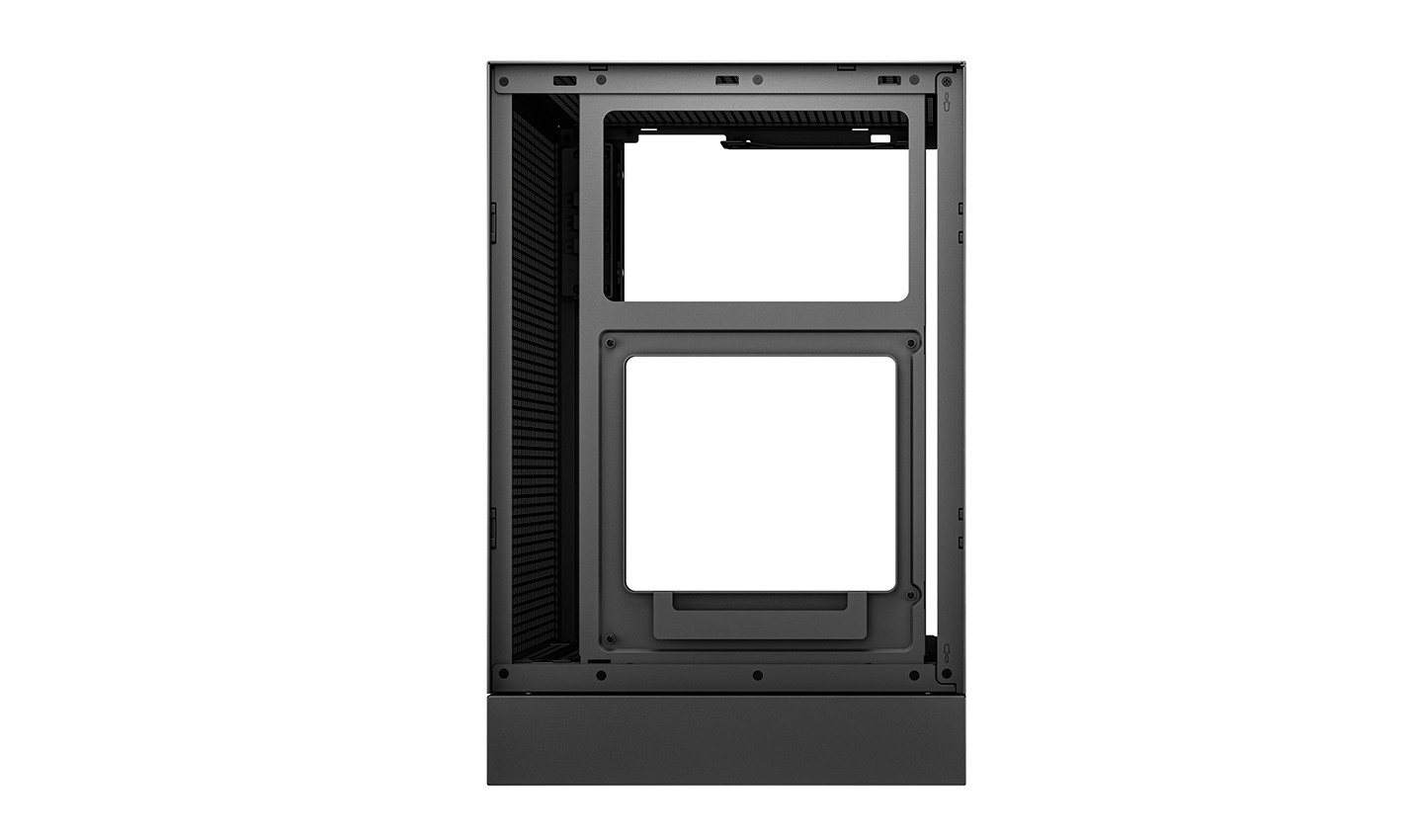

If liquid cooling is preferred, that is also an option with the CH170 DIGITAL. A specialized radiator bracket and a full mesh panel make it possible to mount a standard-sized 240mm AIO without any worries.
NO ADDED GPU LATENCY!
Designed to accommodate most 65mm thick dual-fan GPUs that are shorter than 305mm in length and up to 138mm in width, it can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!
Maximum GPU Length Based on PSU:
SFX/SFX-L：305mm
ATX：230mm
FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 DIGITAL can support any of them up to 140mm.
QUALITY OF LIFE IMPROVEMENTS

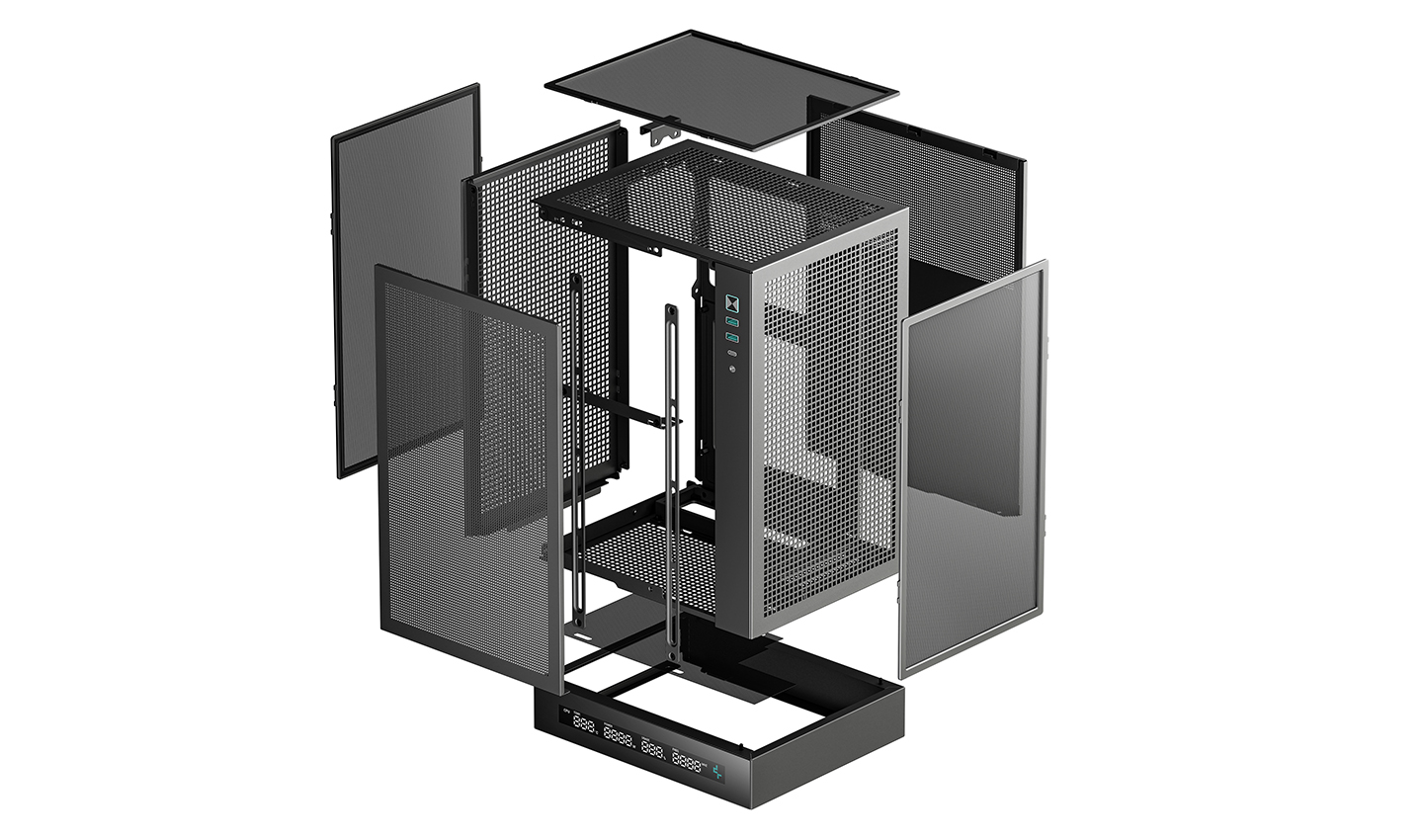

Equipped with options such as removable fan brackets, where the top fan bracket can be utilized to support either an SSD, HDD drive, or a 120mm fan; three removable dust filters for ease of cleaning; two USB 3.0, a Type-C, and a hybrid audio port, the CH170 DIGITAL makes everything a little easier.
Technical Spec
Product Dimensions380x200x250mm(L×W×H)
Net Weight3.4Kg
MaterialsABS+SPCC
Motherboard SupportMini-ITX
Front I/O PortsUSB3.0×2、Audio×1、Gen2 TypeC×1
3.5" Drive Bays1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
2.5" Drive Bays1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
Expansion Slots3 Slots
Pre-Installed FansNone
Fan SupportTop:1×120 mm
Front: NA
Rear: 2×120 mm
Bottom:1×120 mm
Side : 2×120 mm
Radiator SupportSide : 240mm
CPU Cooler Height Limit172mm
GPU Size LimitLength: SFX/SFX-L: 305mm / ATX: 230mm
Height: 138mm
Width: 65mm (3 Slots)
Power Supply TypeATX PS2（maximum length: 140mm）/ SFX / SFX-L
EAN6933412774228
P/NR-CH170-BKNPI0D-G-1
Product Dimension
Download
CH170 DIGITAL Manual.pdf
Download
Download
DeepCool-DIGITAL Setup
Download
