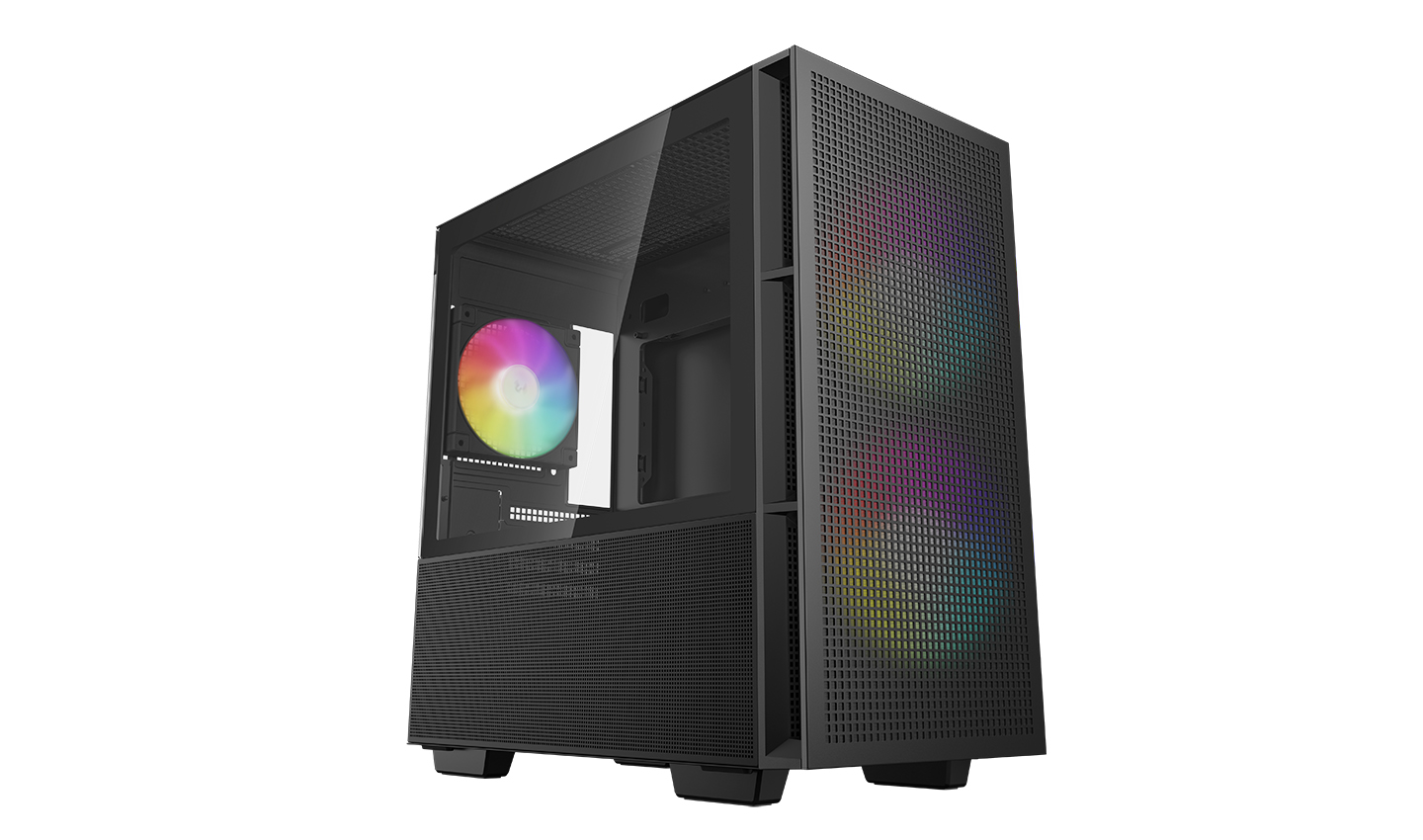

CH360
The next generation of airflow cases from DeepCool has arrived, and they are indeed glorious. The CH360 is a newly designed mATX case with a concentrated focus on increased airflow throughout the entire chassis. Two bright PWM-enabled 140mm ARGB fans are mounted in front of the main compartment, and a hybrid side panel sets the CH360 apart from the competition.
COLOR
black
MODEL
CH360
HIGH AIRFLOW CASES REIMAGINED
A BREATH OF FRESH AIR

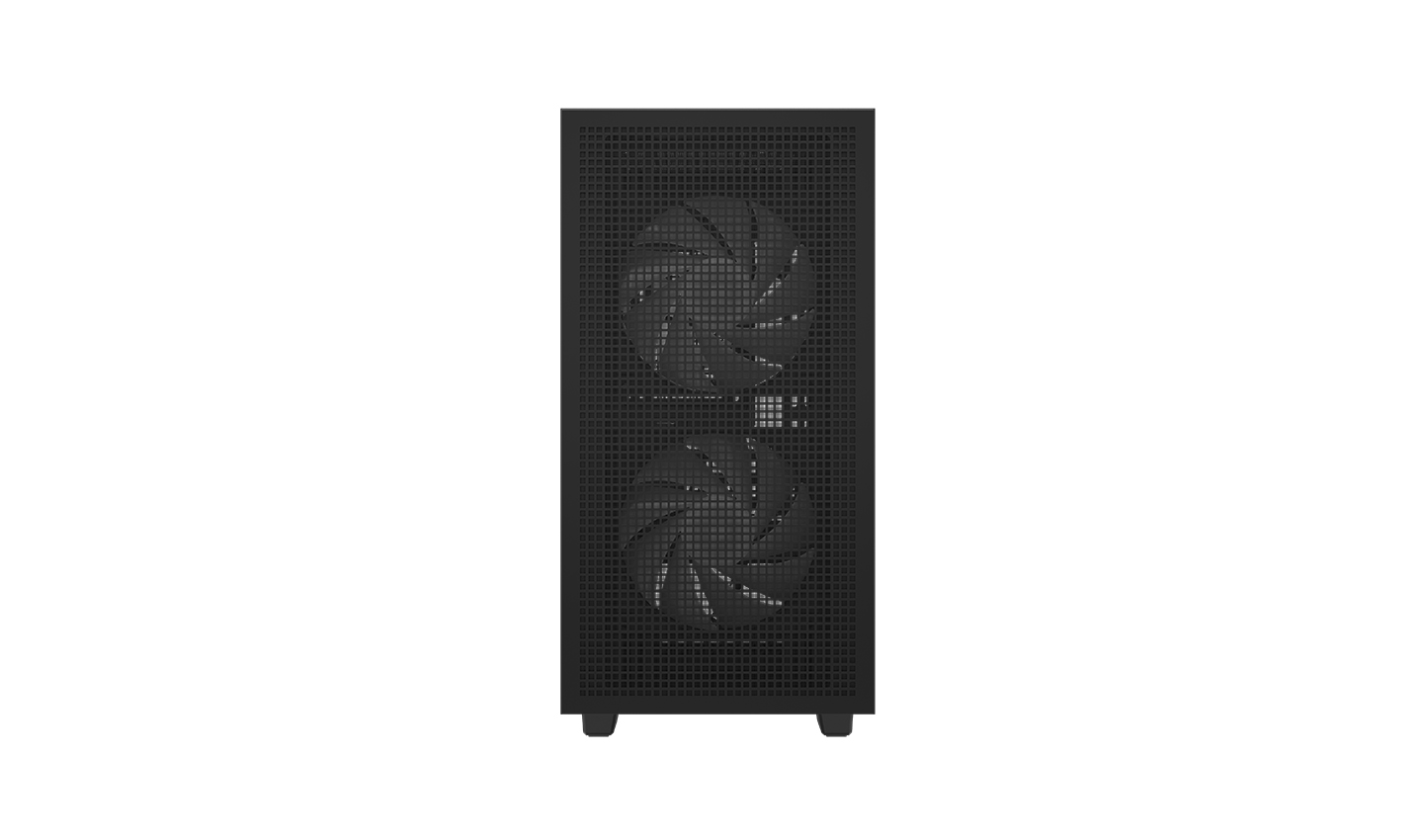

The CH360 provides exceptional airflow from all sides of the case; from the high airflow front to the hybrid tempered glass side panel; cool air is always available for the modern power-hungry components.

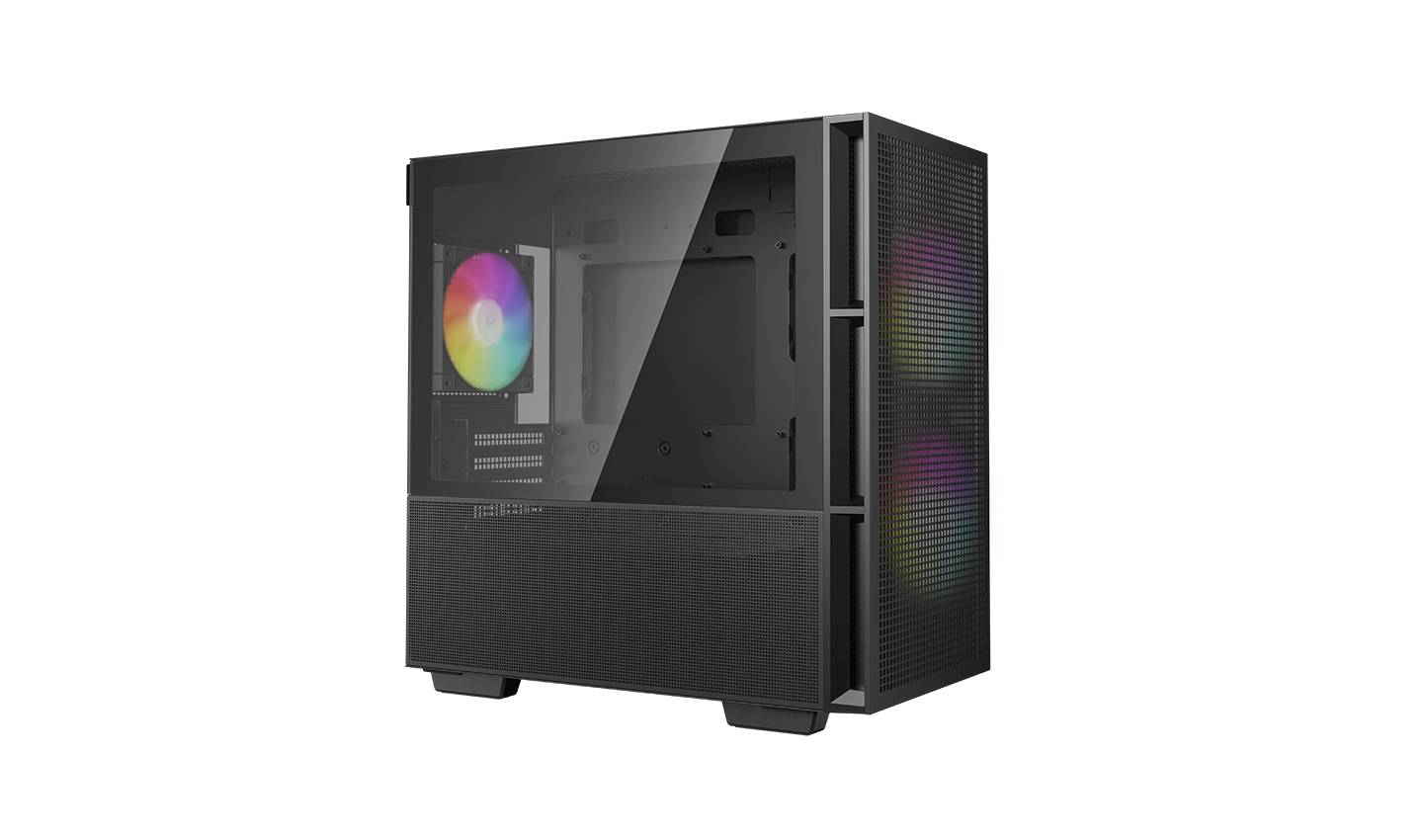

HYBRID AIRFLOW GLASS SIDE PANEL

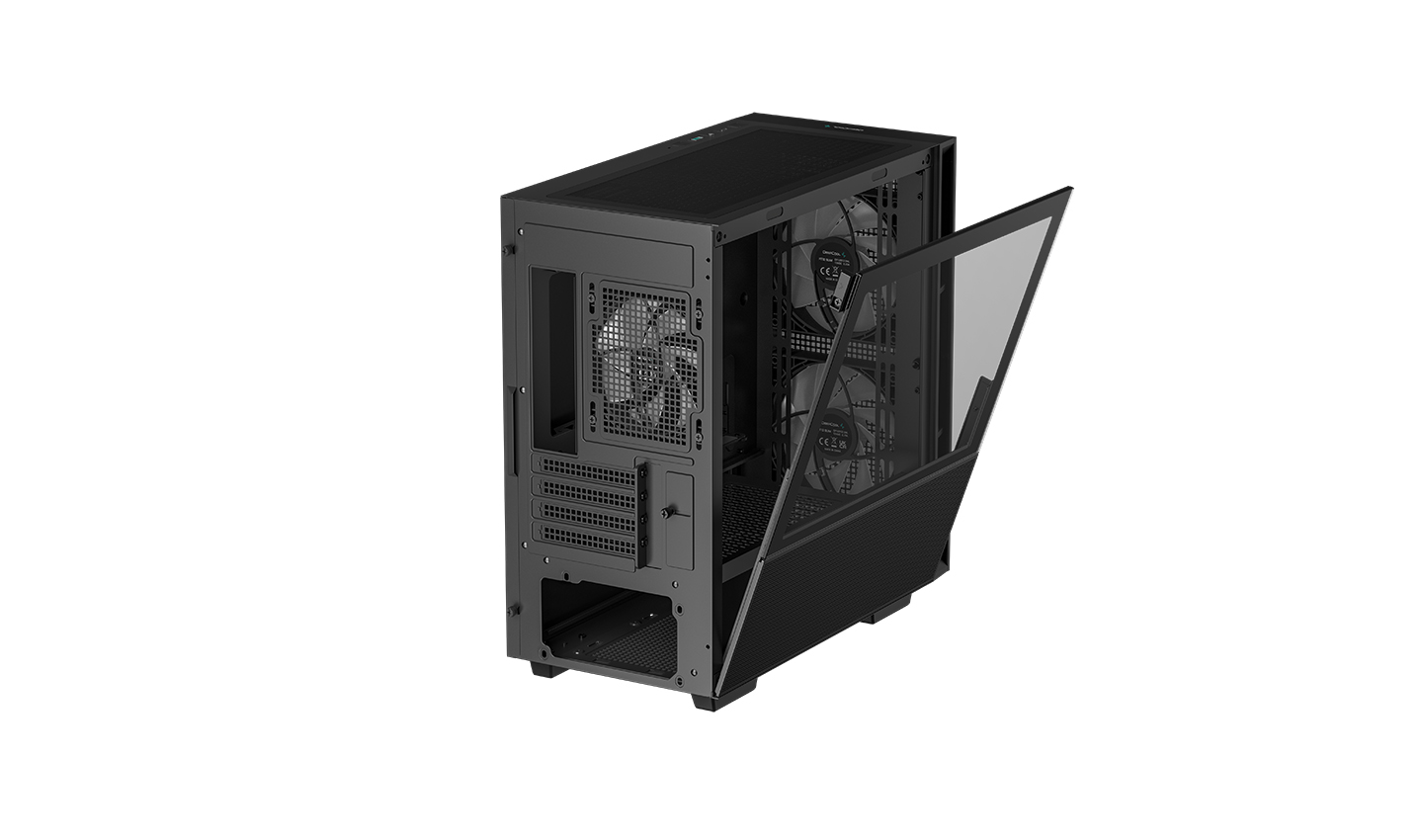

A unique tempered glass and mesh hybrid side panel provides a crystal-clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.
MAXIMUM COOLING CAPACITY
The CH360 has a plethora of cooling configurations, from the ability to mount a 360mm radiator in front to the two included 140mm ARGB fans up front—the cooling configurations are endless.
Radiators
Fans
Radiators:
Front: 120/140/240/280/360mm
Top: 120/140/240mm
Rear: 120mm
Fans:
Front: 3×120 / 2×140mm
Top: 2×120 / 2×140mm
Rear: 1×120mm
PSU Shroud: 2×120mm
LARGE RANGE OF COMPATIBLE COMPONENTS
With the ability to support 165mm tall CPU coolers, 320mm GPUs, and 160mm PSUs; the CH360 can be configured with a wide range of modern components.

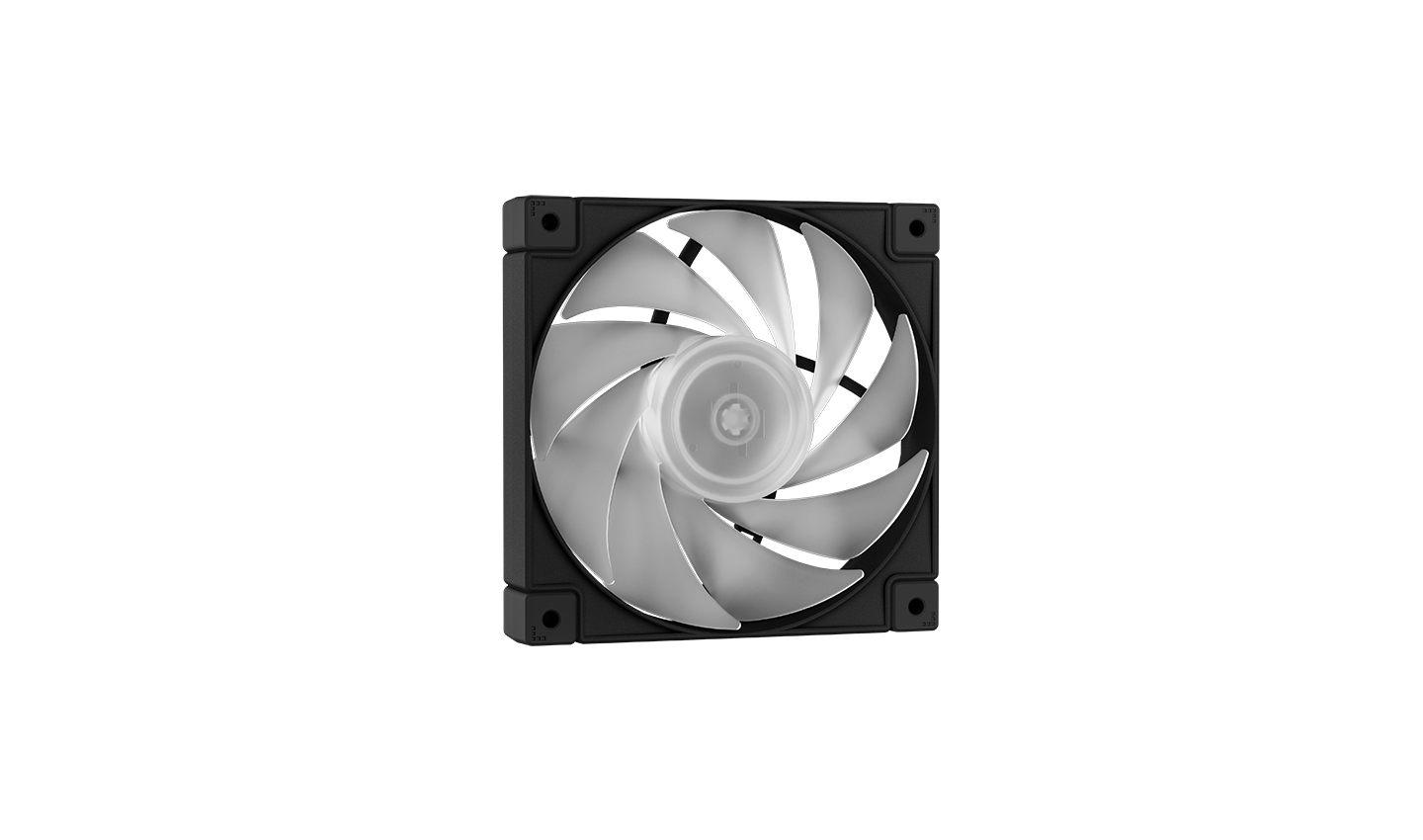

BIGGER, BRIGHTER, BETTER

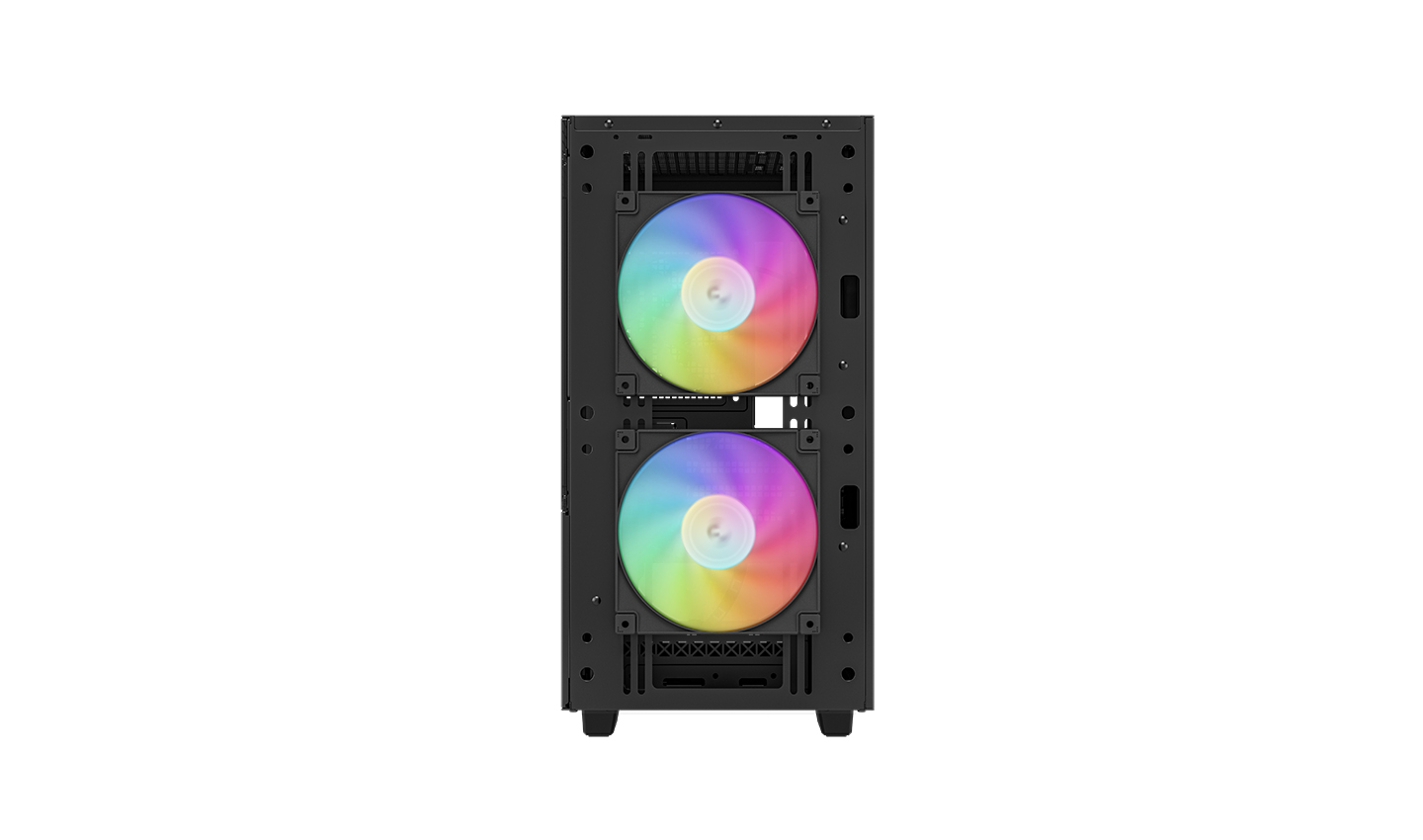

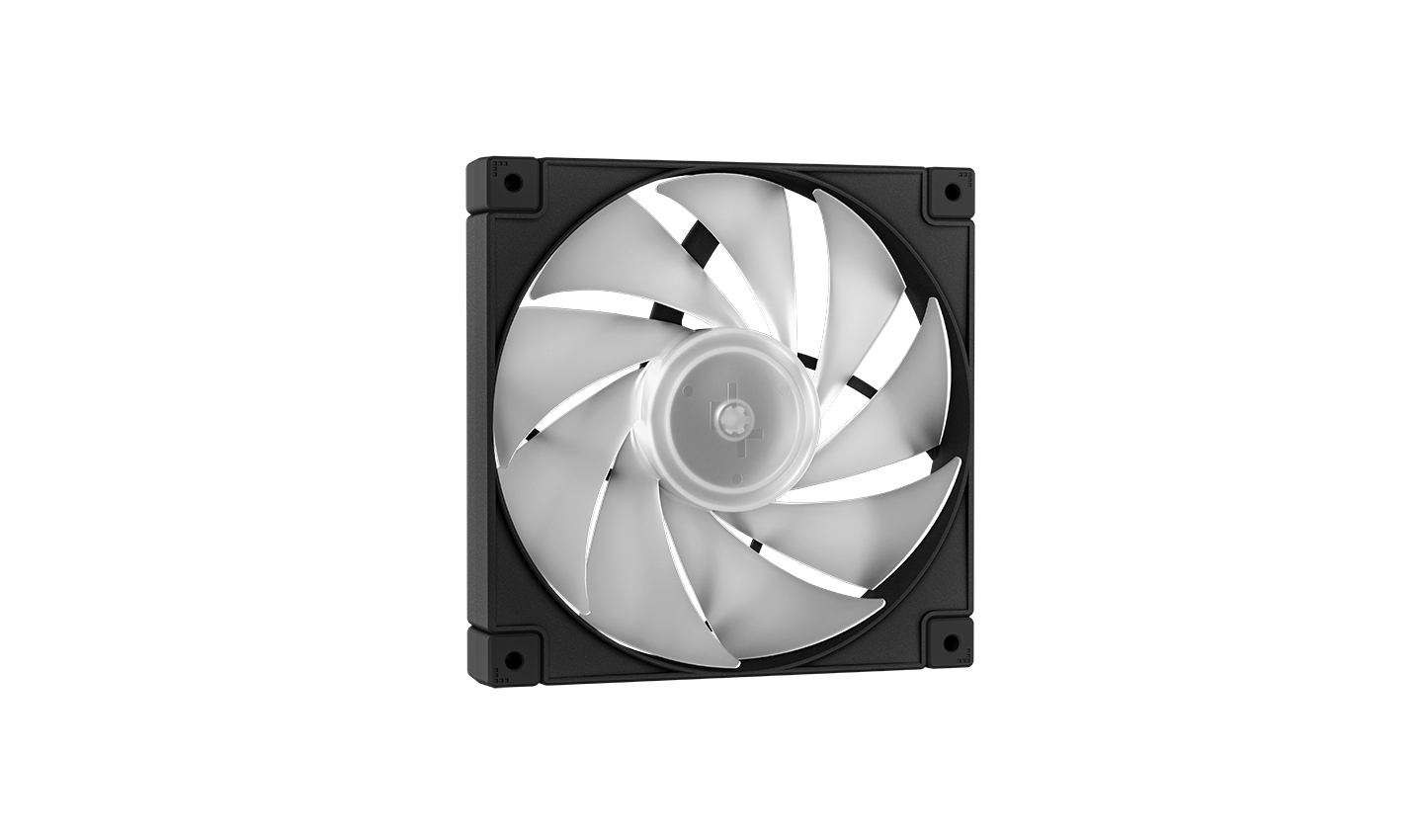

Two luminous PWM-enabled 140mm ARGB fans come pre-installed on the front of the CH360 and introduce an abundant amount of fresh air into the chassis. These fans are mounted outside of the main compartment to provide extra clearance for modern GPUs while maintaining a smaller footprint. A 120mm ARGB fan is included in the rear of the case to help exhaust internal case heat.

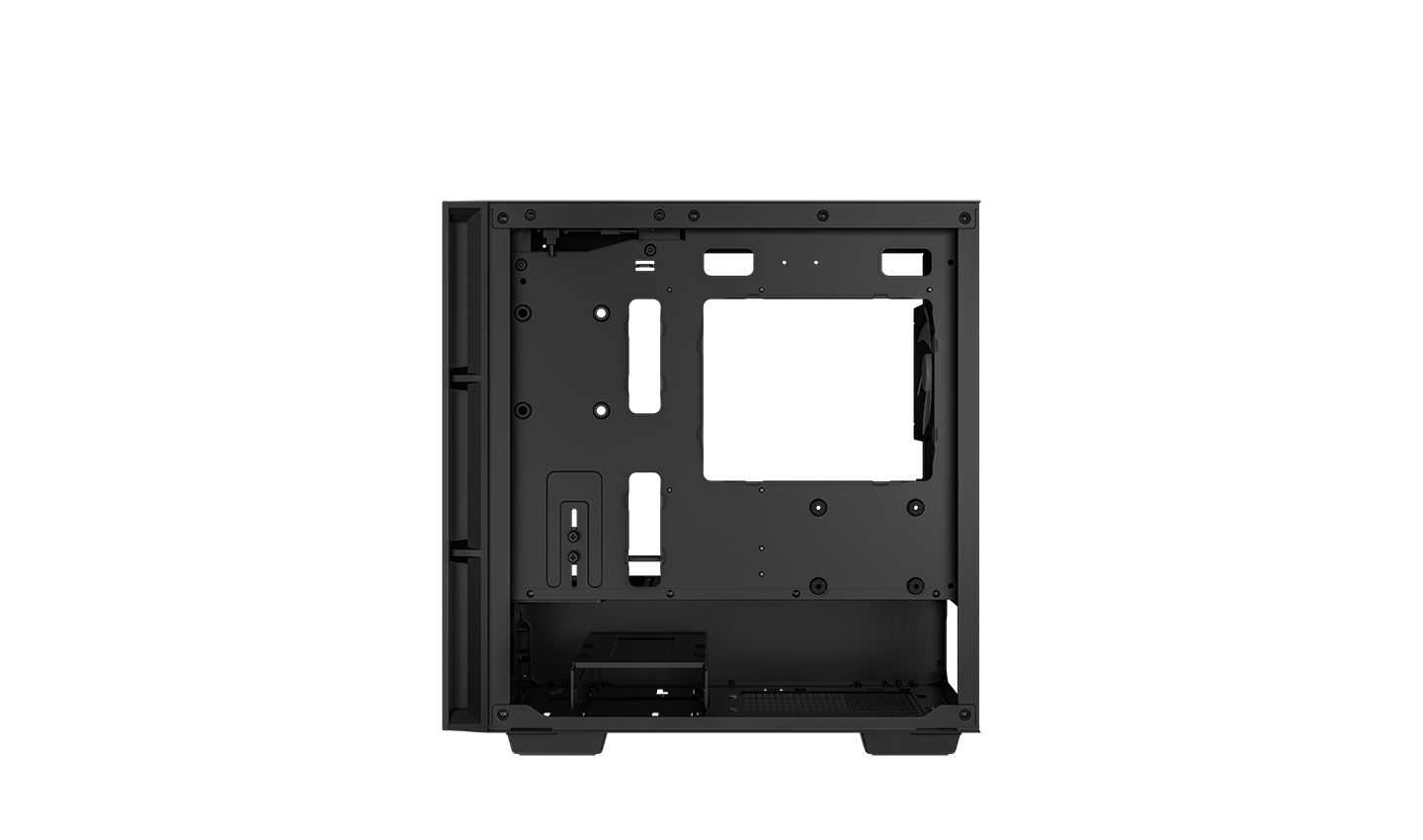

STRESS-FREE BUILDING

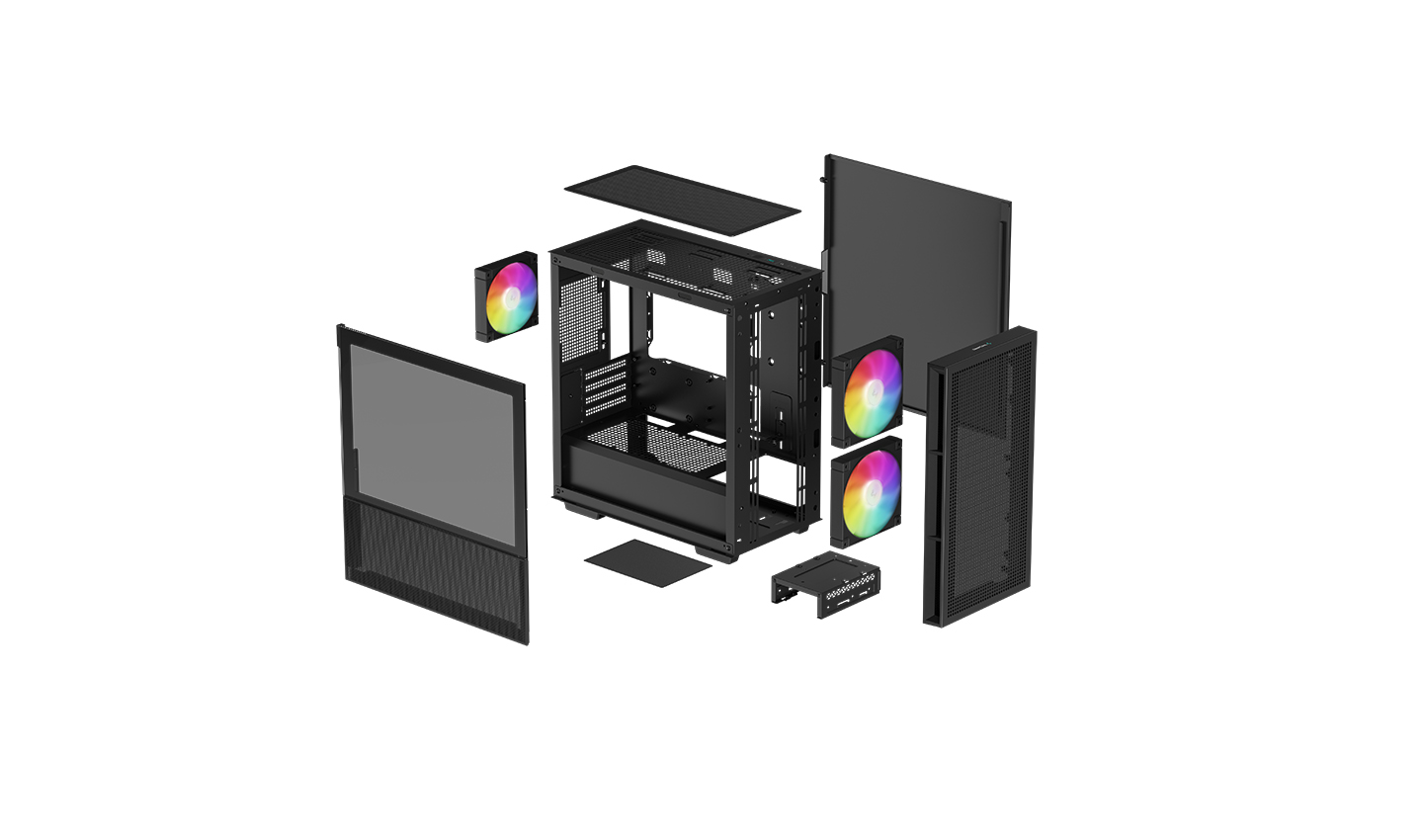

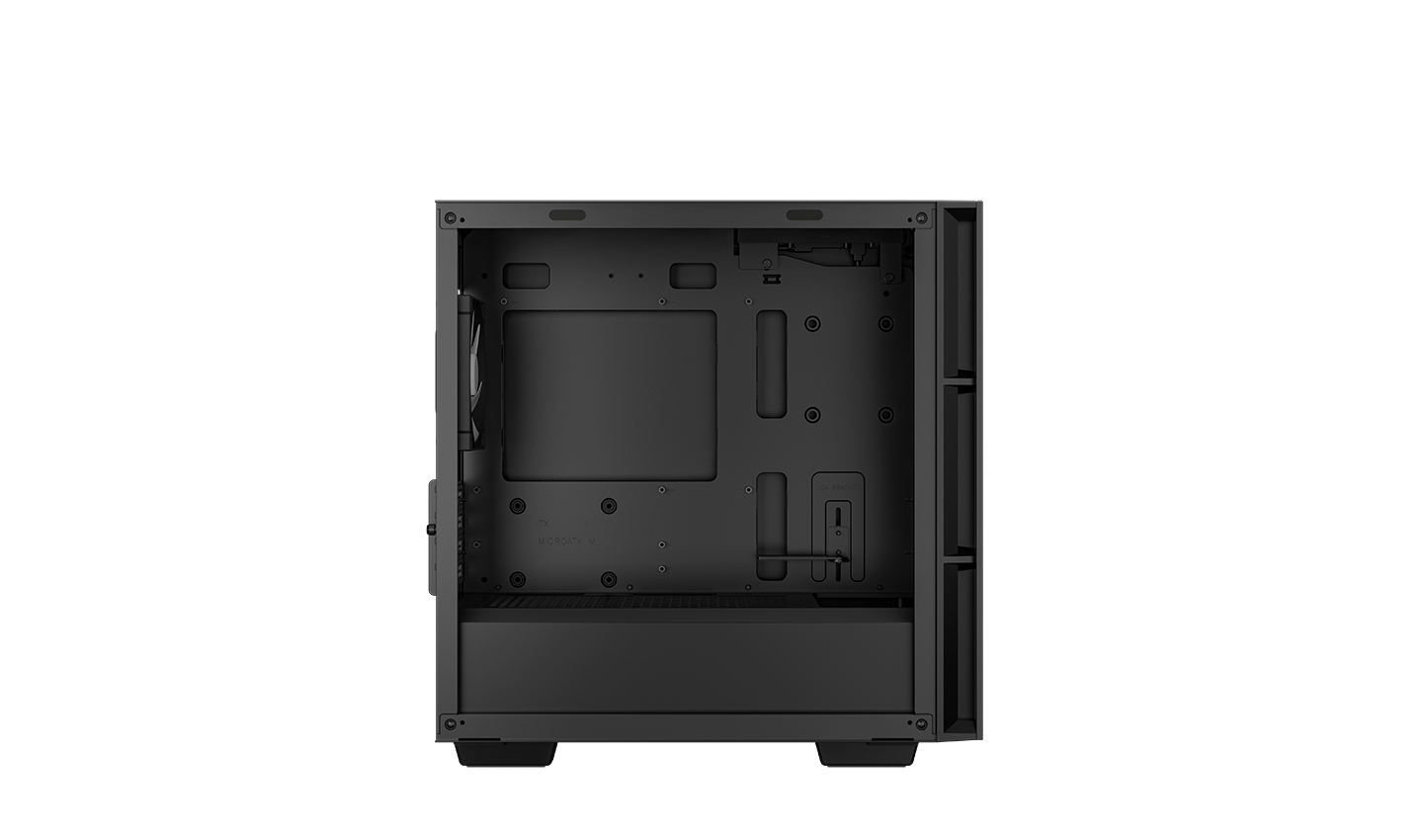

Building and maintaining the CH360 is a breeze: the magnetic hybrid panel with an optional security screw, magnetic air filters, integrated GPU support arm, a removeable hard drive cage, and 26mm of cable management space behind the motherboard tray make life with a computer a little bit easier.

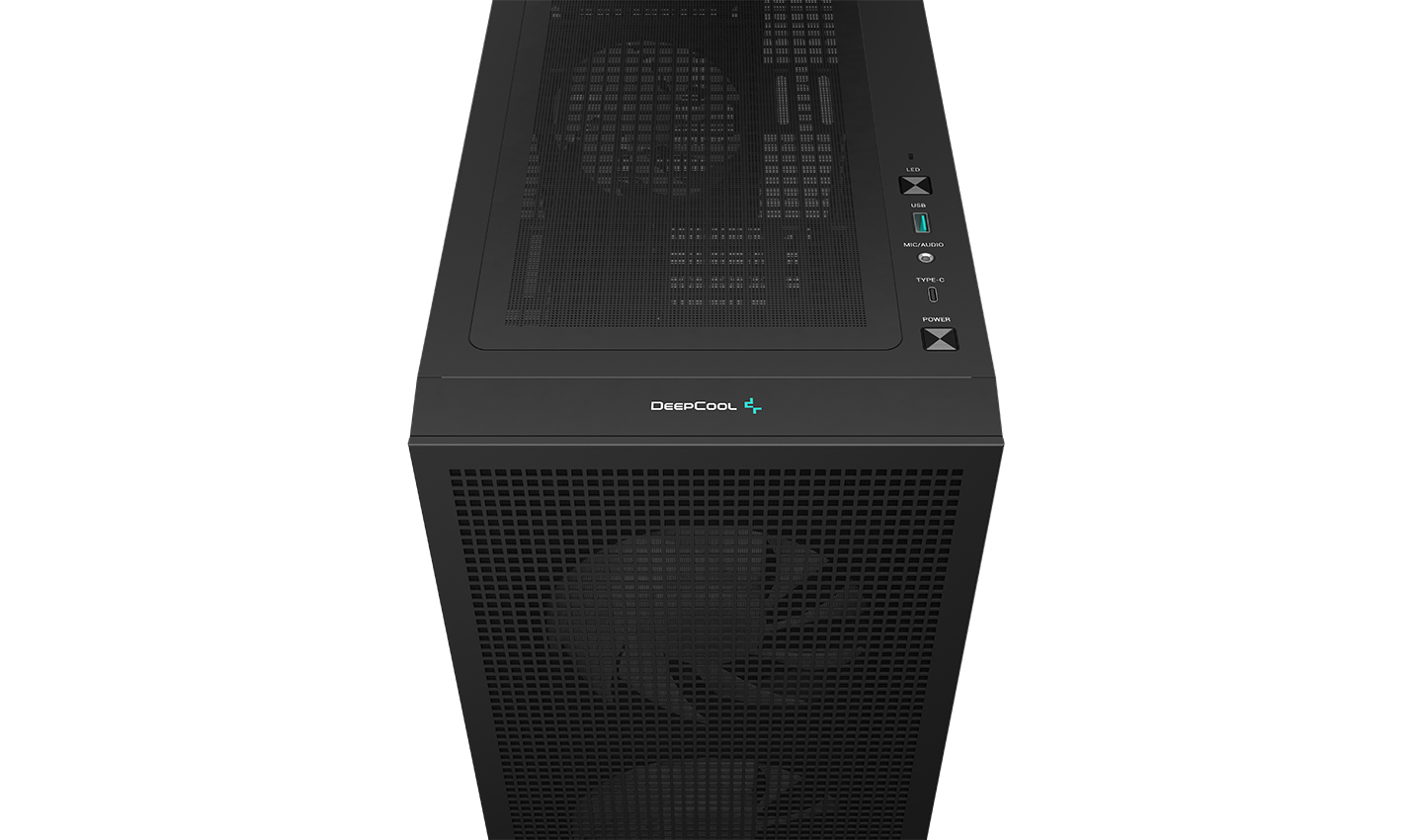

CONVENIENCE AT ARM'S REACH
Everything necessary for daily routines is within reach with a Type-C, a USB 3.0 port, and a hybrid audio port, all conveniently located on the case I/O panel.
Technical Spec
Product Dimensions428×215×431mm(L×W×H)
Net Weight6 KG
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportMini-ITX / Micro-ATX
Front I/O PortsUSB3.0×1、Audio×1、TYPE-C×1
3.5" Drive Bays2
2.5" Drive Bays2+1
Expansion Slots4 Slots
Pre-Installed FansFront: 2×140mm ARGB
Rear: 1×120mm ARGB
Fan SupportFront: 3×120 / 2×140mm
Top: 2×120 / 2×140mm
Rear: 1×120mm
PSU Shrouded: 2×120mm
Radiator SupportFront: 120/140/240/280/360mm
Top: 120/140/240mm
Rear: 120mm
CPU Cooler Height Limit165mm
GPU Length Limit320mm
Power Supply TypeATX PS2 （maximum length: 160mm）
EAN6933412774716
P/NR-CH360-BKAPE3-G-1
Download
CH360 Manual.pdf
