CK500

Mid-Tower Case

Details Make the Difference

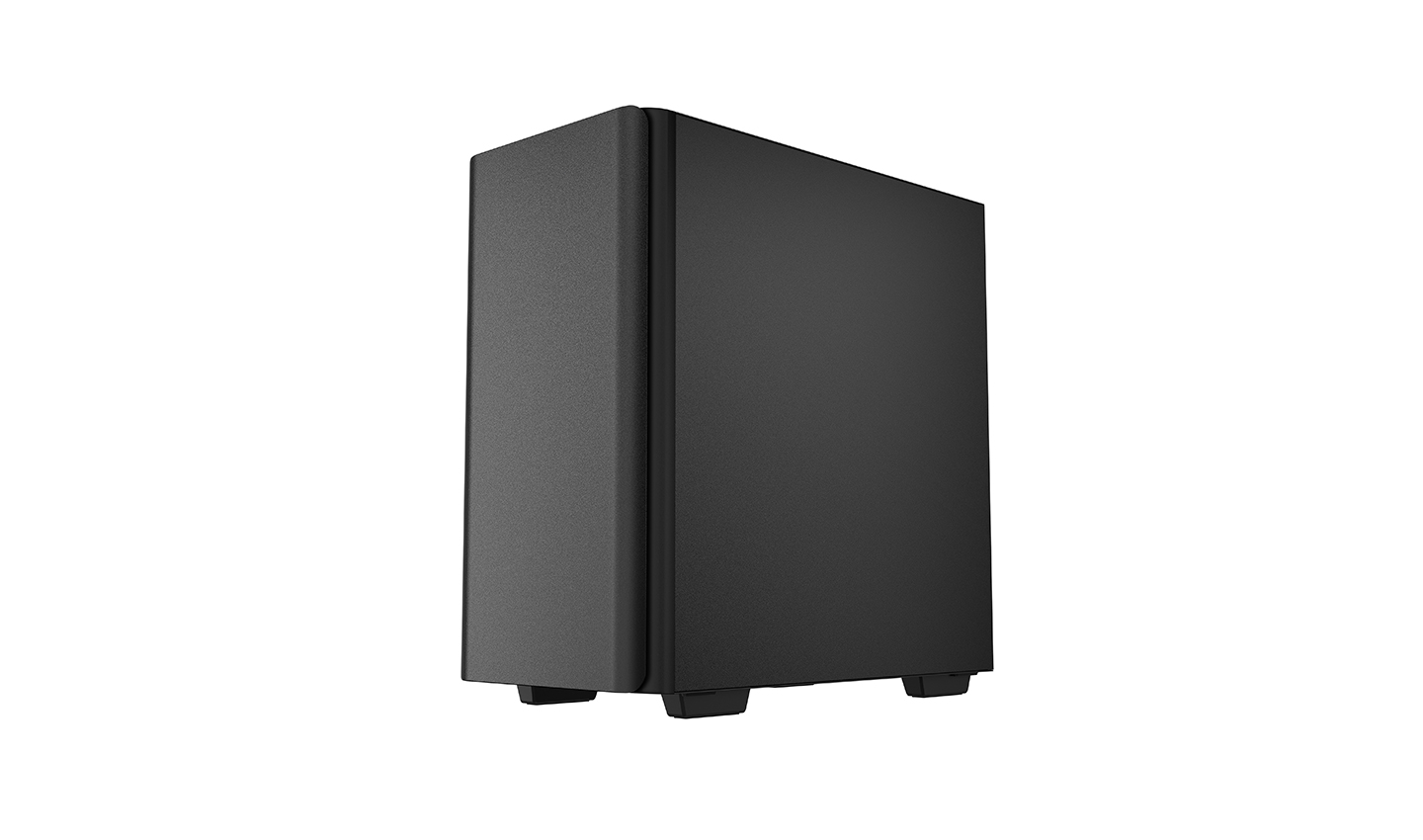

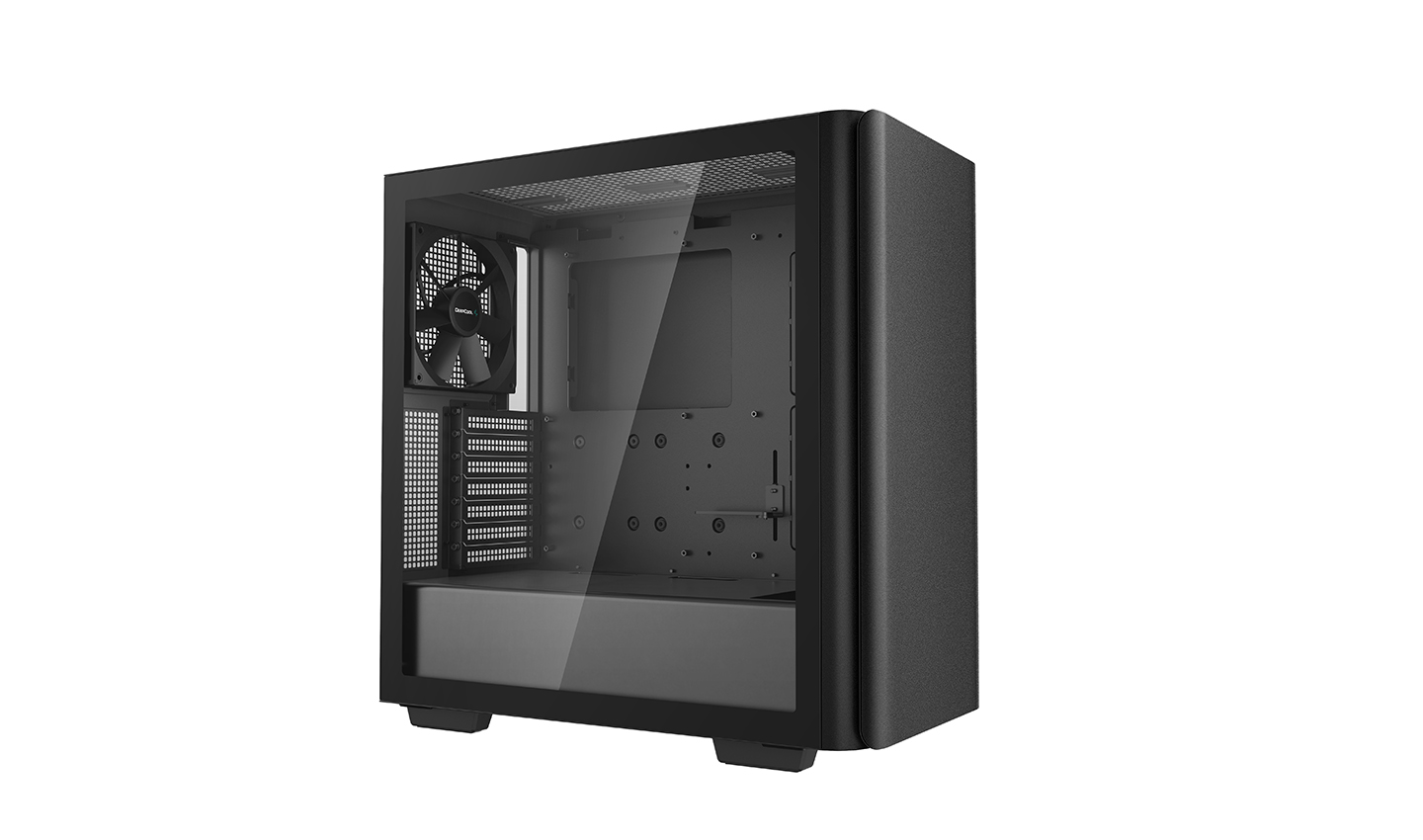

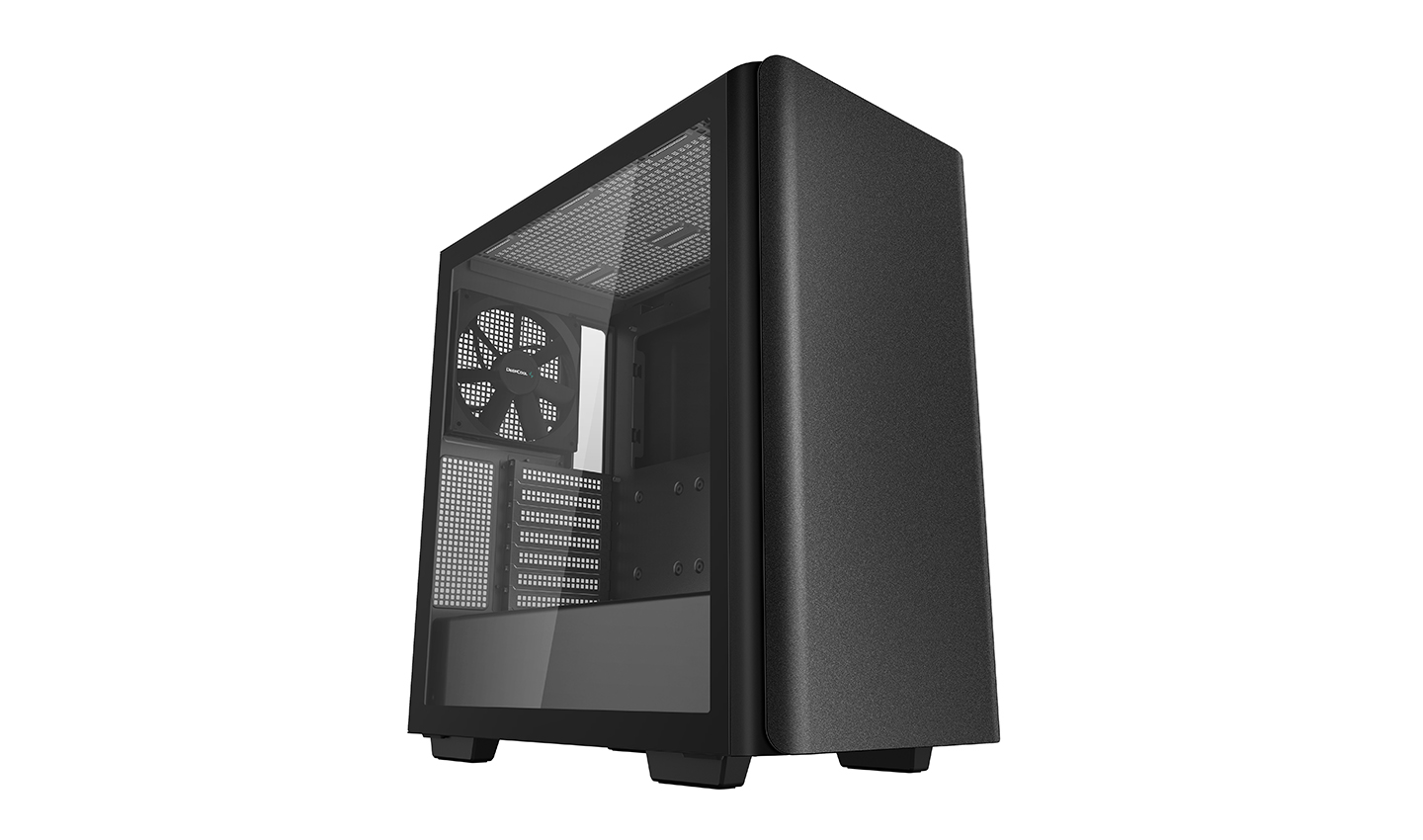

The DeepCool CK500 Mid-Tower Case is a sleek and minimal case that delivers balanced airflow and noise performance for the modern-day builder with two pre-installed 140mm performance fans.

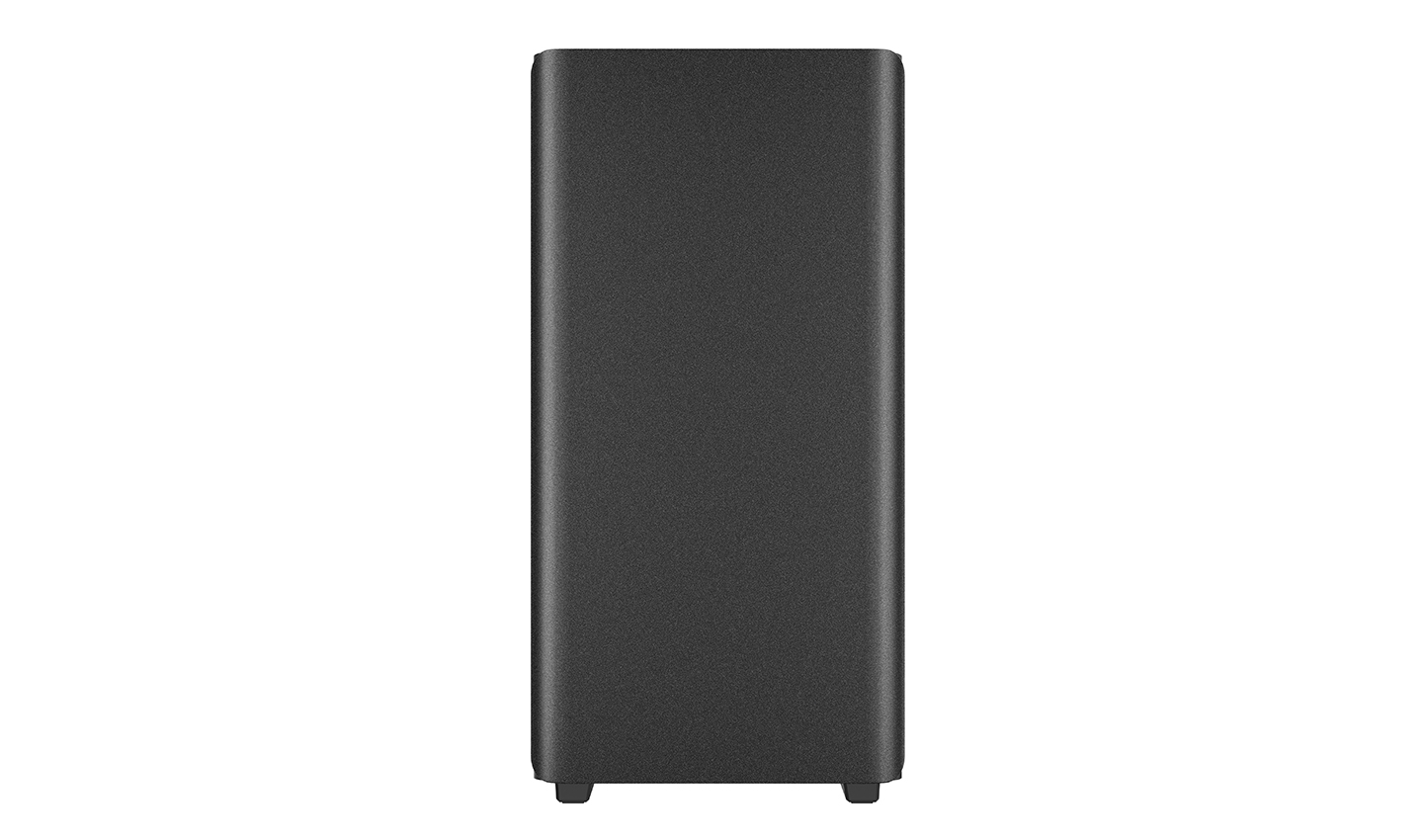

Quick-Release Solid Front Panel

Sleek curved edges offer a premium look and feel in a minimalistic design while still featuring large ventilation for more airflow. The solid steel panel adopts an easy quick-release magnetic connection.

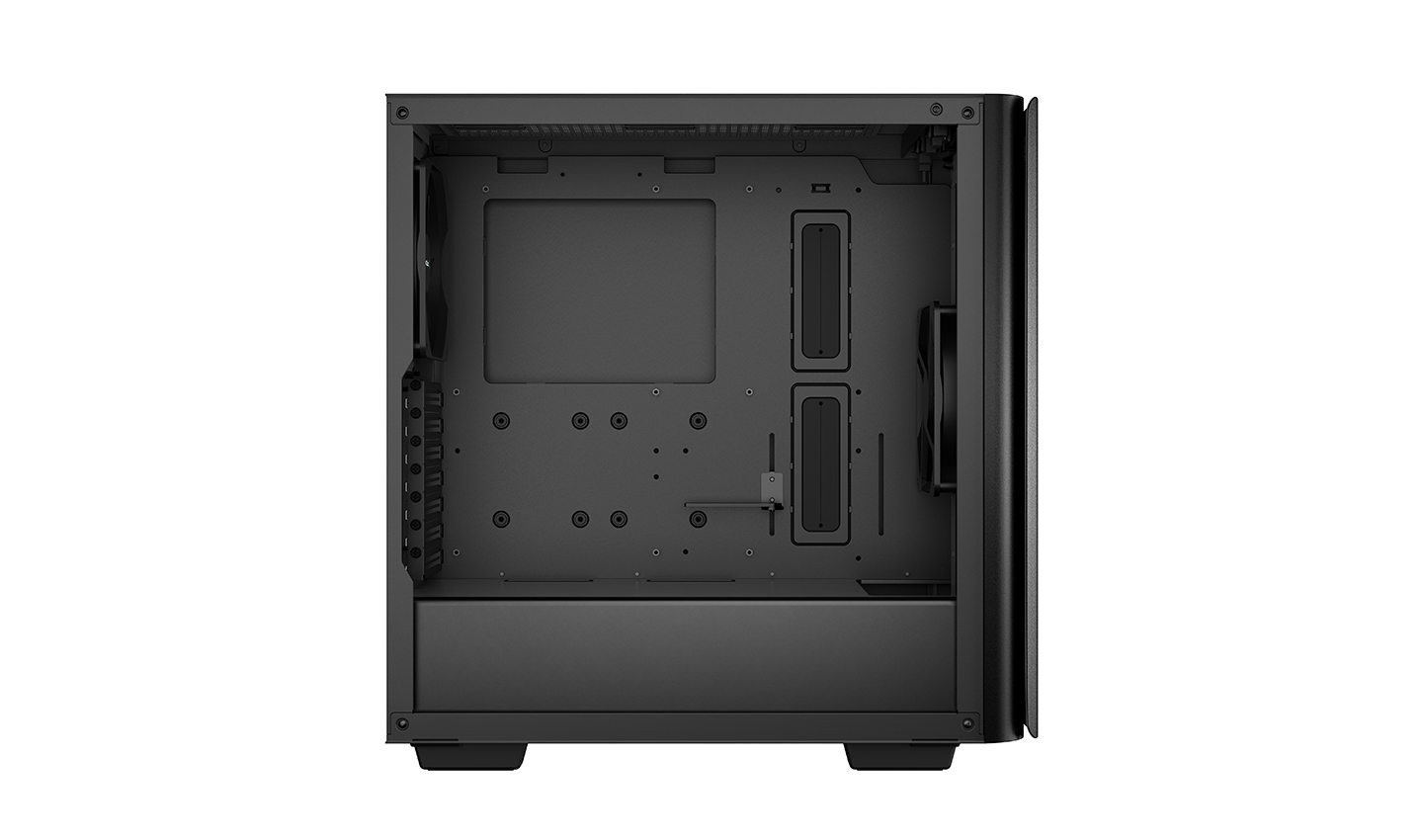

Wide and Spacious Interior

Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CK500 provides ample space without being too bulky.

Big Air Cooling

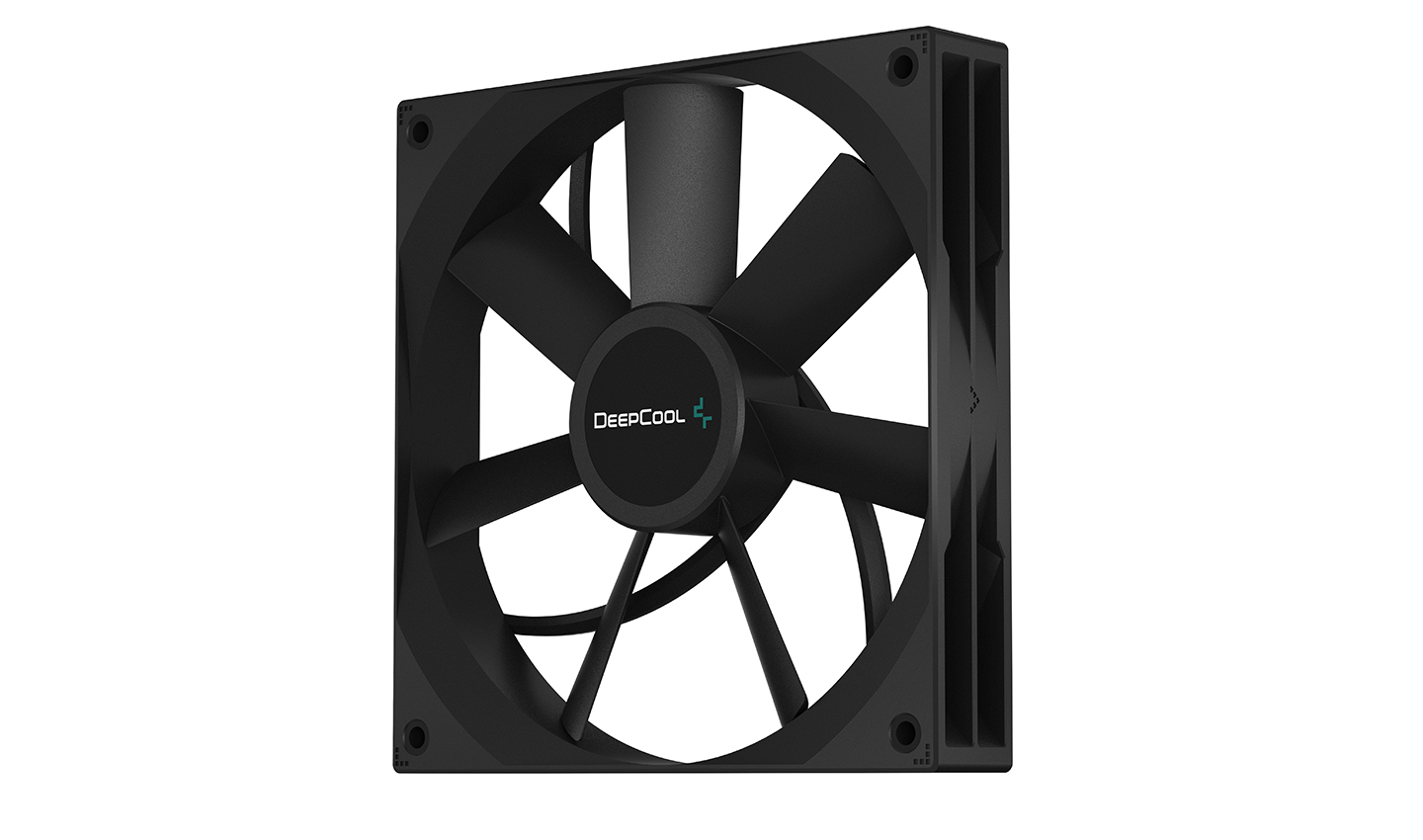

Two pre-installed DeepCool 140mm
airflow-focused fans help concentrate cooling performance for lower temperatures and noise levels.

CK500 Mid-Tower Case

Choose Your Cooling Configuration

The CK500 has great cooling capacity with up to 6x 120mm or 5x 140mm cooling fans and liquid cooling support for 280/360mm radiators through the front panel and 280/240mm radiators on the top panel.

6 120mm

5 140mm

CASE FANS

1 360mm

2 280mm

2 240mm

3 140mm

3 120mm

RADIATOR

Convenient Storage Options

Install up to 2x 2.5in storage drives directly onto the motherboard tray with quick-release push-pins and 2x 3.5in HDDs on a tool-less tray design for extra simplicity.

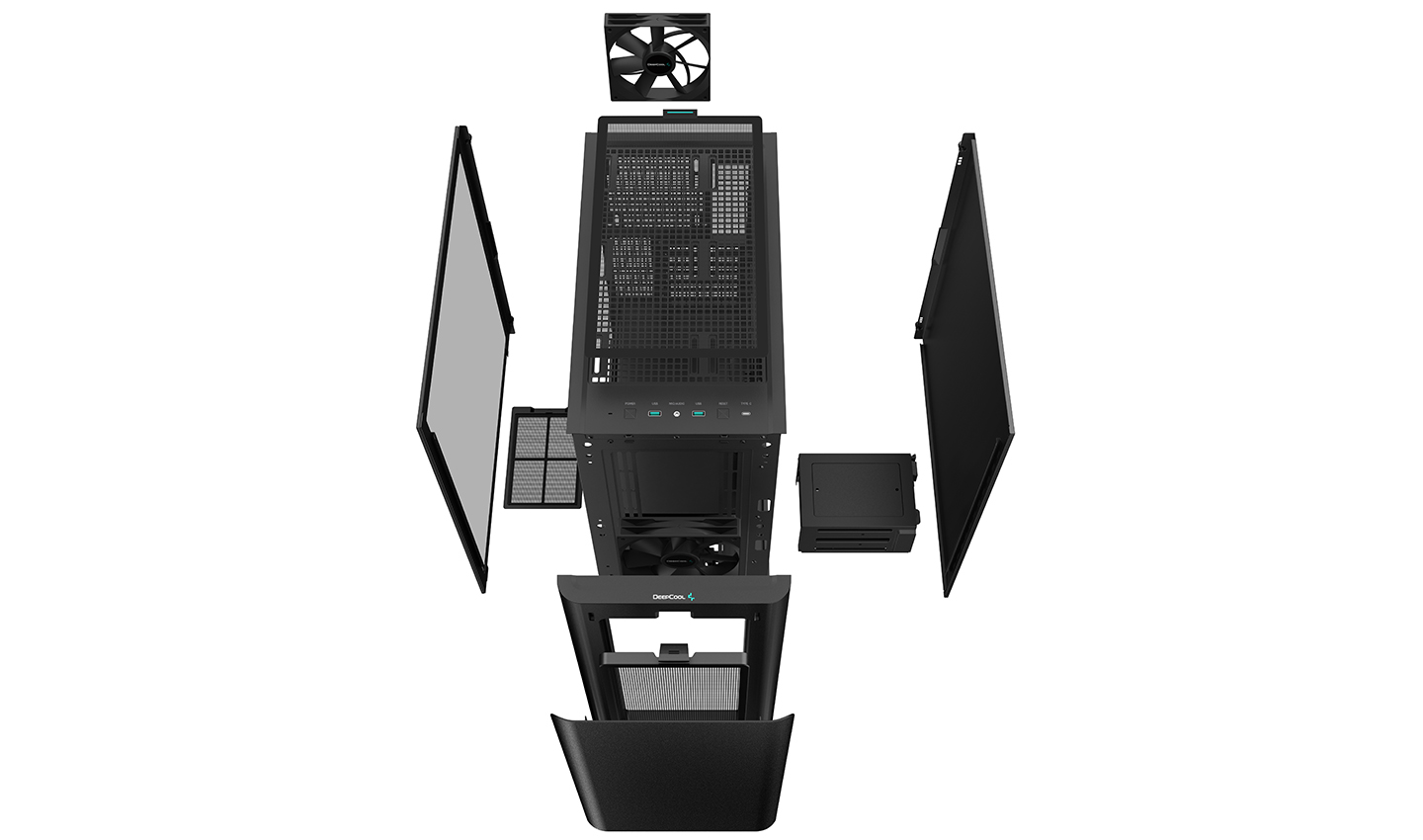

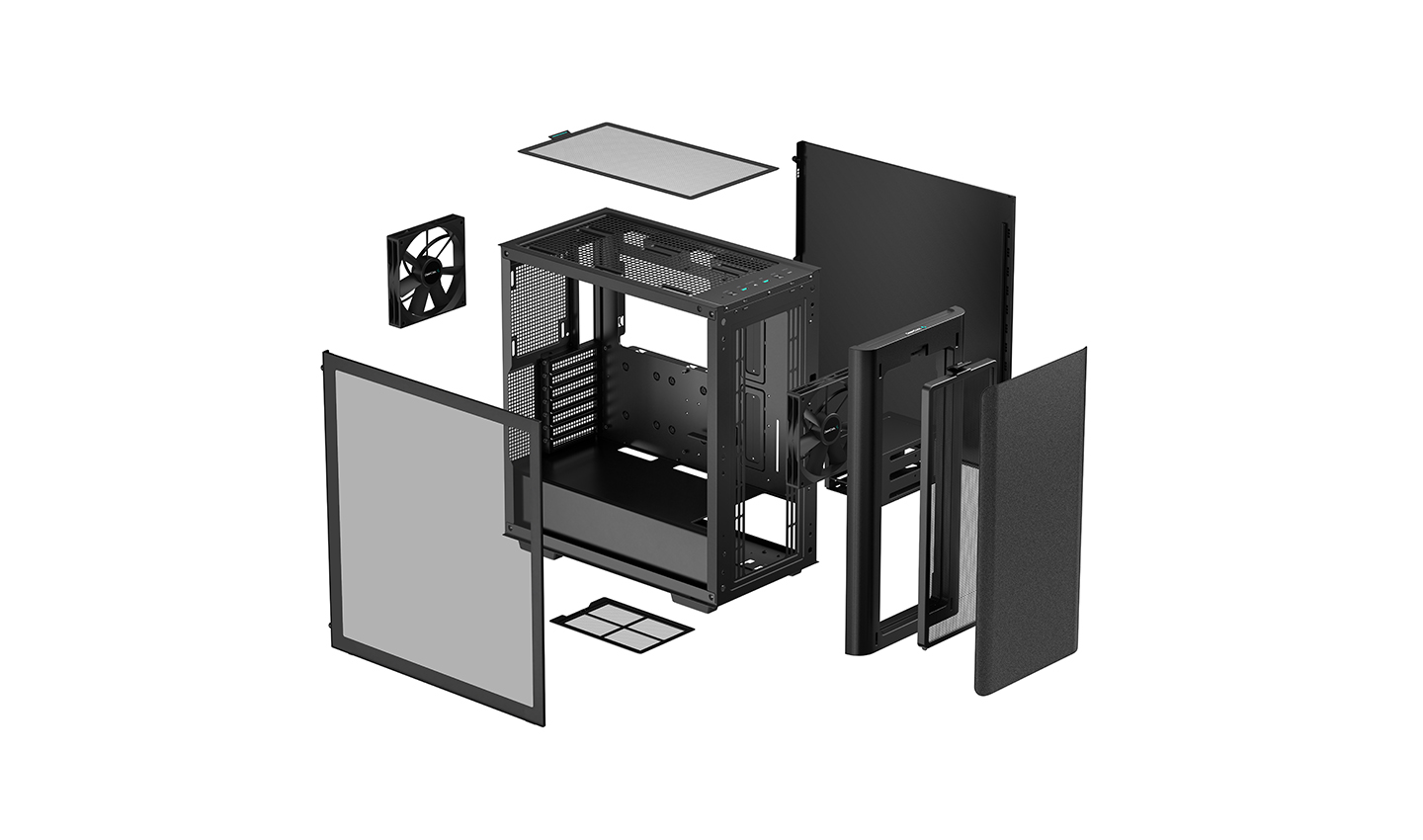

Improved Builder Experience

Three dedicated dust-filters in front, top, and bottom with magnetic or quick-release attachments.

The adjustable GPU anti-sag bracket can be positioned in two locations for various sized graphics cards.

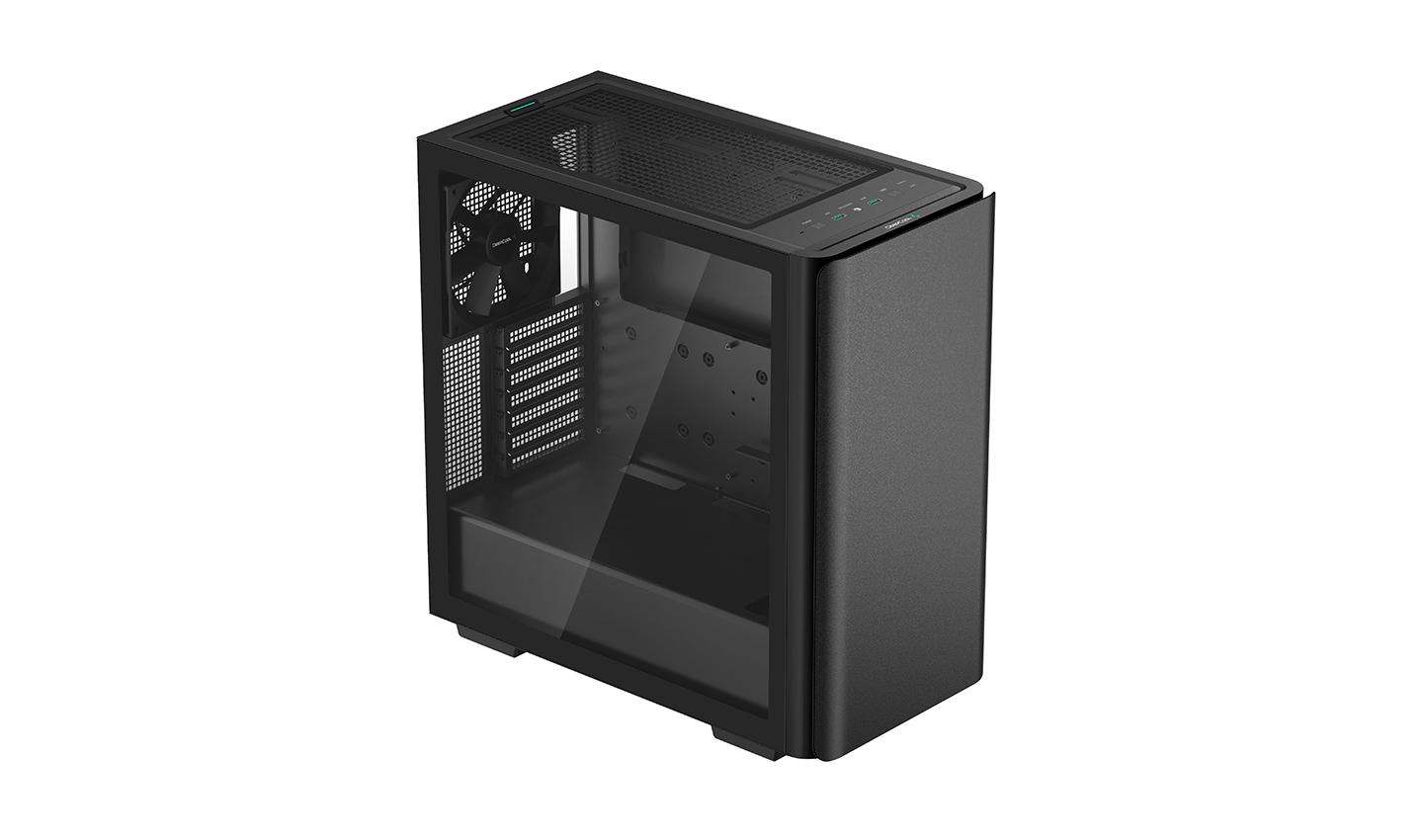

The full-sized tempered glass panel slides and holds in place before fastening with captive thumbscrews.

Rubber Grommets and ample room behind the motherboard tray help with cable management.

Independent PCIe baffles are reusable and easy to remove.

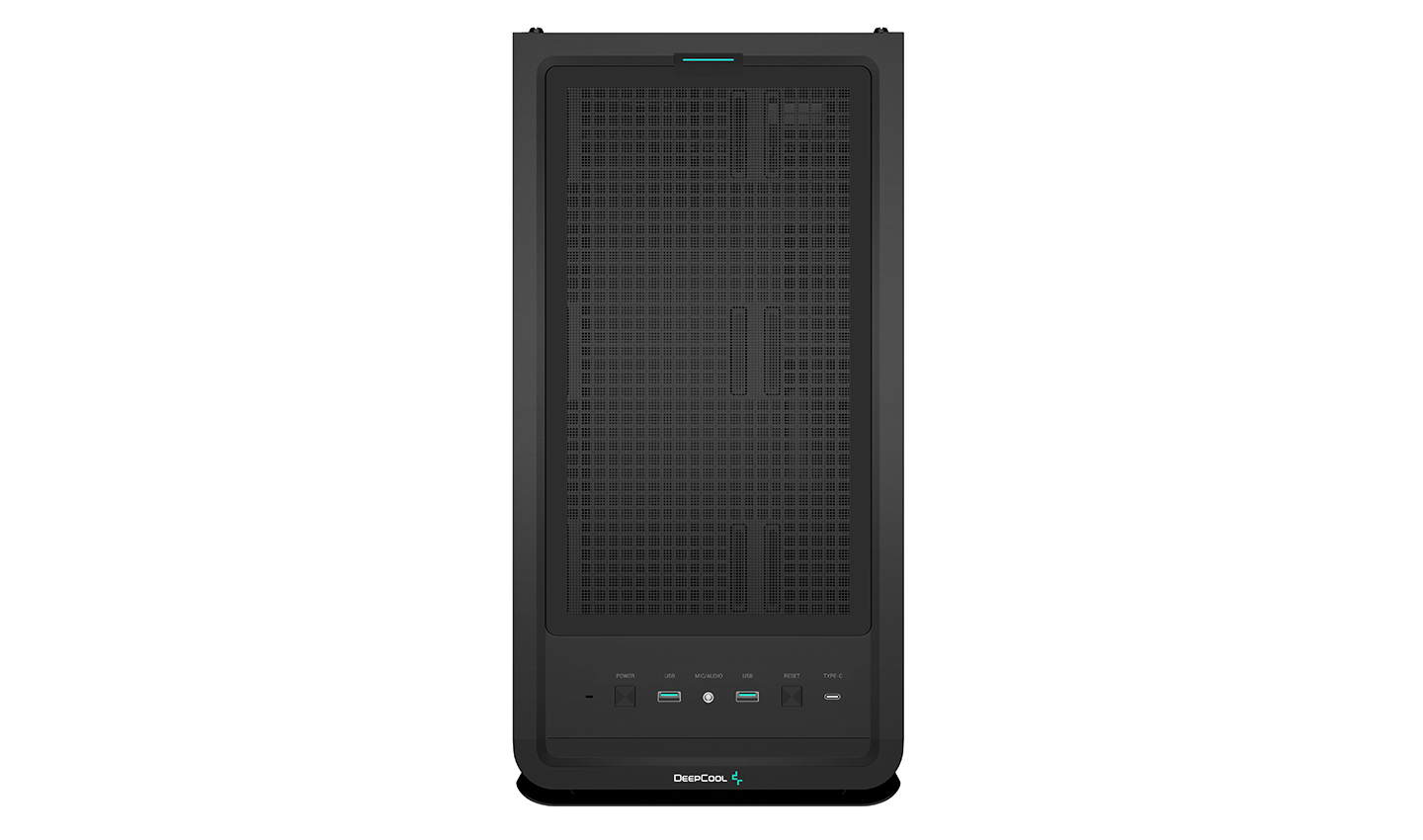

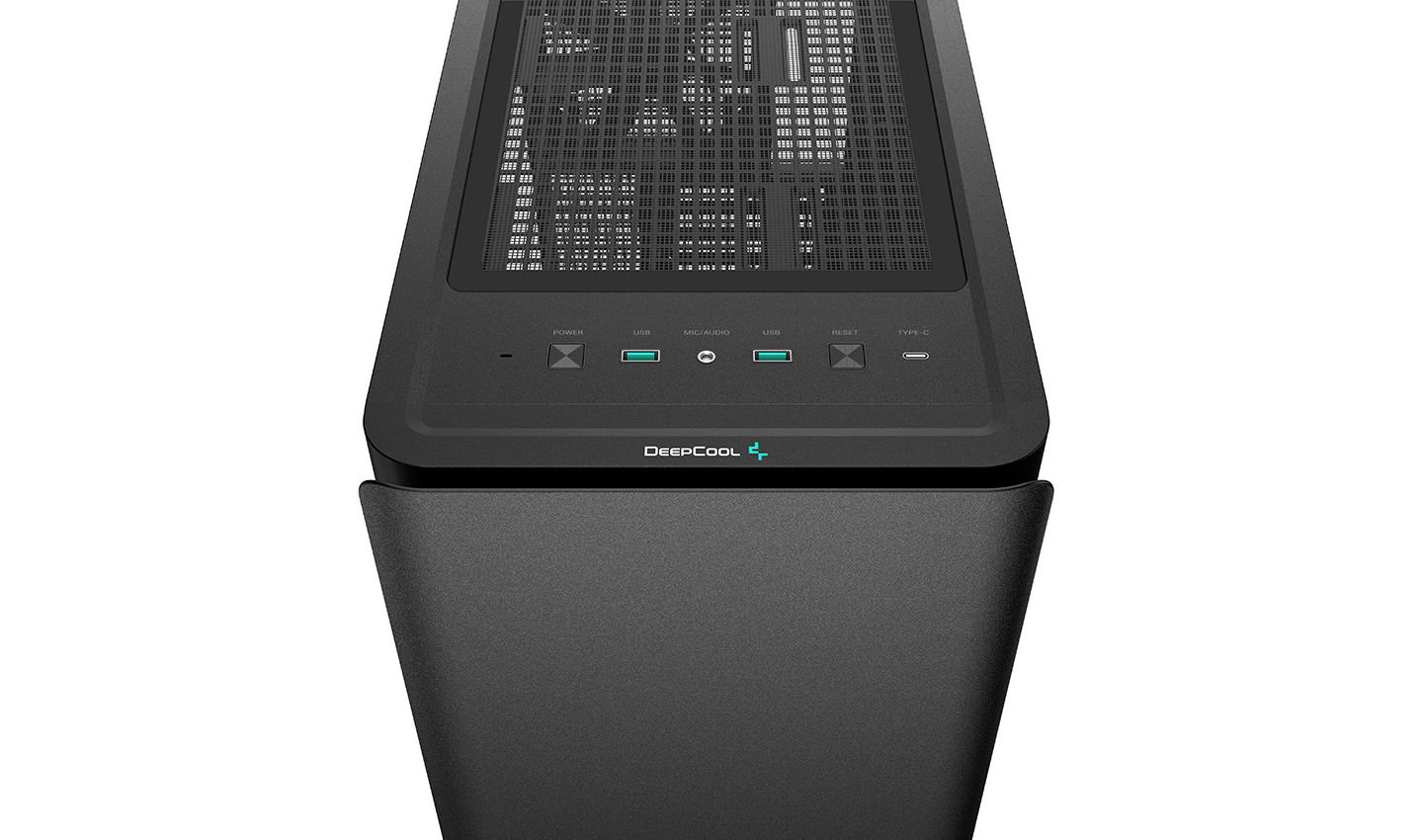

Modern Front I/O

Features two USB 3.0 ports, a single USB 3.1 Type-C port, and a combination audio jack for the most important connections up close.

Modern Front I/O

Features two USB 3.0 ports, a single USB 3.1 Type-C port, and a combination audio jack for the most important connections up close.

Technical Spec

Product Dimensions	456×230×471mm(L×W×H)
Net Weight	8Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	Mini-ITX / Micro-ATX / ATX / E-ATX
Front I/O Ports	USB3.0×2、Audio×1、TypeC×1
3.5" Drive Bays	2
2.5" Drive Bays	2
Expansion Slots	7 Slots
Pre-Installed Fans	Front: 1×140mm Rear: 1×140mm

Fan Support	Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120 / 1×140mm
Radiator Support	Front: 120/140/240/280/360mm Top: 120/140/240/280mm Rear: 120/140mm
CPU Cooler Height Limit	175mm
GPU Length Limit	380mm
Power Supply Type	ATX PS2 （maximum length: 160mm）
EAN Code	6933412714866
PN Code	R-CK500-BKNNE2-G-1
