MATREXX 50 MESH 4FS

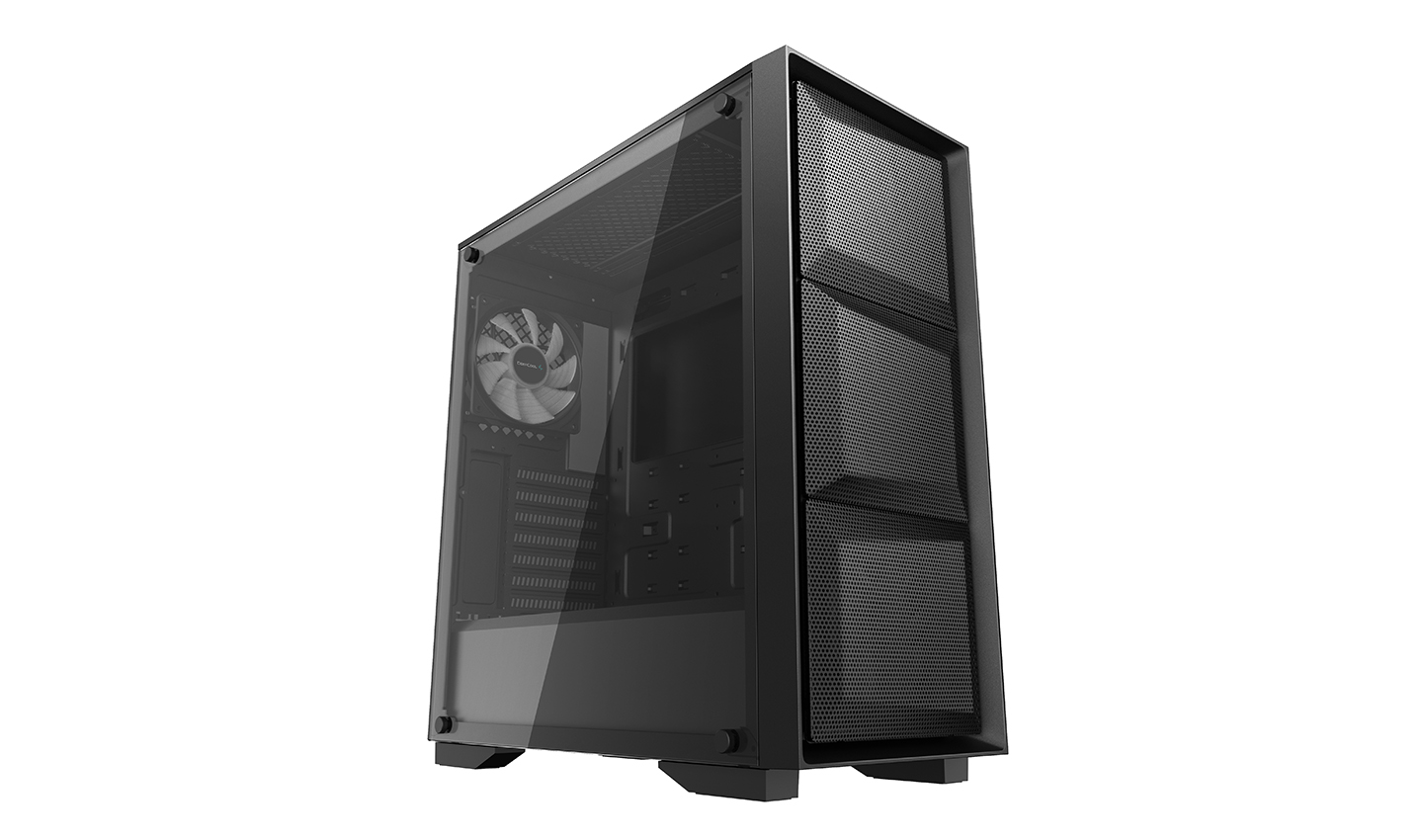

MATREXX 50 MESH 4FS is a high airflow case that comes with four tri-color LED fans, a solid tempered glass panel, and supports up to E-ATX motherboards.
COLOR
black
MODEL
MATREXX 50 MESH 4FS
The clear choice
MATREXX 50 MESH 4FS is a high airflow case that comes with four tri-color LED fans, a solid tempered glass panel, and supports up to E-ATX motherboards.

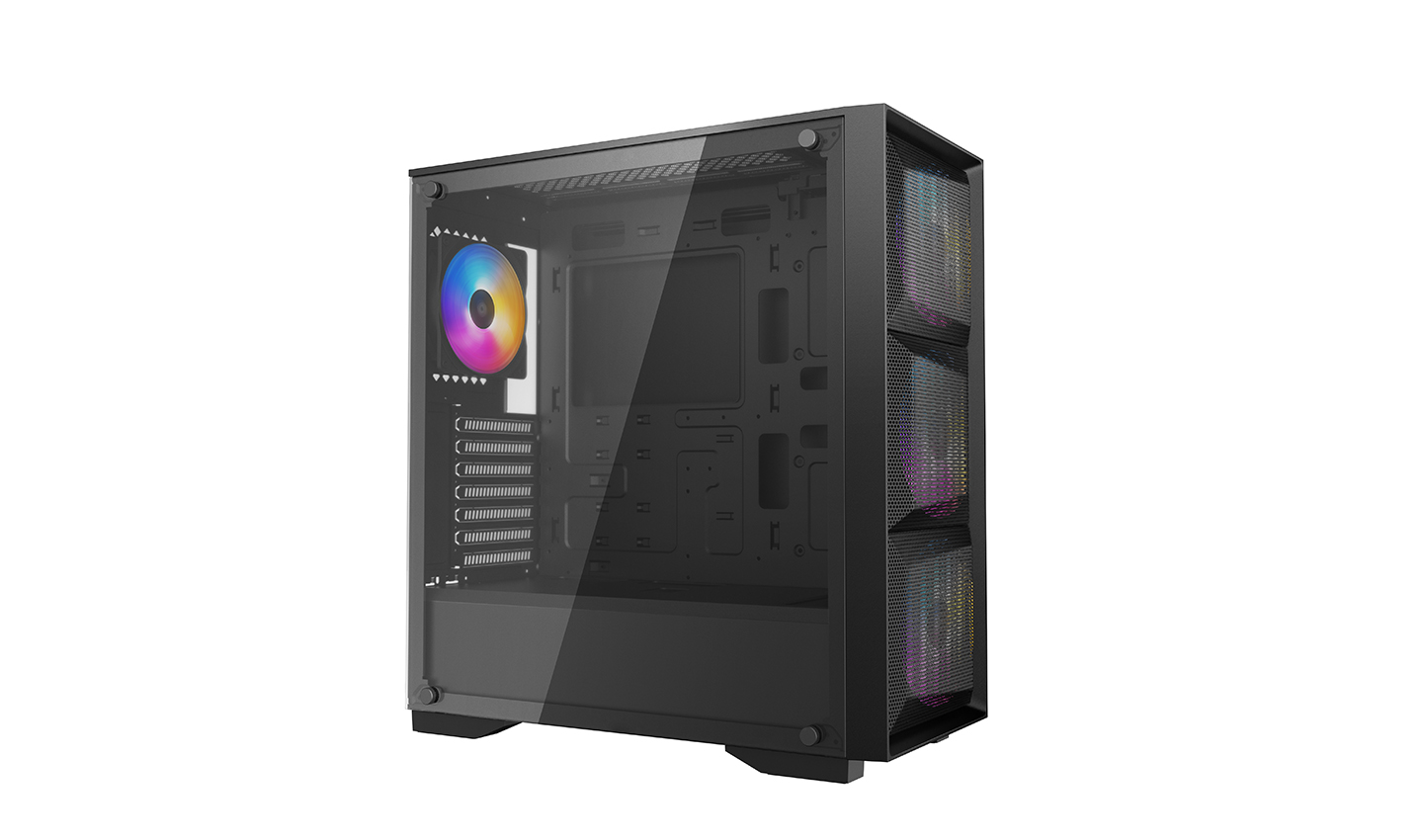

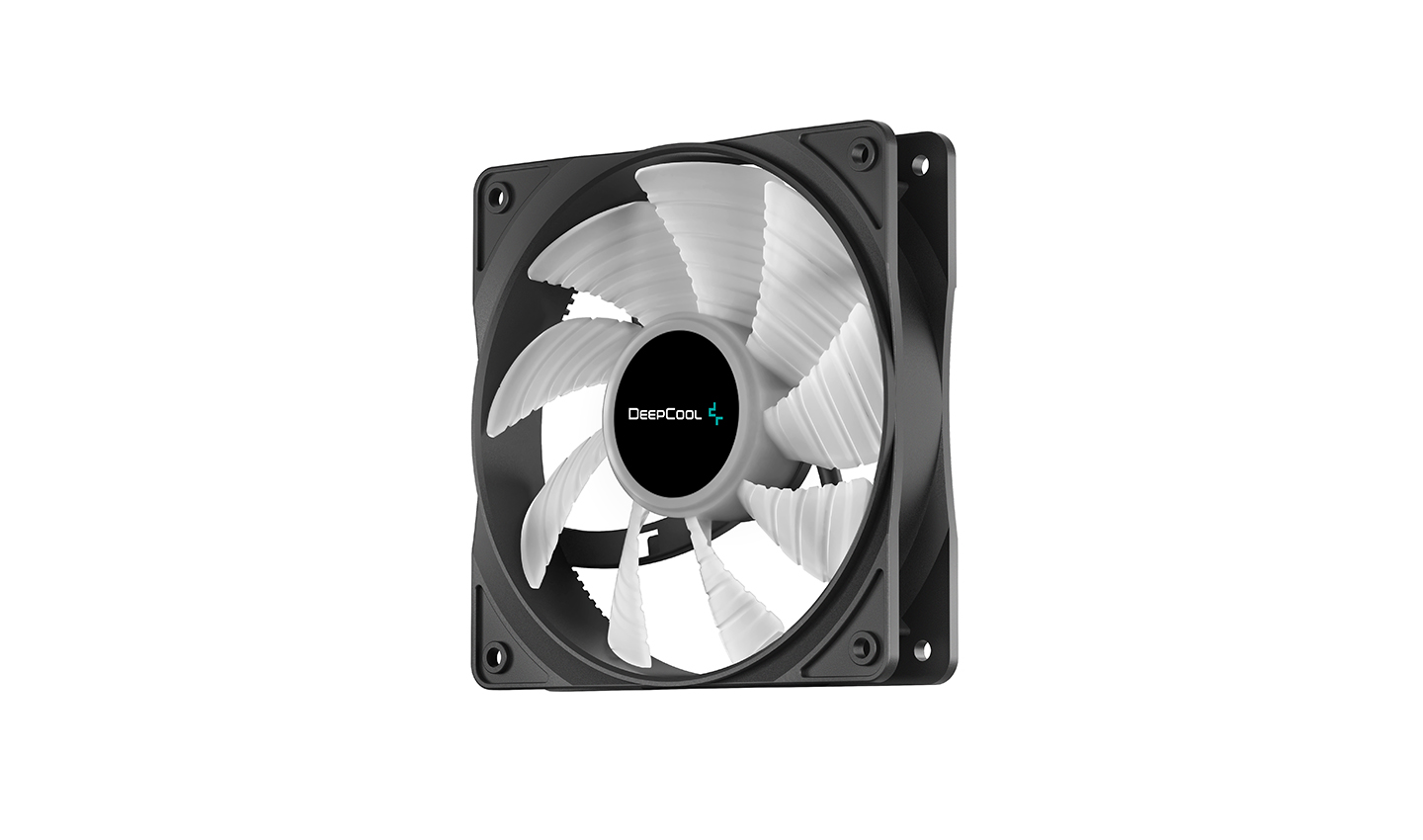

Four tri-color LED fans

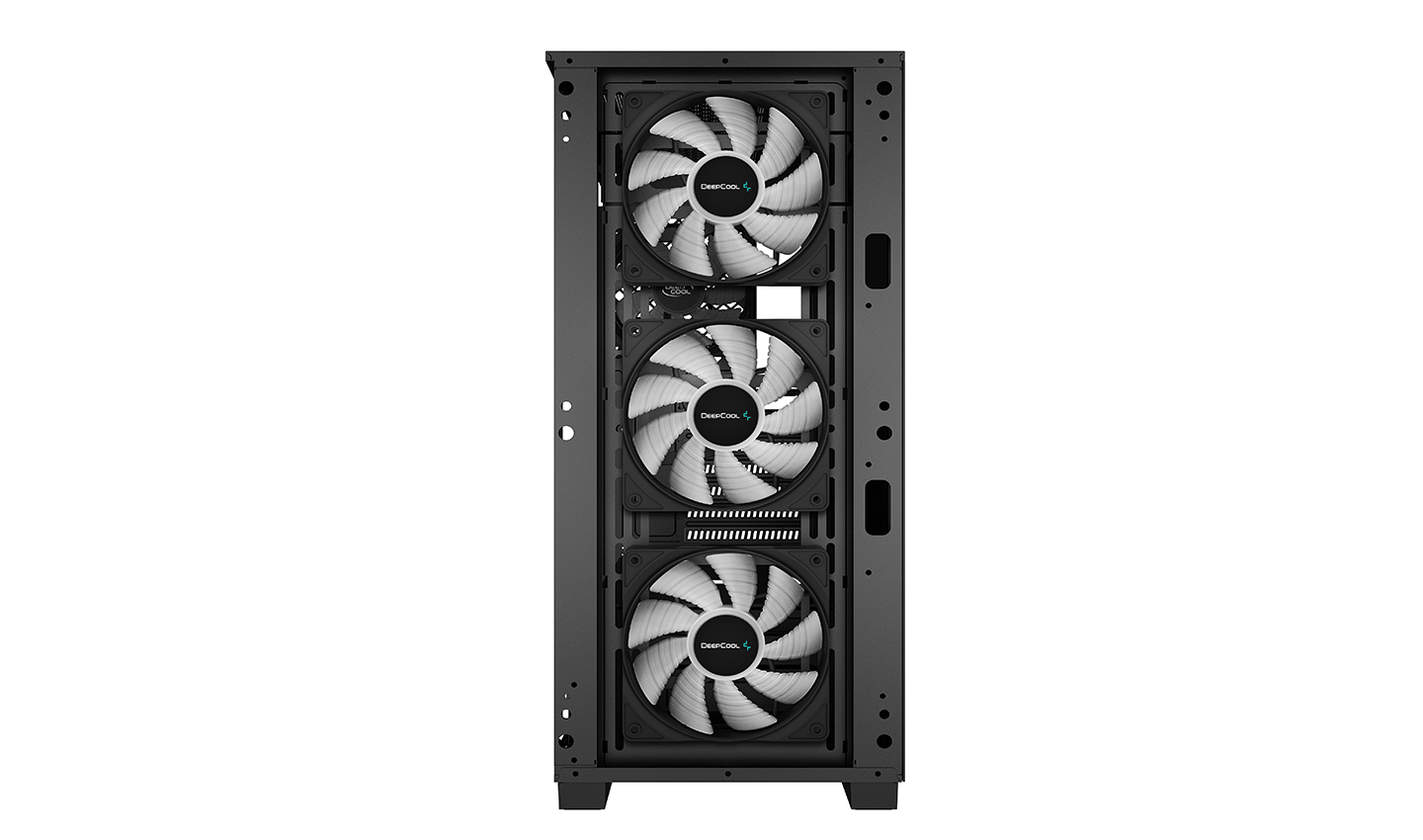

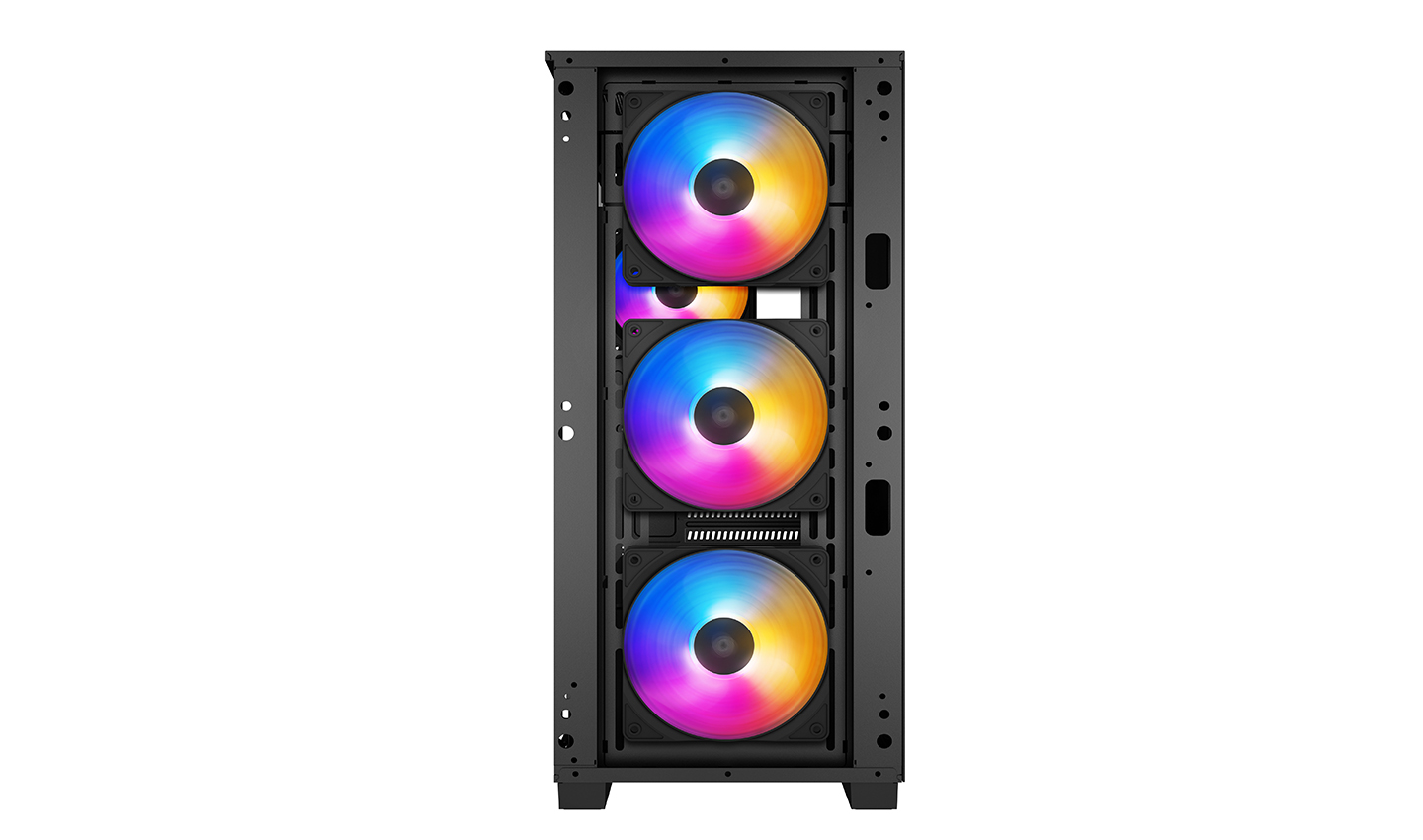

Four 120mm fans come pre-installed in the MATREXX 50 MESH 4FS with three at front and one at back. The fans are lit up with a preset tri-color LED combination, simply plug in the power and enjoy the visual experience.
Massive cooling capability
With support for up to six 120mm or five 140mm cooling fans and also radiators up to 360mm installed in front or 240mm on top, the MATREXX 50 MESH 4FS provides ample cooling configurations.
High airflow design

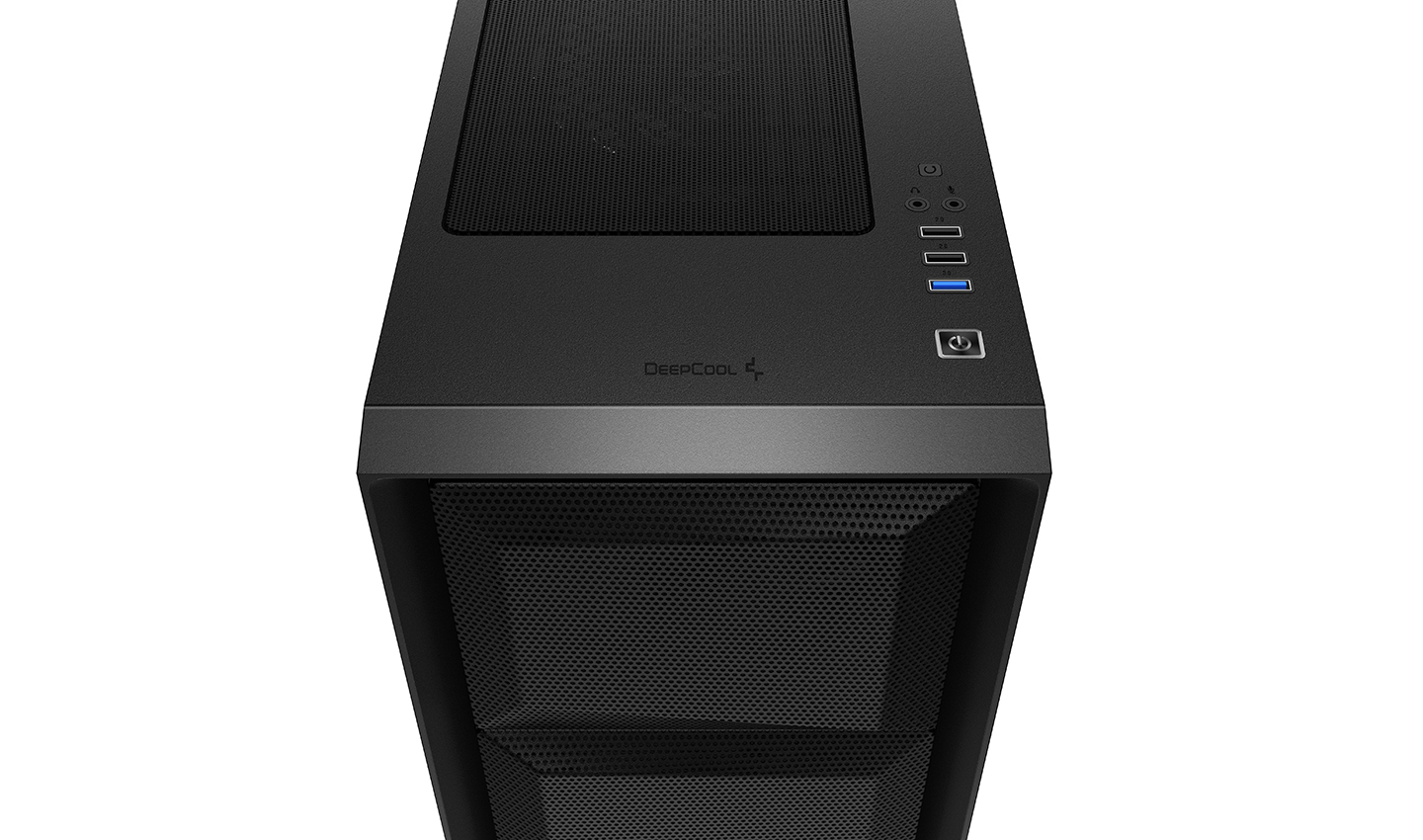

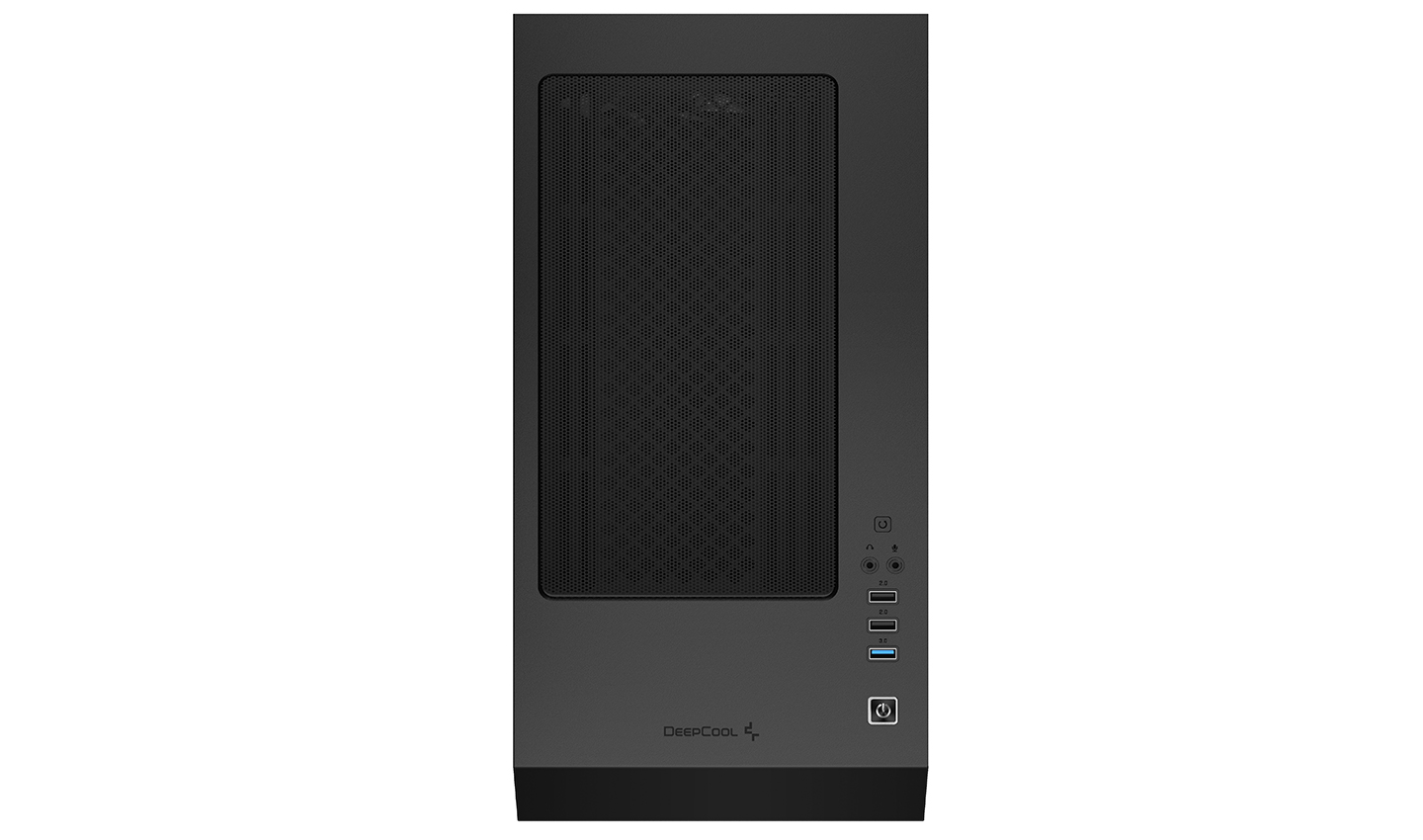

Featuring a mesh front panel with a dust filter to supply abundant airflow to solve any thermal throttling. The magnet-mounted dust filter provided at the top panel, offers users easy removal and cleaning.

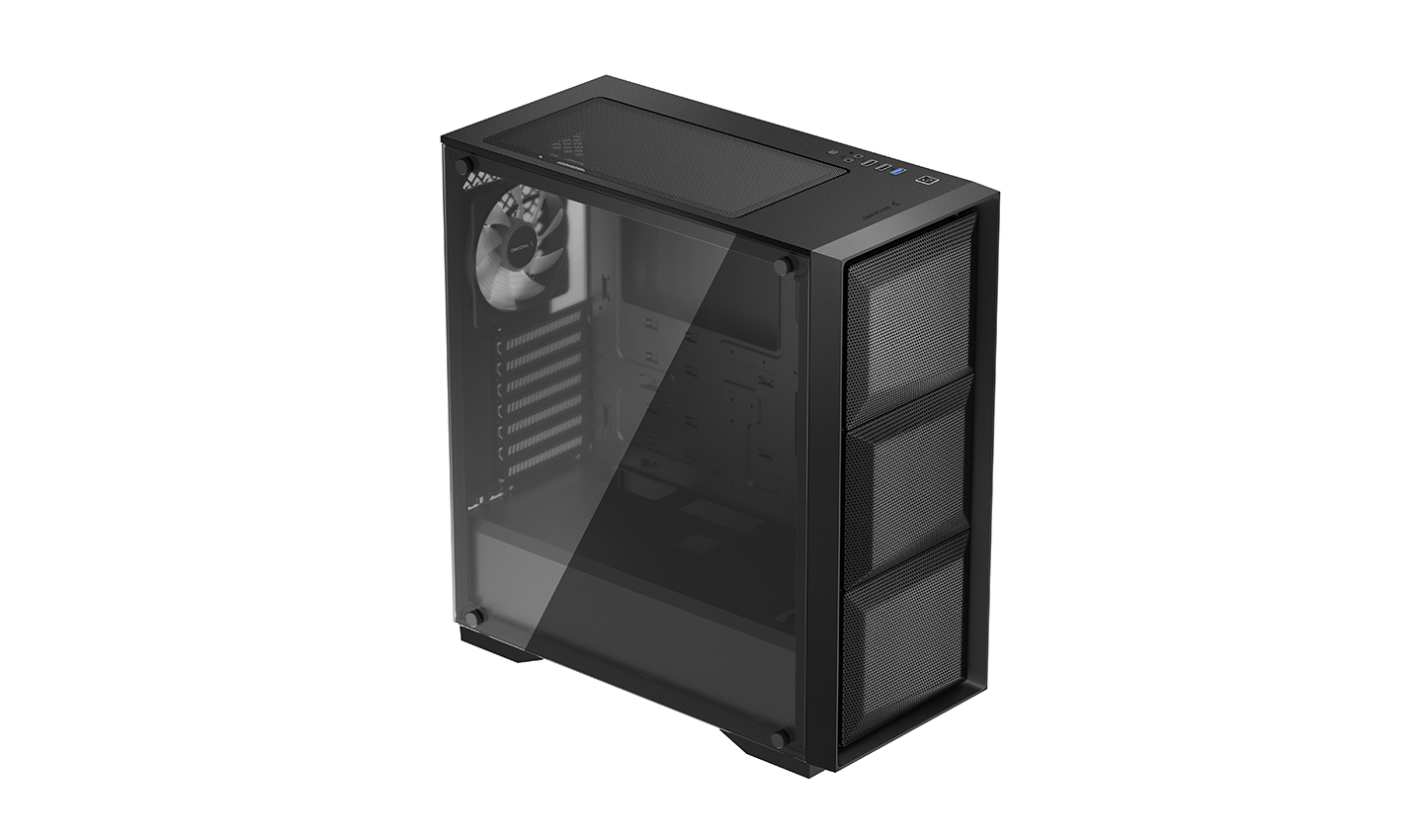

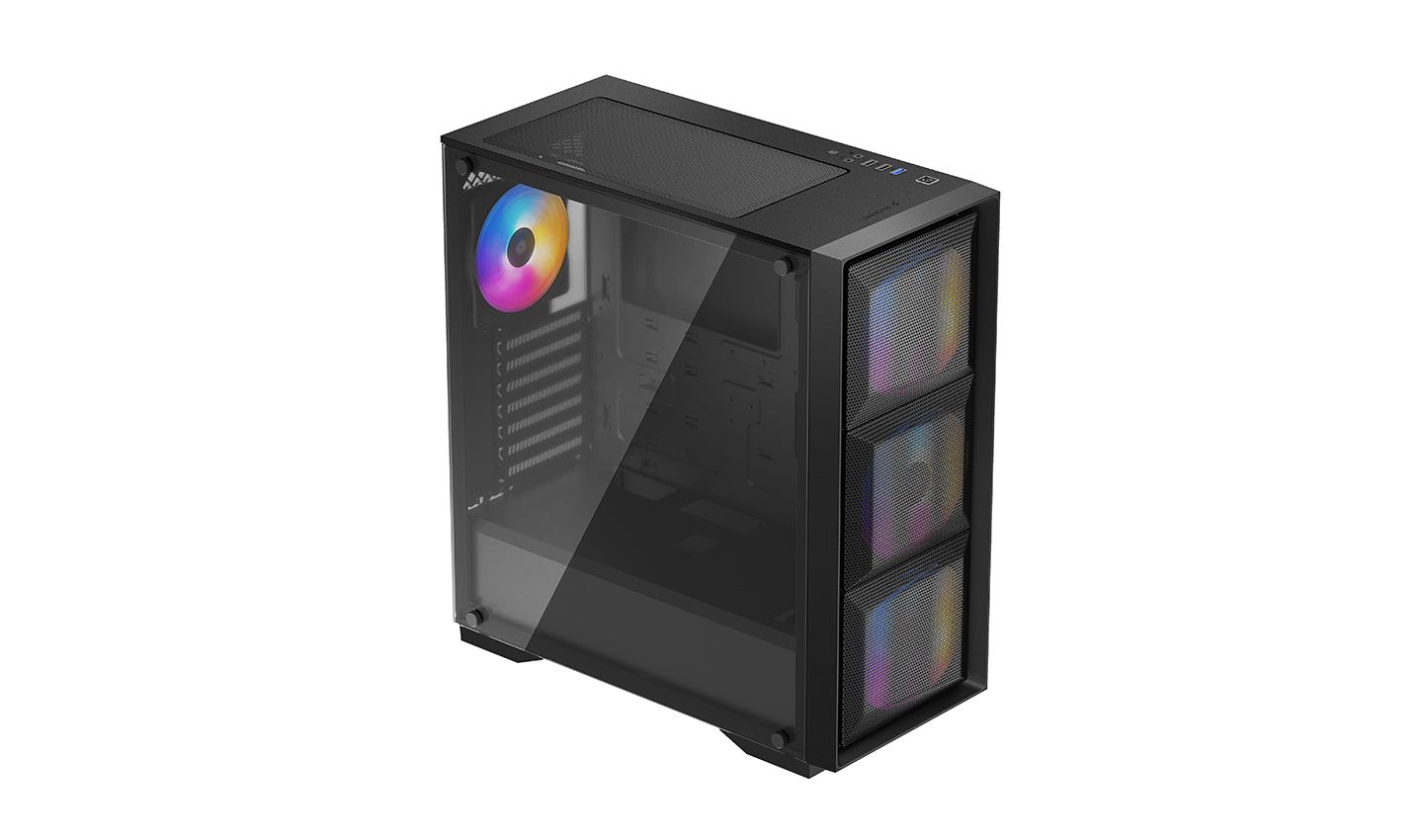

4mm thick tempered glass
Full-sized 4mm thick tempered glass side panel provides a clear view of your build.
PSU Shroud
Equipped with a PSU shroud to keep eliminate unsightly cables.

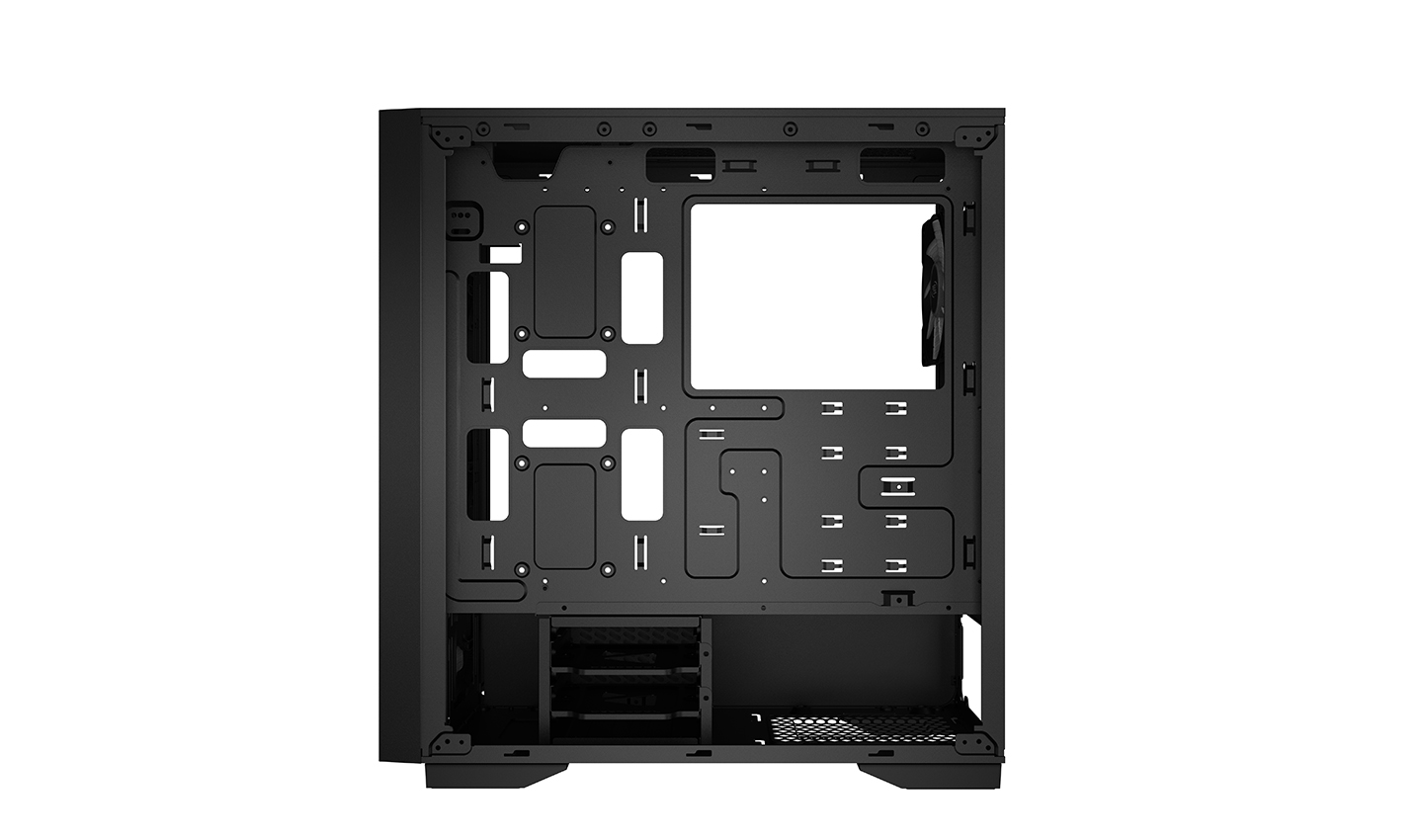

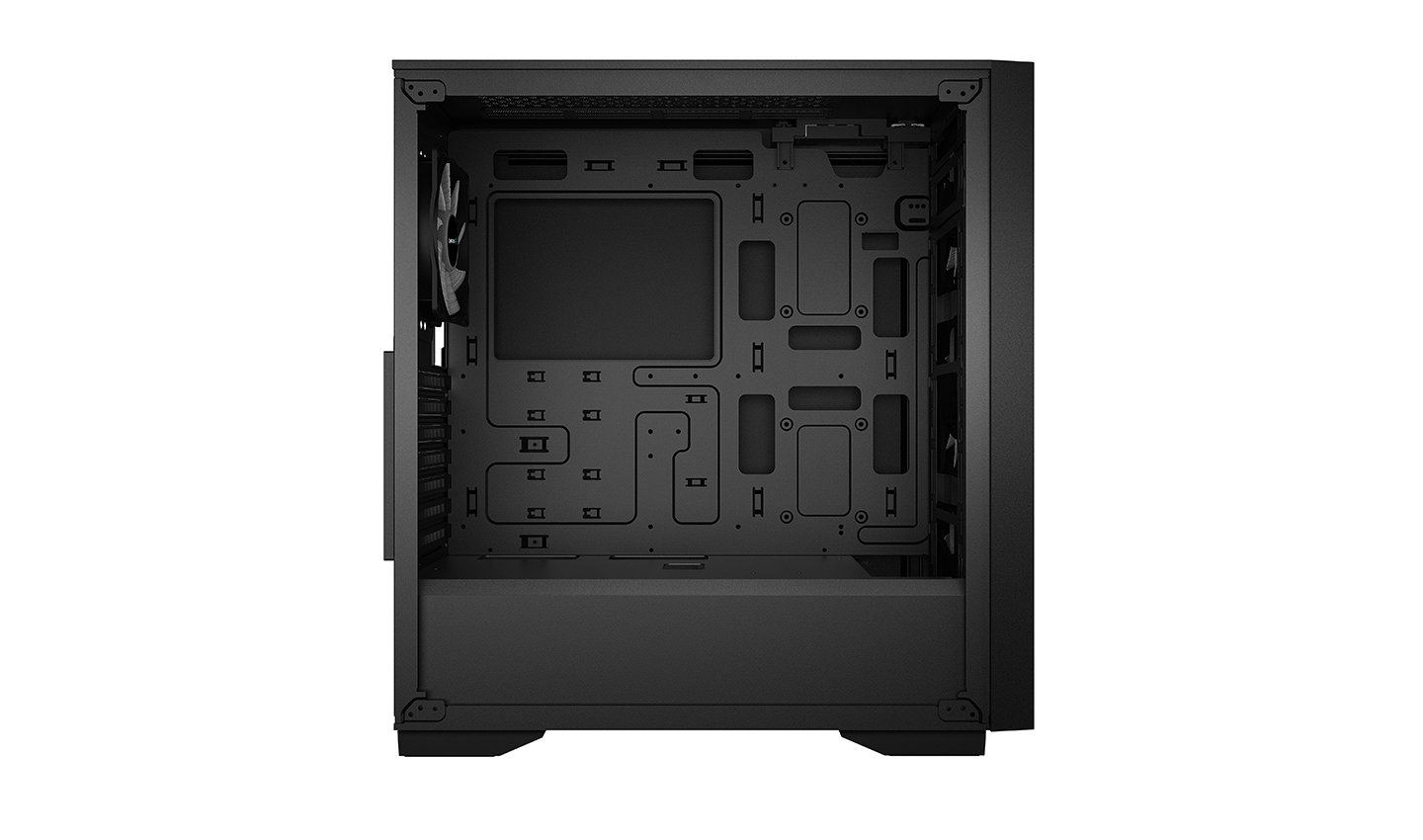

Easy cable management
Cable management is easy with a 210mm wide tower compartment and 24mm cable clearance.
Great Clearance
GPU 370mm
CPU COOLER 160mm
PSU 170mm
GPU 370mm
CPU COOLER 160mm
PSU 170mm
ADDITIONAL STORAGE OPTIONS
The MATREXX 50 MESH 4FS supports up to four 2.5" SSDs and two 3.5" HDDs through a removable drive cage.
ADDITIONAL STORAGE OPTIONS
The MATREXX 50 MESH 4FS supports up to four 2.5" SSDs and two 3.5" HDDs through a removable drive cage.
Technical Spec
System Board¹ Mini-ITX / Micro-ATX / ATX / E-ATX
Case Type Middle Tower
Product Dimensions 442X210X479mm
Carton Dimensions 515X275X510mm
Net Weight 7.31Kg
Gross Weight 8.6Kg
Materials ABS+SPCC+Tempered Glass
3.5" Drive Bays 2
2.5" Drive Bays 2+2
External 3.5'' Drive Bays 0
5.25" Drive Bays 0
Power Supply Type ATX PS2 (Length less than 170mm)
I/O Ports USB2.0×2、USB3.0×1、Audio×1、Mic×1
Expansion Slots 7 Slots
Cooling Fans Support Pre-installed: Front:120×3mm LED fan; Rear:120mm x1 LED fan；Front:140mm×3/120mm×3; Top:140mm×2/120mm×2；Rear：120mm×1
Liquid Cooler Support Front: 120/140/240/280/360mm; Top: 120/140/240mm ; Rear: 120mm
CPU Cooler Height Limit 160 mm
VGA Length Limit 370mm Horizontal/340mm Vertical
Cable Management 24mm clearance
EAN Code 6933412714729
PN Code DP-ATX-MATREXX50-MESH-4FS
