MATREXX 55 MESH V4 C
The MATREXX 55 MESH V4 C is a modern version of the classic MATREXX 55 cases that have been a favorite of system integrators and end users alike.
COLOR
black
MODEL
MATREXX 55 MESH V4 C
A MODERN TAKE ON A CLASSIC CASE
A CLASSIC DESIGN THAT CANT BE DENIED

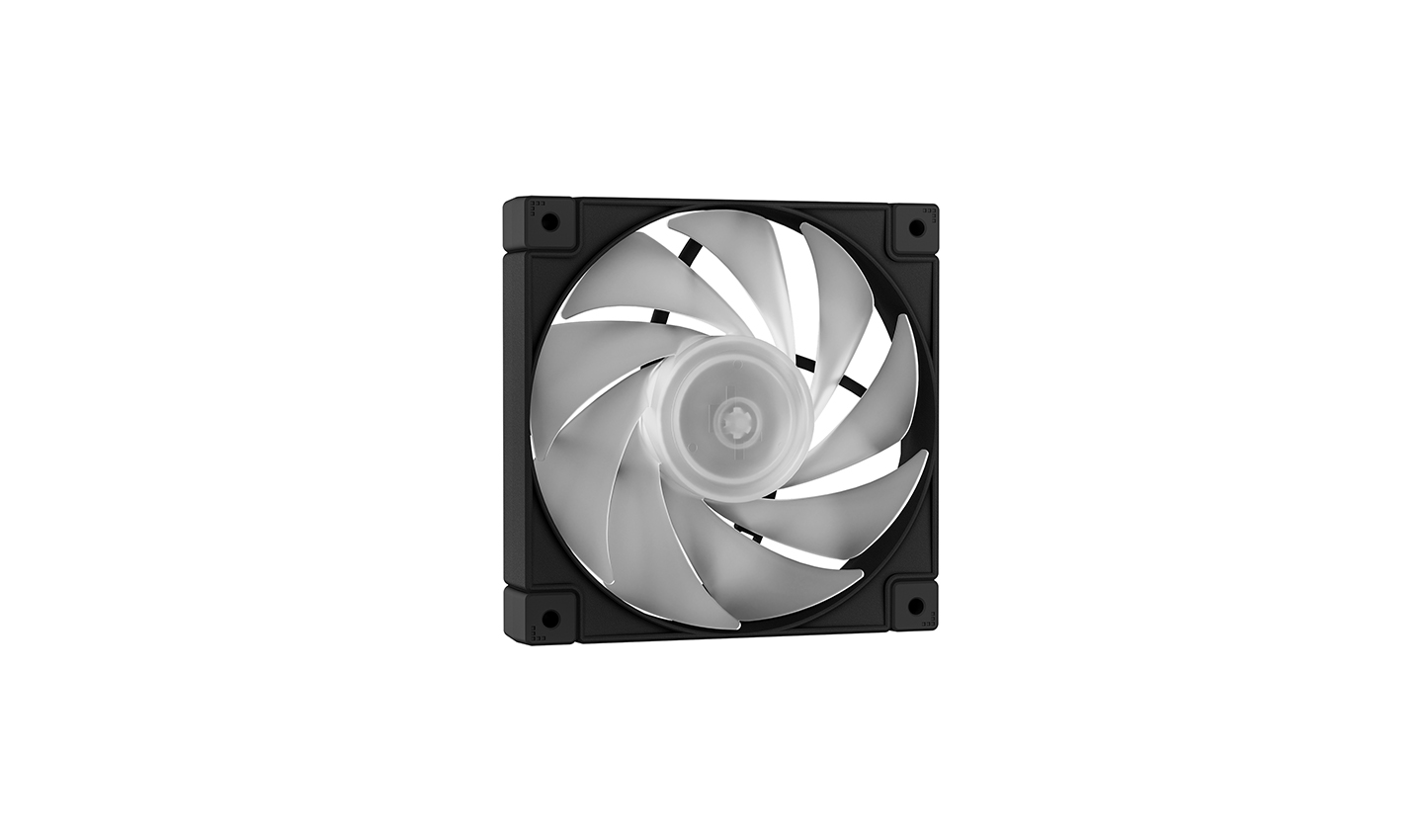

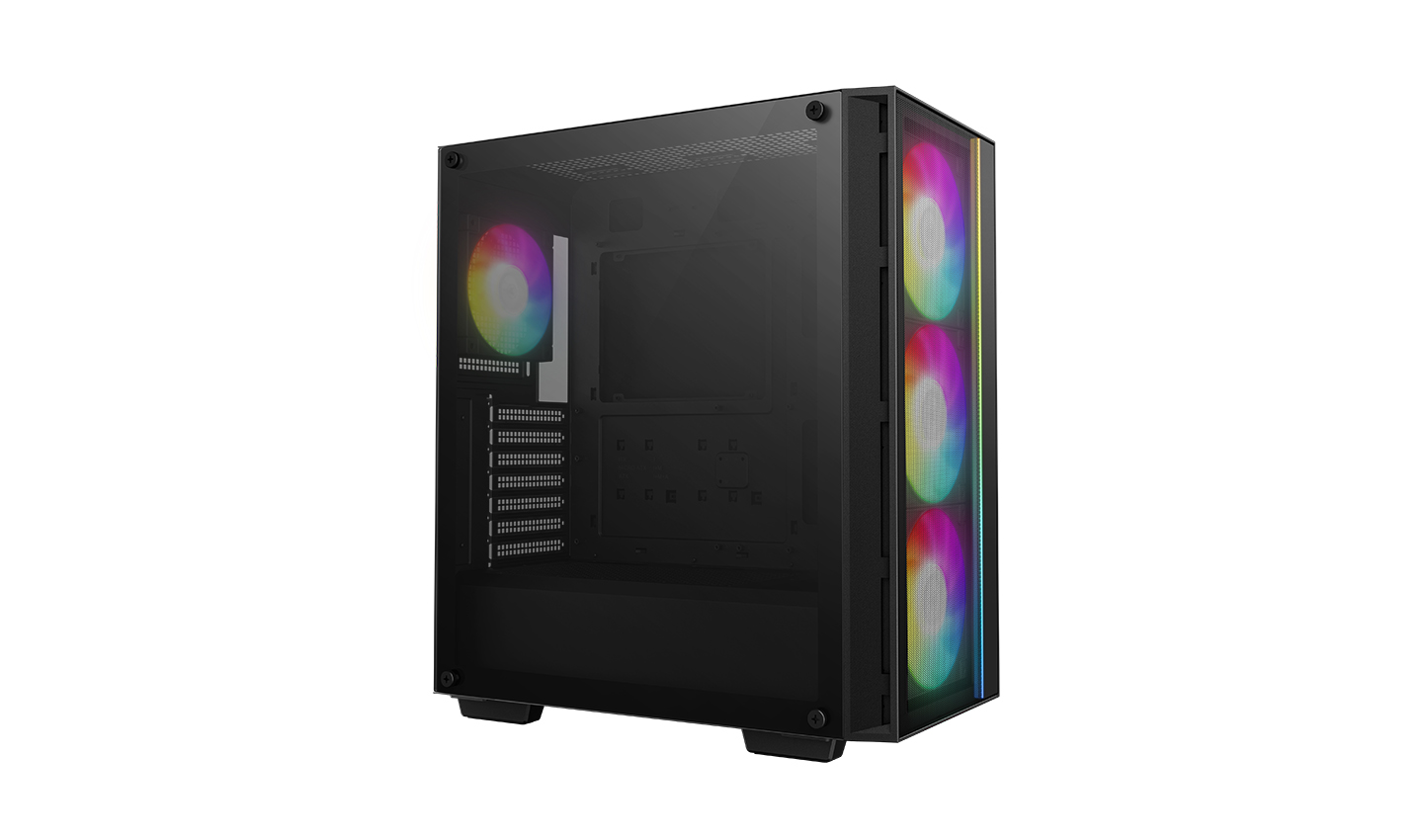

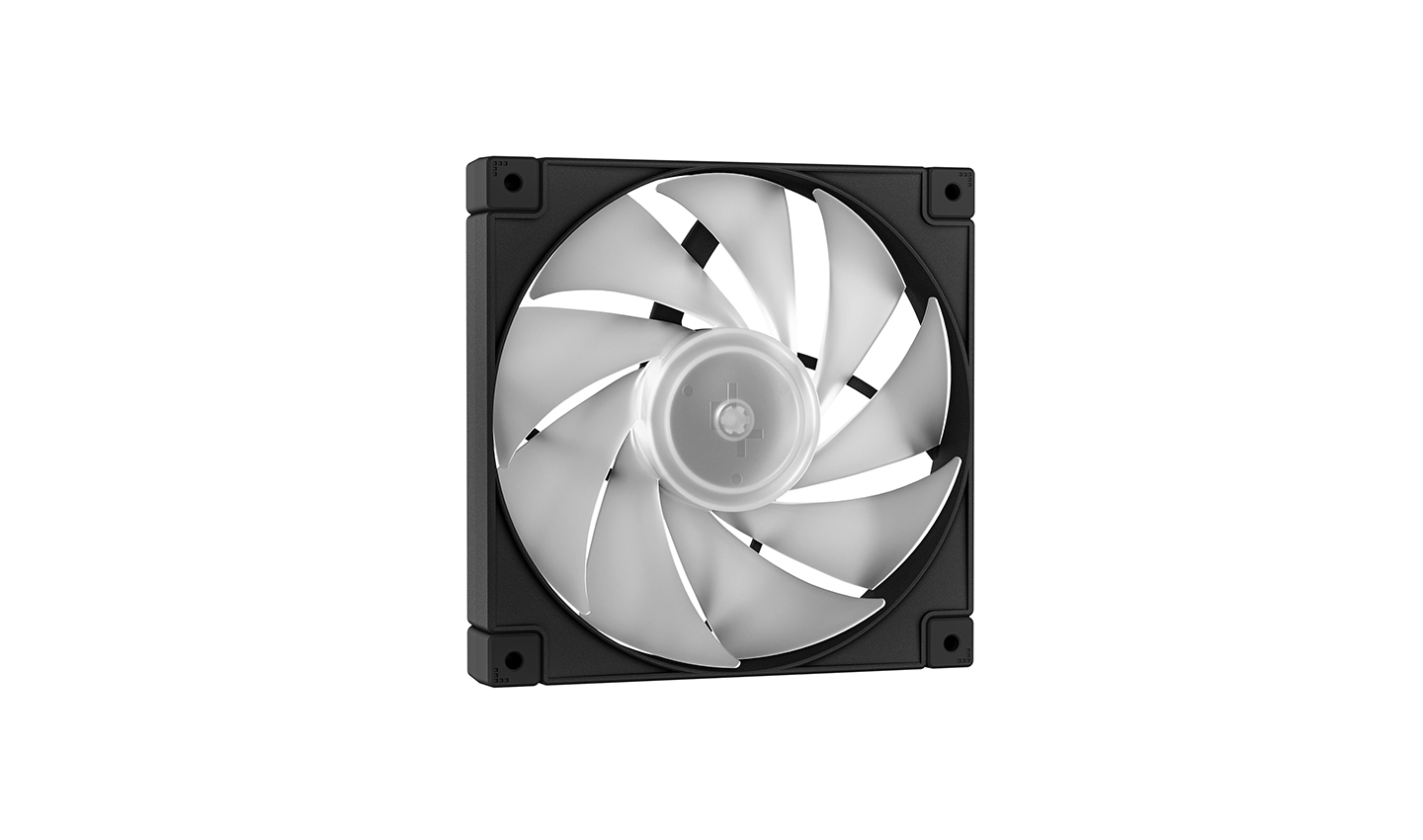

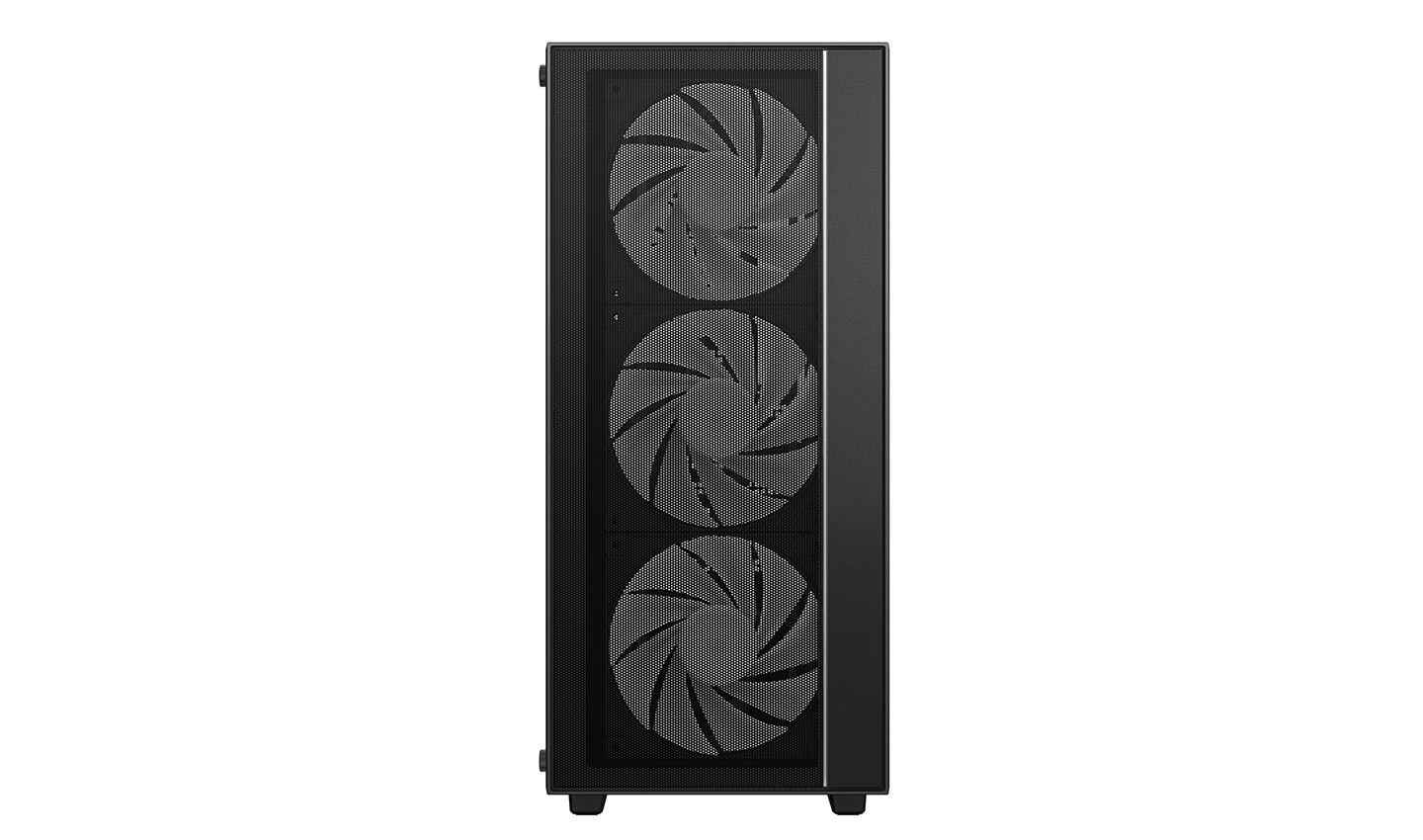

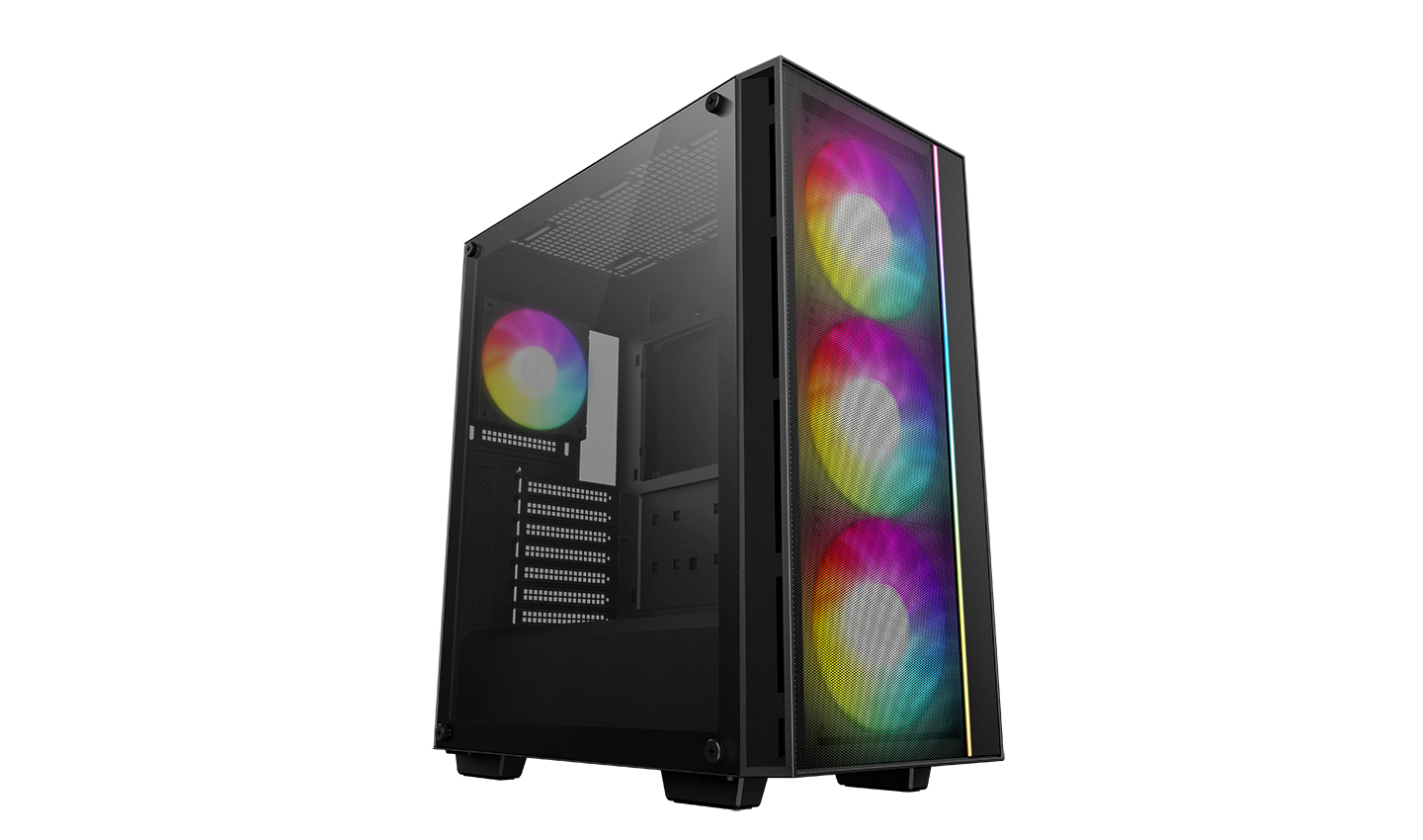

The familiar look of the front ARGB fans and front LED strip running down the right side is present, but the fans have been updated to three 140mm PWM-enabled fans in the front and a 120mm ARGB fan in the rear. The high-flow mesh front panel ensures that your system will take full advantage of those 140mm front fans.
MAXIMUM SUPPORT FOR COMPONENTS
With support for up to ATX motherboards, radiators up to 360mm, 165mm tall air coolers, 170mm PSUs, and 370mm long GPUs, finding compatible components will be easier than ever before.
OPTIONAL COOLING CONFIGURATIONS
With the massive heat that current high-end components are producing in this modern era, having a great mix of compatible cooling configurations is a must. The MATREXX 55 MESH V4 C doesn't skimp on the most common-sized options.
Fans
Radiators
Fans:
Front: 3x120/3x140mm
Top: 2x120/2x140mm
Rear: 1x120mm
PSU Shroud: 2x120mm
Radiator:
Front: 120/140/240/280/360mm
Top: 120/140/240/280mm
Rear: 120mm

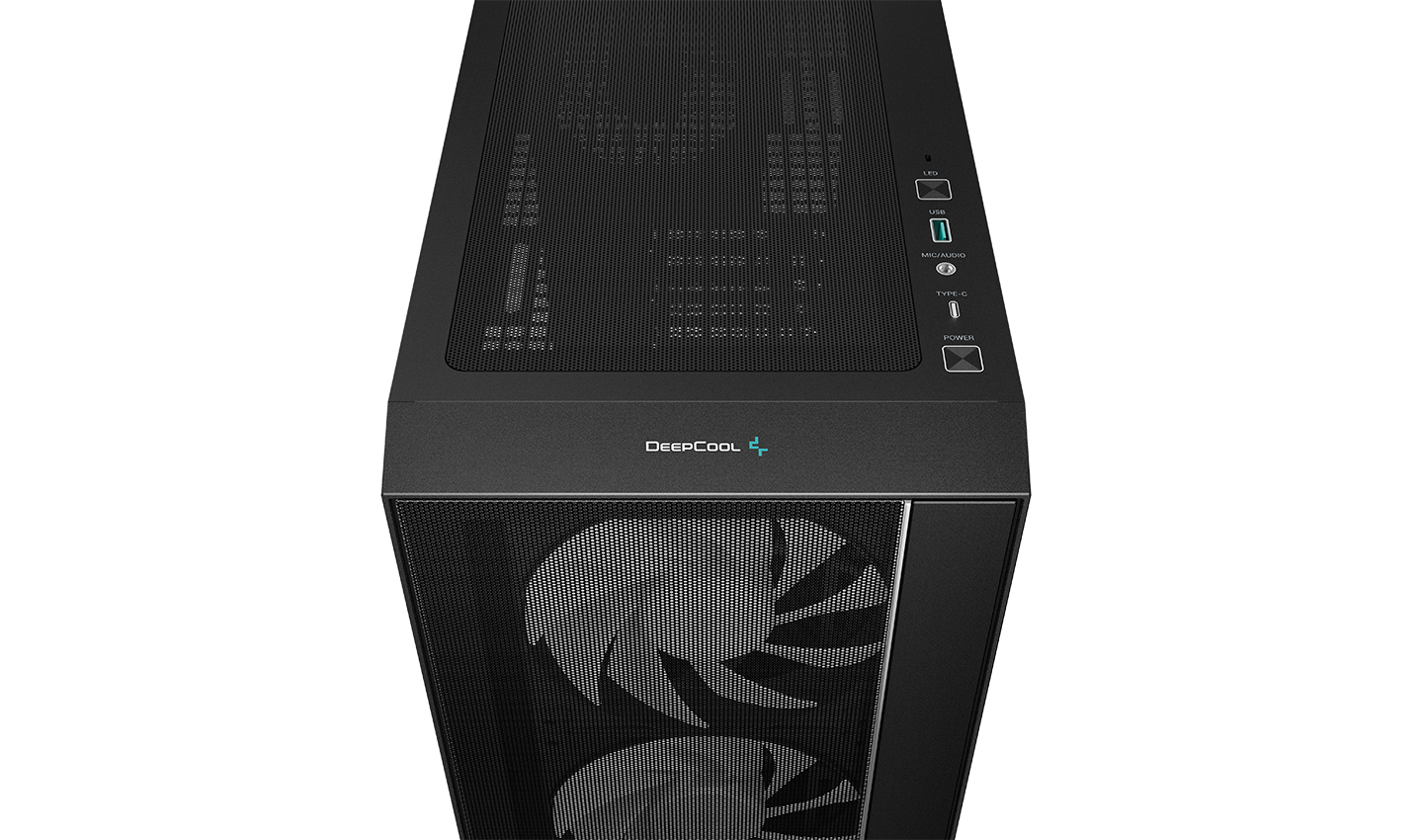

CONVENIENT PORTS AND CONTROL
For your convenience, the MATREXX 55 MESH V4 C comes with a host of ports and ARGB controls in the I/O panel. You will find an easily accessible USB 3.0 port, a Type-C port, a hybrid audio port, as well as the ARGB LED controller button within arm's reach.
FLEXIBLE STORAGE SOLUTIONS
The storage drive solutions can be used in various ways, as each 3.5" drive bay can be converted into a 2.5" bay (for example, 2x3.5"+2*2.5" bays or 1x3.5"+3x2.5" bays). The entire HDD cage can even be removed to increase PSU length clearance.
Technical Spec
Product Dimensions421×215×483mm(L×W×H)
Net Weight6.5Kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportMini-ITX / Micro-ATX / ATX
Front I/O PortsUSB3.0×1、Audio×1、Type-Cx1
3.5" Drive Bays2
2.5" Drive Bays2+1
Expansion Slots7Slots
Pre-Installed FansFront: 3×140mm ARGB PWM
Rear: 1×120mm ARGB PWM
Fan SupportFront: 3x120mm/3×140mm
Top: 2×120mm/2x140mm
Rear: 1×120mm
PSU Shrouded: 2×120mm
Radiator SupportFront: 120/140/240/280/360mm
Top: 120/140/240/280mm
Rear: 120mm
CPU Cooler Height Limit165mm
GPU Length Limit370mm
Power Supply TypeATX PS2（maximum length: 170mm）
EAN6933412774334
P/NR-MATREXX55-BCAGA4-G-4
Download
MATREXX 55 MESH V4 C Manual.pdf
