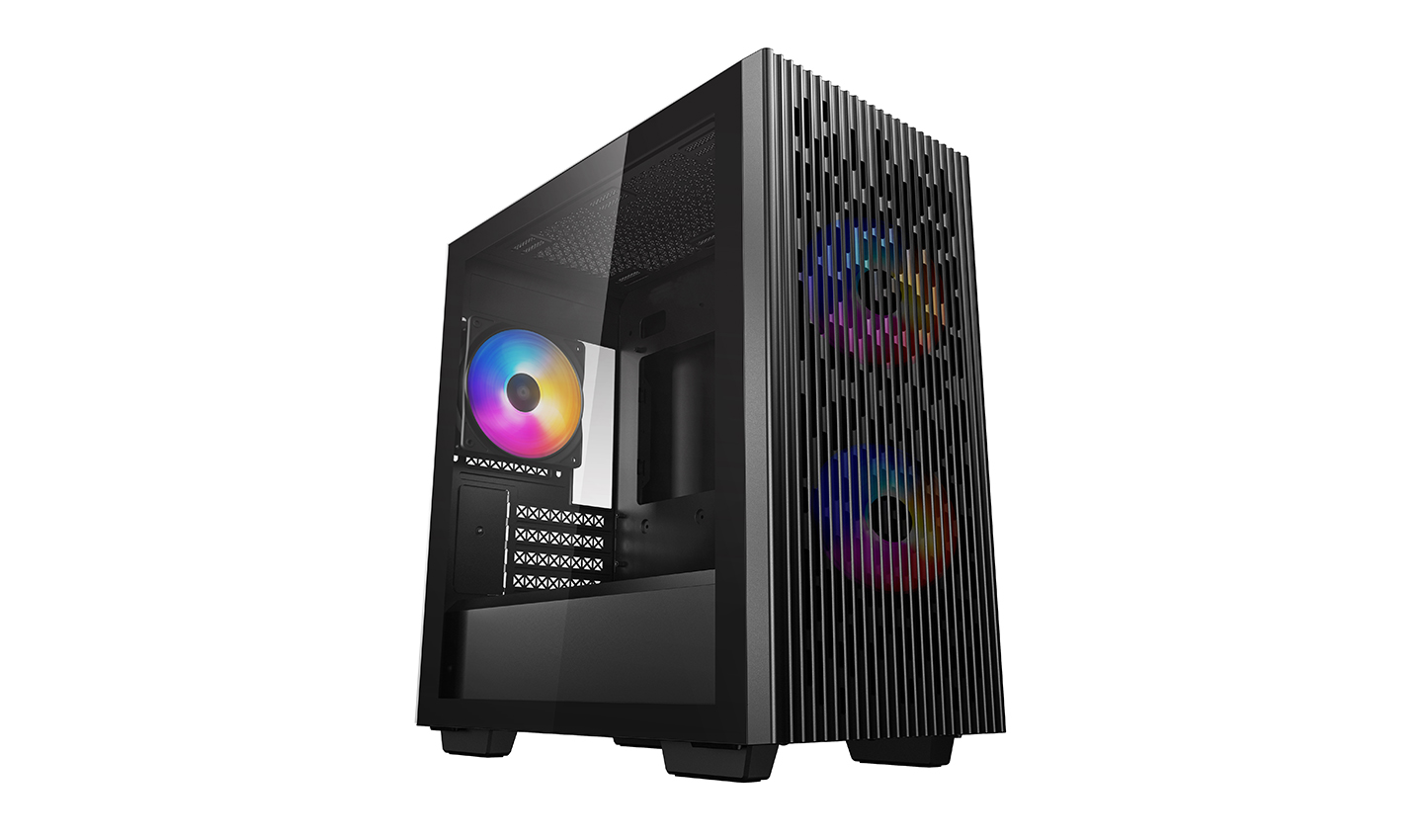

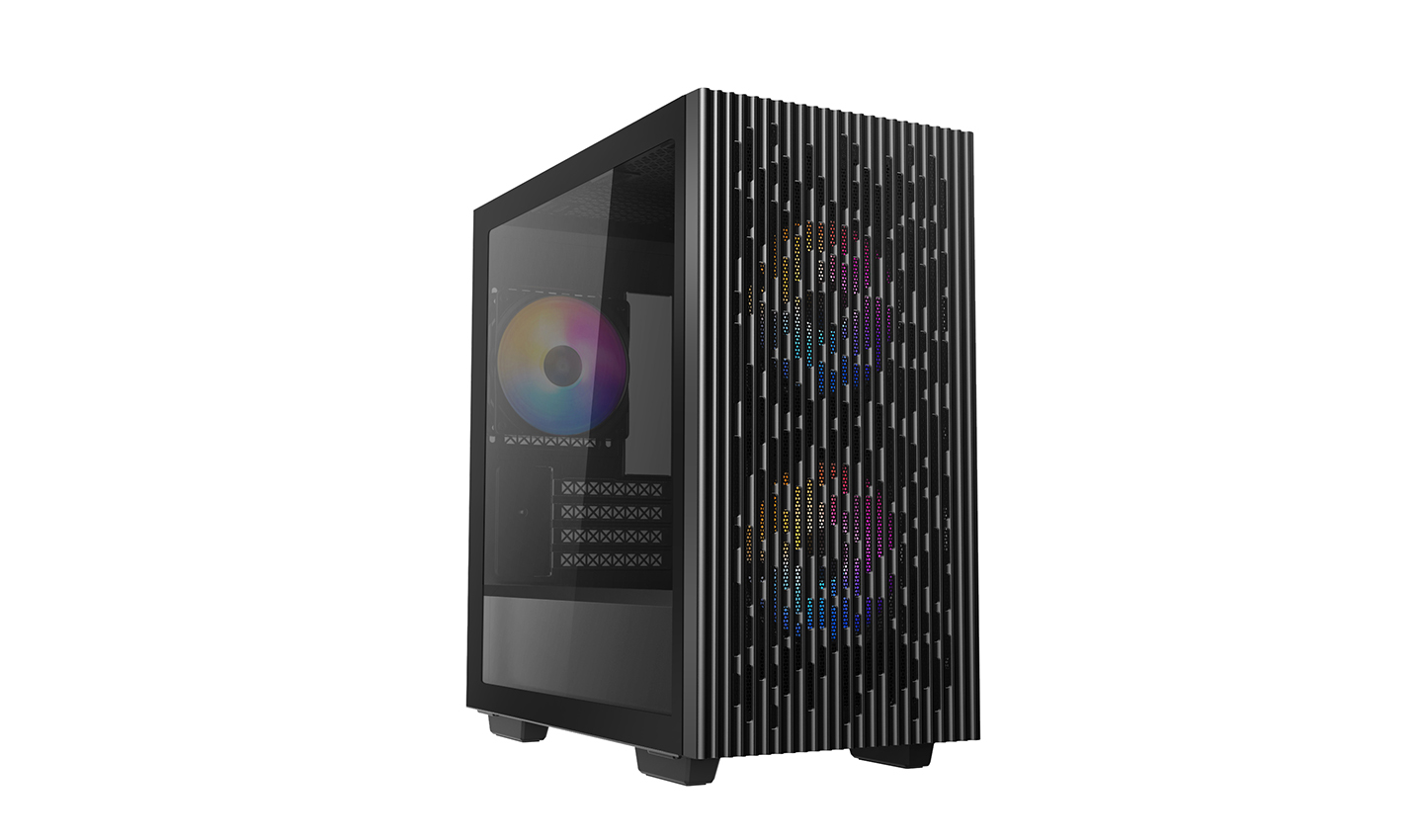

MATREXX 40 3FS
The MATREXX 40 3FS Micro-ATX case packs massive value in a tiny chassis with impressive cooling support for max airflow, three tri-color LED fans and a solid tempered glass panel.
COLOR
black
MODEL
MATREXX 40 3FS
Essential Micro-ATX
The MATREXX 40 3FS Micro-ATX case packs massive value in a tiny chassis with impressive cooling support for max airflow, three tri-color LED fans and a solid tempered glass panel.
Substantial cooling capability
With support for up to six 120mm or four 140mm cooling fans and also radiators up to 280mm installed on top or in front, the MATREXX 40 3FS provides ample cooling configurations.
  • Fan Support
  • Radiator Support

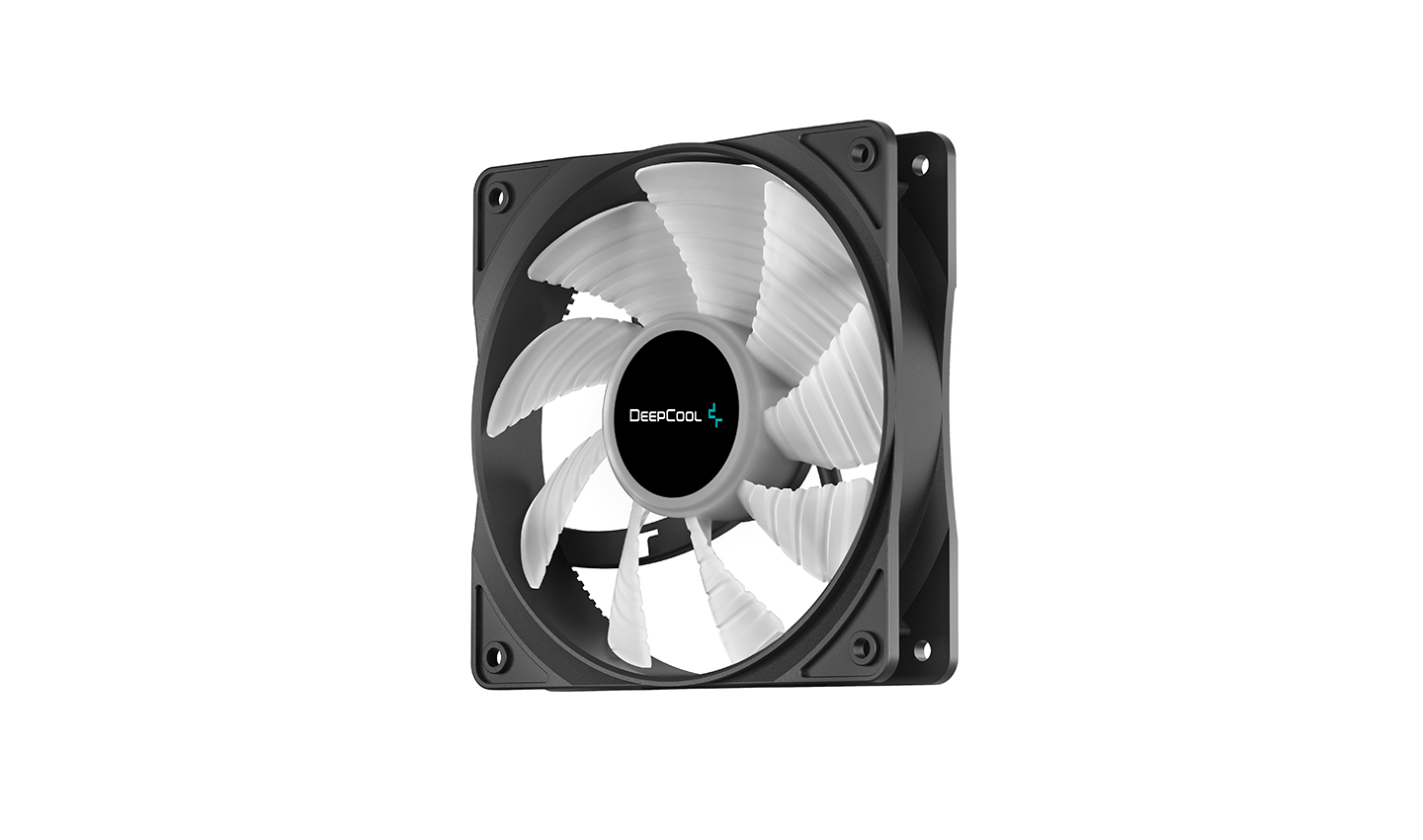

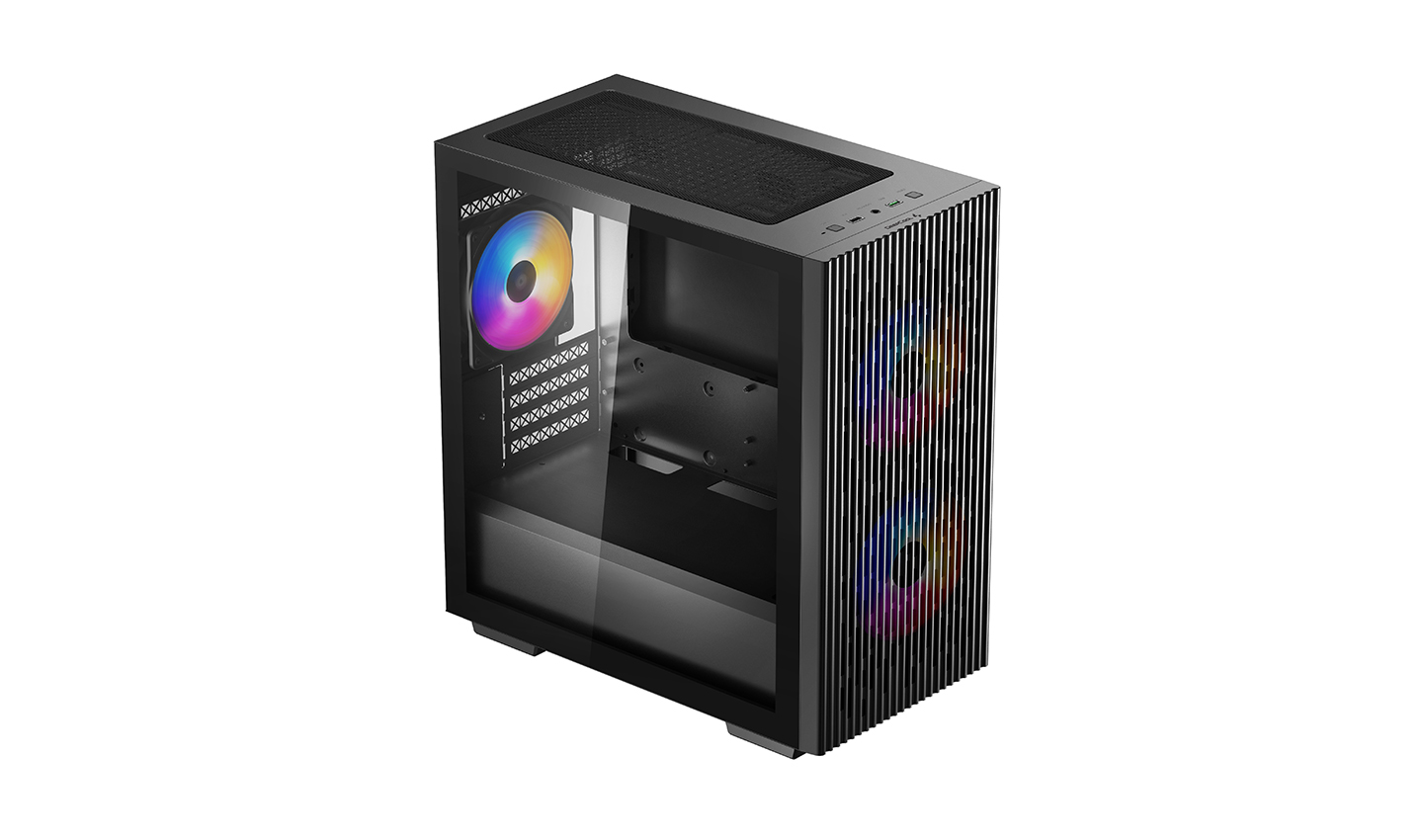

Three tri-color LED fans

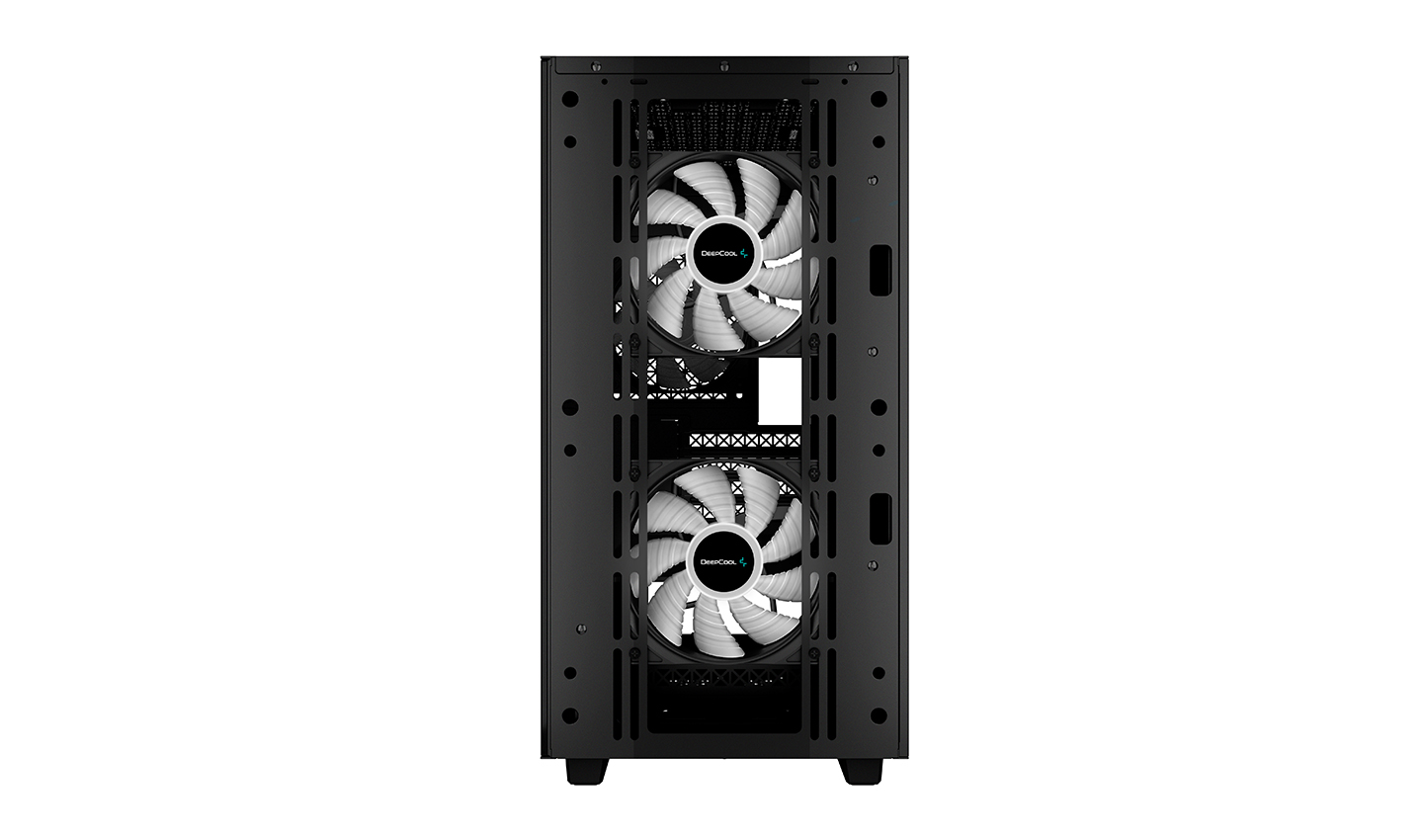

Three 120mm fans come pre-installed in the MATREXX 40 3FS with two at front and one at back. The fans are lit up with a preset tri-color LED combination, simply plug in the power and enjoy the visual experience.

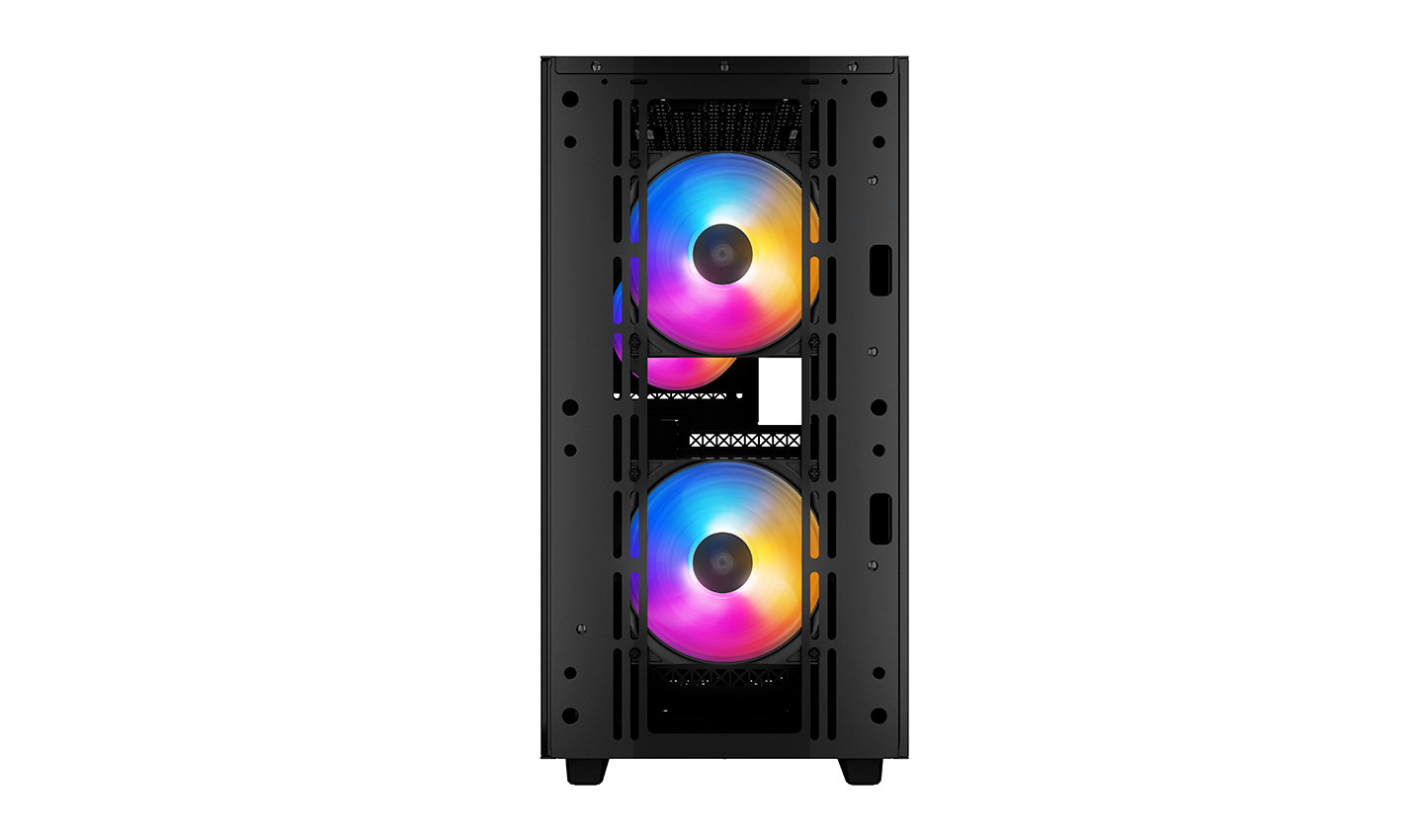

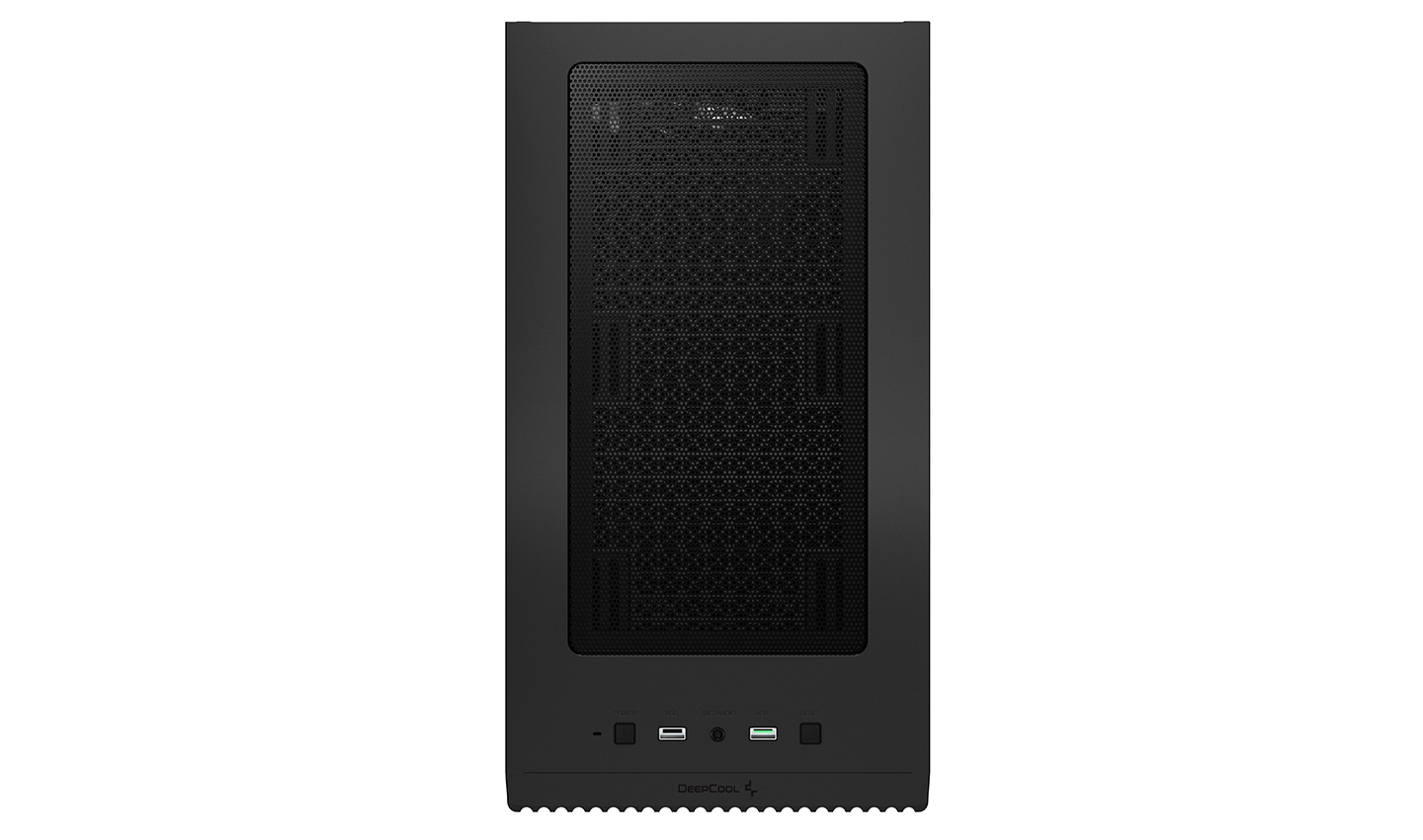

Better airflow

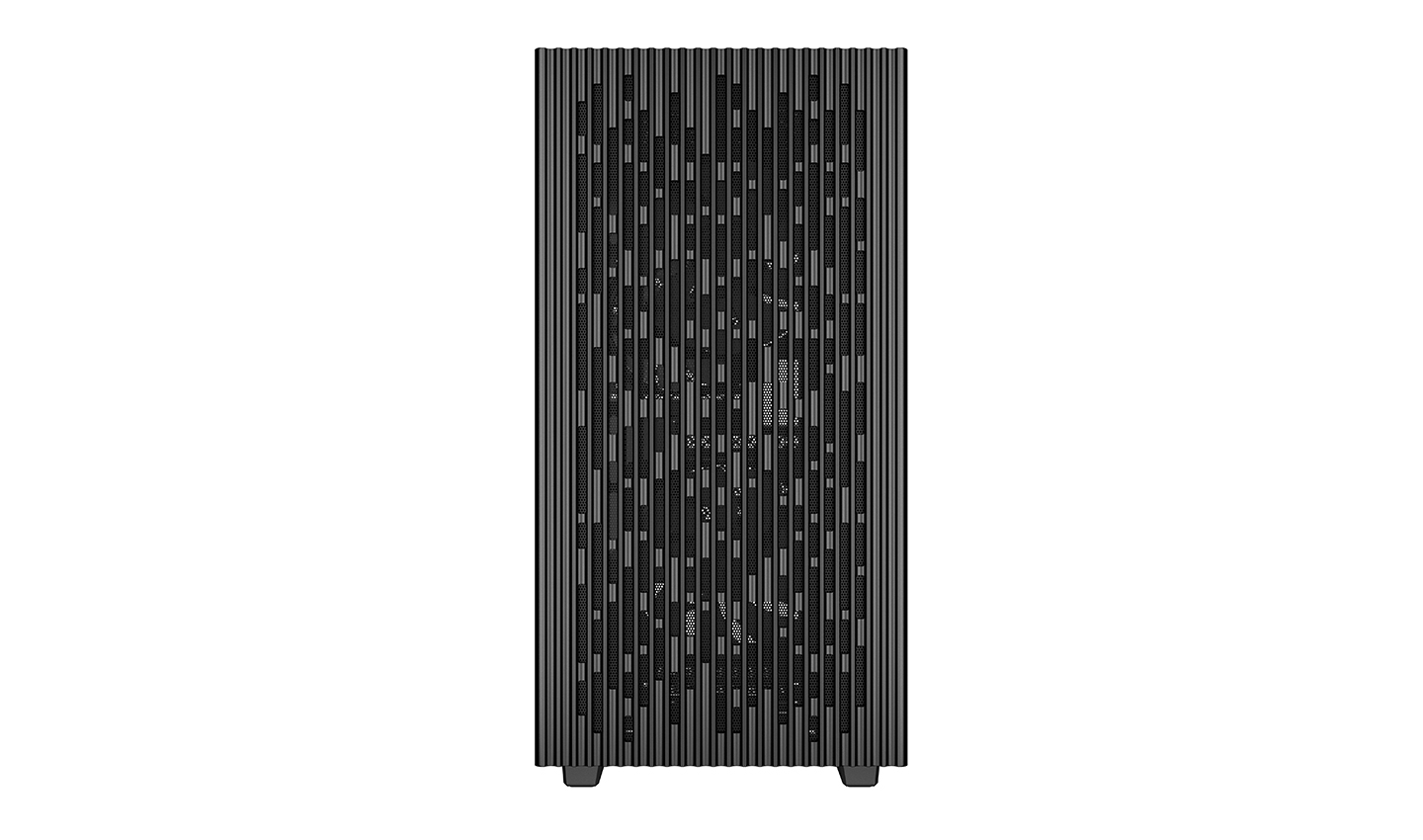

The front and top mesh panels provide optimal ventilation to move large amounts of air throughout the case.
Better airflow
The front and top mesh panels provide optimal ventilation to move large amounts of air throughout the case.

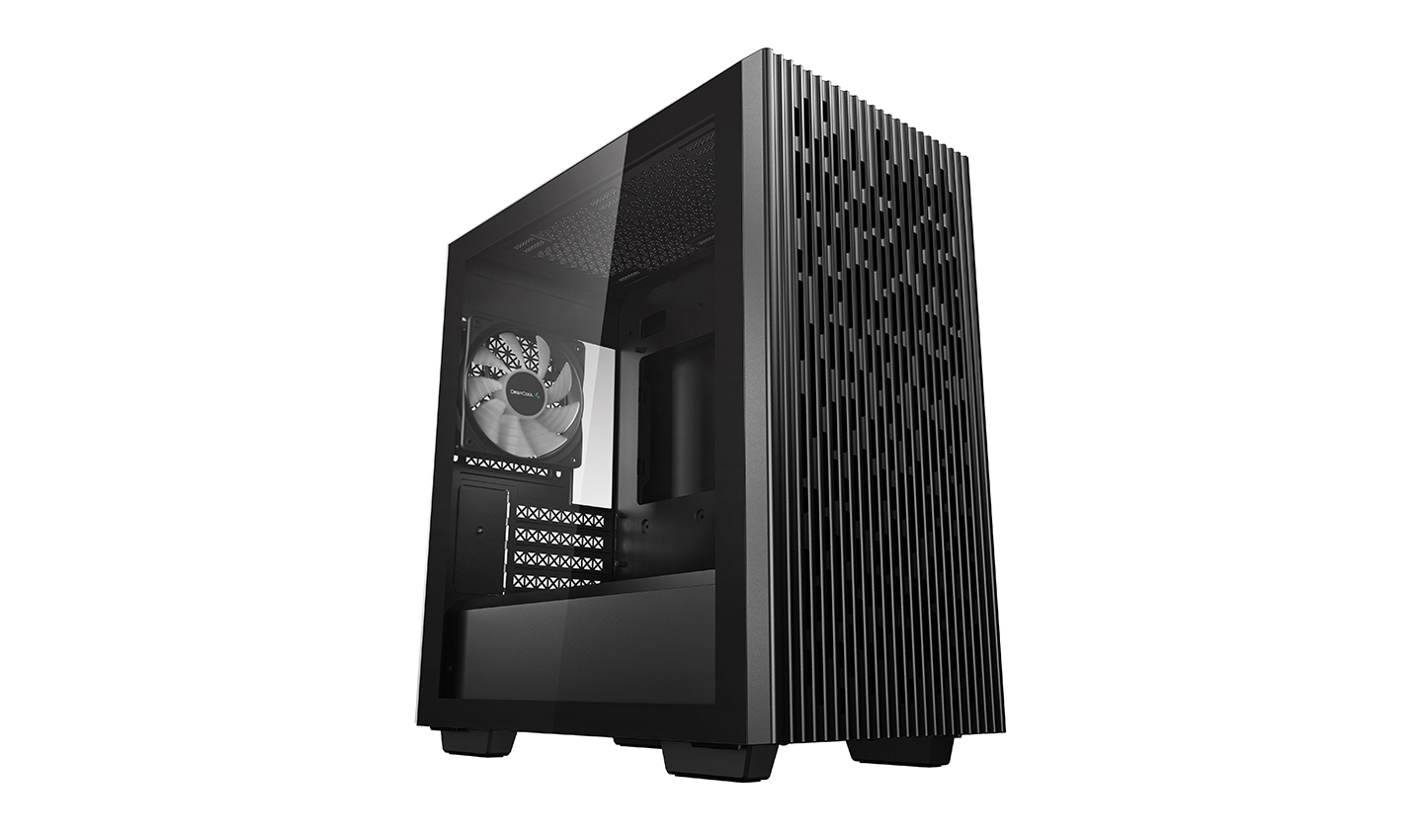

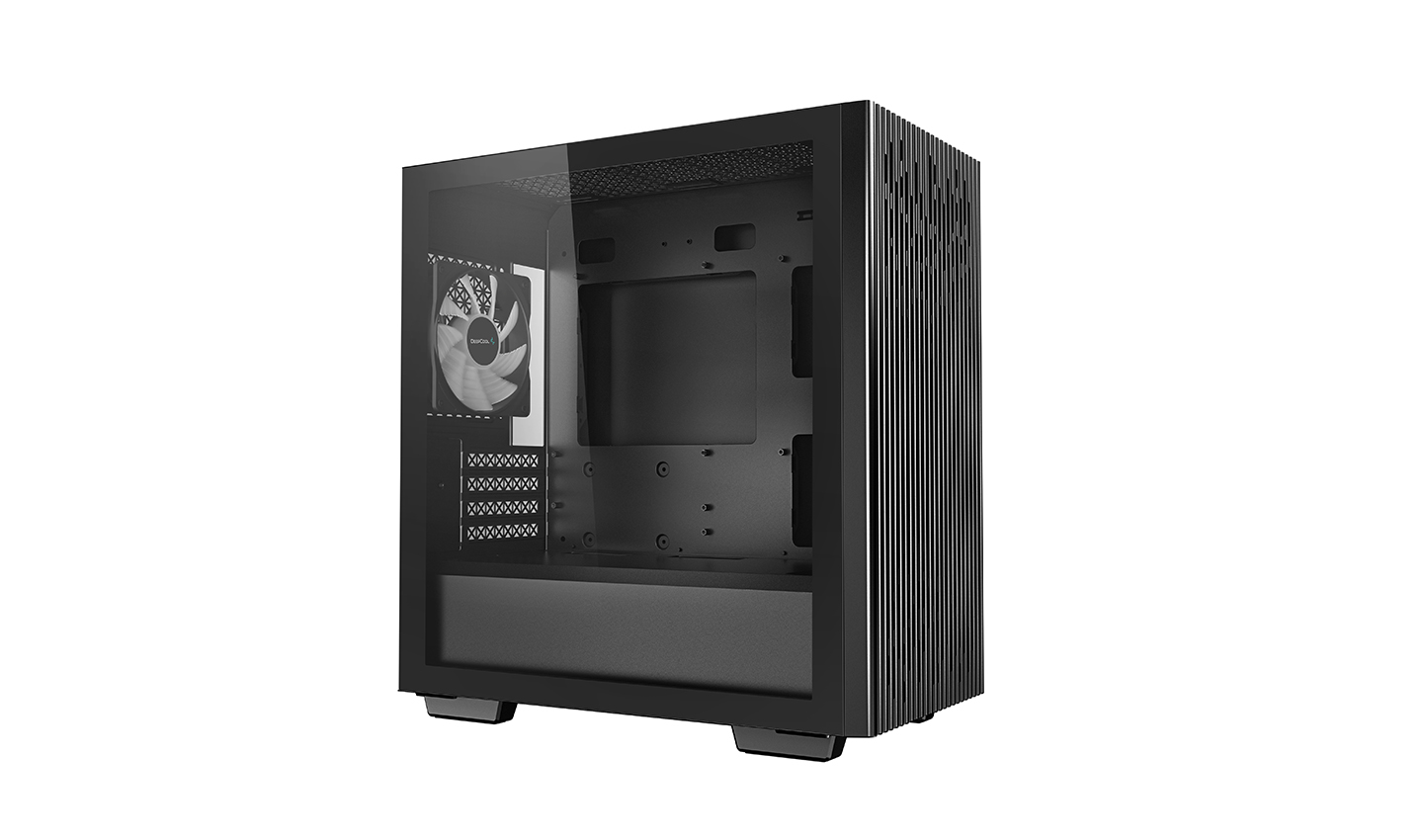

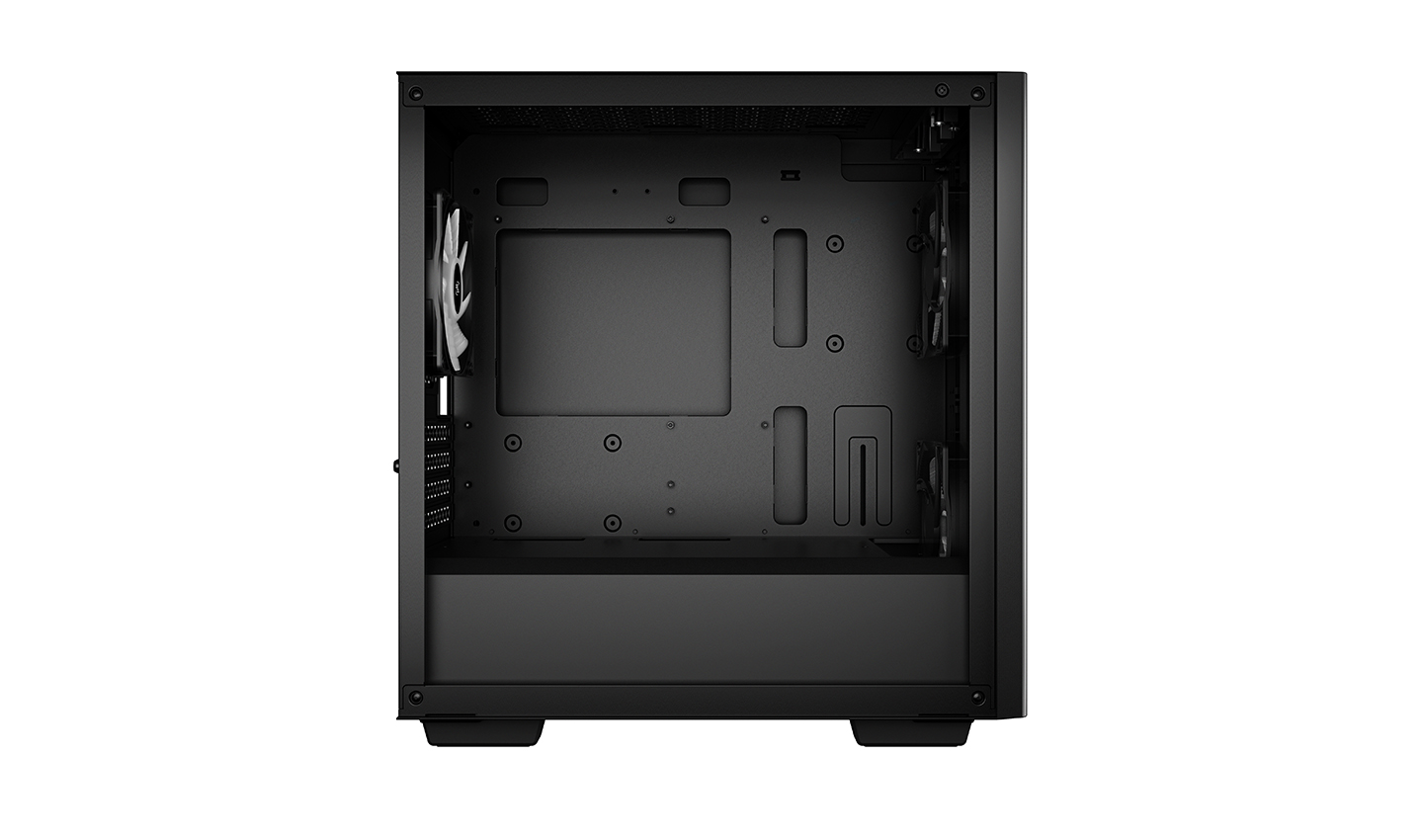

Tempered glass side panel
Upgrade the quality of your build with a clean edge-to-edge tempered glass panel.

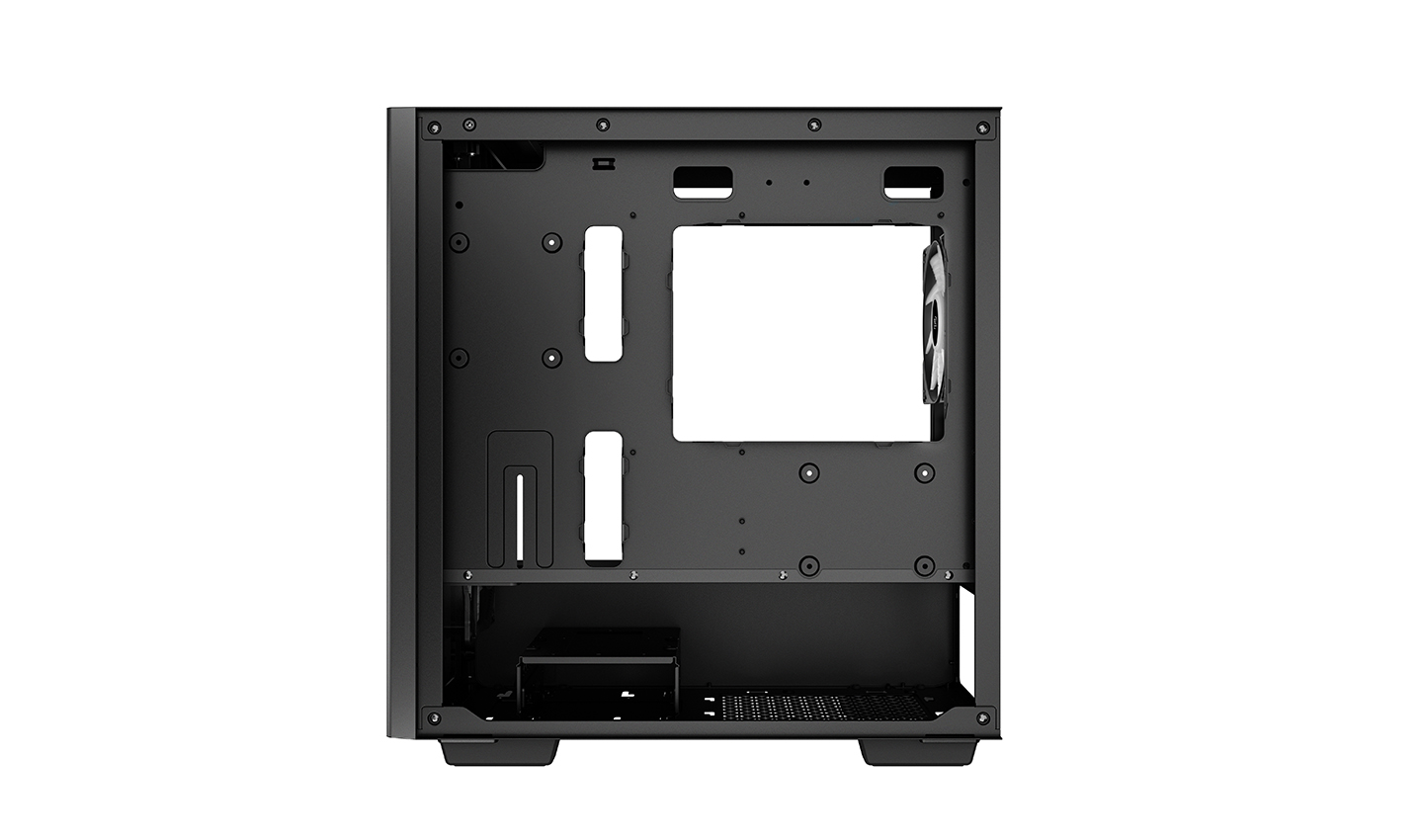

Great clearance
  • 1GPU
  • 2CPU Cooler
  • 3PSU
Additional storage options
The MATREXX 40 3FS supports up to two 2.5" SSDs and two 3.5" HDDs through a removable drive cage.
Additional storage options
The MATREXX 40 3FS supports up to two 2.5" SSDs and two 3.5" HDDs through a removable drive cage.
Technical Spec
Motherboards Mini-ITX / Micro-ATX
Case Type MATX Case
Product Dimensions 400mm×215mm×431mm(L×W×H)
Carton Dimensions 470mm×288mm×470mm(L×W×H)
Net Weight 5.52KG
Gross Weight 6.42kg
Colors Black
Materials ABS+SPCC+Tempered Glass
3.5" Drive Bays 2
2.5" Drive Bays 2
External 3.5'' Drive Bays 0
5.25" Drive Bays 0
Power Supply Type ATX PS2 （maximum length: 160mm）

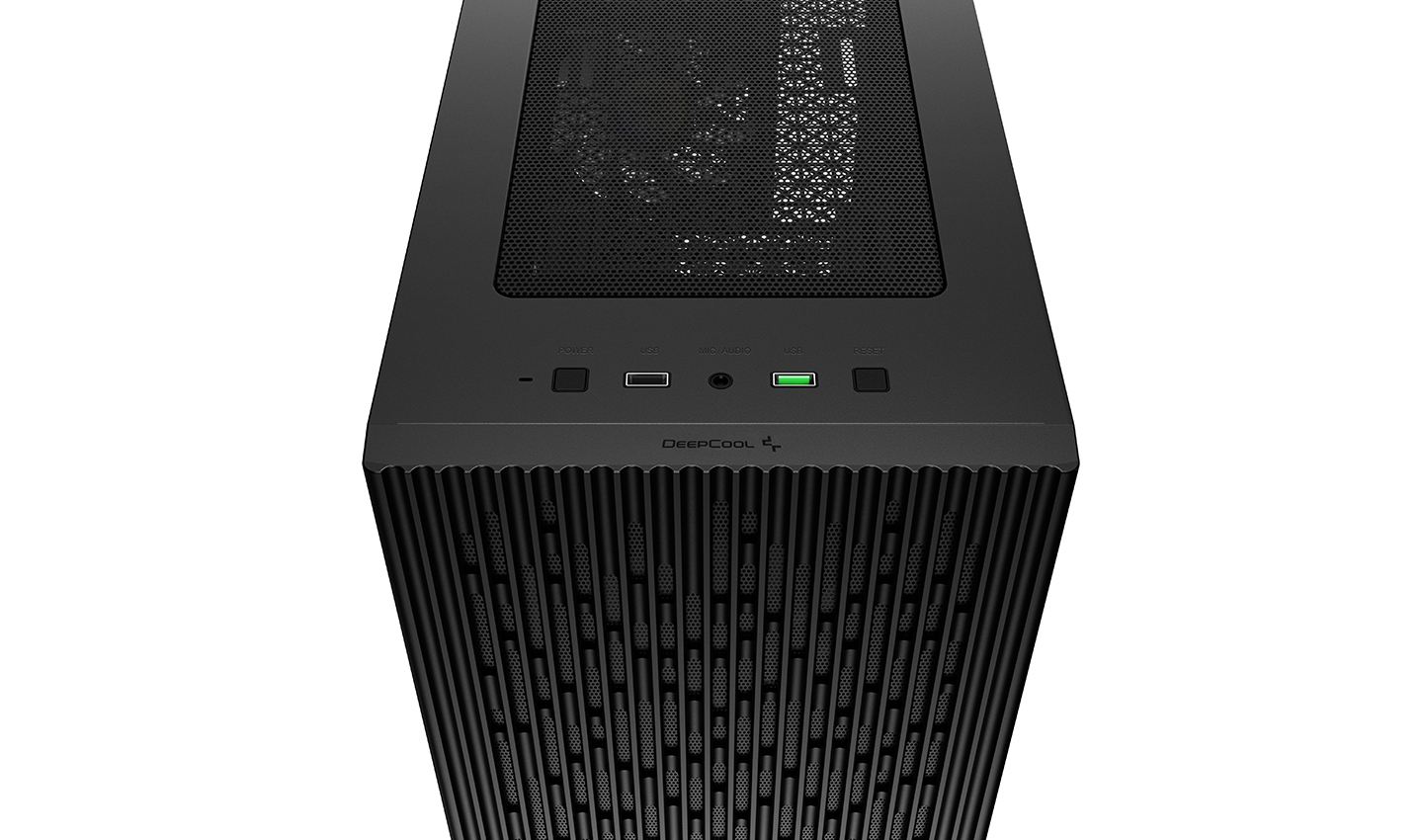

I/O Ports USB3.0×1、USB2.0×1、Audio×1
Expansion Slots 4 Slots
Cooling Fans Compatibility Pre-installed: Rear: 1×120mm LED fan; Front:120mm×2 LED fan;Optional: Front: 120mm×3/140mm×2 Top: 120mm×2/140mm×2
Liquid Cooler Compatibility Front: 120/140/240/280; TOP: 120/140/240/280 Rear: 120；
CPU Cooler Height Limit 165mm
VGA Length Limit 320mm
Cable Management 20mm clearance
EAN Code 6933412714569
PN Code DP-MATX-MATREXX40-3FS
Product Dimension
Download
MATREXX 40 3FS Manual.pdf
