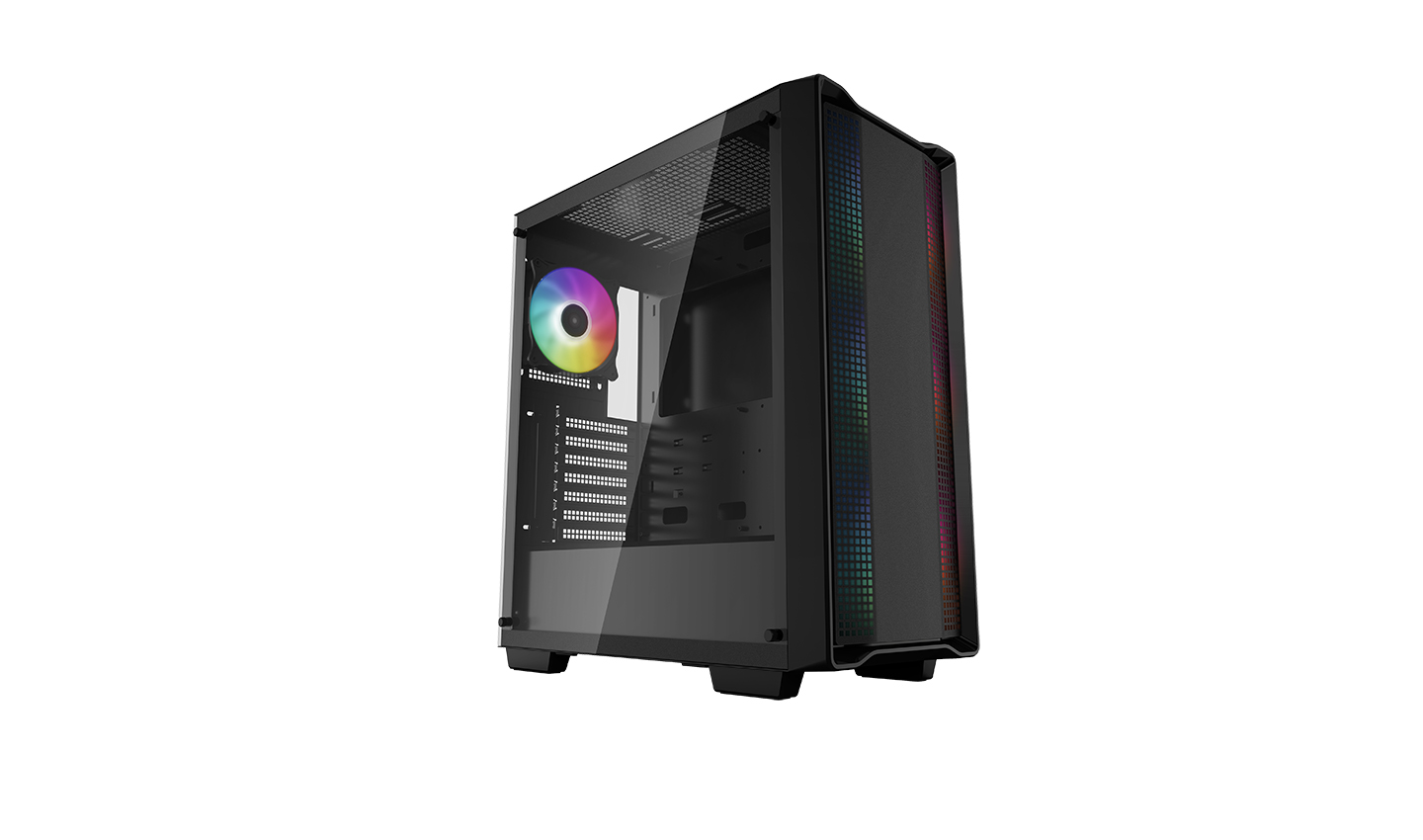

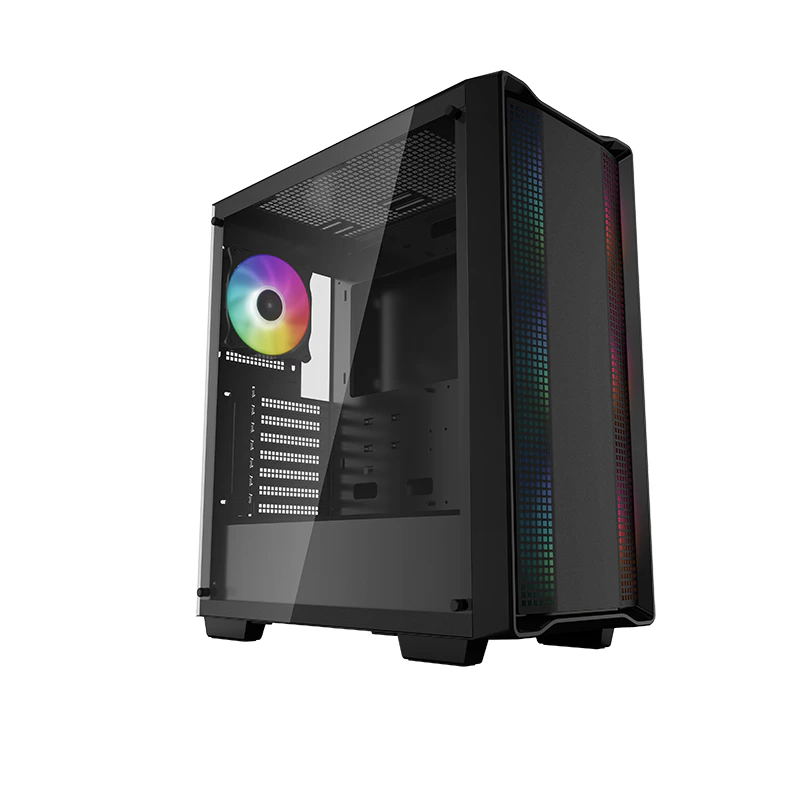

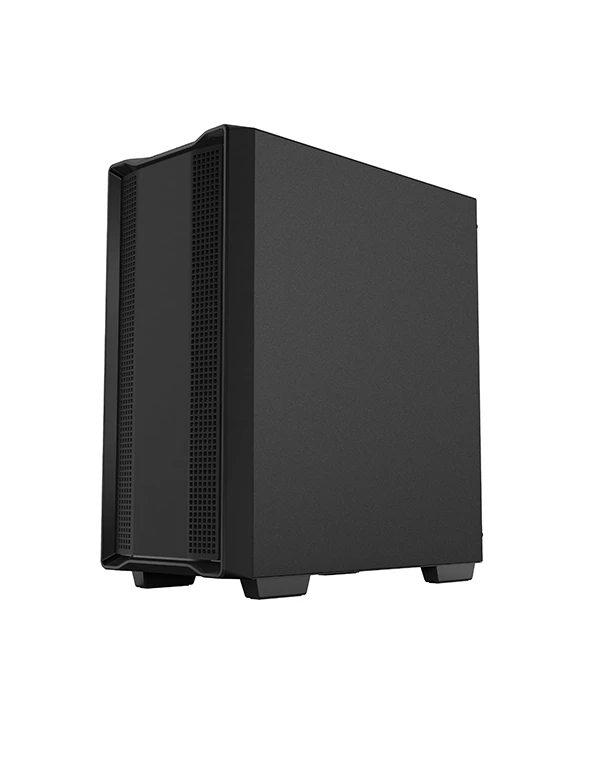

CC560 ARGB

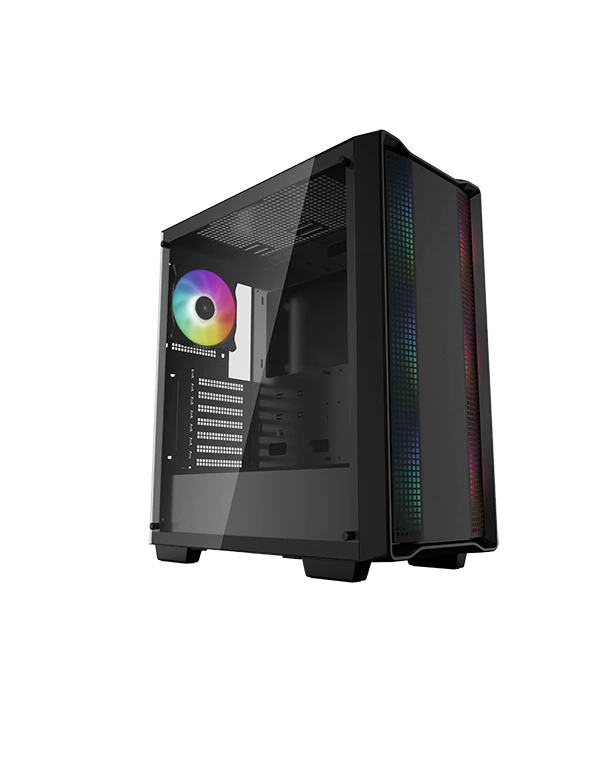

The DeepCool CC560 ARGB Mid-Tower Case offers outstanding value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed A-RGB fans that gets any build started right.
COLOR
black
MODEL
CC560 ARGB
Mid-Tower Case
The DeepCool CC560 ARGB Mid-Tower Case offers outstanding value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed A-RGB fans that gets any build started right.

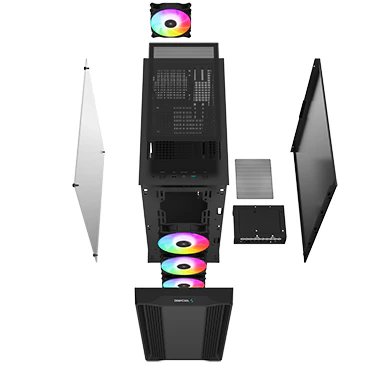

Abundant
Airflow Performance

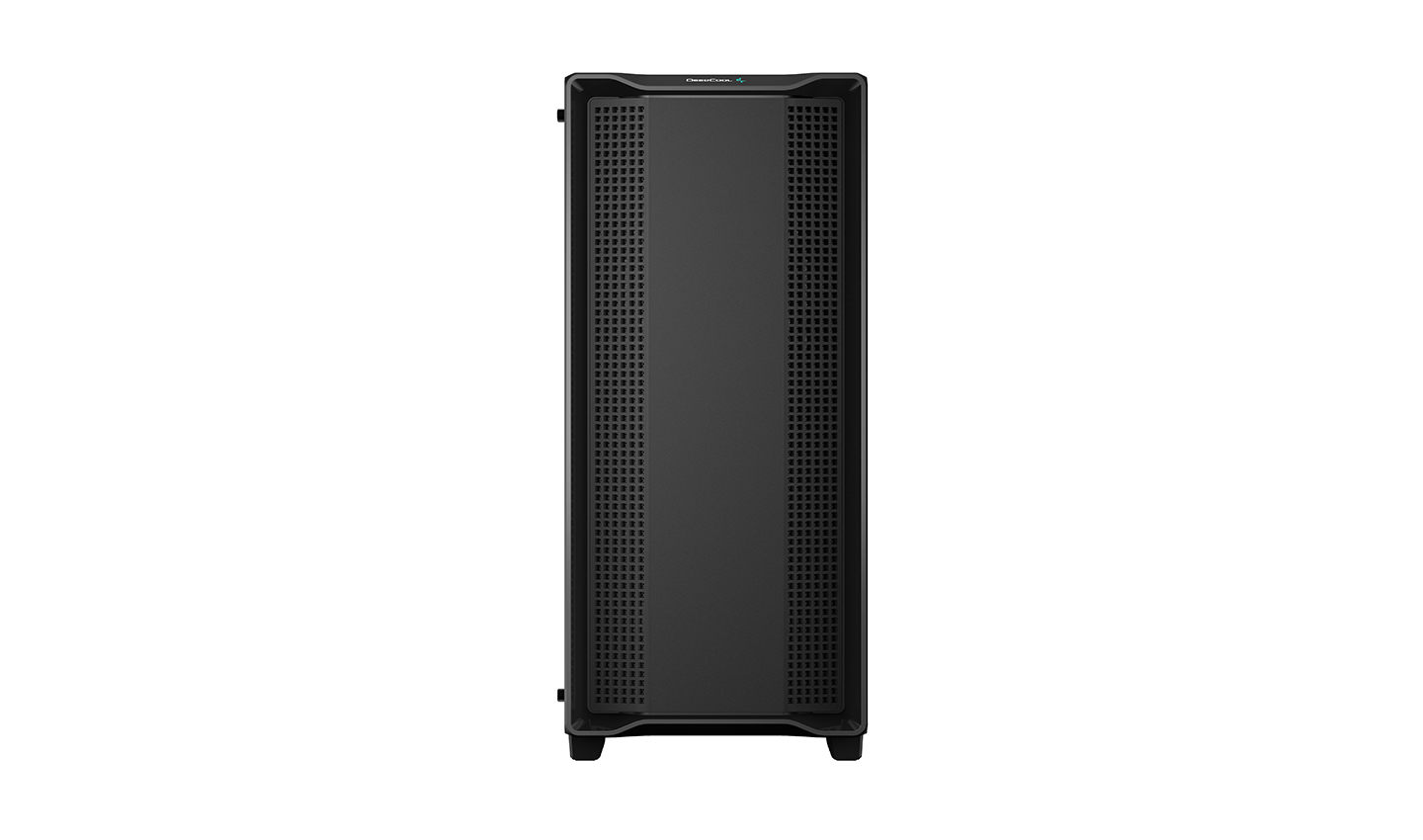

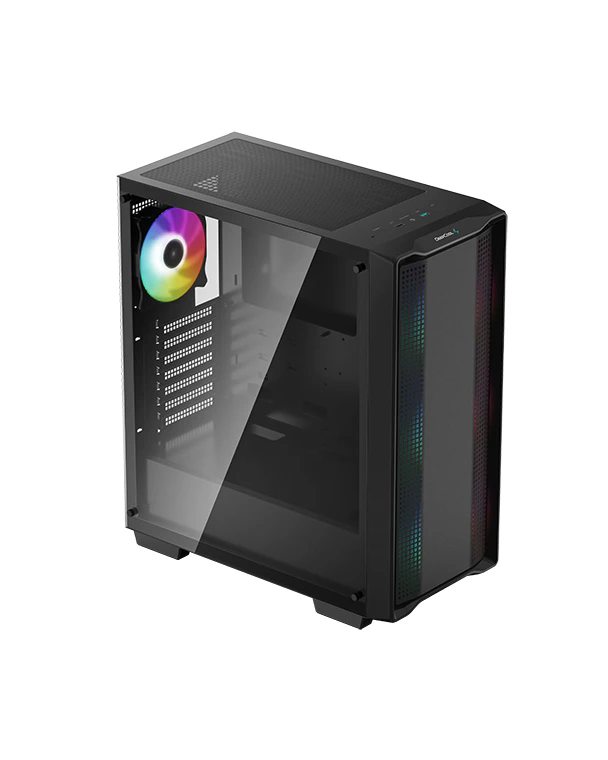

Well ventilated throughout the entire chassis, the CC560 ARGB sports an airflow front panel and a large mesh top panel to ensure fresh air is circulating.

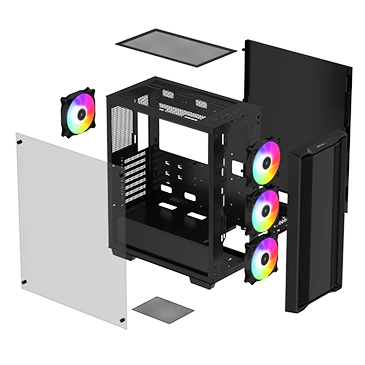

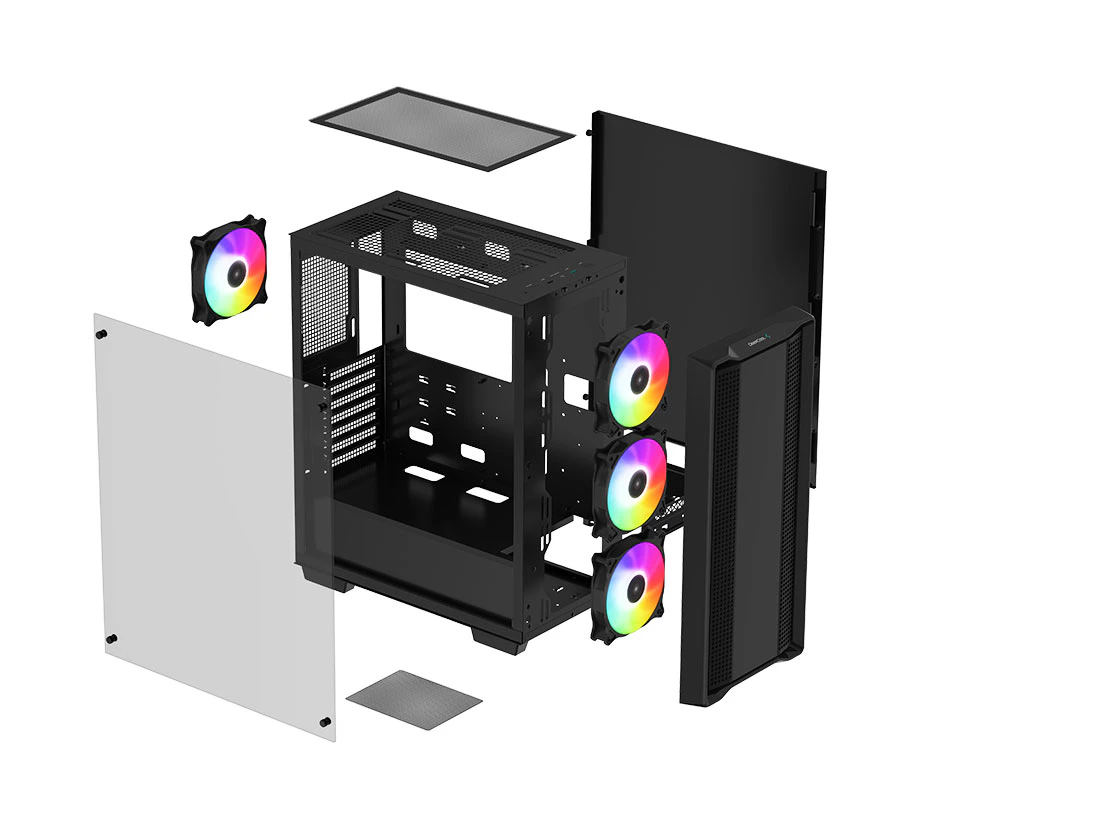

Primed and Ready

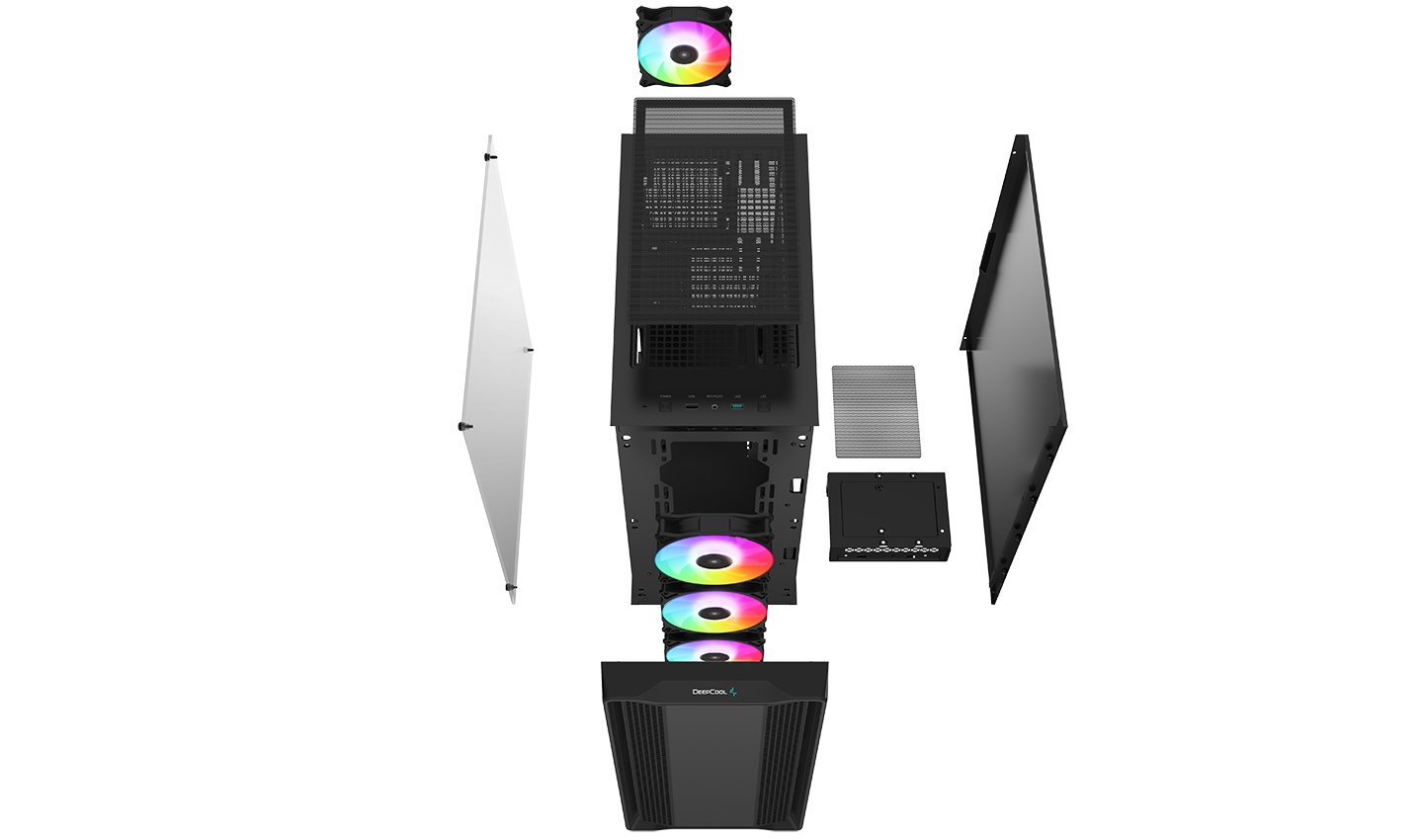

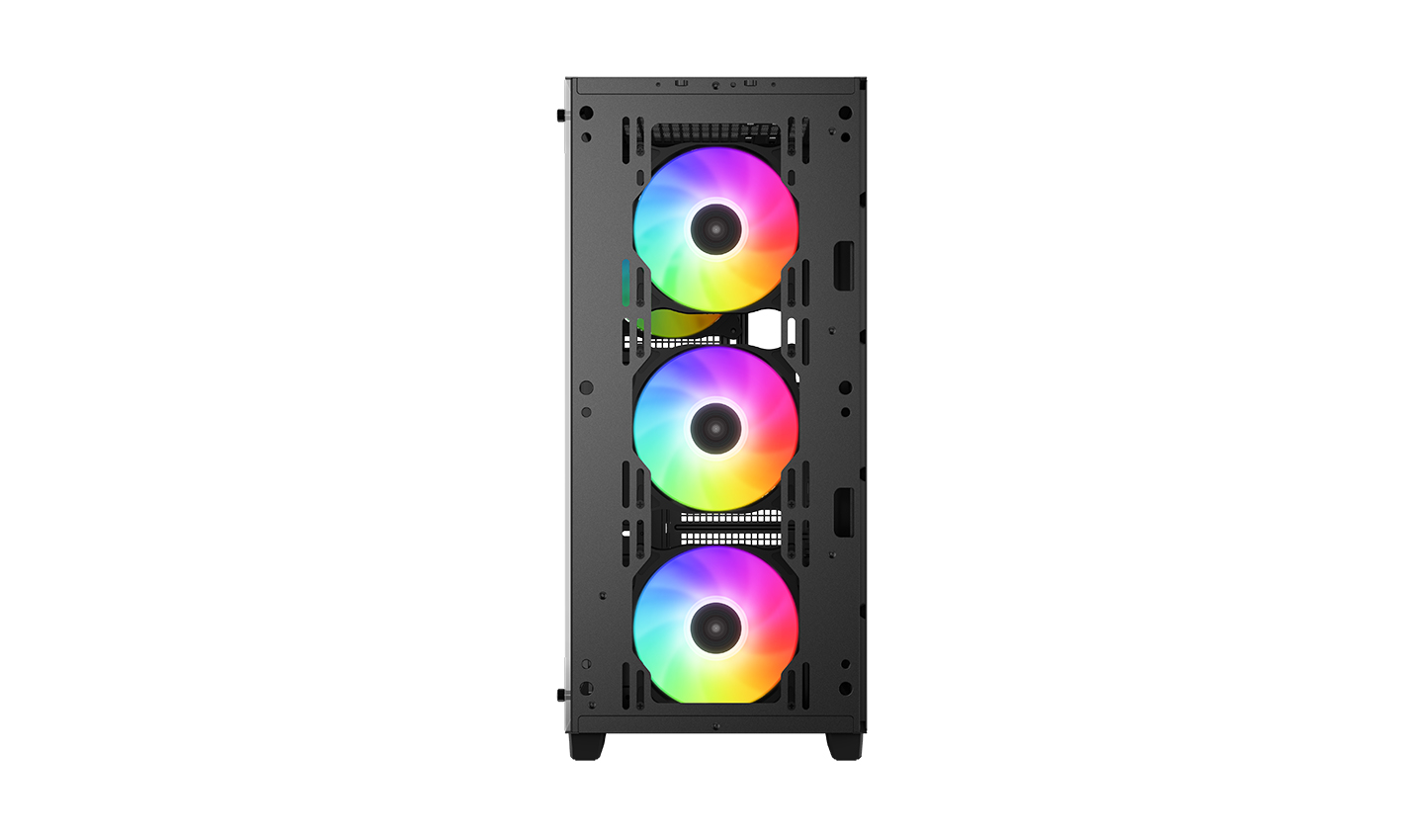

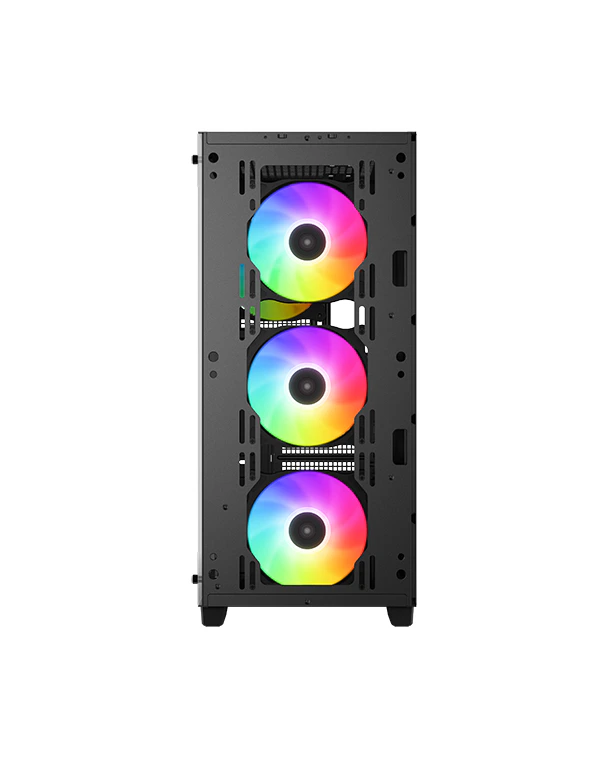

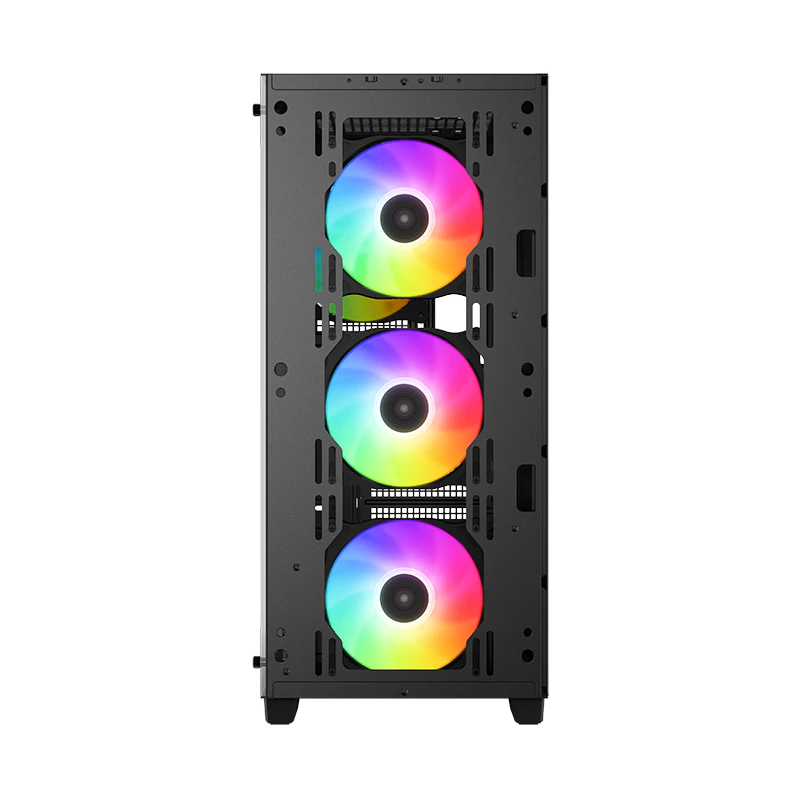

A total of 4 pre-installed A-RGB fans delivers big airflow performance ensuring any system build is receiving top-notch cooling capacity. Quickly and easily customize the ARGB lighting effect with the built-in LED control button on the I/O panel or through a 5V header for motherboard synchronization.
Wide Cooling Support
Enough space to support high-performance AIO liquid coolers with room for 360mm radiators in front or 240mm on top. Cooling fan support for up to 6x 120mm or 4x 140mm.
6 120mm
4 140mm
CASE FANS
1 360mm
1 280mm
2 240mm
1 140mm
3 120mm
RADIATOR

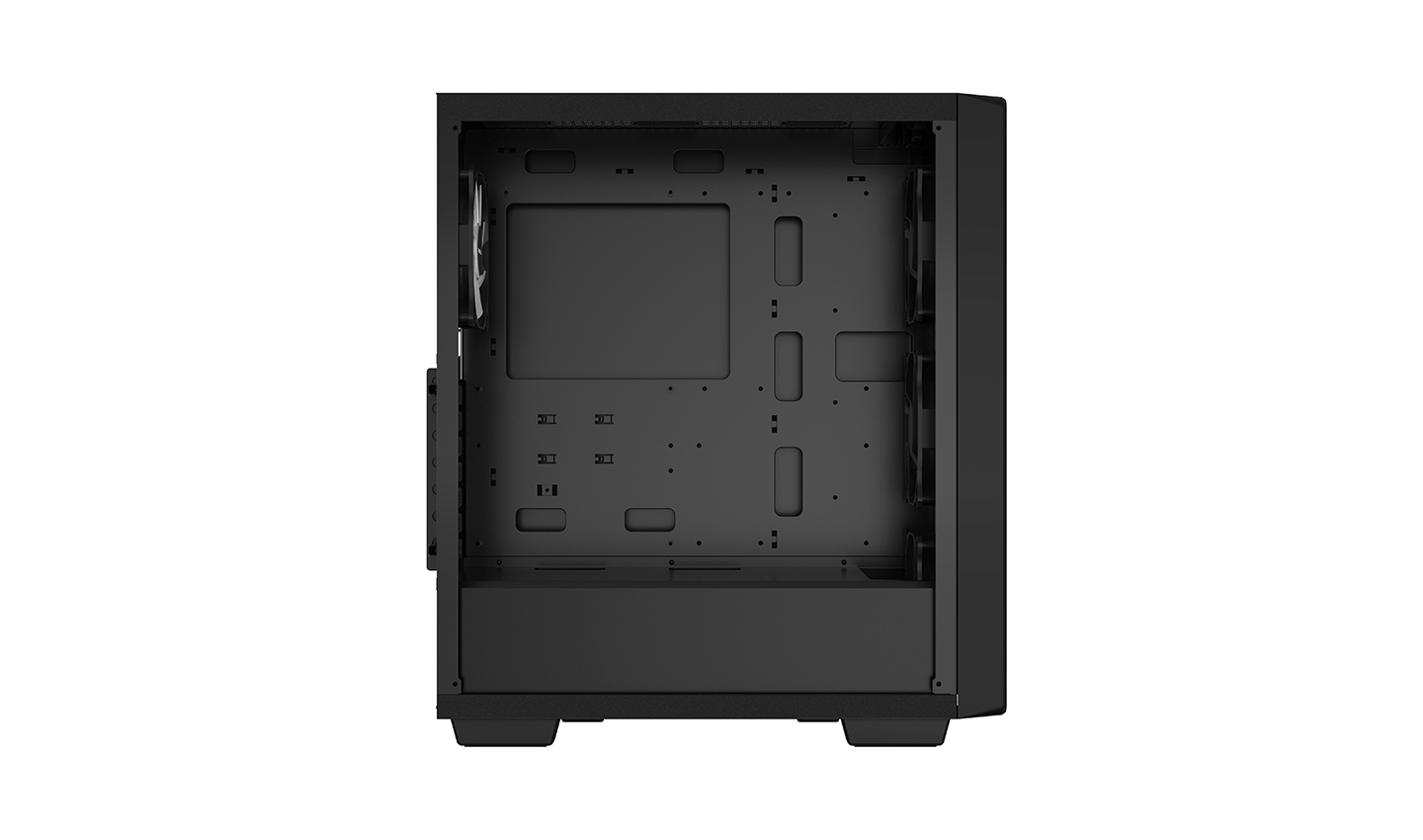

Compatibility
Max CPU Cooler Height: 163mm
Max GPU Length: 370mm
Max PSU Length: 170mm
Storage Solutions

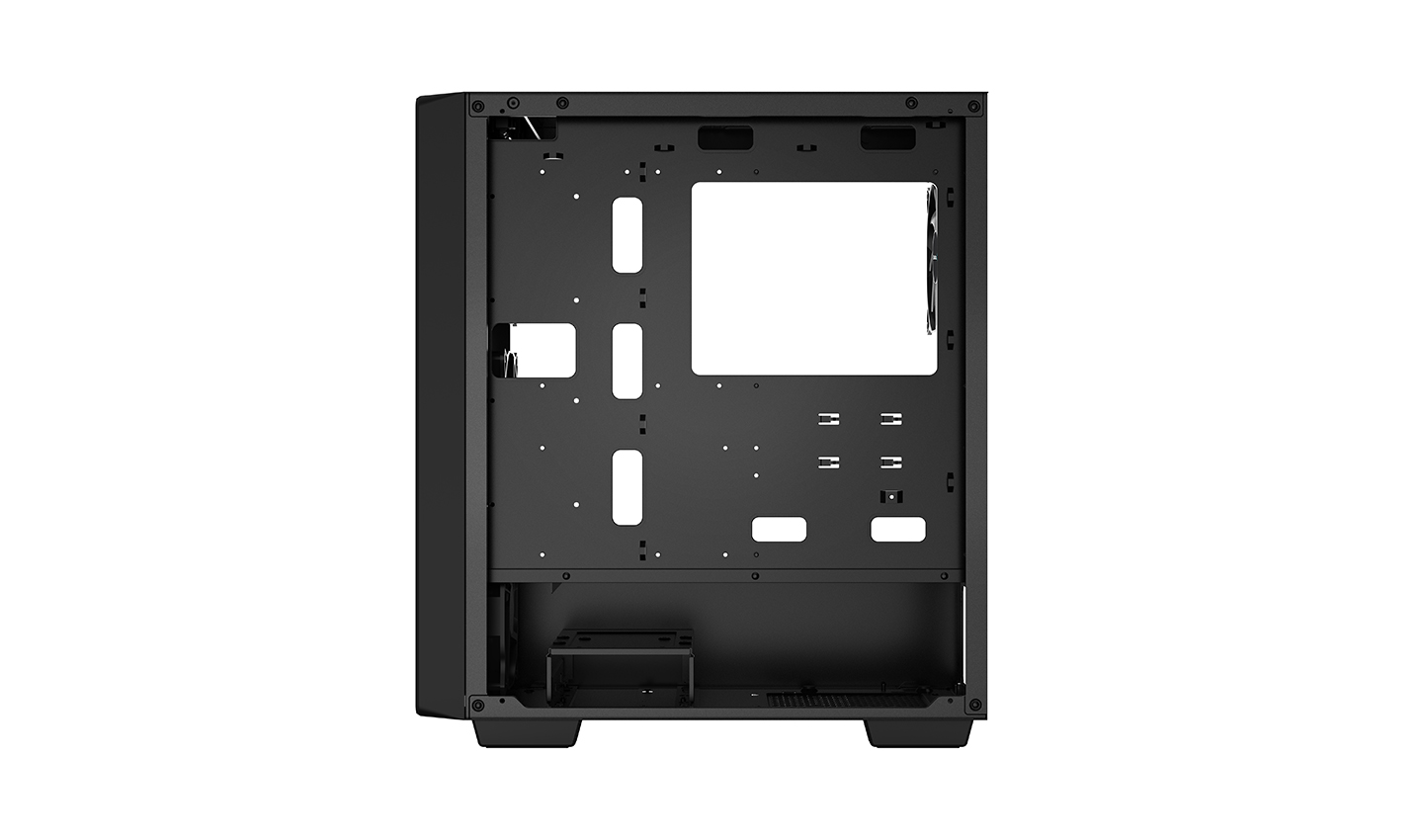

Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud in a removeable drive cage for adjustability.

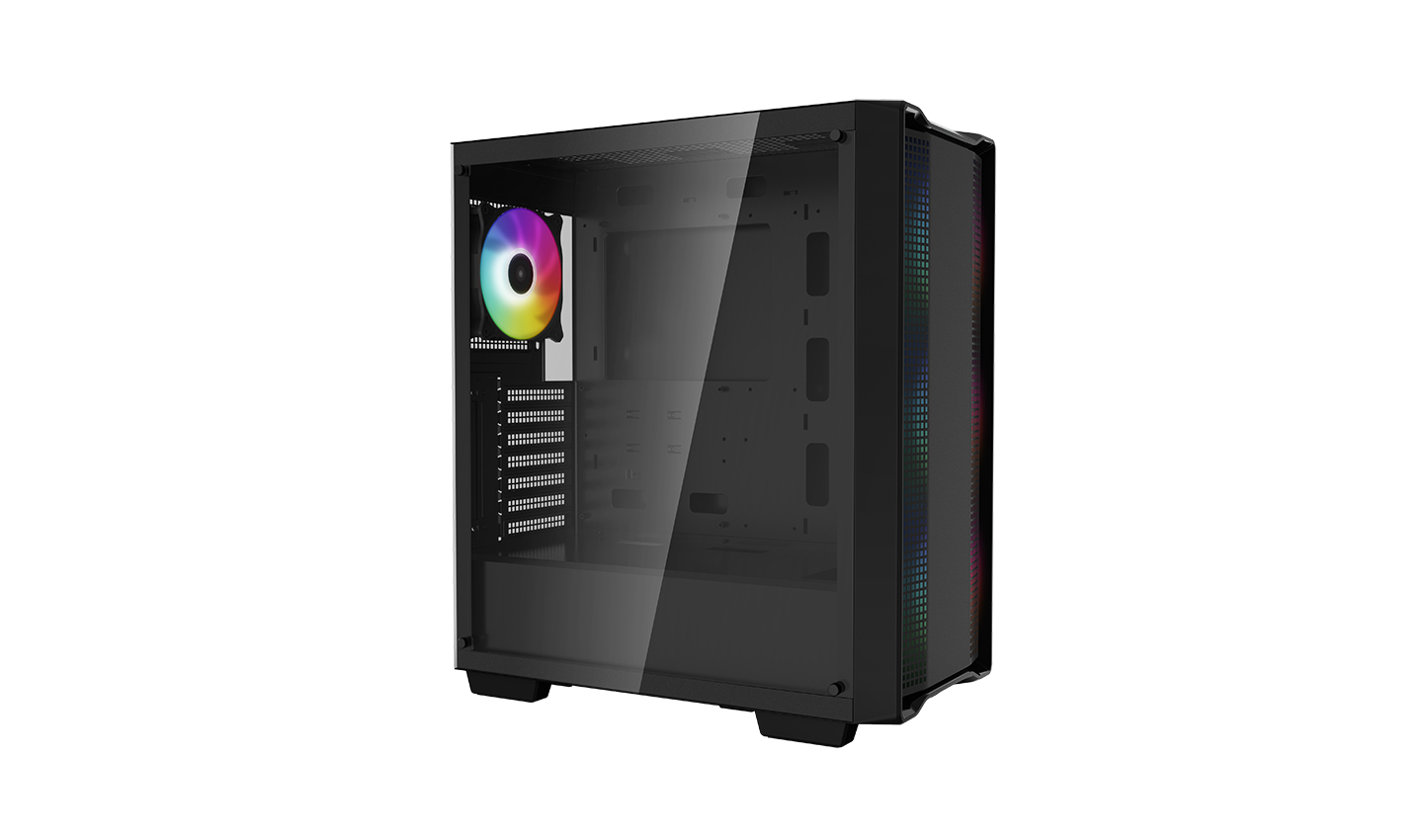

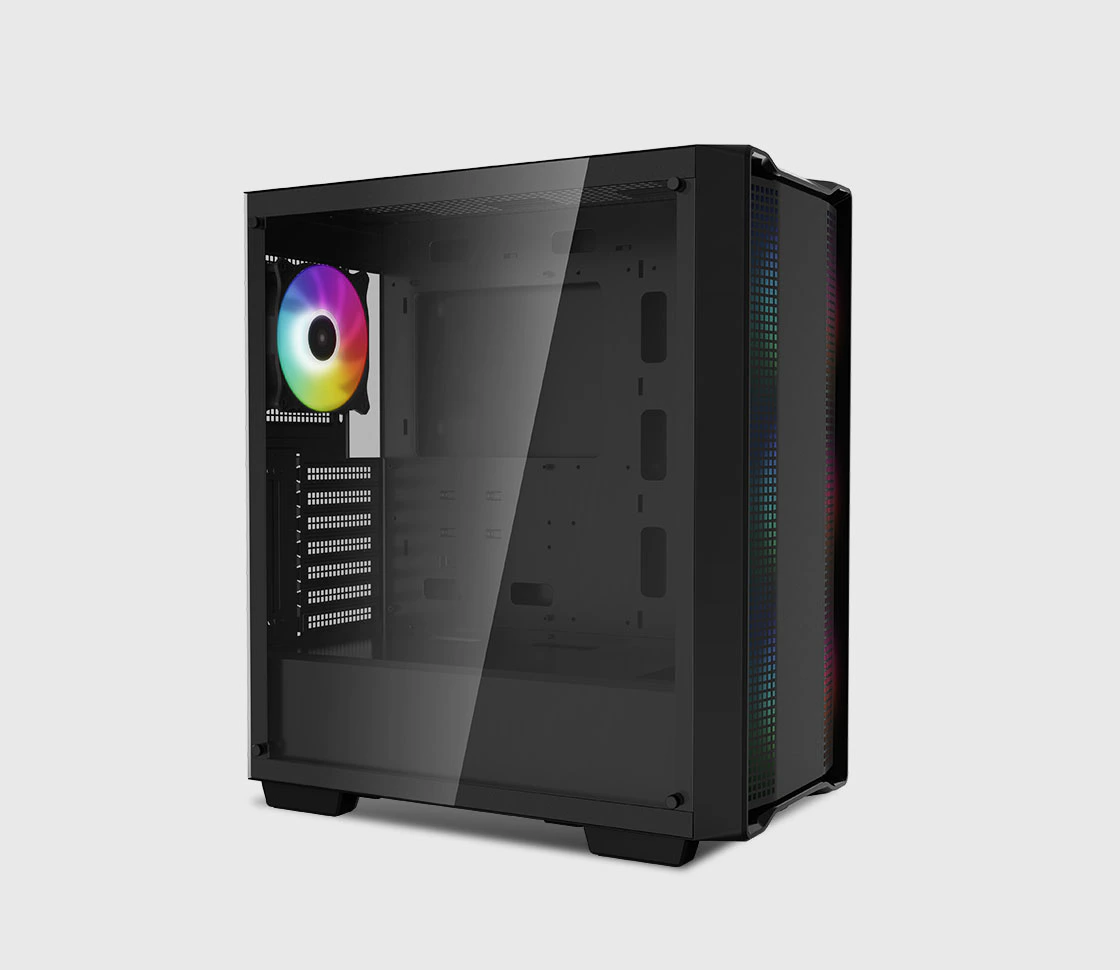

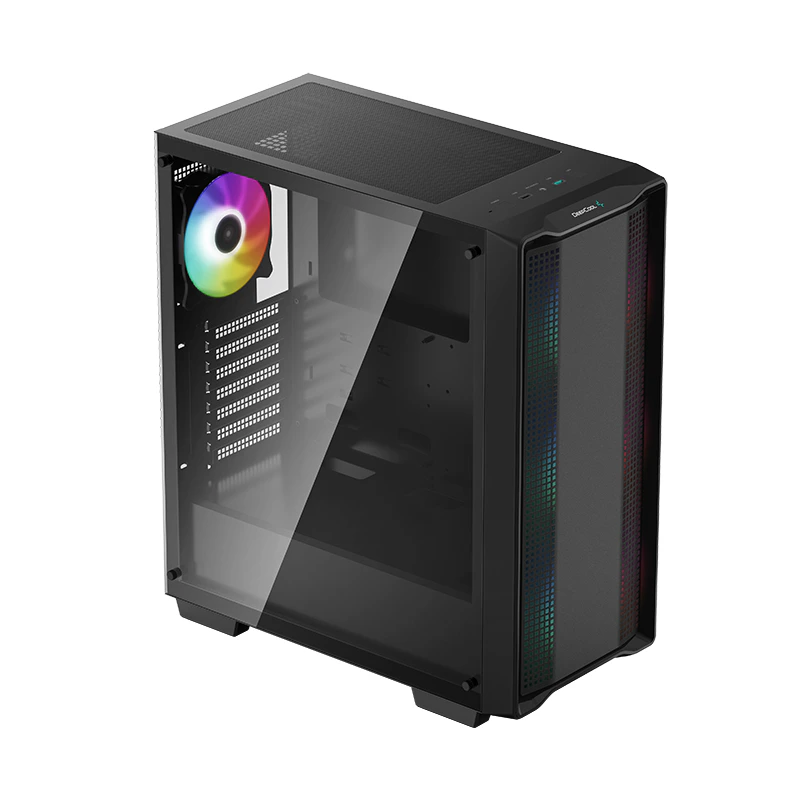

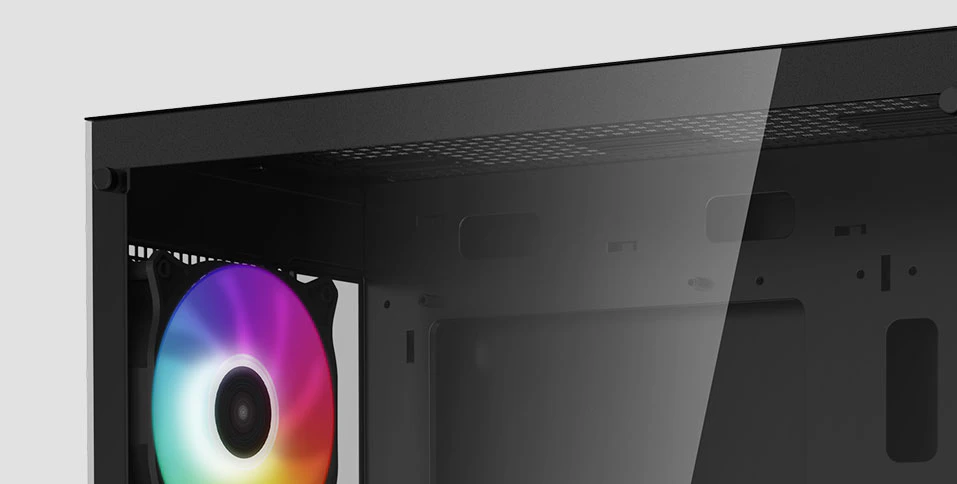

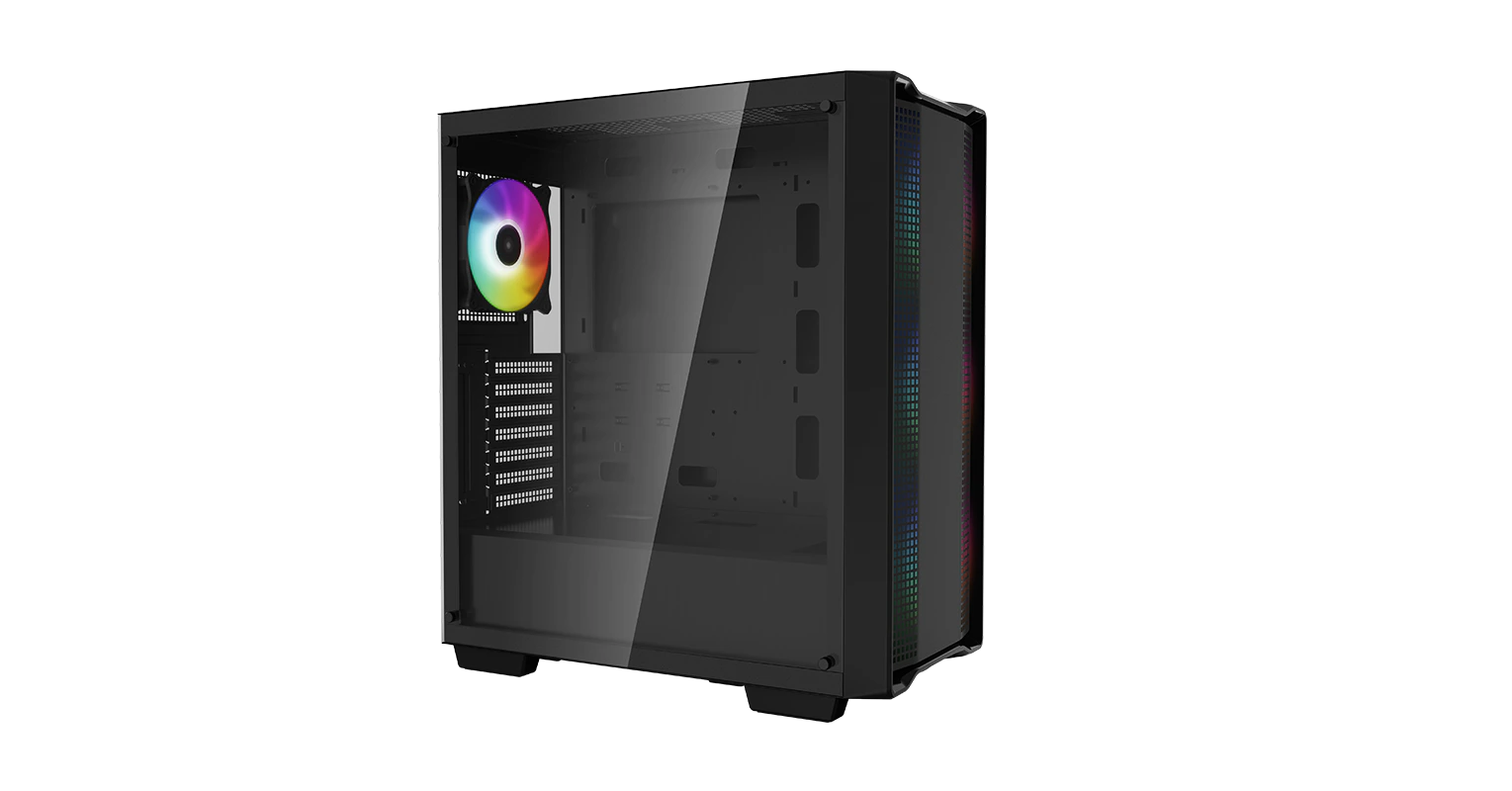

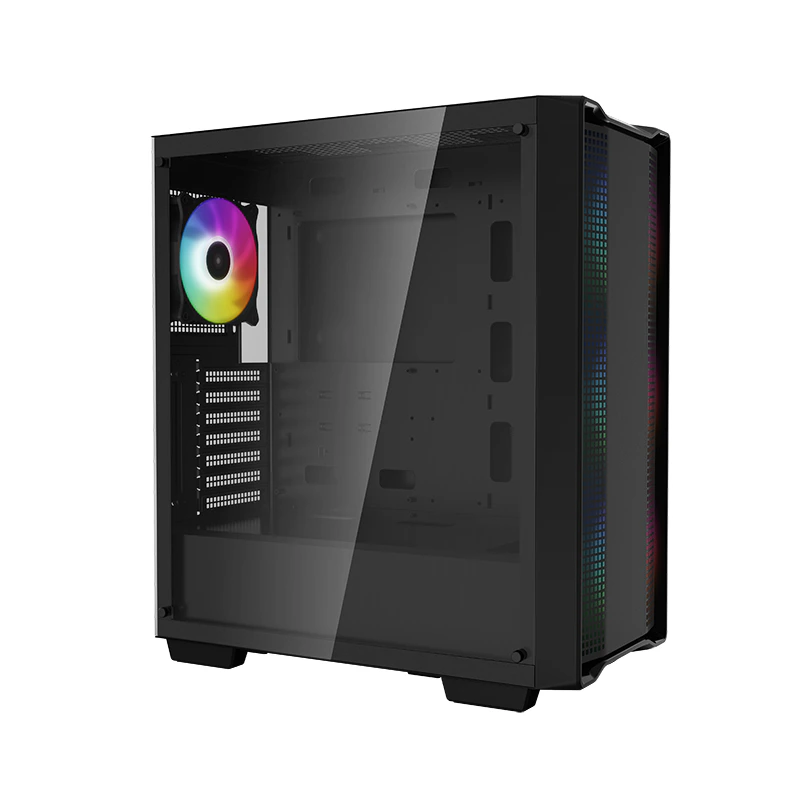

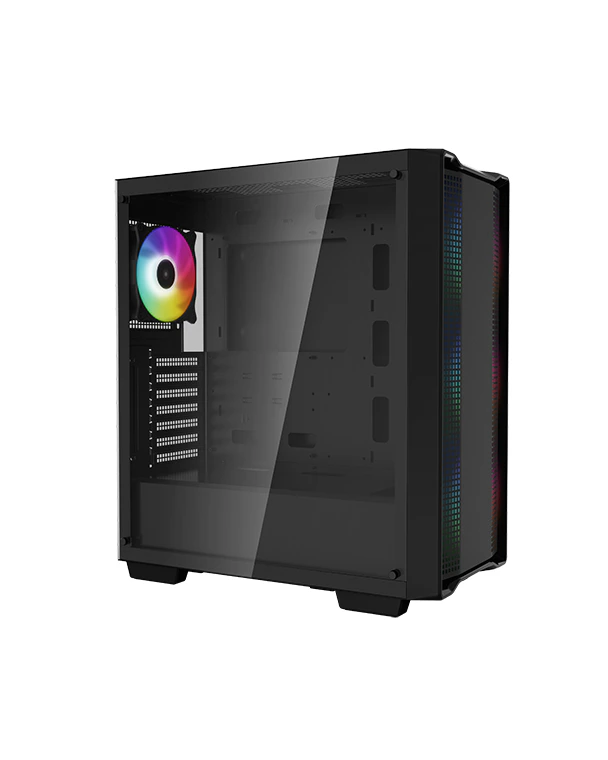

Full-Sized Tempered Glass Window

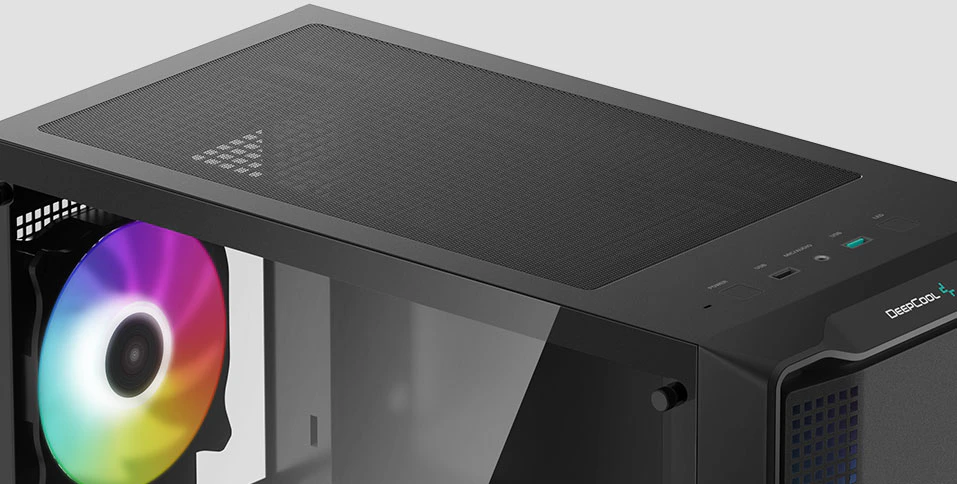

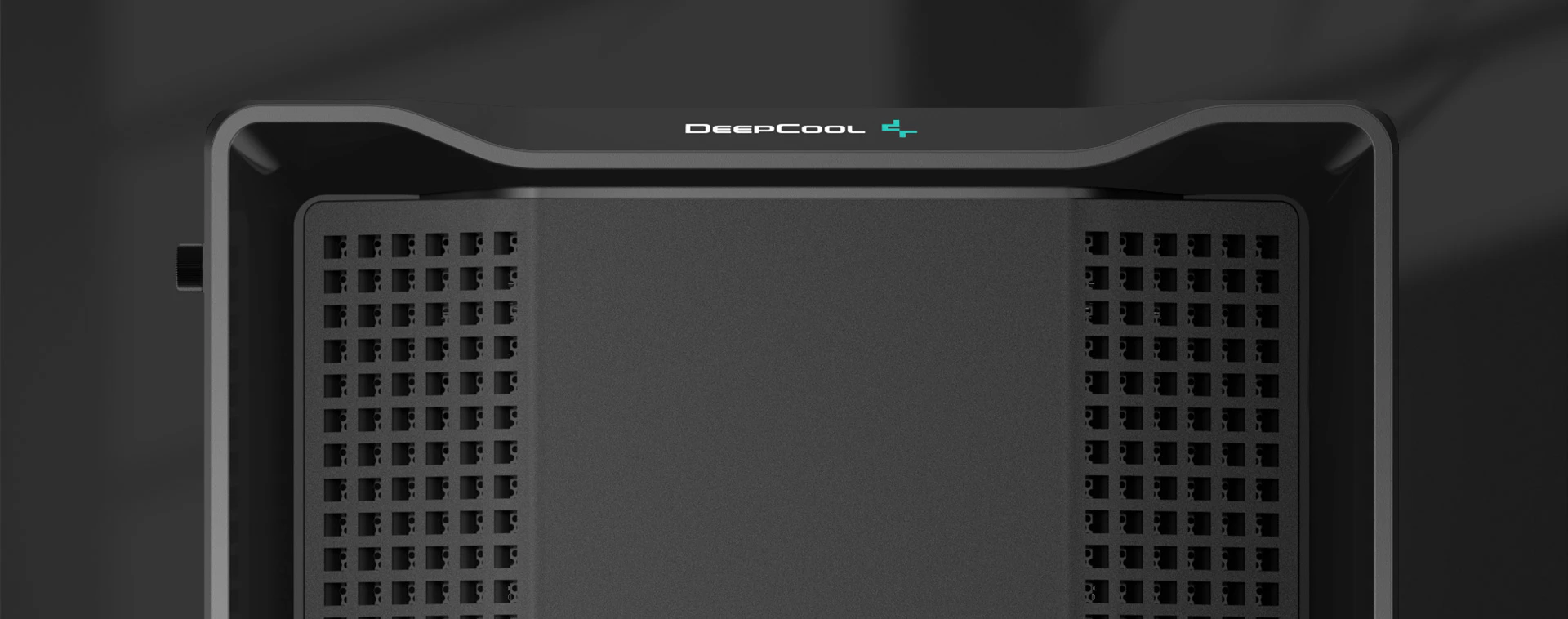

Top Panel Magnetic Dust Filter

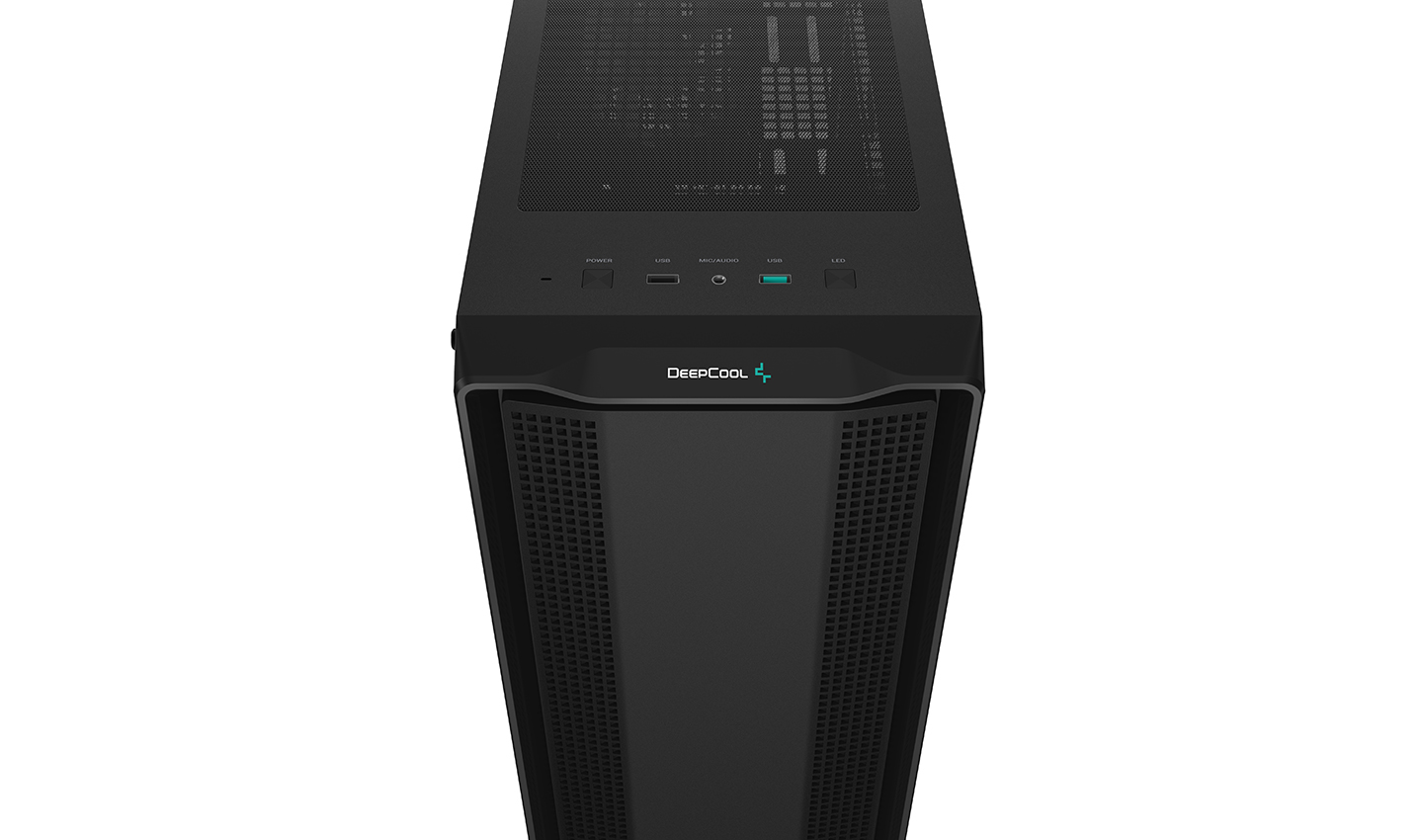

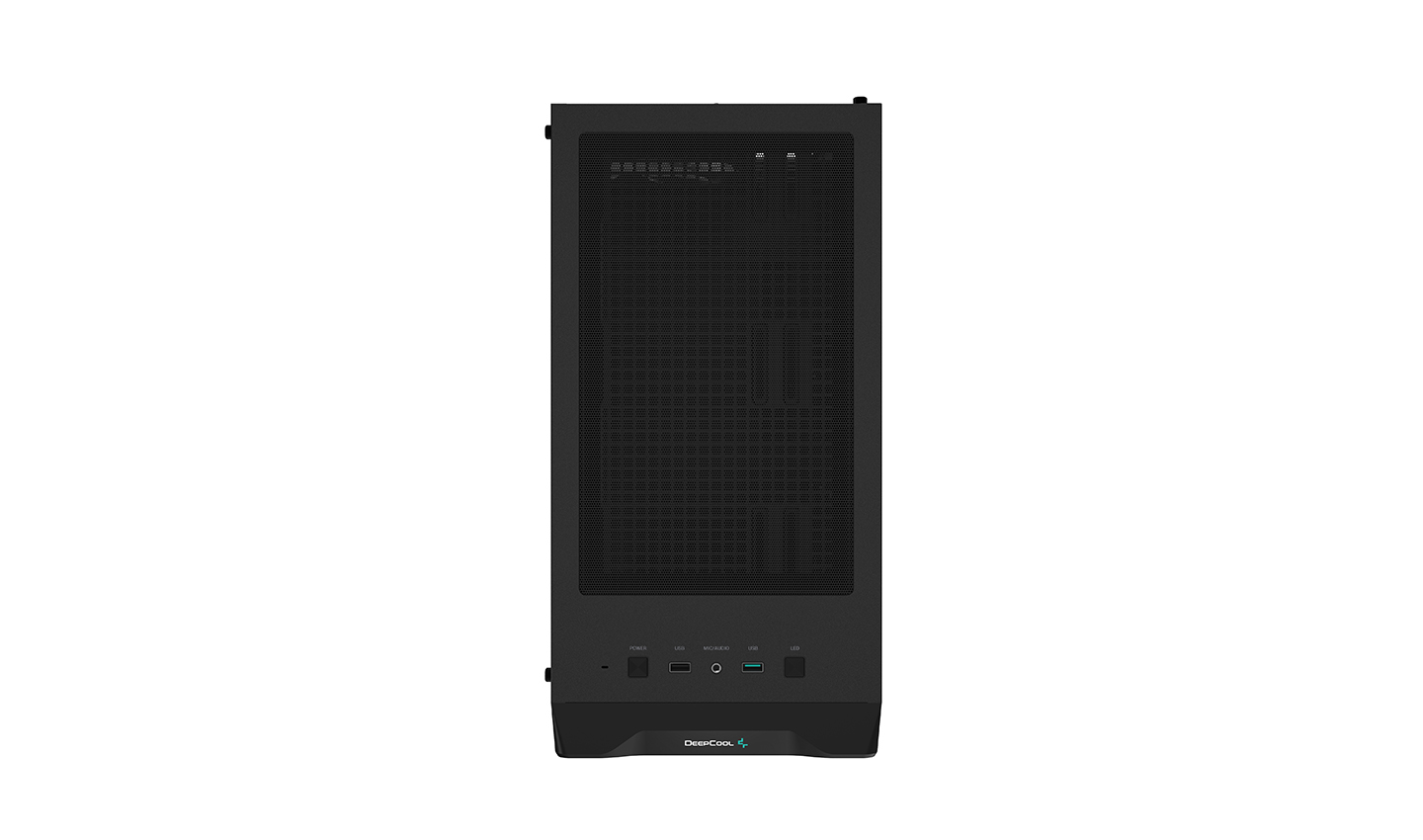

Front I/O Panel
Features USB 3.0, USB 2.0, and a combo audio jack, and a custom configured LED control button to change preset lighting effects on the four pre-installed ARGB fans.
Front I/O Panel
Features USB 3.0, USB 2.0, and a combo audio jack, and a custom configured LED control button to change preset lighting effects on the four pre-installed ARGB fans.
Technical Spec
Product Dimensions416×210×477mm(L×W×H)
Net Weight5.25Kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportMini-ITX / Micro-ATX / ATX
Front I/O PortsUSB3.0×1、USB2.0×1、Audio×1
3.5" Drive Bays2
2.5" Drive Bays2+1
Expansion Slots7 Slots
Pre-Installed FansFront: 3×120mm
Rear: 1×120mm
Fan SupportFront: 3×120 / 2×140mm
Top: 2×120 / 2×140mm
Rear: 1×120mm
Radiator SupportFront: 120/140/240/280/360mm
Top: 120/240mm
Rear: 120mm
CPU Cooler Height Limit163mm
GPU Length Limit370mm
Power Supply TypeATX PS2(maximum length: 170mm)
EAN6933412775089
P/NR-CC560-BKTAA4-G-1
Product Dimension
Download
CC560 ARGB Manual.pdf
