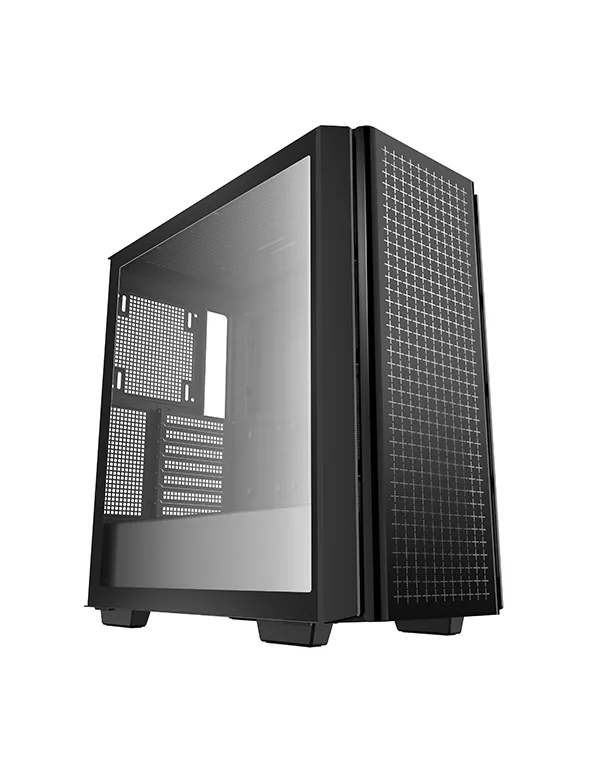

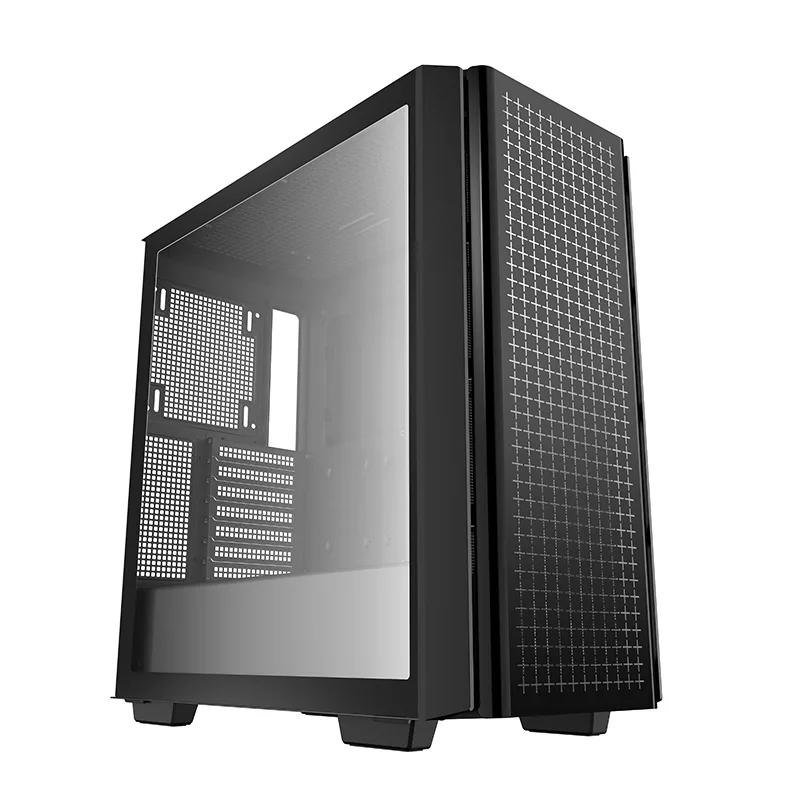

CG540 Limited

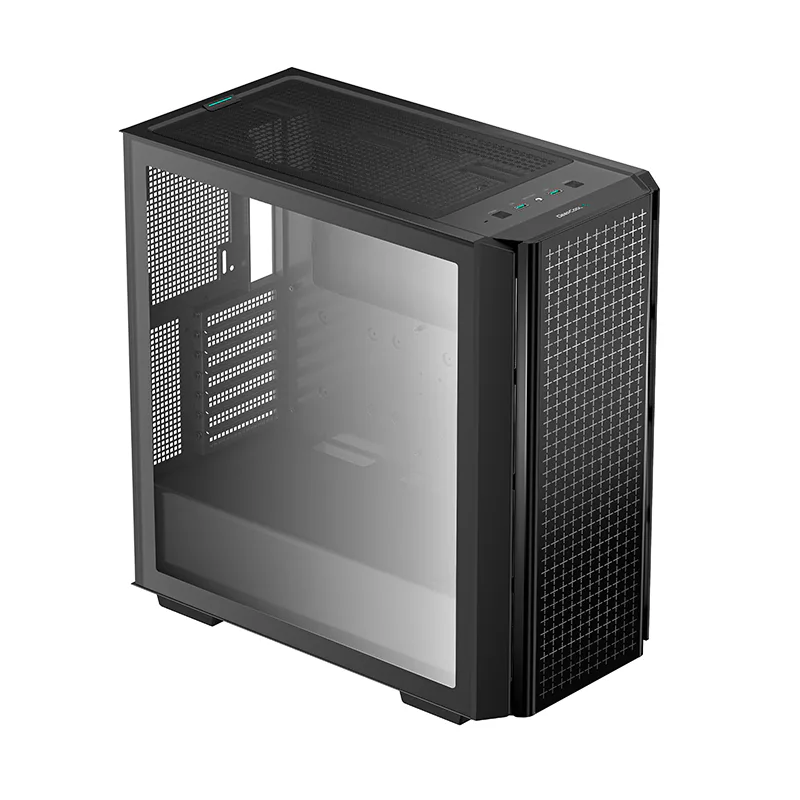

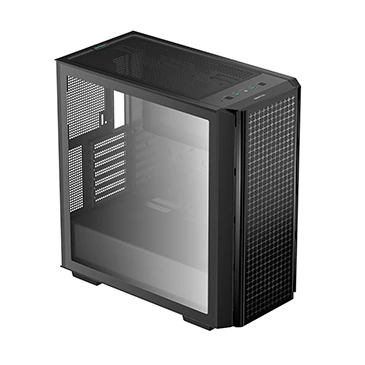

The DeepCool CG540 Limited Mid-Tower Case displays a striking tempered glass panel and generous cooling capacity in an updated modern design that makes system building a breeze.
CG540 Limited

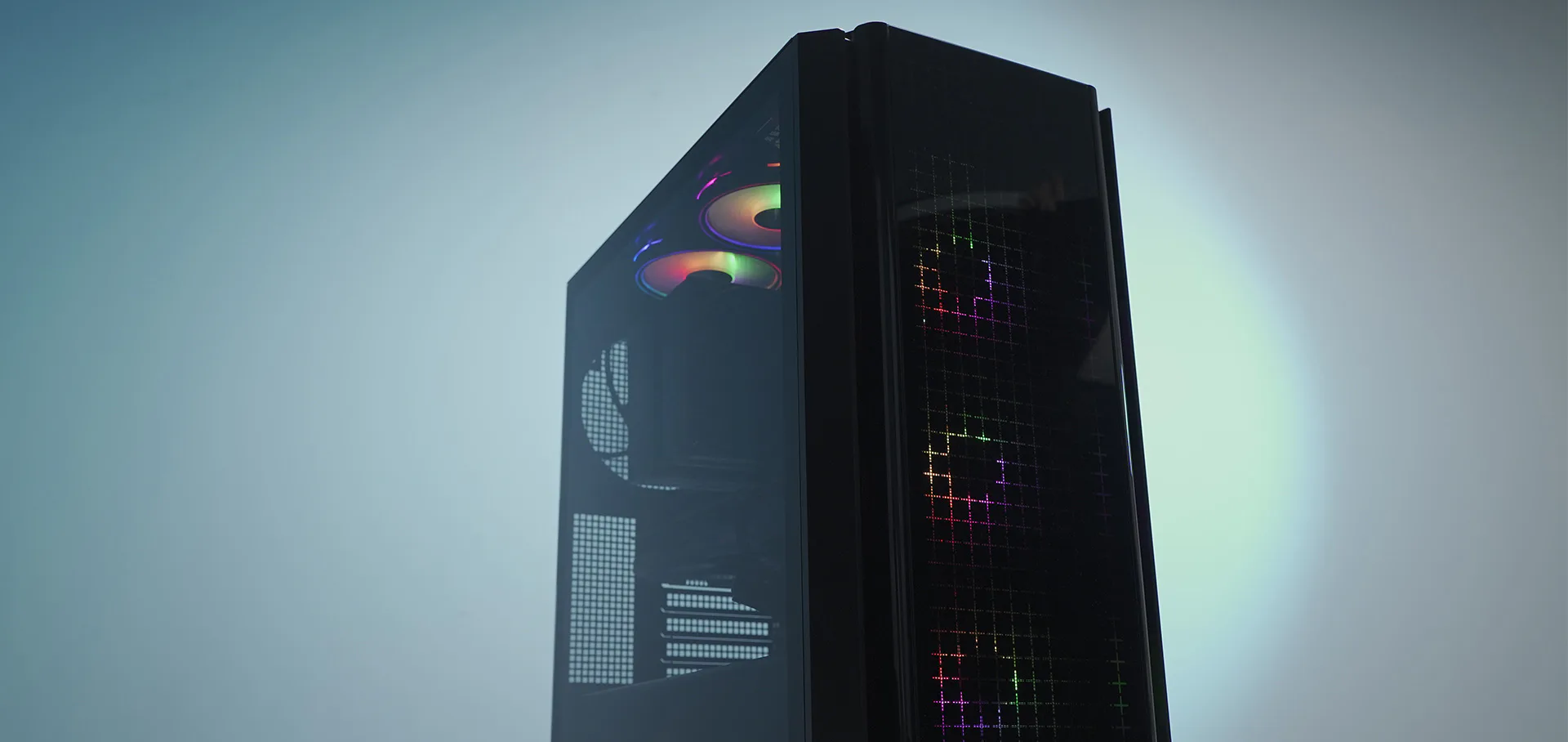

A Moment of Clarity

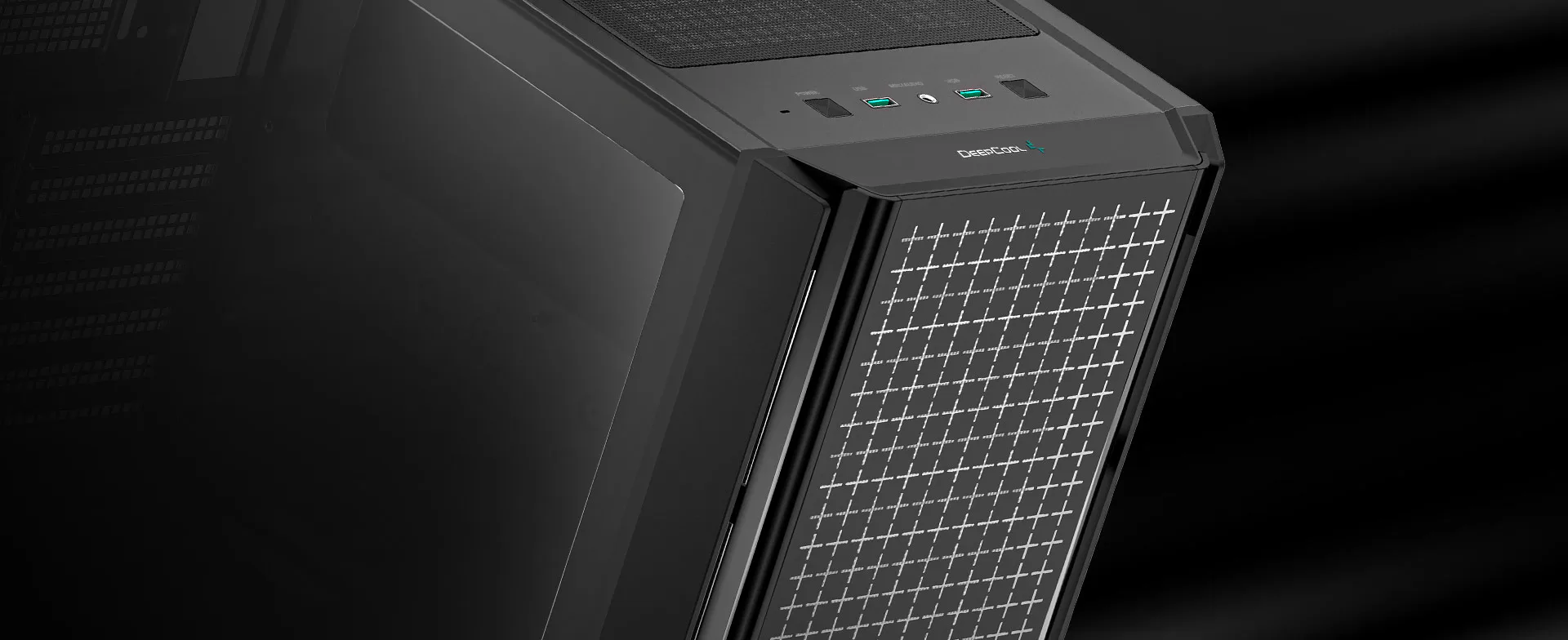

On Full Display

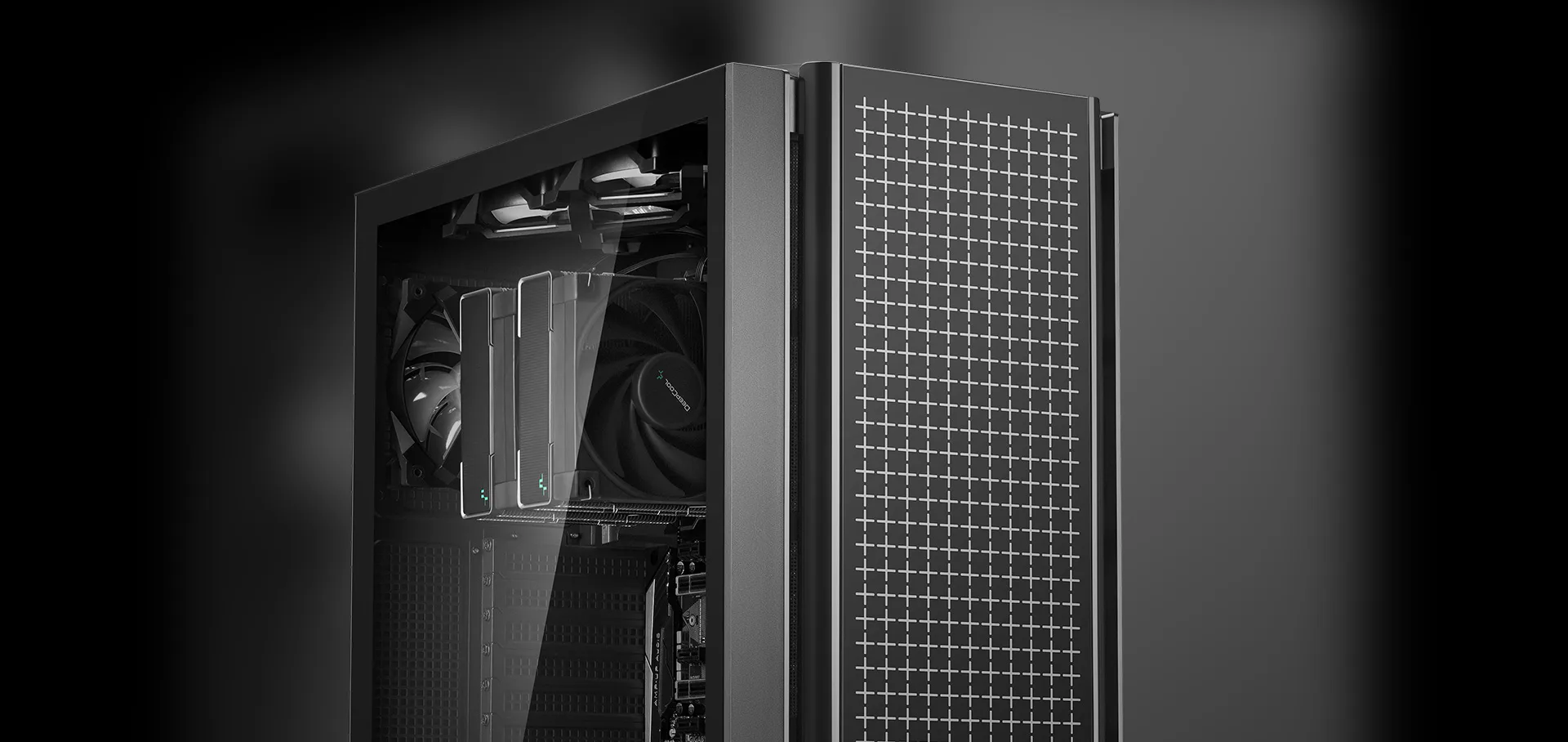

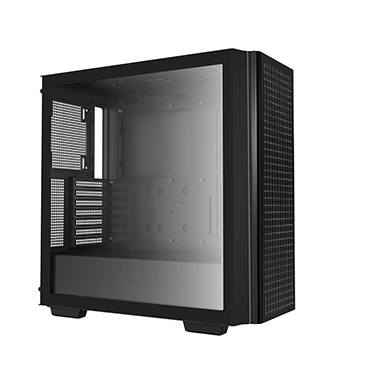

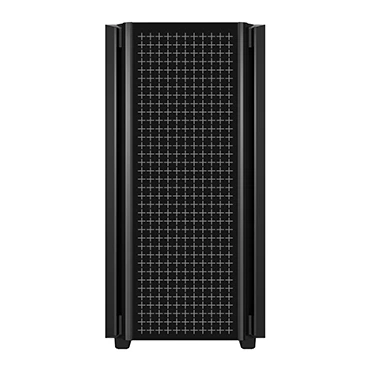

Put on a show with tempered glass side and front panels lined with optimized ventilation for proper airflow performance.

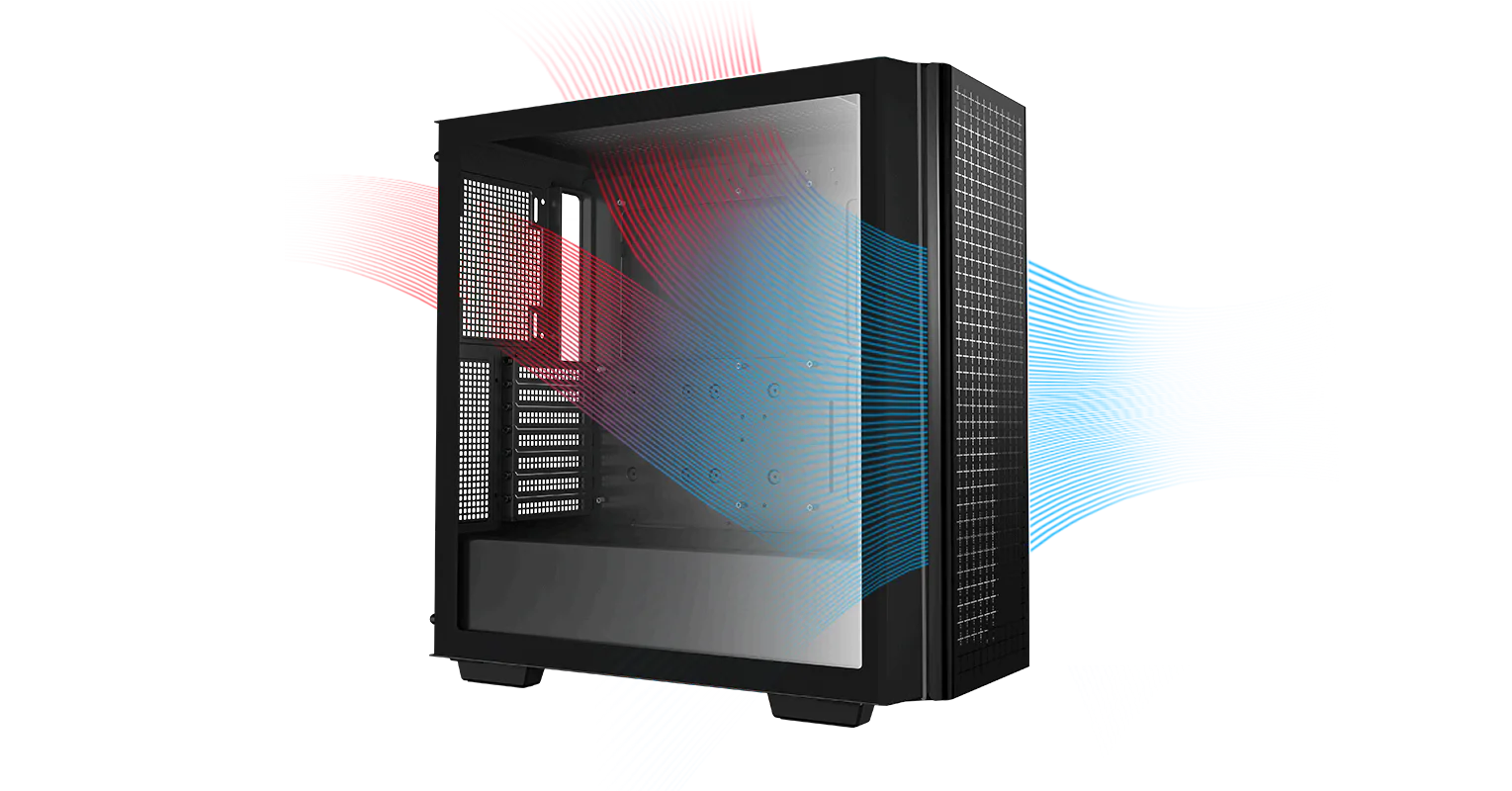

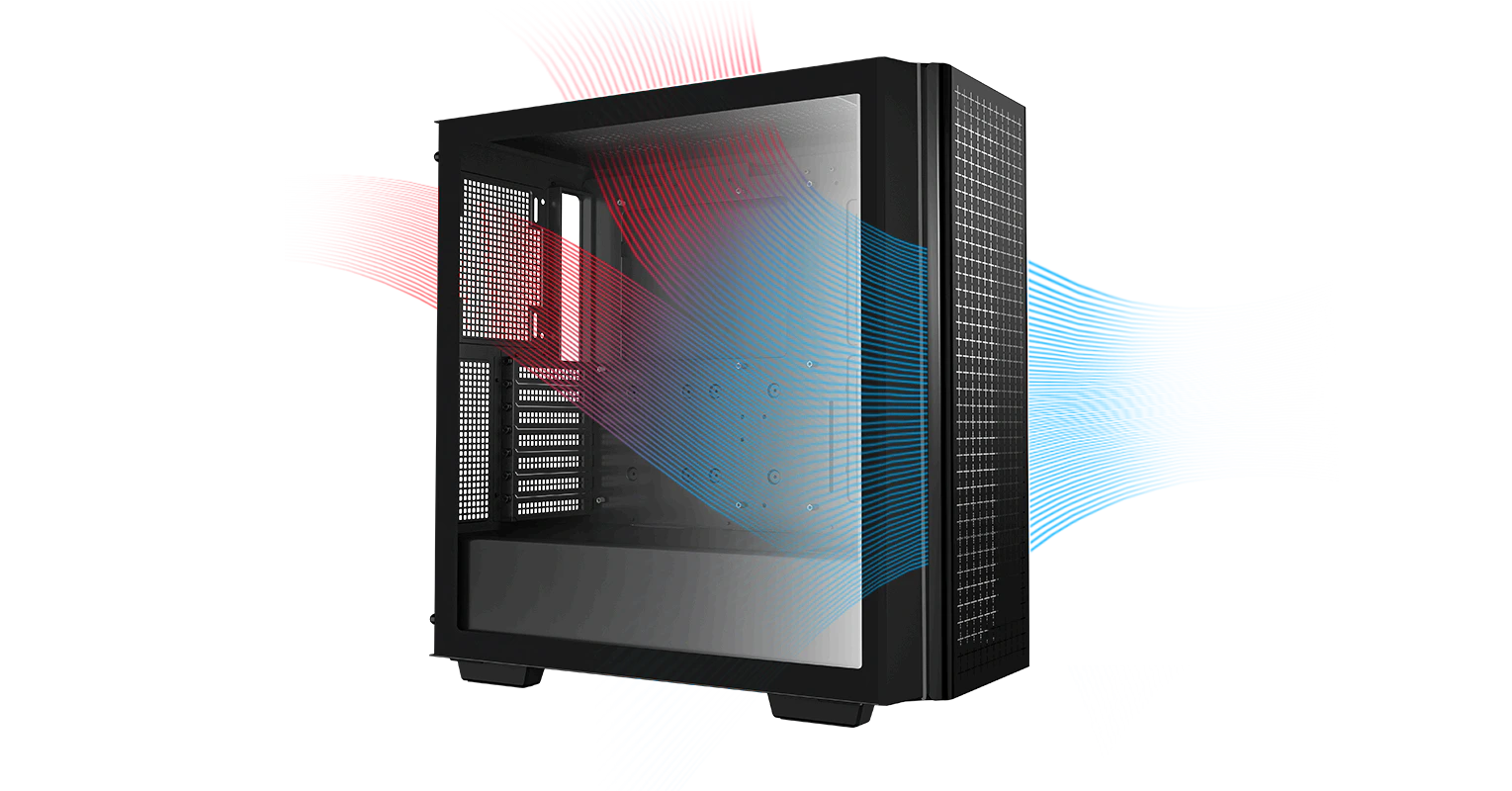

Expansive Cooling Capacity
Get big cooling potential with support up to 6x 120mm or 5x 140mm case fans, and multiple radiator configurations for 360mm installed in front and 280mm up top.
6 120mm
5 140mm
1 360mm
2 280mm
2 240mm
3 140mm
3 120mm

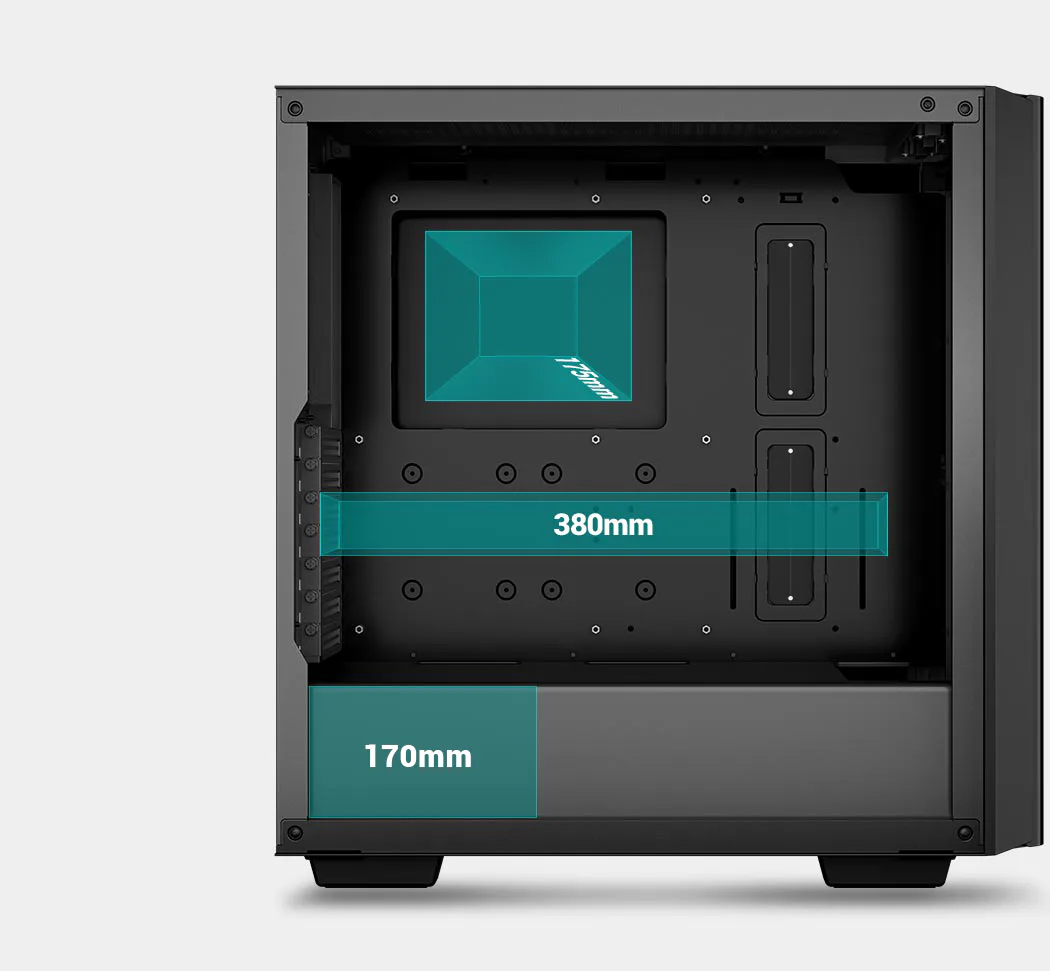

- Max CPU Cooler Height: 175mm
- Max GPU Length: 380mm
- Max PSU Length: 170mm

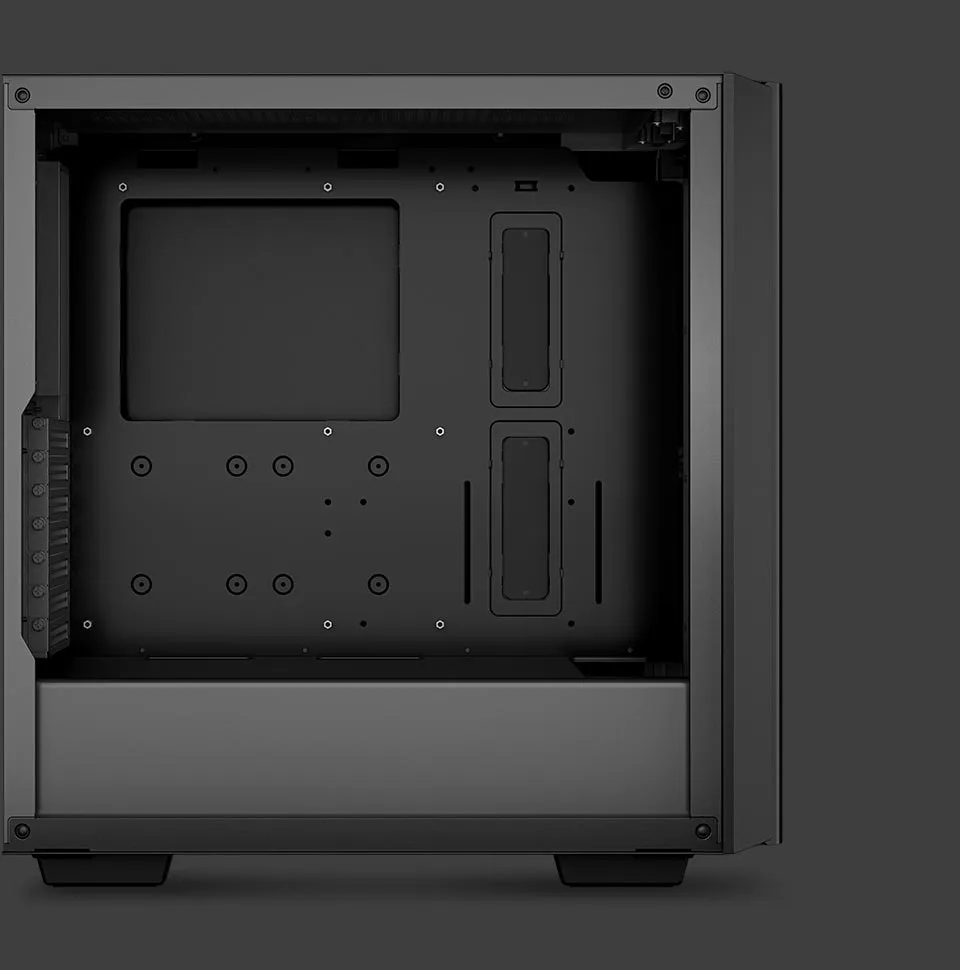

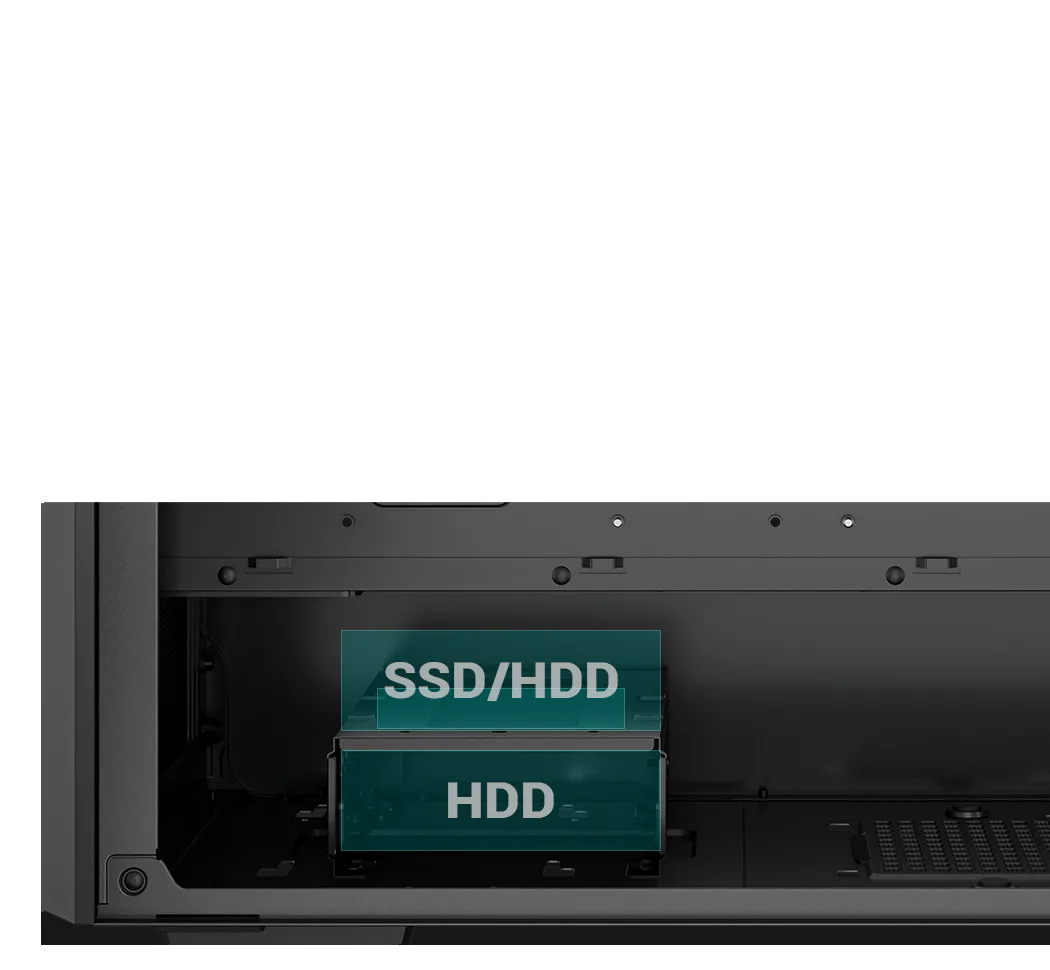

Complete Storage

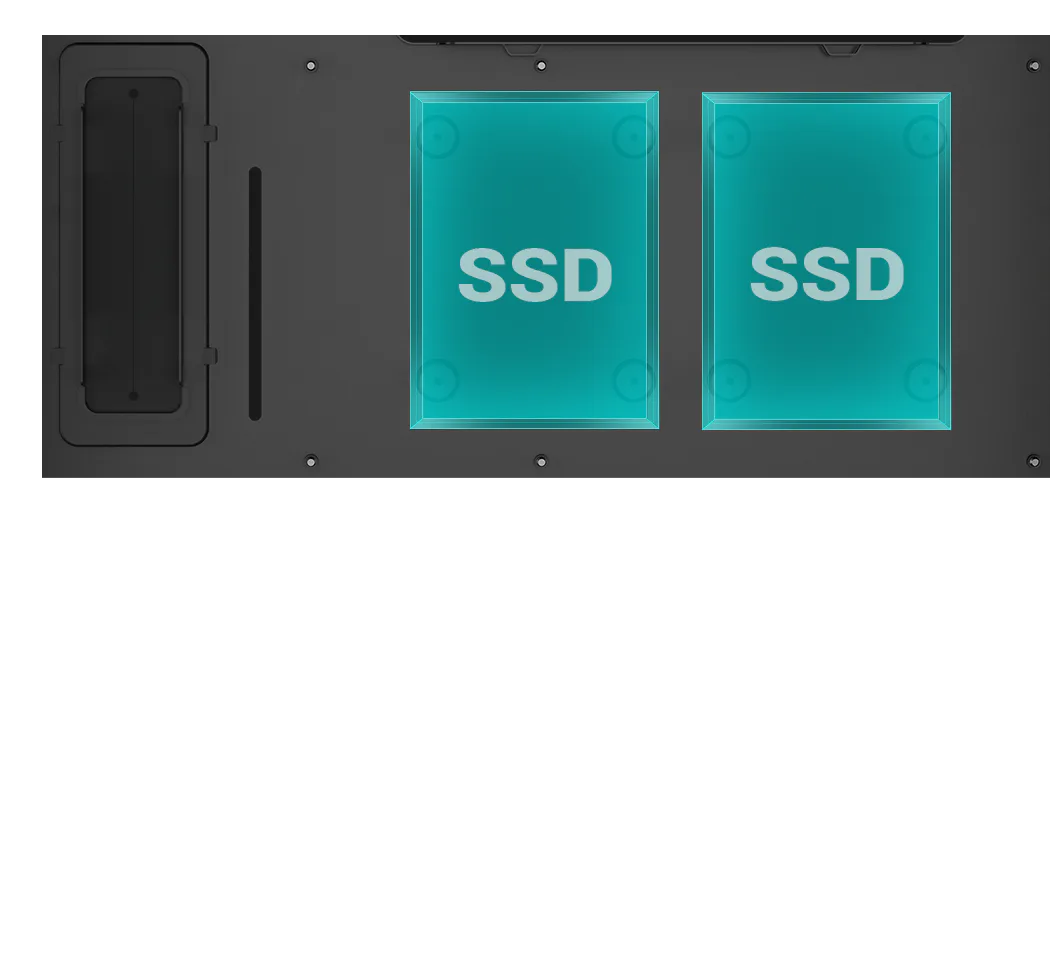

Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud for ample storage discreetly tucked away.

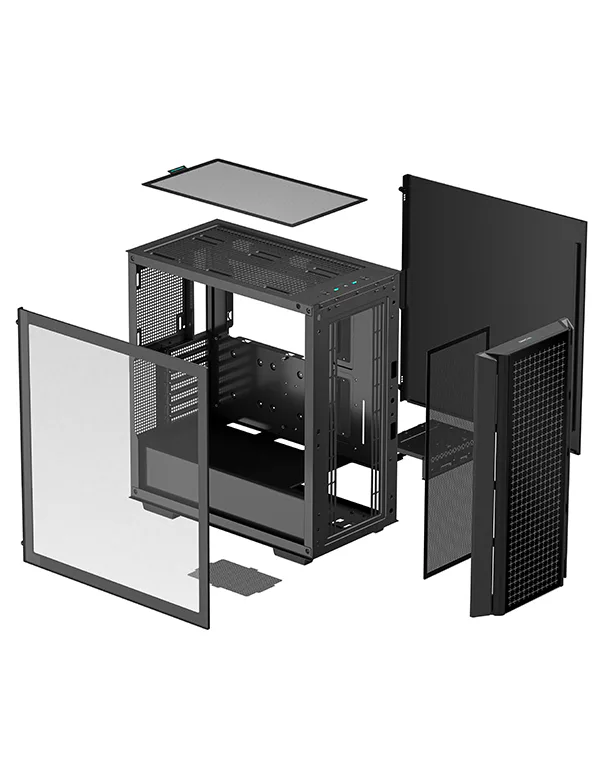

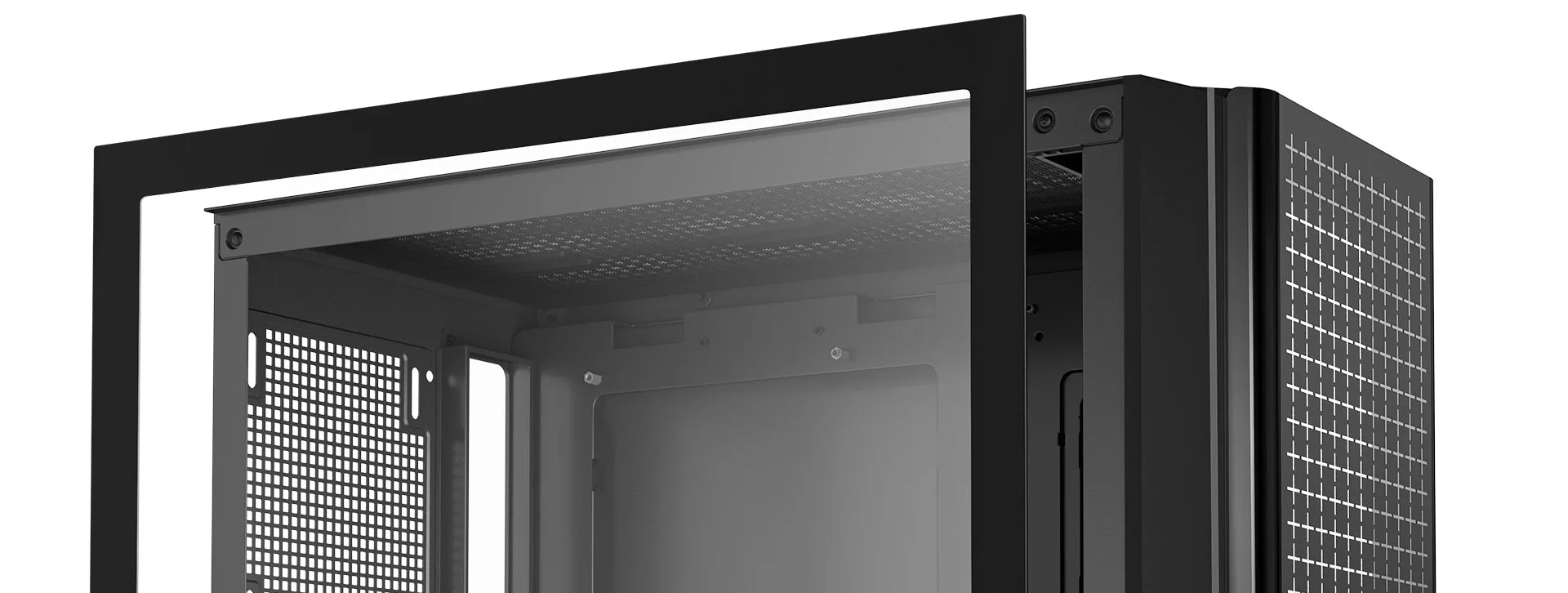

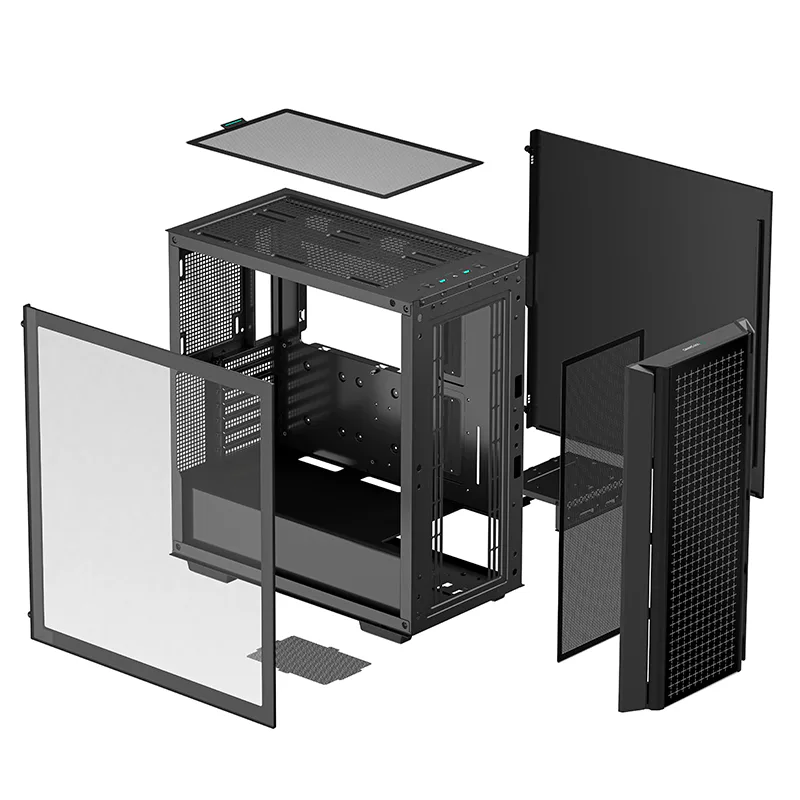

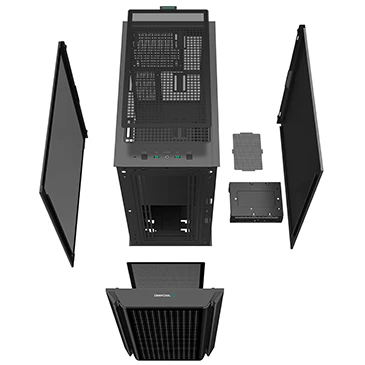

Easy Access Side Panels

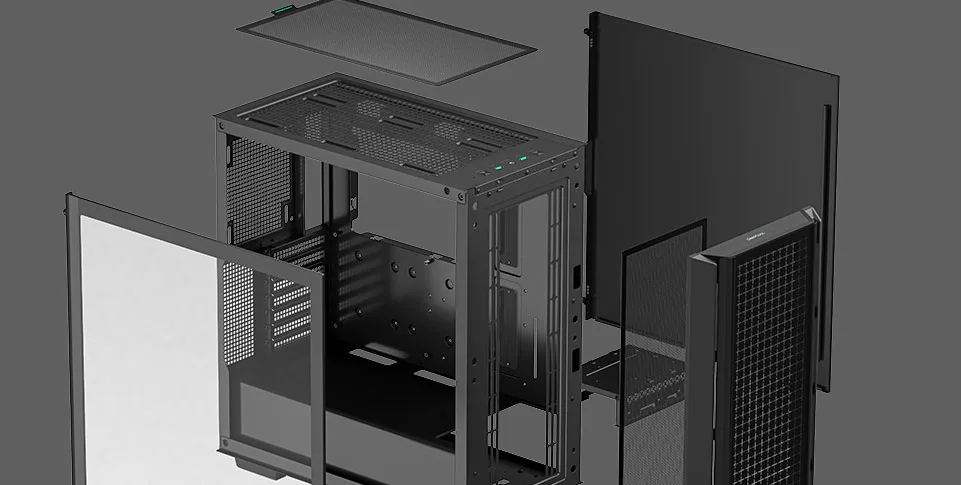

Quickly get to your internal components with simple slide and latch side panels and a solid tempered glass window to highlight your system.
Clean and Tidy
Easy-to-clean magnetic dust filters.

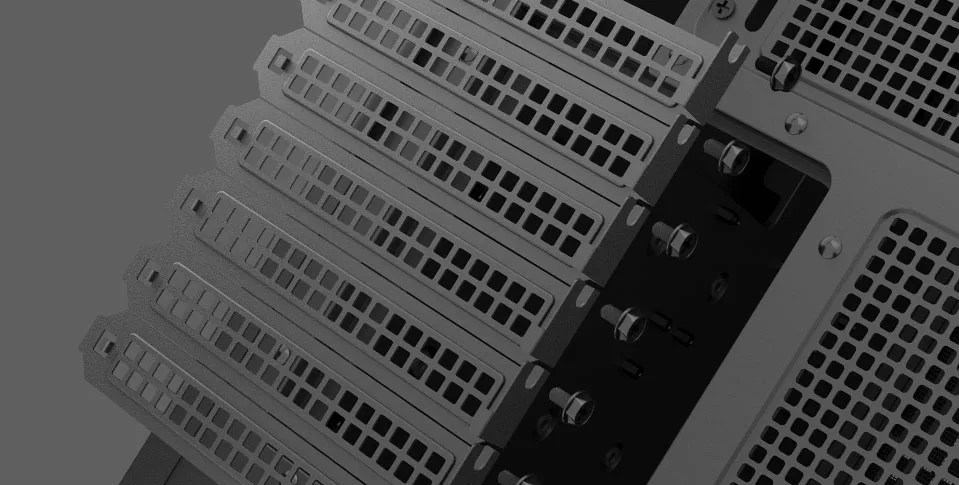

Remove and Reuse

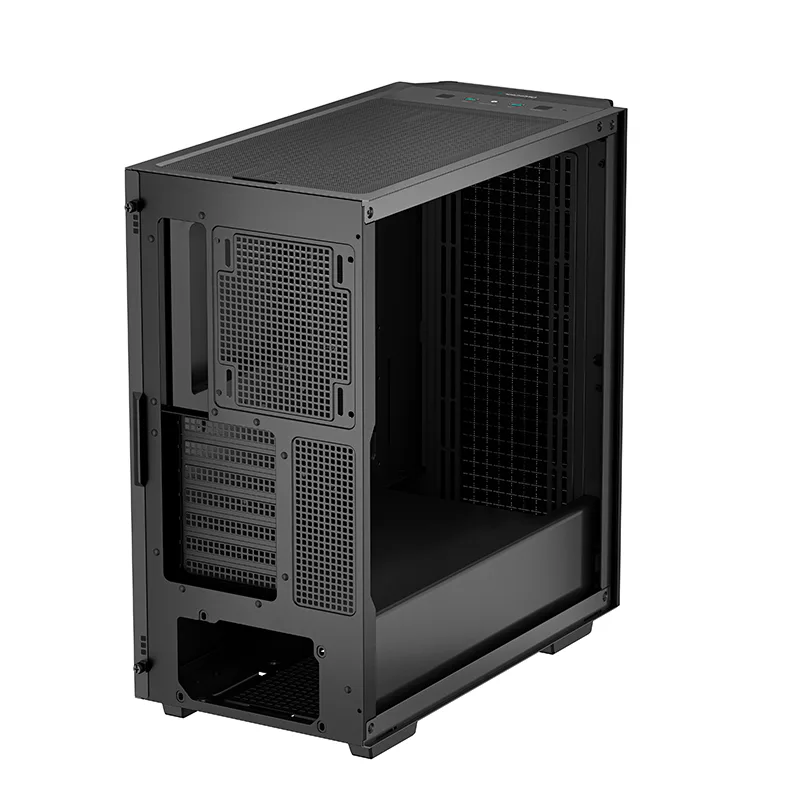

Independent PCIe baffles for simpler setup.

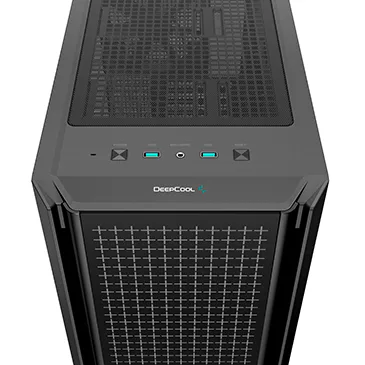

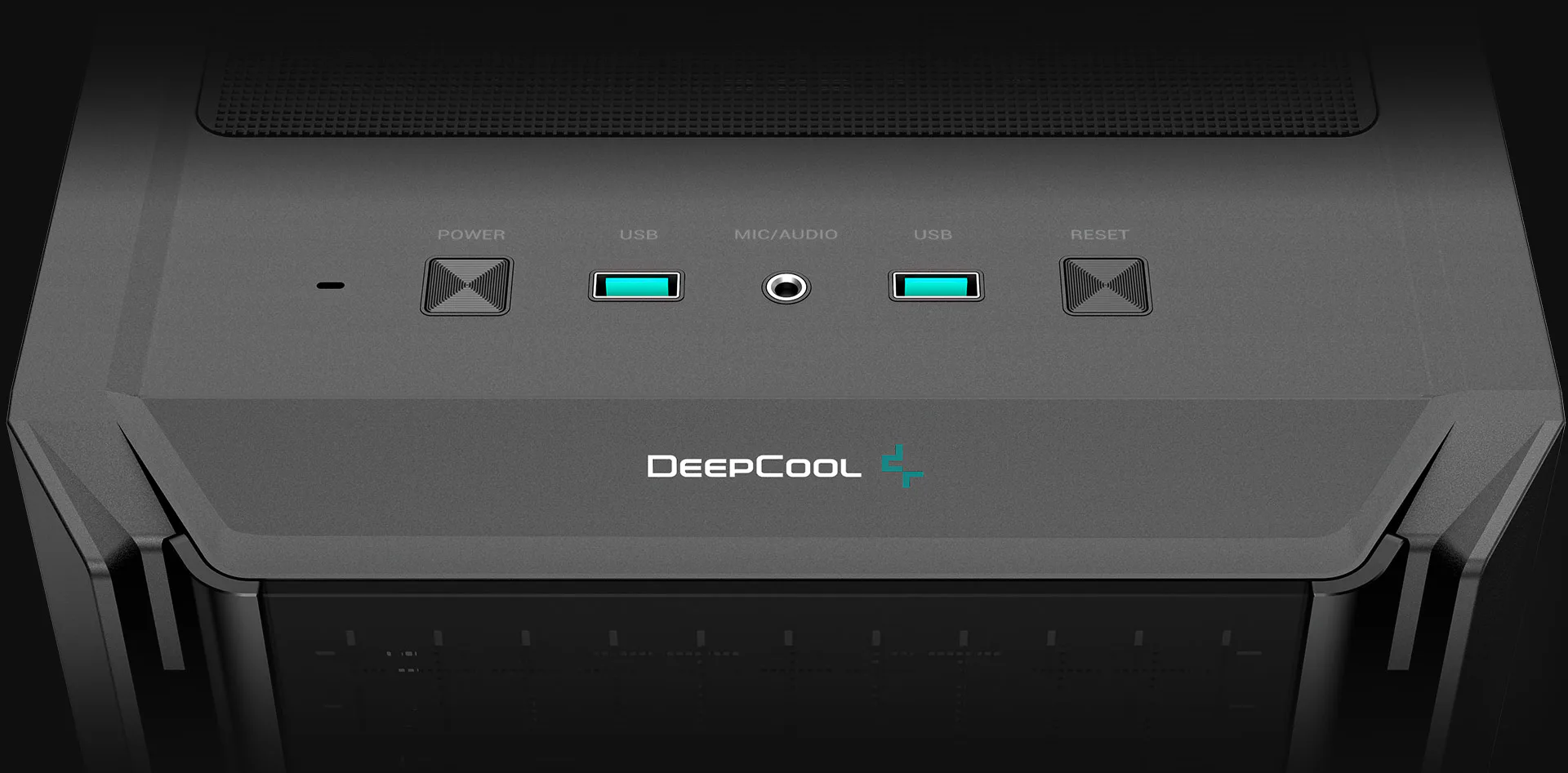

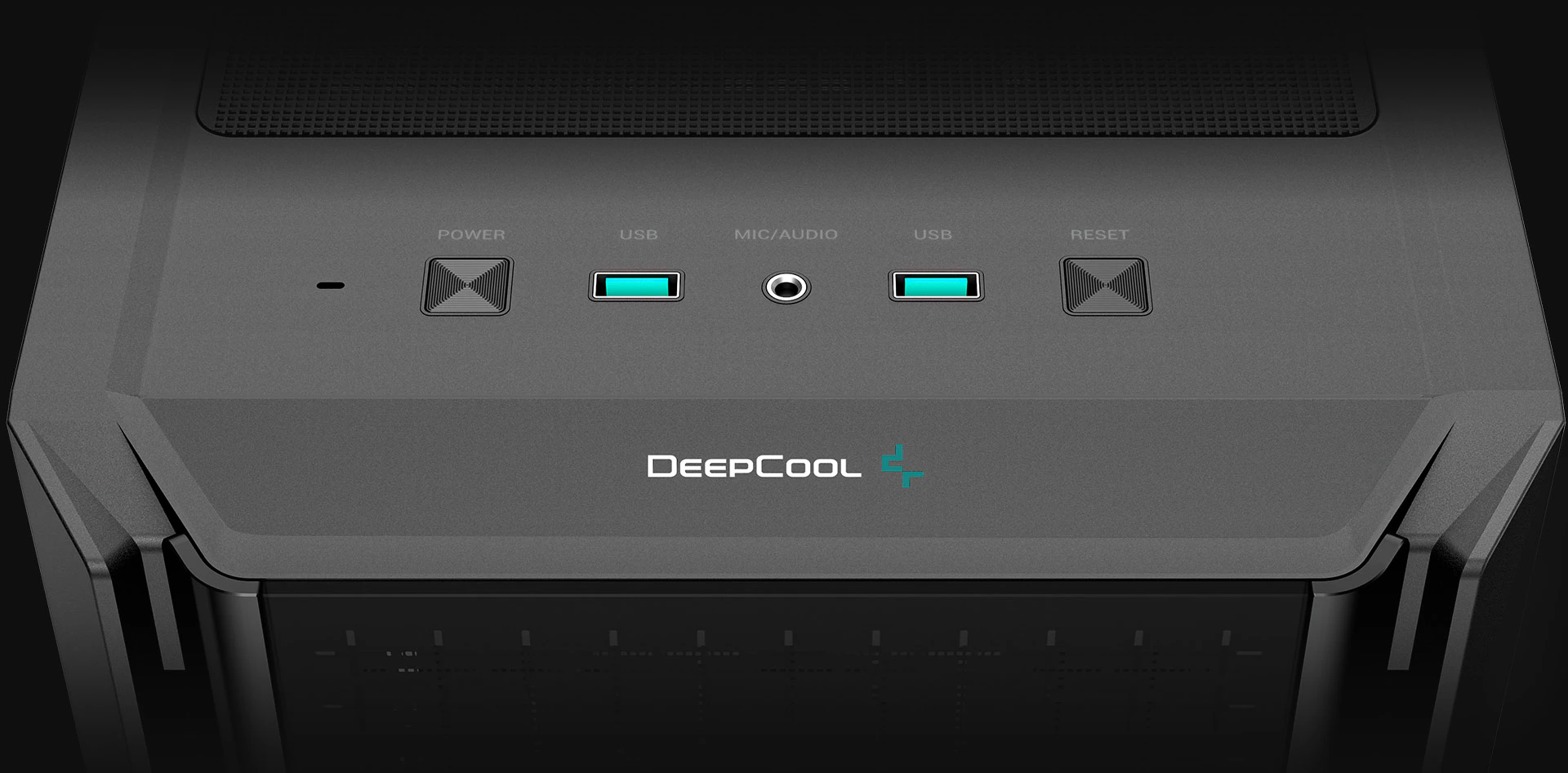

Front I/O Panel
Includes two USB 3.0 ports, a combination audio/mic jack, reset and power buttons.
Front I/O Panel
Includes two USB 3.0 ports, a combination audio/mic jack, reset and power buttons.
Technical Spec
Product Dimensions 455×230×470mm(L×W×H)
Net Weight 7Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Micro-ATX / ATX / E-ATX
Front I/O Ports USB3.0×2、Audio×1
3.5" Drive Bays 2
2.5" Drive Bays 2+1
Expansion Slots 7 Slots
Pre-Installed Fans None
Fan Support Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120 / 1×140mm
Radiator Support Front: 120/140/240/280/360mm Top: 120/140/240/280mm Rear: 120/140mm
CPU Cooler Height Limit 175mm
GPU Length Limit 380mm
Power Supply Type ATX PS2(maximum length: 170mm)
EAN Code 6933412714804
PN Code R-CG540-BKNGE0-C-1
Product Dimension
