CG560

Airflow Focused

Accelerated Airflow

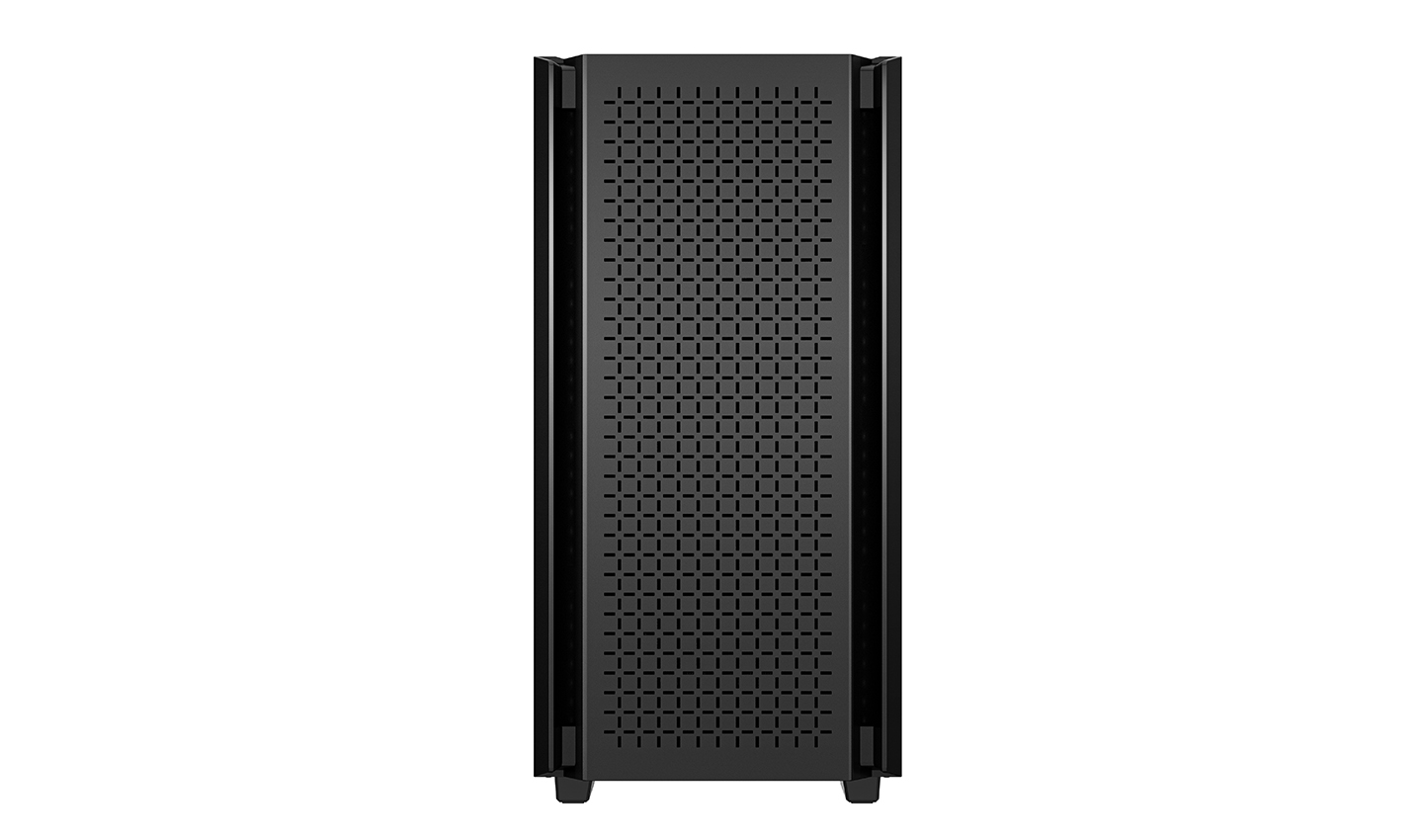

Keep your components cool with increased air intake through an optimized front panel for maximum ventilation.

Ready.
Set.
Go.

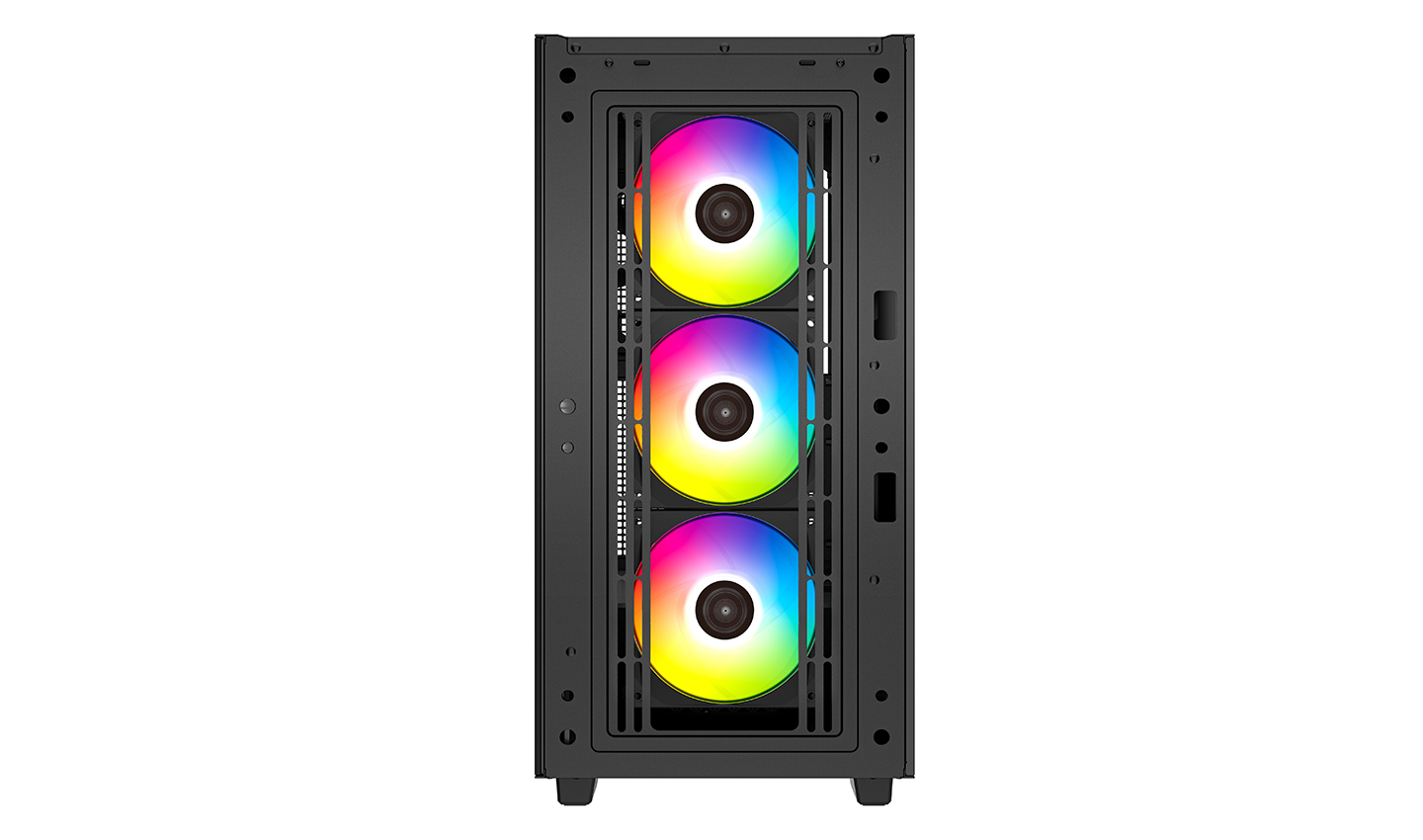

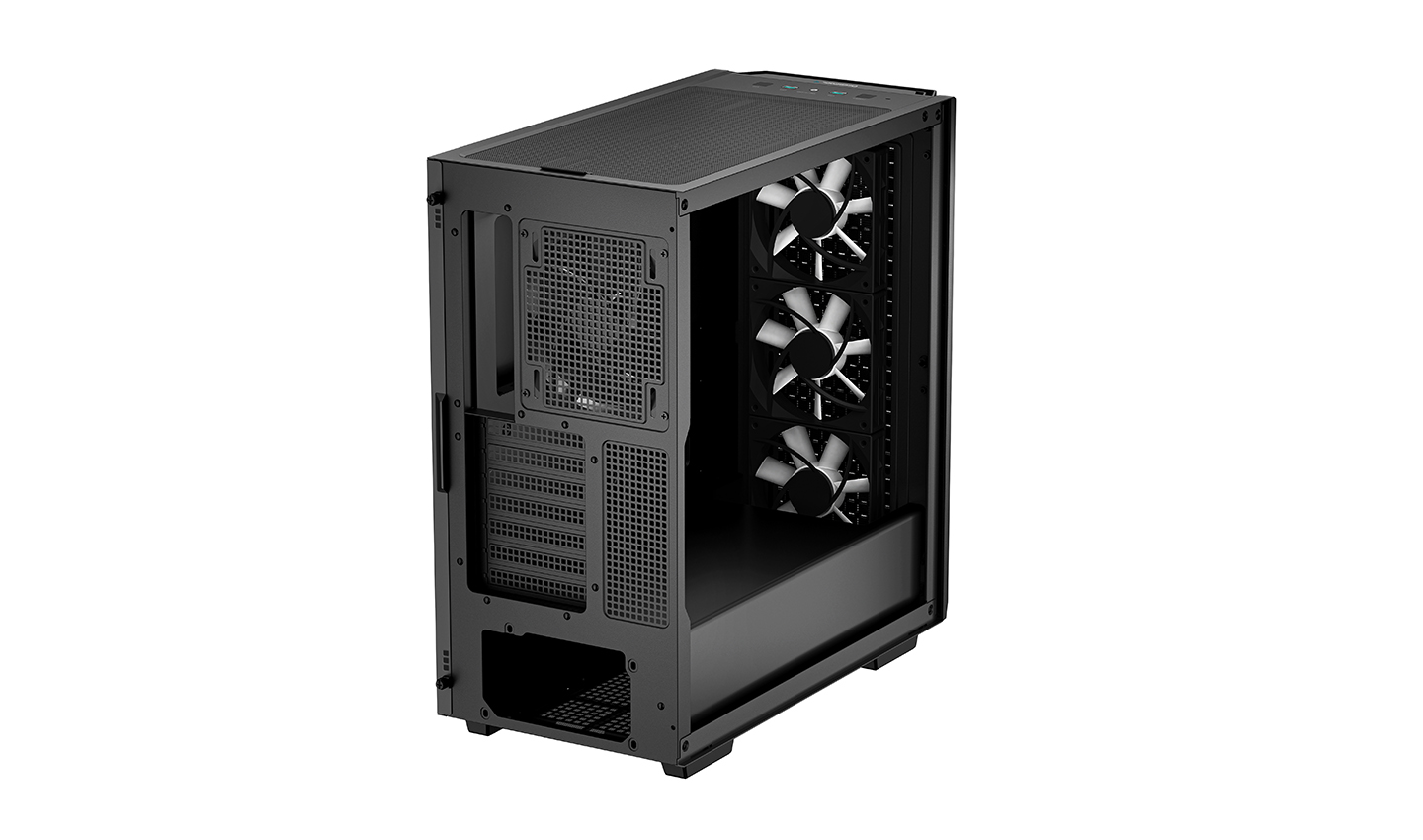

Start your build right with three pre-installed 120mm ARGB fans in front and one 140mm fan in the rear for enhanced cooling performance.

Expansive Cooling Capacity

Get big cooling potential with support up to 6x 120mm or 5x 140mm case fans, and multiple radiator configurations for 360mm installed in front and 280mm up top.

6 120mm

5 140mm

CASE FANS

1 360mm

2 280mm

2 240mm

3 140mm

3 120mm

RADIATOR

Compatibility

- Max CPU Cooler Height: 175mm

- Max GPU Length: 380mm

- Max PSU Length: 170mm

Complete Storage

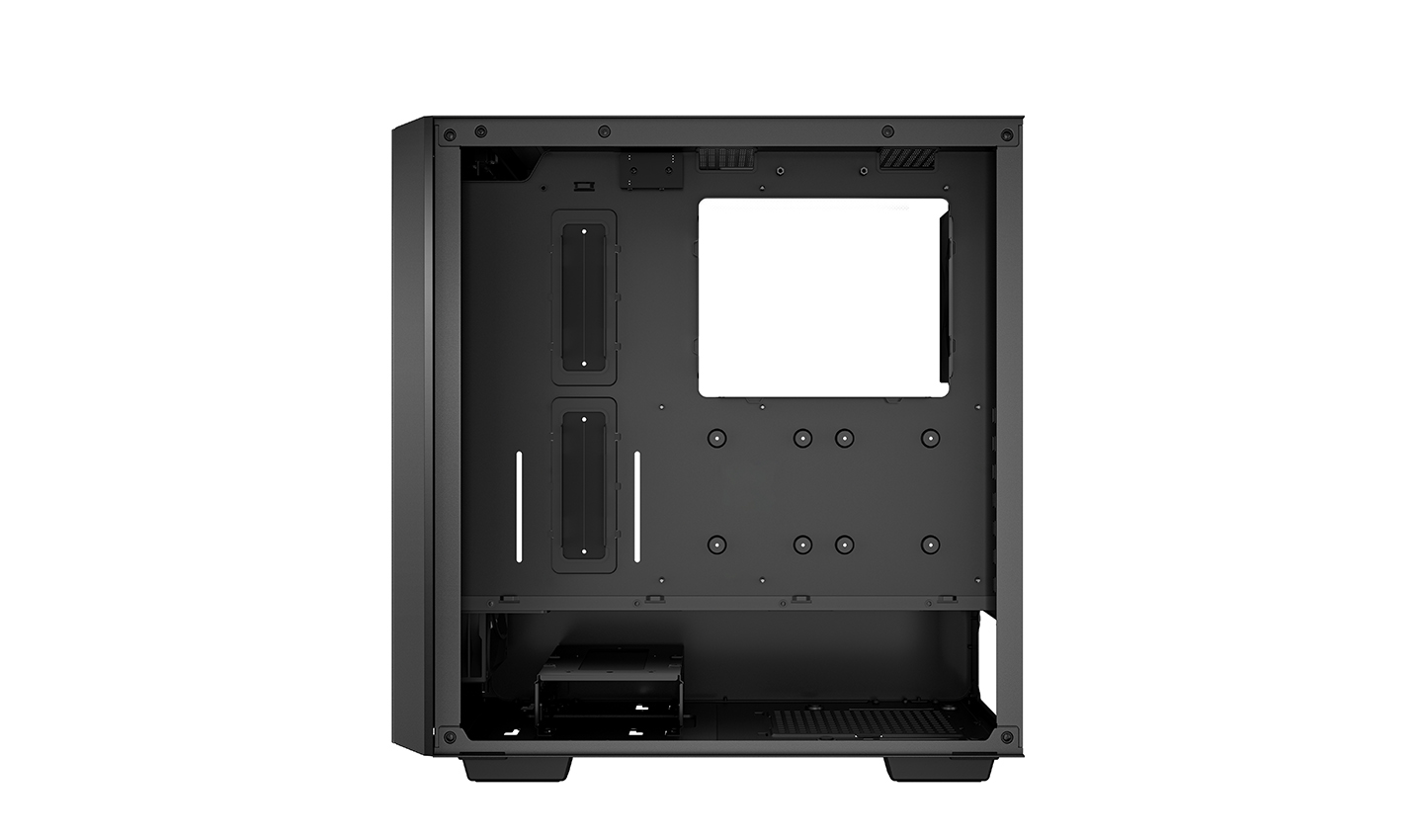

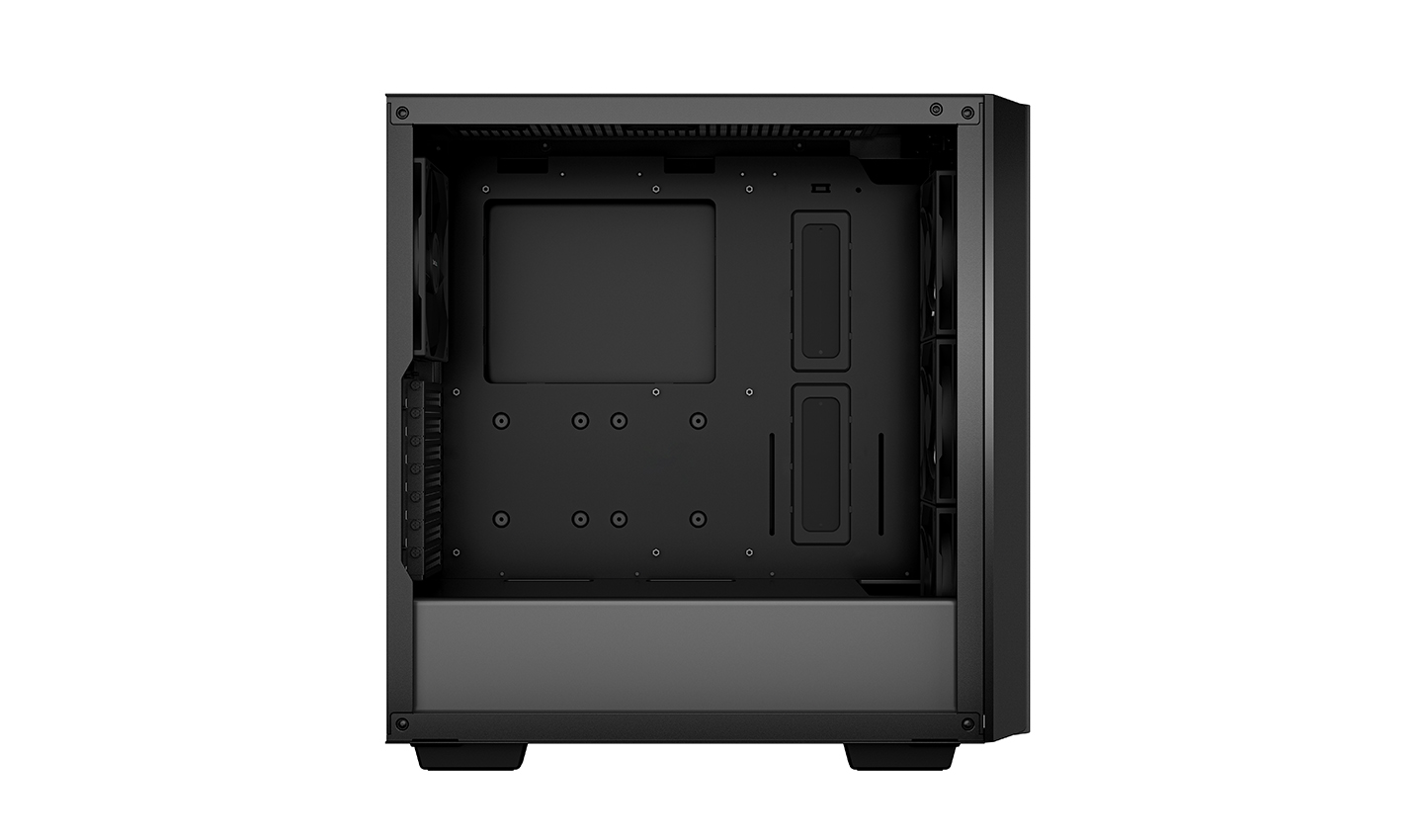

Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud for ample storage discreetly tucked away.

Easy Access Side Panels

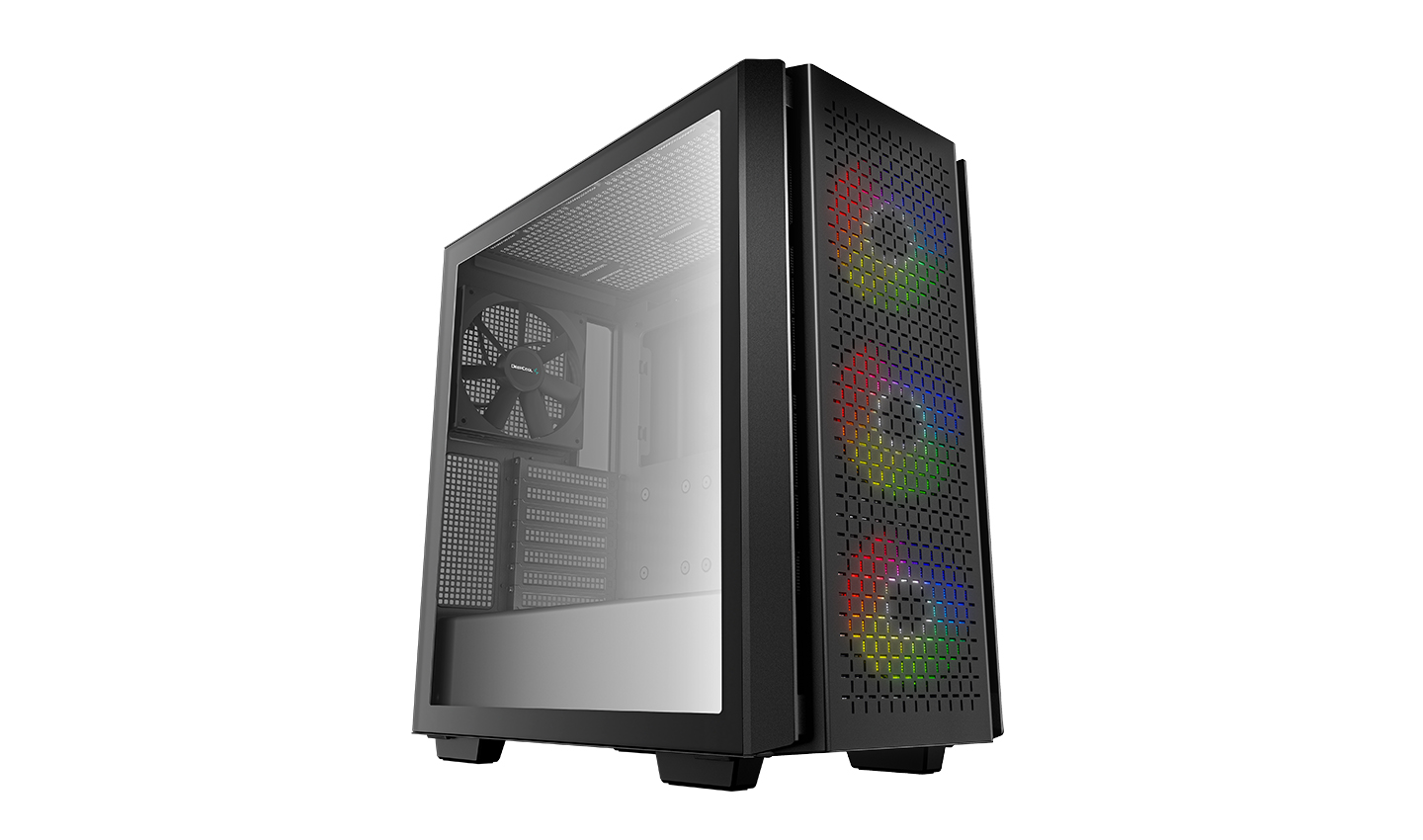

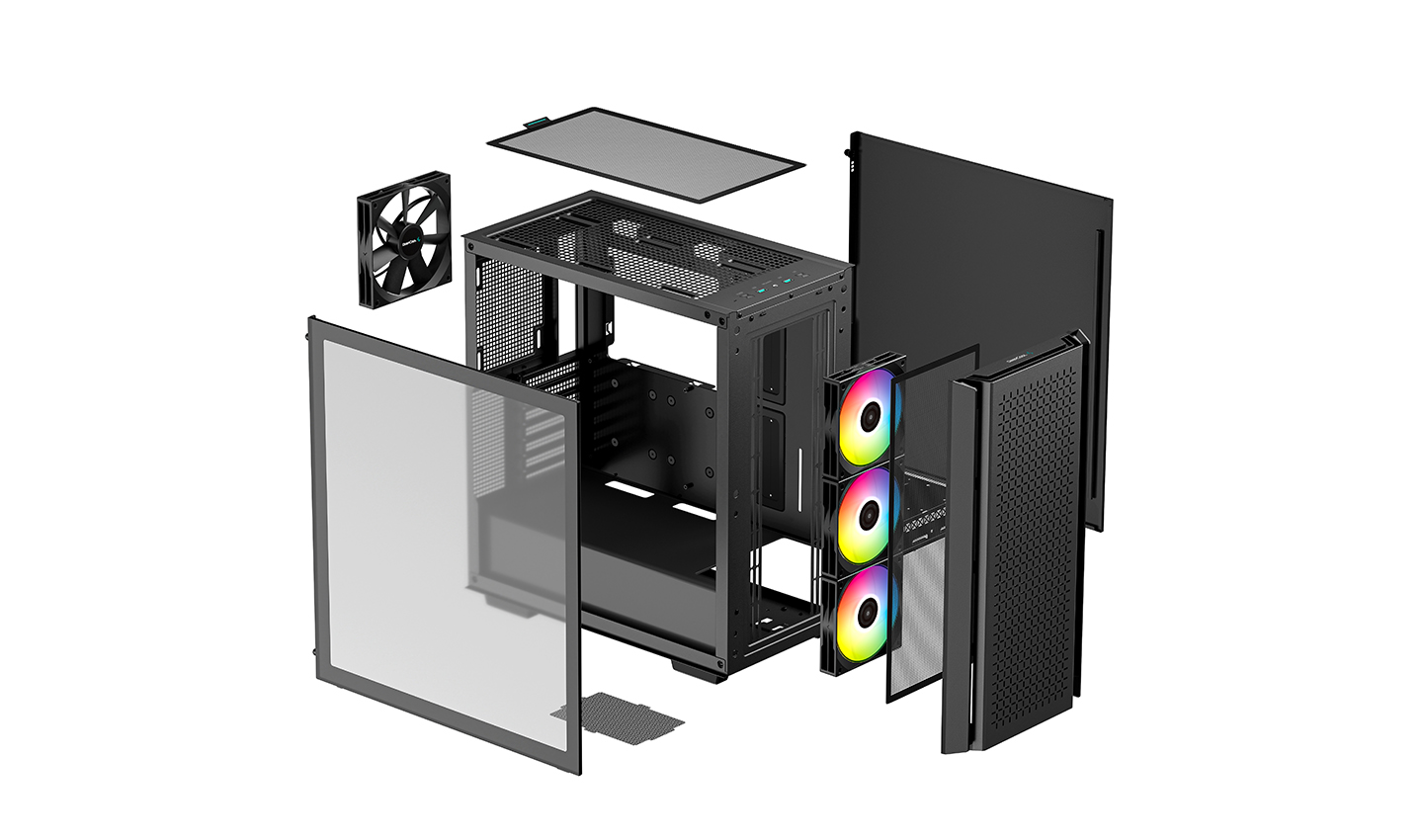

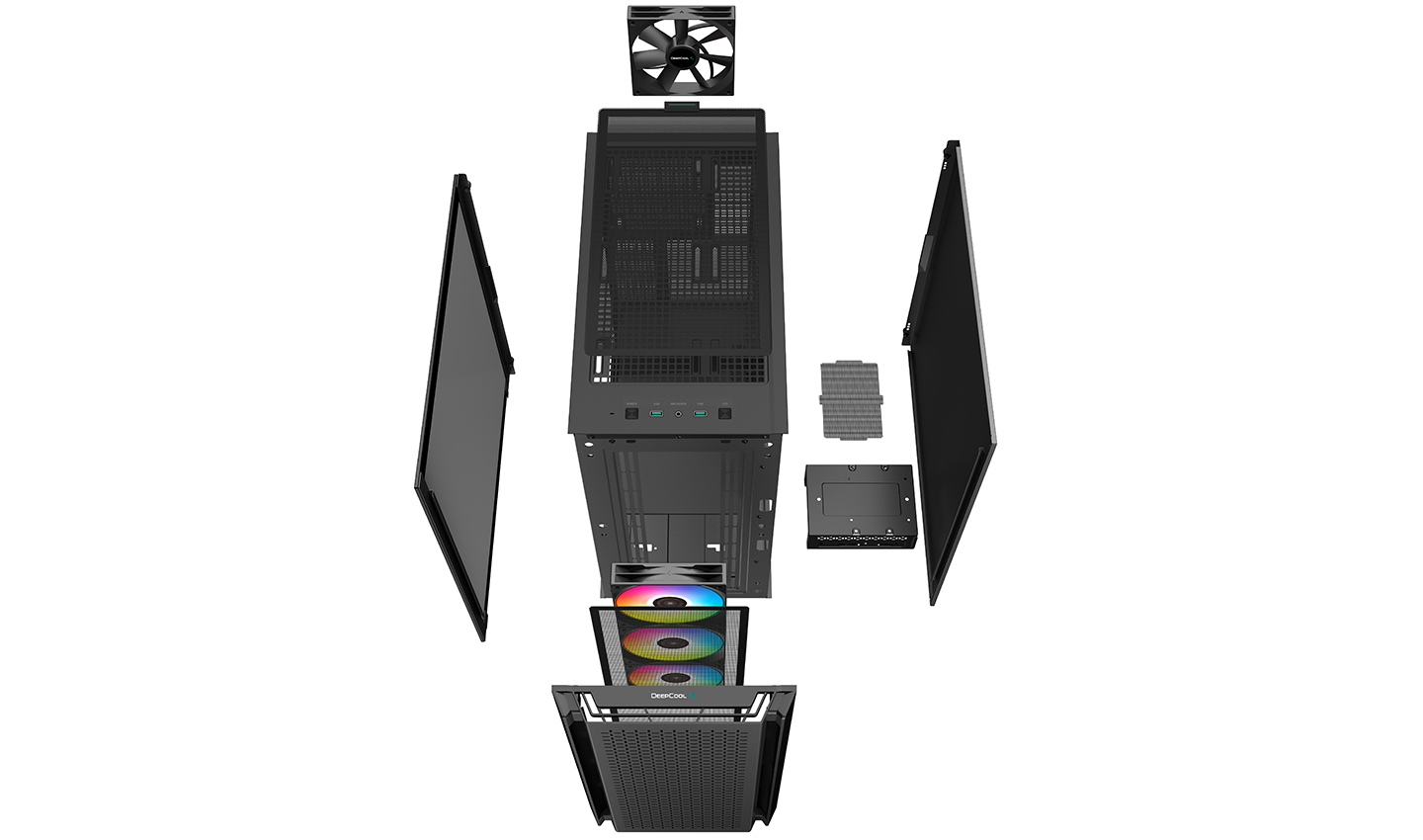

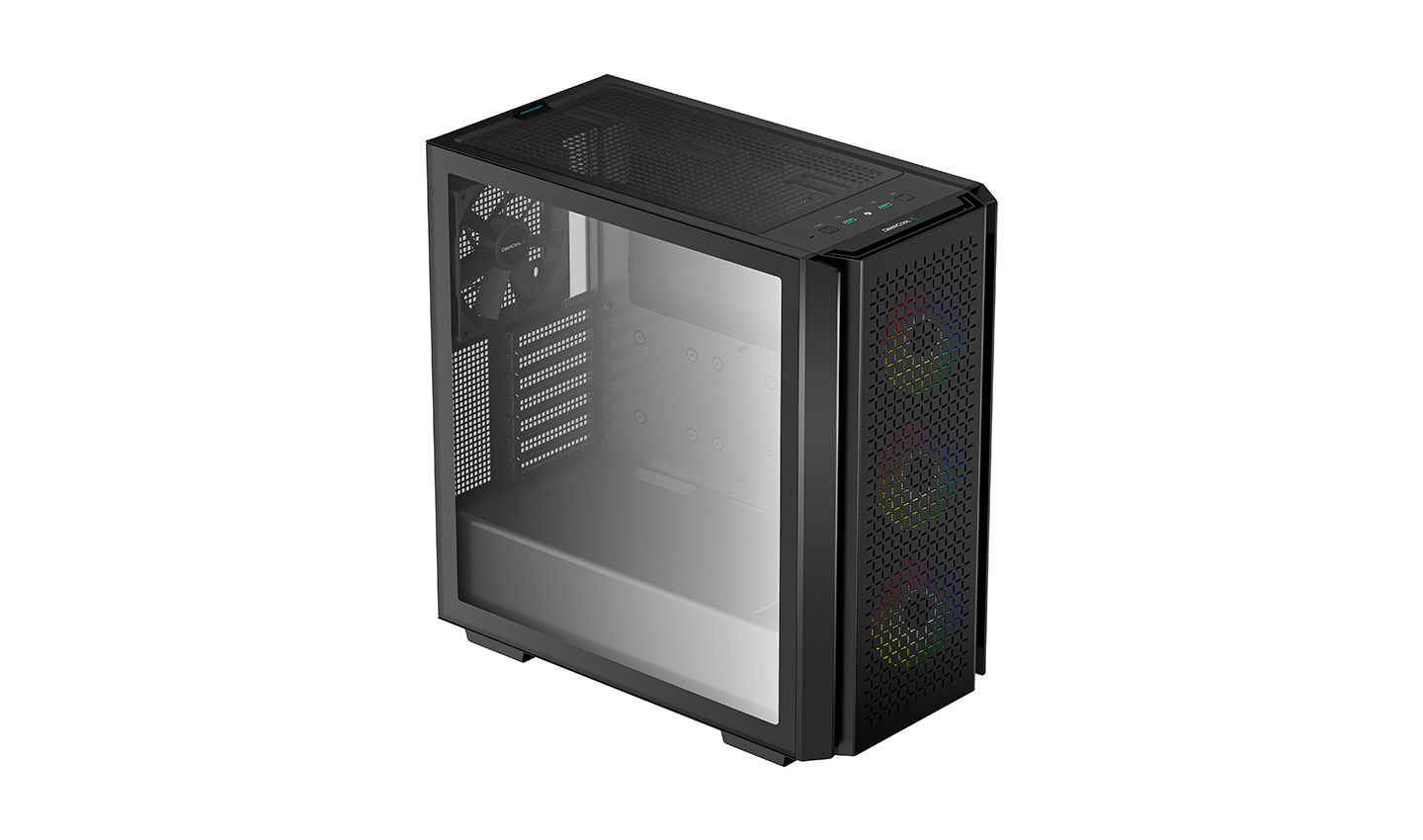

Quickly get to your internal components with simple slide and latch side panels and a solid tempered glass window to highlight your system.

Clean and Tidy

Easy-to-clean magnetic dust filters.

Independent PCIe Slot Baffles

Remove and reuse for simpler setup.

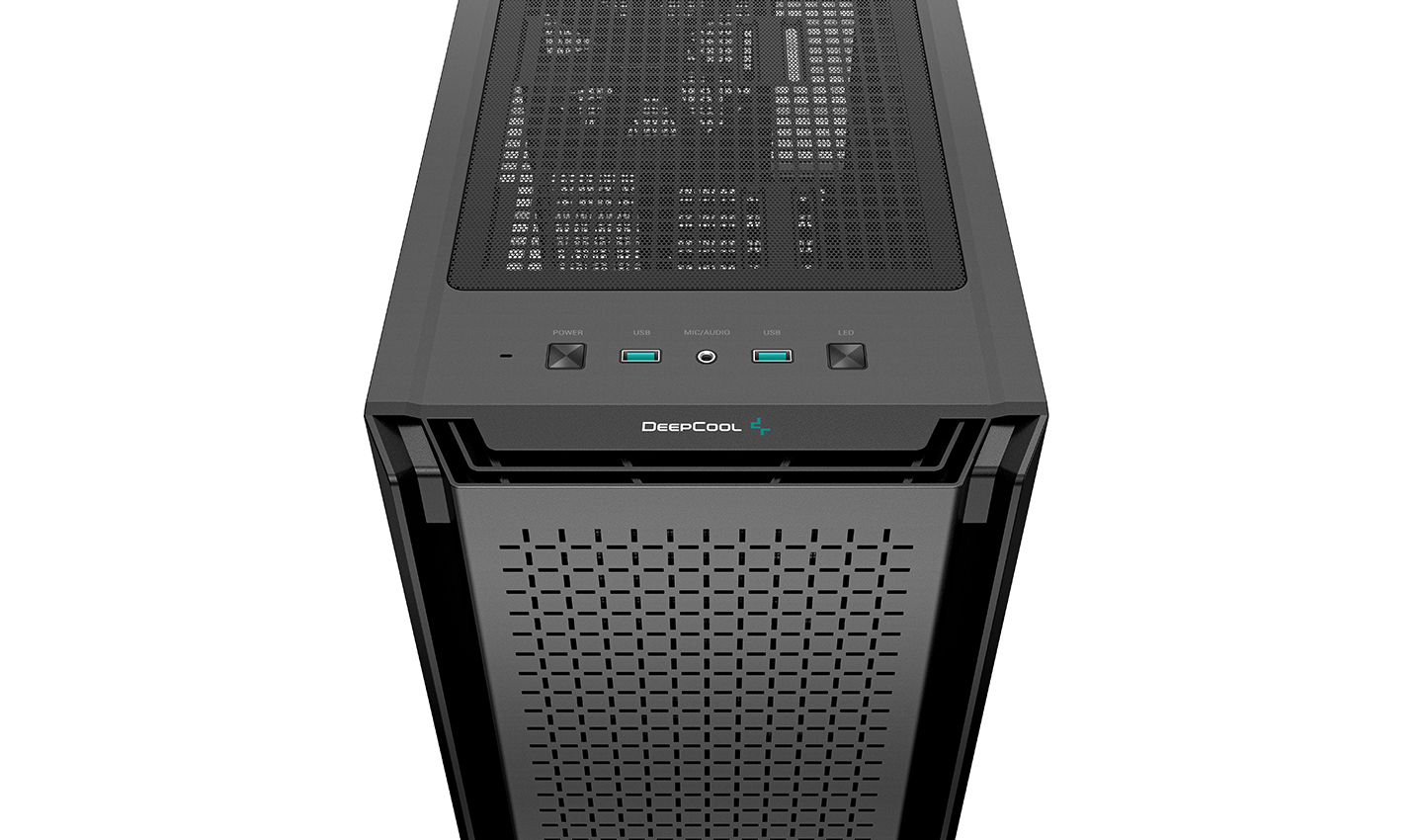

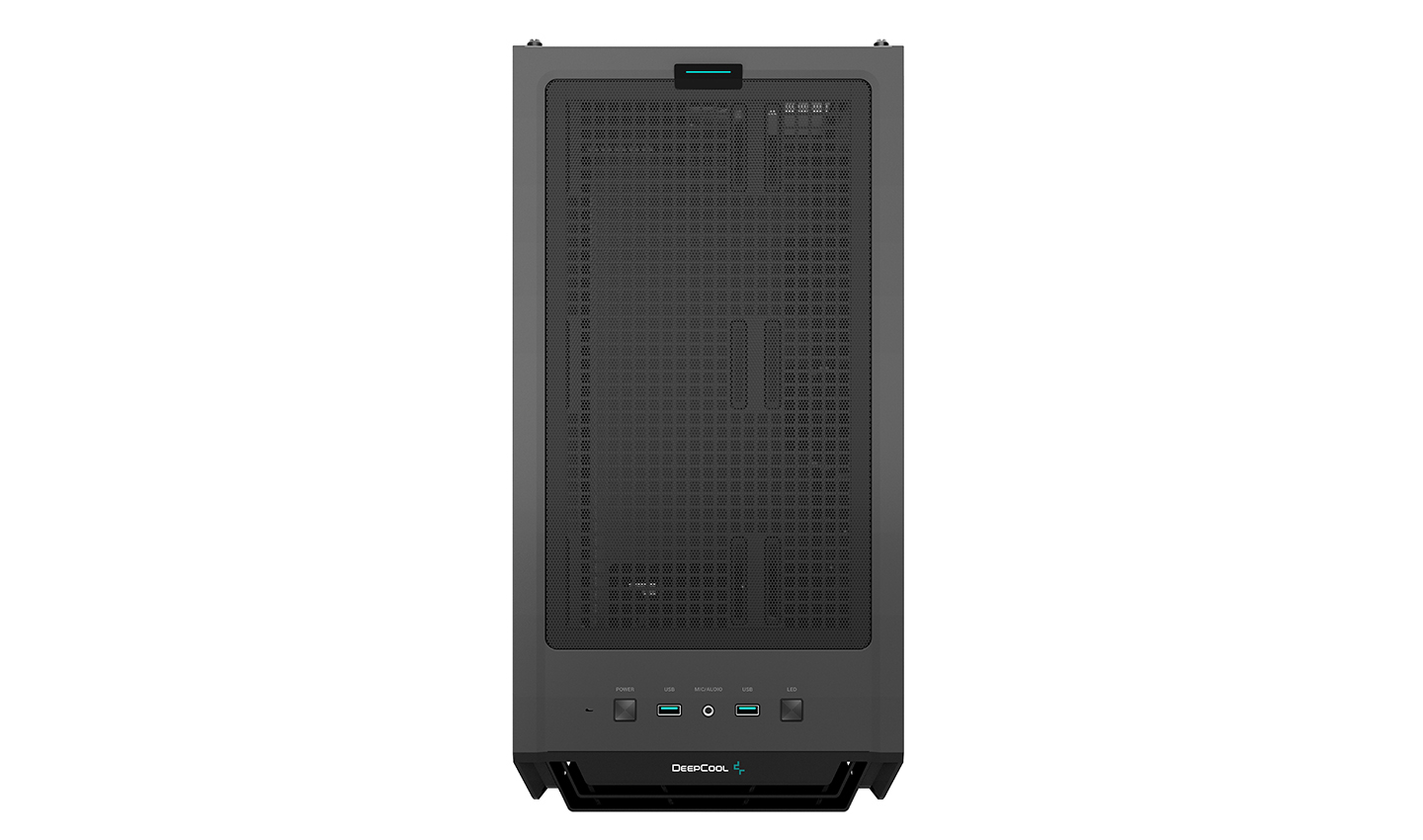

Front I/O Panel

Along with two USB 3.0 ports and a combination audio/mic jack, the reset button is custom configured to control preset lighting effects on the three pre-installed ARGB fans.

Front I/O Panel

Along with two USB 3.0 ports and a combination audio/mic jack, the reset button is custom configured to control preset lighting effects on the three pre-installed ARGB fans.

Technical Spec

Product Dimensions	452×230×470(L×W×H)
Net Weight	7Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	Mini-ITX / Micro-ATX / ATX / E-ATX
Front I/O Ports	USB3.0×2、Audio×1
3.5" Drive Bays	2
2.5" Drive Bays	2+1
Expansion Slots	7 Slots
Pre-Installed Fans	Front: 3×120mm Rear: 1×140mm
Fan Support	Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120 / 1×140mm
Radiator Support	Front: 120/140/240/280/360mm Top: 120/140/240/280mm Rear: 120/140mm
CPU Cooler Height Limit	175mm
GPU Length Limit	380mm
Power Supply Type	ATX PS2 (maximum length: 170mm)
EAN Code	6933412714774
PN Code	R-CG560-BKAAE4-G-1

Product Dimension

Download

CG560 Manual.pdf
