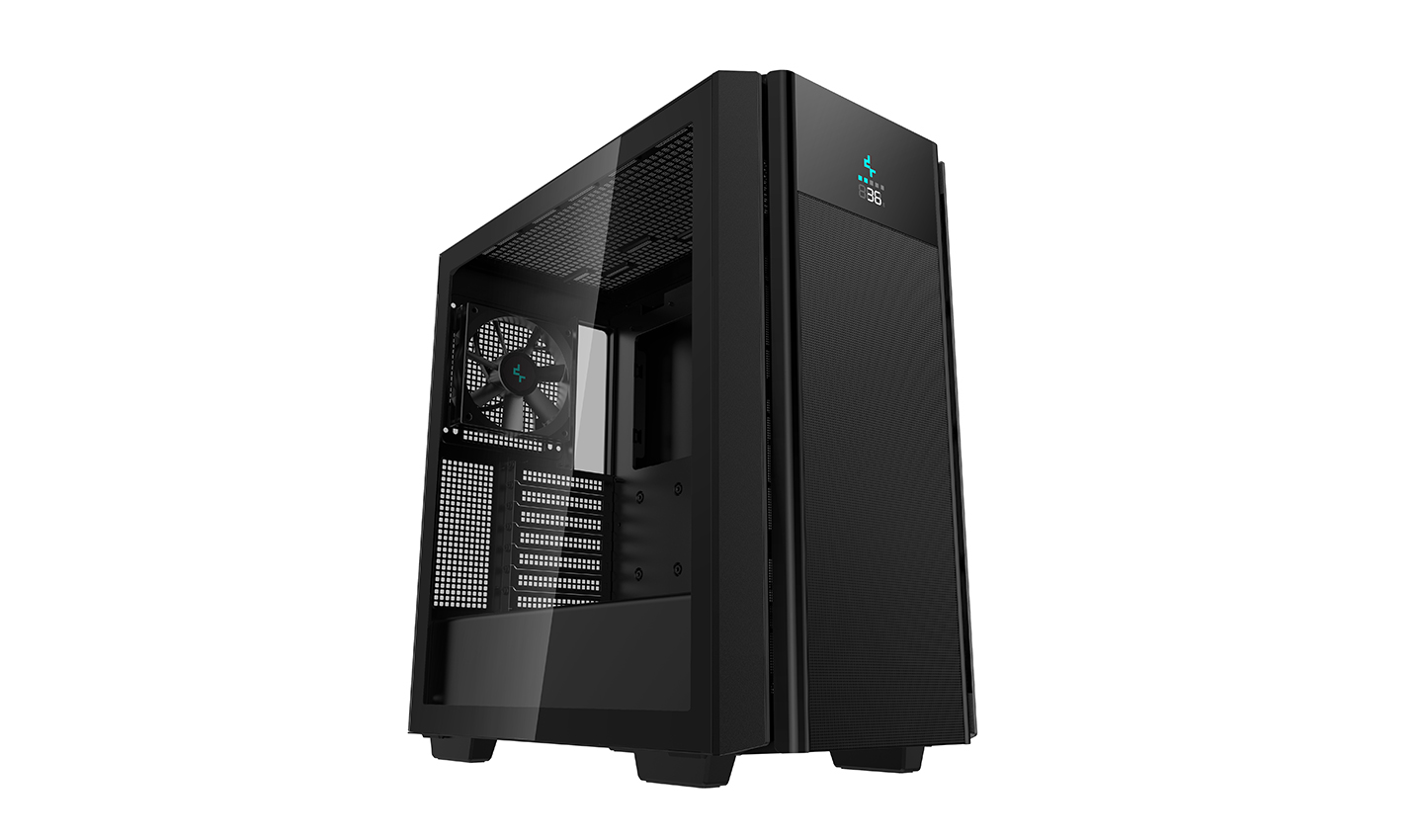

CH510 MESH DIGITAL
The DeepCool CH510 MESH DIGITAL is a high airflow mid-tower ATX case with great flexibility and wide component compatibility for any system build. Featuring a display screen that is programmable to monitor internal system temperatures for critical information up front.
COLOR
black
MODEL
CH510 MESH DIGITAL
Mid-Tower ATX Case
High-Airflow Panel
The CH510 MESH DIGITAL is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer. The large metal mesh front panel allows vast amounts of airflow for optimal system cooling.

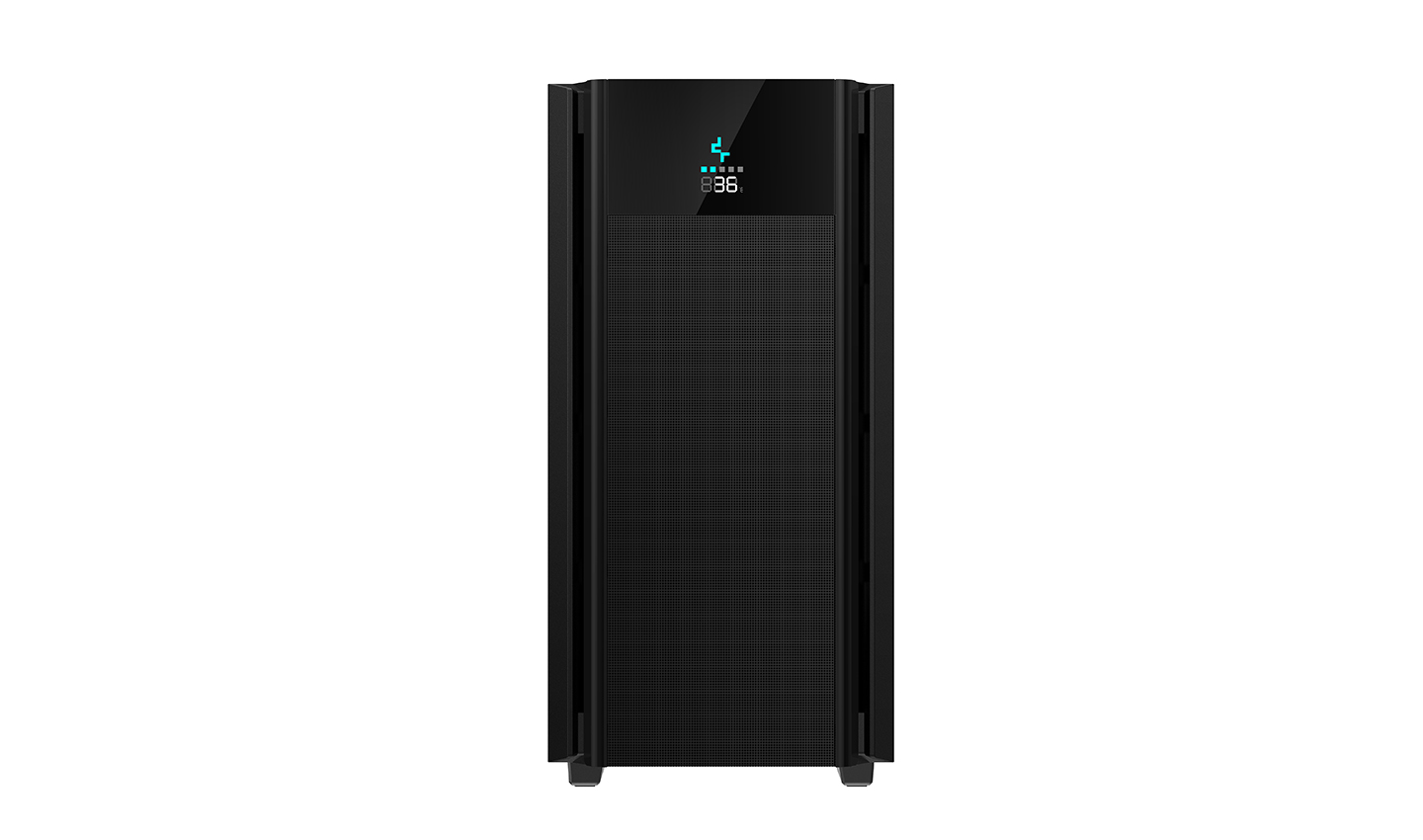

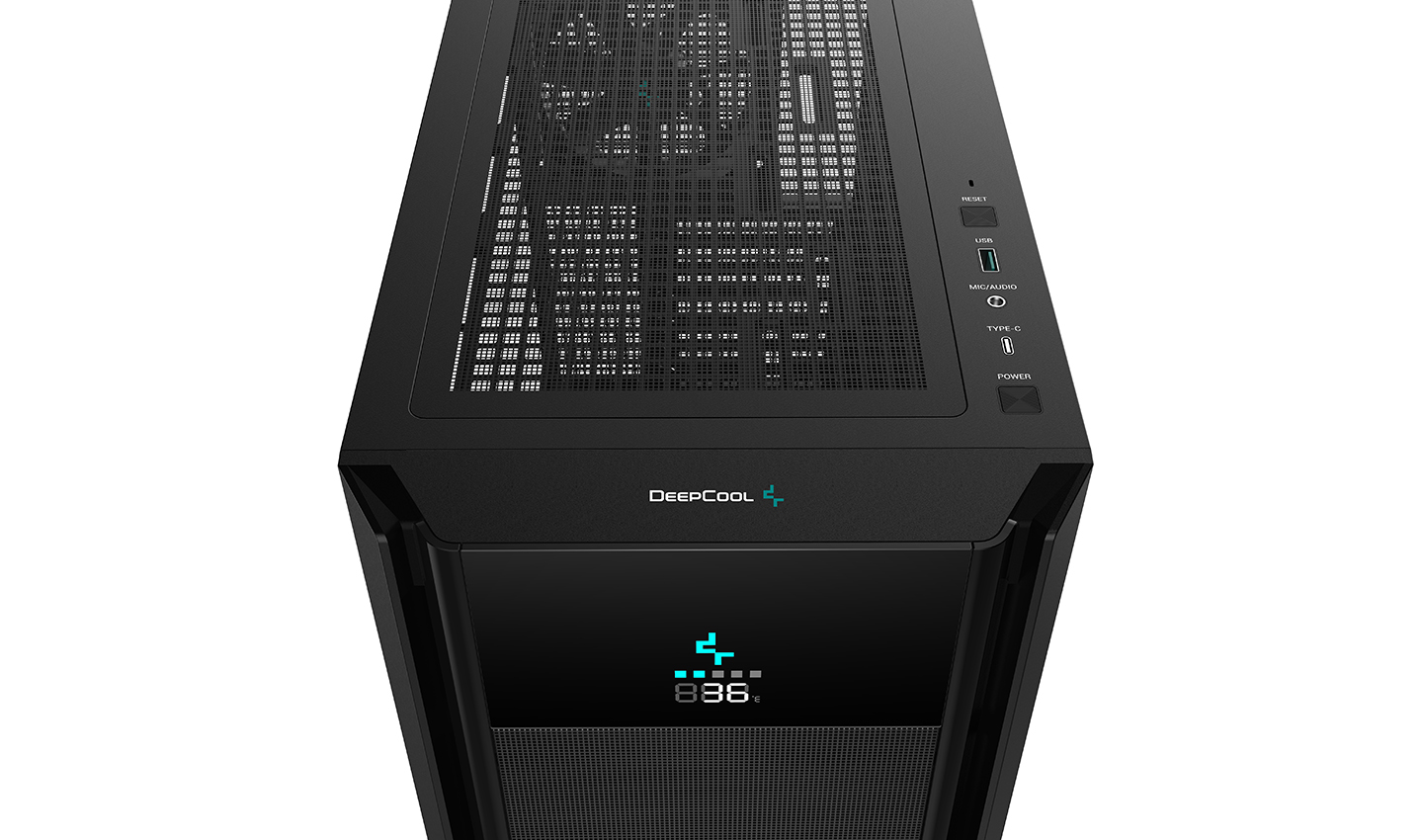

Built-In Display
Monitor system information stats for critical CPU or GPU temperatures with a digital display built into the front panel for info access up close.
More Capacity,
More Power
Big power needs big cooling and the CH510 MESH DIGITAL provides ample amount of mounting locations to install plentiful cooling. Install large radiators up to 360mm either in front or on top, or fit up to 9x 120mm or 5x 140mm cooling fans for extreme airflow throughout.

9x120mm

5x140mm

Radiator

Airflow

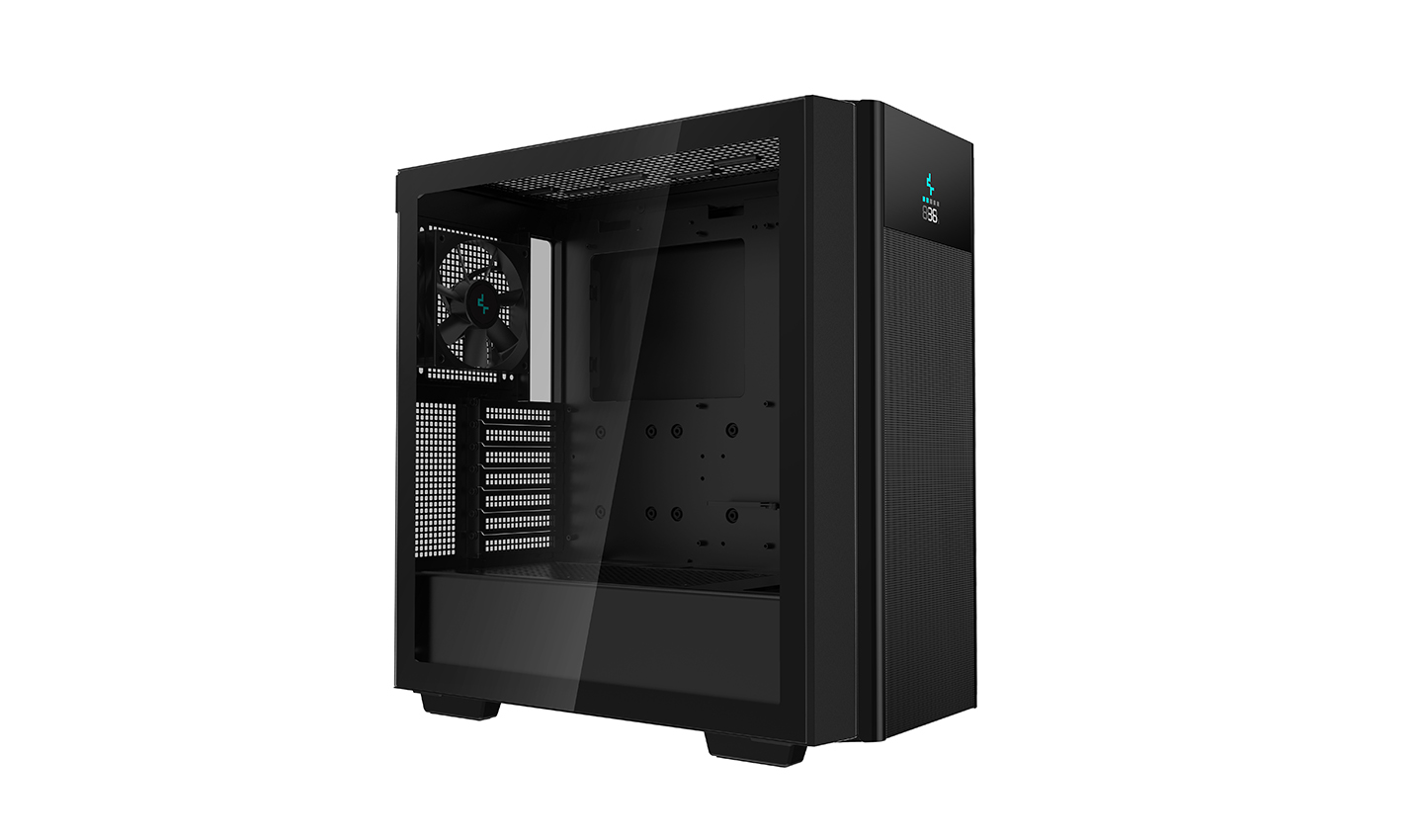

Magnetic Tempered Glass Window
The clean tempered glass side panel offers an immaculate view inside the chassis while being fastened with a magnetic mount for simplicity and ease. Additionally the glass window can be properly locked and secured with a dedicated screw mount for extra added safety.
Magnetic Tempered Glass Window
The clean tempered glass side panel offers an immaculate view inside the chassis while being fastened with a magnetic mount for simplicity and ease. Additionally the glass window can be properly locked and secured with a dedicated screw mount for extra added safety.

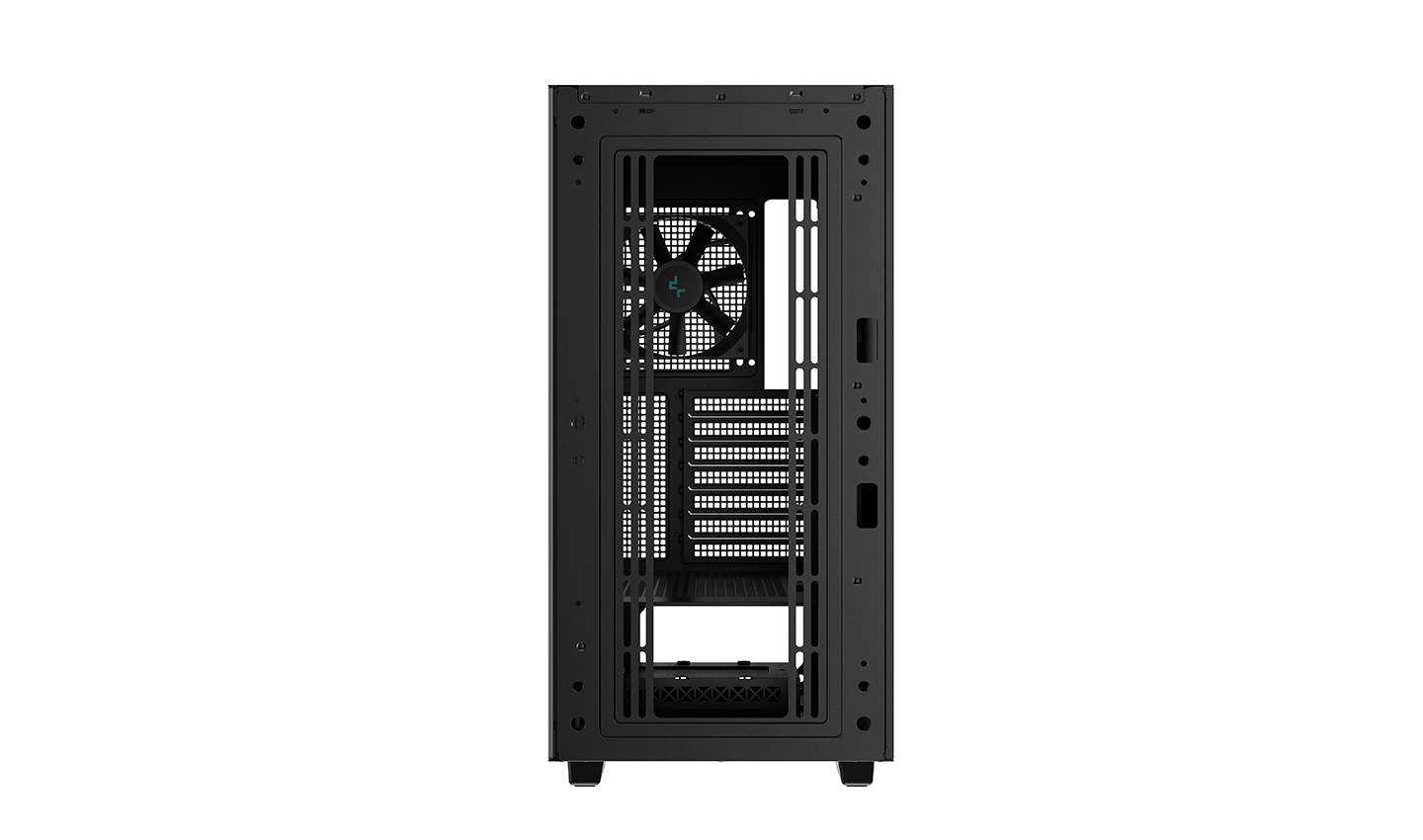

Wide and Spacious
Interior
Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CH510 provides ample space without being too bulky.
Technical Spec
Product Dimensions455×230×470mm(L×W×H)
Net Weight7.5Kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportMini-ITX / Micro-ATX / ATX / E-ATX
Front I/O PortsUSB3.0×1、Tpye-c×1、Audio×1
3.5" Drive Bays2
2.5" Drive Bays2+1
Expansion Slots7 Slots

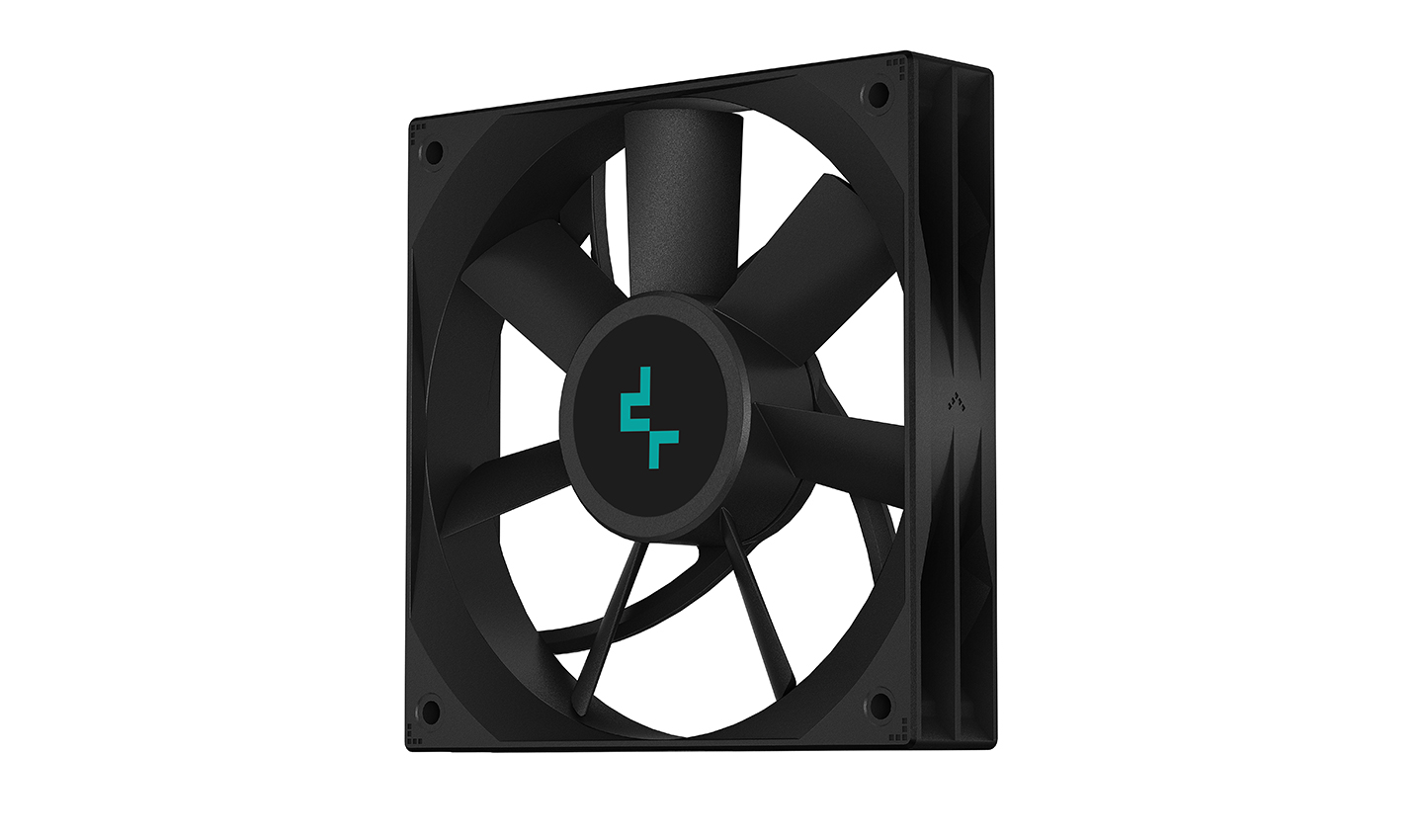

Pre-Installed FansRear: 1×120mm
Fan SupportFront: 3×120 / 2×140mm
Top: 3×120 / 2×140mm
Rear: 1×120 / 1×140mm
PSU Shrouded: 2×120mm
Radiator SupportFront: 120/140/240/280/360mm
Top: 120/140/240/280/360mm
Rear: 120/140mm
CPU Cooler Height Limit175mm
GPU Length Limit380mm
Power Supply TypeATX PS2 (maximum length: 170mm)
EAN Code6933412775072
PN CodeR-CH510-BKNSE1-G-1
Product Dimension
Download
CH510 MESH DIGITAL Manual.pdf
Download
DIGITAL Setup 1.0.5.zip
