MORPHEUS WH

The Internal Shapeshifter

MORPHEUS WH

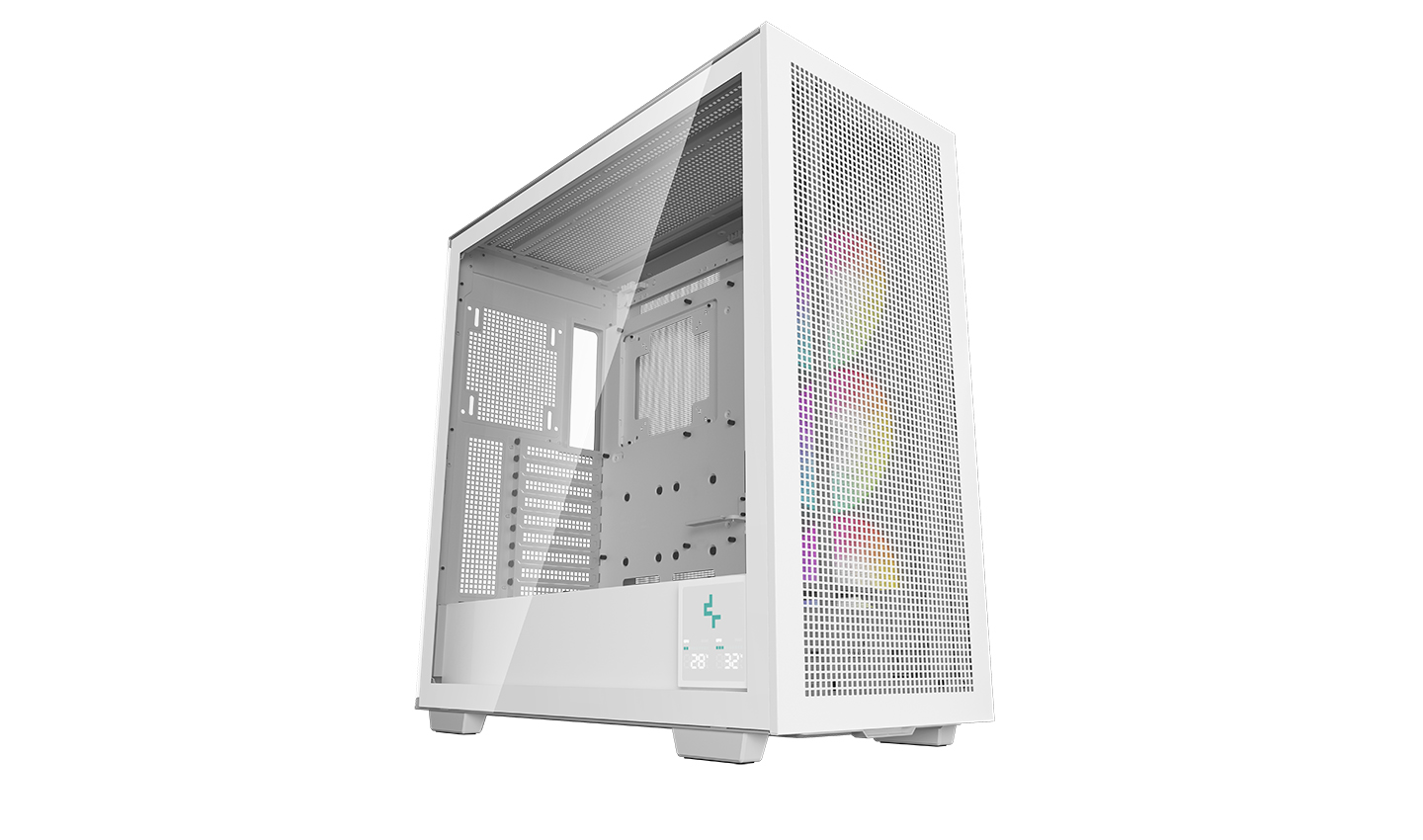

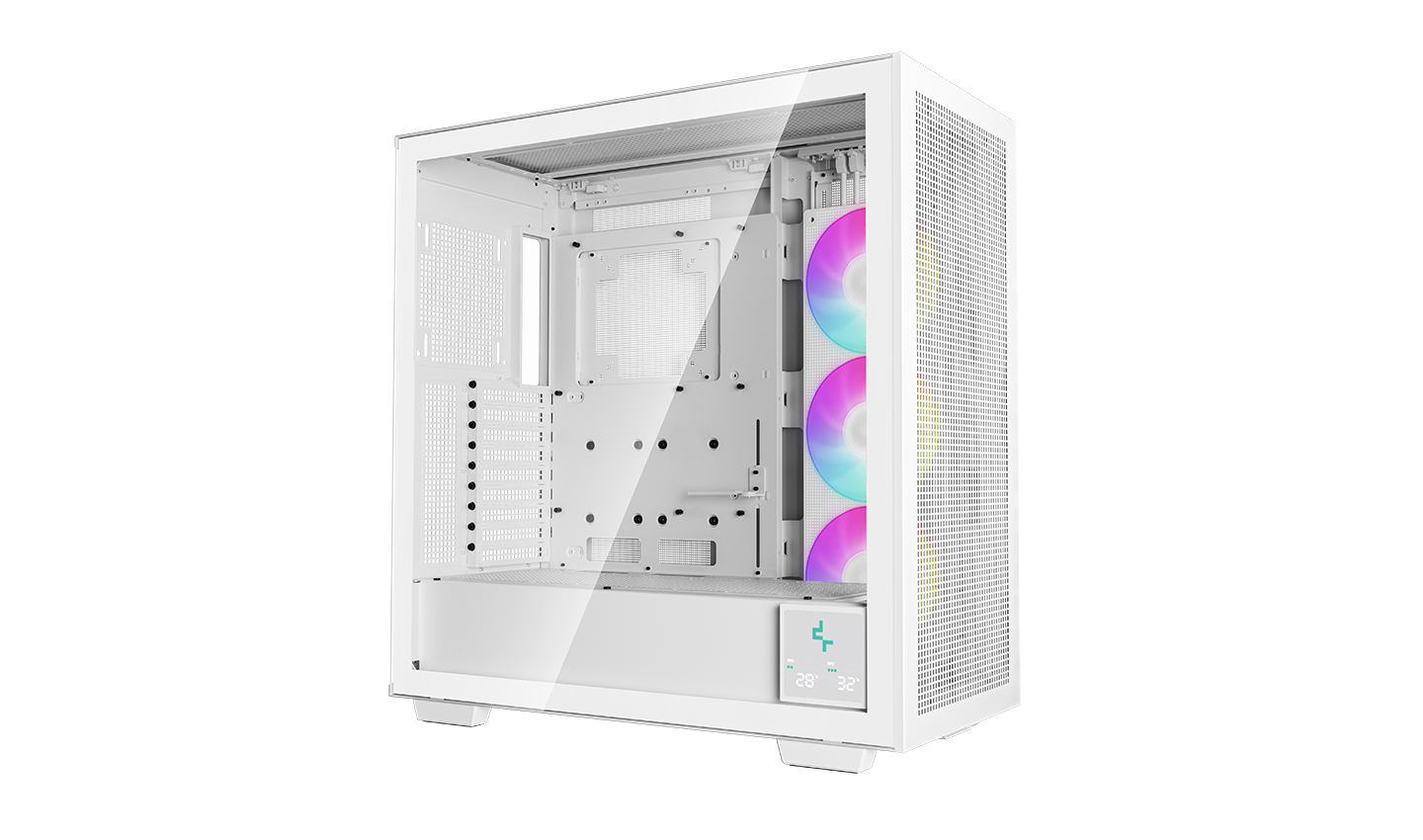

Modularity has a new face, and it comes to us in the form of DeepCool's internally reconfigurable ATX+ chassis: the MORPHEUS WH. With incomparable compatibility and a spacious layout, the MORPHEUS WH is the best option for the DIY modder or the casual PC enthusiast.

A NEW TAKE ON MODULARITY

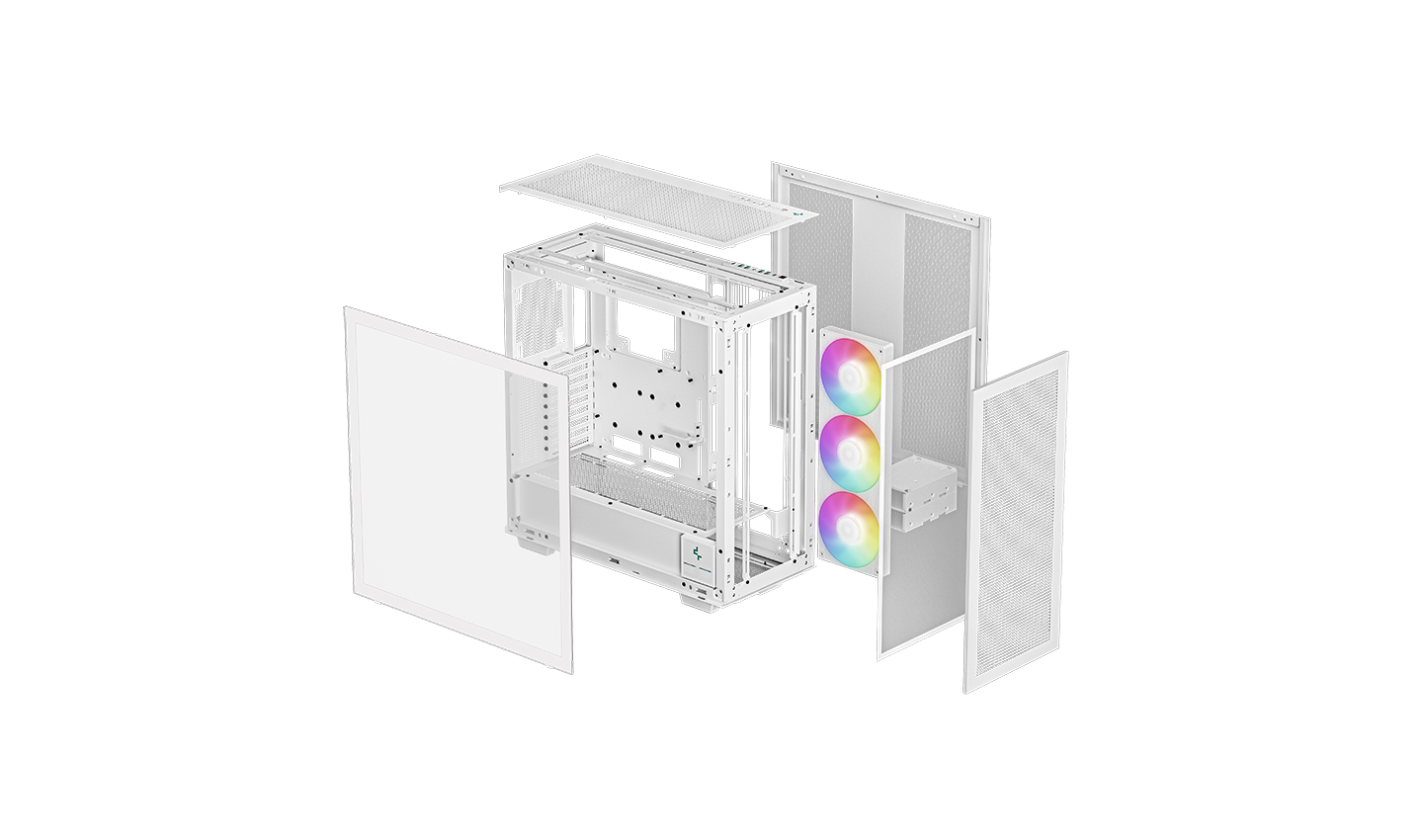

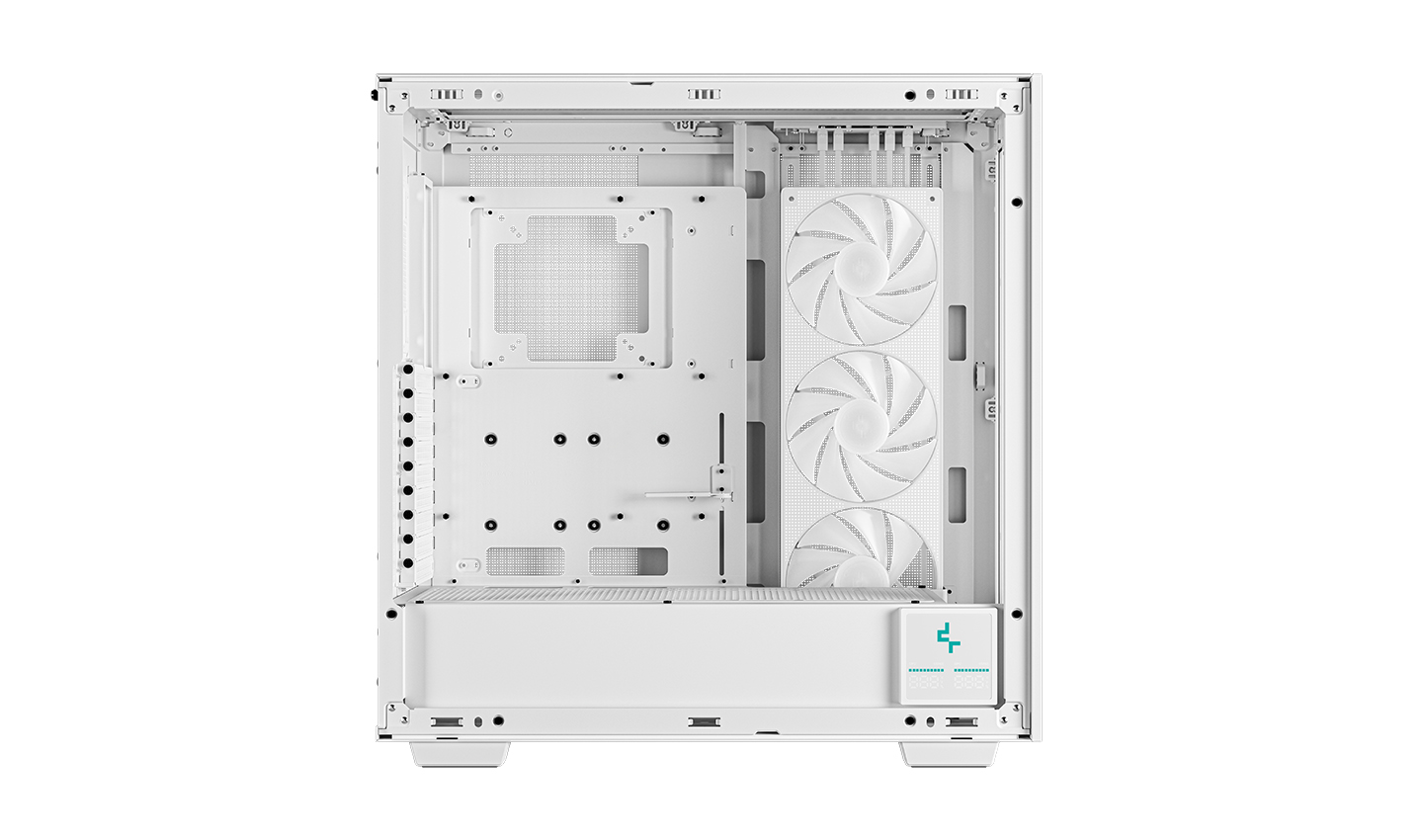

If sticking to the same system layout for years sounds boring, the MORPHEUS WH is exactly what you are looking for. Easily switch between the classic single chamber configuration and the dual chamber layout with a simple switch of a few parts. Everything necessary to shift between the two configurations is included, as well as a vertical GPU mount (complete with a Gen 4.0 riser cable).

SINGLE
CHAMBER 1

SINGLE
CHAMBER 2

DUAL
CHAMBER

AIRFLOW AT ANOTHER LEVEL

High airflow panels surround the MORPHEUS WH case from the front, right, top, bottom, rear, and even the top of the PSU shroud; there will be no shortage of airflow provided to the high-powered heat-generating components inside. High-flow mesh filters are included for the front, top, and bottom panels and will keep dust out.

AIRFLOW

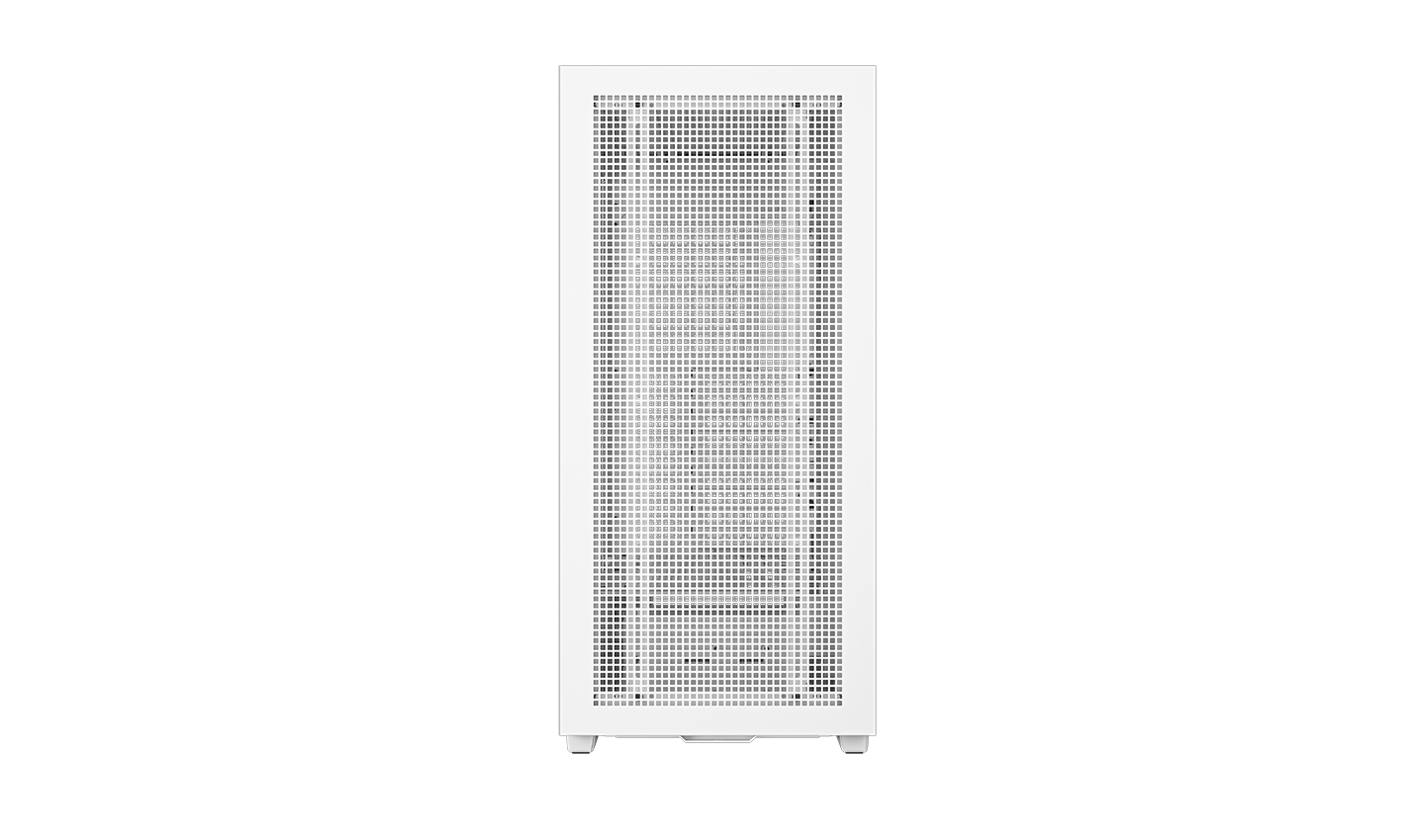

FRONT

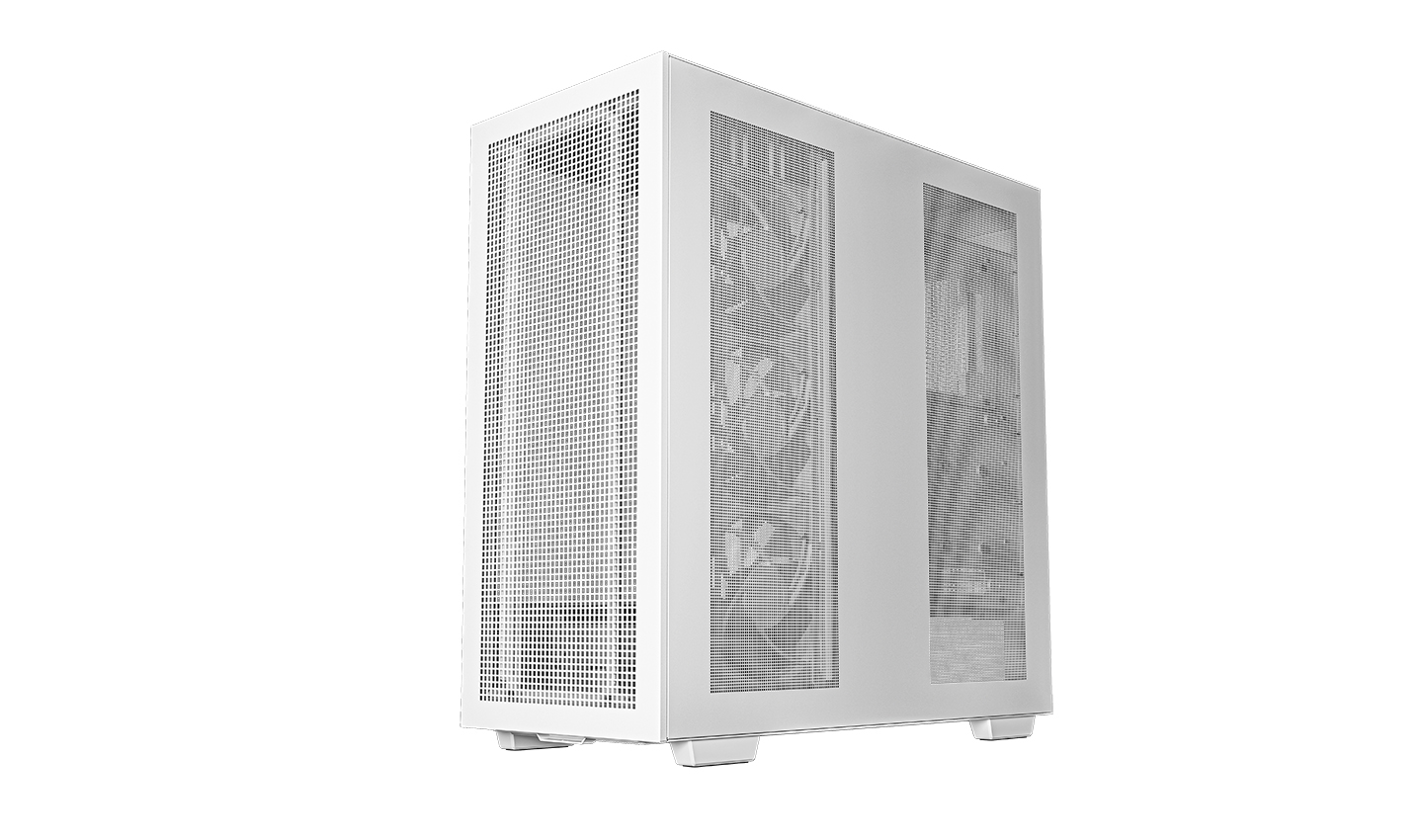

RIGHT

TOP

BOTTOM

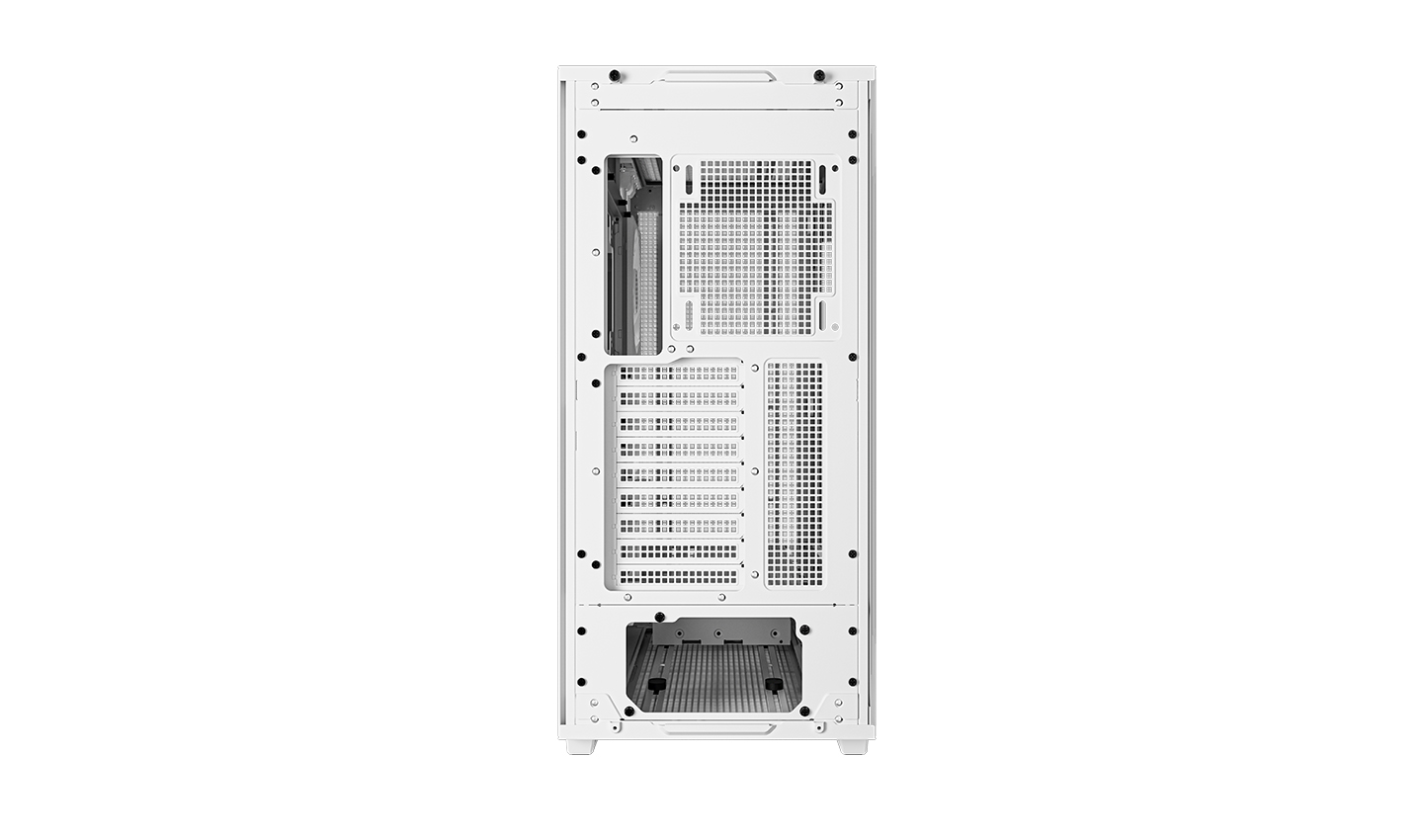

REAR

EXTENSIVE COOLING CAPABILITY

Fan options are unparalleled, with the ability to mount thirteen 120mm or 140mm fans or go to the extreme and add up to six 200mm fans into the conversation. The highly modular fan rails make these configurations a reality.

The MORPHEUS WH can also support up to three 420mm radiators simultaneously. 420mm radiators can be mounted to the front, top, bottom, and side of the motherboard tray.

SINGLE
CHAMBER 1

SINGLE
CHAMBER 2

DUAL
CHAMBER

Radiators:

Top:120/140/240/280/360/420mm

Front:120/140/240/280/360/420mm

Side:120/140/240/280/360/420mm (Dual Chamber)

Bottom:120/140/240/280/360/420mm

Rear:120/140mm (Single Chamber)

Fans:

Top:3*120/3*140/2*180/2*200mm

Front:3*120/3*140/2*180/2*200mm

Side:3*120/3*140mm

Bottom:3*120/3*140/2*180/2*200mm

PSU Shroud:3*120/3*140mm (Single Chamber)

Rear:1*120/1*140mm (Single Chamber)

CPU Coolers:

195mm (Single Chamber)

132mm (Dual Chamber)

RADIATORS

140mm

200mm

COOLERS

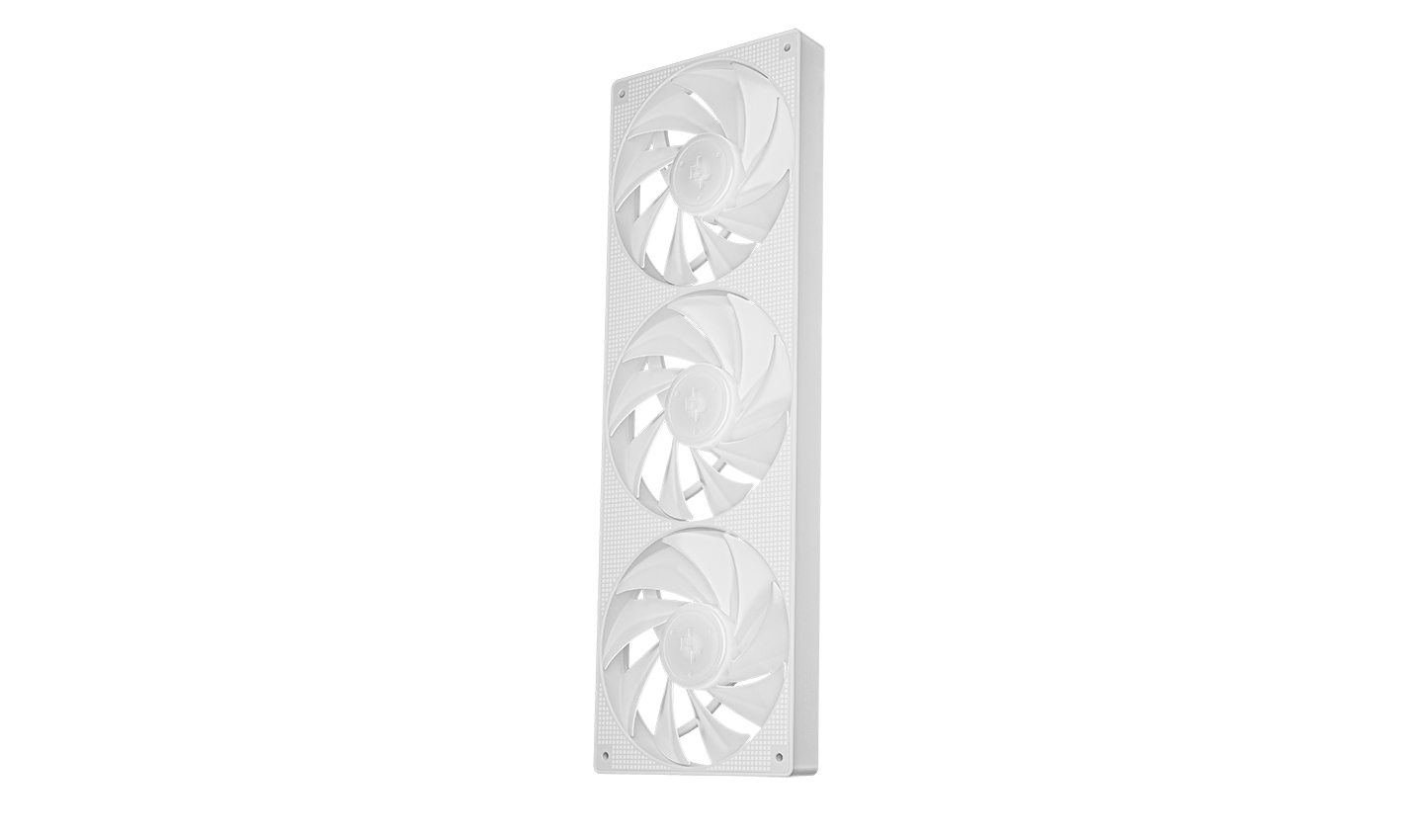

A TRINITY OF FANS!

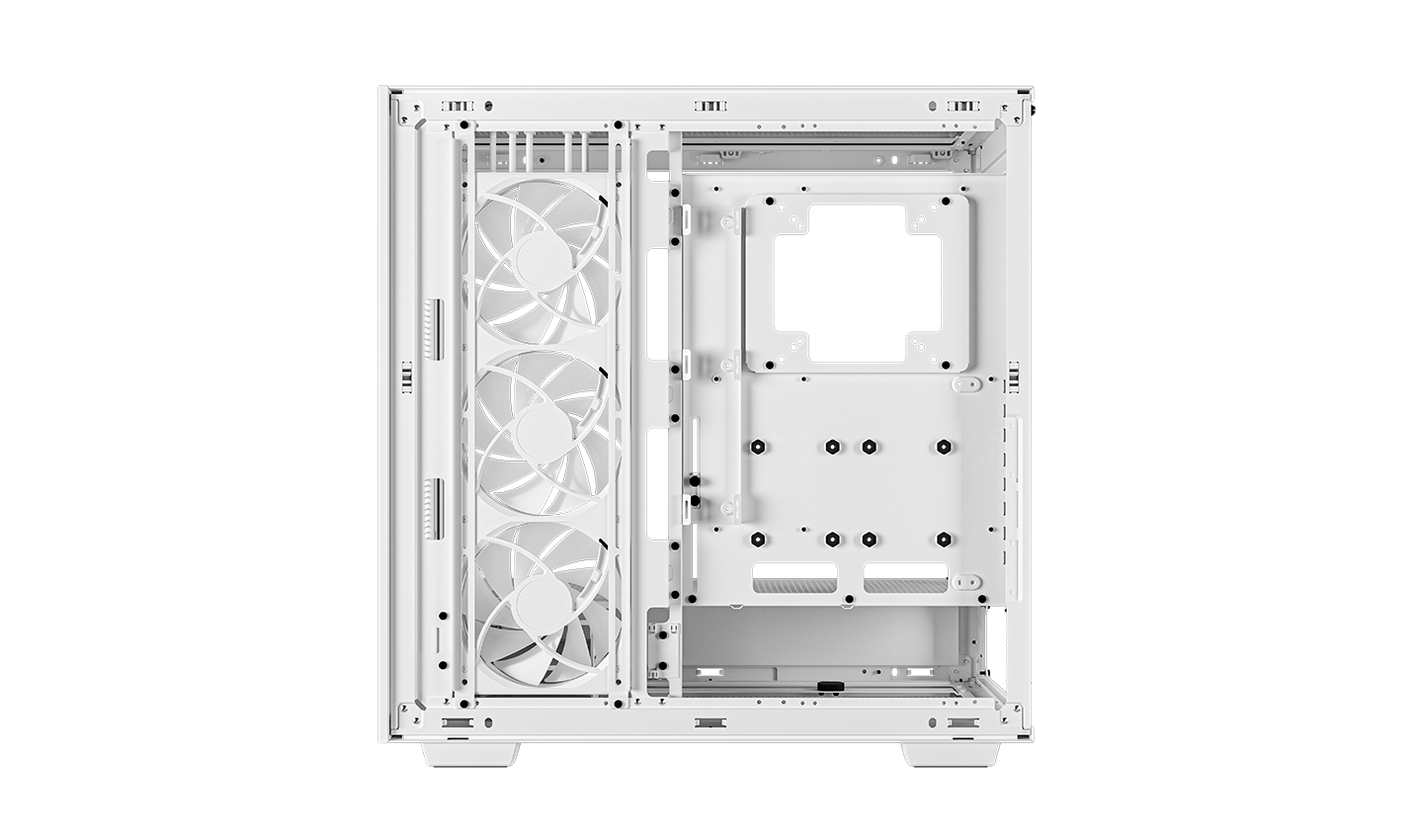

A set of highly convenient trinity fans come mounted inside the MORPHEUS WH: three beautifully bright 140mm ARGB fans are united into a single 420mm unit. The trinity of fans only require the wiring of a single set of PWM and ARGB cables, greatly reducing the amount of cable management.

MAXIMUM COMPATIBILITY

The ATX+ form factor of the MORPHEUS WH case guarantees compatibility with a large range of components. This ATX+ DeepCool case supports E-ATX motherboards while also having compatibility for GPUs up to 480mm in length, 195mm tall CPU coolers in the single chamber configuration, and multiple 420mm radiators.

ATX

CPU COOLER

GPU

420mm

DUAL REAL-TIME DIGITAL DISPLAY

Save precious space on your desktop by moving the monitoring of temperatures and usage of your CPU and GPU onto the built-in display that is included with the MORPHEUS WH case. A simple-to-install app and an open USB 2.0 header will get the dual display up and running.

℃

℉

*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

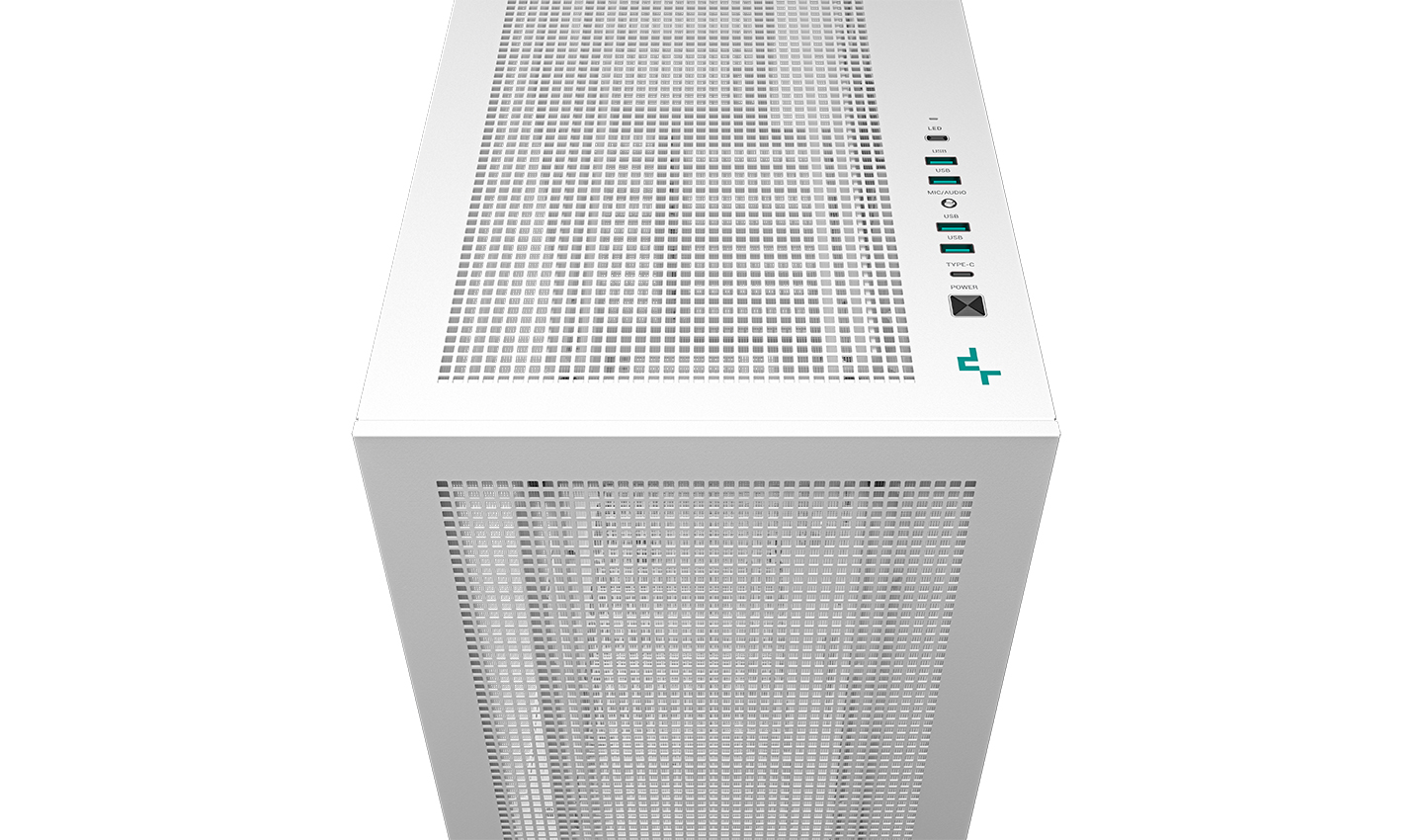

A BEVY OF I/O PORTS

With four USB 3.0 ports, a Type-C port, and a hybrid audio port, there is no shortage of devices that can be accessed from the top front I/O panel. There is also an LED cycle button to control the built-in ARGB controller, an HDD activity LED, and a Power button to round out the front I/O.

BITS!

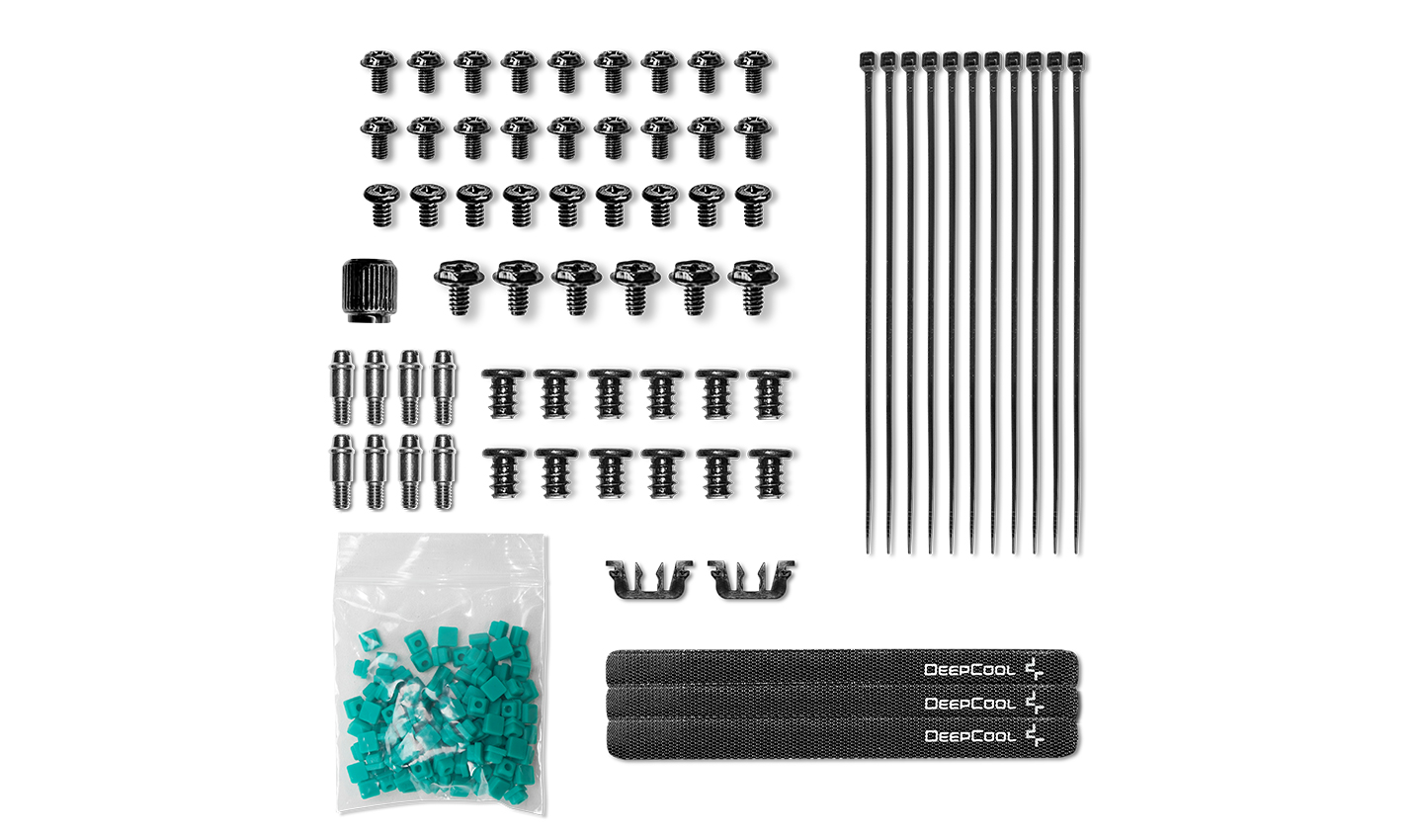

Add a bit of a personal touch with the fun rubber square bits! Included as a fun addition, the pixels can be used with majority of the mesh panels of the MORPHEUS WH case. Leave messages for others, add custom logos, or create your own 8-bit character!

Technical Spec

Product Dimensions	528×250×551mm(L×W×H)
Net Weight	15.5Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	Mini-ITX / M-ATX / ATX / E-ATX
Front I/O Ports	USB3.0×4、Audio×1、Type-C×1
3.5" Drive Bays	2
2.5" Drive Bays	2+1
Expansion Slots	9 Slots
Pre-Installed Fans	Side：1×420mm ARGB
Fan Support	Front: 3×120 / 3×140 / 2×180 / 2×200mm Top: 3×120 / 3×140 / 2×180 / 2×200mm Side: 3×120 / 3×140mm Bottom: 3×120 / 3×140 / 2×180 / 2×200mm PSU Shrouded: 3×120 / 3×140mm (Single Chamber) Rear: 1×120 / 1×140mm (Single Chamber)
Radiator Support	Front: 120/140/240/280/360/420mm Top: 120/140/240/280/360/420mm Side: 120/140/240/280/360/420mm (Dual Chamber) Bottom: 120/140/240/280/360/420mm Rear: 120/140mm (Single Chamber)
CPU Cooler Height Limit	195mm (Single Chamber) 132mm (Dual Chamber)
Accessory	PCIe 4.0 riser cable Vertical GPU mount
GPU Length Limit	480mm
Power Supply Type	ATX PS2（maximum length: 180mm）
EAN	6933412774754
P/N	R-MORPHEUS-WHAPA1-G-1

Download

MORPHEUS WH Manual 1.pdf

Download

MORPHEUS WH Manual 2.pdf
