MATREXX 55 MESH
As a mid-tower case, the Matrexx 55 Mesh offers abundant space that supports up to an ATX motherboard and has optimized airflow keeps your components cool.
COLOR
black
MODEL
MATREXX 55 MESH
The clear choice
High Airflow Design

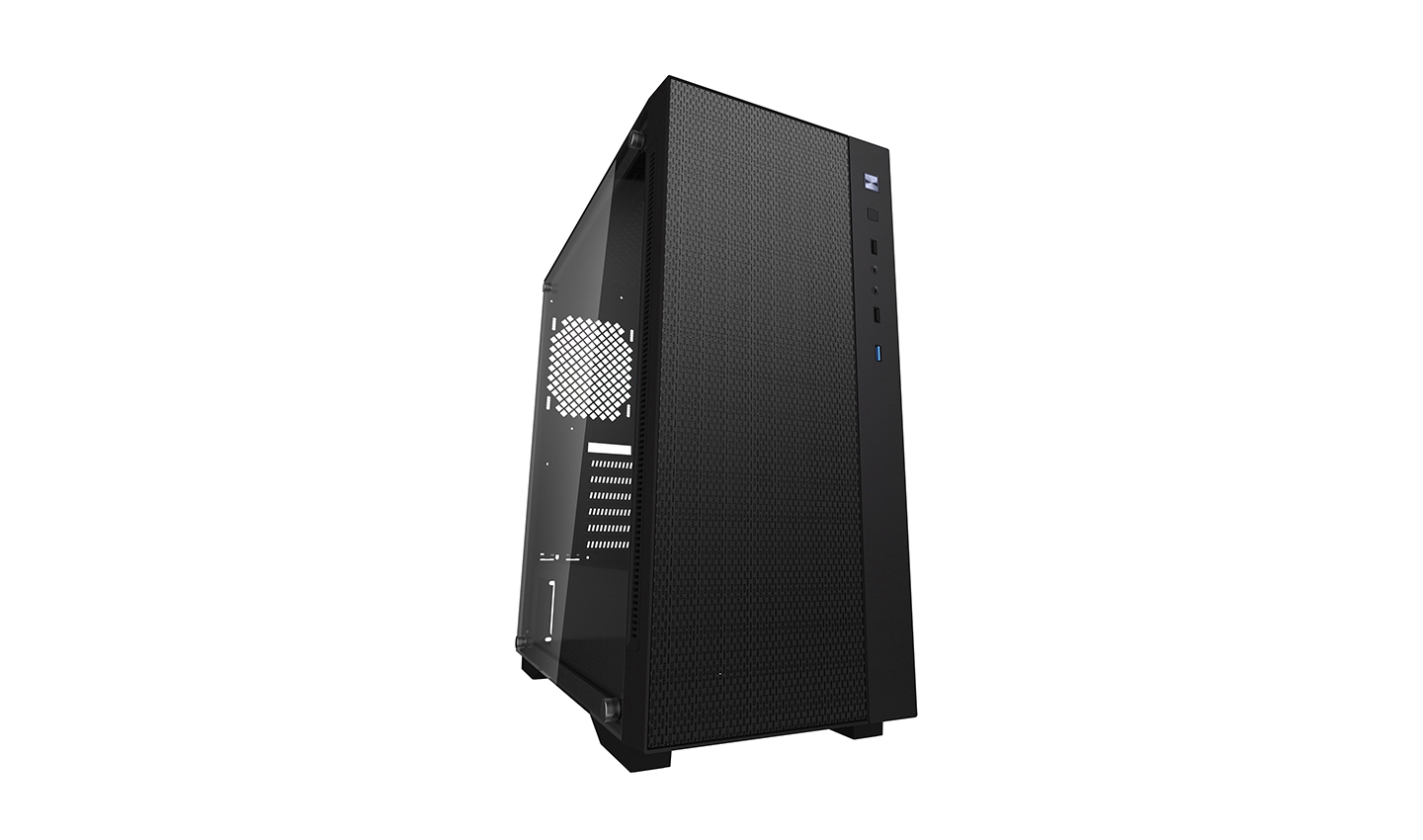

In terms of design, MATREXX 55 Mesh features a meshed front panel and features a dust filter.With a meshed front panel, the intake channel provides abundant airflow for your system and maintains your entire build at a steady, sustainable temperature. Matrexx 55 Mesh solves all your thermal issues

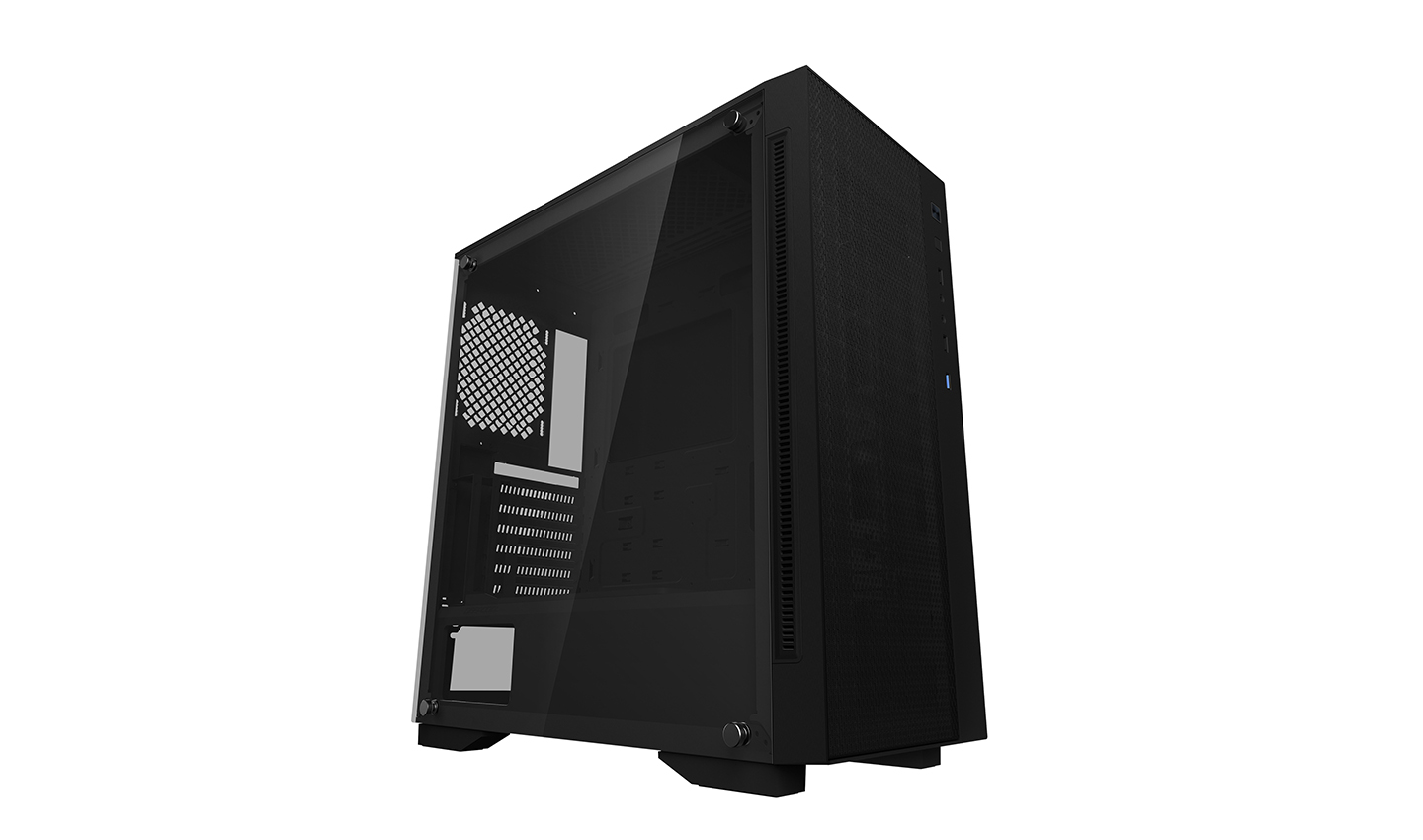

4mm Tempered Glass
Full sized 4mm thickness, tempered glass side panel gives the case a unique look to perfectly show off your inner structure
Massive Cooling Compatibility
Optimized airflow is guaranteed with large air intakes both sides of the front panel and an air exhaust in the back and on top, to keep your components cool
Cooling Compatibility:
Supports the installation of liquid cooler :
1
120/140/240/280mm radiator liquid cooling system on the top
2
120mm radiator liquid cooling system at the rear
3
120/140/240/280/360mm radiator liquid cooling system at the front
Supports the installation of cooling fans :
1
2×120/ 2×140mm fan on the top
2
1×120mm fan at the rear
3
3×120mm/2×140mm fan at the front
PSU Shroud Added
The Matrexx 55 Mesh version is equipped with a PSU Shroud to hide the cables and to keep the system neat and tidy
PSU Shroud Added
The Matrexx 55 Mesh version is equipped with a PSU Shroud to hide the cables and to keep the system neat and tidy

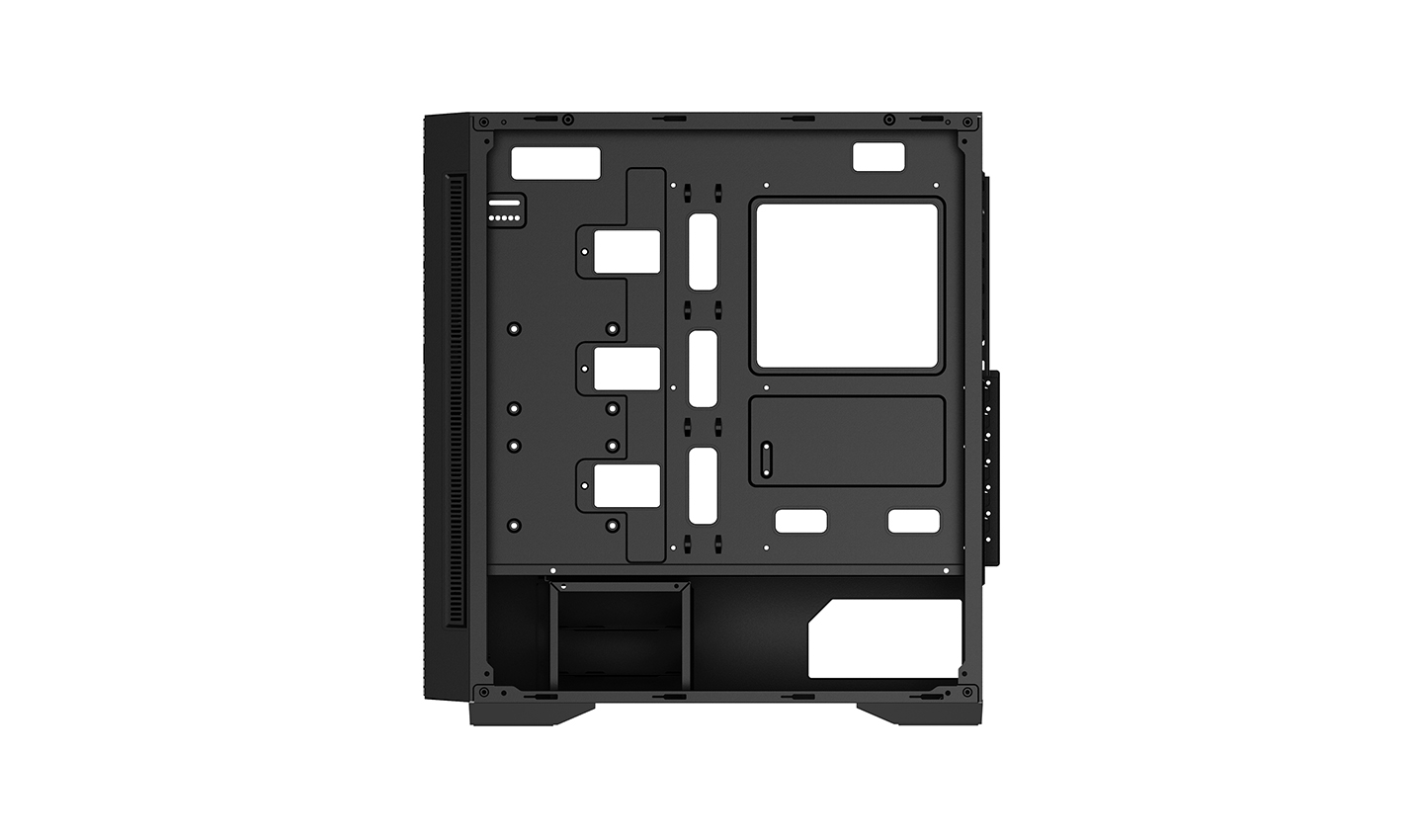

Easy Cable Management
Cable managing is now easy with a 20mm wide tower compartment (23mm clearance)
Supports motherboards up to ATX
Power Supply: ATX PS2 (maximum length: 170mm)
Supports 380mm (Max) graphic cards installation
The large area of air-intake at two sides of the front panel ensures sufficient airflow for the systems
The magnet-mounted dust filter provided at the front panel, offers users easy removal and cleaning
1×USB3.0/2×USB2.0/1×Audio (HD)/1×Mic
Technical Spec
Product Dimensions460×215×480mm(L×W×H)
Net Weight7Kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportMini-ITX / Micro-ATX / ATX
Front I/O PortsUSB2.0×2、USB3.0×1、Audio×1、Mic×1
3.5" Drive Bays2
2.5" Drive Bays2
Fan SupportFront: 3×120 / 2×140mm
Top: 2×120 / 2×140mm
Rear: 1×120mm
Radiator SupportFront: 120/140/240/280/360mm
Top: 120/140/240/280mm
Rear: 120mm
CPU Cooler Height Limit160mm
GPU Length Limit380mm
Power Supply TypeATX PS2（maximum length: 170mm）
EAN6933412714057
P/NDP-ATX-MATREXX55-MESH
Product Dimension
Download
MATREXX 55 MESH Manual.pdf
