CYCLOPS

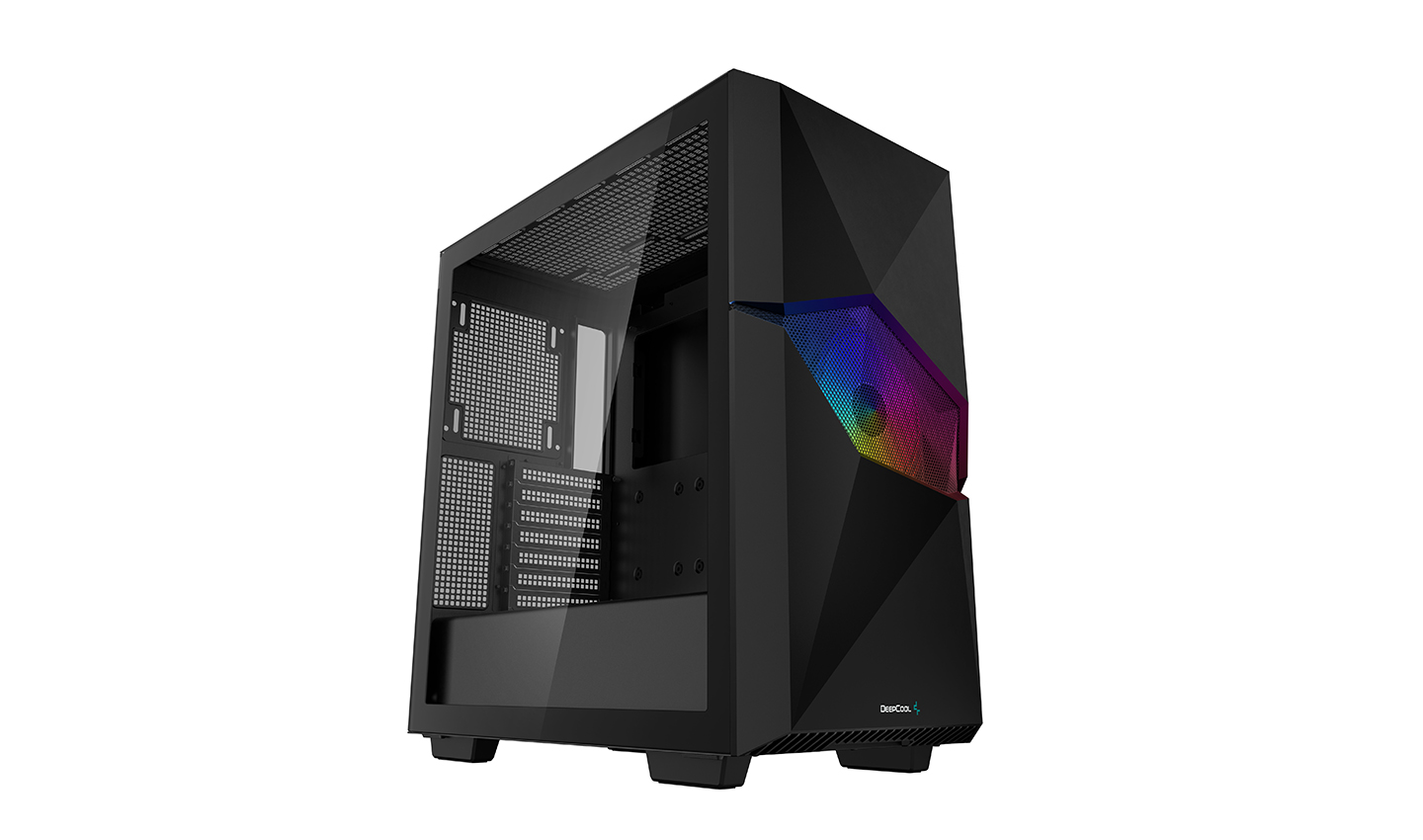

The DeepCool CYCLOPS is a mid-tower case that brings the unmistakable eye of the mythological creature to your desktop. The front panel was designed to concentrate a large amount of airflow through the ARGB “eye” and right onto the main components. 360mm radiators can be mounted at the top and front of the case, providing exceptional cooling.
COLOR
black
MODEL
CYCLOPS
A Mid-Tower Case from Mythology
The DeepCool CYCLOPS is a mid-tower case that brings the unmistakable eye of the mythological creature to your desktop. The front panel was designed to concentrate a large amount of airflow through the ARGB “eye” and right onto the main components. 360mm radiators can be mounted at the top and front of the case, providing exceptional cooling.

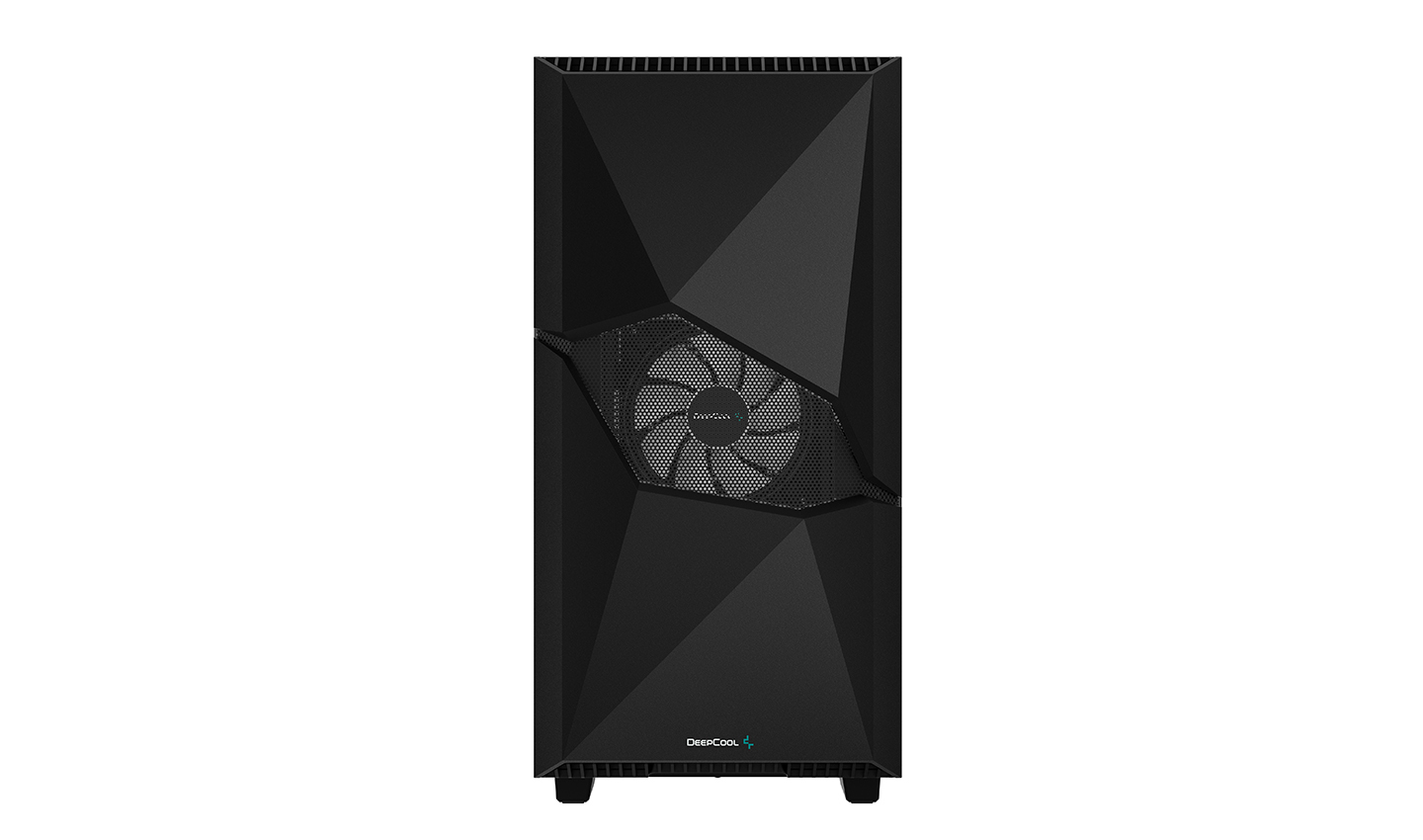

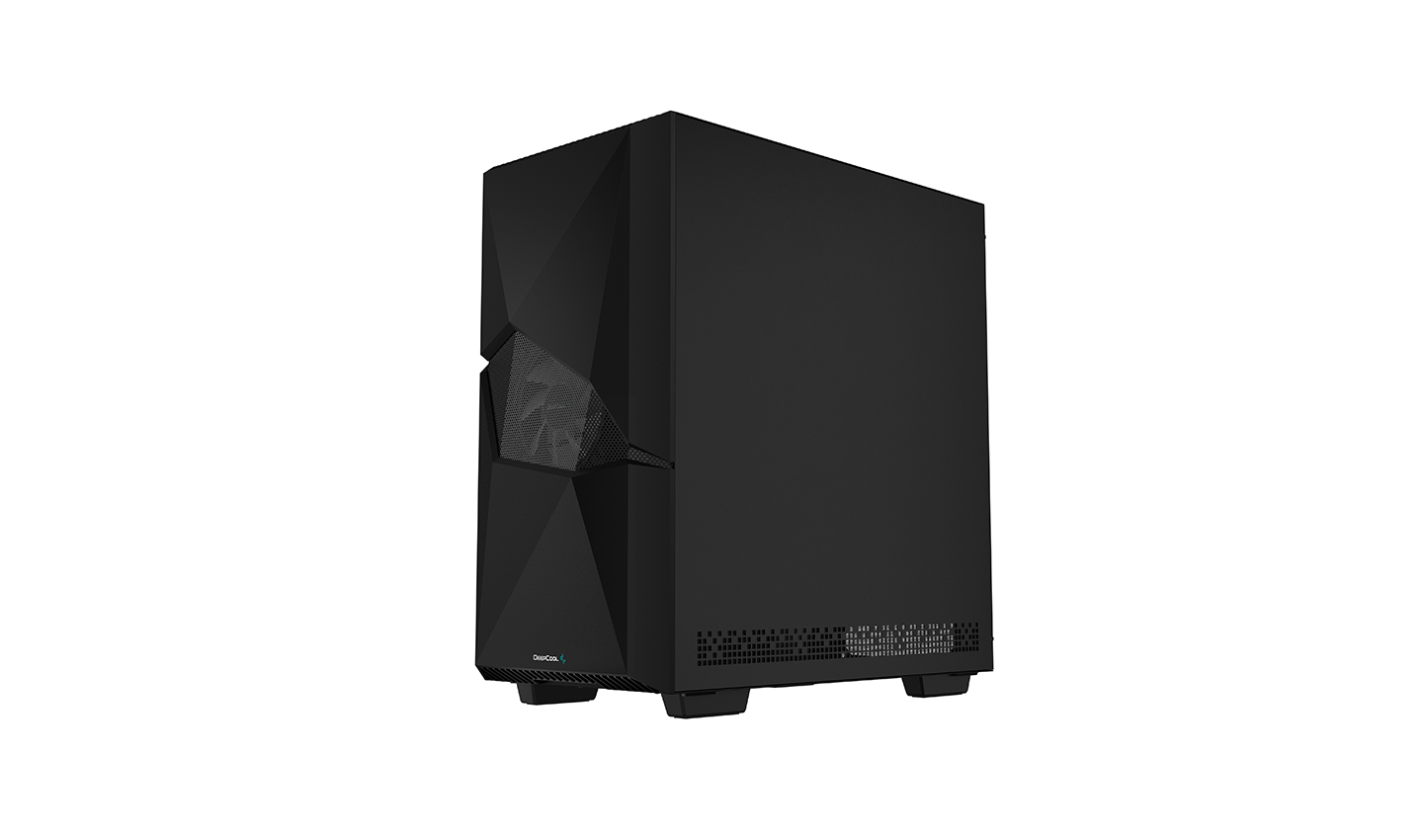

The Eye of the Monster

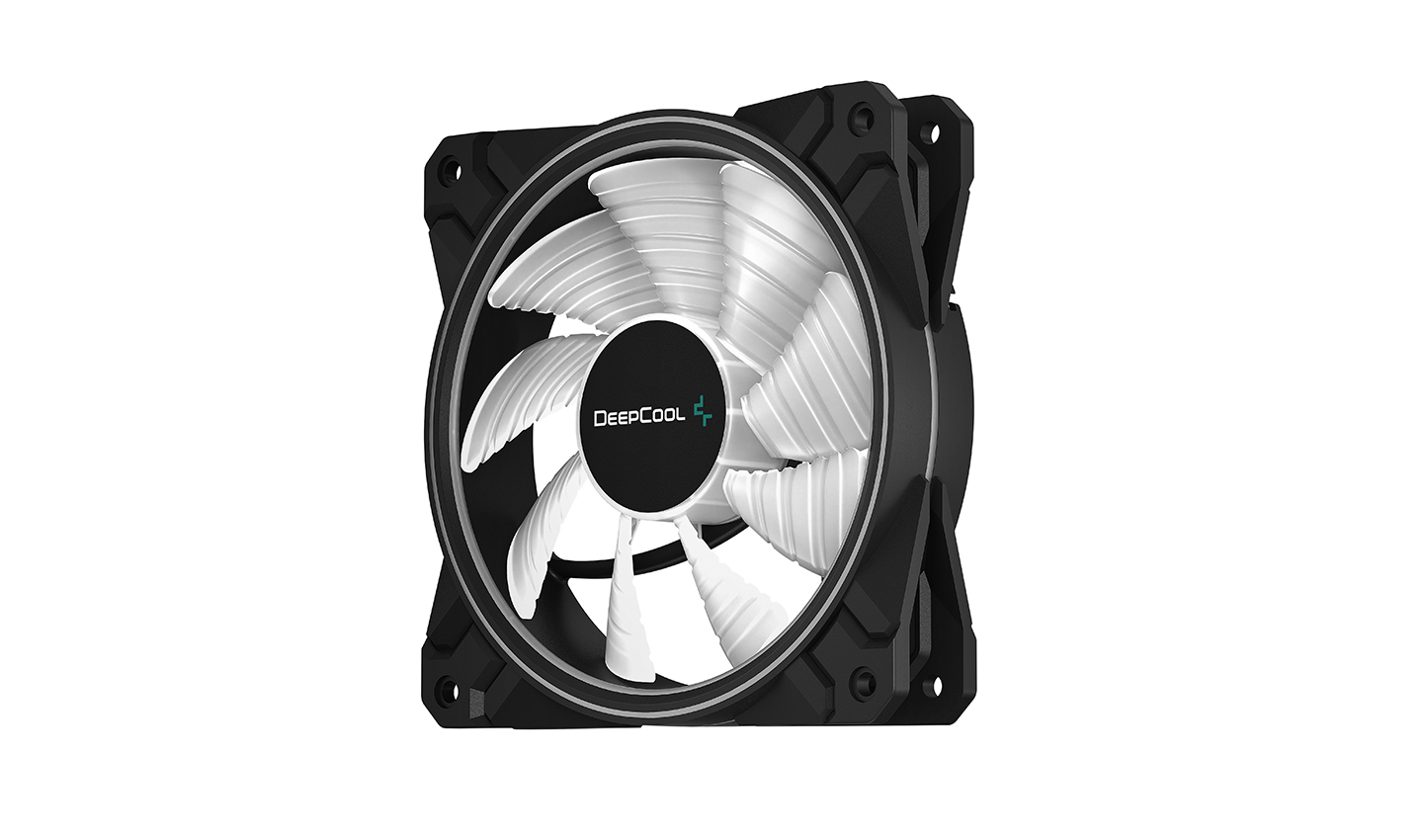

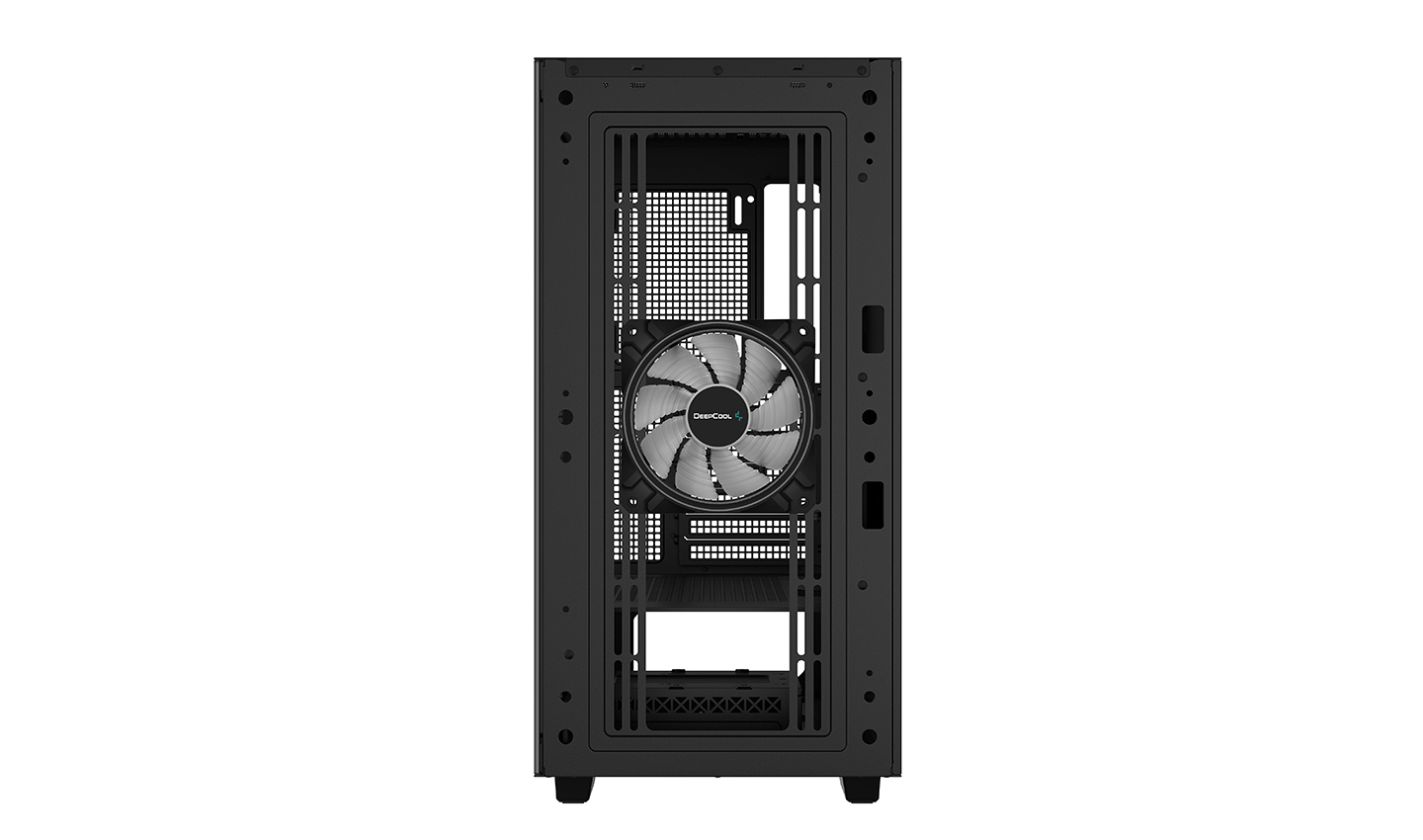

Thanks in large part to the preinstalled CF120 Plus fan, the eye of the CYCLOPS is not just aggressive, bright, and beautiful-looking; it also provides exceptional air flow.
Tame the Brute
With the ability to mount up to a 360mm radiator in the front and top, as well as 9 120mm (or 5 140mm) fans, the heat generated in the heart of the chassis is easily cooled.

9x120mm

5x140mm

setups

A View into the Belly of the Beast

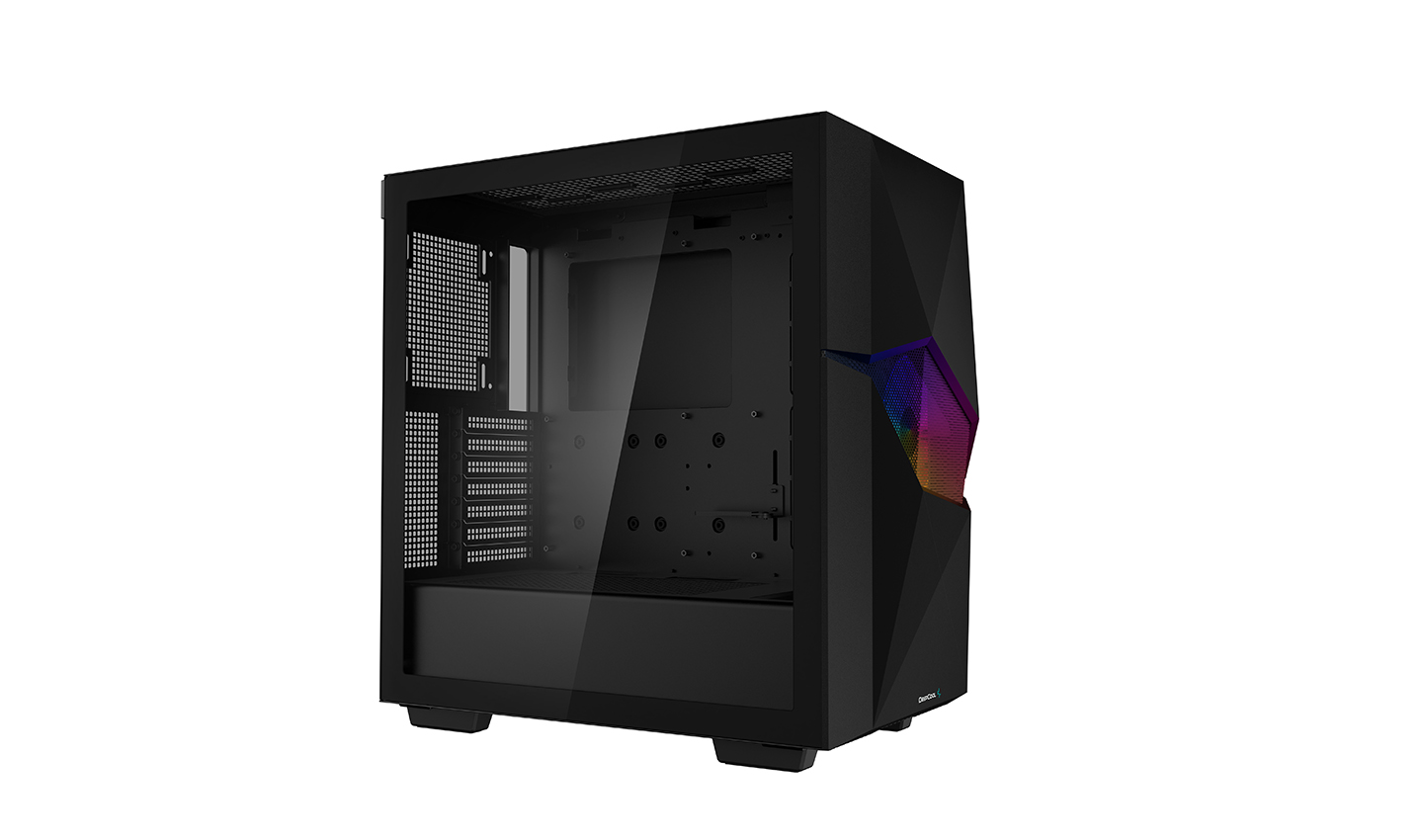

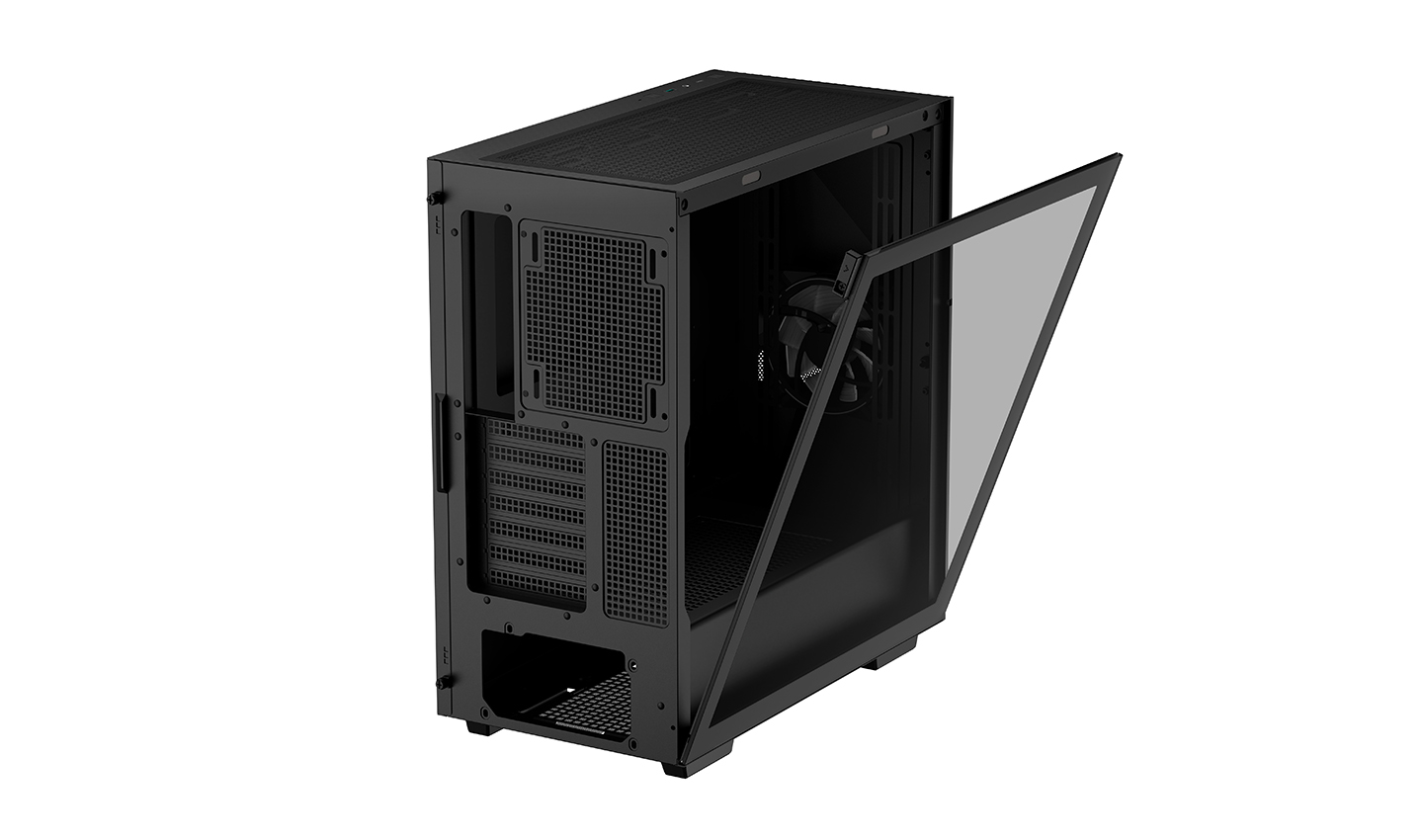

A magnetic tempered glass side panel gives spectators a crystal-clear view into the vital components of your powerhouse computer. The glass panel is more secure than conventional mounting solutions, and the option to lock it in place adds an extra element of security.
Easy to Equip
With its spacious design, the CYCLOPS can be equipped with CPU coolers up to 175mm tall and GPUs as long as 380mm, making it an excellent option for modern power-hungry components.
Ports of Massive Importance

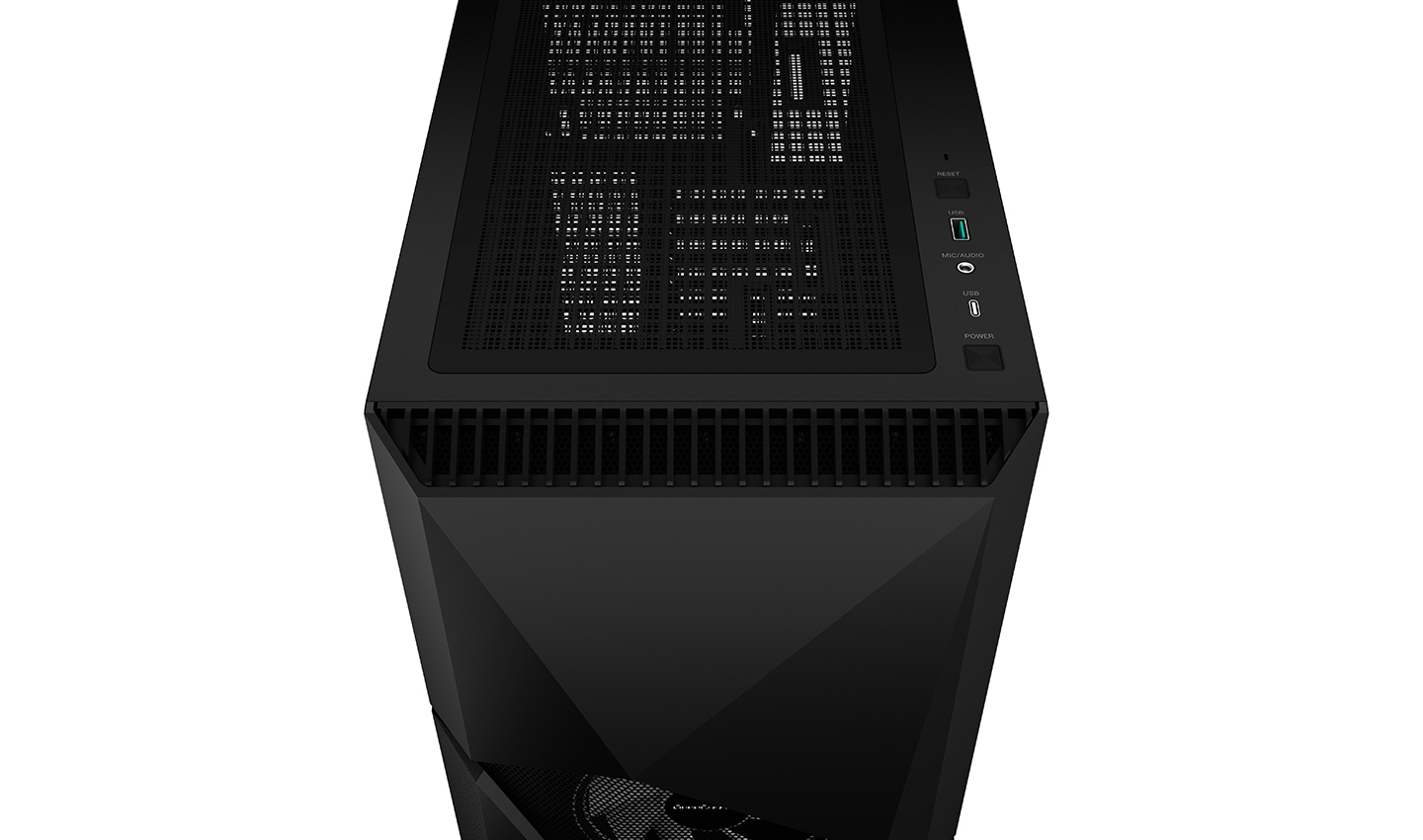

The top I/O panel includes a USB 3.0 port, a Type C port, and an audio port—everything necessary for your daily routine.
A swing-out graphics card support arm to reduce GPU sag

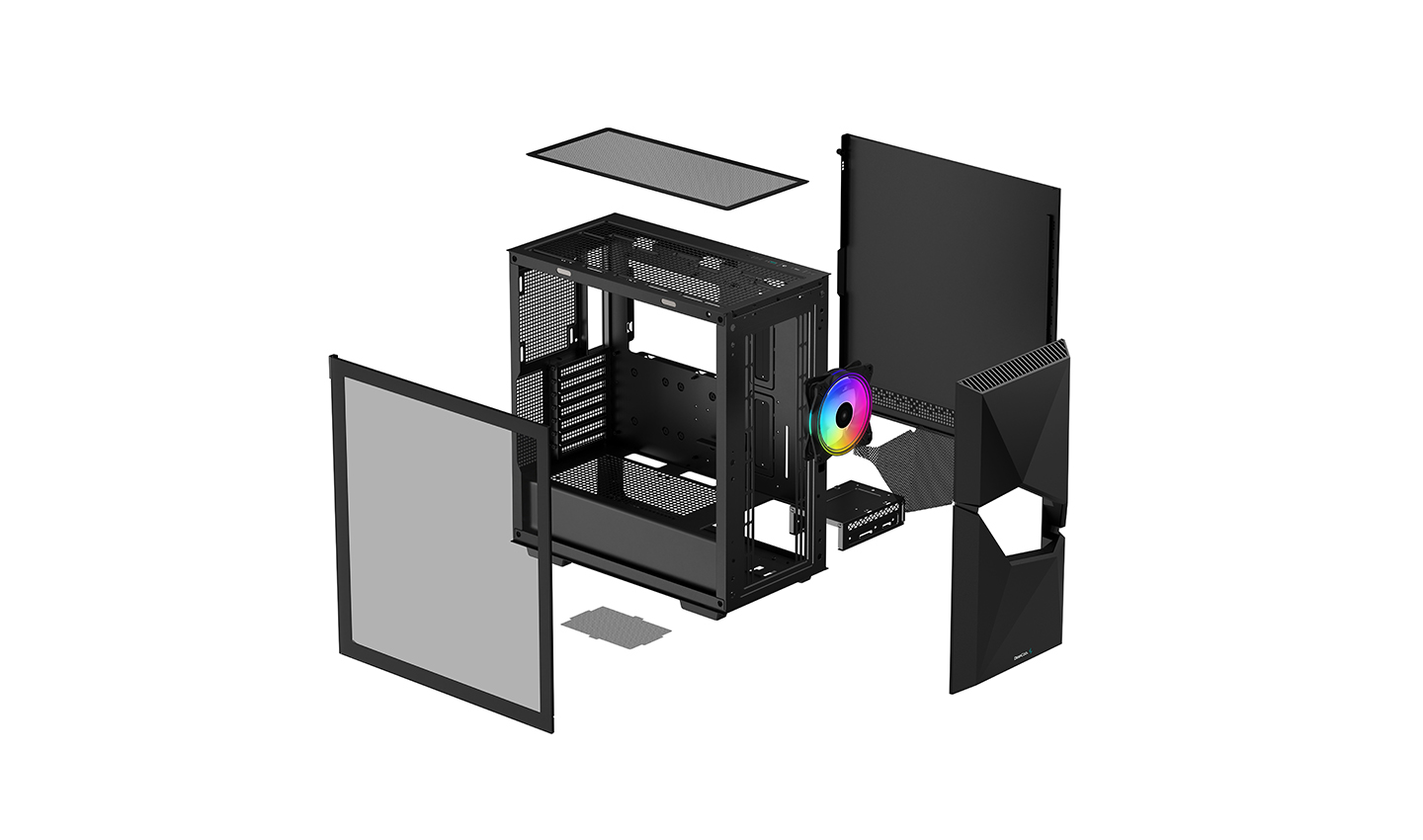

Magnetic dust filters for easy cleaning

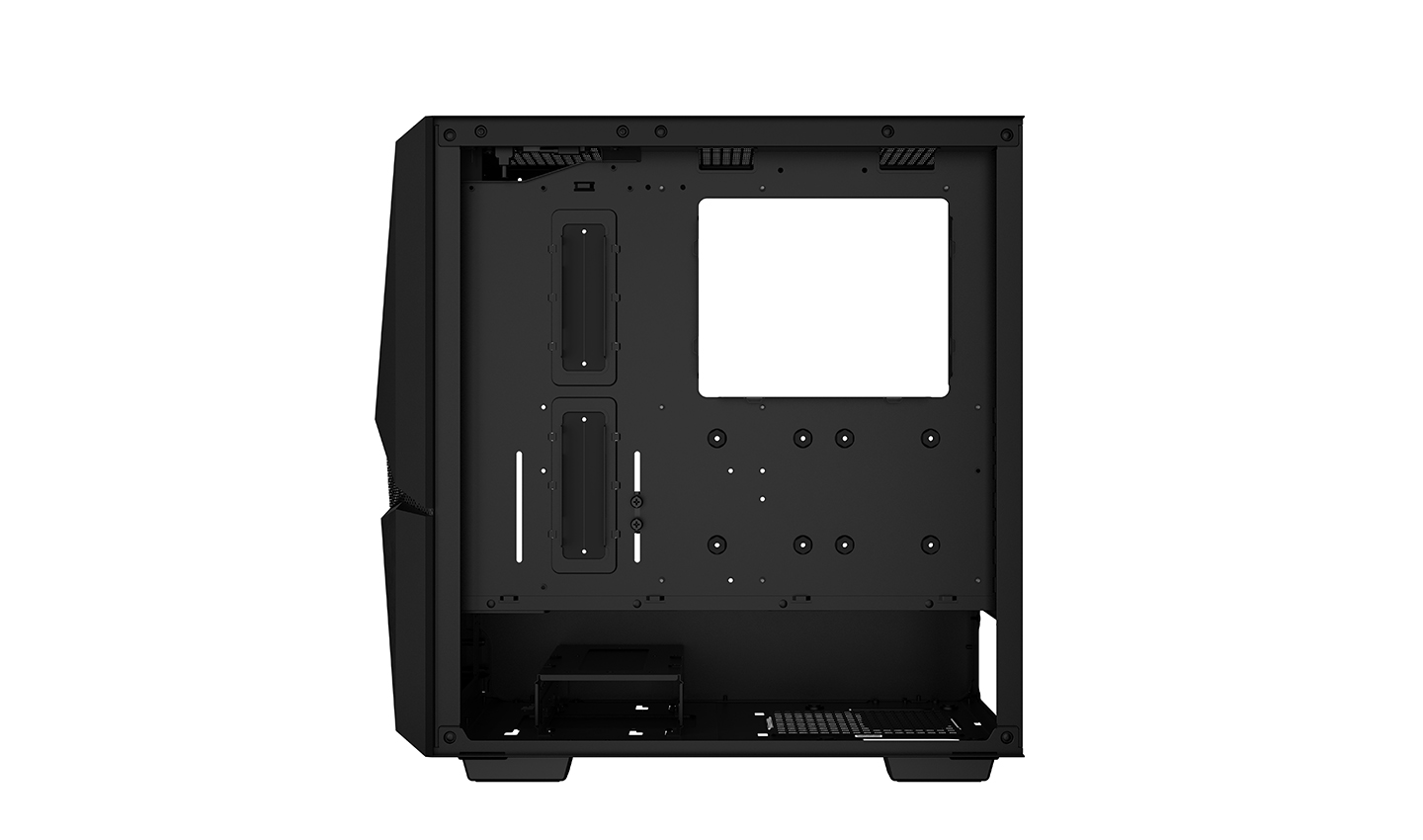

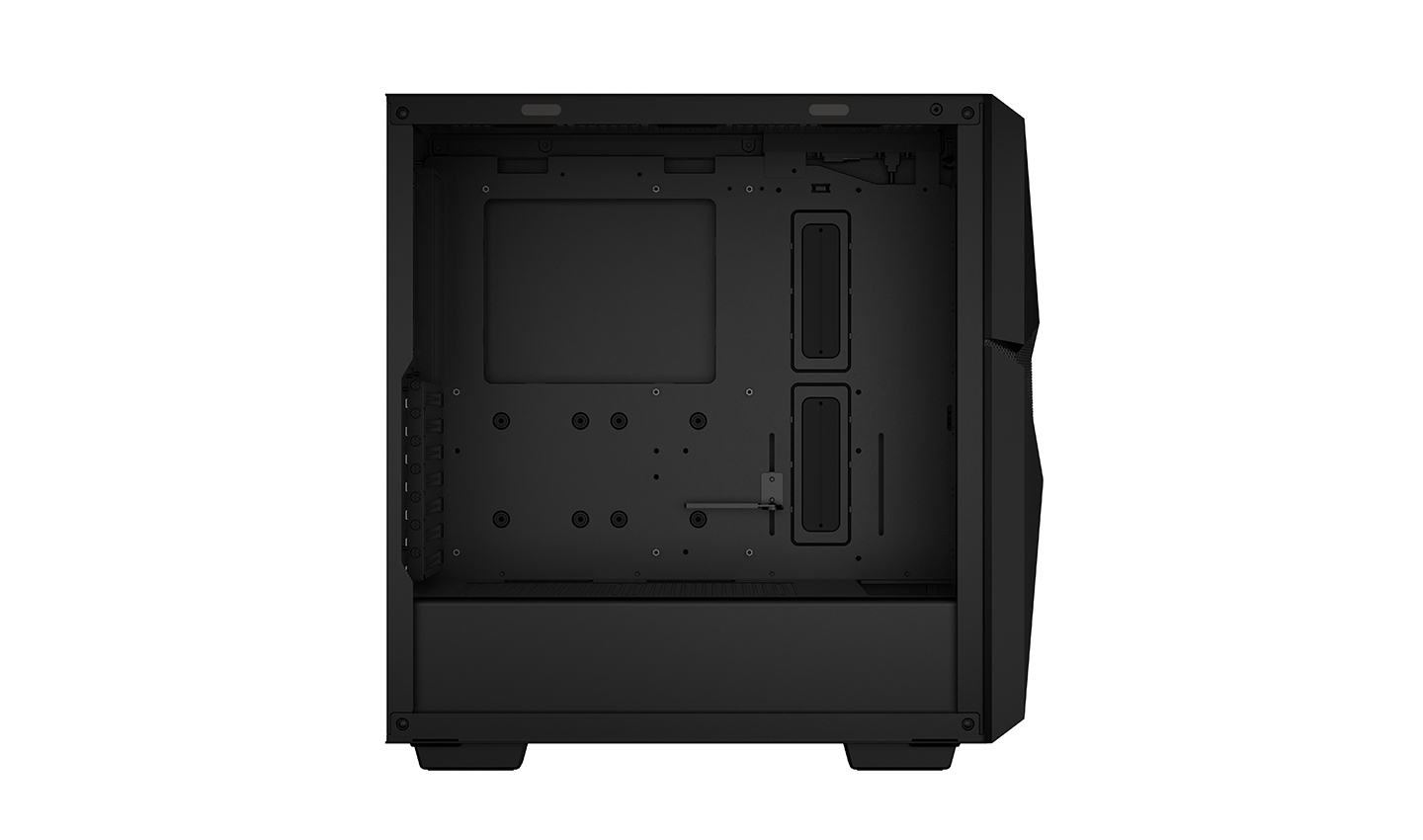

Spacious cable management room to keep things nice and tidy
Ability to mount 2 120mm fans on top of the PSU shroud
Technical Spec
Product Dimensions475×230×471mm(L×W×H)
Net Weight8.3Kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportMini-ITX / Micro-ATX / ATX / E-ATX
Front I/O PortsUSB3.0×1、Audio×1、Type-C×1
3.5" Drive Bays2
2.5" Drive Bays2+1
Expansion Slots7 Slots
Pre-Installed FansFront: 1×120mm
Fan SupportFront: 3×120 / 2×140mm
Top: 3×120 / 2×140mm
Rear: 1×120 / 1×140mm
PSU Shrouded: 2×120mm
Radiator SupportFront: 120/140/240/280/360mm
Top: 120/140/240/280/360mm
Rear: 120/140mm
CPU Cooler Height Limit175mm
GPU Length Limit380mm
Power Supply TypeATX PS2 (maximum length: 170mm)
EAN6933412715047
P/NR-BKAAE1-C-1
Product Dimension
Download
CYCLOPS Manual.pdf
