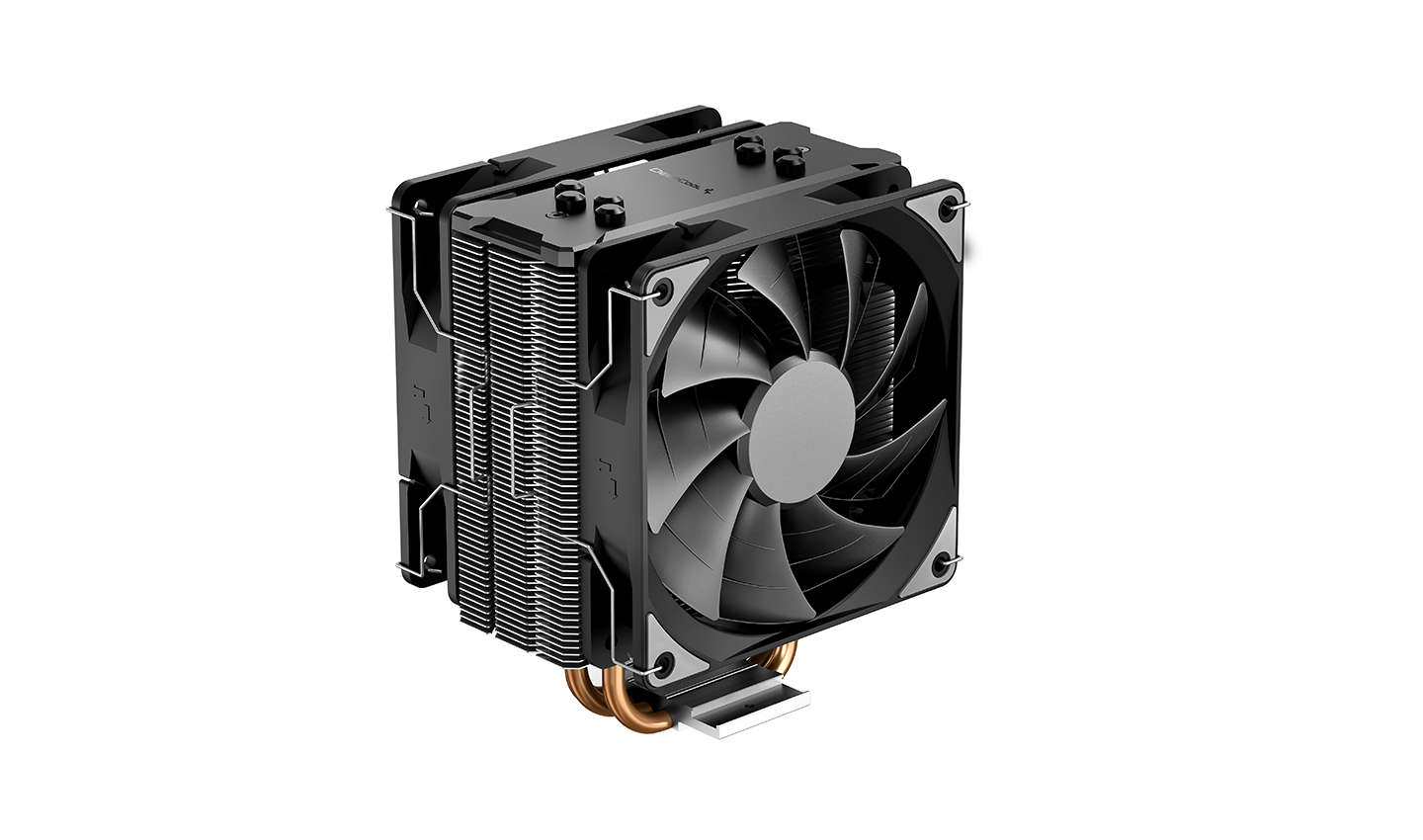

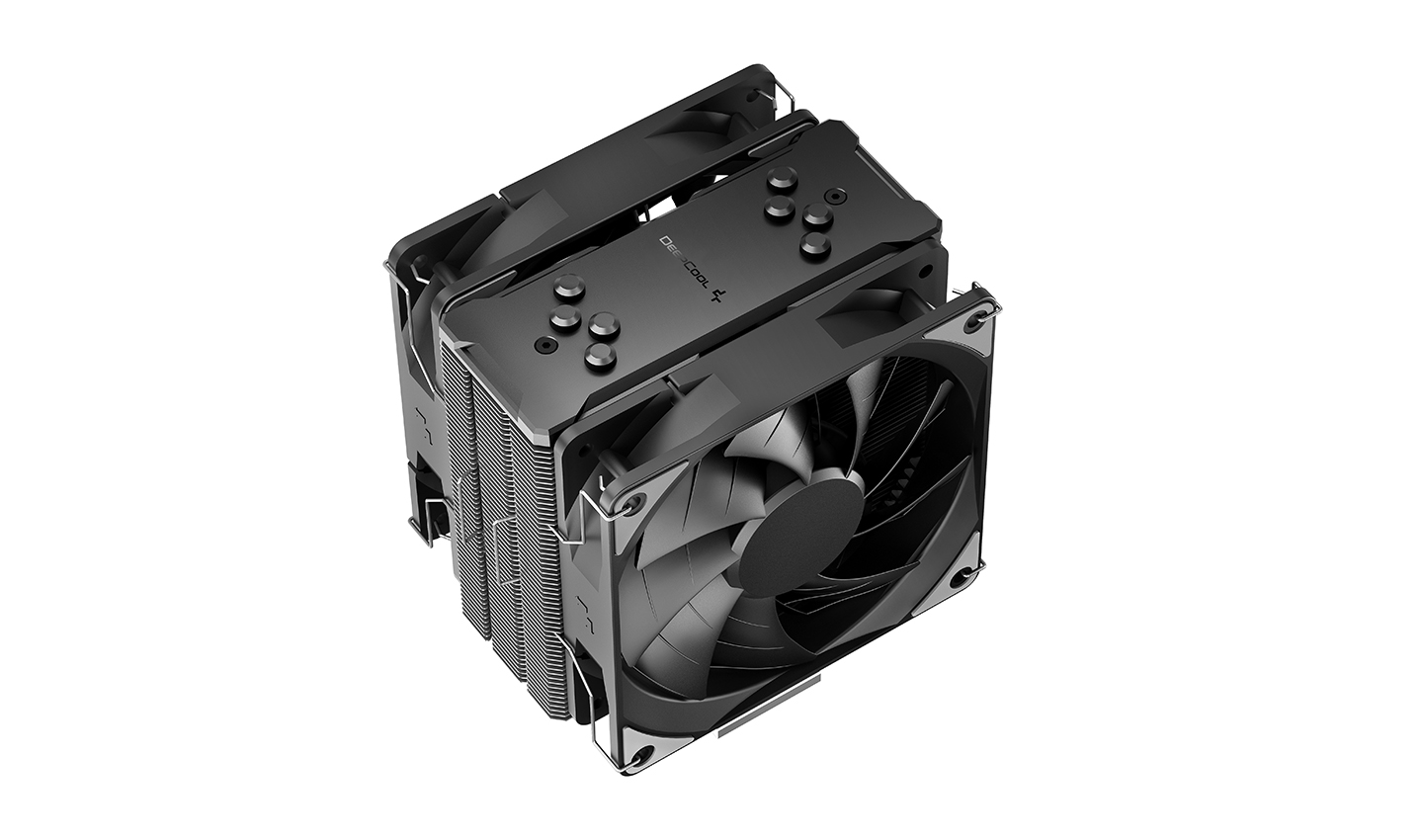

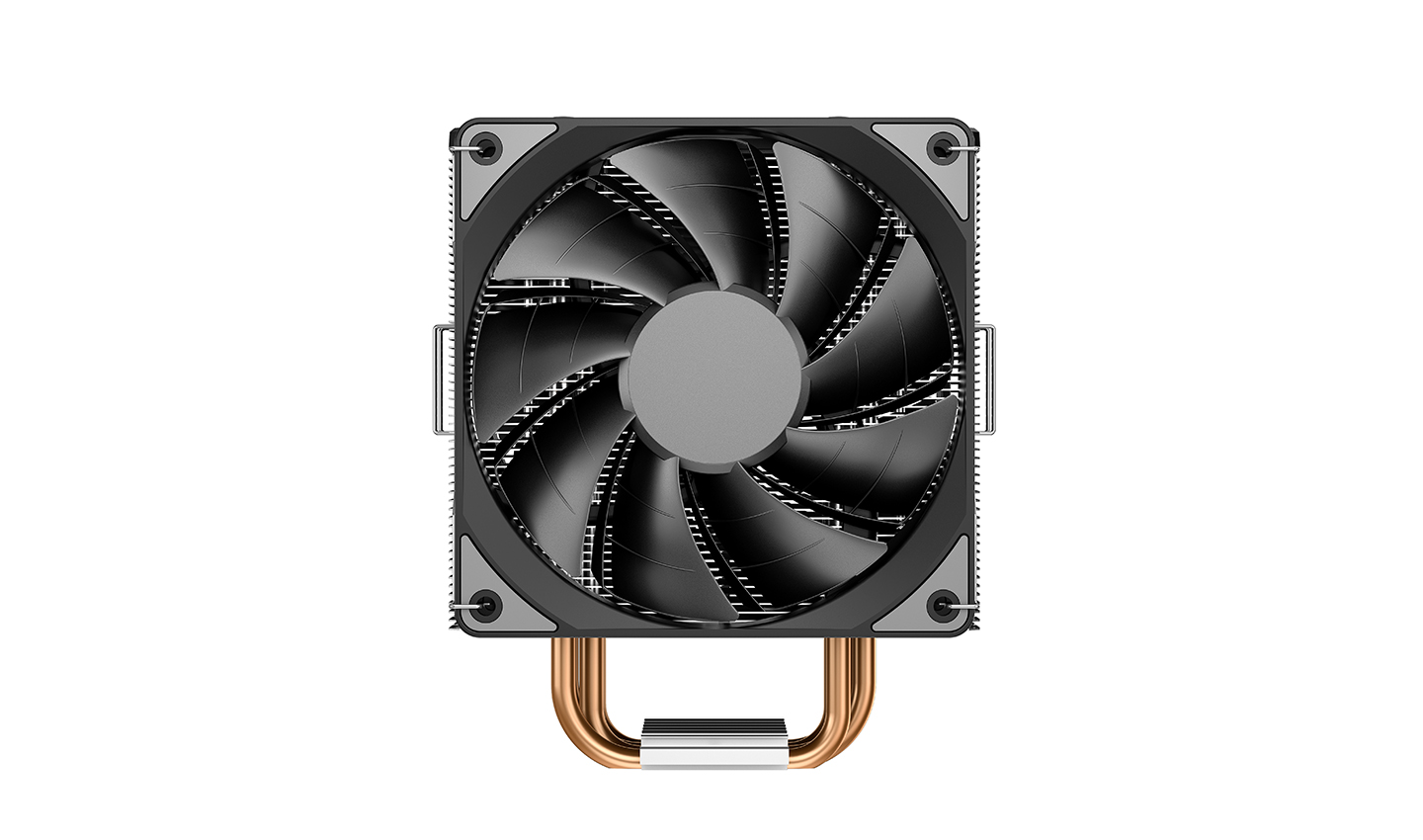

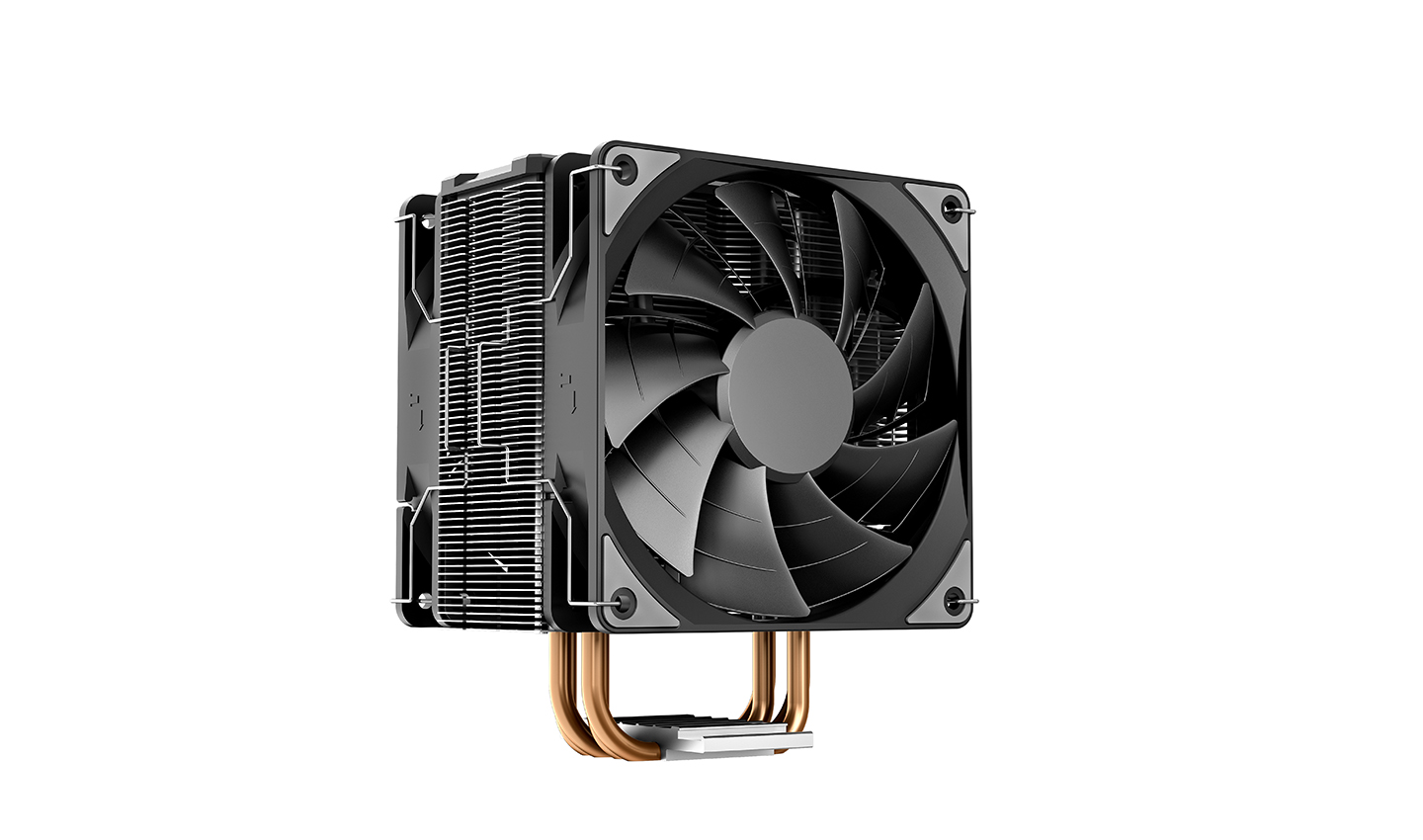

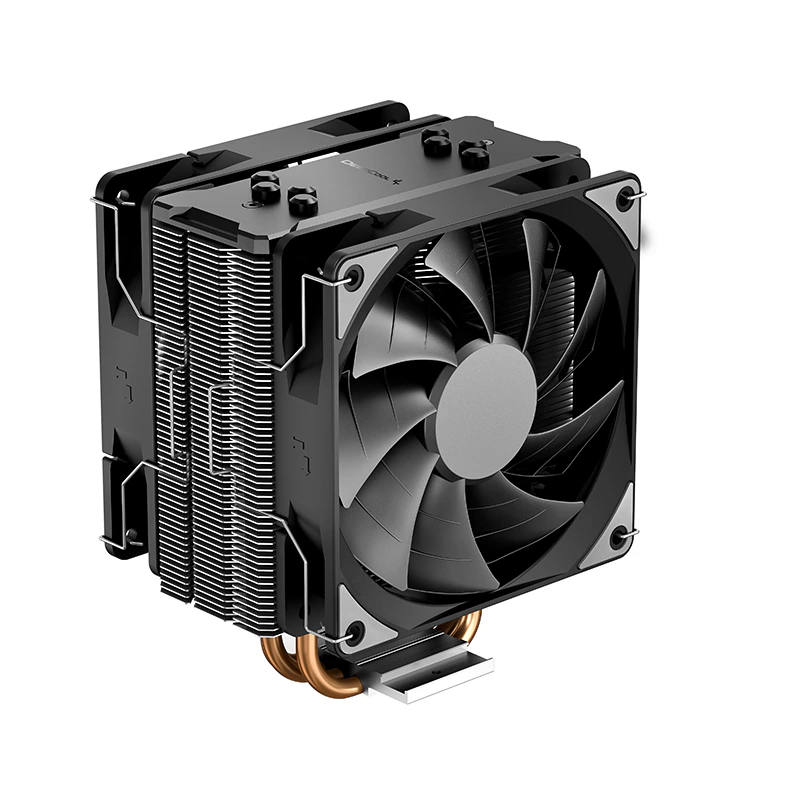

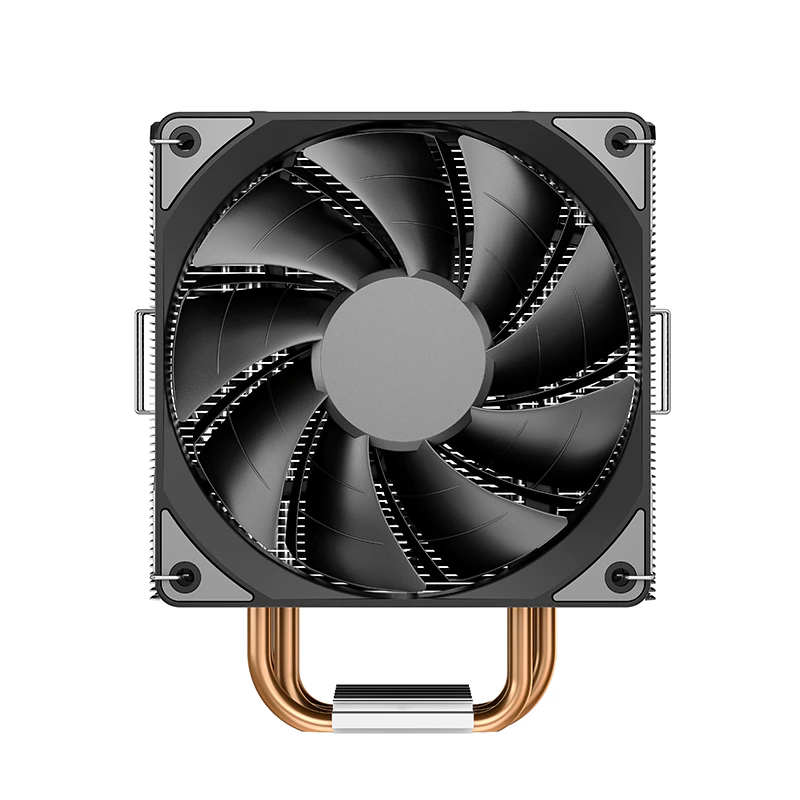

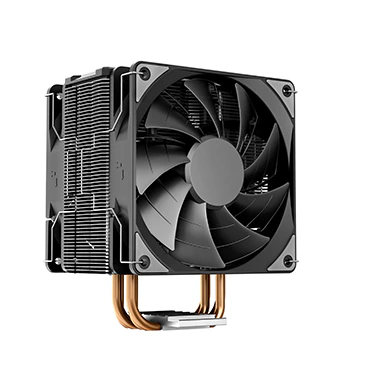

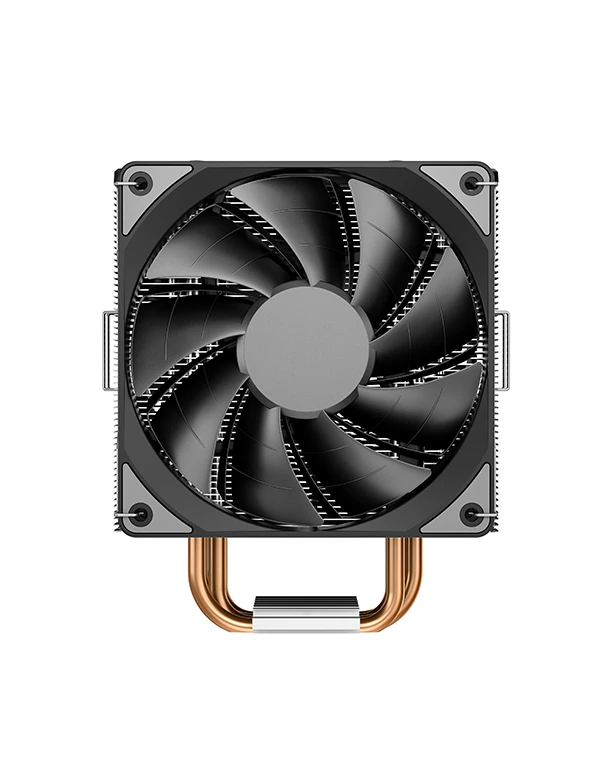

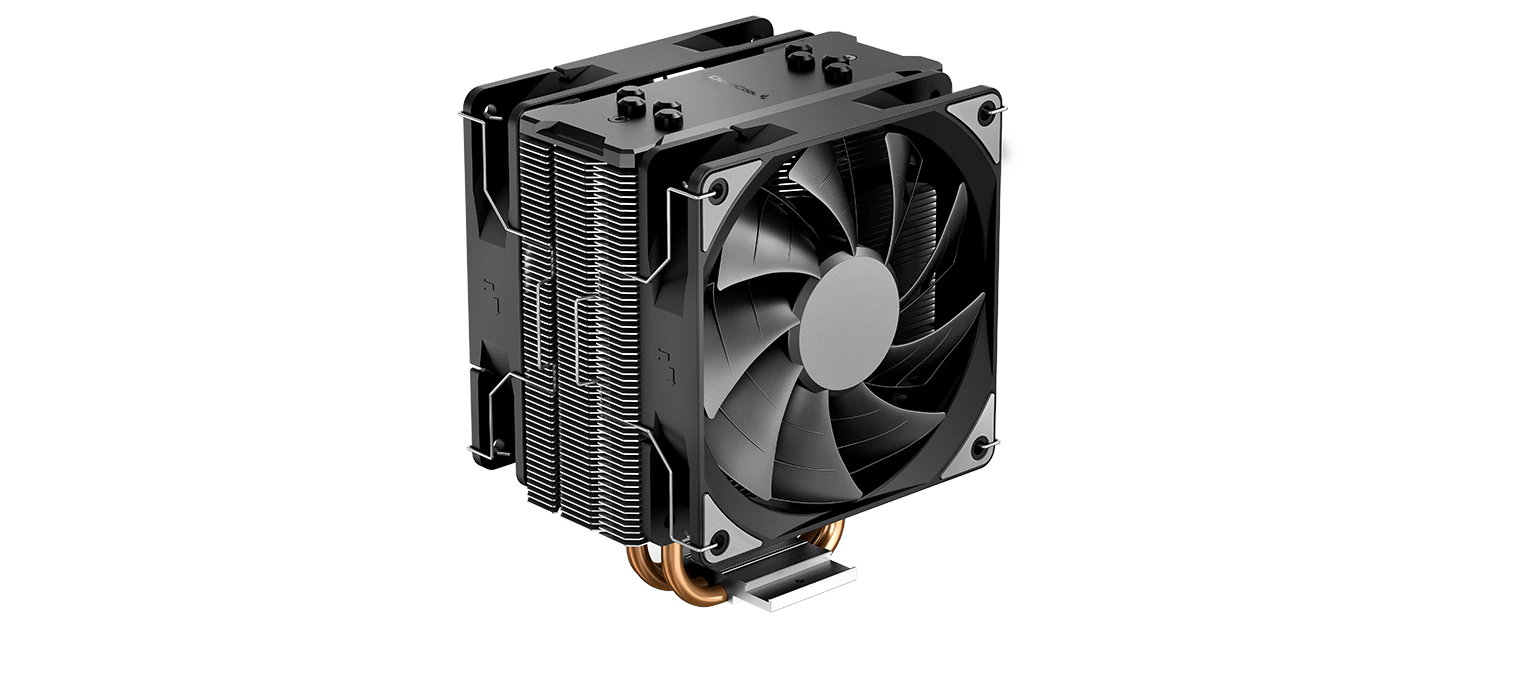

GAMMAXX 400 EX

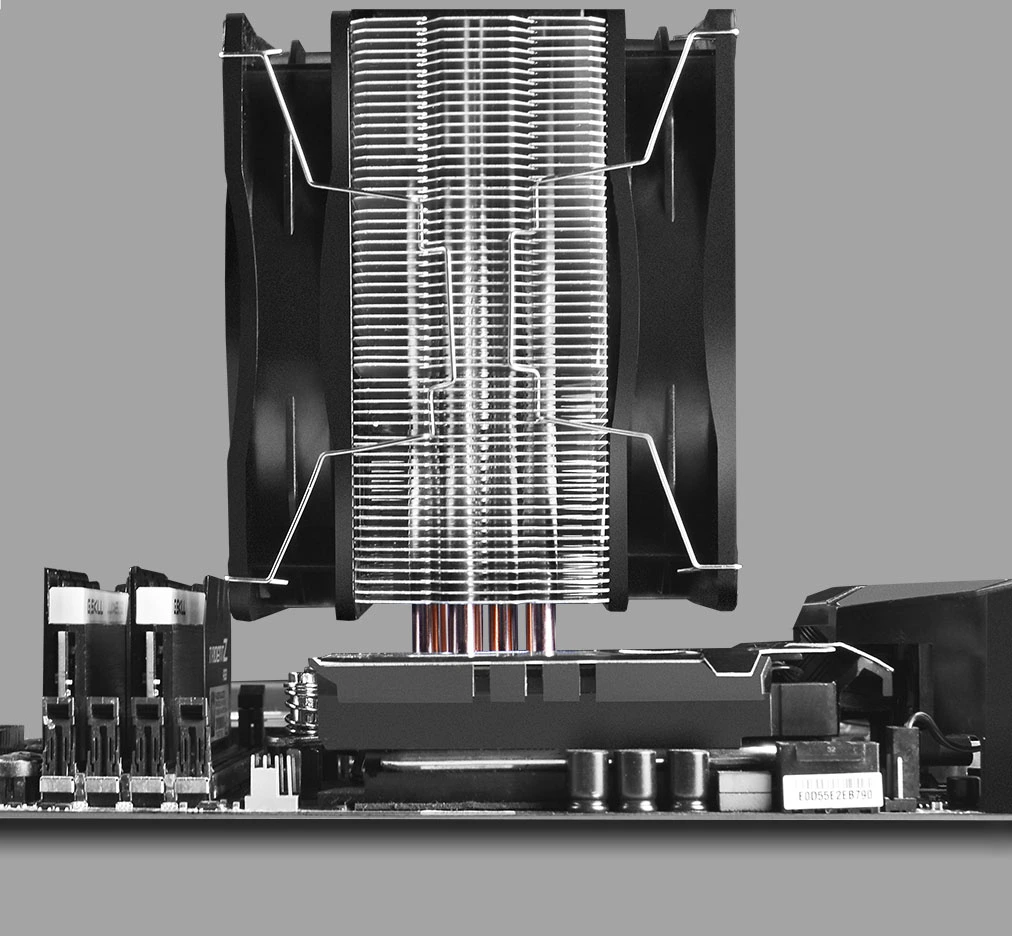

GAMMAXX 400 EX is upgraded from GAMMAXX 400’s classic design. With more dense cooling fins and 2 Performance fans,the GAMMAXX 400 EX significantly enhances cooling performance without affecting case and RAM compatibility.
MODEL
GAMMAXX 400 EX
Complete Upgrade Defining Excellence

GAMMAXX 400 EX
GAMMAXX 400 EX is upgraded from GAMMAXX 400’s classic design.
With more dense cooling fins and 2 Performance fans,the GAMMAXX 400 EX significantly enhances cooling performance without affecting case and RAM compatibility.

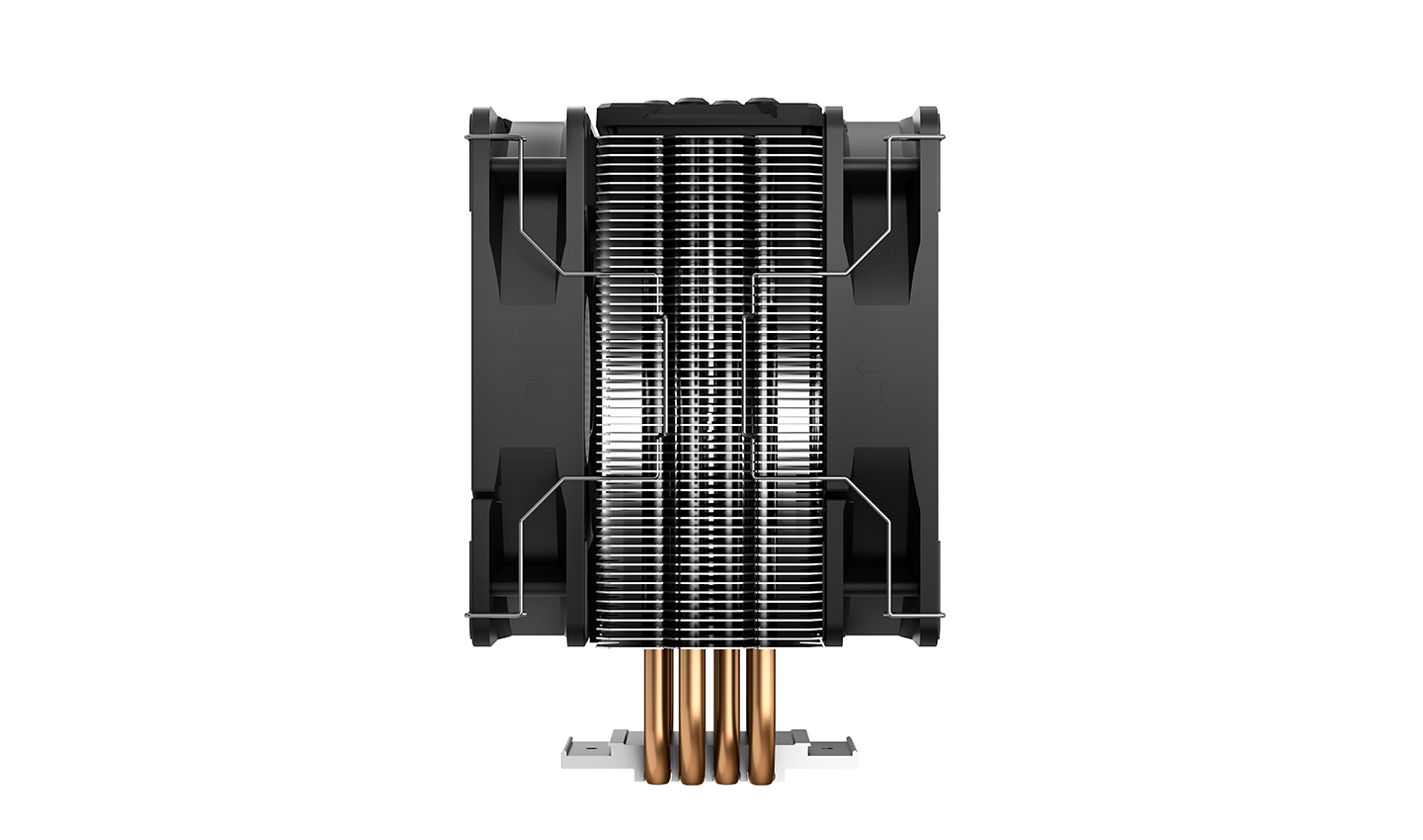

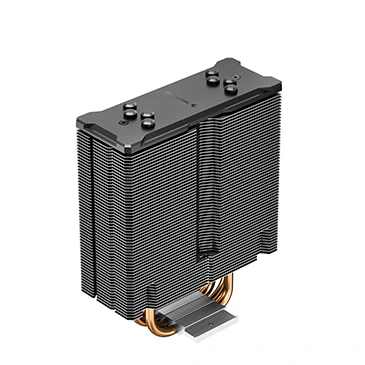

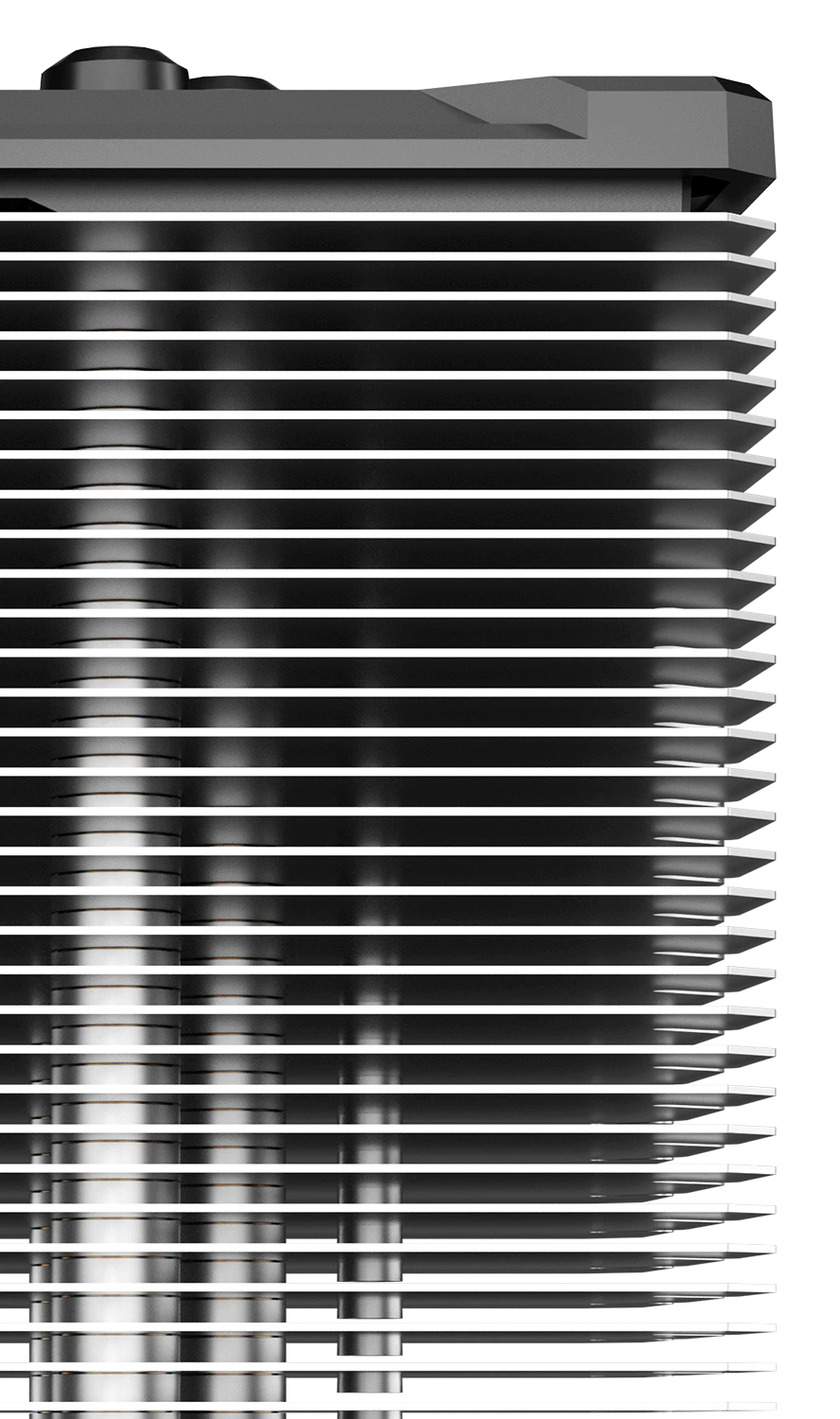

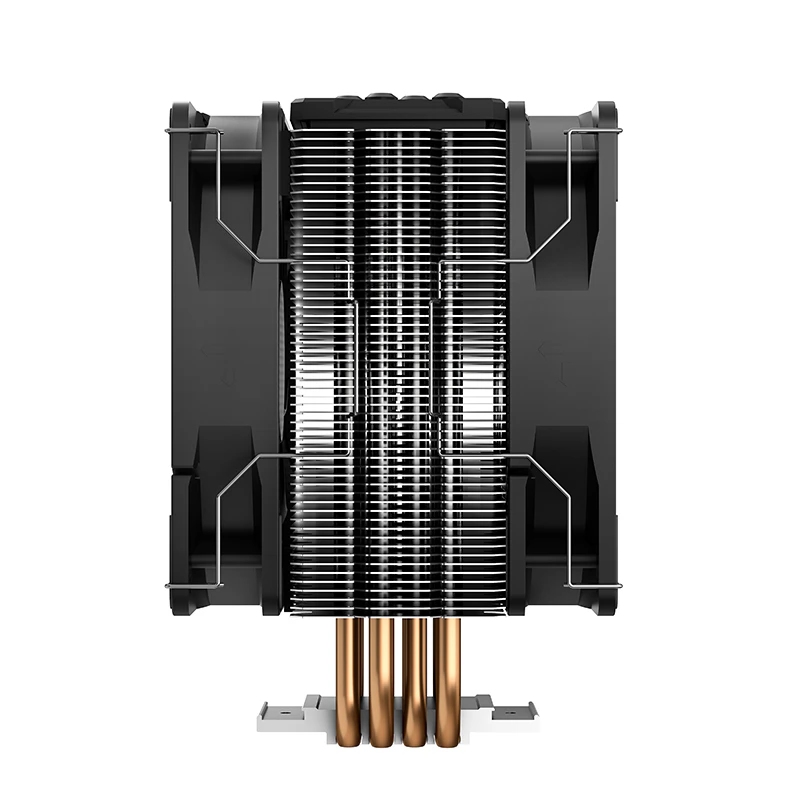

Additional Dissipation Fins
As a 120mm cooler, GAMMAXX 400 EX incorporates a total of 56 dissipation fins. Compared to single fan models, its total surface area is increased by 20%, making full use of the airflow generated by its twin fan design.

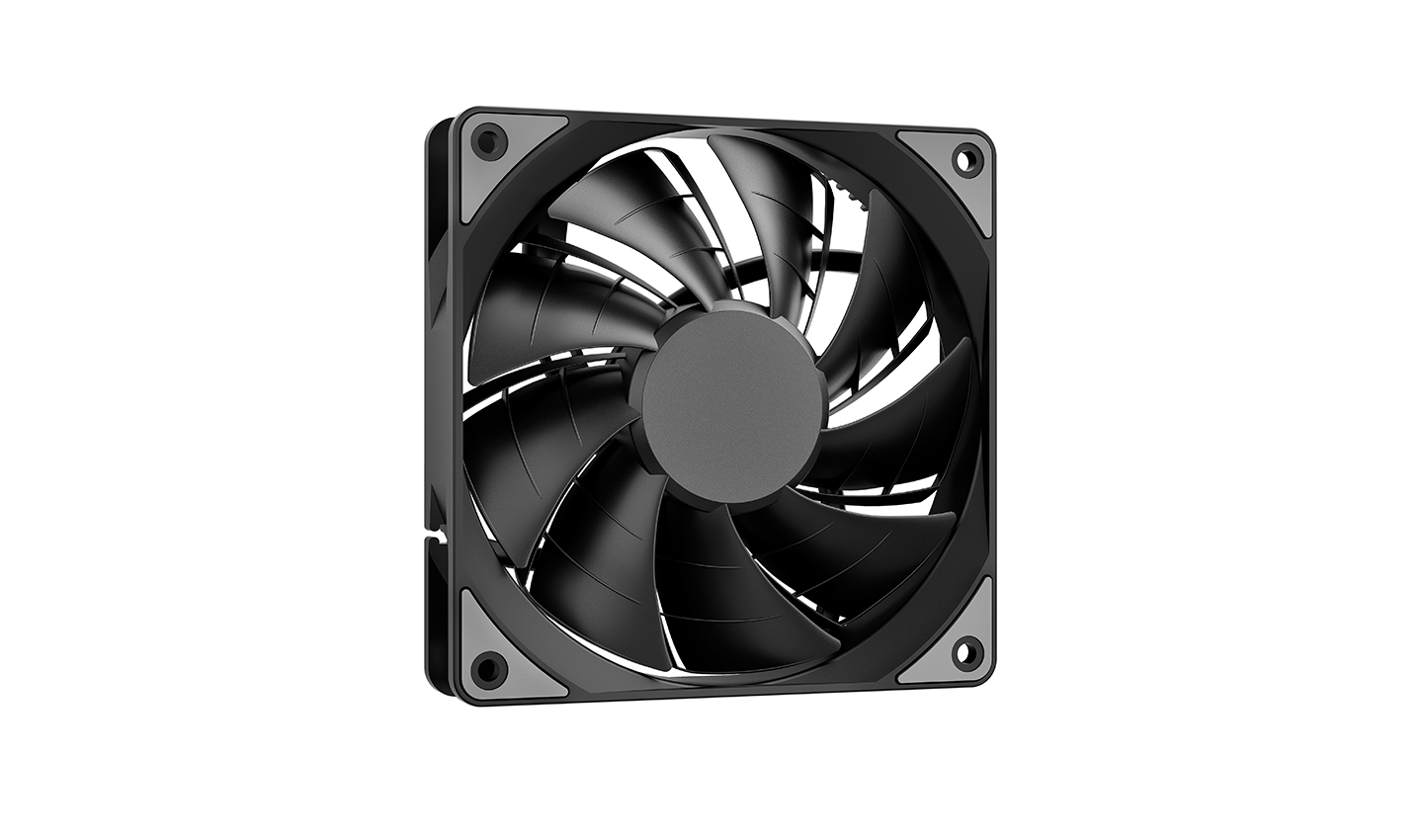

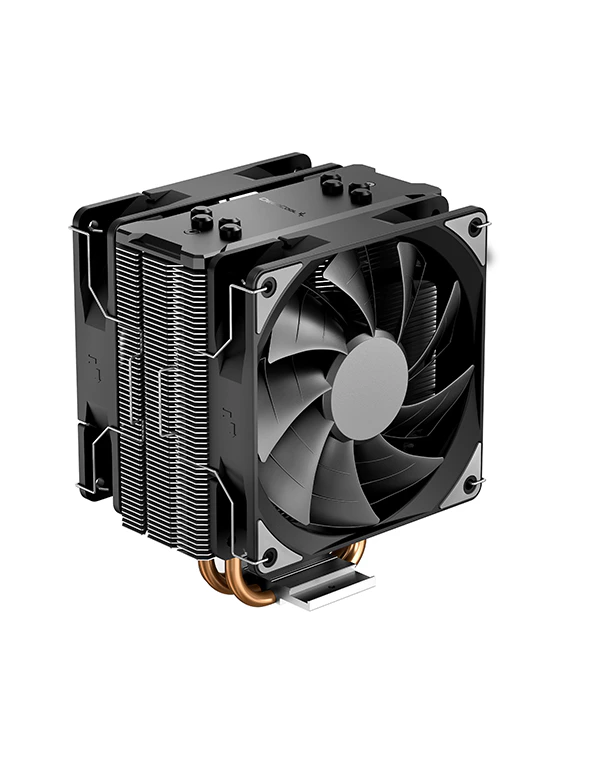

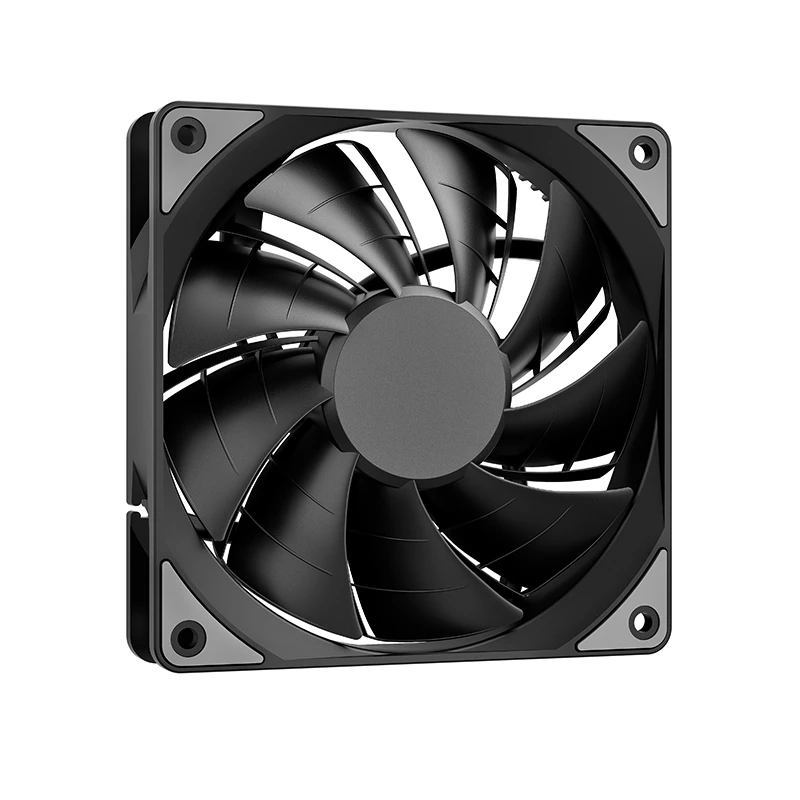

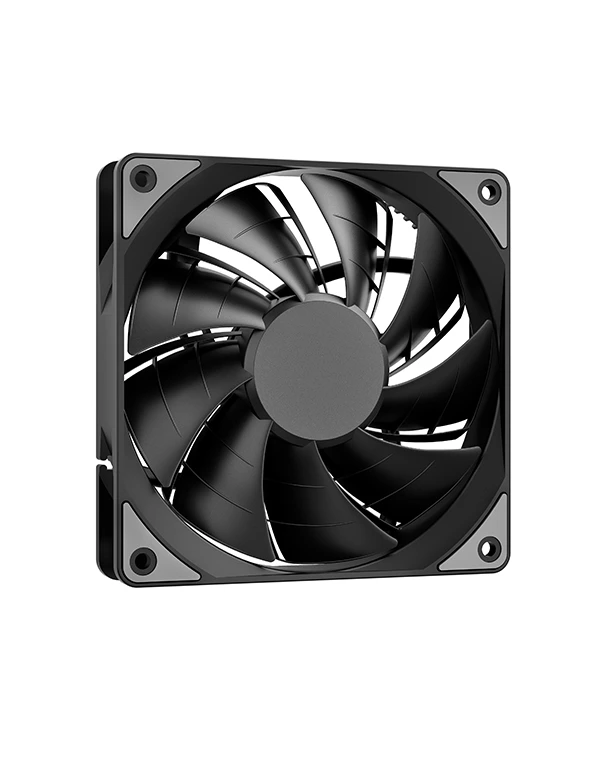

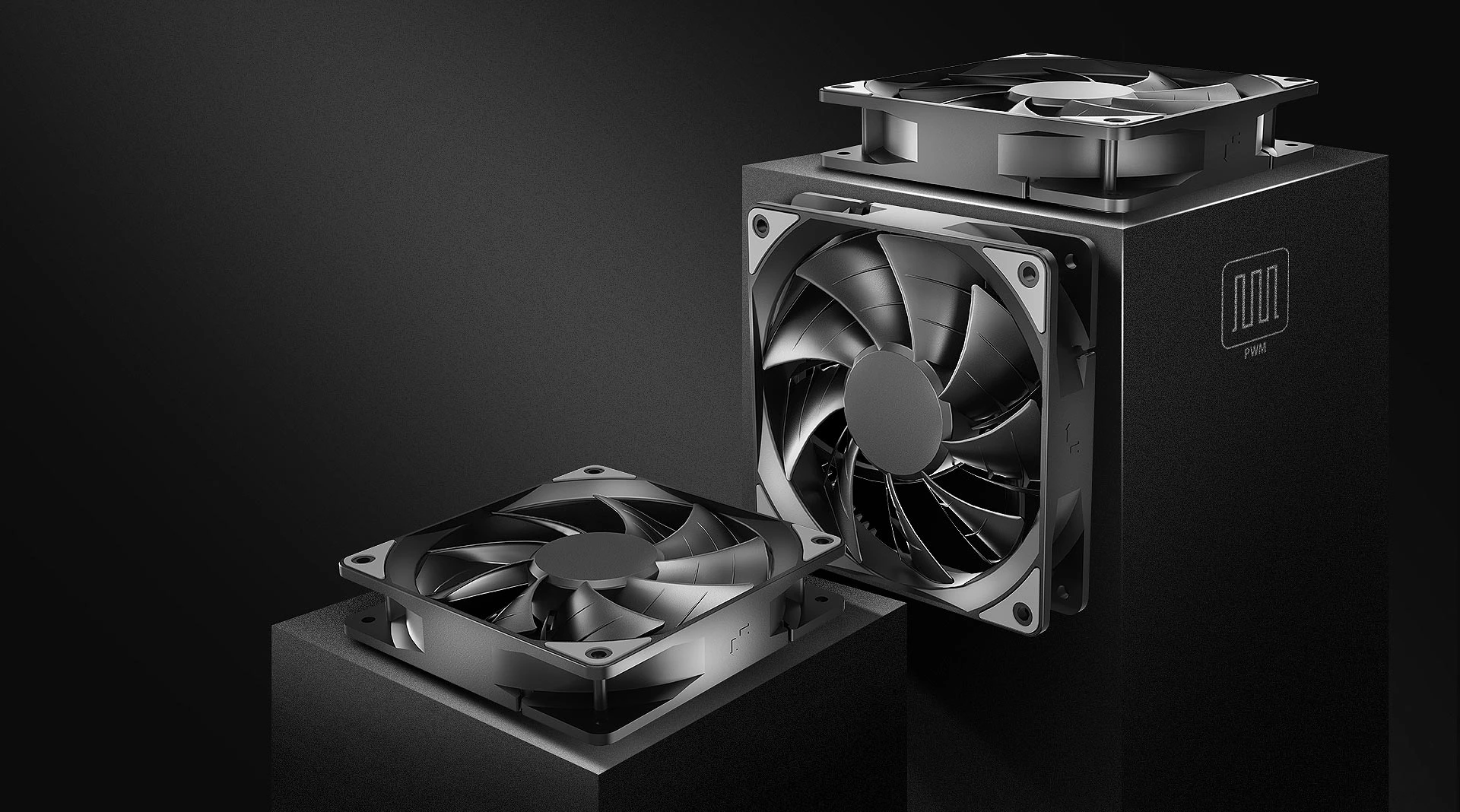

Performance Fans
2 TF120 high-performance PWM fans are included, doubling the coolness.
Performance Fans
2 TF120 high-performance PWM fans are included, doubling the coolness.

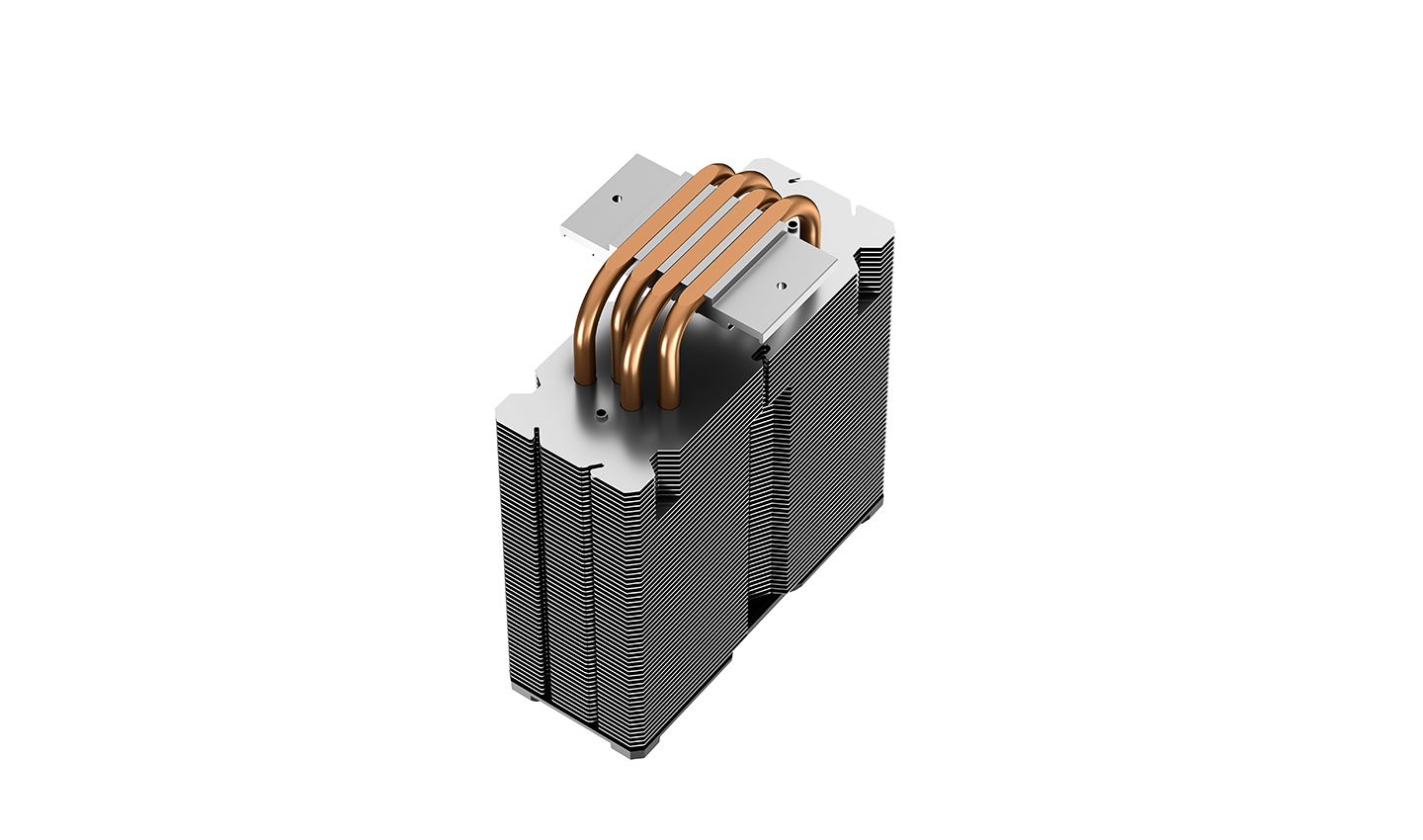

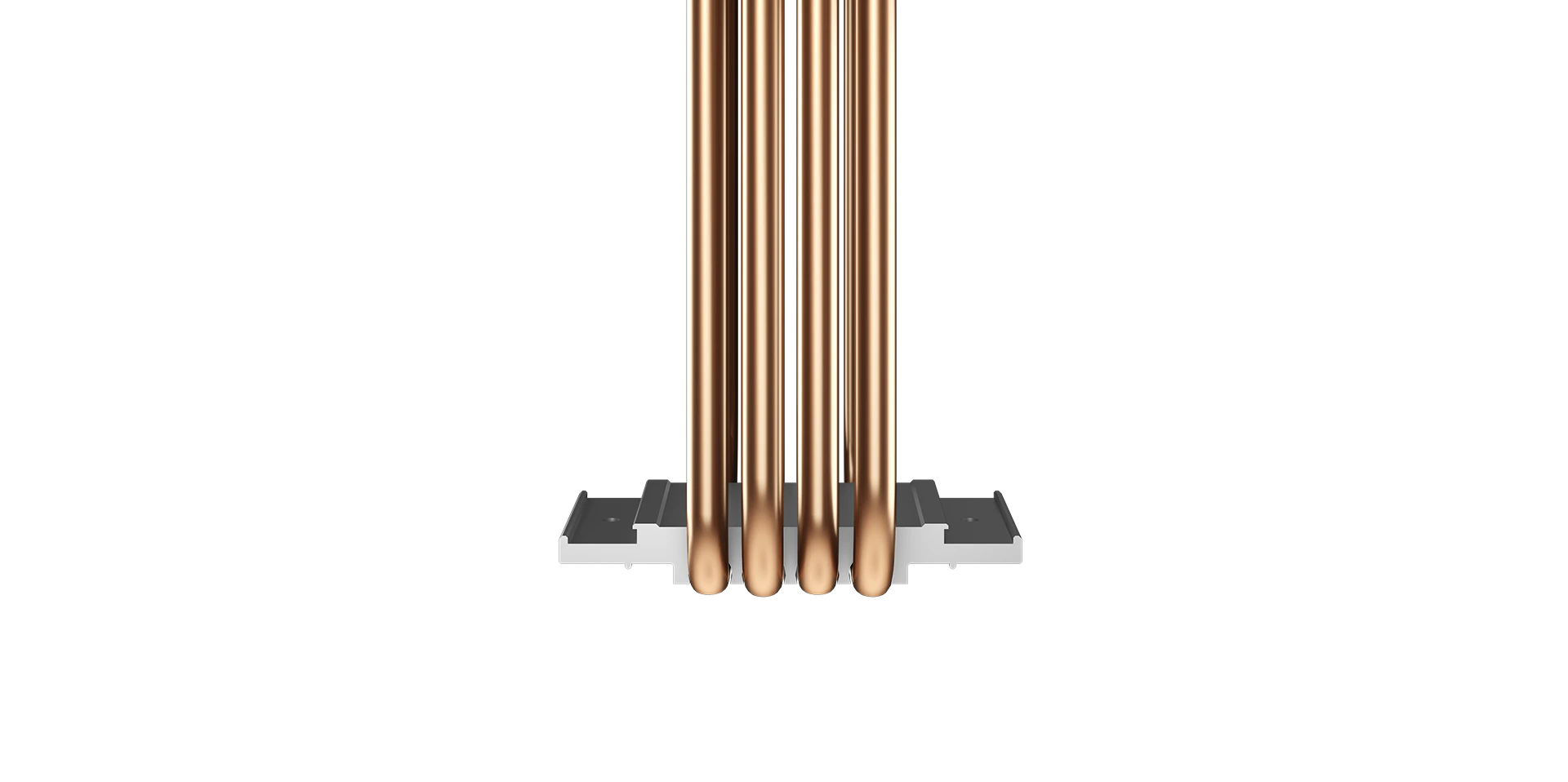

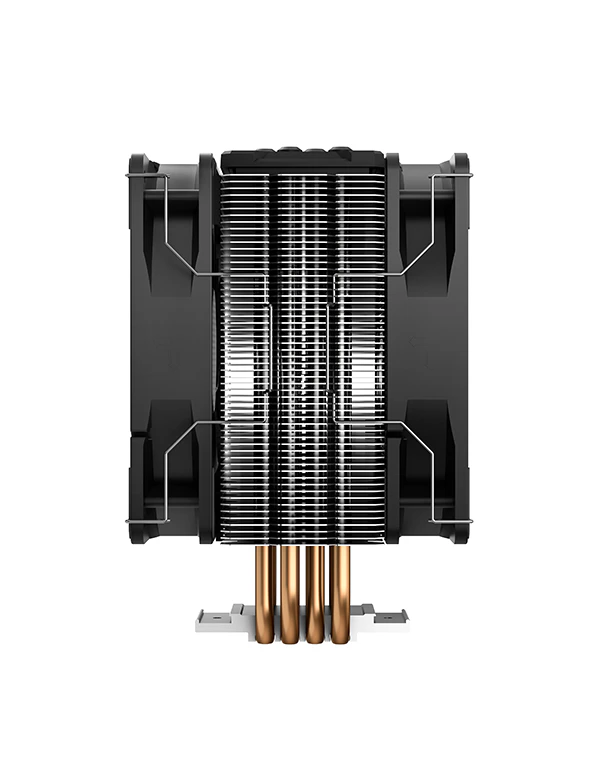

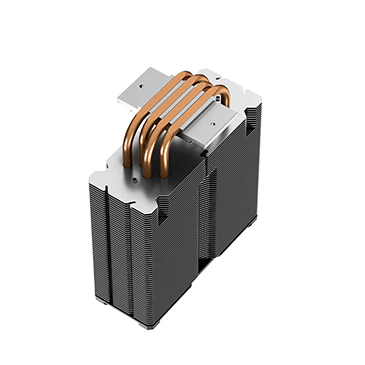

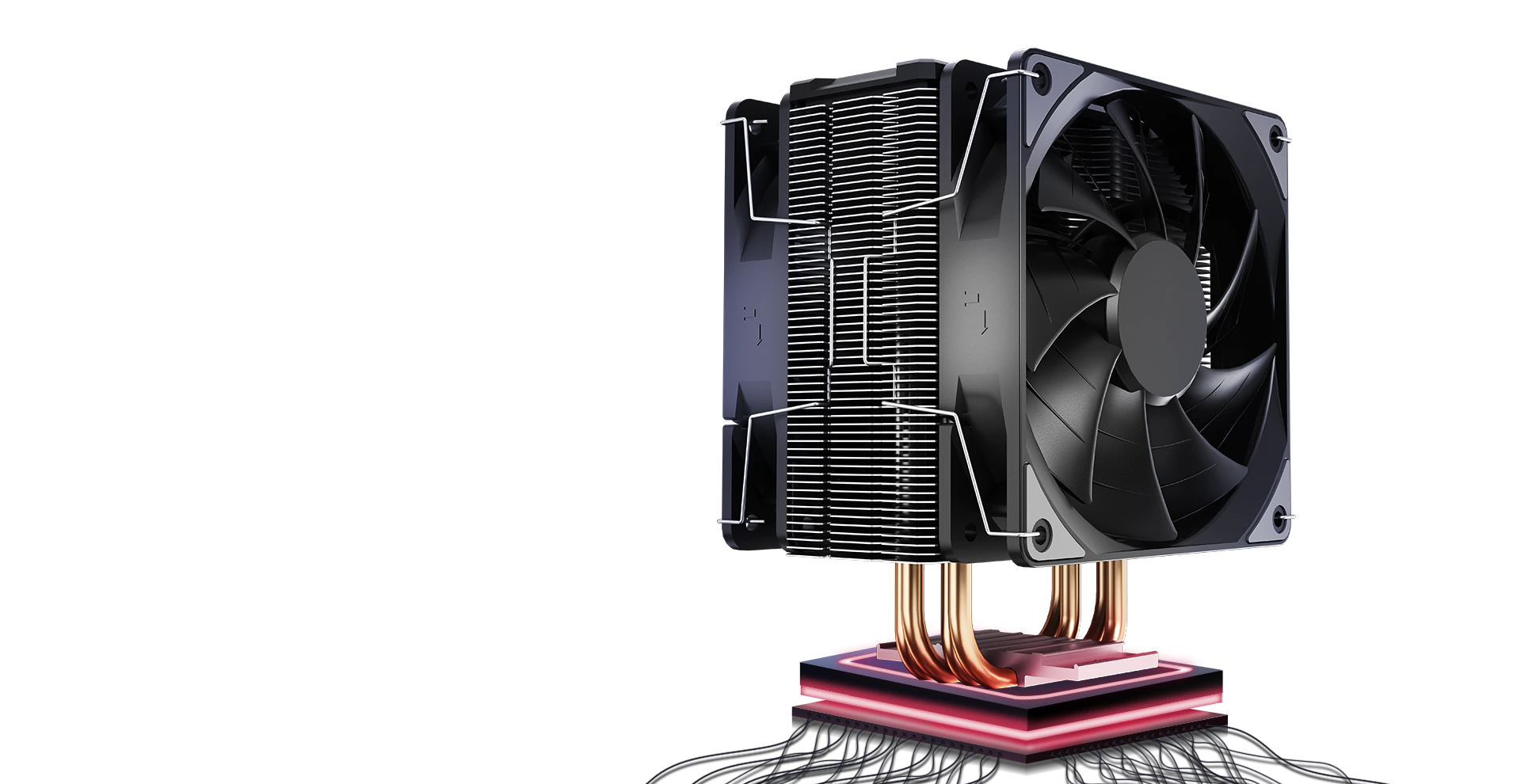

High-performance Heat Pipes
GAMMAXX 400 EX comes with 4 high high-performance sintered copper heat pipes, each specifically positioned to instantly dissipate CPU heat.
Core Touch Base
Its base adopts Core Touch Technology to dissipate heat more efficiently.
Core Touch Base
Its base adopts Core Touch Technology to dissipate heat more efficiently.

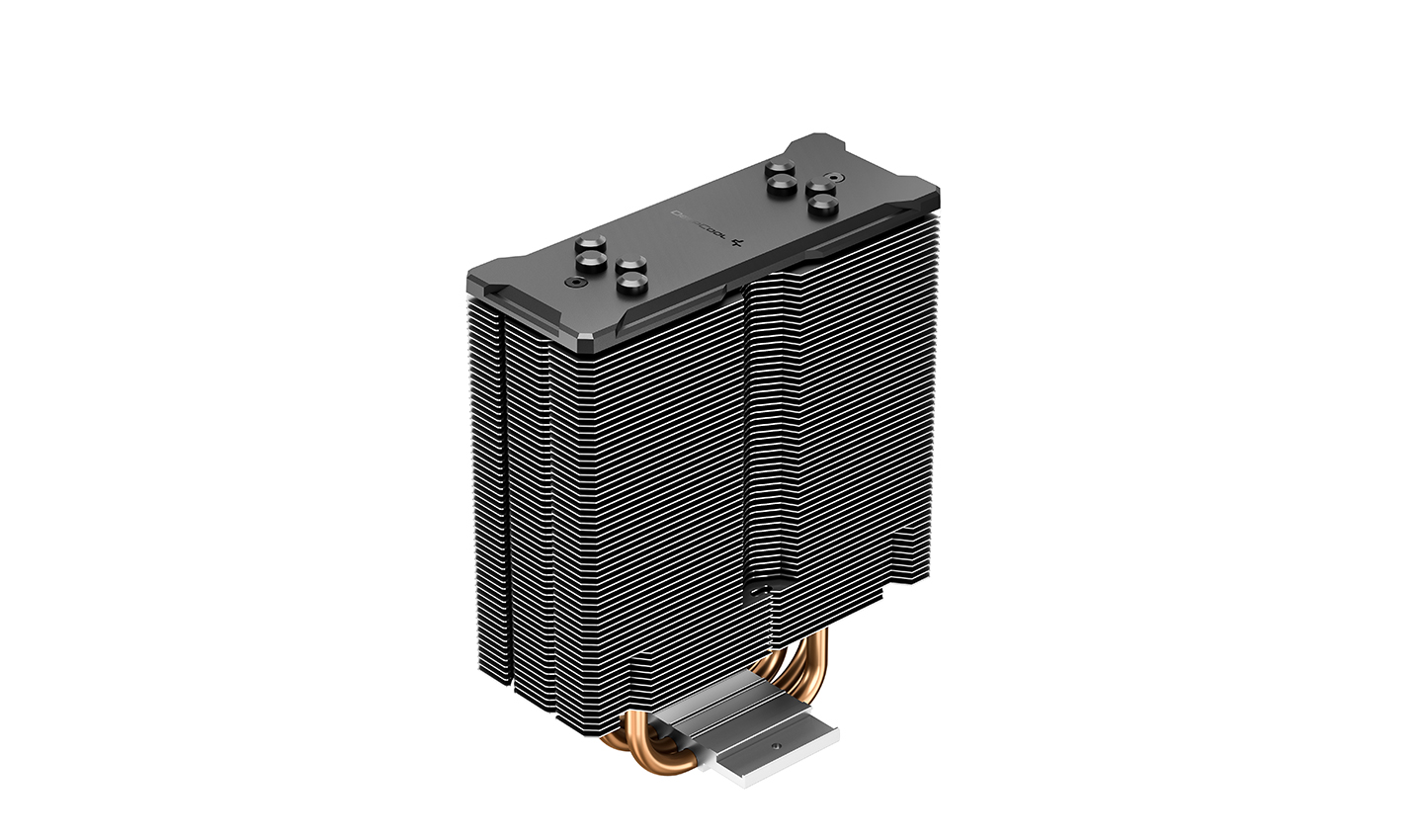

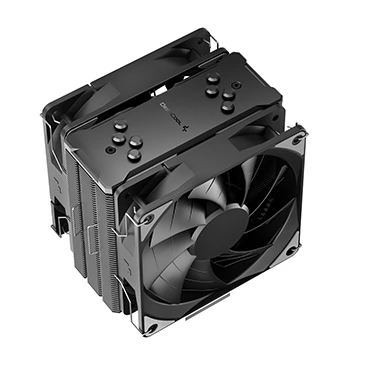

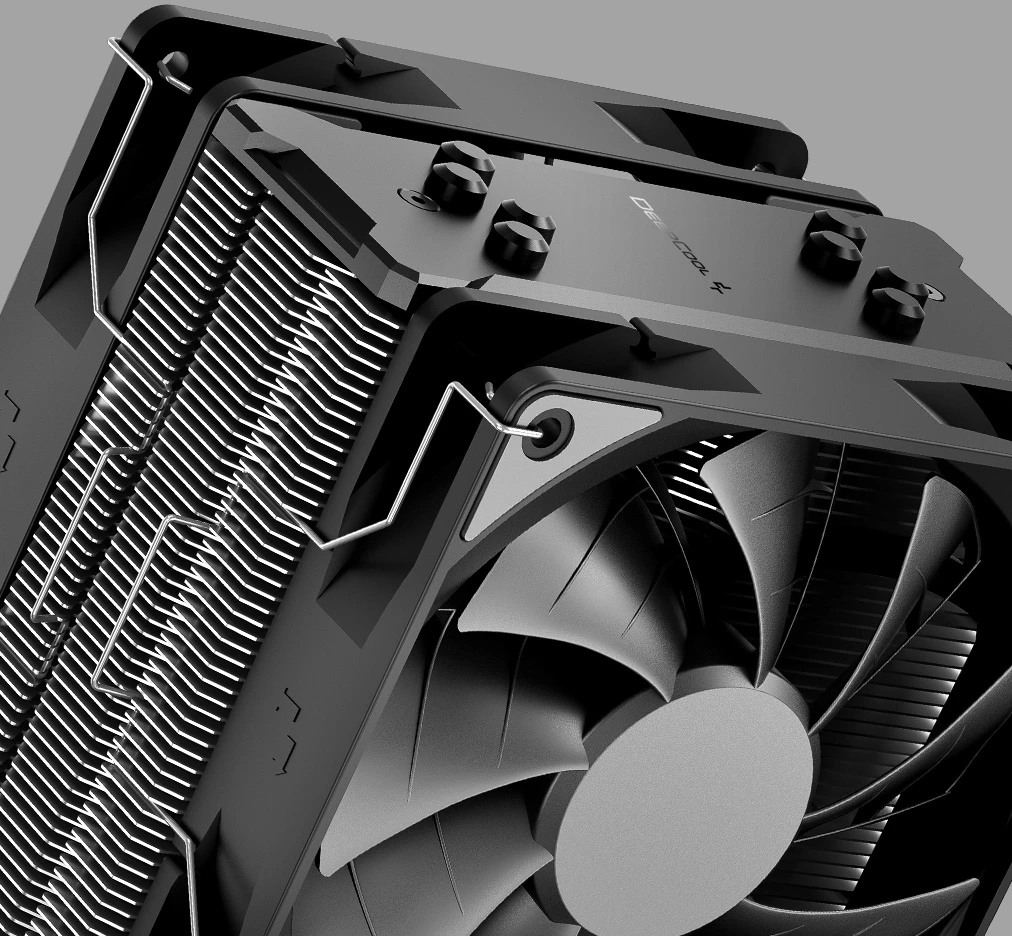

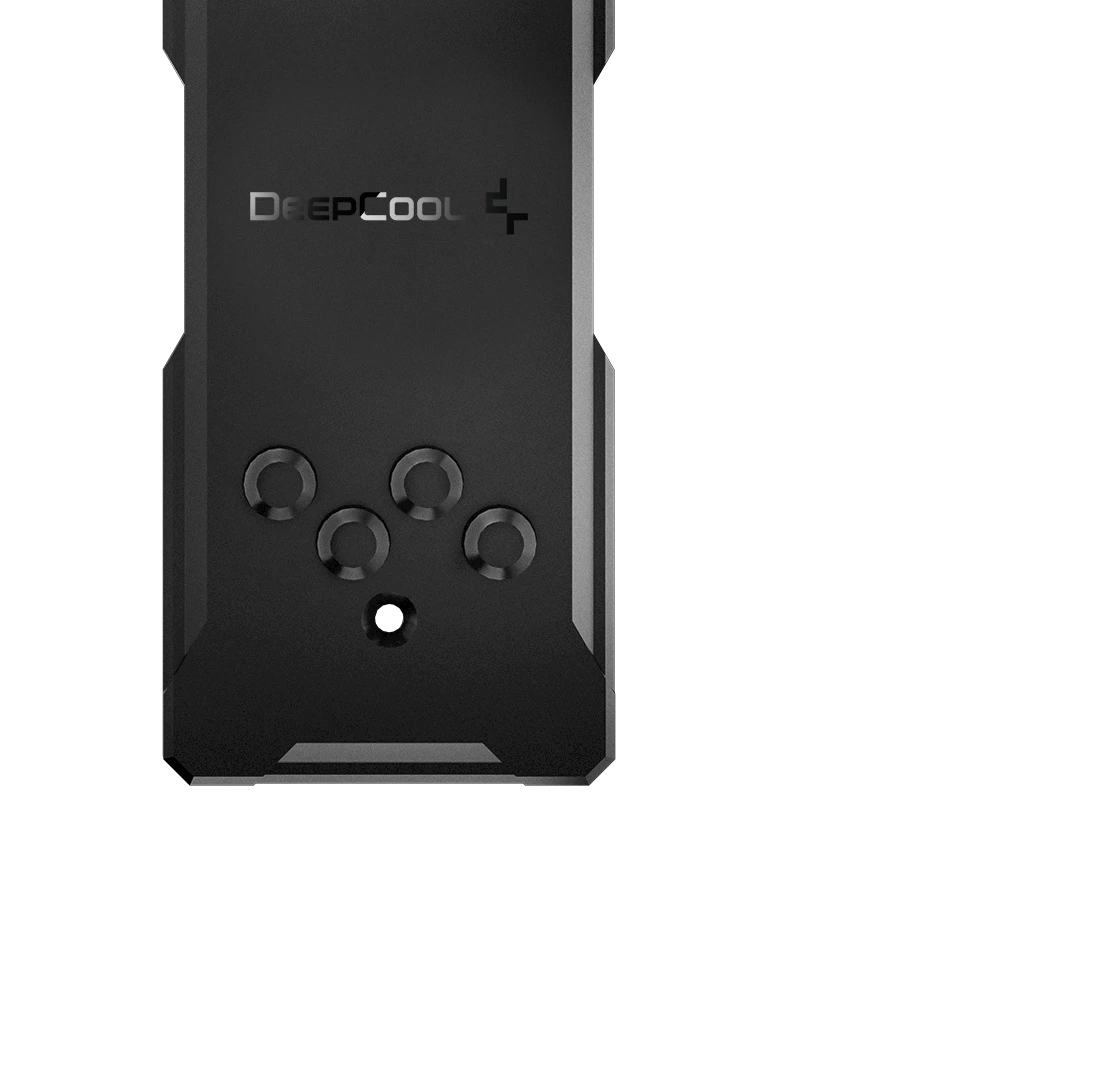

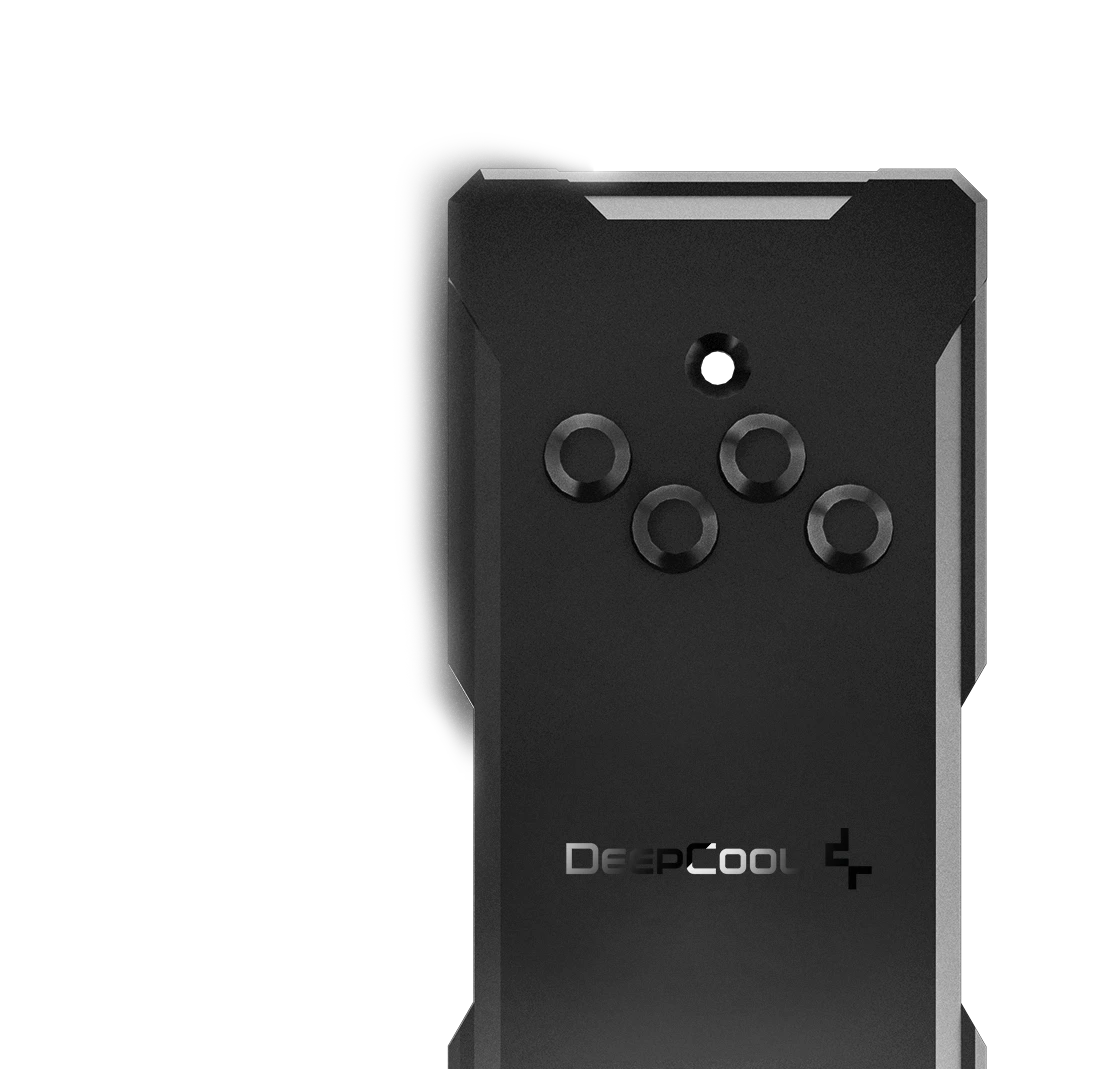

Black Top Cover
The iconic black top cover gives your computer set up a unique appeal.

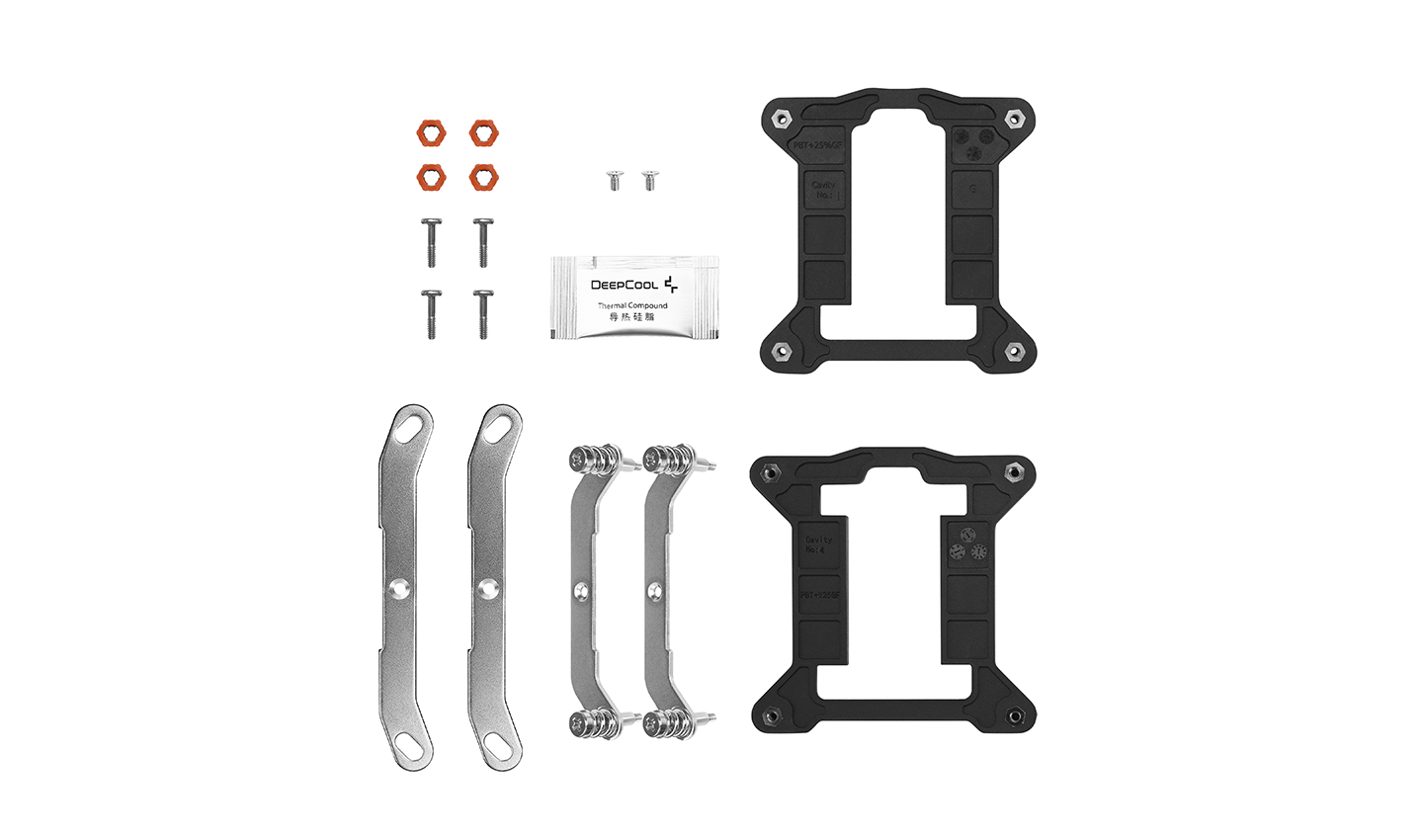

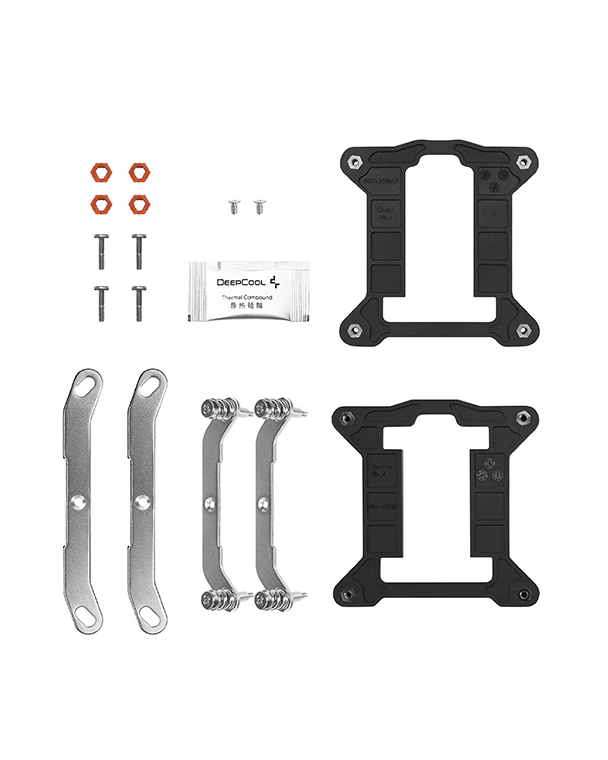

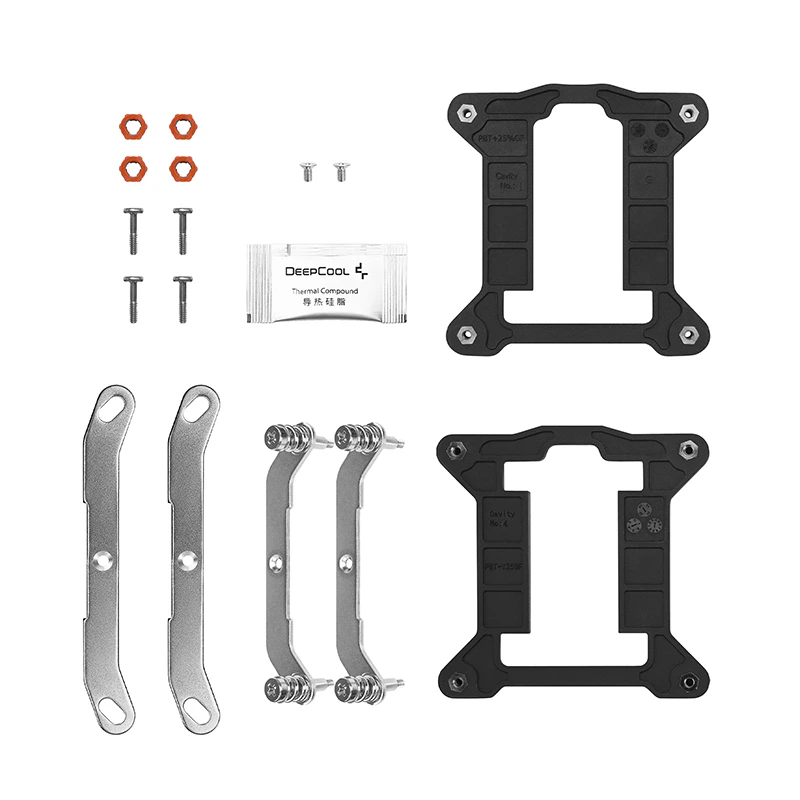

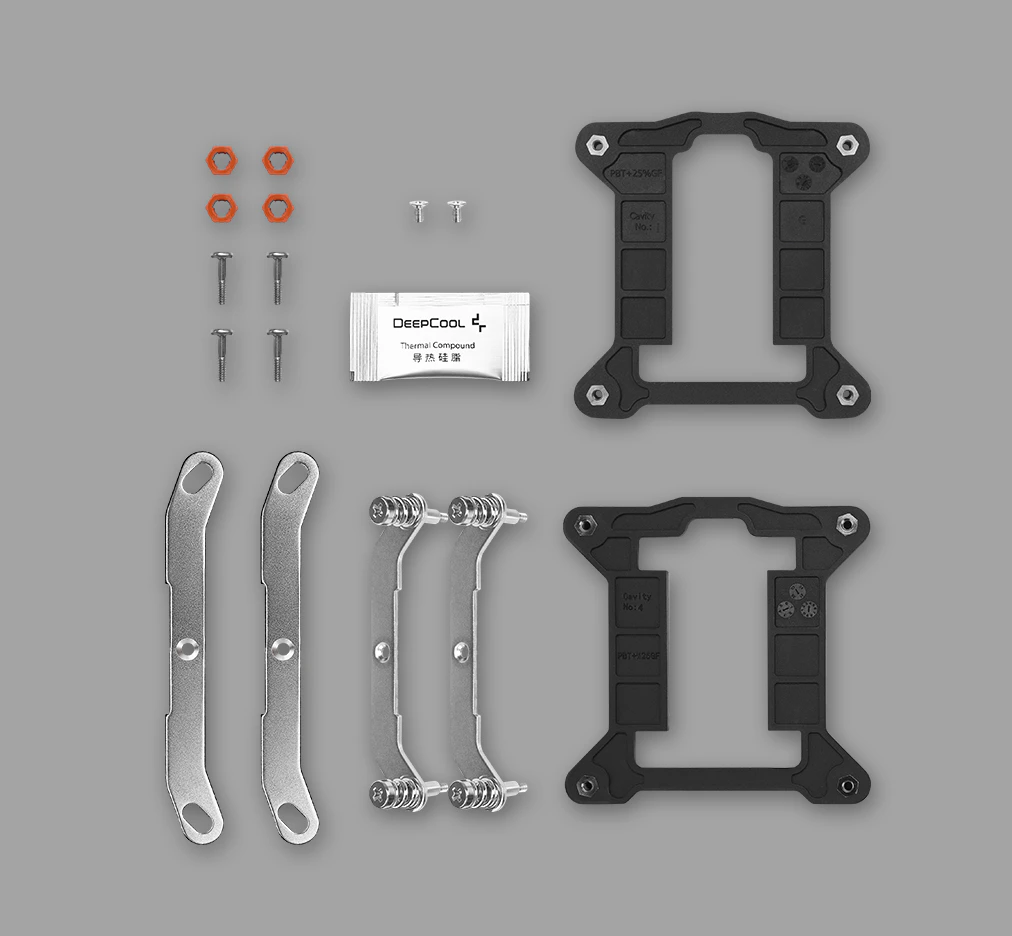

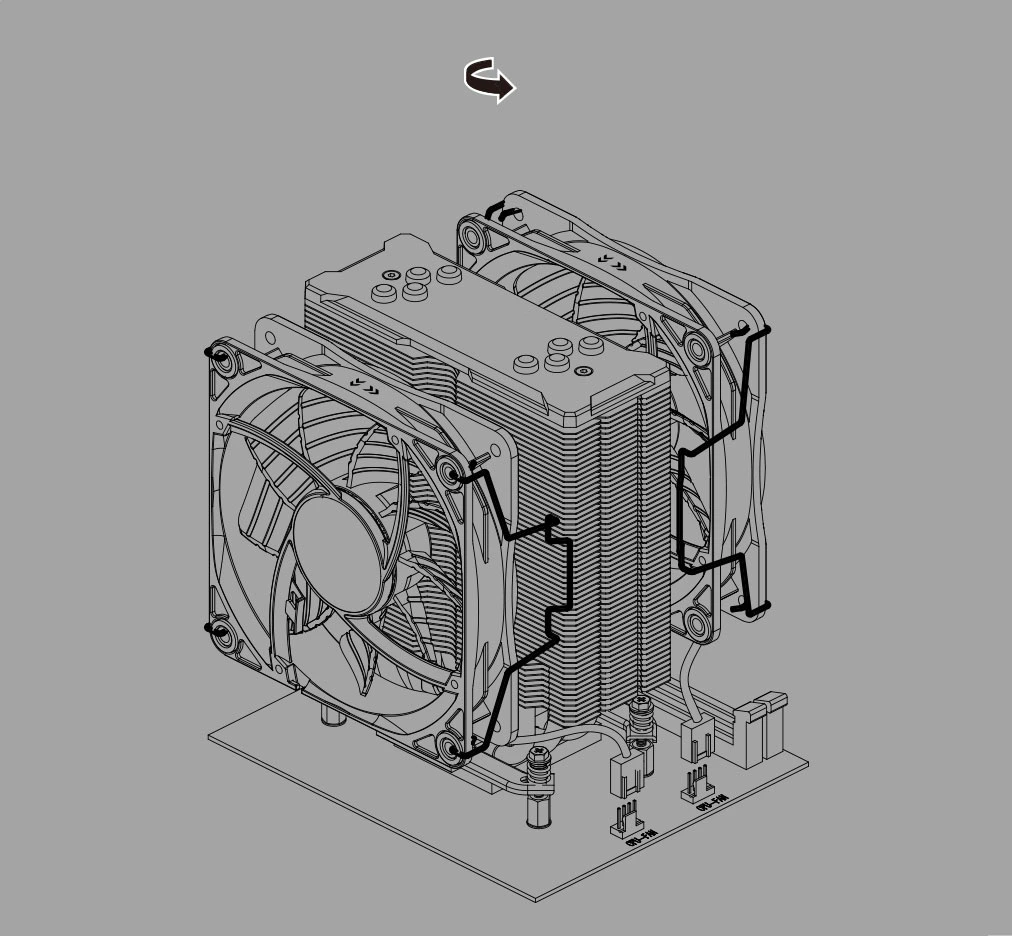

Brand New Mounting Tools
GAMMAXX 400 EX’s all-new mounting tools supports installation in multiple platforms, providing a whole new installation experience.
Brand New Mounting Tools
GAMMAXX 400 EX’s all-new mounting tools supports installation in multiple platforms, providing a whole new installation experience.
Brand New Mounting Tools
GAMMAXX 400 EX’s all-new mounting tools supports installation in multiple platforms, providing a whole new installation experience.
Brand New Mounting Tools
GAMMAXX 400 EX’s all-new mounting tools supports installation in multiple platforms, providing a whole new installation experience.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions129×103×157.5 mm(L×W×H)
Heatsink Dimensions127×50×155 mm(L×W×H)
Net Weight 930 g
Heatpipe Ø6 mm×4 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed 500~1500 RPM±10%
Fan Airflow 52 CFM
Fan Air Pressure 2.07 mmAq
Fan Noise ≤27.6 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.07 A
Fan Power Consumption 0.84 W
EAN 6933412727057
P/N DP-MCH4-GMX400EX
Product Dimension
Download
GAMMAXX 400 EX Manual.pdf
Download
GAMMAXX 400 EX Manual without LGA1700 Mounting brackets .pdf
