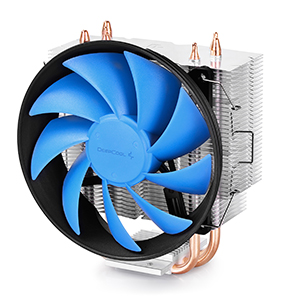

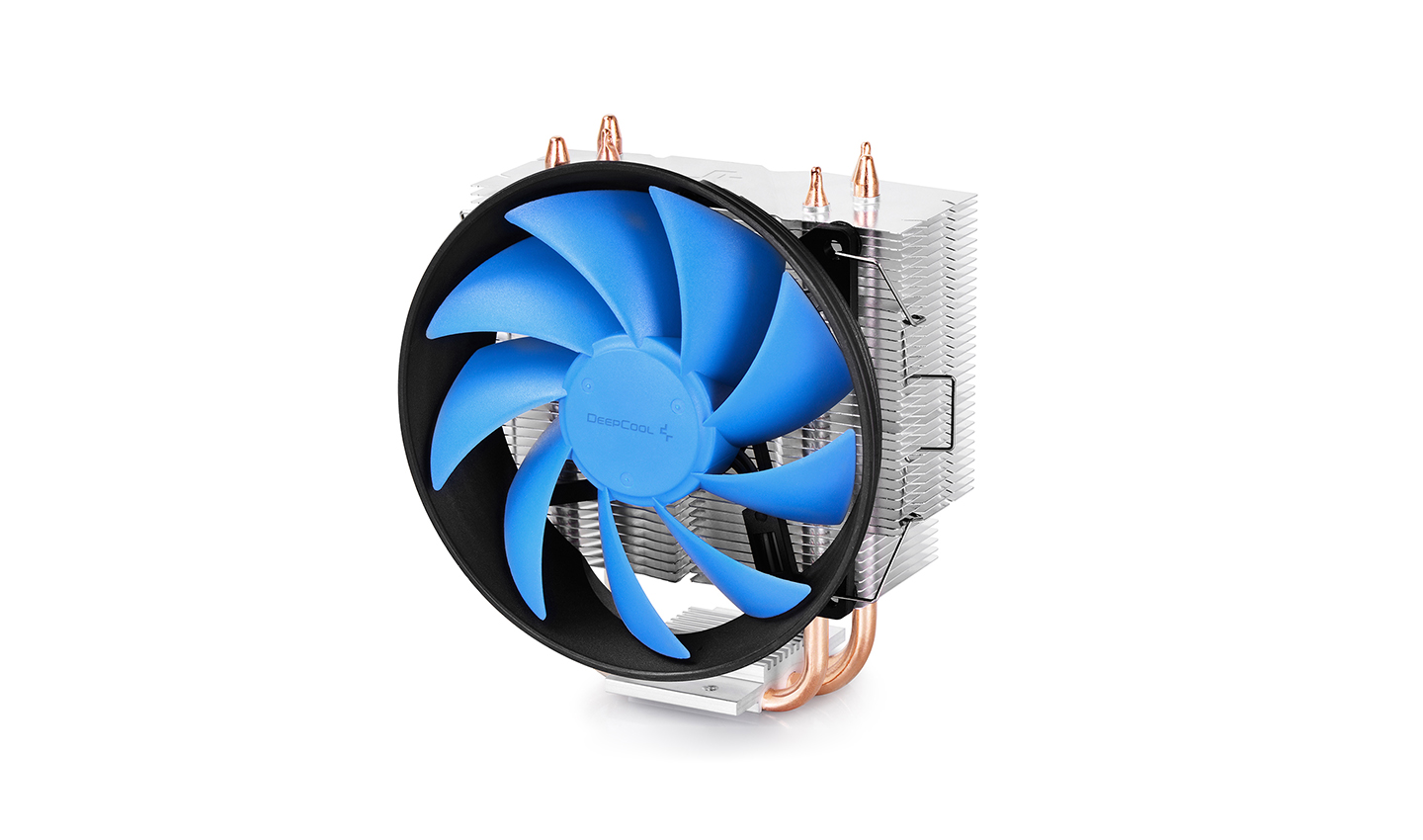

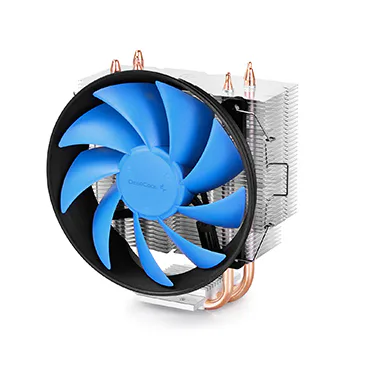

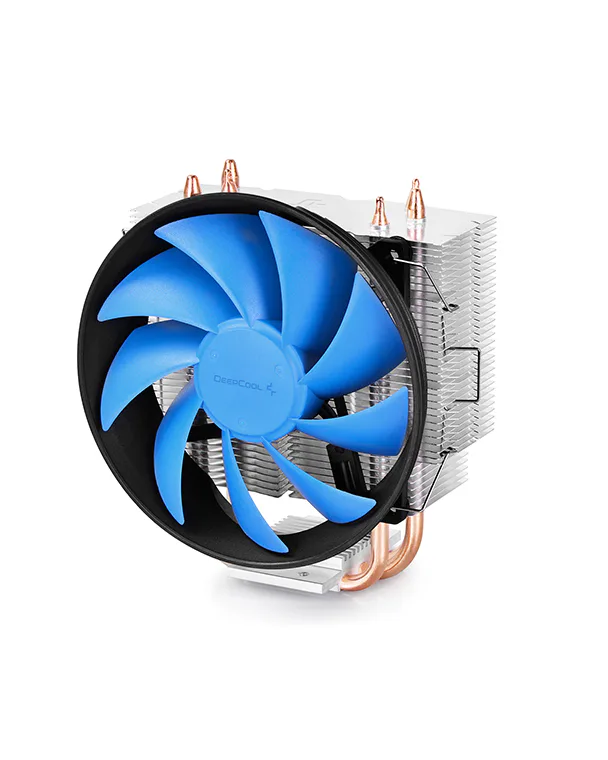

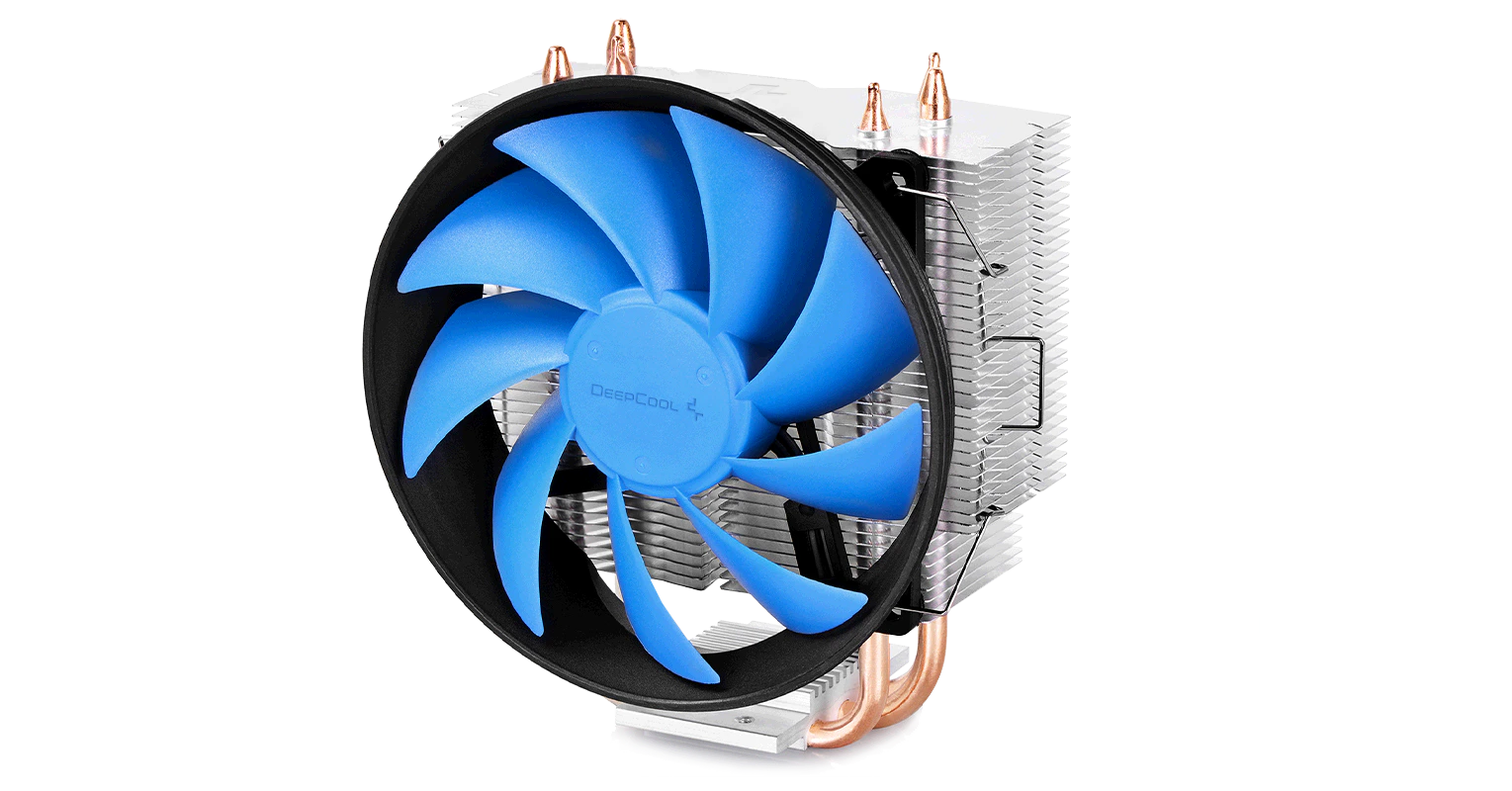

GAMMAXX 300

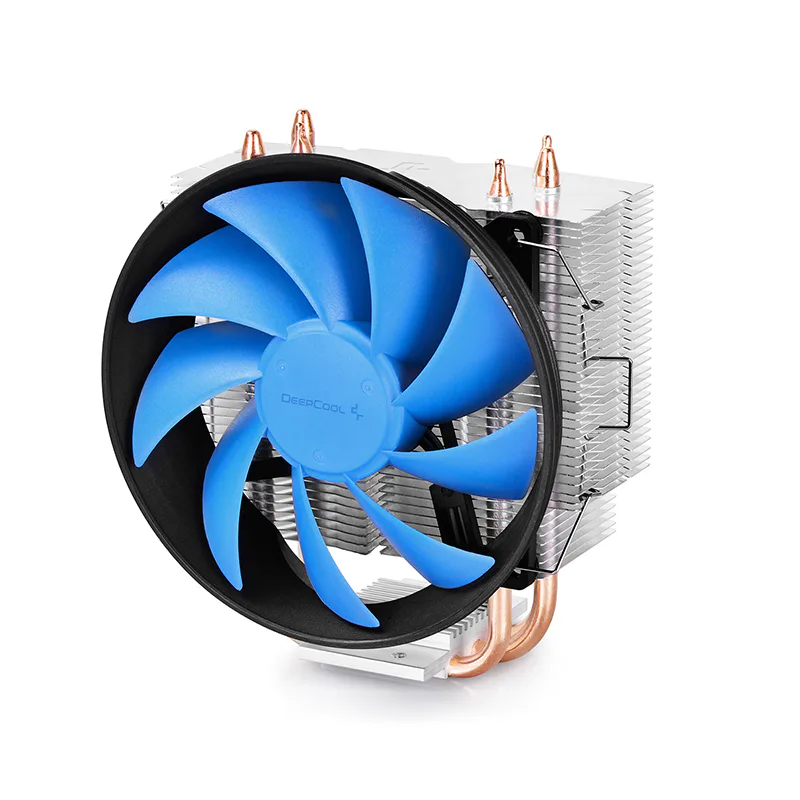

GAMMAXX 300 comes with a turbine fan and can be further mounted with a second fan. This is one of the most highly recommended mainstream CPU thermal solution. GAMMAXX 300 comes with the Core Touch Technology (CTT), enabling rapid heat dissipation, and making it the ideal multipurpose option for gamers and general users.
MODEL
GAMMAXX 300
Maximize Extraordinariness
Description
GAMMAXX 300 comes with a turbine fan and can be further mounted with a second fan. This is one of the most highly recommended mainstream CPU thermal solution. GAMMAXX 300 comes with the Core Touch Technology (CTT), enabling rapid heat dissipation, and making it the ideal multipurpose option for gamers and general users.
Effective Cooling Performance

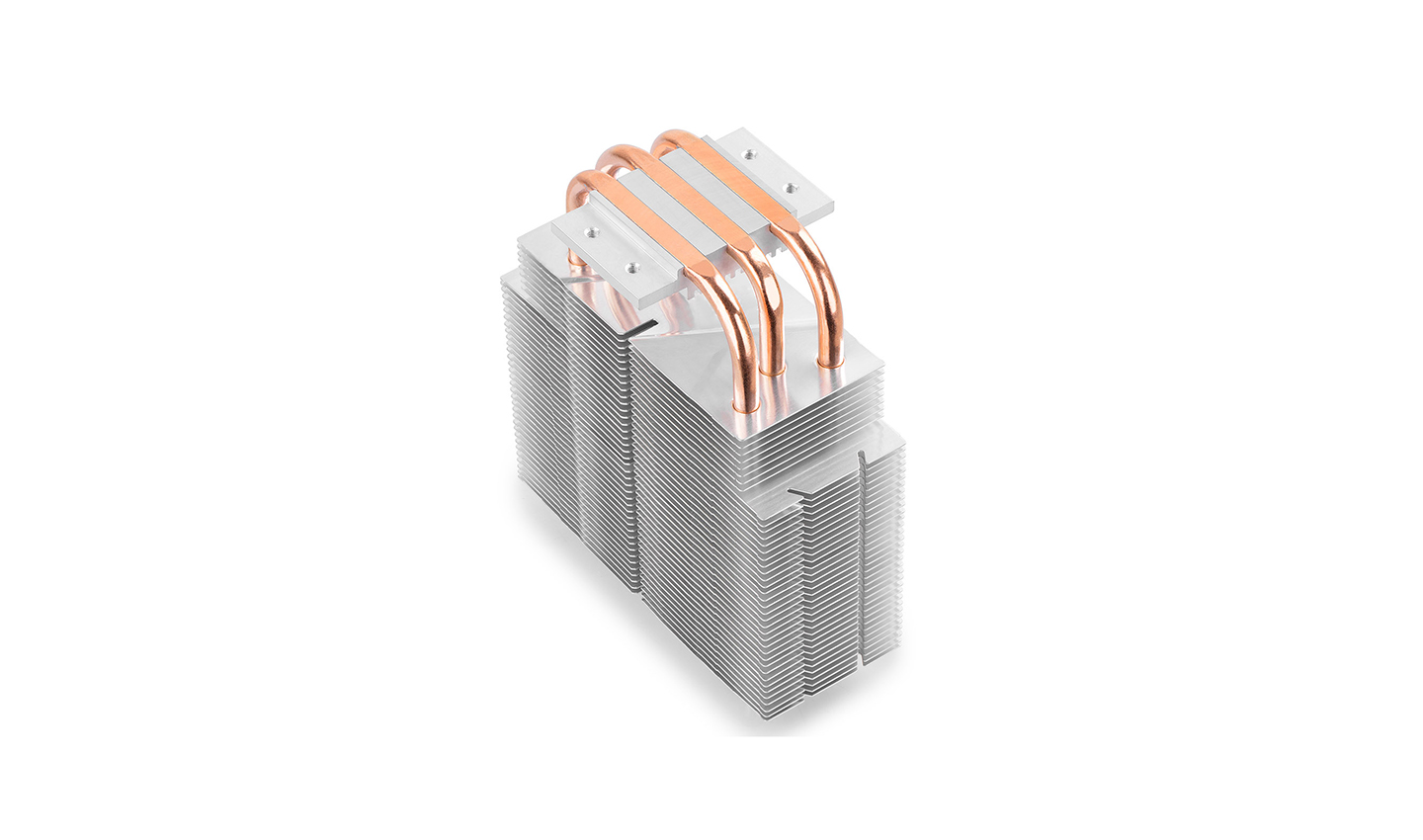

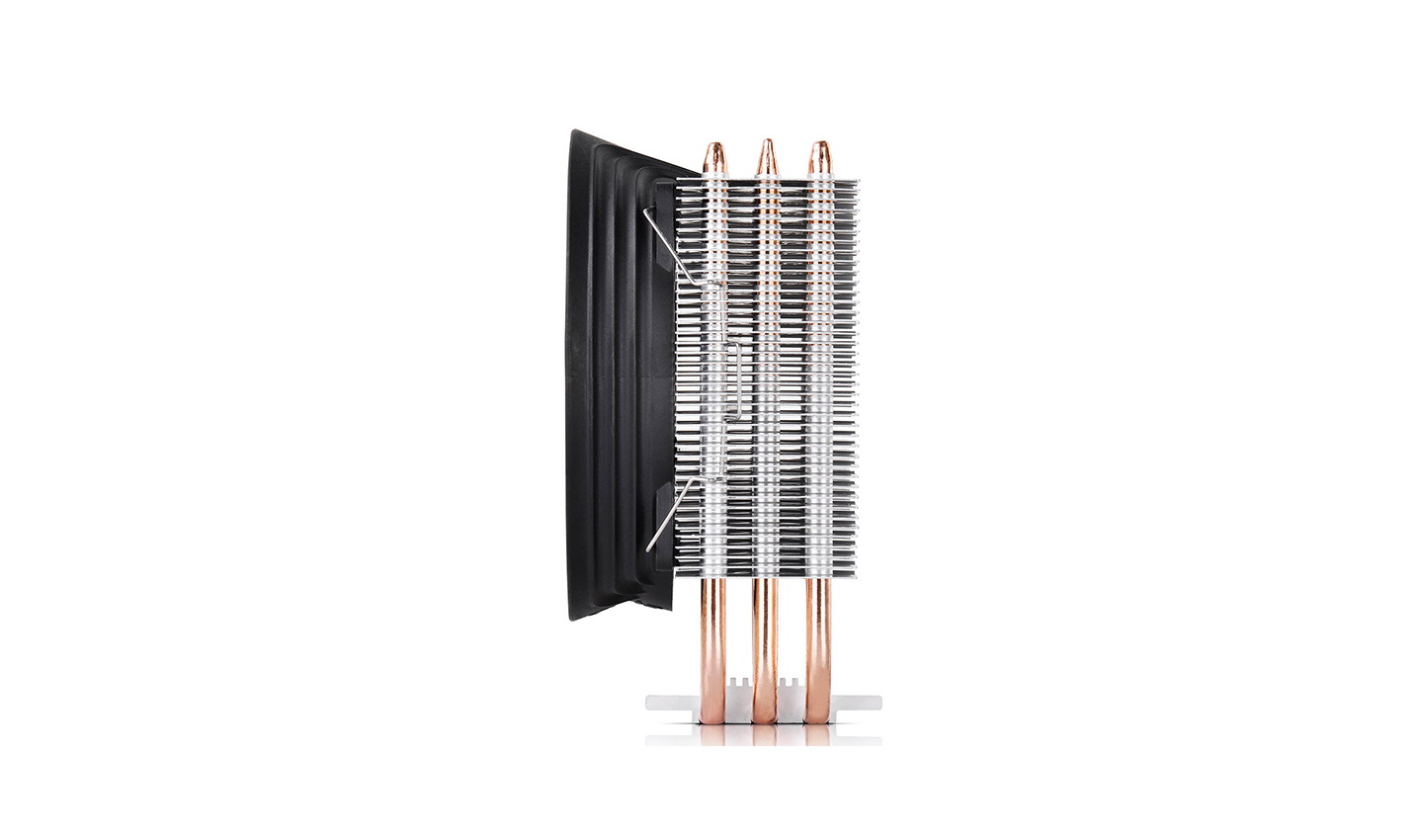

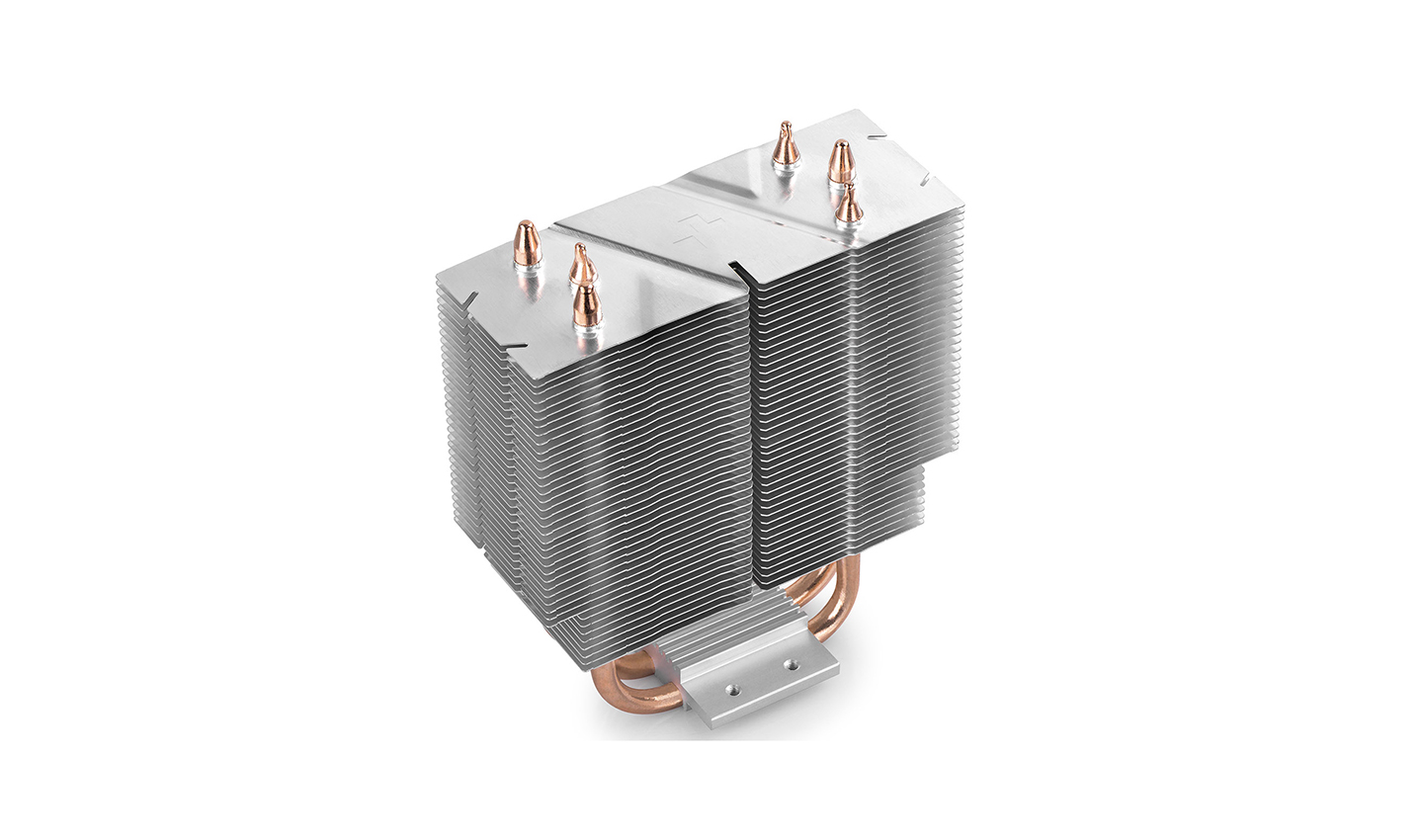

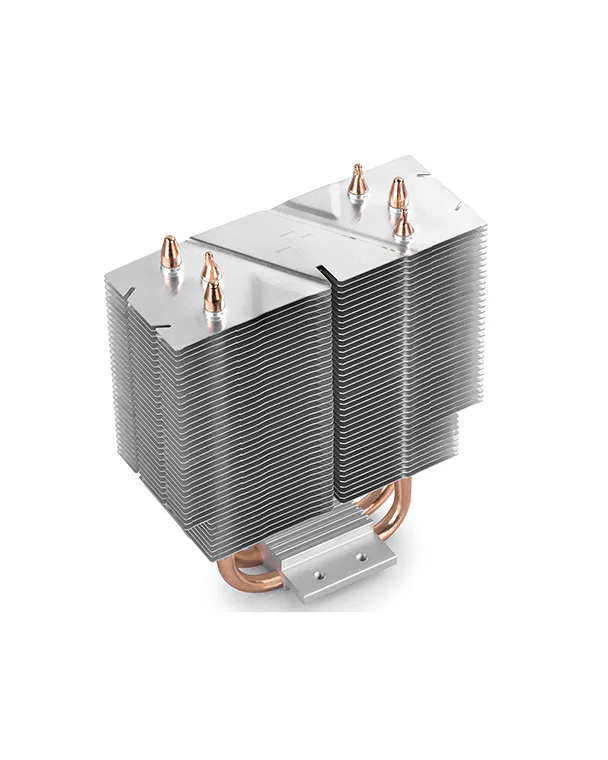

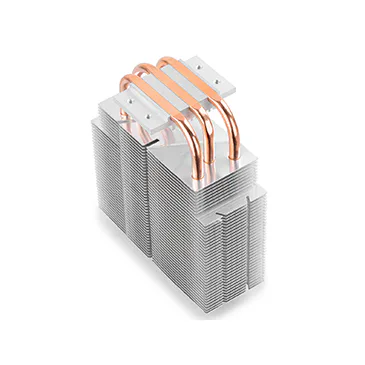

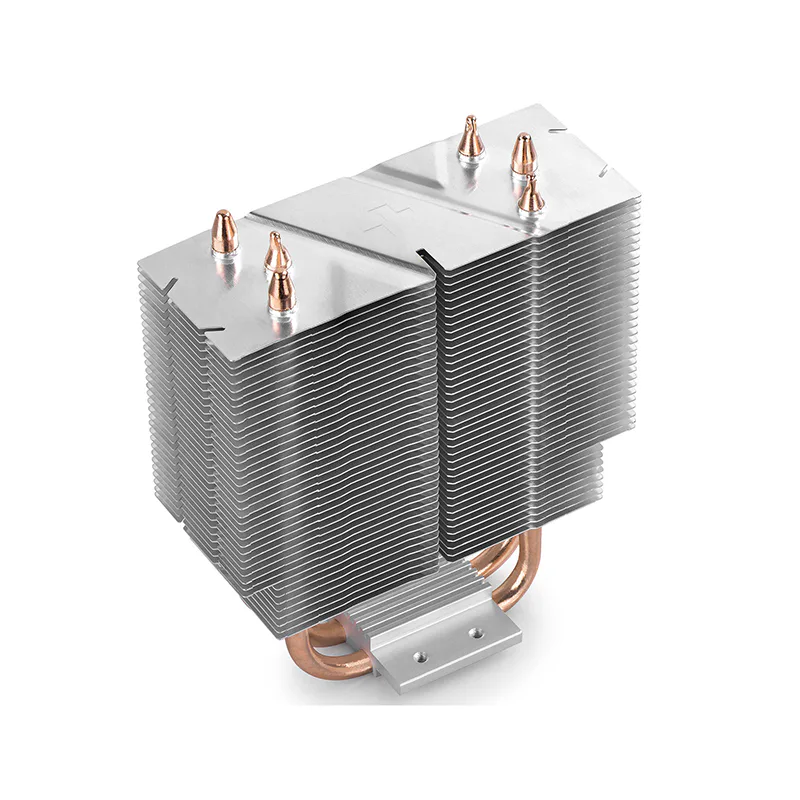

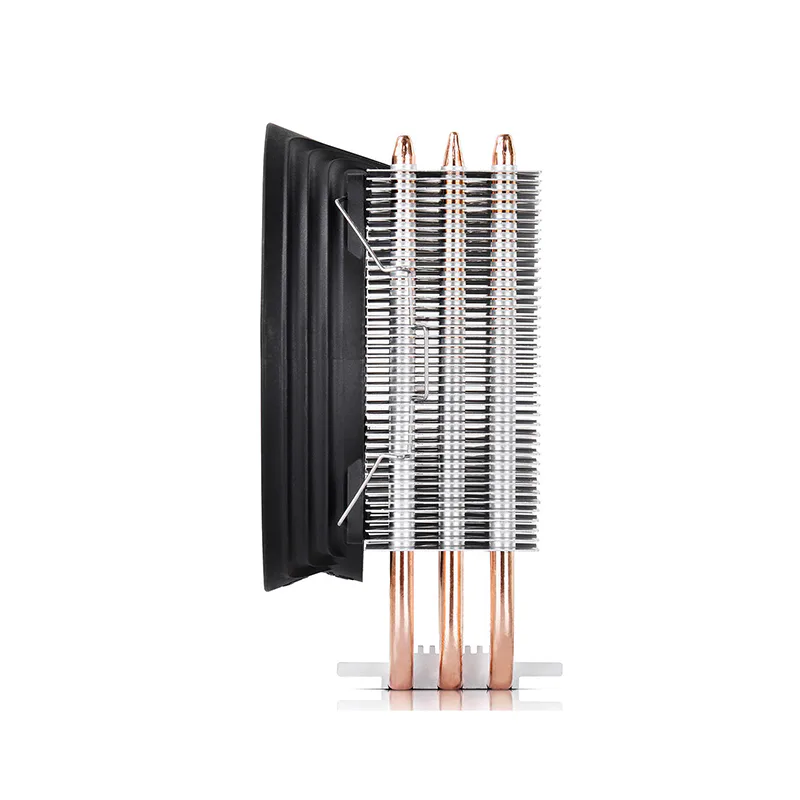

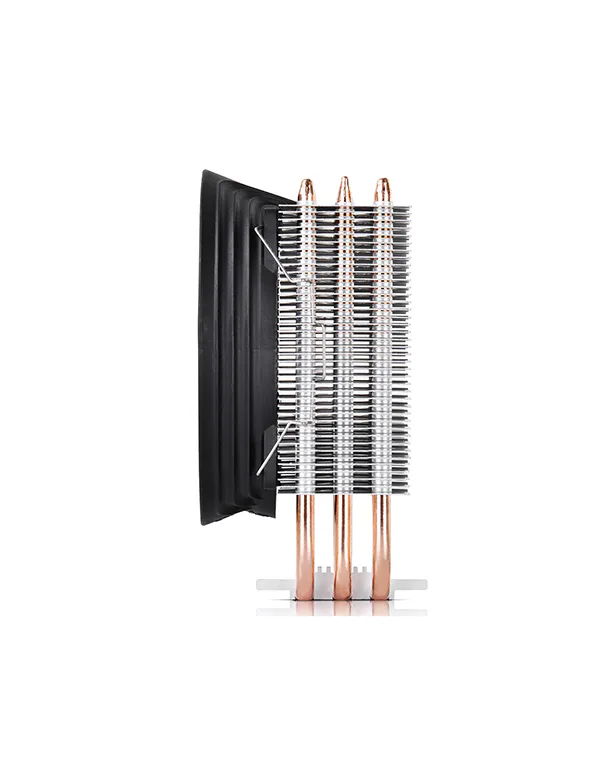

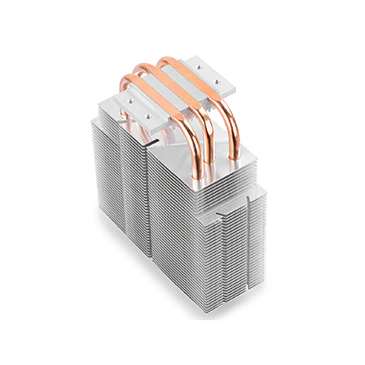

3 sintered metal powder heatpipes directly contacting the CPU surface for removing heat and eliminating chances of overheating.

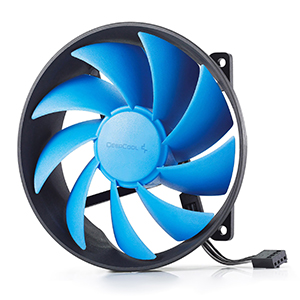

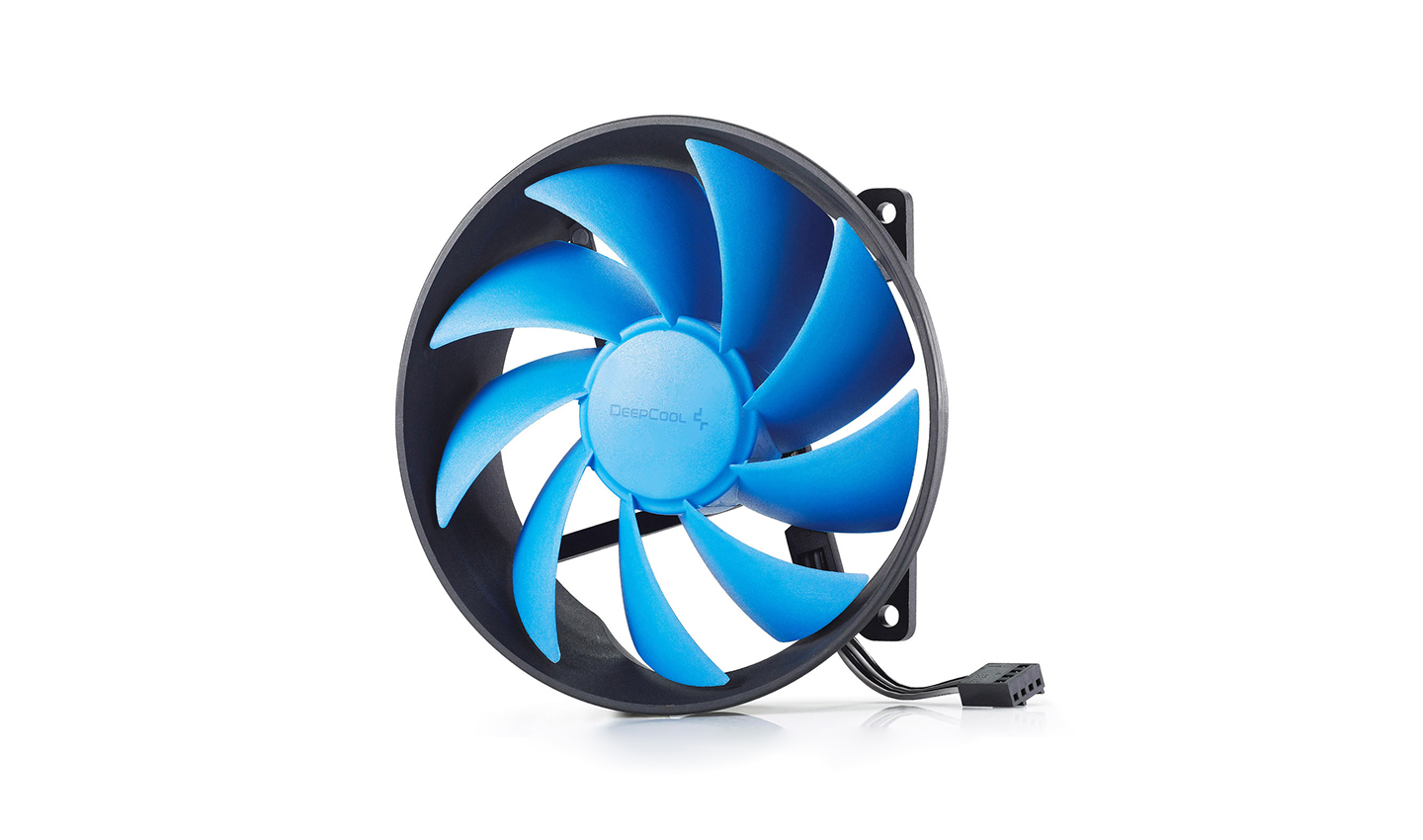

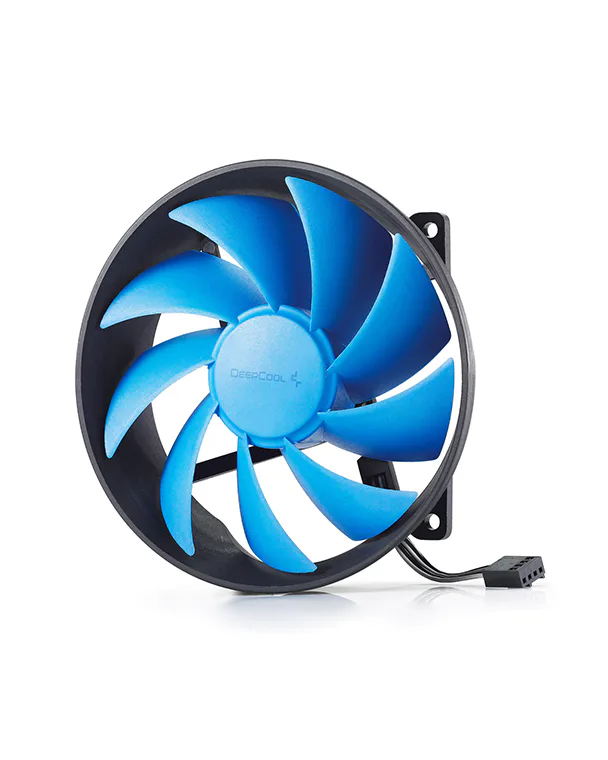

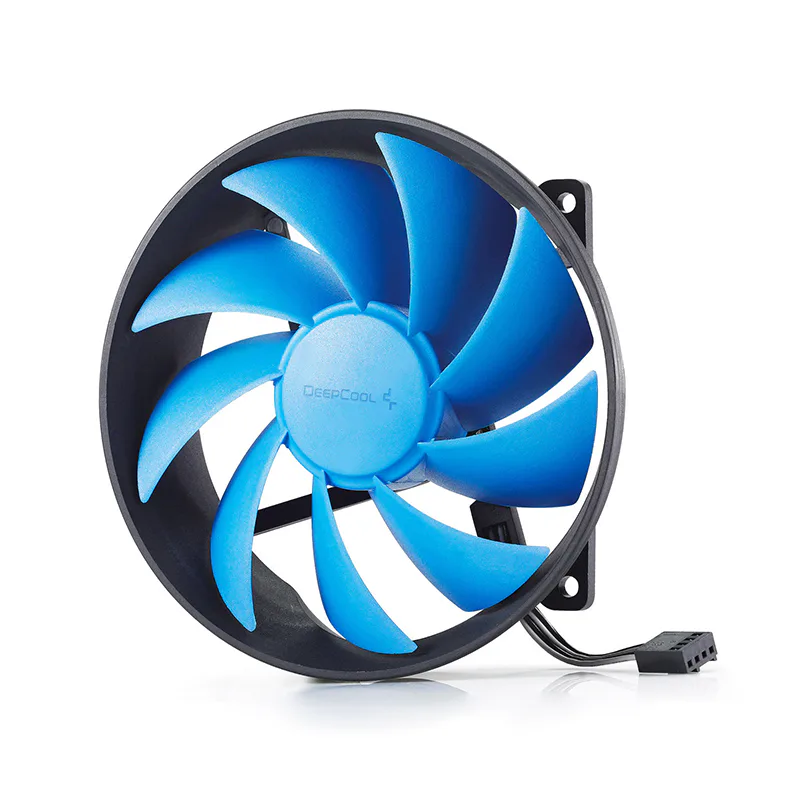

Ф120 x 25 mm PWM-capable Fan
Ф120 x 25 mm PWM-capable fan offers perfectly balances powerful airflow and reduced noise.
Universal Socket Compatibility

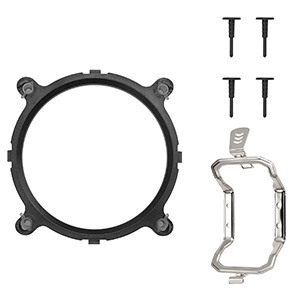

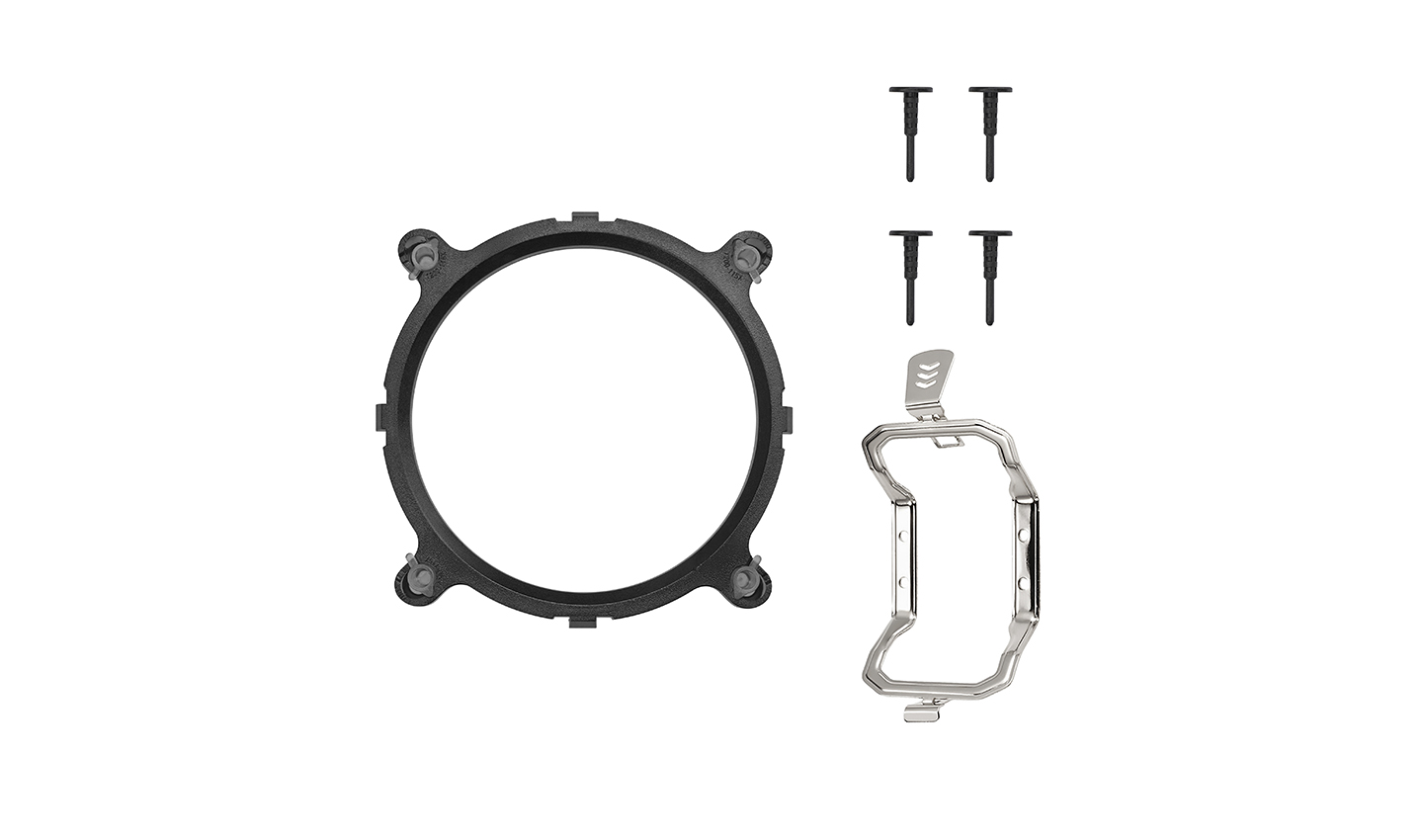

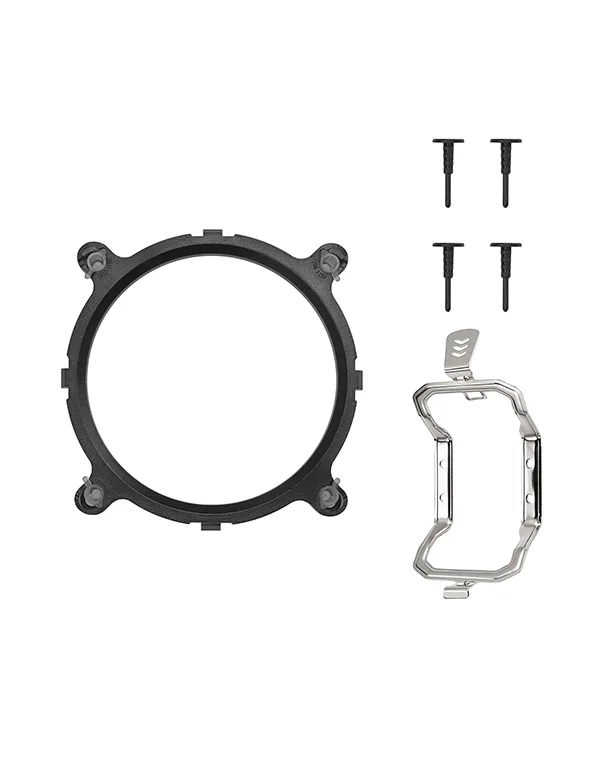

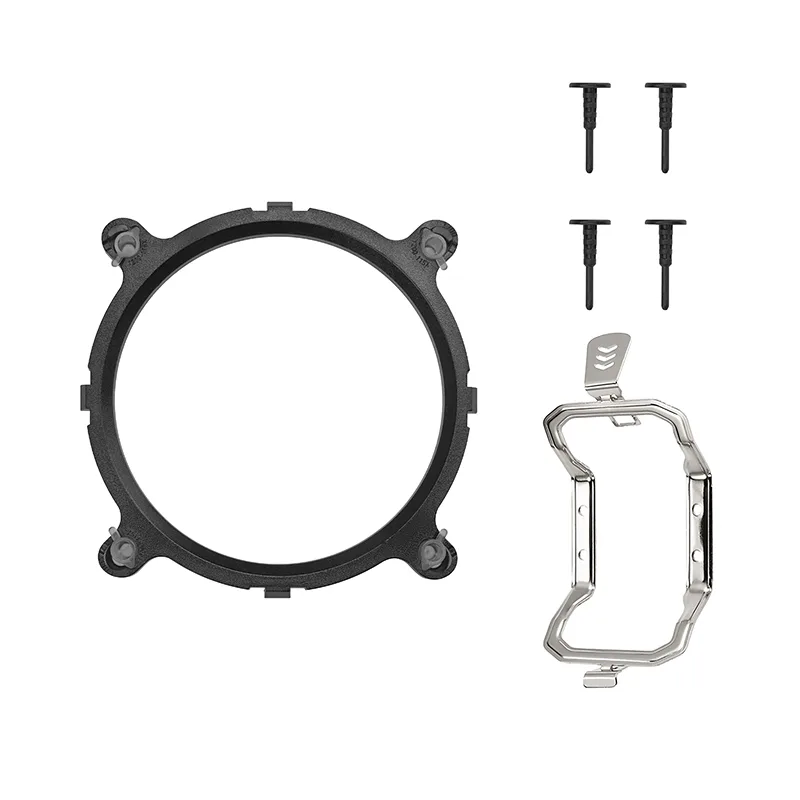

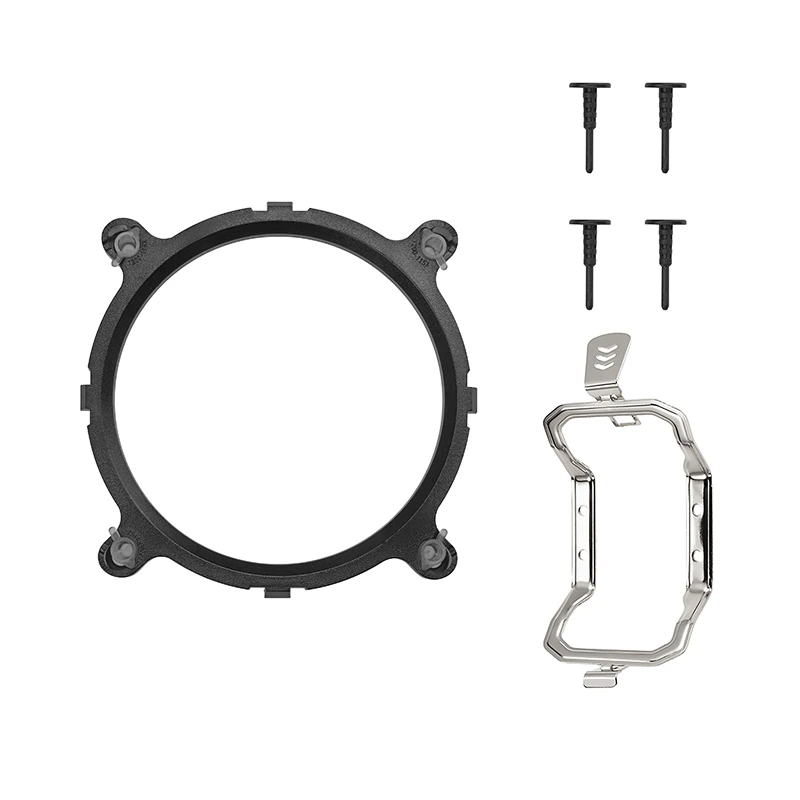

Equipped with multiple clips to support Intel LGA1700/1200/1151/1150/1155 and AMD AM5/AM4.

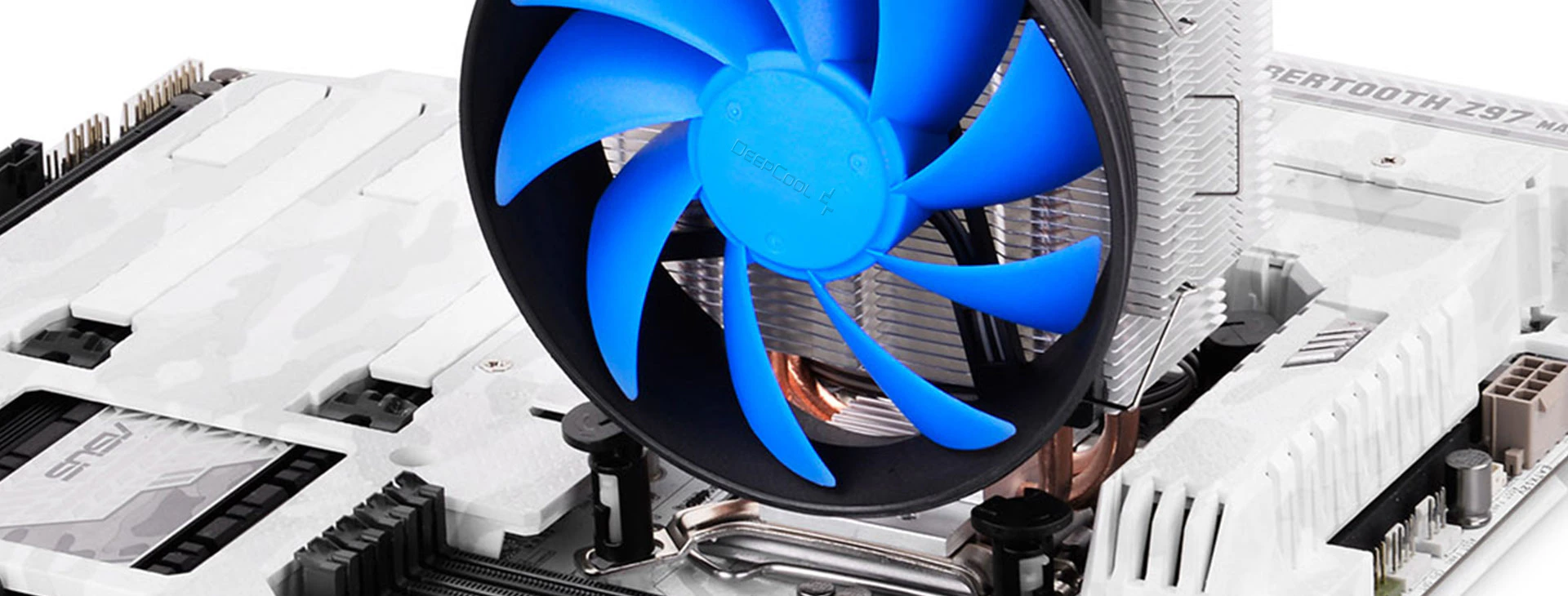

Easy Installation

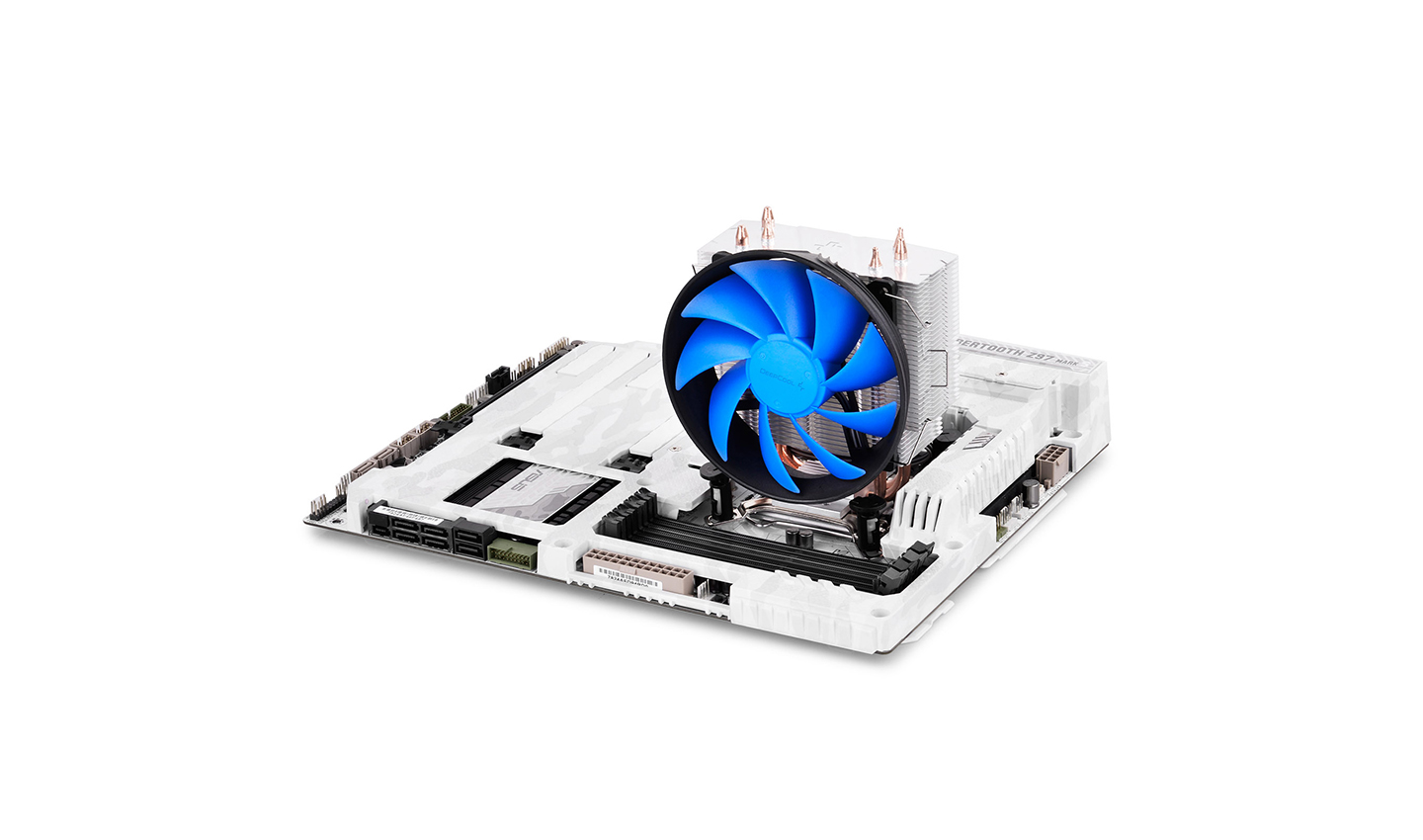

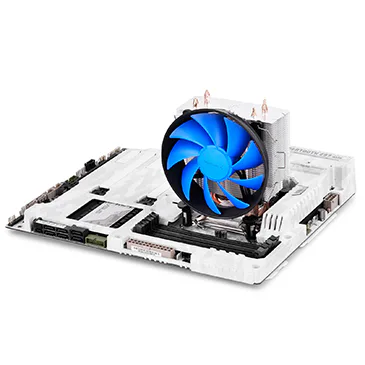

Can be easily installed without moving the motherboard.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions121X75.5X135.7 mm(L×W×H)

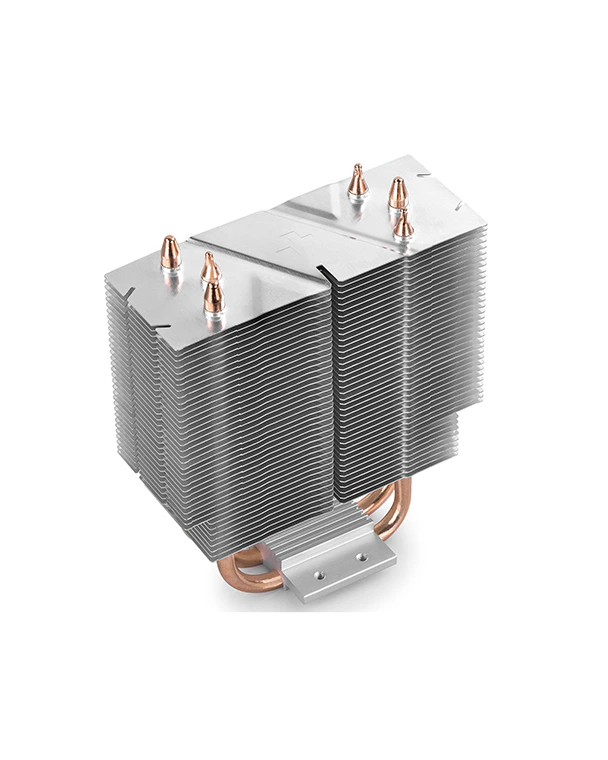

Heatsink Dimensions110X57.2X130.56 mm(L×W×H)
Net Weight 433 g
Heatpipe Ø6 mm×3 pcs
Fan DimensionsΦ120X25 mm
Fan Speed 900~1600 RPM±10%
Fan Airflow 55.5 CFM
Fan Air Pressure 2.03 mmAq
Fan Noise ≤21 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.11 A
Fan Power Consumption 1.32 W
EAN 6933412708124
P/N DP-MCH3-GMX300
Product Dimension
