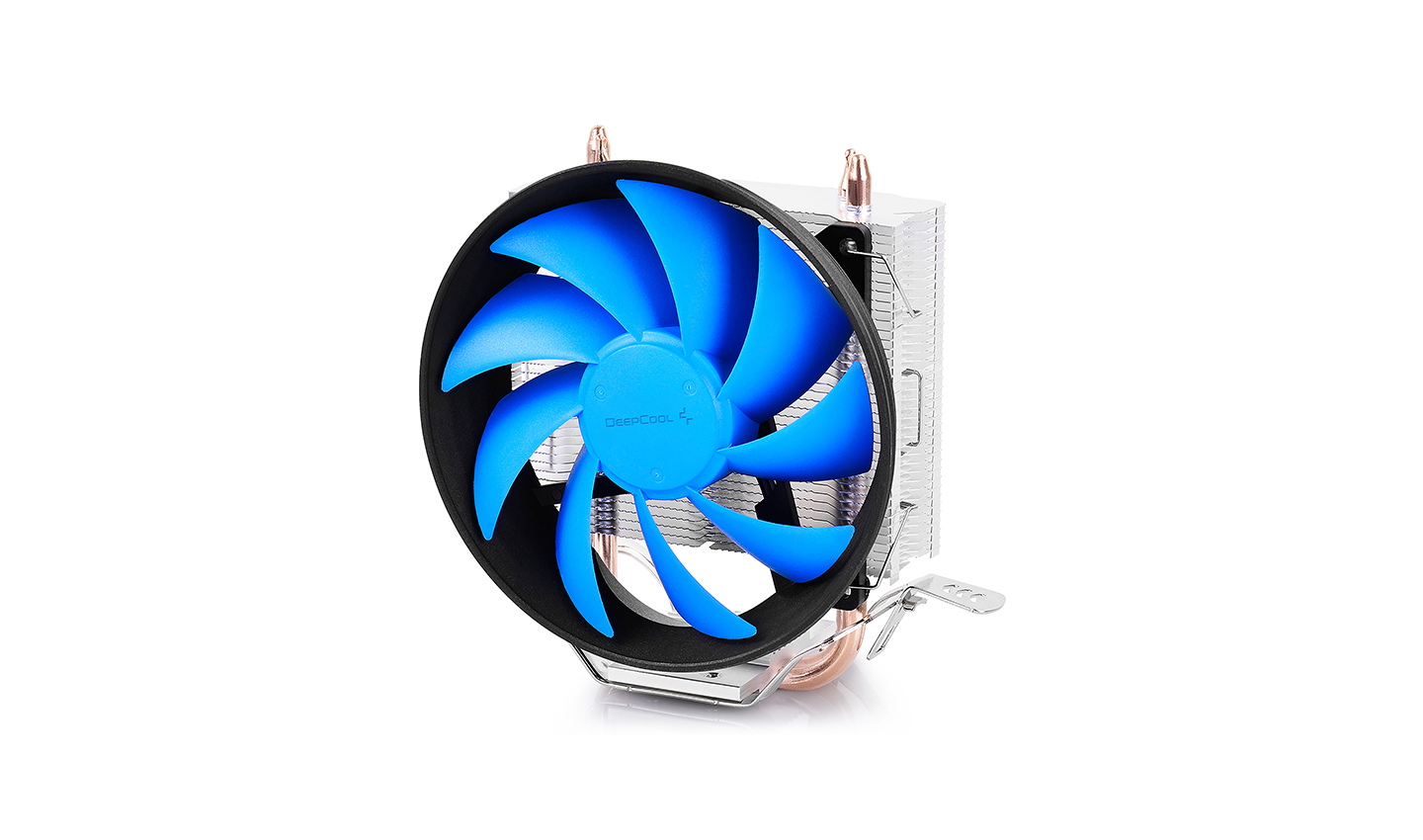

GAMMAXX 200T

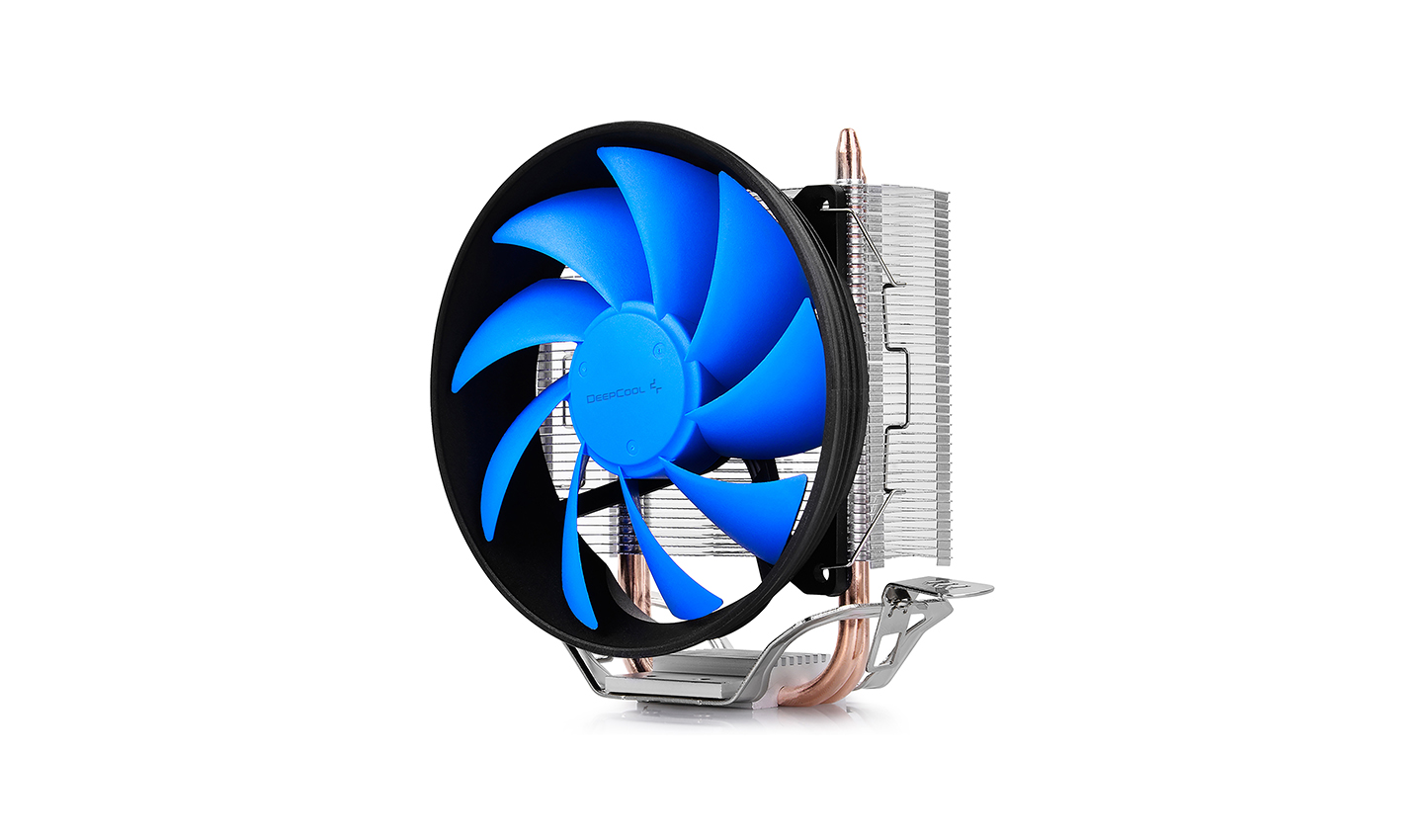

The next-gen GAMMAXX 200T has preserved the essential features and great heat dissipation performance of the GAMMAXX 200: Core Touch Technology (CTT) directly transfers heat from the CPU to the heatsink. GAMMAXX 200T has upped its ante with a massive heatsink and an enlarged 12cm PWM fan, providing a more powerful airflow and enhanced cooling performance.

MODEL

GAMMAXX 200T

12cm PWM Fan, Multi-platform, 100w Solution

Description

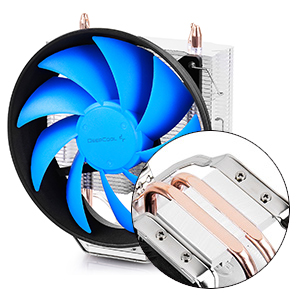

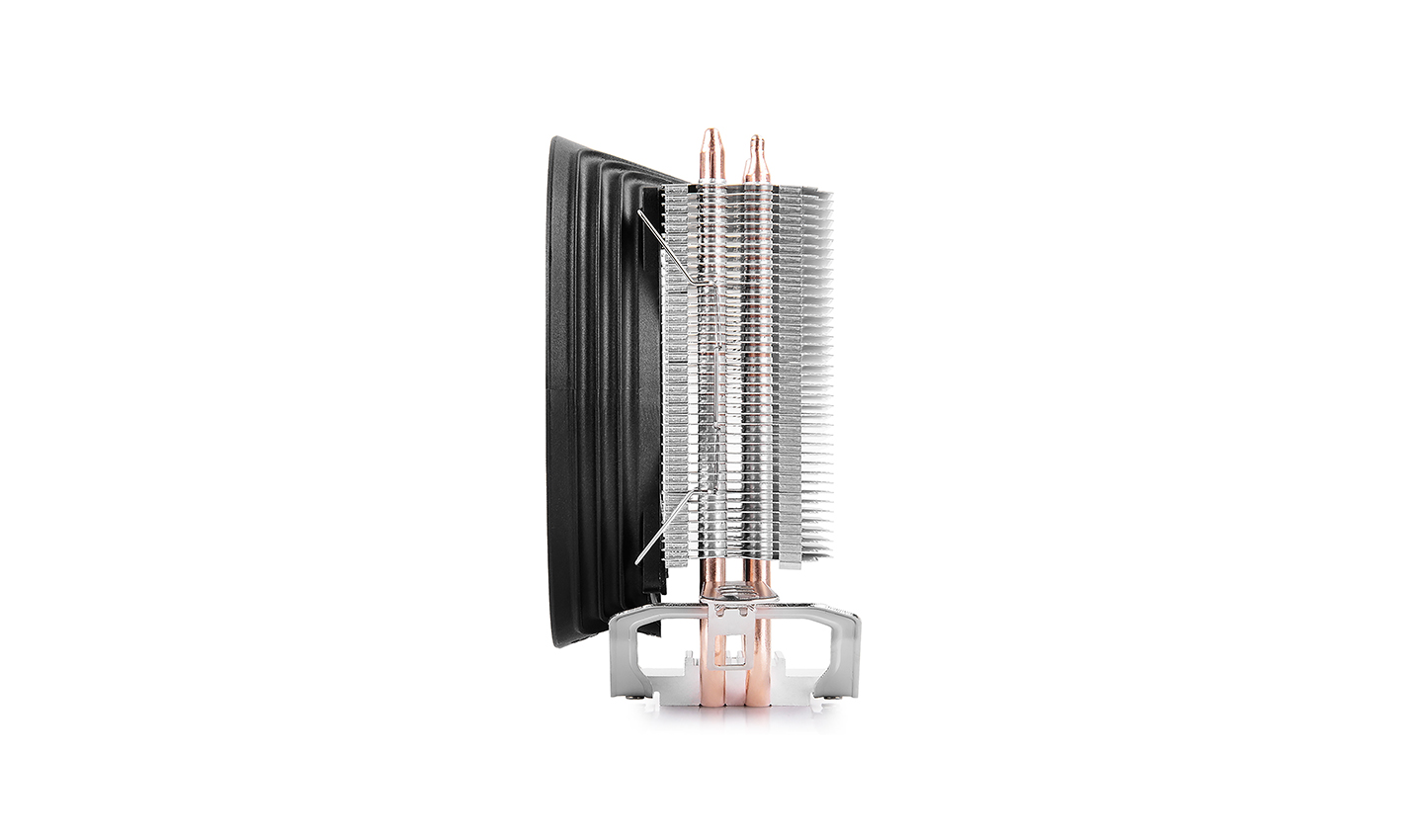

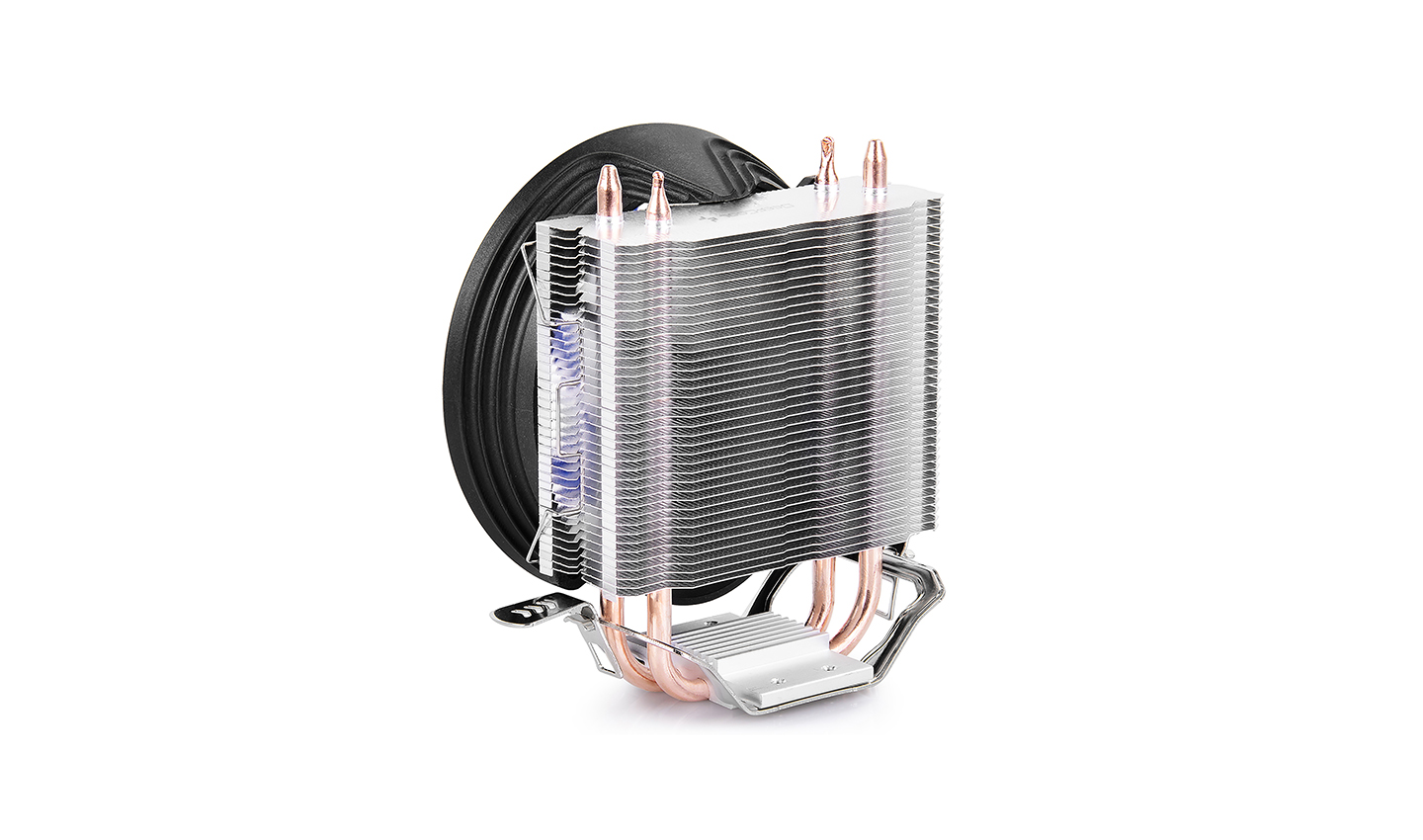

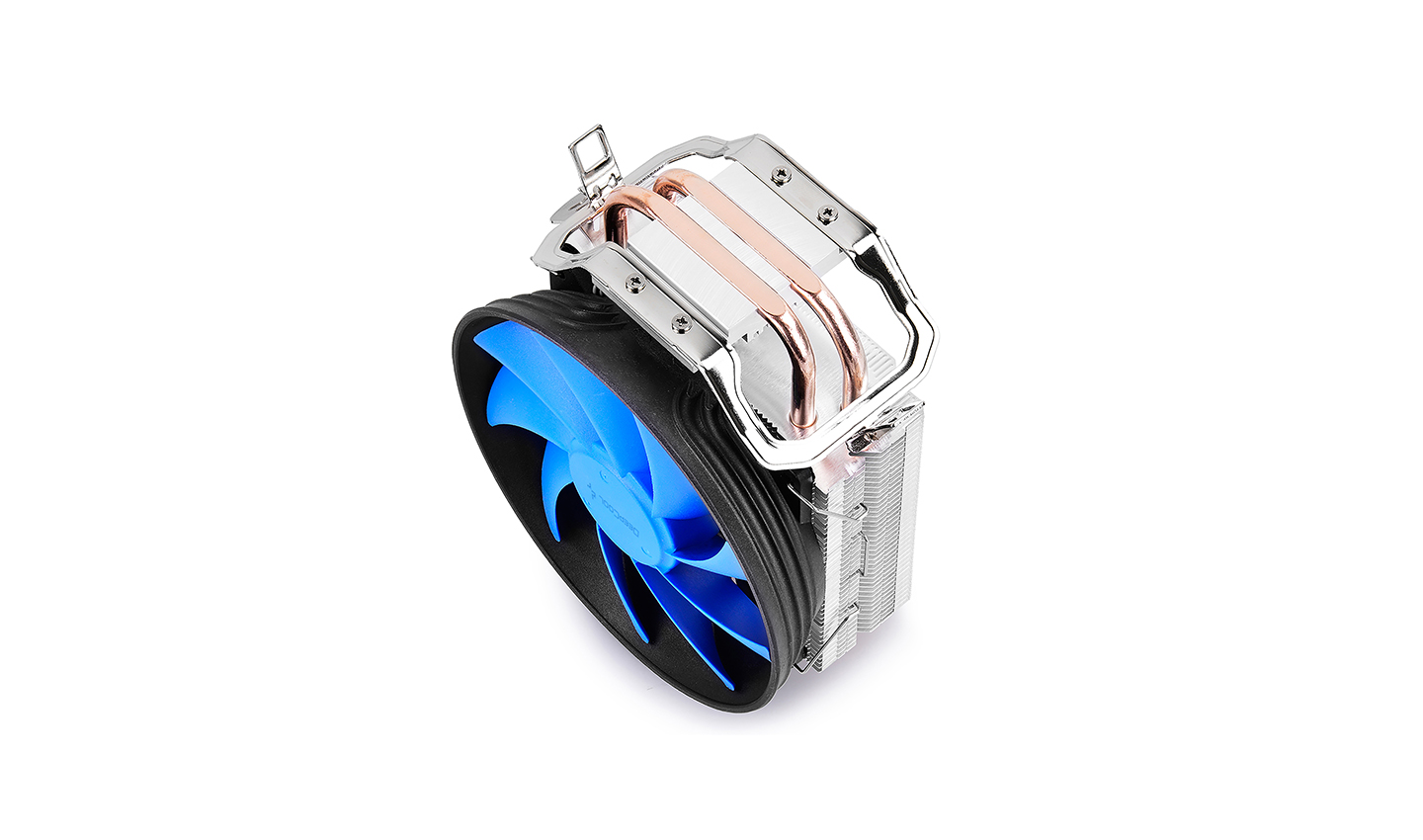

Core Touch Technology & Massive Heatsink

2 sintered metal powder heatpipes directly contacting the CPU surface for removing heat and eliminating chances of overheating.

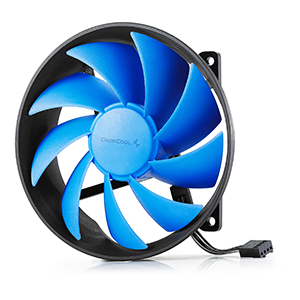

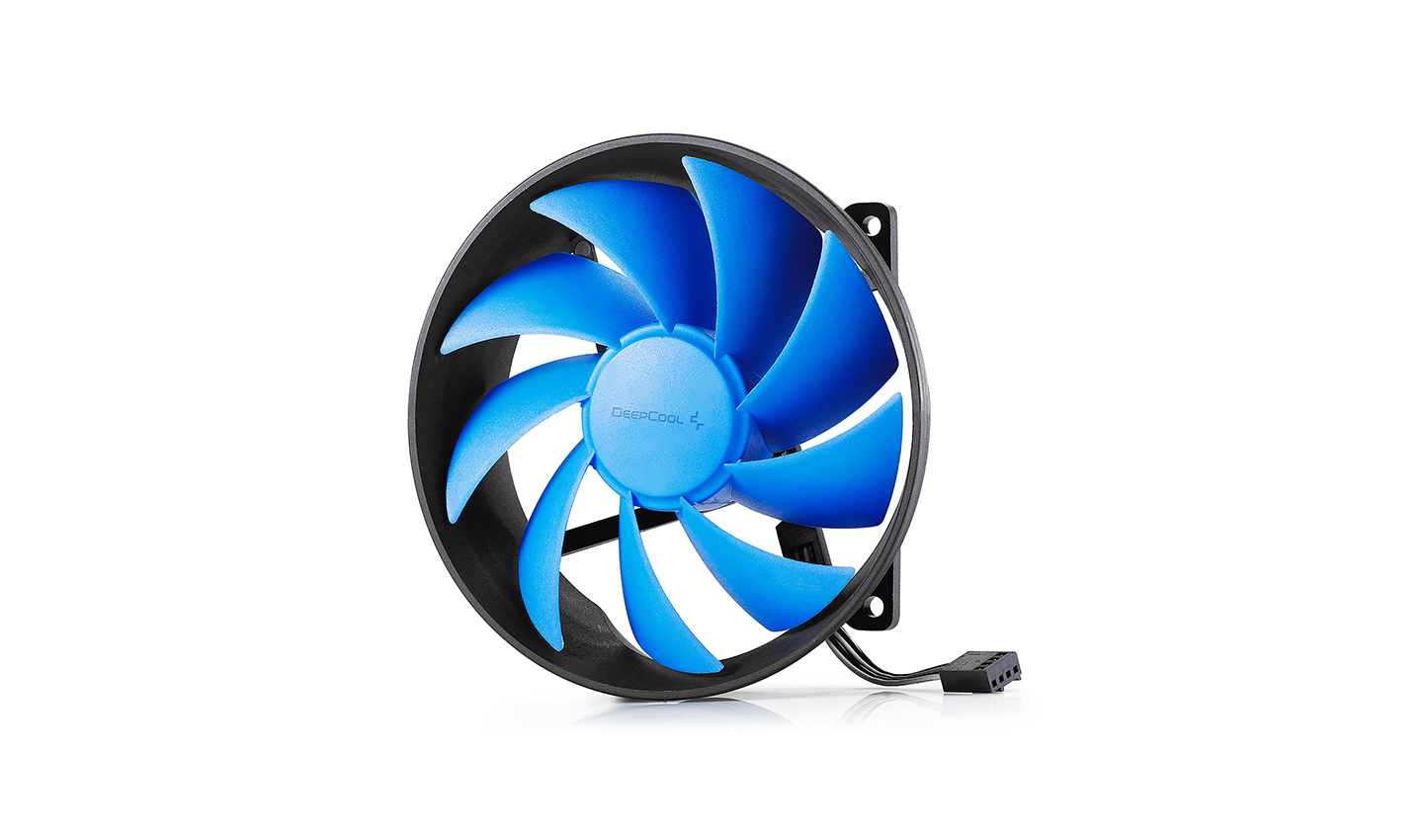

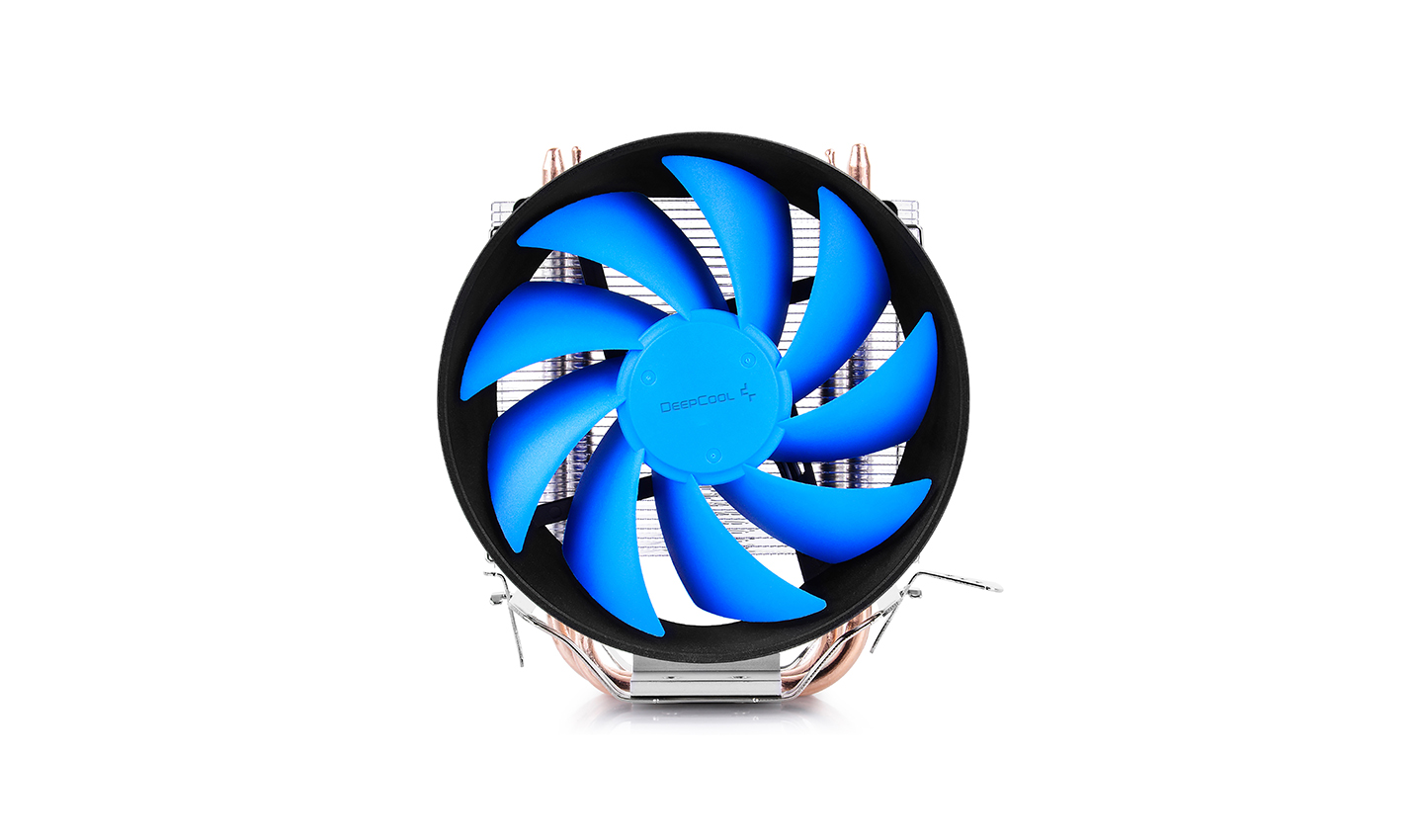

12cm PWM-capable Fan for Perfect Airflow

Ф120 x 25 mm PWM-capable fan offers perfectly balances powerful airflow and reduced noise.

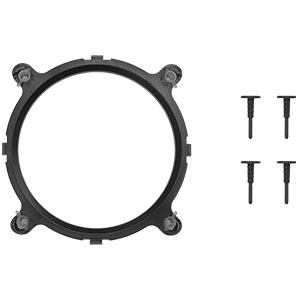

Universal Socket Compatibility

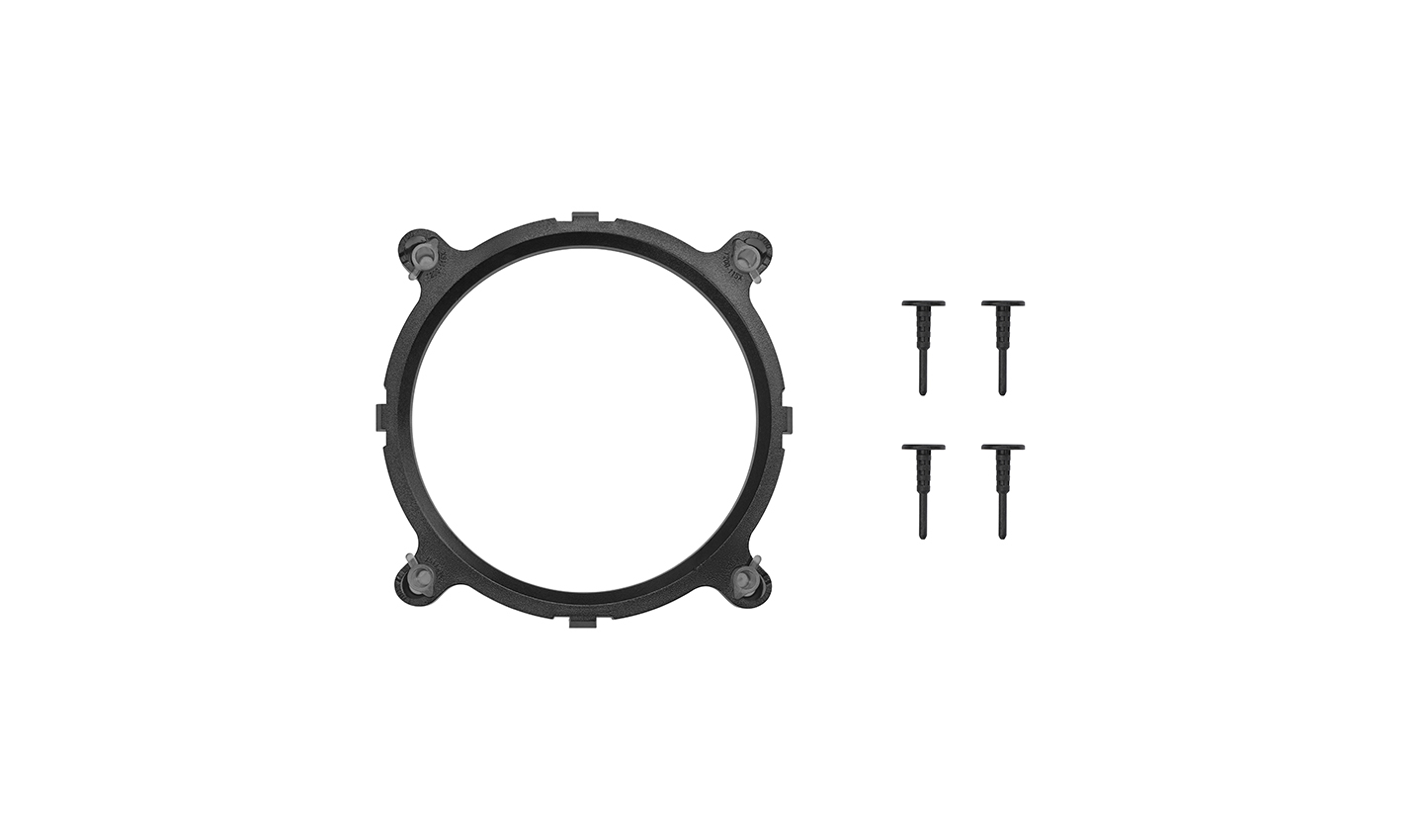

Equipped with multiple clips to support Intel LGA1700/1200/1151/1150/1155 and AMD AM5/AM4.

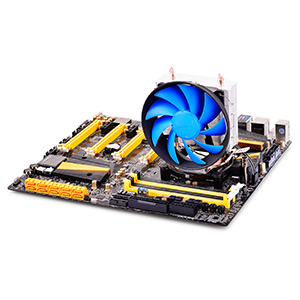

Easy Installation

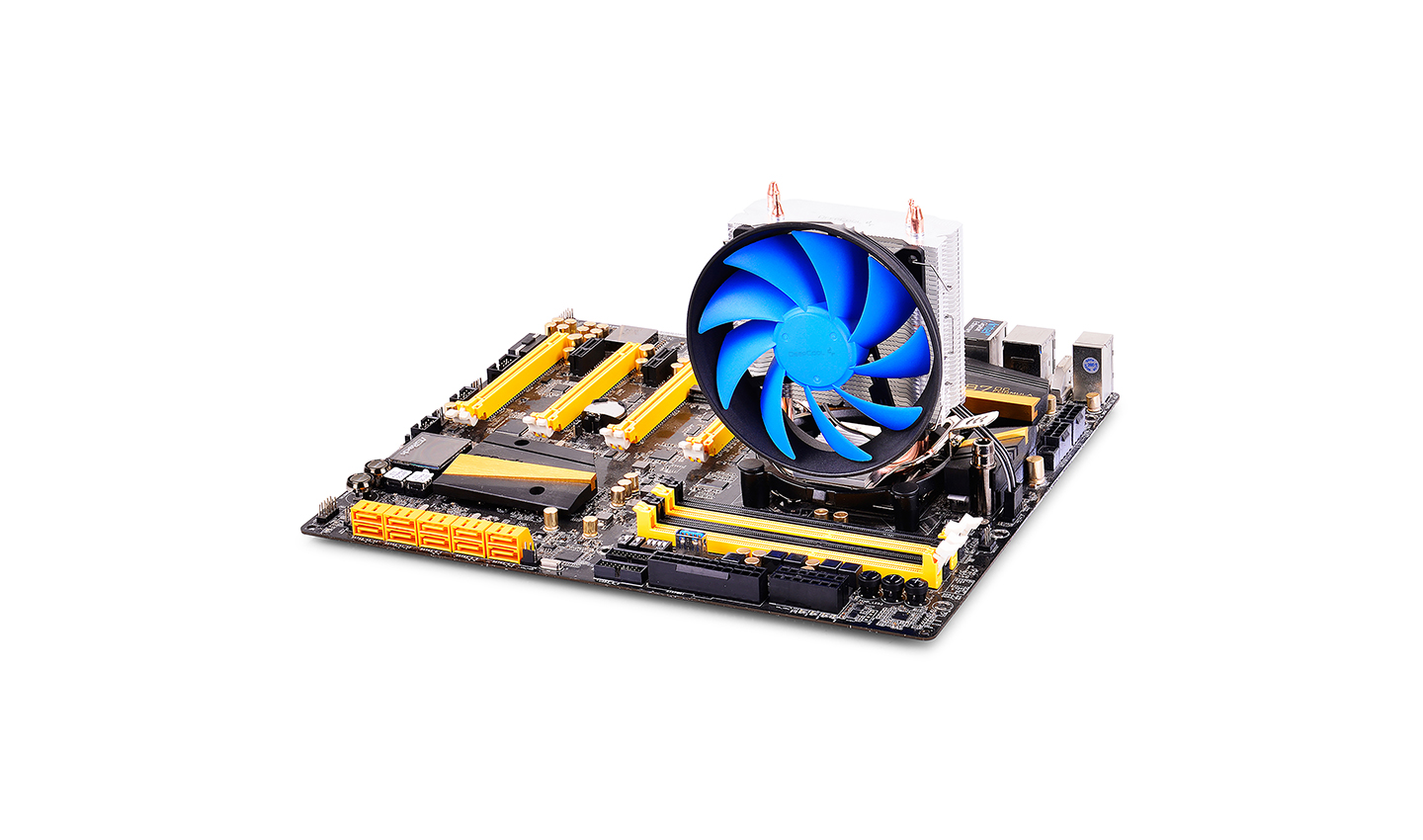

Can be easily installed without moving the motherboard.

Application For

Intel

LGA1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Overall Dimension	128X70.5X131.5 mm(L×W×H)
Fan Dimension	∮120X25 mm
Net Weight	361g
Bearing Type	Hydro Bearing
Rated Voltage	12VDC
Operating Voltage	10.8～13.2VDC
Started Voltage	7VDC
Rated Current	0.13±10%A(MAX)
Power Input	1.56W
Fan Speed	900±150～1600±10%RPM
Max. Air Flow	54.25CFM
Noise	17.8～26.1dB(A)
EAN	6933412725732
P/N	DP-MCH2-GMX200T
