GAMMAXX C40
M-ATX and ITX build fans have long been suffering from size or price mismatching when choosing CPU coolers. To cure the headache, DeepCool brings the ultimate cooling solution that combines all advantages—Gammaxx C40
MODEL
GAMMAXX C40
Making Your M-ATX and ITX Builds Breathe Again
Description
M-ATX and ITX build fans have long been suffering from size or price mismatching when choosing CPU coolers. To cure the headache, DeepCool brings the ultimate cooling solution that combines all advantages—Gammaxx C40
Compact but Powerful
Gammaxx C40 is only 137mm tall, but the specially designed compact fin and the 92mm powerful fan make it marvelous in performance, able to support chipsets of TDP up to 130W
Offcenter to Avoid RAM Interference

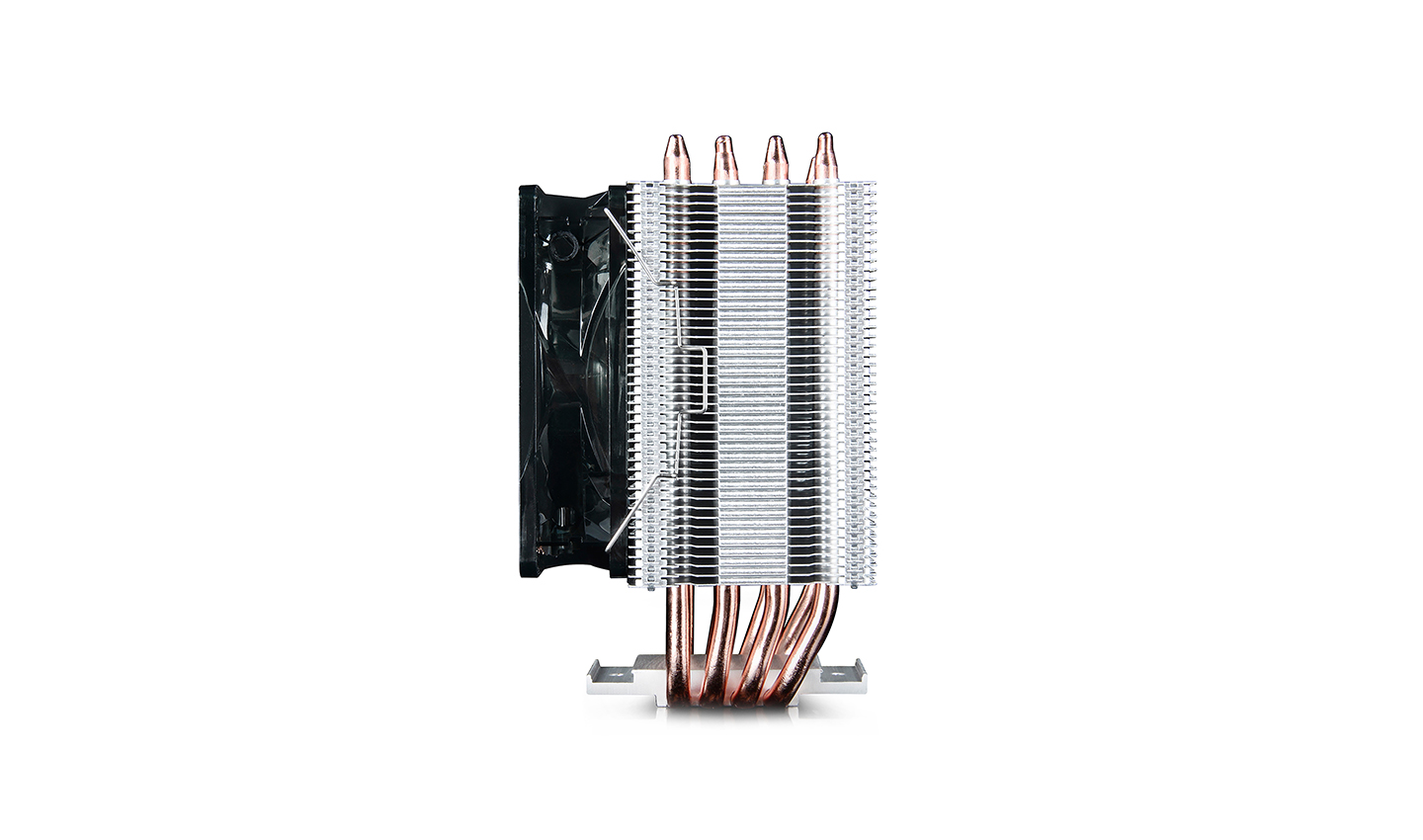

To avoid interference, the heat sink of Gammaxx C40 is designed to lean away from RAM. The offcenter design allows the users to enjoy fully-loaded RAM and the cooling solution at the same time
Offcenter to Avoid RAM Interference
To avoid interference, the heat sink of Gammaxx C40 is designed to lean away from RAM. The offcenter design allows the users to enjoy fully-loaded RAM and the cooling solution at the same time

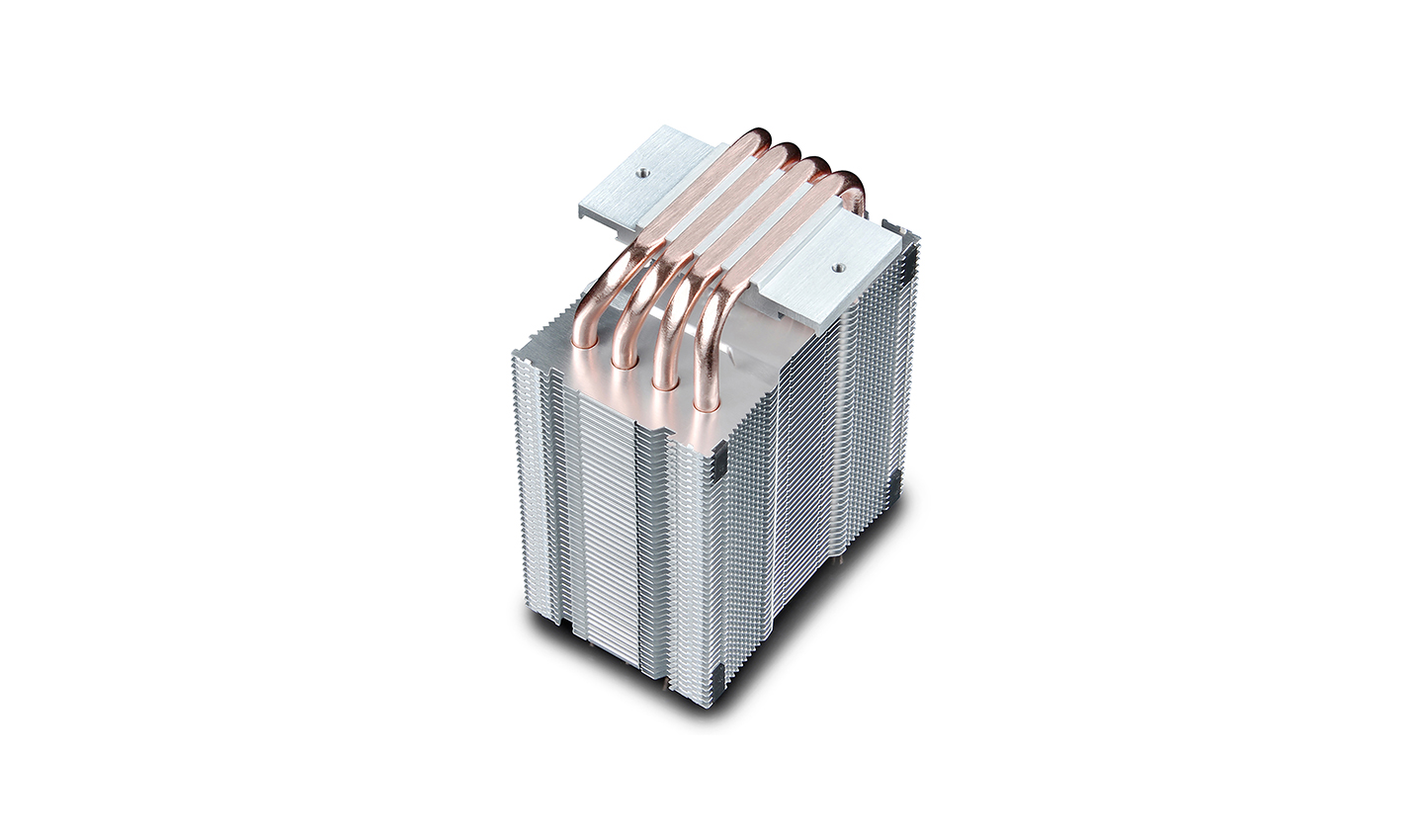

4 Heatpipes Directly Touching the Core
4*Ф6 mm heatpipes are constructed with Core Touch Technology (CTT) for direct contact on the chipset. Thus the heat can be carried out directly by the heatpipes and dissipated efficiently through the aluminum fins
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimension92×84×137 mm(L×W×H)
Heatsink Dimension92×59×137 mm(L×W×H)
Net Weight 595 g
Heatsink Weight 377 g
Heatpipe Ø6 mm×4 pcs
Fan Dimension92×92×25 mm(L×W×H)
Fan Speed 500~2000 RPM±10%
Fan Airflow 33 CFM
Fan Air Pressure 2.31 mmAq
Fan Noise ≤23.9 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.06 A
Fan Power Consumption 0.72W
Socket Compatibility Intel LGA20XX/LGA1200/1151/1150/1155/LGA1366;
AMD AM4/AM3+/AM3/AM2+/AM2/ FM2+/FM2/FM1.
EAN 6933412726548
P/N DP-MCH4-GMX-C40P
Download
GAMMAXX C40 Manual.pdf
