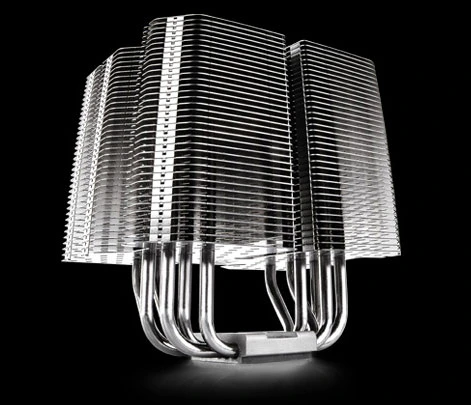

LUCIFER V2
DEVOUR THE HEAT IN SILENCE
DESCRIPTION

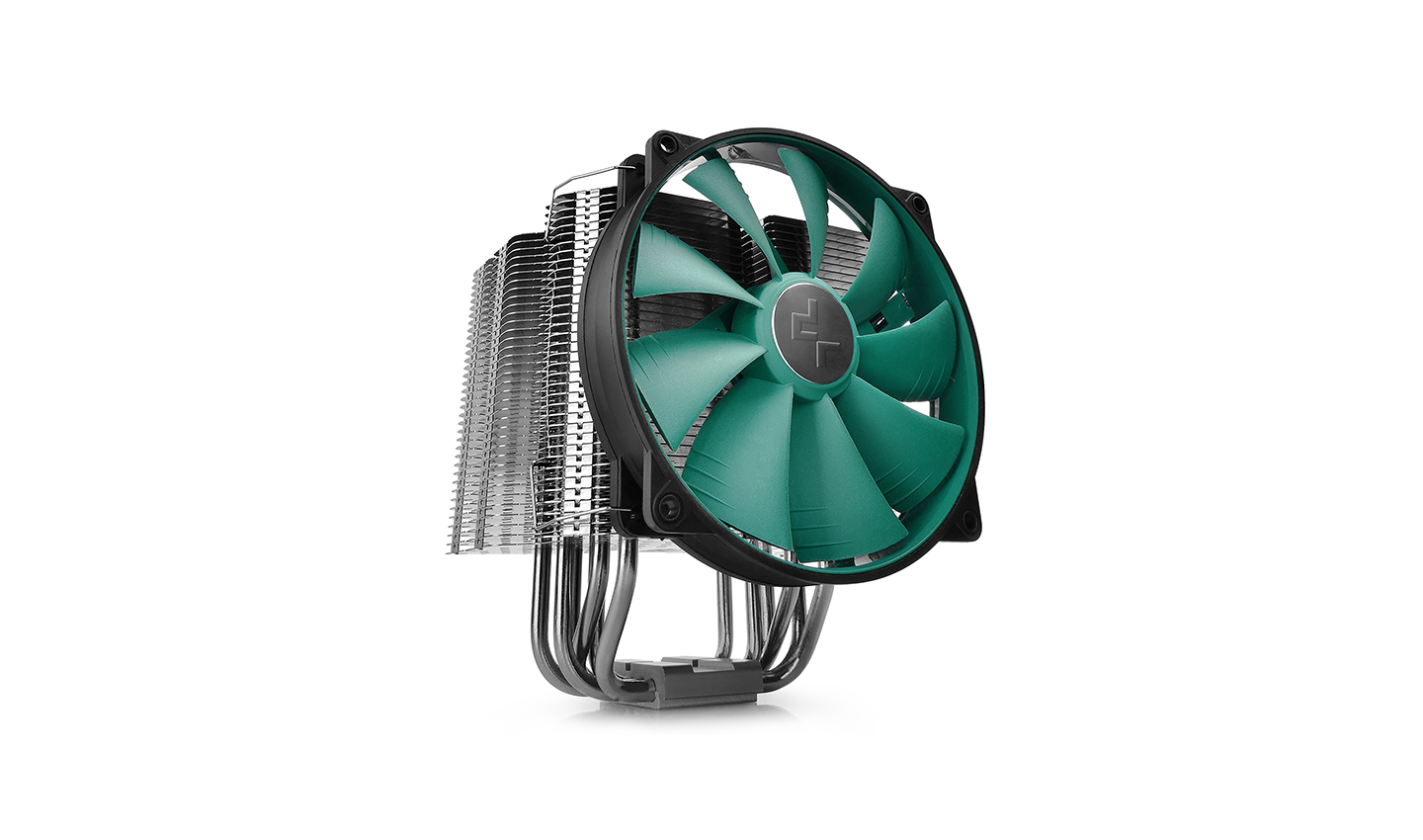

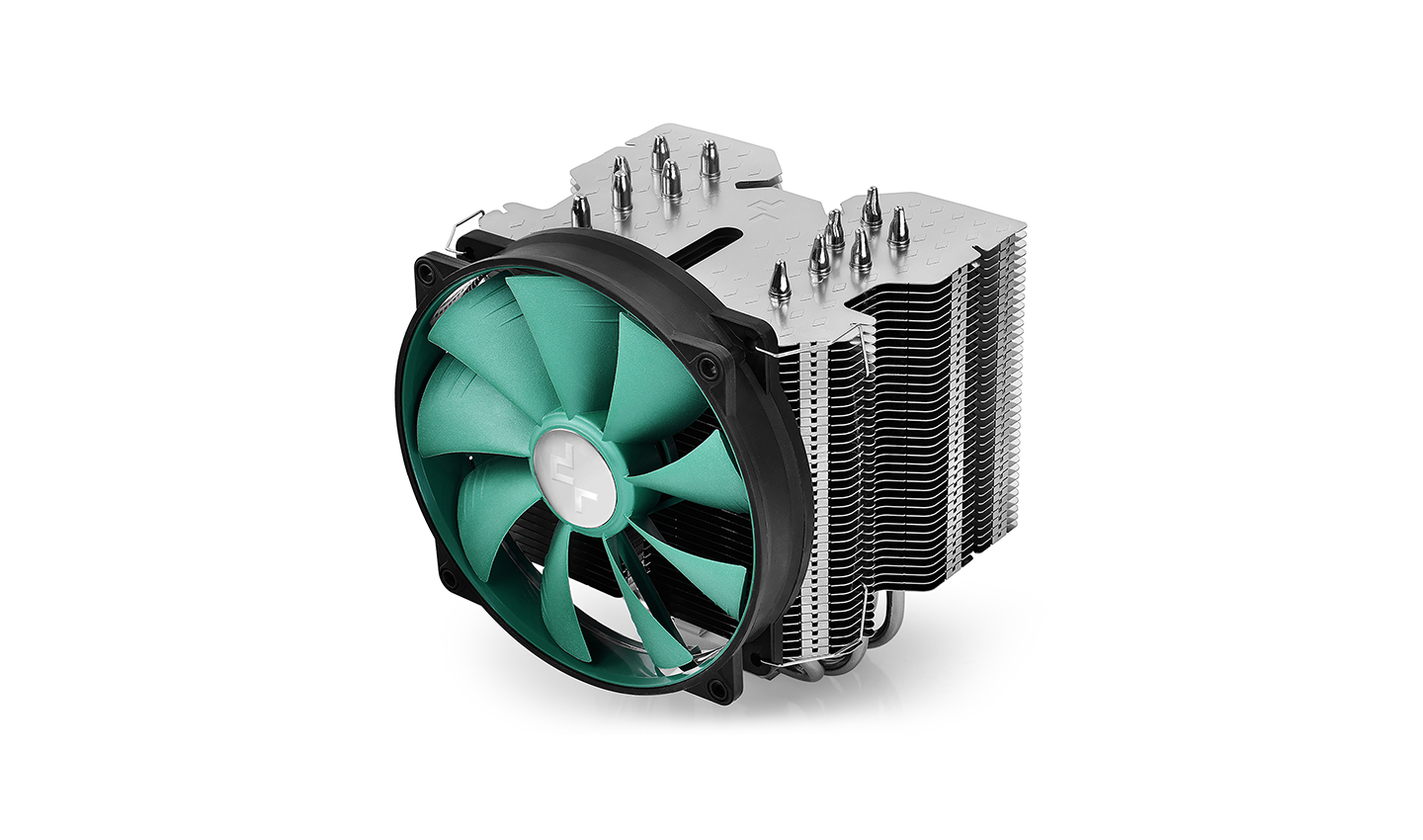

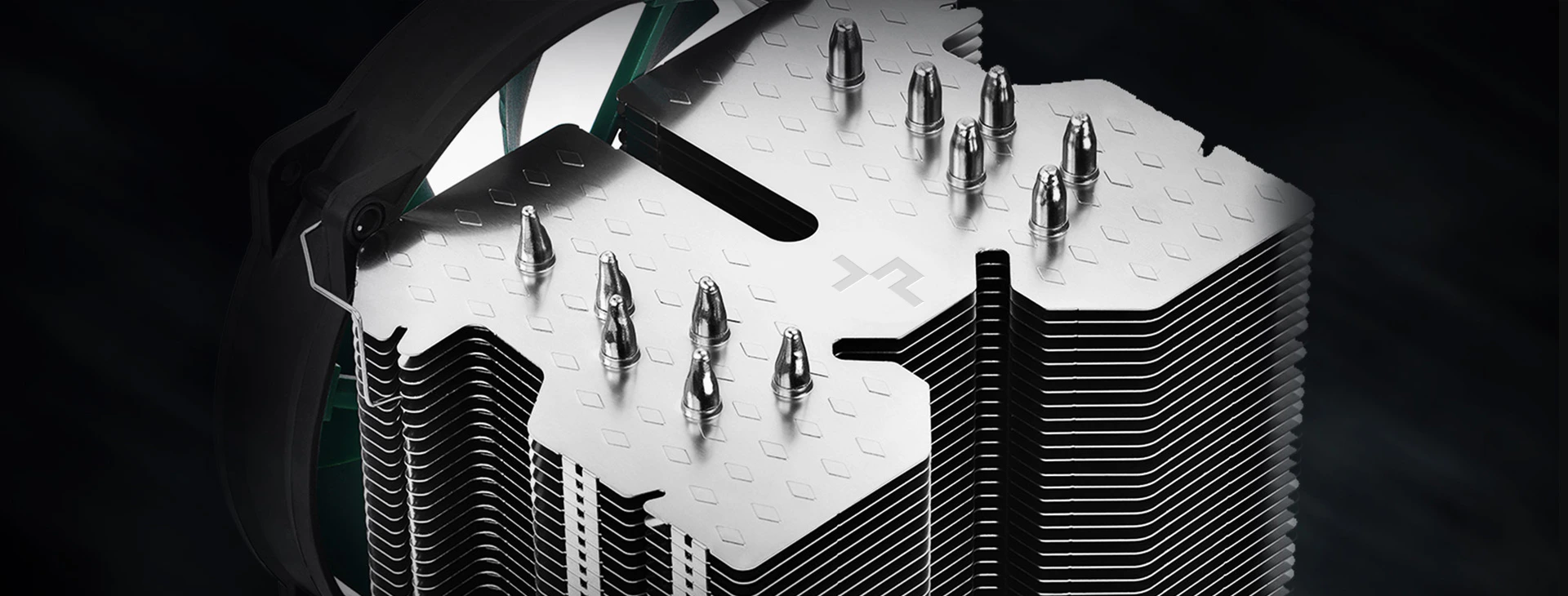

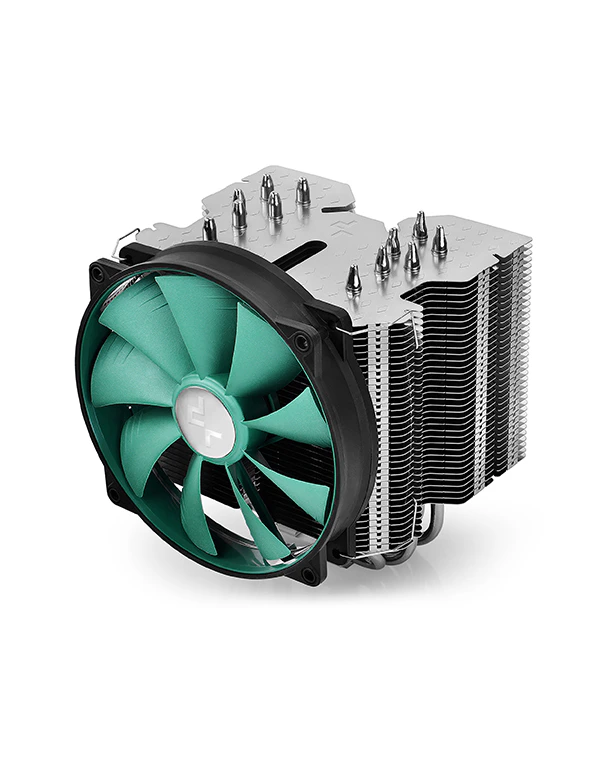

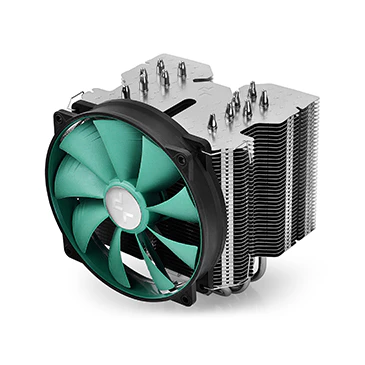

The next-gen Lucifer V2 has retained the essential features of Lucifer for great heat dissipation: fanless-capable design, rubber covered PWM fan, 6 high-performance heatpipes, and high-polished copper base. The breakthrough of this solution comes in the form of a specialized PWM fan with a minimum speed of 300 RPM for extreme silence. Lucifer V2 is designed to meet next-gen CPU cooling requirements.

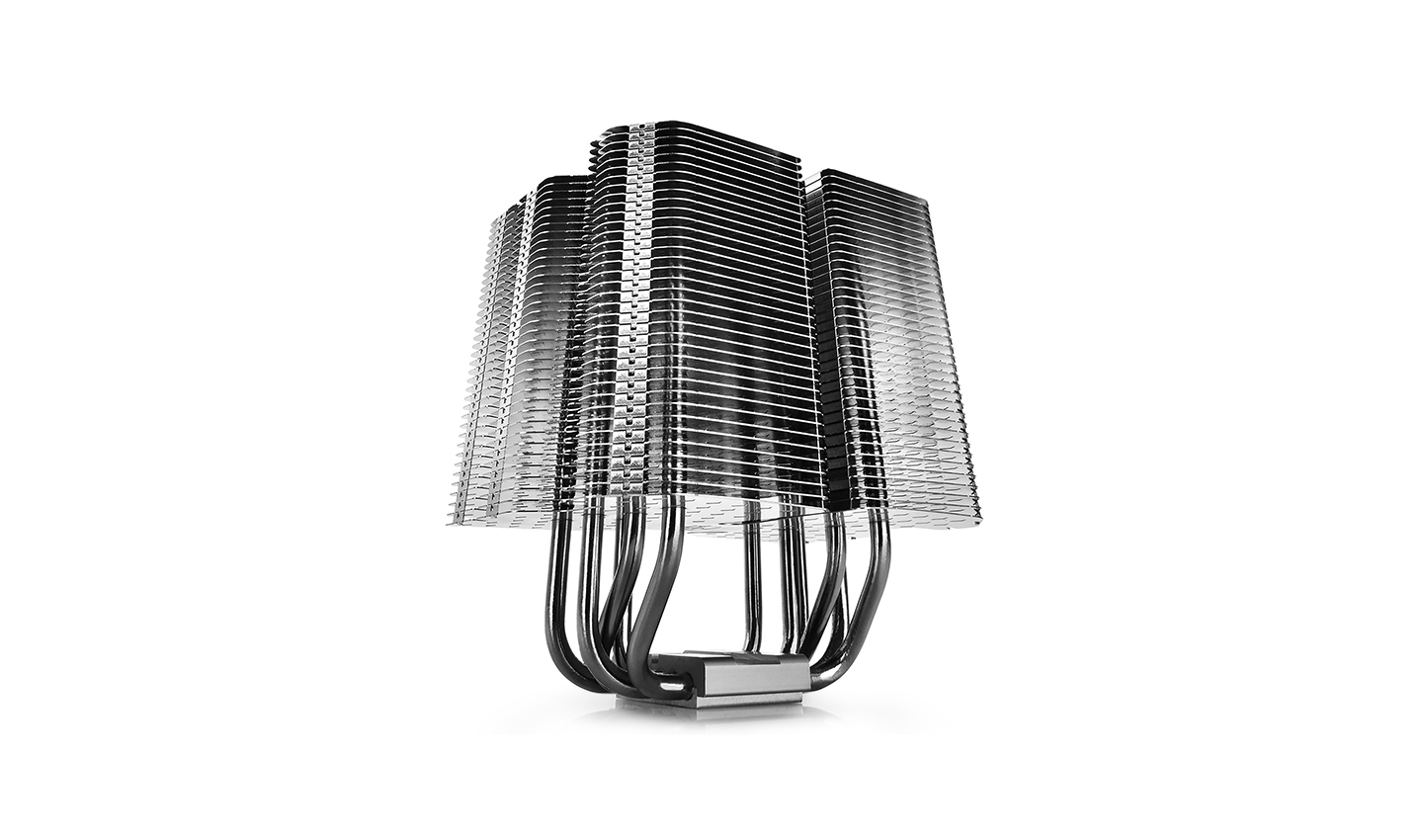

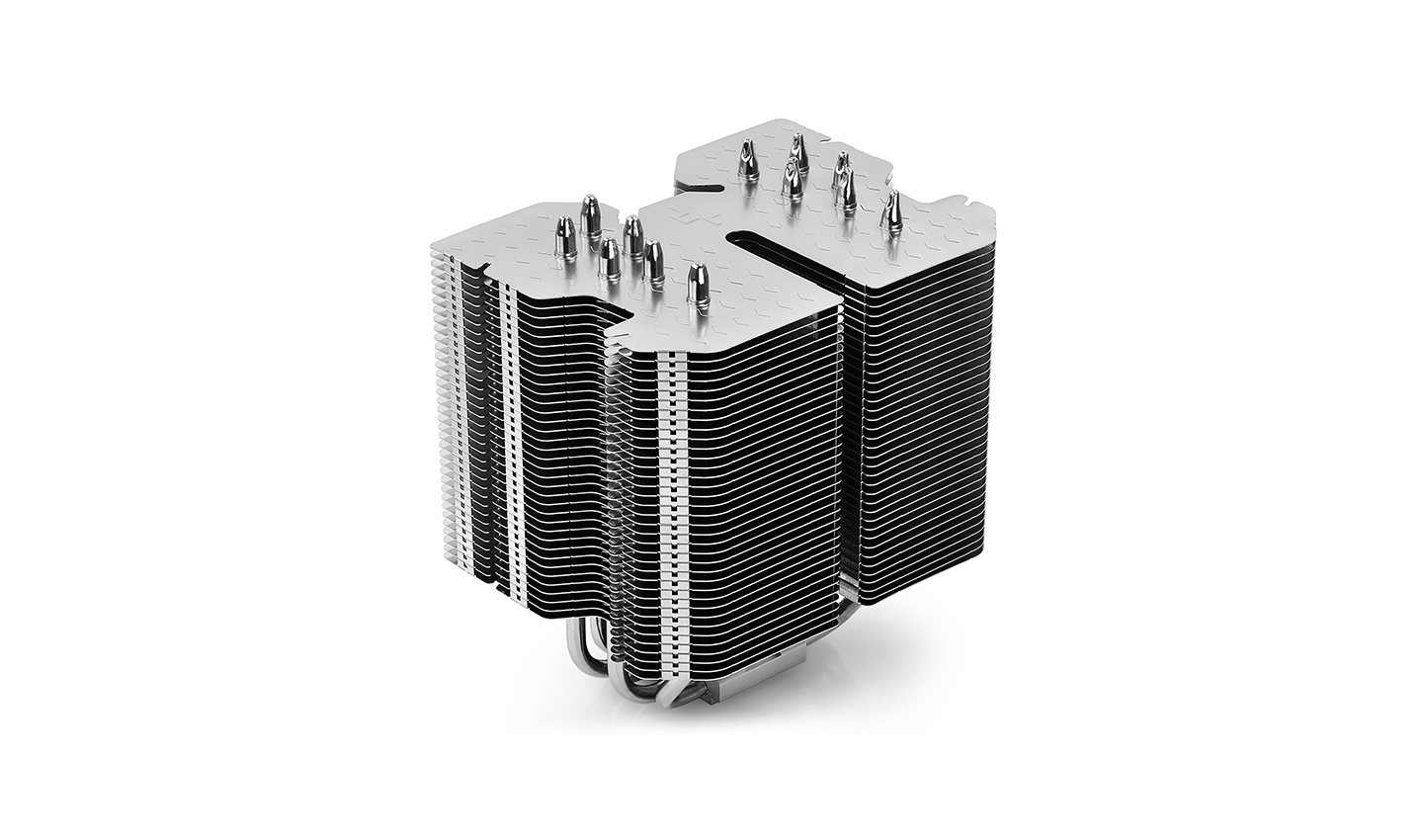

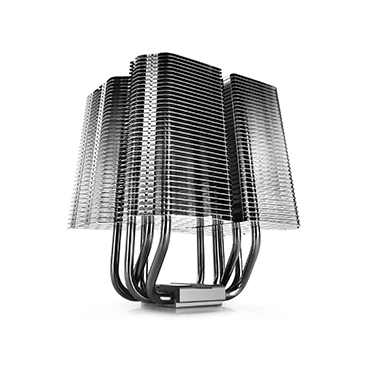

FANLESS Design
Lucifer V2 CPU cooler is designed to cool mainstream processors without a fan to create a zero-noise system. Lucifer is also capable of cooling high-end processors with the help of good airflow within the tower case.

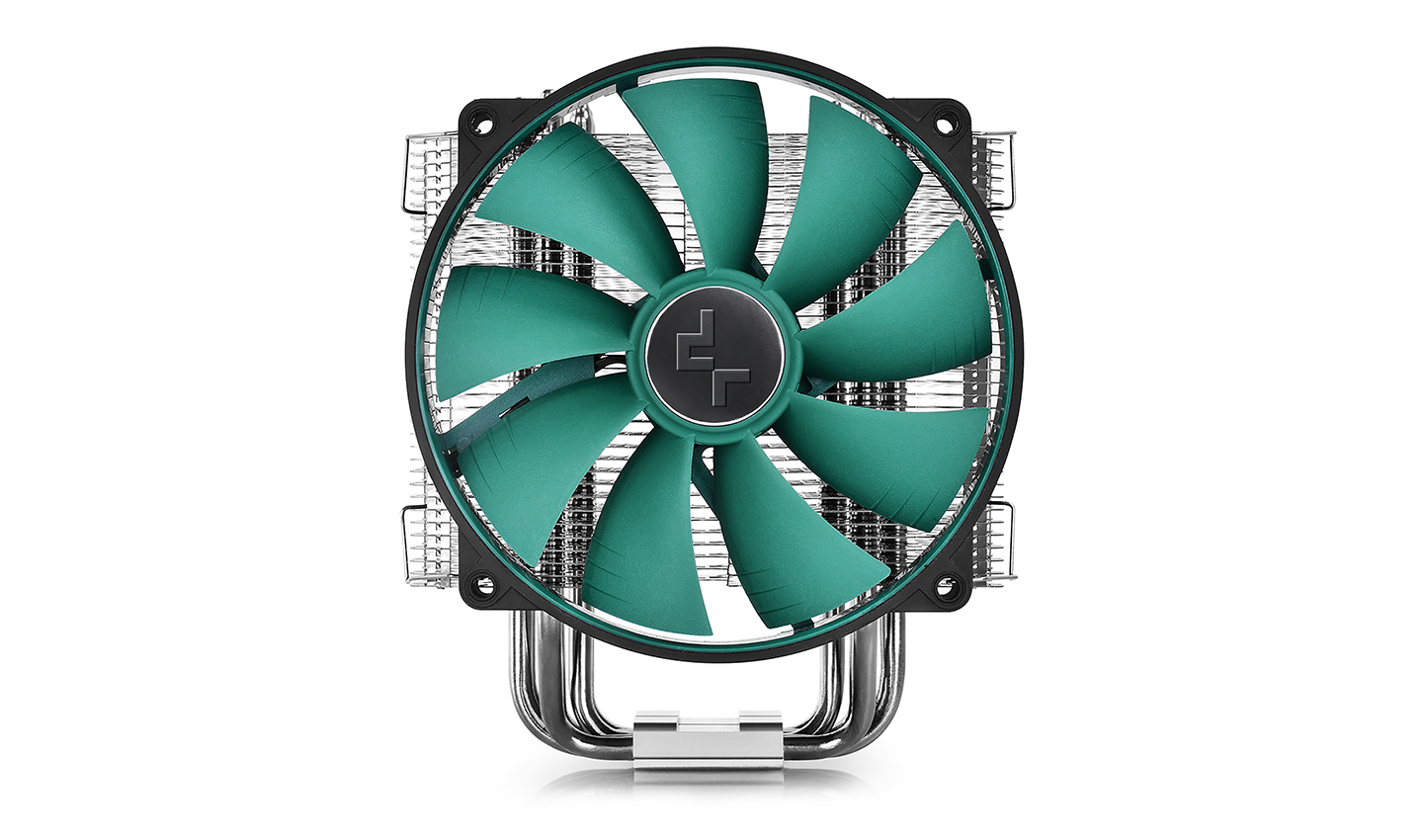

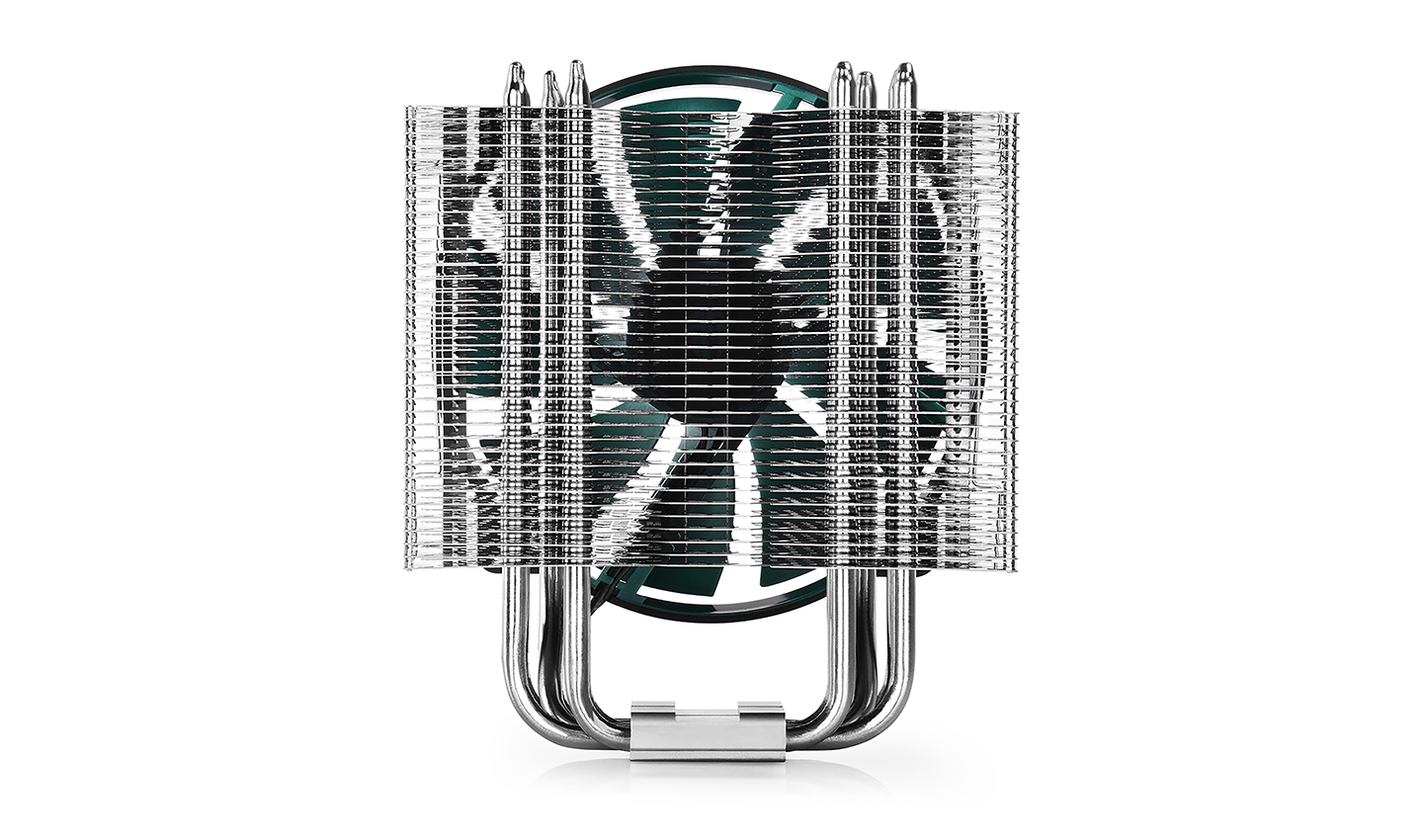

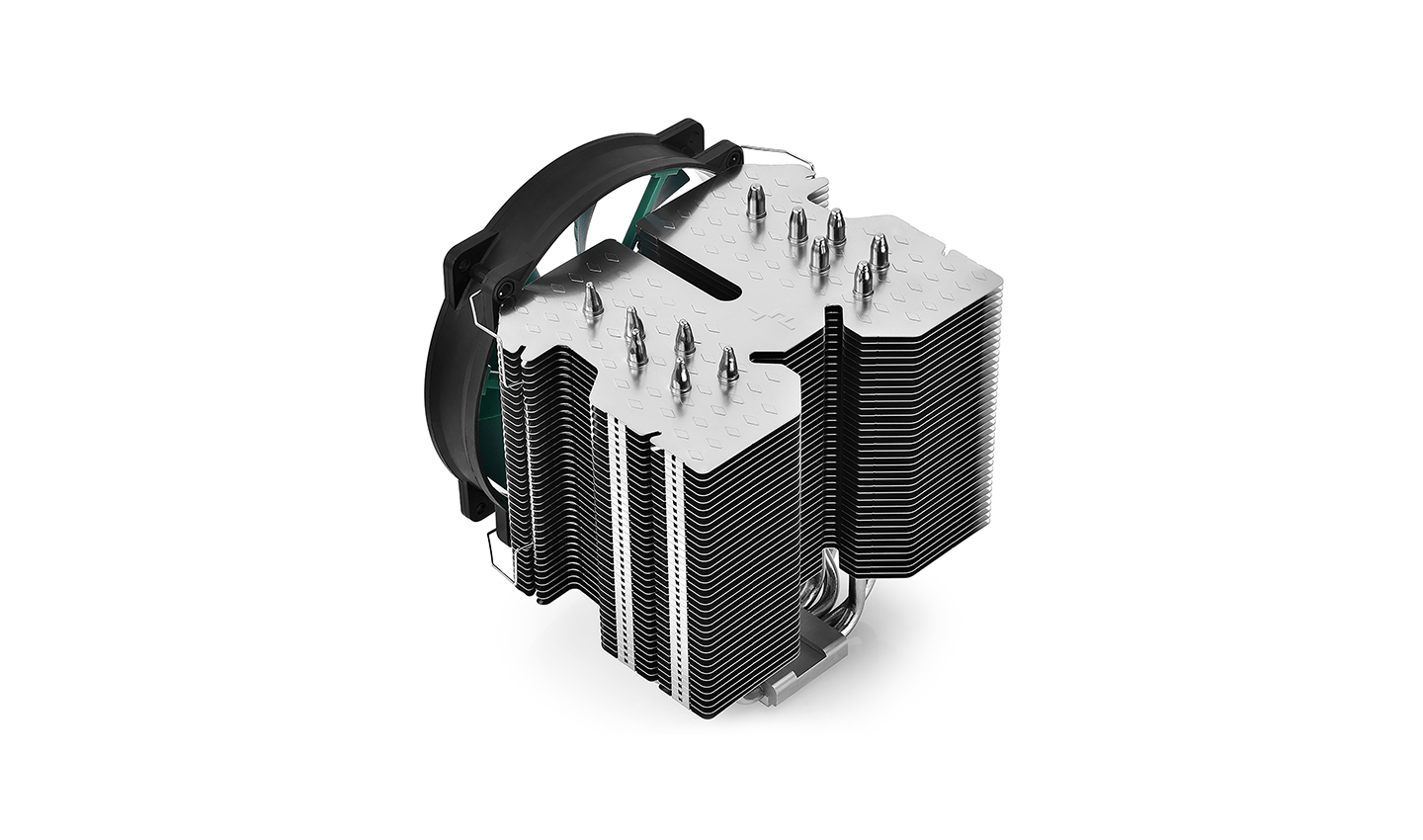

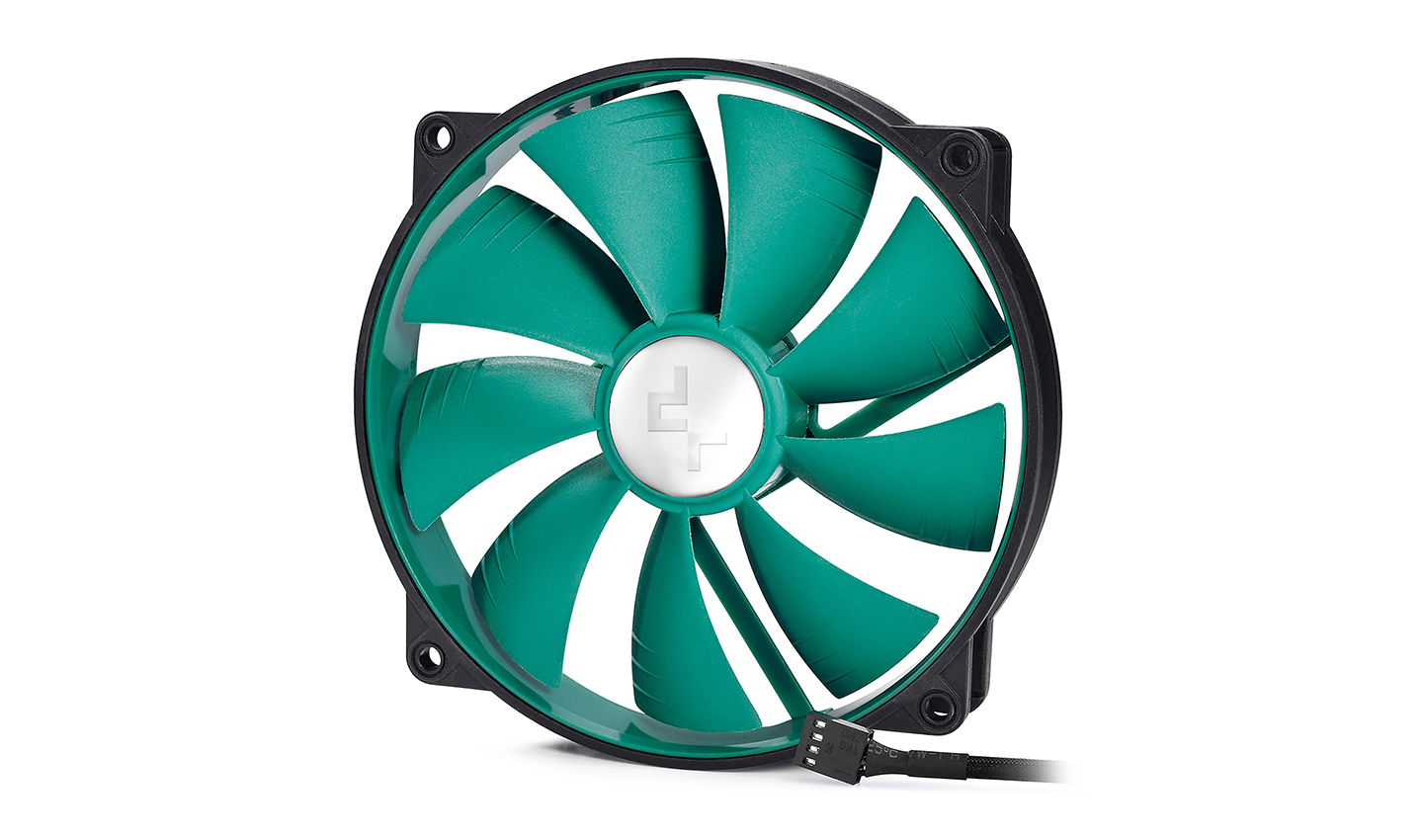

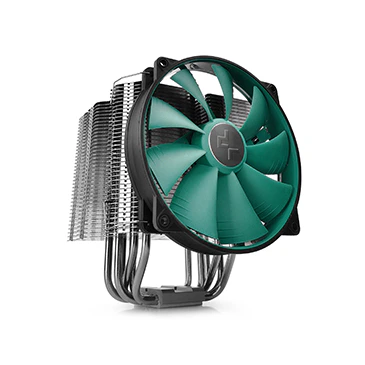

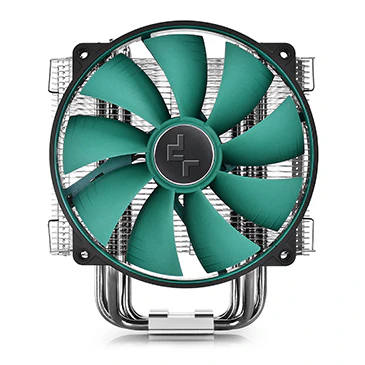

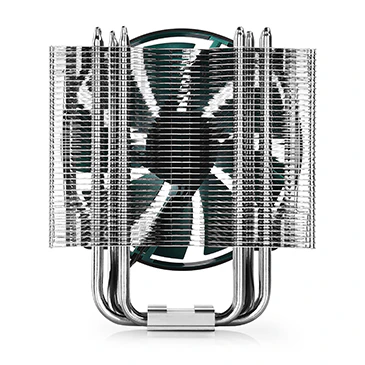

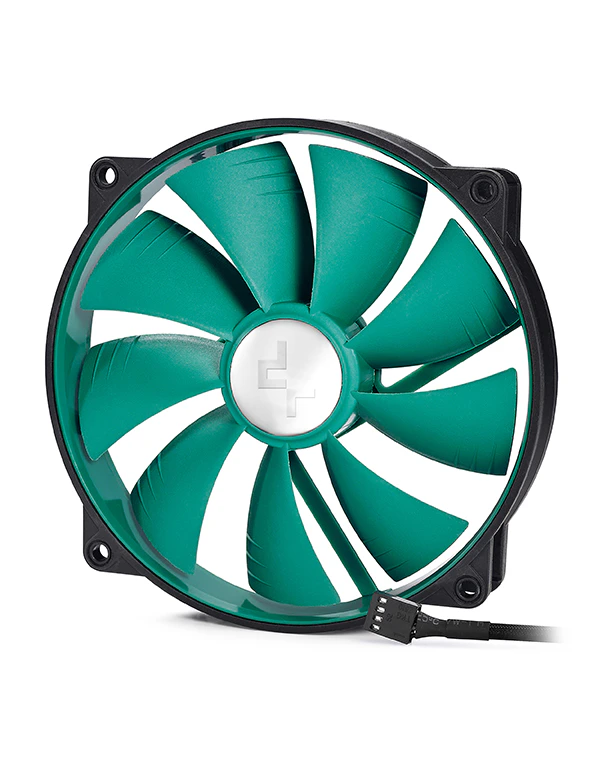

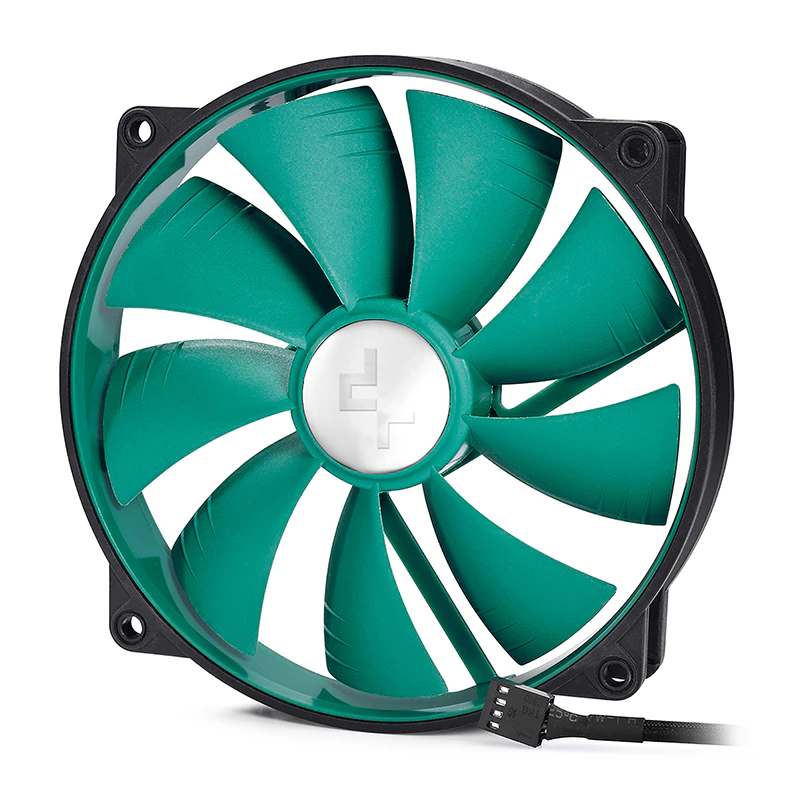

Silent PWM-capable Fan
The 14-cm patented rubber fan (included with product) further enhances cooling capacity to 300 W. Fans can be installed as either a push or pull element.

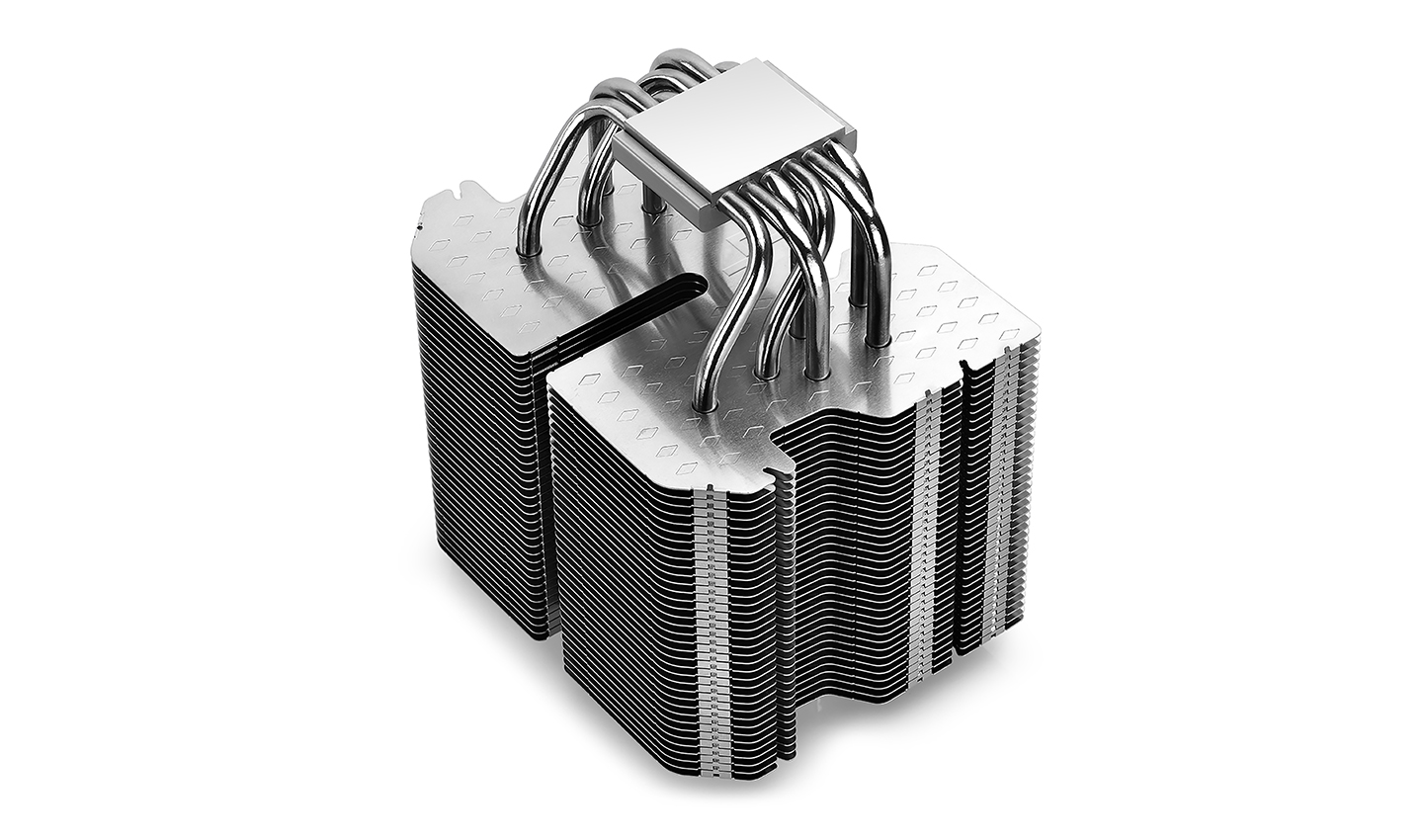

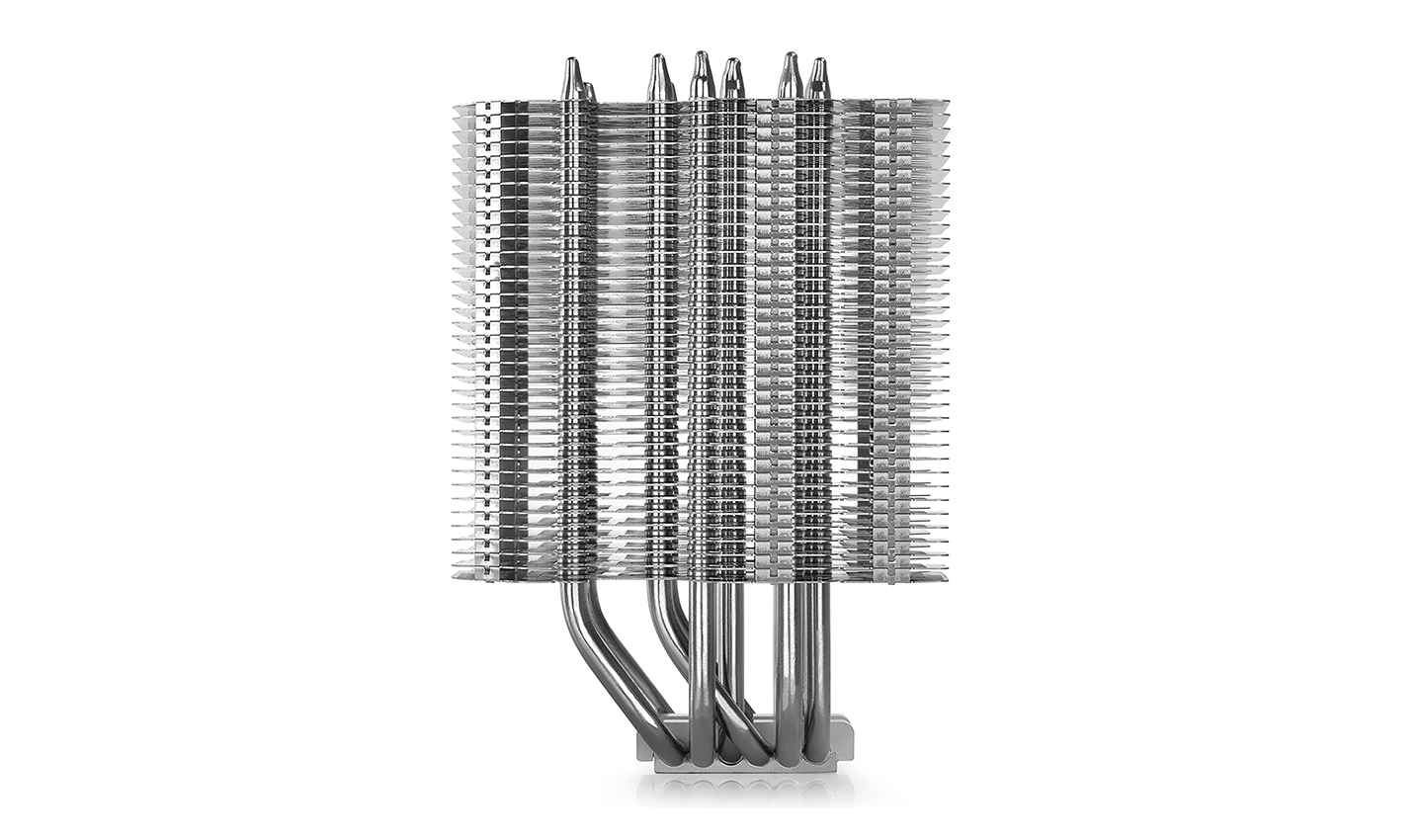

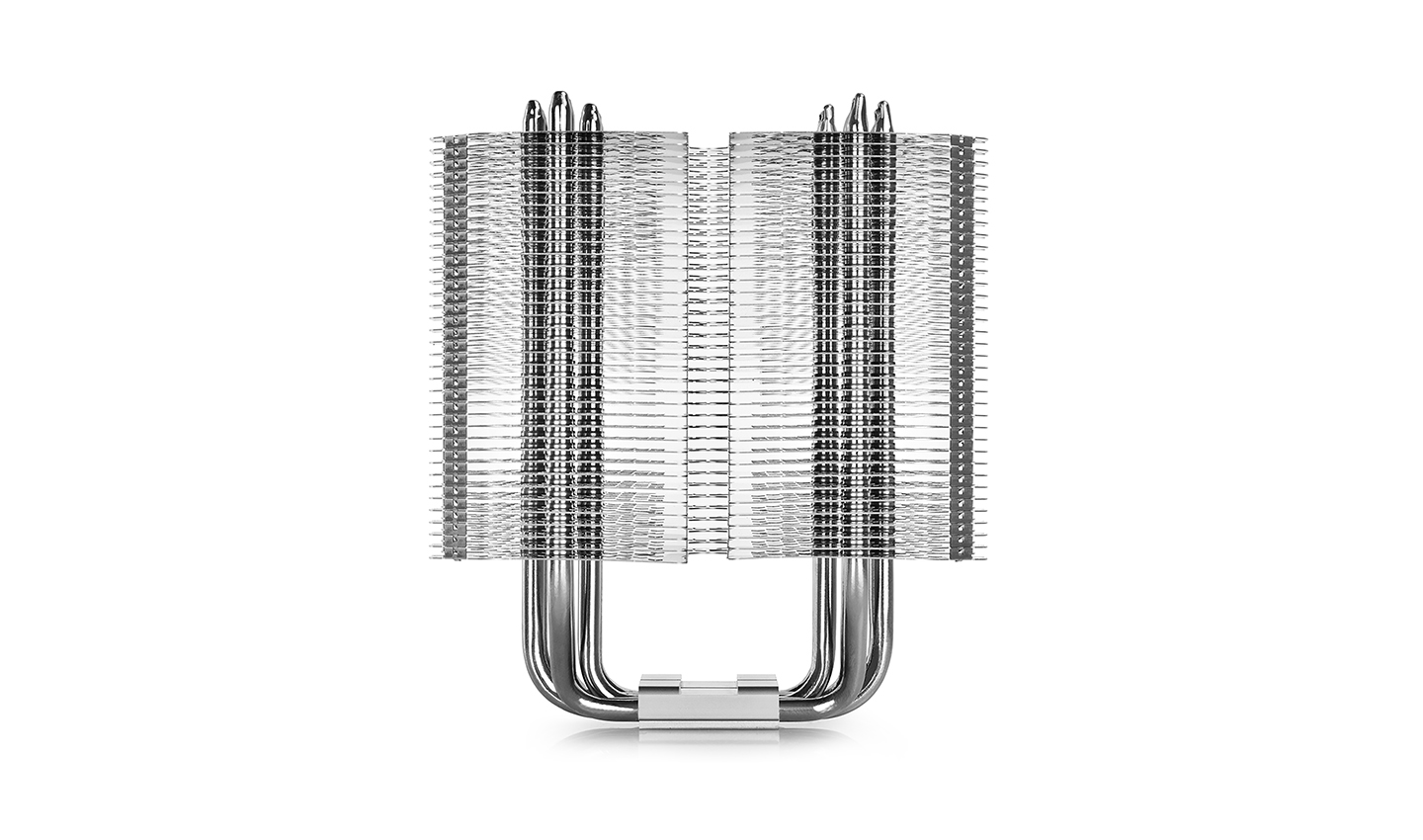

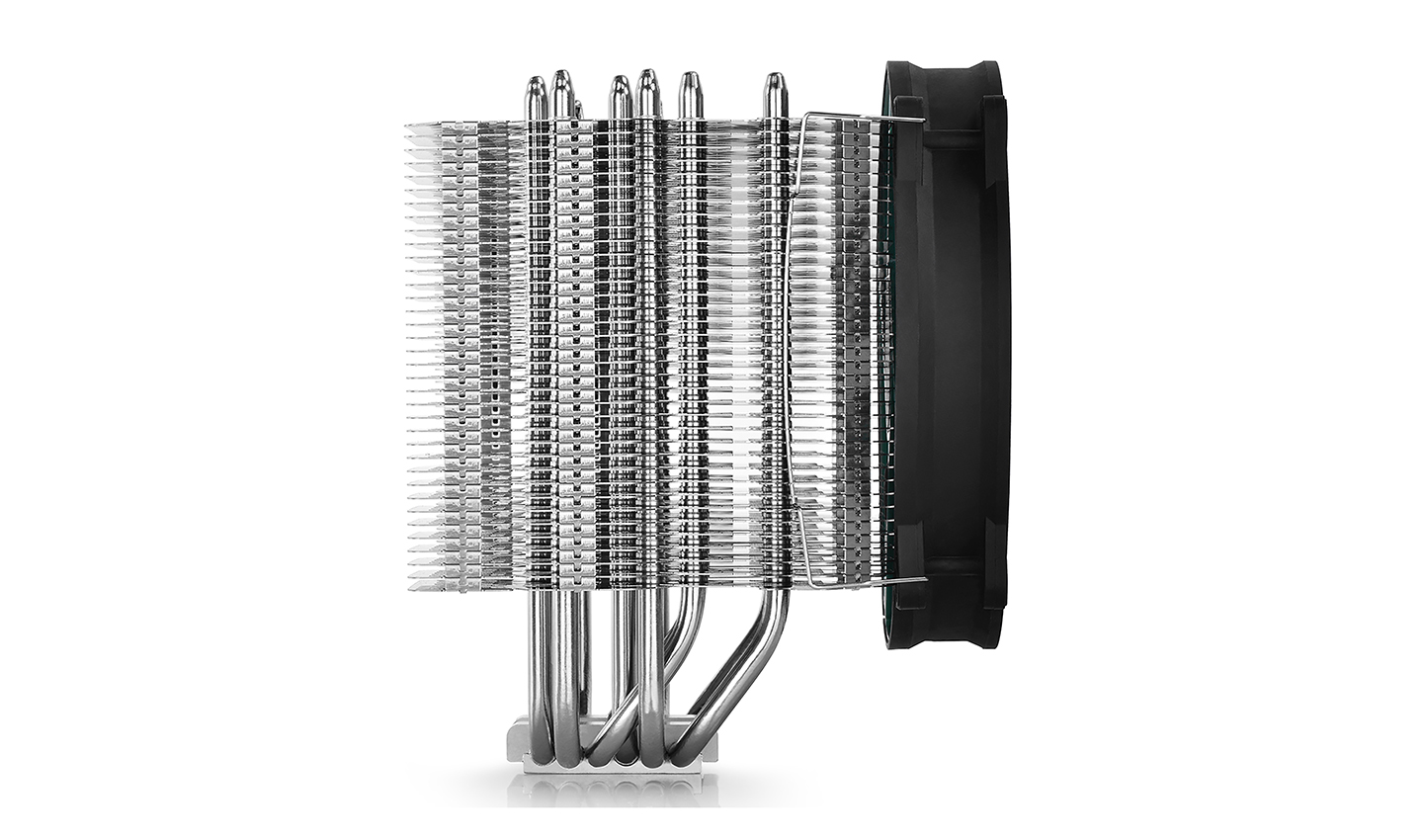

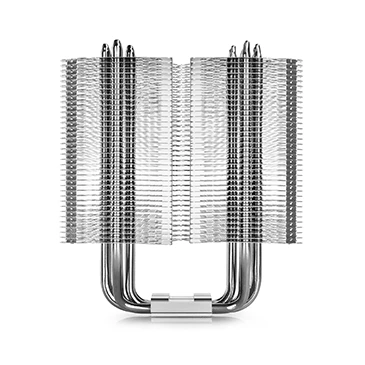

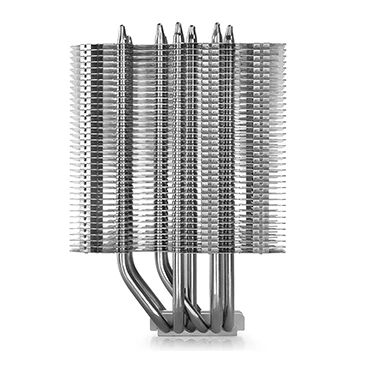

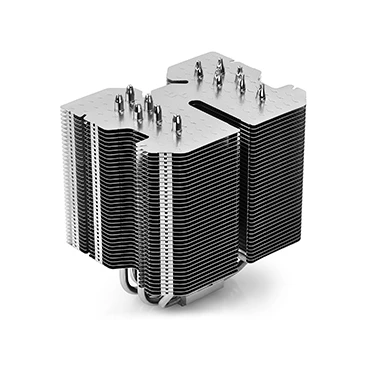

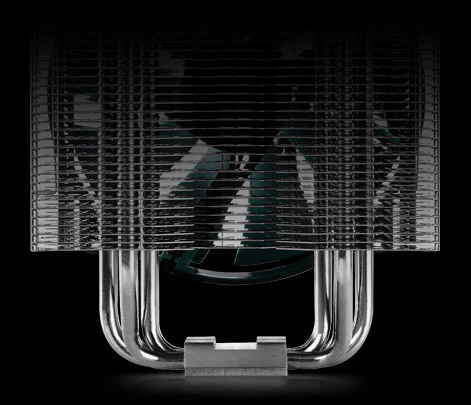

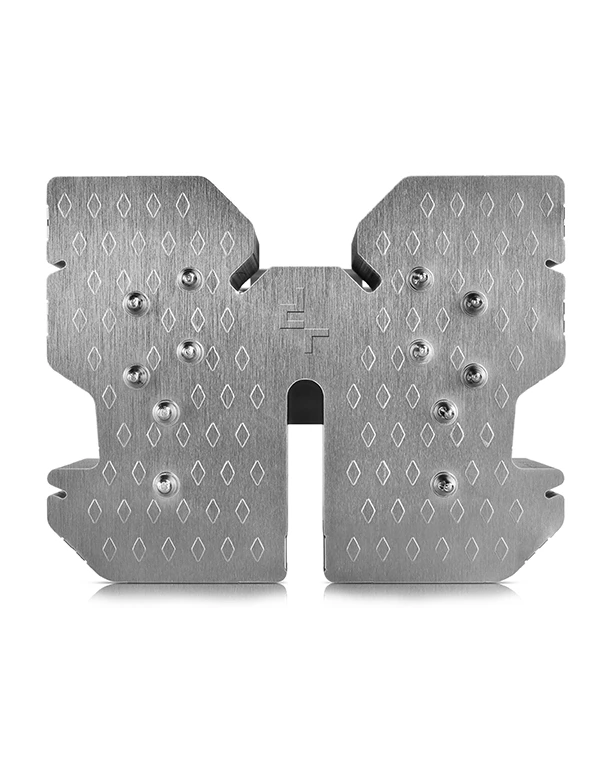

6 High-Performance Heatpipes

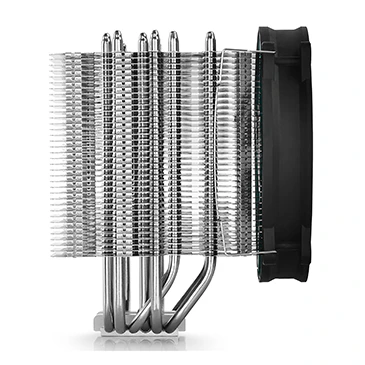

6 copper heatpipes are provided in an asymmetric arrangement to provide clearance for memory components. Lucifer V2 not only provides excellent cooling performance. Its 6 heatpipes are configured to maximize system compatibility.

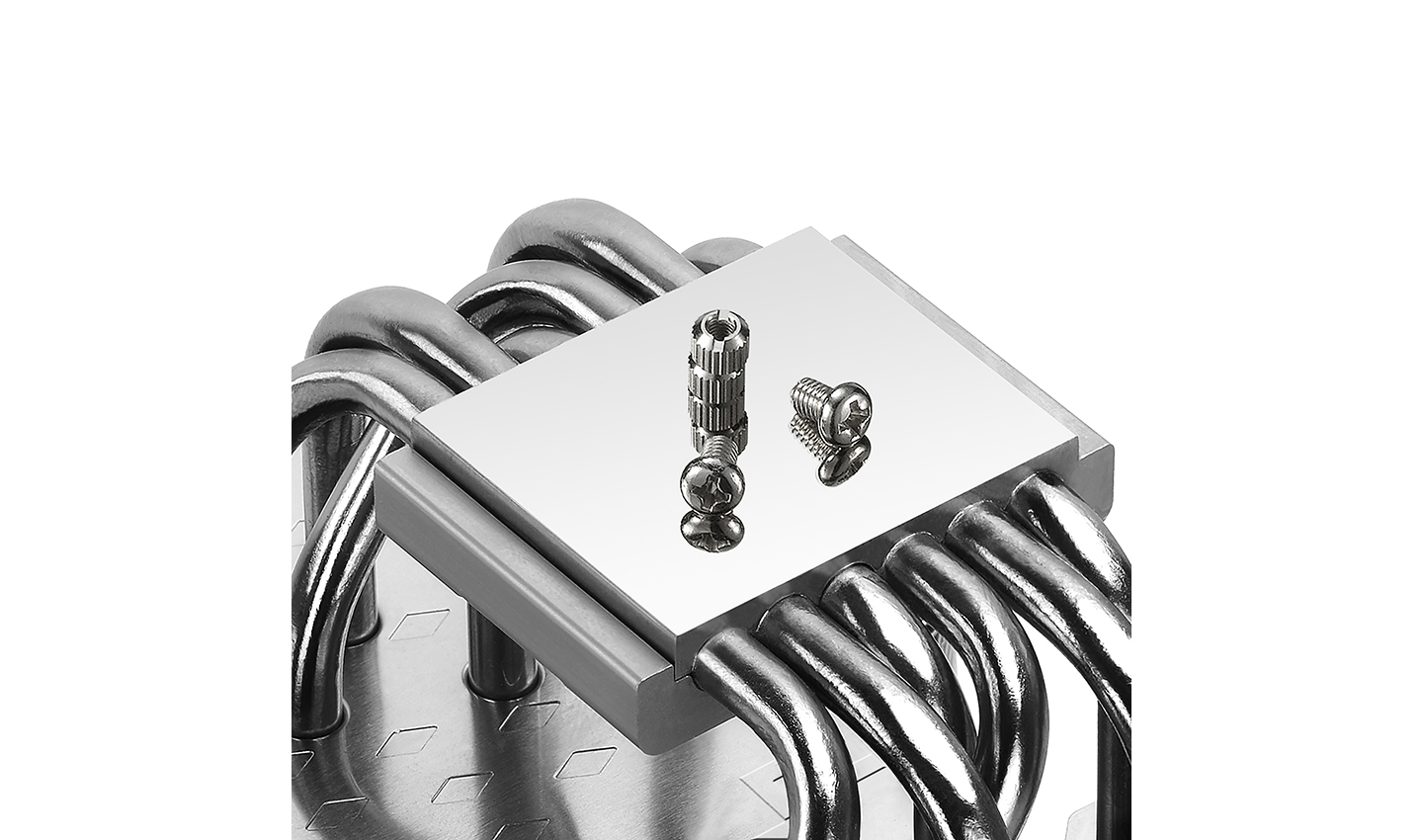

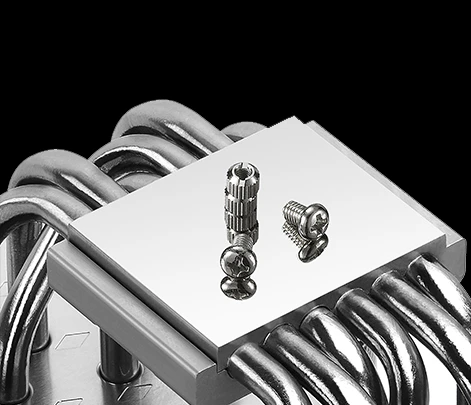

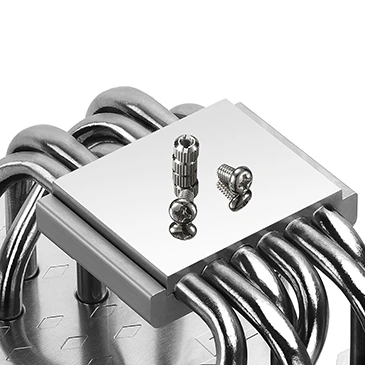

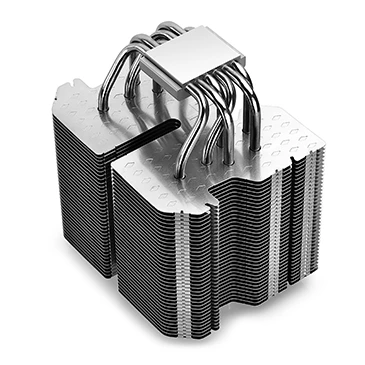

Highly-Polished Copper Base
The copper base is provided with firmly soldered heatpipes to enhance heat conduction from the processor to the heatsink to achieve the fastest heat transfer, the copper base is CNC machined to create a polished, slightly convex surface.
Application For
Intel
LGA20XX/1700/1200/1151/1150/1155
AMD
AM4
Technical Spec
Overall Dimension (Without Fan) 140×110×163mm
Overall Dimension (With Fan) 140×136×168mm
Net Weight 1079g (With Fan)
Heatpipe 6×6mm Heatpipe
Fin Material Aluminum
Base Material Full-copper base
Fan Dimension Φ140×26mm
Fan Weight 143g
Fan Speed 300±150~1400±10%RPM
Rated Current 0.14 A
Power Input 1.68W
Max. Air Flow 81.33CFM
Noise 12.6-31.1dB(A)
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Starting Voltage 7VDC
Bearing Type Hydro Bearing
EAN 6933412726128
P/N DPGS-MCH6N-LCV2AM4
