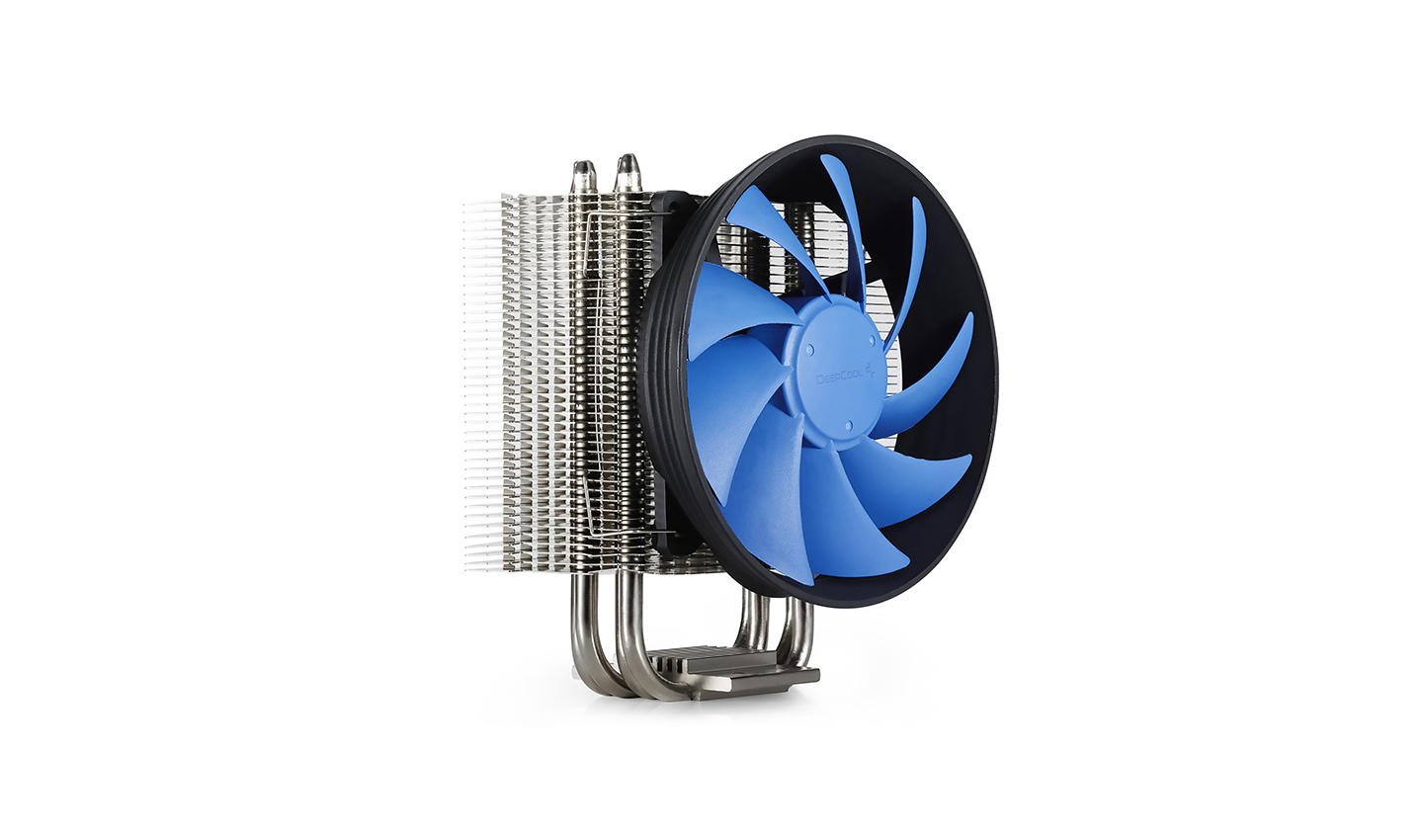

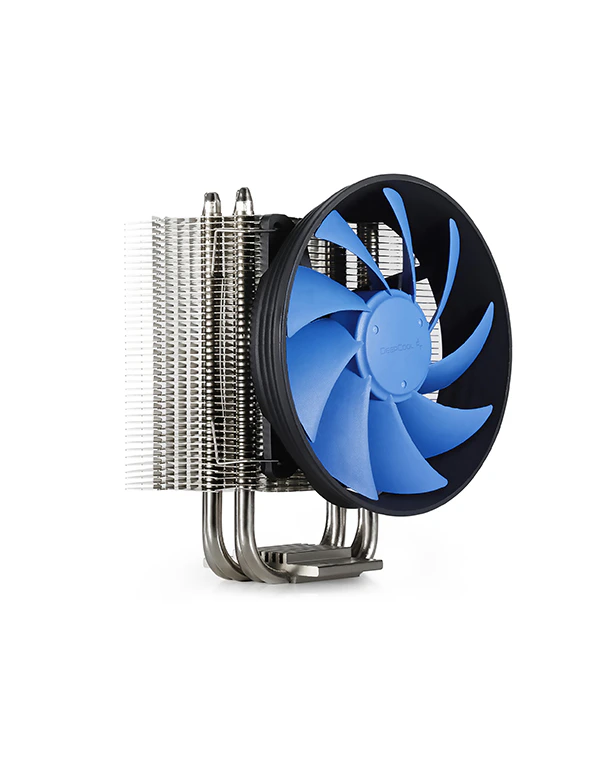

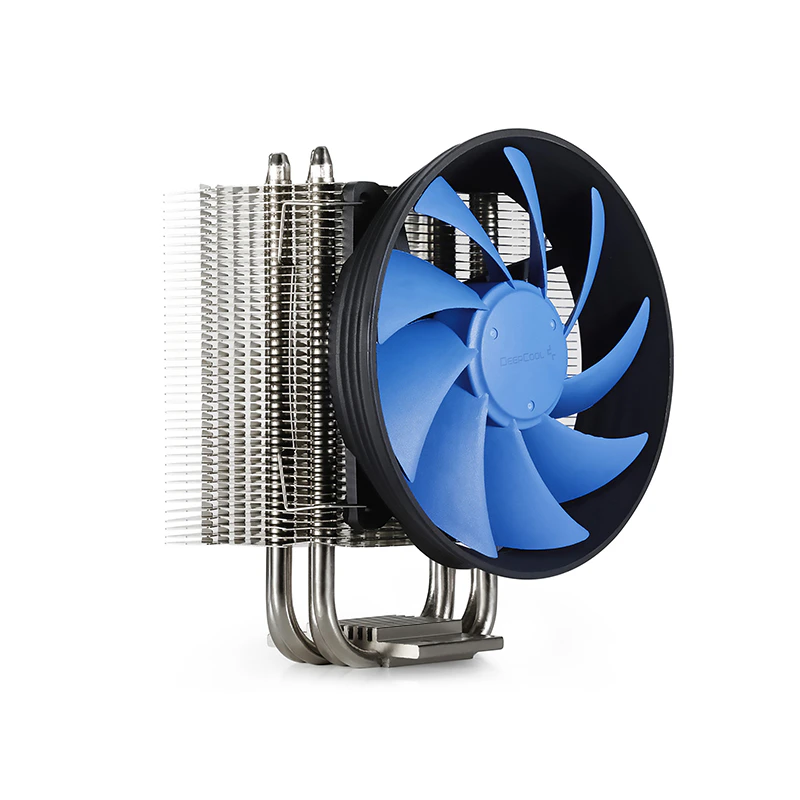

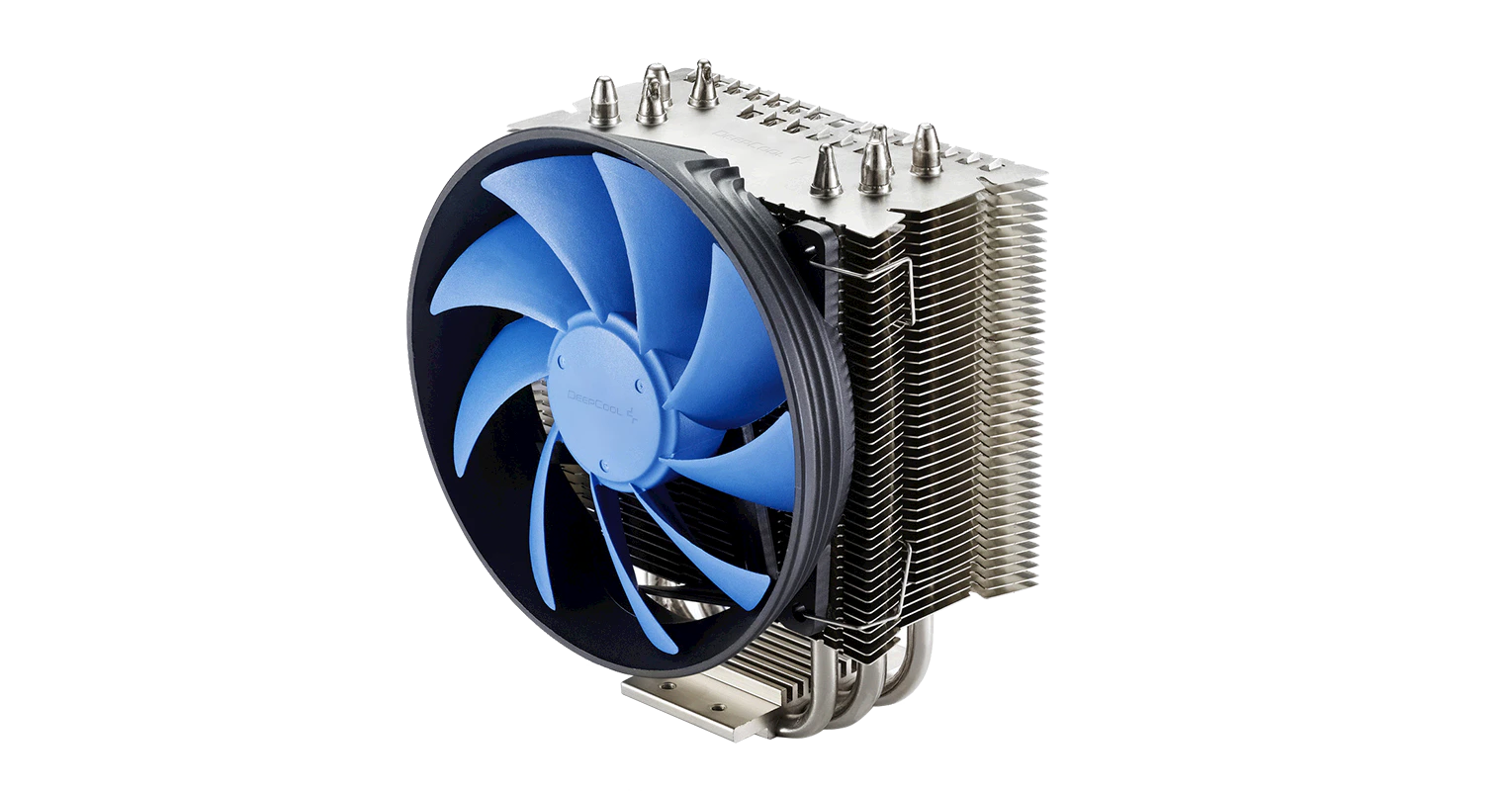

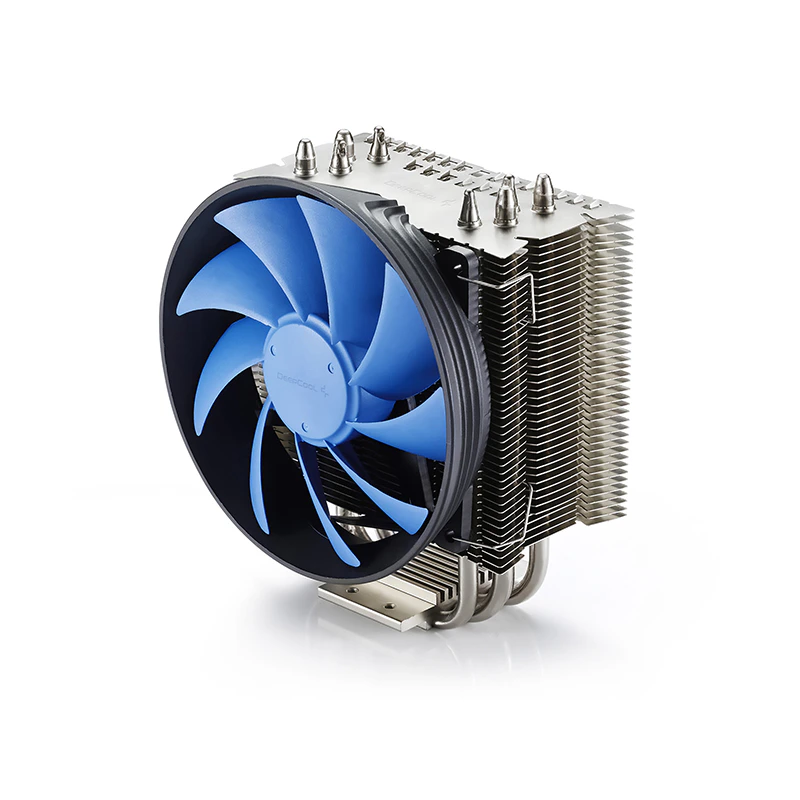

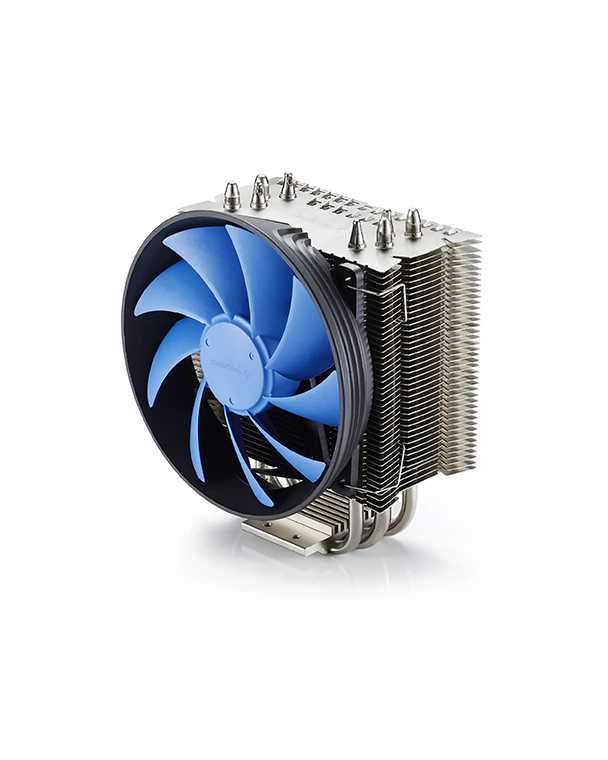

GAMMAXX S40
Innovative Double Air Channel (DAC) design features small window openings on each heatsink layer to maximize heat dissipation surface exposure for GAMMAXX S40 GAMMAXX S40 is created with the Core Touch Technology (CCT) to directly conduct heat away from the CPU to the heatsink. Excellent compatibility makes GAMMAXX S40 one of the best CPU cooler solutions available.
MODEL
GAMMAXX S40
SMALL SIZE. BIG PERFORMANCE.

Description
Innovative Double Air Channel (DAC) design features small window openings on each heatsink layer to maximize heat dissipation surface exposure for GAMMAXX S40 GAMMAXX S40 is created with the Core Touch Technology (CCT) to directly conduct heat away from the CPU to the heatsink. Excellent compatibility makes GAMMAXX S40 one of the best CPU cooler solutions available.
Effective Cooling Performance

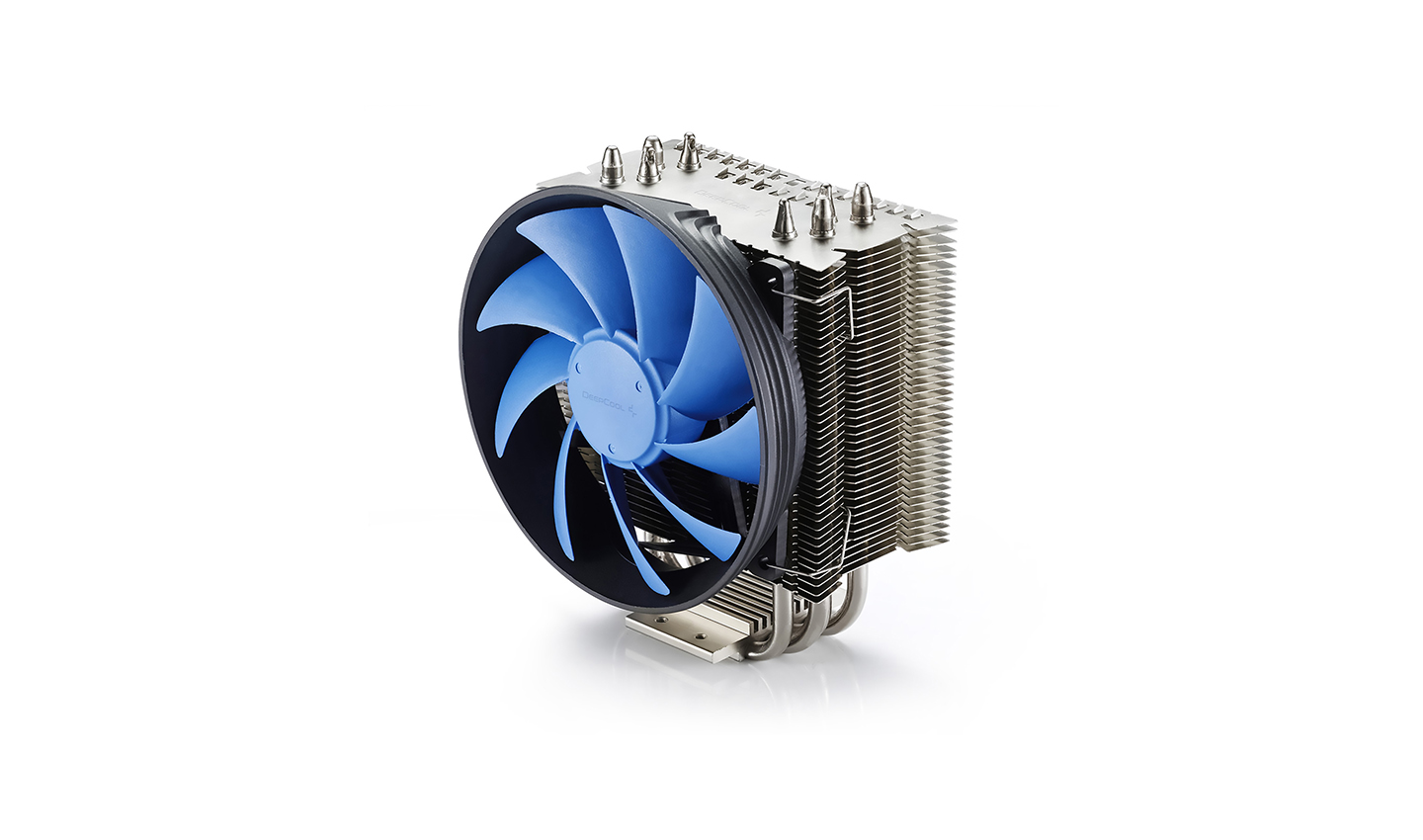

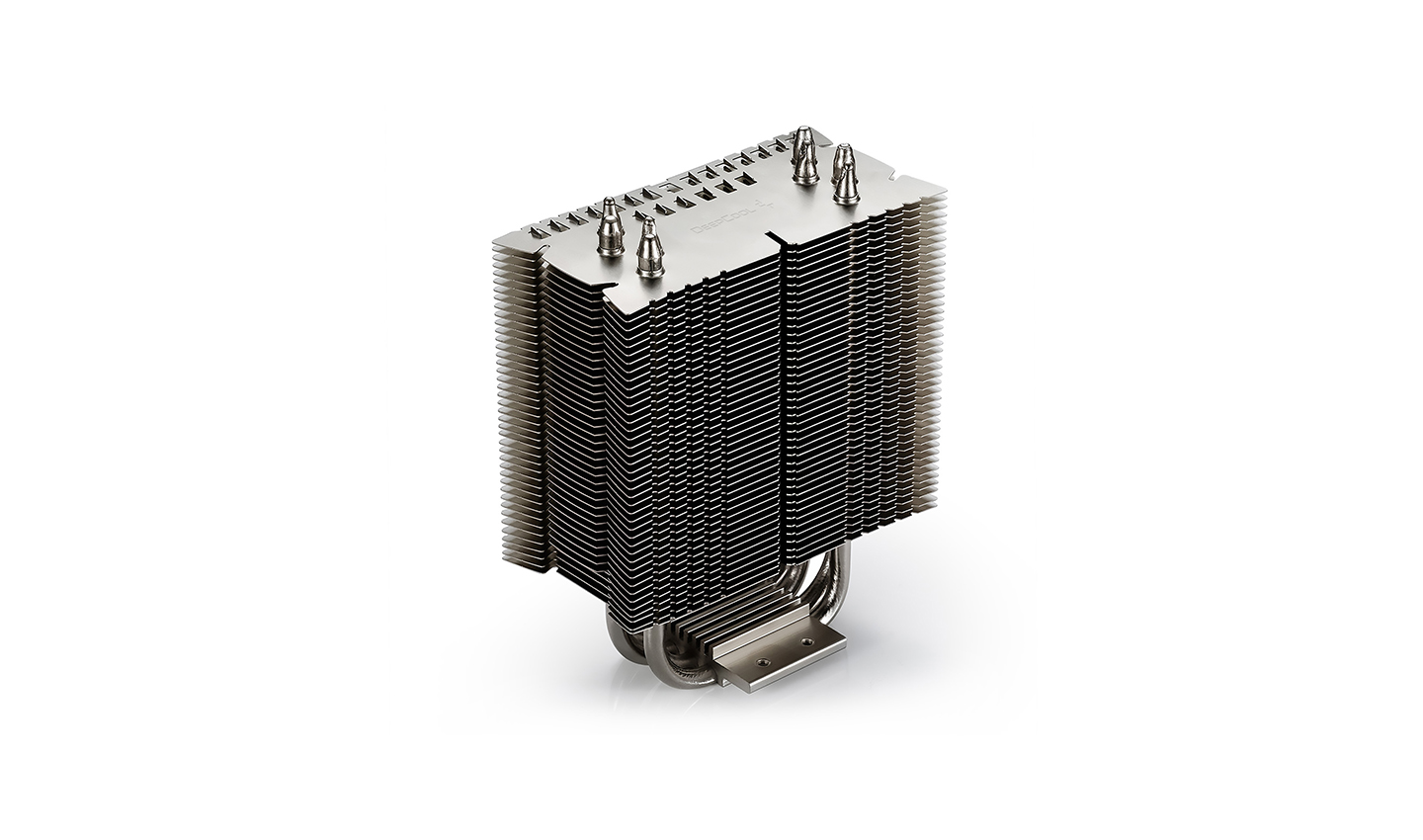

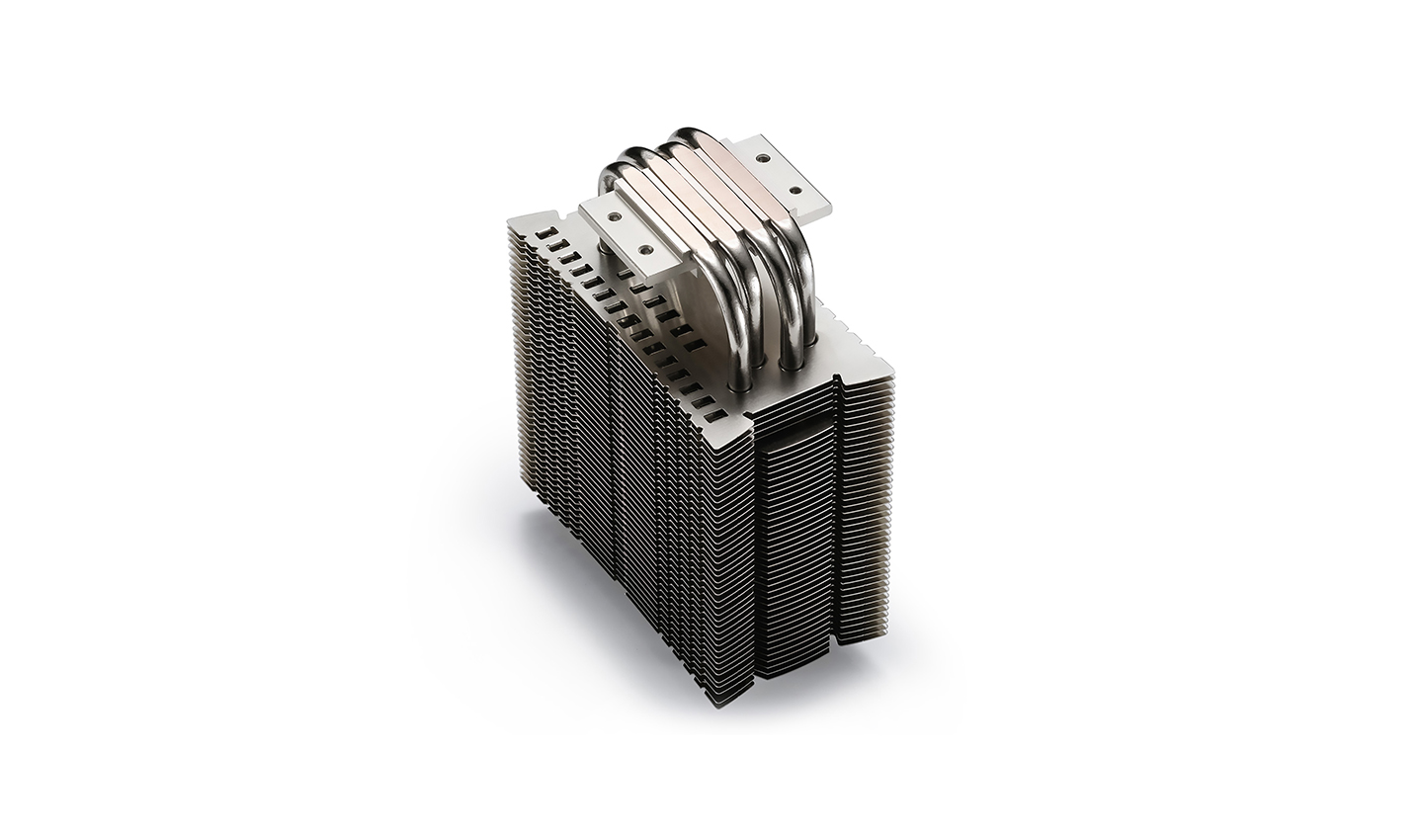

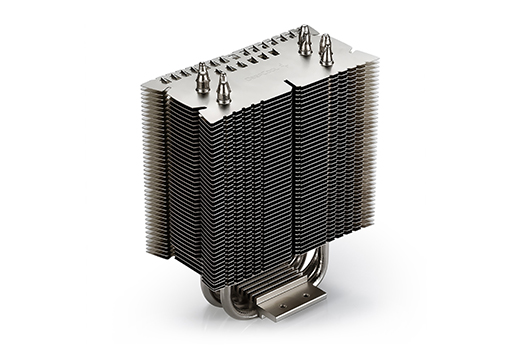

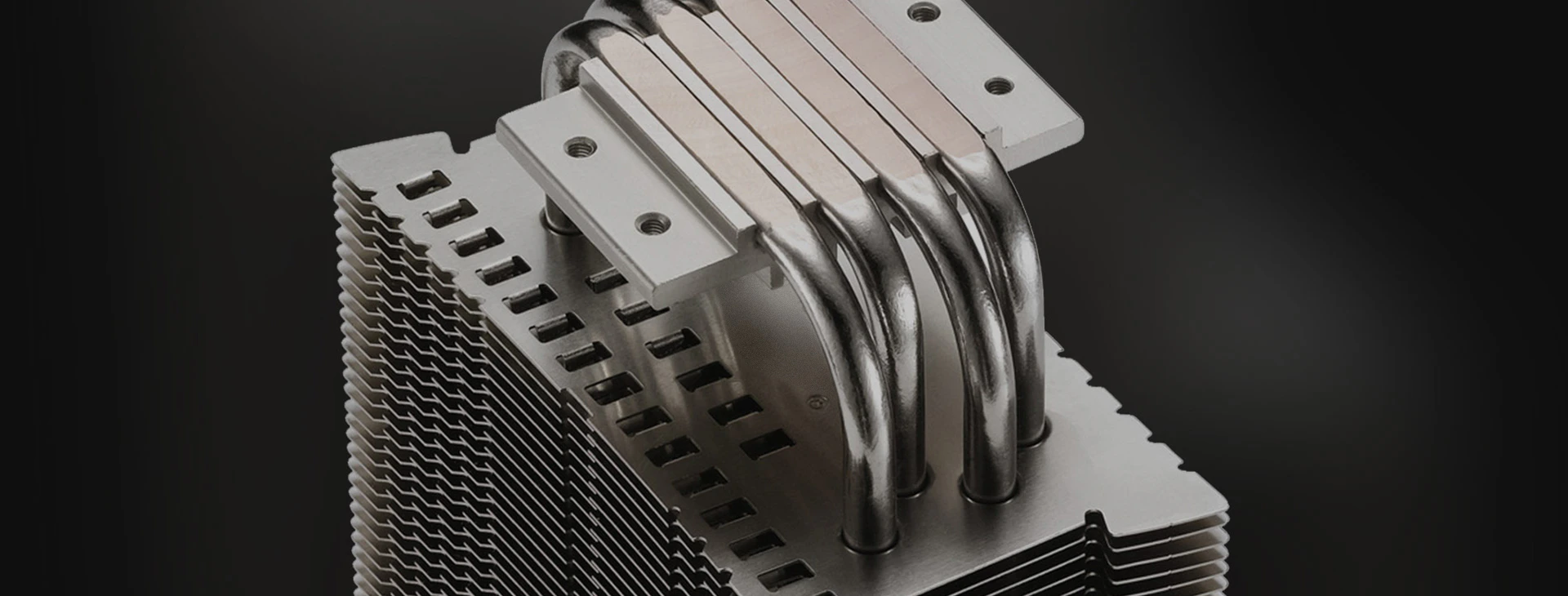

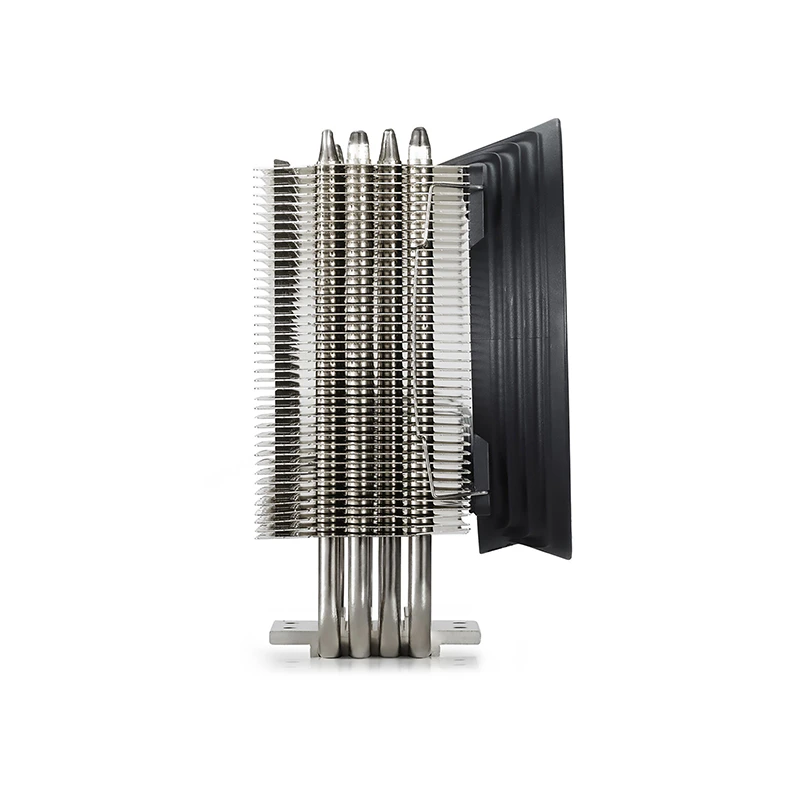

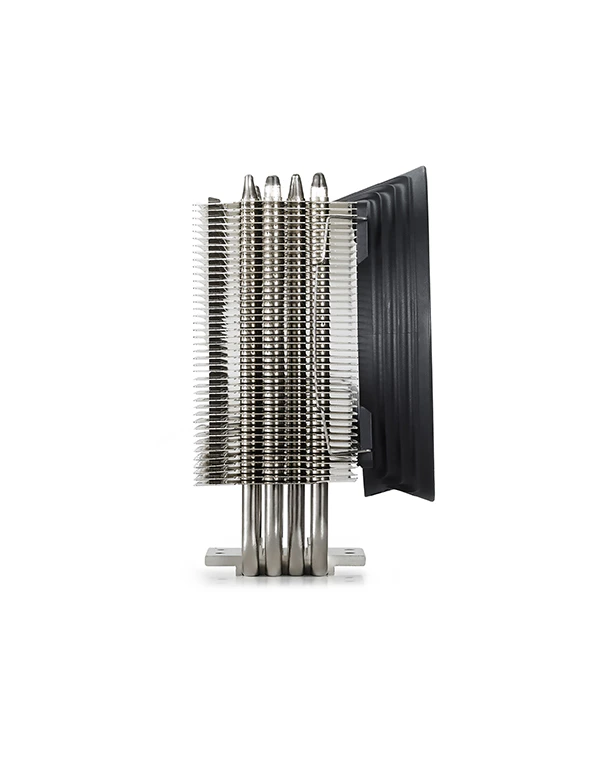

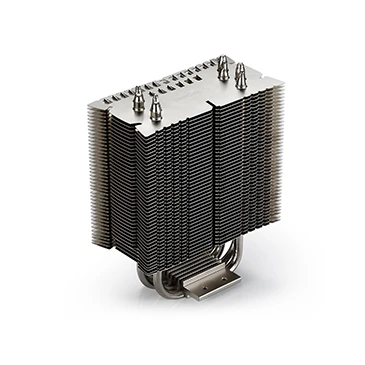

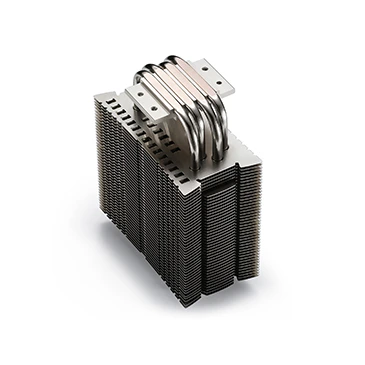

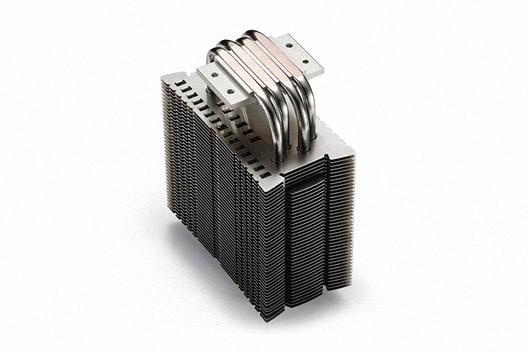

4 pieces of Ф6 mm heatpipes and Core Touch Technology (CTT) achieves perfect contact with the CPU surface.
Double Airflow Channel Technology
Double Airflow Channel (DAC) technology enhances air ventilation for cooling surrounding components.

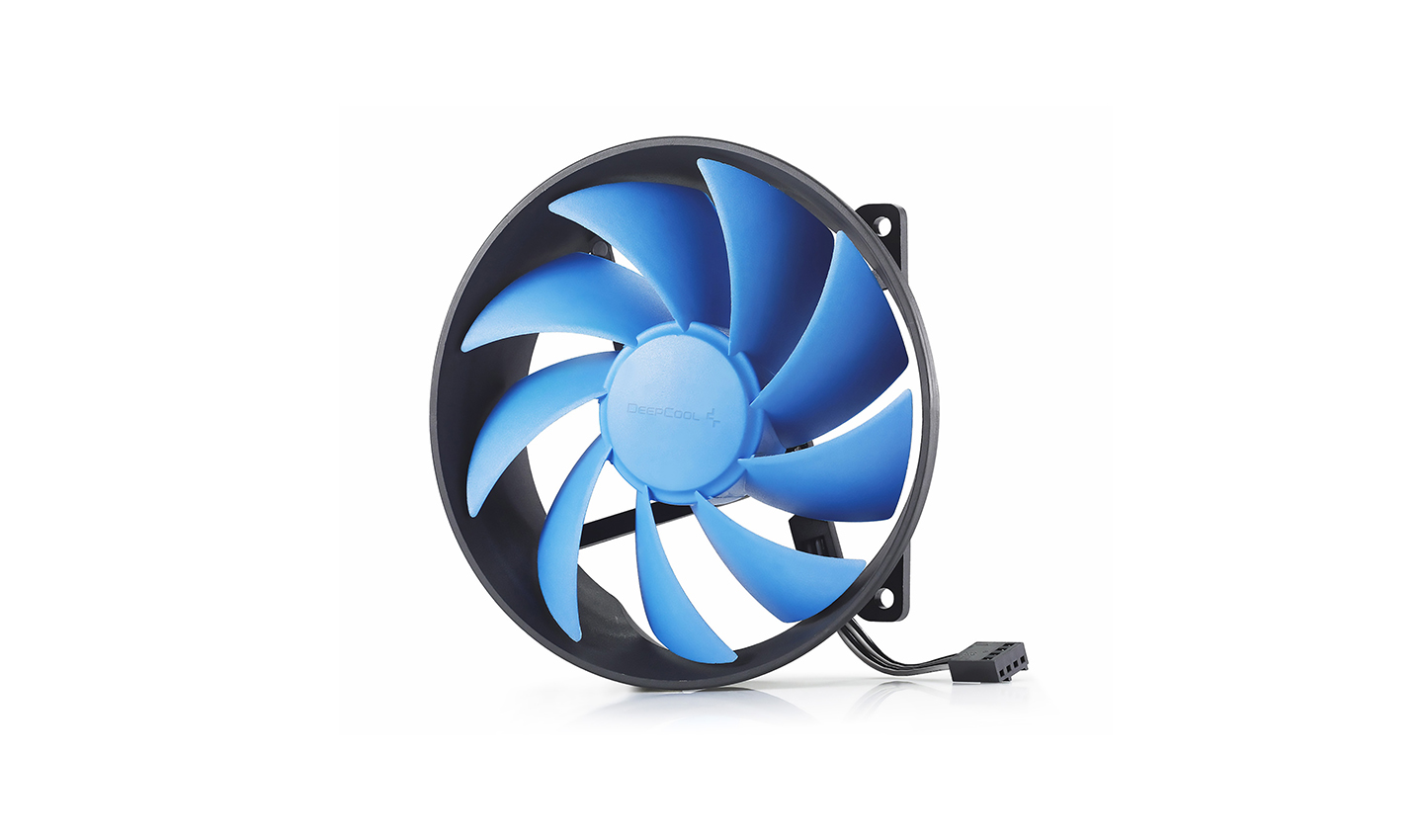

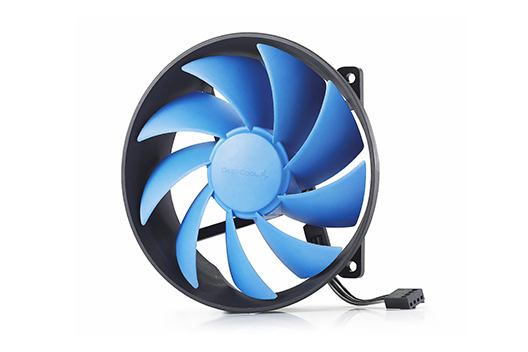

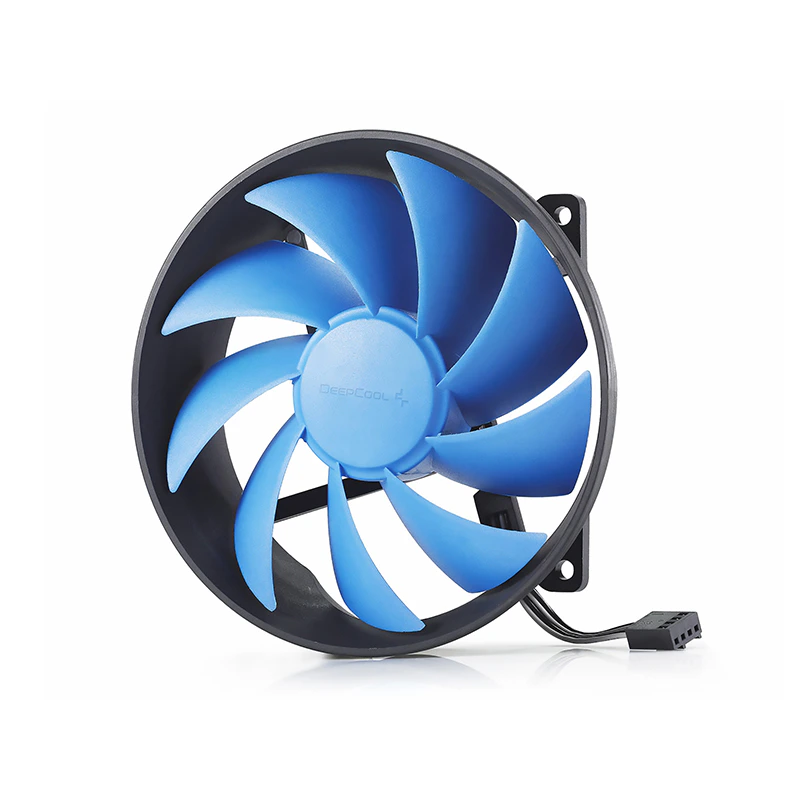

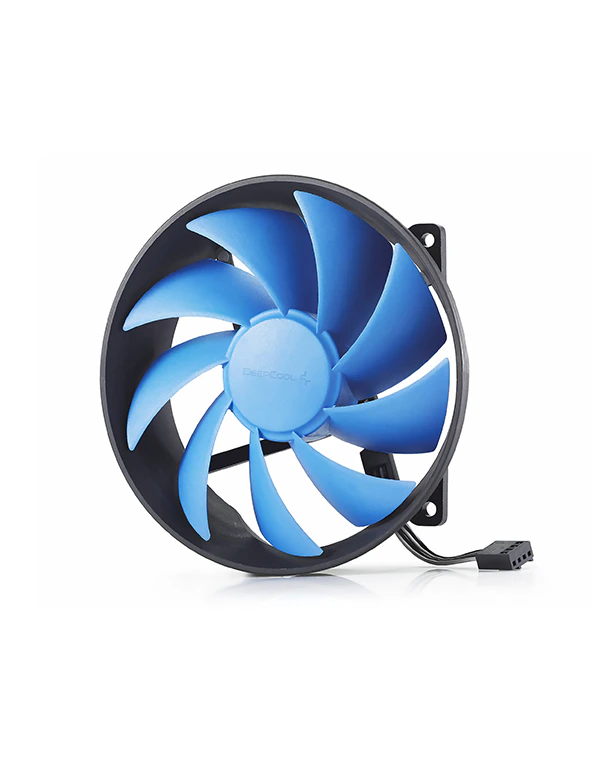

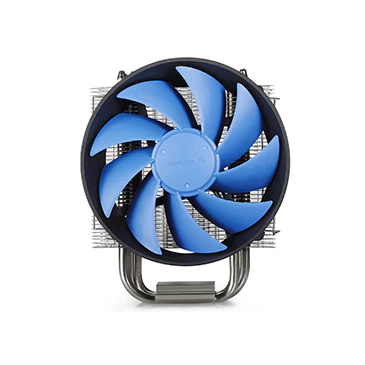

Ф120 x 25 mm PWM-capable Fan
Ф120 x 25 mm PWM-capable fan offers enhanced air ventilation.

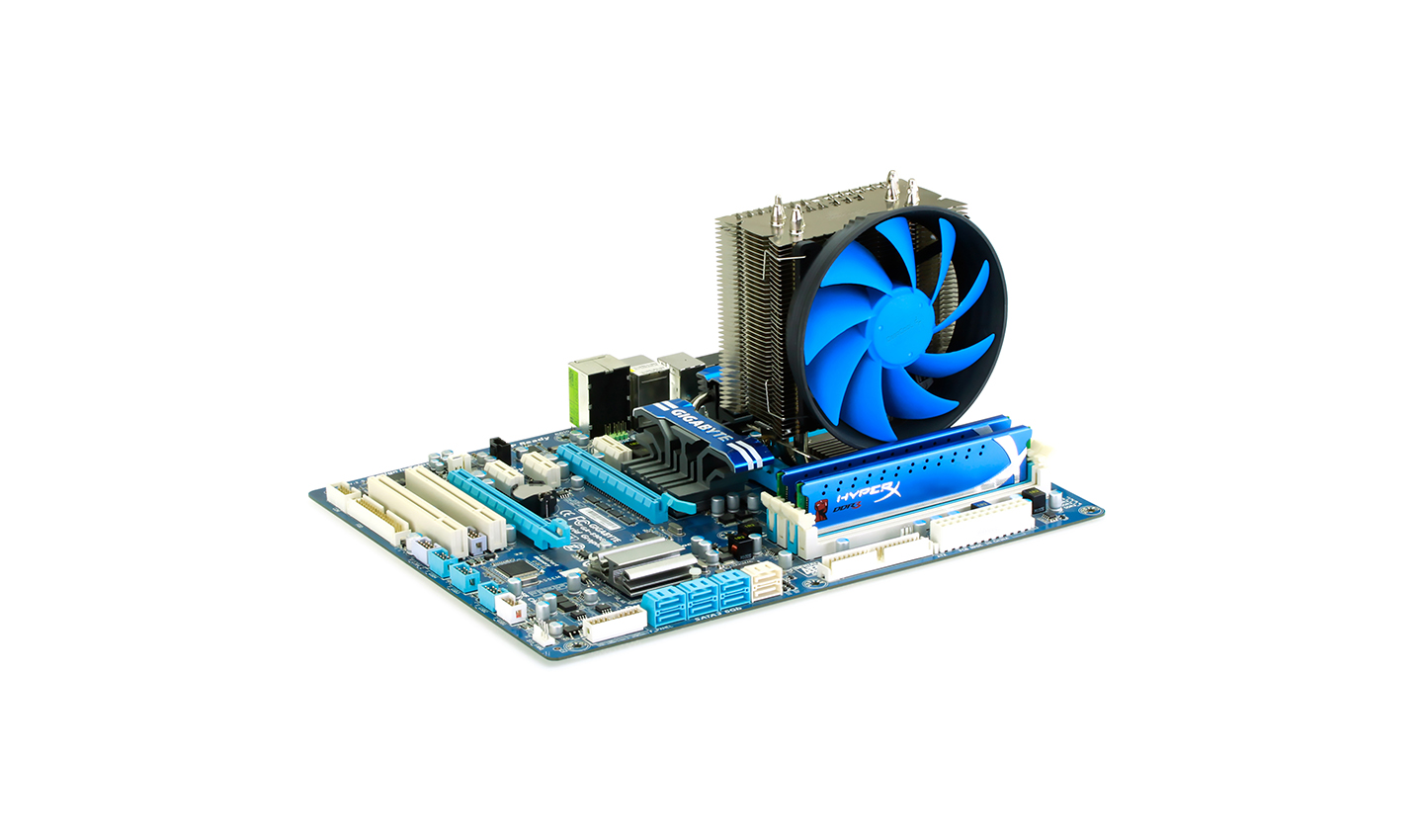

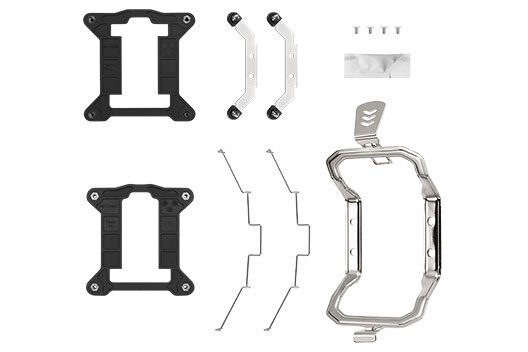

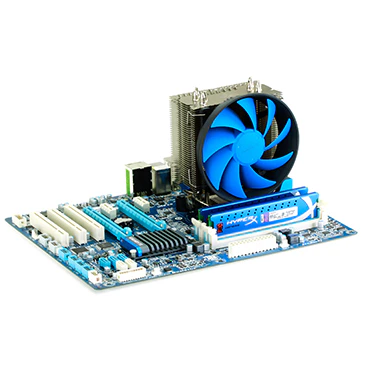

Universal Socket Compatibility

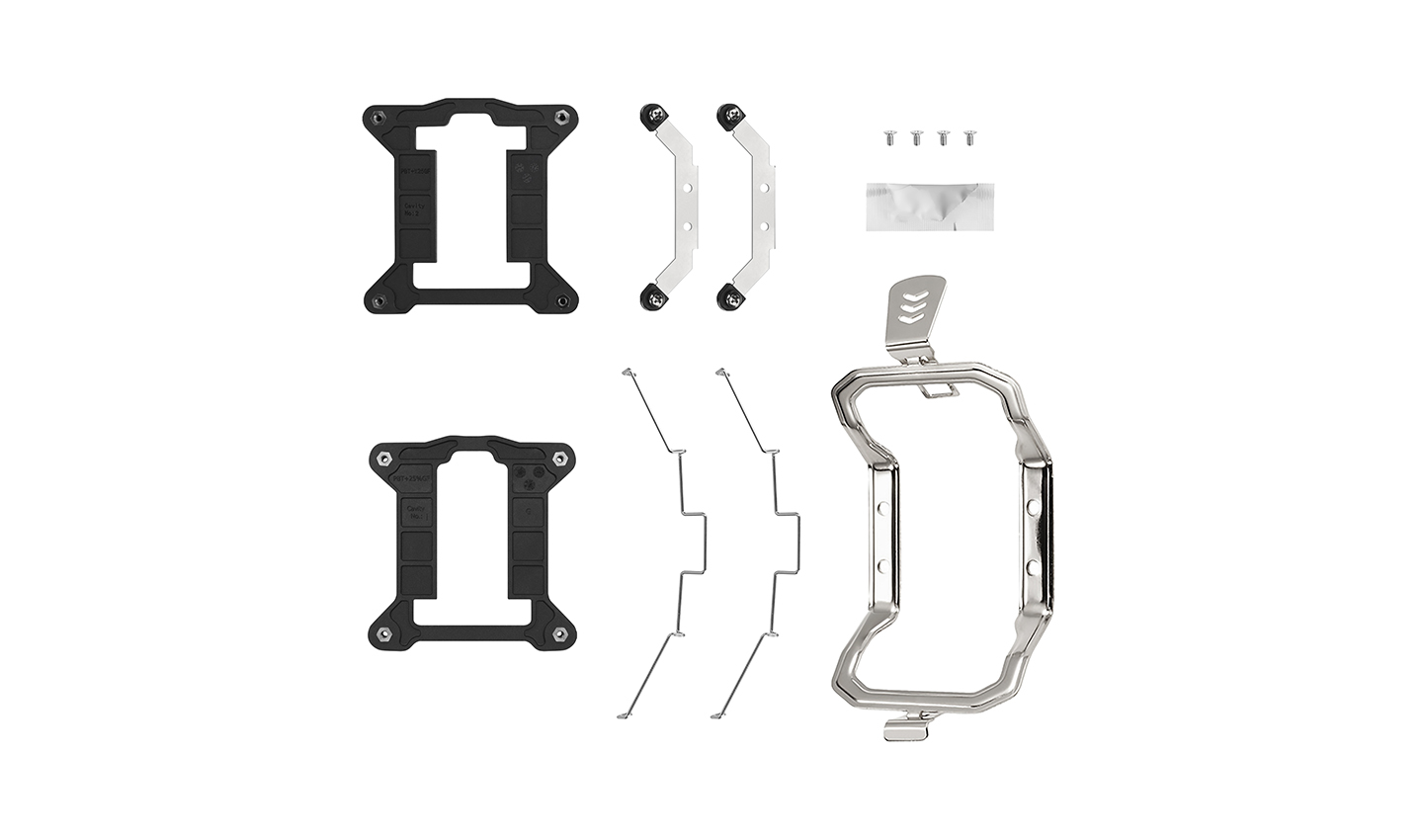

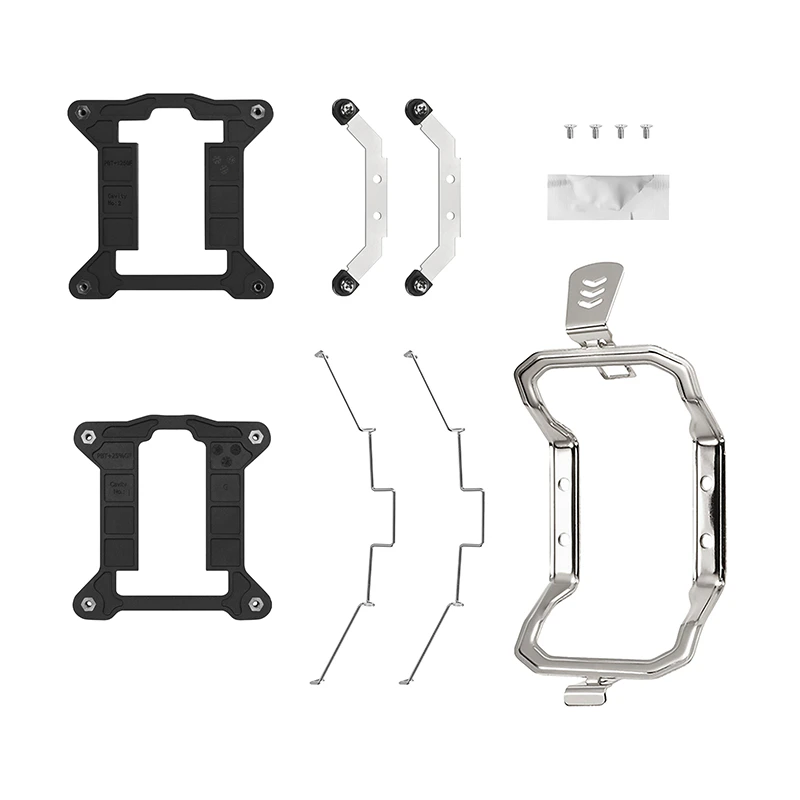

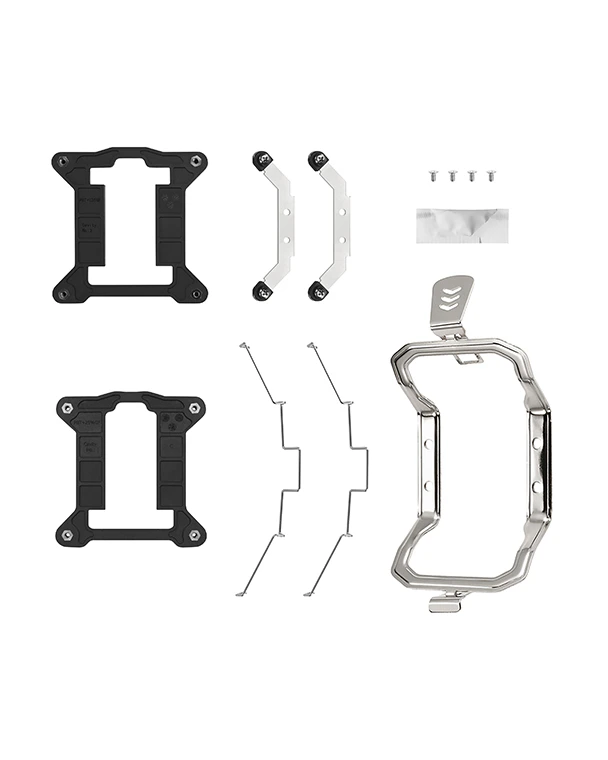

Comes with multiple clips to support: Intel LGA1700/1200/1151/1150/1155 and AMD AM5/AM4
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Overall Dimension120X81.3X143 mm(L×W×H)
Fan DimensionΦ120X25 mm
Net Weight 610g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Started Voltage 7VDC
Rated Current 0.13±10%A(MAX)
Power Input 1.56W
Fan Speed 900±150~1600±10%RPM
Max. Air Flow 54.25CFM
Noise 17.8~26.1dB(A)
EAN 6933412725282
P/N DP-MCH4N-GMS40

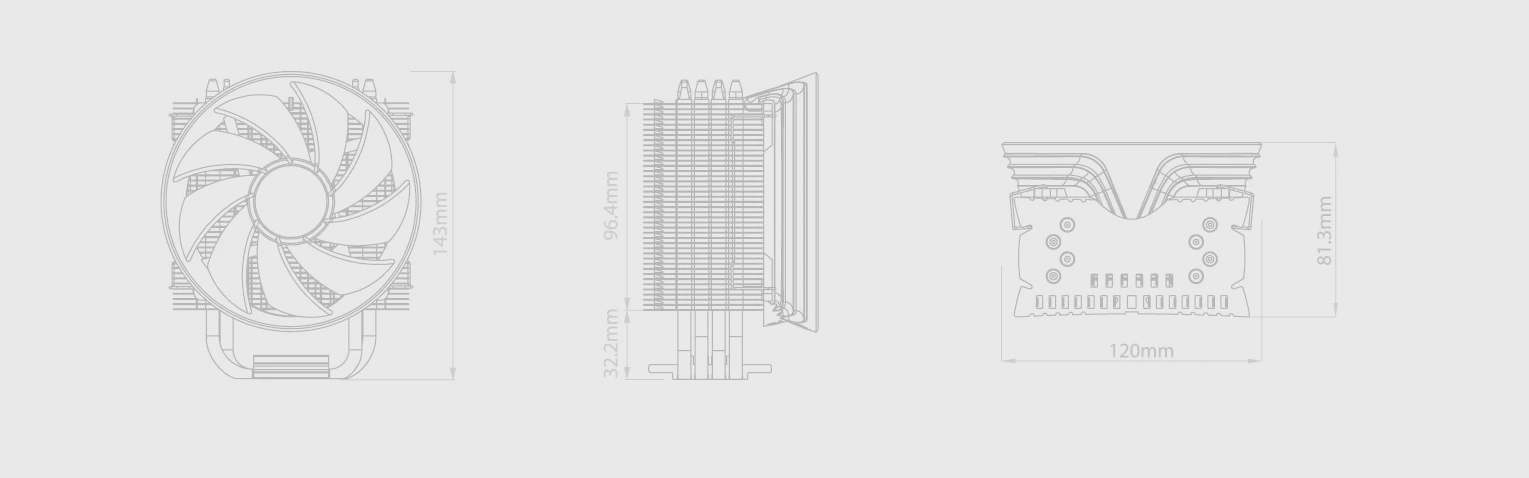

Product Dimension
Download
GAMMAXX S40 Manual.pdf
