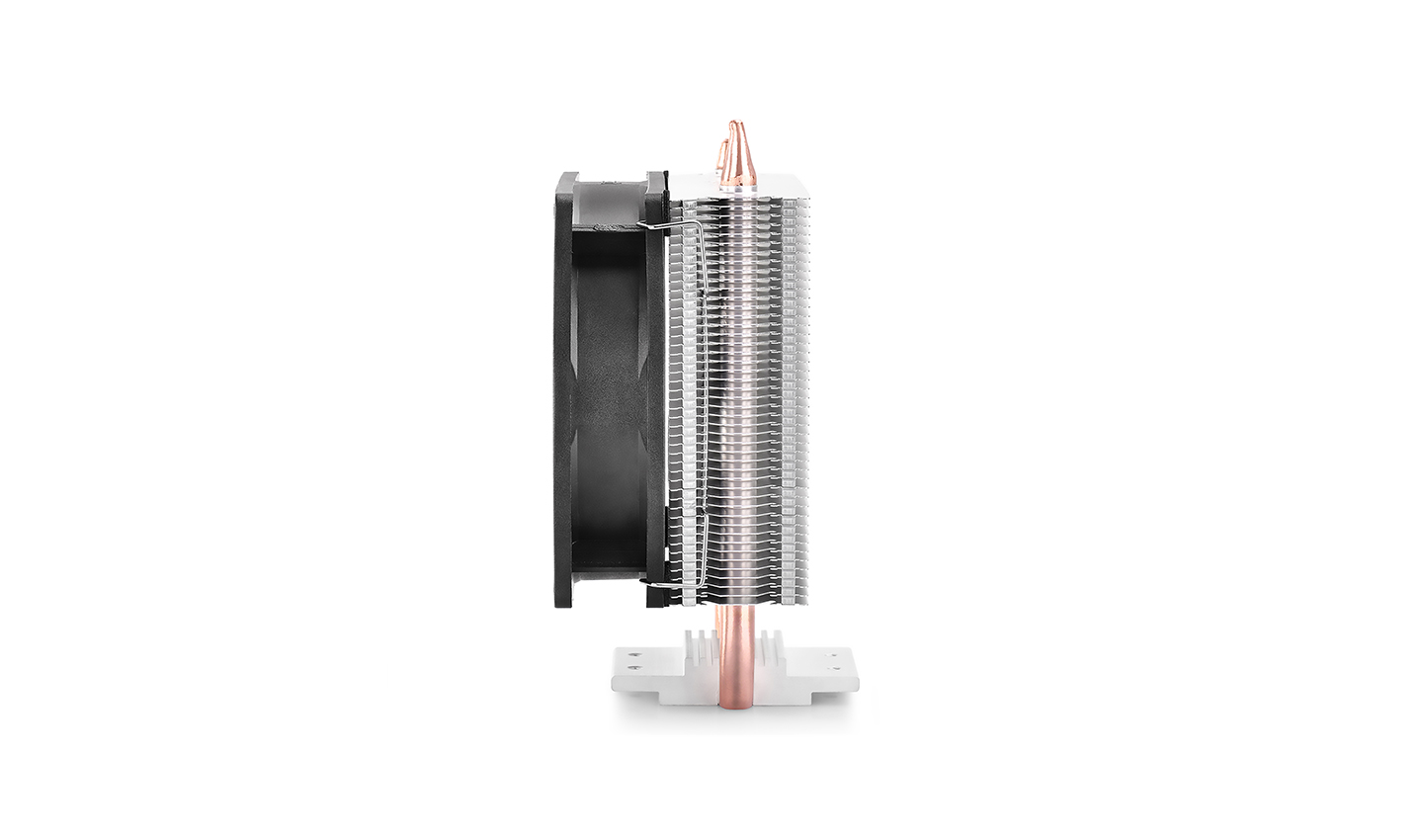

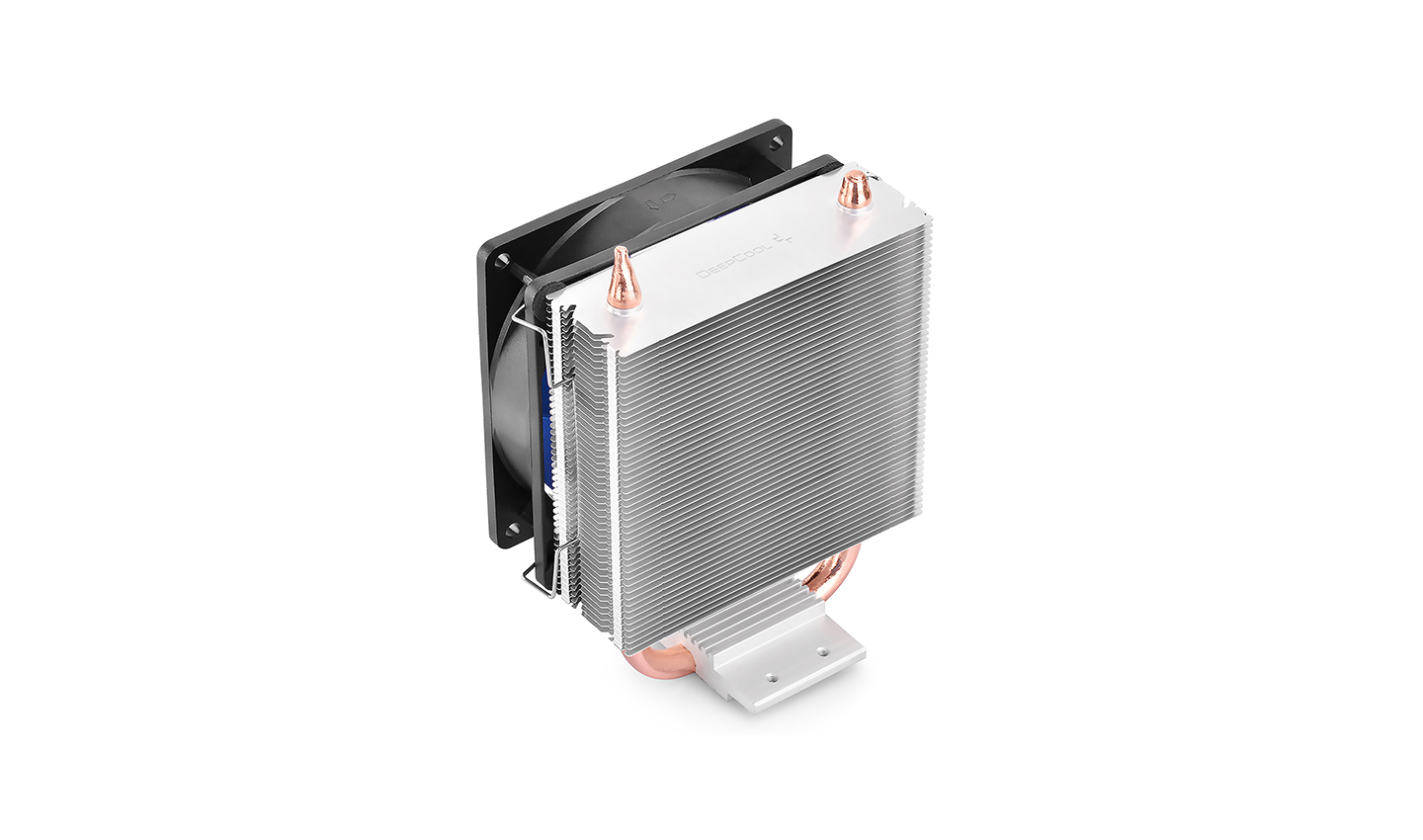

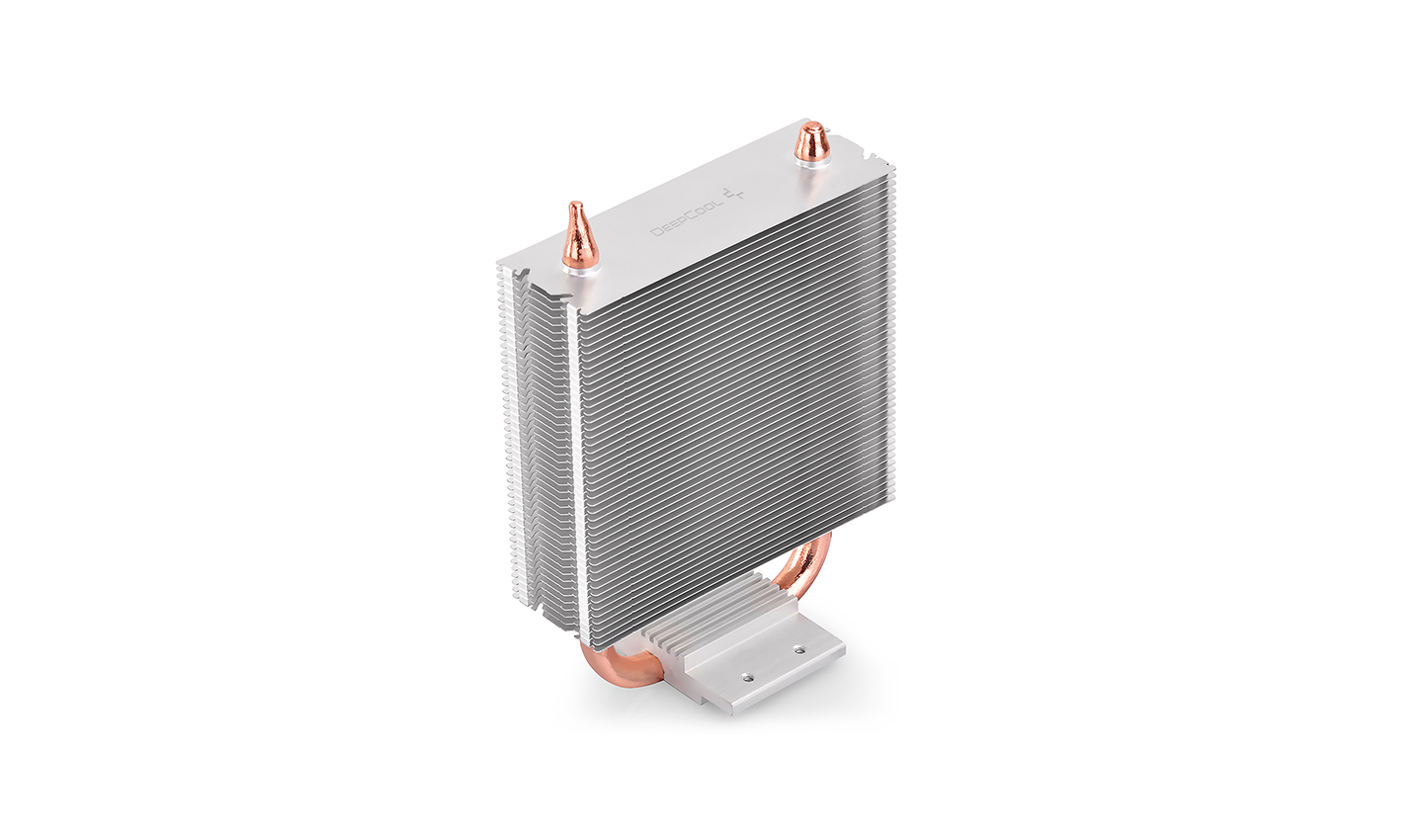

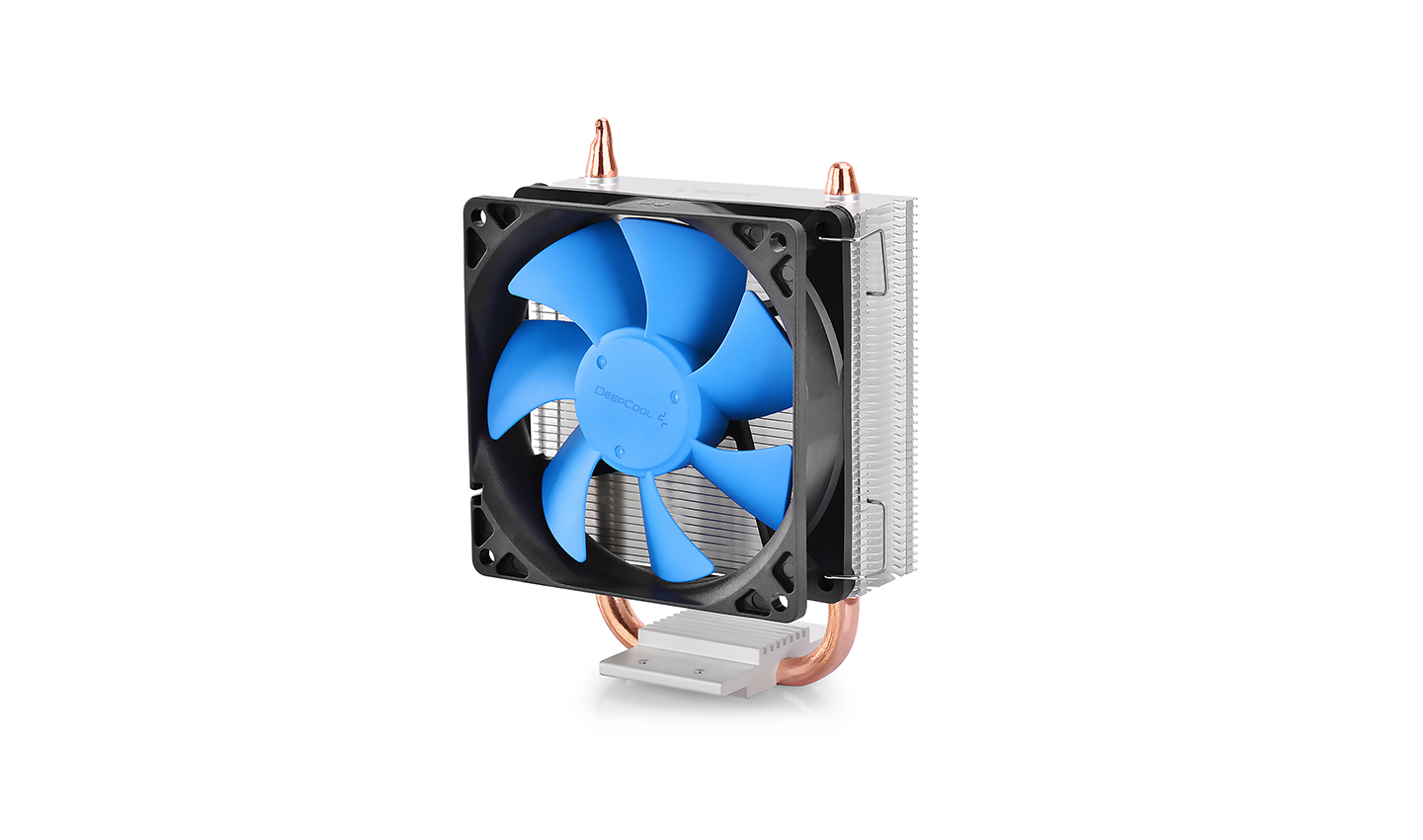

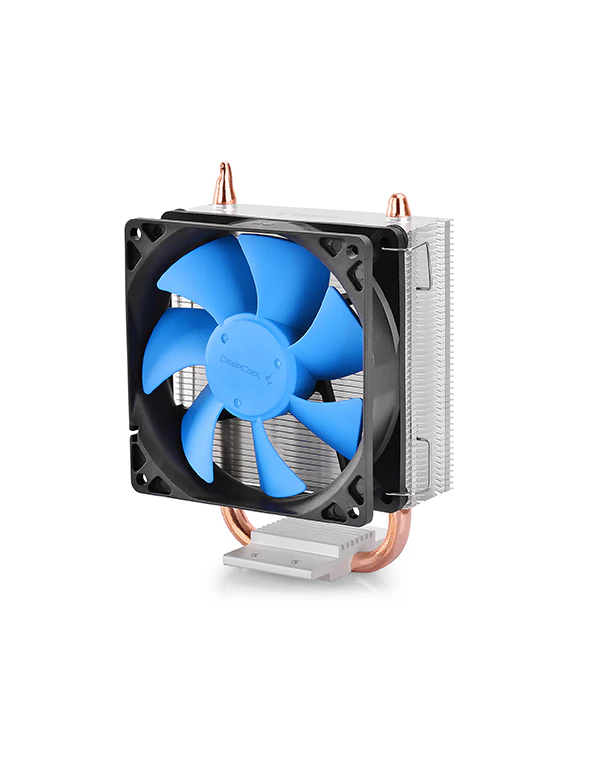

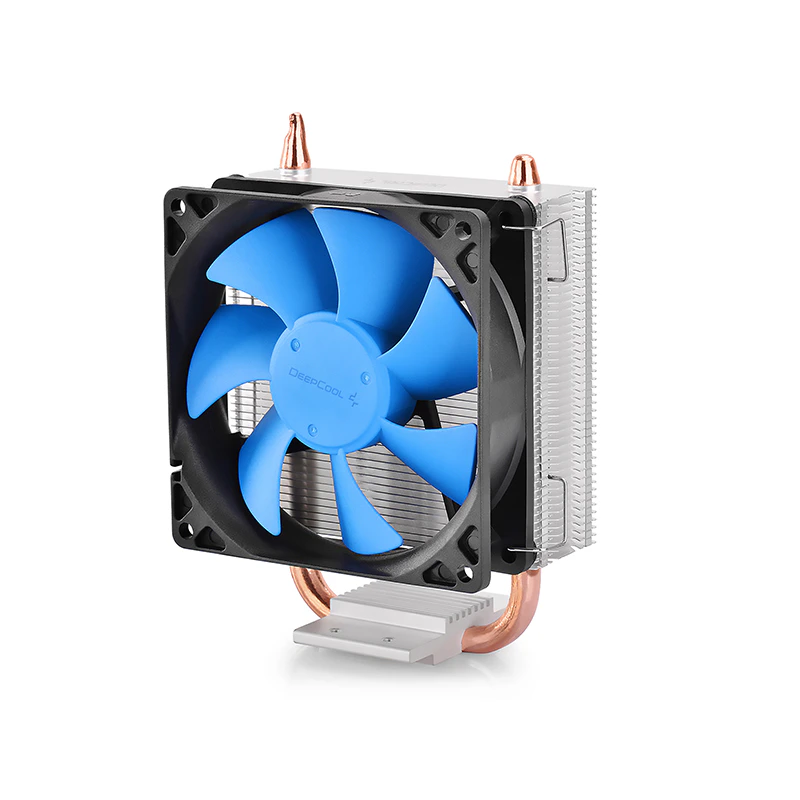

ICE BLADE 100 - DeepCool

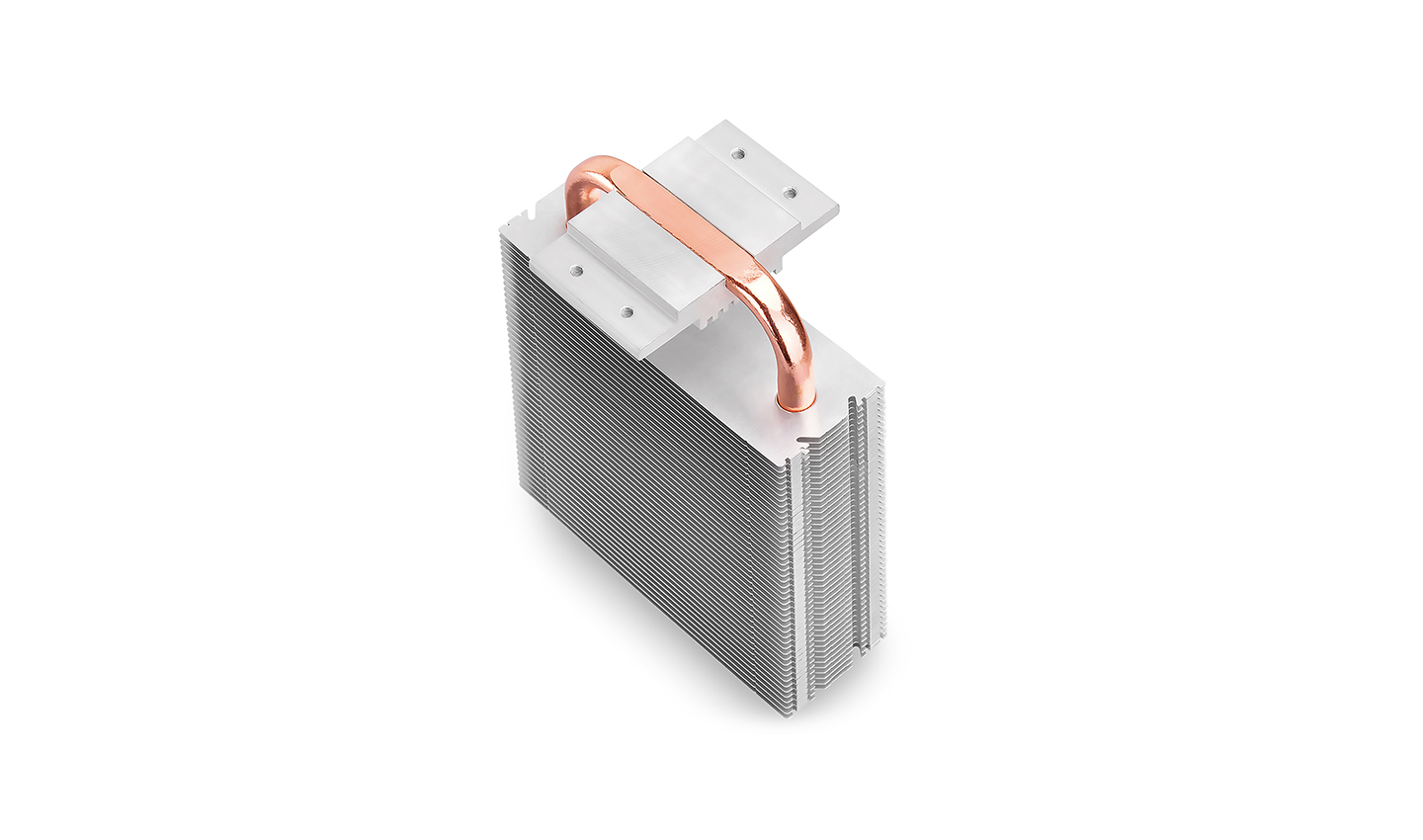

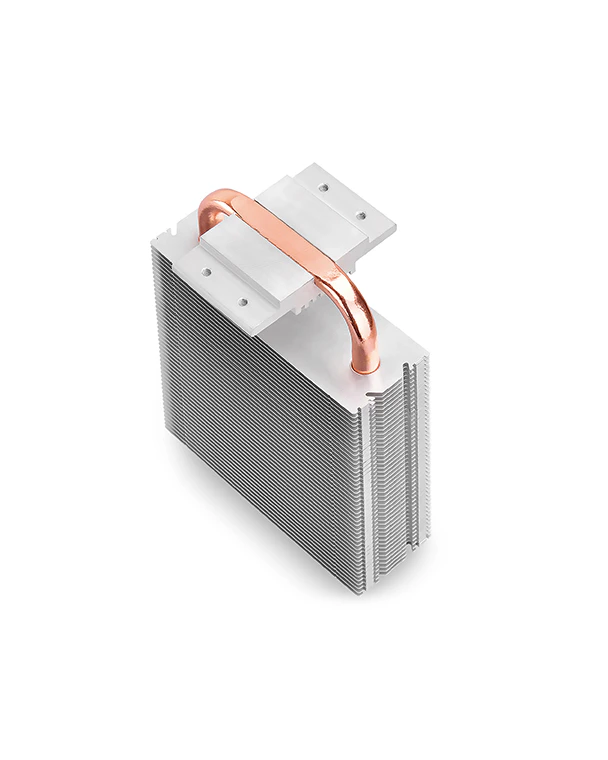

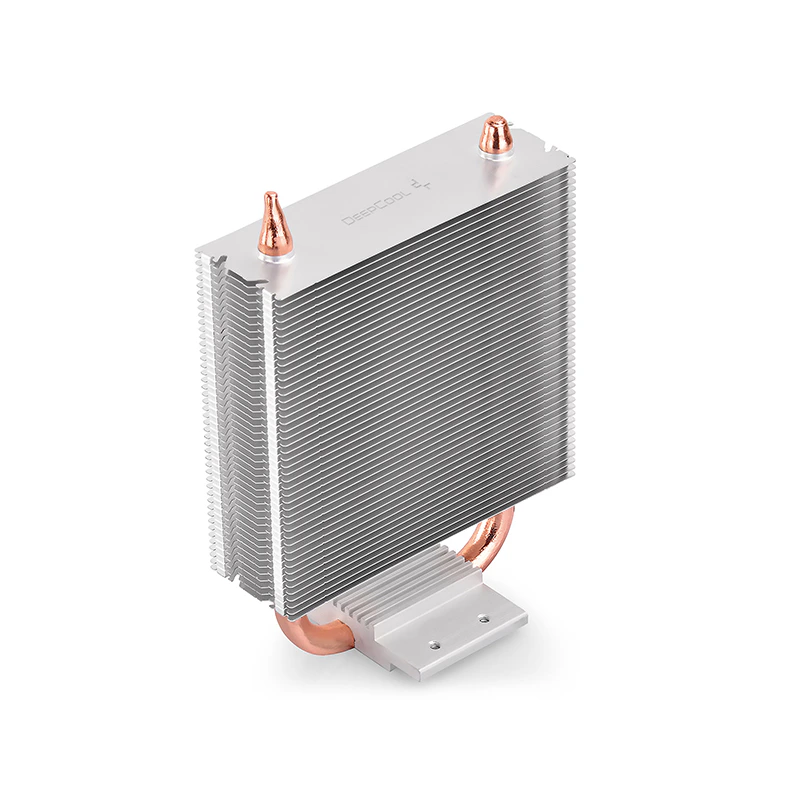

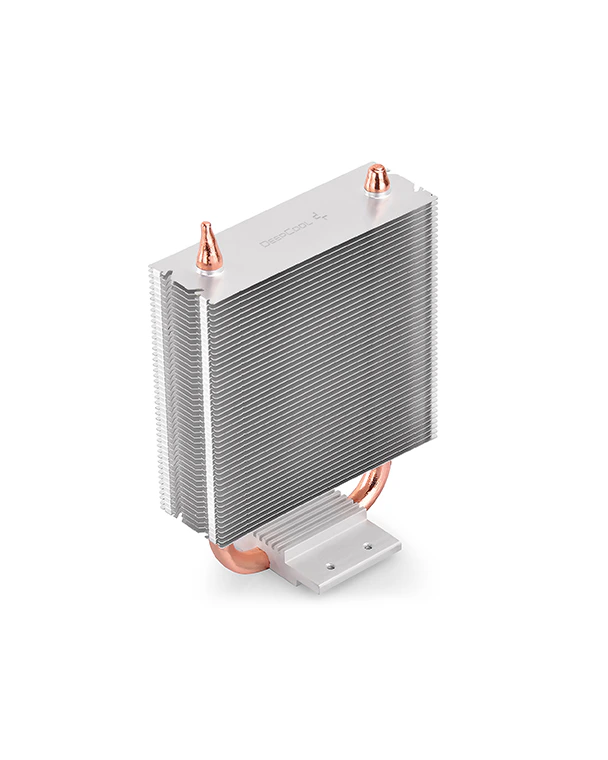

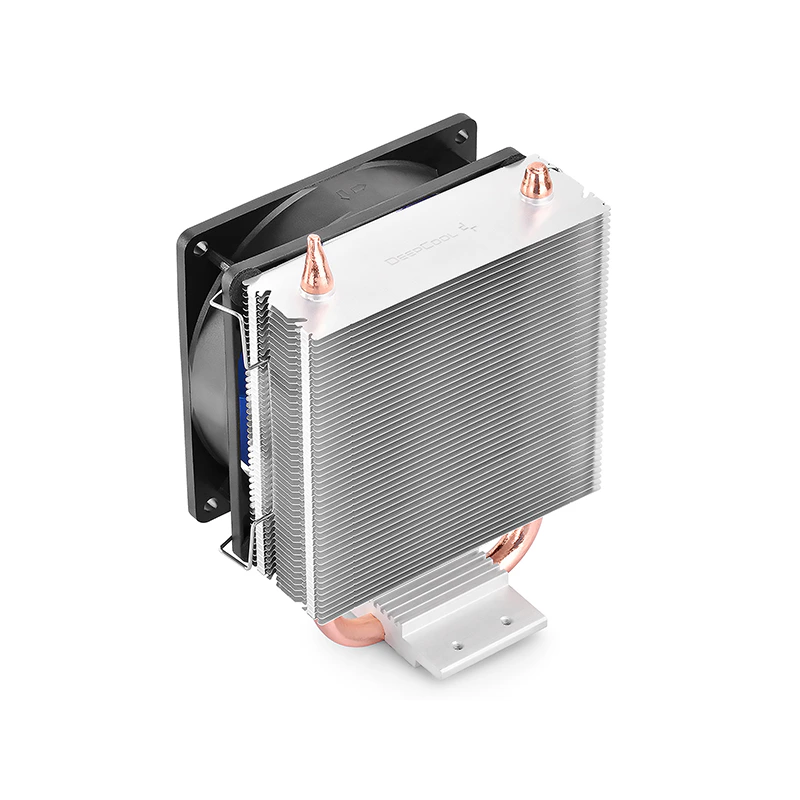

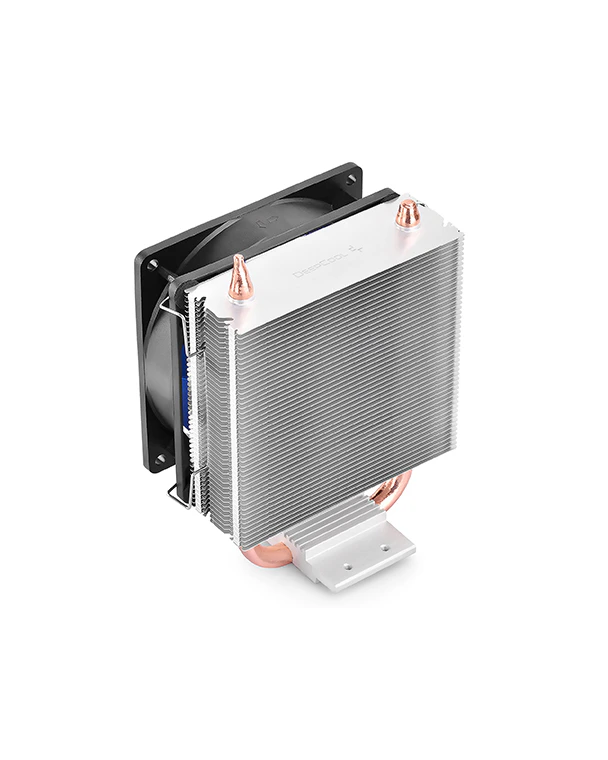

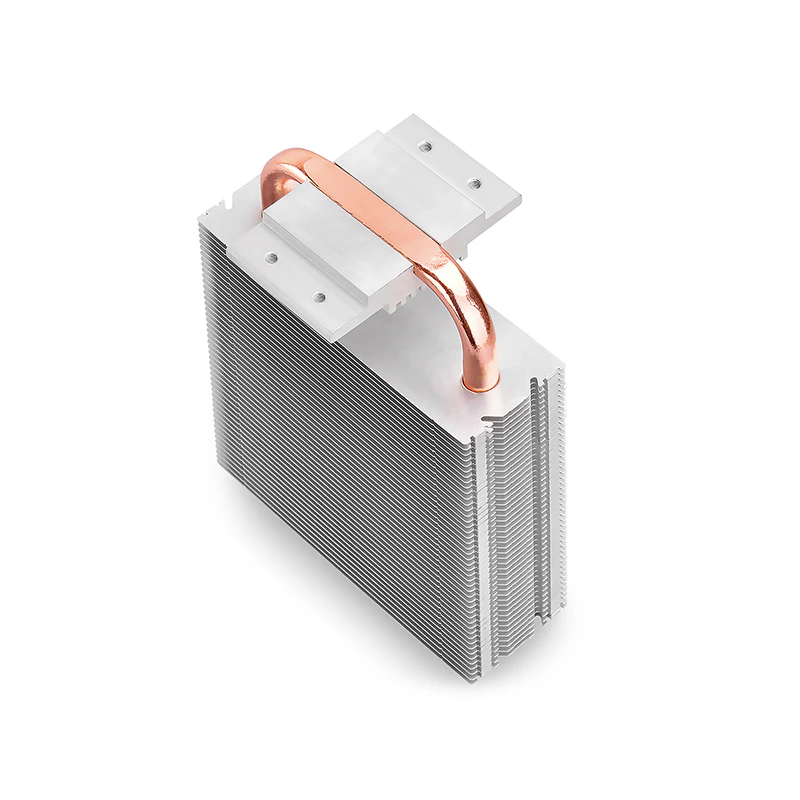

Innovative single Ø8 mm heatpipe design

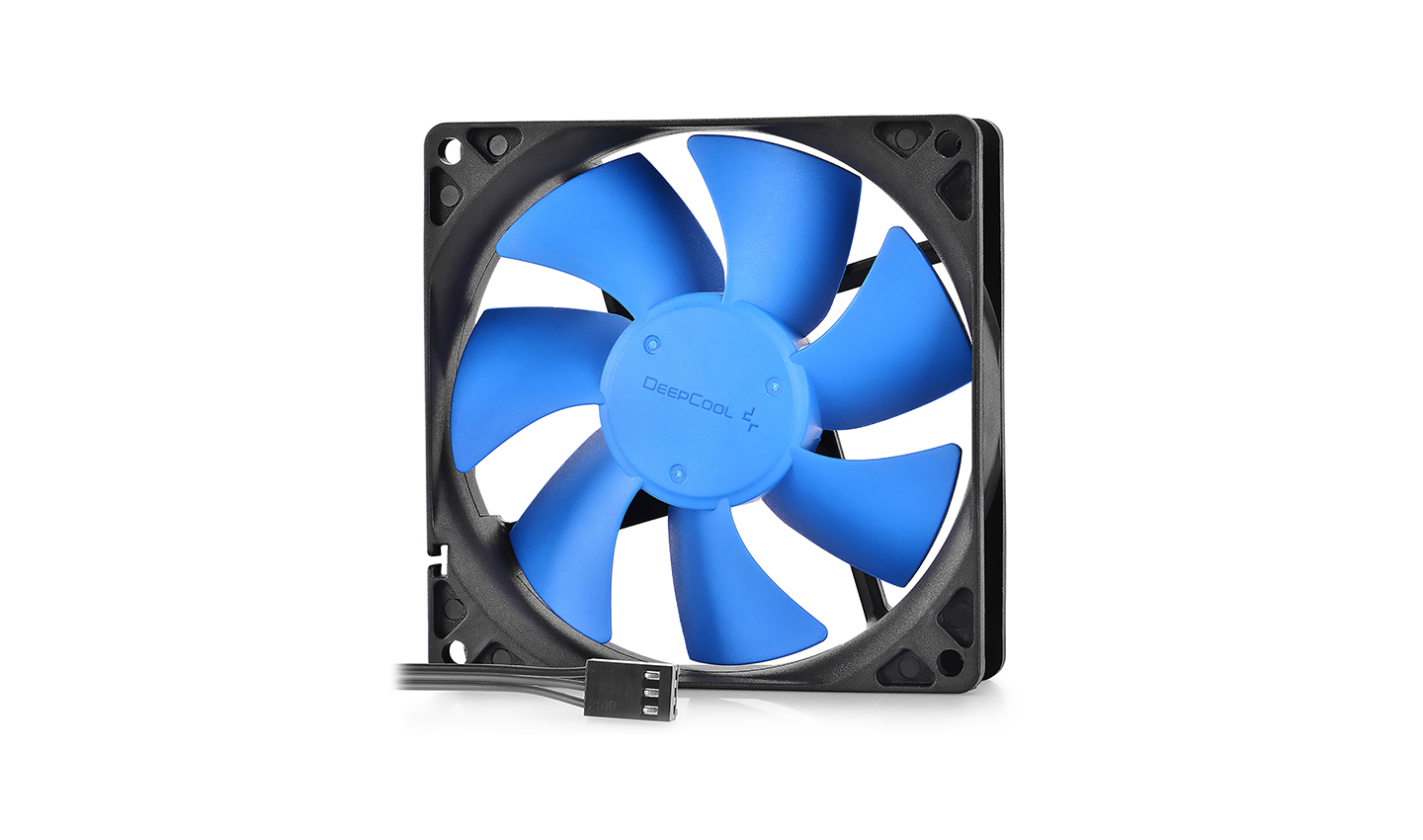

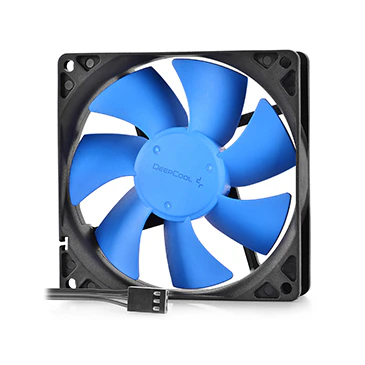

92 mm fan with blue impeller offering powerful airflows and vibration-eliminating designs

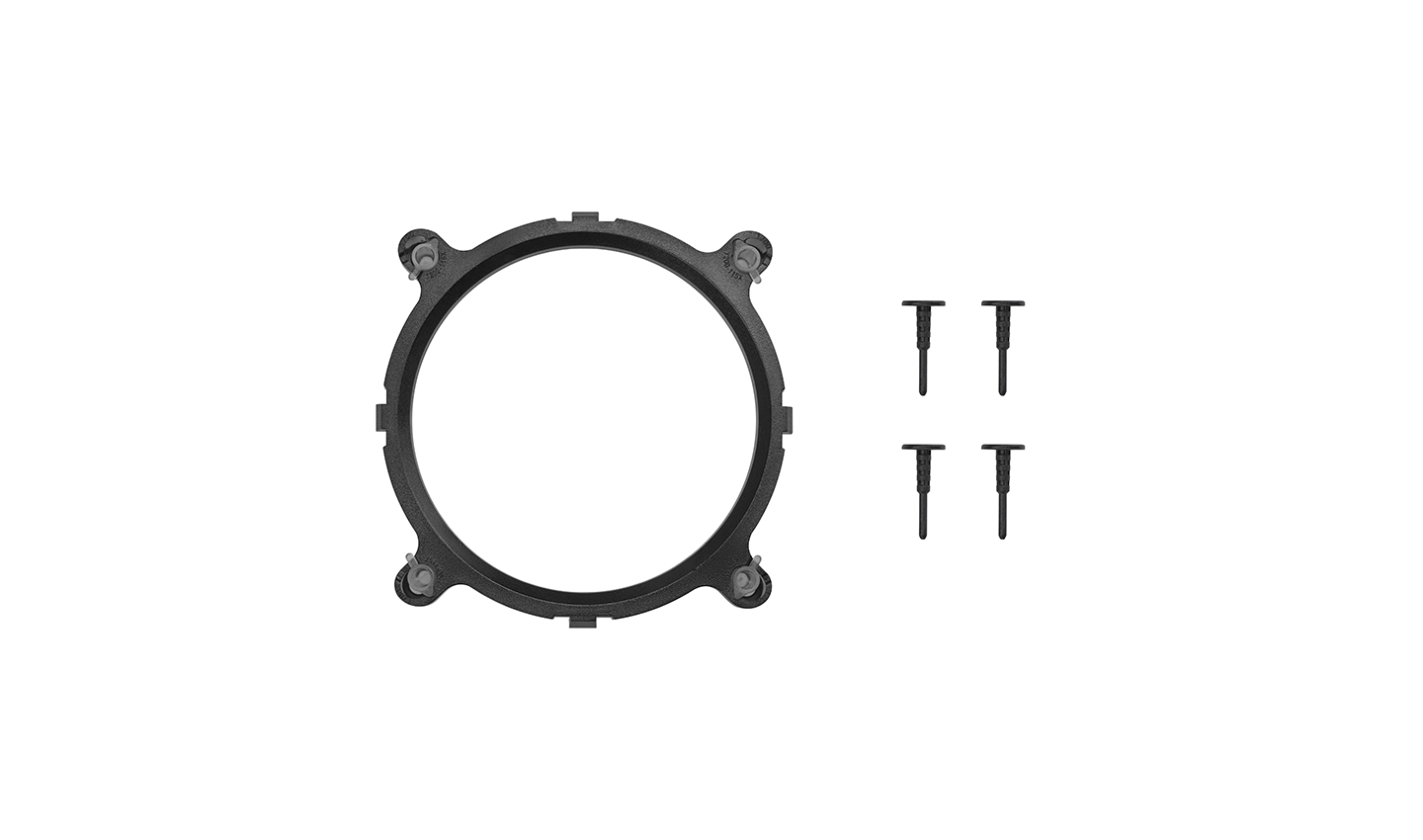

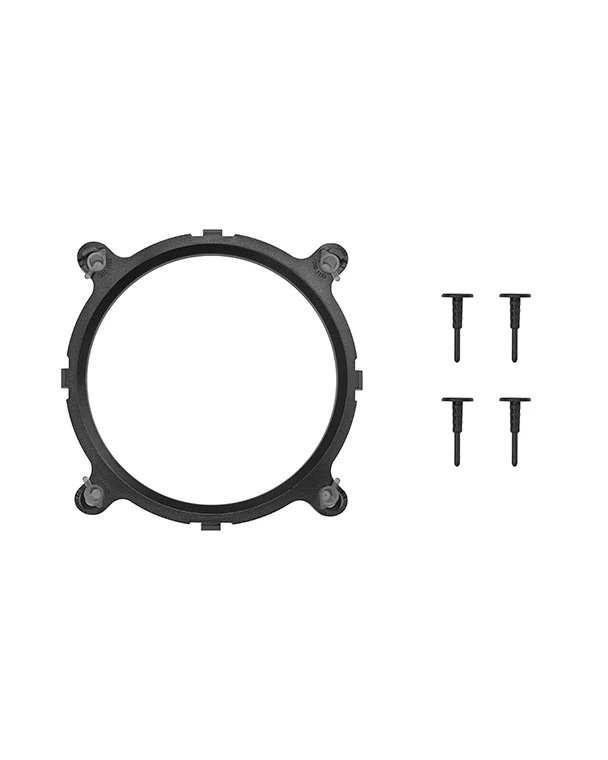

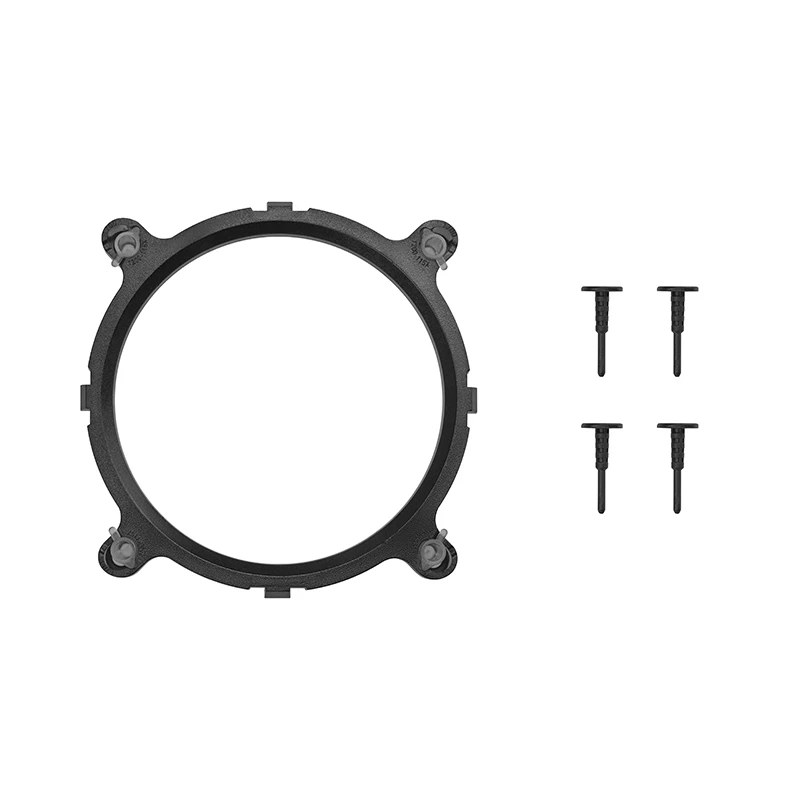

Multiple clips compatible with mainstream INTEL & AMD processors

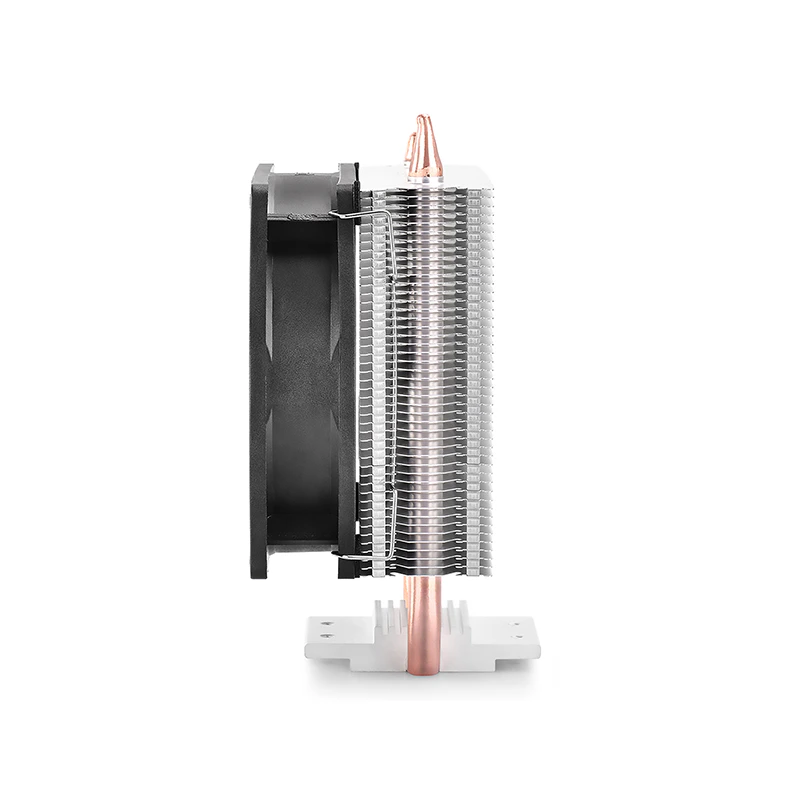

Patented Core Touch Technology (CTT) achieves a perfect contact with the CPU surface.
Up to 95W TDP solution

Application For

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM4

Technical Spec

Overall Dimension	103X70X135 mm(L×W×H)
Fan Dimension	92X92X25 mm(L×W×H)
Net Weight	309g
Bearing Type	Hydro Bearing
Rated Voltage	12VDC
Operating Voltage	10.8～13.2VDC
Started Voltage	7VDC
Rated Current	0.20±10%A

Power Input	2.4W
Fan Speed	2200±10%RPM
Max. Air Flow	42.95CFM
Noise	31.6dB(A)
EAN	6933412725312
P/N	DP-MCH1D8-IB100

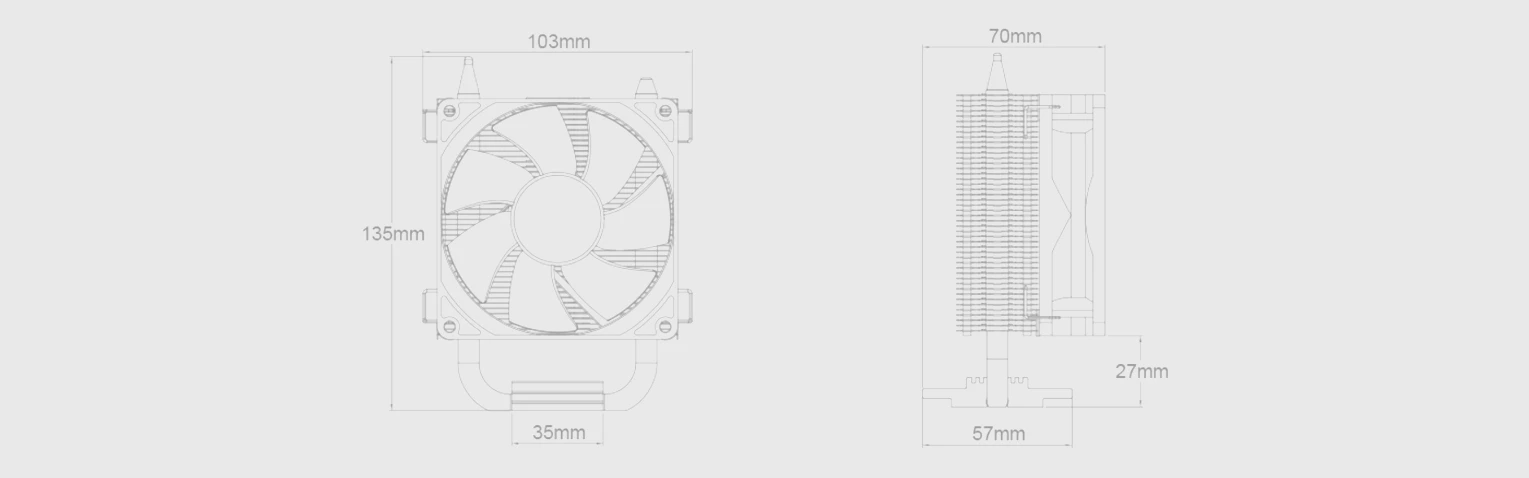

Product Dimension

Download

ICE BLADE 100 Manual.pdf
