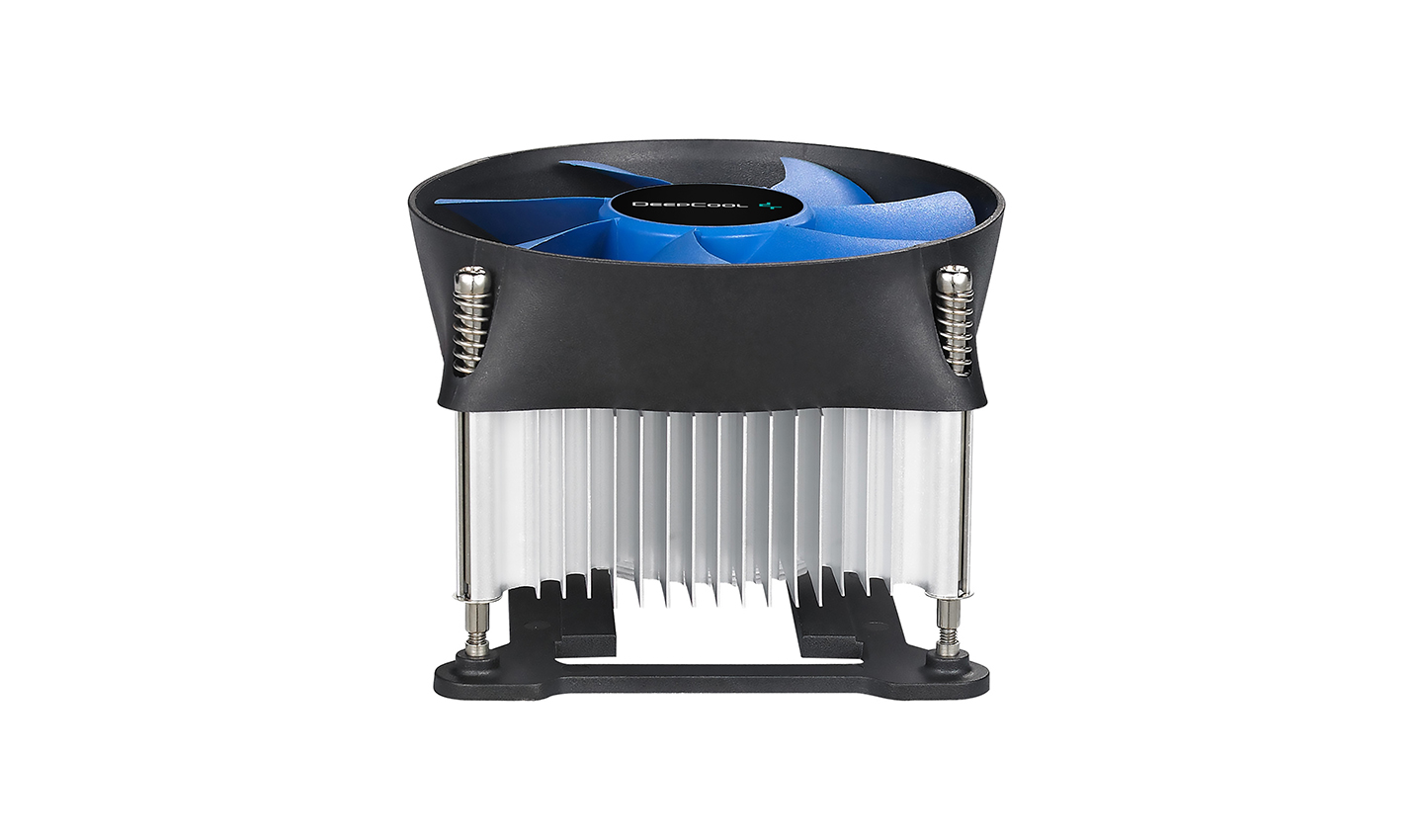

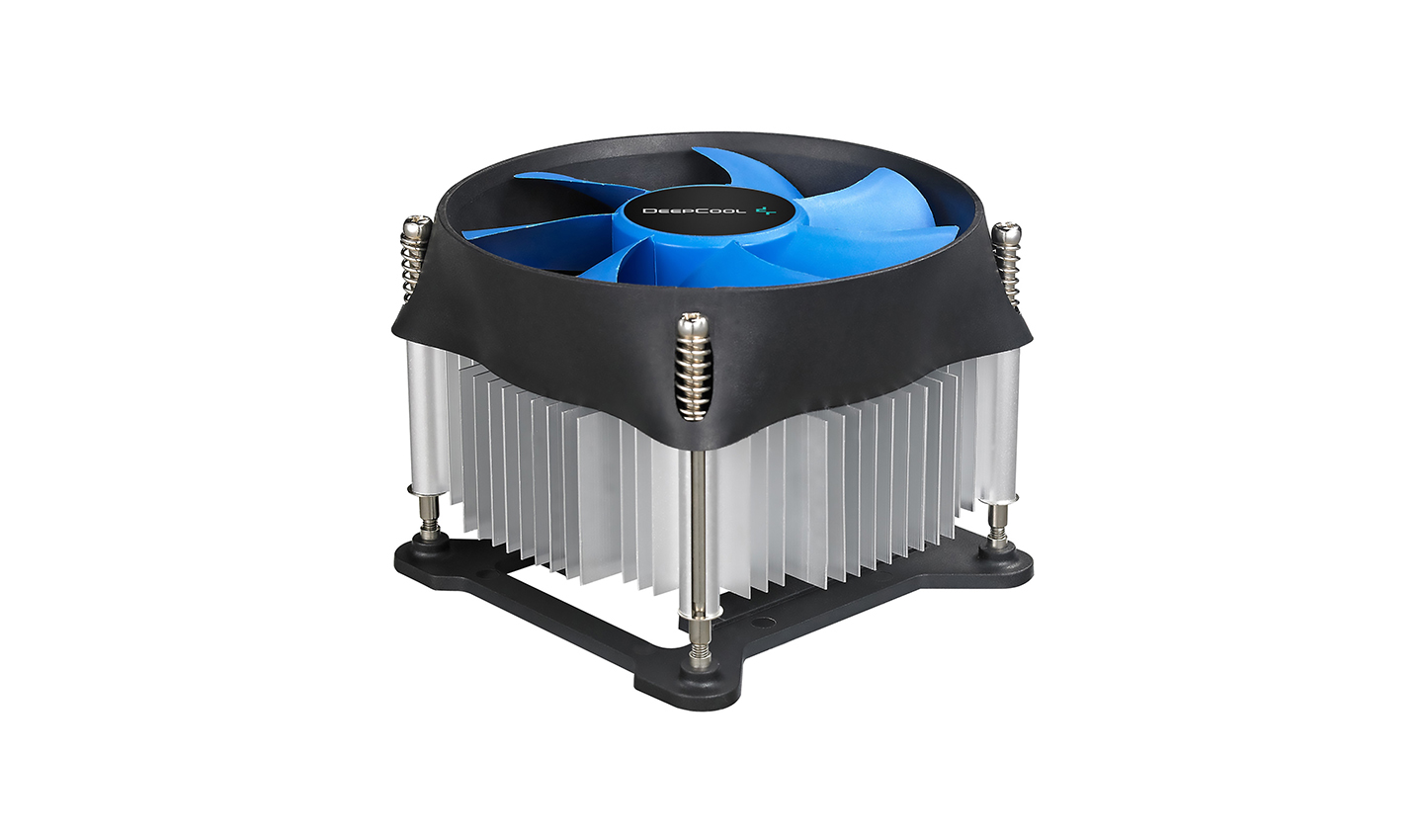

THETA 20
MODEL
Ф100 X 25 mm fan provides a perfect balance between airflow and noise.
Radial aluminum heatsink providing highly effective cooling performance.
Screw and Back Plate installation provides a safe and secure mounting.
Application For
Intel
LGA1200/1151/1150/1155
Technical Spec
Overall Dimension97.5X97.5X60 mm(L×W×H)
Fan DimensionФ100X25 mm(L×W×H)
Net Weight 375.5g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Started Voltage 7VDC
Rated Current 0.14±10%A
Power Input 1.68W
Fan Speed 2200±10%RPM
Max. Air Flow 38.15CFM
Noise 30.2dB(A)
