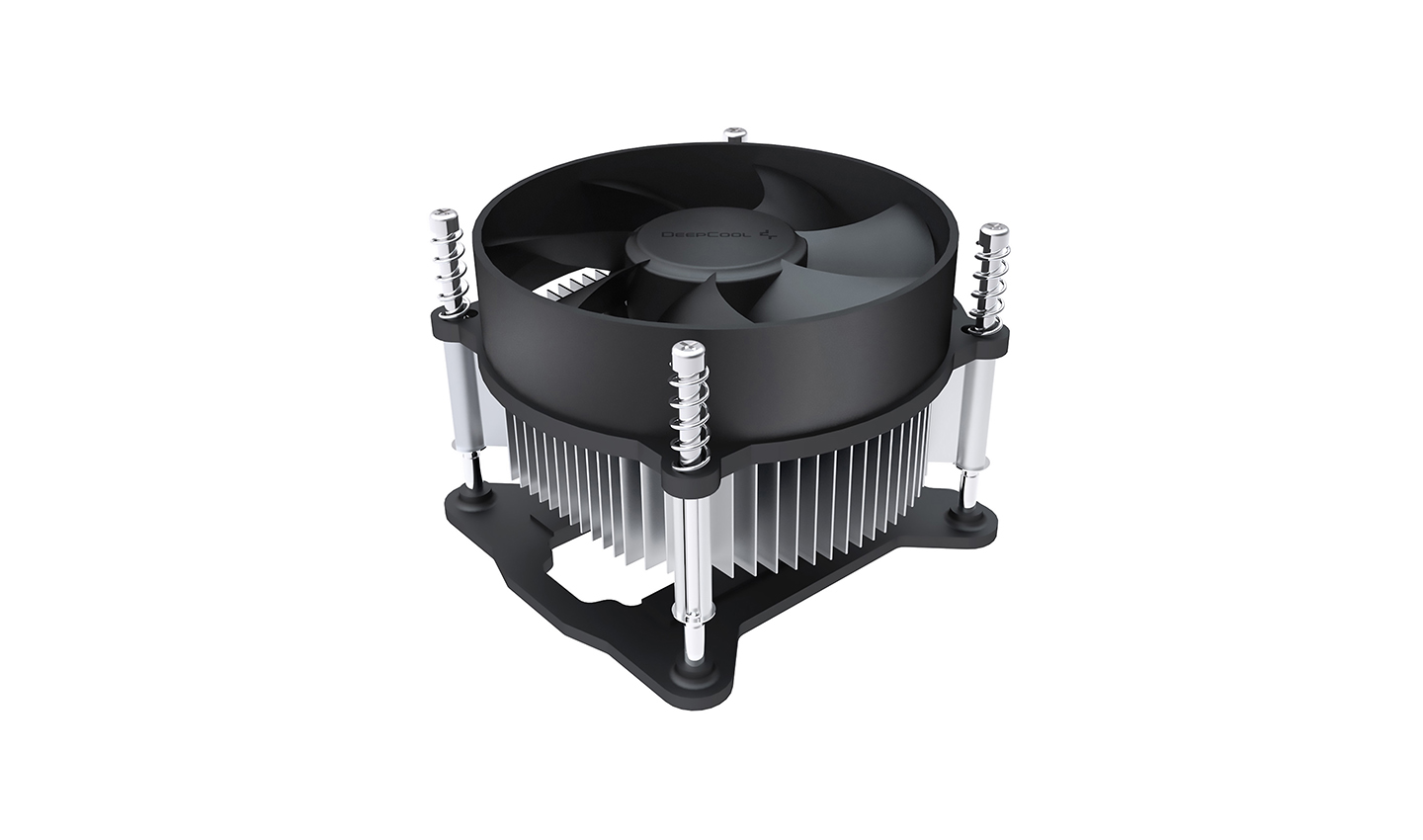

CK-11508
MODEL
Quality heatsink with Ф92 mm fans for highly efficient heat dissipation.
Screws and back plate provide a secure installation to improve system safety.
Application For
Intel
LGA1200/1151/1150/1155
Technical Spec
Overall Dimension95X95X69.5 mm(L×W×H)
Fan DimensionΦ92X25 mm
Net Weight 245g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8～13.2VDC
Started Voltage 7VDC
Rated Current 0.20±10%A
Power Input 2.4W
Fan Speed 2200±10%RPM
Max. Air Flow 42.35CFM
Noise 30.1dB(A)
Product Dimension
