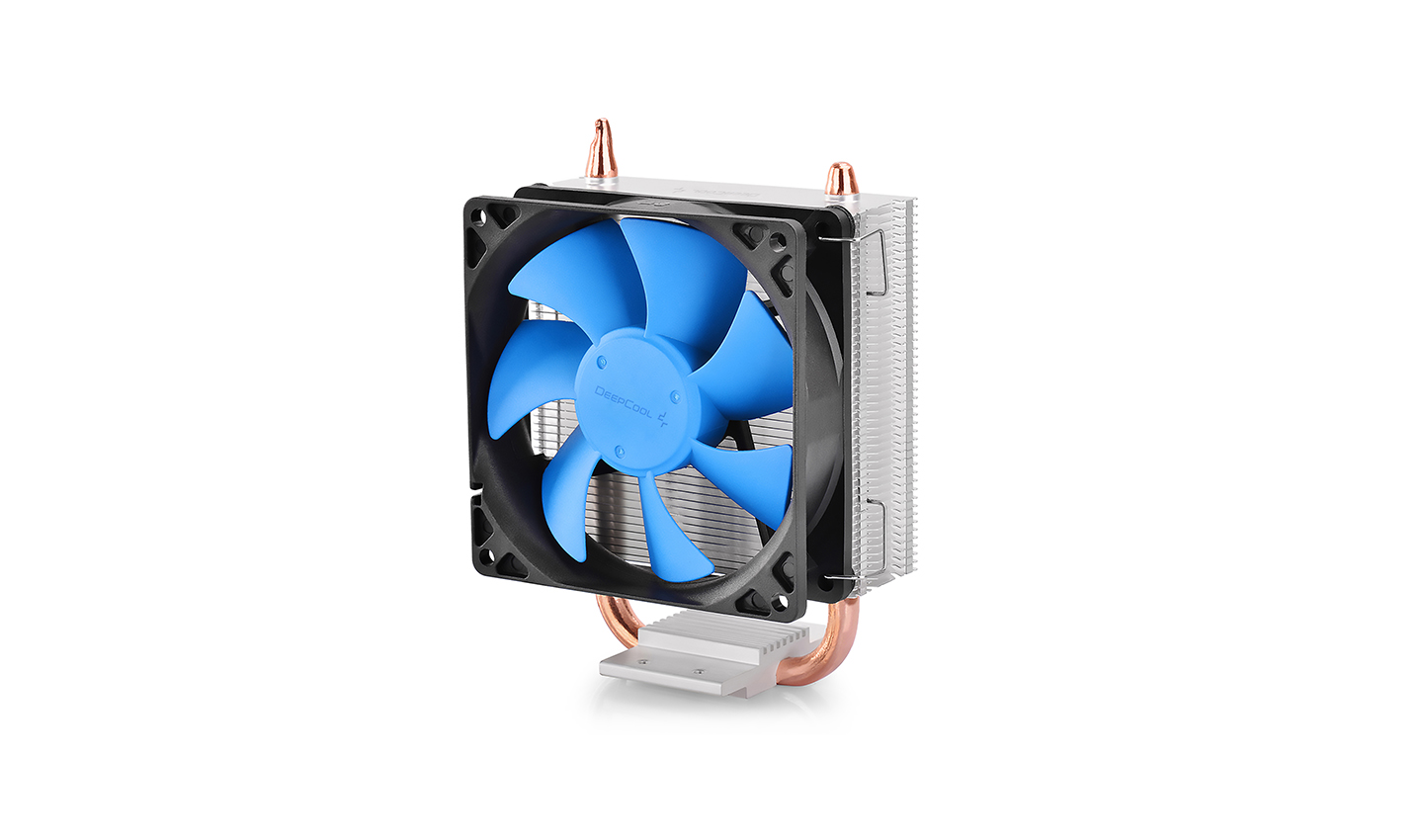

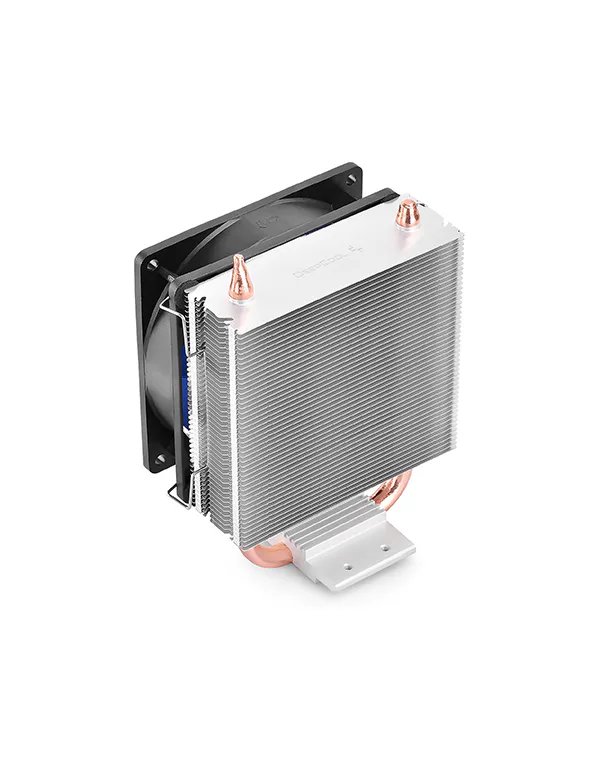

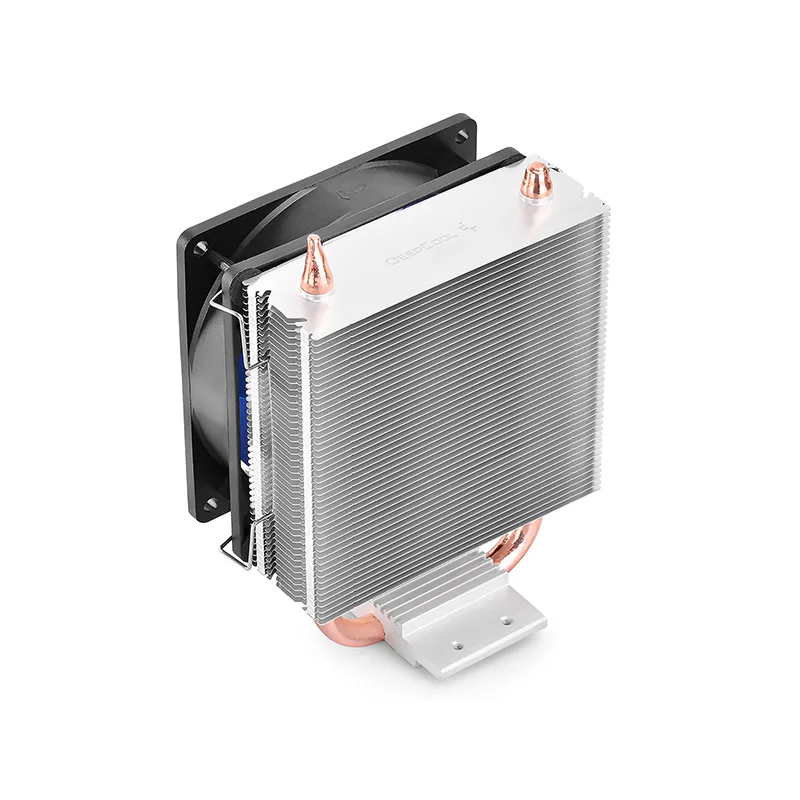

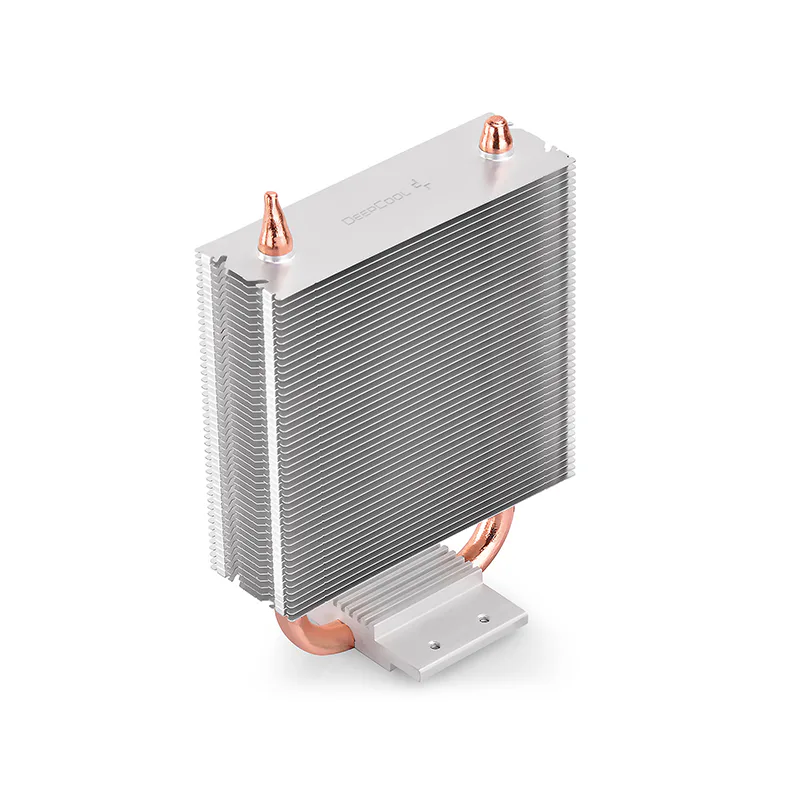

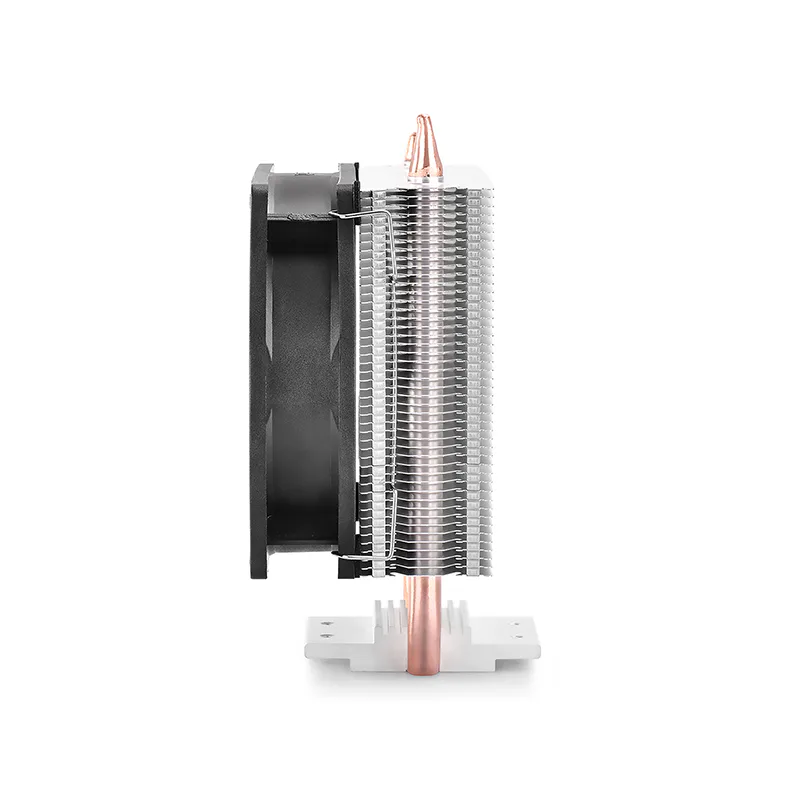

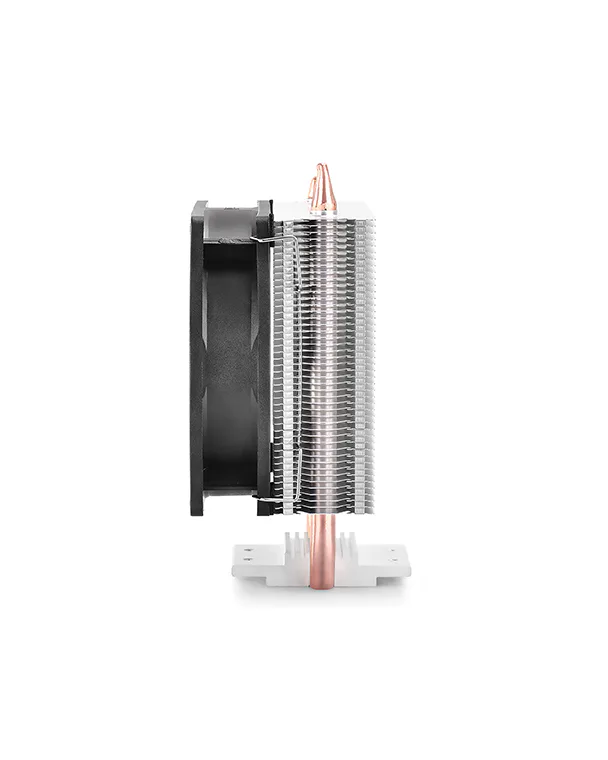

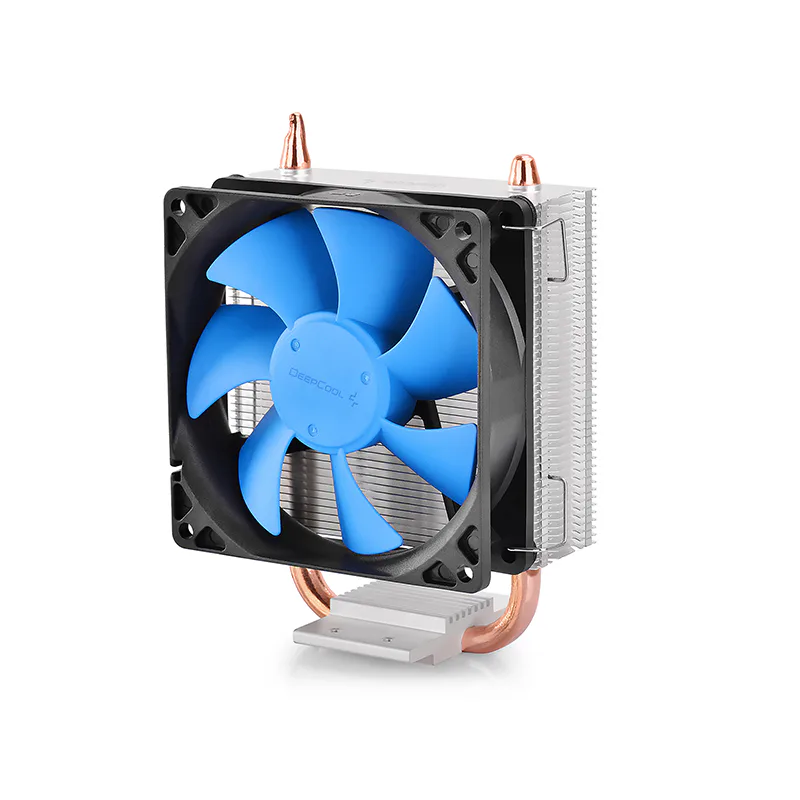

ICE BLADE 100 PWM

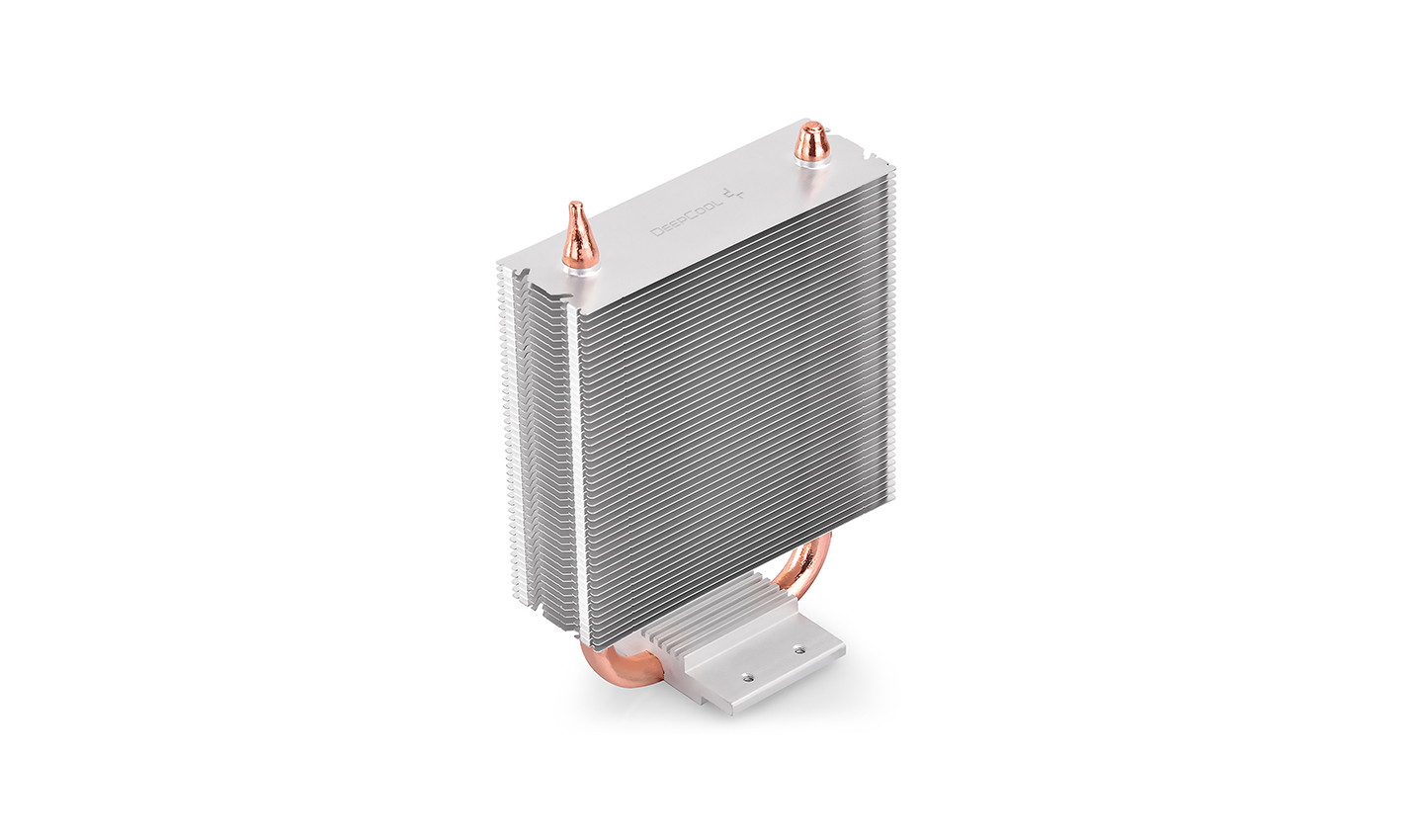

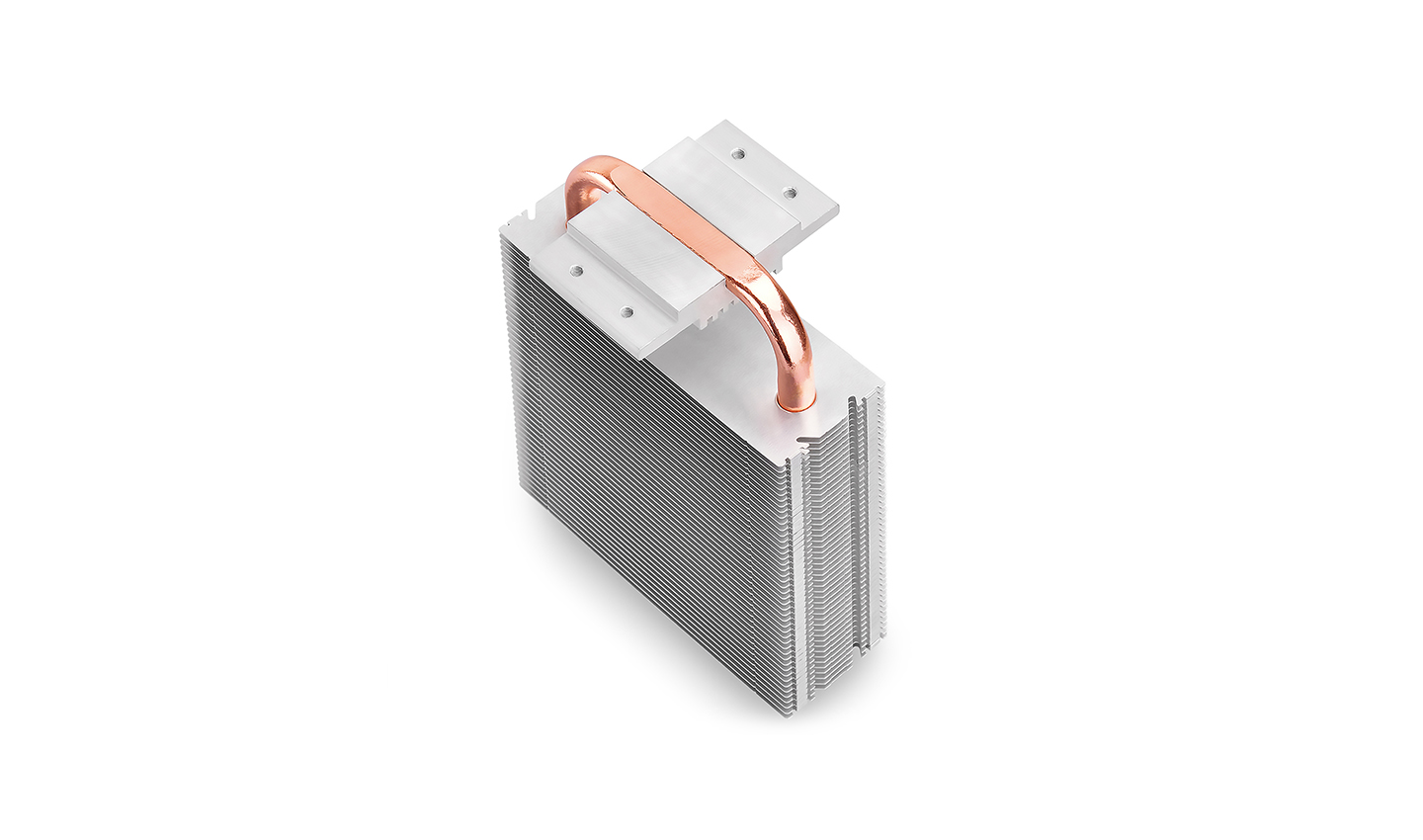

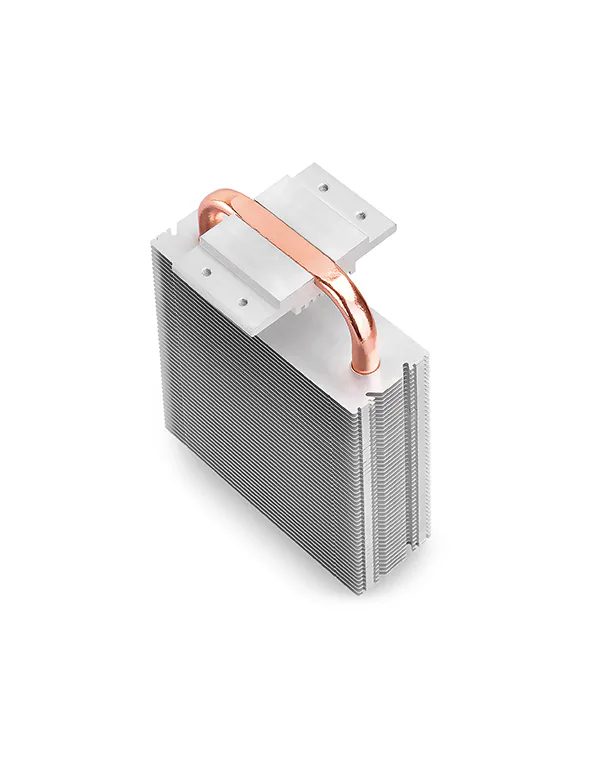

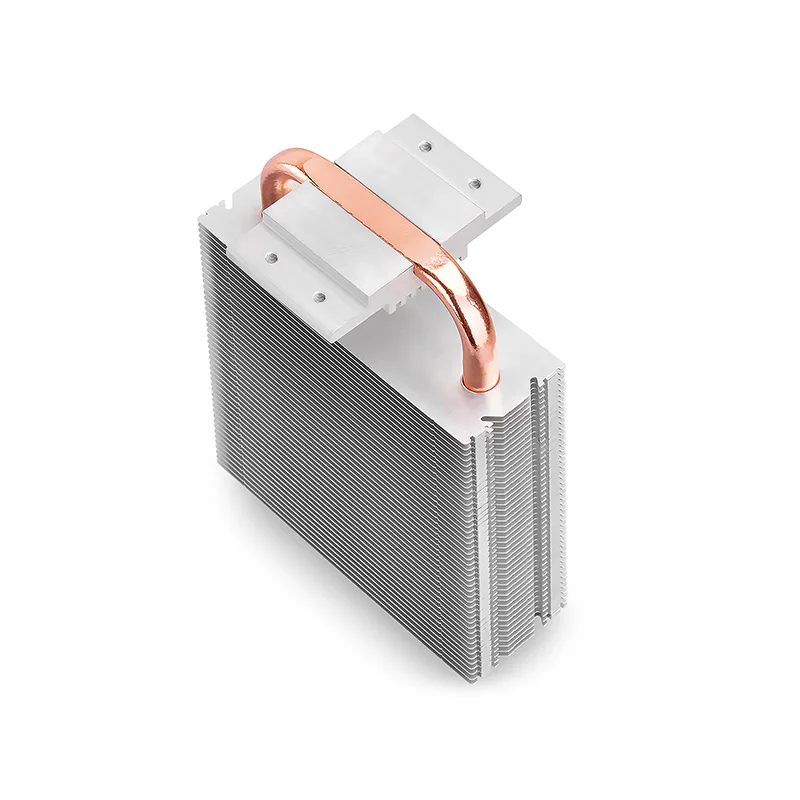

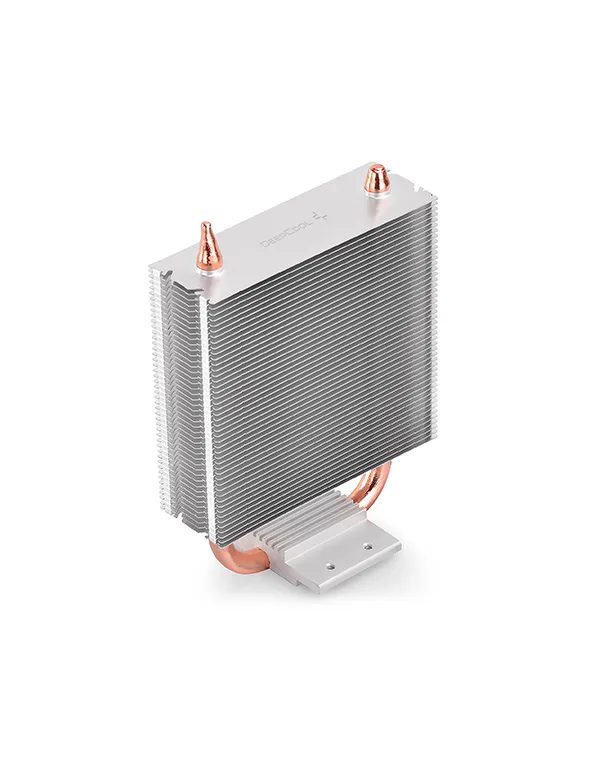

Innovative single Ø8 mm heatpipe design

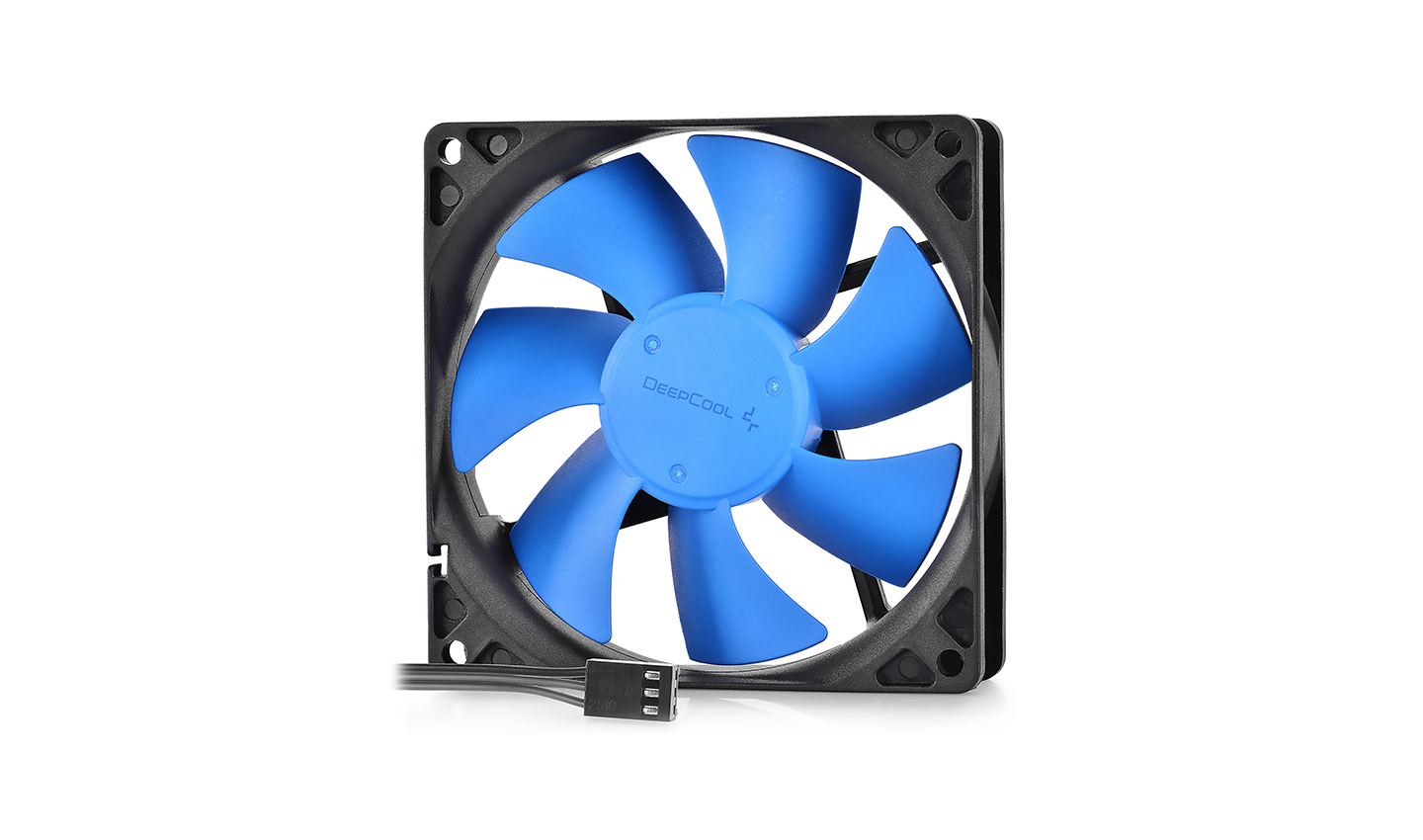

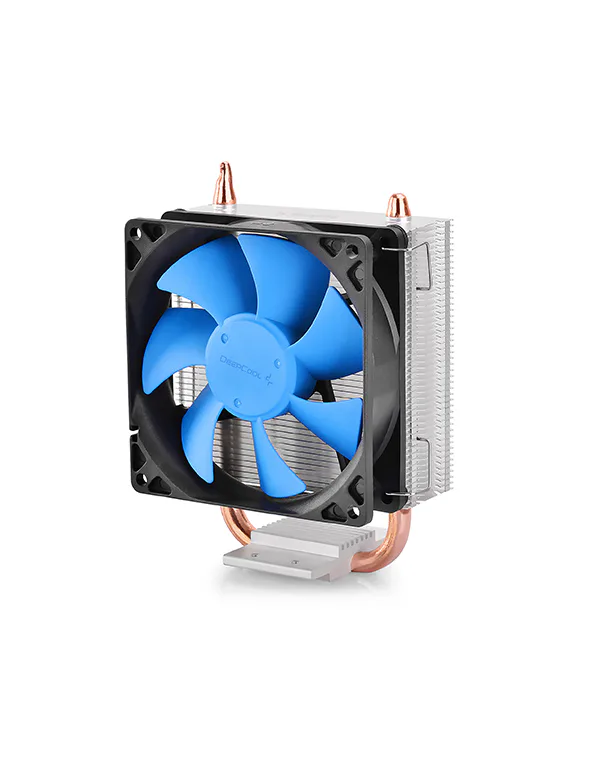

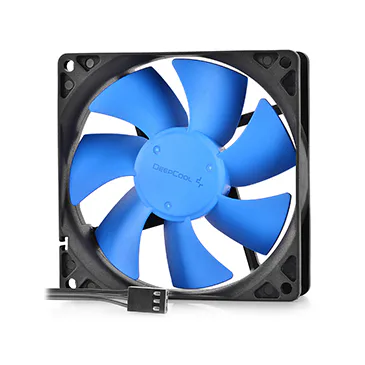

92 mm fan with blue impeller offering powerful airflows and vibration-eliminating designs

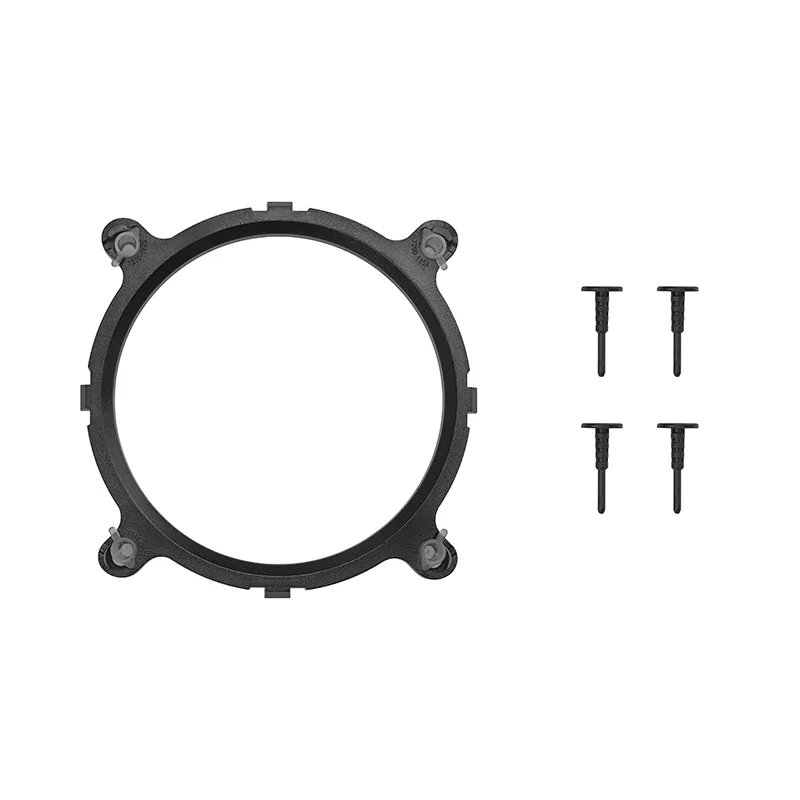

Multiple clips compatible with mainstream INTEL & AMD processors
Patented Core Touch Technology (CTT) achieves a perfect contact with the CPU surface.
Up to 95W TDP solution

Application For

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Heatsink Dimensions	103×57×135 mm(L×W×H)
Fan Dimension	92X92X25 mm(L×W×H)
Net Weight	309g
Bearing Type	Hydro Bearing
Rated Voltage	12VDC
Operating Voltage	10.8～13.2VDC
Started Voltage	7VDC
Rated Current	0.19 A
Fan Power Consumption	2.28 W
Fan Speed	900~2200 RPM±10%
Fan Airflow	38.5 CFM
Noise	≤29.2 dB(A)
EAN	6933412726920
P/N	DP-MCH1D8-IB100PWM

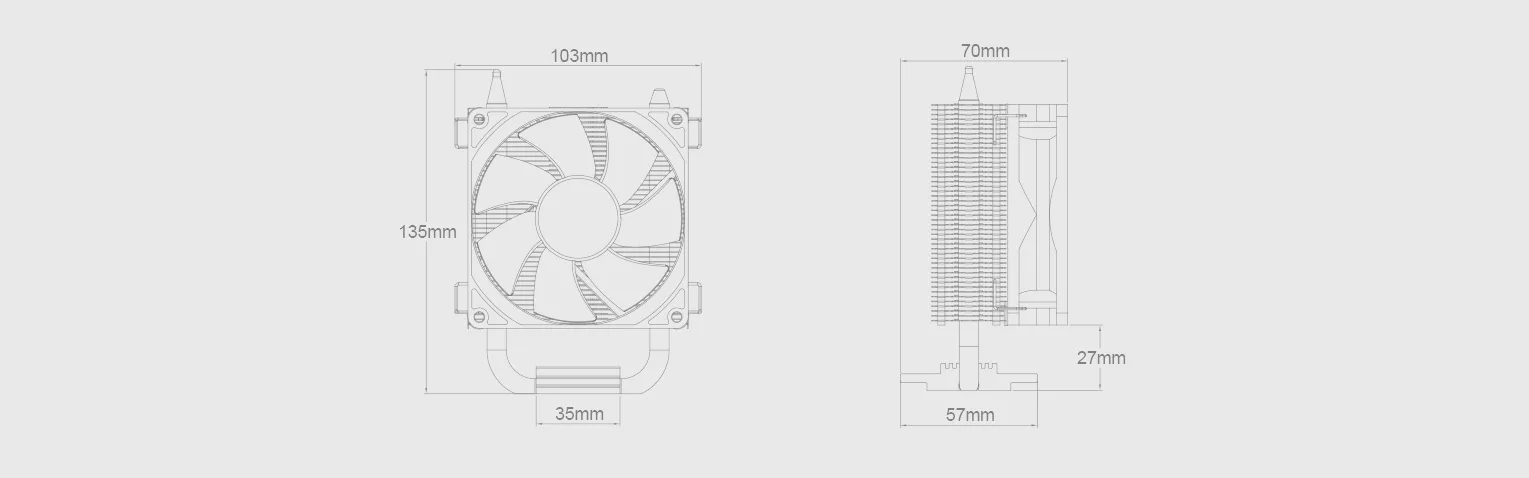

Product Dimension

Download

ICE BLADE 100 PWM Manual.pdf
