NEPTWIN V3
MODEL
NEPTWIN V3
Optimized for overclocking
The legend continues

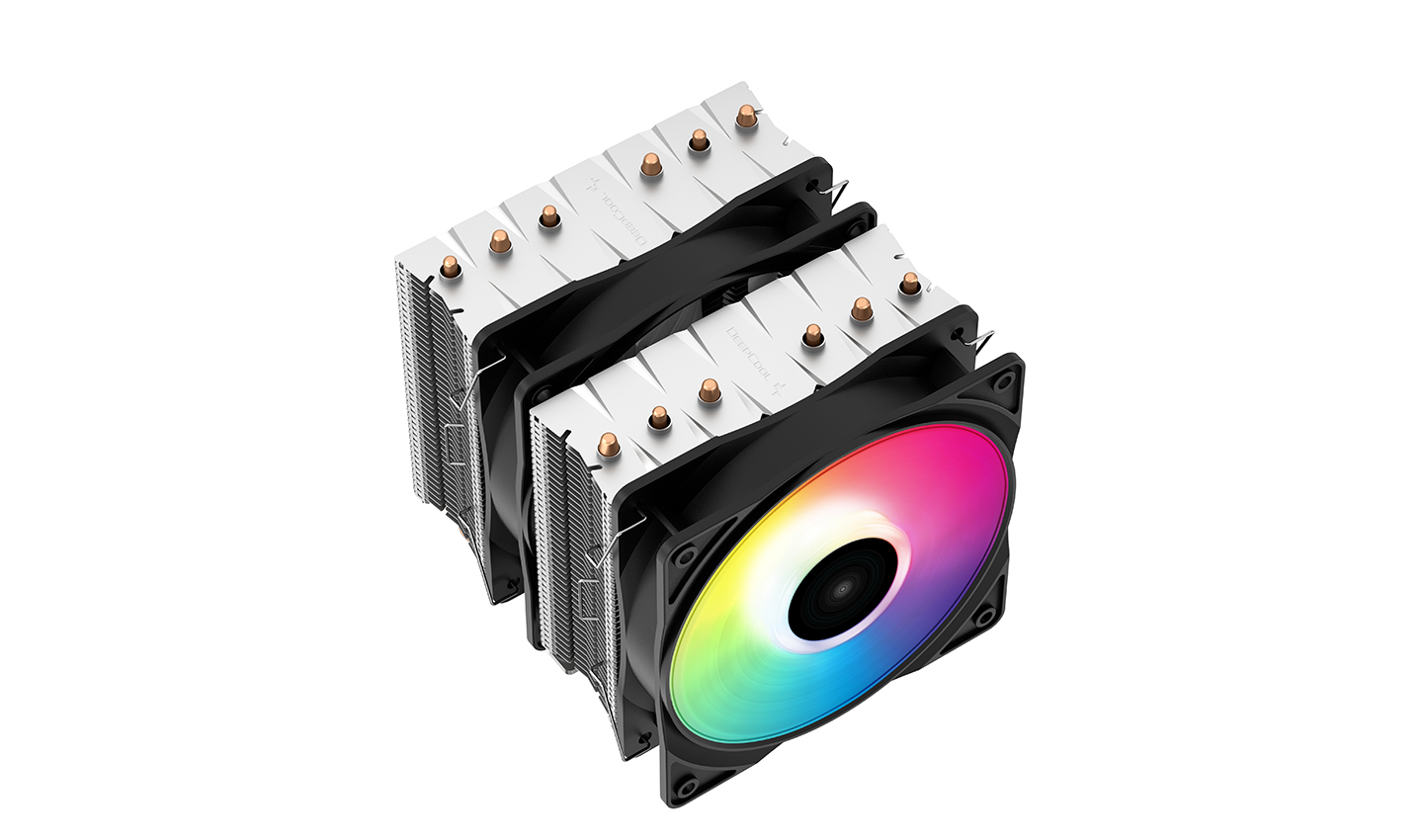

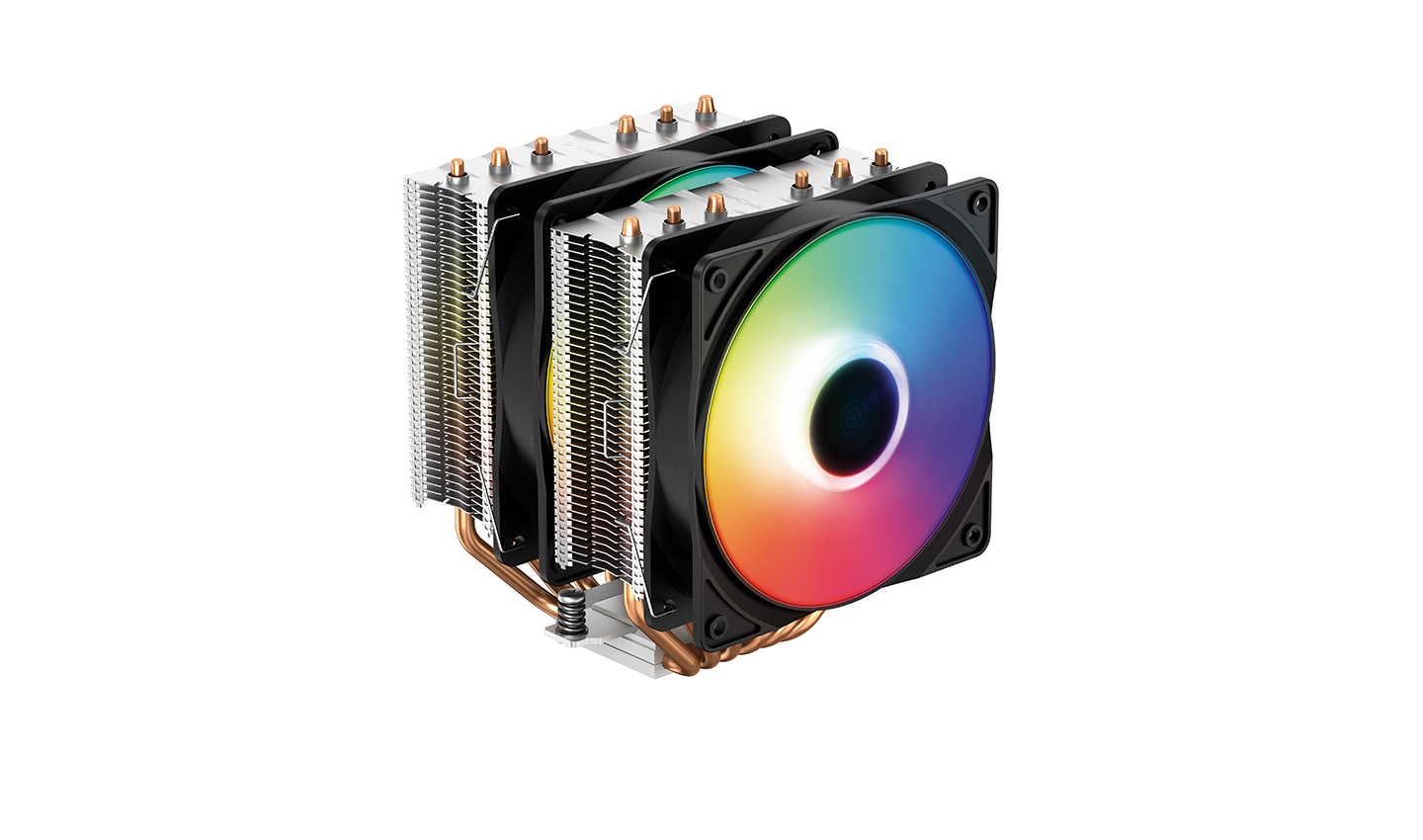

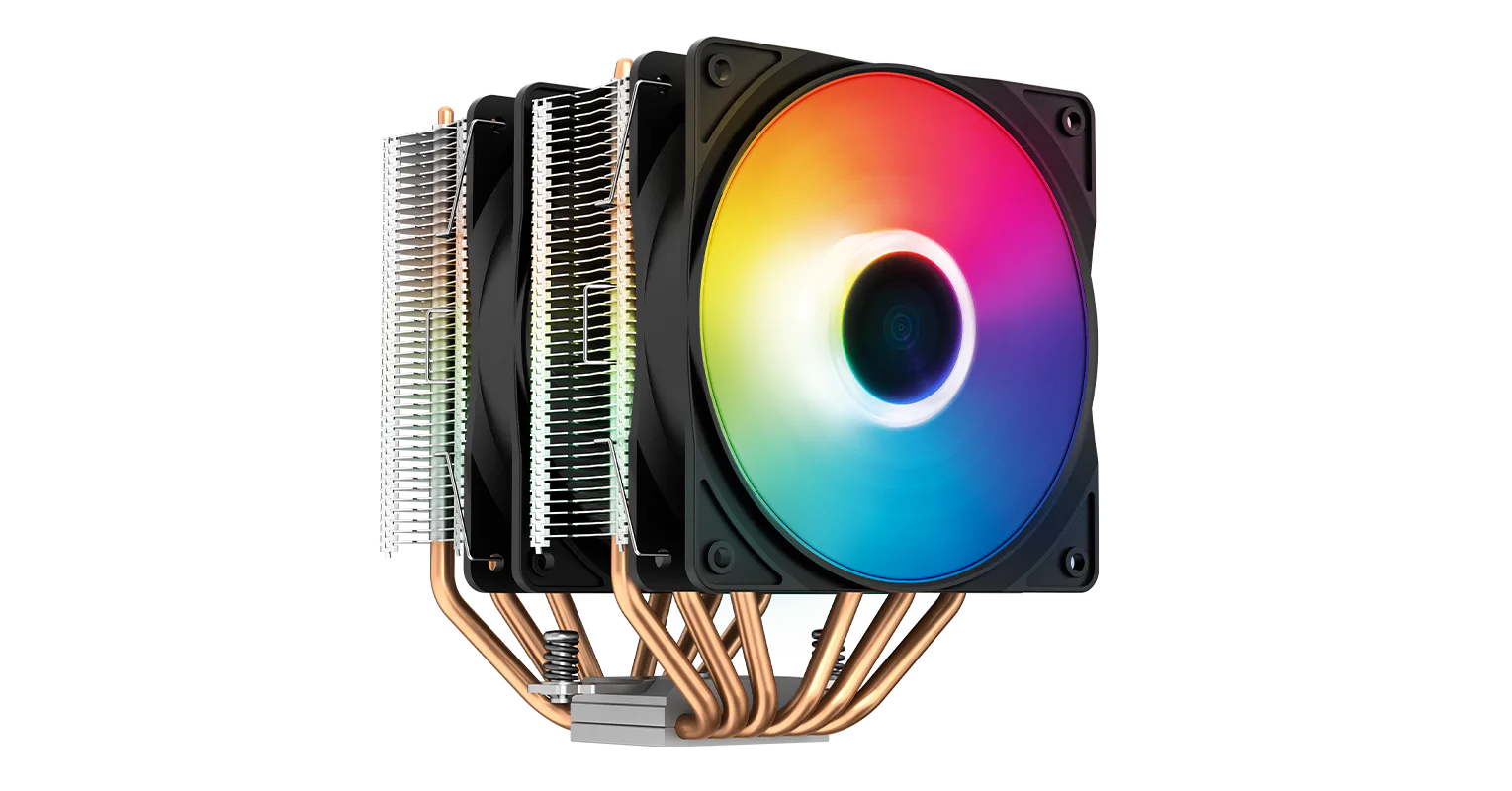

NEPTWIN continues the legacy of high performance cooling optimized for the latest 10th Gen Intel Core and AMD Zen 2 CPUs featuring six copper heat pipes for better overclocking and two 120mm LED fans.

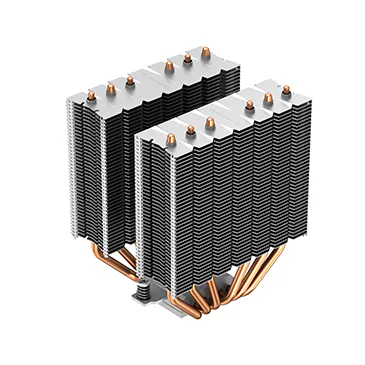

Effective cooling performance

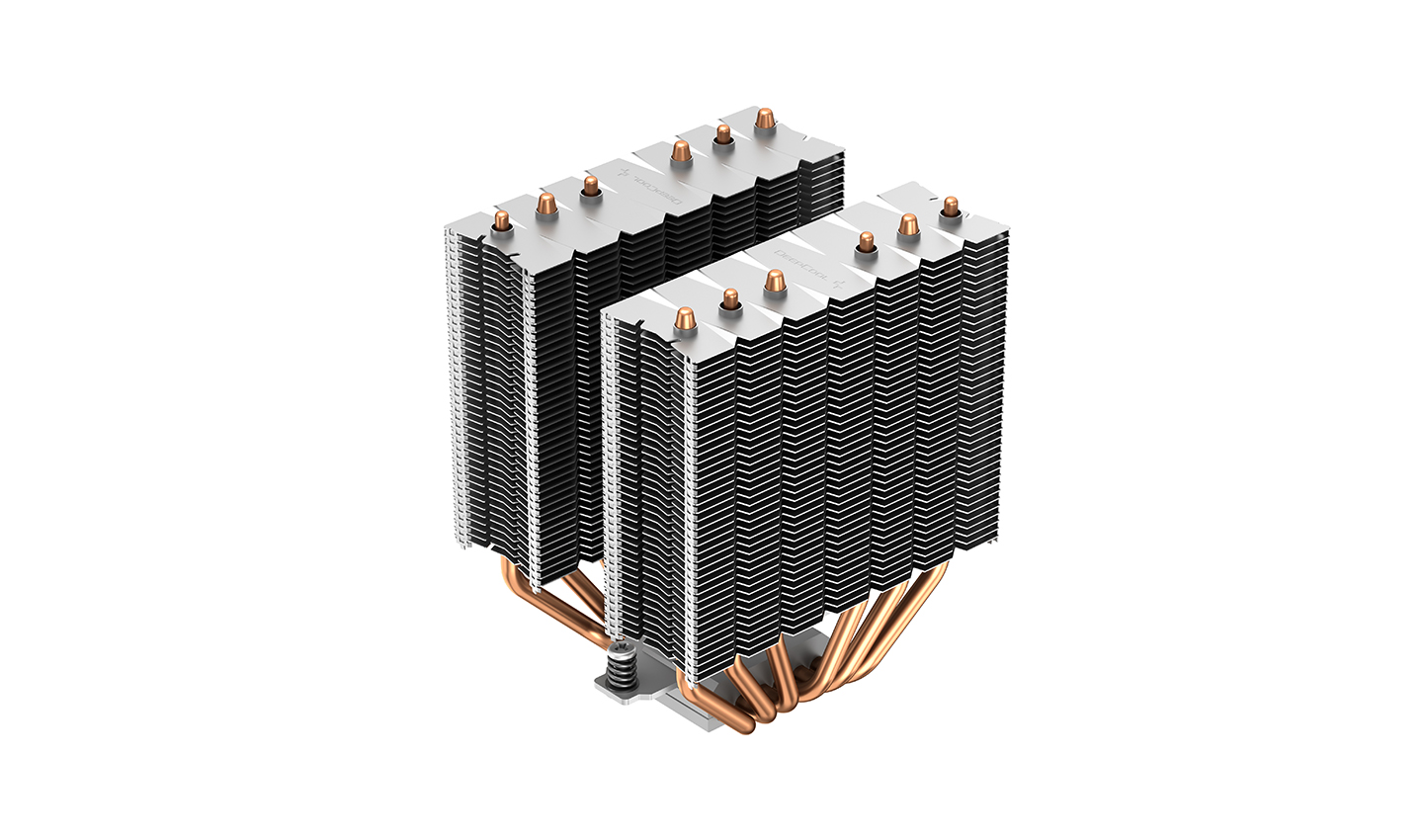

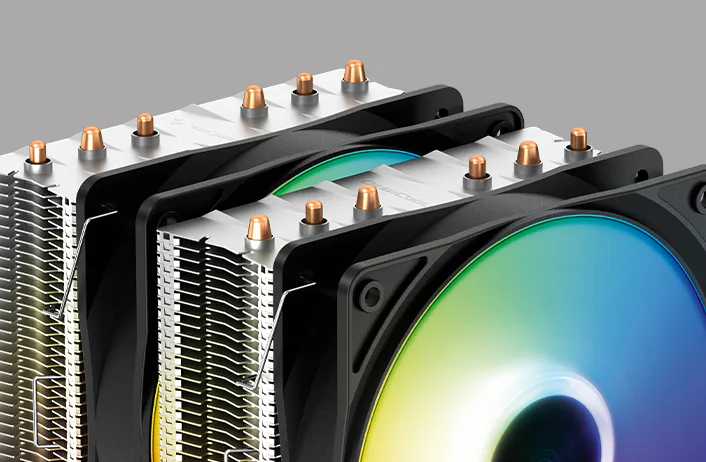

Six sintered heat pipes quickly transfers heat from high performance CPUs into a dual-tower setup for rapid dissipation.
(The new model adjusts the heat pipe layout, and shows less of the excessive pipes)

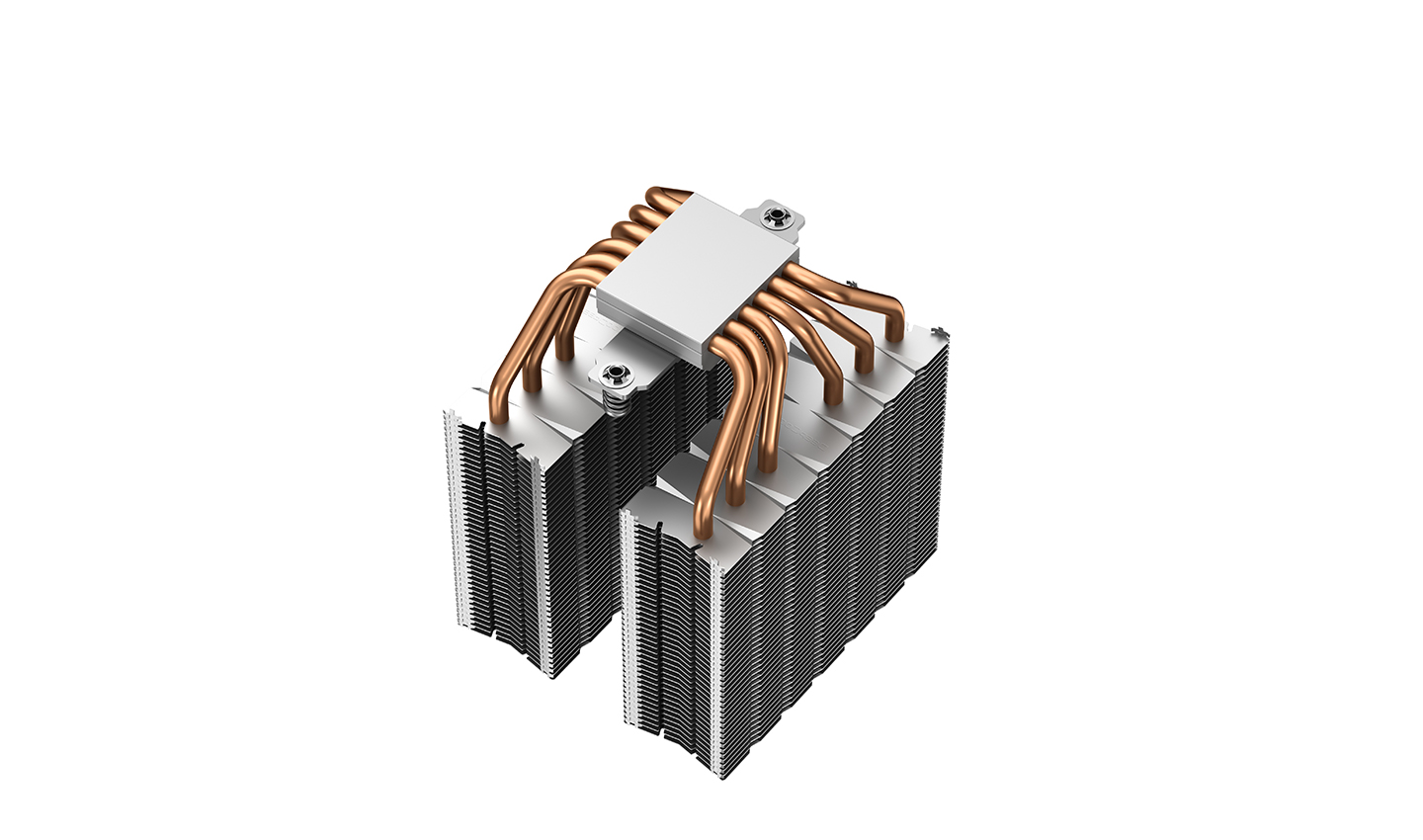

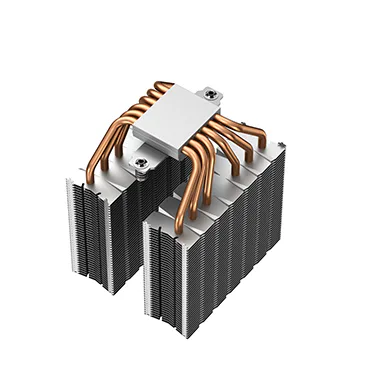

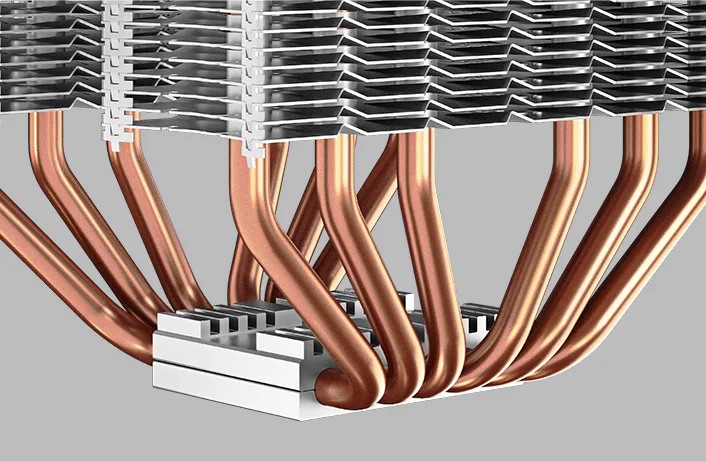

Polished copper base
Each heat pipe is firmly soldered to the polished nickel plated copper base to efficiently draw heat from the processor.

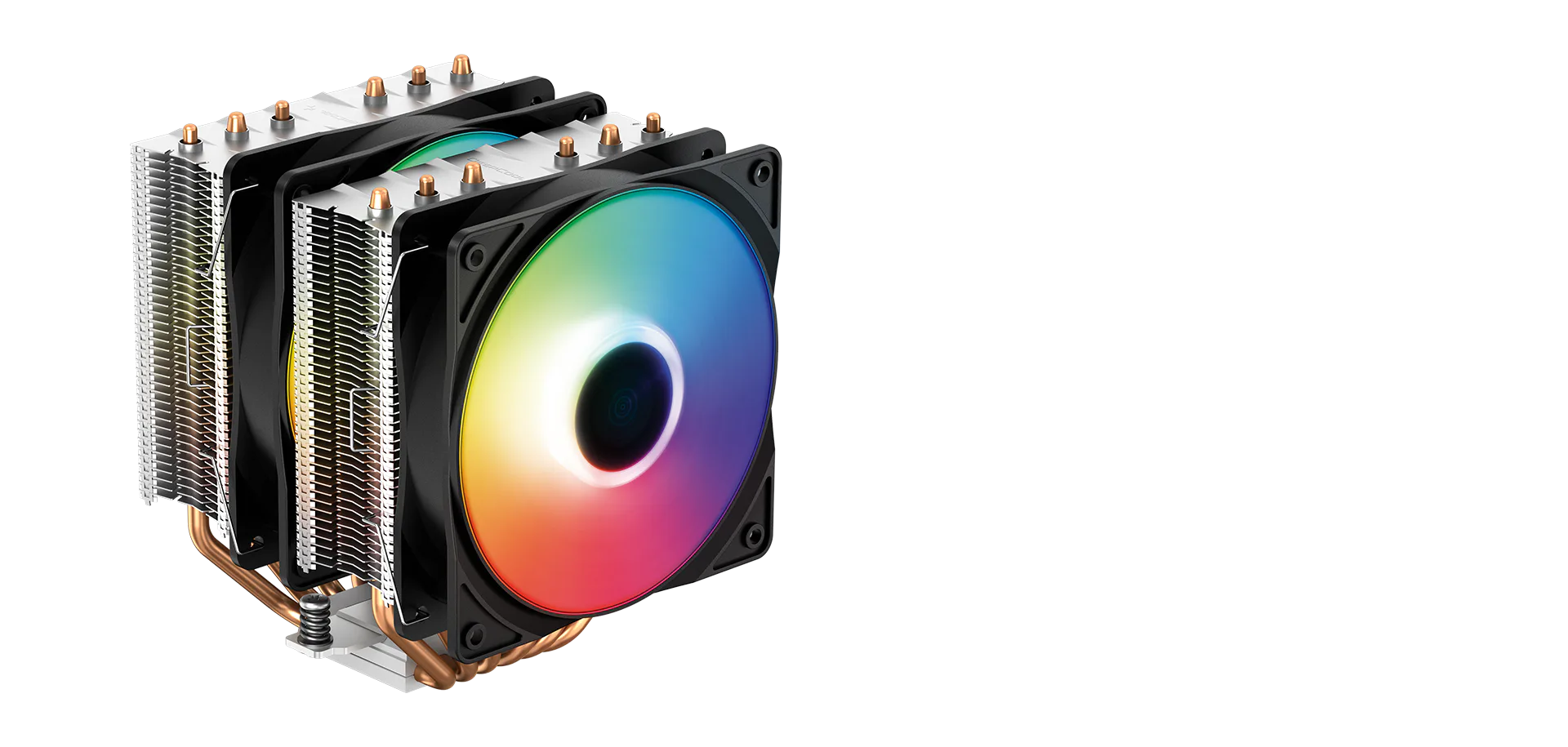

Cool, quiet and under control

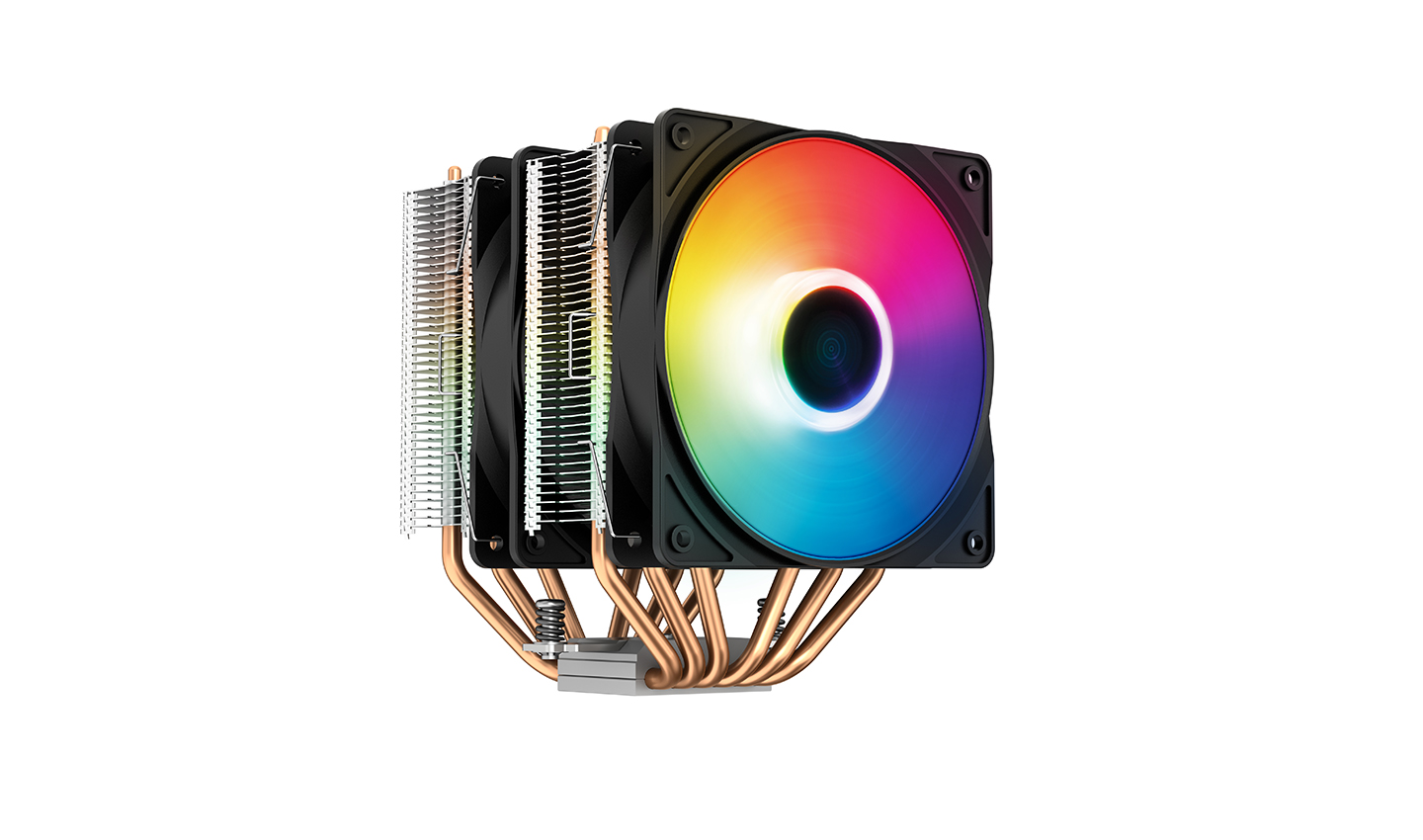

Maximize your clock speeds with powerful cooling or scale down to a whisper quiet with two super silent PWM LED fans.
500-1500RPM ±10%
Wide Speed Range
≤27dB（A）
Super Silent
6 Color LED
Static Rainbow

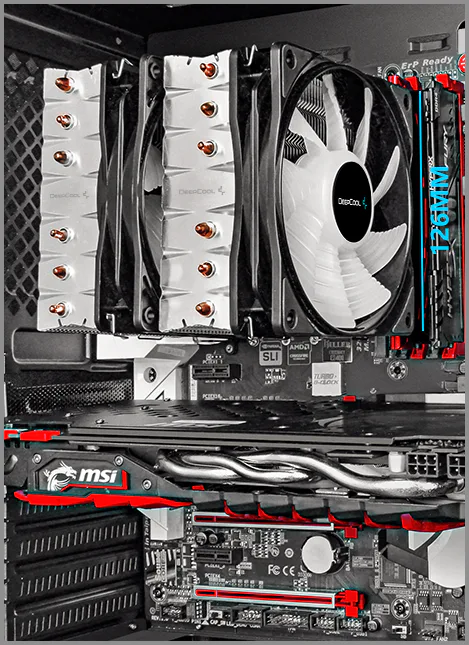

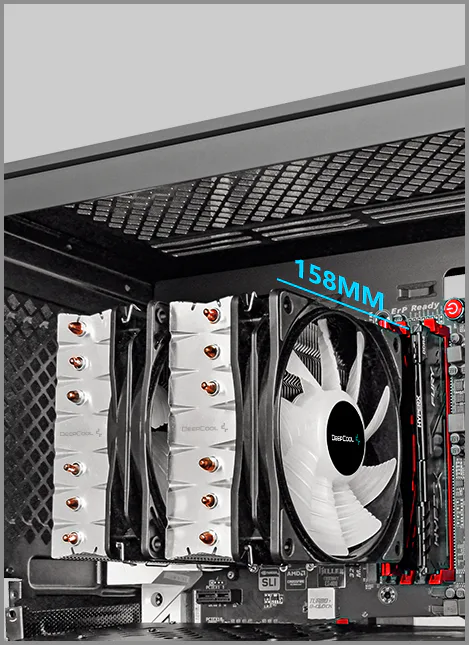

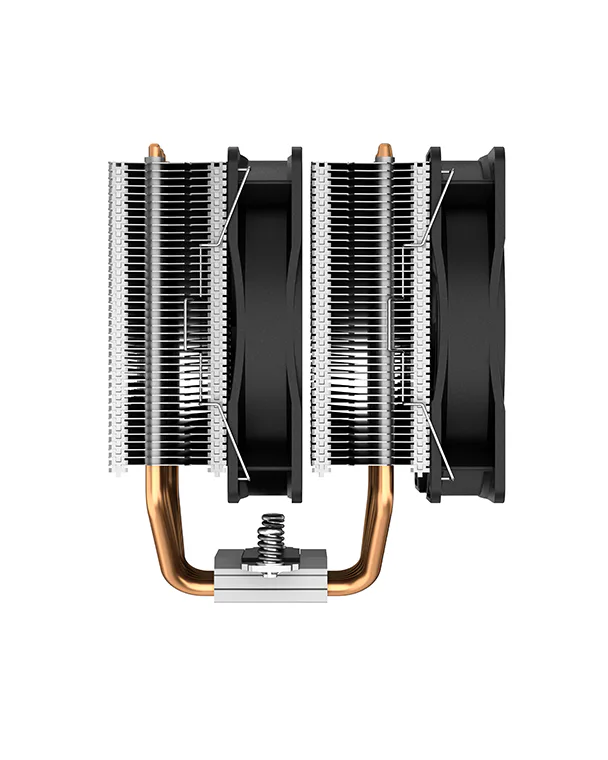

Great compatibility

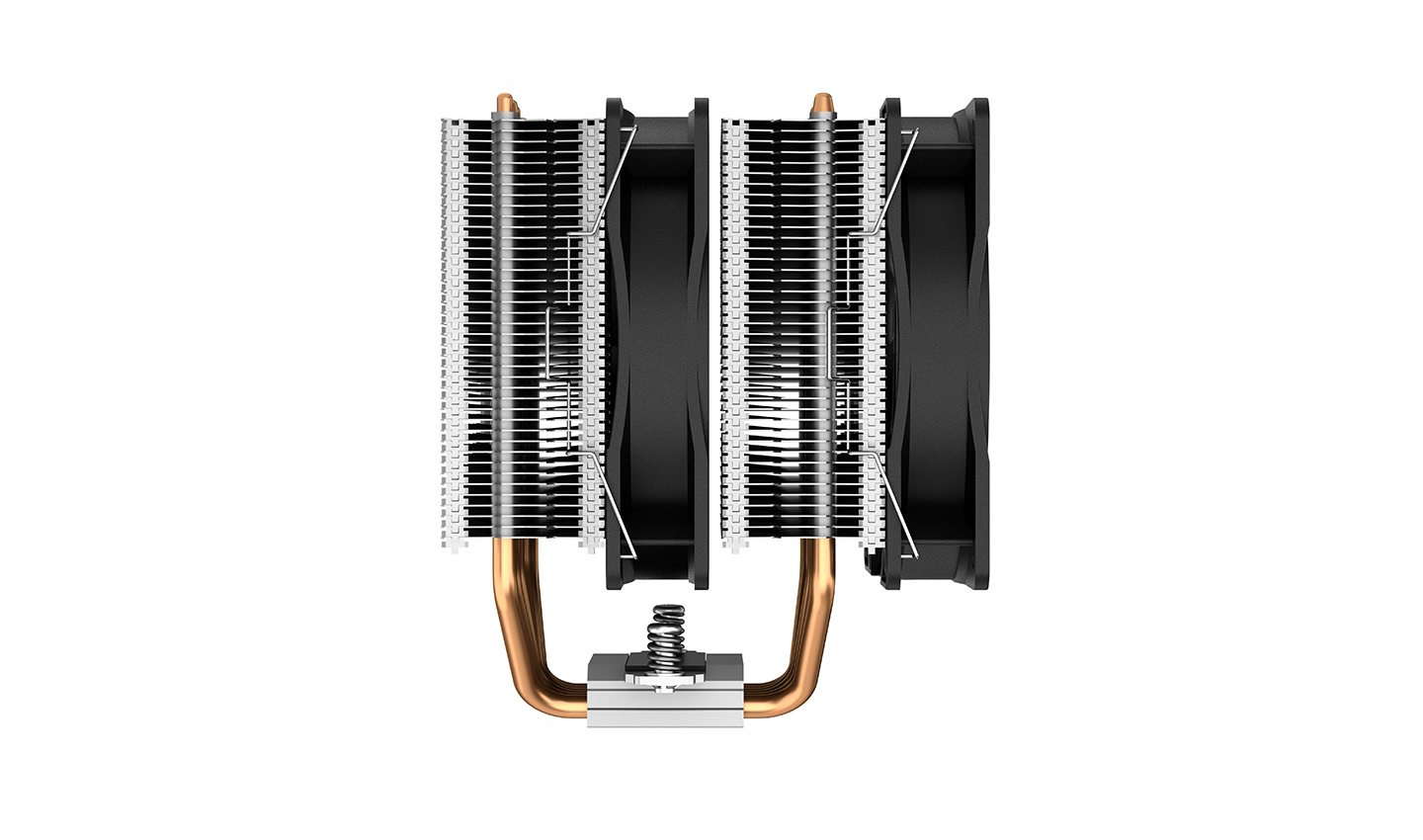

Fit in with all your other high end components easily with great clearance on every side, making sure your parts get exposure.
158mm height
126mm width

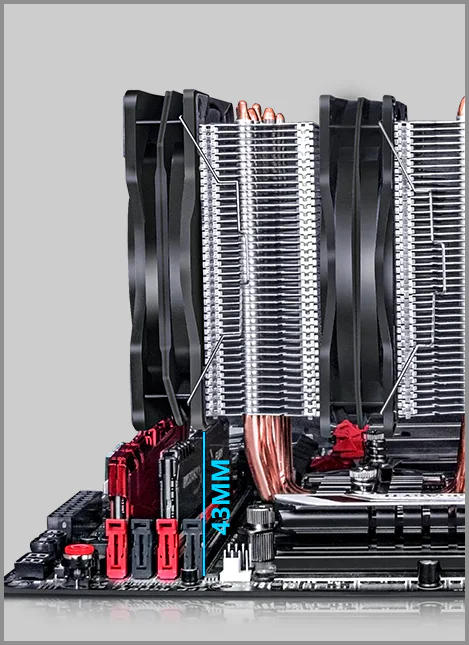

43mm RAM clearance; show off your RGB RAM

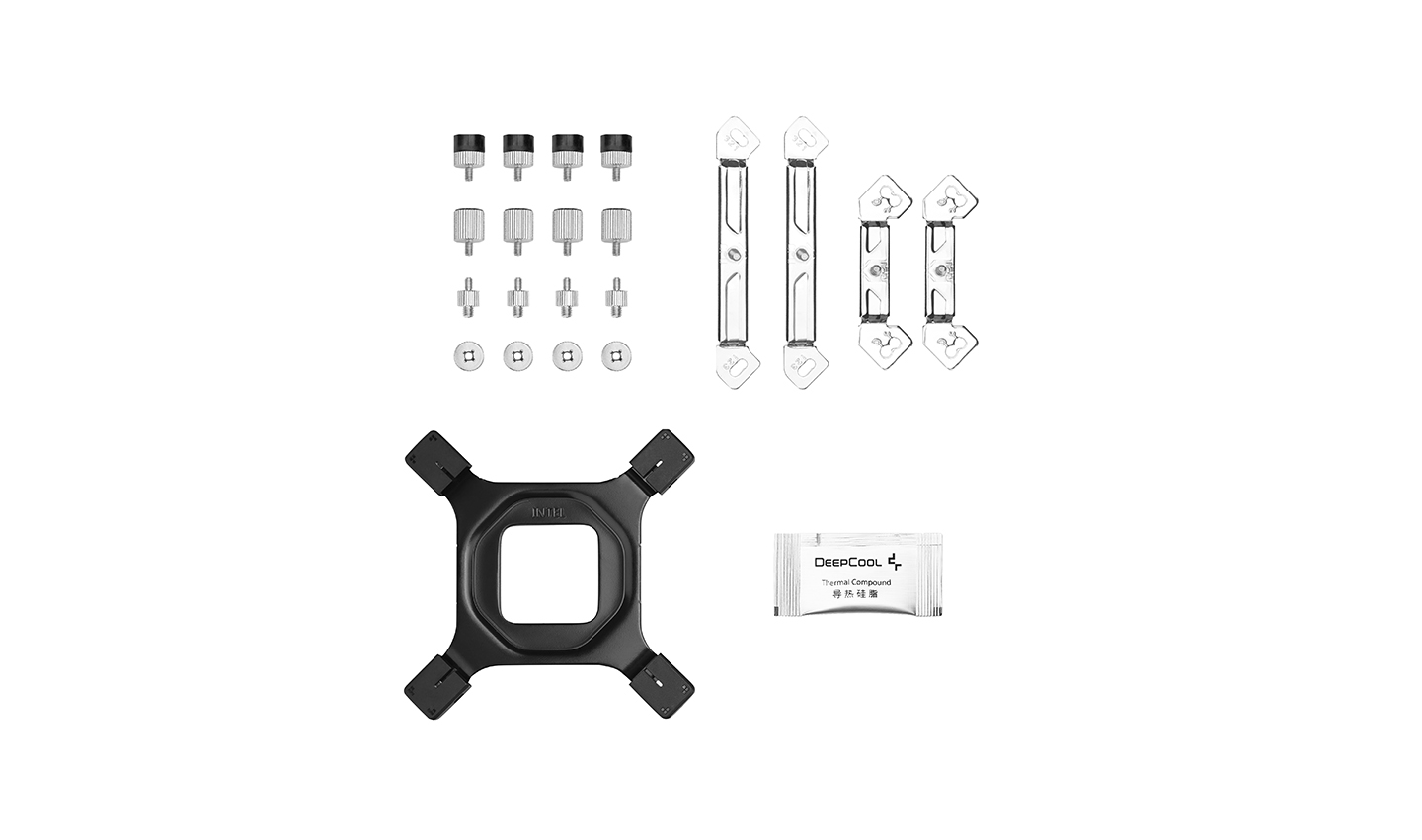

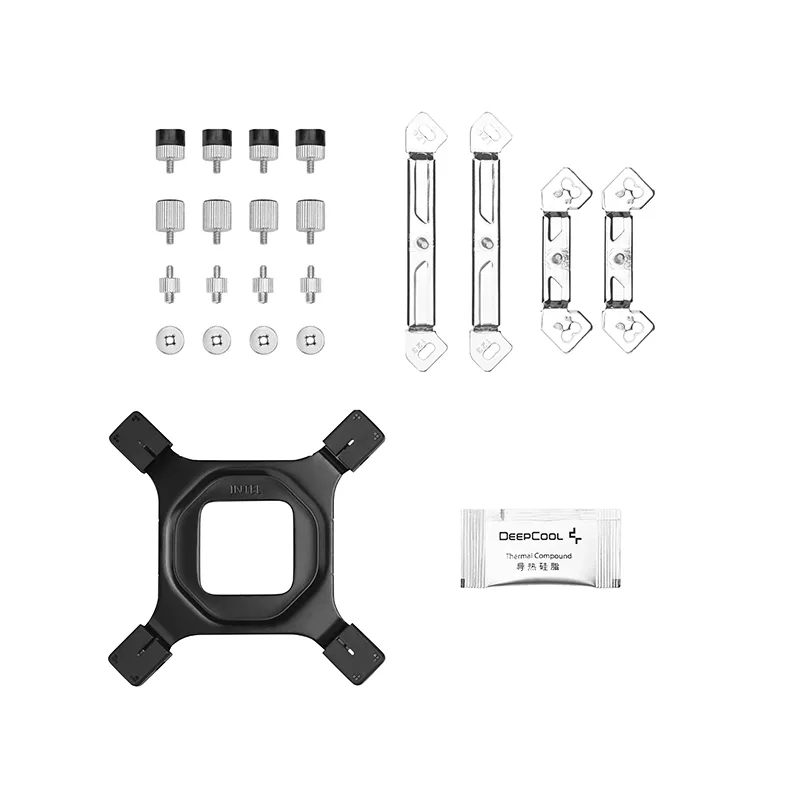

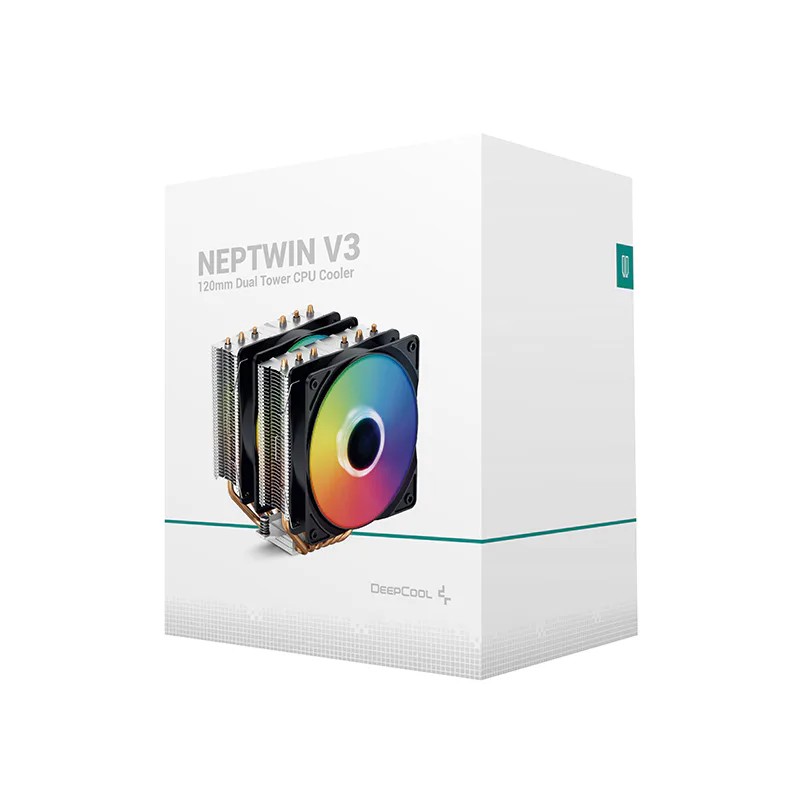

What’s in the box
Crossbar type mounting tools included, ready for most mainstream chipsets.

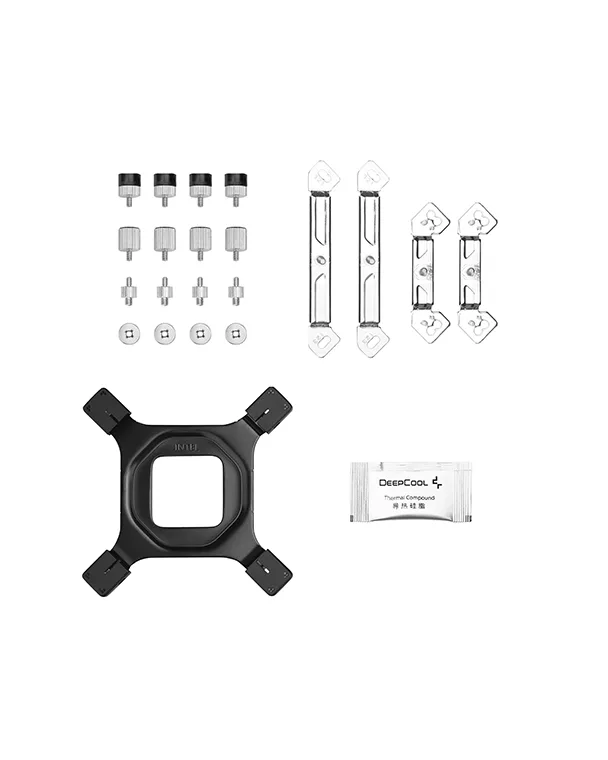

What’s in the box
Crossbar type mounting tools included, ready for most mainstream chipsets.
Application For
Intel
LGA 20XX/1700/1200/1151/1150/1155
AMD
AM4
Technical Spec
Product Dimensions126×133×158 mm(L×W×H)
Heatsink Dimensions120×108×158 mm(L×W×H)
Net Weight1039 g
HeatpipeØ6 mm×6 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~1500 RPM±10%
Fan Airflow56.5CFM
Fan Air Pressure1.66 mmAq
Fan Noise≤27 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.22 A
Fan Power Consumption2.64W
LED TypeLED
EAN6933412727095
P/NDP-MCH6-NT-V3
Product Dimension
