CK-11508 PWM
MODEL

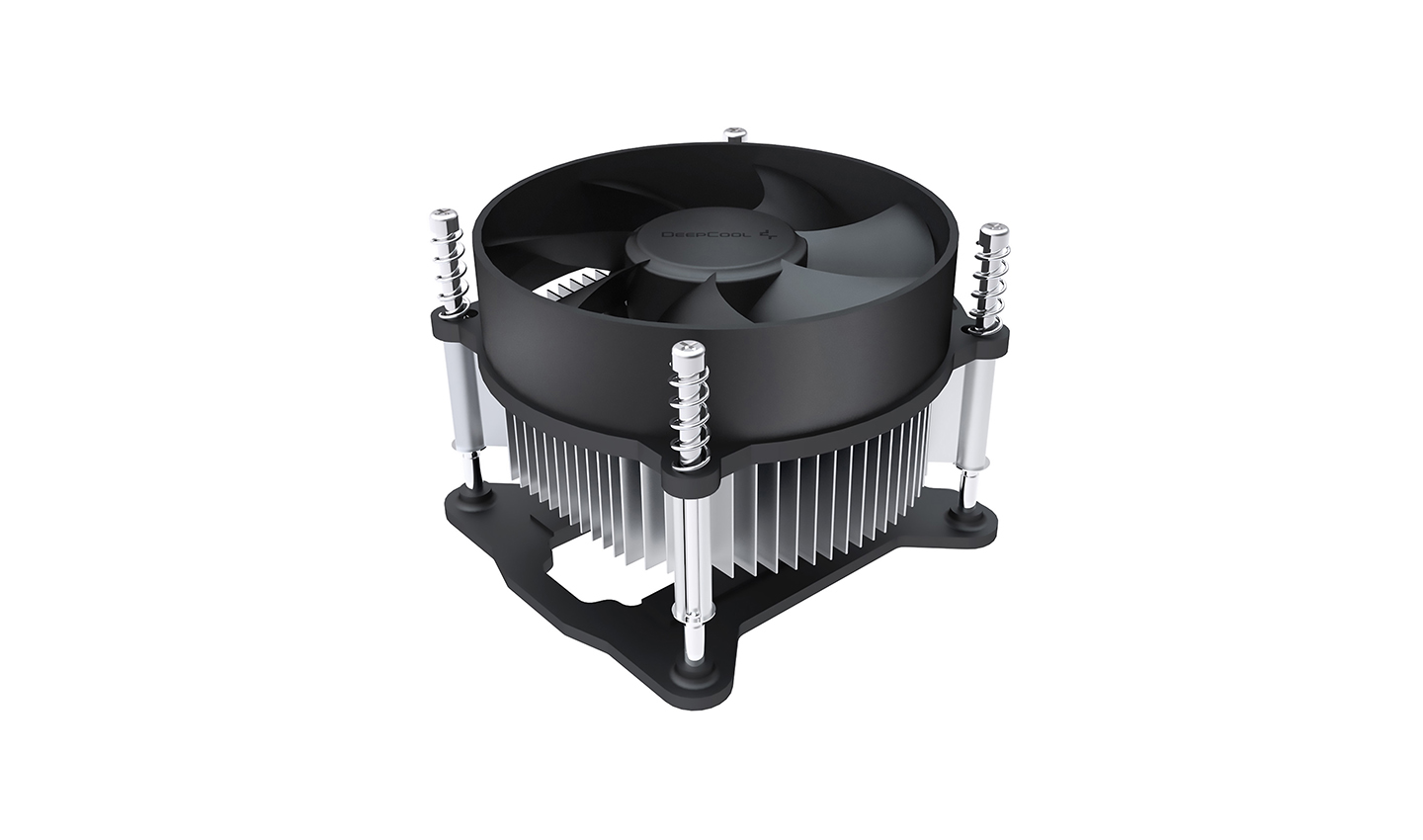

Quality heatsink with Ф92 mm fans for highly efficient heat dissipation.
Screws and back plate provide a secure installation to improve system safety.
Application For
Intel
LGA1200/1151/1150/1155
Technical Spec
Overall Dimension 95×95×69.5 mm(L×W×H)
Net Weight 245 g
Fan Dimension Φ92×25 mm
Fan Speed 900~2200 RPM±10%
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12VDC
Rated Current 0.13 A
Fan Power Consumption 1.56 W
Max. Air Flow 42.35 CFM
Fan Air Pressure 2.53 mmAq
Fan Noise ≤30.1 dB(A)
EAN 6933412727118
P/N DP-ICAS-CK11508-P
Product Dimension
