CK-11509 PWM
MODEL

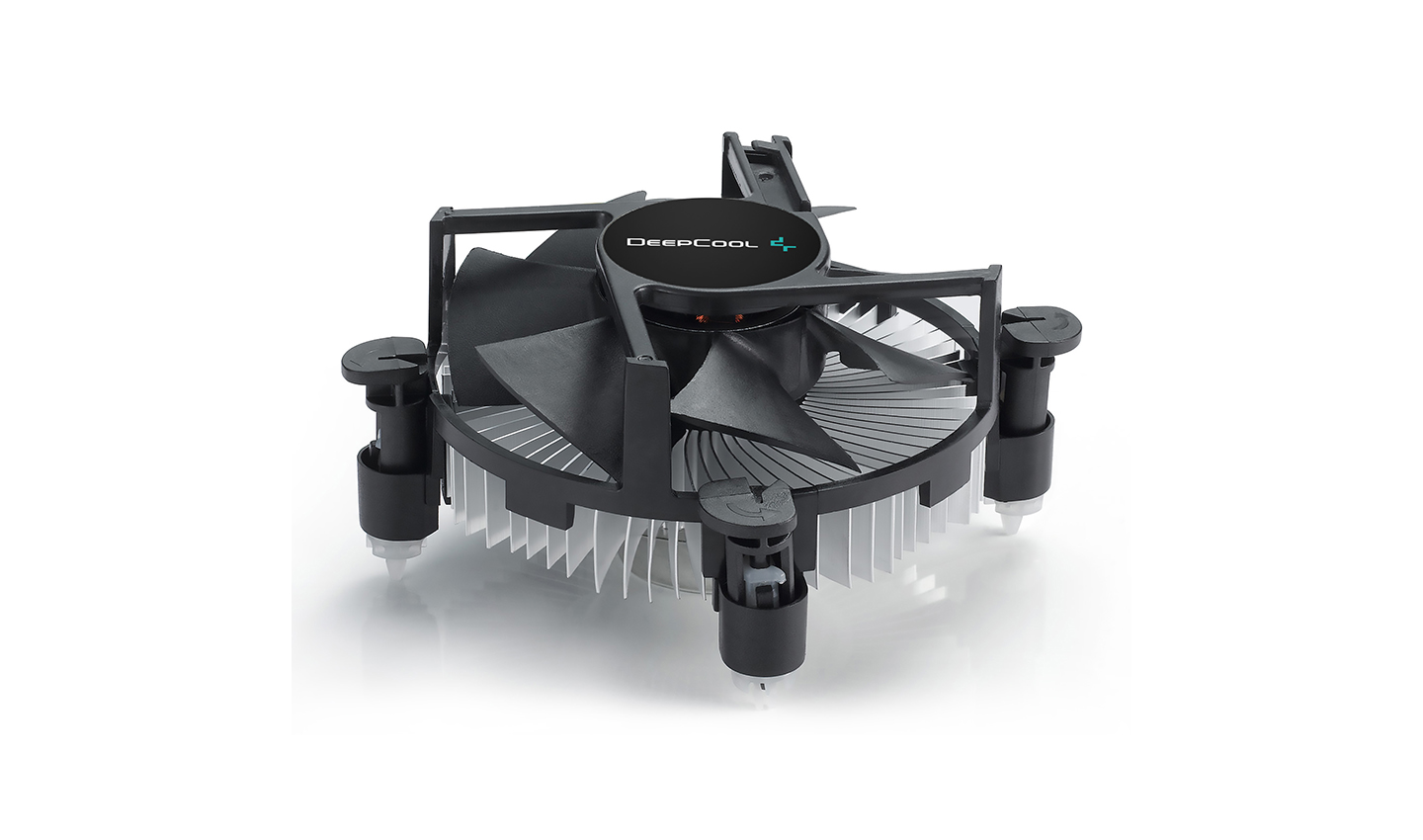

Ф92 x 25 mm inverted fan offers optimal airflow while generating low noise.

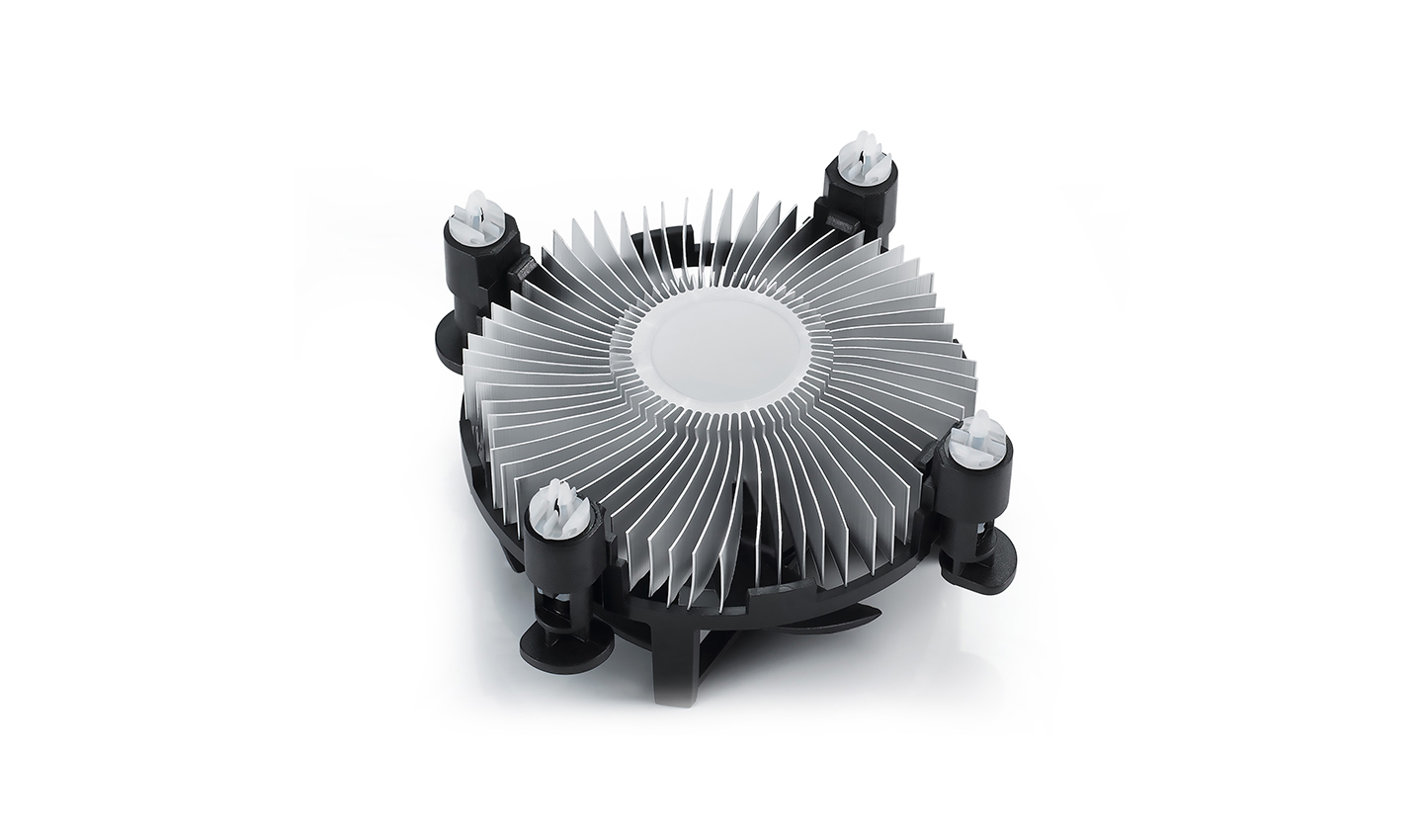

Radial aluminum heatsink for excellent cooling performance.
Push pins for simple and easy installation.
Application For
Intel
LGA1200/1151/1150/1155
Technical Spec
Overall Dimension 94.5X94.5X56 mm(L×W×H)
Fan Dimension Ф92X25 mm
Net Weight 147g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8～13.2VDC
Started Voltage 7VDC
Rated Current 0.12±10%A(MAX)
Power Input 1.44W
Fan Speed 900±150-2400±10%RPM
Max. Air Flow 41.39CFM
Noise 17.8~30.5dB(A)
Product Dimension
