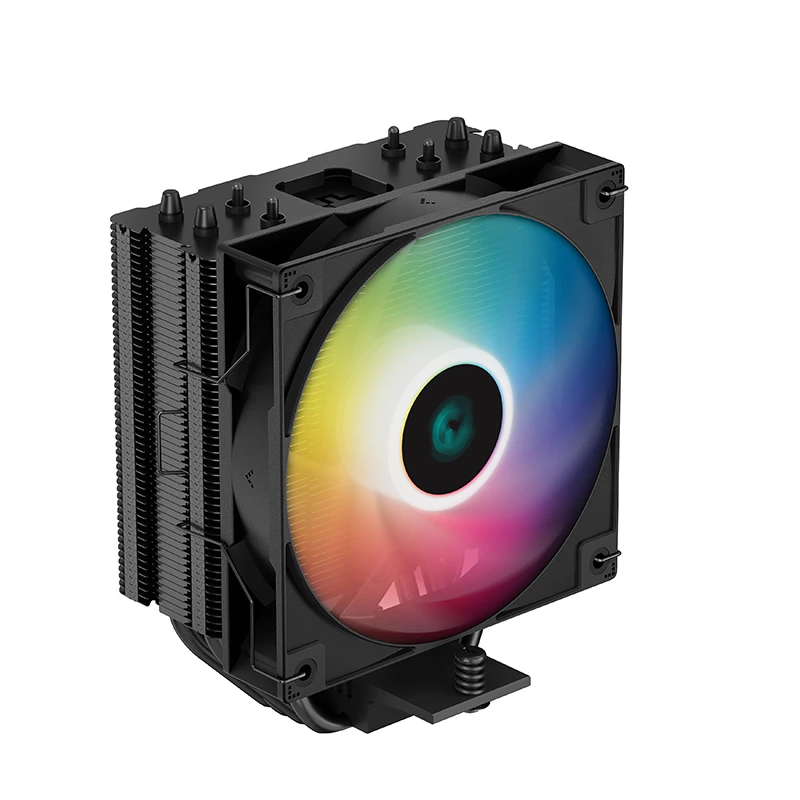

AG400 BK ARGB

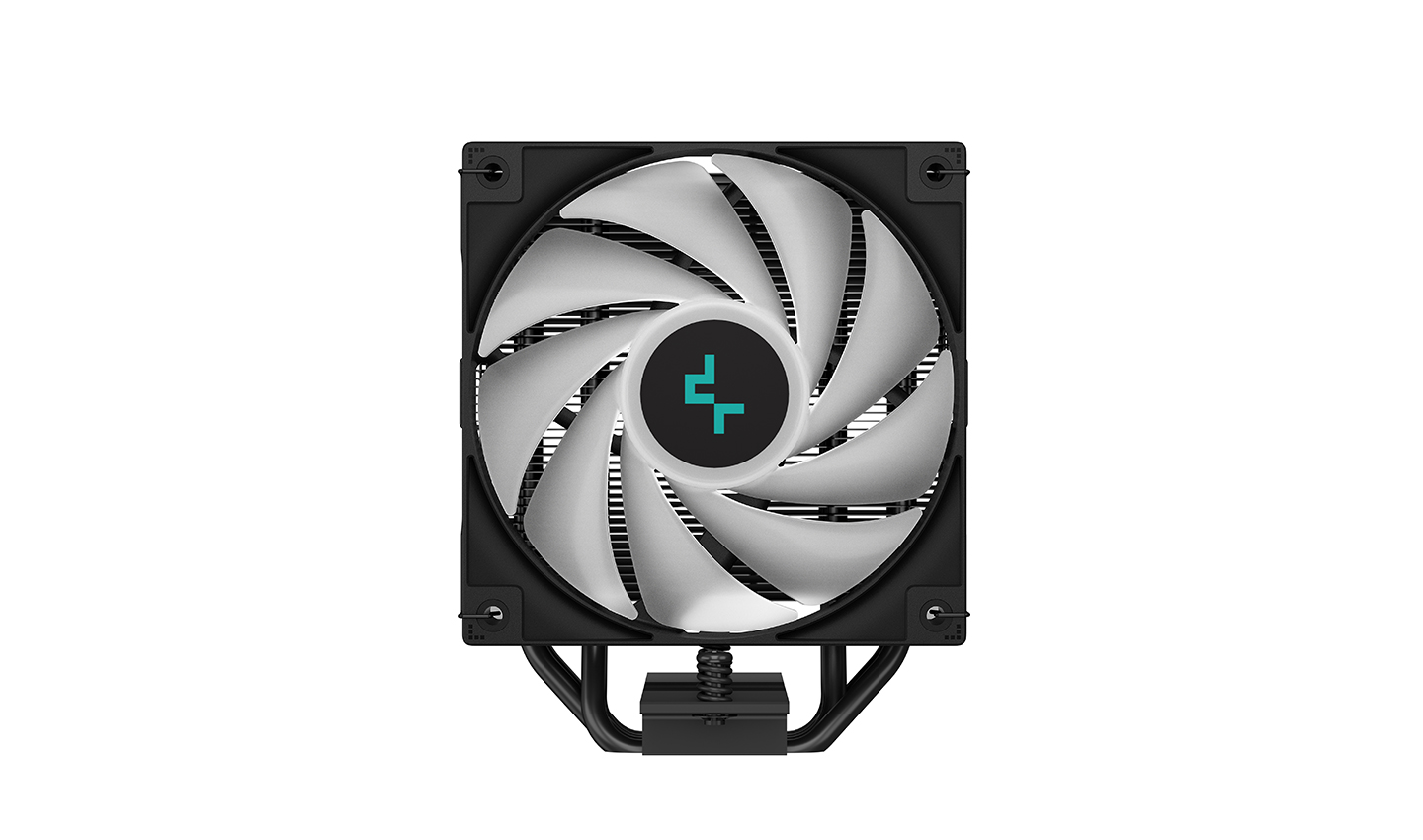

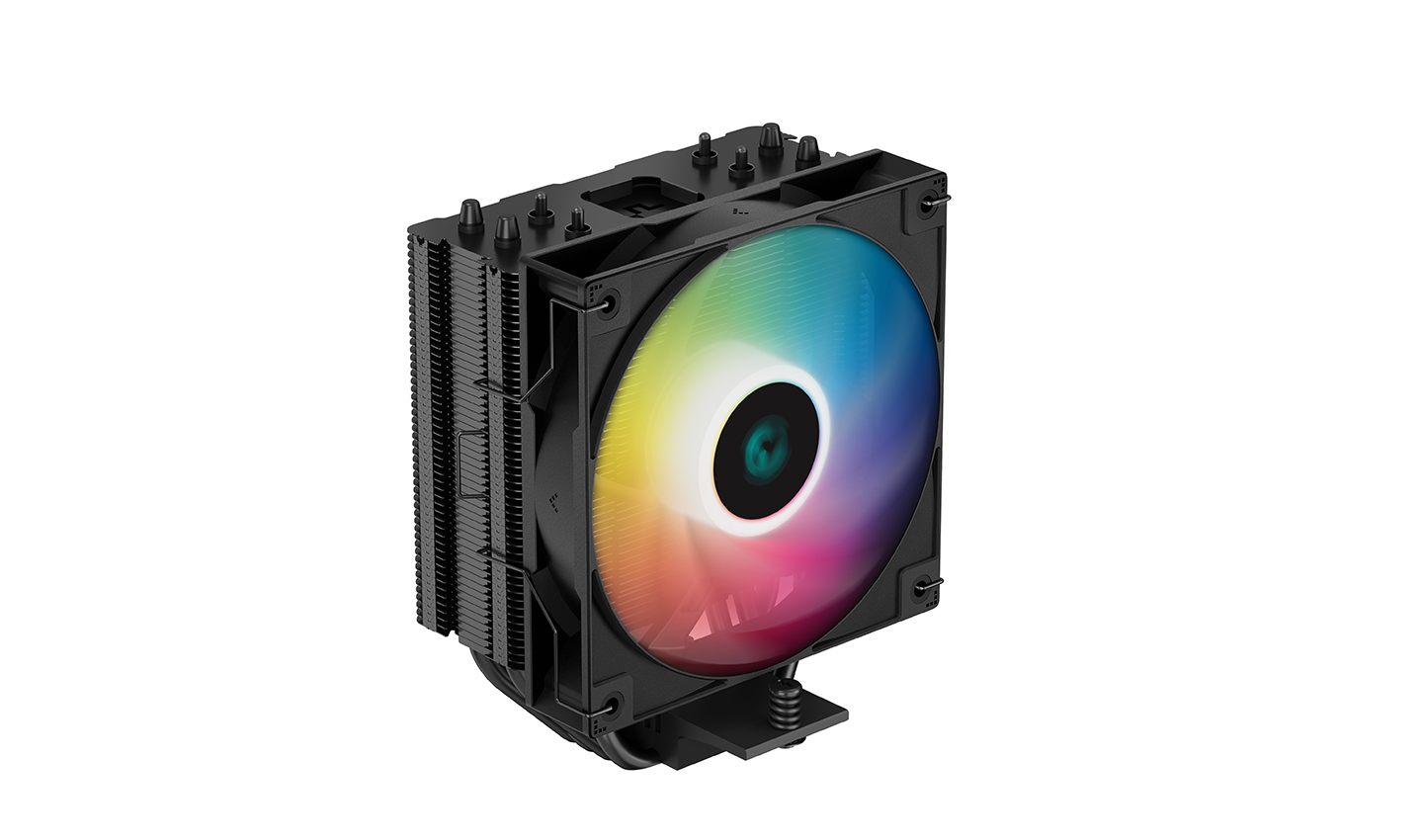

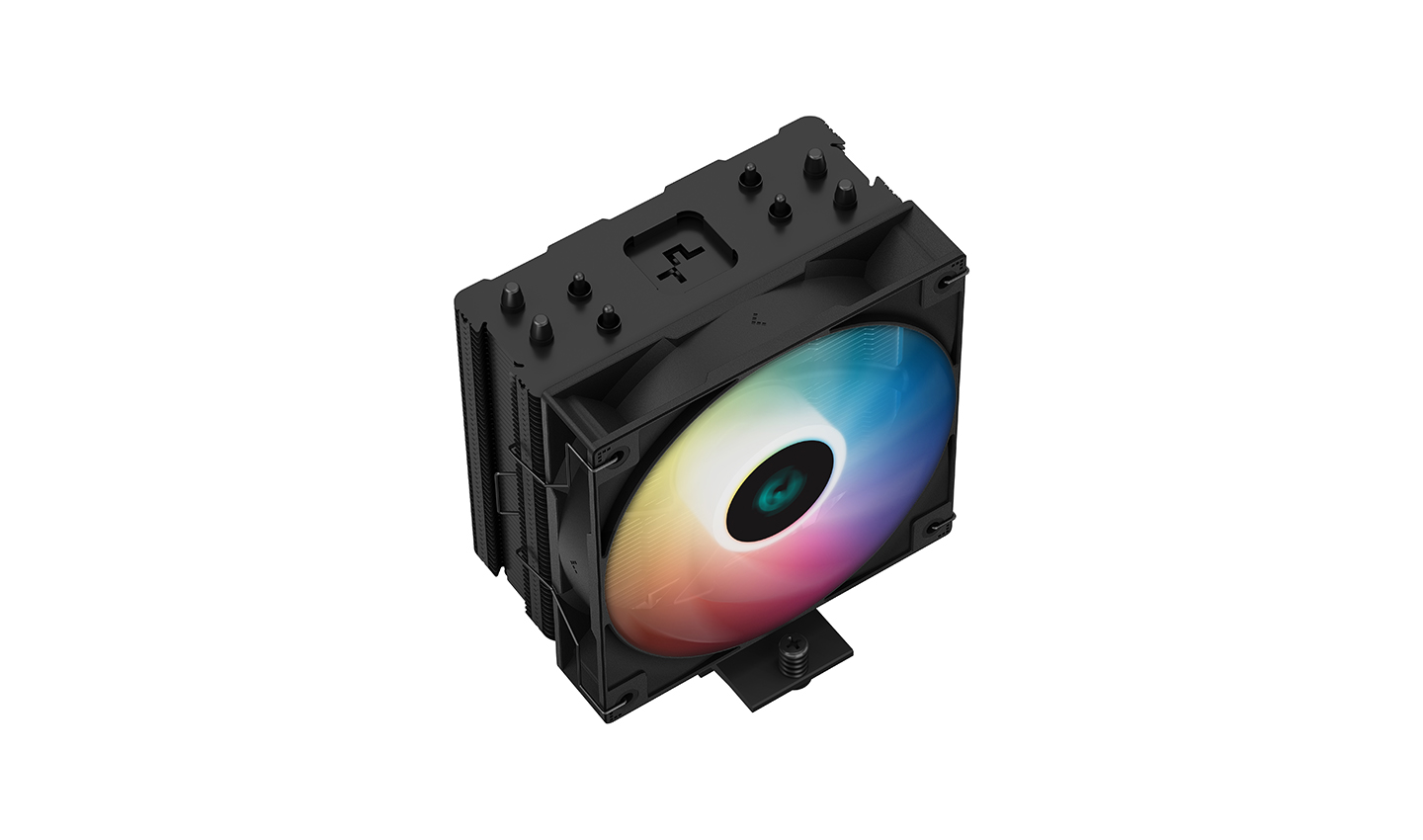

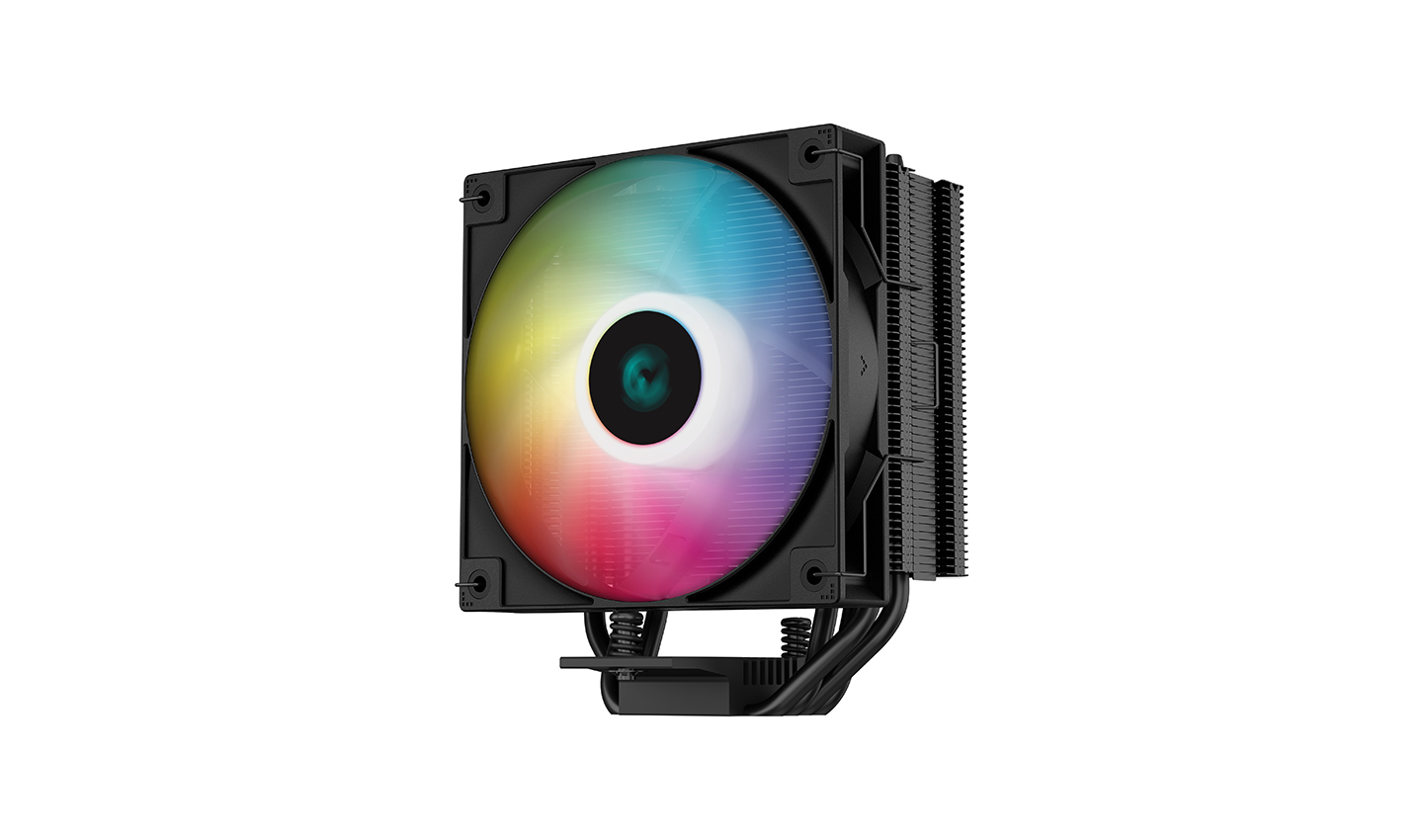

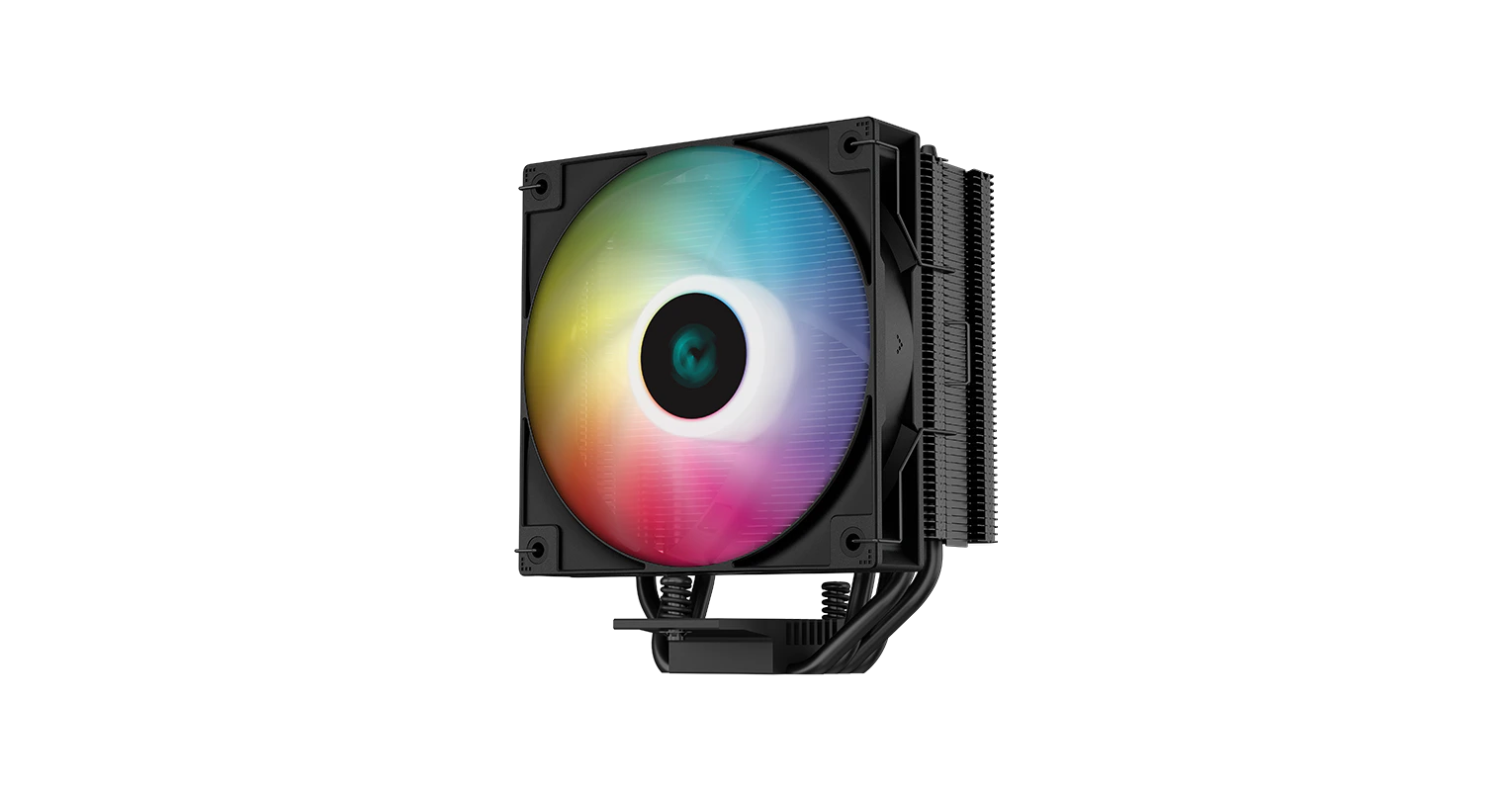

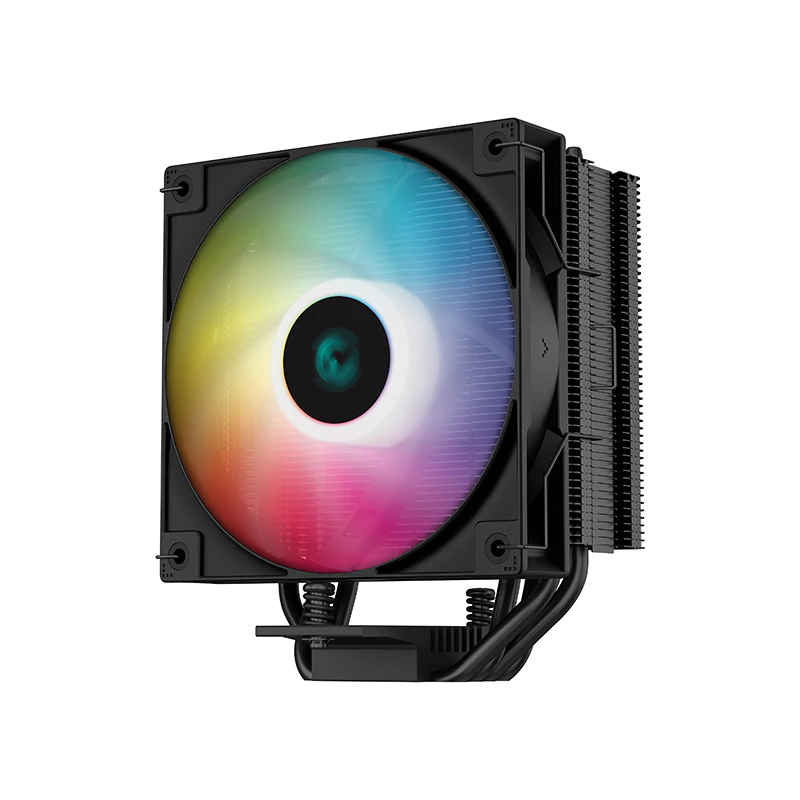

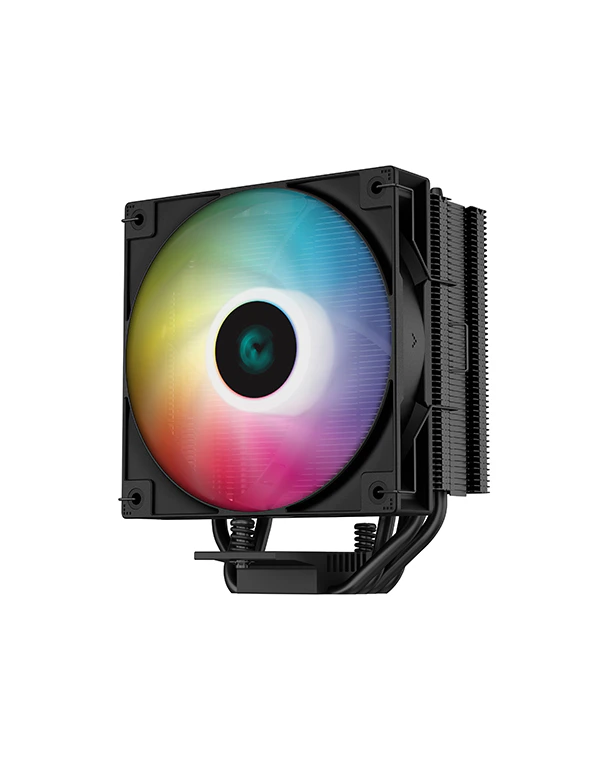

The DeepCool AG400BKARGB is a single tower 120mm CPU cooler that builds upon our legacy for high-quality cooling performance but stripped down for a streamlined and efficient package.
MODEL
GAMMAXX SERIES
AG400BKARGB

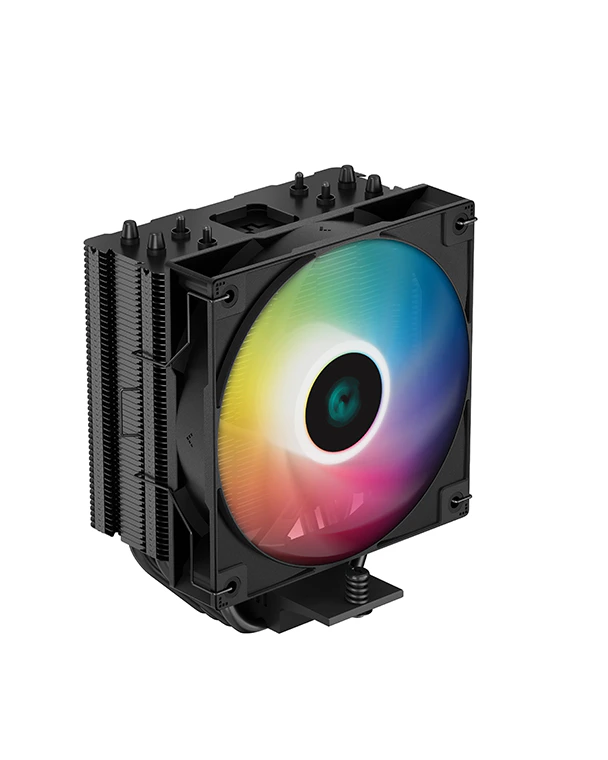

Efficient 4 Heat Pipes CPU Cooler

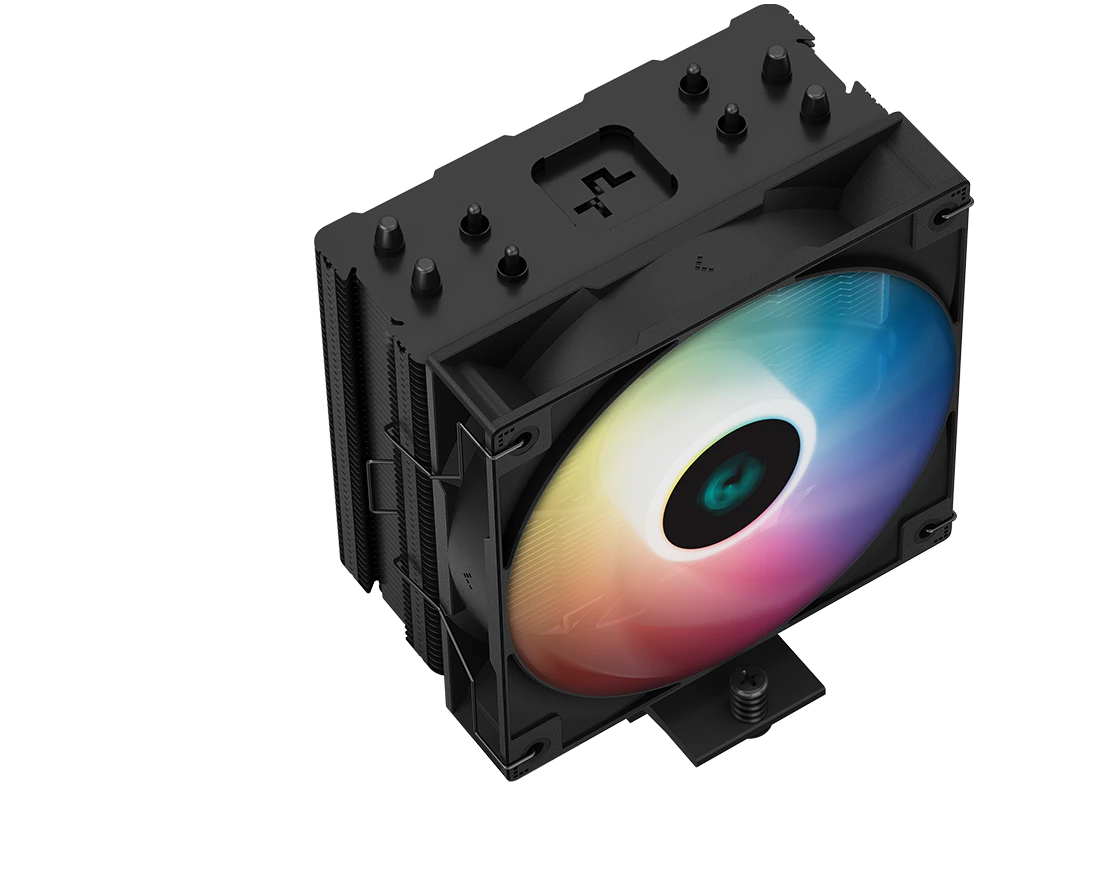

The DeepCool AG400BKARGB is a single tower 120mm CPU cooler that builds upon our legacy for high-quality cooling performance but stripped down for a streamlined and efficient package.

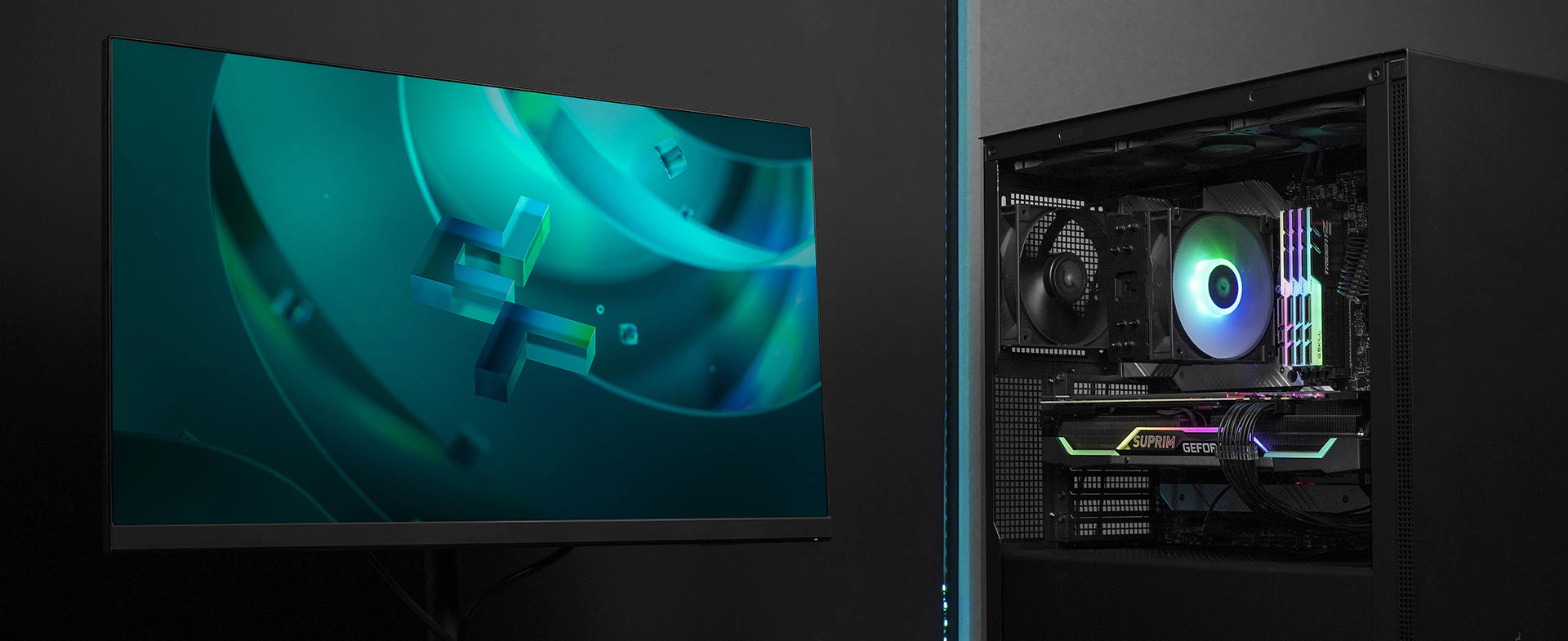

Stellar Thermal Performance

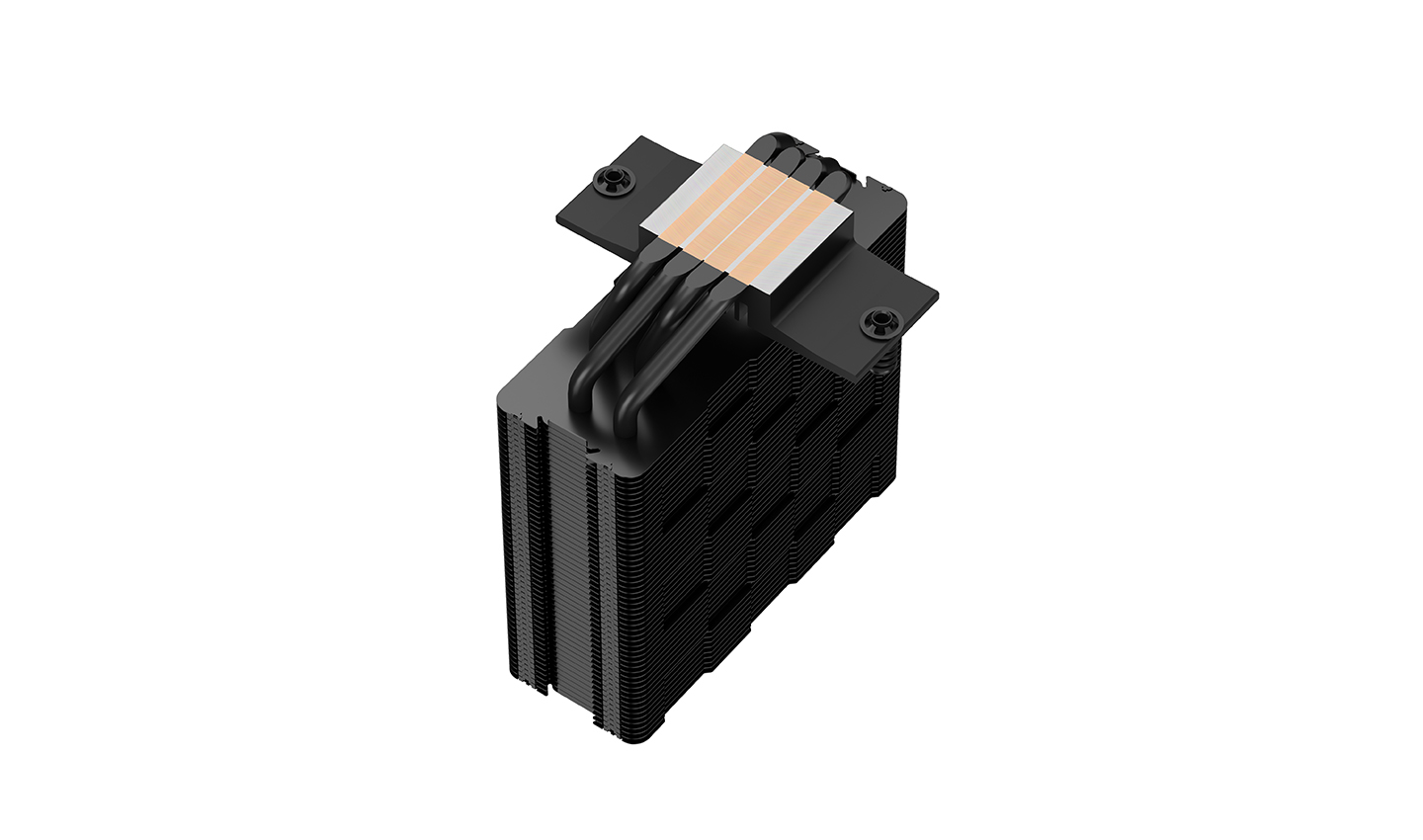

Enjoy better system performance by keeping things cool with up to 220W of heat dissipation power featuring four direct touch heat pipes that rapidly draw heat away from the CPU.

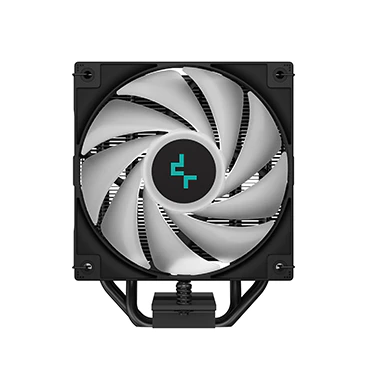

FAN LOCK MOUNTING SYSTEM
When installing the AG400BKARGB, the fan does not need to be disassembled during the process, simplifying and saving time.

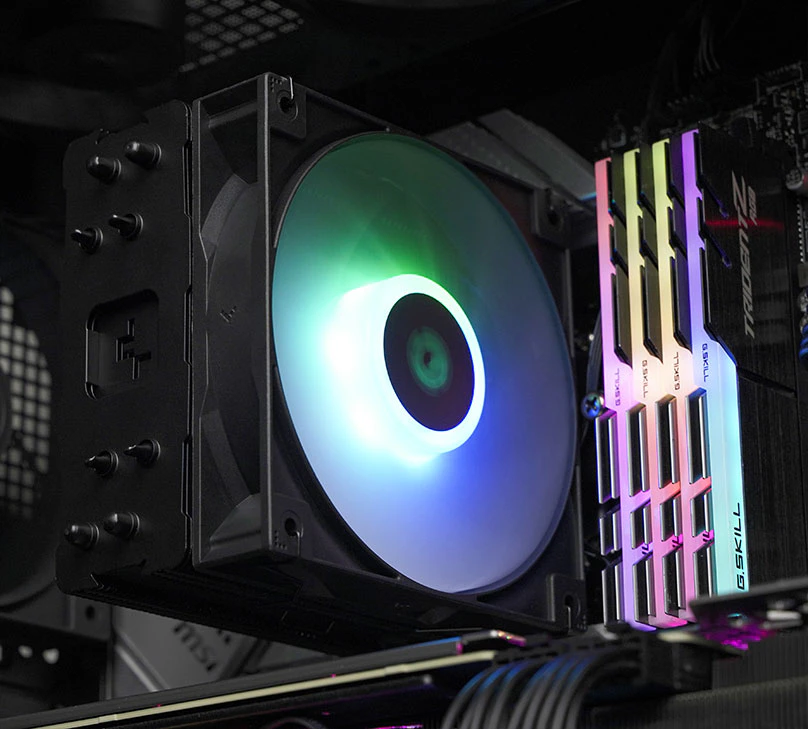

Prime Compatibility

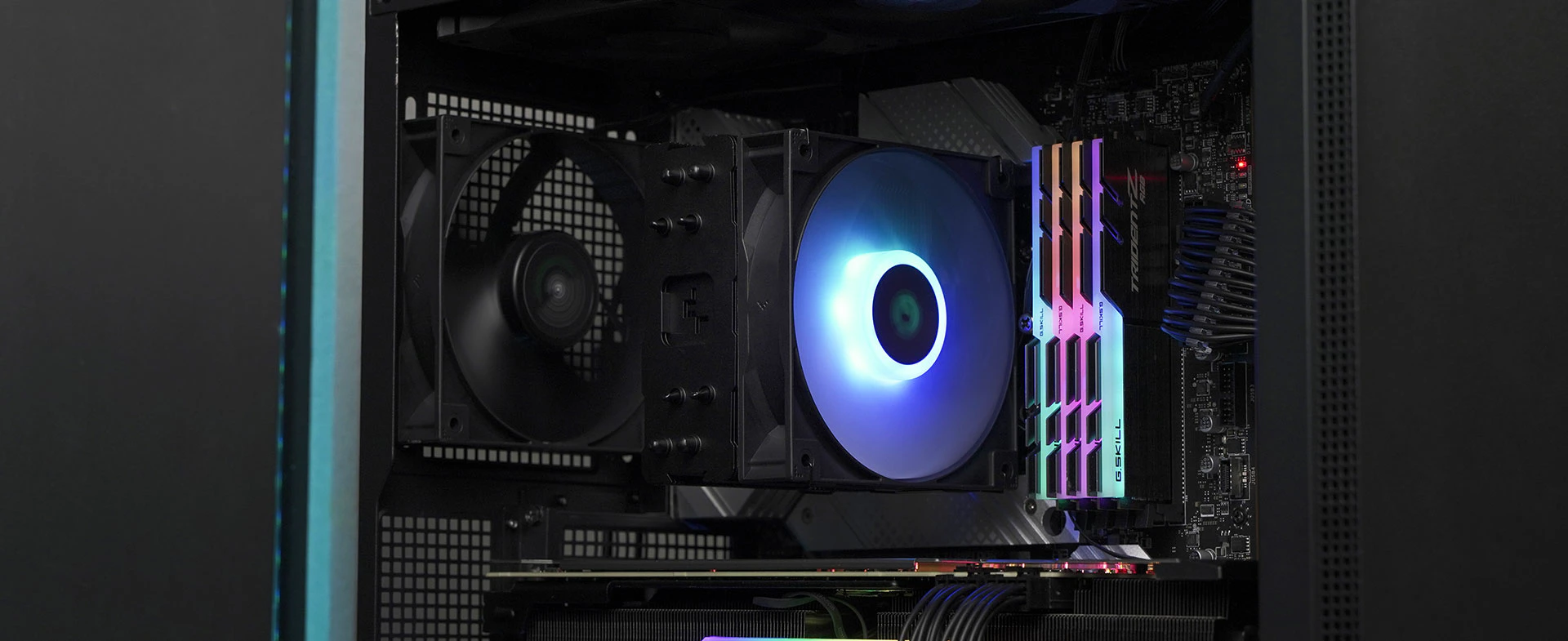

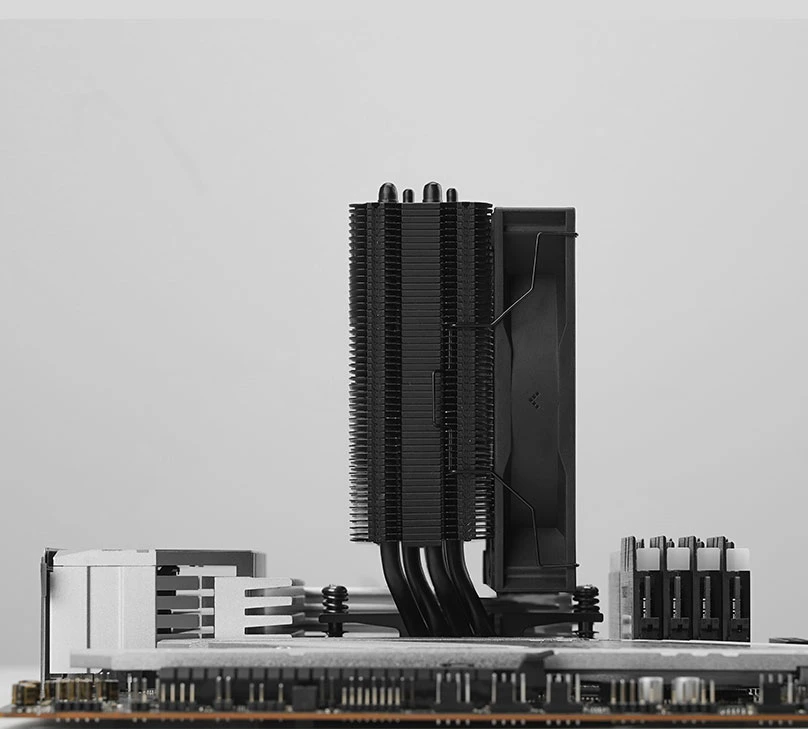

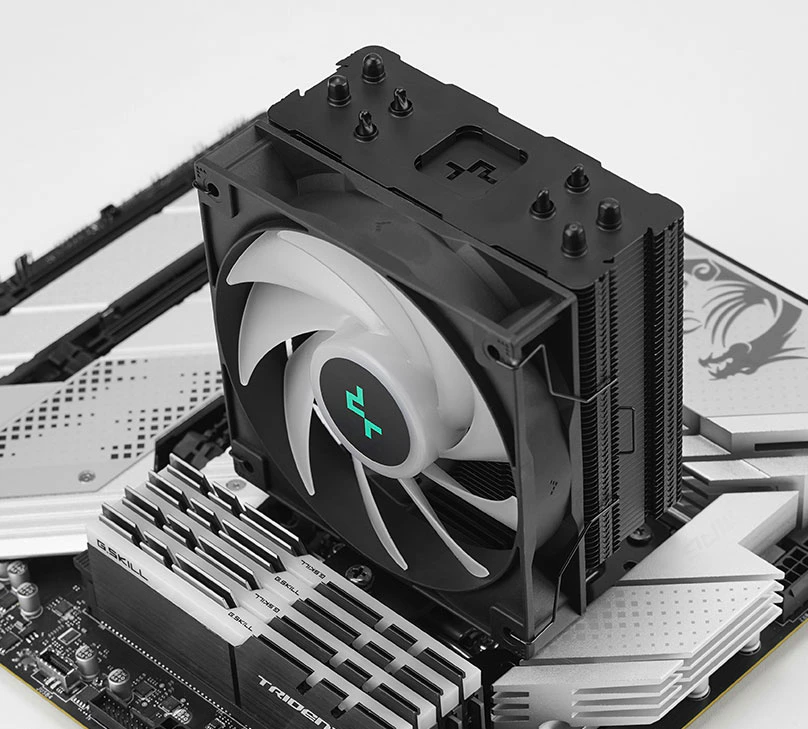

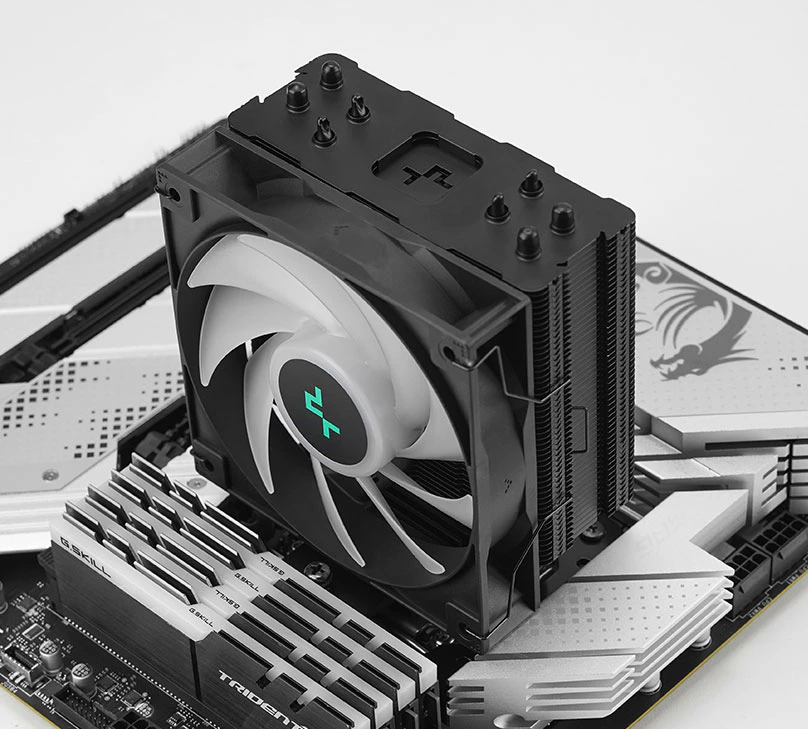

The AG400BKARGB maintains excellent hardware compatibility with its compact design for 100% RAM clearance and has a slight offset for quick and easy installation. Its superb thermal performance also allows it to be compatible with demanding processing workloads.

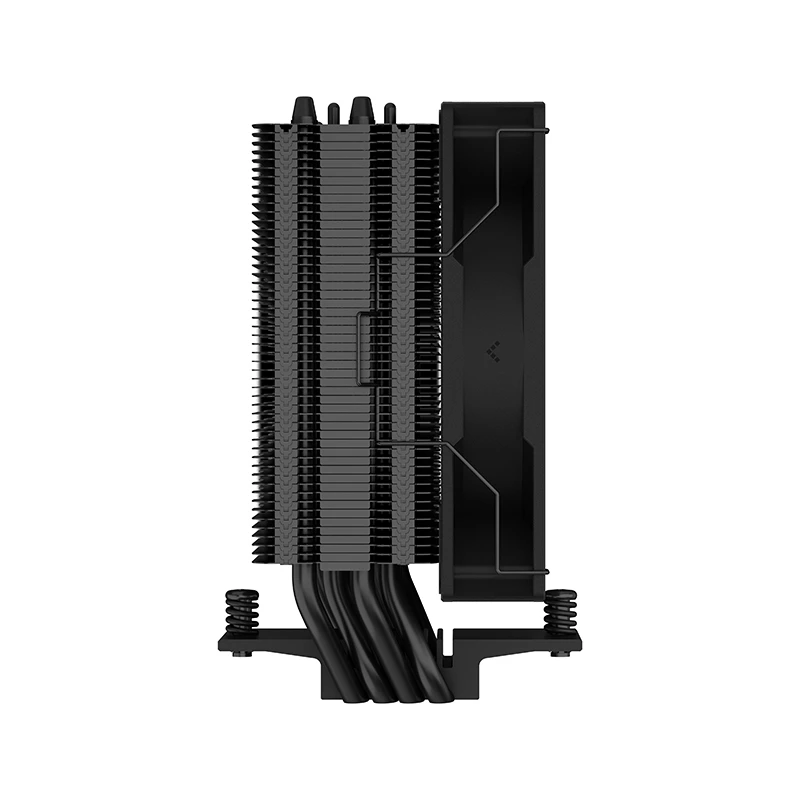

Balanced Bidirectional
Heat Pipe Technology
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.

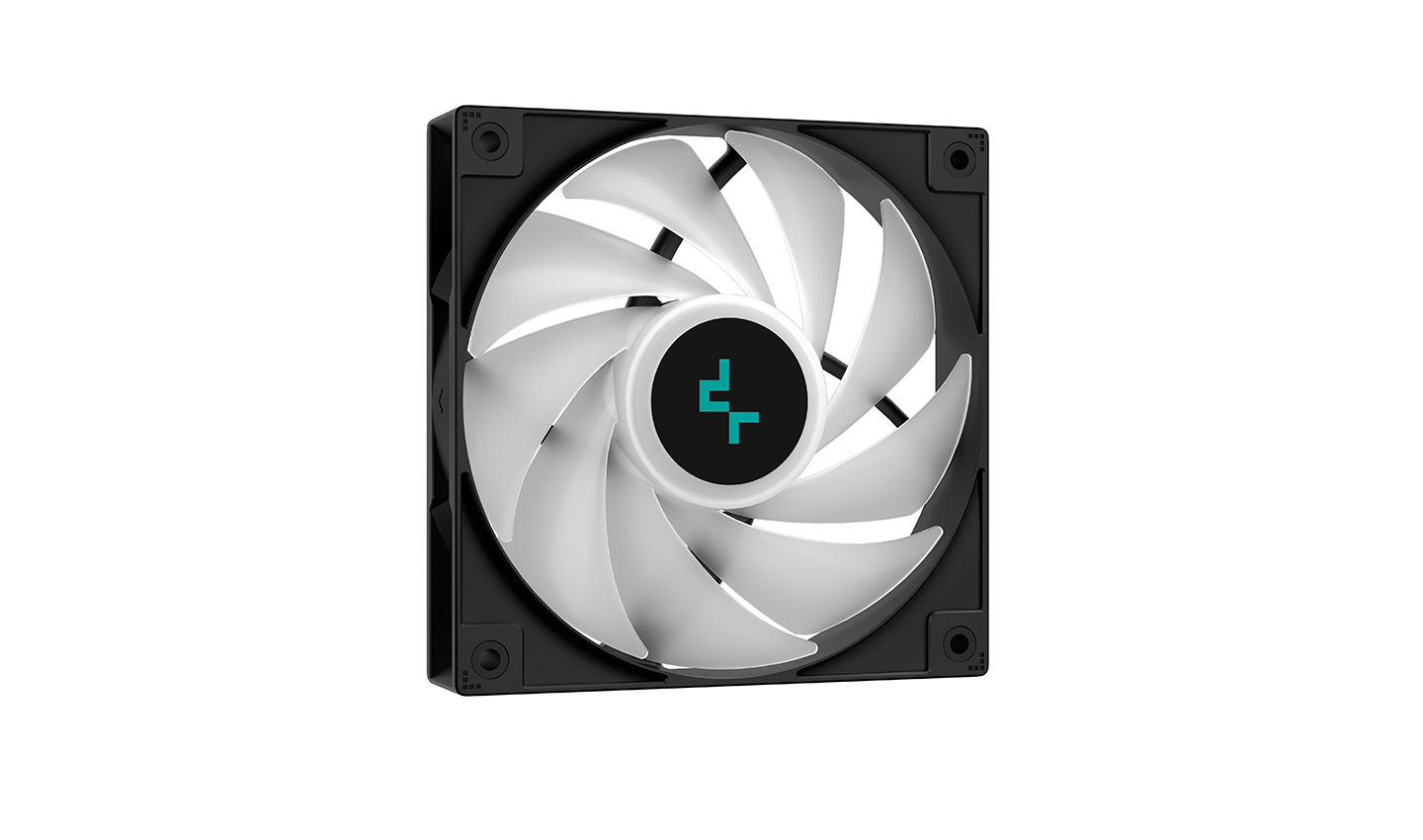

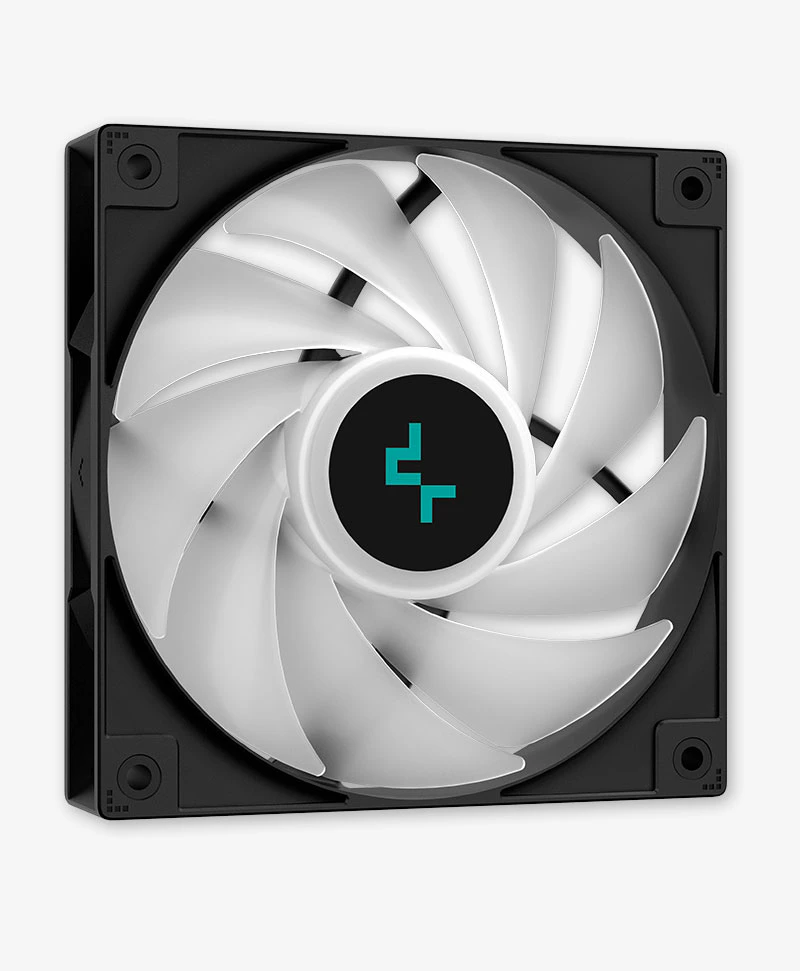

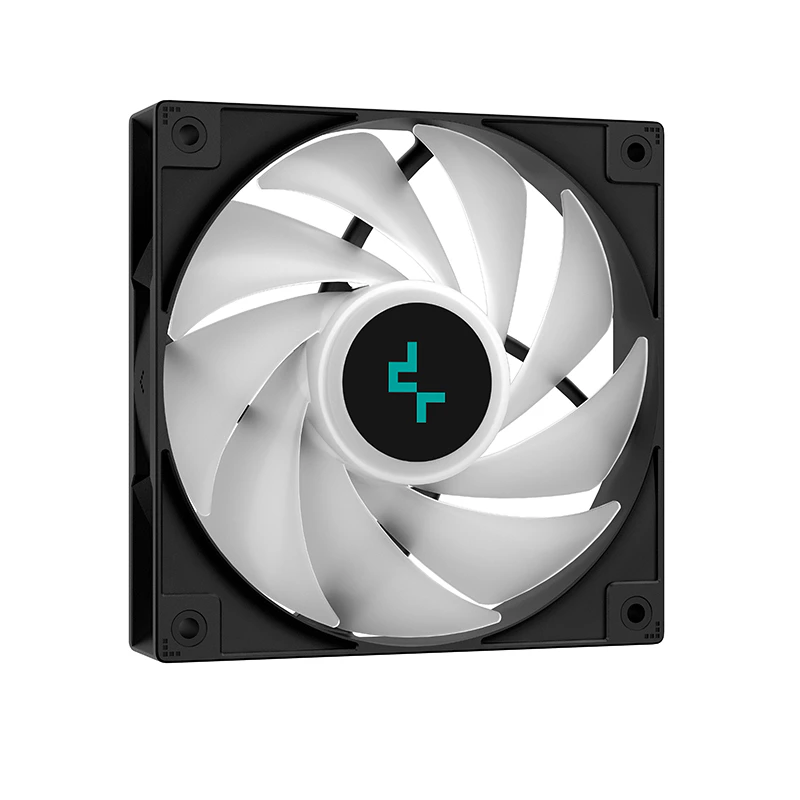

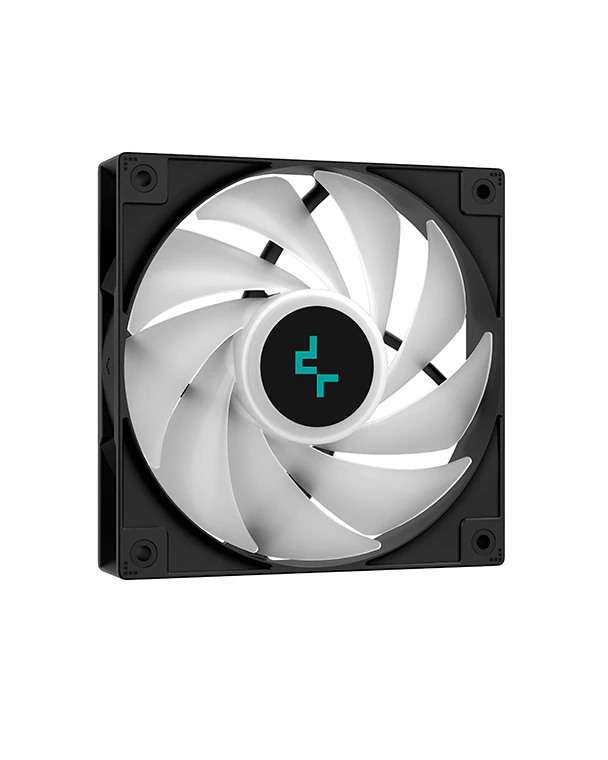

High Efficiency Fans
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.
500-2000 RPM
≤31.6 dB(A)
75.89 CFM

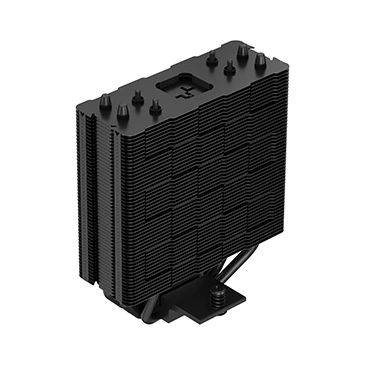

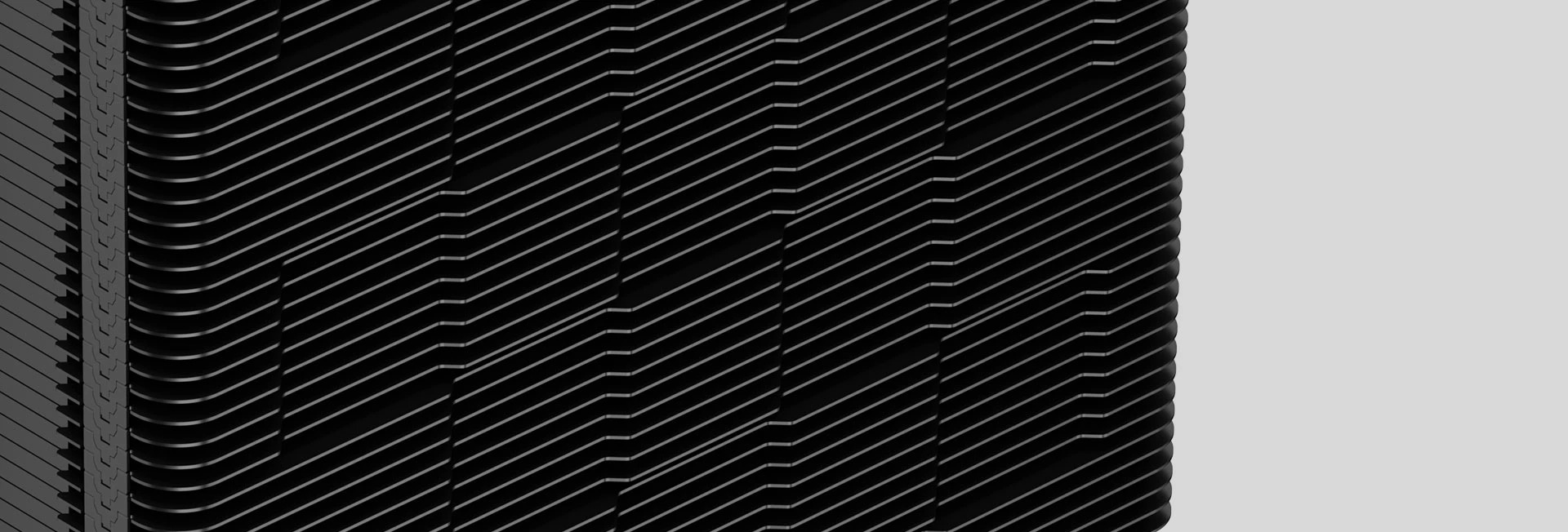

Matrix Fins Array

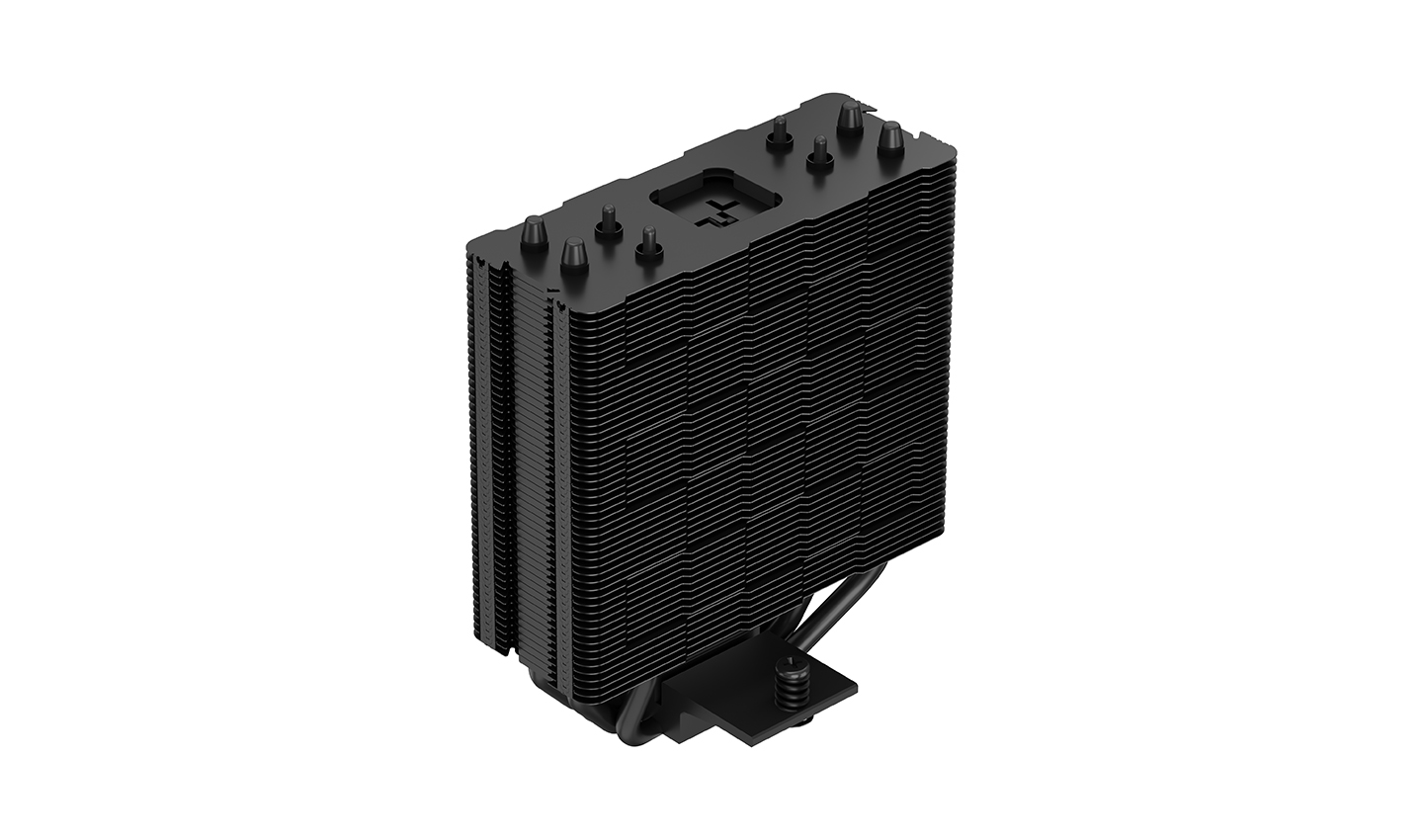

High-quality aluminum fins on the heat sink are densely stacked for ideal heat dissipation and which also features a unique "checkerboard" design aesthetic.

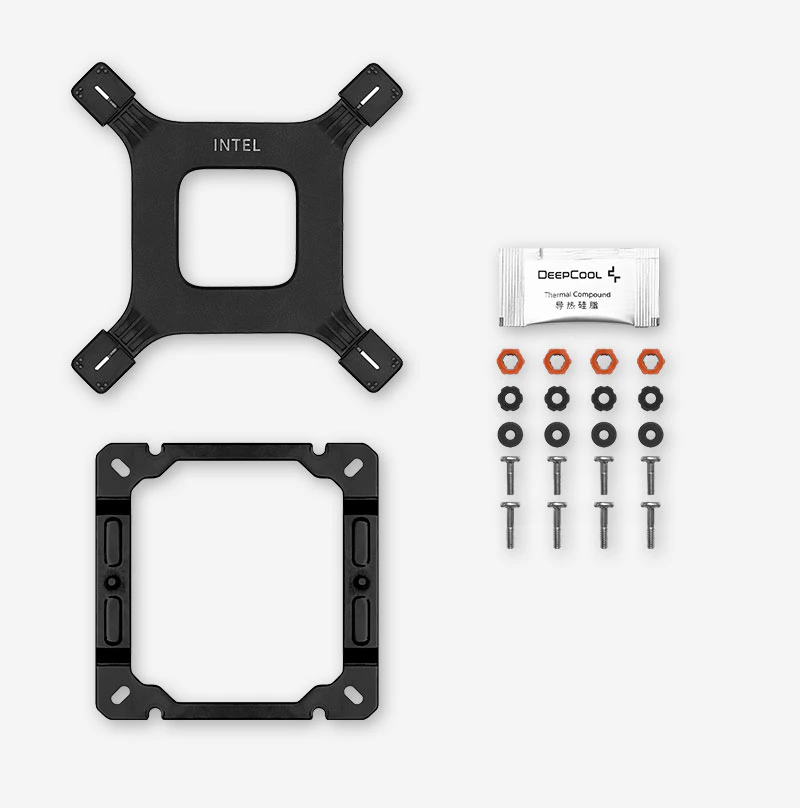

Simple and Secure

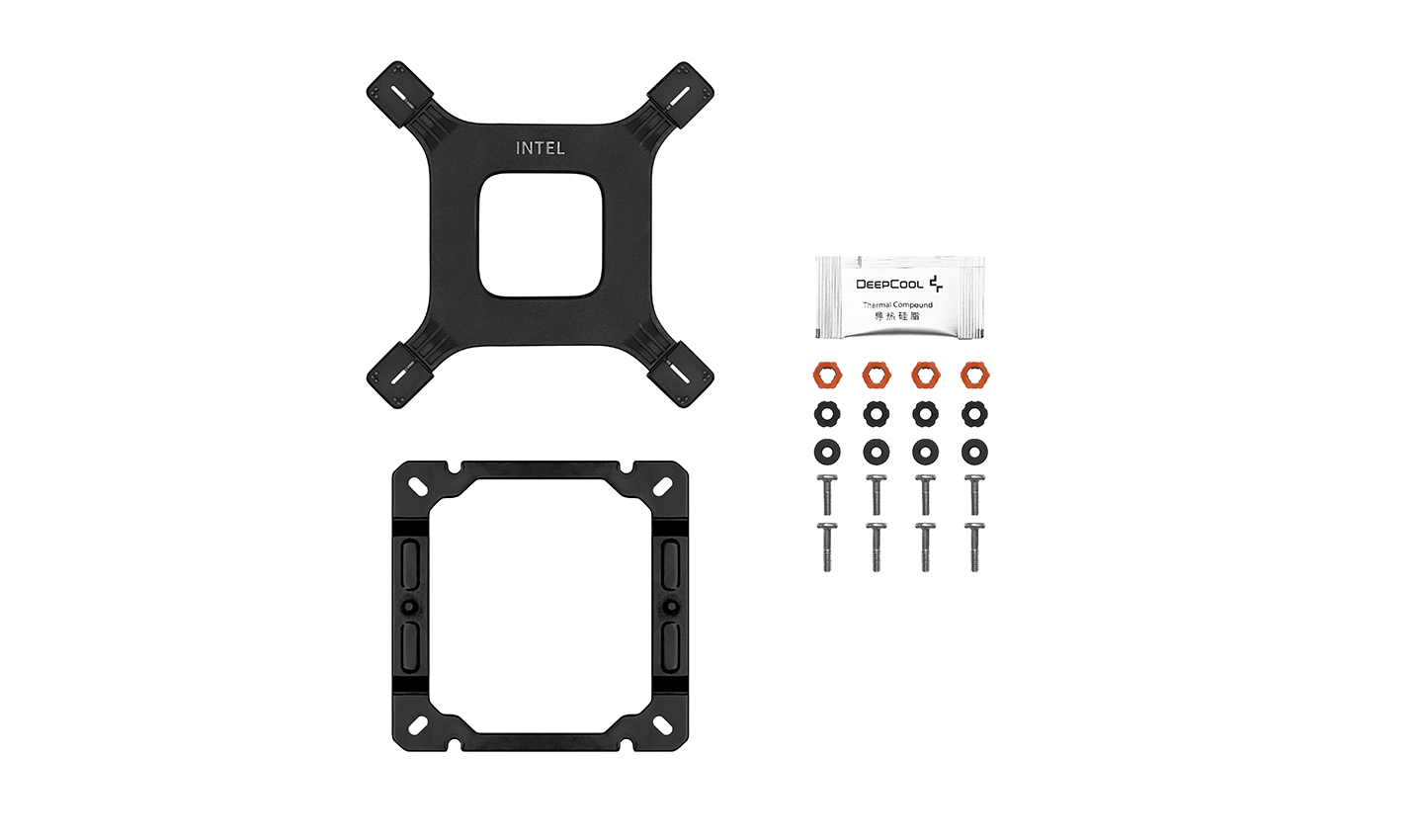

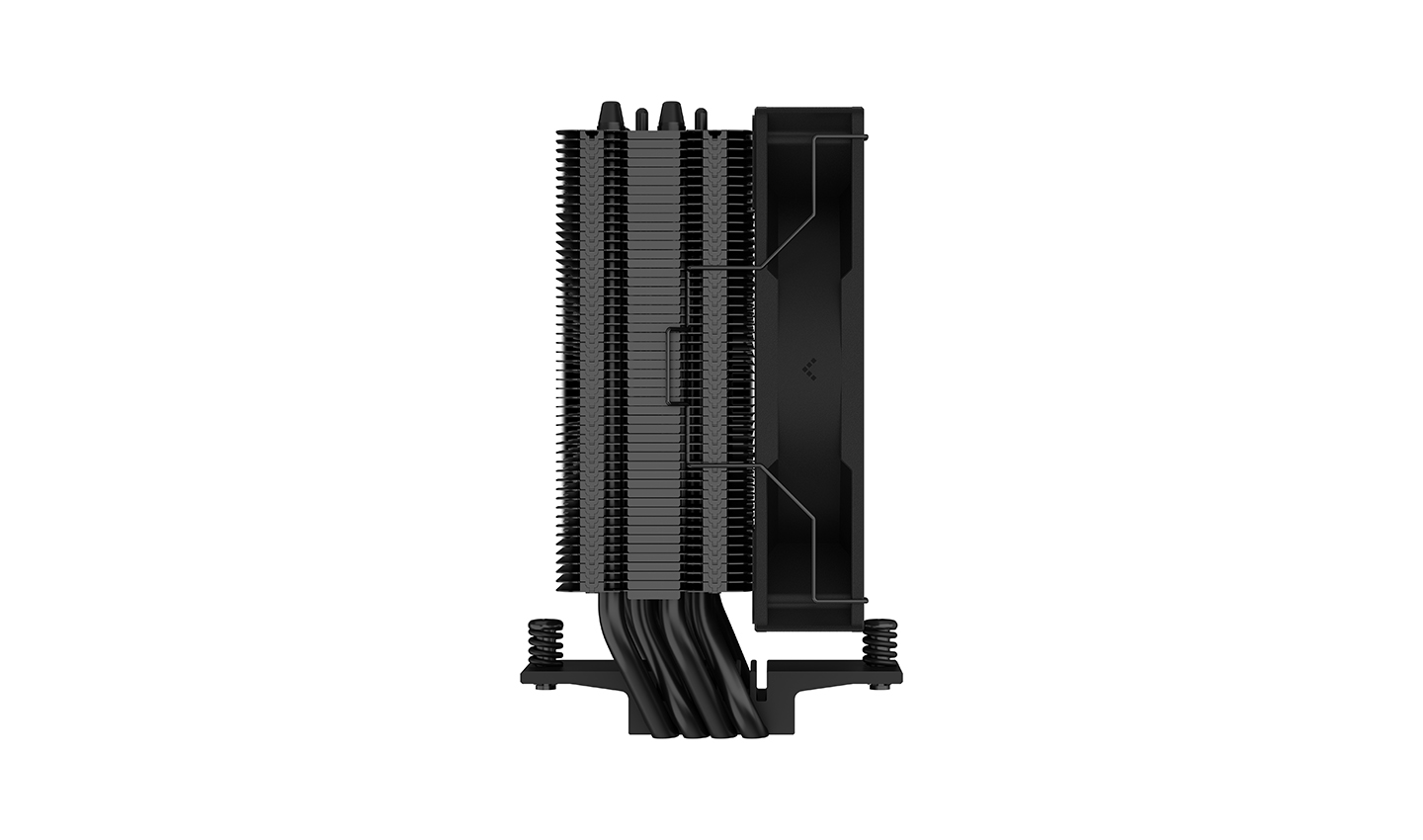

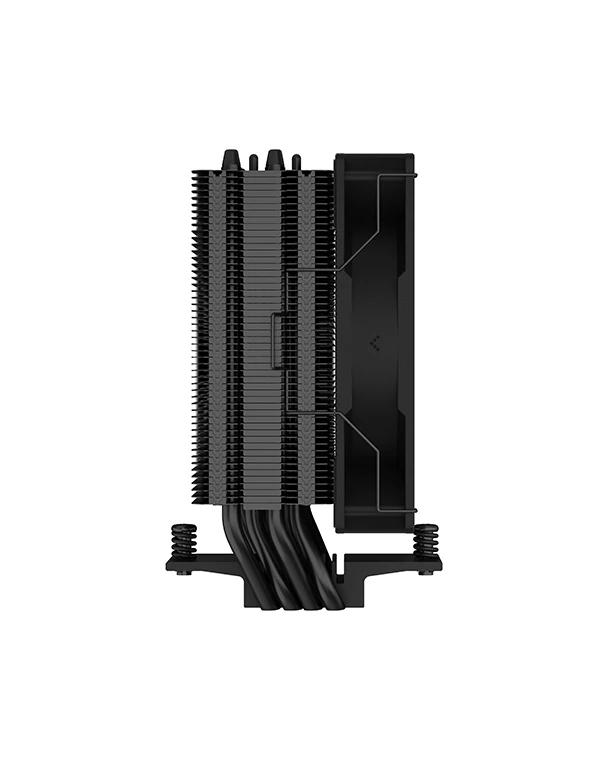

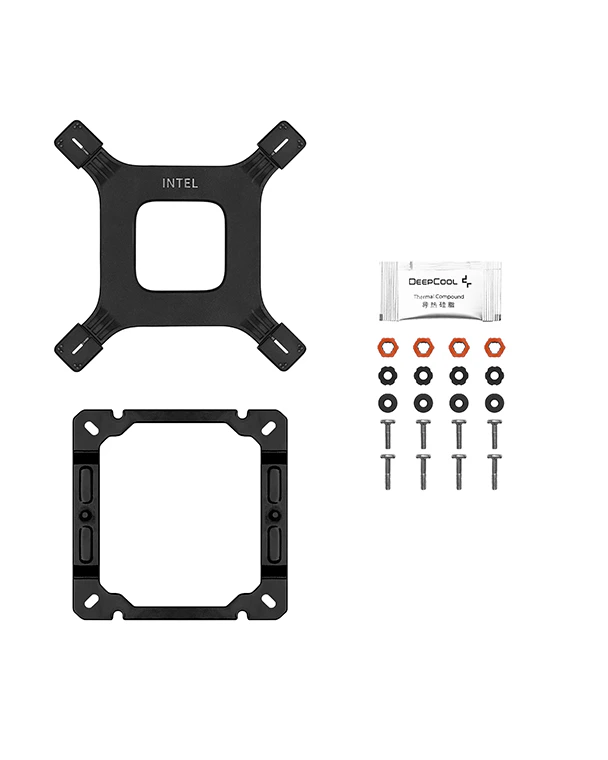

The included mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure. The offset design of the heat pipes ensures that the cooler can be installed with the fan already attached.
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions125×92×150 mm(L×W×H)
Heatsink Dimensions120×92×150 mm(L×W×H)
Net Weight614 g
HeatpipeØ6 mm×4 pcs
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed500~2000 RPM±10%
Fan Airflow75.89 CFM
Fan Air Pressure2.53 mmAq
Fan Noise≤31.6 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.28 A
Fan Power Consumption3.36 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption1.05 W
EAN6933412727774
P/NR-AG400-BKANMC-G-2
Product Dimension
Download
AG400BKARGB Manual.pdf
