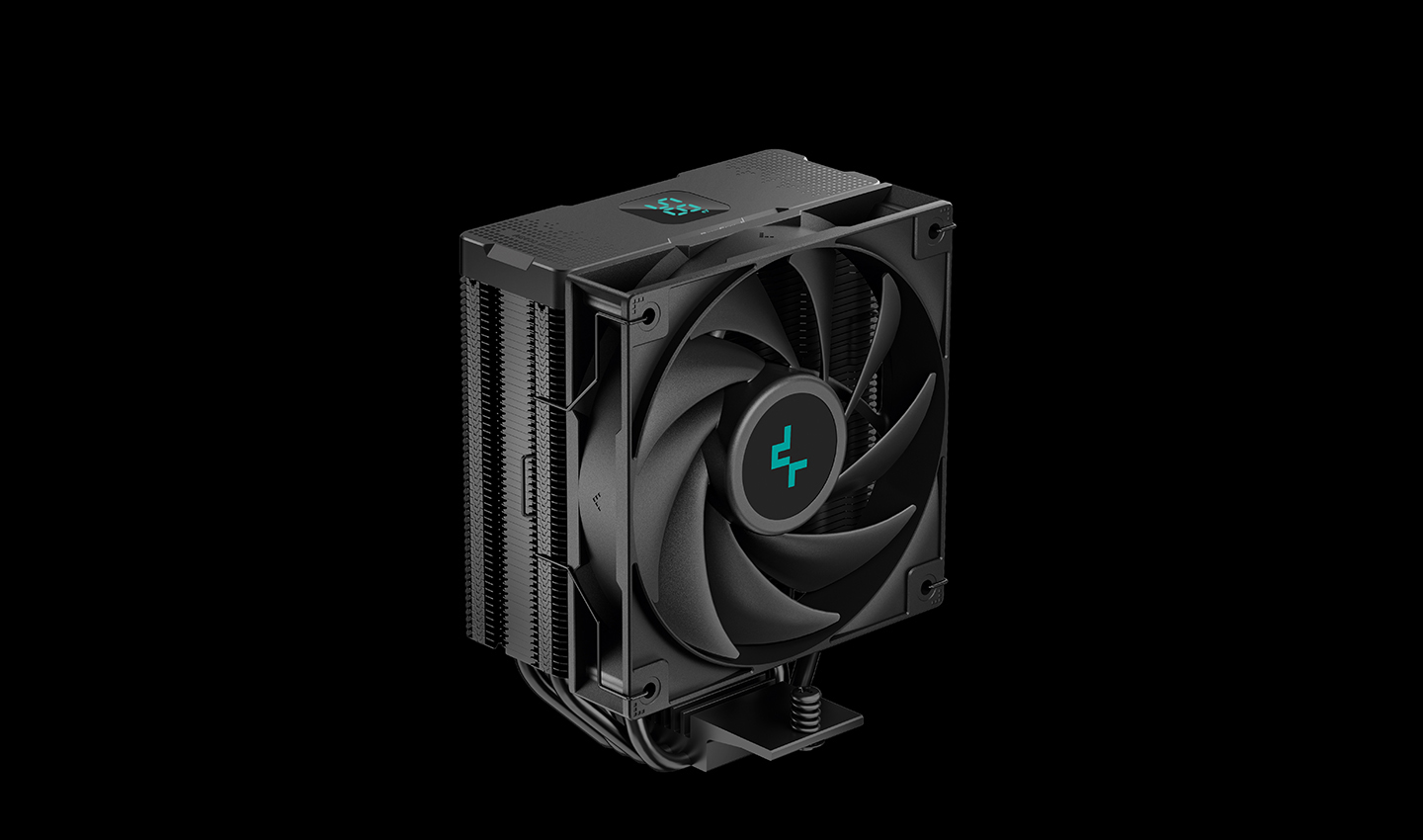

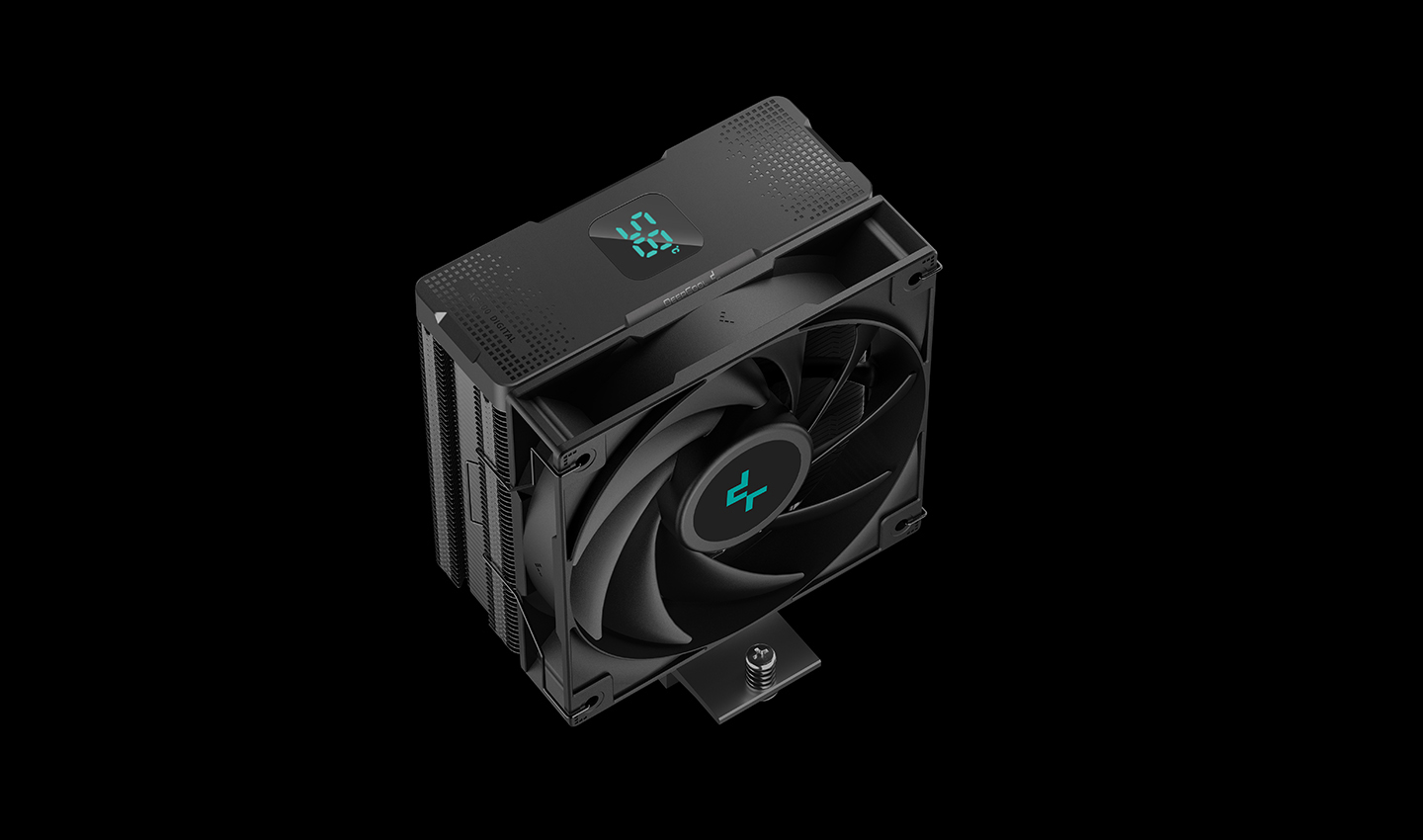

AG400 DIGITAL BK

WELCOME TO THE DIGITAL ERA

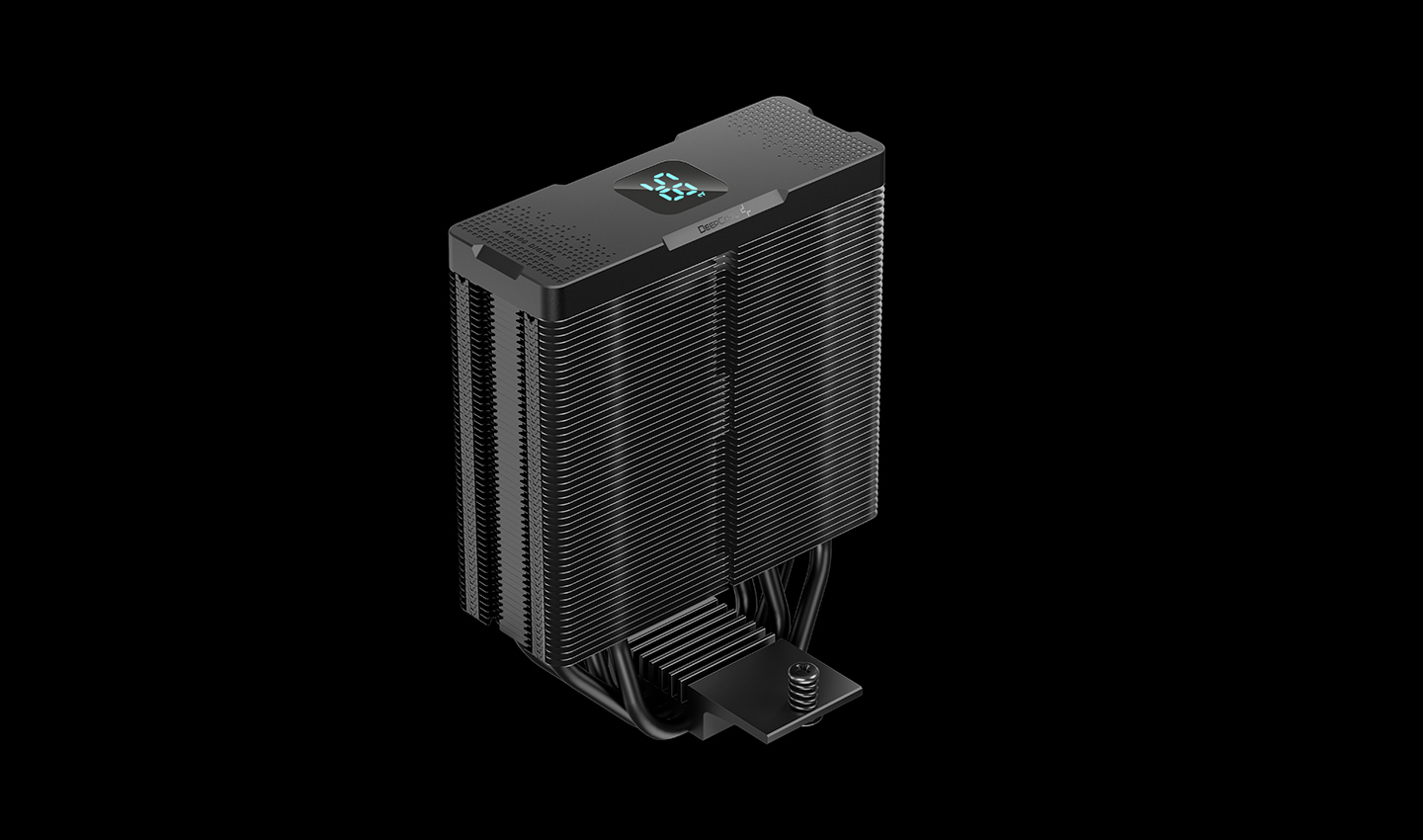

REAL-TIME STATUS SCREEN

The crystal-clear digital screen displays the Celsius and usage of your system's CPU in real time, and with a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.

℃

*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

INSISTENCE OF COST PERFORMANCE

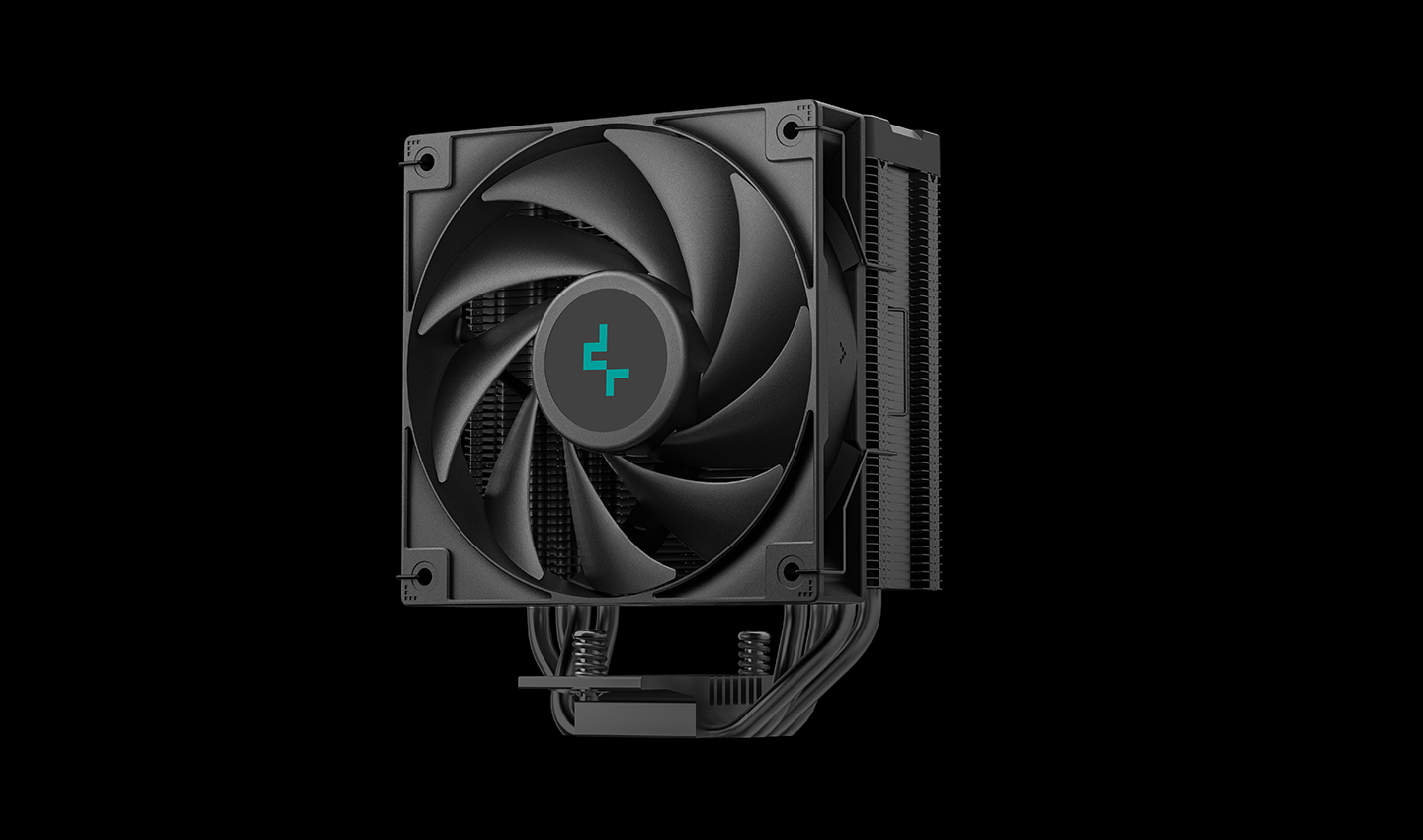

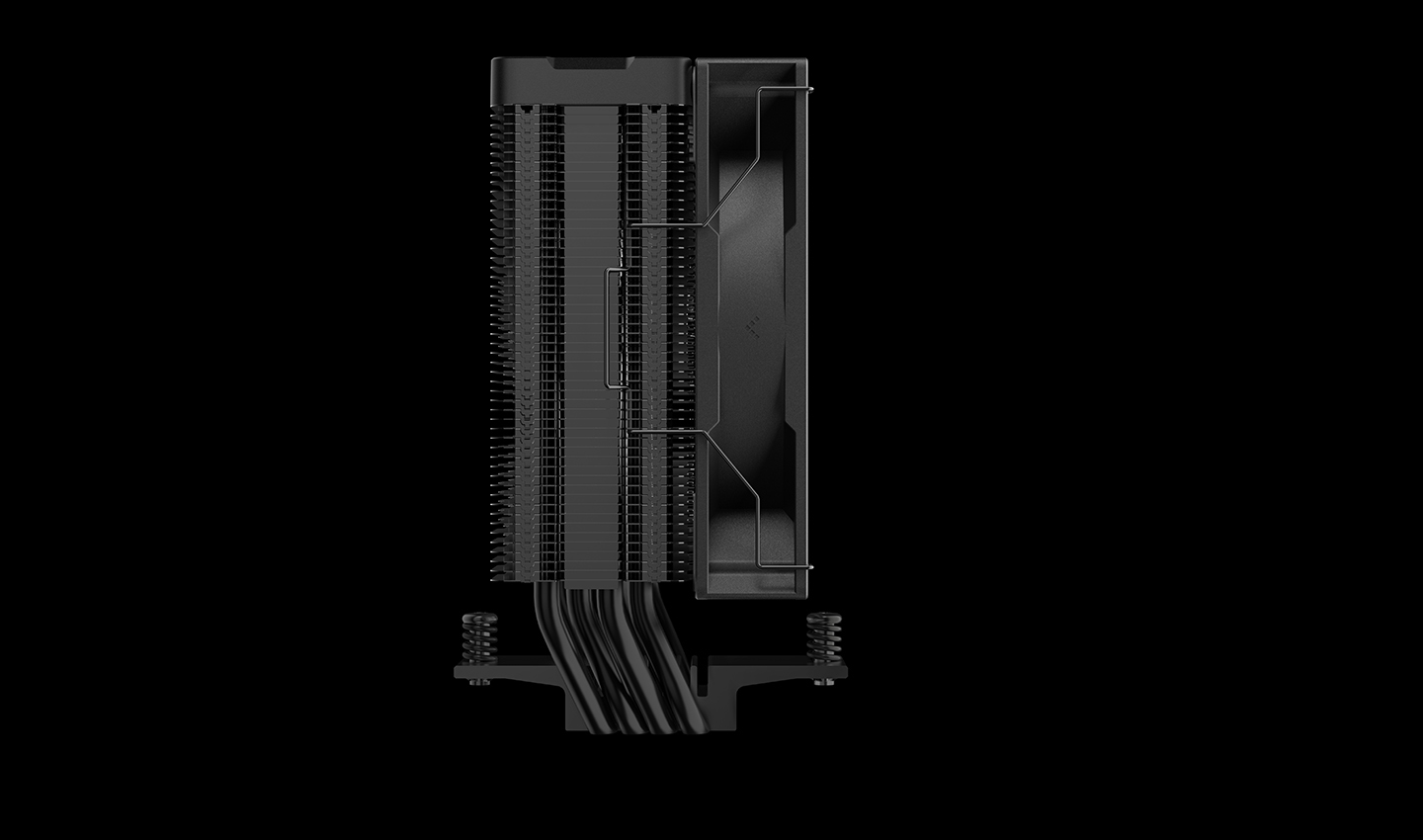

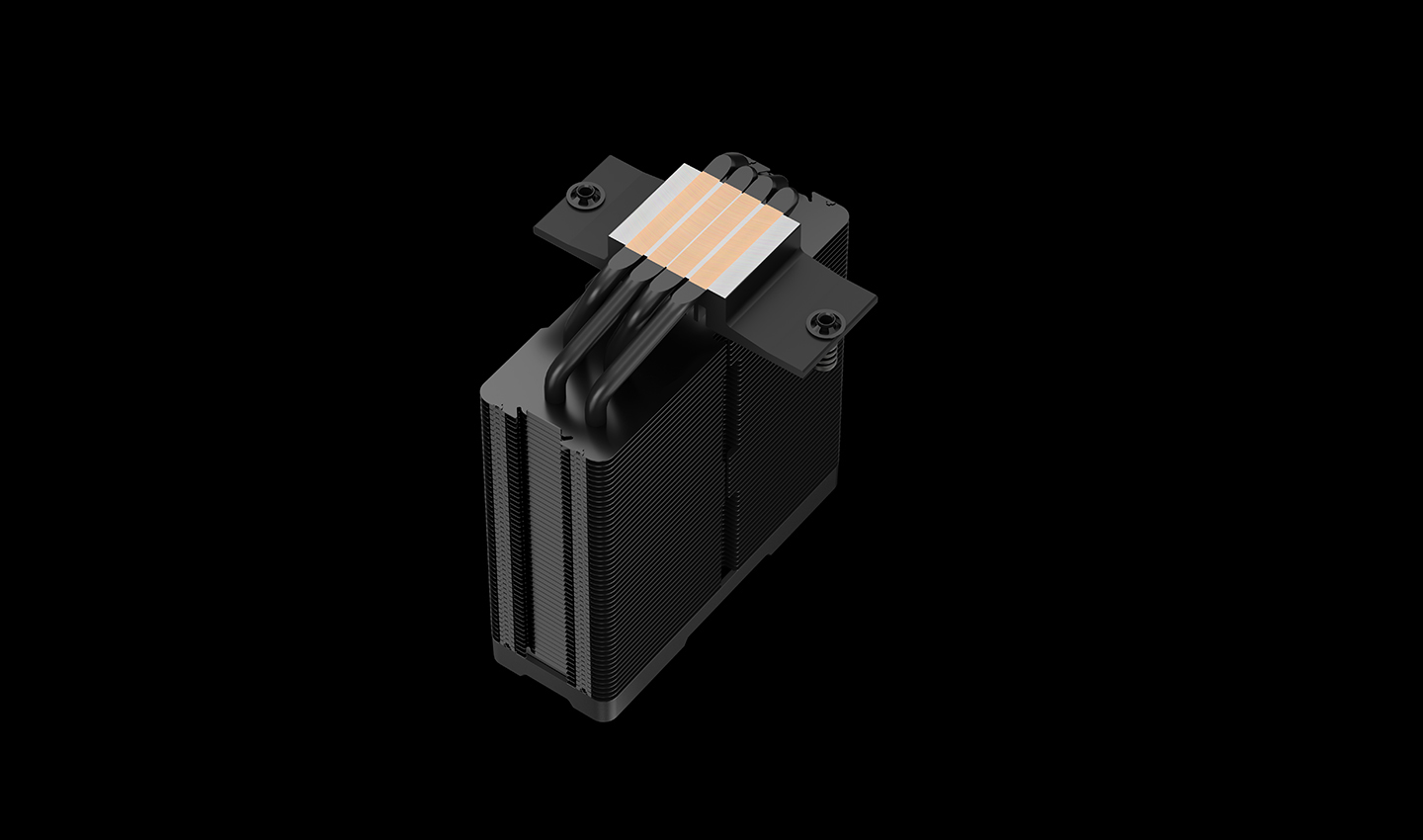

Built with the same premium quality materials, featuring four advanced copper heat pipes, a heatpipes direct touch coldplate, a dense of black coated matrix tower heat sink, and one silent hydro bearing fan, it produces a powerful winning formula for high-performance cooling and provides a digital feature for gamers.

COOL, QUIET,
AND POWERFUL

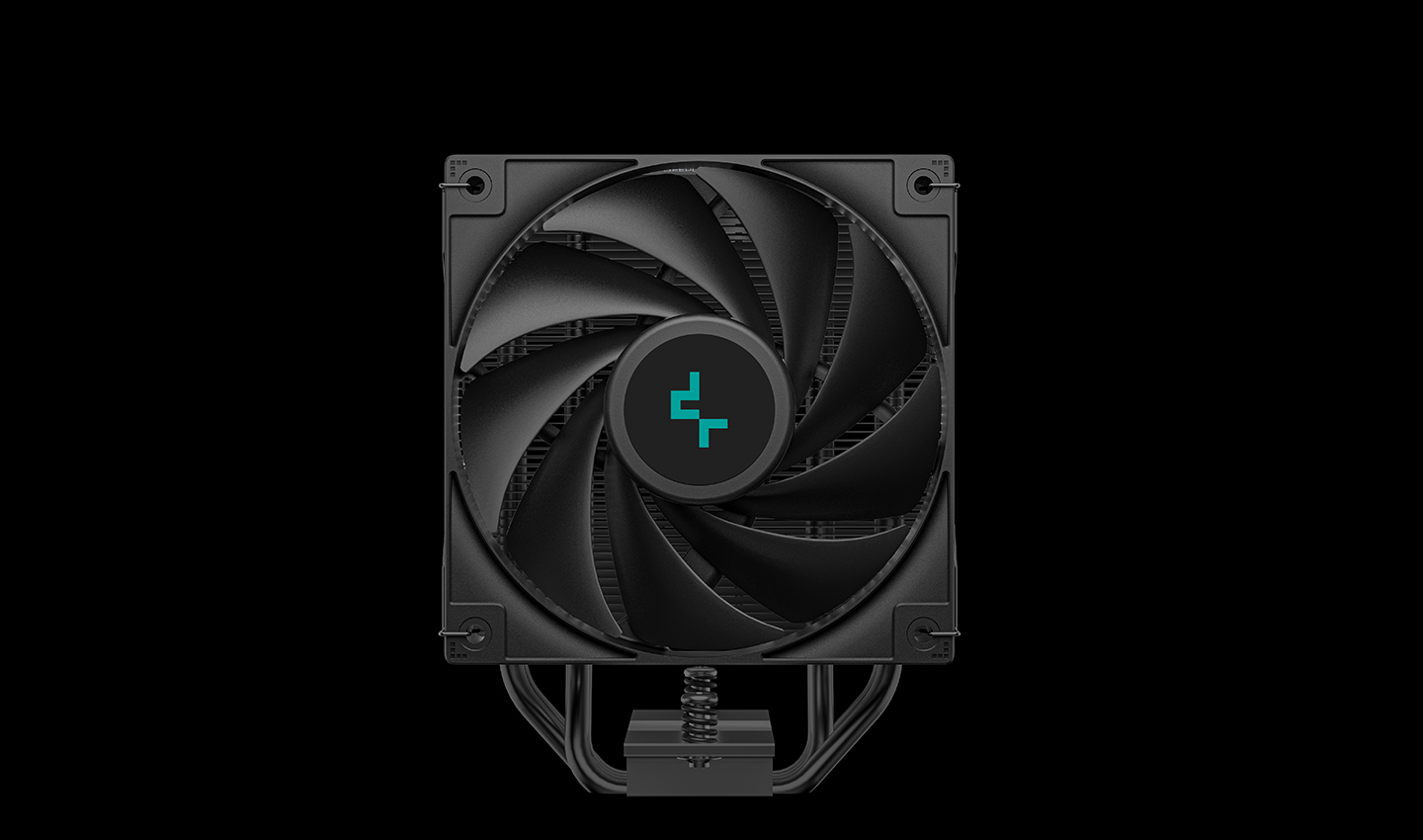

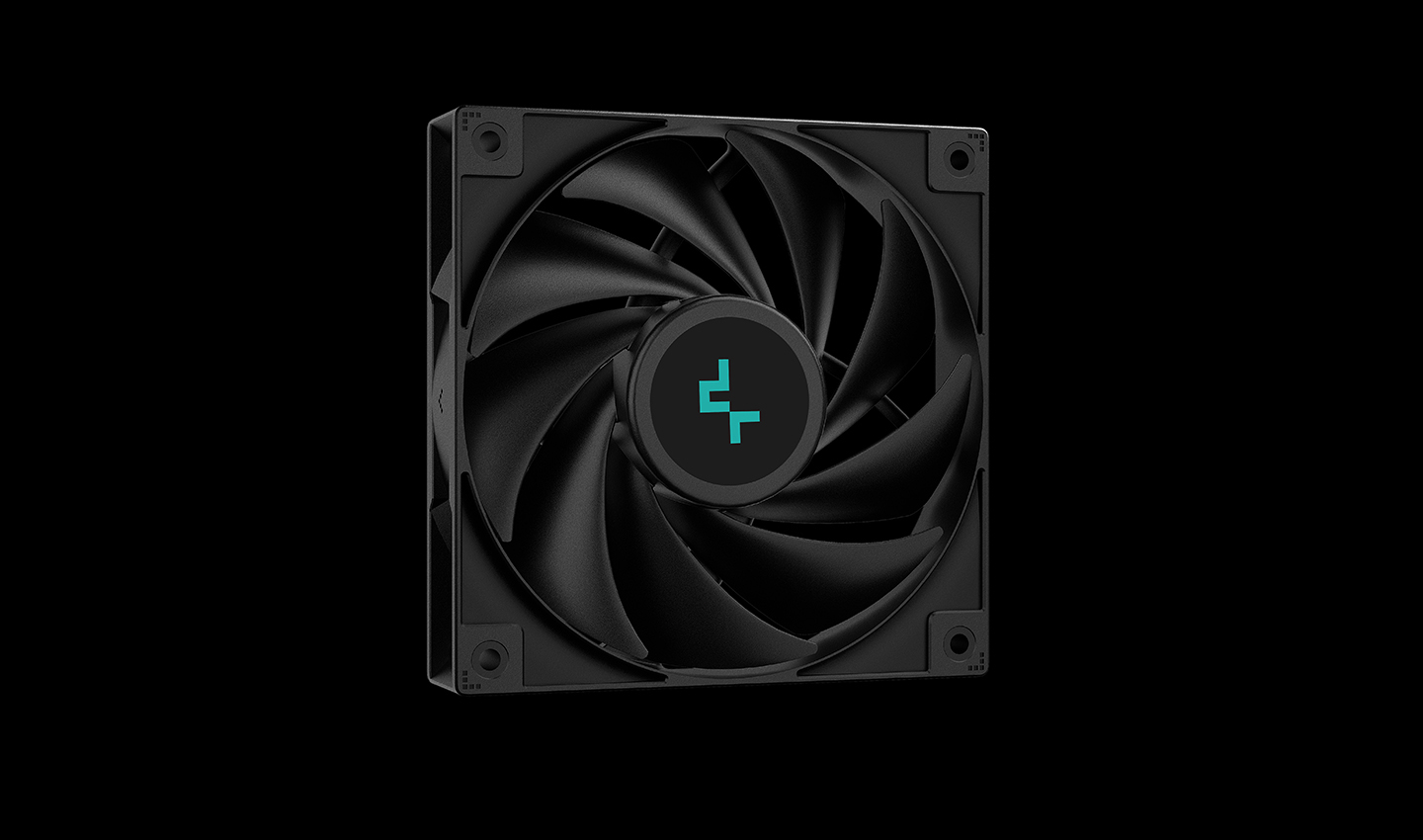

A powerful PWM fan with superior Hydro bearings offers low noise operation without losing cooling output for a perfect balance.

≤31.6 dBA

500-2100 RPM

75.89 CFM

SIMPLE AND SECURE INSTALLATION

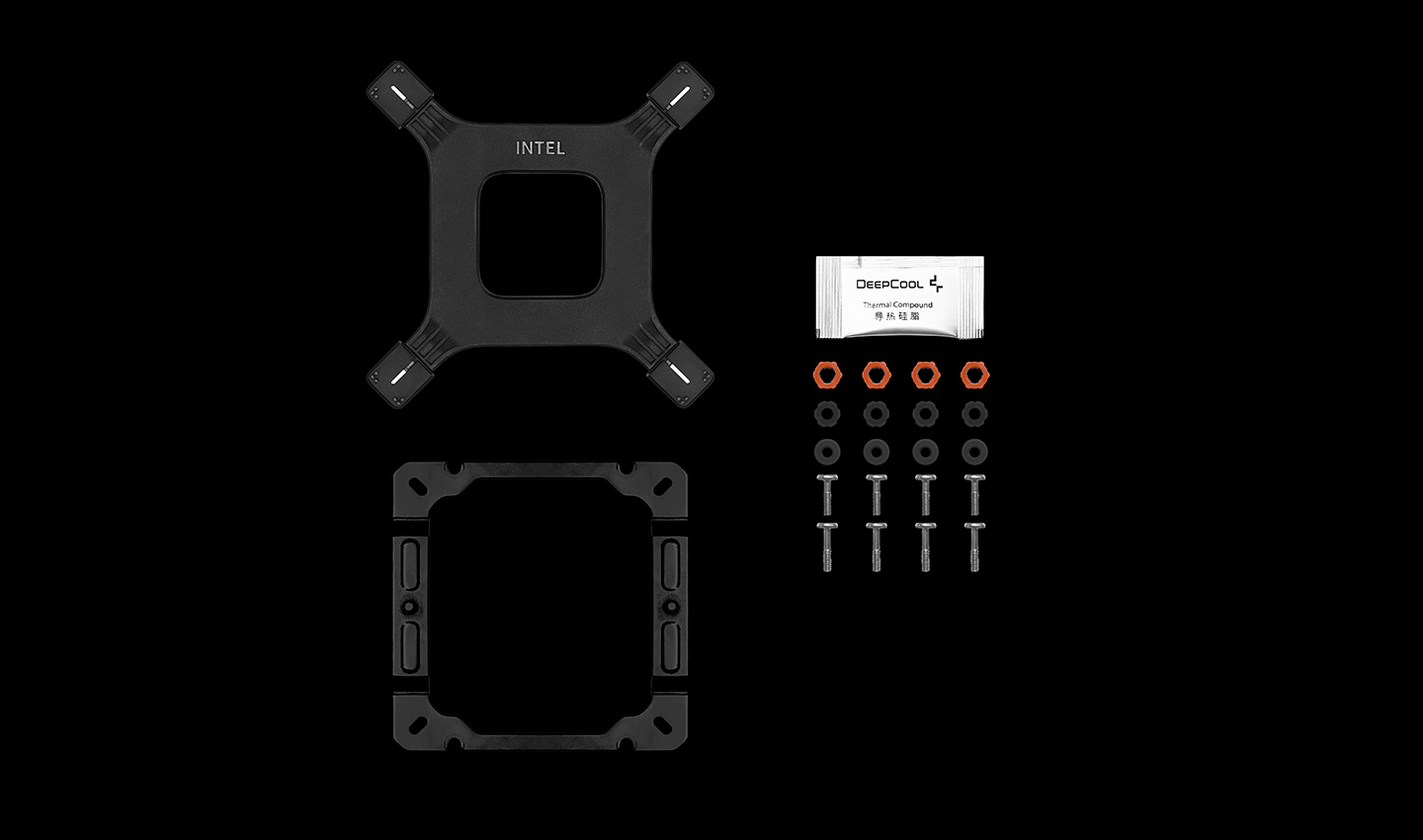

The all-metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.

Application For

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Product Dimensions	125×92×152.7 mm(L×W×H)
Heatsink Dimensions	120×92×150 mm(L×W×H)
Net Weight	636 g
Heatpipe	Ø6 mm×4 pcs
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	500~2100 RPM±10%
Fan Airflow	75.89 CFM
Fan Air Pressure	2.53 mmAq
Fan Noise	≤31.6 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.17 A
Fan Power Consumption	2.04 W
LED Type	LED
LED Connector	9-pin USB 2.0
LED Rated Voltage	5 VDC
LED Power Consumption	0.55 W
EAN	6933412728580
P/N	R-AG400-BKNDMN-G-2

Download

AG400 DIGITAL BK Manual.pdf

Download

DeepCool-DIGITAL Setup

Download
